VLM-MC10 - Wall mount Valueline - Free user manual and instructions
Find the device manual for free VLM-MC10 Valueline in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Wall Mount |
| Brand | Valueline |
| Model | VLM-MC10 |
| Compatible Screen Size | Up to 42 inches |
| VESA Compatibility | 100x100 mm, 200x100 mm, 200x200 mm |
| Weight Capacity | 30 kg (66 lbs) |
| Material | Cold-rolled steel |
| Color | Black |
| Mount Type | Fixed (low profile) |
| Distance from Wall | 20 mm (0.79 inches) |
| Tilt Range | None (fixed) |
| Swivel Range | None (fixed) |
| Level Adjustment | ±3 degrees |
| Dimensions (W x H x D) | 270 x 210 x 20 mm |
| Weight | 1.2 kg (2.65 lbs) |
| Included Hardware | Mounting screws, wall anchors, spacers, user manual |
| Wall Material Compatible | Concrete, brick, wood stud |
| Warranty | 2 years |
| Certifications | TÜV, CE |
| Maintenance | Wipe with dry cloth; avoid solvents |
| Safety Features | Security screws, anti-tip design |
Frequently Asked Questions - VLM-MC10 Valueline
What is the maximum weight this mount can hold?
The Valueline VLM-MC10 wall mount supports up to 30 kg (66 lbs). Always verify your display's weight before installation.
What VESA patterns are compatible?
This mount is compatible with VESA patterns 100x100 mm, 200x100 mm, and 200x200 mm. Check the back of your TV or monitor for the VESA hole pattern.
What tools are needed for installation?

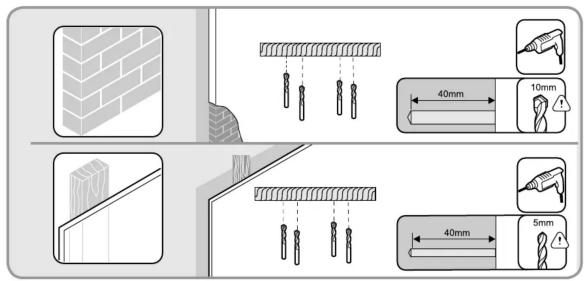

You will need a drill, screwdriver, level, and a stud finder if mounting on drywall. All necessary hardware is included.
Can I mount this on drywall?

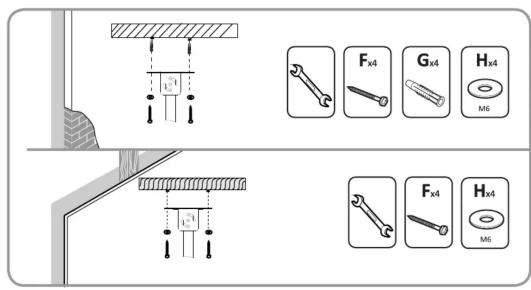

Yes, but you must attach the mount to wood studs behind the drywall. Use a stud finder to locate studs and follow the included instructions for secure installation.
Does the mount tilt or swivel?
No, the VLM-MC10 is a fixed low-profile mount. It does not tilt, swivel, or extend. It keeps the display close to the wall.
How far from the wall does the display sit?
The mount holds the display approximately 20 mm (0.79 inches) from the wall, giving a sleek, flush appearance.
Is the mount easy to install?
Yes, the mount is designed for easy installation. Follow the step-by-step instructions in the manual. We recommend two people for lifting and securing the display.
What materials is the mount made of?
The mount is constructed from cold-rolled steel with a durable black powder-coated finish for strength and corrosion resistance.
Can I use this mount for a monitor or only a TV?
You can use it for both TVs and monitors as long as they meet the VESA and weight requirements. It is versatile for screens up to 42 inches.
What if I lose the mounting screws?
Replacement screw kits are available from Valueline or electronics retailers. Common sizes include M4, M5, M6, and M8. Check your display's manual for the correct size.
