Product Type	Robotic Vacuum Cleaner
Model	SVC 9031RD CLEENO (also available in black SVC 9031BK)
Brand	Sencor
Dimensions	Approximately Ø32 cm × 7.5 cm
Weight	About 2.5 kg
Power Supply	Rechargeable Li-Ion battery, 14.4 V / 2600 mAh
Charging Time	Approximately 4-5 hours
Runtime	Up to 90 minutes on standard mode
Suction Power	2000 Pa (typical for this class)
Dustbin Capacity	300 ml
Filtration	HEPA washable filter
Cleaning Modes	Auto, Spot, Edge, Random, Scheduled
Navigation	Infrared sensors and bumper, random path with cliff detection
Special Features	UV LAXS indicator (UV sterilization lamp), automatic recharging, remote control (included)
Remote Control	Yes, with LCD display
Noise Level	≤ 55 dB
Maintenance	Clean brushes and filter weekly; replace HEPA filter every 3-6 months
Safety	Overcharge protection, drop detection, auto-shutoff if stuck
Spare Parts	Replacement batteries, HEPA filters, side brushes, main brush available
Manual Languages	English, Czech, and other European languages (see manual)

Frequently Asked Questions - SVC 9031RD CLEENO SENCOR

How often should I clean the brushes?

Clean the side brushes and main brush at least once a week. Hair and debris can wrap around them, reducing performance.

What does the UV LAXS indicator mean?

The UV LAXS indicator shows that the UV sterilization lamp is active. It helps kill bacteria and germs on the floor during cleaning.

How do I replace the battery?

Turn off the vacuum, remove the bottom cover (screws may be involved), disconnect the old battery, and install the new one. Refer to the manual's battery replacement section for exact steps.

What should I do if the vacuum gets stuck?

Check for obstacles like cables or low furniture. The vacuum should automatically stop and beep. Remove the obstruction and restart by pressing the power button.

How long does the battery last?

A fully charged battery provides up to 90 minutes of cleaning in standard mode. Actual runtime depends on floor type and suction setting.

Can I schedule cleaning?

Yes, you can set a daily schedule using the remote control. Press the Schedule button and set the desired time.

Why is the vacuum not returning to the charging dock?

Ensure the dock is plugged in and placed against a wall with clear path. The vacuum must be low on battery to auto-return. You can also press the Home button on the remote.

How do I reset the vacuum?

Turn off the vacuum, remove the battery, wait 30 seconds, then reinstall the battery and turn it on. This resets the internal electronics.

What type of filter does it use?

It uses a washable HEPA filter. Rinse with water and let it dry completely before reinserting. Replace every 3-6 months for best performance.

Is the vacuum suitable for pet hair?

Yes, it works well on pet hair. The strong suction and brush roll pick up hair from carpets and hard floors. Clean the brush regularly to prevent tangles.

USER MANUAL SVC 9031RD CLEENO SENCOR

Black circular robotic vacuum cleaner with Sensor CL-ENO® branding and UV LAXS indicator (no readable text beyond branding)

SENCOR®

SVC 9031BK / SVC 9031RD

Line drawing of hands operating a device with a handheld control panel (no text or symbols present)

Technical line drawing showing a robotic arm interacting with a circular device on a curved surface, with no visible text or symbols.

Varování:

Hand holding a pen over a circular mechanical component (no text or symbols visible)

Technical line drawing of a robotic vacuum cleaner with a close-up view of its internal components (no text or symbols)

Varování:

Diagram of a boat hull with a curved roof and side-mounted side panels, showing no text or symbols.

Obr. 8

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Obr. 9

Varování:

Hand holding a mechanical device with a tool, labeled 'Obr. 1' below (no other text or symbols)

Line drawing of a hair dryer with a slide labeled 'Obr. 5' (no other text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to cut or inspect internal components (no text or symbols)

Obr. 1

Technical line drawing of a mechanical component with internal gears and shafts (no text or symbols)

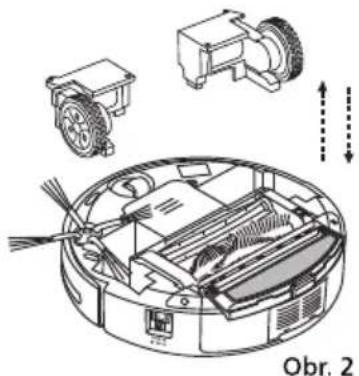

Obr. 2

Diagram showing a hand using a tool to clean or adjust internal components of an electronic device (no text or symbols visible)

Čištění kartáčů

Illustration of a computer monitor with open case and hands inserting a cable (no text or symbols)

Technical diagram of a circular device with internal components and wiring, labeled 'Obr. 1' (no readable text or symbols beyond label)

Technical diagram of a robotic vacuum cleaner with internal components and labeled parts (no readable text or symbols)

Technical line drawings of a robotic vacuum cleaner showing internal components and a close-up view (no text or labels)

5. VÝMĚNA BATERIE

6. ODSTRAŇOVÁNÍ PROBLÉMŮ
