SVC 9020RD CLEENO - Vacuum Cleaner SENCOR - Free user manual and instructions

Product Type	Robotic Vacuum Cleaner
Model Numbers	SVC 9020BK (Black), SVC 9020RD (Red)
Dimensions (Diameter x Height)	Approx. 33 cm x 8 cm
Weight	Approx. 2.5 kg
Battery Type	Lithium-ion, 14.8 V, 2600 mAh
Runtime	Up to 100 minutes
Charging	Auto-return to charging dock
Dustbin Capacity	0.3 L
Suction Power	Adjustable, up to 1800 Pa
Sensors	Cliff sensors, bumper sensors, drop detection
Cleaning Modes	Auto, Spot, Edge, Schedule
Remote Control	Included, with LCD display
Filtration	HEPA filter
Brushes	Side brush (2), main roller brush
Noise Level	≤ 60 dB
Power Supply	100-240 V, 50/60 Hz, adapter included
Power Consumption	≤ 30 W
Maintenance	Clean brushes, replace battery (see manual), troubleshoot
Safety	Low battery indicator, anti-drop and anti-collision sensors
Included Accessories	Charging dock, remote control, side brushes, HEPA filter, cleaning tool

Frequently Asked Questions - SVC 9020RD CLEENO SENCOR

How do I start the robot for the first time?

Place the robot on the charging dock and charge it fully (about 4-5 hours). Then press the Power button on the robot or remote control. The robot will automatically start cleaning in Auto mode.

How do I clean the brushes?

Turn off the robot and remove the dustbin. Use the included cleaning tool to cut away hair tangled on the main roller brush and side brushes. Clean them every 2-3 uses for optimal performance.

How do I replace the battery?

The battery is located underneath the robot. Unscrew the battery compartment cover (refer to manual Section 5), disconnect the old battery, and connect a new 14.8V Li-ion battery. Reassemble and dispose of the old battery properly.

What should I do if the robot gets stuck?

First, press the Pause button on the robot or remote. Remove any obstacles around the robot. Check if the cliff sensors are dirty; wipe them with a dry cloth. If stuck on a rug, the robot may need a virtual wall to avoid that area.

How do I set a cleaning schedule?

Use the remote control to set the current time. Then press the Schedule button, use the arrows to set the desired time, and press OK. The robot will start daily at that time in Auto mode.

Why is the robot not returning to its dock?

Ensure the docking station is plugged in and placed against a wall with clear space on both sides. Clean the charging contacts on both the robot and dock. The robot may have difficulty if the battery is very low; manually carry it to the dock.

How often should I empty the dustbin?

Empty the dustbin after each cleaning cycle or when the dustbin full indicator lights up. Press the dustbin release button, remove the bin, open the lid, and dispose of the contents. Rinse the HEPA filter monthly.

Can the robot clean on carpets?

Yes, the robot can clean low-pile carpets. It automatically increases suction power on carpets. For high-pile carpets, the robot may get stuck; it is recommended to use Spot mode on such areas.

What does the remote control do?

The remote control allows you to manually drive the robot, select cleaning modes (Auto, Spot, Edge), set schedules, and control direction. It also has a Clean button to start or pause cleaning.

How do I troubleshoot if the robot does not start?

Check if the battery is charged (the Power indicator should be lit). Ensure the main power switch on the robot is ON. If still not working, try resetting by pressing the Reset button (pin hole) with a paperclip (refer to manual Section 6).

USER MANUAL SVC 9020RD CLEENO SENCOR

Black circular robotic vacuum cleaner with control buttons and brand logo (no visible text or symbols on body)

SENCOR®

SVC 9020BK / SVC 9020RD

Line drawing of a robotic vacuum cleaner and its handheld remote control device (no text or symbols)

Varování:

Obr. 3

Obr. 5

Simple line drawing of an oval shape with radial lines and a central square labeled 'CPU', no text or symbols present.

Obr. 6

Line drawing of a remote control device and a circular vacuum cleaner (no text or symbols)

Varování:

Diagram of a boat hull with side-mounted hull and side-mounted side-mounted hull, showing structural details (no text or symbols)

Obr. 8

Line drawing of a hand holding a circular device with a handle and buttons (no text or symbols)

Obr. 1

Simple line drawing of a helmet with a curved handle and arrow indicating direction (no text or symbols)

Obr. 2

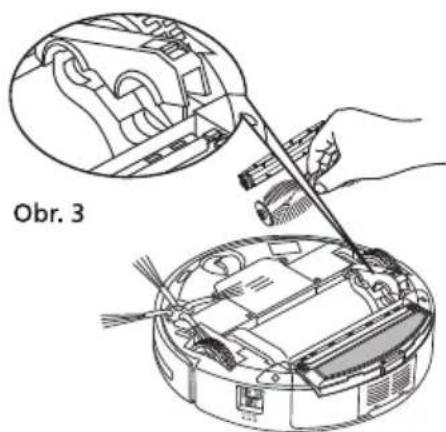

Obr. 3

Illustration of two hands holding a small electronic device with a circular component (no text or symbols visible)

Obr. 4

Obr. 5

Hand inserting a device into a device with a dashed arrow indicating insertion (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and dashed arrows indicating motion (no text or symbols)

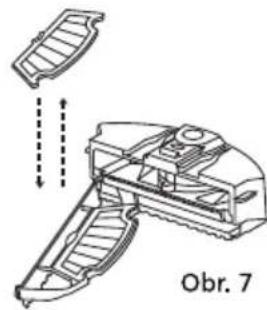

Varování:

Hand holding a mechanical device with a tool, labeled 'Obr. 1' below (no other text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Line drawing of a hair dryer with a slide labeled 'Obr. 5' (no other text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to cut or adjust a mechanical component (no text or symbols present)

Obr. 1

Technical line drawing of a mechanical component with hands and gears (no text or symbols)

Obr. 2

Diagram of a robotic vacuum cleaner with hands operating the blade and inspecting internal components (no text or symbols)

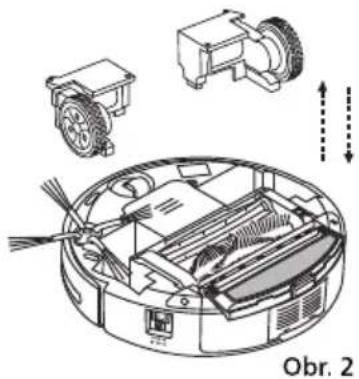

Čištění kartáčů

Diagram of a device's internal components being handled by hands, showing no text or symbols

Technical diagram of a circular device with internal components and arrows indicating assembly or flow (no text labels)

Technical diagram of a robotic device with internal components and external housing (no text or symbols)

Technical line drawings of a robotic vacuum cleaner with internal components and a close-up view showing the handle (no text or symbols present)

5. VÝMĚNA BATERIE

6. ODSTRAŇOVÁNÍ PROBLÉMŮ
