Product Type	AC Current Clamp
Measurement Range	0 A to 2000 A AC
Output Signal	1 mV/A
Frequency Range	50 Hz to 60 Hz
Accuracy	±(1.5% of reading + 0.5 A)
Safety Rating	CAT III 600 V
Maximum Conductor Size	30 mm diameter
Cable Length	1.5 m
Output Connector	Banana plugs (4 mm)
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +60 °C
Humidity	0% to 85% non-condensing
Dimensions (L x W x H)	200 mm x 80 mm x 35 mm
Weight	200 g
Power Supply	None (passive)
Cleaning	Wipe with a damp cloth; no solvents
Maintenance	For professional use; no user-serviceable parts
Spare Parts	Contact Fluke service center
Repairability	Repair only by authorized personnel

Frequently Asked Questions - 2000ACC FLUKE

What is the Fluke 2000ACC used for?

The Fluke 2000ACC is an AC current clamp accessory that measures currents up to 2000 A AC. It converts the current to a 1 mV/A voltage signal for measurement with a multimeter.

Can the 2000ACC be used with any multimeter?

Yes, it outputs a standard 1 mV/A signal via banana plugs, so it works with any multimeter that accepts AC voltage input. Ensure the multimeter's input impedance is ≥ 1 MΩ for accuracy.

Does the 2000ACC measure AC or DC?

It measures AC current only. For DC current, choose a different clamp (e.g., Fluke i400s).

What is the maximum conductor size?

The clamp jaw opens to 30 mm, suitable for cables up to about 300 MCM (150 mm²).

How do I clean the 2000ACC?

Use a damp cloth with mild soap and water. Do not use solvents or abrasives. Ensure the clamp is dry before use.

Is the 2000ACC safety rated?

Yes, it is rated CAT III 600 V, meaning it can be used on distribution circuits up to 600 V to ground. Always follow safety rules.

What is the frequency range?

It is designed for 50/60 Hz line frequencies. For higher frequencies (e.g., 400 Hz), accuracy may degrade.

Can I use the 2000ACC for power measurement?

Yes, in combination with a voltage measurement. Multiply the output voltage (mV) by the current range factor (1 A/mV) to get current, then calculate power.

Does the clamp need batteries?

No, it is a passive device and requires no power. It is purely a current transformer.

Where can I find the manual?

The manual is available for free download on notice-facile.com in PDF format. Search for 'Fluke 2000ACC'.

USER MANUAL 2000ACC FLUKE

Fluke Corporation operates worldwide. For local contact information, go to our website: www.fluke.com

To register your product, or to view, print, or download the latest manual or manual supplement, go to our website: www.fluke.com/productinfo

Fluke Corporation

Fluke Europe B.V.

P.O. Box 9090

P.O. Box 1186

Everett WA 98206-9090

5602 BD Eindhoven

U.S.A.

The Netherlands

[phone] [e-mail]

Safety Information

A Warning identifies hazardous conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test.

Warning

To prevent possible electrical shock, fire, or personal injury:

• Read all safety information before you use the Product.
• Use the Product only as specified, or the protection supplied by the Product can be compromised.

• Carefully read all instructions.

• Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and flame-resistant clothes) to prevent shock and arc blast injury where hazardous live conductors are exposed.

• Use Product-approved measurement category (CAT), voltage, and amperage rated accessories (probes, test leads, and adapters) for all measurements.
• Do not touch voltages >30 V ac rms, 42 V ac peak, or 60 V dc.
• Do not use the Product around explosive gas, vapor, or in damp or wet environments.
• Do not exceed the Measurement Category (CAT) rating of the lowest rated individual component of a Product, probe, or accessory.
• Do not use test leads if they are damaged. Examine the test leads for damaged insulation, exposed metal, or if the wear indicator (if present) shows. Check test lead continuity.
• Keep fingers behind the finger guards on the probes.
• Do not use in CAT III or CAT IV environments without the protective cap (if included with the Product) installed on test probe. The protective cap decreases the exposed probe metal to <4 mm. This decreases the possibility of arc flash from short circuits.

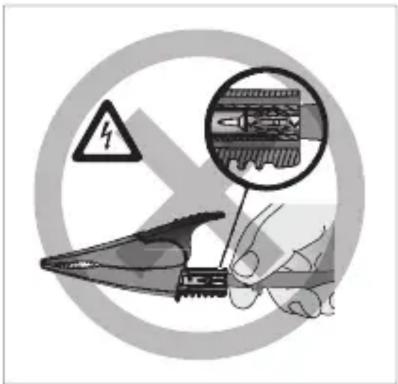

• Do not use a shrouded banana jack accessory such as an alligator clip with an unshrouded 4 mm banana probe tip terminal in a hazardous electrical installation. Due to the lack of a shroud, the probe tip connector does not provide suitable insulation to accessible parts with this type of assembly.

Symbols

The table below lists the symbols that can be used on the Product or in this document.

Symbol Description
	Consult user documentation.
	WARNING. RISK OF DANGER.
	WARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
	Double insulated
CAT II	Measurement Category II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation.
CAT III	Measurement Category III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage MAINS installation.
CAT IV	Measurement Category IV is applicable to test and measuring circuits connected at the source of the building's low-voltage MAINS installation.
CE	Conforms to European Union directives.

Maintenance

Clean with a soft towel moistened with water and mild detergent. DO NOT IMMERSE in liquid.

Electrical Specifications

Refer to markings on probe assembly and accessories for voltage and current specifications. If no CAT rating is marked, by default ratings are 30 V ac rms, 42 V ac peak or 60 V dc, 8 A. Probe tips with >19 mm (0.75 in) exposed metal are rated 30 Vac, 60 V dc, ≤8 A.

Environmental Specifications

Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Relative humidity	0 % to 95 %, 0 °C to 35 °C(32 °F to 95 °F)
Altitude 2000 m
Safety IEC 61010-03	1: Pollution Degree 2

LIMITED WARRANTY

This Fluke product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Fluke's behalf. To obtain service during the warranty period, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that Service Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.
