| Product Type | Handheld 2D Barcode Scanner |
| Dimensions | Approx. 165 x 80 x 95 mm (estimate) |
| Weight | Approx. 280 g (estimate) |
| Power Supply | Rechargeable lithium-ion battery, 5V USB charging |
| Main Functions | Reads 1D and 2D barcodes; Bluetooth HID, BLE, and 2.4G dongle modes; USB HID Keyboard, CDC, HID POS interfaces; Batch mode for offline storage; Customizable prefixes/suffixes; Multiple scan modes (Level, Trigger, Sense, Continuous, Pulse, Batch); Programmable beep/vibration; Data formatting |
| Maintenance and Cleaning | Clean the scan window with a soft, dry cloth. Do not use harsh chemicals or water. |
| Safety | Do not disassemble the device or remove the seal label; doing so voids warranty. Avoid exposure to extreme temperatures or liquids. |
| Spare Parts and Repairability | Battery replacement should be performed by an authorized service center. No user-serviceable parts inside. |
| General Information | Manufacturer: Newland Europe BV, Rolweg 25, 4104 AV Culemborg, The Netherlands. Web: www.newland-id.com. Model: BS20. |
Frequently Asked Questions - WD4-BS20 Newland
User questions about WD4-BS20 Newland
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual WD4-BS20 - Newland and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WD4-BS20 by Newland.
USER MANUAL WD4-BS20 Newland
RING SCANNER
Nwear
Disclaimer
© 2023 Newland Europe BV. All rights reserved.
Please read the manual carefully before using the product and operate it according to the manual. It is advised that you keep this manual for future reference.
Do not disassemble the device or remove the seal label from the device; doing so will void the product warranty provided by Newland Europe BV.
All pictures in this manual are for reference only, and the actual product may differ.
Regarding product modification and update, Newland Europe BV reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.
The products depicted in this manual may include software copyrighted by Newland Europe BV or a third party. The user, corporation or individual shall not duplicate, in whole or in part, distribute, modify, decompile, disassemble, decode, reverse engineer, rent, transfer, or sublicense such software without prior written consent from the copyright holders.
This manual is copyrighted. No part of this publication may be reproduced, distributed, or used in any form without Newland Europe BV's written permission.
Risk Warning Regarding Unauthorized System Updates:
You should use the Newland-provided tool to update this product's system. Modifying system files by installing a third-party ROM system or using any cracking method may result in product malfunction or data loss and void your warranty.
Newland Europe BV reserves the right to make a final interpretation of the statement above.
Newland Europe BV
Rolweg 25, 4104 AV, Culemborg,
The Netherlands
www.newland-id.com
Newland Europe BV is a subsidiary of Newland Digital Technology Co., Ltd. Our general conditions of Purchase, Sale and Delivery are filed with the Record Office of the Chamber of Commerce of Utrecht, The Netherlands.
K.v.K. H.R. Utrecht / Chamber of
Commerce Utrecht:
Reg. nr. 17109876
Revision History
| Version | Description | Date |
| 1.0.0 | Initial release. | Aug 19, 2020 |
Table of Contents
Revision History...... 3
Preface....1
Introduction....1
Chapter Description....1
Explanation of Icons 2
Chapter 1 Getting Started .... 3
Introduction....3

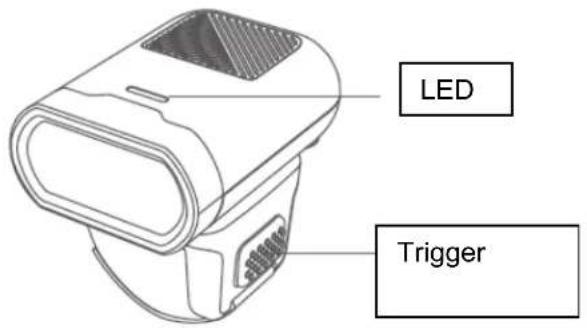

BS20....4

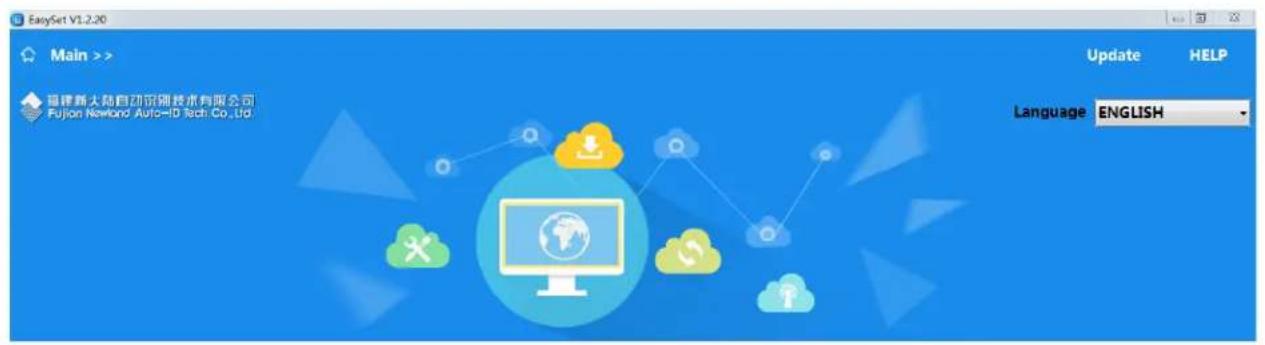

Chapter 2 Easyset....5
Chapter 3 System Setting ...... 6
Introduction......6
Barcode Programming 6
Command Programming 6
EasySet Programming 6
Programming Barcode/ Programming Command/Function....7
Use of Programming Command 8

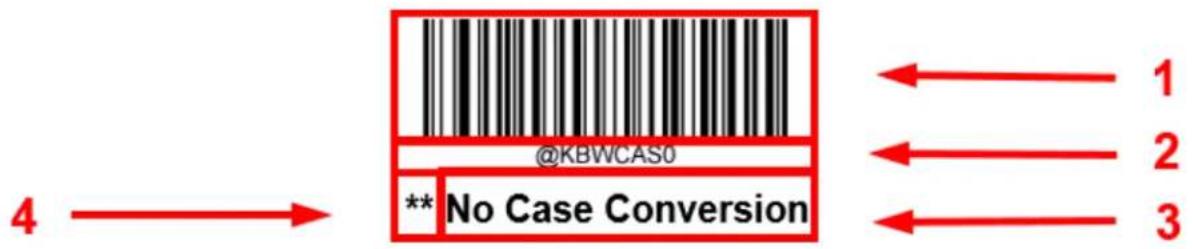

Use of Programming Barcodes 8
Illumination 9
Aiming....9
Good Read LED 10
Good Read LED Duration 11
Power On Beep....14
Good Read Beep....14
Good Read Beep Duration....15
Good Read Beep Frequency.... 16
Good Read Beep Volume 17
Vibration 18
Good Read Vibration.... 18
Good Read Vibration Duration 18
Vibration Duration....18
Scan Mode 19
Decode Session Timeout 21
Image Stabilization Timeout (Sense Mode).... 22
Reread Timeout....23
Image Decoding Timeout 24
Scanning Preference....25
Surround GS1 Application Identifiers (AI's) with Parentheses 26
Sensitivity 27
Trigger Commands....28
Modify Start Scanning Command.... 28
Modify Stop Scanning Command....29
Read Barcode after Power On 30
Read Barcode On/Off 30

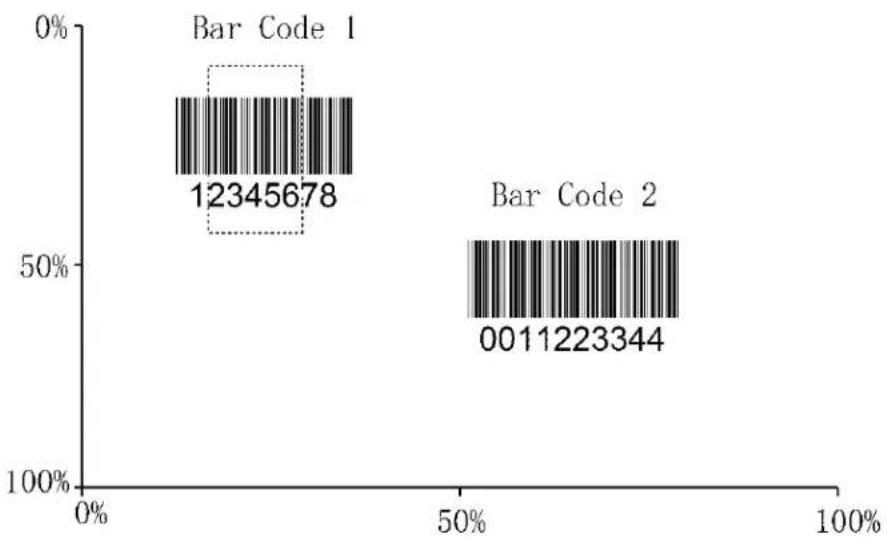

Decode Area....31
Image Flipping 33
Bad Read Message 34
Set Bad Read Message 34
Power Off/Battery Off 35
Default Settings 35
Factory Defaults 35
Custom Defaults.... 35
Query Product Information 37
Query Product Name.... 37
Query Firmware Version 37
Query Decoder Version.... 38
Query Hardware Version....38
Query Product Serial Number 38
Query OEM Serial Number 39
Query Manufacturing Date 39
Query Data Formatter Version 39
Chapter 4 USB Interface....40
Introduction......40
USB HID Keyboard....41
USB Country Keyboard Types 42
Beep on Unknown Character 46
Emulate ALT+Keypad 47
Function Key Mapping....51
ASCII Function Key Mapping Table 52
ASCII Function Key Mapping Table (Continued) 53
Inter-Keystroke Delay 54
Caps Lock 54
Convert Case 55

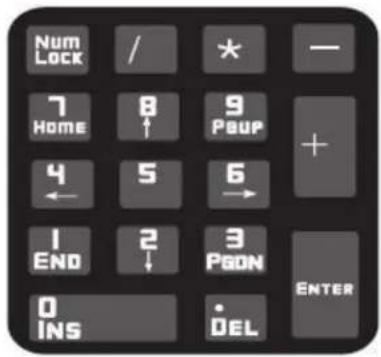

Emulate Numeric Keypad....56
Fast Mode 59
Polling Rate 60
USB CDC 62
HID POS (POS HID Barcode Scanner)....63
Introduction....63
Access the Scanner with Your Program....63
Acquire Scanned Data 64
Send Command to the Scanner....64
VID/PID 65
Chapter 5 Wireless Communication ....66
Operating Modes 66
Batch Mode 68
Batch Mode Options....68
Prevent Same Barcode Storage....69
Batch Mode Transmit Delay 70
End of Transmission Message for Batch Mode....71
Transmit Stored Data 72
Auto Clear Stored Data after Transmission....72
Query/Clear Stored Data in Flash 72
Clear Pairing Info on Scanner 73
Auto Power-Off Timeout 74
Set Scanner Name 75
Set Date and Time....75
Query the Battery Power of Scanner 76
Time Stamp 76
Set Time Stamp Format....77
Chapter 6 Symbologies....78
Introduction....78
Global Settings 78
Enable/Disable All Symbologies....78
Enable/Disable 1D Symbologies....78
Enable/Disable 2D Symbologies....79
1D Twin Code....80
Code 128....81
Restore Factory Defaults....81
Enable/Disable Code 128....81
Set Length Range for Code 128....82
EAN-8 83
Restore Factory Defaults....83
Convert EAN-8 to EAN-13 86
EAN-13 87
Restore Factory Defaults....87
Enable/Disable EAN-13 87
Transmit Check Character 88
2-Digit Add-On Code 88
5-Digit Add-On Code 89
EAN-13 Beginning with 290 Add-On Code Required....90
EAN-13 Beginning with 378/379 Add-On Code Required....90
EAN-13 Beginning with 414/419 Add-On Code Required....91
EAN-13 Beginning with 434/439 Add-On Code Required....92
EAN-13 Beginning with 977 Add-On Code Required....93
EAN-13 Beginning with 978 Add-On Code Required....93
EAN-13 Beginning with 979 Add-On Code Required....94
UPC-E 95
Restore Factory Defaults....95
Enable/Disable UPC-E 95
Transmit Check Character 96
2-Digit Add-On Code 96
5-Digit Add-On Code 97
Add-On Code Required 98
Transmit Preamble Character 98
Convert UPC-E to UPC-A 99
UPC-A 100
Restore Factory Defaults....100
Enable/Disable UPC-A 100
Transmit Check Character 100
2-Digit Add-On Code 101
5-Digit Add-On Code 102
Add-On Code Required 103
Transmit Preamble Character 103
Coupon 104
UPC-A/EAN-13 with Extended Coupon Code.... 104
Coupon GS1 Databar Output.... 105
Interleaved 2 of 5....106
Restore Factory Defaults.... 106
Enable/Disable Interleaved 2 of 5 106
Set Length Range for Interleaved 2 of 5....107
Check Character Verification.... 108
Febraban 109
Disable/Enable Febraban....109
Transmit Delay per Character 109
Transmit Delay per 12 Characters 112
ITF-14 114
Restore Factory Defaults.... 114
Enable/Disable ITF-14.... 114
ITF-6 115
Restore Factory Defaults.... 115
Enable/Disable ITF-6....115
Matrix 2 of 5....116
Restore Factory Defaults.... 116
Enable/Disable Matrix 2 of 5 116
Set Length Range for Matrix 2 of 5 117
Check Character Verification.... 118
Code 39....119
Restore Factory Defaults.... 119
Enable/Disable Code 39....119
Set Length Range for Code 39....120
Check Character Verification.... 121
Transmit Start/Stop Character....122
Enable/Disable Code 39 Full ASCII 122
Enable/Disable Code 32 (Italian Pharma Code) 123
Code 32 Prefix....123
Transmit Code 32 Start/Stop Character....124
Transmit Code 32 Check Character....124
Codabar 125
Restore Factory Defaults.... 125
Enable/Disable Codabar 125
Set Length Range for Codabar 126
Check Character Verification.... 127
Start/Stop Character.... 128
Code 93....129
Restore Factory Defaults.... 129
Enable/Disable Code 93....129
Set Length Range for Code 93....130
Check Character Verification.... 131
China Post 25....132
Restore Factory Defaults.... 132
Enable/Disable China Post 25....132
Set Length Range for China Post 25....133
Check Character Verification.... 134
GS1-128 (UCC/EAN-128) 135
Restore Factory Defaults.... 135
Enable/Disable GS1-128.... 135
Set Length Range for GS1-128.... 136
GS1 Databar (RSS).... 137
Restore Factory Defaults.... 137
Enable/Disable GS1 Databar 137
Transmit Application Identifier "01" 137
GS1 Composite (EAN·UCC Composite) 138
Restore Factory Defaults.... 138
Enable/Disable GS1 Composite 138
Enable/Disable UPC/EAN Composite 138
Code 11 139
Restore Factory Defaults.... 139
Enable/Disable Code 11.... 139
Set Length Range for Code 11....140
Check Character Verification.... 141
Transmit Check Character 142
ISBN 143
Restore Factory Defaults.... 143
Industrial 25....146
Restore Factory Defaults.... 146
Enable/Disable Industrial 25....146
Set Length Range for Industrial 25....147
Check Character Verification.... 148
Standard 25 149
Restore Factory Defaults.... 149
Enable/Disable Standard 25....149
Set Length Range for Standard 25....150
Check Character Verification.... 151
Plessey 152
Restore Factory Defaults.... 152
Enable/Disable Plessey.... 152
Set Length Range for Plessey....153
Check Character Verification.... 154
MSI-Plessey 155
Restore Factory Defaults.... 155
Enable/Disable MSI-Plessey 155
Set Length Range for MSI-Plessey 156
Check Character Verification.... 157
Transmit Check Character 158
AIM 128 159
Restore Factory Defaults.... 159
Enable/Disable AIM 128....159
Set Length Range for AIM 128....160
ISBT 128....161
Restore Factory Defaults.... 161
Enable/Disable ISBT 128 161
PDF417 162
Restore Factory Defaults.... 162
Enable/Disable PDF417 162
Set Length Range for PDF417 163
PDF417 Twin Code 164
PDF417 Inverse 165
Character Encoding.... 165
PDF417 ECI Output 166
Micro PDF417 167
Restore Factory Defaults.... 167
Enable/Disable Micro PDF417 167
Set Length Range for Micro PDF417 168
QR Code....169
Restore Factory Defaults.... 169
Enable/Disable QR Code 169
Set Length Range for QR Code 170
QR Twin Code 171
QR Inverse 172
Character Encoding.... 172
QR ECI Output 173
Micro QR Code....174
Restore Factory Defaults.... 174
Enable/Disable Micro QR 174
Set Length Range for Micro QR 175
Aztec....176
Restore Factory Defaults.... 176
Enable/Disable Aztec Code....176
Set Length Range for Aztec Code.... 177
Read Multi-barcodes on an Image 178
Set the Number of Barcodes 179
Character Encoding.... 180
Aztec ECI Output....180
Data Matrix 181
Restore Factory Defaults.... 181
Enable/Disable Data Matrix.... 181
Set Length Range for Data Matrix.... 182
Data Matrix Twin Code....183
Rectangular Barcode....184
Data Matrix Inverse 184
Character Encoding.... 185
Data Matrix ECI Output 185
Chapter 7 Data Formatter....186
Introduction....186
Add a Data Format 186
Programming with Barcodes 186
Programming with Serial Commands.... 189
Enable/Disable Data Formatter 190
Non-Match Error Beep.... 191
Data Format Selection....192
Change Data Format for a Single Scan.... 193
Clear Data Format....194
Query Data Formats 194
Formatter Command Type 6 195
Send Commands.... 195
Move Commands 199
Search Commands....201
Comparison Command 204
Miscellaneous Commands 205
Chapter 8 Prefix & Suffix....211
Introduction....211
Global Settings 212
Enable/Disable All Prefixes/Suffixes 212
Prefix Sequence 212
Custom Prefix 213
Enable/Disable Custom Prefix....213
Set Custom Prefix 213
AIM ID Prefix 214
Code ID Prefix 215
Restore All Default Code IDs 215
Modify Code ID....215
Modify 1D symbologies .... 217
Modify 2D symbologies: 221
Custom Suffix 222
Enable/Disable Custom Suffix....222
Set Custom Suffix 222
Data Packing 223
Introduction....223
Data Packing Options.... 223
Terminating Character Suffix....225
Enable/Disable Terminating Character Suffix.... 225
Set Terminating Character Suffix 225
Appendix 227
Digit Barcodes 227
Save/Cancel Barcodes 230
Factory Defaults Table 231
AIM ID Table 239
Code ID Table 241
Symbology ID Number 242
ASCII Table 243
Unicode Key Maps 247

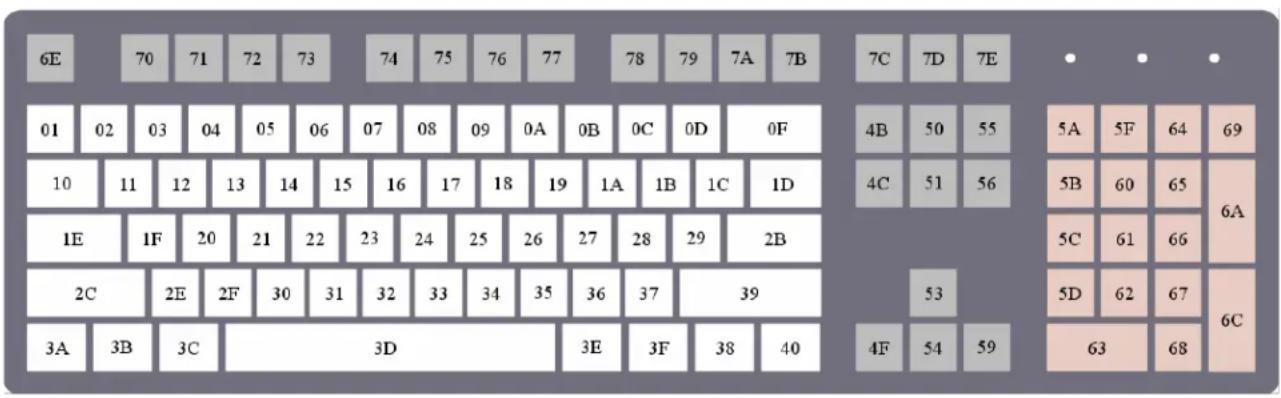

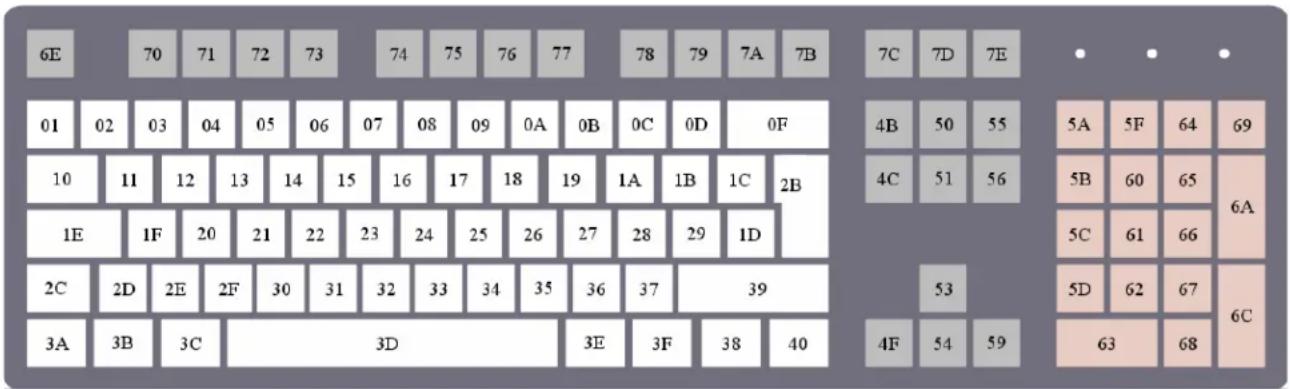

104 Key U.S. Style Keyboard 247
Preface
Introduction
This manual provides detailed instructions for setting up and using the BS20 wireless barcode scanner (hereinafter referred to as "the scanner").
Chapter Description
| Chapter 1 Getting Started | : Gives a general description of BS20 scanner. |
| Chapter 2 EasySet | : Introduces a useful tool you can use to set up BS20 canner and develop new applications. |
| Chapter 3 System Settings | : Introduces three configuration methods and describes how to configure general parameters of BS20 scanner. |
| Chapter 4 USB Interface | : Describes how to configure USB communication parameters. |
| Chapter 5 Wireless Communication | : Describes how to configure the parameters necessary for wireless communication between the scanner nd host device. |
| Chapter 6 Symbologies | : Lists all compatible symbologies and describes how to configure the relevant parameters. |
| Chapter 7 Data Formatter | : Explains how to customize scanned data with the data formatter. |
| Chapter 8 Prefix & Suffix | : Describes how to use prefix and suffix to customize scanned data. |
| Chapter 9 Batch Programming | : Explains how to integrate a complex programming task into a single barcode. |
| Appendix | : Provides factory defaults table and a bunch of frequently used programming barcodes. |
Explanation of Icons
This icon indicates something relevant to this manual.
This icon indicates this information requires extra attention from the reader.
This icon indicates handy tips that can help you use or configure the scanner with ease.
This icon indicates practical examples that can help you to acquaint yourself with operations.
Chapter 1 Getting Started
Introduction
The scanner scanner reads a 1D or 2D barcode by capturing its image. Adopting the advanced technology independently developed by Newland Auto-ID Tech and 2d image embedding application barcode engine, it begins a new era of 2d image embedding application barcode engine.
Newland 2d decode IC combines advanced UIMG and IC designation and manufacturing technology, simplifying the difficulties of designation of 2d decode products, establishing remarks of high quality, high reliability and low consumption products.
The scanner can read kinds of mainstream 1D barcodes, standard 2D barcodes.( all versions of PDF417,QR Code M1/M2/Micro and Data Matrix) and GS1-DataBar ^TM (RSS) barcodes, including Limited, Stacked, Expanded and so on.
The scanner can read barcodes in papers, plastic cards, LCD and other kinds of mediums of printing and displaying. It has great performance. All-in-one design is extremely light and only needs small operation space. It can be embedded in varieties of application.

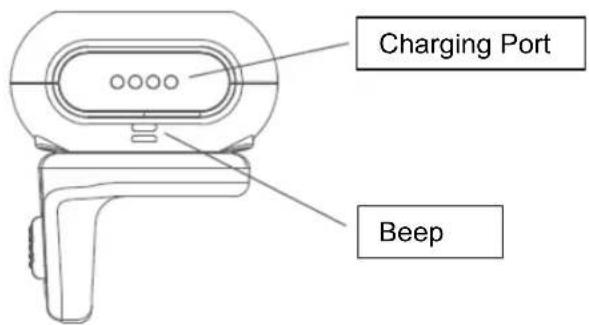

BS20
Good Read LED:
Red LED flashes slowly - Low battery alert.
Red LED on - On charging.
Red LED off and green LED on - Full charged
Blue LED flashes slowly – Bluetooth disconnected
Blue LED on – Bluetooth connected.
Green LED flashes once - Good read.
Chapter 2 Easyset
EasySet supports Windows operating systems. EasySet, developed by Fujian Newland Auto-ID Tech. Co., Ltd., is a configuration tool for Newland's 1D/2D handheld barcode scanner, fixed mount barcode scanners and OEM scan engines. Its main features including View device & configuration information of online device and send serial commands to online device and receive device response.
Online Device
Offline Device
Command Center
Batch update
Chapter 3 System Setting
Introduction
There are three ways to configure the scanner: barcode programming, command programming and EasySet programming.
Barcode Programming
The scanner can be configured by scanning programming barcodes. All user programmable features/options are described along with their programming barcodes/commands in the following sections.
This programming method is most straightforward. However, it requires manually scanning barcodes. As a result, errors are more likely to occur.
Command Programming
The scanner can also be configured by serial commands sent from the host device.
Users can design an application program to send those command strings to the scanners to perform device configuration.
EasySet Programming
Besides the two methods mentioned above, you can conveniently perform scanner configuration through EasySet too. EasySet is a Windows-based configuration tool particularly designed for Newland products, enabling users to gain access to decoded data and captured images and to configure scanners. For more information about this tool, refer to the EasySet User Guide.
Programming Barcode/ Programming Command/Function
The figure above is an example that shows you the programming barcode and command for the Enter Setup function:
- The No Case Conversion barcode.
- The No Case Conversion command.
- The description of feature/option.
- ** indicates factory default setting
Use of Programming Command
Besides the barcode programming method, the scanner can also be configured by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters.
Use of Programming Barcodes
Scanning the Enter Setup barcode can enable the scanner to enter the setup mode. Then you can scan a number of programming barcodes to configure your scanner. To exit the setup mode, scan the Exit Setup barcode or a non-programming barcode, or reboot the scanner.
@SETUPE0
** Exit Setup
@SETUPE1
Enter Setup
Programming barcode data (i.e. the characters under programming barcode) can be transmitted to the host device. You may scan the appropriate barcode below to enable or disable the transmission of programming barcode data to the host device.
SETUPT0
** Do Not Transmit Programming Barcode Data
SETUPT1
Transmit Programming Barcode Data
Illumination
@ILLSCN1
** On
@ILLSCN2
Always lighting
Aiming
@AMLENA1
** On
@AMLENA2
Always lighting
@ILLSCN0
Off
@AMLENA0
Off
Good Read LED
The green LED can be programmed to be On or Off to indicate good read.
@GRLENA1
** On
@GRLENA0
Off
Good Read LED Duration
This parameter sets the amount of time that the Good Read LED to remain on following a good read. It is programmable in 1ms increments from 1ms to 2,000ms.
@GRLDUR20
** Short (20ms)
@GRLDUR120
Medium (120ms)
@GRLDUR220
Long (220ms)
@GRLDUR320
Prolonged (320ms)
@GRLDUR
Custom (1 - 2,000ms)
Set the Good Read LED duration to 800ms:
- Scan the Enter Setup barcode.
- Scan the Custom barcode.
- Scan the numeric barcodes "8", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
@SETUPE1
Enter Setup
@GRLDUR100
100ms
@GRLDUR300
300ms
@GRLDUR500
500ms
@GRLDUR700
700ms
@GRLDUR200
200ms
@GRLDUR400
400ms
@GRLDUR600
600ms
@GRLDUR800
800ms
@SETUPE0
** Exit Setup
@GRLDUR900
900ms
@GRLDUR1100
1100ms
@GRLDUR1300
1300ms
@GRLDUR1500
1500ms
@GRLDUR1000
1000ms
@GRLDUR1200
1200ms
@GRLDUR1400
1400ms
@GRLDUR1600
1600ms
Power On Beep
The scanner can be programmed to beep when it is powered on. Scan the Off barcode if you do not want a power on beep.
@PWBENA1
** On
@PWBENA0
Off
Good Read Beep
Scanning the Off barcode can turn off the beep that indicates successful decode; scanning the On barcode can turn it back on.
@GRBENA1
** On
@GRBENA0
Off
Good Read Beep Duration
This parameter sets the length of the beep the scanner emits on a good read. It is programmable in 1ms increments from 20ms to 300ms.
@GRBDUR40
Short (40ms)
@GRBDUR80
** Medium (80ms)
@GRBDUR120
Long (120ms)
@GRBDUR
Custom (20 - 300ms)
Set the Good Read Beep duration to 200ms:
- Scan the Enter Setup barcode.
- Scan the Custom barcode.
- Scan the numeric barcodes "2", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Good Read Beep Frequency
This parameter is programmable in 1Hz increments from 20Hz to 20,000Hz
@GRBFRQ800
Extra Low (800Hz)
@GRBFRQ1600
Low (1600Hz)
@GRBFRQ1600
** Medium (2730Hz)
@GRBFRQ4200
High (4200Hz)
@GRBFRQ
Custom (20 - 20,000Hz)
Set the Good Read Beep frequency to 2,000Hz:
- Scan the Enter Setup barcode.
- Scan the Custom barcode.
- Scan the numeric barcodes "2", "0", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Good Read Beep Volume
This parameter is programmable in 1 increments from 1 to 20
@GRBVLL20
** Loud
@GRBVLL7
Medium
@GRBVLL2
Low
@GRBVLL
Custom(1-20)
Vibration
Good Read Vibration
@GRVENA1
On
@GRVENAO
** Off
Good Read Vibration Duration
This parameter is programmable in 1ms increments from 100ms to 2000ms
@GRVDUR
Vibration Duration
Scan Mode
Level Mode: A trigger pull activates a decode session. The decode session continues until a barcode is decoded or you release the trigger.
Trigger Mode: A trigger pull activates a decode session. The decode session continues until a barcode is decoded, either you release the trigger or decode session timeout.
Sense Mode: The scanner waits for the image stabilization timeout to expire before activating a decode session every time it detects a change in ambient illumination. Decode session continues until a barcode is decoded or the decode session timeout expires. In this mode, a trigger pull can also activate a decode session. The decode session continues until a barcode is decoded or the trigger is released. When the session ends, the scanner continues to monitor ambient illumination. Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. Sensitivity can change the Sense Mode's sensibility to changes in ambient illumination.
Continuous Mode: The scanner automatically starts one decode session after another. To suspend/resume barcode reading, simply press the trigger. Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time.
Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode session timeout expires (The decode session timeout begins when the trigger is released).
Batch Mode: When the trigger is pulled and released, scanning is activated until the trigger is released. During pulling the trigger, good read barcodes will beep and output barcode information. As long as unrelease the trigger, it will continue decoding. During pulling the trigger, same code can be read only once.
@SETUPE1
Enter Setup
@SCNMOD0
** Level Mode
@SCNMOD2
Sense Mode
@SCNMOD4
Pulse Mode
@SCNMOD1
Trigger Mode
@SCNMOD3
Continuous Mode
@SCNMOD7
Batch Mode
@SETUPE0
** Exit Setup
Decode Session Timeout
This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 1ms to 3,600,000ms. When it is set to 0, the timeout is infinite. The default setting is 3,000ms.
@ORTSET
Decode Session Timeout
Set the decode session timeout to 1,500ms:
- Scan the Enter Setup barcode.
- Scan the Decode Session Timeout barcode.
- Scan the numeric barcodes "1", "5", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Image Stabilization Timeout (Sense Mode)
This parameter defines the amount of time the scanner will spend adapting to ambient environment after it decodes a barcode and "looks" for another. It is programmable in 1ms increments from 0ms to 3,000ms. The default setting is 100ms.
@SENIST
Image Stabilization Timeout
Set the image stabilization timeout to 800ms:
- Scan the Enter Setup barcode.
- Scan the Image Stabilization Timeout barcode.
- Scan the numeric barcodes "8", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Reread Timeout
Reread Timeout can avoid undesired rereading of same barcode in a given period of time. This feature is only applicable to the Sense and Continuous modes.
Enable Reread Timeout: Do not allow the scanner to reread same barcode before the reread timeout expires.
Disable Reread Timeout: Allow the scanner to reread same barcode.
@RRDENA1
Enable Reread Timeout
@RRDENA0
**Disable Reread Timeout
The following parameter sets the timeout between decodes for same barcode. It is programmable in 1ms increments from 0ms to 3,600ms. The default setting is 1,500ms.
@RRDDUR
Set Reread Timeout
Set the reread timeout to 1,000ms:
- Scan the Enter Setup barcode.
- Scan the Timeout between Decodes (Same Barcode) barcode.
- Scan the numeric barcodes "1", "0", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
You may wish to restart the reread timeout when the scanner encounters the same barcode that was decoded in the last scan session before the reread timeout expires. To enable this feature, scan the Reread Timeout Reset On barcode. This feature is only effective when Reread Timeout is enabled.
@RRDREN1
Reread Timeout Reset On
@RRDREN0
** Reread Timeout Reset Off
Image Decoding Timeout
Image Decoding Timeout specifies the maximum time the scanner will spend decoding an image. This parameter is programmable in 1ms increments from 1ms to 3,000ms. The default timeout is 500ms.
@DETSET
Image Decoding Timeout
Set the image decoding timeout to 1,000ms:
- Scan the Enter Setup barcode.
- Scan the Image Decoding Timeout barcode.
- Scan the numeric barcodes "1", "0", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Scanning Preference
Normal Mode: Select this mode when reading barcodes on paper.
Screen Mode: Select this mode when reading barcodes on the screen.
Barcode Pay Mode: Select this mode when reading the payment barcode.
@EXPLVL0
** Normal Mode
@EXPLVL2
Screen Mode
@EXPLVL5
Barcode Pay Mode
Surround GS1 Application Identifiers (AI's) with Parentheses
When Surround GS1 AI's with Parentheses is selected, each application identifier (AI) contained in scanned data will be enclosed in parentheses in the output message.
@GS1AIP0
** Do Not Surround GS1 AI's with Parentheses
@GS1AIP1
Surround GS1 AI's with Parentheses
(01) 0 0614141 99999 6 (10) 10ABCEDF123456
If Surround GS1 AI's with Parentheses is selected, the barcode above is output as
(01)00614141999996(10)10ABCEDF123456.
If Do Not Surround GS1 AI's with Parentheses is selected, the barcode above is output as 01006141419999961010ABCEDF123456.
Sensitivity
Sensitivity specifies the degree of acuteness of the scanner's response to changes in images captured.
The higher the sensitivity, the lower requirement in image change to trigger the scanner. You can select an appropriate degree of sensitivity that fits the application environment. The feature is only applicable to the Sense mode. It is programmable from 1 to 20. The default setting is Medium (5).
@SENLVL14
Low Sensitivity
@SENLVL11
** Medium Sensitivity
@SENLVL8
High Sensitivity
@SENLVL5
Enhanced Sensitivity
@SENLVL
Custom Sensitivity (1-20)
Set the sensitivity to Level 10:
- Scan the Enter Setup barcode.
- Scan the Custom Sensitivity barcode.
- Scan the numeric barcodes "1" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Trigger Commands
When Enable Trigger Commands is selected, you can activate and deactivate the scanner in the Level mode with serial trigger commands. Sending the Start Scanning command (default:
@SCNTCE0
** Disable Trigger Commands
@SCNTCE1
Enable Trigger Commands
Modify Start Scanning Command
The Start Scanning Command can stimulate the trigger unreleased and consist of 1-10 characters (HEX values from 0x01 to 0xFF). In this command, the character “?” (HEX: 0x3F) cannot be the first character. The default Start Scanning command is
@SCNTCT
Modify Start Scanning Command
Set the Start Scanning command to “\*T”:
- Scan the Enter Setup barcode.
- Scan the Modify Start Scanning Command barcode.
- Scan the numeric barcodes "2", "A", "5" and "4" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Modify Stop Scanning Command
The Stop Scanning Command can stimulate the trigger unreleased and consist of 1-10 characters (HEX values from 0x01 to 0xFF). In this command, the character “?” (HEX: 0x3F) cannot be the first character. The default Stop Scanning command is
@SCNTCP
Modify Stop Scanning Command
Read Barcode after Power On
Disable: The scanner can not decode barcodes after power on. The illumination and aiming are off. You can send Read Barcode Command to the scanner to activate it.
Enable: The scanner can decode barcodes after power on.
This feature is disabled when the interface is USB Keyboard
@SCNPEN1
** Enable
@SCNPENO
Disable
Read Barcode On/Off
Sending the Read Barcode Off command \~
\~
Decode Area
Whole Area Decoding: The scanner attempts to decode barcode(s) within its field of view, from the center to the periphery, and transmits the barcode that has been first decoded.
Specific Area Decoding: The scanner attempts to read barcode(s) within a specified decoding area and transmits the barcode that has been first decoded. This option allows the scanner to narrow its field of view to make sure it reads only those barcodes intended by the user. For instance, if multiple barcodes are placed closely together, specific area decoding in conjunction with appropriate pre-defined decoding area will insure that only the desired barcode is read.
@CADENA0
** Whole Area Decoding
@CADENA1
Specific Area Decoding
If Specific Area Decoding is enabled, the scanner only reads barcodes that intersect the predefined decoding area. The default decoding area is an area of 40% top, 60% bottom, 40% left and 60% right of the scanner's field of view
You can define the decoding area using the Top of Decoding Area, Bottom of Decoding Area, Left of Decoding Area and Right of Decoding Area barcodes as well as numeric barcode(s) that represent(s) a desired percentage (0-100). The value of Bottom must be greater than that of Top; the value of Right must be greater than that of Left.
@CADTOP
Top of Decoding Area
@CADBOT
Bottom of Decoding Area
@CADLEF
Left of Decoding Area
@CADRIG
Right of Decoding Area
@SETUPE0
** Exit Setup

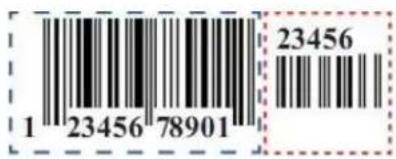

bar
| Category | Value | |---|---| | Bar Code 1 | 12345678 | | Bar Code 2 | 0011223344 |Example
Program the scanner to only read Barcode 1 in the figure above by setting the decoding area to 10% top, 45% bottom, 15% left and 30% right:
- Scan the Enter Setup barcode.
- Scan the Top of Decoding Area barcode.
- Scan the numeric barcode "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Bottom of Decoding Area barcode.
- Scan the numeric barcodes "4" and "5" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Top of Decoding Area barcode.
- Scan the numeric barcodes "1" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Left of Decoding Area barcode.
- Scan the numeric barcode "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Right of Decoding Area barcode.
- Scan the numeric barcodes "3" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Left of Decoding Area barcode.
- Scan the numeric barcodes "1" and "5" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Image Flipping
@MIRROR0
** Do Not Flip
@MIRROR1
Flip Horizontally
@MIRROR2
Flip Vertically
@MIRROR3
Flip Horizontally & Vertically
Example of image not flipped
Example of image flipped horizontally
Scan the appropriate barcode below to select whether or not to send a bad read message (user-programmable) when a good read does not occur before trigger release, or the decode session timeout expires, or the scanner receives the Stop Scanning command (For more information, see the "Serial Trigger Command" section in this chapter).
@NGRENA0
** Bad Read Message OFF
@NGRENA1
Bad Read Message ON
Set Bad Read Message
A bad read message can contain up to 7 characters (HEX values from 0x00 to 0xFF). To set a bad read message, scan the Set Bad Read Message barcode, the numeric barcodes representing the hexadecimal values of desired character(s) and the Save barcode. The default setting is "NG".
@NGRSET
Set Bad Read Message
Set the bad read message to "F" (HEX: 0x46):
- Scan the Enter Setup barcode.
- Scan the Set Bad Read Message barcode.
- Scan the numeric barcodes "4" and "6" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Power Off/Battery Off
@PWROFF
Power Off Scanner
@TESTMD3
Battery Off
(For Long-term Storage/Shipping)
Note: After scanning the Battery Off barcode, you MUST press the trigger for 6\~7 seconds or connect the host via USB to turn it on. The scanner will beep when it is powered on.
Default Settings
Factory Defaults
Scanning the following barcode can restore the scanner to the factory defaults.
You may need to reset all parameters to the factory defaults when:
- The scanner is not properly configured so that it fails to decode barcodes.
- You forget previous configuration and want to avoid its impact.
@FACDEF
**Restore All Factory Defaults
Custom Defaults
Scanning the Restore All Custom Defaults barcode can reset all parameters to the custom defaults. Scanning the Save as Custom Defaults barcode can set the current settings as custom defaults.
Custom defaults are stored in the non-volatile memory.
@CUSSAV
Save as Custom Defaults
@CUSDEF
Restoring the scanner to the factory defaults will not remove the custom defaults from the scanner.
Query Product Information
After scanning the barcode below, the product information (including product name, firmware version, decoder version, hardware version, product serial number, OEM serial number, manufacturing date and data formatter version) will be sent to the host device.
@QRYSYS
Query Product Information
Query Product Name
@QRYPDN
Query Product Name
Query Firmware Version
@QRYFWV
Query Firmware Version
Query Decoder Version
@QRYDCV
Query Decoder Version
Query Hardware Version
@QRYHWV
Query Hardware Version
Query Product Serial Number
@QRYPSN
Query Product Serial Number
Query OEM Serial Number
Query OEM Serial Number
Query Manufacturing Date
Query Manufacturing Date
Query Data Formatter Version
Query Data Formatter Version
Chapter 4 USB Interface
Introduction
There are four options for USB connection:
USB HID Keyboard: The scanner's transmission is simulated as USB keyboard input with no need for command configuration or a driver. Barcode data could be entered by the virtual keyboard directly and it is also convenient for the host device to receive data.
USB CDC: It is compliant with the standard USB CDC class specifications defined by the USB-IF and allows the host device to receive data in the way as a serial port does. A driver is needed when using this feature.
HID POS (POS HID Barcode Scanner): It is based on the HID interface, with no need for a custom driver. It excels virtual keyboard interface in transmission speed.
USB HID Keyboard
When the scanner is connected to the USB port on a host device, you can enable the USB HID Keyboard feature by scanning the barcode below. Then scanner's transmission will be simulated as USB keyboard input. The Host receives keystrokes on the virtual keyboard. It works on a Plug and Play basis and no driver is required.
@INTERF3
** USB HID Keyboard
If the host device allows keyboard input, then no extra software is needed for HID Keyboard input.
USB Country Keyboard Types
Keyboard layouts vary from country to country. The default setting is U.S. keyboard.
@KBWCTY0
** U.S. (English)
@KBWCTY1
Belgium
@KBWCTY2
Brazil
@KBWCTY3
Canada (French)
@KBWCTY4
Czechoslovakia
@KBWCTY5
Denmark
@KBWCTY6
Finland (Swedish)
Germany/Austria
@KBWCTY7
France
Hungary
@KBWCTY9
Greece
Italy
@KBWCTY11
Israel (Hebrew)
@KBWCTY14
@KBWCTY13
Latin America/ South America
Netherlands (Dutch)
Poland
Romania
Slovakia
@KBWCTY23
Sweden
@KBWCTY15
Norway
@KBWCTY17
Portugal
@KBWCTY19
Russia
@KBWCTY22
Spain
@KBWCTY25
Turkey_F
@KBWCTY24
Switzerland (German)
@KBWCTY27
UK
@KBWCTY26
Turkey_Q
@KBWCTY28
Japan
Beep on Unknown Character
Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard. As a result, the scanner fails to transmit the unknown characters.
Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected.
@KBWBUC0
** Do Not Beep on Unknown Character
@KBWBUC1
Beep on Unknown Character
Supposing French keyboard (Country Code: 7) is selected and barcode data "ADF" is being dealt with, the keyboard will fail to locate the "D" (0xD0) character and the scanner will ignore the character and continue to process the next one.
Do Not Beep on Unknown Character: The scanner does not beep and the Host receives "AF".
Beep on Unknown Character: The scanner beeps and the Host still receives "AF".
If Emulate ALT+Keypad ON is selected, Beep on Unknown Character does not function.
Emulate ALT+Keypad
When Emulate ALT+Keypad is turned on, any character is sent via the numeric keypad and overlook USB country keyboard type. This mode need to set Code Page Option and Unicode Output. Code Page determines the target language. Unicode Output determines the ASCII input to the host device.
@KBWALTO
** Emulate ALT+Keypad OFF
@KBWALT1
Emulate ALT+Keypad ON
ASCII characters between 0x00\~0x1F will be input in way of Function Key Mapping Set.
Since sending a character involves multiple keystroke emulations, this method appears less efficient.
Supposing Emulate ALT+Keypad is ON, Unicode Encoding is Off, and Code Page 1252 (West European Latin) is selected, barcode data "ADF" (65/208/70) is sent as below:
"A" - "ALT Make" + "065" + "ALT Break"
“D” -- “ALT Make” + “208” + “ALT Break”
"F" -- "ALT Make" + "070" + "ALT Break"
Code Page
Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the barcode being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, select the code page with which the barcodes were created by scanning the appropriate barcode below. For PDF417, QR Code, Aztec and Data Matrix, besides setting the code page, you also need to set the character encoding in the "Character Encoding" section in Chapter 6. This feature is only effective when Emulate ALT+Keypad is turned on. The default setting is Code Page 1252(West European, Latin)
@KBWCPG0
** Code Page 1252 (West European Latin)
@KBWCPG2
Code Page 1250 (Central and East European Latin)
@KBWCPG4
Code Page 1254 (Turkish)
@KBWCPG1
Code Page 1251 (Cyrillic)
@KBWCPG3
Code Page 1253 (Greek)
@KBWCPG5
Code Page 1255 (Hebrew)
@KBWCPG6
Code Page 1256 (Arabic)
@KBWCPG8
Code Page 1258 (Vietnamese)
@KBWCPG11
Code Page 874(Thai)
@KBWCPG7
Code Page 1257 (Baltic)
@KBWCPG9
Code Page 936 (Simplified Chinese, GB2312,GBK)
Unicode Encoding
Different host program may use different character encodings for handling incoming barcode data. For instance, Microsoft Office Word uses Unicode encoding and therefore you should turn Unicode Encoding on, whereas Microsoft Office Excel or Notepad uses Code Page encoding and therefore you should turn Unicode Encoding off. This feature is only effective when Emulate ALT+Keypad is turned on. The default setting is Off
Emulate Keypad with Leading Zero
You may turn this feature on to send character sequences sent over the numeric keypad as ISO characters which have a leading zero. For example, ASCII A transmits as "ALT MAKE" 0065 "ALT BREAK". This feature is only effective when Emulate ALT+Keypad is enabled.
When Ctrl+ASCII Mode is selected, function characters (0x00 - 0x1F) are sent as ASCII sequences. The default setting is Off.
@KBWFKM0
** Disable
@KBWFKM1
Ctrl+ASCII Mode
@KBWFKM2
Alt+Keypad Mode
If Ctrl+ASCII Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, barcode data "A
"A" - Keystroke "A".
"F" - Keystroke "F"
For some text editors, "Ctrl I" means italic convert. So the output may be "AF".
If Alt+Keypad Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, the data above is sent as below:
"A" - Keystroke "A".
"F" - Keystroke "F"
ASCII Function Key Mapping Table
| ASCII Function | ASCII Value (HEX) | Function Key Mapping Disabled | Ctrl+ASCII |
| NUL | 00 | Null | Ctrl+@ |
| SOH | 01 | Keypad Enter | Ctrl+A |
| STX | 02 | Caps Lock | Ctrl+B |
| ETX | 03 | ALT | Ctrl+C |
| EOT | 04 | Null | Ctrl+D |
| ENQ | 05 | CTRL | Ctrl+E |
| ACK | 06 | Null | Ctrl+F |
| BEL | 07 | Enter | Ctrl+G |
| BS | 08 | Left Arrow | Ctrl+H |
| HT | 09 | Horizontal Tab | Ctrl+I |
| LF | 0A | Down Arrow | Ctrl+J |
| VT | 0B | Vertical Tab | Ctrl+K |
| FF | 0C | Delete | Ctrl+L |
| CR | 0D | Enter | Ctrl+M |
| SO | 0E | Insert | Ctrl+N |
| SI | 0F | Esc | Ctrl+O |
| DLE | 10 | F11 | Ctrl+P |
| DC1 | 11 | Home | Ctrl+Q |
| DC2 | 12 | PrintScreen | Ctrl+R |
| DC3 | 13 | Backspace | Ctrl+S |
| DC4 | 14 | tab+shift | Ctrl+T |
| NAK | 15 | F12 | Ctrl+U |
| SYN | 16 | F1 | Ctrl+V |
| ETB | 17 | F2 | Ctrl+W |
| CAN | 18 | F3 | Ctrl+X |
| EM | 19 | F4 | Ctrl+Y |
| SUB | 1A | F5 | Ctrl+Z |
| ESC | 1B | F6 | Ctrl+[ |
| FS | 1C | F7 | Ctrl+\ |
| GS | 1D | F8 | Ctrl+] |
| RS | 1E | F9 | Ctrl+6 |
| US | 1F | F10 | Ctrl+- |
ASCII Function Key Mapping Table (Continued)
The last five characters (0x1B\~0x1F) in the table above apply to US keyboard layout only. The following chart provides the equivalents of these five characters for other countries.
| Country | Ctrl+ASCII | |||||
| United States | Ctrl+[ | Ctrl+\ | Ctrl+] | Ctrl+6 | Ctrl+- | |
| Belgium | Ctrl+[ | Ctrl+< | Ctrl+] | Ctrl+6 | Ctrl+- | |
| Scandinavia | Ctrl+8 | Ctrl+< | Ctrl+9 | Ctrl+6 | Ctrl+- | |
| France | Ctrl+^ | Ctrl+8 | Ctrl+$ | Ctrl+6 | Ctrl+= | |
| Germany | Ctrl+Ã | Ctrl++ | Ctrl+6 | Ctrl+- | ||
| Italy | Ctrl+\ | Ctrl++ | Ctrl+6 | Ctrl+- | ||
| Switzerland | Ctrl+< | Ctrl+.. | Ctrl+6 | Ctrl+- | ||
| United Kingdom | Ctrl+[ | Ctrl+ ¢ | Ctrl+] | Ctrl+6 | Ctrl+- | |
| Denmark | Ctrl+8 | Ctrl+\ | Ctrl+9 | Ctrl+6 | Ctrl+- | |
| Norway | Ctrl+8 | Ctrl+\ | Ctrl+9 | Ctrl+6 | Ctrl+- | |
| Spain | Ctrl+[ | Ctrl+\ | Ctrl+] | Ctrl+6 | Ctrl+- | |
Inter-Keystroke Delay
This parameter specifies the delay between emulated keystrokes. Scanning below barcodes to delay longer when the host device needs slower data transmission. The default setting is No Delay.
@KBWDLY0
** No Delay
@KBWDLY40
Long Delay (40ms)
@KBWDLY20
Short Delay (20ms)
Caps Lock
The Caps Lock ON option can invert upper and lower case characters contained in barcode data. This inversion occurs regardless of the state of Caps Lock key on the host device's keyboard.
@KBWCAP0
** Caps Lock OFF (Non-Japanese keyboard)
@KBWCAP1
Caps Lock ON (Non-Japanese keyboard)
Emulate ALT+Keypad ON/ Convert All to Upper Case/ Convert All to Lower Case prevails over Caps Lock ON.
When the Caps Lock ON feature is selected, barcode data "AbC" is transmitted as "aBc".
@SETUPE0
** Exit Setup
Convert Case
Scan the appropriate barcode below to convert all barcode data to your desired case.
@KBWCAS0
** No Case Conversion
@KBWCAS1
Convert All to Upper Case
@KBWCAS2
Convert All to Lower Case
When the Convert All to Lower Case feature is enabled, barcode data "AbC" is transmitted as "abc".
If Emulate ALT+Keypad ON is selected, Convert All to Lower Case and Convert All to Upper Case do not function.
Emulate Numeric Keypad
Do Not Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on main keyboard.
Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on numeric keypad. The state of Num Lock on the simulated numeric keypad is determined by its equivalent on the host device. If Num Lock on the host device is turned off, the output of simulated numeric keypad is function key instead of number.
Do Not Emulate Numeric Keypad 2: Sending “+”, “—”, “*” and “/” is emulated as keystroke(s) on main keyboard.
Emulate Numeric Keypad 2: Sending “+”, “—”, “*” and “/” is emulated as keystroke(s) on numeric keypad.
@KBWNUM0
** Do Not Emulate Numeric Keypad 1
@KBWNUM1
Emulate Numeric Keypad 1
@KBWNCHO
** Do Not Emulate Numeric Keypad 2
@KBWNCH1
Emulate Numeric Keypad 2
Emulate ALT+Keypad ON prevails over Emulate Numeric Keypad.
Supposing the Emulate Numeric Keypad 1 and Emulate Numeric Keypad 2 features are enabled:
if Num Lock on the host device is ON, "A4.5" is transmitted as "A4.5";
if Num Lock on the host device is OFF, "A4.5" is transmitted as follows:
- "A" is sent as is because it is not included in numeric keypad;
- "4" is sent as the function key "Cursor Move to Left";
- “.” is sent;
- "5" is not sent as it does not correspond to any function key.
Finally the host device will get".A"
Character "+", "-,"*","/ " Adopt Numeric Keypad
@KBWNCH0
** Off
@KBWNCH1
On
Fast Mode
When Fast Mode On is selected, the scanner sends characters to the host faster. If the host drops characters, turn the Fast Mode off or change the polling rate to a bigger value.
@KBWFAS0
** Fast Mode Off
@KBWFAS1
Fast Mode On
Polling Rate
This parameter specifies the polling rate for a USB keyboard. The smaller value rate is, the faster characters transmission from scanner to the host. If the host drops characters, change the polling rate to a bigger value.
@KBWPOR0
1ms
@KBWPOR1
2ms
@KBWPOR2
3ms
@KBWPOR3
** 4ms
@KBWPOR4
5ms
@KBWPOR5
6ms
@KBWPOR6
7ms
@SETUPE0
** Exit Setup
@SETUPE1
Enter Setup
9ms
@KBWPOR7
8ms
@KBWPOR9
10ms
USB CDC
If your scanner is connected to the USB port on a host device, the USB CDC feature allows the host device to receive data in the way as a serial port does. A driver is needed when using this feature. You may download it from our website at www.newlandaidc.com.
@INTERF8
USB CDC
HID POS (POS HID Barcode Scanner)
Introduction
The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than keyboard emulation.
Features:
- HID based, no custom driver required.
- More efficient in communication than keyboard emulation interface.
@INTERF5
USB HID-POS
Access the Scanner with Your Program
Use CreateFile to access the scanner as a HID device and then use ReadFile to deliver the scanned data to the application program. Use WriteFile to send data to the scanner.
For detailed information about USB and HID interfaces, go to www.USB.org.
Acquire Scanned Data
After a barcode is decoded, the scanner sends an input report as below:
| Bit | ||||||||
| Byte | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| 0 | Report ID = 0x02 | |||||||
| 1 | Barcode Length | |||||||
| 2-57 | Decoded Data (1-56) | |||||||
| 58-61 | Reserved | |||||||
| 62 | Newland Symbology Identifier or N/C: 0x00 | |||||||
| 63 | - | - | - | - | - | - | - | Decoded data continued |
Send Command to the Scanner
This output report is used to send commands to the scanner. All programming commands can be used.
| Bit | ||||||||
| Byte | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| 0 | Report ID = 0x04 | |||||||
| 1 | Length of command | |||||||
| 2-63 | Command (1-62) | |||||||
VID/PID
USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland's vendor ID is 1EAB (Hex). A range of PIDs are used for each Newland product family. Every PID contains a base number and interface type (keyboard, COM port, etc.).
| Product | Interface | PID (Hex) | PID (Dec) |
| BS20 | USB HID Keyboard | 0022 | 0034 |
| USB CDC | 0006 | 0006 | |
| HID POS | 0010 | 0016 | |
| Dongle HID Keyboard | 3322 | 13090 | |
| Dongle CDC | 3306 | 13062 | |
| Dongle HID POS | 3310 | 13072 |
Chapter 5 Wireless Communication
Operating Modes
The scanner provides the following operating modes. Scanning the Enter Setup Barcode to change the operating mode. The default setting is Dongle KBW Mode:
Bluetooth HID Mode allows your scanner to communicate with a remote host using Bluetooth. You must first pair your scanner to the host before these two Bluetooth devices can communicate with each other. All features available for USB HID Keyboard are applicable to Bluetooth HID.
Note: The pairing information in the scanner and the host need to be cleared before connecting with other Bluetooth devices
Bluetooth BLE Mode: The Bluetooth low energy communication mode can communicate with the host app developed based on the Bluetooth SDK. In this mode, the scanner provides a serial transparent transmission service based on GATT service.
2.4G Mode/Bluetooth Dongle CDC/Bluetooth Dongle KBW/Bluetooth Dongle HID POS: Putting Dongle into the data port and connecting automatically to the host.
@INTERF10
Bluetooth HID
@INTERF18
Bluetooth Dongle HID POS
(Only Bluetooth Dongle Supported)
@INTERF19
** Bluetooth Dongle KBW
(Only Bluetooth Dongle Supported)
@INTERF11
Bluetooth BLE
@INTERF17
Bluetooth Dongle CDC
(Only Bluetooth Dongle Supported)
Batch Mode
Batch Mode Options
Off: The scanner attempts to transmit every barcode you scan. When you are out of service range, the scanned data will be lost.
Automatic Batch Mode: When in service range, the scanner attempts to transmit every barcode you scan. When out of range, the scanner stores the scanned data in the flash memory. Once you are back to service range, the scanner will automatically transmit the stored data and then remove it from the flash memory after transmission is done.
Manual Batch Mode: Scanned data will be stored in the flash memory no matter whether you are in service range or not. You may send the stored data to the host in the following ways: scan the Transmit Stored Data barcode. The scanner will automatically remove the stored data from the flash memory after transmission is done if the Auto Clear Stored Data after Transmission feature is urned on.
@WLSBAT0
**Off
@WLSBAT1
Automatic Batch Mode
@WLSBAT2
Manual Batch Mode
Prevent Same Barcode Storage
This feature is available only when scanning barcodes in the Automatic or Manual Batch mode.
On: The scanner discards the data and generates an error beep when encountering a barcode that has existed in the flash memory.
Off: The scanner stores the data when encountering a barcode that has existed in the flash memory.
@WLSSSE0
** Off
@WLSSSE1
On
Batch Mode Transmit Delay
Sometimes when multiple barcodes stored in the flash memory are sent to the host, the transmission of those barcodes is too fast for the application to process. To program a transmit delay between barcodes, scan one of the following delays.
** No Transmit Delay (0ms)
Short Transmit Delay (50ms)
Medium Transmit Delay (100ms)
Long Transmit Delay (150ms)
Custom Transmit Delay (0-10,000ms)
Set the batch mode transmit delay to 200ms:
- Scan the Enter Setup barcode.
- Scan the Custom Transmit Delay barcode.
- Scan the numeric barcodes "2", "0" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
End of Transmission Message for Batch Mode
You may scan the appropriate barcode below to select whether or not to send an end of transmission message (user-programmable) to notify the host when transmission of all stored data is done. This feature is only available to data transmission initiated manually under the Manual Batch mode.
@WLSBTT0
** End of Transmission Message Off
@WLSBTT1
End of Transmission Message On
An end of transmission message can contain up to 10 characters (HEX values from 0x00 to 0xFF). To set an end of transmission message, scan the Set End of Transmission Message barcode, the numeric barcodes representing the hexadecimal values of desired character(s) and the Save barcode. The default setting is "EOT".
@WLSBTC
Set End of Transmission Message
Set the end of transmission message to "END" (HEX: 0x45, 0x4E, 0x44):
- Scan the Enter Setup barcode.
- Scan the Set End of Transmission Message barcode.
- Scan the numeric barcodes "4", "5", "4", "E", "4" and "4" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Transmit Stored Data
You may scan the barcode below to send the stored data in the flash memory to the host. This feature is only available to the Manual Batch mode.
@WLSSBT
Transmit Stored Data
Auto Clear Stored Data after Transmission
You may scan the appropriate barcode below to choose whether to clear or keep the stored data in the flash memory after transmission. This feature is only available to the Manual Batch mode.
@WLSCLE0
** Off
@WLSCLE1
On
Query/Clear Stored Data in Flash
@WLSQFC
Query the Number of Stored Barcodes
@WLSCLF
Clear All Stored Data
Clear Pairing Info on Scanner
@WLSCLP
Clear Pairing Info on Scanner
Note: Clear Pairing Info on Scanner is available for Bluetooth HID and Bluetooth KBW Mode.
Auto Power-Off Timeout
Auto Power-off Timeout specifies the amount of time it takes before the scanner automatically powers off from inactivity.
@WLSAPO0
** 5 Minutes
@WLSAPO1
10 Minutes
@WLSAPO2
20 Mintues
@WLSAPO3
30 Mintues
@WLSAPO4
60 Minutes
@WLSAPO5
Disable Auto Power-off
Set Scanner Name
You may scan the below barcode to set the name of your scanner. The maximum length is 5 characters (HEX values from 0x20 to 0x7E). The default scanner name is "00000".
@WLSNAM
Scanner Name
If setting the scanner name as "0AB00":
- Scan the Enter Setup barcode
- Scan the Scanner Name barcode
- Scan the numeric barcode "3" "0" "4" "1" "4" "2" from the "Digit Barcodes" section in Appendix
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix
- Scan the Exit Setup barcode
Set Date and Time
You may scan the below barcode to set the date and time on your scanner:
@WLSTMS
** Set Date and Time
Set Date and Time to "20201021010101":
- Scan the Enter Setup barcode.
- Scan the Set Date and Time barcode.
- Scan the numeric barcodes “2”, “0”, “2”, “0”, “1”, “0”, “2”, “1”, “0”, “1”, “0”, “1”, “0” and “1” from the “Digit Barcodes” section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Query the Battery Power of Scanner
After scanning the barcode below, the battery power of scanner will be sent to the host device.
@WLSQPW
Query the Battery Power of Scanner
Time Stamp
You can select whether or not to send date & time before each scanned data by scanning the appropriate barcode below.
@WLSTSEO
** Do Not Send Time Stamp
@WLSTSE1
Send Time Stamp
Set Time Stamp Format
@WLSTSF0
** Format 1: (YYYY/MM/DD, HH: MM: SS)
(example: 2018/01/23, 10:30:20)
@WLSTSF1
Format 2: (DD/MM/YYYY/, HH: MM: SS)
(example: 23/01/2018, 10:30:20)
@WLSTSF2
Format 3: (MM/DD/YYYY, HH:MM:SS)
(example: 01/23/2018, 10:30:20)
Chapter 6 Symbologies
Introduction
Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner.
Global Settings
Enable/Disable All Symbologies
If the Disable All Symbologies feature is enabled, the scanner will not be able to read any non-programming barcodes except the programming barcodes.
@ALLENA1
Enable All Symbologies
@ALLENA0
Disable All Symbologies
Enable/Disable 1D Symbologies
@ALL1DC1
Enable 1D Symbologies
@ALL1DC0
Disable 1D Symbologies
Enable/Disable 2D Symbologies
@ALL2DC1
Enable 2D Symbologies
@ALL2DC0
Disable 2D Symbologies
1D Twin Code
1D twin code is two 1D barcodes of a symbology or of different symbologies paralleled vertically. Both barcodes must have similar specifications and be placed closely together.
There are 3 options for reading 1D twin code:
Single 1D Code Only: Read either 1D code.
Twin 1D Code Only: Read both 1D codes. Transmission sequence: upper 1D code followed by lower 1D code.
Both Single & Twin: Read both 1D codes. If successful, transmit as twin 1D code only. Otherwise, try single 1D code only.
@A1DDOU0
** Single 1D Code Only
@A1DDOU1
Both Single & Twin
@A1DDOU2
Twin 1D Code Only
Code 128
If the scanner fails to identify Code 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 128 barcode.
Set Length Range for Code 128
The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@128MIN
Set the Minimum Length (Default: 1)
@128MAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 128 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 128 barcodes with that length are to be decoded.
Set the scanner to decode Code 128 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
EAN-8
If the scanner fails to identify EAN-8 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-8 barcode.
Transmit Check Character
EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data.
@EA8CHK2
** Transmit EAN-8 Check Character
@EA8CHK1
Do Not Transmit EAN-8 Check Character
@SETUPE0
** Exit Setup
2-Digit Add-On Code
An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a two-digit add-on code.
@EA8AD20
** Disable 2-Digit Add-On Code
@EA8AD21
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 2-digit add-on barcode. It can also decode EAN-8 barcodes without 2-digit add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 2-digit add-on codes.
5-Digit Add-On Code
An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 5-digit add-on barcode. It can also decode EAN-8 barcodes without 5-digit add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 5-digit add-on codes.
Add-On Code Required
When EAN-8 Add-On Code Required is selected, the scanner will only read EAN-8 barcodes that contain add-on codes.
@EA8REQ0
** EAN-8 Add-On Code Not Required
@EA8REQ1
EAN-8 Add-On Code Required
Convert EAN-8 to EAN-13
Convert EAN-8 to EAN-13: Convert EAN-8 decoded data to EAN-13 format before transmission. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g., Check Character).
Do Not Convert EAN-8 to EAN-13: EAN-8 decoded data is transmitted as EAN-8 data, without conversion.
@EA8EXP0
** Do Not Convert EAN-8 to EAN-13
@EA8EXP1
Convert EAN-8 to EAN-13
EAN-13
Enable/Disable EAN-13
@E13ENA1
** Enable EAN-13
@E13ENA0
Disable EAN-13
If the scanner fails to identify EAN-13 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-13 barcode.
Transmit Check Character
@E13CHK2
** Transmit EAN-13 Check Character
@E13CHK1
Do Not Transmit EAN-13 Check Character
2-Digit Add-On Code
An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a two-digit add-on code.
@E13AD20
** Disable 2-Digit Add-On Code
@E13AD21
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 2-digit add-on barcode. It can also decode EAN-13 barcodes without 2-digit add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit add-on codes.
@SETUPE0
** Exit Setup
5-Digit Add-On Code
An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a five-digit add-on code.
@E13AD50
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 5-digit add-on barcode. It can also decode EAN-13 barcodes without 5-digit add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 5-digit add-on codes.
EAN-13 Beginning with 290 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "290". The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with "290" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 378/379 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a "378" or "379". The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with a "378" or "379" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 414/419 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a "414" or "419". The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with a "414" or "419" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 434/439 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a "434" or "439". The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with a "434" or "439" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.
@E134340
** Do Not Require Add-On Code
@E134341
Require Add-On Code
EAN-13 Beginning with 977 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "977". The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with "977" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 978 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "978". The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with "978" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.
** Do Not Require Add-On Code
Require Add-On Code
EAN-13 Beginning with 979 Add-On Code Required
This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "979". The following settings can be programmed:
Require Add-On Code: All EAN-13 barcodes that begin with "979" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.
@E139790
** Do Not Require Add-On Code
@E139791
Require Add-On Code
UPC-E
If the scanner fails to identify UPC-E/UPC-E0/UPC-E1 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-E/UPC-E0/UPC-E1 barcode.
@SETUPE0
** Exit Setup
Transmit Check Character
UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data.
@UPECHK2
** Transmit UPC-E Check Character
@UPECHK1
Do Not Transmit UPC-E Check Character
2-Digit Add-On Code
A UPC-E barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a two-digit add-on code.
@UPEAD20
** Disable 2-Digit Add-On Code
@UPEAD21
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 2-digit add-on barcode. It can also decode UPC-E barcodes without 2-digit add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit add-on codes.
@SETUPE0
** Exit Setup
5-Digit Add-On Code
A UPC-E barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 5-digit add-on barcode. It can also decode UPC-E barcodes without 5-digit add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 5-digit add-on codes
Add-On Code Required
When UPC-E Add-On Code Required is selected, the scanner will only read UPC-E barcodes that contain add-on codes.
@UPAREQ0
** UPC-E Add-On Code Not Required
@UPAREQ1
UPC-E Add-On Code Required
Transmit Preamble Character
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code ("0" for USA), or transmit no preamble.
@UPEPRE1
** System Character
@UPEPRE0
No Preamble
@UPEPRE2
System Character & Country Code
@SETUPE0
** Exit Setup
Convert UPC-E to UPC-A
Convert UPC-E to UPC-A: Convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Character).
Do Not Convert UPC-E to UPC-A: UPC-E decoded data is transmitted as UPC-E data, without conversion.
@UPEEXP0
** Do Not Convert UPC-E to UPC-A
@UPEEXP1
Convert UPC-E to UPC-A
UPC-A
If the scanner fails to identify UPC-A barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-A barcode.
Transmit Check Character
UPC-A is 13 digits in length with the last one as its check character used to verify the integrity of the data.
@UPACHK2
** Transmit UPC-A Check Character
@UPACHK1
Do Not Transmit UPC-A Check Character
@SETUPE0
** Exit Setup
2-Digit Add-On Code
A UPC-A barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
@UPAAD21
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 2-digit add-on barcode. It can also decode UPC-A barcodes without 2-digit add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit add-on codes.
5-Digit Add-On Code
A UPC-A barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a five-digit add-on code.
@UPAAD50
** Disable 5-Digit Add-On Code
@UPAAD51
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 5-digit add-on barcode. It can also decode UPC-A barcodes without 5-digit add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 5-digit add-on codes.
Add-On Code Required
When UPC-A Add-On Code Required is selected, the scanner will only read UPC-A barcodes that contain add-on codes.
** UPC-A Add-On Code Not Required
UPC-A Add-On Code Required
Transmit Preamble Character
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code ("0" for USA), or transmit no preamble.
Coupon
UPC-A/EAN-13 with Extended Coupon Code
The following three types of coupon code + extended coupon code are supported:
- UPC-A (starting with "5") + GS1-128
- UPC-A (starting with "5") + GS1 Databar
- EAN-13 (starting with "99") + GS1-128
Use the appropriate barcode below to enable or disable UPC-A/EAN-13 with Extended Coupon Code. When left on the default setting (Off), the scanner treats Coupon Codes and Extended Coupon Codes as single bar codes.
If you scan the Allow Concatenation code, when the scanner sees the coupon code and the extended coupon code in a single scan, it transmits both as separate symbologies. Otherwise, it transmits the first coupon code it reads.
If you scan the Require Concatenation code, the scanner must see and read the coupon code and extended coupon code in a single read to transmit the data. No data is output unless both codes are read.
When using the UPC-A Coupon feature, please ensure that System Character or System Character & Country Code is selected for the "Transmit UPC-A Preamble Character" feature.
Coupon GS1 Databar Output
If you scan coupons that have both UPC and GS1 Databar codes, you may wish to scan and output only the data from the GS1 Databar code. Scan the GS1 Output On barcode below to scan and output only the GS1 Databar code data.
When GS1 Output Off is selected, coupons that have both UPC and GS1 Databar codes are transmitted depending on your selection for the "UPC-A/EAN-13 with Extended Coupon Code" feature.
@CPNGS10
** GS1 Output Off
@CPNGS11
GS1 Output On
When using the UPC-A Coupon feature, please ensure that System Character or System Character & Country Code is selected for the "Transmit UPC-A Preamble Character" feature.
Interleaved 2 of 5
Restore the Factory Defaults of Interleaved 2 of 5
Enable/Disable Interleaved 2 of 5
** Enable Interleaved 2 of 5
Disable Interleaved 2 of 5
If the scanner fails to identify Interleaved 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Interleaved 2 of 5 barcode.
Set Length Range for Interleaved 2 of 5
The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 100)
If minimum length is set to be greater than maximum length, the scanner only decodes Interleaved 2 of 5 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Interleaved 2 of 5 barcodes with that length are to be decoded.
Set the scanner to decode Interleaved 2 of 5 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.
Disable: The scanner transmits Interleaved 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
Since Interleaved 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when the check character is added. The check character is automatically generated when making Interleaved 2 of 5 barcodes.
@I25CHK0
**Disable
@I25CHK1
**Do Not Transmit Check Character After Verification
@I25CHK2
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Interleaved 2 of 5 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Interleaved 2 of 5 barcodes with a total length of 4 characters including the check character cannot be read.)
Febraban
Transmit Delay per Character
Transmit Delay per Character applies to both Expanded and Unexpanded Febraban. This feature is available only when USB HID Keyboard is enabled.
@FEBSEN0
** Disable Transmit Delay per Character
@FEBSEN1
Enable Transmit Delay per Character
@SETUPE0
** Exit Setup
You may select an appropriate delay value from the options below as per your actual needs.
@FEBSDT0
0ms
@FEBSDT5
5ms
@FEBSDT10
10ms
@FEBSDT15
15ms
@FEBSDT20
20ms
@FEBSDT25
25ms
@FEBSDT30
30ms
@FEBSDT35
35ms
@FEBSDT40
40ms
@FEBSDT50
50ms
@FEBSDT60
60ms
@FEBSDT70
** 70ms
@FEBSDT45
45ms
@FEBSDT55
55ms
@FEBSDT65
65ms
@FEBSDT75
75ms
Transmit Delay per 12 Characters
Transmit Delay per 12 Characters applies to Expanded Febraban only. This feature is available only when USB HID Keyboard is enabled.
** Disable Transmit Delay per 12 Characters
Enable Transmit Delay per 12 Characters
You may select an appropriate delay value from the options below as per your actual needs.
@FEBMDT4
600ms
@FEBMDT3
** 500ms
@FEBMDT6
800ms
@FEBMDT5
700ms
@FEBMDT7
900ms
ITF-14
ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character.
ITF-14 priority principle: For the Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.
@I14ENA2
Enable ITF-14 and Transmit Check Character
@I14ENA1
** Enable ITF-14 But Do Not Transmit Check Character
An example of the ITF-14 priority principle: when ITF-14 is enabled and Interleaved 2 of 5 is disabled, the scanner only decodes Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character.
@SETUPE0
** Exit Setup
ITF-6
ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character.
ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.
@IT6DEF
Restore the Factory Defaults of ITF-6
Enable/Disable ITF-6
@IT6ENA0
** Disable ITF-6
@IT6ENA2
Enable ITF-6 and Transmit Check Character
@IT6ENA1
Enable ITF-6 But Do Not Transmit Check Character
An example of the ITF-6 priority principle: when ITF-6 is enabled and Interleaved 2 of 5 is disabled, the scanner only decodes Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character.
@SETUPE0
** Exit Setup
Matrix 2 of 5
Restore the Factory Defaults of Matrix 2 of 5
Enable/Disable Matrix 2 of 5
@M25ENA1
Enable Matrix 2 of 5
@M25ENA0
** Disable Matrix 2 of 5
If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Matrix 2 of 5 barcode.
Set Length Range for Matrix 2 of 5
The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Matrix 2 of 5 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Matrix 2 of 5 barcodes with that length are to be decoded.
Set the scanner to decode Matrix 2 of 5 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
A check character is optional for Matrix 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.
Disable: The scanner transmits Matrix 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
Since Matrix 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when the check character is added. The check character is automatically generated when making Matrix 2 of 5 barcodes.
Disable
@M25CHK1
** Do Not Transmit Check Character After Verification
@M25CHK2
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Matrix 2 of 5 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Matrix 2 of 5 barcodes with a total length of 4 characters including the check character cannot be read.)
Code 39
If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 39 barcode.
Set Length Range for Code 39
The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 39 barcodes with that length are to be decoded.
Set the scanner to decode Code 39 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
A check character is optional for Code 39 and can be added as the last character. It is a calculated value used to verify the integrity of the data.
Disable: The scanner transmits Code 39 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
@C39CHK0
** Disable
@C39CHK2
Transmit Check Character After Verification
@C39CHK1
Do Not Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Code 39 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Code 39 barcodes with a total length of 4 characters including the check character cannot be read.)
@SETUPE0
** Exit Setup
Transmit Start/Stop Character
Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below.
@C39TSCO
** Do Not Transmit Start/Stop Character
@C39TSC1
Transmit Start/Stop Character
Enable/Disable Code 39 Full ASCII
The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below.
@C39ASCO
Disable Code 39 Full ASCII
@C39ASC1
** Enable Code 39 Full ASCII
Enable/Disable Code 32 (Italian Pharma Code)
Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this parameter to function.
@C39E320
** Disable Code 32
@C39E321
Enable Code 32
Code 32 Prefix
Scan the appropriate barcode below to enable or disable adding the prefix character "A" to all Code 32 barcodes. Code 32 must be enabled for this parameter to function.
@C39S320
** Disable Code 32 Prefix
@C39S321
Enable Code 32 Prefix
@SETUPE0
** Exit Setup
Transmit Code 32 Start/Stop Character
Code 32 must be enabled for this parameter to function.
@C39T320
** Do Not Transmit Code 32 Start/Stop Character
@C39T321
Transmit Code 32 Start/Stop Character
Transmit Code 32 Check Character
Code 32 must be enabled for this parameter to function.
@C39C320
** Do Not Transmit Code 32 Check Character
@C39C321
Transmit Code 32 Check Character
Codabar
If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Codabar barcode.
Set Length Range for Codabar
The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@CBAMIN
Set the Minimum Length (Default: 2)
@CBAMAX
Set the Maximum Length (Default: 60)
If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Codabar barcodes with that length are to be decoded.
Set the scanner to decode Codabar barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
A check character is optional for Codabar and can be added as the last character. It is a calculated value used to verify the integrity of the data.
Disable: The scanner transmits Codabar barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
@CBACHK0
** Disable
@CBACHK2
Transmit Check Character After Verification
@CBACHK1
Do Not Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Codabar barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Codabar barcodes with a total length of 4 characters including the check character cannot be read.)
@SETUPE0
** Exit Setup
Start/Stop Character
You can set the start/stop characters and choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below.
@CBATSC0
** Do Not Transmit Start/Stop Character
@CBATSC1
Transmit Start/Stop Character
@CBASCF0
** ABCD/ABCD as the Start/Stop Character
@CBASCF1
ABCD/TN*E as the Start/Stop Character
@CBASCF2
abcd/abcd as the Start/Stop Character
@CBASCF3
abcd/tn*e as the Start/Stop Character
Code 93
If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 93 barcode.
Set Length Range for Code 93
The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@C93MIN
Set the Minimum Length (Default: 1)
@C93MAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 93 barcodes with that length are to be decoded.
Set the scanner to decode Code 93 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
Check characters are optional for Code 93 and can be added as the last two characters, which are calculated values used to verify the integrity of the data.
Disable: The scanner transmits Code 93 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted except the last two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas those failing them will not be transmitted.
@C93CHK0
Disable
@C93CHK2
Transmit Check Character After Verification
@C93CHK1
** Do Not Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Code 93 barcodes with a length that is less than the configured minimum length after having the two check characters excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Code 93 barcodes with a total length of 4 characters including the two check characters cannot be read.)
China Post 25
Restore the Factory Defaults of China Post 25
Enable/Disable China Post 25
@CHPENA1
Enable China Post 25
@CHPENA0
** Disable China Post 25
If the scanner fails to identify China Post 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable China Post 25 barcode.
@SETUPE0
** Exit Setup
Set Length Range for China Post 25
The scanner can be configured to only decode China Post 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@CHPMIN
Set the Minimum Length (Default: 1)
@CHPMAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes China Post 25 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only China Post 25 barcodes with that length are to be decoded.
Set the scanner to decode China Post 25 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
A check character is optional for China Post 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.
Disable: The scanner transmits China Post 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
@CHPCHK0
** Disable
@CHPCHK2
Transmit Check Character After Verification
@CHPCHK1
Do Not Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, China Post 25 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, China Post 25 barcodes with a total length of 4 characters including the check character cannot be read.)
GS1-128 (UCC/EAN-128)
If the scanner fails to identify GS1-128 barcodes, you may first try this solution by scanning the EnterSetup barcode and then Enable GS1-128 barcode.
Set Length Range for GS1-128
The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@GS1MIN
Set the Minimum Length (Default: 1)
@GS1MAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only GS1-128 barcodes with that length are to be decoded.
Set the scanner to decode GS1-128 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
GS1 Databar (RSS)
If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Databar barcode.
Transmit Application Identifier "01"
@RSSTAI1
** Transmit Application Identifier "01"
@RSSTAIO
Do Not Transmit Application Identifier "01"
@SETUPE0
** Exit Setup
GS1 Composite (EAN·UCC Composite)
If the scanner fails to identify GS1 Composite barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Composite barcode.
Enable/Disable UPC/EAN Composite
@CPTUPC1
Enable UPC/EAN Composite
@CPTUPC0
** Disable UPC/EAN Composite
@SETUPE0
** Exit Setup
Code 11
If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 11 barcode.
Set Length Range for Code 11
The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@C11MIN
Set the Minimum Length (Default: 4)
@C11MAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 11 barcodes with that length are to be decoded.
Set the scanner to decode Code 11 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
Check characters are optional for Code 11 and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data.
If the Disable option is enabled, the scanner transmits Code 11 barcodes as is.
One Check Character, MOD11 (Len<=10) Two Check Characters, MOD11/MOD11(Len>10)
One Check Character, MOD11 (Len<=10) Two Check Characters, MOD11/MOD9 (Len>10)
Transmit Check Character
@C11TCK0
** Do Not Transmit Code 11 Check Character
@C11TCK1
Transmit Code 11 Check Character
If you select a check character algorithm and the Do Not Transmit Check Character option, Code 11 barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded. (For example, when the One Check Character, MOD11 and Do Not Transmit Check Character options are enabled and the minimum length is set to 4, Code 11 barcodes with a total length of 4 characters including the check character cannot be read.)
ISBN
If the scanner fails to identify ISSN barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISSN barcode.
Industrial 25
Restore the Factory Defaults of Industrial 25
Enable/Disable Industrial 25
** Enable Industrial 25
@L25ENA0
Disable Industrial 25
If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Industrial 25 barcode.
Set Length Range for Industrial 25
The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@L25MIN
Set the Minimum Length (Default: 6)
@L25MAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Industrial 25 barcodes with that length are to be decoded.
Set the scanner to decode Industrial 25 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
A check character is optional for Industrial 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.
Disable: The scanner transmits Industrial 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
@L25CHK0
** Disable
@L25CHK2
Transmit Check Character After Verification
@L25CHK1
Do Not Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Industrial 25 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Industrial 25 barcodes with a total length of 4 characters including the check character cannot be read.)
Standard 25
If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Standard 25 barcode.
Set Length Range for Standard 25
The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@S25MIN
Set the Minimum Length (Default: 6)
@S25MAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Standard 25 barcodes with that length are to be decoded.
Set the scanner to decode Standard 25 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
A check character is optional for Standard 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.
Disable: The scanner transmits Standard 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
@S25CHK0
** Disable
@S25CHK2
Transmit Check Character After Verification
@S25CHK1
Do Not Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Standard 25 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Standard 25 barcodes with a total length of 4 characters including the check character cannot be read.)
Plessey
If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Plessey barcode.
Set Length Range for Plessey
The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@PLYMIN
Set the Minimum Length (Default: 4)
@PLYMAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Plessey barcodes with that length are to be decoded.
Set the scanner to decode Plessey barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
Check characters are optional for Plessey and can be added as the last two characters, which are calculated values used to verify the integrity of the data.
Disable: The scanner transmits Plessey barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted except the last two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas those failing them will not be transmitted.
@PLYCHK0
Disable
@PLYCHK2
Transmit Check Character After Verification
@PLYCHK1
** Do Not Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Plessey barcodes with a length that is less than the configured minimum length after having the check characters excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Plessey barcodes with a total length of 4 characters including the check characters cannot be read.)
MSI-Plessey
If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable MSI-Plessey barcode.
Set Length Range for MSI-Plessey
The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@MSIMIN
Set the Minimum Length (Default: 4)
@MSIMAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only MSI-Plessey barcodes with that length are to be decoded.
Set the scanner to decode MSI-Plessey barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Check Character Verification
Check characters are optional for MSI-Plessey and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data.
If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is.
@MSICHK0
Disable
@MSICHK2
Two Check Characters, MOD10/MOD10
@MSICHK1
** One Check Character, MOD10
@MSICHK3
Two Check Characters, MOD10/MOD11
Transmit Check Character
@MSITCK1
Transmit MSI-Plessey Check Character
@MSITCK0
** Do Not Transmit MSI-Plessey Check Character
If you select a check character algorithm and the Do Not Transmit Check Character option, MSI-Plessey barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded. (For example, when the One Check Character, MOD10 and Do Not Transmit Check Character options are enabled and the minimum length is set to 4, MSI-Plessey barcodes with a total length of 4 characters including the check character cannot be read.)
AIM 128
If the scanner fails to identify AIM 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable AIM 128 barcode.
Set Length Range for AIM 128
The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@AIMMIN
Set the Minimum Length (Default: 1)
@AIMMAX
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes AIM 128 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only AIM 128 barcodes with that length are to be decoded.
Set the scanner to decode AIM 128 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
ISBT 128
If the scanner fails to identify ISBT 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISBT 128 barcode.
PDF417
If the scanner fails to identify PDF417 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable PDF417 barcode.
Set Length Range for PDF417
The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@PDFMIN
Set the Minimum Length (Default: 1)
@PDFMAX
Set the Maximum Length (Default: 2710)
Minimum length is not allowed to be greater than maximum length. If you only want to read PDF417 barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode PDF417 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
PDF417 Twin Code
PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading PDF417 twin codes:
Single PDF417 Only: Read either PDF417 code.
♦ Twin PDF417 Only: Read both PDF417 codes.
Both Single & Twin: Read both PDF417 codes. If successful, transmit as twin PDF417 only. Otherwise, try single PDF417 only.
@PDFDOU0
** Single PDF417 Only
@PDFDOU1
Twin PDF417 Only
@PDFDOU2
Both Single & Twin
PDF417 Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
@PDFINV0
** Decode Regular PDF417 Barcodes Only
@PDFINV2
Decode Both
@PDFINV1
Decode Inverse PDF417 Barcodes Only
Character Encoding
@PDFENC0
** Default Character Encoding
@PDFENC1
UTF-8
@SETUPE0
** Exit Setup
PDF417 ECI Output
@PDFECIO
** Disable PDF417 ECI Output
@PDFECI1
Enable PDF417 ECI Output
Micro PDF417
If the scanner fails to identify Micro PDF417 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Micro PDF417 barcode.
Set Length Range for Micro PDF417
The scanner can be configured to only decode Micro PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@MPDMIN
Set the Minimum Length (Default: 1)
@MPDMAX
Set the Maximum Length (Default: 366)
Minimum length is not allowed to be greater than maximum length. If you only want to read Micro PDF417 barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Micro PDF417 barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
QR Code
If the scanner fails to identify QR Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable QR Code barcode.
Set Length Range for QR Code
The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@QRCMIN
Set the Minimum Length (Default: 1)
@QRCMAX
Set the Maximum Length (Default: 7089)
Minimum length is not allowed to be greater than maximum length. If you only want to read QR Code barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode QR Code barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
QR Twin Code
QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading QR twin codes:
Single QR Only: Read either QR code.
Twin QR Only: Read both QR codes. Transmission sequence: left (upper) QR code followed by right (lower) QR code.
Both Single & Twin: Read both QR codes. If successful, transmit as twin QR only. Otherwise, try single QR only.
@QRCDOU0
** Single QR Only
@QRCDOU2
Both Single & Twin
@QRCDOU1
Twin QR Only
QR Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
@QRCINV0
** Decode Regular QR Barcodes Only
** Enable QR ECI Output
Micro QR Code
If the scanner fails to identify Micro QR barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Micro QR barcode.
Set Length Range for Micro QR
The scanner can be configured to only decode Micro QR barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@MQRMIN
Set the Minimum Length (Default: 1)
@MQRMAX
Set the Maximum Length (Default: 35)
Minimum length is not allowed to be greater than maximum length. If you only want to read Micro QR barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Micro QR Code barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Aztec
If the scanner fails to identify Aztec Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Aztec Code barcode.
Set Length Range for Aztec Code
The scanner can be configured to only decode Aztec barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@AZTMIN
Set the Minimum Length (Default: 1)
@AZTMAX
Set the Maximum Length (Default: 3832)
Minimum length is not allowed to be greater than maximum length. If you only want to read Aztec barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Aztec barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Read Multi-barcodes on an Image
There are three options:
Mode 1: Read one barcode only.
Mode 2: Read fixed number of barcodes only.
Mode 3: Composite Reading. Read fixed number of barcodes first. If unsuccessful, read one barcode only.
@AZTMOD1
** Mode 1
@AZTMOD2
Mode 2
@AZTMOD3
Mode 3
Set the Number of Barcodes
@AZTMUL1
** 1
@AZTMUL2
2
@AZTMUL3
3
@AZTMUL4
4
@AZTMUL5
5
@AZTMUL6
6
@AZTMUL7
7
@AZTMUL8
8
Character Encoding
@AZTENC0
** Default Character Encoding
@AZTENC1
UTF-8
Aztec ECI Output
@AZTECIO
Disable Aztec ECI Output
@AZTECI1
** Enable Aztec ECI Output
Data Matrix
If the scanner fails to identify Data Matrix barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Data Matrix barcode.
Set Length Range for Data Matrix
The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
@DMCMIN
Set the Minimum Length (Default: 1)
@DMCMAX
Set the Maximum Length (Default: 3116)
Minimum length is not allowed to be greater than maximum length. If you only want to read Data Matrix barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Data Matrix barcodes containing between 8 and 12 characters:
- Scan the Enter Setup barcode.
- Scan the Set the Minimum Length barcode.
- Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Set the Maximum Length barcode.
- Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Data Matrix Twin Code
Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading Data Matrix twin codes:
Single Data Matrix Only: Read either Data Matrix code.
Twin Data Matrix Only: Read both Data Matrix codes. Transmission sequence: left (upper) Data Matrix code followed by right (lower) Data Matrix code.
Both Single & Twin: Read both Data Matrix codes. If successful, transmit as twin Data Matrix only. Otherwise, try single Data Matrix only.
@DMCDOU0
** Single Data Matrix Only
@DMCDOU1
Twin Data Matrix Only
@DMCDOU2
Both Single & Twin
Rectangular Barcode
Data Matrix has two formats:
Square barcodes having the same amount of modules in length and width: 10*10, 12*12.... 144*144.
Rectangular barcodes having different amounts of models in length and width: 6*16, 6*14...14*22.
@DMCREC1
** Enable Rectangular Barcode
@DMCRECO
Disable Rectangular Barcode
Data Matrix Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
@DMCINV0
** Decode Regular Data Matrix Barcodes Only
@DMCINV2
Decode Both
@DMCINV1
Decode Inverse Data Matrix Barcodes Only
@SETUPE0
** Exit Setup
Character Encoding
@DMCENC0
** Default Character Encoding
@DMCENC1
UTF-8
Data Matrix ECI Output
@DMCECIO
Disable Data Matrix ECI Output
@DMCECI1
** Enable Data Matrix ECI Output
Chapter 7 Data Formatter
Introduction
You may use the Data Formatter to modify the scanner's output. For example, you can use the Data Formatter to insert characters at certain points in barcode data or to suppress/replace/ send certain characters in barcode data as it is scanned.
Normally, when you scan a barcode, it gets outputted automatically; however, when you create a format, you must use a "send" command (see the "Send Commands" section in this chapter) within the format programming to output data. Multiple data formats can be programmed into the scanner. The maximum size of all data formats created is 2048 characters. By default, the data formatter is disabled. Enable it when required. If you have changed data format settings, and wish to clear all formats and return to the factory defaults, scan the Default Data Format code below.
**Default Data Format
Add a Data Format
Data format is used to edit barcode data. When you create a data format, you must select one of the four labels (Format_0, Format_1, Format_2 and Format_3) for your data format, specify the application scope of data format (such as barcode type and data length) and include formatter commands. Multiple data formats may be created using the same label. When scanned data does not match your data format requirements, you will hear the non-match error beep (if the non-match error beep is ON).
There are two methods to program a data format: Programming with barcodes and programming with serial commands.
Programming with Barcodes
The following explains how to program a data format by scanning the specific barcodes. Scanning any irrelevant barcode or failing to follow the setting procedure will result in programming failure. To find the alphanumeric barcodes needed to create a data format, see the "Digit Barcodes" section in Appendix.
Step 1: Scan the Enter Setup barcode.
Step 2: Scan the Add Data Format barcode.
Add Data Format
@DFMADD
@DFMSET
Add Data Format
Step 3: Select a label (Format_0 or Format_1 or Format_2 or Format_3).
Scan a numeric barcode 0 or 1 or 2 or 3 to label this data format Format_0 or Format_1 or Format_2 or Format_3.
Step 4: Select formatter command type.
Specify what type of formatter commands will be used. Scan a numeric barcode "6" to select formatter command type 6.
(See the "Formatter Command Type 6" section in this chapter for more information)
Step 5: Set interface type
Scan 999 for any interface type.
Step 6: Set Symbology ID Number
Refer to the "Symbology ID Number" section in Appendix and find the ID number of the symbology to which you want to apply the data format. Scan three numeric barcodes for the symbology ID number. If you wish to create a data format for all symbologies, scan 999.
Step 7: Set barcode data length
Specify what length of data will be acceptable for this symbology. Scan the four numeric barcodes that represent the data length. 9999 is a universal number, indicating all lengths. For example, 32 characters should be entered as 0032.
Step 8: Enter formatter command
Refer to the "Formatter Command Type 6" section in this chapter. Scan the alphanumeric barcodes that represent the command you need to edit data. For example, when a command is F141, you should scan F141.
Step 9: Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix to save your data format.
Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters applicable, send all characters followed by "A".
- Scan the Enter Setup barcode
- Scan the Add Data Format barcode
- Scan the 0 barcode
- Scan the 6 barcode
- Scan the 9 barcode three times
- Scan the barcodes 002
- Scan the barcodes 0010
- Scan the alphanumeric barcodes F141
- Scan the Save barcode
To streamline the programming process, you may as well generate a batch barcode by inputting the command (e.g. @DFMADD069990020010F141;) used to create a data format. See the "Use Batch Barcode" section in Chapter 9 to learn how to put a batch barcode into use.
When creating multiple data formats sharing a label, the formats are separated from each other by a vertical bar (I) in the batch command, e.g. @DFMADD069990029999F141|069990039999F142|169990049999F143;.
Programming with Serial Commands
A data format can also be created by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters.
The syntax consists of the following elements:
Prefix: "\~
Storage type: "@" (HEX: 40) or "#" (HEX: 23), 1 character. "@" means permanent setting which will not be lost by removing power from the scanner or rebooting it; "#" means temporary setting which will be lost by removing power from the scanner or rebooting it.
Add Data Format Command: "DFMADD" (HEX: 44 46 4D 41 44 44), 6 characters.
Data format label: "0" (HEX: 30) or "1" (HEX: 31) or "2" (HEX: 32) or "3" (HEX: 33), 1 character. "0", "1", "2" and "3" represent Format_0, Format_1, Format_2 and Format_3 respectively.
Formatter command type: "6" (HEX: 36), 1 character.
Interface type: "999" (HEX: 39 39 39), 3 characters.
Symbology ID Number: The ID number of the symbology to which you want to apply the data format, 3 characters. 999 indicates all symbologies.
Data length: The length of data that will be acceptable for this symbology, 4 characters. 9999 indicates all lengths. For example, 32 characters should be entered as 0032.
Formatter commands: The command string used to edit data. For more information, see the "Formatter Command Type 6" section in this chapter.
Suffix: ";
Example: Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters applicable, send all characters followed by "A".
Enter: 7E 01 30 30 30 30 40 44 46 4D 41 44 44 30 36 39 39 39 30 30 33 39 39 39 39 46 31 34 31 3B 03
(\~
Response: 02 01 30 30 30 30 40 44 46 4D 41 44 44 30 36 39 39 39 30 30 33 39 39 39 46 31 34 31 06 3B 03
(
When creating multiple data formats sharing a label, the formats are separated from each other by a vertical bar (|) in the serial command.
Example: \~
Enable/Disable Data Formatter
When Data Formatter is disabled, the barcode data is outputted to the host as read, including prefixes and suffixes.
** Disable Data Formatter
You may wish to require the data to conform to a data format you have created. The following settings can be applied to your data format:
Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Any data that does not match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the data in that barcode is not transmitted.
Enable Data Formatter, Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Any data that does not match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the data in that barcode is not transmitted.
Enable Data Formatter, Not Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Barcode data that does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and suffix are enabled).
Enable Data Formatter, Not Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Barcode data that does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and suffix are enabled).
@DFMENA1
Enable Data Formatter, Required, Keep Prefix/Suffix
@DFMENA2
Enable Data Formatter, Required, Drop Prefix/Suffix
@DFMENA3
Enable Data Formatter, Not Required, Keep Prefix/Suffix
@DFMENA4
Enable Data Formatter, Not Required, Drop Prefix/Suffix
Non-Match Error Beep
If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not match your required data format.
@DFMTON0
Non-Match Error Beep Off
@DFMTON1
** Non-Match Error Beep On
@SETUPE0
** Exit Setup
Data Format Selection
After enabling the Data Formatter, you can select a data format you want to use by scanning the appropriate barcode below.
The default setting is Format_0.
@DFMUSE0
** Format_0
@DFMUSE1
Format_1
@DFMUSE2
Format_2
@DFMUSE3
Format 3
Change Data Format for a Single Scan
You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here, then reverts to the format you have selected above.
For example, you may have set your scanner to use the data format you saved as Format_3. You can switch to Format_1 for a single trigger pull by scanning the Single Scan – Format_1 barcode below. The next barcode that is scanned uses Format_1, then reverts back to Format_3.
Note: This setting will be lost by removing power from the scanner, or turning off/ rebooting the device.
@DFMSINO
Single Scan - Format_0
@DFMSIN1
Single Scan - Format_1
@DFMSIN2
Single Scan - Format_2
@DFMSIN3
Single Scan - Format_3
Clear Data Format
There are two methods to remove data format created from your scanner:
Delete one data format: Scan the Clear One barcode, a numeric barcode (0-3) and the Save barcode. For example, to delete Format_2, you should scan the Clear One barcode, the 2 barcode and the Save barcode
Delete all data formats: Scan the Clear All barcode.
@DFMCAL
Clear All
@DFMCLR
Clear One
Query Data Formats
You may scan the appropriate barcode below to get the information of data format(s) created by you or preset by manufacturer. For instance, if you have added Format_0 as per the example in the "Add a Data Format" section in this chapter, scanning the Query Current Data Formats barcode, you will get the result: Data Format0:069990020010F141;.
@DFMQCU
Query Current Data Formats
@DFMQFA
Query Preset Data Formats
@SETUPE0
** Exit Setup
Formatter Command Type 6
When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For the hex value of ASCII characters involved in the commands, refer to the "ASCII Table" in Appendix.
Send Commands
F1 Send all characters
Syntax=F1xx (xx: The insert character's hex value)
Include in the output message all of the characters from the input message, starting from current cursor position, followed by an insert character.
F2 Send a number of characters
Syntax=F2nnxx (nn: The numeric value (00-99) for the number of characters; xx: The insert character's hex value)
Include in the output message a number of characters followed by an insert character. Start from the current cursor position and continue for "nn" characters or through the last character in the input message, followed by character "xx."
F2 Example: Send a number of characters
1234567890ABCDEFGHIJ
Send the first 10 characters from the barcode above, followed by a carriage return.
Command string: F2100D
F2 is the "Send a number of characters" command
10 is the number of characters to send
0D is the hex value for a CR
The data is output as: 1234567890
F3 Send all characters up to a particular character
Syntax=F3ssxx (ss: The particular character's hex value; xx: The insert character's hex value)
Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular character "ss," followed by character "xx." The cursor is moved forward to the "ss" character.
F3 Example: Send all characters up to a particular character
1234567890ABCDEFGHIJ
Using the barcode above, send all characters up to but not including "D," followed by a carriage return.
Command string: F3440D
F3 is the "Send all characters up to a particular character" command
44 is the hex value for a "D"
0D is the hex value for a CR
The data is output as: 1234567890ABC
B9 Send all characters up to a particular string
Syntax=B9nnnns...s (nnnn: The length of the particular string; s...s: The hex value of each character in the particular string)
Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular string "s...s." The cursor is moved forward to the beginning of the "s...s" string.
B9 Example: Send all characters up to a particular string
1234567890ABCDEFGHIJ
Using the barcode above, send all characters up to but not including
"AB."
Command string: B900024142
B9 is the "Send all characters up to a particular string" command
0002 is the length of the particular string (2 characters)
41 is the hex value for a "A" (character in the
string) 42 is the hex value for a "B" (character in
the string) The data is output as: 1234567890
E9 Send all but the last characters
Syntax=E9nn (nn: The numeric value (00-99) for the number of characters that will not be sent at the end of the message)
Include in the output message all but the last "nn" characters, starting from the current cursor position. The cursor is moved forward to one position past the last input message character included.
F4 Insert a character multiple times
Syntax=F4xxnn (xx: The insert character's hex value; nn: The numeric value (00-99) for the number of times it should be sent)
Send "xx" character "nn" times in the output message, leaving the cursor in the current position.
E9 and F4 Example: Send all but the last characters, followed by 2 tabs
1234567890ABCDEFGHIJ
Send all characters except for the last 9 from the barcode above, followed by 2 tabs.
Command string: E908F40902
E9 is the "Send all but the last characters" command
08 is the number of characters at the end to ignore
F4 is the "Insert a character multiple times" command
09 is the hex value for a horizontal tab
02 is the number of time the tab character is sent
The data is output as: 1234567890AB
B3 Insert symbology name
Insert the name of the barcode's symbology in the output message, without moving the cursor.
B4 Insert barcode length
Insert the barcode's length in the output message, without moving the cursor. The length is expressed as a numeric string and does not include leading zeros.
B3 and B4 Example: Insert the symbology name and length
1234567890ABCDEFGHIJ
Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with spaces. End with a carriage return.
Command string: B3F42001B4F42001F10D
B3 is the "Insert symbology name" command
F4 is the "Insert a character multiple times" command
20 is the hex value for a space
01 is the number of time the space character is sent
B4 is the "Insert barcode length" command
F4 is the "Insert a character multiple times" command
20 is the hex value for a space
01 is the number of time the space character is sent
F1 is the "Send all characters" command
0D is the hex value for a CR
The data is output as: Code128 20 1234567890ABCDEFGHIJ
Move Commands
F5 Move the cursor forward a number of characters
Syntax=F5nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved ahead)
Move the cursor ahead "nn" characters from current cursor position.
F5 Example: Move the cursor forward and send the data
1234567890ABCDEFGHIJ
Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above. End with a carriage return.
Command string: F503F10D
F5 is the "Move the cursor forward a number of characters" command
03 is the number of characters to move the cursor
F1 is the "Send all characters" command
0D is the hex value for a CR
The data is output as: 4567890ABCDEFGHIJ
F6 Move the cursor backward a number of characters
Syntax=F6nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved back)
Move the cursor back "nn" characters from current cursor position.
F7 Move the cursor to the beginning
Syntax=F7
Move the cursor to the first character in the input message.
EA Move the cursor to the end
Syntax=EA
Move the cursor to the last character in the input message.
Search Commands
F8 Search forward for a character
Syntax=F8xx (xx: The search character's hex value)
Search the input message forward for "xx" character from the current cursor position, leaving the cursor pointing to the "xx" character.
F8 Example: Send barcode data that starts after a particular character
1234567890ABCDEFGHIJ
Search for the letter "D" in barcodes and send all the data that follows, including the "D". Using the barcode above:
Command string: F844F10D
F8 is the "Search forward for a character" command
44 is the hex value for "D"
F1 is the "Send all characters" command
0D is the hex value for a CR
The data is output as: DEFGHIJ
F9 Search backward for a character
Syntax=F9xx(xx: The search character's hex value)
Search the input message backward for "xx" character from the current cursor position, leaving the cursor pointing to the "xx" character.
B0 Search forward for a string
Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)
Search forward for "S" string from the current cursor position, leaving cursor pointing to "S" string. For example, B0000454657374 will search forward for the first occurrence of the 4-character string "Test."
B0 Example: Send barcode data that starts after a string of characters
Search for the letters "FGH" in barcodes and send all the data that follows, including "FGH." Using the barcode above:
Command string: B00003464748F10D
B0 is the "Search forward for a string" command
0003 is the string length (3 characters)
46 is the hex value for "F"
47 is the hex value for "G"
48 is the hex value for "H"
F1 is the "Send all characters" command
0D is the hex value for a CR
The data is output as: FGHIJ
B1 Search backward for a string
Syntax=B1nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)
Search backward for "S" string from the current cursor position, leaving cursor pointing to "S" string. For example, B1000454657374 will search backward for the first occurrence of the 4-character string "Test."
E6 Search forward for a non-matching character
Syntax=E6xx (xx: The search character's hex value)
Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character.
E6 Example: Remove zeros at the beginning of barcode data
This example shows a barcode that has been zero filled. You may want to ignore the zeros and send all the data that follows. E6 searches forward for the first character that is not zero, then sends all the data after, followed by a carriage return. Using the barcode above:
Command string: E630F10D
E6 is the "Search forward for a non-matching character" command
30 is the hex value for 0
F1 is the "Send all characters" command
0D is the hex value for a CR
The data is output as: 37692
E7 Search backward for a non-matching character
Syntax = E7xx(xx: The search character's hex value)
Search the input message backward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character.
Comparison Command
B2 string is compared with B@
Syntax= B2nnnnnSS1SSn (nnnn: the length of character string, SS1- SSn: the hex value of character string)
The comparison starts from the right side of the current cursor position, and the cursor moves nnnn characters to the right. If the string within the cursor movement range is equal to SS1SSn, the instruction continues to execute; otherwise, it exits.
B2 example: Send data after the specified string of character
Test123456
The above barcode starts with the "Test" string, and requires the content of the Test string to be sent, and finally a carriage return.
Command string: B2000454657374F10D
B2 is the comparison of the character string" command
0004 is the string length (4 characters)
54 is the hex value for T
65 is the hex value for e
73 is the hex value for s
74 is the hex value for t
F1 is the "Send all characters" command
0D is the hex value of carriage return
The data is output as 123456
EC Check if the character to the right of the cursor is number
This command takes no parameters. If the right side of the cursor is a non-numeric, the current command is exited, otherwise execution continues.
EC example: Send barcode data that starts with number characters
0000123abc
The above barcode starts with number characters, requires to send barcode data, and finally sends a carriage return
Command string: ECF10D
EC is the "Check if the character to the right of the cursor is a number" command
F1 is the "Send All Characters" command
0D is the hex value for CR
The data is output as 0000123abc
@SETUPE0
** Exit Setup
ED Check if the character to the right of the cursor is non-numeric
This command takes no parameters. If the right side of the cursor is a number, the current command is exited, otherwise execution continues.
ED example: Send barcode data that starts with non-numeric characters
The above barcode starts with non-numeric characters, requires to send barcode data, and finally sends a carriage return Command string: EDF10D
EC is the "Check if the character to the right of the cursor is a number" command
F1 is the "Send All Characters" command
0D is the hex value of carriage return
The data is output as Test123456
FE Character Comparison
Syntax = FExx (xx is the hex value of the character)
If the character to the right of the current cursor position is xx, execution continues; otherwise exit.
FE example: The example is a barcode that starts with the character "1" and send the first 6 bytes of the barcode.
The above barcode starts with the character "1", and requires to send the character "1" and the next 5 characters Command string: FE31F7F2060D
FE is the "Character Compare" command
31 is the hex of the character "1"
F7 is the "Move cursor to starting position" command
F2 is the "Send several characters" command
06 is the "Send character length"
0D is the hex value of carriage return
The data is output as 123456
Miscellaneous Commands
FB Suppress characters
Syntax=FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of the characters to be suppressed)
Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands.
FB Example: Remove spaces and other characters in barcode data
12 34 5*6 78
This example shows a barcode that has spaces, “_” and “*” in the data. You may want to remove the three kinds of characters before sending the data. Using the barcode above:
Command string: FB03205F2AF10D
FB is the "Suppress characters" command
03 is the number of the characters to be suppressed
20 is the hex value for a space
5F is the hex value for a " _"
2A is the hex value for a “*”
F1 is the "Send all characters" command
0D is the hex value for a CR
The data is output as: 12345678
E4 Replace characters
Syntax= E4nnxx1xx2yy1yy2...zz1zz2(nn: The total count of the number of characters (characters to be replaced plus replacement characters; xx1: The characters to be replaced, xx2: The replacement characters, continuing through zz1 and zz2)
Replace up to 15 characters in the output message, without moving the cursor.
E4 Example: Replace zeros with CRs in barcode data
12304560780AB
If the barcode has characters that the host application does not want included, you can use the E4 command to replace those characters with something else. In this example, you will replace the zeros in the barcode above with carriage returns.
Command string: E402300DF10D
E4 is the "Replace characters" command
02 is the total count of characters to be replaced, plus the replacement characters (0 is replaced by CR, so total characters=2)
30 is the hex value for 0
0D is the hex value for a CR (the character that will replace the 0)
F1 is the "Send all characters" command
0D is the hex value for a CR
The data is output as: 123
456
78
AB
BA Replace a string multiple times
Syntax = BAnnNN 1SS 1NN2SS 2
nn: The count of replacements to be made, if nn=00 or nn>=the number of occurrences of a string to be replaced, then replace all occurrences of that string.
NN1: The length of the string to be replaced, NN 1>0.
SS 1: The ASCII hex value of each character in the string to be replaced.
NN2: The length of replacement string, NN 2>=0. To replace string "SS 1" with NUL (i.e. delete string "SS 1"), you should set NN2 to 00 and leave out SS 2.
SS 2: The ASCII hex value of each character in the replacement string.
From the current cursor position, search forward for the occurrence of "SS 1" string (of length "NN 1") and replace the string with "SS 2" string (of length "NN 2") in the output message until every "SS 1" string is replaced or the count of replacements made reaches "nn" times, without moving the cursor.
BA Example: Replace "23"s with "XYZ"s in barcode data
1234Abc23R0123U
If the barcode has a string of characters that the host application does not want included, you can use the BA command to replace the string with something else. In this example, you will replace the "23"s in the barcode above with "XYZ"s.
Command string: BA020232330358595AF100
BA is the "Replace a string multiple times" command
02 is the count of replacements to be made
02 is the length of the string to be replace
32 is the hex value for 2 (character in the string to be replaced)
33 is the hex value for 3 (character in the string to be replaced)
03 is the length of XYZ
58595A is the hex value for XYZ
F1 is the "Send all characters" command
00 is the hex value for a NUL
The data is output as: 1XYZ4AbcXYZR0123U
EF Insert a delay
Syntax=EFnnnn (nnnn: The delay in 5ms increments, up to 9999ms)
Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. This command can only be used with USB HID Keyboard.
EF Example: Insert a delay of 1s after the 5^th and 7^th character
1234567890ABCDEFGHIJ
Send the first 5 characters in a barcode, wait for 1s, then send the rest of the barcode data.
Command string: F20500EF0200F20200EF0200F100
F2 is the "Send a number of characters" command
05 is the number of characters to send (start output from the current cursor)
00 is the hex value for a Null character
EF is the "Insert a delay" command
0200 is the delay value (5ms×200=1000ms=1s)
E9 is the "Send all but the last characters" command
00 is the hex value for a Null character
EF is the "Insert a delay" command
0200 is the delay value (5ms×200=1000ms=1s)
The data is output as 12345{1s delay} 67 {1s delay}890ABCDEFGHIJ
B5 Insert key strokes
Syntax=B5nnssxx (nn: The number of keys pressed (without key modifiers); ss: the key modifier from the table below; xx: the key number from the "Unicode Key Maps" in Appendix.)
Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see the "Unicode Key Maps" in Appendix). This command can only be used with USB HID Keyboard.
| Key Modifiers | |
| No Key Modifier | 00 |
| Shift Left | 01 |
| Shift Right | 02 |
| Alt Left | 04 |
| Alt Right | 08 |
| Control Left | 10 |
| Control Right | 20 |
B5 example, Inserting an "abc" on a U.S. style keyboard.
12345678
Command string: B503001F01320030F100
B5 is the "inserted key" command,
03 is number of keys inserted (without the key modifier),
00 is No Key Modifier
1F is the "a" key.
01 is Shift Left
32 is the "b" key
00 is No Key Modifier
30 is the "c" key
F1 is sending all characters
00 is the hex for a Nul
The Data is output as abc12345678
Chapter 8 Prefix & Suffix
Introduction
A 1D barcode could contain digits, letters, symbols, etc. A 2D barcode could contain more data, such as Chinese characters and other multi-byte characters. However, in real applications, they do not and should not have all information we need, such as barcode type, data acquisition time and delimiter, in order to keep the barcodes short and flexible.
Prefix and suffix are how to fulfill the needs mentioned above. They can be added, removed and modified while the original barcode data remains intact.
Barcode processing procedure:
- Edit data with Data Formatter
- Append prefix/suffix
- Pack data
- Append terminating character
@SETUPE1
Enter Setup
Global Settings
Enable/Disable All Prefixes/Suffixes
Disable All Prefixes/Suffixes: Transmit barcode data with no prefix/suffix.
Enable All Prefixes/Suffixes: Allow to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character to the barcode data before the transmission.
@APSENA0
** Disable All Prefixes/Suffixes
@APSENA1
Enable All Prefixes/Suffixes
Prefix Sequence
@PRESEQ0
** Code ID+ Custom +AIM ID
@PRESEQ1
Custom + Code ID + AIM ID
@SETUPE0
** Exit Setup
Custom Prefix
Enable/Disable Custom Prefix
If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters. For example, if the custom prefix is "AB" and the barcode data is "123", the Host will receive "AB123".
@CPRENA0
** Disable Custom Prefix
@CPRENA1
Enable Custom Prefix
Set Custom Prefix
To set a custom prefix, scan the Set Custom Prefix barcode then the numeric barcodes corresponding to the hexadecimal value of a desired prefix then the Save barcode.
Note: A custom prefix cannot exceed 10 characters.
@CPRSET
Set Custom Prefix
Set the custom prefix to "CODE" (HEX: 0x43/0x4F/0x44/0x45):
- Scan the Enter Setup barcode.
- Scan the Set Custom Prefix barcode.
- Scan the numeric barcodes "4", "3", "4", "F", "4", "4", "4" and "5" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Enable Custom Prefix barcode.
- Scan the Exit Setup barcode.
@SETUPE0
** Exit Setup
AIM ID Prefix
AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the "AIM ID Table" section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding.
@AIDENA0
** Disable AIM ID Prefix
@AIDENA1
Enable AIM ID Prefix
AIM ID is not user programmable.
Code ID Prefix
Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters.
** Disable Code ID Prefix
@CIDENA1
Enable Code ID Prefix
Restore All Default Code IDs
For the information of default Code IDs, see the "Code ID Table" section in Appendix.
@CIDDEF
Restore All Default Code IDs
Modify Code ID
See the examples below to learn how to modify a Code ID and restore the default Code IDs of all symbologies.
Example
Modify PDF417 Code ID to be "p" (HEX: 0x70):
- Scan the Enter Setup barcode.
- Scan the Modify PDF417 Code ID barcode.
- Scan the numeric barcodes "7" and "0" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Exit Setup barcode.
Restore the default Code IDs of all symbologies:
- Scan the Enter Setup barcode.
- Scan the Restore All Default Code IDs barcode.
- Scan the Exit Setup barcode.
Modify 1D symbologies
@CID002
Modify Code 128 Code ID
@CID003
Modify GS1-128 Code ID
@CID004
Modify EAN-8 Code ID
@CID005
Modify EAN-13 Code ID
@CID006
Modify UPC-E Code ID
@CID007
Modify UPC-A Code ID
@CID008
Modify Interleaved 2 of 5 Code ID
@SETUPE1
Enter Setup
@SETUPE0
** Exit Setup
@CID023
Modify ISSN Code ID
@CID021
Modify ISBT 128 Code ID
@CID025
Modify Industrial 25 Code ID
@CID024
Modify ISBN Code ID
@CID027
Modify Plessey Code ID
@CID026
Modify Standard 25 Code ID
@CID029
Modify MSI Plessy Code ID
@CID028
Modify Code 11 Code ID
@CID031
Modify GS1 Databar (RSS) Code ID
@CID030
Modify GS1 Composite Code ID
Modify 2D symbologies:
@CID034
Modify Aztec Code ID
@CID032
Modify PDF417 Code ID
@CID033
Modify QR Code ID
@CID035
Modify Data Matrix Code ID
Custom Suffix
Enable/Disable Custom Suffix
If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters. For example, if the custom suffix is "AB" and the barcode data is "123", the Host will receive "123AB".
@CSUENA0
** Disable Custom Suffix
@CSUENA1
Enable Custom Suffix
Set Custom Suffix
To set a custom suffix, scan the Set Custom Suffix barcode then the numeric barcodes corresponding to the hexadecimal value of a desired suffix then the Save barcode.
Note: A custom suffix cannot exceed 10 characters.
@CSUSET
Set Custom Suffix
Set the custom suffix to "CODE" (HEX: 0x43/0x4F/0x44/0x45):
- Scan the Enter Setup barcode.
- Scan the Set Custom Suffix barcode.
- Scan the numeric barcodes "4", "3", "4", "F", "4", "4", "4" and "5" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Enable Custom Suffix barcode.
- Scan the Exit Setup barcode.
Data Packing
Introduction
Data packing is designed for a specific group of users who want to have the data packed before transmission. Data packing influences data format, so it is advised to disable this feature when it is not required.
Data Packing Options
Disable Data Packing: Transmit decoded data in raw format (unpacketed).
Enable Data Packing, Format 1: Transmit decoded data with the packet format 1 defined below.
Packet format 1: [STX + ATTR + LEN] + [AL_TYPE + DATA] + [LRC]
STX: 0x02
ATTR: 0x00
LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).
AL_TYPE: 0x36
DATA: Raw barcode data.
LRC: Check digit.
LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+DATA; computation method is XOR, byte by byte.
Enable Data Packing, Format 2: Transmit decoded data with the packet format 2 defined below.
Packet format 2: [STX + ATTR + LEN] + [AL_TYPE] + [Symbology_ID + DATA] + [LRC]
STX: 0x02
ATTR: 0x00
LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).
AL_TYPE: 0x3B
Symbology_ID: The ID number of symbology, 1 byte.
DATA: Raw barcode data.
LRC: Check digit.
LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+Symbology_ID+DATA; computation method is XOR, byte by byte.
@PACKAG0
** Disable Data Packing
@PACKAG2
Enable Data Packing, Format 2
@PACKAG1
Enable Data Packing, Format 1
Terminating Character Suffix
Enable/Disable Terminating Character Suffix
A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it.
@TSUENAO
** Disable Terminating Character Suffix
@TSUENA1
Enable Terminating Character Suffix
Set Terminating Character Suffix
To set a terminating character suffix, scan the Set Terminating Character Suffix barcode then the numeric barcodes corresponding to the hexadecimal value of a desired terminating character then the Save barcode.
Note: A terminating character suffix cannot exceed 2 characters.
@TSUSET
Set Terminating Character Suffix
@TSUSET0D
** Set Terminating Character to CR (0x0D)
@TSUSET0D0A
Set Terminating Character to CRLF (0x0D,0x0A)
@SETUPE0
** Exit Setup
Set the terminating character suffix to 0x0A:
- Scan the Enter Setup barcode.
- Scan the Set Terminating Character Suffix barcode.
- Scan the numeric barcodes "0" and "A" from the "Digit Barcodes" section in Appendix.
- Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
- Scan the Enable Terminating Character Suffix barcode.
- Scan the Exit Setup barcode.
Appendix
Digit Barcodes
0\~9
6
7
@DIGIT8
8
@DIGIT9
9
A\~F
@DIGITA
A
@DIGITB
B
@DIGITC
C
@DIGITD
D
@DIGITE
E
@DIGITF
F
Save/Cancel Barcodes
After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.
For instance, after reading the Maximum Length barcode and numeric barcodes "1", "2" and "3", you scan:
Delete the Last Digit: The last digit "3" will be removed.
Delete All Digits: All digits "123" will be removed.
Cancel: The maximum length configuration will be cancelled. And the scanner is still in the setup mode.
@DIGSAV
Save
@DIGCAN Cancel
@DIGDEL
@DIGDAL
Delete the Last Digit
Delete All Digits
Factory Defaults Table
| Parameter | Factory Default | Remark |
| System Settings | ||
| Barcode Programming | Disabled (Exit Setup) | |
| Programming Barcode Data | Do not transmit | |
| Illumination | On | |
| Aiming | On | |
| Good Read LED | On | |
| Good Read LED Duration | Short (20ms) | |
| Power On Beep | On | |
| Good Read Beep | On | |
| Good Read Beep Duration | Medium (80ms) | |
| Good Read Beep Frequency | Medium (2730Hz) | |
| Good Read Beep Volume | Loud | |
| Good Read Vibration | Off | |
| Good Read Vibration Duration | 300ms | |
| Scan Mode | Level Mode | |
| Decode Session Timeout | 3,000ms. | 1-3,600,000ms |
| Image Stabilization Timeout (Sense Mode) | 200ms | 0-3,000ms |
| Reread Timeout | Disabled | |
| 1,500ms | 1-3,600,000ms | |
| Reset Reread Timeout | Off | |
| Image Decoding Timeout | 800ms | 1-3,000ms |
| Surround GS1 AI's with Parentheses | Off | |
| Sensitivity | Medium Sensitivity | |
| Trigger Commands | Disabled | |
| Scanning Preference | Normal | |
| Read Barcode | On | |
| Decode Area | Whole Area Decoding | |
| Image Flipping | Do Not Flip | |
| Bad Read Message | Off | |
| NG | ||
| Operating Mode | Bluetooth Dongle KBW Mode | |
| Default Interface | Bluetooth HID Keyboard | |
| USB Interface | ||
| USB Country Keyboard | US keyboard | USB HID Keyboard |
| Beep on Unknown Character | Off | USB HID Keyboard |
| Emulate ALT+Keypad | Off | USB HID Keyboard |
| Code Page | Code Page 1252 (West European Latin) | USB HID Keyboard |
| Unicode Encoding | Off | USB HID Keyboard |
| Emulate Keypad with Leading Zero | On | USB HID Keyboard |
| Function Key Mapping | Disable | USB HID Keyboard |
| Inter-Keystroke Delay | No Delay | USB HID Keyboard |
| Caps Lock | Off(Non Japanese Keypad) | USB HID Keyboard |
| Convert Case | No Case Conversion | USB HID Keyboard |
| Emulate Numeric Keypad 1 | Off | USB HID Keyboard |
| Emulate Numeric Keypad 2 | Off | USB HID Keyboard |
| Fast Mode | Off | USB HID Keyboard |
| Polling Rate | 4ms | USB HID Keyboard |
| Wireless Communication | ||
| Batch Mode | Off | |
| Prevent Same Barcode Storage | Off | |
| Batch Mode Transmit Delay | Off | |
| Auto Clear Stored Data after Transmission | Off | |
| End of Transmission Message for Batch Mode | Off | |
| Auto Power-off | 5 minutes | |
| Time Stamp | Off | |
| Time Stamp Format | Format 1: (YYYY/MM/DD, HH: MM: SS) | |
| Symbologies | ||
| Global Settings | ||
| 1D Twin Code | Single 1D Code Only | |
| Code 128 | ||
| Code 128 | Enabled | |
| Maximum Length | 48 | |
| Minimum Length | 1 | |
| EAN-8 | ||
| EAN-8 | Enabled | |
| Check Character | Transmit | |
| 2-Digit Add-On Code | Disabled | |
| 5-Digit Add-On Code | Disabled | |
| Add-On Code Required | Not Required | |
| Convert EAN-8 to EAN-13 | Disabled | |
| EAN-13 | ||
| EAN-13 | Enabled | |
| Check Character | Transmit | |
| 2-Digit Add-On Code | Disabled | |
| 5-Digit Add-On Code | Disabled | |
| EAN-13 Beginning with 290 Add-On Code Required | Do Not Require Add-On Code | |
| EAN-13 Beginning with 378/379 Add-On Code Required | Do Not Require Add-On Code | |
| EAN-13 Beginning with 414/419 Add-On Code Required | Do Not Require Add-On Code | |
| EAN-13 Beginning with 434/439 Add-On Code Required | Do Not Require Add-On Code | |
| EAN-13 Beginning with 977 Add-On Code Required | Do Not Require Add-On Code | |
| EAN-13 Beginning with 978 Add-On Code Required | Do Not Require Add-On Code | |
| EAN-13 Beginning with 979 Add-On Code Required | Do Not Require Add-On Code | |
| UPC-E | ||
| UPC-E | Enabled | |
| UPC-E0 | Enabled | |
| UPC-E1 | Disable | |
| Check Character | Transmit | |
| 2-Digit Add-On Code | Disabled | |
| 5-Digit Add-On Code | Disabled | |
| Add-On Code Required | Not Required | |
| Transmit Preamble Character | System Character | |
| Convert UPC-E to UPC-A | Disabled | |
| UPC-A | ||
| UPC-A | Enabled | |
| Transmit Preamble Character | System Character | |
| Coupon | ||
| UPC-A/EAN-13 with Extended Coupon Code | Off | |
| Coupon GS1 DataBar Output | Off | |
| Interleaved 2 of 5 | ||
| Interleaved 2 of 5 | Enabled | |
| Maximum Length | 80 | |
| Minimum Length | 6 | |
| Check Character Verification | Do not transmit check digit after verification | |
| Febraban | ||
| Febraban | Disable | |
| Transmit Delay per Character | Disable | |
| Transmit Delay per 12 Character | Disable | |
| ITF-14 | ||
| ITF-14 | Enabled | |
| ITF-6 | ||
| ITF-6 | Disabled | |
| Matrix 2 of 5 | ||
| Matrix 2 of 5 | Disabled | |
| Maximum Length | 80 | |
| Minimum Length | 6 | No less than 4 |
| Check Character Verification | Do not transmit check digit after verification | |
| Code 39 | ||
| Code 39 | Enabled | |
| Maximum Length | 48 | |
| Minimum Length | 1 | |
| Check Character Verification | Do not transmit check digit after verification | |
| Start/Stop Character | Do not transmit | |
| Code 39 Full ASCII | Disabled | |
| Code 32 Pharmaceutical (PARAF) | Disabled | |
| Code 32 Prefix | Disabled | |
| Code 32 Start/Stop Character | Do not transmit | |
| Code 32 Check Character | Do not transmit | |
| Codabar | ||
| Codabar | Enabled | |
| Maximum Length | 60 | |
| Minimum Length | 2 | |
| Check Character Verification | Disabled | |
| Start/Stop Character | Do not transmit | |
| ABCD/ABCD | All capital | |
| Code 93 | ||
| Code 93 | Enabled | |
| Maximum Length | 48 | |
| Minimum Length | 1 | |
| Check Character Verification | Do Not Transmit Check Character After Verification | |
| China Post 25 | ||
| China Post 25 | Disabled | |
| Maximum Length | 48 | |
| Minimum Length | 1 | |
| Check Character Verification | Disabled | |
| UCC/EAN-128 | ||
| UCC/EAN-128 | Enabled | |
| Maximum Length | 48 | |
| Minimum Length | 1 | |
| GS1 Databar | ||
| GS1 Databar | Enabled | |
| Application Identifier “01” | Transmit | |
| EAN•UCC Composite | ||
| GS1 Composite | Disabled | |
| UPC/EAN Composite | Disabled | |
| Code 11 | ||
| Code 11 | Disabled | |
| Maximum Length | 48 | |
| Minimum Length | 4 | No less than 4 |
| Check Character Verification | One Check Character, MOD11 | |
| Check Character | Do Not Transmit Check Character | |
| ISBN | ||
| ISBN | Disabled | |
| Set ISBN Format | ISBN-10 | |
| ISSN | ||
| ISSN | Disabled | |
| Industrial 25 | ||
| Industrial 25 | Enabled | |
| Maximum Length | 48 | |
| Minimum Length | 6 | No less than 4 |
| Check Character Verification | Disabled | |
| Standard 25 | ||
| Standard 25 | Disabled | |
| Maximum Length | 48 | |
| Minimum Length | 6 | No less than 4 |
| Check Character Verification | Do Not Transmit Check Character After Verification | |
| Plessey | ||
| Plessey | Disabled | |
| Maximum Length | 48 | |
| Minimum Length | 4 | No less than 4 |
| Check Character Verification | Do Not Transmit Check Character After Verification | |
| MSI-Plessey | ||
| MSI-Plessey | Enabled | |
| Maximum Length | 48 | |
| Minimum Length | 4 | No less than 4 |
| Check Character Verification | One Check Character, MOD10 | |
| Check Character | Transmit | |
| AIM 128 | ||
| AIM 128 | Disabled | |
| Maximum Length | 48 | |
| Minimum Length | 1 | |
| ISBT 128 | ||
| ISBT 128 | Disabled | |
| PDF417 | ||
| PDF417 | Disabled | |
| Maximum Length | 2710 | |
| Minimum Length | 1 | |
| PDF417 Twin Code | Single PDF417 Only | |
| PDF417 Inverse | Decode Regular PDF417 Barcodes Only | |
| Character Encoding | Default Character Encoding | |
| PDF417 ECI Output | Enabled | |
| Micro PDF 417 | ||
| Micro PDF417 | Enabled | |
| Maximum Length | 366 | |
| Minimum Length | 1 | |
| QR Code | ||
| QR Code | Enabled | |
| Maximum Length | 7089 | |
| Minimum Length | 1 | |
| QR Twin Code | Single QR Only | |
| QR Inverse | Decode Regular QR Barcodes Only | |
| Character Encoding | Default Character Encoding | |
| QR ECI Output | Disabled | |
| Micro QR Code | ||
| Micro QR Code | Enable | |
| Maximum Length | 35 | |
| Minimum Length | 1 | |
| Aztec | ||
| Aztec Code | Disabled | |
| Maximum Length | 3832 | |
| Minimum Length | 1 | |
| Read Multi-barcodes on an Image | Mode 1 | |
| Character Encoding | Default Character Encoding | |
| Aztec ECI Output | Enabled | |
| Data Matrix | ||
| Data Matrix | Enabled | |
| Maximum Length | 3116 | |
| Minimum Length | 1 | |
| Data Matrix Twin Code | Single Data Matrix Only | |
| Rectangular Barcode | Enabled | |
| Data Matrix Inverse | Decode Regular Data Matrix Barcodes Only | |
| Character Encoding | Default Character Encoding | |
| Data Matrix ECI Output | Enabled | |
| Data Formatter | ||
| Data Formatter | Disabled | |
| Data Format Selection | Format_0 | |
| Non-Match Error Beep | On | |
| Multiple Data Format Setting | Disabled | |
| Prefix & Suffix | ||
| All Prefixes/Suffixes | Disabled | |
| Prefix Sequence | Code ID+ Custom +AIM ID | |
| Custom Prefix | Disabled | |
| AIM ID Prefix | Disabled | |
| Code ID Prefix | Disabled | |
| Custom Suffix | Disabled | |
| Data Packing | Disable Data Packing | |
| Terminating Character Suffix | Disable | |
AIM ID Table
| Symbology | AIM ID | Possible AIM ID Modifiers (m) |
| Code128 | ]C0 | |
| GS1-128 (UCC/EAN-128) | ]C1 | |
| EAN-8 | ]E4 | |
| EAN-8 with Addon | ]E3 | |
| EAN-13 | ]E0 | |
| EAN-13 with Addon | ]E3 | |
| UPC-E | ]E0 | |
| UPC-E with Addon | ]E3 | |
| UPC-A | ]E0 | |
| UPC-A with Addon | ]E3 | |
| Interleaved 2 of 5, Febraban | ]Im | 0, 1, 3 |
| ITF-14 | ]Im | 1, 3 |
| ITF-6 | ]Im | 1, 3 |
| Matrix 2 of 5 | ]X0 | |
| Code 39 | ]Am | 0, 1, 3, 4, 5, 7 |
| Codabar | ]Fm | 0, 2, 4 |
| Code 93 | ]G0 | |
| China Post 25 | ]X0 | |
| AIM 128 | ]C2 | |
| ISSN | ]X0 | |
| ISBT 128 | ]C4 | |
| ISBN | ]X0 | |
| Industrial 25 | ]S0 | |
| Standard 25 | ]R0 | |
| Plessey | ]P0 | |
| Code 11 | ]Hm | 0, 1, 3 |
| MSI Plessey | ]Mm | 0, 1 |
| GS1 Composite | ]em | 0-3 |
| GS1 Databar (RSS) | ]e0 | |
| PDF417 | ]Lm | 0-2 |
| Micro PDF 417 | ]L0 | |
| QR Code | ]Qm | 0-6 |
| Micro QR Code | ]Q1 | |
| Aztec | ]zm | 0-9, A-C |
| Data Matrix | ]dm | 0-6 |
Note: "m" represents the AIM modifier character. Refer to ISO/IEC 15424:2008 Information technology – Automatic identification and data capture techniques – Data Carrier Identifiers (including Symbology Identifiers) for AIM modifier character details.
Code ID Table
| Symbology | Code ID |
| Code128 | j |
| GS1-128 (UCC/EAN-128) | j |
| EAN-8 | d |
| EAN-13 | d |
| UPC-E | c |
| UPC-A | c |
| Interleaved 2 of 5 | e |
| ITF-14 | e |
| ITF-6 | e |
| Matrix 2 of 5 | v |
| Code 39 | b |
| Codabar | a |
| Code 93 | i |
| China Post 25 | X |
| AIM 128 | X |
| ISBT 128 | X |
| ISSN | g |
| ISBN | B |
| Industrial 25 | I |
| Standard 25 | f |
| Plessey | n |
| Code 11 | H |
| MSI Plessey | m |
| GS1 Composite | y |
| GS1 Databar (RSS) | R |
| PDF417 | r |
| Micro PDF 417 | R |
| QR Code | s |
| Micro QR Code | X |
| Aztec | z |
| Data Matrix | u |
| MaxiCode | x |
Symbology ID Number
| Symbology | ID Number |
| Code 128 | 002 |
| GS1-128 (UCC/EAN-128) | 003 |
| EAN-8 | 004 |
| EAN-13 | 005 |
| UPC-E | 006 |
| UPC-A | 007 |
| Interleaved 2 of 5 | 008 |
| ITF-14 | 009 |
| ITF-6 | 010 |
| Matrix 2 of 5 | 011 |
| Code 39 | 013 |
| Codabar | 015 |
| Code 93 | 017 |
| AIM 128 | 020 |
| China Post 25 | 019 |
| ISBT 128 | 021 |
| ISSN | 023 |
| ISBN | 024 |
| Industrial 25 | 025 |
| Standard 25 | 026 |
| Plessey | 027 |
| Code11 | 028 |
| MSI-Plessey | 029 |
| GS1 Composite | 030 |
| GS1 Databar (RSS) | 031 |
| PDF417 | 032 |
| Micro PDF 417 | 042 |
| QR Code | 033 |
| Micro QR Code | 043 |
| Aztec | 034 |
| Data Matrix | 035 |
| Maxicode | 036 |
ASCII Table
| Hex | Dec | Char | |
| 00 | 0 | NUL | (Null char.) |
| 01 | 1 | SOH | (Start of Header) |
| 02 | 2 | STX | (Start of Text) |
| 03 | 3 | ETX | (End of Text) |
| 04 | 4 | EOT | (End of Transmission) |
| 05 | 5 | ENQ | (Enquiry) |
| 06 | 6 | ACK | (Acknowledgment) |
| 07 | 7 | BEL | (Bell) |
| 08 | 8 | BS | (Backspace) |
| 09 | 9 | HT | (Horizontal Tab) |
| 0a | 10 | LF | (Line Feed) |
| 0b | 11 | VT | (Vertical Tab) |
| 0c | 12 | FF | (Form Feed) |
| 0d | 13 | CR | (Carriage Return) |
| 0e | 14 | SO | (Shift Out) |
| 0f | 15 | SI | (Shift In) |
| 10 | 16 | DLE | (Data Link Escape) |
| 11 | 17 | DC1 | (XON) (Device Control 1) |
| 12 | 18 | DC2 | (Device Control 2) |
| 13 | 19 | DC3 | (XOFF) (Device Control 3) |
| 14 | 20 | DC4 | (Device Control 4) |
| 15 | 21 | NAK | (Negative Acknowledgment) |
| 16 | 22 | SYN | (Synchronous Idle) |
| 17 | 23 | ETB | (End of Trans. Block) |
| 18 | 24 | CAN | (Cancel) |
| 19 | 25 | EM | (End of Medium) |
| 1a | 26 | SUB | (Substitute) |
| 1b | 27 | ESC | (Escape) |
| 1c | 28 | FS | (File Separator) |
| 1d | 29 | GS | (Group Separator) |
| Hex | Dec | Char |
| 1e | 30 | RS (Request to Send) |
| 1f | 31 | US (Unit Separator) |
| 20 | 32 | SP (Space) |
| 21 | 33 | ! (Exclamation Mark) |
| 22 | 34 | " (Double Quote) |
| 23 | 35 | # (Number Sign) |
| 24 | 36 | $ (Dollar Sign) |
| 25 | 37 | % (Percent) |
| 26 | 38 | & (Ampersand) |
| 27 | 39 | ` (Single Quote) |
| 28 | 40 | ( (Left/ Opening Parenthesis) |
| 29 | 41 | ) (Right/ Closing Parenthesis) |
| 2a | 42 | * (Asterisk) |
| 2b | 43 | + (Plus) |
| 2c | 44 | , (Comma) |
| 2d | 45 | - (Minus/ Dash) |
| 2e | 46 | . (Dot) |
| 2f | 47 | / (Forward Slash) |
| 30 | 48 | 0 |
| 31 | 49 | 1 |
| 32 | 50 | 2 |
| 33 | 51 | 3 |
| 34 | 52 | 4 |
| 35 | 53 | 5 |
| 36 | 54 | 6 |
| 37 | 55 | 7 |
| 38 | 56 | 8 |
| 39 | 57 | 9 |
| 3a | 58 | : (Colon) |
| 3b | 59 | ; (Semi-colon) |
| 3c | 60 | < (Less Than) |
| 3d | 61 | = (Equal Sign) |
| 3e | 62 | > (Greater Than) |
| 3f | 63 | ? (Question Mark) |
| 40 | 64 | @ (AT Symbol) |
| 41 | 65 | A |
| 42 | 66 | B |
| 43 | 67 | C |
| 44 | 68 | D |
| 45 | 69 | E |
| 46 | 70 | F |
| 47 | 71 | G |
| 48 | 72 | H |
| 49 | 73 | I |
| 4a | 74 | J |
| 4b | 75 | K |
| 4c | 76 | L |
| 4d | 77 | M |
| 4e | 78 | N |
| 4f | 79 | O |
| 50 | 80 | P |
| 51 | 81 | Q |
| 52 | 82 | R |
| 53 | 83 | S |
| 54 | 84 | T |
| 55 | 85 | U |
| 56 | 86 | V |
| 57 | 87 | W |
| 58 | 88 | X |
| 59 | 89 | Y |
| 5a | 90 | Z |
| 5b | 91 | [ (Left/ Opening Bracket) |
| 5c | 92 | \ (Back Slash) |
| 5d | 93 | ] (Right/ Closing Bracket) |
| 5e | 94 | ^ (Caret/ Circumflex) |
| 5f | 95 | _ (Underscore) |
| 60 | 96 | ' (Grave Accent) |
| 61 | 97 | a |
| 62 | 98 | b |
| 63 | 99 | c |
| 64 | 100 | d |
| 65 | 101 | e |
| 66 | 102 | f |
| 67 | 103 | g |
| 68 | 104 | h |
| 69 | 105 | i |
| 6a | 106 | j |
| 6b | 107 | k |
| 6c | 108 | l |
| 6d | 109 | m |
| 6e | 110 | n |
| 6f | 111 | o |
| 70 | 112 | p |
| 71 | 113 | q |
| 72 | 114 | r |
| 73 | 115 | s |
| 74 | 116 | t |
| 75 | 117 | u |
| 76 | 118 | v |
| 77 | 119 | w |
| 78 | 120 | x |
| 79 | 121 | y |
| 7a | 122 | z |
| 7b | 123 | { (Left/ Opening Brace) |
| 7c | 124 | | (Vertical Bar) |
| 7d | 125 | } (Right/ Closing Brace) |
| 7e | 126 | ~ (Tilde) |
| 7f | 127 | DEL (Delete) |
Unicode Key Maps
104 Key U.S. Style Keyboard
105 Key European Style Keyboard
SCANNING MADE SIMPLE
Newland EMEA
+31 (0) 345 87 00 33
info@newland-id.com
Rolweg 25
4104 AV Culemborg
The Netherlands @NewlandEMEA
- WD4
- RING SCANNER
- Disclaimer
- Table of Contents
- Revision History...... 3
- Preface....1
- Chapter 1 Getting Started .... 3
- Chapter 2 Easyset....5
- Chapter 3 System Setting ...... 6
- Code 128....81
- EAN-8 83
- EAN-13 87
- UPC-E 95
- UPC-A 100
- Codabar 125
- Code 93....129
- China Post 25....132
- GS1-128 (UCC/EAN-128) 135
- GS1 Databar (RSS).... 137
- GS1 Composite (EAN·UCC Composite) 138
- Code 11 139
- ISBN 143
- Chapter 8 Prefix & Suffix....211
- Appendix 227
- Preface
- Introduction
- Chapter Description
- Explanation of Icons
- Chapter 1 Getting Started
- Chapter 2 Easyset
- Chapter 3 System Setting
- Barcode Programming
- Command Programming
- EasySet Programming
- Programming Barcode/ Programming Command/Function
- Use of Programming Command
- Use of Programming Barcodes
- SETUPT0
- SETUPT1
- Good Read LED
- Good Read LED Duration
- Set the Good Read LED duration to 800ms:
- Power On Beep
- Good Read Beep
- Good Read Beep Duration
- Set the Good Read Beep duration to 200ms:
- Good Read Beep Frequency
- Set the Good Read Beep frequency to 2,000Hz:
- Good Read Beep Volume
- Vibration
- Good Read Vibration Duration
- Scan Mode
- Decode Session Timeout
- Set the decode session timeout to 1,500ms:
- Image Stabilization Timeout (Sense Mode)
- Set the image stabilization timeout to 800ms:
- Reread Timeout
- Set the reread timeout to 1,000ms:
- Image Decoding Timeout
- Set the image decoding timeout to 1,000ms:
- Scanning Preference
- Surround GS1 Application Identifiers (AI's) with Parentheses
- Sensitivity
- Set the sensitivity to Level 10:
- Trigger Commands
- Modify Start Scanning Command
- Set the Start Scanning command to “\*T”:
- Modify Stop Scanning Command
- Read Barcode after Power On
- Read Barcode On/Off
- Decode Area
- Example
- Bad Read Message
- Set Bad Read Message
- Set the bad read message to "F" (HEX: 0x46):
- Power Off/Battery Off
- Default Settings
- Factory Defaults
- Custom Defaults
- Query Product Information
- Chapter 4 USB Interface
- USB HID Keyboard
- USB Country Keyboard Types
- Beep on Unknown Character
- Emulate ALT+Keypad
- Code Page
- Unicode Encoding
- Emulate Keypad with Leading Zero
- ASCII Function Key Mapping Table (Continued)
- Inter-Keystroke Delay
- Caps Lock
- Convert Case
- Emulate Numeric Keypad
- Fast Mode
- Polling Rate
- USB CDC
- HID POS (POS HID Barcode Scanner)
- Access the Scanner with Your Program
- Acquire Scanned Data
- Send Command to the Scanner
- VID/PID
- Chapter 5 Wireless Communication
- Operating Modes
- Batch Mode
- Batch Mode Options
- Prevent Same Barcode Storage
- Batch Mode Transmit Delay
- Set the batch mode transmit delay to 200ms:
- End of Transmission Message for Batch Mode
- Transmit Stored Data
- Auto Clear Stored Data after Transmission
- Query/Clear Stored Data in Flash
- Clear Pairing Info on Scanner
- Auto Power-Off Timeout
- Set Scanner Name
- Set Date and Time
- Set Date and Time to "20201021010101":
- Query the Battery Power of Scanner
- Time Stamp
- Set Time Stamp Format
- Chapter 6 Symbologies
- Global Settings
- Enable/Disable All Symbologies
- Enable/Disable 1D Symbologies
- 1D Twin Code
- Code 128
- Set Length Range for Code 128
- Set the scanner to decode Code 128 barcodes containing between 8 and 12 characters:
- EAN-8
- Transmit Check Character
- 2-Digit Add-On Code
- 5-Digit Add-On Code
- Add-On Code Required
- Convert EAN-8 to EAN-13
- EAN-13
- EAN-13 Beginning with 290 Add-On Code Required
- EAN-13 Beginning with 378/379 Add-On Code Required
- EAN-13 Beginning with 414/419 Add-On Code Required
- EAN-13 Beginning with 434/439 Add-On Code Required
- EAN-13 Beginning with 977 Add-On Code Required
- EAN-13 Beginning with 978 Add-On Code Required
- EAN-13 Beginning with 979 Add-On Code Required
- UPC-E
- Transmit Preamble Character
- Convert UPC-E to UPC-A
- UPC-A
- Coupon
- UPC-A/EAN-13 with Extended Coupon Code
- Coupon GS1 Databar Output
- Interleaved 2 of 5
- Set Length Range for Interleaved 2 of 5
- Set the scanner to decode Interleaved 2 of 5 barcodes containing between 8 and 12 characters:
- Check Character Verification
- Febraban
- Transmit Delay per Character
- Transmit Delay per 12 Characters
- ITF-14
- ITF-6
- Enable/Disable ITF-6
- Matrix 2 of 5
- Set Length Range for Matrix 2 of 5
- Code 39
- Set Length Range for Code 39
- Set the scanner to decode Code 39 barcodes containing between 8 and 12 characters:
- Transmit Start/Stop Character
- Enable/Disable Code 39 Full ASCII
- Enable/Disable Code 32 (Italian Pharma Code)
- Code 32 Prefix
- Transmit Code 32 Start/Stop Character
- Transmit Code 32 Check Character
- Codabar
- Set Length Range for Codabar
- Set the scanner to decode Codabar barcodes containing between 8 and 12 characters:
- Start/Stop Character
- Code 93
- Set Length Range for Code 93
- Set the scanner to decode Code 93 barcodes containing between 8 and 12 characters:
- China Post 25
- Set Length Range for China Post 25
- Set Length Range for GS1-128
- GS1 Databar (RSS)
- GS1 Composite (EAN·UCC Composite)
- Code 11
- Set Length Range for Code 11
- Set the scanner to decode Code 11 barcodes containing between 8 and 12 characters:
- ISBN
- Industrial 25
- Set Length Range for Industrial 25
- Set the scanner to decode Industrial 25 barcodes containing between 8 and 12 characters:
- Standard 25
- Set Length Range for Standard 25
- Plessey
- Set Length Range for Plessey
- MSI-Plessey
- Set Length Range for MSI-Plessey
- Set the scanner to decode MSI-Plessey barcodes containing between 8 and 12 characters:
- Set Length Range for AIM 128
- Set the scanner to decode AIM 128 barcodes containing between 8 and 12 characters:
- PDF417
- Set Length Range for PDF417
- Set the scanner to decode PDF417 barcodes containing between 8 and 12 characters:
- PDF417 Twin Code
- PDF417 Inverse
- Character Encoding
- Micro PDF417
- Set Length Range for Micro PDF417
- QR Code
- Set Length Range for QR Code
- QR Twin Code
- QR Inverse
- Micro QR Code
- Set Length Range for Micro QR
- Aztec
- Set Length Range for Aztec Code
- Set the scanner to decode Aztec barcodes containing between 8 and 12 characters:
- Read Multi-barcodes on an Image
- Aztec ECI Output
- Data Matrix
- Set Length Range for Data Matrix
- Set the scanner to decode Data Matrix barcodes containing between 8 and 12 characters:
- Data Matrix Twin Code
- Rectangular Barcode
- Data Matrix Inverse
- Data Matrix ECI Output
- Chapter 7 Data Formatter
- Add a Data Format
- Programming with Barcodes
- Programming with Serial Commands
- Enable/Disable Data Formatter
- Non-Match Error Beep
- Data Format Selection
- Change Data Format for a Single Scan
- Clear Data Format
- Query Data Formats
- Formatter Command Type 6
- Send Commands
- F1 Send all characters
- F2 Send a number of characters
- F2 Example: Send a number of characters
- F3 Send all characters up to a particular character
- F3 Example: Send all characters up to a particular character
- B9 Send all characters up to a particular string
- B9 Example: Send all characters up to a particular string
- E9 Send all but the last characters
- F4 Insert a character multiple times
- B3 Insert symbology name
- B4 Insert barcode length
- Move Commands
- F6 Move the cursor backward a number of characters
- F7 Move the cursor to the beginning
- EA Move the cursor to the end
- Search Commands
- B0 Search forward for a string
- B0 Example: Send barcode data that starts after a string of characters
- B1 Search backward for a string
- E6 Search forward for a non-matching character
- E6 Example: Remove zeros at the beginning of barcode data
- E7 Search backward for a non-matching character
- Comparison Command
- FE Character Comparison
- Miscellaneous Commands
- FB Suppress characters
- FB Example: Remove spaces and other characters in barcode data
- E4 Replace characters
- BA Replace a string multiple times
- BA Example: Replace "23"s with "XYZ"s in barcode data
- EF Insert a delay
- B5 Insert key strokes
- Chapter 8 Prefix & Suffix
- Prefix Sequence
- Custom Prefix
- Enable/Disable Custom Prefix
- Set Custom Prefix
- Set the custom prefix to "CODE" (HEX: 0x43/0x4F/0x44/0x45):
- AIM ID Prefix
- Code ID Prefix
- Restore All Default Code IDs
- Modify Code ID
- Modify PDF417 Code ID to be "p" (HEX: 0x70):
- Restore the default Code IDs of all symbologies:
- Custom Suffix
- Enable/Disable Custom Suffix
- Set Custom Suffix
- Set the custom suffix to "CODE" (HEX: 0x43/0x4F/0x44/0x45):
- Data Packing
- Data Packing Options
- Terminating Character Suffix
- Enable/Disable Terminating Character Suffix
- Set Terminating Character Suffix
- Set the terminating character suffix to 0x0A:
- Appendix
- Save/Cancel Barcodes
- SCANNING MADE SIMPLE
Brand : Newland
Model : WD4-BS20
Category : Uncategorized
