Product Type	Heated Shawl/Wrap
Model	SWC 100 A1
Dimensions	Approx. 145 x 90 cm
Power Supply	230-240 V~, 50-60 Hz
Power Consumption	100-110 W
Protection Class	II
Material	100% Polyester
Heat Settings	6 levels (0 off, 1 min, 2-5 custom, 6 max)
Automatic Shut-Off	After approx. 180 minutes
Safety System	Electronic sensor prevents overheating, auto switch-off in case of fault
Care Instructions	Machine washable at 30°C, gentle cycle; do not bleach, tumble dry, iron, or dry clean
Fastening	Press studs on front and arm region
Warranty	3 years from date of purchase (material and manufacturing defects)
Intended Use	Warming the human body; not for medical, commercial, or infant use
Max. Wash Cycles	5 times during its lifetime
Öko-Tex Standard 100	Yes, tested at Hohenstein Research Institute
Included Items	Heated shawl, control with plug-in connector, operating instructions
Manufacturer	MGG Elektro GmbH, 01099 Dresden, Germany

Frequently Asked Questions - SWC 100 A1 SILVERCREST

How do I switch on the SilverCrest SWC 100 A1 heated shawl?

Set the control to level 1, 2, 3, 4, 5, or 6. The function indicator will light up. To turn off, set to level 0.

What are the temperature levels and how do I choose?

Level 0 is off. Level 1 is minimum heat. Levels 2-5 are customisable. Level 6 is maximum heat. For quick warm-up, use level 6; for prolonged use, use level 1.

Does the heated shawl automatically switch off?

Yes, after about 180 minutes. The function indicator will flash. Turn to level 0 and wait 5 seconds, then reselect your desired temperature to restart.

Can I wash the SWC 100 A1 heated shawl?

Yes, it is machine-washable. Remove the control and plug-in connector first. Wash on a gentle cycle at 30°C with mild detergent. Do not use bleach, tumble dry, iron, or dry clean. Wash no more than 5 times.

What should I do if the safety system switches off the shawl?

If the function indicator does not light up despite being switched on, a fault has occurred. Do not use the shawl again and return it to the service address indicated.

Can I use the heated shawl if I have a pacemaker?

Consult your doctor and the pacemaker manufacturer. The electric and magnetic fields are below permissible limits but may interfere with pacemakers.

How should I store the heated shawl when not in use?

Let it cool down completely. Store in original packaging in a dry place without placing heavy objects on top to avoid sharp creases.

Is the heated shawl suitable for children or infants?

No. It must not be used by babies, infants, helpless persons, or those insensitive to heat. Use by children only with preset control or sufficient instruction.

What is the warranty period for the SWC 100 A1?

The warranty is 3 years from the date of purchase for material and manufacturing defects. Proof of purchase is required. Damage from improper use or wear parts are excluded.

Can I repair the heated shawl myself?

No. The device must not be opened. Repairs should only be carried out by the manufacturer or an authorised service centre. If the power cord is damaged, it must be replaced by a qualified person.

USER MANUAL SWC 100 A1 SILVERCREST

HEATED SHAWL SWC 100 A1

GB IE

HEATED SHAWL/WRAP

Operation and Safety Notes

IAN▽5375

GB IE

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB / IE Operation and Safety Notes Page 5

Table of Contents

Introduction

Proper use....Page 6

Description of Parts Page 7

Included items Page 7

Technical data....Page 7

Important safety instructions....Page 7

Safety system....Page 9

Preparing the product for use

Switching on/off/Selecting the temperature....Page 9

Temperature levels Page 10

Automatic switch-off Page 10

Cleaning and Care Page 10

Storage Page 11

Disposal Page 11

Warranty / Service centre Page 11

Declaration of conformity....Page 12

Introduction

The following pictograms are used in these operating instructions / on the heated shawl / wrap:
	Read the instructions!		The textiles used in this heated shawl / wrap meet the high human ecological safety requirements of the Öko-Tex Standard 100 as proven in tests at the Hohenstein Research Institute.
	Volt (AC)		Do not use when folded or bunched up!
	Hertz (mains frequency)		Caution - electric shock!Danger to life!
	Watts (effective power)		The heated shawl / wrap is machine-washable. Set the washing machine to an extra gentle washing program at 30 °C.
	Safety class II Do not use bleach.
	Observe caution and safety notes! Do not use a tumbler dryer.
	Keep children away from the heated shawl/wrap!		Do not iron.
	Risk of loss of life by electric shock from damaged mains power cable or mains plug!		Do not dry clean.
	Do not stick needles into it.		Dispose of packaging and heated shawl / wrap in an environmentally-friendly way!

Heated Shawl/Wrap

●Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Please make your-

self familiar with the heated shawl / wrap before preparing it for use or using it for the first time. Please read the following operating instructions and the important safety instructions carefully. Use

the heated shawl / wrap only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heated shawl / wrap pad on to anyone else, please ensure that you also pass on all the documentation.

•Properuse

This heated shawl / wrap is designed to warm the human body and may not be used as an underlay. This heated shawl / wrap is not intended for use in

Introduction / Important safety instructions

hospitals or for commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described here or modification to the heated shawl / wrap is not permitted and could lead to injury and / or damage to the product. The manufacturer accepts no liability for any damage caused by improper use.

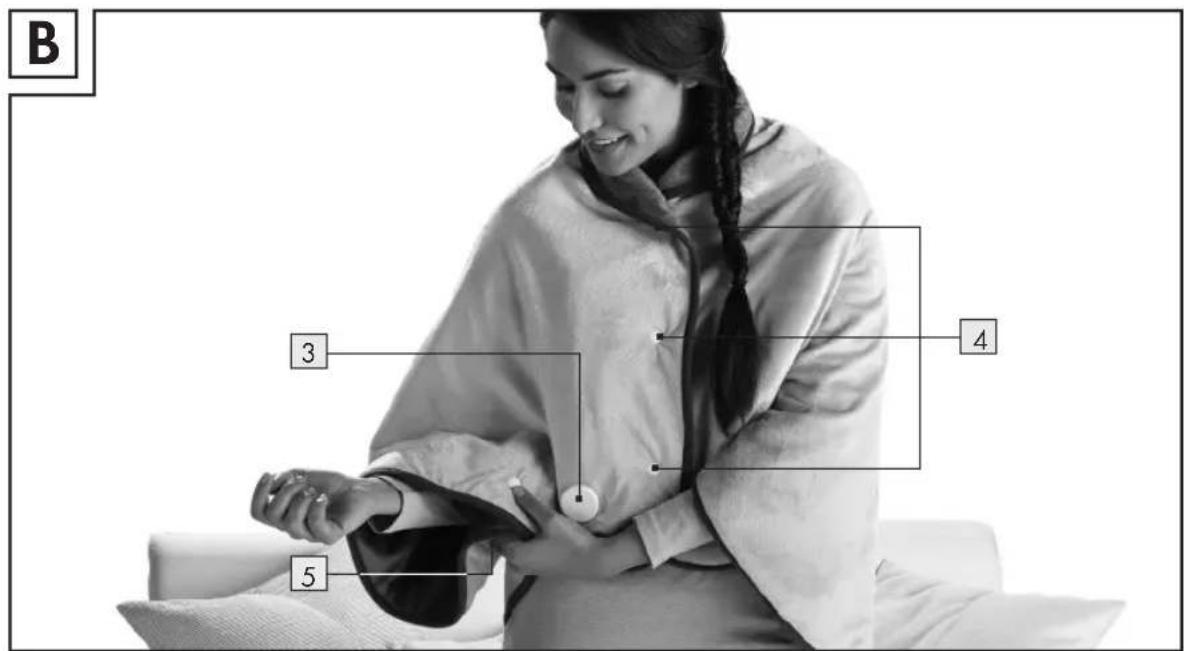

• Description of Parts

1 Control (see Fig. A)
2 Function indicator (see Fig. A)
3 Plug-in connector (see Fig. C)
4 Press studs (see fig. B)
5 Press studs (see fig. B)

Includeditems

Check that all the items are present and that the heated shawl / wrap is in perfect condition immediately after unpacking.

1 heated shawl/wrap
1 Control/plug-in connector
1 Operating instructions

●Technicaldata

Model: SWC 100 A1

Type:B10C

Power supply: 230-240V\~/50-60Hz

Power consumption: 100W-110W

Dimensions: Approx. 145 x 90 cm

Protectionclass:II/

Electric field strength: max. 5000V/m

Magnetic field strength: max. 80A/m

Magnetic flux density: max. 0.1 millitesla

Material:

Top/bottom: 100% Polyester

Manufacturer:

MGG Elektro GmbH

01099 Dresden, Germany

IMPORTANT ADVICE – KEEP THIS SAFE FOR FUTURE USE!

Importantsafety instructions

Failure to comply with the following instructions can cause personal injury or material damage (electric shock, skin burns, fire). The following advice on safety and hazards is intended to protect your health and that of other people as well as to protect the heated shawl / wrap. Please observe these safety instructions and pass on this operating manual together with the heated shawl / wrap.

WARNING! DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL

CHILDREN! Never leave children unattended with the packaging material. Danger of suffocation.

WARNING! DANGER OF ELECTRIC

SHOCK! Do not use the heated shawl / wrap if it is damp. There is a risk of electric shock.

Do not use the mains power cable for purposes for which it was not intended, e.g. for hanging up the

heated shawl / wrap, carrying it or to pull the plug out of the mains socket. Keep the mains

Important safety instructions

power cable away from heat, oil and sharp edges. If the mains power cable is damaged or severed, do not touch the mains power cable, but pull the mains plug out of the mains socket immediately. Damaged or tangled mains power cables increase the risk of electric shock.

DANGER OF ELECTRIC SHOCK!

Do not insert needles or pointed objects into the heated shawl / wrap.

There is a risk of electric shock.

Ask your doctor and, if relevant, the manufacturer of your heart pacemaker before you use the heated shawl / wrap. The electric and magnetic fields generated by this heated shawl / wrap may under certain circumstances interfere with the operation of cardiac pacemakers. However, the levels are far below the permissible limits: details of these levels can be found in the "Technical data" chapter.

WARNING! RISK OF ELECTRIC SHOCK

AND RISK OF INJuRY! Before every use, check the heated shawl / wrap carefully for signs of wear and / or damage. If you find such signs of damage, if the cables are damaged or if the heated shawl / wrap has not been used properly, it must be returned to the manufacturer or to a dealer before it is used again. Improper use, wear or damage can result in considerable dangers for the user. There is a danger of electric shock and injury.

RISK OF INJU RY! Children or

persons lacking knowledge or experience in handling the heated shawl / wrap or have limited physical, sensory or mental abilities, must not use the heated shawl / wrap without supervision or instruction by a person responsible for their safety. Children must be supervised at all times to prevent them from playing with the heated shawl / wrap. Risk of injury!

RISK OF INJU RY! Do not use this

heated shawl / wrap for helpless persons, infants or persons who are insensitive to heat (e.g. diabetics, people with disease-related changes to the skin or scarred

skin in the area of use, or after taking pain-relieving medication or consuming alcohol). Risk of injury!

d in this

heated shawl/wrap meet the high human ecological safety requirements of the Öko-Tex

Standard 100 as proven in tests at the Hohenstein Research Institute.

RISK OF INJU RY FROM

BuRNS! This heated shawl / wrap must not be used by children unless the control 1 has been preset by a parent or other responsible person, or unless the child has been instructed sufficiently in how to use this heated shawl / wrap safely. There is a risk of receiving skin burns.

CAUTION! Take care that you do not fall asleep while the heated shawl / wrap is in operation. Excess-long use can cause skin burns.

CAUTION! Do not use the heated shawl / wrap on any part of the body that is inflamed, injured or in. Seek medical advice before using the d shawl / wrap if in doubt. Such inflam- n, injuries and / or swelling may other- vorsen.

CAUTION! Repairs must only be carried out by specially trained personnel or at a repair shop authority the manufacturer, since special tools necessary. Improper repairs may result in tolerable dangers for the user.

CAUTION! If the power supply cord of this heated shawl / wrap is damaged, it has to be replaced by manufacturer, a repair shop approved by manufacture or a similarly qualified person to avoid any danger. Risk of injury!

Important safety instructions / Safety system / Preparing the product for use

Avoid damage to the heated shawl/wrap!

■ Please ensure that you:

• Only connect the heated shawl / wrap to the voltage indicated on the label,
• only use the heated shawl / wrap in conjunction with the control 1 indicated on the heated shawl / wrap (label),

do not switch the heated shawl / wrap on if it is folded or bunched up,

. do not squeeze or jam the heated shawl / wrap,

• do not cause any sharp creases in the heated shawl/wrap,
• do not place any objects, e.g. suitcase or washing basket, on the heated shawl / wrap when it is switched on,
• do not place any source of heat e.g. a hot water bottle or similar items onto the warp when it is switched on.

Ignoring this advice may damage the heated shawl/wrap.

Do not cover the control 1 and do not place it on the heated shawl / wrap when the heated shawl / wrap is in operation. The electronic components in the control 1 of the heated shawl / wrap cause the control 1 to heat up slightly during operation.
Do not pull, twist or crease the cables. Ignoring this advice may damage the heated shawl/wrap.

●Safetysystem

Note: the heated shawl / wrap is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heated shawl / wrap from overheating by automatically switching off in the event of a fault.

If the safety system switches the heated shawl / wrap off automatically as a result of a fault, the function display on the control 1 will no longer light up, even when heated shawl / wrap is switched on.

☐ Please note that, for safety reasons, the heated shawl / wrap must not be used after a fault and must be returned to the service address indicated.

● Preparing the product for use

Note: The heated shawl / wrap may smell of plastic the first time you use it, but this will disappear after a short period of time.

Lay the heated shawl / wrap over your shoulders in such a way that the dark side is facing your body.
☐ If necessary, fasten the press studs 4 on the front side (fig. B). There are additional press studs 5 in the arm region (fig. B).
☐ To begin, first connect the control 1 to the warp with the plug-in connector 3 (see fig. C).

- Switching on/off/Selecting the temperature

Switching on:

☐ Set Level 1, 2, 3, 4, 5 or 6 on the control ☐ to switch the heated shawl / wrap on.

Note: The function indicator illuminates after the heated shawl / wrap is switched on.

Switching off:

☐ Set Level 0 on the control ☐ to switch the heated shawl/wrap off.

Note: The function indicator decreases to illuminate.

Selecting the temperature:

☐ Just before using the heated shawl / wrap, set it to the highest temperature setting (level 6). This will cause the heated shawl / wrap to warm up quickly.
☐ If you wish to leave the heated shawl / wrap on for several hours, set the lowest temperature (level 1).

Preparing the product for use / Cleaning and Care

●Temperaturelevels

☐ Set the required temperature level on the control 1 (see Fig. A).

Setting0:Off

Setting 1: Minimumheat

Settings 2 - 5: Customised heat

Setting6: Maximumheat

●Automaticswitch-off

Note: The heated shawl / wrap switches itself off automatically after about 180 minutes. The function display on the control 1 then starts flashing.

☐ Then select the setting 0 and after about 5 seconds, reset the heated shawl / wrap to the desired temperature setting to switch it on again.
☐ Switch the heated shawl / wrap off (setting 0) and pull the mains plug out of the mains socket if the heated shawl / wrap is not to be used after it has switched itself off automatically.

- Cleaning and Care

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK! Always remove the mains plug from the socket and the plug-in connector 3 with the control 1 from the heated shawl / wrap (see fig. C) before cleaning the heated shawl / wrap. There is otherwise a risk of an electric shock.

DANGER OF ELECTRIC SHOCK! Do not reconnect the control 1 to the heated shawl / wrap until the plug-in connector 3 and the heated shawl / wrap are completely dry. There is otherwise a risk of an electric shock.

DANGER OF ELECTRIC SHOCK! RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER

PROPERTY! Never switch on the heated

shawl / wrap to dry it. There is otherwise a risk of an electric shock.

RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER

PROPERTY! Do not use chemical

cleaning or scouring agents to clean the heating pad and control 1. Ignoring this advice may damage the heated shawl / wrap.

RISK OF DAMAGE TO THE PRODUCT AND / OR OTHER PROPERTY! Never immerse the

control unit 1 in water or other liquids. It may otherwise be damaged.

☐ Use a dry, non-fluffing cloth for cleaning and care of the heated shawl / wrap and control 1.
☐ You can dampen the cloth and use a little mild liquid detergent to remove more stubborn dirt from the heated shawl / wrap.
The heated shawl / wrap is machine-washable. Set the washing machine at an extra washing cycle for delicate items at 30 °C.
For ecological reasons, please only wash the heated shawl / wrap together with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.
☐ Please note that frequent washing will cause wear to the heated shawl / wrap. It should therefore be washed no more than max. 5 times in a washing machine throughout its useful life.

RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER PROPERTY! Please note that the

heated shawl / wrap may not be dry cleaned, bleached, wrung out, dried mechanically, mangled or ironed. Ignoring this advice may damage the heated shawl / wrap.

RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER PROPERTY! Do not hang the

heated shawl / wrap up to dry with pegs or similar. Ignoring this advice may damage the heated shawl / wrap.

■ Note: Non-observance of the following warnings may damage the heated shawl / wrap.

Cleaning and Care/Storage/Disposal/Warranty/Service centre

Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
☐ Do not dry in a tumbler dryer.
☒
Do not iron.
[NO TEXT]
Do not dry clean.
Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do not dry in a tumbler dryer.
Do not iron.
Do not dry clean.

and its transposition into national legislation, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out heated shawl/wrap.

● Warranty / Service centre

We provide a 3 year guaranty starting from the day of purchase for any material and factory faults of the heated shawl/wrap.

Storage

RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER PROPERTY! Before putting it away, let the heated shawl / wrap cool down. Otherwise material damage could occur.
RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER PROPERTY! To prevent the heated

shawl / wrap from becoming sharply creased, do not store other objects on top of the heated shawl/wrap. Otherwise material damage could occur.

☐ If you do not intend to use the heated shawl / wrap for any length of time, store it in the original packaging in a dry environment and without weighing it down.

●Disposal

The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electrical devices with the household rubbish!

In accordance with European Directive 2002 / 96 / EC (covering waste electrical and electronic equipment)

The warranty does not cover:

• Damage resulting from improper use.
  ·Wearparts.
• Defects that were known to the customer at the time of purchase.
• Damage for which the customer was responsible.

This warranty does not affect the customer's legal rights.

The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Claims under the warranty within a period of 3 years from the date of purchase are honoured by

In the event of a warranty claim, the customer has the right to have the goods repaired by our own workshop or a workshop authorised by use. The heated shawl / wrap must not be opened for any reason. Opening or modifying the device invalidates the warranty. This warranty does not grant any additional rights to the customer. Complaints are often initiated by difficulties encountered during use.

Many of these complaints can be resolved by telephone or e-mail. Please contact our Service Hotline

Warranty / Service centre / Declaration of conformity

in the first instance, before you return the heated shawl / wrap to the manufacturer.

IAN 75375

GB

020 30249050

IE

0152 45132

● Declaration of conformity (CE)

This heated shawl / wrap complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.

© by ORFGEN Marketing

Last Information Update: 06 / 2012

Ident.-No.: 750.073062012-6

IAN75375

6
