Product Type	LCD Monitor
Brand	Iiyama
Model	G-Master G2250HS (G2250HS-B1)
Screen Size	21.5" (54.7 cm) diagonal
Panel Technology	VA (Vertical Alignment)
Native Resolution	1920 × 1080 (Full HD)
Brightness	250 cd/m² (Typical), 175 cd/m² (Default/Energy Saving)
Contrast Ratio	3000:1 (Typical), Advanced Contrast function available
Response Time	1 ms (MPRT)
Viewing Angles	89° / 89° each (Typical)
Display Colors	Approx. 16.7 million
Sync Frequency (HDMI/DP with FreeSync)	Horizontal: 31.0 – 85.0 kHz, Vertical: 48 – 75 Hz
Input Connectors	1× HDMI, 1× DisplayPort
Speakers	2 W × 2 (Stereo)
Headphone Jack	Yes, 3.5 mm mini jack
Power Consumption	13 W typical, Standby < 0.5 W, Off < 0.3 W
Power Source	100 – 240 V AC, 50/60 Hz, 1.5 A
Tilt Angle	Up 22°, Down 4°
VESA Mount	100 × 100 mm
Security Lock	Keyhole for Kensington lock
Weight (Net)	2.6 kg (5.7 lbs)
Dimensions (W×H×D)	493.5 × 352.0 × 192.5 mm (19.4 × 13.9 × 7.6 in)
Energy Star	Yes, ENERGY STAR® compliant
Special Features	AMD FreeSync™, Flicker-Free, Blue Light Reducer, ECO modes, MBR (Motion Blur Reduction)
Accessories Included	Power cable, HDMI cable, Stand-Neck, Stand-Base, Cable Holder, Safety Guide, Quick Start Guide

Frequently Asked Questions - G-Master G2250HS IIYAMA

How do I adjust the monitor’s settings (brightness, contrast, etc.)?

Press the Joystick (located at the bottom of the monitor) to open the On-Screen Display (OSD) menu. Tilt the joystick up/down/left/right to navigate. Press it again to select an item. Navigate to Picture Adjust for brightness/contrast, Color Settings for color temperature, etc. All changes are automatically saved when you exit the OSD.

What is AMD FreeSync™ and how do I enable it?

AMD FreeSync™ synchronizes the monitor’s refresh rate with your GPU’s output to reduce screen tearing and stuttering. To enable it, go to Setup Menu > AMD FreeSync and set to On. Note: FreeSync works only over HDMI or DisplayPort with a compatible AMD graphics card and requires a refresh rate between 48-75 Hz.

How do I clean the LCD screen and cabinet?

Turn off the monitor and unplug it. For the LCD screen, gently wipe with a soft, dry cloth. Do not use tissue paper or abrasive cleaners. For the cabinet, use a cloth lightly moistened with a mild detergent, then wipe dry. Avoid solvents like thinner, benzene, or spray cleaners.

How do I install the monitor on a VESA mount or desk arm?

First, remove the stand by pressing the release button and pulling the stand-neck off. The monitor has a VESA 100×100 mm pattern. Use four M4 screws of length 7 mm to attach the mount. Ensure the mounting surface can support the monitor’s weight. The monitor is designed for landscape orientation only.

The screen shows no picture. What should I check?

Check that the power cable is firmly connected and the power switch is on. Ensure the monitor is not in standby (power indicator orange). Verify the signal cable (HDMI/DP) is securely attached and the correct input is selected (tilt joystick backward to open Input Select). Restart your computer. If the issue persists, perform a Factory Reset via Recall in the OSD menu.

How do I enable Blue Light Reducer to reduce eye strain?

Tilt the Joystick forward (toward you) for 3 seconds while no menu is displayed. The Blue Light Reducer menu appears with Off, Mode1, Mode2, and Mode3 options. Higher modes reduce blue light more. This feature is not available when i-Style Color or HDR is active.

How can I lock the OSD or power button to prevent accidental changes?

To lock the OSD, tilt the Joystick right for about 10 seconds while the monitor is on. A message 'OSD Locked' will appear. To unlock, tilt right again for 10 seconds. To lock the Power Button, tilt the Joystick down for 10 seconds. Unlock by tilting down again.

What are the ECO modes and how do they save power?

ECO modes reduce backlight brightness to save energy. Tilt the Joystick left (no menu) to directly access ECO: Off, Mode1, Mode2, Mode3 (Mode3 is dimmest). You can also adjust ECO in the Picture Adjust menu. The monitor meets ENERGY STAR® standards.

How do I connect external speakers or headphones?

The monitor has built-in stereo speakers (2W × 2) and a headphone jack (3.5 mm) on the back. Connect headphones directly to the jack. Audio input comes via HDMI or DisplayPort from your computer. Adjust volume by tilting the Joystick right (no menu) or via the Audio Settings OSD menu. You can also mute audio there.

What is the warranty and how do I get support?

Warranty details depend on your region – check the included warranty card or visit iiyama.com. For support, contact your local iiyama service center. Before calling, prepare the model number, serial number, purchase receipt, and a description of the defect. If no fault is found after inspection, you may incur transport/administration charges.

USER MANUAL G-Master G2250HS IIYAMA

Thank you very much for choosing the iiyama LCD monitor.

We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.

Dear user, we congratulate you on the purchase of your iiyama LCD.

For details on warranty and locally used pixel policies that apply directly after installation of your product please check the iiyama website.

To report a fault, please contact your local support centre found at www.iiyama.com/service

Things to check before you call the iiyama information line

| if the power cable is connected securely and turned on?
| if the display has been turned on?
| if the signal cable is connected securely and the correct input selected?
| if the computer has been restarted with the display connected?
| if the graphics card is correctly installed with the latest drivers possible?
| if the correct native resolution has been selected via 'Display Properties'?
| If the R/G/B signal configuration is correct?
| if the displays On Screen Menu is shown?
| if the correct brightness and contrast settings have been set?
| if given display tolerances and compatibility have been considered?
| if via the On Screen Menu you have performed a Factory Reset/Recall?

Before reporting the screen defect, please prepare the following information/evidence:

| model number *
| purchase receipt and serial number *
| name and address for collection
| telephone/fax number, for availability during the day
| convenient collection date (date, time)
| short description of the defect

Important Note:

If there is no fault found in the collected equipment after inspection, the transferring party shall incur charges for transport and administration.

If you have checked all of the above and there is still no picture, call our information line for assistance in your country.

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU “RoHS Directive”.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: https://iiyama.com

You can access the Web page of different countries from there.

■ We reserve the right to change specifications without notice.
■ All trademarks used in this user manual are the property of their respective owners.
■ The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
■ The font used in the OSD menu is licensed under the Apache License, Version 2.0. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0
As an ENERGY STAR® Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
This product qualifies for ENERGY STAR ^® in the "factory default" setting and this is the setting in which power saving will be achieved. Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR ^® rating.
■ Eprel registration number G2250HS-B1: 1374965

TABLE OF CONTENTS

FOR YOUR SAFETY....1

SAFETY PRECAUTIONS....1

SPECIAL NOTES ON LCD MONITORS....3

CUSTOMER SERVICE ....3

CLEANING....3

FITTING AND REMOVAL OF STAND....6

CONTROLS AND CONNECTORS....7

CONNECTING YOUR MONITOR....8

COMPUTER SETTING 9

ADJUSTING THE VIEWING ANGLE 9

ADJUSTMENT MENU CONTENTS....12

STANDBY FEATURE 23

TROUBLE SHOOTING 24

RECYCLING INFORMATION....25

APPENDIX 26

SPECIFICATIONS : G-MASTER G2250HS-B1.....26

DIMENSIONS....27

COMPLIANT TIMING....27

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10cm (or 4 inches) from any walls. When removing the tilt stand, the ventilation slots on the back side of the monitor can be blocked. This may overheat the monitor and may cause fire or damage. Make sure to allow enough ventilation when removing the tilt stand. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

CAREFUL! PROTECT YOUR HANDS AND FINGERS

■ Be careful not to hurt your fingers or hands when you change the height or the angle.
■ Injury can occur if care is not taken to avoid finger contact with the displays base when adjusting the height.

REMARK FOR 24/7 USAGE

This product is not specifically designed for 24/7 usage in all environments.

REMARK FOR WALL MOUNTING

This product is not designed for digital signage (electronic signboard) applications such as wall mounting.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE

■ When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.
■ You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
■ Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen can be recovered slowly by changing the image or turning off the Power Switch for some hours.

CUSTOMER SERVICE

NOTE

If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING

■ If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION

■ For safety reasons, turn off the power switch and unplug the monitor before you clean it.

NOTE

■ To protect the LCD panel, do not scratch or rub the screen with a hard object.

■ Never use any of the following strong solvents. These will damage the cabinet and the LCD screen.

Thinner	Spray-type cleaner
Benzine	Wax
Abrasive cleaner	Acid or Alkaline solvent

■ Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet.

CABINET

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

LCD

Periodic cleaning with a soft dry cloth is recommended.

SCREEN

Don't use tissue paper etc. because these will damage the LCD screen.

◆ Supports Resolutions up to 1920 × 1080
◆ High Contrast 3000:1 (Typical), Adv. Contrast Function Available / Brightness 250cd/m² (Typical)
◆ Supports AMD FreeSync™
♦ Flicker - Free
◆ Moving Picture Response Time 1ms
Blue Light Reducer
◆ Digital Character Smoothing
◆ 2 × 2W Stereo Speakers
ENERGY STAR® Compliant
Standby Feature
◆ VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

■ Power Cable *

■ HDMI Cable

■ Stand-Neck

■ Stand-Base

■ Cable Holder

■ Safety Guide

■ Quick Start Guide

CAUTION

* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.

An approved power cable greater or equal to H05VVF, 3G, 0.75mm ^2 must be used.

INSTALLATION

CAUTION

■ Before installing, please make sure the wall or desktop arm is strong enough to hold the necessary weight of the display and the mount.
■ Angle adjustment range : 23^ upward and 5^ downward

< DISPLAY ARM OR DESK ARM STAND >

CAUTION

When you use with the display arm or desk arm stand, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) which "L" length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

The monitor is designed to be compatible only with the landscape mode.

Available

Not Available

FITTING AND REMOVAL OF STAND

CAUTION

• Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.
  ■ Do not give a strong impact to the monitor. It may cause damage.
  ■ Unplug the monitor before removal or installation to avoid an electric shock or a damage.

① Combine the Stand-Neck and the Stand-Base.
② Place the Cable Holder.
③ Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down.
④ Hold the monitor and install the Stand to the monitor until it clicks to secure.

① Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down.
② Keep pressing the Hooks inward to pull out the Stand-Base.
③ Press the release button and remove the Stand-Neck from the monitor
④ Remove the Cable Holder.

CONTROLS AND CONNECTORS

① Joystick * / Power Button

NOTE press turns ON the monitor.

A long press for 5 seconds turns OFF the monitor.

② Power Indicator

NOTE Blue: Normal operation

Orange: Standby mode

③ Speakers

④ Keyhole for Security Lock

NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission.

⑤ Headphone Connector (Ω)

⑥ HDMI Connector (HDMI)

⑦ DisplayPort Connector (DP)

⑧ Installation hole of Cable Holder

⑨ AC Connector ( : Alternating current)

* See JOYSTICK on page 10.

CONNECTING YOUR MONITOR

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the Power Cable to the monitor first and then to the power source.
④ Turn on your monitor and computer.

NOTE

■ Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ Make sure you tighten the finger screws at each end of the signal cable.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

[Example of Connection]


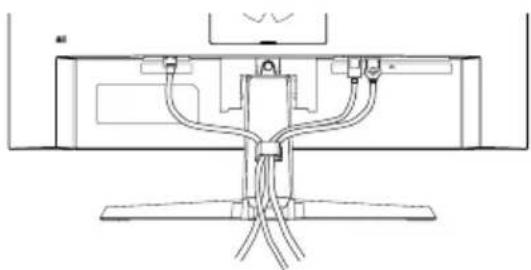

[Collect Cables]

Put the cables through the cable holder to bundle them.

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

COMPUTER SETTING

■ Signal Timing

Change to the desired signal timing listed on page 27: COMPLIANT TIMING.

ADJUSTING THE VIEWING ANGLE

■ For optimal viewing it is recommended to look at the full face of the monitor.
- Hold the stand so that the monitor does not topple when you change the monitor's angle.
- You are able to adjust the monitor's angle up to 22^ upward, 4^ downward.
In order to ensure a healthy and relaxed body position when using the monitor at visual display workstations, it is recommended that the adjusted tilt angle should not exceed 10^ . Adjust the monitor's angle to your own preference.

NOTE

■ Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
■ Careful attention is required not to pinch your fingers or hands into the moving part of the stand when you change the angle.

The Joystick can be pressed or tilted in the following five directions.

[↑] Upward

[↑] Forward: Direct i-Style Color / Blue Light Reducer

[↓] Backward: Direct Select Input Source

[←] Left: Direct ECO

Right: Direct Volume

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 27. You are also able to adjust the picture by following the button operation shown below.

① Press the Joystick [♠] on the monitor to start the On Screen Display feature. There are additional Menu items which can be switched by tilting the Joystick [♦]

② Select the Menu item which contains the adjustment icon relating to the adjustment you want to make. Press the Joystick. Then, tilt the Joystick [#/] to highlight the desired adjustment icon.
③ Press the Joystick again. Tilt the Joystick [∅] to make the appropriate adjustment or setting.
④ Press the Joystick and then tilt it [⊕ to leave the menu, and the settings you just made would be automatically saved.

For example, to correct for OSD vertical position, select Menu item of "OSD" and then press the Joystick [♠]. Then, select "OSD Vertical Position" by tilting the Joystick [♣/♣].

An adjustment scale becomes active after you press the Joystick. Then, tilt the Joystick [⇔/⇔] to change the OSD vertical position settings. The OSD vertical position of the overall display should be changing accordingly while you are doing this.

Press or tilt the Joystick [◇/◇] and finally tilt it [◇] to close the On Screen Display feature. All changes are saved in the memory.

NOTE

■ When the Joystick operations are aborted during adjustment, On-Screen Display disappears when the time set for the "OSD Time" has passed. Also, tilting the Joystick [◇] can be used to return previous menu and turn off the On Screen Display.
■ Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
■ All adjustments have only one setting which applies to all signal timings.

Picture Adjust *1
Adjustment Item Problem	/ Option	Joystick
Contrast	Too darkToo bright
Brightness *2	Too dullToo intense
Overdrive	Off / 1 / 2 / 3 / 4 / 5It will improve the gray level response time of the LCD panel. A higher level results in a faster response time.
Adv. Contrast	On	Increased Contrast Ratio
	Off	Typical Contrast Ratio
Eco Direct	Off Normal
	Mode1	Brightness of back-light is reduced.
	Mode2	Brightness of back-light is reduced more than Mode1.
	Mode3	Brightness of back-light is reduced more than Mode2.
Blue Light Reducer Direct	Off	Typical
	Mode1	Blue light is reduced.
	Mode2	Blue light is reduced more than Mode1.
	Mode3	Blue light is reduced more than Mode2.
Black Tuner	From -5 to +5You can adjust Dark shades.
Color Saturation	Too weakToo strong
Gamma	Gamma1
	Gamma2
	Gamma3

*1 The availability of each item depends on which item is activated. See the Function Correlation Matrix below for more details.
*2 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.

Direct

You can skip the Menu items and directly display an option setting screen by using the following operations.

• ECO : Tilt the Joystick [with no Menu displayed.
• Blue Light Reducer : Tilt the Joystick [⚡ for 3 seconds with no Menu displayed.

■ Function Correlation Matrix

Active itemSelected item	Picture Adjust Image Adjust Setup Menu
	Adv.Contrast	Eco Blue Light Reducer	i-Style Color	MBR	AMD FreeSync
			Standard Sport GameFPS GameStrategy GameText
Contrast	–	√	√	–	√	√
Brightness	–	–	√	–	√	√
Overdrive	√ √	√		–	√	√
Adv. Contrast		––––
Eco	–		–––			√
Blue Light Reducer	––			– –		√
Black Tuner	√ √	√		–	√	√
Gamma	√ √	√	√	√ √

√ : Available
- : Not available

Input Select

Direct

Adjustment Item		Option
Input Source		Auto		Search for an available input source and select automatically.
		Manual	HDMI	Select the Digital (HDMI) input.
			DisplayPort(DP)	Select the Digital (DisplayPort) input.
NOTE Input source is fixed, not selected automatically when HDMI and DisplayPort are selected.

Direct

You can skip the Menu items and directly display an option setting screen by using the following operations.

- Input Select : Tilt the Joystick [◇] with no Menu displayed.

Audio Settings

Adjustment Item Problem	/ Option		Joystick
VolumeDirect	Too softToo loud
Mute Audio	On	Turn off the sound temporarily.
	Off	Return the sound volume to the previous level.
NOTE Mute On and Off are switched as follows by tilt the Joystick ⇌ successively.→ On→ Off

Direct

You can skip the Menu items and directly display an adjustment scale by using the following operations.

● Volume : Tilt the Joystick [→] with no Menu displayed.

Store User Setting

Adjustment Item Option
User Modes		Save the settings of the screen adjustment. Us
		Save the settings of the screen adjustment. Us
		Save the settings of the screen adjustment. Use

NOTE

You can memorize your customized monitor settings.

The following settings can be memorized:

Contrast, Brightness, Overdrive, Adv. Contrast, Eco, Black Tuner, Color Saturation,

Gamma, Volume, Mute Audio, Color Temperature, User Preset, Sharp and Soft, Video

Mode Adjust, X-Res Technology

Color Settings *
Adjustment Item Problem / Option Joystick
Color Temperature	Cool	Cool color
	Normal	Normal color
	Warm	Warm color
6-Axis	Hue	Red	Too weak Too strong
		Yellow
		Green
		Cyan
		Blue
		Magenta
	Saturation	Red	Too weak Too strong
		Yellow
		Green
		Cyan
		Blue
		Magenta
User Preset	Red	Too weak Too strong
	Green
	Blue

* Not available when Blue Light Reducer or HDR settings on your computer are active.

Image Adjust
Adjustment Item Option	Joystick
i-Style Color *1 Direct	Off	Return to a state set by color adjustment except i-Style Color.
	Standard	For general windows environment and monitor default setting
	Sport Game	For Sports game environment
	FPS Game	For FPS game environment
	Strategy Game	For Strategy game environment
	Text	For text editing and viewing in a word processing environment
	User Mode 1	Applies customized monitor settings.
	User Mode 2	Applies customized monitor settings.
	User Mode 3	Applies customized monitor settings.
X-Res Technology	Off Normal
	Soft	Enhance the picture edge.
	Middle	Enhance the picture edge more than the Soft option.
	Hard	Enhance the picture edge more than the Middle option.
Sharp and Soft	1 2 3 4 5 6You can change the picture quality from 1 to 6 (sharp to soft). Tilt the Joystick to change the picture quality in numerical order. Tilt the Joystick to change the picture quality in reverse numerical order.
RGB Range	Full	For full-range color scale signal
	Limited	For limited color scale signal
	Auto Automatically select color scale signal.
Video Mode Adjust	Full	Expansion display
	Aspect *2	Expansion display of Aspect

*1 Not available when Blue Light Reducer or HDR settings on your computer are active.

*2 Available only with 16:10, 5:4 and 4:3 resolutions.

Direct

You can skip the Menu items and directly display an option setting screen by using the following operations.

- i-Style Color: Tilt the Joystick [💡] with no Menu displayed.

Language

Adjustment Item Option
Language		English	English		Español Spanish
		Français	French		Nederlands Dutch
		Deutsch	German		Česky Czech
		Italiano	Italian		Русский Russian
		Polski	Polish		日本語 Japanese

Setup Menu
Adjustment Item Problem / Option Joystick
AMD FreeSync *1	On Enable the FreeSync function.
	Off The FreeSync function is turned Off.
MBR *1,2	Off / 1 / 2 / 3 / 4 / 5 / 6 / 7Improve the moving picture response time of the LCD panel.
OSD Horizontal Position	OSD is too leftOSD is too right
OSD Vertical Position	OSD is too lowOSD is too high
OSD Time	You can set the OSD display duration time between 5 and 30 seconds.
Opening Logo	On G-MASTER Logo is displayed when the monitor is turned on.
	Off G-MASTER Logo is not displayed when the monitor is turned on.

*1 The availability depends on which item is activated. See the Function Correlation Matrix below for more details.
*2 MBR is available only when the refresh rate is higher than 75Hz.

■ Function Correlation Matrix

Active itemSelected Item	Picture Adjust Image Adjust Setup Menu
	Adv. Contrast	Eco	Blue Light Reducer	i-Style Color	AMD FreeSync	MBR
				Standard Sport Game FPS Game Strategy Game Text
AMD FreeSync	✓ ✓	✓ ✓				-
MBR	- - - - -

√ : Available
- : Not available

Display Information

Displays information regarding the current input signal coming from the graphic card in your computer.

NOTE

See your graphic card user guide for more information about changing the resolution and refresh.

Recall

Adjustment Item Option
Yes	Factory-preset data is restored.

■ Lock Mode

The OSD can be locked to avoid an accidental setting change.

1. Make sure the monitor is turned ON.
2. The OSD lock will be activated by tilting the Joystick [→] for about 10 seconds. If you try to access the OSD by the Joystick, a message "OSD Locked" will appear on the screen.
3. The OSD lock will be deactivated by tilting the Joystick [→] again for about 10 seconds.

The Power Button function can be locked to avoid an accidental power operation.

1. Make sure the monitor is turned ON.
2. The Power Button function will be locked by tilting the Joystick [⇨] for about 10 seconds. If you try to turn off the monitor by pressing the Joystick, a message "Power Button Locked" will appear on the screen.
3. The Power Button function will be unlocked by tilting the Joystick [⇐] again for about 10 seconds.

STANDBY FEATURE

This product features the standby function. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.

There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

■ Standby Mode

When the video signal from the computer is off, the monitor enters into Standby Mode which reduces the power consumption to less than 0.5W. The screen becomes dark, and the power indicator turns to orange. From Standby Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem Check

① The picture does not appear.

(Power indicator does not light up.)

☐ The Power Cable is firmly seated in the socket.
☐ The Power Switch is turned ON.
☐ The AC socket is live. Please check with another piece of equipment.

(Power indicator is blue.)

☐ If the blank screen saver is in active mode, touch the keyboard or the mouse.
□ Increase the Contrast and/or Brightness.
□ The computer is ON.
☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.

(Power indicator is orange.)

☐ If the monitor is in standby mode, touch the keyboard or the mouse.
□ The computer is ON.
☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.

② The screen is not synchronized.

☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.
☐ The signal timing of the computer is within the specification of the monitor.

③ The screen position is not in the center.

④ The screen is too bright or too dark.

☐ The video output level of the computer is within the specification of monitor.

Problem Check

⑤ The screen is shaking.

☐ The power voltage is within the specification of the monitor. ☐ The signal timing of the computer is within the specification of the monitor.

⑥ No sound.

- The audio equipment (computer etc.) is ON. - The Volume is turned up. - The Mute is OFF. - The audio output level of the audio equipment of the monitor.

⑦ The sound is too loud or too quiet.

☐ The audio output level of the audio equipment is within the specification of the monitor.

RECYCLING INFORMATION

For better environment protection please don't dispose your monitor. Please visit our web site: https://iiyama.com for monitor recycling.

APPENDIX

Design and specifications are subject to change without prior notice.

SPECIFICATIONS : G-MASTER G2250HS-B1

Size Category 21.5"
LCD Panel	Panel technology	VA
	Size Diagonal: 21.5" (54.7cm)
	Pixel pitch 0.2493mm H × 0.241mm V
	Brightness 250cd/m	^2 (Typical), 175cd/ m^2 (Default / Energy Saving)
	Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available
	Viewable angle Right / Left : 89° each, Up / Down : 89° each (Typical)
	MPRT 1ms
Display Colors Approx. 16.7M
Sync Frequency		HDMI(with FreeSync): Horizontal: 31.0-85.0kHz, Vertical: 48-75HzHDMI(without FreeSync): Horizontal: 31.0-85.0kHz, Vertical: 56-75HzDisplayPort(with FreeSync): Horizontal: 31.0-85.0kHz, Vertical: 48-75HzDisplayPort(without FreeSync): Horizontal: 31.0-85.0kHz, Vertical: 56-75Hz
Native Resolution 1920 × 1080, 2.1 MegaPixels
Support max. resolution		HDMI(with FreeSync): 1920 × 1080 75HzHDMI(without FreeSync): 1920 × 1080 75HzDisplayPort(with FreeSync): 1920 × 1080 75HzDisplayPort(without FreeSync): 1920 × 1080 75Hz
Input Connector HDMI, DisplayPort
Input Video Signal HDMI, DisplayPort
Headphone Connector ø 3.5mm mini jack (Stereo)
Speakers 2W × 2 (Stereo speakers)
Maximum Screen Size		478.7mm W × 260.0mm H / 18.8" W × 10.2" H
Power Source 100-240VAC,		50/60Hz, 1.5A
Power Consumption		13W typical,Standby mode: 0.5W maximum, Off mode: 0.3W maximum
Dimensions / Net Weight		493.5 × 352.0 × 192.5mm / 19.4 × 13.9 × 7.6" (W×H×D)2.6kg / 5.7lbs
Tilt Angle		Upward: 22° Downward: 4°
Environmental Considerations		Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 90% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals		CE, UKCA, TÜV-Bauart, EAC, VCCI, PSE, ENERGY STAR®

COMPLIANT TIMING

Video Mode	Horizontal Frequency	Vertical Frequency	Dot Clock
640 × 480 31.4	69kHz 59.940Hz	25.175MHz
800 × 600 37.8	79kHz 60.317Hz	40.000MHz
1024 × 768 48.	363kHz 60.004Hz	65.000MHz
1280 × 1024 63.	981kHz 60.020Hz	108.000MHz
1440 × 900 55.	935kHz 59.887Hz	106.500MHz
1680 × 1050 65.	290kHz 60.000Hz	146.250MHz
1920 × 1080	66.590kHz 59.	930Hz 138.500MHz
	83.890kHz 74.	970Hz 174.500MHz
