The Pelt Fuzz - Uncategorized FENDER - Free user manual and instructions

Product Type	Fuzz pedal
Brand	Fender
Model	The Pelt Fuzz
Dimensions	2.75" x 4.9" x 2.5" (95.25mm x 124.5mm x 63.5mm)
Weight	0.9 lbs (0.40 kg)
Power Supply	One 9V battery or 9VDC regulated adapter, center negative, 5.5 x 2.1 mm barrel connector
Current Draw	30 mA @ 9VDC (50 mA with knob LEDs on)
Input Impedance	500 kΩ
Output Load	>10 kΩ
Controls	Level, Tone, Bloom, Fuzz, Thick Switch, Mid Switch, LED Kill Switch, Footswitch
Indicators	Jewel Indicator (effect on), Low Battery Indicator (red LED on battery door)
Input Jack	High-impedance 1/4" TS for guitar, bass, keyboards, etc.
Output Jack	Low-impedance 1/4" TS for amp or next pedal
Construction	Sturdy metal chassis, rugged footswitch
Safety	Do not expose to rain or moisture, use only certified adapter, no user-serviceable parts
Cleaning	Unplug AC adapter; use only a damp cloth; dry completely before reconnecting
Compliance	Safety agency certified adapter required; compliant with local/national regulations
Series	Fender Effects Pedals
Warranty	Standard Fender warranty (refer to product documentation)

Frequently Asked Questions - The Pelt Fuzz FENDER

How do I power The Pelt Fuzz?

The pedal can be powered by a single 9V battery or a 9VDC regulated adapter with a center-negative 5.5 x 2.1 mm barrel connector. The current draw is 30 mA (50 mA with knob LEDs on).

What does the Bloom control do?

The Bloom control adjusts the attack of the fuzz effect. Turning it from Soft to Hard changes the fuzz from a smooth, violin-like attack to abrupt and splattered saturation.

How do I use the Thick and Mid switches?

The Thick switch lets more bass frequencies through for a fatter tone. The Mid switch is a three-position toggle that shapes your midrange: boost or cut mids for more punch and presence. Center position leaves mids unaffected.

Can I use The Pelt Fuzz with a bass guitar?

Yes, the pedal's high-impedance input is suitable for bass guitar. The Thick switch is particularly useful for retaining low-end frequencies.

What does the LED Kill switch do?

The LED Kill switch turns off the knob LEDs to save battery life when running the pedal from batteries. It does not affect the sound.

How do I know when to replace the battery?

A red Low Battery Indicator LED on the front of the battery door illuminates when battery voltage drops below a threshold, indicating it's time to replace the battery.

Is the pedal true bypass?

The pedal uses a rugged footswitch to bypass the fuzz effect, but the manual does not specify true bypass. It likely employs a buffered bypass for consistent signal integrity.

What type of fuzz circuit does The Pelt use?

It is driven by silicon transistors, offering a range from full wall-of-fuzz to smooth, harmonically rich drive.

What are the dimensions and weight?

Dimensions: 2.75 x 4.9 x 2.5 inches (95.25 x 124.5 x 63.5 mm). Weight: 0.9 lbs (0.40 kg).

How should I clean the pedal?

Unplug the AC adapter first. Use only a damp cloth for cleaning the exterior. Wait until completely dry before reconnecting power.

USER MANUAL The Pelt Fuzz FENDER

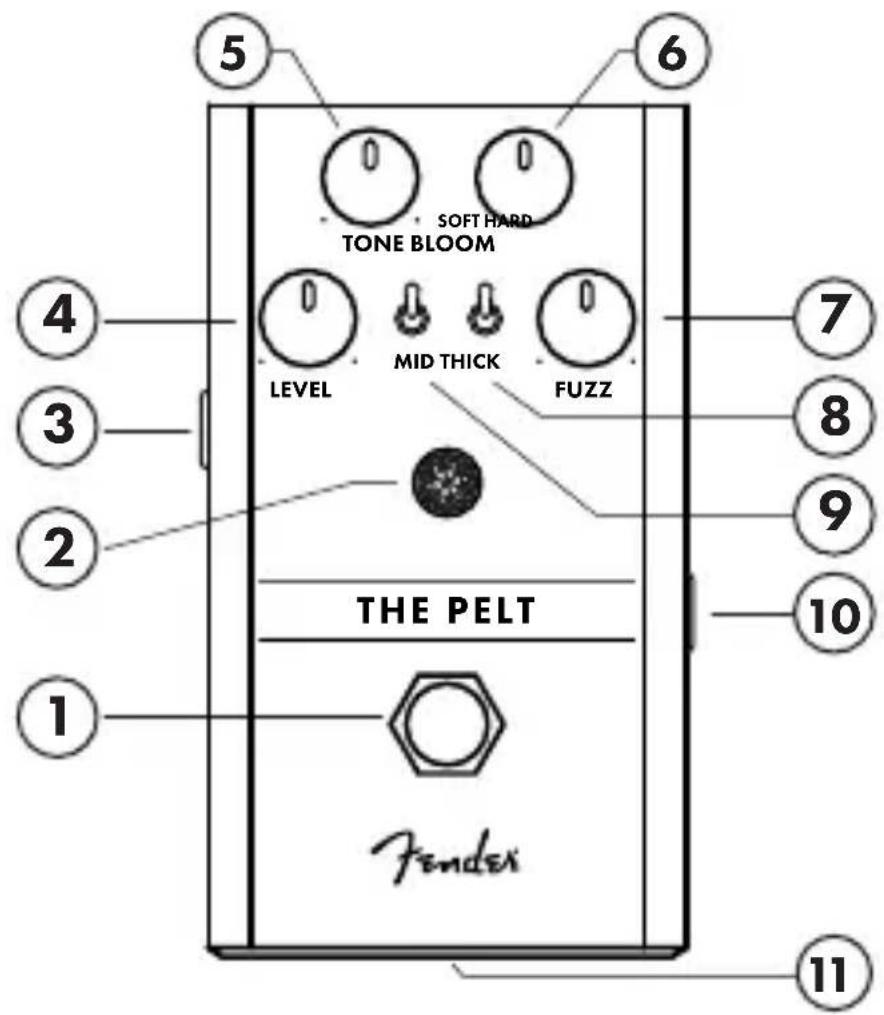

1. Footswitch
2. Jewel Indicator
3. Output Jack
4. Level
5. Tone
6. Bloom

7. Fuzz

8. Thick Switch

9. Mid Switch
10. Input Jack
11. Low Battery Indicator
12. LED Kill Switch
13. DC Power Connector

THE PELT

Thanks for purchasing The Pelt — a flexible fuzz pedal with a wide range of saturated sounds. Driven by silicon transistors, this pedal ranges from full on wall of fuzz to smooth, harmonically rich drive. Midrange boost and thickness toggles work to help find the perfect textures for your sound.

Level

This control adjusts your output level when the fuzz is engaged.

Tone

This controls the high frequencies present in your signal. Use it like a tone control on your guitar or bass--keep it all the way up for the full frequency range of your instrument or roll it back to mellow out the treble.

Bloom

This controls the attack of the fuzz effect. As the control sweeps from Soft to Hard, the fuzz signal changes from smoother, violin like attack to abrupt and splattered saturation.

Fuzz

This controls the pedal's fuzz level. Add more saturation by rotating the control clockwise.

Thick Switch

This switch allows more of your bass frequencies through the circuit to fatten up your fuzz tone.

Mid Switch

This three-position switch shapes your instrument's midrange by boosting or cutting mids to contour your punch and presence. Leave the switch in the middle position to keep your midrange unaffected.

Jewel Indicator

The Jewel Indicator shows when the fuzz effect is active.

Footswitch

This rugged footswitch bypasses the fuzz.

Input Jack

This is a high-impedance input suitable for electric guitar, bass, keyboards and other instruments.

Output Jack

This is a low-impedance output jack that connects to the amp or to the next effect pedal in the signal chain.

DC Power Connector

This is a standard, center-negative 9VDC jack for use with appropriate power supplies.

LED Kill Switch

This switch extinguishes the LEDs that illuminate the knobs—useful in maximizing battery life when running the pedal from batteries.

Low Battery Indicator

This red LED on the front of the battery door illuminates when battery voltage drops below a set threshold, indicating that the battery should be replaced soon.

A PRODUCT OF:

FENDER MUSICAL INSTRUMENTS CORPORATION

CORONA, CALIFORNIA, USA

Fender® is a registered trademark of FMIC.

Copyright © 2018 FMIC. All rights reserved.

P/N 7714182000 - REV A

Important Safety Instructions

• WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture.
• Do not alter the AC plug of the connected power adapter
• Do not drip or splash liquids on the unit.
• No user serviceable parts inside, refer servicing to qualified personnel only.
• WARNING: The unit must only be connected to a safety agency certified, regulated, power source (adapter), approved for use and compliant with applicable local and national regulatory safety requirements.
• Unplug the AC power adapter before cleaning the unit exterior. Use only a damp cloth for cleaning and then wait until the unit is completely dry before reconnecting it to power.
• Amplifiers and loudspeaker systems, and ear/headphones (if equipped) are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.

Languages

Manual available in Espanol, français, Italiano, Deutch, Portugues, (Chinese)

www.fender.com/support

Specifications

IMPEDANCES:

POWER SUPPLY:

INPUT: 500kΩ OUTPUT LOAD: >10kΩ

One 9V battery or 9VDC regulated adapter,

5.5 x 2.1 mm barrel connector, center negative

30mA @ 9VDC

50mA, knob LEDs on

POWER REQUIREMENTS:

DIMENSIONS:

2.75" × 4.9" × 2.5" (95.25mm × 124.5mm × 63.5mm)

WEIGHT:

.9lbs (.40kg)

NOTES:

Fender

© FENDER MUSICAL INSTRUMENTS 2018

产品中有害物质的名称及含量
