USER MANUAL Escape ETM-LX-230 Mytee

13655 Stowe Dr. Poway, CA 92064

P: [phone]

F: [phone]

www.mytee.com

Dear Customer:

Congratulations on the purchase of your new Escape® Electric Truckmount. As technology continues to develop you can work confidently knowing that both Mytee Products and its employees are equally dedicated to developing with the industry and its advances.

Like any other piece of machinery or technology, the ETM also requires the proper maintenance and care to keep the product working over extended use. Neglecting your machine, abusing it or not operating it properly can void its warranty and prevent the machine from performing to the quality and standard you'd expect out of the Mytee Products line.

If you have any warranty concerns or questions, please review this manual thoroughly or do not hesitate to contact your distributor. If there are questions regarding maintenance, replacement, or ordering parts please contact an authorized Mytee Products Service Center. To see an updated list please visit our website at http://www.mytee.com/support/service-centers. Before using your Mytee product, please read this manual thoroughly.

Sincerely,

Mytee Customer Care Dept.

Important Safety Information.4....

1 At a Glance 6.

1.1 - Technical Specifications.6....
1.2 - Included with the Escape ^® 6
1.3 - Escape ^® Front View 7....
1.4 - Escape ^® Rear View 8
1.5 - Switch Plate.9....

2 Machine Operation 10....

2.1 - Powering the Escape ^® ..... 10
2.2 - Connecting Vacuum & Solution Hoses 1.0
2.3 - Chemical Injection 10
2.4 - Using the Pump-Out 1.1....
2.5 - Emptying the Solution & Recovery Tanks.11....
2.6 - Preparing for Freezing Weather .11....

3 Machine Maintenance 12....

3.1 - Filter Maintenance 12....
3.2 - Float Maintenance 12....
3.3 - System Maintainer 12....

4 Troubleshooting.13....

Important Safety Information

Please read and understand this manual completely before operating this machine.

Grounding Instructions

This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electrical shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed in accordance with all local code and ordinances. Do not remove ground pin; if missing, replace plug before use.

DANGER

Improper installation of the equipment-grounding conductor can result in a risk of electric shock. Be sure to check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. If the plug will not fit in the outlet do not modify the plug or the machine's cord, instead have a proper outlet installed by a qualified technician.

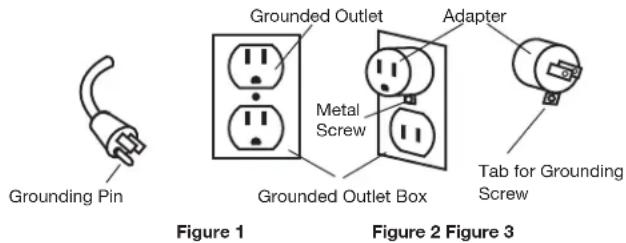

This machine is for use on a nominal 120-volt circuit and with a grounding plug similar to the one in Figure 1 below. If a proper outlet is not available, follow the illustrations of Figure 2 & 3 to install a temporary-grounding plug. This temporary work-around should be used only until a proper outlet (Figure 1) can be installed by a qualified electrician. When and if this type of adapter is employed, screw the adapter's extended tab into place with a metal screw. However, grounding adapters are not approved for use in Canada.

Again, be sure to check the grounding pin for damages and replace if necessary.

The Green, or Green-Yellow, wire in the cord is the grounding wire. When replacing a plug, this wire must be attached to only the grounding pin.

DO NOT use extension cords.

Please Note for America use only.

Parts and Service

Please contact Mytee service personnel or a Mytee authorized Service Center using Mytee original replacement parts and accessories if repairs need to be performed. When and if calling Mytee for support, please have your Model and Serial Number available for faster assistance.

Name Plate

The Model and Serial Number are located on the lower half of the back of the machine near the power plug and will be required for ordering replacement parts. You can use the space provided in this manual to note down both for future referencing.

Unpacking the Machine

When your new machine is delivered, please carefully inspect both the shipping carton and the machine for damages. If damage is evident, save both the shipping carton and machine so that the delivering carrier can inspect it. Contact the carrier immediately to file a freight claim if there has been any damage.

Caution and Warnings

Symbols

Mytee uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and take the necessary steps to protect personnel and property.

DANGER

Is used to warn of immediate hazards that will cause severe personal injury or death.

WARNING

Is used to call attention to a situation that could cause severe personal injury.

CAUTION

Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property.

When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this machine. This product is intended for commercial use only.

Important Safety Information

To reduce the risk of fire, electrical shock, or injury:

1. Read all instructions before using equipment.

2. Use only as described in this manual. Use only manufacturer's recommended attachments.

3. Always unplug power cord from electrical outlet before attempting any adjustments or repairs.

4. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

5. Do not pull or carry by cord. Do not close a door on cord or pull cord around sharp edges or corners.

6. Do not run appliance over cord. Keep cord away from heated surfaces.

7. Do not use with damaged cord or plug. If cord is damaged, repair immediately.

8. Do not use outdoors or on wet surfaces and/or standing water.

9. Always unplug or disconnect the appliance from power supply when not in use.

10. Do not allow to be used as a toy. Close attention is necessary when used by or near children.

11. Do not use in areas where flammable or combustible material may be present.

12. Do not leave the unit exposed to harsh weather elements. Temperatures below freezing may damage components and void warranty.

13. Use only the appropriate handles to move and lift unit. Do not use any other parts of this machine for this purpose.

14. Keep hair, loose clothing, fingers, and all parts of the body away from all openings and moving parts.

15. Use extra care when using on stairs.

16. To reduce the risk of fire or electric shock, do not use this machine with a solid-state speed control device.

17. The voltage and frequency indicated on the name plate must correspond to the wall receptacle supply voltage.

18. When cleaning and servicing the machine, local or national regulations may apply to the safe disposal of liquids which may contain: chemicals, grease, oil, acid, alkalines, or other dangerous liquids.

19. Do not leave operating unattended.

1 - At a Glance

1.1 - Technical Specifications

Solution Tank	12 Gallons
Recovery Tank	12 Gallons
Vacuum	Dual exclusive Mytee® LXTM Vacuum Motors
CFM	225
Water Lift	182"
Pump PSI	500
Pump GPM	1.5
Pump-Out GPM	35
Power Consumption	Cord one: 19 amps @ 115V 60HzCord two: 18 amps @ 115V 60Hz
Machine Weight	200 lbs.
Machine Dimensions	Without cart: 32" x 21.25" x 36"With cart: 43" x 21.25" x 44.25"
Power Cord	Dual twist-lock 50' 12/3

1.2 - Included with the Escape®

F200 Lint Hog™ In-Line Filter

5003 3-Prong Dryer Adapter & 5004 4-Prong Dryer Adapter

7 qt. Big Mouth™ Bottle

A294 25' Pump-Out Hose Two 50H107s2.50SvRover Cuff-Lynx™

H106 2.5" x 2" Swivel Cuff-Lynx™ Reducer

Cords

1.3 - Escape® Front View

1. Switch Plate (see page 9)
2. Dual Circuit Indicator Light
3. 7 qt. Big Mouth™ Chemical Bottle
4. 12 Gallon Solution Tank
5. Winterizing Pump Drain
6. Solution Tank Drain Valve

7. Auto Fill Connection

8. 4" Locking Front Casters

9. Recovery Tank Drain Valve
10. 10" Rear Foam-Filled Wheels
11. Pump-Out Cam-Lock Hose Connection
12. 2.5" Male Cuff-Lynx™ Vacuum Hose Connection
13. 12 Gallon Recovery Tank
14. Recovery Tank Lids

1 - At a Glance

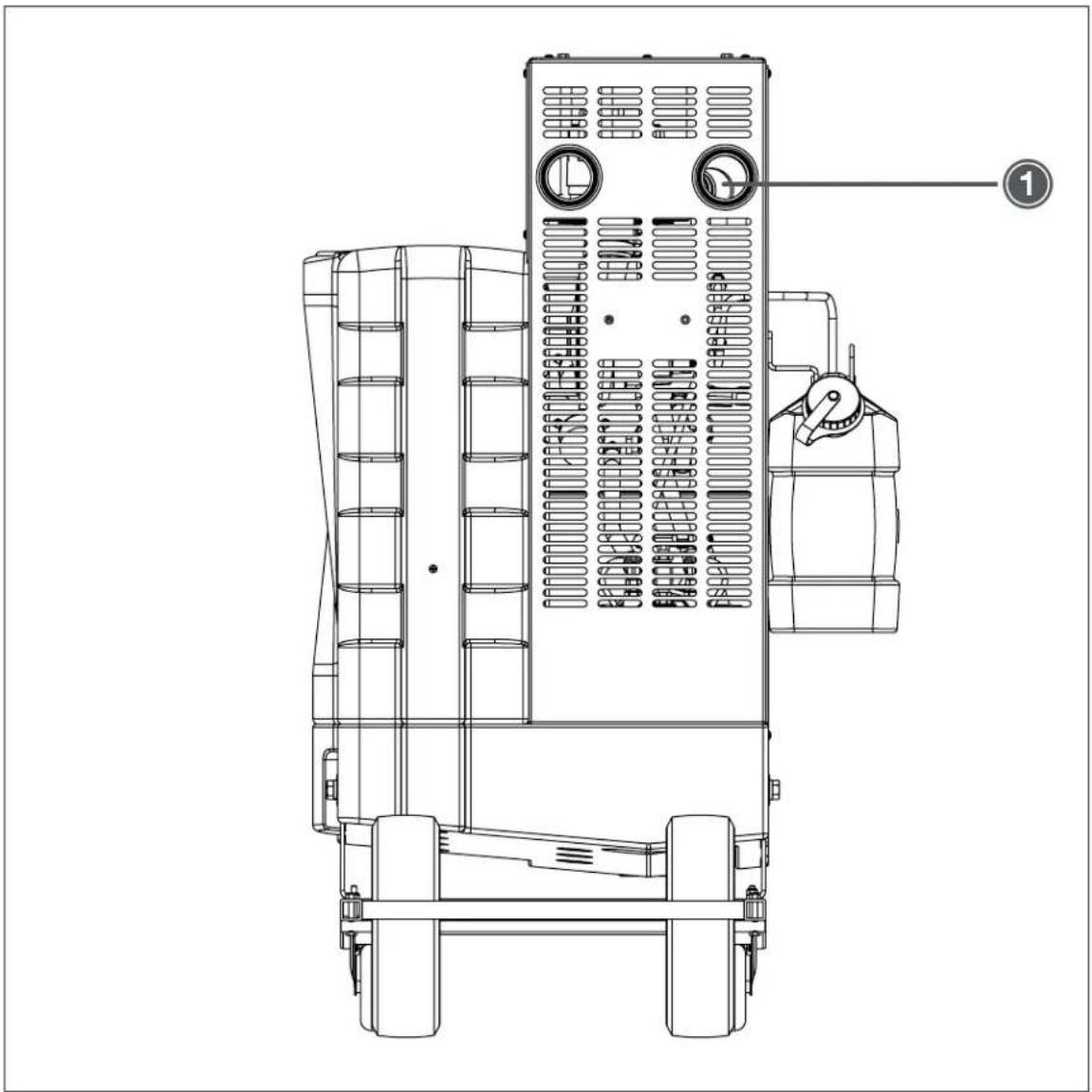

1.4 - Escape® Rear View

1. Rear Vacuum Exhaust

1.5 - Switch Plate

1. Chemical Injection Meter

Turn knob counter-clockwise to open valve and allow chemical to siphon into the system. Turn all the way clockwise to close. Keep closed when not in use (see page 10 for more).

2. RUN/PRIME Valve

Set to the PRIME position to prime the pump and use the wash out hose. Set to the RUN position when ready to clean.

3. Solution Hose Connection

Connect the solution line from the cleaning tool here.

4. Wash Out Hose

Use to wash out the recovery tank after use.

5. Pressure Regulator

Regulates the pressure (PSI) of solution output.

6. Pressure Gauge

Displays the current pressure the solution pump is set to. Measured in PSI.

7. Dual Circuit Indicator Light

Lights up when power cords are plugged into two separate 115V, 20 amp circuits.

2 - Machine Operation

2.1 - Powering the Escape®

The Escape® Truckmount can be powered by a few different methods whether in a van or in a home or office.

Cord 1 Vacuum	1 & Solution Pump 19 amps
Cord 2 Vacuum	2 & Pump-Out 18 amps

Method 1 - Two 115V 20 amp circuits.

The Escape ^® can be powered off of two separate 115V 20 amp circuits.

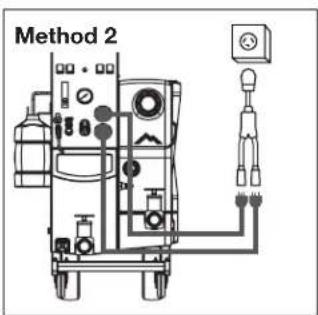

Method 2 - 3-prong or 4-prong dryer outlet.

All Escape ^® features can be powered using one of either the 5003 3-prong or 5004 4-prong adapters plugged into a 230V dryer outlet.

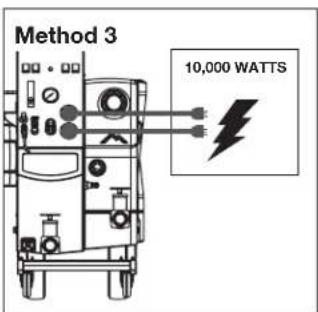

Method 3 - Powering in a van with a generator.

When using the Escape® in a van or truck, you will need a generator to power it. You can use either a generator that runs off your van or truck's engine or one that has its own motor and fuel tank.

Mytee recommends the use of a 10,000 watt generator with this unit. This will supply ample power for the ETM.

However, the Escape ^® can be run on some 6,000 watt generators, depending on

the manufacturer. Generators are rated differently, so if using 6,000 watt generator the rating must represent continuous running watts, not peak watts.

In any case, check with the generator manufacturer to ensure the unit can provide 40 amps at 115 volts continuously.

Dual Circuit Indicator Light & Tone

The Escape ^® is equipped with a Dual Circuit Indicator

Light & Tone which activates when the unit is plugged into two separate 115V, 20 amp circuits and is ready to be powered on. ♦

2.2 - Connecting Vacuum & Solution Hoses

The Escape® features a 2.5" Cuff-Lynx™ vacuum hose connection as well as a standard 1/4" quick disconnect fitting for solution hoses. ♦

2.3 - Chemical Injection

Fill the included 7 qt. bottle with chemical concentrate of your choice. With a clean-

ing tool connected, switch on the pump and pull the trigger on your tool to keep water flowing. Turn the chemical injection knob counter-clockwise to open the valve. This allows chemical to siphon into the line. Turn the knob until you see the bubble reach the desired gallons per hour of chemical. Follow chemical manufacturer's instructions for correct ratio.

IMPORTANT: If chemical injection will not be used, make sure the chemical injector is closed by turning the knob all the way clockwise.

2.4 - Using the Pump-Out

Connect the included pump-out hose to the cam lock fitting on the front of the machine. The other end of the hose can be placed in a holding tank for recovered water. Switch on the pump-out on the switch plate in order to turn it on. Recovered water will automatically be pumped from the Escape's® recovery tank to your holding tank.

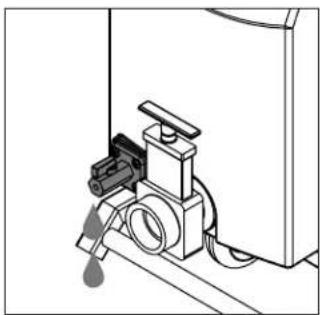

2.5 - Emptying the Solution and Recovery Tanks

The Escape ^® features tank drain valves on the recovery and solution tanks. The pump-out can also be used to empty the recovery tank. ♦

2.6 - Preparing for Freezing Weather

Read this if you're in a cold climate.

Freezing temperatures can cause damage to the internal components of the Escape® if there is excess water in the system. If freezing temperatures are expected, be sure to drain all the water from both tanks and use the winterizing pump drain valve on the front of the machine to drain any excess water from the pump.

3 - Machine Maintenance

In order to keep the Escape ^® running smoothly and reduce the risk of damage to the machine and subsequent downtime, Mytee recommends following the maintenance schedule below:

Maintenance Item Daily Weekly
Clean and inspect tanks.	X
Clean and inspect hoses.	X
Check and clean internal filters.	X
Check power supply cable.	X
Clean machine with all-purpose cleaner and cloth.	X
Check spray nozzles.	X
Flush solution system with Mytee System Maintainer.		X
Remove float shut-off screen from tank and clean.		X
Inspect vacuum hoses for holes and loose cuffs.		X
Lubricate wheels with water resistant oil.		X
Inspect machine for water leaks and loose hardware.		X

3.1 - Filter Maintenance

The Escape ^® has a small mesh screen filter on the end of the solution intake hose in the solution tank. This filter should be checked and cleaned after each use.

There is also a foam filter in the recovery tank on the vacuum intake that should be checked and cleaned after each use.

3.2 - Float Maintenance

Recovery Tank Float Switch

Located in the recovery tank. This float prevents recovered dirty water from rising too high and damaging the vacuum motors. Check regularly to make sure it moves up and down easily.

Auto Pump-Out Float Switch

Located in the recovery tank. This electronic float switch activates the auto pump-out when the water level in the tank reaches it. It is important to remove any debris that might prevent the float switch from activating.

Auto-Fill Shut-Off Float

Located in the solution tank. Prevents the auto-fill from over-filling the solution tank. Make sure nothing is preventing this float from moving upward.

3.3 - System Maintainer

Weekly flushing of the solution system with Mytee® System Maintainer helps keep lines clean and prevents chemical build-up, improving pump life, performance and pressure.

How to use System Maintainer:

1. Mix 1-quart 3601 System Maintainer with 1-quart of warm water.
2. After thoroughly mixing, pour this solution into the solution tank.
3. Turn the pump on FIRST, and run solution through your cleaning tool. NOTE: The jet should be removed from the cleaning tool in order to prevent clogging due to loosening of deposits in line.
4. Next, with the pump on, begin running the solution through the machine. This allows the solution to break down any build up in the lines.
5. After running all of the solution through the machine, fill the tank with clean, warm water. Run the water through the machine to clear the solution completely out of the tank & lines.

4.1 - Vacuum Troubleshooting

Vacuum is not turning on.
Possible Cause Solution	Check for faulty connections between the motor, switch, relay and power cord. Secure any loose connections.
Vacuum may not be getting power.

Vacuum is not producing suction.
Possible Causes Solutions	the recovery tank.
Recovery tank is full. Empty	Check for blockage in the hose, starting from the cleaning tool to the machine.
External vacuum hose blockage (if there is no exhaust).
Clogged filter in vacuum tank.	Clean out filter regularly.
Drain valve/cap is loose and is causing air leakage.	Tighten the drain cap/make sure valve is completely shut.
Hose cuffs are loose and causing air leakage.	Tighten all hose cuffs regularly as may loosen over time. Use a glue to prevent cuffs from coming loose (optional).
Lid on vacuum tank is loose and is causing air leakage.	Make sure the lid is tight.

Vacuum blows water out the exhaust.
Possible Causes Solutions
Electronic shutoff is malfunctioning, causing the vacuum to continue running even when the recovery tank is full.	Replace the electronic float switch with a ball float.
Foam building up in the recovery tank.	Use a defoamer.
Boot behind vacuum port is turned the wrong way.	Make sure this plastic boot is turned toward the right wall of the machine and not toward the ball float.

There is a loud grinding noise coming from the vacuum.
Possible Cause Solution
Debris has been sucked into the vacuum motor chamber. Usually results from dry vacuuming.	Replace the vacuum motor. To avoid repeat problem, DO NOT dry vacuum with your extractor.

4.2 - Pump Troubleshooting

Pump runs but there is no spray.
Possible Causes Solutions
Tank is empty. Fill tank.
Blockage or kink somewhere in the line.	Locate where the blockage is and repair accordingly.
Pump valves are clogged or damaged.	Examine valves and clean or replace.
Pump has lost prime. Follow	the priming procedure.

Low pressure.
Possible Causes Solutions
Nozzle is worn Replace nozz	e with a new one of the same size.
Leak in high pressure hose or connections.	Check hose or connec-tions, replace as needed.
Filter is clogged. Clean filter.
Pump valves are clogged or damaged.	Examine valves and clean or replace.

Pump pulsates when spraying.
Possible Causes Solutions
Filter is clogged. Clean filter.
Pump valves are clogged or damaged.	Examine valves and clean or replace.

Motor does not operate.
Possible Causes Solutions
Blown circuit breaker. Replace circuit breaker.Check circuit for wire damage or component damage.

Leaks seen under pump.
Possible Causes Solutions
Pump seals are worn. Replace with new plunger and seals.

4 - Troubleshooting

4.3 - Pump-Out Troubleshooting

Pump turns on but doesn’t pump out.
Possible Causes Solutions	Clear any obstructions.
Clogged filter. Check filter.	with clean water to clear debris from lines.
Clogged pump. Flush tank and pump-out
The anti-airlock hole in the swing check valve (part #P686) is blocked or clogged.	Find the 1/8” hole in the threads of the check valve located on the top of the pump out (shown above). Make sure there is nothing blocking this hole.

Pump doesn’t turn on.

Possible Causes Solutions

Obstructed float switch. Check float switch. Clear any obstructions.

Clogged pump. Clean around pump-out with clean water.

Vacuum pressure loss.
Possible Causes Solutions	If air is getting sucked into the port that the machine pumps out through, replace swing check valve.
Bad swing check valve (part #P686).

NOTES

NOTES

Mytee Products, Inc.

13655 Stowe Dr.

Poway, CA 92064

www.mytee.com

© 2019 Mytee Products, Inc.

Printed in the USA
