Product Type	Countertop Condiment Dispenser
Brand	San Jamar
Model	P4800
Finish	Metal Finish
Dispense Mechanism	Hand-operated pump
Dispense Volume per Stroke	1 fl oz (29.6 ml)
Portion Control	Includes 3 portion rings, each reduces volume by 1/4 oz
Maintenance	Daily clean-in-place; periodic full disassembly cleaning
Cleaning Brush	Included small brush for hard-to-reach areas
NSF Listed	Yes, for clean-in-place
Replacement Parts Available	Yes (see manual for part numbers)
Dip Tube Length	7 inches
Spring Type	Compression spring under tension
Lubrication	Food-grade lubricant or fresh vegetable oil for O-ring
Compatibility	FrontLine™ countertop box system
Application	Condiments (ketchup, mustard, mayonnaise, etc.)
Material	Plastic and metal components
Power	None (manual)
Safety Note	Caution: spring under compression during disassembly
Country of Origin	USA (Elkhorn, Wisconsin)

Frequently Asked Questions - P4800 San Jamar

How do I clean the San Jamar P4800 dispenser daily?

For daily cleaning, use the clean-in-place method: fully compress the handle several times to empty the pump, then immerse the pump into warm rinse water (75°F min) with sanitizer, and fully compress again to rinse. Wipe the exterior.

How do I perform a full disassembly cleaning?

Disconnect the dip tube, unscrew the locking collar, separate the handle/upper housing from the pump engine, remove the lower housing, nozzle tube, pump bottom, and elbow connector (caution: spring is under compression). Slide off spring, push out plunger, unscrew outlet valve. Clean all parts in a three-compartment sink with sanitizer. Reassemble in reverse order.

How can I reduce the portion size dispensed?

The P4800 comes with three portion rings. During reassembly, before installing the spring, slip one or more rings onto the neck of the plunger. Each ring reduces the portion by 1/4 oz, for a maximum reduction of 3/4 oz.

What should I do if the pump is not dispensing correctly?

Check for clogs in the spout or dip tube. Clean the pump thoroughly. Ensure the dip tube is properly connected and not kinked. Replace any worn O-rings after lubricating with food-grade lubricant or vegetable oil.

Are replacement parts available for the P4800?

Yes, all major components are replaceable. Refer to the parts list in the manual for part numbers. Commonly replaced parts include the spout (100404), dip tube (100378), spring (100411), and plunger & valve assembly (500278).

Can I use this dispenser for soap or lotion?

The P4800 is designed for condiments. For soap or lotion, a different pump (e.g., San Jamar soap dispenser) is recommended. Using it for non-condiment liquids may cause corrosion or improper function.

Is the P4800 NSF certified?

Yes, the FrontLine™ system is NSF listed for simple daily clean-in-place procedures, ensuring sanitary use in foodservice environments.

How do I reassemble the pump after cleaning?

Reassemble in reverse order of disassembly. Key tips: push up on the plunger while installing the spring and elbow connector (spring is under compression). Lubricate the O-ring with food-grade lubricant. Ensure the handle is raised all the way when reinstalling the upper housing.

What is the maximum portion size?

The standard dispense volume is 1 fl oz per stroke. Using portion rings can reduce it to 3/4, 1/2, or 1/4 oz depending on the number of rings added.

Where can I find the manual or contact support?

The manual is available for free download at notice-facile.com or the San Jamar website (www.sanjamar.com). For support, call San Jamar customer care at [phone] or email [e-mail].

USER MANUAL P4800 San Jamar

1. Turn the pump upside down to drain the detergent solution.

areas - including the spout.

residue from the hard-to-reach

remove any remaining food

1. Use the supplied brush to

inside of the pump

least 14 times to clean the

1. Fully compresses the handle at

2. Wash the outside of the pump.

the detergent solution.

I. limmerse the pump into

WASH

remove food residue.

of the pump to

1. Rinse the exterior

[Non-Text]

times.

the handle several

fully compressing

1. Empty the pump by

BEFORE CLEANING

Frontline TM is NSF listed for simple daily „clean-in-place“, (see inside for periodic full disassembly cleaning).

FROM LINE TM CONDITION DISPENSING SYSTEMS Daily Cleaning and Sanitizing Instructions for Pump

3 SANITIZE

1. Fully compress the handle

the warm rinse water.

I. limmerse the pump into

2 RINESE

Weekly Cleaning and Sanitizing Instructions for Pump

Person using a tool to clean plastic in a bag, black and white photo with no visible text or symbols

Before cleaning, empty the pump by fully compressing the handle several times until the condiment is removed from the pump.

Hand holding a white plastic pipe attached to a metal fan-shaped device (no text or symbols visible)

Disconnect the dip tube from the pump body by pulling the dip tube down using a twisting motion.

Close-up of hands applying a bottle to a circular container with a curved arrow (no text or symbols visible)

Unscrew the locking collar and remove the lid and the locking collar from the pump body.

Close-up of hands holding three black hair clips with a textured handle, labeled '456' in the corner (no other text or symbols)

Separate the handle/upper housing from the pump engine.

Close-up of hands holding a black cable with a white plastic tube and arrow indicating direction (no text or symbols)

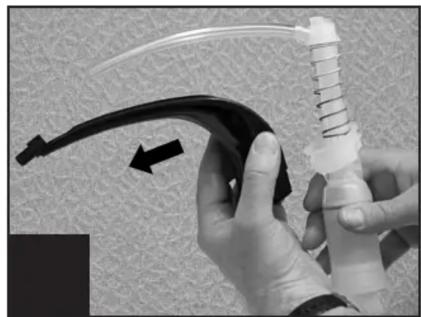

Slip the lower housing off the pump engine.

Close-up of hands holding a medical device with a black arrow pointing to the device (no visible text or symbols)

Gently twist and pull the end of the nozzle tube to remove.

Close-up of hands assembling a plastic bottle with a curved arrow indicating rotation (no text or symbols)

Unscrew and remove the pump bottom.

Close-up of hands folding a white plastic sheet with a black arrow pointing to it (no text or symbols visible)

Place one hand over the elbow connector and spring. With the other hand, unscrew the pump body from the elbow connector. Use caution as the spring is under compression.

Close-up of a hand holding a coiled spring attached to a plastic bottle (no text or symbols visible)

Slide the spring off the plunger.

For periodic use only (see front page for simple daily routine).

Close-up of hands holding a plastic bottle with a pipette inserted, against a textured background (no text or symbols visible)

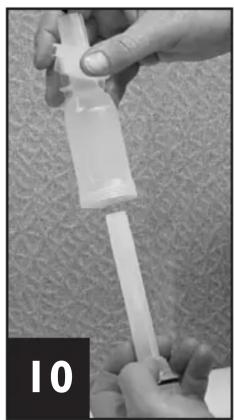

Push and remove the plunger through the bottom of the pump body.

Close-up of a hand holding a small object with a curved arrow indicating rotation or movement (no text or symbols visible)

Unscrew the outlet valve and remove it from the plunger.

12

Clean and sanitize all components in a three-compartment sink per local code. Use the supplied brush to clean any hard-to-reach areas, including the spout. Allow each component to air dry.

REASSEMBLY

To reassemble the pump, follow the above in reverse order. See below for reassembly tips:

• Wear gloves or be sure hands are properly cleaned and sanitized during assembly.
• Push up on the plunger while installing the spring and elbow connector. See diagram. Use caution as the spring will be under compression.
• Before reassembling the pump, lubricate the O-ring with a food-grade lubricant or fresh vegetable oil.
• When reinstalling handle/upper housing to lower
  housing/pump engine, be sure the handle is raised all the way.

PORTION RINGS

Your FrontLine™ Condiment Dispensing System dispenses one fluid ounce with each stroke. Three portion rings are included with your pump if you wish to reduce portion size. Each ring reduces portion size by 1/4 ounce. The portion rings are easy to install. During pump reassembly, before installing the spring, simply slip the ring(s) onto the neck of the plunger.

Close-up of hands holding a small mechanical component, no visible text or symbols

Close-up of a hand holding a small mechanical component (no visible text or symbols)

Close-up of hands holding a coiled spring component (no text or symbols visible)

Thank you for your purchase of a San Jamar FrontLine™ Condiment Dispensing System.

We appreciate your business and are confident that you will benefit from the smart design and innovative features of your pump. San Jamar offers a variety of FrontLine™ condiment dispenser solutions that are designed to improve the efficiency of your operation. If you would like any further information on these or other San Jamar products, please contact us at [phone] or visit www.sanjamar.com.

REPLACEMENT PARTS

AVAILABLE FRONTLINE™ CONDIMENT. DISPENSING SYSTEMS

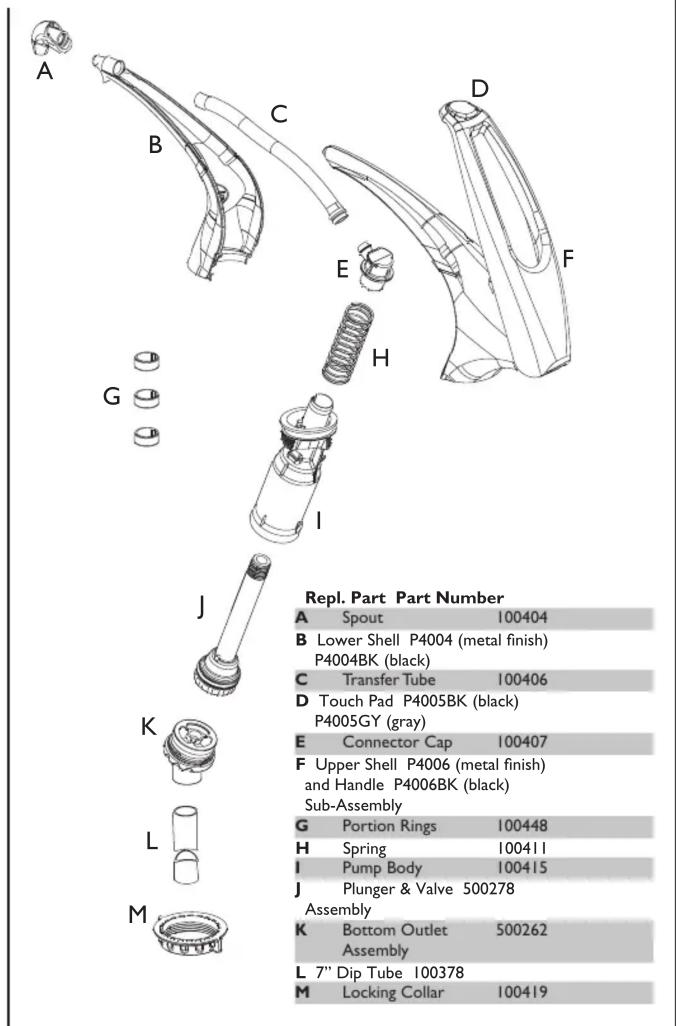

Part Number	Description	Pump Color
P4000BK	Pump only	Black
P4000	Pump only	Metal Finish
P4100BK	FrontLineTM universal in-counter system	Black
P4100BK	FrontLineTM universal in-counter system	Metal Finish
P4120BK	FrontLineTM universal in-counter system with portion cup dispenser	Black
P4120	FrontLineTM universal in-counter system with portion cup dispenser	Metal Finish
P4710BK	FrontLineTM 7 Qt round cover and pump system	Black
P4710	FrontLineTM 7 Qt round cover and pump system	Metal Finish
P4800BK	FrontLineTM countertop box system	Black
P4800	FrontLineTM countertop box system	Metal Finish
P4826BK	FrontLineTM countertop dual codiment system (2 pump boxes, I dual-tier condiment tray)	Black
P4826	FrontLineTM countertop dual codiment system (2 pump boxes, I dual-tier condiment tray)	Metal Finish

ACCESSORIES

P405	FrontLineTM pack of color touch pads: (Iea) red, yellow, brown
P417	FrontLineTM 7 Qt round inset container only (mates with P4710 and P4710BK)
X100420	FrontLineTM pack of small cleaning brushes (10/pk)

SAN JAMAR

Smart ◆ Safe ◆ Sanitary

555 Koopman Lane • Elkhorn, Wisconsin 53121 USA

T: [phone] • F: [phone] • Customer Care: [phone]

Email: [e-mail] • www.sanjamar.com

SAN JAMAR EUROPE, INC.

Schoorstraat 26A, Bus I • B-2220 Heist op-den Berg • BELGIUM

T: [phone] • F: [phone] • Email: [e-mail]

SAN JAMAR Mexico, S de RL de CV

For further product information or to locate a distributor near you, visit us on the web at:

www.sanjamar.com

Also visit our site for information on:

Trade shows • New Products/Development • Ordering Literature • Replacement Parts
