SuperChassis 216BE1C4-R1K23LPB - Computer Server Supermicro - Free user manual and instructions

Product Type	2U Server Chassis
Model	SuperChassis 216BE1C4-R1K23LPB
Form Factor	2U Rackmount
Drive Bays	24 x 2.5\" Hot-Swap SAS/SATA + 2 Optional Rear 2.5\"
Backplane	SAS3-216EL1 (Single Expander)
Expansion Slots	7 Low-Profile (LP)
Power Supply	1280W Redundant Platinum Level (1+1)
Cooling Fans	3 x Hot-Swappable PWM Fans
Included Rails	Tool-less Slide Rails
Air Shroud	Included (Adjustable)
Motherboard Support	Compatible with Supermicro Proprietary Motherboards (E-ATX)
Control Panel	Power Button, Reset Button, LEDs (Power, HDD, NIC, Info)
Dimensions (H x W x D)	3.5\" x 17.2\" x 25.6\" (89 x 437 x 650 mm)
Weight	Approx. 35 lbs (15.9 kg) without Drives
Operating Temperature	10°C to 35°C (50°F to 95°F)
Certifications	CE, FCC, UL
Included Accessories	Rails, Screws, Air Shroud, Power Cords, Documentation

Frequently Asked Questions - SuperChassis 216BE1C4-R1K23LPB Supermicro

What type of drives does the SC216BE1C4-R1K23LPB support?

The chassis supports 24 hot-swappable 2.5" SAS or SATA drives. It also has two optional rear 2.5" drive bays (SC216B models). Backplane is SAS3, compatible with SATA3 and SAS3 drives.

Is the power supply redundant and hot-swappable?

Yes, it features dual redundant 1280W Platinum-level power supplies that are hot-swappable. Each can be replaced without powering down the system.

How many expansion slots are available?

The LP (Low-Profile) model provides 7 low-profile expansion slots. For full-height cards, consider the WB or UB models.

Can I use standard ATX motherboards?

The chassis is designed for Supermicro proprietary motherboards (E-ATX form factor). Third-party boards may not fit due to standoff and I/O shield placement.

How do I replace a failed fan?

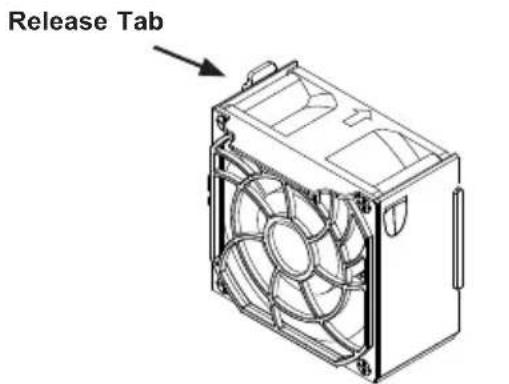

Fans are hot-swappable. Open the top cover, press the release tab on the failed fan, lift it out, and insert a new fan ensuring correct airflow direction (arrows on top).

What is the recommended rack depth for installation?

The included rail kit fits racks between 26.5" and 36.4" (673-925 mm) deep. Ensure stable rack and use stabilizers if necessary.

Does the chassis include a backplane expander?

Yes, the SAS3-216EL1 backplane has a single-port SAS3 expander supporting cascading and failover. All 24 drives are accessible via one or more HBAs.

How can I monitor drive failure?

Each drive carrier has an activity LED (green/blue) and a failure LED (red). The backplane also provides I2C and SGPIO interfaces for management software.

Are the drive trays included?

Yes, empty drive trays are included for all 24 bays. You need to purchase drives separately and install them using the included screws.

What is the maximum power consumption?

Under full load, the chassis can draw up to 1280W at 180-240V input. At 100-140V, output is limited to 1000W. Ensure adequate circuit protection.

USER MANUAL SuperChassis 216BE1C4-R1K23LPB Supermicro

SC216 CHASSIS Series

SC216BAC-R920LPB

SC216BE1C-R920LPB SC216BE1C-R920WB

SC216BE2C-R920LPB SC216BE2C-R920WB

SC216BE16-R1K28LPB SC216BE16-R1K28WB

SC216E16-R1200LPB SC216E16-R1200UB

SC216E16-R1010LPB SC216BE16-R920WB

SC216BE16-R920LPB SC216BE16-R920UB

SC216BE-R1K28LPB SC216BE-R1K28WB

SC216E26-R1200LPB SC216E26-R1200UB

SC216BE26-R920LPB SC216BE26-R920WB

SC216BE26-R920UB SC216BA-R1K28WB

SC216BA-R1K28LPB SC216BA-R920WB

SC216BA-R920LPB SC216BA-R920UB

SC216A-R900LPB SC216A-R900UB

SC216E1-R900LPB* SC216E1-R900UB*

SC216E2-R900LPB* SC216E2-R900UB*

USER'S MANUAL

1.0e

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0e

Release Date: October 30, 2015

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2015 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC216 2U chassis. Installation and maintenance should be performed by experienced technicians only.

This document lists compatible parts and configurations available when this document was published. Always refer to the our Web site for updates on supported parts and configurations at www.supermicro.com.

Models marked with and asterisk (*) on the front cover have been designated End of Life, that is, no longer sold.

Manual Organization

Chapter 1 Introduction

The first chapter covers the primary components included with this chassis and describes the main features of the SC216 chassis. This chapter also includes contact information.

Chapter 2 Warning Statements for AC Systems

This chapter lists warnings, precautions, and system safety. You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed before installing and servicing this chassis.

Chapter 3 Chassis Components

Refer here for details on this chassis model including the fans, hard drives, airflow shields, and other components.

Chapter 4 System Interface

Refer to this chapter for details on the system interface, which includes the functions and information provided by the control panel on the chassis as well as other LEDs located throughout the system.

Chapter 5 Chassis Setup and Maintenance

This chapter provides detailed information on this chassis. You should follow the procedures given in this chapter when installing, removing, or reconfiguring your chassis.

Chapter 6 Rack Installation

Refer to this chapter for detailed information on chassis rack installation. You should follow the procedures given in this chapter when installing, removing or reconfiguring your chassis into a rack environment.

Appendices

This section lists compatible cables, power supply specifications, and compatible backplanes. Not all compatible backplanes may be listed. Refer to our Web site for the latest compatible backplane information at http://www.supermicro.com

Contents

Chapter 1 Introduction

1-1 Overview 1-1
1-2 Contacting Supermicro.... 1-3
1-3 Returning Merchandise for Service.... 1-4

Chapter 2 Standardized Warning Statements for AC Systems

2-1 About Standardized Warning Statements.... 2-1

Warning Definition 2-1
Installation Instructions....2-4
Circuit Breaker 2-5
Power Disconnection Warning 2-6
Equipment Installation....2-8
Restricted Area....2-9
Battery Handling....2-10
Redundant Power Supplies 2-12
Backplane Voltage 2-13
Comply with Local and National Electrical Codes....2-14
Product Disposal 2-15
Hot Swap Fan Warning....2-16
Power Cable and AC Adapter 2-18

Chapter 3 Chassis Components

3-1 Overview 3-1
3-2 Components 3-1

Drives 3-1
Backplane....3-1
Fans 3-1
Mounting Rails 3-1
Power Supply 3-2
Air Shroud 3-2

3-3 Where to get Replacement Components.... 3-2

Chapter 4 System Interface

4-1 Overview 4-1
4-2 Control Panel Buttons 4-2
4-3 Control Panel LEDs 4-2
4-4 Drive Carrier LEDs....4-4

SAS/SATA Drives 4-4

Chapter 5 Chassis Setup and Maintenance

5-1 Overview 5-1

5-2 Removing the Power Cord....5-1

5-3 Removing the Chassis Cover 5-2

5-4 Installing Hard Drives....5-3

Installing the Rear 2.5" Hard Drive - SC216B Only....5-5

5-5 Installing the Motherboard 5-7

I/O Shield 5-7

Permanent and Optional Standoffs....5-8

Motherboard Installation....5-9

5-6 Installing the Expansion Cards 5-10

Installing Expansion Cards in Low-Profile Model Chassis 5-10

Installing Riser Cards and Expansion Cards in UIO Models....5-11

5-7 Installing the Air Shrouds 5-13

Installing the Air Shrouds in the Chassis....5-13

Installing the Additional Air Shroud 5-14

5-8 Checking the Airflow 5-15

5-9 System Fans 5-16

5-10 Power Supply 5-18

Power Distributor....5-20

5-11 Removing the Backplane 5-21

5-12 Installing the Backplane 5-23

Chapter 6 Rack Installation

6-1 Overview 6-1

6-2 Unpacking the System 6-1

6-3 Preparing for Setup....6-1

Choosing a Setup Location....6-1

6-4 Warnings and Precautions 6-2

Rack Precautions....6-2

General Server Precautions....6-2

Rack Mounting Considerations 6-3

Ambient Operating Temperature 6-3

Reduced Airflow 6-3

Mechanical Loading 6-3

Circuit Overloading....6-3

Reliable Ground 6-3

6-5 Rack Mounting Instructions....6-4

Identifying the Sections of the Rack Rails 6-4

Locking Tabs 6-5

Releasing the Inner Rail 6-5

Installing The Inner Rails on the Chassis 6-6

Installing the Outer Rails on the Rack....6-7

Standard Chassis Installation 6-8

Optional Quick Installation Method 6-9

Appendix A SC216 Chassis Cables

Appendix B SC216 Power Supply Specifications

Appendix C SAS-216A Backplane Specifications

C-1 ESD Safety Guidelines ......C-1

C-2 General Safety Guidelines....C-1

C-3 A Note to Users....C-2

C-4 Introduction to the SAS-216A Backplane.....C-2

C-5 Front Connector Locations....C-3

Front Connectors ......C-3

C-6 Front Connectors and Pin Definitions....C-4

C-7 Front Jumpers....C-5

Explanation of Jumpers ......C-5

I²C and SGPIO Modes and Jumper Settings ......C-6

Front LED Indicators....C-7

C-8 Rear Components, Connectors and LED Indicators ......C-8

Appendix D SAS-216EL Backplane Specifications

D-1 Overview of the SAS-216EL1/EL2 Backplanes....D-1

D-2 ESD Safety Guidelines ....D-2

D-3 General Safety Guidelines....D-2

D-4 An Important Note to Users....D-2

D-5 Introduction to the SAS-216EL Backplane.....D-3

D-6 Rear Components and Connectors ....D-4

Rear Components and Connectors ....D-4

D-7 Rear Connectors and Pin Definitions....D-5

D-8 Rear Jumper Locations and Pin Definitions ....D-6

Explanation of Jumpers ....D-6

D-9 Front Connectors and LED Indicators ....D-8

D-10 Front Connectors and Jumpers ....D-10

Dual Port and Cascading Configurations

D-11 Single and Dual Port Expanders....D-11

Single Ports......D-11

Dual Ports ....D-11

D-12 Failover.....D-12

Single Host Bus Adapter....D-12

Single Host Bus Adapter Failover......D-12

Dual Host Bus Adapter ....D-12

Dual Host Bus Adapter Failover.....D-12

D-13 Chassis Power Card and Support Cables.....D-13

Chassis Power Card ....D-13

Connectioning an Internal Host Bus Adapter to the Backplane ....D-14

Supported Internal HBA Cables......D-14

Connecting an External Host Bus Adapter to the Backplane ....D-16

Single External Host Bus Adapter ....D-16

Dual External Host Bus Adapter ....D-16

Supported External HBA to Backplane Cable ......D-17

Connecting Multiple Backplanes in a Single Channel Environment......D-18

Single HBA Configuration Cables....D-19

Connecting Multiple Backplanes in a Dual Channel Environment .....D-20

Dual HBA Configuration Cables.....D-21

D-14 Supported Cascading Configurations ......D-22

Server System with Single SAS HBA......D-23

Dual SAS HBA and Cascaded Configuration ....D-24

Dual SAS HBA and Cascaded Configuration with Branching ....D-25

Appendix E SAS2-216EL1/EL2 Backplane Specifications

Overview of the SAS2-216EL1/EL2 Backplanes....E-1

E-1 ESD Safety Guidelines ....E-2

E-2 General Safety Guidelines....E-2

E-3 An Important Note to Users....E-2

E-4 Introduction to the SAS2-216EL1/EL2 Backplane....E-3

E-5 Connectors....E-4

E-6 Front Connector and Pin Definitions....E-5

E-7 Jumper Locations and Settings.....E-6

Explanation of Jumpers ......E-6

E-8 Front Connectors and LED Indicators ....E-9

Dual Port and Cascading Configurations

E-9 Single and Dual Port Expanders....E-11

Single Ports....E-11

Dual Ports E-11

E-10 Failover.....E-12

Single Host Bus Adapter....E-12

Single Host Bus Adapter Failover....E-12

E-11 Failover with RAID Cards and Multiple HBAs....E-13

Dual Host Bus Adapter ....E-13

Dual Host Bus Adapter Failover.....E-13

E-12 Chassis Power Card and Support Cables....E-14

Chassis Power Card....E-14

Connecting an Internal HBA to the Backplane ....E-15

Supported Internal HBA Cables....E-15

Connecting an External HBA to the Backplane ....E-17

Single External Host Bus Adapter ....E-17

Dual External Host Bus Adapter ....E-17

Supported External HBA to Backplane Cable ......E-18

Connecting Multiple Backplanes in a Single Channel Environment.....E-19

Single HBA Configuration Cables....E-20

Connecting Multiple Backplanes in a Dual Channel Environment....E-21

Dual HBA Configuration Cables.....E-22

E-13 Supported Cascading Configurations....E-23

Server System with Single SAS HBA....E-24

Dual SAS HBA and Cascaded Configuration....E-25

Dual SAS HBA and Cascaded Configuration with Branching ....E-26

Appendix F SAS3-216A Backplane Specifications

F-1 ESD Safety Guidelines ...... F-1

F-2 General Safety Guidelines....F-1

Front Connectors ...... F-2

F-3 A Note to Users....F-2

F-4 Front Connectors and Jumpers ...... F-2

F-5 Front Connector and Pin Definitions....F-3

F-6 Jumpers....F-3

Explanation of Jumpers ...... F-3

F-7 Rear Components, Connectors and LED Indicators ...... F-4

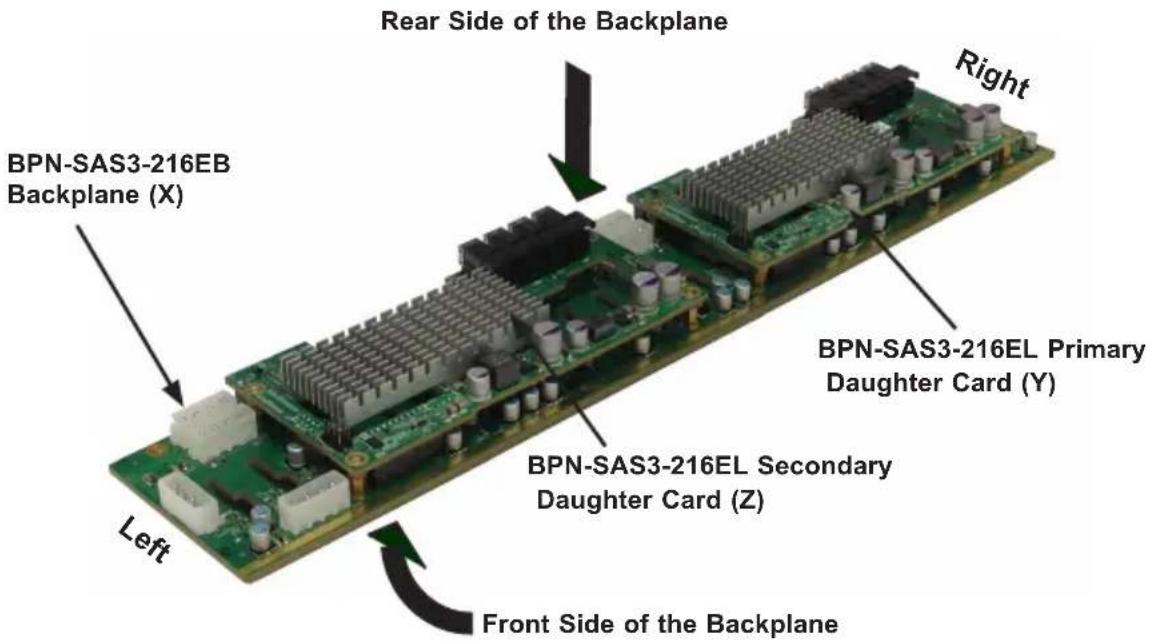

Appendix G SAS3-216EL Backplane Specifications

Notes

Chapter 1

Introduction

1-1 Overview

Supermicro's SC216 maximizes storage capacity in a 2U form factor by offering twenty-four hot-swappable 2.5" SAS/SATA hard drive bays for applications requiring extra storage. The chassis design optimizes every aspect of interior space without compromising superior cooling capabilities. The chassis is equipped with a redundant, efficient power supply for outstanding power savings, with specially designed optimized cooling, and seven low-profile or UIO solution expansion slots for superior networking options. Quick release, tool-less slide rails are available for quick installation.

SC216E1 and SC216E2 chassis models support only SATA, SATA2 and SAS1 hard drives. The maximum capacity supported by each of these drives is 2TB. The SC216E1 and SC216E2 models do not support JBOD configurations.

Note: A complete list of safety warnings is provided on the Supermicro web site at www.supermicro.com.

Model HDD	Backplane		I/O Slots	Power Supply
SC216BAC-R920LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS3-216A	7x LP	920W(Platinum Level)
SC216BE1C-R920LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS3-216EL1	7x LP	920W(Platinum Level)
SC216BE1C-R920WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS3-216EL1	4x FH,3x LP	920W(Platinum Level)
SC216BE2C-R920LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS3-216EL2	7x LP	920W(Platinum Level)
SC216BE2C-R920WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS3-216EL2	4x FH,3x LP	920W(Platinum Level)
SC216BE16-R1K28LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL1	7x LP	1280W(Platinum Level)
SC216BE16-R1K28WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL1	4x FH,3x LP	1280W(Platinum Level)
SC216E16-R1200LPB	24x 2.5" SAS/SATA	SAS2-216EL1	7x LP	1200W(Gold Level)
SC216E16-R1200UB	24x 2.5" SAS/SATA	SAS2-216EL1	4x FH,3x LP	1200W(Gold Level)
SC216E16-R1010LPB	24x 2.5" SAS/SATA	SAS2-216EL1	7x LP	1010W DC
SC216BE16-R920LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL1	7x LP	920W(Platinum Level)
SC216BE16-R920UB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL1	4x FH,3x LP	920W(Platinum Level)
SC216BE16-R920WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL1	4x FH,3x LP	920W(Platinum Level)
SC216BE-R1K28LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL2	7x LP	1280W(Platinum Level)
SC216BE-R1K28WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL2	4x FH,3x LP	1280W(Platinum Level)
SC216E26-R1200LPB	24x 2.5" SAS/SATA	SAS2-216EL2	7x LP	1200W(Gold Level)
SC216E26-R1200UB	24x 2.5" SAS/SATA	SAS2-216EL2	4x FH,3x LP	1200W(Gold Level)t
SC216BE26-R920LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL2	7x LP	920W(Platinum Level)
SC216BE26-R920WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL2	4x FH,3x LP	920W(Platinum Level)
SC216BE26-R920UB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS2-216EL2	4x FH,3x LP	920W(Platinum Level)
SC216BA-R1K28LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)*	SAS-216A 7x LP		1280W(Platinum Level)
SC216BA-R1K28WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS-216A	4x FH,3x LP	1280W(Platinum Level)
SC216BA-R920LPB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS-216A 7x LP		920W(Platinum Level)
SC216BA-R920WB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS-216A 7x LP		920W(Platinum Level)
SC216BA-R920UB	24x 2.5" SAS/SATA plus 2x2.5" (opt)	SAS-216A	4x FH,3x LP	920W(Platinum Level)
SC216A-R900LPB	24x 2.5" SAS/SATA	SAS-216A 7x LP 900W
SC216A-R900UB	24x 2.5" SAS/SATA	SAS-216A	4x FH,3x LP	900W
SC216E1-R900LPB**	24x 2.5” SAS/SATA	SAS-216EL1	7x LP 900W
SC216E1-R900UB**	24x 2.5” SAS/SATA	SAS-216EL1	4x FH,3x LP	900W
SC216E2-R900LPB**	24x 2.5” SAS/SATA	SAS-216EL2	7x LP 900W
SC216E2-R900UB**	24x 2.5” SAS/SATA	SAS-216EL2	4x FH,3x LP	900W

*Optional with SC216B models: two additional 2.5" drives that mount in the rear of the chassis.

** End of Life

Key: FH = Full-height, half-length, LP = Low-profile

1-2 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Web Site: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Web Site: www.supermicro.com.tw

1-3 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.super-micro.com/support/rma/).

Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Notes

Chapter 2

Standardized Warning Statements for AC Systems

2-1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our web site at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning!

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning!

Read the installation instructions before connecting the system to the power source. 設置手順書

This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning!

The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

電源切断の警告

Equipment Installation

Warning!

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning!

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning!

Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

The fans might still be turning when you remove the fan assembly from the chassis.

Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

Power Cable and AC Adapter

Warning!

When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

This chapter describes the most common components included with your chassis. Some components listed may not be included or compatible with your particular chassis model. For more information, see the installation instructions detailed later in this manual.

3-2 Components

For the latest shipping lists, visit our Web site at: http://www.supermicro.com.

Drives

The chassis includes hard disk drive bays, which support twenty-four 2.5" hard drives. The hard drives must be purchased separately.

The SC216B chassis supports two additional, optional hard drives mounted in the rear of the chassis.

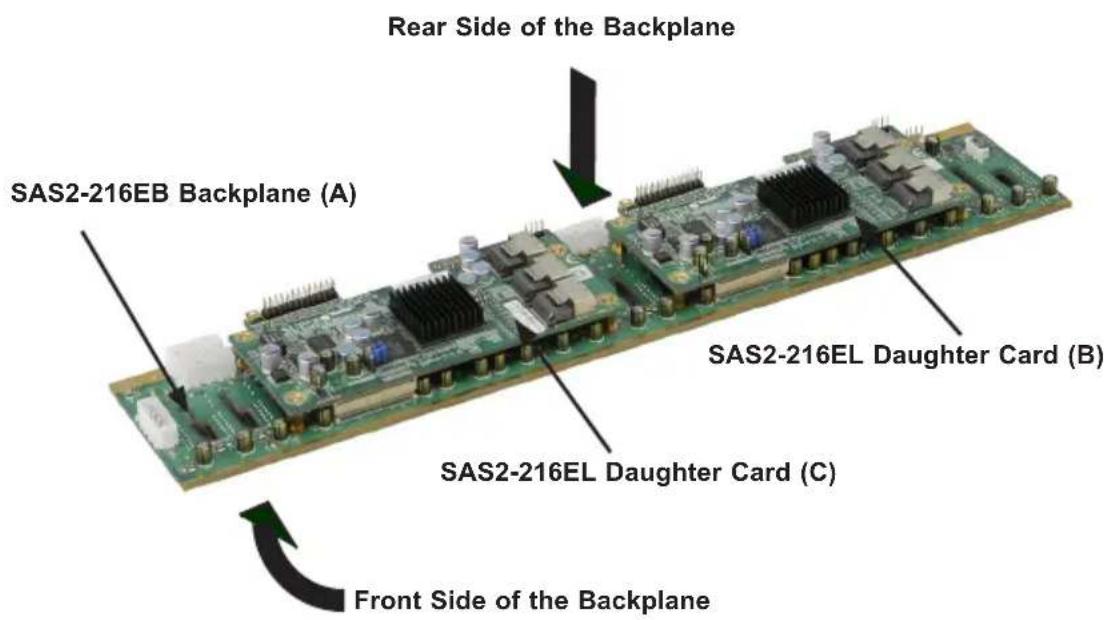

Backplane

Each SC216 chassis comes with a 2U backplane which supports SAS/SATA. For more information regarding compatible backplanes, see the appendices at the end of this manual.

Fans

The SC216 chassis supports three system fans. System fans are powered from the motherboard or the backplane. Fan speed may be controlled if the motherboard has either PWM or DC control ability.

Mounting Rails

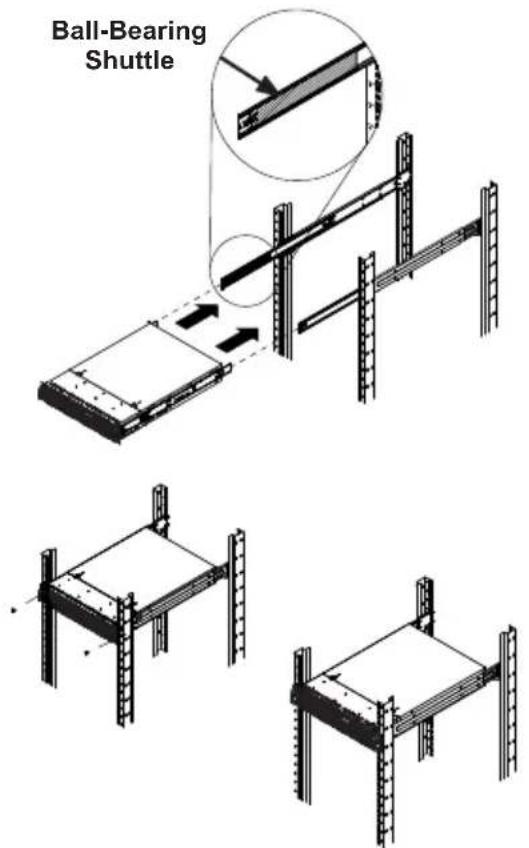

The SC216 can be mounted in a rack and rails are included.

Power Supply

Each SC216 chassis model includes a high-efficiency redundant power supply rated at 900, 920, 1010, 1200, or 1800 Watts.

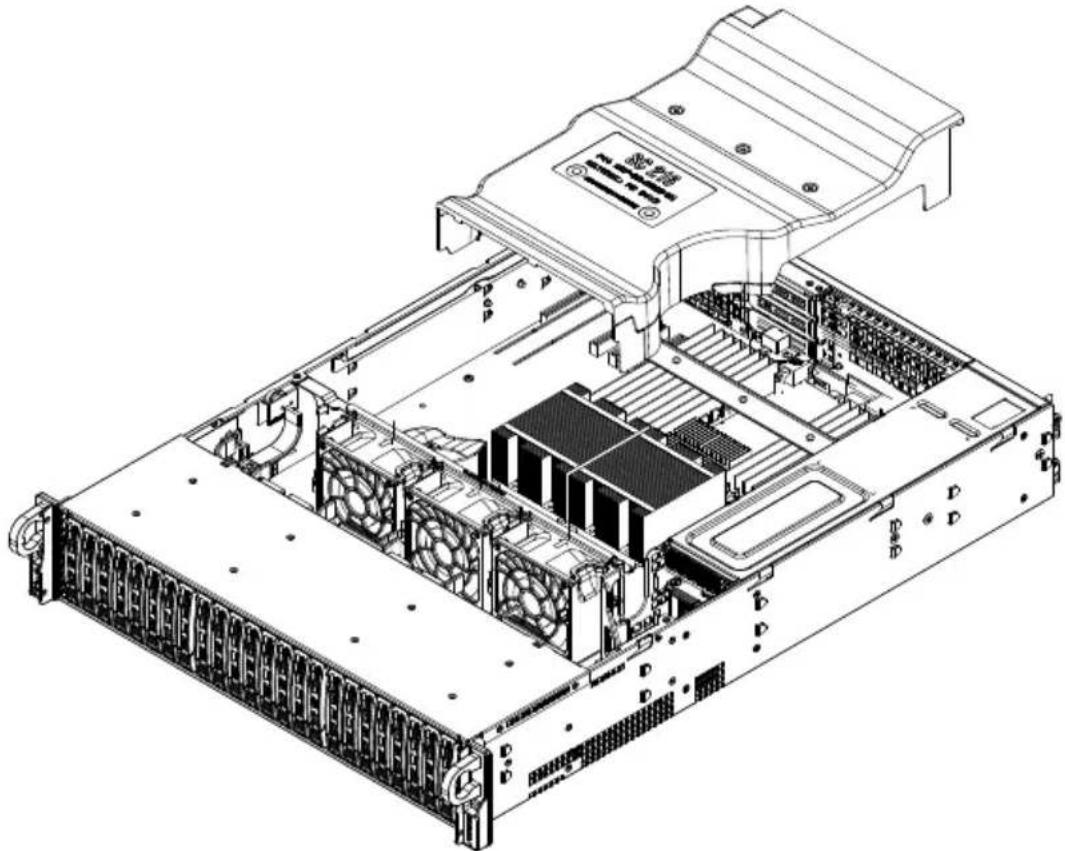

Air Shroud

Air shrouds are shields, usually plastic, that funnel air directly to where it is needed. Always use the air shroud included with your chassis.

3-3 Where to get Replacement Components

Infrequently, you may need replacement parts for your system. To ensure the highest level of professional service and technical support, we strongly recommend purchasing exclusively from our Supermicro authorized distributors, system integrators and resellers. A list of Supermicro authorized distributors, system integrators and resellers can be found at: http://www.supermicro.com. Click the Where to Buy link.

Chapter 4

System Interface

4-1 Overview

Several buttons and LEDs indicate the status of the system. The control panel on the front edge of the chassis includes power buttons and status LEDs. There are also LEDs on the drive carriers the indicate the status of the drive.

This chapter explains the LED indicators and responses.

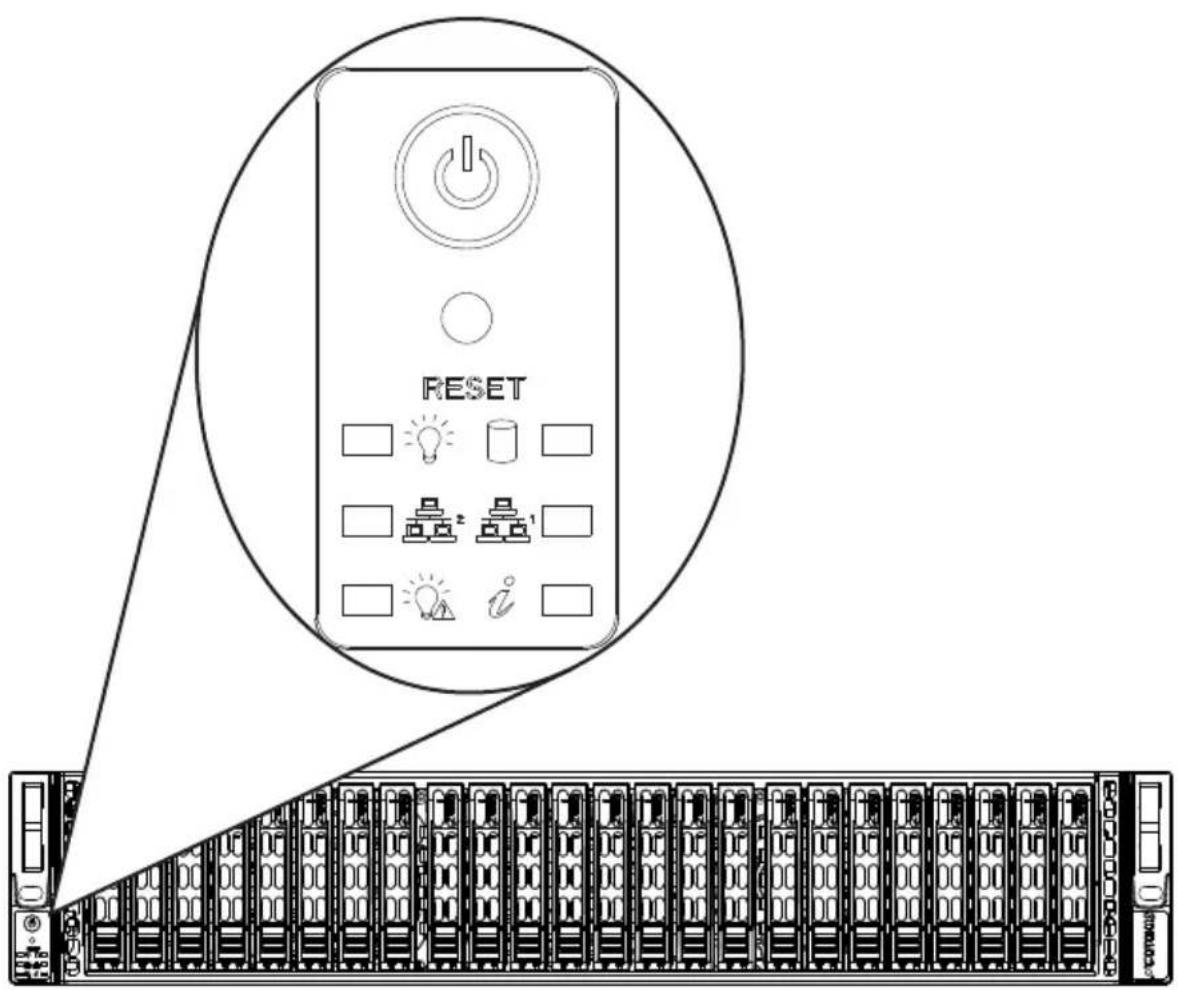

4-2 Control Panel Buttons

There are two push-buttons located on the front of the chassis. These are a power on/off button and a reset button.

Power: The main power switch is used to apply or remove power from the power supply to the server system. Turning off system power with this button removes the main power but keeps standby power supplied to the system. Therefore, you must unplug system before servicing.

Reset: The reset button is used to reboot the system. A needle, pen, or other small device is required to activate this button and reset the system

4-3 Control Panel LEDs

The control panel located on the front of the SC216 chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

HDD: Indicates IDE channel activity. SAS/SATA drive and/or DVD-ROM drive activity when flashing.

NIC2: Indicates network activity on GLAN2 when flashing.

NIC1: Indicates network activity on GLAN1 when flashing.

Power Failure: When this LED flashes, it indicates a power failure in the power supply.

Information LED: Alerts operator of several states, as noted in the table below.

Informational LED
Status Description
Continuously on and red	An overheat condition has occurred. (This may be caused by cable congestion.)
Blinking red (1Hz) Fan failure	check for an inoperative fan.
Blinking red (0.25Hz) Power	failure, check for a non-operational power supply.
Solid blue	Local UID has been activated. Use this function to locate the server in a rack mount environment.
Blinking blue	Remote UID is on. Use this function to identify the server from a remote location.

4-4 Drive Carrier LEDs

The SC216 chassis supports SAS/SATA drives.

SAS/SATA Drives

Each SAS/SATA drive carrier has two LEDs.

• Green or Blue: Each hard disk drive carrier has either a green or a blue LED, depending upon the hard disk drives and backplane used. When illuminated, this LED indicates drive activity. A connection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed.
• Red: The red LED indicates a SAS/SATA drive failure. If one of the SAS/SATA drives fail, you should be notified by your system management software.

Chapter 5

Chassis Setup and Maintenance

5-1 Overview

This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool required is a Phillips screwdriver.

Review the warnings and precautions listed in the manual before setting up or servicing this chassis. These include information in Chapter 2: Warnings for AC Systems, and the precautions listed in the setup instructions.

5-2 Removing the Power Cord

Before performing any setup or maintenance on the chassis, use the following procedure to ensure that power has been removed from the system.

1. Use the operating system to power down the node, following the on-screen prompts.
2. After the system has completely shut-down, carefully grasp the head of the power cord and gently pull it out of the back of the power supply. If your system has dual power supplies, remove the cords from both power supplies.
3. Disconnect the cord from the power strip or wall outlet.

5-3 Removing the Chassis Cover

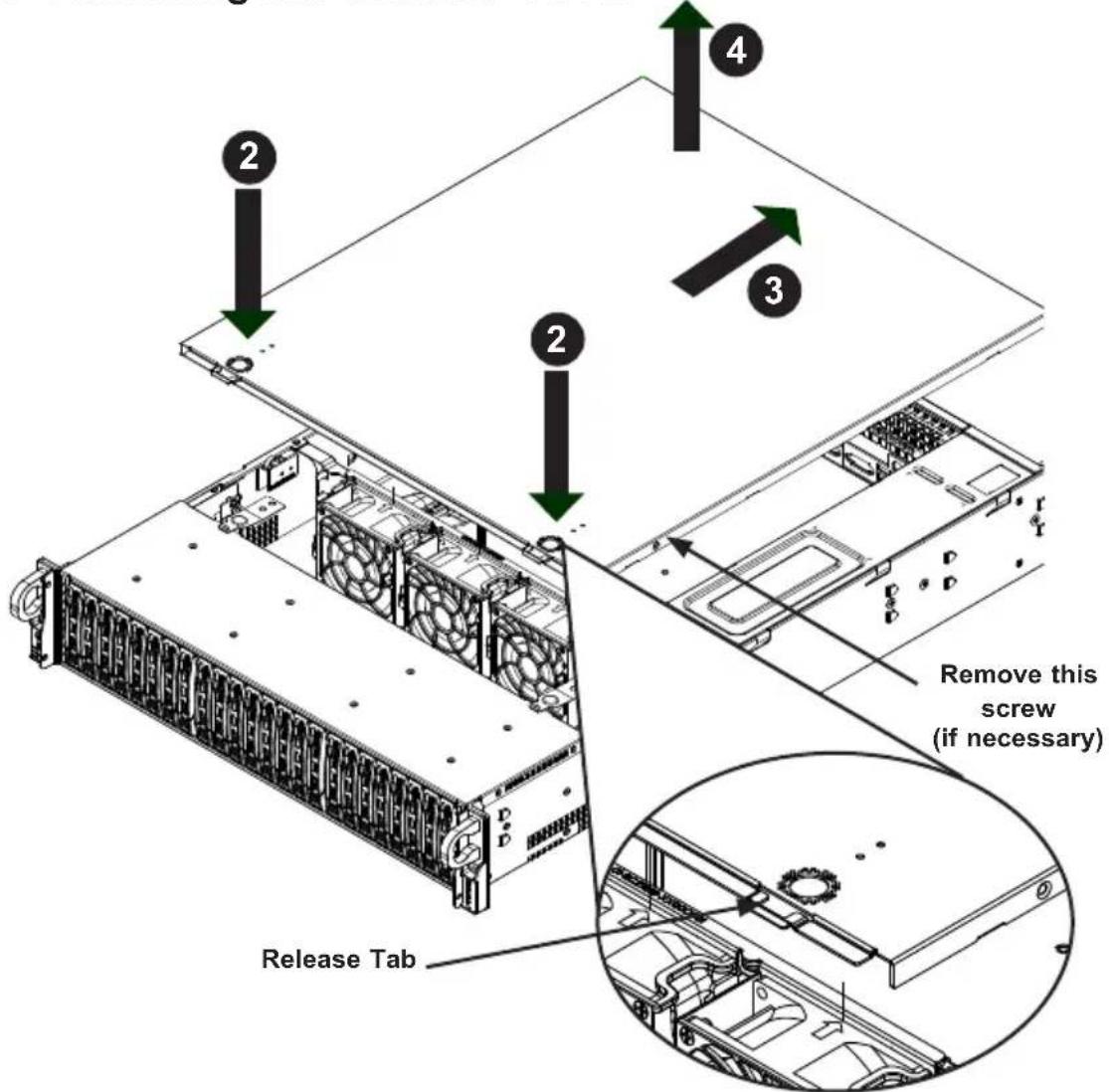

Figure 5-1. Removing the Chassis Cover

Removing the Chassis Cover

1. Press the release tabs to remove the cover from the locked position. Press both tabs at the same time.
2. Once the top cover is released from the locked position, slide the cover toward the rear of the chassis.
3. Lift the cover off the chassis.

Caution: Except for short periods of time, do not operate the server without the cover in place. The chassis cover assists with proper airflow that prevents overheating.

5-4 Installing Hard Drives

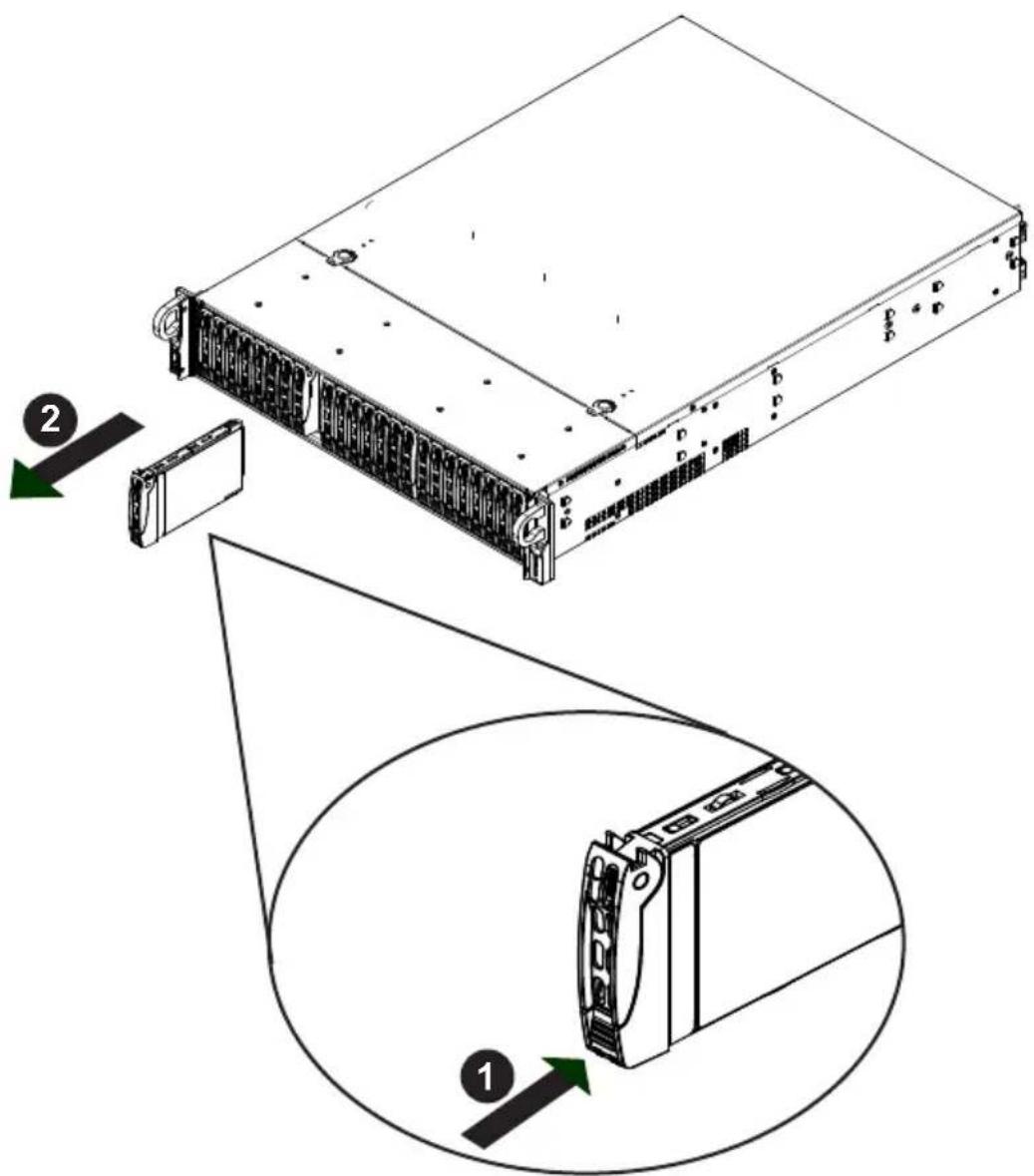

Figure 5-2. Removing Hard Drive

The SC216 comes equipped with twenty-four hot-swappable hard drives which can be removed without powering down the system. Only enterprise level SAS or SATA HDDs are recommended.

Removing Hard Drive Carriers from the Chassis

1. Press the release button on the drive tray. This extends the drive bay handle.
2. Use the handle to pull the tray out of the chassis.

Figure 5-3. Hard Drive Carrier

Installing a Hard Drive into a Drive Carrier

1. Insert a drive into the carrier with the PCB side facing down and the connector end toward the rear of the carrier.
2. Align the drive in the carrier so that the mounting holes of both are aligned. Note that there are holes in the carrier marked "SAS" or "SATA" to aid in correct installation.
3. Secure the drive to the carrier with four screws as illustrated above. Use the four M3 flat-head screws included in the HDD bag of the accessory box. Note that the screws used to secure the dummy drive to the carrier cannot be used to secure the hard drive.
4. Insert the hard drive and drive carrier into its bay vertically, keeping the carrier oriented so that the release button is on the bottom. When the carrier reaches the rear of the bay, the release handle will retract.
5. Using the thumb, push against the upper part of the hard drive handle. Push the hard drive into the hard drive bay as illustrated below, until the hard drive clicks into the locked position.

Figure 5-4. Proper Installation of the Hard Drive into the Hard Drive Bay

Installing the Rear 2.5" Hard Drive--SC216B Only

The SC216B model chassis supports an optional hard drive cage for two additional 2.5" hot-swappable hard drives. The hard drive cage installs in the rear of the chassis next to the power supply. Once the hard drive cage has been installed, the 2.5" hard drives may be removed without powering down the server.

Installing the 2.5" Rear Hard Drive Cage

1. Power down the system as described in Section 5-2, lay the chassis on a flat, stable surface and remove the chassis cover.
2. Orient the rear hard drive cage as shown (Figure 5-5), aligning the opening at the end of the cage with the opening at the back of the chassis.

Figure 5-5. Installing the Rear 2.5" Hard Drive Cage

Figure 5-6. Securing the Rear 2.5" Hard Drive Cage to the Chassis

1. Place the hard drive cage into the chassis. Secure the front of the hard drive cage to the chassis by fastening one screw inside the opening of the hard drive cage as illustrated.
2. Secure the top of the hard drive cage to the chassis frame with two screws, fastened at the upper edge of the hard drive cage above the opening of the hard drive cage.
3. Secure the back of the hard drive cage to the chassis with one screw as shown above.
4. Replace the power cords and power up the server.

Caution: Except for short periods of time, such as swapping hard drives, do not operate the server with the hard drives empty.

Figure 5-7. I/O Shield Placement

5-5 Installing the Motherboard

I/O Shield

The I/O shield holds the motherboard ports in place. Install the I/O shield before installing the motherboard. If the motherboard you purchased did not include a standard I/O shield, contact the motherboard vendor for a compatible shield.

Installing the I/O Shield

1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions.
2. Power down the system as described in Section 5-2 and open the chassis cover.
3. With the illustrations facing the outside of the chassis, place the shield into the space provided at the rear of the chassis as illustrated above.

Permanent and Optional Standoffs

Standoffs prevent short circuits by creating space between the motherboard and the chassis surface. The SC216 chassis includes permanent standoffs in locations used by most motherboards. These standoffs accept the rounded Phillips head screws included in the accessories package.

Some motherboards require additional screws for heatsinks, general components or non-standard security. Optional standoffs are included for these motherboards. To use an optional standoff, place the hexagonal nut with the rounded side up, in the holes provided on the floor of the chassis.

Figure 5-8. Chassis Standoffs and Motherboard Installation

Motherboard Installation

Installing the Motherboard

1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connections.
2. Power down the system as described in Section 5-2 and open the chassis cover.
3. If necessary, remove the air shroud and riser card bracket.
4. Ensure that the I/O shield has been installed correctly.
5. As required by your motherboard, install standoffs in any areas that do not have a permanent standoff and remove any standoffs that are not required by the motherboard.
6. Lay the motherboard on the chassis aligning the permanent and optional standoffs.
7. Secure the motherboard to the chassis using the rounded, Phillips head screws which are included in the motherboard bag of the accessory box. Do not exceed eight pounds of torque when securing the motherboard.
8. Secure the CPUs, heatsinks, and other components to the motherboard as described in the motherboard documentation.
9. Connect the cables between the motherboard, backplane, chassis, front panel, and power supply, as needed. Additionally, the fans may be temporarily removed to allow access to the backplane ports and to allow for ease of installation.

5-6 Installing the Expansion Cards

For the LP models, such as SC216BAC-R920LPB, the chassis slots are vertical and allow the addition of low profile expansion cards. For the W models such as SC216BE1C-R920WB, and the U models such as SC216E16-R1200UB the chassis slots are horizontal. The U models allow a Supermicro universal I/O (UIO) card in addition to expansion cards.

The motherboard must be installed before expansion cards.

Expansion Cards for an LP Model Chassis

The LPB model chassis includes seven slots for expansion cards.

Installing an Expansion Card for an LP Model Chassis

1. Power down the system as described in Section 5-2 and remove the cover.
2. In the rear of the chassis, remove the blank PCI shield that is pre-installed covering the expansion slot.

Figure 5-9. Removing the Blank Shield

1. Slide the expansion card into the expansion slot on the motherboard while aligning it with the chassis slot in the rear of the chassis.

2. Secure the expansion card shield onto the rear of the chassis with a screw.

Figure 5-10. Installing the Low-Profile Expansion Card

Expansion Cards for a W or U Model Chassis

The W or U model chassis accommodates expansion cards using riser cards. If your motherboard supports a Supermicro universal I/O (UIO) card, the U model chassis supports an additional three full-height expansion cards and three low profile expansion cards. If the motherboard does not support a UIO, then the W model chassis supports four full-height expansion cards and three low profile expansion cards.

Installing a UIO Card

1. Power down the system as described in Section 5-2 and remove the cover.
2. Release the clamp that secures all four full-height PCI shields (Figure 5-12). Looking at the rear of the chassis, this clamp is in the right corner. Unscrew the single screw that secures the clamp and rotate the clamp away from the shields. Remove the blank PCI shield covering the expansion slot in the chassis.
3. Place the UIO card horizontally in the rear left area of the chassis bottom and insert it into the UIO slot in the motherboard, while aligning it with slot in the rear of the chassis.
4. Secure the shield to the rear of the chassis with the lever.

Installing an Expansion Card for a W or U Model Chassis

1. If this is the first expansion card, start by locating the riser card bracket in your chassis accessory bag, and one or two riser cards, which are purchased separately. One riser card accommodates the full-height expansion cards and another riser card accommodates the three low profile expansion cards.
2. Power down the system as described in Section 5-2 and remove the cover.
3. Attach the riser card(s) to the riser card bracket using screws. Note that there are different cards for the right and left side of the bracket.
4. Insert the riser card(s) into the motherboard expansion slot(s) while aligning the riser card bracket with the rear of the chassis. Secure the bracket with screws (Figure 5-11).

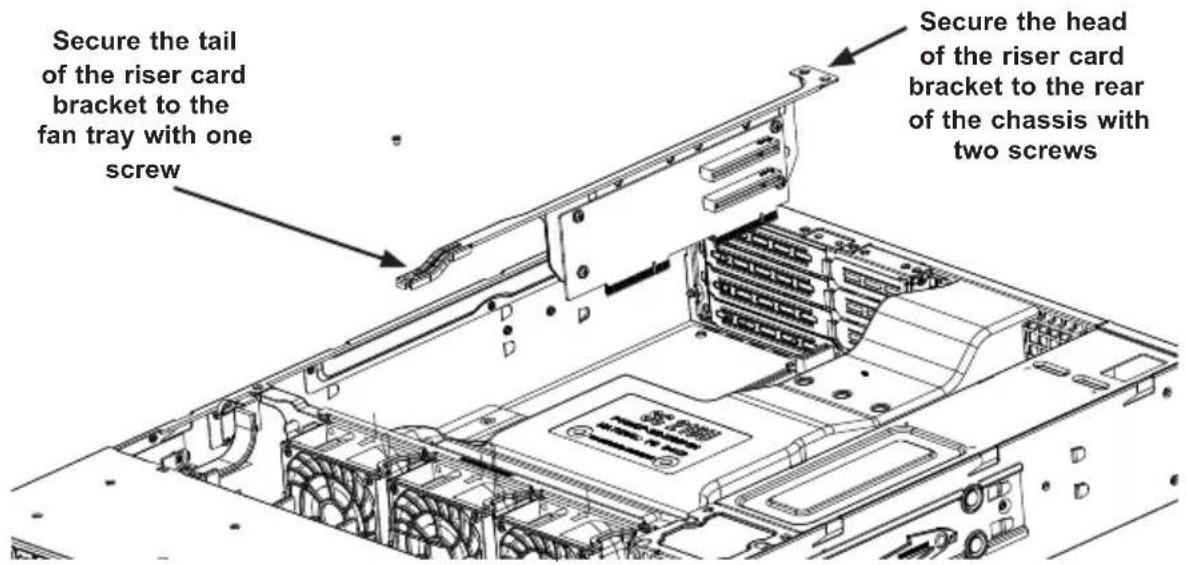

Figure 5-11. Installing the Riser Card Bracket

Figure 5-12. Remove an Expansion Card Slot Shield

1. For a full-height extension card, release the clamp that secures all four PCI shields. Looking at the rear of the chassis, this clamp is in the right corner. Unscrew the single screw that secures the clamp and rotate the clamp away from the shields.
   For a low profile extension card, release the box-shaped clamp that secures all three PCI shields. Looking at the rear of the chassis, this clamp is near the middle, just left of the low profile PCI slots. Unscrew the single screw that secures the clamp and slide the clamp to the left away from the shields.
2. Insert the expansion card into a slot on the riser card while aligning the expansion card backplate with the open slot in the rear of the chassis. Repeat for other expansion cards if you are installing more than one.
3. Secure the card backplates to the chassis by returning the clamp to the closed position and installing the locking screw.
4. Replace the chassis cover and power up.

5-7 Installing the Air Shrouds

Figure 5-13. Installing the Air Shroud

Air shrouds concentrate airflow to maximize fan efficiency. They do not require screws for installation.

Installing the Air Shrouds in the Chassis

Installing the Air Shrouds

1. Power down the system as described in Section 5-2 and open the chassis cover.

2. Ensure that the motherboard, CPU, heatsink and memory are all properly installed.

3. If necessary, move any cables that interfere with the air shroud placement.

4. Place the air shroud in the chassis. The air shroud fits just behind the three fans in the fan rack. Slide the air shroud into the grooves just behind the fan rack.

Note that some motherboards may require the air shroud to be modified to fit over the motherboard. The SC216 chassis air shroud is designed with break-away pieces that may be removed to accommodate differing styles of motherboards.

Figure 5-14. Installing the Additional Air Shroud

An additional air shroud is required for high-powered CPUs, to provide extra cooling. Install the additional air shroud if necessary.

Installing the Additional Air Shroud

Installing the Additional Air Shroud in the Chassis

1. Power down the system as described in Section 5-2 and open the chassis cover.
2. Remove the left side break-away piece of the main air shroud.
3. Slide the additional air shroud into the chassis before installing the main air shroud.
4. Install the main air shroud as directed on the previous page.

5-8 Checking the Airflow

Checking the Server's Airflow

1. Make sure there are no objects to obstruct airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel filter is replaced periodically.
2. Do not operate the server without drives or drive carriers in the drive bays. Use only recommended server parts.
3. Make sure no wires or foreign objects obstruct airflow through the chassis. Pull all excess cabling out of the airflow path or use shorter cables.

The control panel LEDs inform you of system status. See “Chapter 4 System Interface” for details on the LEDs and the control panel buttons.

5-9 System Fans

Three heavy-duty fans provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis internal temperature. The SC216 fans are hot-swappable, enabling the fans to be replaced without powering -down the system.

Figure 5-15. System Fan

Replacing a System Fan

1. If necessary, open the chassis while the power is running to determine which fan requires changing. (Never run the server for an extended period of time with the chassis open.)
2. Power down the system as described in Section 5-2 and open the chassis cover.
3. Press the fan release tab to lift the failed fan from the chassis and pull it completely out of the chassis.
4. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans.
5. The fan will automatically begin running at the correct speed.

Figure 5-16. Placing the System Fan

5-10 Power Supply

The SC216 chassis has two redundant power supplies. The power modules are hot-swappable, enabling the power supplies to be changed without powering down the system. These power supplies are auto-switching capable. This enables the power supply to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off. An illuminated green light indicates that the power supply is operating.

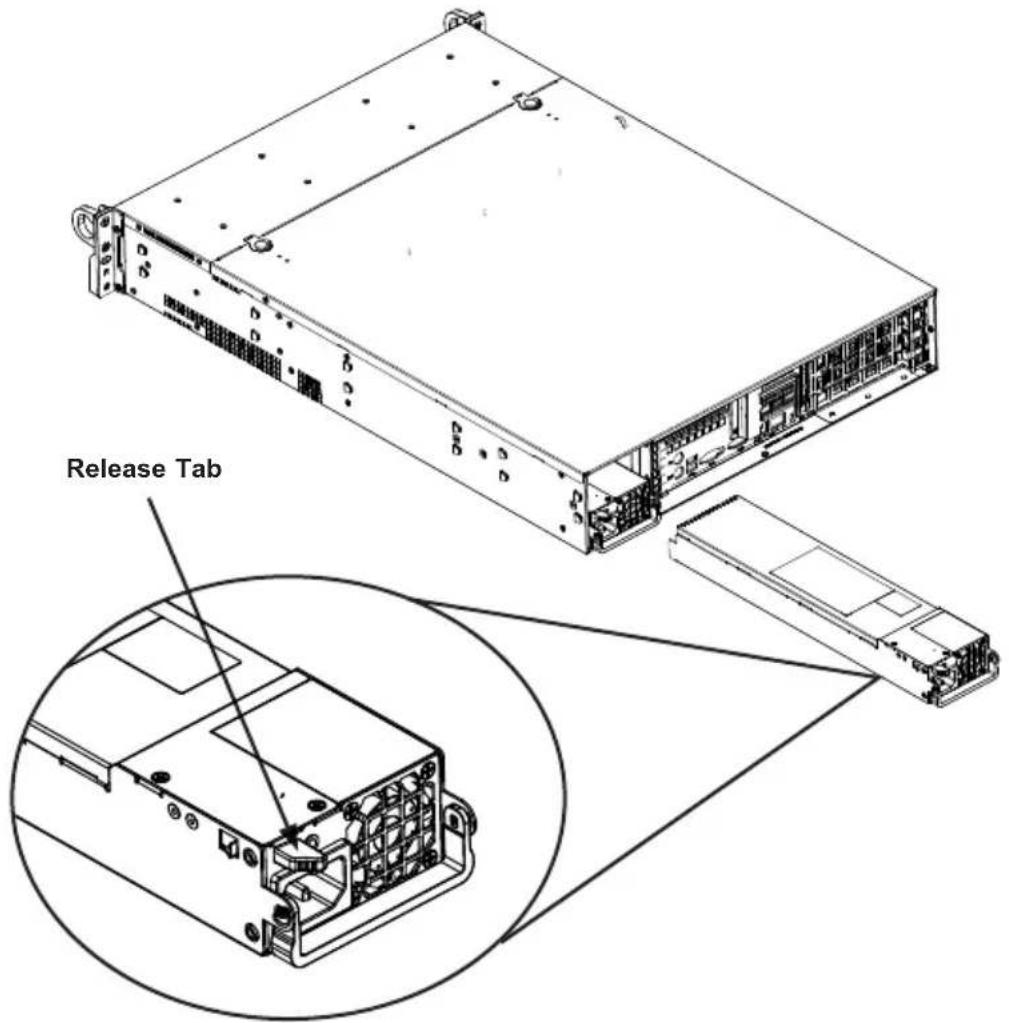

Figure 5-17. Removing the Power Supply

Changing the Power Supply

1. Determine which power supply needs to be replaced and unplug the power cord to that module.

2. Push the release tab (on the back of the power supply) as illustrated, to release the power module from the chassis.

3. While holding down the release tab, pull the power supply out using the handle provided on the power module.

4. Replace the failed power module with the same model power supply.

5. Push the new power supply module into the power bay until the tab clicks into the locked position.
6. Plug the AC power cord back into the module and the replacement power module will automatically power-up.

Figure 5-18. Replacing the Power Distributor

Power Distributor

The power distributor provides failover and power supply redundancy, and is pre-installed in the chassis. In the rare event that you have to replace the power distributor, follow the steps below.

Changing the Power Distributor

1. Power down the system as described in Section 5-2 and open the chassis cover.
2. Remove all cable connections to the power supply from the motherboard, backplane, and other components. Also, remove both power supply modules.
3. Remove the screws securing the power distributor.
4. Gently pull the power distributor from the chassis. Gently guide all the cables through the power distributor housing.
5. Slide the new power distributor module into the power distributor housing. Make that you slide the cables through the bottom of the housing.
6. Reconnect all the power cables, replace the power supply, and insert the plug into the wall.

5-11 Removing the Backplane

The SC216 chassis backplane is located behind the hard drives and in front of the front system fans. In order to change jumper settings on the backplane, it may be necessary to remove the backplane from the chassis.

Removing the Backplane from the Chassis

1. Power down the system as described in Section 5-2 and open the chassis cover.
2. Disconnect the cabling to the backplane.
3. Remove all of the hard drive trays from the front of the chassis.

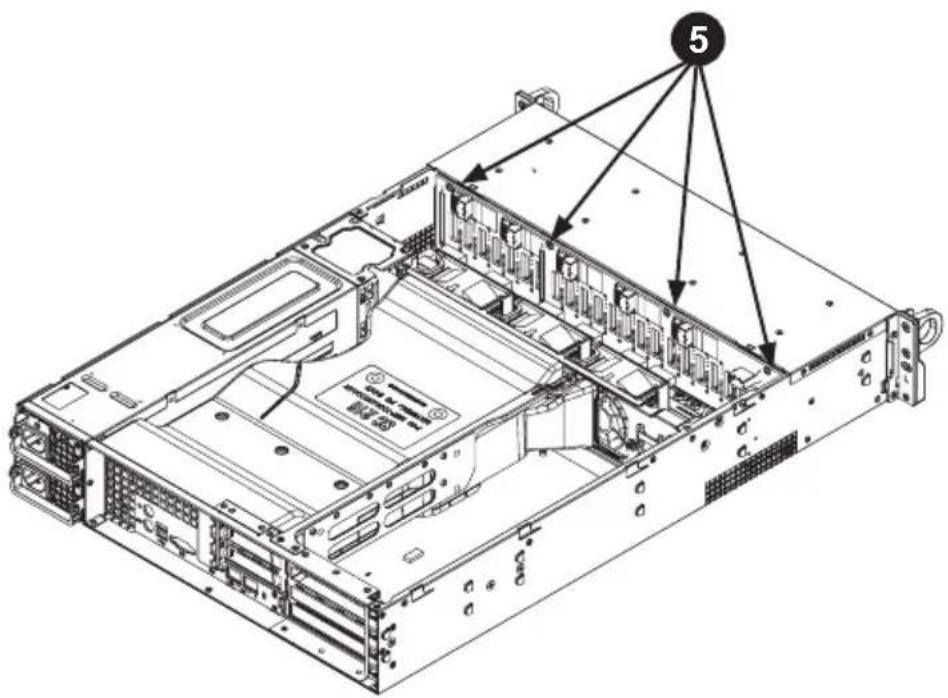

4. Remove the four upper screws at the top of the backplane, indicated by the arrows below.

Figure 5-19. Removing the Screws at the Top of the Backplane

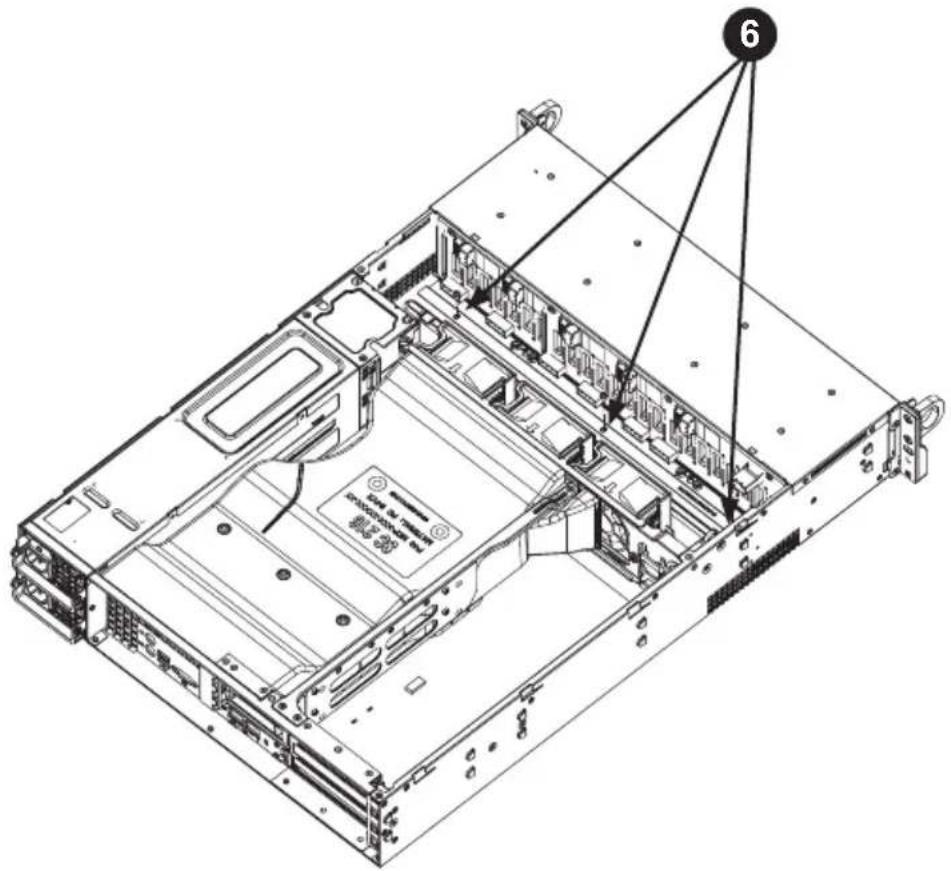

1. Loosen the three screws in the spring bar, located on the floor of the chassis, indicated by the arrows below.

Figure 5-20. Loosening the Spring Bar Screws in the Floor of the Chassis

1. Gently ease the backplane up and out of the chassis.

5-12 Installing the Backplane

Installing the Backplane into the Chassis

1. Power down the system as described in Section 5-2 and open the chassis cover.
2. Ensure that all of the hard drive carriers have been removed from the bays in the front of the chassis and that the spring bar has been loosened as directed in the previous section.
3. Slide the backplane into the chassis at a slight angle, pushing it up against the side of the chassis.
4. Ease the backplane forward, against the front of the chassis. This will aid in the alignment of the mounting holes.
5. Align the mounting holes in the backplane with the holes in the chassis. Replace the four screws at the top of the backplane and the three screws in the floor of the chassis.
6. Reconnect all cables and return the hard drive trays to their bays in the front of the chassis.

Figure 5-21. Installing the Backplane

Notes

Chapter 6

Rack Installation

6-1 Overview

This chapter provides a quick setup to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimal amount of time.

6-2 Unpacking the System

You should inspect the box which the chassis was shipped in and note if it was damaged in any way. If the chassis itself shows damage, you should file a damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold your chassis. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. The system needs to be placed near a grounded power outlet. Be sure to read the Rack and Server Precautions in the next section.

6-3 Preparing for Setup

The box your chassis was shipped in should include two sets of rail assemblies and the mounting screws needed for installing the system into the rack. Also included is an optional square hole to round hole converter bracket, for use in racks with round mounting holes. Please read this section in its entirety before you begin the installation procedure outlined in the sections that follow.

Choosing a Setup Location

• Leave enough clearance in front of the rack to enable you to open the front door completely (\~25 inches).
• Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.
• This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

6-4 Warnings and Precautions

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them.
• In single rack installations, stabilizers should be attached to the rack.
• In multiple rack installations, the racks should be coupled together.
• Always make sure that the rack is stable before extending a component from the rack.
• You should extend only one component at a time - extending two or more simultaneously may cause the rack to become unstable.

General Server Precautions

• Review the electrical and general safety precautions that came with the components you are adding to your chassis.
• Determine the placement of each component in the rack before you install the rails.
• Install the heaviest server components on the bottom of the rack first, and then work upwards.
• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges, voltage spikes and to keep your system operating in case of a power failure.
• Allow the hot plug hard drives and power supply modules to cool before touching them.
• Always keep the rack's front door and all panels and components on the servers closed when not servicing to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (TMRA).

Reduced Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

Warning: To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

6-5 Rack Mounting Instructions

This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using. Note: This rail will fit a rack between 26.5" and 36.4" deep.

Identifying the Sections of the Rack Rails

The chassis package includes two rail assemblies in the rack mounting kit. Each assembly consists of three sections: An inner chassis rail which secures directly to the chassis, an outer rail that secures to the rack, and a middle rail which extends from the outer rail. These assemblies are specifically designed for the left and right side of the chassis.

Figure 6-1. Identifying the Outer Rail, Middle Rail and Inner Rails (Left Rail Assembly Shown)

Locking Tabs

Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

Releasing the Inner Rail

Releasing Inner Rail from the Outer Rails

1. Identify the left and right outer rail assemblies as described on page 6-4.
2. Pull the inner rail out of the outer rail until it is fully extended as illustrated below.
3. Press the locking tab down to release the inner rail.
4. Repeat steps 1-3 for the second outer rail.

Figure 6-2. Extending and Releasing the Inner Rail

Figure 6-3. Installing the Inner Rails

Figure 6-4. Inner Rails Installed on the Chassis

(The chassis above are an example only. Actual chassis may differ slightly)

Installing The Inner Rails on the Chassis

Installing the Inner Rails

1. Confirm that the left and right inner rails have been correctly identified.
2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.
3. Slide the inner rail forward toward the front of the chassis until the rail clicks into the locked position, which secures the inner rail to the chassis.
4. Secure the inner rail to the chassis with the screws provided.
5. Repeat steps 1 through 4 above for the other inner rail.

Warning: do not pick up the server by the front handles. They are designed to pull the system from a rack only.

Figure 6-5. Extending and Releasing the Outer Rails

Installing the Outer Rails on the Rack

Installing the Outer Rails

1. Press upward on the locking tab at the rear end of the middle rail.

2. Push the middle rail back into the outer rail.

3. Hang the hooks of the front of the outer rail onto the slots on the front of the rack. If necessary, use screws to secure the outer rails to the rack, as illustrated above.

4. Pull out the rear of the outer rail, adjusting the length until it fits within the posts of the rack.

5. Hang the hooks of the rear portion of the outer rail onto the slots on the rear of the rack. If necessary, use screws to secure the rear of the outer rail to the rear of the rack.

6. Repeat steps 1-5 for the remaining outer rail.

Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over.

Figure 6-6. Installing into a Rack

Note: Figures are for illustrative purposes only. Always install servers into racks from the bottom up.

Standard Chassis Installation

Installing the Chassis into a Rack

1. Confirm that the inner rails are properly installed on the chassis.
2. Confirm that the outer rails are correctly installed on the rack.
3. Pull the middle rail out from the front of the outer rail and make sure that the ball-bearing shuttle is at the front locking position of the middle rail.
4. Align the chassis inner rails with the front of the middle rails.
5. Slide the inner rails on the chassis into the middle rails, keeping the pressure even on both sides, until the locking tab of the inner rail clicks into the front of the middle rail, locking the chassis into the fully extended position.
6. Depress the locking tabs of both sides at the same time and push the chassis all the way into the rear of the rack.
7. If necessary for security purposes, use screws to secure the chassis handles to the front of the rack.

Optional Quick Installation Method

The following quick installation method may be used to install the chassis onto a rack.

Installing the Chassis into a Rack

1. Install the whole rail assembly onto the rack as described on page 6-7.
2. Release the inner rail without retracting the middle rail.
3. Install the inner rails on the chassis as previously described on page 6-6.
4. Install the chassis onto the middle rail as described in the previous section.

Notes

Appendix A

SC216 Chassis Cables

A-1 Overview

This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com.

A-2 Cables Included with SC216 Chassis

SC216A-R900UB, SC216A-R900LPBSC216E1-R900LPB, SC216E2-R900LPBSC216E1-R900UB, SC216E2-R900UBSC216E16-R1010LPB, SC216E16-R1200UBSC216E16-R1200LPB, SC216E26-R1200UBSC216E26-R1200LPB
Part # Type	Length Description
CBL-0217L Cable	8.7" (22 cm)		16-pin control panel converter cable PBF
CBL-0088 Cord 10	5"		4-pin middle fan power extension (PWM)
CBL-0087	Ribbon, Round	20"	16-pin to 16-pin ribbon cable for control panel

A-3 Compatible Cables

These cables are compatible with the SC216 chassis.

Alternate SAS/SATA Cables

Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables. These cables must be purchased separately.

Cable Name: SAS Cable Quantity: 1

Part #: CBL-0175L

Alt. Name: "Big Four"

Description: This cable has one SFF-8484 (32-pin) connector on one end and four SAS connectors (each is a 7-pins) at the other. This cable connects from the host (motherboard or other controller) to the backplane SAS hard drive port.

Cable Name: SAS Cable Quantity: 1

Part #: CBL-0116

Alt. Name: iPass or "Small Four"

Description: This cable has one iPass (SFF-8087/Mini-SAS) connector (36-pin) at one end and four SAS connectors on the other end. This cable connects from the host (motherboard or other controller) to the backplane SAS hard drive port.

Extending Power Cables

Although Supermicro chassis are designed to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas.

To use these motherboards you may have to extend the power cables to the mother boards. To do this, use the following chart as a guide.

Power Cable Extenders
Number of Pins Cable Part # Length
24-pin CBL-0042	7.9" (20 cm)
20-pin CBL-0059	7.9" (20 cm)
8-pin CBL-0062	7.9" (20 cm)
4-pin CBL-0060	7.9" (20 cm)

Front Panel to the Motherboard

The SC216 chassis includes a cable to connect the chassis front panel to the motherboard. If your motherboard uses a different connector, use the following list to find a compatible cable.

Front Panel to Motherboard Cable (Ribbon Cable)
Number of Pins(Front Panel)	Number of Pins(Motherboard	Cable Part #
16-pin 16-pin CBL-0049
16-pin 20-pin CBL-0048
20-pin 20-pin CBL-0047
16-pin various* CBL-0068
20-pin various* CBL-0067

* Split cables: Use these cable if your motherboard requires several different connections from the front panel.

Notes

Appendix B

SC216 Power Supply Specifications

This appendix lists power supply specifications for the SC216 chassis.

920 Models, such as SC216BAC-R920LPB
	920W
MFR Part # PWS	-920P-SQ with PDB
AC Input	100-240 V, 4.5-11 Amp, 50-60 Hz
DC Output +12V	75 Amp
+5V standby	4 Amp
+5V	45 Amp
+3.3V	24 Amp
-12V	0.6 Amp

1K28 Models, such as SC216BE16-R1K28LPB
	1280W
MFR Part # PWS	-1K28P-SQ with PDB
AC Input	1000W Output @ 100-140V, 12-8A, 50-60Hz1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output +12V	1000W: 83A1280W: 106.7A
+5V standby	4 Amp
1200 Models, such as SC216E16-R1200LPB
	1200W
MFR Part # PWS-1K21P-1R with PDB
AC Input	100 - 140V, 50 - 60Hz, 8 - 11.5 Amp180 - 240V, 50 - 60Hz, 5.5 - 8 Amp
DC Output +12V	1000W, 83 Amp @ 100-140V1200W, 100 Amp @ 180-240V
+5 Standby	4 Amp
+5V	45 Amp
+3.3V	24 Amp
-12V	0.6 Amp

SC216E16-R1010LPB
	1010W
MFR Part # PWS-1K11P-1R
DC Input	850W: -36--42V; 30-25Amp1010W: -43 -76V; 30-17Amp
DC Output +12V	850W, 70 Amp1010W, 83 Amp
+5 Standby	4 Amp
+5V	50 Amp
+3.3V	30 Amp
-12V	0.6 Amp

900 Models, such as SC216A-R900LPB
	900W
MFR Part # PWS	-902-1R with PDB
AC Input	100 - 240V, 60-50Hz, 11-4.5 Amp
DC Output +12V	75 Amp
+5V standby	4 Amp
+5V	45 Amp
+3.3V	24 Amp
-12V	0.6 Amp

Appendix C

SAS-216A Backplane Specifications

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

C-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic bag.
• Handle the backplane by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.

C-2 General Safety Guidelines

• Always disconnect power cables before installing or removing any components from the computer, including the backplane.
• Disconnect the power cable before installing or removing any cables from the backplane.
• Make sure that the backplane is securely and properly installed on the motherboard to prevent damage to the system due to power shortage.

C-3 A Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

C-4 Introduction to the SAS-216A Backplane

The SAS-216A backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.

This manual reflects SAS-216A Revision 1.02, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.

C-5 Front Connector Locations

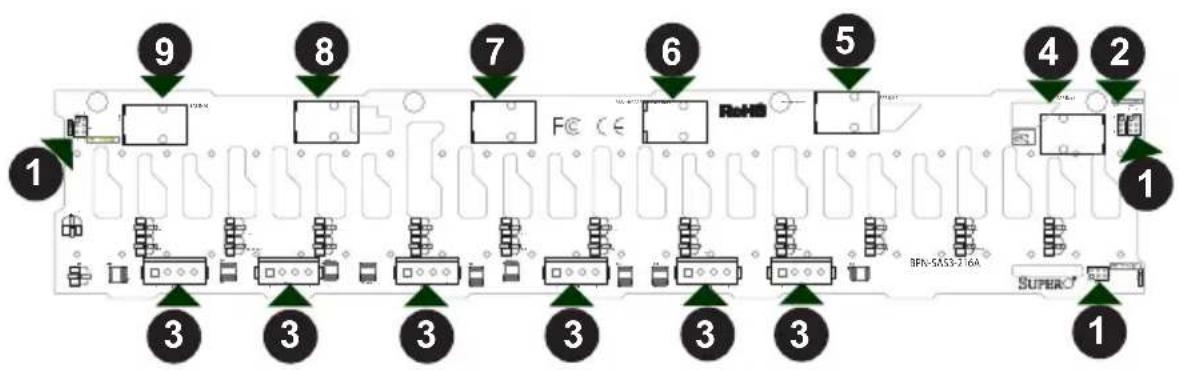

Figure C-1. Front Connectors

Front Connectors

1. Upgrade Connectors: JP69, JP78 and JP115
2. I ² C Connector #1: JP37
3. I ² C Connector #2: JP95
4. I ² C Connector #3: JP52
5. I ² C Connector #4: JP96
6. I ² C Connector #5: JP116

7. I ² C Connector #6: JP117

8. Power Connectors (4-pin): JP10, JP13, JP46, JP48 JP109, JP110

9. SAS IN#1: JSM1
10. SAS IN#2: JSM2
11. SAS IN#3: JSM3
12. SAS IN#4: JSM4
13. SAS IN#5: JSM5
14. SAS IN#6: JSM6

C-6 Front Connectors and Pin Definitions

1. Upgrade Connectors

The upgrade connectors are designated JP69, JP78 and JP115 are used for manufacturer's diagnostic purposes only.

2. - 7. I²C Connectors

The I ² C Connectors, designated JP37, JP95, JP52, JP96, JP115 and JP116 are used to monitor HDD activity and status. See the table on the right for pin definitions.

I2C ConnectorPin Definitions

Pin# Definition

1 Data

2 Ground

3 Clock

4 No Connection

8. Backplane Main Power Connectors

The 4-pin connectors, designated JP10, JP13, JP46, JP48, JP109 and JP110 provide power to the backplane. See the table on the right for pin definitions.

BackplaneMain Power4-Pin Connector
Pin# Definition
1	+12V
2 and 3 Ground
4 +5V

9. - 14. SAS IN Ports (Sideband included)

The SAS ports are used to connect the SAS drive cables. The six SAS IN ports are designated #JSM1 - #JSM6. Each port is also compatible with SATA drives.

Sideband Definitions
Pin # Definition Pin # Definition
A11 SGPIO:SDIN C :Backplane Addressing (SB5)	B11 Controller ID (SB6)
A12 SGPIO:SDOUT C :Reset (SB4)	B10 GND (SB2)
A9 GND (SB3) B9 SGPIO:SLOAD I2C :SDA (SB1)
A8 Backplane ID (SB7)	B8 SGPIO:SCLOCK I2C :SCL (SB0)

C-7 Front Jumpers

Figure C-2. Front Jumpers

1. Chip Reset JP36 1-2 Reset, 2-3 No Reset (Not populated)
2. Chip Reset JP35 1-2 Reset, 2-3 No Reset (Not populated)
3. Buzzer Reset* JP18
4. JP84 1-2 SGPIO, 2-3 I²C
5. JP80 I²C Addr - On C0, Off C2 (Not populated)
6. JP50 Chip Reset 1-2 Reset, 2-3 No Reset (Not populated)

*The buzzer sound indicates that a condition requiring immediate attention has occurred. It is triggered by the following conditions:

Hard drive failure

Fan failure

System temperature over 45° Celsius.

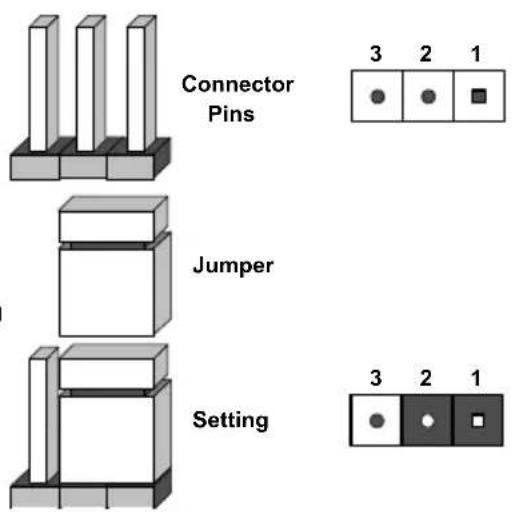

Explanation of Jumpers

To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. Note: On two pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

I²C and SGPIO Modes and Jumper Settings

This backplane can utilize I²C or SGPIO. SGPIO is the default mode and can be used without making changes to your jumper. The following information details which jumper must be configured to use SGPIO mode or restore your backplane to I²C mode.

SGPIO Setting (Default)
Jumper Jumper Setting Note
JP84 1-2 SGPIO	Mode Setting

I2C Setting
Jumper Jumper Setting Note
JP84 2-3 I		2C Setting

Front LED Indicators

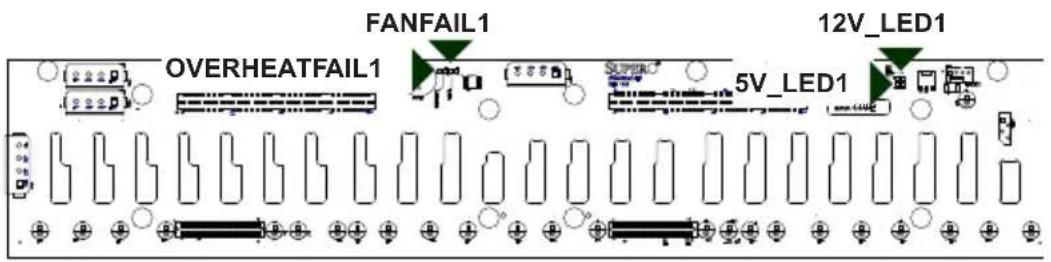

Figure C-3. Front LEDs

Front Panel LEDs
LED State	Specification
D3 On Alarm #1
D4 On Alarm #2
D9 On Alarm #3

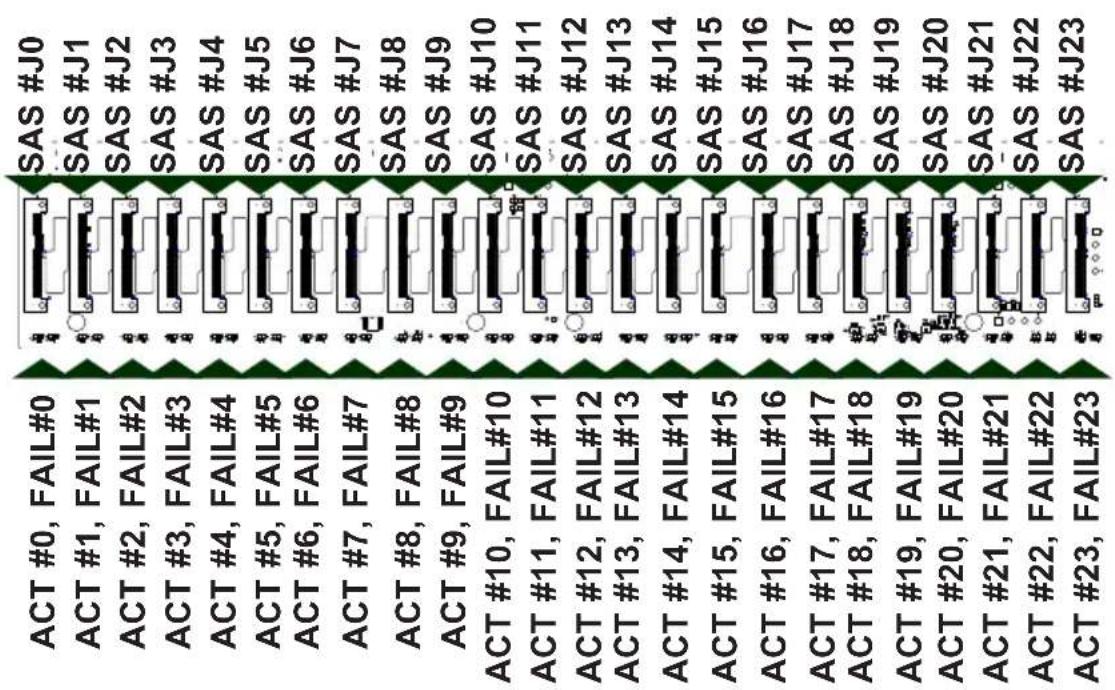

C-8 Rear Components, Connectors and LED Indicators

Figure C-4. Rear Components

Rear SAS/SATA Connectors
Rear Connector	SAS Drive Number	Rear Connector	SAS Drive Number
SAS #0 SAS/SATA HDD #0 SAS #12 SAS/SATA HDD #12	SASA HDD #0 SAS #12	SASA HDD #12	SASA HDD #12
SAS #1 SAS/SATA HDD #1 SAS #13 SAS/SATA HDD #13	SASA HDD #1 SAS #13	SASA HDD #13	SASA HDD #13
SAS #2 SAS/SATA HDD #2 SAS #14 SAS/SATA HDD #14	SASA HDD #2 SAS #14	SASA HDD #14	SASA HDD #14
SAS #3 SAS/SATA HDD #3 SAS #15 SAS/SATA HDD #15	SASA HDD #3 SAS #15	SASA HDD #15	SASA HDD #15
SAS #4 SAS/SATA HDD #4 SAS #16 SAS/SATA HDD #16	SASA HDD #4	SASA HDD #16	SASA HDD #16
SAS #5 SAS/SATA HDD #5 SAS #17 SAS/SATA HDD #17	SASA HDD #5 SAS #17	SASA HDD #17	SASA HDD #17
SAS #6 SAS/SATA HDD #6 SAS #18 SAS/SATA HDD #18	SASA HDD #6 SAS #18	SASA HDD #18	SASA HDD #18
SAS #7 SAS/SATA HDD #7 SAS #19 SAS/SATA HDD #19	SASA HDD #7 SAS #19	SASA HDD #19	SASA HDD #19
SAS #8 SAS/SATA HDD #8 SAS #20 SAS/SATA HDD #20	SASA HDD #8 SAS #20	SASA HDD #20	SASA HDD #20
SAS #9 SAS/SATA HDD #9 SAS #21 SAS/SATA HDD #21	SASA HDD #9 SAS #21	SASA HDD #21	SASA HDD #21
SAS #10 SAS/SATA HDD #10 SAS #22 SAS/SATA HDD #22	SASA HDD #10	SASA HDD #22	SASA HDD #22
SAS #11 SAS/SATA HDD #11 SAS #23 SAS/SATA HDD #23	SASA HDD #11	SASA HDD #23	SASA HDD #23

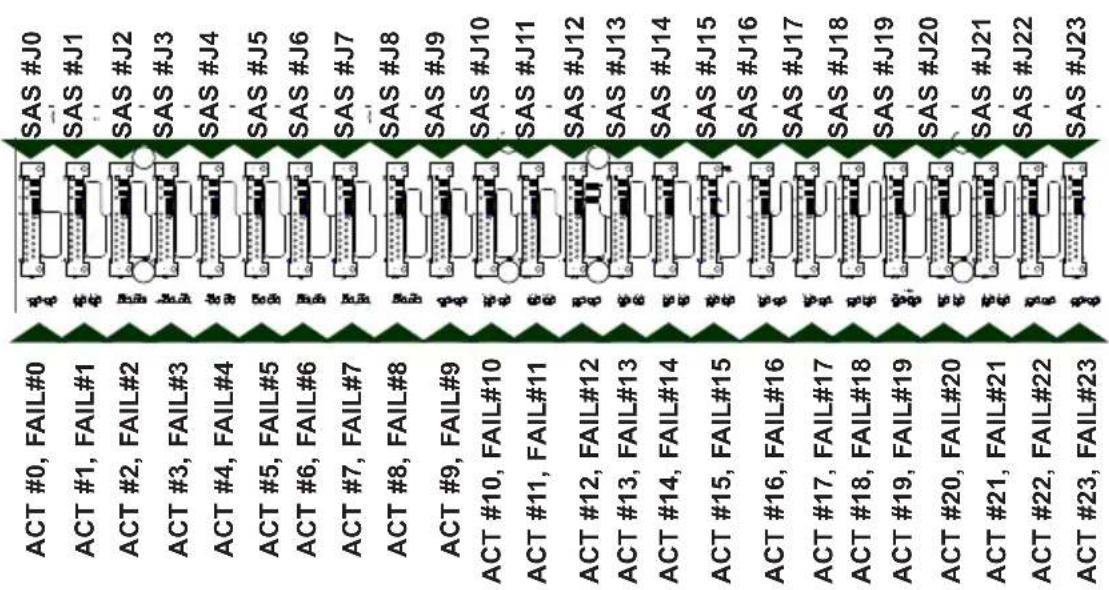

Rear LED Indicators
Rear LED Hard Drive Activity Failure LED
SAS #0 D12 D5
SAS #1 D22 D23
SAS #2 D40 D37
SAS #3 D102 D107
SAS #4 D13 D6
SAS #5 D24 D29
SAS #6 D41 D38
SAS #7 D104 D108
SAS #8 D14 D7
SAS #9 D25 D30
SAS #10 D42 D39
SAS #11 D106 D109
SAS #12 D15 D8
SAS #13 D26 D31
SAS #14 D87 D88
SAS #15 D111 D110
SAS #16 D18 D19
SAS #17 D27 D32
SAS #18 D100 D103
SAS #19 D118 D119
SAS #20 D21 D20
SAS #21 D28 D33
SAS #22 D101 D105
SAS #23 D120 D121

Notes

Appendix D

SAS-216EL Backplane Specifications

D-1 Overview of the SAS-216EL1/EL2 Backplanes

The SAS-216EL1/EL2 series of backplanes consists of a SAS-216EB backplane (A) with one or two SAS-216EL daughter cards (B and C) mounted on the rear of the backplane.

The SAS-216EL1 model consists of the SAS-216EB backplane (A) and one SAS-216EL daughter card (C), mounted on the right-hand side of the backplane.

The SAS-216EL2 model consists of the SAS-216EB backplane (A), and two SAS216EL daughter cards (B and C), mounted on the rear of the backplane.

Components on the front side of the SAS-216ELB backplane include twenty-four SAS connectors and their respective activity and failure LEDs. Components on the rear side of the backplane include jumpers and power and fan connectors. The daughter card's components include SAS ports, flash and expander chips, and mode select jumpers.

Figure D-1. The SAS-216EL1/EL2 Backplane

D-2 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the anti-static bag.
• Handle the backplane and daughter cards by their edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.

D-3 General Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

• Always disconnect power cables before installing or removing any components from the computer, including the backplane.
• Disconnect the power cable before installing or removing any cables from the backplane.
• Make sure that the backplane is securely and properly installed on the motherboard to prevent damage to the system due to power shortage.

D-4 An Important Note to Users

At the time of publication, chassis models using this backplane are no longer sold..

All images and layouts shown in this user's guide are based upon the latest PCB revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

D-5 Introduction to the SAS-216EL Backplane

The SAS-216EL backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.

This manual reflects SAS-216EL Revision 1.01, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.super-micro.com for the latest updates, compatible parts and supported configurations.

D-6 Rear Components and Connectors

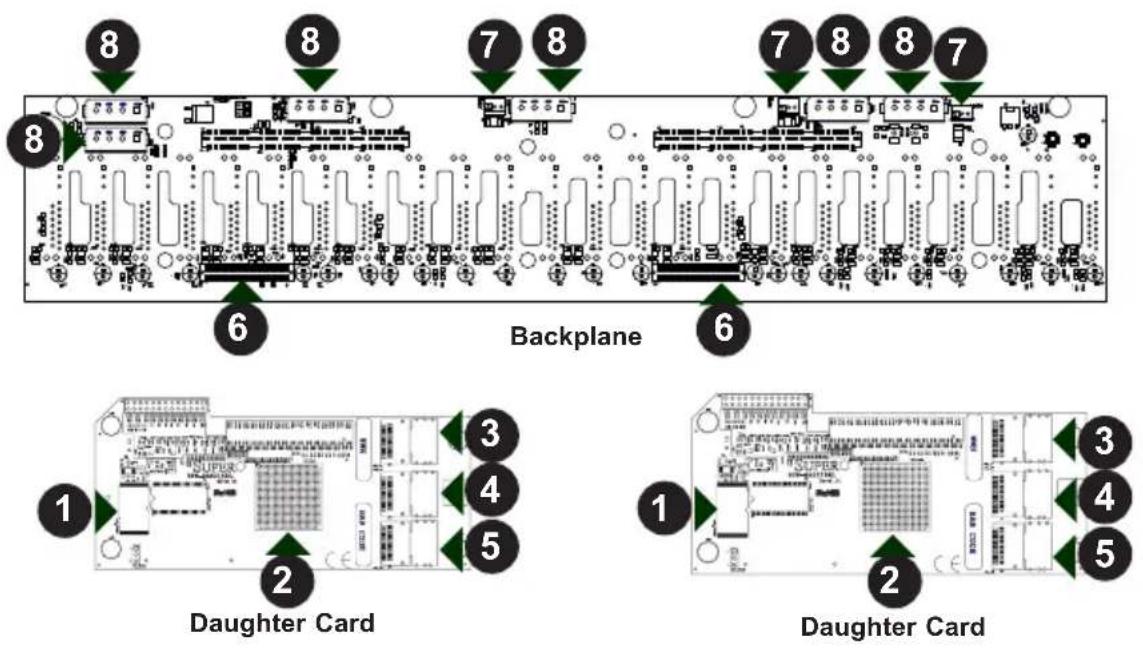

Figure D-2. Front Connectors on Backplane and Daughter Cards

Rear Components and Connectors

Components

1. Primary Flash Chip
2. Primary Expander Chip
3. SAS Port: PRI_J1
4. SAS Port: PRI_J2
5. SAS Port: PRI_J3
6. EPP Connectors: J24 and J25
7. Fan Connectors: Fan1, Fan2, and Fan3
8. Power Connectors: PWR1 - PWR6

D-7 Rear Connectors and Pin Definitions

1. Primary Flash Chips

The primary flash chip enhances the back-plane memory.

2. Expander Chips

This expander chip allows the backplane to support dual ports, cascading, and failover.

3. - 5. SAS Ports

The primary and secondary sets of SAS ports provide expander features including cascading and failover From right to left the ports are Primary 1, 2, 3 and Secondary 1, 2 and 3.

6. EPP Ports

The EPP ports are used for manufacturer diagnostic purposes only.

7. Fan Connectors

The 3-pin connectors, designated FAN1, FAN2, and FAN3, provide power to the fans. See the table on the right for pin definitions.

Fan Connectors
Pin#	Definition
1 Ground
2 +12V
3 Tachometer

8. Backplane Main Power Connectors

The 4-pin connectors, designated PWR1, PWR2, PWR3, PWR4, PWR5, and PWR6, provide power to the backplane. See the table on the right for pin definitions.

BackplaneMain Power4-Pin Connector
Pin#	Definition
1 +12V
2 and 3	Ground
4 +5V

D-8 Rear Jumper Locations and Pin Definitions

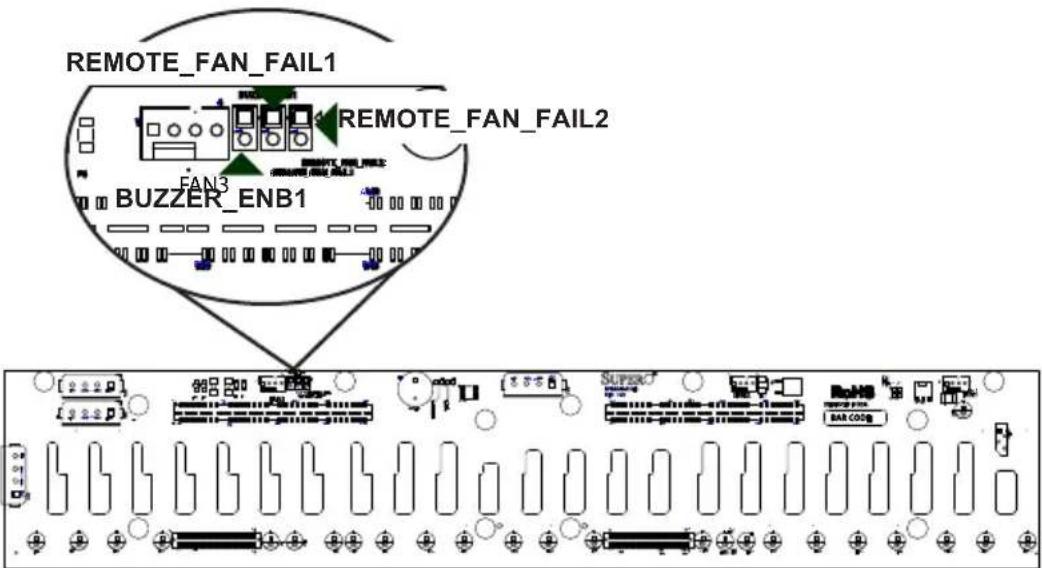

Figure D-3. Front Jumper Locations and Pin Definitions

Explanation of Jumpers

To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. Note: On two pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

General Jumper Settings
Jumper Jumper	Settings Note
PRI_MODE1 1-2 Factory setting do not change
BUZZER_ENB1	Open: DisableClosed: Enable	Buzzer enable*

Socket Settings
Socket Socket	Setting Note
REMOTE_FAN_FAIL_SOCKET1	Connected	Front panel fan fail indicator (optional)

Front Panel LEDs
LED State Specification
12V_LED1 OFF		Backplane power failure. Light is on during normal operation.
5V_LED1 OFF		Backplane power failure. Light is on during normal operation.

*The buzzer sound indicates that a condition requiring immediate attention has occurred.

The buzzer alarm is triggered by the following conditions:

1. Hard drive failure
2. Fan failure
3. System temperature over 45° Celsius.

D-9 Front Connectors and LED Indicators

Figure D-4: SAS Connectors

Rear SAS/SATA Connectors
Front Connector	SAS Drive Number	Front Connector	SAS Drive Number
SAS #J0 SAS/S	ATA HDD #1 SAS #J12	SAS/SATA HDD #13
SAS #J1 SAS/S	ATA HDD #2 SAS #J13	SAS/SATA HDD #14
SAS #J2 SAS/S	ATA HDD #3 SAS #J14	SAS/SATA HDD #15
SAS #J3 SAS/S	ATA HDD #4 SAS #J15	SAS/SATA HDD #16
SAS #J4	SAS/SATA HDD #5	SAS #J16	SAS/SATA HDD #17
SAS #J5 SAS/S	ATA HDD #6 SAS #J17	SAS/SATA HDD #18
SAS #J6 SAS/S	ATA HDD #7 SAS #J18	SAS/SATA HDD #19
SAS #J7 SAS/S	ATA HDD #8 SAS #J19	SAS/SATA HDD #20
SAS #J8 SAS/S	ATA HDD #9 SAS #J20	SAS/SATA HDD #21
SAS #J9 SAS/S	ATA HDD #10 SAS #J21	SAS/SATA HDD #22
SAS #J10 SAS/S	ATA HDD #11 SAS #J22	SAS/SATA HDD #23
SAS #J11 SAS/S	ATA HDD #12 SAS #J23	SAS/SATA HDD #24

Front LED Indicators
Front LED Hard Drive Activity Failure LED
SAS #J0 ACT #1 FAIL #1
SAS #J1 ACT #2 FAIL #2
SAS #J2 ACT #3 FAIL #3
SAS #J3 ACT #4 FAIL #4
SAS #J4 ACT #5 FAIL #5
SAS #J5 ACT #6 FAIL #6
SAS #J6 ACT #7 FAIL #7
SAS #J7 ACT #8 FAIL #8
SAS #J8 ACT #9 FAIL #9
SAS #J9 ACT #10 FAIL #10
SAS #J10 ACT #11 FAIL #11
SAS #J11 ACT #12 FAIL #12
SAS #J12 ACT #13 FAIL #13
SAS #J13 ACT #14 FAIL #14
SAS #J14 ACT #15 FAIL #15
SAS #J15 ACT #16 FAIL #16
SAS #J16 ACT #17 FAIL #17
SAS #J17 ACT #18 FAIL #18
SAS #J18 ACT #19 FAIL #19
SAS #J19 ACT #20 FAIL #20
SAS #J20 ACT #21 FAIL #21
SAS #J21 ACT #22 FAIL #22
SAS #J22 ACT #23 FAIL #23
SAS #J23 ACT #24 FAIL #24

D-10 Front Connectors and Jumpers

Front Components

1. Power Connectors: PWR1, PWR2, PWR3, PWR4, PWR5, and PWR6.

Dual Port and Cascading Configurations

D-11 Single and Dual Port Expanders

Single Ports

SAS-216EL1 backplanes have a single-port expander on the daughter card, that accesses all twenty-four drives and supports cascading.

Figure D-5. SAS-216EL2 Single Port Configuration

Dual Ports

SAS-216EL2 backplanes have dual-port expanders on the daughter cards, that access all twenty-four drives. These dual-port expanders support cascading, failover, and recovery.

Figure D-6. SAS-216EL2 Dual Port Configuration

D-12 Failover

The SAS-216EL2 backplane has two expanders which allow effective failover and recovery.

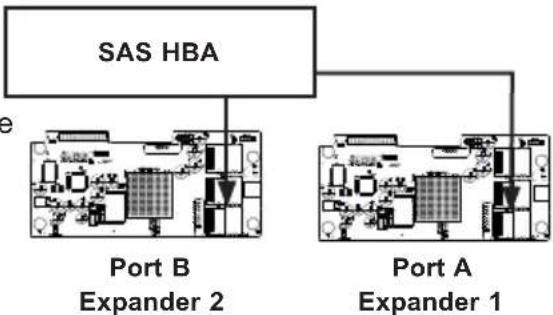

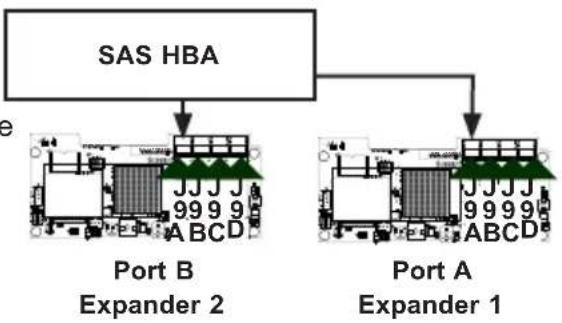

Single Host Bus Adapter

In a single host bus configuration, the backplane connects to one host bus adapter (HBA).

Figure D-7. Single HBA

Single Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B.

Figure D-8. Single HBA Failover

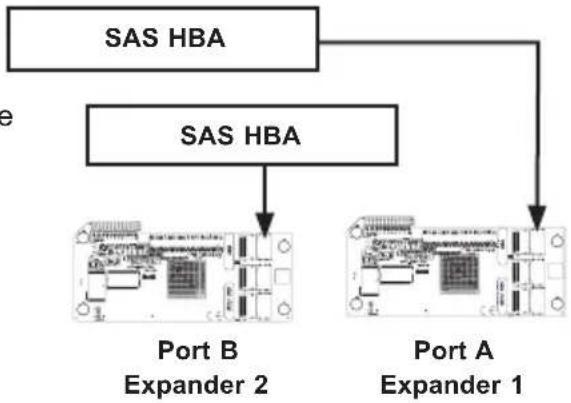

Dual Host Bus Adapter

In a dual host bus configuration, the backplane connects to two HBA's.

Figure D-9. Dual HBA

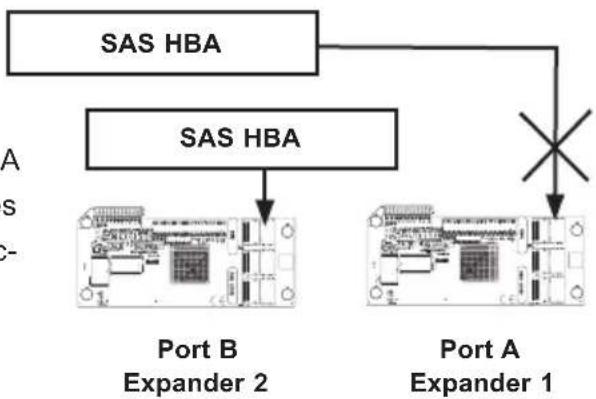

Dual Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B. This maintains a full connection to all drives.

Figure D-10. Dual HBA Failover

D-13 Chassis Power Card and Support Cables

Chassis Power Card

In a cascaded configuration, the first chassis includes a motherboard and at least one HBA. Other servers in this enclosed system, include a power card. This section describes the supported power card for the SAS-216 series backplane.

For more information, see the Supermicro Web site at http://www.supermicro.com.

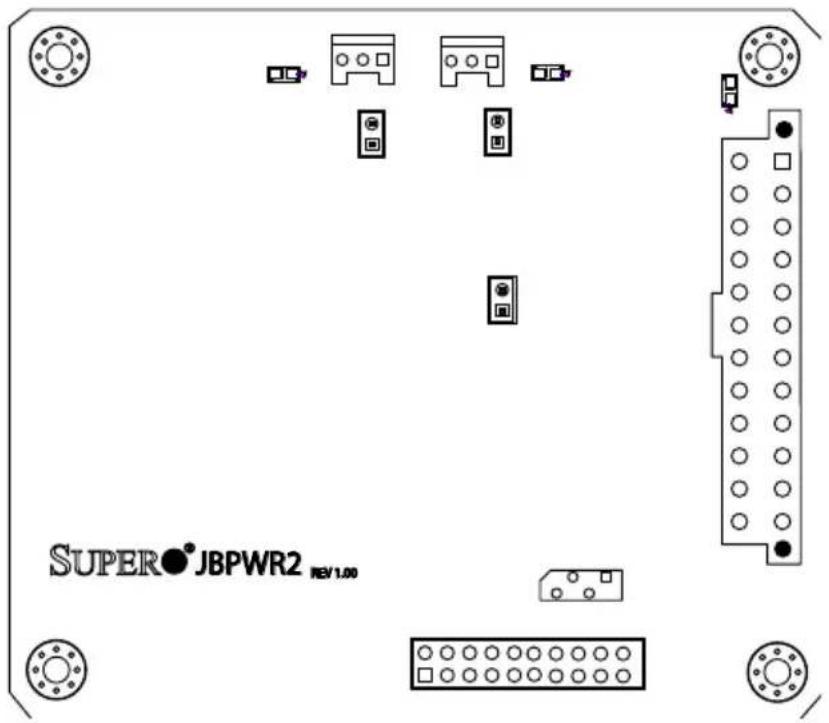

Figure D-10. Chassis Power Card (Sold Separately)

Power Card
Part Number Part	Type Where Used
CSE-PTJBOD-CB1 Power Card		Allows the chassis to be in a JBOD (Just a Bunch of Drives) system.

Connectioning an Internal Host Bus Adapter to the Backplane

The following section lists the most common cables used to connect the HBA to the backplane.

Figure D-11. Single Internal Host Bus Adapter

Figure D-12. Dual Internal Host Bus Adapter

Supported Internal HBA Cables

Use the following listed cables to create connections between the internal HBA and SAS-216EL backplane. The cables required depend on the HBA connector.

Cable Name: iPass to 4-LANE

Part #: CBL-0117L

Length: 46 cm (18 inches)

Description: This cable has one SFF-8484 (32-pin) connector on one end and an iPass (SFF-8087/Mini-SAS) connector (36-pin) at the other. This cable connects from the HBA to the SAS-216EL backplane

Cable Name: iPass (Mini-SAS) to iPass (Mini-SAS)

Part #: CBL-0108L-02 Length: 39 cm (15 inches)

Part #: CBL-0109L-02 Length: 22 cm (9 inches)

Part #: CBL-0110L-02 Length: 18 cm (7 inches)

Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36-pin) at each end. It connects from the HBA to the SAS-216EL backplane.

Connecting an External Host Bus Adapter to the Backplane

This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.

Single External Host Bus Adapter

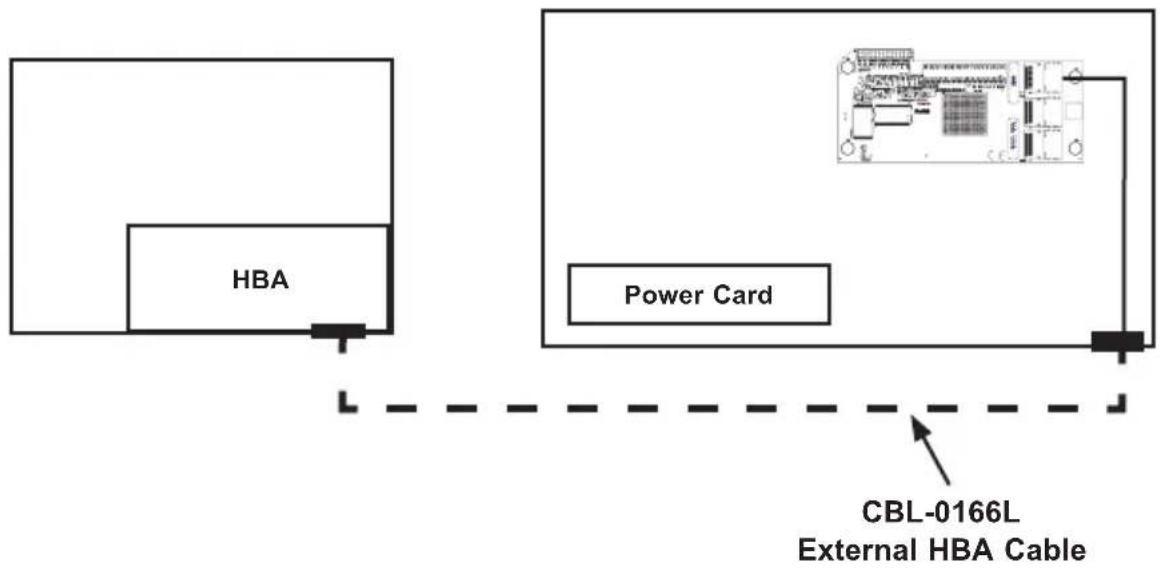

Figure D-13. Single External Host Adapter

Dual External Host Bus Adapter

Figure D-14. Dual External Host Bus Adapter

Supported External HBA to Backplane Cable

Use the following cable if your external HBA has an InfiniBand connector.

Figure D-15. SAS InfiniBand Cable (CBL-0200L)

Cable Name: SAS InfiniBand to Mini SAS X4 1M cable, PBF

Part #: CBL-0200L

Length: 1 meter

Description: This cable has an InfiniBand connector (SFF-8470) on one end and an SFF-8088-1X (26-pin) at the other end.

Connecting Multiple Backplanes in a Single Channel Environment

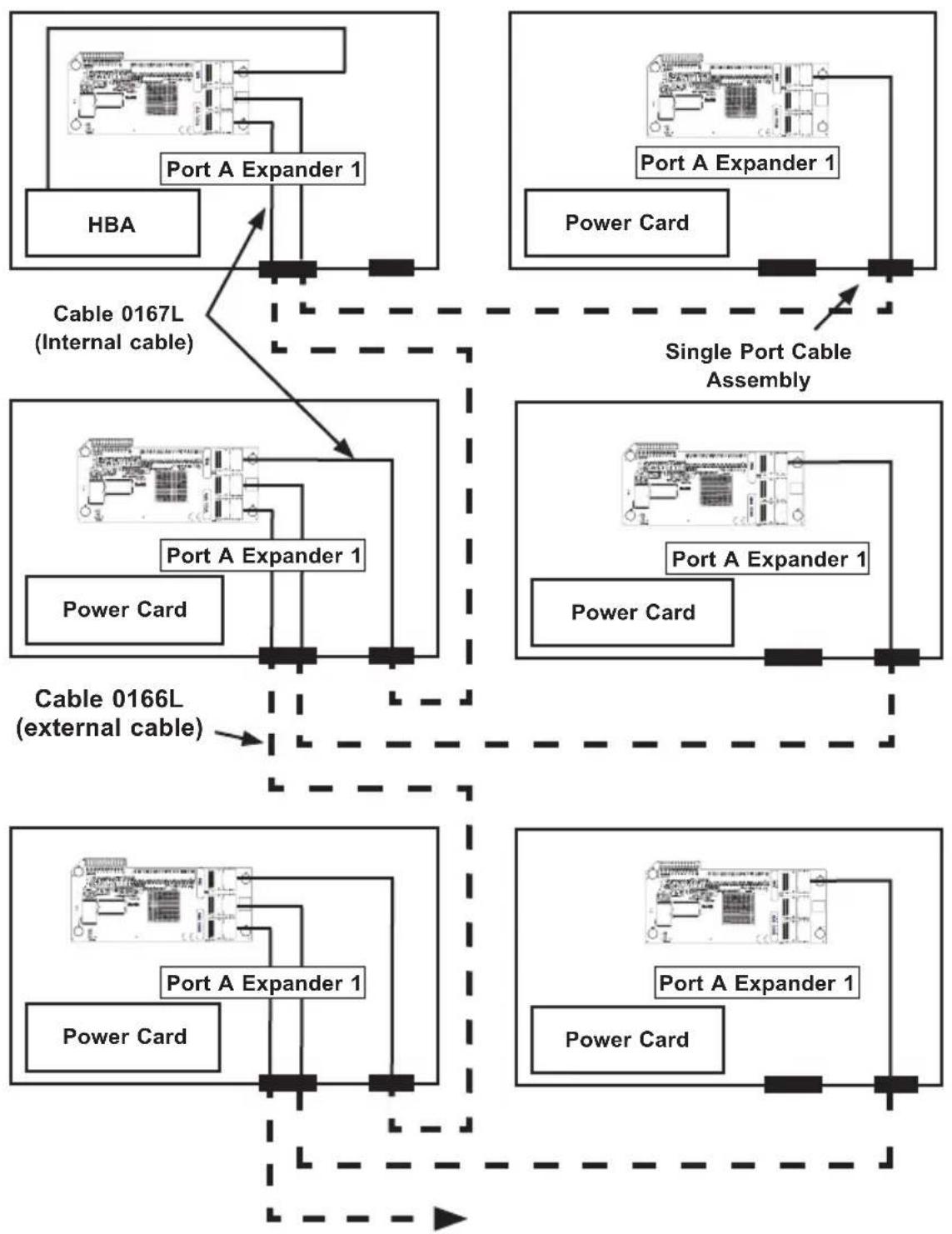

This section describes the cables used when cascading from a single HBA. These connections use CBL-0167L internal cables and CBL-0166L external cables.

Figure D-16. Single HBA Configuration

Single HBA Configuration Cables

Single Port Cable Assembly

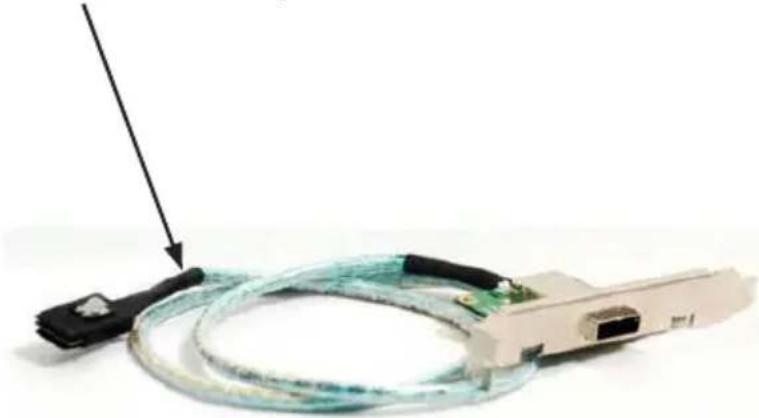

Figure D-17. Single Port Internal Cable (CBL-0167L)

Cable Name: SAS EL2/EL1 Backplane Cable (Internal) with 2-port Cascading Cable, 68 cm

Part #: CBL-0167L (SFF-8087 to SFF-8088 x1)

Ports: Single

Placement: Internal cable

Description: Internal cable. Connects the backplane to the HBA or external port. Used in single port environments

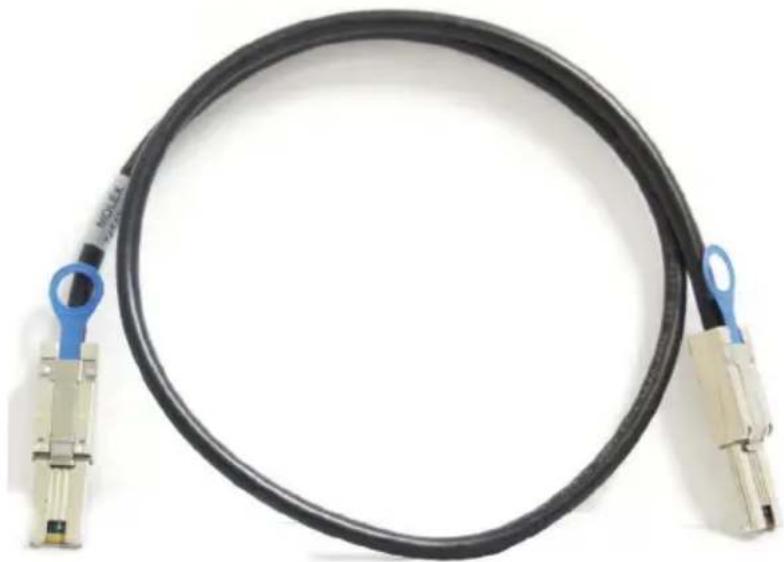

Figure D-18. External Cable (CBL-0166L)

Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm

Part #: CBL-0166L (SFF-8088 1x to SFF-8088 x1)

Ports: Single or dual

Placement: External cable

Description: External cascading cable. Connects ports between servers. With most connectors, use one cable for single port connections and two cables for dual port connections.

Connecting Multiple Backplanes in a Dual Channel Environment

This section describes the cables used when cascading from dual HBAs. These connections use CBL-0168L internal cables and CBL-0166L external cables.

Figure D-19. Dual HBA Configuration

Dual HBA Configuration Cables

Dual Port Cable Assembly

Figure D-20. Dual Port Internal Cable (CBL-0168L)

Cable Name: SAS Dual-port Cable Assembly, 68/76 cm

Part #: CBL-0168L

Placement: Internal cable

Ports: Dual

Description: Internal cascading cable. Connects the backplane to the HBA or external port. Used in dual port environments.

Figure D-21. External Cable (CBL-0166L)

Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm

Part #: CBL-0166L

Placement: External Cable

Ports: Single or Dual

Description: External cascading cable. Connects ports between servers. Use one cable for single port connections and two cables for dual port connections.

D-14 Supported Cascading Configurations

Cascading allows the system to access data at a faster rate by allowing several backplanes to share resources to reduce latency time.

The first backplane in a cascaded system requires a motherboard and HBA. Other servers require a power control card with no motherboard and no HBA.

Figure D-22. Simple Cascaded Configuration

Server System with Single SAS HBA

The expanders allow horizontal branching. This configuration also applies to dual ports.

Figure D-23. Cascaded Configuration with Horizontal Branching

Dual SAS HBA and Cascaded Configuration

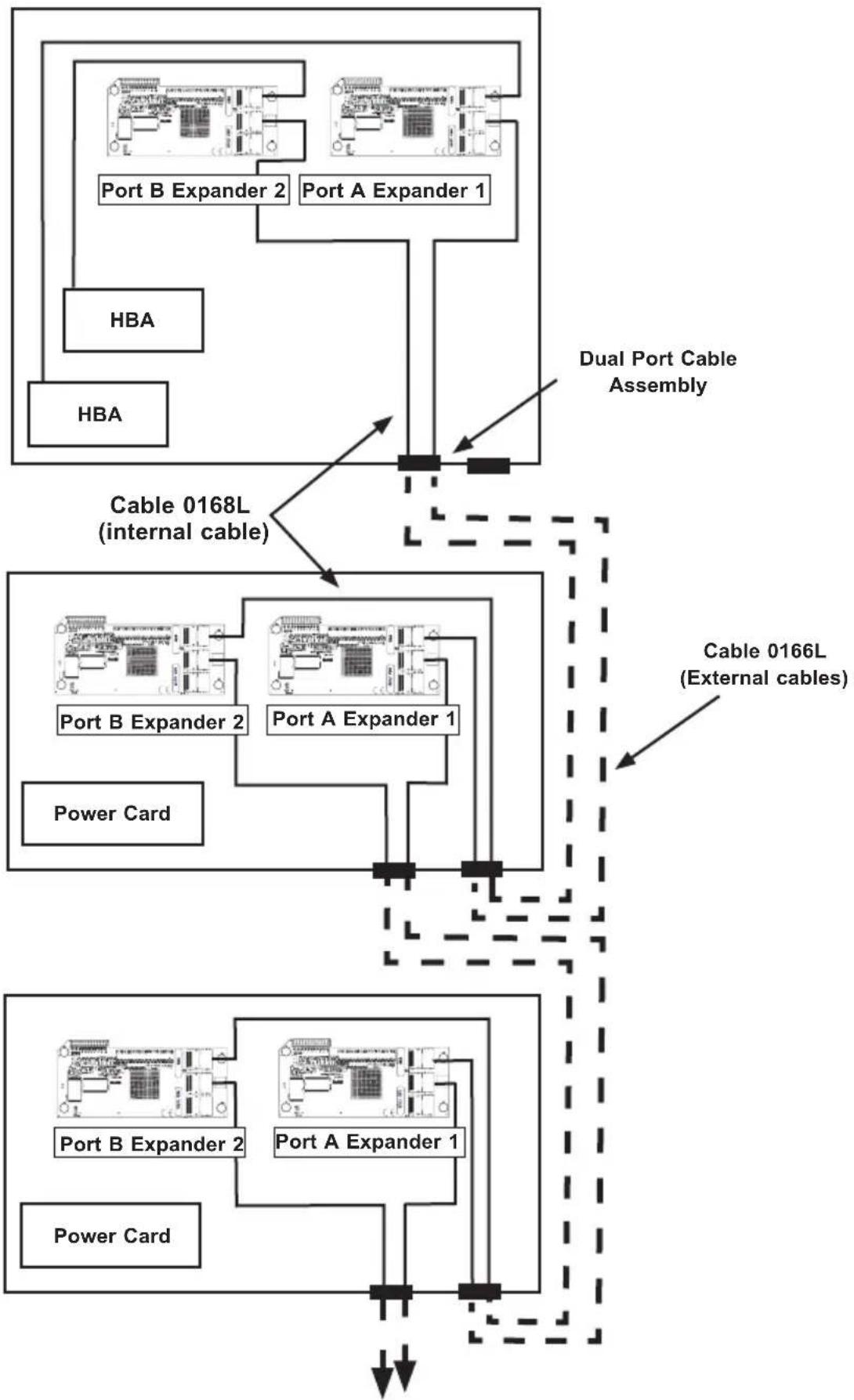

Figure D-24. Dual SAS HBA with Cascaded Configuration

Dual SAS HBA and Cascaded Configuration with Branching

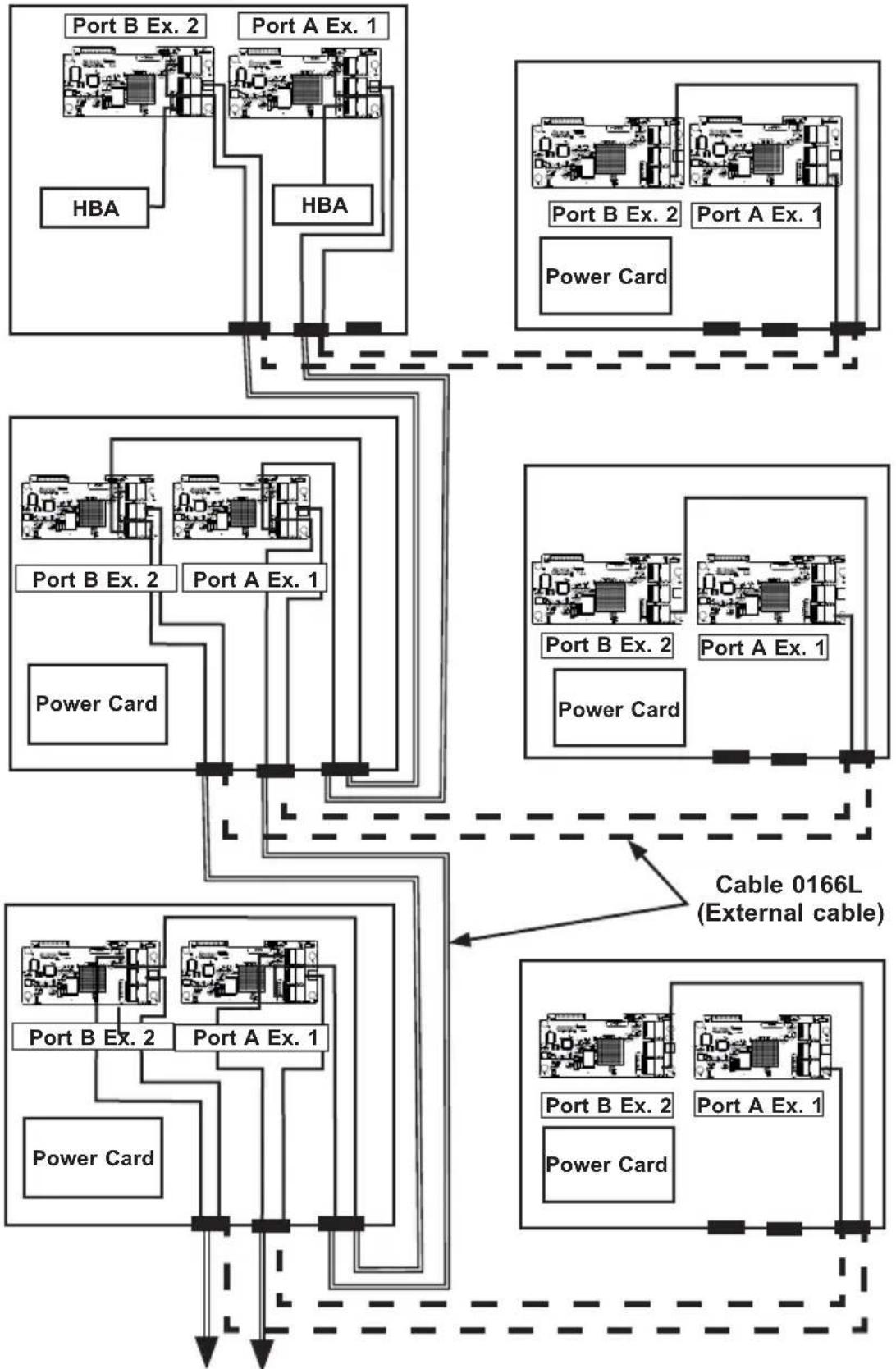

Figure D-25. Dual SAS HBA with Cascaded Configuration and Branching

Appendix E

SAS2-216EL1/EL2 Backplane Specifications

Overview of the SAS2-216EL1/EL2 Backplanes

The SAS2-216EL1/EL2 model backplanes consists of a SAS2-216EB backplane (A) with one or two SAS2-216EL daughter cards (B and C) mounted on the rear of the backplane.

The SAS2-216EL1 model consists of the SAS2-216EB backplane (A) and one SAS2-216EL daughter card (B), mounted on the right-hand side of the backplane.

The SAS2-216EL2 model consists of the SAS2-216EB backplane (A), and two SAS-216EL daughter cards (B and C), mounted on the rear of the backplane.

Components on the front side of the SAS2-216EB backplane include twenty-four SAS connectors and their respective activity and failure LEDs. Components on the rear side of the backplane include jumpers and power and fan connectors. The daughter card's components include SAS ports, flash and expander chips, and mode select jumpers.

E-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle the backplane very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic bag.
• Handle the backplane and daughter cards by their edges only; do not touch the components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the backplane and peripherals back into their antistatic bags when not in use.

E-2 General Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

• Always disconnect power cables before installing or removing any components from the computer, including the backplane.
• Disconnect the power cable before installing or removing any cables from the backplane.
• Make sure that the backplane is securely and properly installed on the motherboard to prevent damage to the system due to power shortage.

E-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

E-4 Introduction to the SAS2-216EL1/EL2 Backplane

The SAS2-216EL1/EL2 model backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.

This manual reflects the SAS2-216EL Revision 1.02 backplane, the most current release available at the time of publication.

This manual also describes the SAS2-216EL daughter card, Revision 1.02, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.

E-5 Connectors

Rear of SAS2-261EB Backplane

Front of SAS2-216EL Daughter Card(s)

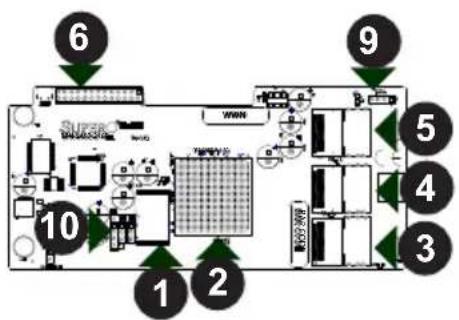

Figure E-1: Connectors on the Backplane and Daughter Cards

Connectors

1. Flash Chip
2. Expander Chip
3. SAS Port: PRI_J1
4. SAS Port: PRI_J2

5. SAS Port: PRI_J3

6. EPP Connectors: J2

7. Fan Connectors: Fan1, Fan2, and Fan3
8. Power Connectors: PWR1 - PWR4
9. Debug Connector: EXPDBG1
10. UART Connector: SMART_UART

E-6 Front Connector and Pin Definitions

1. Flash Chips

The flash chip enhances the backplane memory.

2. Expander Chips

This expander chip allows the backplane to support dual ports, cascading, and failover.

3. - 5. SAS Ports

The primary and secondary sets of SAS ports provide expander features including cascading and failover. From right to left the ports are Primary 1,2,3 and Secondary 1,2,3.

6. EPP Ports

The EPP ports are used for manufacturer diagnostic purposes only.

7. Fan Connectors

The 3-pin connectors, designated FAN1, FAN2, and FAN3, provide power to the fans. See the table on the right for pin definitions.

8. Backplane Main Power Connectors

The 4-pin connectors are designated PWR1, PWR2, PWR3 and PWR4. They provide power to the backplane. See the table on the right for pin definitions.

9. Debug Connector

The debug connector is designated EX-PDBG1 and is used for manufacturer's diagnostic purposes only.

10. UART Connector

The UART connector is designated SMART_UART and is used for manufacturer's diagnostic purposes only.

Fan Connectors
Pin# Definition
1 Ground
2 +12V
3 Tachometer

BackplaneMain Power4-Pin Connector
Pin# Definition
1	+12V
2 and 3 Ground
4 +5V

E-7 Jumper Locations and Settings

Rear of SAS2-261EB Backplane

Front of SAS2-216EL Daughter Card

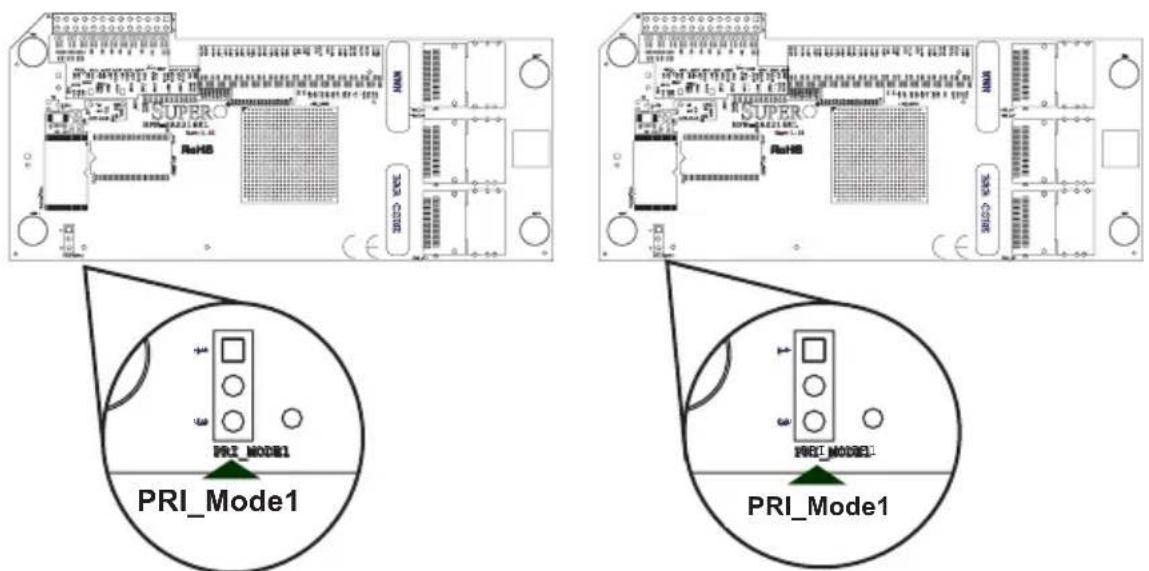

Figure E-2: Jumper Locations and Pin Definitions

Explanation of Jumpers

To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. Note: On 2-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

General Jumper Settings
Jumper Jumper Settings Note
PRI_MODE1 Pins 2-3 Factory setting, do not change
PRI_MODE2 Pins 2-3 Factory setting do not change
REMOTE_FAN_FAIL1	Open: Enable (Default)Closed: Disable	Enables / disables the fan speed reporting.
REMOTE_FAN_FAIL2	Open: Enable (Default)Closed: Disable	Enables / disables the FANFAIL1 LED
BUZZER_ENB1	Open: DisableClosed: Enable	Buzzer enable*

*The buzzer sound indicates that a condition requiring immediate attention has occurred.

The buzzer alarm is triggered by any of the following conditions:

1. Hard drive failure
2. Fan failure
3. System temperature over 45° Celsius.

Figure E-3: Rear LEDs

Rear LEDs
LED Fail State	Specification
12V_LED1 Off		Green LED indicates backplane 12V power. Light is on during normal operation.
5V_LED1 Off		Blue LED indicates backplane 5V power. Light is on during normal operation.
FANFAIL1 On		Red LED indicates a fan failure. Light is off during normal operation
OVERHEATFAIL1 On		Red LED indicates an overheat condition. Light is off during normal operation

E-8 Front Connectors and LED Indicators

Figure E-4: Front Connectors and LEDs

Front SAS/SATA Connectors
Front Connector	SAS Drive Number	Front Connector	SAS Drive Number
SAS #J0 SAS/ATA HDD #1 SAS #J12 SAS/ATA HDD #13
SAS #J1 SAS/ATA HDD #2 SAS #J13 SAS/ATA HDD #14
SAS #J2 SAS/ATA HDD #3 SAS #J14 SAS/ATA HDD #15
SAS #J3	SAS/SATA HDD #4	SAS #J15	SAS/SATA HDD #16
SAS #J4	SAS/SATA HDD #5	SAS #J16	SAS/SATA HDD #17
SAS #J5 SAS/ATA HDD #6 SAS #J17 SAS/ATA HDD #18
SAS #J6	SAS/SATA HDD #7	SAS #J18	SAS/SATA HDD #19
SAS #J7 SAS/ATA HDD #8 SAS #J19 SAS/ATA HDD #20
SAS #J8 SAS/ATA HDD #9 SAS #J20 SAS/ATA HDD #21
SAS #J9 SAS/ATA HDD #10 SAS #J21 SAS/ATA HDD #22
SAS #J10	SAS/SATA HDD #11	SAS #J22	SAS/SATA HDD #23
SAS #J11 SAS/ATA HDD #12 SAS #J23 SAS/ATA HDD #24

Front LED Indicators
Front LED Hard Drive Activity Failure LED
SAS #J0 ACT #0 FAIL #0
SAS #J1 ACT #1 FAIL #1
SAS #J2 ACT #2 FAIL #2
SAS #J3 ACT #3 FAIL #3
SAS #J4 ACT #4 FAIL #4
SAS #J5 ACT #5 FAIL #5
SAS #J6 ACT #6 FAIL #6
SAS #J7 ACT #7 FAIL #7
SAS #J8 ACT #8 FAIL #8
SAS #J9 ACT #9 FAIL #9
SAS #J10 ACT #10 FAIL #10
SAS #J11 ACT #11 FAIL #11
SAS #J12 ACT #12 FAIL #12
SAS #J13 ACT #13 FAIL #13
SAS #J14 ACT #14 FAIL #14
SAS #J15 ACT #15 FAIL #15
SAS #J16 ACT #16 FAIL #16
SAS #J17 ACT #17 FAIL #17
SAS #J18 ACT #18 FAIL #18
SAS #J19 ACT #19 FAIL #19
SAS #J20 ACT #20 FAIL #20
SAS #J21 ACT #21 FAIL #21
SAS #J22 ACT #22 FAIL #22
SAS #J23 ACT #23 FAIL #23

Dual Port and Cascading Configurations

E-9 Single and Dual Port Expanders

Single Ports

SAS2-216EL1 model backplanes have a single-port expander on the daughter card that accesses all of the drives and supports cascading.

Figure E-5: SAS2-216EL1 Single Port Configuration

Dual Ports

SAS2-216EL2 model backplanes have dual-port expanders on the daughter cards that access all of the hard drives. These dual-port expanders support cascading, failover, and recovery.

Figure E-6. SAS2-216EL2 Dual Port Configuration

E-10 Failover

The SAS2-216EL2 model backplane has two expanders which enable effective failover and recovery.

Single Host Bus Adapter

In a single host bus configuration, the backplane connects to one Host Bus Adapter (HBA).

Figure E-7: Single HBA

Single Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B.

Figure E-8. Single HBA Failover

E-11 Failover with RAID Cards and Multiple HBAs

The SAS-216EL backplane may be configured for failover with multiple HBAs using either RAID controllers or HBAs to achieve failover protection.

RAID Controllers: If RAID controllers are used, then the failover is accomplished through port failover on the same RAID card.

HBAs: If multiple HBAs are used to achieve failover protection and load balancing, Linux MPIO software must be installed and correctly configured to perform the load balancing and failover tasks.

Dual Host Bus Adapter

In a dual host bus configuration, the backplane connects to two HBA's.

Figure E-9. Dual HBA

Dual Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B. This maintains a full connection to all drives.

Figure E-10. Dual HBA Failover

IMPORTANT: For RAID controllers, redundancy is achieved through port failover. For multiple HBAs MPIO software is required to achieve failover protection.

E-12 Chassis Power Card and Support Cables

Chassis Power Card

In a cascaded configuration, the first chassis includes a motherboard and at least one Host Bus Adapter. Other servers in this enclosed system must be equipped with a power card. This section describes the supported power card for the SAS2-216EL series backplane.

For more information, see the Supermicro Web site at http://www.supermicro.com.

Figure E-11. Chassis Power Card (Sold Separately)

Power Card
Part Number Part	Type Where Used
CSE-PTJBOD-CB2 Power Card		Allows the chassis to be used as a JBOD (Just a Bunch of Drives) system.

Connecting an Internal HBA to the Backplane

The following section lists the most common cables used to connect the HBA to the backplane.

Figure E-12. Single Internal Host Bus Adapter

Figure E-13. Dual Internal Host Bus Adapter

Supported Internal HBA Cables

Use the following cables to create connections between the internal HBA and SAS2-216EL model backplane. The cables required depend upon the HBA connector.

Cable Name: iPass to 4-Lane

Part #: CBL-0117L

Length: 46 cm (18 inches)

Description: This cable has one SFF-8484 (32-pin) connector at one end and one iPass (SFF-8087/Mini-SAS) connector (36-pin) at the other. This cable connects from the HBA to the SAS2-216EL backplane

IMPORTANT: See Section E-11 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Cable Name: iPass (Mini-SAS) to iPass (Mini-SAS)

Part #: CBL-0108L-02 Length: 39 cm (15 inches)

Part #: CBL-0109L-02 Length: 22 cm (9 inches)

Part #: CBL-0110L-02 Length: 18 cm (7 inches)

Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36-pin) at each end. It connects from the HBA to the SAS2-216EL model backplane.

Connecting an External HBA to the Backplane

This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.

Single External Host Bus Adapter

Figure E-14. Single External Host Adapter

Dual External Host Bus Adapter

Figure E-15. Dual External Host Bus Adapter

IMPORTANT: See Section E-11 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Supported External HBA to Backplane Cable

Use the following cable if your external HBA has an InfiniBand connector.

Figure E-16. SAS InfiniBand Cable (CBL-0200L)

Cable Name: SAS InfiniBand to Mini-SAS X4 1M cable, PBF

Part #: CBL-0200L

Length: 1 meter

Description: This cable has an InfiniBand connector (SFF-8470) on one end and an

SFF-8088-1X (26-pin) connector at the other end.

Connecting Multiple Backplanes in a Single Channel Environment

This section describes the cables used when cascading from a single HBA. These connections use CBL-0167L internal cables and CBL-0166L external cables.

Figure E-17: Single HBA Configuration

Single HBA Configuration Cables

Single Port Cable Assembly

Figure E-18. Single Port Internal Cable (CBL-0167L)

Cable Name: SAS EL2/EL1 Backplane Cable (internal) with 2-port Cascading Cable, 68 cm

Part #: CBL-0167L (SFF-8087 to SFF-8088 x1)

Ports: Single

Placement: Internal cable

Description: Internal cable. Connects the backplane to the HBA or external port. Used in single port environments

Figure E-19. External Cable (CBL-0166L)

Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm

Part #: CBL-0166L (SFF-8088 1x to SFF-8088 x1)

Ports: Single or Dual

Placement: External cable

Description: External cascading cable. Connects ports between servers. With most connectors, use one cable for single port connections and two cables for dual port connections.

Connecting Multiple Backplanes in a Dual Channel Environment

This section describes the cables used when cascading from dual HBAs. These connections use CBL-0168L internal cables and CBL-0166L external cables.

Figure E-20. Dual HBA Configuration

IMPORTANT: See Section E-11 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Dual HBA Configuration Cables

Dual Port Cable Assembly

Figure E-21. Dual Port Internal Cable (CBL-0168L)

Cable Name: SAS Dual-port Cable Assembly, 68/76 cm

Part #: CBL-0168L

Placement: Internal cable

Ports: Dual

Description: Internal cascading cable. Connects the backplane to the host bus adapter or external port. Used in dual port environments.

Figure E-22. External Cable (CBL-0166L)

Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm

Part #: CBL-0166L

Placement: External Cable

Ports: Single or Dual

Description: External cascading cable. Connects ports between servers. Use one cable for single port connections and two cables for dual port connections.

E-13 Supported Cascading Configurations

Cascading allows the system to access data at a faster rate by allowing several backplanes to share resources to reduce latency time.

The first backplane in a cascaded system requires a motherboard and an HBA. Other servers require a power control card with no motherboard and no HBA. For more information, specific chassis manuals are available at www.supermicro.com.

Figure E-23. Simple Cascaded Configuration

Server System with Single SAS HBA

The expanders allow horizontal branching. This configuration also applies to dual ports.

Figure E-24. Cascaded Configuration with Horizontal Branching

Dual SAS HBA and Cascaded Configuration

Figure E-25. Dual SAS HBA with Cascaded Configuration

IMPORTANT: See Section E-11 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Dual SAS HBA and Cascaded Configuration with Branching

Figure E-26. Dual SAS HBA Cascaded Configuration and Branching

IMPORTANT: See Section E-11 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Appendix F

SAS3-216A Backplane Specifications

F-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic bag.
• Handle the backplane by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.

F-2 General Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

• Always disconnect power cables before installing or removing any components from the computer, including the backplane.
• Disconnect the power cable before installing or removing any cables from the backplane.
• Make sure that the backplane is securely and properly installed on the motherboard to prevent damage to the system due to power shortage.

F-3 A Note to Users

All images and layouts in this user's guide are based upon the latest PCB revision available at the time of publishing. The card you have received may not look exactly the same as the graphics in this manual.

F-4 Front Connectors and Jumpers

Front Connectors

1. Upgrade Connectors: JP70, JP71 and JP72
2. Jumper: JP35

3. Power Connectors (4-pin): JP10, JP13, JP46, JP48 JP109, JP110

4. SAS IN#1 JSM1

5. SAS IN#2 JSM2
6. SAS IN#3 JSM3
7. SAS IN#4 JSM4
8. SAS IN#5 JSM5
9. SAS IN#6 JSM6

F-5 Front Connector and Pin Definitions

1. Upgrade Connectors

The upgrade connectors are used for manufacturer diagnostic purposes only.

3. Backplane Main Power Connectors

The 4-pin connectors, designated JP10, JP13, JP46, JP48, JP109 and JP110 provide power to the backplane. See the table on the right for pin definitions.

BackplaneMain Power4-Pin Connector
Pin#	Definition
1	+12V
2 and 3 Ground
4 +5V

4. - 9. SAS IN Ports (Sideband included)

The SAS ports are used to connect the SAS drive cables. The six SAS IN ports are designated #JSM1 - #JSM6. Each port is also compatible with SATA drives.

Sideband Definitions(JSM1 - JSM6)
Pin # Definition Pin # Definition
A0 SB0 C1 SB4
B2 SB1 D1 SB5
C2 SB2 D2 SB6
B1 SB3 A1 SB7

F-6 Jumpers

Explanation of Jumpers

To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. Note: On two pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

2. Jumper

Jumper Settings
Jumper Jumper Settings		Notes
JP35	Pins 1-2 ResetPins 2-3 Normal (default)	ATMEL chip reset

F-7 Rear Components, Connectors and LED Indicators

Rear SAS/SATA Connectors
Rear Connector	SAS Drive Number	Rear Connector	SAS Drive Number
SAS #0 SAS/S	ATA HDD #0 SAS #12	SAS/SATA HDD #12
SAS #1 SAS/S	ATA HDD #1 SAS #13	SAS/SATA HDD #13
SAS #2	SAS/SATA HDD #2	SAS #14	SAS/SATA HDD #14
SAS #3	SAS/SATA HDD #3	SAS #15	SAS/SATA HDD #15
SAS #4	SAS/SATA HDD #4	SAS #16	SAS/SATA HDD #16
SAS #5	SAS/SATA HDD #5	SAS #17	SAS/SATA HDD #17
SAS #6	SAS/SATA HDD #6	SAS #18	SAS/SATA HDD #18
SAS #7	SAS/SATA HDD #7	SAS #19	SAS/SATA HDD #19
SAS #8	SAS/SATA HDD #8	SAS #20	SAS/SATA HDD #20
SAS #9	SAS/SATA HDD #9	SAS #21	SAS/SATA HDD #21
SAS #10	SAS/SATA HDD #10	SAS #22	SAS/SATA HDD #22
SAS #11	SAS/SATA HDD #11	SAS #23	SAS/SATA HDD #23

Rear LED Indicators
Rear LED Hard Drive Activity Failure LED
SAS #0 D12 D5
SAS #1 D22 D23
SAS #2 D40 D37
SAS #3 D102 D107
SAS #4 D13 D6
SAS #5 D24 D29
SAS #6 D41 D38
SAS #7 D104 D108
SAS #8 D14 D7
SAS #9 D25 D30
SAS #10 D42 D39
SAS #11 D106 D109
SAS #12 D15 D8
SAS #13 D26 D31
SAS #14 D87 D88
SAS #15 D111 D110
SAS #16 D18 D19
SAS #17 D27 D32
SAS #18 D100 D103
SAS #19 D118	D119
SAS #20 D21 D20
SAS #21 D28 D33
SAS #22 D101 D105
SAS #23 D120 D121

Notes

Appendix G

BPN-SAS3-216EL Backplane Specifications

G-1 Overview of the SAS3-216EL1/EL2 Backplanes

The BPN-SAS3-216EL1/EL2 model backplanes consists of a BPN-SAS3-216EB backplane (X) with one or two BPN-SAS3-216EL daughter cards (Y and Z) mounted on the rear of the backplane.

The BPN-SAS3-216EL1 model consists of the BPN-SAS3-216EB backplane (X) and one BPN-SAS3-216EL primary daughter card (Y), mounted on the right-hand side of the backplane.

The BPN-SAS3-216EL2 model consists of the BPN-SAS3-216EB backplane (X) with a BPN-SAS3-216EL primary daughter card mounted on the right (Y) and a BPN-SAS3-216EL secondary daughter card mounted on the left (Z).

Components on the front side of the BPN-SAS3-216EB backplane include twenty-four SAS connectors and their respective activity and failure LEDs. Components on the rear side of the backplane include jumpers and power connectors. The daughter card's components include SAS ports, flash and expander chips.

Figure G-1. The SAS3-216EL1/EL2 Backplane

G-2 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the anti-static bag.
• Handle the backplane and daughter cards by their edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.

G-3 General Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components.

• Always disconnect power cables before installing or removing any components from the computer, including the backplane.
• Disconnect the power cable before installing or removing any cables from the backplane.
• Make sure that the backplane is securely and properly installed on the motherboard to prevent damage to the system due to power shortage.

G-4 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

G-5 Introduction to the Backplane

The BPN-SAS3-216EL1/EL2 model backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.

This manual reflects the BPN-SAS3-216EB Revision 1.00 backplane, the most current release available at the time of publication.

This manual also describes the BPN-SAS3-216EL daughter card, Revision 1.01, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.

G-6 Connectors and Daughter Cards

Rear of BPN-SAS3-261EB Backplane

Front of BPN-SAS3-2I6EL Daughter Card(s)
Figure G-2. Connectors and Daughter Cards

Connectors

1. Flash Chip
2. Expander Chip
3. UART Connector: J5

4. SDB Connector: J10

5. Primary Expander Connector: PRI_I2C

6. SMB Expander Connector: J38
7. Power Connectors: PWR1 - PWR6

G-7 Front Connector and Pin Definitions

1. Flash Chips

The flash chip enhances the backplane memory.

2. Expander Chips

This expander chip allows the backplane to support dual ports, cascading, and failover.

3. UART Connector

The UART connector is designated UART and J5. It is used for manufacturer's diagnostic purposes only.

4. SDB Connector

The SDB connector is designated SDB and J10. It is the debug connector and is used for manufacturer's diagnostic purposes only.

5. Expander Connector

The primary expander connector is designated PRI_i2C and is reserved for future expansion.

6. Expander Connector

The secondary expander connector is designated J8. It is used to connect the chassis power cord and CSE-PTJBOD-CB3 for JBOD configuration.

7. Backplane Main Power Connectors

The 4-pin connectors are designated PWR1 - PWR6. They provide power to the backplane. See the table on the right for pin definitions.

BackplaneMain Power4-Pin Connector
Pin#	Definition
1	+12V
2 and 3 Ground
4 +5V

G-8 Front Connectors and LED Indicators

Figure G-3. Front Connectors and LEDs

Front SAS/SATA Connectors
Front Connector	SAS Drive Number	Front Connector	SAS Drive Number
SAS #J0 SAS/ATA HDD #1 SAS #J12 SAS/ATA HDD #13
SAS #J1 SAS/ATA HDD #2 SAS #J13 SAS/ATA HDD #14
SAS #J2 SAS/ATA HDD #3 SAS #J14 SAS/ATA HDD #15
SAS #J3	SAS/SATA HDD #4	SAS #J15	SAS/SATA HDD #16
SAS #J4	SAS/SATA HDD #5	SAS #J16	SAS/SATA HDD #17
SAS #J5 SAS/ATA HDD #6 SAS #J17 SAS/ATA HDD #18
SAS #J6	SAS/SATA HDD #7	SAS #J18	SAS/SATA HDD #19
SAS #J7 SAS/ATA HDD #8 SAS #J19 SAS/ATA HDD #20
SAS #J8 SAS/ATA HDD #9 SAS #J20 SAS/ATA HDD #21
SAS #J9 SAS/ATA HDD #10 SAS #J21 SAS/ATA HDD #22
SAS #J10	SAS/SATA HDD #11	SAS #J22	SAS/SATA HDD #23
SAS #J11 SAS/ATA HDD #12 SAS #J23 SAS/ATA HDD #24

Front LED Indicators
Front LED Hard Drive Activity Failure LED
SAS #J0 ACT #0 FAIL #0
SAS #J1 ACT #1 FAIL #1
SAS #J2 ACT #2 FAIL #2
SAS #J3 ACT #3 FAIL #3
SAS #J4 ACT #4 FAIL #4
SAS #J5 ACT #5 FAIL #5
SAS #J6 ACT #6 FAIL #6
SAS #J7 ACT #7 FAIL #7
SAS #J8 ACT #8 FAIL #8
SAS #J9 ACT #9 FAIL #9
SAS #J10 ACT #10 FAIL #10
SAS #J11 ACT #11 FAIL #11
SAS #J12 ACT #12 FAIL #12
SAS #J13 ACT #13 FAIL #13
SAS #J14 ACT #14 FAIL #14
SAS #J15 ACT #15 FAIL #15
SAS #J16 ACT #16 FAIL #16
SAS #J17 ACT #17 FAIL #17
SAS #J18 ACT #18 FAIL #18
SAS #J19 ACT #19 FAIL #19
SAS #J20 ACT #20 FAIL #20
SAS #J21 ACT #21 FAIL #21
SAS #J22 ACT #22 FAIL #22
SAS #J23 ACT #23 FAIL #23

G-9 Single and Dual Port Expanders

Single Ports

BPN-SAS3-216EL1 model backplanes have a single-port expander on the daughter card that accesses all of the drives and supports cascading.

Port A Primary Ports Expander 1

Figure G-4. BPN-SAS3-216EL1 Single Port Configuration

Dual Ports

BPN-SAS3-216EL2 model backplanes have dual-port expanders on the daughter cards that access all of the hard drives. These dual-port expanders support cascading, failover, and recovery.

Port B: Secondary Expander Ports

Port A: Primary Expander Ports
Figure G-5. BPN-SAS3-216EL2 Dual Port Configuration

G-10 Failover

The BPN-SAS3-216EL2 model backplane has two expanders which enable effective failover and recovery.

Single Host Bus Adapter

In a single host bus configuration, the backplane connects to one Host Bus Adapter (HBA).

Figure G-6. Single HBA

Single Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B with application software or failover support.

Figure G-7. Single HBA Failover

G-11 Failover with RAID Cards and Multiple HBAs

The BPN-SAS3-216EL backplane may be configured for failover with multiple HBAs using either RAID controllers or HBAs to achieve failover protection.

RAID Controllers: If RAID controllers are used, then the failover is accomplished through port failover on the same RAID card.

HBAs: If multiple HBAs are used to achieve failover protection and load balancing, Linux MPIO software must be installed and correctly configured to perform the load balancing and failover tasks.

Dual Host Bus Adapter

In a dual host bus configuration, the backplane connects to two HBA's.

Figure G-8. Dual HBA

Dual Host Bus Adapter Failover

If the expander or data path in Port A fails, the system automatically switches to Port B. This maintains a full connection to all drives.

Figure G-9 Dual HBA Failover

IMPORTANT: For RAID controllers, redundancy is achieved through port failover. For multiple HBAs MPIO software is required to achieve failover protection.

G-12 Chassis Control Card and Support Cables

Chassis Control Card

In a cascaded configuration, the first chassis includes a motherboard and at least one host bus adapter (HBA). Other servers in this enclosed system must be equipped with a control card. This section describes the supported control card for the BPN-SAS3-216EL series backplane.

For more information, see the Supermicro web site at http://www.supermicro.com.

Figure G-10: Chassis Control Card (Sold Separately)

Power Card
Part Number Part	Type Where Used
CSE-PTJBOD-CB3 Control card		Allows the chassis to be used as a JBOD (Just a Bunch of Drives) system, which supports IPMI for remote on/off control.

Connecting an Internal HBA to the Backplane

The following section lists the most common cables used to connect the HBA to the backplane.

Figure G-11 Single Internal Host Bus Adapter

Figure G-12. Dual Internal Host Bus Adapter

Supported Internal HBA Cables

Use the following cables to create connections between the internal HBA and BPN-SAS3-216EL model backplane. The cables required depend upon the HBA connector

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Cable Name: Internal iPass (Mini-SAS) to HD (Mini-SAS)

Part #: CBL-SAST-0508-01 Length: 50 cm (19 inches)

Part #: CBL-SAST-0507-01 Length: 80 cm (31 inches)

Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36-pin) at one end and a Mini-SAS HD (SFF-8643) connector at the other end. It connects from the SAS2 HBA to the BPN-SAS3-216EL model backplane.

Cable name: Internal HD (Mini-SAS) to HD (Mini-SAS)

Part #: CBL-SAST-0568 Length: 35 cm (13 inches)

Part #: CBL-SAST-0593 Length: 60 cm (23 inches)

Part #: CBL-SAST-0531 Length: 80 cm (31 inches)

Description: This cable has a Mini-SAS HD (SFF-8643) connector at both ends. It connects from the SAS3 HBA to the BPN-SAS2-216EL model backplane.

Connecting an External HBA to the Backplane

This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.

Single External Host Bus Adapter

Figure G-13. Single External Host Adapter

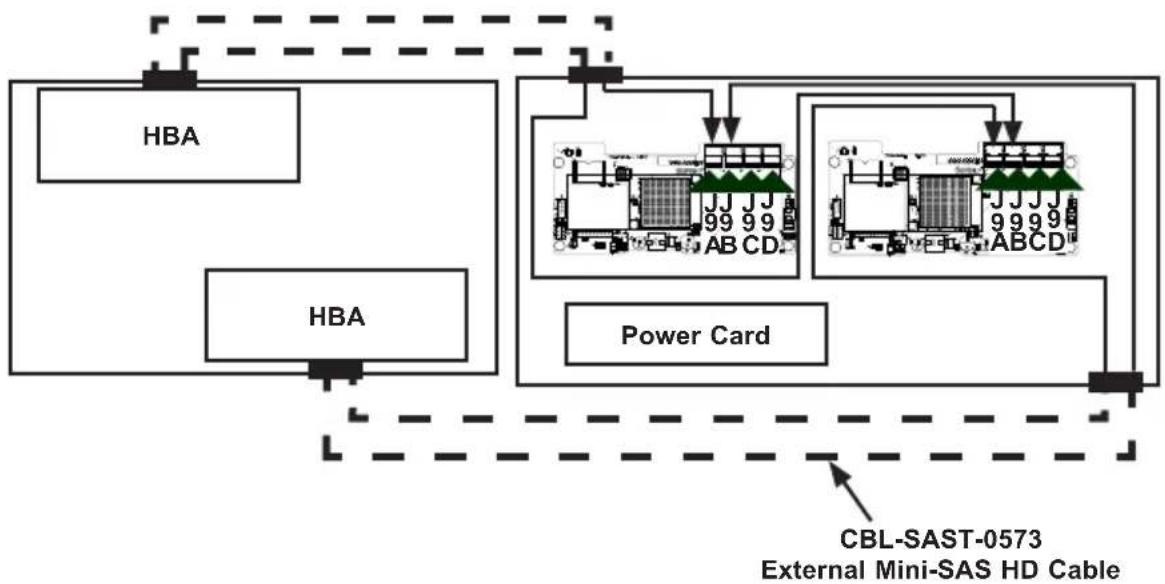

Dual External Host Bus Adapter

Figure G-15. Dual External Host Bus Adapter

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

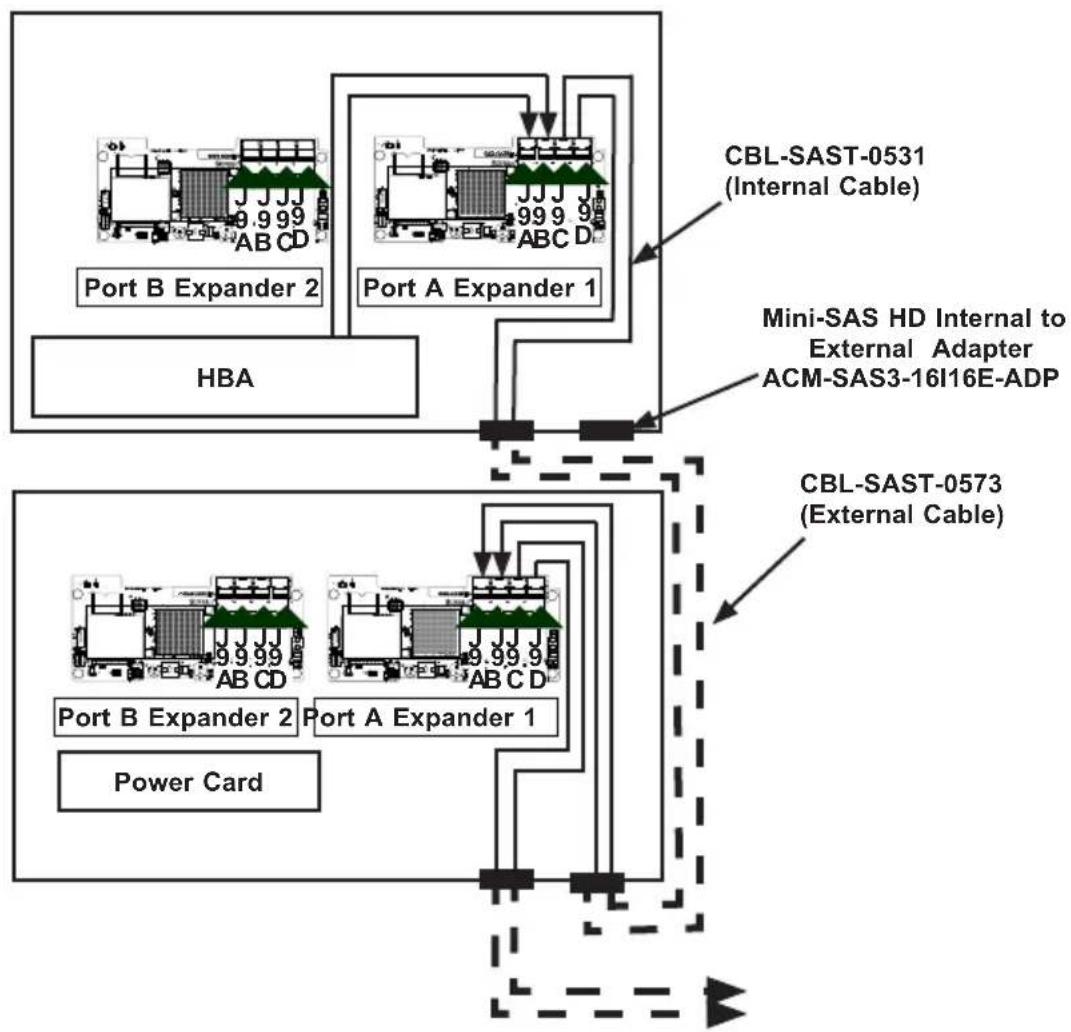

Connecting Multiple Backplanes in a Single Channel Environment

This section describes the cables used when cascading from a single HBA. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables.

Figure G-16. Single HBA Configuration

Single HBA Configuration Cables

Figure G-17 External Mini-SAS HD to External Mini-SAS HD Cable

Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable

Part #: CBL-SAST-0573

Ports: Single

Placement: External Cable

Description: External cascading cable, connects ports between servers and JBODs.

Figure G-18. Mini-SAS HD Internal to External Adapter

Cable Name: 16-port Mini-SAS HD Internal to External Cable Adapter with LP Bracket

Part #: AOM-SAS3-16I16E-LP

Ports: Four wide-ports (sixteen ports total)

Placement: Internal cable with adapter

Description: Internal cable, connects the SAS3 backplane to external ports.

Connecting Multiple Backplanes in a Dual Channel Environment

This section describes the cables used when cascading from dual HBAs. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables.

Figure G-19. Dual HBA Configuration

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

G-13 Supported Cascading Configurations

Cascading allows the system to access data at a faster rate by allowing several backplanes to share resources to reduce latency time.

The first backplane in a cascaded system requires a motherboard and an HBA. Other servers require a chassis control card with no motherboard and no HBA. For more information, specific chassis manuals are available at www.supermicro.com.

Figure G-20 Simple Cascaded Configuration

Dual SAS HBA and Cascaded Configuration

Figure G-21. Dual SAS HBA with Cascaded Configuration

IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations.

Notes

Disclaimer (cont.)

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
