USER MANUAL SLD-1 DataVideo

Technical line drawing of a device with a labeled component 'datavideo' (no other text or symbols)

SHOULDER MOUNT RIG

SLD-1

Instruction Manual

Table of Contents

FCC COMPLIANCE STATEMENT ....2

WARNINGS AND PRECAUTIONS ....2

WARRANTY 3

STANDARD WARRANTY....3

THREE YEAR WARRANTY....3

DISPOSAL 3

1. INTRODUCTION....4

FEATURES 4

1. CONNECTIONS....5

2. QUICK CAMERA REMOVAL 8

3. APPLICATION DIAGRAMS ......9

CAMERA AND AD-2....9

ONTRIPOD....9

CAMERA AND V-MOUNT BATTERY....9

1. DIMENSIONS....10

2. SPECIFICATIONS....11

SERVICE & SUPPORT 12

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1). This device may not cause harmful interference, and
(2). This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked "Do Not Remove" may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period beings on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
  • Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
  • All mail or transportation costs including insurance are at the expense of the owner.
  • All other claims of any nature are not covered.
  • Cables and batteries are not covered under warranty.
  • Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

• All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.
• Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Pure electrical circuit lines without any symbols

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

1. Introduction

SLD-1 Camera SLED is a shoulder mount rig for offering comfortable and professional operation. It perfectly accommodates many popular cameras from major camera manufacturers.

Equipped with a rear V-mount battery plate, the SLD-1 Camera SLED has an extra power option and allows for other accessories to be mounted to the back like the AD-2 adaptor. There is also a D-Tap connector which supplies power to the camera mounted on the SLD-1.

A USB port is included to supply power to an external LED light. Also, two bicolor tally LED lights are provided to serve as indications to the camera crew.

Features

• Light & robust aluminium die-cast body
- Great weight balance
• Power supply from the V-mount battery
• USB port for an external LED light
• Two bi-color tally LED lights

2. Connections

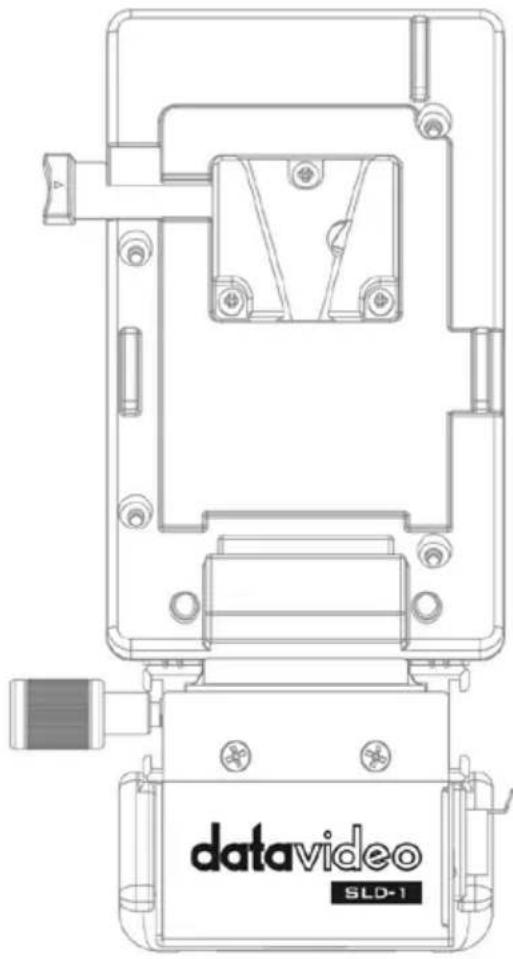

V-Mount Plate
	V-Mount Battery PlateThe V-mount battery plate allows you to mount either an AD-2 adaptor or a V-mount battery.

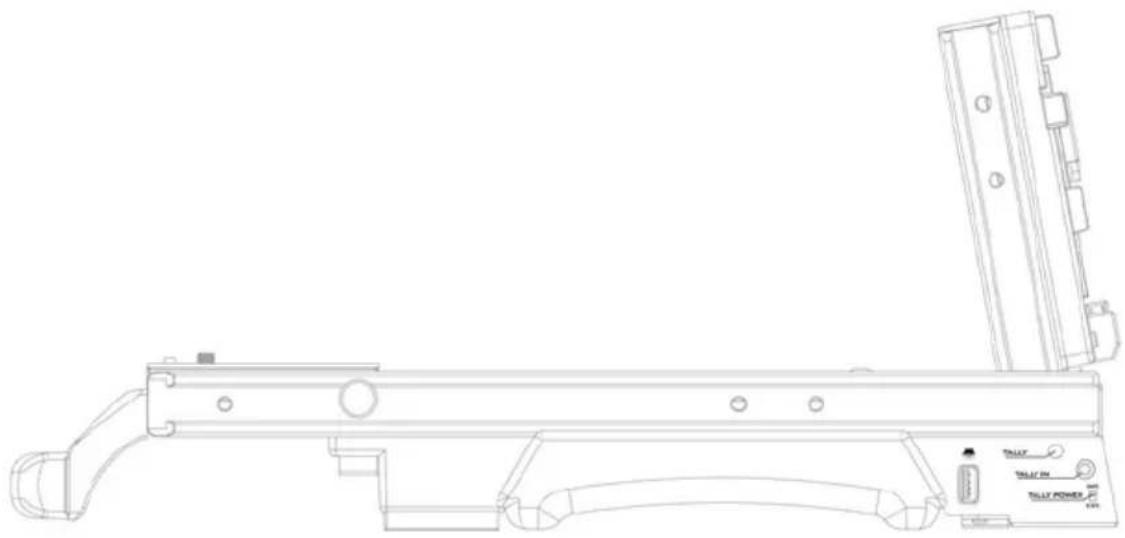

Left View

	USB Port	The USB port serves as a power supply port for an external LED Light when the SLD-1 is mounted the AD-2 Adaptor.
	Tally Power Switch	The power switch toggles between internal and external power modes.INT Mode: AD-2 is mounted on the SLD-1.EXT Mode: When SLD-1 is used in pair with the ITC-100SL Intercom Belt Pack.
INT Mode EXT ModeThe tally light signal comes from the AD-2 adaptor when AD-2 is mounted to the V-mount battery plate.The AD-2 Adaptor powers the rear and front bi-color tally LEDs and the USB port, which will thus be able to supply power.Switch to INT mode when the AD-2 is mounted.		When using the SLD-1 with the ITC-100SL Intercom Belt Pack, the tally light signal then comes from the ITC-100SL and directly supplies power to the rear and front bi-color tally LEDs without having to mount a V-mount battery to the V-mount battery plate.However, if the V-mount battery plate is not mounted, the USB port will NOT be able to supply power.Switch to EXT mode when used in pair with the ITC-100SL.
TALLY IN	Tally IN	Connects an external tally light signal, for example the ITC-100SL tally light.
TALLY	Rear Bi-Color Tally LED	Red indicates LIVE Green indicates CUED
	Front Bi-Color Tally LED	Red indicates LIVE Green indicates CUED

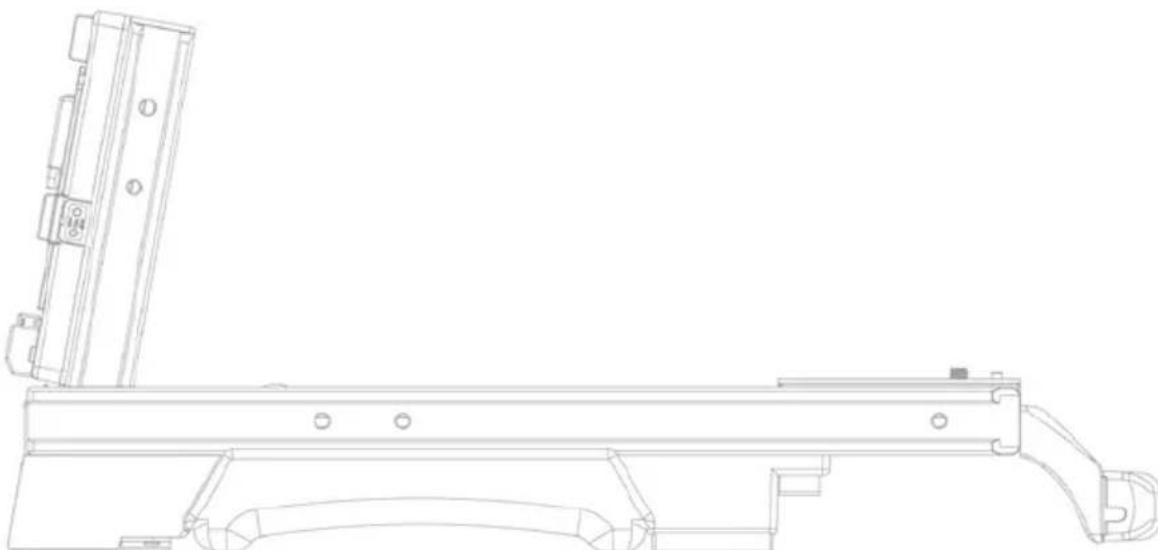

Right View
	D-Tap Connector	Supply power to the camera

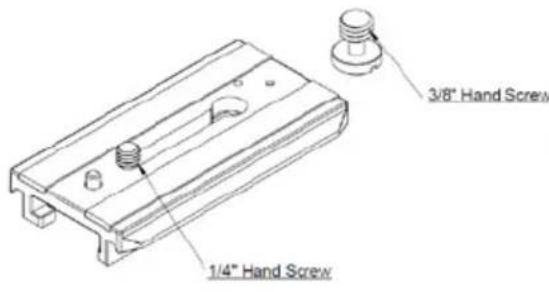

Camera Mount Plate
		Camera Mounting Plate allows the user to mount different camera models to the SLED with a hand screw.The hand screw comes in two sizes, 1/4" and 3/8".

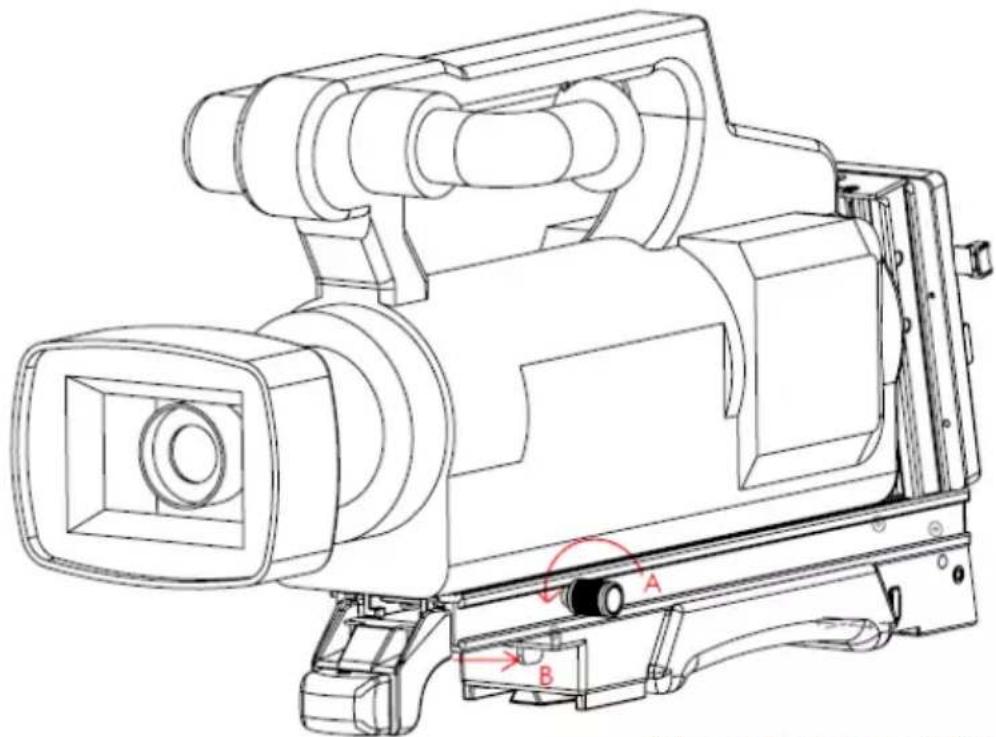

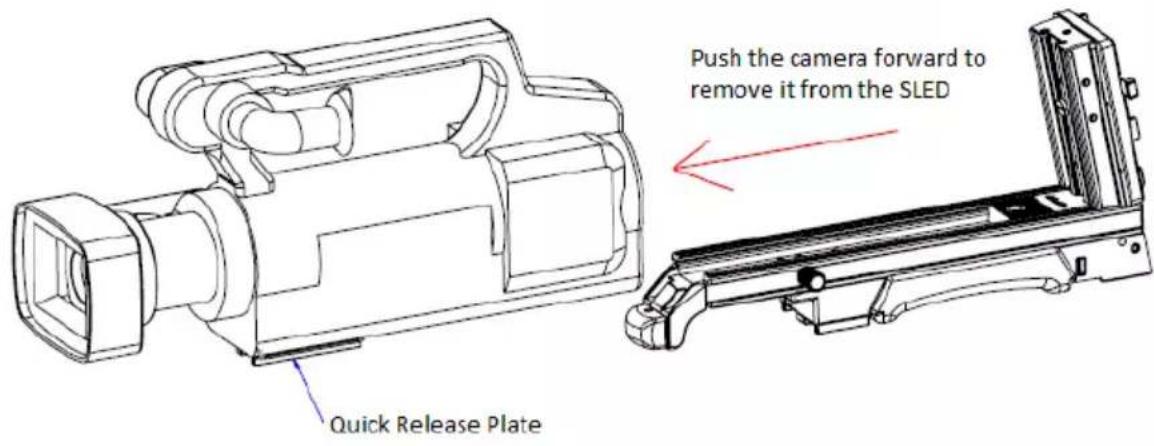

3. Quick Camera Removal

Follow the steps outlined below to remove the camera from SLED.

Technical line drawing of a video camera with labeled components A and B (no text or symbols beyond labels)

A: Loosen the rotary knob by turning it in the anti-clockwise direction.
B: Push the lock pin in the direction as shown in the diagram.

4. Application Diagrams

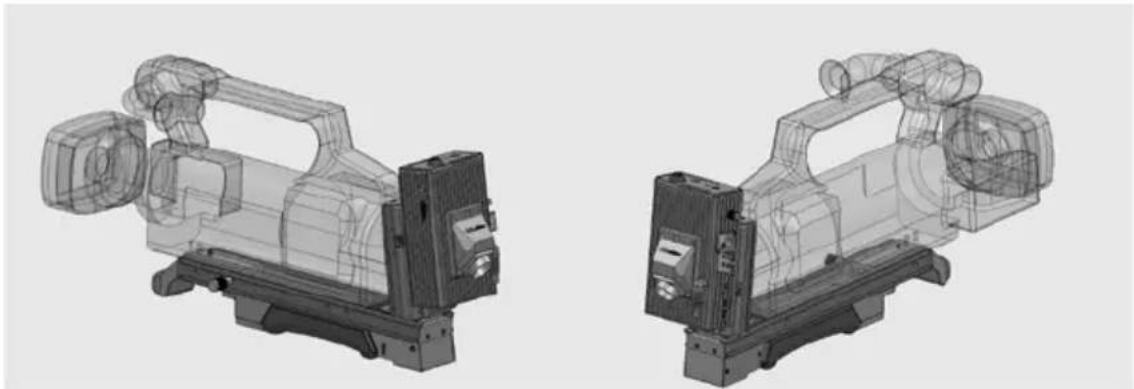

Camera and AD-2

3D wireframe models of a video camera with no visible text or symbols

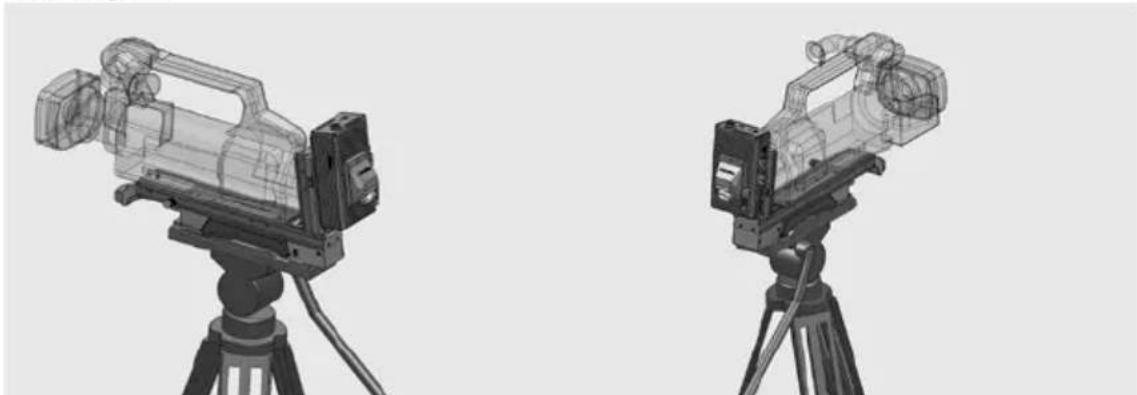

On Tripod

Two video cameras mounted on a tripod, shown from different angles (no text or symbols visible)

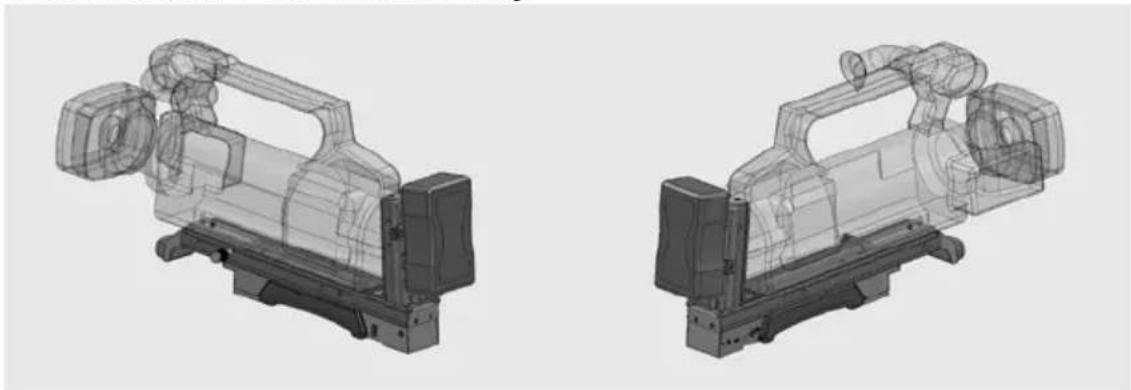

Camera and V-Mount Battery

3D wireframe models of a mechanical assembly, showing front and side views (no text or symbols)

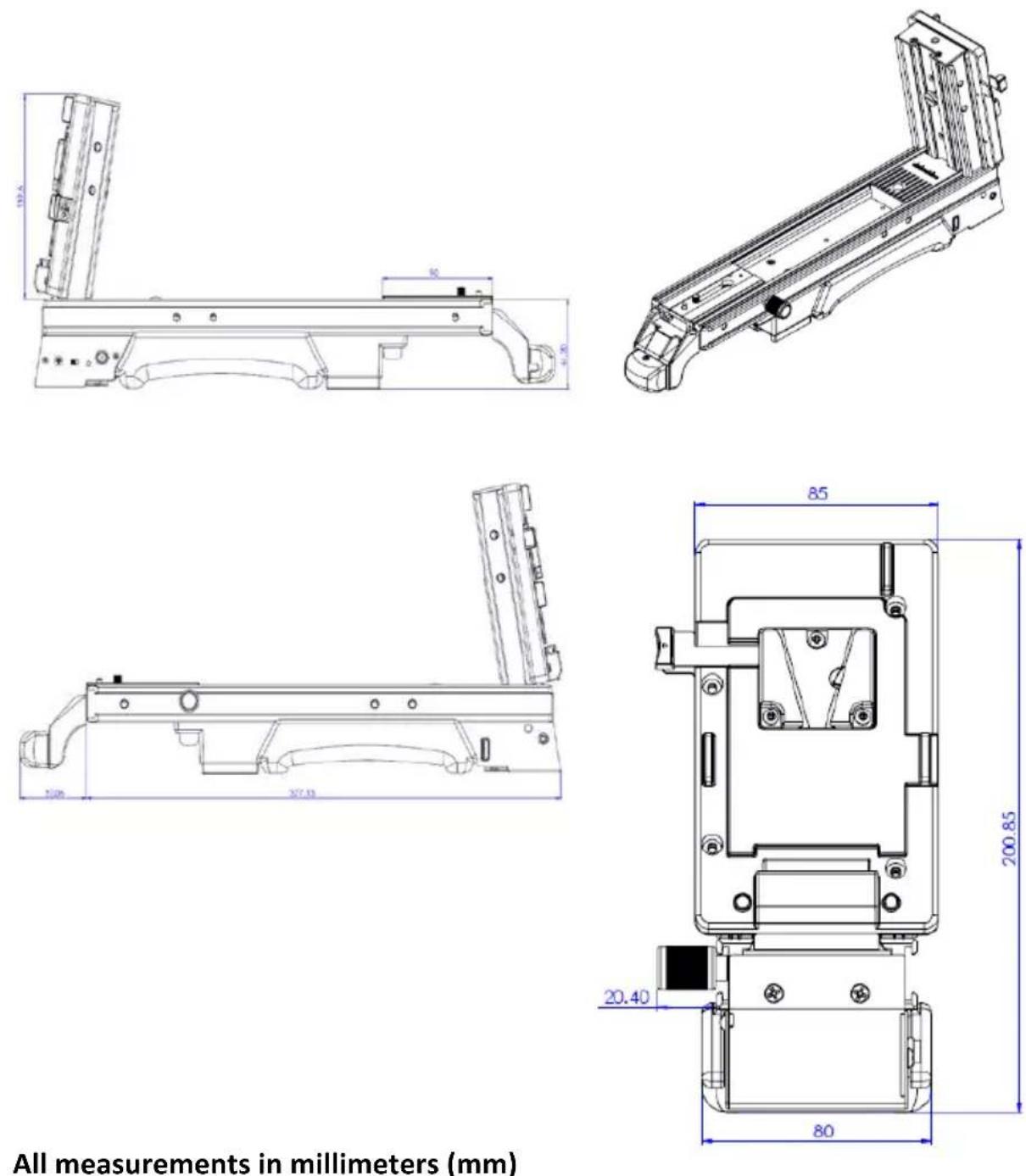

5. Dimensions

All measurements in millimeters (mm)

6. Specifications

Power Input	V-mount battery plate
Power Output	D-Tap Connector
Tally Light	Two bi-color LED lights
External LED Light Power Supply	USB
Dimensions (mm)	377.13 x 85 x 139.6
Weight (kg) 1.890

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

China Shanghai	Datavideo Technologies China Co601,Building 10,No.1228,Rd.Jiangchang,Jingan District,ShanghaiTel: [phone]Fax:[phone]E-mail:[e-mail]	Hong Kong	Datavideo Hong Kong LtdG/F.,26 Cross LaneWanchai, Hong KongTel: [phone]Fax:[phone]E-mail:[e-mail]	Singapore	Datavideo Technologies (S) PTE LtdNo. 178 Paya Lebar Road #06-03Singapore 409030Tel: [phone]Fax:[phone]E-mail:[e-mail]
China Beijing	Datavideo Technologies China CoNo. 812, Building B, Wankai Center,No.316, Wan Feng Road, Fengtai District,Beijing, ChinaTel: [phone]Fax:[phone]E-mail:[e-mail]	India Noida	Datavideo India NoidaA-132, Sec-63,Noida-201307,IndiaTel: [phone]Fax:[phone]E-mail: [e-mail]	Taiwan	Datavideo Technologies Co. Ltd10F, No. 176, Jian 1st Rd.,Chung HoDistrict, New Taipei City 235, TaiwanTel: [phone]Fax:[phone]E-mail:[e-mail]
China Chengdu	Datavideo Technologies China CoB-823, Meinian square,No.1388,Middle of Tianfu Avenue,Gaoxin District,Chengdu,SichuanTel: [phone]Fax:[phone]E-mail:[e-mail]	India Kochi	Datavideo India Kochi2nd Floor- North Wing, Govardhan Building,Opp. NCC Group Headquarters, Chittoor Road,Cochin- 682035Tel: [phone]Fax:[phone]	United States	Datavideo Corporation7048 Elmer Avenue.Whittier, CA 90602,U.S.A.Tel: [phone]Fax:[phone]E-mail:[e-mail]-mail: [e-mail]
China Fuzhou	Datavideo Technologies China CoA1-2318-19 Room,No.8, Aojiang Road,Taijiang District,Fuzhou,Fujian,ChinaTel: 0591-83211756 , 0591-83210187Fax:[phone]E-mail:[e-mail]	Netherlands	Datavideo Technologies Europe BVFloridadreef 1063565 AM Utrecht,The NetherlandsTel: [phone]Fax:[phone]E-mail:[e-mail]	United Kingdom	Datavideo UK LimitedBrookfield House, Brookfield IndustrialEstate, Peakdale Road, Glossop,Derbyshire, SK13 6LQTel: [phone]Fax:[phone]E-mail:[e-mail]
China Jinan	Datavideo Technologies China Co902, No. 1 business building,Xiangtai Square, No. 129,Yingxiongshan Road, Shizhong District,Jinan City, Shandong Province, ChinaTel: [phone]E-mail:[e-mail]	Singapore	Datavideo Visual Technology(S) Pte LtdNo. 178 Paya Lebar Road #06-07Singapore 409030Tel: [phone]Fax:[phone]E-mail:[e-mail]	France	Datavideo France s.a.r.l.Cité Descartes 1, rue Albert EinsteinChamps sur Marne 774477 –Marne la Vallée cedex 2Tel: [phone]Fax:[phone]E-mail:[e-mail]

Please visit our website for latest manual update. www.datavideo.com/product/SLD-1
