USER MANUAL Diva-Lite 41 LED Kino Flo

Operation Manual Diva-Lite 41, 31, 21 LED

(True Match® Firmware 3.0)

Three rectangular light strips mounted on poles, no text or symbols visible

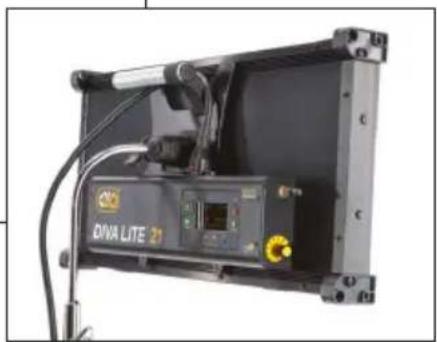

Exterior view of a black DIVA LITE 21 electronic device with visible wiring and ports (no readable text or symbols beyond branding)

Logo of a yellow and black rounded rectangle with stylized 'A' and 'L' letters (no readable text)

KINO FLO

Lighting Systems

Diva-Lite LED DMX Systems

Simple black rectangular frame with a small protrusion at the bottom right corner (no text or symbols)

Center Mount

DIV-L21XCU Diva-Lite 21 LED DMX Center, Univ

DIV-L31XCU Diva-Lite 31 LED DMX Center, Univ

DIV-L41XCU Diva-Lite 41 LED DMX Center, Univ

Exterior view of a flat-screen lighting fixture with adjustable arm and frame (no text or symbols visible)

Yoke Mount

DIV-L21XYU Diva-Lite 21 LED DMX Yoke, Univ

DIV-L31XYU Diva-Lite 31 LED DMX Yoke, Univ

DIV-L41XYU Diva-Lite 41 LED DMX Yoke, Univ

Included w/ all Diva-Lite Models

Abstract geometric pattern with a grid-like texture and two black rectangular cutouts (no text or symbols)

LVR-SL290-P Diva-Lite 21 Louver/HP, 90°

LVR-SL390-P Diva-Lite 31 Louver/HP, 90°

LVR-SL490-P Diva-Lite 41 Louver/HP, 90°

Included w/ all Diva-Lite Center Mount Only

MTP-LBC Kino 41 Lollipop w/ Baby Receiver Curve (16mm)

Included w/ all Diva-Lite Yoke Mount Only

Mechanical component with curved arm and mounting bracket (no visible text or symbols)

7010055 Diva-Lite 21 Yoke Assembly

7010057 Diva-Lite 31 Yoke Assembly

7010059 Diva-Lite 41 Yoke Assembly

Diva-Lite 31 LED DMX Kits

Yellow portable electronic device with black base plates and coiled cables (no text or symbols visible)

Diva-Lite 31 LED DMX Kit w/ Travel Case

KIT-DL31XU

Diva-Lite 31 LED DMX Kit w/ Travel Case, Univ

Kit Contents:

1 Diva-Lite 31 LED DMX Center

1 Travel Case

Dimensions:

45.5 × 9 × 16.5"

(116 × 23 × 42cm)

Weight:

33.5 lb

(15kg)

Diva-Lite 21 LED DMX Kits

Yellow portable electronic device with attached case and cable, displayed on a stand (no text or symbols visible)

Diva-Lite 21 LED DMX Kit w/ Travel Case

KIT-DL21XU

Diva-Lite 21 LED DMX Kit w/ Travel Case, Univ

Kit Contents:

1 Diva-Lite 21 LED DMX Center

1 Travel Case

Dimensions:

28.5 × 8.5 × 16"

(72.5 × 22 × 41cm)

Weight:

22.5 lb

(10kg)

Power

Close-up of a hand adjusting a black mechanical component with a red indicator light (no visible text or symbols)

AC Input

The Diva-Lite LED is powered AC and includes an IEC connection. It also includes a 12ft power cord with a locking IEC connector.

It includes a built-in power supply with universal input from 100-240VAC.

Ambient Operating Temperature

The Diva-Lite LED is designed to operate at temperatures from 14°F to 104°F (-10°C to 40°C).

DC Input

The Diva-Lite LED can also be operated on 24VDC (input range 18-36VDC) through a 3-Pin XLR. The pin polarity is:

Pin # 1 - Ground

Pin # 2 + 18-36VDC

Pin # 3 not used

Note:

A low voltage warning will display if input DC voltage is under 18VDC. Photo example: LOW VDC: 16

Mounting Procedures

Exterior view of a black industrial electronic device with visible ports and wiring (no readable text or symbols)

Mounted on a baby stand.

Exterior view of a mechanical device with wires and a labeled component (no readable text or symbols)

Mounted to pipe grid.

Close-up of a mechanical testing setup with metal components and wiring (no visible text or symbols)

Note: When hanging in a studio, loop a safety cord through the metal ring provided on the back of the fixture.

Close-up of a mechanical device with a yellow connector and white arrow indicating motion (no visible text or symbols)

Turn the knob to loosen or tighten the mount.

Three mechanical tools or sensors with curved and flanged ends, no visible text or symbols

Lollipops are interchangeable.

MTP-L Kino 41 Lollipop w/ 3/8" Pin (10mm)

MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve (16mm)

MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short (16mm)

Baby Offset Arm

Metal mechanical tool with a handle and spout, no visible text or symbols

MTP-B41F

Kino Offset w/ Baby Receiver (16mm)

Mechanical device with black components and wiring, no visible text or symbols

Close-up of a mechanical device with attached black components and wires (no visible text or symbols)

The Baby Offset Arm (MTP-B41F) allows fixtures to mount on the center of a stand or it can also be under slung from a baby stand to use as an up light.

Applying Louver

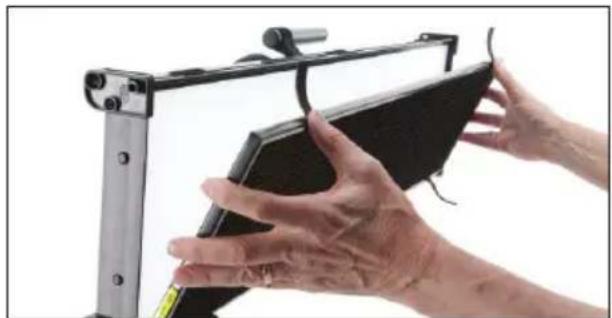

Close-up of hands assembling a black electronic device frame with a mounted bracket (no visible text or symbols)

Close-up of a hand inserting a small black component into a black textured device (no text or symbols visible)

The Louver is fastened to the fixture with 4 Velcro straps.

SnapBag & SnapGrid

Close-up of a camera module being held by a hand, no visible text or symbols

Black and white photo studio lamp with a rectangular frame and reflective cover (no text or symbols visible)

Studio lighting studio lamp with black frame and white screen (no text or symbols visible)

The SnapBag accessory is a lightweight fabric tailor-made for the Diva-Lite LED. It slips over the fixture and is attached with straps. The reflective material intensifies the soft light. The removable grid cloth attaches to the inside with Velcro.

DFS-FS41-S Diva-Lite 41 SnapBag w/ 2 x Diffusion

DFS-FS31-S Diva-Lite 31 SnapBag w/ 2 x Diffusion

DFS-FS21-S Diva-Lite 21 SnapBag w/ 2 x Diffusion

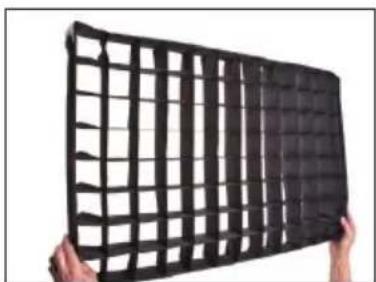

Close-up of hands holding a black plastic grid panel (no text or symbols visible)

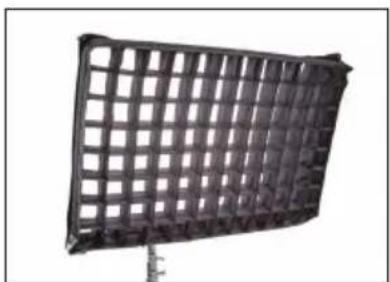

Black rectangular metal frame with grid pattern, mounted on a stand (no text or symbols visible)

The SnapGrid accessory is constructed of pre-stretched fireproof fabric with a built-in stainless steel frame. It unfolds and snaps into place. This model requires the use with the corresponding SnapBag; it is not designed to be used by itself.

LVR-FS440-S Diva-Lite 41 SnapGrid 40°

LVR-FS340-S Diva-Lite 31 SnapGrid 40°

LVR-FS240-S Diva-Lite 21 SnapGrid 40°

Control Panel - White Mode

A

B

C

DEFGH

A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
B) Menu: Provides access to menu options such as General settings, Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).
C) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use these preset buttons to store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and Control knob. Press for 3 seconds to restore displayed presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings. When in sub-menus, pressing Mode always returns you to main display. When DMX is applied, use Mode to access DMX channel on main display. Shortcut: Long press will bring you back one step.
G) Data Port: Mini B USB for firmware updates.
H) Control Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address. Press the Control knob to toggle between Fine and Coarse increments or when selecting options within menus.

DMX Note: Each LED Fixture has an "AUTO TERMINATE" feature. The last fixture that does not have an XLR cable attached to the DMX "Out" port will automatically terminate.

Control Panel - Gels/Hue Mode

ADCB

Gels/Hue Mode

A) Menu:

Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).

B) Preset Buttons:

Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use these preset buttons to store custom Kelvin between 2500K and 9900K and custom G/M, Gel, Hue and Saturation settings.

C) Display:

Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.

D) Mode:

Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation settings. When on the Gel function, pushing the Control knob in/out will apply the gel or remove the gel. When in sub-menus, pressing Mode always returns you to main display. When DMX is applied, use Mode to access DMX channel on main display. Shortcut Tip: Long press will bring you back one step.

Control Panel - RGB Mode

ADCB

RGB Mode

A) Menu:

Provides access to menu options such as General settings (RGB Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).

B) Preset Buttons:

Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use these preset buttons to store custom Kelvin between 2500K and 9900K and custom G/M, and RGB settings.

C) Display:

Provides access to Dim, Kelvin, G/M, RGB and DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.

D) Mode:

Press to navigate from Dim to Kelvin, G/M, RGB settings. When in sub-menus, pressing Mode always returns you to main display. When DMX is applied, use Mode to access DMX channel on main display. Shortcut: Long press will bring you back one step.

Control Panel - FX (Effects)

FX (Effects) Mode

FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example:

A) FX Option:

Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programmed effects as well as control parameters that can be altered.

B) Preset Buttons:

In FX Mode, Kelvin custom settings and any control functions displayed such as Rate and Amplitude (Ampl) can be saved as a preset. Chosen values can be assigned to any preset button by holding down the desired button for 3 seconds. The Kelvin display will flash once the setting is registered.

To restore presets to default factory settings, choose Reset under General settings and Clear Presets. This method will reset all buttons in all Modes. Shortcut: If only want to clear presets for Candle Mode, hold Lock button for 3 seconds while Candle mode is displayed.

C) Mode:

Press to navigate from Dim to Kelvin and FX settings. Shortcut: Long press will bring you back one step.

Accessories

Collection of electronic devices including a power adapter, charging cable, and two battery packs (no visible text or labels)

SYS-BK12 Block/KF21 Single Battery System, 140Whr, 28.8V (2 x Battery)

DFS-FS41-S Diva-Lite 41 SnapBag w/ 2 x Diffusion

DFS-FS31-S Diva-Lite 31 SnapBag w/ 2 x Diffusion

DFS-FS21-S Diva-Lite 21 SnapBag w/ 2 x Diffusion

Black metal grid-patterned panel mounted on a stand (no text or symbols visible)

LVR-FS440-S Diva-Lite 41 SnapGrid 40°

LVR-FS340-S Diva-Lite 31 SnapGrid 40°

LVR-FS240-S Diva-Lite 21 SnapGrid 40°

Abstract geometric pattern with interlocking shapes and grid textures (no text or symbols)

LVR-SL490-P Diva-Lite 41 Louver/HP 90° LVR-SL460-P Diva-Lite 41 Louver/HP 60°

LVR-SL390-P Diva-Lite 31 Louver/HP 90° LVR-SL360-P Diva-Lite 31 Louver/HP 60°

LVR-SL290-P Diva-Lite 21 Louver/HP 90° LVR-SL260-P Diva-Lite 21 Louver/HP 60°

Three mechanical tools or sensors with curved and straight lines, no visible text or symbols

Lollipops are interchangeable.

MTP-L Kino 41 Lollipop w/ 3/8" Pin (10mm) MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve (16mm) MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short (16mm)

Cases

Yellow plastic case with black handle and logo (no visible text or symbols)

KAS-DL31-C Diva-Lite 31 Travel Case

KAS-DL21-C Diva-Lite 21 Travel Case

Fixture Specifications

Simple black rectangular frame mounted on a stand, no text or symbols visible

Diva-Lite 21 LED Center Mount

DIV-L21XCU Diva-Lite 21 LED DMX Center Mount

AC Input Voltage: 100\~240VAC 50/60Hz, 150W

Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC

DC Input Voltage: 18\~36VDC, 150W

Amperage VDC: 6.25A at 24VDC

Kelvin Range: 2700K\~6500K (White Mode)

Kelvin Range: 2500K\~9900K (Color Mode)

Dimming Range: 100%\~1%

Weight: 12 lb (5.5kg)

Dimensions: 23.5 x 4.5 x 11.5"

(60 × 11.5 × 29cm)

Mechanical device with a rectangular frame and attached bracket (no visible text or symbols)

Diva-Lite 21 LED Yoke Mount

DIV-L21XYU Diva-Lite 21 LED DMX Yoke Mount

AC Input Voltage: 100\~240VAC 50/60Hz, 150W

Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC

DC Input Voltage: 18\~36VDC, 150W

Amperage VDC: 6.25A at 24VDC

Kelvin Range: 2700K\~6500K (White Mode)

Kelvin Range: 2500K\~9900K (Color Mode)

Dimming Range: 100%\~1%

Weight: 13 lb (6kg)

Dimensions: 28.5 x 4.5 x 14.5"

(72.5 × 11.5 × 37cm)

Simple black-and-white photo of a flat-screen mounted device with no visible text or symbols

Diva-Lite 31 LED Center Mount

DIV-L31XCU Diva-Lite 31 LED DMX Center Mount

AC Input Voltage: 100\~240VAC 50/60Hz, 150W

Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC

DC Input Voltage: 18\~36VDC, 150W

Amperage VDC: 6.25A at 24VDC

Kelvin Range: 2700K\~6500K (White Mode)

Kelvin Range: 2500K\~9900K (Color Mode)

Dimming Range: 100%\~1%

Weight: 14 lb (6.5kg)

Dimensions: 37.5 × 4.5 × 9.5"

(95 × 11.5 × 24cm)

Mechanical component with attached frame and suspended arm (no visible text or symbols)

Diva-Lite 31 LED Yoke Mount

DIV-L31XYU Diva-Lite 31 LED DMX Yoke Mount

AC Input Voltage: 100\~240VAC 50/60Hz, 150W

Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC

DC Input Voltage: 18\~36VDC, 150W

Amperage VDC: 6.25A at 24VDC

Kelvin Range: 2700K\~6500K (White Mode)

Kelvin Range: 2500K\~9900K (Color Mode)

Dimming Range: 100%\~1%

Weight: 14.5 lb (6.5kg)

Dimensions: 42 x 4.5 x 12"

(107 × 11.5 × 30.5cm)

Pure mechanical component diagram without any text, numbers, or symbols

Diva-Lite 41 LED Center Mount

DIV-L41XCU Diva-Lite 41 LED DMX Center Mount

AC Input Voltage: 100\~240VAC 50/60Hz, 150W

Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC

DC Input Voltage: 18\~36VDC, 150W

Amperage VDC: 6.25A at 24VDC

Kelvin Range: 2700K\~6500K (White Mode)

Kelvin Range: 2500K\~9900K (Color Mode)

Dimming Range: 100%\~1%

Weight: 15 lb (7kg)

Dimensions: 49.5 x 4.5 x 7.5"

(126 × 11.5 × 19cm)

Pure mechanical assembly diagram without any text, numbers, or symbols

Diva-Lite 41 LED Yoke Mount

DIV-L41XYU Diva-Lite 41 LED DMX Yoke Mount

AC Input Voltage: 100\~240VAC 50/60Hz, 150W

Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC

DC Input Voltage: 18\~36VDC, 150W

Amperage VDC: 6.25A at 24VDC

Kelvin Range: 2700K\~6500K (White Mode)

Kelvin Range: 2500K\~9900K (Color Mode)

Dimming Range: 100%\~1%

Weight: 15.5 lb (7kg)

Dimensions: 56 x 4.5 x 10"

(142 × 11.5 × 25.5cm)

FCC Part 15 Verification:

This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC Part 15 Declaration of Conformity:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

KINO FLO, INC

Diva-Lite 21, Diva-Lite 31, Diva-Lite 41

ID: XRSCRMXTIMO101

IC: 8879A-CRMXT101

For full operation manual, latest Warranty information and Certifications, see Kino Flo website at www.kinoflo.com.

Environmental: Disposal of Old Electrical & Electronic Equipment.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. This product is made of recyclable materials and should be disposed of in accordance with governmental regulations.

Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA

Tel: [phone] website: www.kinoflo.com
