MAA1153 - Prise murale multimédia JUNG - Free user manual and instructions

Type de produit	Multimedia Connection System
Marque	JUNG
Modèle	MAA1153
Installation	Flush-mounting in wall box (DIN VDE 0606)
Fonctions	Connect input/output devices for audio/video signals and data via Plug & Play
Types de prises	Cinch, S-Video, USB, TRS 3.5 mm, VGA, HDMI, DVI, Composite Video
Sécurité	Installation only by qualified electricians; observe accident prevention regulations
Température ambiante	-5 ... +45 °C
Cycles d'insertion (Cinch)	≥ 1000
Matériau de contact	Gold-plated
Standards vidéo	HDMI 2.0a, VGA S-VGA compatible, DVI-I Dual Link
Résolution VGA	800 x 600 to 1280 x 1024 pixels
Distance minimale des câbles	0.3 m from current-carrying cables and interference sources
Entretien et nettoyage	Clean with dry cloth; avoid liquids
Réparabilité	Return to service department for warranty repairs; no user-serviceable parts

Frequently Asked Questions - MAA1153 JUNG

How do I connect multimedia devices to the MAA1153?

Insert the connector of the connecting cable from the signal source (e.g., DVD player) into the jack of the multimedia socket. Then insert the connector from the playback device (e.g., TV) into another socket. Ensure connectors are inserted straight without force.

What types of cables are supported?

Supported cables include Cinch, S-Video, USB, TRS 3.5 mm, VGA, HDMI, DVI, and Composite Video. The specific function depends on the connected devices.

Can I use non-standard connecting cables?

No, using non-standardised cables and connectors can cause device malfunctions or destruction. Only use approved connecting cables and connectors.

What should I do if there is no signal at the playback device?

Check that the playback device is switched on. Also ensure all connections are properly seated. Loose connectors can cause signal loss.

How do I install the multimedia connection system?

Lay the connecting cable, install the wall box (recommended Kaiser 'Electronics Box'), insert the connector into the rear jack, screw the insert to the wall box via the supporting ring, then mount the centre plate and frame using screwless terminals.

What is the operating temperature range?

The ambient temperature should be between -5 °C and +45 °C for proper operation.

How many insertion cycles does the Cinch socket support?

The Cinch socket supports at least 1000 insertion cycles. Other sockets have different ratings (e.g., TRS 3.5 mm: ≥2000, VGA: ≥500).

Is professional installation required?

Yes, electrical equipment must be installed and assembled by qualified electricians to comply with safety regulations and avoid hazards.

What if there is no video signal?

Ensure the signal source is correctly selected on the playback device (e.g., via remote control). For VGA, check that the VGA output is activated on the source device.

How do I clean the multimedia connection system?

Use a dry cloth to clean the surface. Avoid liquids to prevent damage to the electrical components.

USER MANUAL MAA1153 JUNG

Operating Instructions Multimedia connection system

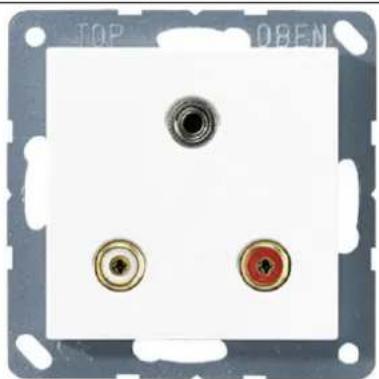

Close-up of a white electrical outlet with three gold and red connectors, no visible text or symbols.

1. Safety instructions

Electrical equipment must only be installed and assembled by qualified electricians.

Always follow the relevant accident prevention regulations.

Failure to comply with these instructions may result in damage to the device, fire or other hazards.

Proper signal transmission is only ensured when the appropriate accessories are used and the specified maximum cable lengths are observed, as well as the minimum permissible distance of 0.3 m from current-carrying cables and sources of interference (electronic ballasts, dimmers, ESLs, etc.) are observed.

These operating instructions are an integral component of the product, and must be retained by the end user.

2. Function

The multimedia connection system serve to connect input and output devices for transmission of audio/video signals and data.

① The available functions depend on the devices that are connected. To select the suitable socket, note the information from the manufacturer of the connected devices.

Intended use

• Only suitable for use in indoor areas
• Can be used in multiple combinations
• Flush-mounting in wall box according to DIN VDE 0606
• Connection of audio/video devices via „Plug & Play“

3. Operation

CAUTION!

The use of non-standardised connecting cables and connectors can cause device malfunctions.

The devices may be destroyed.

Use only approved connecting cables and connectors.

3.1. Connecting multimedia devices

• Insert connector of the connecting cable from the signal source, e.g. from a DVD or MP3 player, into the jack of multimedia socket.
• Insert connector of the connecting cable from a playback device, e.g. from an LCD/plasma television or stereo system, into the jack of a second multimedia socket.

① Insert connectors into the jacks straight and without using force. Twisting or tilting the connector may deform the contacts.

Application examples

Connection	Devices
Cinch	Audio systems, AV receivers, active loudspeakers
S-Video	SAT receivers, televisions, projectors, iPod docking stations, video cameras
USB	iPods, printers, storage media, digital cameras
TRS 3.5 mm	MP3 players, CD/DVD players, sound cards, audio systems
VGA	PCs/laptops, projectors, monitors
HDMI	High definition plasma/LCD televisions, SAT receivers, projectors, game consoles, DVD/Bluray players, DVD/HDD recorders, video cameras

Information for electricians

4. Assembly

4.1. Connecting and installing the multimedia connection system

The connecting cable has been laid, the wall box is installed in the wall.

① Recommendation: use Kaiser „Electronics Box“ (Art. no. 1068-02 or 9062-74) in order to maintain the permissible bending radii.

• Insert connector of the connecting cable into the corresponding jack on the rear of the multimedia connection system.
• Screw insert to the wall box in the tight orientation via the supporting ring.
• Place centre plate into the frame.
• Mount centre plate together with the frame on the insert using screwless terminals.

The multimedia connection system can be commissioned.

5. Commissioning

CAUTION!

Short-circuit if devices that are switched on are connected.

Devices may be destroyed.

Switch all devices off before connecting them.

5.1. Carrying out a functional test

Multimedia connection system is connected.

- Activate the desired functions and check the signal transmission at the signal sources and the playback device, e.g. play a DVD and check picture/sound reproduction on a television set.

The multimedia connection system is ready for operation.

6. Appendix

6.1. Technical data

Cinch Audio

Rated voltage: DC 50 V

Frequency ranges: 20 Hz ... 20 kHz

Contact resistance: ≤ 20 mΩ

Insulation resistance: ≥ 100 MΩ

Electric strength: AC 500 V\~ (50/60 Hz) for 1 min 2 mA

Insertion and removal forces: 3 ... 25 N

Insertion cycles: ≥ 1000

Gender changer: white (left), red (right)

Contact material: gold-plated

Installation depth: 14 mm

Ambient temperature: -5 ... +45 °C

TRS 3.5 mm

Rated voltage: DC 50 V

Frequency ranges: 20 Hz ... 20 kHz

Contact resistance: ≤ 20 mΩ

Insulation resistance: ≥ 100 MΩ

Electric strength: AC 500 ... 2000 V\~

DC 800 V

Insertion and removal forces: 4.9 ... 14.7 N

Insertion cycles: ≥ 2000

Gender changer: 3.5 mm Audio Stereo, 180°

Contact material: gold-plated

Ambient temperature: -5 ... +45 °C

Composite Video

Rated voltage: DC 50 V

Frequency ranges: ≤ 160 MHz

Contact resistance: ≤ 20 mΩ

Insulation resistance: ≥ 100 MΩ

Electric strength: AC 500 V\~ (50/60 Hz) for 1 min 2 mA

Insertion and removal forces: 3 ... 25 N

Insertion cycles: ≥ 1000

Gender changer: yellow

Contact material: gold-plated

Installation depth: 14 mm

Ambient temperature: -5 ... +45 °C

Multimedia connection system

Ref.-no.: MA..

S-Video

Rated voltage: DC 50 V

Frequency ranges: ≤ 160 MHz

Contact resistance: ≤ 80 mΩ

Insulation resistance: ≥ 50 MΩ

Electric strength: AC 500 V\~ (50/60 Hz)

for 1 min 2 mA

Insertion forces: ≤ 44.1 N

Removal forces: 5.88 ... 29.4 N

Insertion cycles: ≥ 1000

Gender changer: S-Video

Contact material: gold-plated

Ambient temperature: -5 ... +45 °C

VGA

Resolution: ≥ 800 x 600 pixels

≤ 1280 x 1024 pixels

S-VGA compatible

Frequency ranges: ≤ 160 MHz

Contact resistance: ≤ 30 mΩ

Insulation resistance: ≥ 1000 M

Electric strength: AC 500 V\~ (50/60 Hz)

for 1 min 2 mA

Insertion forces: 43.9 N

Removal forces: 3.92 N

Insertion cycles: ≥ 500

Gender changer: 15pole D-subminiature, 180°

Installation depth: 5 mm

Ambient temperature: -5 ... +45 °C

HDMI

Standard: HDMI 2.0a

Support for HDMI™ technology

(HDMI High Speed)

4K @ 50/60 Hz

Full HD @ 48 Hz 3D

HDR Video

Gender changer: HDMI ^™ type A, 180°

Contact material: gold-plated

Installation depth: 25 mm

Ambient temperature: -5 ... +45 °C

USB

Standard: 2.0 High Speed

Gender changer: Type A, 180°

Installation depth: 27 mm

Ambient temperature: -5 ... +45 °C

DVI

Standard: DVI-I Dual Link (analogue + digital)

Rated voltage: AC 40 V

Frequency range: ≤ 1000 MHz

Contact resistance: ≤ 20 m

Insertion/removal cycles: ≥ 1000

Terminal: 180°

Installation depth: 17 mm

Installation note: Consider bending radius and various plug types. Ensure sufficient installation space.

6.2. Troubleshooting

No signal at the playback device after the signal sources is switched on.

Cause 1: Playback device is not switched on.

- Switch on playback device.

Cause 2: Loose connector.

- Check that all connections are properly seated.

No video signal at the playback device after the signal sources is switched on.

Cause 1: Signal source is not recognised by the playback device.

- Manual selection of the signal source using remote control or channel selection buttons of the player.

Cause 2: VGA output of the signal source is not activated.

- Activate VGA output. Note information of the device manufacturer.

No audio signal at the playback device after the signal sources is switched on.

Cause 1: Volume control on the signal source or on the playback device is set too low.

- Increase volume.

Cause 2: The audio on the playback device is set to mute.

- Deactivate the mute function. Note information of the device manufacturer.

6.3. Guarantee

Our products are under guarantee within the scope of the statutory provisions.

Please return the unit postage paid to our central service department giving a brief description of the fault:

ALBRECHT JUNG GMBH & CO. KG

Service-Center

Kupferstr. 17-19

D-44532 Lünen

Service-Line: +(49) 23 55.80 65 51

Telefax: +(49) 23 55 . 80 61 65

The CSign is a free trade sign addressed exclusively to the authorities and does not include any warranty of any properties.
