DPX701 DPX501 INSTRUCTION MANUAL Kenwood Corporation SIRIUS# io AAC PHATNOISE À E À D Y HD Radio Take the time to read through this instruction manual. Familiarity with installation and operation procedures performance from your new CD-receiver. For your records Record the serial number, found on the back of war rd, and in the space pr r you call upon your Kenwood dealer for information or service on the product DPX701/ DPX501 Serial number elp you obtain the best es designate nd serial nuni

US Residence Only Register Online Register your Kenwood product at www.Kenwoodusa.com © B64-3396-00/00 (KW)

Contents Safety precautions 4 | RDS features 26 Radio Text Scroll Notes 5 PTY (Program Type) Registration of a station as à PTY About CDs 7 Program Type preset About AAC, MP3 and WMA 8 | CD/USB device/Audio file/External . disc control features 28 About USB device 10 Playing CD & Audio fille Playing USB device General features 11 Playing External Disc Power Fast Forwarding and Reversing Selecting the Source Track/File Search Volume Disc Search/Folder Search Attenuator Direct Track/File Search System Q Direct Disc Search Audio Control Track/File/Disc/Folder Repeat Adjusting the detail of Audio Control Scan Play Audio Setup Random Play Speaker Setting Magazine Random Play Subwoofer Output All Random Play TEL Mute Select mode Switching Display Select mode Display Type Selection older Select 1 mode Graphic part Display Switching Folder Select 2 mode Wallpaper selecting Switching the Play mode Text Selection for Display Letter Seek Text Display Switching Text/Title Scroll Font Color Select i G-Analyzer display Switching HD Radio control features 35 About HD Radio Tuner features 24 Tuning Tuning Tuning Mode Direct Access Tuning Station Preset Memory Auto Memory Entry Preset Tuning 2 | English B64-3396-00_English_rtindd 2

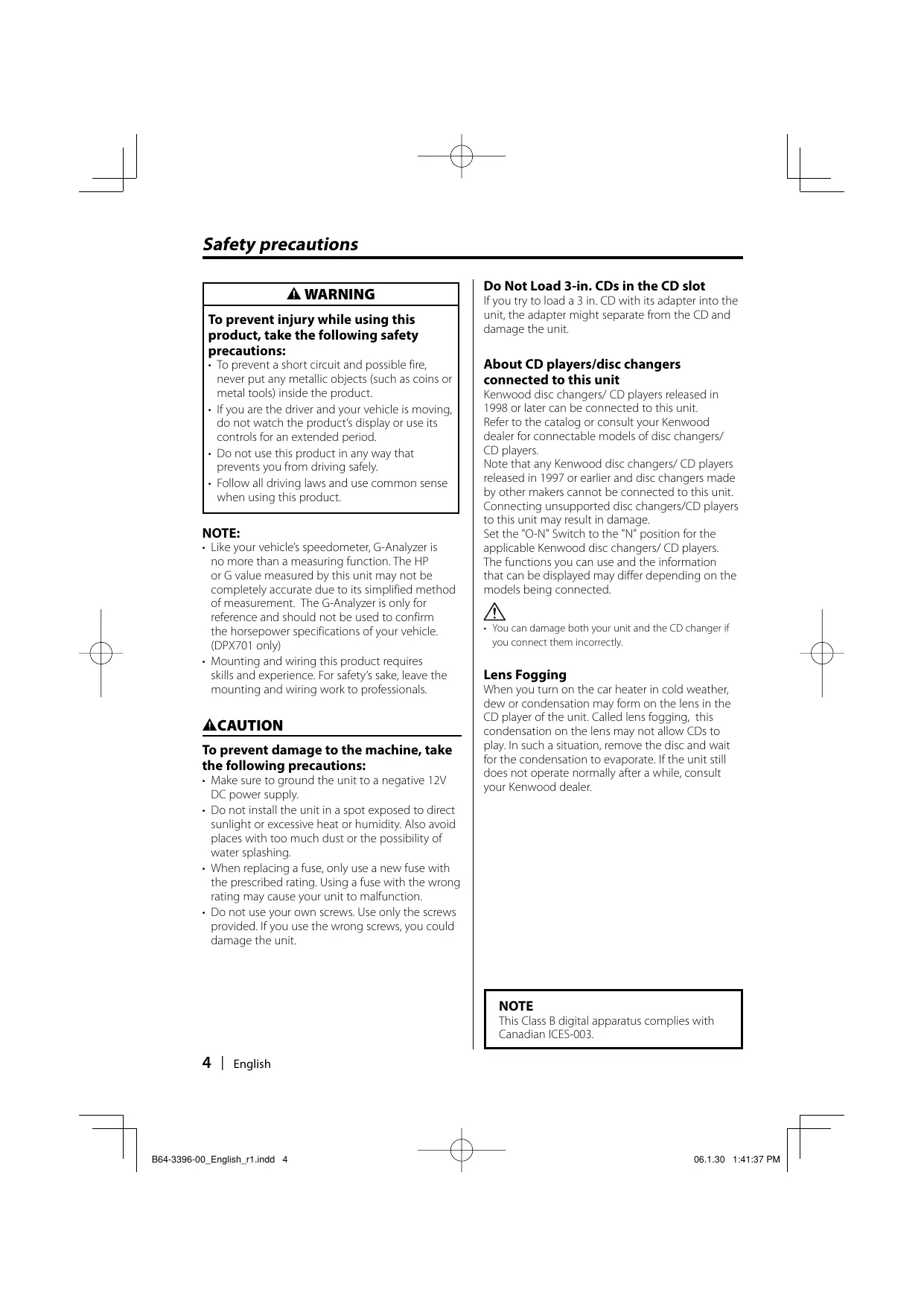

I B64-3396-00_English_rtindd 4 Safety precautions À WARNING To prevent injury while using this product, take the following safety precautions: + To prevent a short circuit and possible fire, never put any metallic objects (such as coins or metal tools) inside the product. + Ifyou are the driver and your vehicle is moving, do not watch the product display or use its controls for an extended period. + Do not use this product in any way that prevents you from driving safely. + Follow all driving laws and use common sense when using this product. NOTE: - Like your vehicles speedometer, G-Analyzer is no more than à measuring function, The HP or G value measured by this unit may not be completely accurate due to its simplified method of measurement. The G-Analyzer is only for reference and should not be used to confirm the horsepower specifications of your vehicle. {DPX701 only) + Mounting and wiring this product requires skills and experience. For safety's sake, leave the mounting and wiring work to professionals. ACAUTION To prevent damage to the machine, take the following precautions: + Make sure to ground the unit to a negative 12V DC power supply. + Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing + When replacing a fuse, only use à new fuse with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction. + Do not use your own screws. Use only the screws provided. If you use the Wrong screws, you could damage the unit 4 | English Do Not Load 3-in. CDs in the CD slot If you try to load à 3 in. CD with its adapter into the unit, the adapter might separate from the CD and damage the unit. About CD players/disc changers connected to this unit Kenwood disc changers/ CD players released in 1998 or later can be connected to this unit. Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players. Note that any Kenwood disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit Connecting unsupported disc changers/CD players to this unit may result in damage. Set the "O-N" Switch to the "N' position for the applicable Kenwood disc changers/ CD players. The functions you can use and the information that can be displayed may differ depending on the models being connected!

+ You can damage both your unit and the CD changer if You connect them incorrect. Lens Fogging When you tu on the car heater in cold weather, dew or condensation may form on the lens in the CD player of the unit. Called lens fogging, this condensation on the lens may not allow CDs to play. In such a situation, remove the disc and wait for the condensation to evaporate. IFthe unit still does not operate normally after a while, consult your Kenwood dealer. NOTE This Class B digital apparatus complies with Canadian ICES-003.

Notes I B64-3396-00_English_rtindd 5 + No USB device comes with this unit. You need to purchase à commerciallÿ available USB device. For the types of available USB devices, refer to <About USB device> (page 10) + Ifyou experience problems during installation, consult your Kenwood dealer. + When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area + We recommend the use of <Activating Security Code> (page 37) to prevent theft. + The characters conforming to ISO 8859-1 character set can be displayed. (DPX701 only) + The characters which can be displayed by this unit are A-Z 0-9@"'"%&*+-=,./\<>[]():; A-{}|-.(DPX501 only) + The RDS feature won't work where the service is not supported by any broadcasting station. + There are places in this manual where lit indicators are described; however, the only time an indicator will light is in the following settings. When Indicator is selected as mentioned in <Text Display Switching> (page 19). (DPX701 only) + The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may be inapplicable. How to reset your unit + IFthe unit fails to operate properly press the Reset button, The unit returns to factory settings when the Reset button is pressed + Remove the USB device before pressing the Reset button. Pressing the Reset button with the USB device installed can damage the date contained in the USB device. For how to remove the USB device, refer to <Playing USB device> (page 28) + Press the Reset button if the disc auto changer fails to operate correctly. Normal operation should be restored Reset button Before using this unit for the first time This unit is initially set on the Demonstration mode When using this unit for the first time, cancel the <Demonstration mode Setting> (page 48). About SIRIUS Satellite radio tuner Refer to the instruction manual of SIRIUS Satellite radio tuner KTC-SR901/SR902/SR903 (optional accessory) when connected, for the operation method + Refer to the sections of À models for operations. {DPX701 : without <Category and Channel Search> function) Ha EMSCRL In SIRIUS tuner source Category and Channel Search Selecting the channel and category you want to receive. 1 Enter Category and Channel Search mode Press the Control knob. 2 Select the Category Push the Control knob towards [FM] or [AM]. + Itisthe item when the category of Middle text display part is selected. 3 Select the Channel Push the Control knob towards [#4] or Dep]. + You cannot Channel search until the category information is acquired. Cancelling Category and Channel Search mode Press the Control knob. English | 5 a 06.130 1:41:37 PM

Notes About DAB Tuner control Refer to [A] group on the Instruction manual of DAB Tuner KTC-9090DAB (optional accessory) for the control method of DAB Tuner function. However, the following control methods of the function for this unit may be differed from the Instruction manual; therefore, refer to the following supplemental instruction <Auto Ensemble Memory Entry>

1. Select the preset band for Auto Ensemble

2. Press the [AME] button for at least 2 seconds.

Open Auto Ensemble Memory Entry. After storing in the memory finishes, the number of the pre-set buttons and the ensemble label are displayed <Searching by programme type and language> and <Languages to be displayed> in <Programme Type (PTY) Function> Atthe operation to press [DISP] button, use [AUTO] button instead About "Media Manager" of PC application attached to DPX701/DPX501 + "Media Manager is recorded in the CD-ROM attached to this unit. + Refer to the attached installation manual for the installation method of "Media Manager + Refer to the users manual recorded in the installation CD-ROM and Help of "Media Manager” for the operation method of "Media Manager + The unit can play CD/ USB device (hereafter called "ACDrive media’) created by "Media Manager + Refer to the following site for the updated information of "Media Manager” http/Amvwkenwood.mediamanagerjp + Contact Kenwood for the function and operation ofthe “Media Manager” + ‘Media Manager" is a product of PhatNoise. Cleaning the Unit IFthe faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth IFthe faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

+ Apphing spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with à hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase characters. 6 | English I B64-3396-00_English_rtindd 6 ACAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. Kenwood Corporation 2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI TOKYO, JAPAN

[KENWOOD CORP CERTIFIES THIS EQUIPMENT

CONFORMS TO DHHS REGULATIONS NO.21 CFR

1040. 10, CHAPTER 1, SUBCHAPTER J

Location : Bottom Panel FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. + Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receive. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, + Consuit the dealer or an experienced radio/TV. technician for help.

I B64-3396-00_English_rtindd 7 About CDs Handling CDs + Do not touch the recording surface of the CD. + CD-R and CD-RW are easier to damage than a normal music CD. Use à CD-R or a CD-RW after reading the caution items on the package etc. + Do not stick tape etc. on the CD, or use a CD with tape stuck on it When using a new CD Ifthe CD center hole or outside rim has burrs, use the CD only after removing the burrs with à ballpaint pen etc. Es.) CD accessories Do not use disc type accessories. CD cleaning Clean from the center of the disc and move outward. e—_ ss — Removing CDs When removing CDs from this unit, pull them out horizontally. CDs that cannot be used + CDs that are not round cannot be used + CDs with coloring on the recording surface or CDs that are dirty cannot be used + This unit can only play the CDs with disque

This unit may not correctiy play discs which do not have the mark. + You cannot play a CD-R or CD-RW that has not been finalizedl. (For the finalization process refer to your CD-R/CD-RW writing software, and your CD- R/CD-RW recorder instruction manual) CD storage + Do not place CDs in direct sunlight (On the seat or dashboard etc.) or where the temperature is high. + Store CDs in their cases. English | 7

I B64-3396-00_English_rtindd 8 —6— About AAC, MP3 and WMA The playable AAC/MP3/WMA file (hereafter called Audio file) and the media format has the following limitation. The Audio file, which is not conforming to the specification, may not play normally, or the flle and folder names may not display correctly. Playable Audio file

+ Attach the correct extension for the Audio file (AAC: “MAX, MP3:"MP3, WMA: MMA) + Do not attach the extensions ta files other than the Audio file. Fthe extension is attached, the file, which is not the Audio file, il play and outputs a loud noise, causing damage ta the speaker The files with copy protection cannot be played Audio files cannot be played depending on the encoding software setting, USB device type, and/or recording conditions. + The unit may not be compatible with upgrade of compression format standard and additional specifications, For detail on the formats used for USB devices and restrictions, refer to http//www.kenwood. mediamanager.jp/. Playable AAC file + m4a' file encoded by AAC-LC format Refer to http/wwwkenwood.mediamanagerjp for the details. Playable MP3 file + MPEG 1/2 Audio Layer 3 file + Transfer bit rate: 8-320 kbps + Sampling frequency: 16, 22.05, 24, 32, 44.1, 48 kHz Playable WMA file + The file in accordance with Windows Media Audio {Except for the file for Windows Media Player 9 or after which applies the new functions) + Transfer bit rate: 48-192 kbps + Sampling frequency: 32, 44.1, 48 kHz Playable Storage media

+ CD-ROM, CD-R, CD-RW

+ USB device + CD-RW discs which are quick formatted by the writing software cannot be used + When recording to the maximum CD-R/RW media capacity at once, the writing software is set to "Disc at once’ - For details on the available USB devices, refer to <About USB device> (page 10) 8 | English Playable CD-R/RW format + ISO 9660 Level 1/2 + Joliet + Romeo + Long file name Playable file format of USB device + For the formats supported by USB devices, refer to http://www.kenwood.mediamanager.jp/. The maximum number of characters for play (CD-R/RW) File/Folder name: 128 characters MP3 1D3 Tag/ WMA Contents property: 30 characters AAC song information: 60 characters - File/Folder name is the number of the characters including the extensions. - This unit can display the fallowing versions of MP3 ID3 tag: version 1.0/ 1.1/2.2/ 23 + AAC ID3 Tag cannot be displayed Limitation of structure for the file and the folder (CD-R/RW) + Maximum number of directory levels: 8 + Maximum number of folders: 100 + Maximum number of files per folder: 4096 About partition of the USB device + While using the USB device, virtual folders are created to control the partition in the USB device. These folders appear in the first level (root) directory as #'."#" is an alphabet to identify each partition. + Even when the USB device does not have partition, "A" folder is created, and audio files are controlled inside this folder.

Playing order of the Audio file + The Audio file plays in the order which is written by CD writing software. You may be able to set the playing order by writing the play sequence numbers such as "01" to "99" at the beginning of the file name + Audio files are played in the order the files are written. You can specify the order of playback by numbering files in a folder and writing them by folder. (USB device) Example co) (Folder Jo D: Audio file + Playing order Playing order after D® play. LORIE) OP 0) ra) + File search Forward file search during PQ play. Push the Control knob towards [Bi] = D® + Folder search Forward folder search during J@ play. Push the Control knob towards [FMI] = (7, @].

• File select When the selection is set to file D®. Push the Control knob towards [m1] )0.®.,© + Folder select 1 When the selection is set to directory (J, and you want to skip to the folder 2] at the same level. Push the Control knob towards [4] = (] When the selection is set to directory @], moves the level up by folder select. Push the Control knob towards [AM] = (] + Folder select 2 When the selection is set to directory (, and you want to skip to the folder CT. Push the Control knob towards IB-æ1] = (, C1

I B64-3396-00_English_rtindd 9 English | 9

About USB device Notes on Use of the USB Device This unit can play audio files stored in the flash memory and digital audio player that have a USB port (these devices are referred to as USB devices in this document). The following restrictions are placed on the types and usage of available USB devices: + Install the USB device in the place where it will not prevent you from driving your vehicle properiy. + Do not leave the USB device in the vehicle for a long time. It can deform or damage due to direct sunlight, high temperature, etc. + Take backups of the audio files used with this unit. The files can be erased depending on the operating Available USB Devices conditions of the USB device. + USB devices belonging to the USB mass storage We shall have no compensation for any damage arising class. out of erasure of the stored data. + USB devices whose maximum current + Leave the cap on when not using an USB device. consumption is 500 mA or less. For the supported formats and USB device types, | About USB Device Operation refer to http//wwwkenwood.mediamanager;p/. |. US device operation is the same as audio file operation unless otherwise some notice is indicated + USB source is recognized as CD source on the connected unit. USB Mass Storage Class: USB devices that the PC can recognize as an external storage without using any special driver or application software. Contact the sales agent as to whether your USB device conforms to the USB mass storage class specs. Using an unsupported USB device can result in abnormal playback or display of the audio file. Even if you use the USB device conforming to the above specs, audio files cannot be played normally depending on the type or condition of the USB device. About the Connection of the USB De + Do not directly connect the USB device to the USB connector on the panel. Connect it using a cable + When connecting the USB drive, usage of the supplied USB cable is recommended. Normal playback is not guaranteed when a cable other than the USB compatible cable is used Connecting a cable whose total length is longer than 5 m can result in abnormal playback + You cannot connect a USB device via a USB hub. 10 | English I B64-3396-00_English_rtindd 10 06.130 1:41:41 PM

General features Dis Control knob arr DPX701 Power DPX501 AT indicator LOUD indicator Volume Turning ON the Power Press the [SRC] button. Turning OFF the Power Press the [SRC] button for at least 1 second. Selecting the Source Increasing Volume Turn the [VOL] knob clockwise. Decreasing Volume Turn the [VOL] knob counterclockwise. Attenuator Press the [SRC] button. Source required SIRIUS tuner (Optional accessory) uner or HD Raci (Optonal accessor)} or "HD Rad HD RADIO” USE device USB o Compact Die 7" External disc (Optionl accessory) CD Changer? "CD CH Auxiay input AUX Auxiary input (Optionl accessory) “AUX EXT" Srndhy (Iluminaton only mode) STANDBY B64-3396-00_English_rt.indd 11 Tuning the volume down quickly. Press the [ATT] button. Each time you press the button, the Attenuator turns ON and OFF. When the Attenuator is ON, "ATT' is displayed. English | 11

B64-3396-00_English_rtindd 12 General features System Q Subwoofer level" "Sub-W Level"f —15 —+15 Selecting the best sound setting preset for ET = different types of music. Middle level —+3 1 Select the source to set Press the [SRC] button. reble leve eble Level} 8 — +8 2 Select the Sound type Balance BAL" Left 15 — Right 15 Press the [Q] button. fader Rear 15 — Front 15 When you press the button once, the current sound setting is displayed! Each time you press the button, the sound setting alternates. Soundsetting User memory Rock Pons Esy op 40 ke JA Natural NATURAL" + User memory: The values set on the <Audio Control> (page 12). + Change each setting value with the <Speaker Setting> (page 14) First, select the speaker type with the Speaker setting Audio Control 1 Select the source to adjust Press the [SRC] button. 2 Enter Audio Control mode Press the [VOL] knob. 3 Select the Basic Audio item to adjust Press the [VOL] knob. Each time you press the knob, the item to be adjusted alternates between the items shown in the table below 4 Adjust the Basic Audio item Turn the [VOL] knob. Adjustmentitem Display Range Rear Volume * RearVolume"/ 0 — 35 R-VOL" 12 | English ii Audio Control mode ( control mode) You can control this item when "2 ZOI <Audio Setup> (page 13) is set to "ON You can control this item when <Switching preout> {page 39) is set to "SWPRE SW" (DPXSOI only) ? You can control this item when <Subwoofer Output> (page 14) is You can control this item when "2 ZOI <Audio Setup> (page 13) is set to "OFF You can adjust these items in detail. Refer to <Adjusting the detail of Audio Control>(Page12). {Function of the DPX701) Source tone memory: Puts the set up value in the memory per source. (Detail Audhio item is included) 5 Exit Audio Control mode Press any button. Press a button other than the [VOL] knob and [ATT] button. Function of the DPX701 Adjusting the detail of Audio Control Among the Basic Audio items, you can adjust the Bass level, Middle level, and Treble level in detail 1 Select the Basic Audio item Select the desired item to be set in detail from followings; + Bass level + Middle level - Treble level For how to select Basic Audio items, see <Audio Control> (page 12). 2 Enter Detail adjustment mode of Audio Control Press the [VOL] knob for at least 1 second.

3 Select the Detail Audio item to adjust 4 Setup the Audio item Press the [VOL] knob. Turn the [VOL] knob. Eh se ou prssihe inob tte È be een M acjusted alternates between the items shown in Front High Pass Filter "HPE-F Fc'} — Through/40/60/80/100/120/ the table below. MHPE" 150/180/220 Hz 4 Adjust the Detail Audio item Bear High Pas Flter® HPER EC Through/40/60/80/100/120/ Turn the [VOL] knob. 150/180/220 Hz LowPass Fer 30/60/80/100/1207 Bass level > _ Throuoh Hz Adjustmentitem Display Range Subwoofer Phase“ Reverse (180%)/ Normal (0°) Bass Center Frequency "ass FAQ" 40/50/60/70/80/1 FAT? _ 120/150 Hz Nolume offset er) Bass Q Factor Bass Qfactor_1.00/1.25/1.50/200 — Bass tend Bass EXT" OFFON Loudress OFFION DualZone Sem "ZONE prop Middle level “7 Adjustment item Display Range Middle FRQ"_0.5/1.0/1.5/2.0 kHz Middle Center Frequend + Volume offset: Sets each sources volume as a + Loudness: Compensates for low and high tones Treble level during low volume. = = “You can control this item when <Switching preout> Adjustmentitem Display Range (page 39) is set to "SWPRE SW (DPXS01 only) Teble Center Frequency _‘Ieble FR" 10.0/12.5/15 017.5 kHz “You can control this item when <SubwoOfer Output> (page 14) is set to "SW ON' 5 Exit the Detail Audio Control mode + * You can control this item when "2 ZONE'/ *2ZON' of Press the [VOL] knob for at least 1 second. <Audio Setup> (page 13) is set to "OFF" + * You can control this item when Low Pass Filter is not set to Through. Dual Zone System Main source and sub source (Auxiliary input) autput Front channel and Rear channel separately. Set up the channel of sub source by <Dual Zone System Setting> (page 42). Select Main source by [SRC] button. Adjust the volume of Front channel by [VOL] knob. Adjust the volume of Rear channel by <Audio Audio Setup Controi> (page 12). The Audio Control has no effect on sub source. You can use the Dual Zone System with the internal + When you set the Bass Extend to ON, low frequency response is extended by 20%. + You can exit the Audio Control mode at anytime by pressing any button except for [VOL] and [ATTI buttons. Setting the Sound system, such as Cross over Network. auliary input 1 Select the source to adjust 5 Exit Audio Setup mode Press the [SRC] button. Press the [VOL] knob for at least 1 second. 2 Enter Audio Setup mode Press the [VOL] knob for at least 1 second. 3 Select the Audio Setup item to adjust Press the [VOL] knob. Each time you press the knob, the item to be adjusted alternates between the items shown in the table below. English | 13 B64-3396-00_English_rtindd 13 a 06.130 1:41:42PM

General features Speaker Setting TEL Mute Fine-tuning so that the System Q value is optimal when setting the speaker type. 1 Enter Standby Press the [SRC] button. Select the "STANDBY" display. 2 Enter Speaker Setting mode Press the [VOL] knob. "SP SEL'/"SP" is displayed 3 Select the Speaker type Turn the [VOL] knob. Each time you turn the knob, the setting alternates between the settings shown in the table below. Speakertype Display OFF l'OFF'/"SP OFF For5 &4 in. speaker inch" "SP 5/4" For 6 & 6 in. speaker Gug/6 inch} "SP 69/6 Forthe OEM speaker OEM'Z'SP OEM" 4 Exit Speaker Setting mode ra) Press the [VOL] knob. Subwoofer Output Turning the Subwoofer output ON or OFF. Push the Control knob toward [AM] for at least 2 seconds. Each time you push the knob, Subwoofer output switches ON and OFF When it is ON, "SW ON" is displayed! fou can control this function when <S preout> (page 39) is set ta "SWPRE only) + You can control this function when "2 ZOI <Audio Setup> (page 13) is set to" itching (DPXS01

14 | English B64-3396-00_English_rtindd 14 a The audio system automatically mutes when à call comes in. When a call comes in "CALL'is displayed. The audio system pauses. Listening to the audio during a call Press the [SRC] button. The "CALL' display disappears and the audio system comes back ON When the call ends Hang up the phone. The "CALL' display disappears and the audio system comes back ON. + To use the TEL Mute feature, you need to hook up the MUTE wire to your telephone using a commercial telephone accessory. Refer to <Connecting Wires to Terminals> (page 54). Function of the DPX501 Switching Display Changing the information displayed. Press the [DISP] button. Each time the button is pressed, the display switches as shown below. In Tuner source information Display Program Service name or Frequency "FREQ/PS (EN) Radio text Program Service name or "R-TEXT" Frequency (FM) Frequency AN] TRET Clock “Lock” In CD & External disc source Information Dis itle rack title rack number & Play time Clock “'CLOcK”"

B64-3396-00_English_rtindd 16 General features Function of the DPX701 Display Type Selection Changing the display mode. Press the [DISP] button. Each time you press the button, the display mode alternates between the display modes shown in the table below. Display Mode Display Dspayhpea 1 Dépayipes Display pe C DéplaypeD DeplayipeE @ Graphic display part ® Text display part Text icon display part Upper text display part ® Middle text display part lower text display part Source icon display part ® G-Analyzer display part + The indicator is displayed when the display type is set to Display Type Cor Display Type D + To change the information by the Display Type, refer to the page on the following table for the methods to altemate by the Display Type. Display Ti A 8 € DE 16 16 — — — —E — — — — x — — — x — — _— 2 — 16 | English GAnalyzer © = = = — 3 Switching between graphic display part and text display part when in Display Type B mode. Press the [DISP] button. Function of the DPX701 Display Type A/ Display Type B Graphic part Display Switching Changing the graphic Display. 1 Select the display Type Press the [DISP] button. Select the Display Type A/ Display Type B 2 Enter graphic display select mode Display Type À : Press the [DISP] button for at least 1 second. Display Type B : After pressing the [DISP] button for more than 1 second to text selection mode. Press the [DISP] button again. 3 Select the graphic part display Push the Control knob towards [4-4] or Dei]. Each time you push the knob, the graphic display alternates between the displays shown in the table below. Graphic display Movie 1 Movie 2 Wallpaper 4 Exit graphic display select mode Press the [DISP] button. + The setting ofthis function is available w is Type A/ Display Type B is selected for the Display mode

Function of the DPX701 Display Type A/ Display Type B Wallpaper selecting Selecting a wallpaper to display when Display Type is set to Display Type A/ Display Type B. 1 Select the wallpaper display Refer to <Graphic part Display Switching> (page 16) 2 Select the wallpaper Display the wallpapers one after another Press the Control knob. Each time you press the button, the Wallpaper scan is turned ON and OFF. When scan is ON, "SCAN" is displayed. When scan is ON, each wallpaper is displayed every several seconds. Select wallpaper manually 1 Turn the wallpaper scan OFF. Press the Control knob. Each time you press the button, the Wallpaper scan is turned ON and OFF. Fan 2 Select the wallpaper. Push the Control knob towards [FM] or [AM]. Each time you push the knob, the Wallpaper changes.

B64-3396-00_English_rtindd 18 General features Function of the DPX701 In HD Radio source Display Type B ee Tnt ï rm isplay Text Selection for Display Station name “Station Name” Selecting the text display. itle “Tie"* Frequency Frequen 1 Select the display Type Glock lock” Press the [DISP] button. Dee Date” Select the Display Type B 2 Enter text select mode In Standby/ Auxiliary input source Press the [DISP] button for at least 1 second. Information Display 3 Select the text Source name source Name Push the Control knob towards [4-4] or dx “Code” Bol Date Date In Tuner source In SIRIUS tuner source information Display information Display Station name or Program Service name __"SNPS"* Channel Name Channel Name" Bad tnt or Program Service name (EM) "Radio Text" Song ite Frequency Frequency" Artist Name Go Code” Composer name Date Date Gregory Name “CGtegary Name” Label Name “Label Name” In CD & External disc source Comment Comment" rar Band & Channel Number “Channel Number Discile Gok rade Date Date” fack number & Play time Discname 4 Exit text select mode Gt Press the [DISP] button for at least 1 second. Date In Audio file source information Display Song title & Artist name “'Title/Artist"* Album name & Artist name 'Album/Artist"* Folder name Folder Name Filename Play time & File number Clock Date 18 | English + * Ifthe contents ofthe information cannot be displayed, Play time or Frequency is displayed + Ifthe contents ofthe information for the SIRIUS tuner source cannot be displayed, channel number is displayed + When LAMP is connected, the item setup by the Display mode of LX-AMP is displayed + Track number at Audio file displays the last 3 digits when the track number exceeds 1000 songs.

Function of the DPX701 Display Type C/ Display Type D Text Display Switc Changing the text display. 1 Select the display Type Press the [DISP] button. Select the Display Type C/Display Type D. 2 Enter text select mode Press the [DISP] button for at least 1 second. 3 Select the text display part Push the Control knob towards [FM] or [AM]. The cursor (mb) moves to the selected text display part. Select the text Push the Control knob towards [+44] or Dei. Refer to the table described later for setting items 4 Exit text select mode Press the [DISP] button.

+ Same information cannot be displayed in Upper text display part, Middle text display part and Lower text display part. However, the blank display is able to have multiple selections. Track number at Audio file displays the last 3 digits when the track number exceeds 1000 songs. Hthe contents of the information for the SIRIUS tuner source cannot be displayed, channel number is displayed + When LX-AMP is connected, the item setup by the Display mode of LX-AMP is displayed.

Force Sensor display G- Graphic display G-Meter display ACCELERATION CORNERING GMeter spa HHOKKE SKHAG (Tex) MAX +4 XXG MAREkOKXG Fan <G-Counter display LLLLE. + G-Graphic display Displays the condition of G in horizontal direction eg: when tuming the curve) by the graphic. G-Meter display (Graphic) Displays the maximum value of acceleration G, right direction G, and left direction G by the numerical value G-Meter display (Text) The maximum value of acceleration G, right direction G,and left direction G is displayed by the numerical value. The value of G is only the reference, so is different from the actual value + G-Counter display Adds the point of the acceleration level The point is determined after a lapse of 1 hr drive or at power off {ACC Off), and then it will be displayed by the graph. Furthermore, the G-Counter displays the average ofthe past data by the line. (The scale of graph is determined along with the largest paint among the past 10 data) The value of G-Meter display and G-Counter display can be reset by <G-Analyzer Reset> (page 40) 4 Exit G-Analyzer display select mode Press the [DISP] button. English | 23

Preset station Band display number Frequency display Band display Frequency display à ù DPX701 DPX501 STindicator STindicator Preset station number € ren ) K Tuning Tuning Mode Selecting the station. 1 Select tuner source Press the [SRC] button. Select the "TUNER" display. 2 Select the band Push the Control knob towards [FM] or [AM]. Each time you push the knob toward [FM], it switches between the FMI, FM2, and FM3 bands. 3 Tune up or down band Push the Control knob towards [4-4] or Di]. + During reception of stereo stations the " is ON. “'indicator 24 | English B64-3396-00_English_rtindd 24 Choose the tuning mode. Press the [AUTO] button. Each time you press the button, the Tuning mode alternates between the modes shown in the table below Tuningmode Display Operation Auto seek Seek Made Automatic search for a station Autol"/ AUTO" Preset station seek "Seek Made Search in order ofthe stations Auto2"/ in the Preset memory. 'AUTO2" Manual Seek Made Normal manual tuning control Manual"/ “'MANUAL"

Function of remote control Direct Access Tuning Entering the frequency and tuning. 1 Select the band Press the [FM] or [AM] button. 2 Enter Direct Access Tuning mode Press the [DIRECT] button on the remote control. "is displayed! 3 Enter the frequency Press the number buttons on the remote control. Example: Desired frequency Press button

92.1 MHz (FM [0], (91, (21, (1

810 KHz (AM) I), (81, 1], (0) Cancelling Direct Access Tuning Press the [DIRECT] button on the remote control. Station Preset Memory Putting a station in the memory. 1 Select the band Push the Control knob towards [FM] or [AM]. 2 Select the frequency to put in the memory Push the Control knob towards [+44] or Dei]. 3 Put the frequency in the memory Press the desired [1] — [6] button for at least 2 seconds. The preset number display blinks 1 time. On each band, 1 station can be put in the memory on each [1] — [6] button. Auto Memory Entry Putting stations with good reception in the memory automatically. 1 Select the band for Auto Memory Entry Push the Control knob towards [FM] or [AM]. 2 Open Auto Memory Entry Press the [AME] button for at least 2 seconds. When 6 stations that can be received are put in the memory, Auto Memory Entry closes. Preset Tuning Recalling the stations in the memory. 1 Select the band Push the Control knob towards [FM] or [AM]. 2 Recall the station Press the desired [1] — [6] button. English | 25 B64-3396-00_English_rtindd 25 Ve 06.130 1:41:48 PM

Radio Text Scroll RDS indicator Scrolling the displayed radio text. Push the Control knob toward [FM] for at least 2 seconds. + When the <Display Îlumination Control> (page 39) is set to OFF, the display may black out while scrallingl PTY (Program Type) Selecting the Program Type and searching for a station. 1 Enter PTY mode Press the Control knob. "PTY Select" is displayed{DPX701 only) During PTY mode the “PTY" indicator is ON. {DPX501 only) + The PTY function cannot be used during a traffic bulletin or AM reception. 26 | English I B64-3396-00_English_rtindd 26 indicator PTY indicator 2 Select the Program Type Push the Control knob towards [FM] or [AM]. DPX501 Display Display No. _ProgamDre (pprron) (PKSO1) 1 Speech “AI Speech" 'SPEECH" 2 Music AI Musi “MUSIC 3 News “News” "NEWS

4. Information Information" 'INEORM"

5. Sports Sports" SPORTS"

6. Talk “Talk” TALK"

22. Relgioustalk Reliious ll

+ Speech and Music include the Program type belowr Music: No7 — 19,21 Speech: No3 — 6, 20, 22 — 26 + The Program Type can be put in the [1] — [6] button memory and recalled quickly. Refer ta the <Program Type preset> (page 27)

Search for the selected Program Type station Push the Control knob towards [+44] or De>i]. When you want to search for other stations, push toward [H@-@] or [BB] of the Control knob again. + When selected Program Type is not found, "NO PTY" is displayed. Select another Program Type. 4 Exit PTY mode Press the Control knob. Registration of a station as a PTY Registering a Program Type for stations with no PTY data. 1 Receive the station you want to register 2 Select the Program Type to register Refer to <PTY (Program Type)> (page 26) 3 Register the Program Type Press the [AUTO] button for at least 2 seconds. Confirming the Program Type Press the [AUTO] button. The Program Type is displayed for 5 seconds 4 Exit PTY mode Press the Control knob. Program Type preset Putting the Program Type in the Preset button memory and quick recall. Presetting the Program Type 1 Select the Program Type to preset Refer to <PTY (Program Type)> (page 26) 2 Preset the Program Type Press the desired [1] — [6] button for at least 2 seconds. Recalling the preset Program Type 1 Enter PTY mode Refer to <PTY (Program Type)> (page 26) 2 Recall the Program Type Press the desired [1] — [6] button. English | 27

—6— CD/USB device/Audio file/External disc control features Control knob

Playing CD & Au DPX501 Playmode Discnumber Playing USB device When a disc is inserted Press the [SRC] button. Select the "Compact Disc'/ "CD" display. + When a CD is inserted, the “IN' indicator is ON Pause and play Press the Control knob. Each time you press the knob, the audio pauses or plays. Eject the CD Press the [A] button. + You can cancel the announcement when selecting the folder by <Voice Index> (page 46) during the play ofthe ACDrive media. 28 | English B64-3396-00_English_rtindd 28 Playing USB device 1 Select a source other than the USB device. 2 Select USB source Press the [SRC] button. Select the "USB" display. + Forthe types of available USB devices and how to connect USB devices, refer to <About USB device> (page 10) + After you stopped playing a file contained in the USB device, you can restart playing the file from the point where you stopped its playback Even after removing the USB device, you can restart playing the file from the paint where you stopped its playback as long as the files contained in the USB device are all the same. + Be sure to insert the USB device connector as far as it will go: + You can play the disc (ACDrive media) made by Media Manager by the same operation. + You can cancel the announcement when selecting the folder by <Voice Index> (page 46) during the play ofthe ACDrive media

Pause and play Press the Control knob. Each time you press the knob, the audio pauses or plays Removing the USB Device 1 Select a source other than the USB device Press the [SRC] button. 2 Remove the USB device. + Removing the USB device with it selected as a source can damage the data stored in the USB device. + You can remove the USB device safely with the unit power tumed off. Playing External Disc Playing discs set in the optional accessory disc player connected to this unit. a Press the [SRC] button. Select the display for the disc player you want. Display examples:

Discplayer CD changer MD changer Pause and play Press the Control knob. Each time you press the knob, the audio pauses or plays + Disc 10 is displayed as "0" (DPX501 only) + The functions that can be used and the information that can be displayed will differ depending on the external disc players being connected. B64-3396-00_English_rtindd 29 Fast Forwarding and Reversing Fast Forwarding Hold down toward [#1] with the Control knob. Release to resume the playback Reversing Hold down toward [+4] with the Control knob. Release to resume the playback + There is no sound while the Audio file is being searched. You cannot fast Forwarding and Reversing depending on AAC file format. Track/File Search Searching for a song on the disc or in the Audio file folder. Push the Control knob towards [+44] or Dei. Function of disc changer/ Audio file Disc Search/Folder Search Selecting the disc set in the Disc changer or the folder recorded on the Audio file media. Push the Control knob towards [FM] or [AM]. English | 29

CD/USB device/Audio file/External disc control features Function of remote control Direct Track/File Search In Audio file source Repeat play Display Doing Track/File Search by entering the track/file number. 1 Enter the track/file number Press the number buttons on the remote control. jou can select Direct File Search up to 999 2 Do Track/File Search Press the [-4-«] or [>] button. Cancelling Direct Track/File Search Press the [»-11] button. Function of disc changers with remote control Direct Disc Search Doing Disc Search by entering the disc number. 1 Enter the disc number Press the number buttons on the remote control. 2 Do Disc Search Press the [+] or [-] button. Cancelling Direct Disc Search Press the [b-11] button. + Input "0" to select disc 10. Track/File/Disc/Folder Repeat Replaying the song, disc in the Disc changer or Audio file folder you are listening to. Press the [REP] button. Each time you press the button, the Repeat Play alternates between the modes shown in the tables below In CD & External disc source Repest play rack Repeat Disc Repea {In Disc Changer)

Scan Play Playing the first part of each song on the disc or Audio file folder you are listening to and searching for the song you want to hear. 1 Start Scan Play Press the [SCAN] button. "Scan ON'/ "Track Scan ON'/ “File Scan ON°/ "SCAN ON°/ "TRAC SCN'/ "FILE SCN" is displayed 2 Release it when the song you want to listen tois played Press the [SCAN] button. Random Play Playing all the songs on the disc in random order. Press the [RDM] button. Each time you press the button, Random Play turns ON or OFF. When the Random mode is ON, "Random ON'/ "Disc Random ON"/ "Folder RDM ON"/ "DISC RDM' OLD RDM' is displayed + When you push the Control knob tow next random song starts. rd >, the Function of disc changer Magazine Random Play Play the songs on all the discs in the disc changer in random order. Press the [M.RDM] button. Each time you press the button, the Magazine Random Play turns ON or OFF. When the Magazine Random mode is ON, "Magazine RDM ON”/ "MGZN RDM' is displayed.

+ * You cannot operate this function when <Switching the Play mode> (page 33) is set to other than + When you push the Contral knob toward [æ], the ‘Folder Mode"/"FOLDER" while playing ACDrive next random song starts media 2 Select the file/ folder Refer to the explanation of the procedure performed in each select mode. Function of Audio file Scrolling the file/ folder name display AIT Random Play Push the Control knob toward [FM] for at Playing randomly from all of the Audio files least 2 seconds. recorded in the media, Press the [A.RDM] button for at least 1 + You can cancel the announcement when selecting second. the folder by <Voice Index> (page 46) during the play. When the random mode is ON, "All Random ON°/ ofthe ACDrive media “ALL RDM' is displayed + In the File Select mode, the <Vaice Index> (page 46) announcement is not made. Cancelling the AI Random Play Press the [A.RDM] button. + When you push the Control knob toward [> the next random song starts Function of Audio file Select mode Quickly selecting the file or folder you want to hear. 1 Select the Select mode Press the [F.SEL] button. Display. Select mode "'AILE SELECT'/ Refer to <ile Select mode> (page 32). *ALESEL'* FOLDER SELECTI"/ Refer to <Folder Select 1 mode> (page 32). FOLDER SELECT"/ ELD SELT"/ 'ELD SEL" "FOLDER SELECT2"/ Refer to <Folder Select 2 mode> (page 33). ED SEL)" * Brit the Select mode + The Select mode does not function when <AÏ Random Play> (page 31) is ON. + *! You cannot operate this function when <Random Play> (page 30) is set to "ON" English | 31 B64-3396-00_English_rt.indd 31 a 06.180 1:41:51 PM

—6— CD/USB device/Audio file/External disc control features Function of Audio file File Select mode Function of Audio file Folder Select 1 mode You can select an audio file in the folder currently being played by file name. 1 Enter File Select mode Press the [F.SEL] button. Select the "FILE SELECT'/"FILE SEL" Refer to <Select mode> (page 31) File name display Displays the current file name: MUSic File number display Indicates the number of file being currently selected. File name display

2 Select the file Push the Control knob towards [4-4] or Di]. Switching between files in units of 10 songs Push the Control knob towards [FM] or [AMI]. With the [FM] button, you move 10 songs up and with the [AM] button, 10 songs down: fou can select File Select made up ta 999. 3 Decide the file to play Press the Control knob. The File Select mode releases, and the Audio file being displayed plays. 32 | English I B64-3396-00_English_rtindd 32 Select the target folder by tracing the hierarchical levels of folders. This is convenient when managing audio files by folder. 1 Enter Folder Select 1 mode Press the [F.SEL] button. Select the "FOLDER SELECT I"/ "FLD SEL1/ "FOLDER SELECT'/ "FLD SEL' display. Refer to <Select mode> (page 31) Folder name display Displays the current folder name. Folder number display Displays the number in the folder belonging to the currently selected folder. Folder name display 2 Select the folder level* Push the Control knob towards [FM] or [AM]. With the [FM] button, you move 1 level down and with the [AM] button, 1 level up. Selecting a folder in the same level Push the Control knob towards [4-4] or Di]. With the [H@<] of the Control knob, you move to the previous folder, and with the [1] of the Control knob, to the next folder. Returning to the top level* Press the [3] button. + * You cannot oper hen <Switching the Play mode> (page 33) is set to other than "Folder Mode” while playing ACDrive media 3 Decide the folder to play Press the Control knob.

The Folder Select mode releases, and the Audio flle in the folder being displayed plays Function of Audio file Folder Select 2 mode Select the target folder within the folders containing audio files. The folder which contains playable audio files is only displayed. 1 Enter Folder Select 2 mode Press the [F.SEL] button. Select the "FOLDER SELECT2"/ ‘FLD SEL2" display. Refer to <Select mode> (page 31). Folder name display Displays the current folder name. Folder number display Displays the number in the folder belonging to the currently selected folder. Folder name display 2 Select the folder Push the Control knob towards [+44] or Di. Each time you push the knob, the folders containing audio files are displayed one after another. Check the name of upper level folder Push the Control knob towards [FM] or [AM]. With the [FM] button, the folder name in the upper level is displayed With the [AM] button, the folder name in the lower level is displayed "C2" &" is displayed while the upper level folder is displayed. B64-3396-00_English_rtindd 33 a 3 Decide the folder to play Press the Control knob. The Folder Select mode releases, and the Audio file in the folder being displayed plays Function of ACDrive media Switching the Play mode Arrange the playing orders of the songs by categories. Press the [S.MODE] button. Each time you press the button, the Play mode alternates between the modes shown in the table below. The Play mode indicator is ON. (DPX501 only) Playmode Category which is to be arranged ‘PlayList Mode"/"PLAYLIST" Play list order. By genre. By artist. Album Mode" "ALBUM" By album. Folder Mode"/"FOLDER" By the folder recorded in media + The category information of each song is the data registered in Media Manager when ACDrive media is being generated + You can cancel the announcement made when the mode is changed by <Voice Index> (page 46) + You can select the advancement ofthe Play mode formation by [AM] and [FM] knob. English | 33

B64-3396-00_English_rtindd 34 —6— CD/USB device/Audio file/External disc control features Function of ACDrive media Letter Seek You can search for the song, you want to play, by selecting the initial of Genre name, Artist name, or Album name. 1 Enter the Letter Seek mode Press the [S.MODE] button for at least 1 second. + This operation does not function when <AÏl Random Play> (page 31) is ON. + This function is available only when the Play mode is set Genre, Artist, or Album Cancelling the Letter Seek Press the [S.MODE] button. 2 Start the Letter Seek Push the Control knob towards [+4] or Di]. The initial of Genre name, Artist name, or Album name is displayed and announced in order. The announcement of the initial can be canceled by <Voice Index> (page 46) + When you push the Control knob to the reverse [4] or Bei during Letter Seek, the initial is displayed and announced in the reversed order + Once Letter Seek starts, it cannot be cancelled 3 Select the song to play Press the Control knob when the initial of the song you are searching is displayed and announced. The selected initial group plays. 34 | English Text/Title Scroll Scrolling the displayed CD text, Audio file text, or MD title. Push the Control knob toward [FMI] for at least 2 seconds. Vhen the <Display Illumination Contral> (page 39) is set to OFF, the display may black out while scrallingl

About HD Radio Tuning Selecting the station. + When you connect an HD Radio, Tuner features of the unit are disabled and changed to HD 1 Select HD Radio source Radio tuner features. À portion of the setting Press the [SRC] button. methods including the Tuning Mode will Select the "HD Radio"/ "HD RADIO" display. change. 2 Select the HD FM band Push the Control knob toward [FM]. Each time you push the knob to [FM], the band alternates between the HF1, HF2, and HF3 bands. + With the HD Radio tuner, you can use the similar functions to <Station Preset Memory>, <Auto Memory Entry>, and <Preset Tuning> of Tuner features. Refer to Tuner features for how to use the functions. Select the HD AM band Push the Control knob toward [AMI]. 3 Tune up or down band Push the Control knob towards [+44] or Dei. English | 35

Menu System You can continue by returning to step 2 and u 5 setting other items. Setting beep sound during operation, etc. functions. 4 Exit Menu mode The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation. 1 Enter Menu mode Press the [MENU] button for at least 1 second. "MENU" is displayed 2 Select the menu item Push the Control knob towards [FM] or [AM]. Example: When you want to set the beep sound select the "Beep'/"BEEP" display. 3 Set the menu item Push the Control knob towards [4-4] or Dep]. Example: When you select "Beep'/"BEEP" each time you push the knob it alternates between "Beep : ON"/"BEEP ON" or Beep : OFF'/ "BEEP OFF" Select 1 of them as the setting, 36 | English B64-3396-00_English_rtindd 36 Press the [MENU] button. + When other items those applicable to the ba: operation method above are displayed, their setting content chart is entered. (Normally the setting listed at the top of the chart is the original setting) Also, the explanation for iterns e not applicable {Manual Clock Adjustment> etc) are entered step by step. + Three menu items appear on the display. The menu item displayed at the center is the one you can adjust. (OPX701 on)

In Standby mode Activating Security Code Activating the Security Code disables the usage of audio unit by someone else, Once the Security Code is activated, the entry of authorized Security Code is required to tu on the audio unit when itis removed from the vehicle. Indication of this Security Code activation prevents your precious audio unit from stealing. + Set the Security Code when the <Demonstration mode Setting> (page 48) is set to OFF. + You can set the Security Code with a 4 digit number of your choice. + The Security Code cannot be displayed or referenced Make a note of the Security Code and treasure it up. 1 Enter Standby Press the [SRC] button. Select the "STANDBY" display. 2 Enter Menu mode Press the [MENU] button for at least 1 second. When "MENU" is displayed, "Security Set'/ "CODE SET" is also displayed. 3 Enter Security Code mode Press the Control knob for at least 1 second. When "Enter'/ "ENTER" is displayed, "Security Set'/" CODE" is also displayed. 4 Select the digits to enter Push the Control knob towards [+44] or Dei. 5 Select the Security Code numbers Push the Control knob towards [FM] or [AM]. 6 Repeat steps 4 and 5, and complete the Security Code. 7 Confirm the Security Code Press the Control knob for at least 3 seconds. When "Re-Enter'/"RE-ENTER" is displayed, "Security Set'/"CODE" is also displayed. 8 Do the step 4 through 7 operation, and reenter the Security Code. "Approved"/"APPROVED" is displayed. The Security Code function activates. 9 Exit Security Code mode Press the [MENU] button. B64-3396-00_English_rtindd 37 a + you enter the wrong Code in steps 4 through 6, repeat from step 4 Resetting the Security Code function when the audio unit is first used after removed from the battery power source or the Reset button is pressed 1 Turn the power ON. 2 Do the step 4 through 7 operation, and enter the Security Code. ‘Approved"/ "APPROVED" is displayed. Now, you can use the unit. When the Security Code function is activated ecurity Set'/"CODE SET" changes to "Security Clear/ CODE CLR + To deactivate the Security Code function, see the next section <Deactivating Security Code». In Standby mode Deactivating Security Code To deactivate the Security Code function. 1 Select Security Code mode Push the Control knob towards [FM] or [AM]. Select the "Security Clear'/ "CODE CLR" display. 2 Enter Security Code mode Press the Control knob for at least 1 second. When "Enter'/ "ENTER" is displayed, "Security Clear/"CODE" is also displayed 3 Select the digits to enter Push the Control knob towards [-#-4] or Dei. 4 Select the Seciruty Code numbers Push the Control knob towards [FM] or [AM]. 5 Repeat steps 3 and 4, and complete the Security Code. 6 Press the Control knob for at least 3 seconds. Clear'/"CLEAR" is displayed The Security Code function deactivates.

displayed rong security code is entered, “Error'/"ERROR" is à correct security code. English | 37

Menu system In Standby mode Touch Sensor Tone Setting the operation check sound (beep sound) ON/OFF. Setting Beepis heard Beep cancel. In Standby mode Manual Clock Adjustment + You can do this adjustment when the <Synchronize Clock> (page 38) is set as OFF 1 Select Clock Adjustment mode Push the Control knob towards [FM] or [AM]. Select the "Clock Adjust®/"CLK ADJ" display. 2 Enter Clock Adjust mode Press the Control knob for at least 1 second. The clock display blinks. 3 Adjust the hours Push the Control knob towards [FM] or [AM]. Adjust the minutes Push the Control knob towards [4-4] or Dep]. 4 Exit Clock adjustment mode Press the [MENU] button. Function of the DPX701 In Standby mode Date Adjustment 1 Select Date Adjust mode Push the knob towards [FM] or [AM]. Select the "Date Adjust” display. 2 Enter Date Adjust mode Press the Control knob for at least 1 second. The date display blinks. 38 | English 3 Selecting the item (day, month, or year) to adjust Push the Control knob towards [+4] or Dep]. The items that are blinking are iterns that you can adjust. 4 Adjust each item Push the Control knob towards [FM] or [AM]. 5 Repeat step 3 and 4 operation and adjust the date. 6 Exit Date adjustment mode Press the [MENU] button. Function of the DPX701 In Standby mode Date Mode Setting the date format. 1 Select Date Mode Push the Control knob towards [FM] or [AM]. Select the "Date Mode” display. 2 Select the date format Push the Control knob towards [+4] or Dep]. 3 Exit Menu mode Press the [MENU] button. In Standby mode Synchronize Clock Synchronizing the RDS station time data and this units clock. Setting Ajust the time manual. Synchronizes the time. kes 3 to 4 minutes to synchronize the clock

B64-3396-00_English_rtindd 39 In Standby mode Indirect Lighting You can illuminate the area around the display with soft indirect lighting. Display Setting “Lighting : ON" "LGHT ON*_Turs indirect ighrng on. Fighting : OFF" 'UGHT OFF*_Turs indirect ightng of Display Illumination Control This function turns off the display when you perform no operation for 5 seconds. This function is effective when you are driving at night. Display Setting “Display: ON'/ Keepsthe display on. “DSP ON" “Display: OFF'/— Tums offthe display when you perform no “DISP OFF operation for 5 seconds + Set the Display Ilumination Control when the <Demonstration mode Setting> (page 48) is set to) OFF. + When the display is off, pressing any key will turn on the display. + When the display is off, you cannot perform any operation except for the following + Volume + Atenuator + Selecting the source + Ejecting the disc + Tuming off the pr + During function con display stays on

| such as the Menu System, the In Standby mode Dimmer Dimming this unit display automatically when the vehicle light switch is turned ON. Display Setting Dimmer : ON"/ "DIM ON The display dims. Dimmer: OFF"/ "DIM OFF" __ The display doesn't dim. Function of the DPX501 In Standby mode Switching preout Alternating the preout between the rear and subwoofer. (With the subwoofer the sound outputs without being effected by fader control.) Display Setting SWPRE R' Rear preout. SWPRE SW" Subwoofer preout. In Standby mode Built-in Amp Setting Controlling the built-in amplifier. Turning OFF this control enhances the preout quality. Display Setting ‘AMP : ON"/ "AMP ON The built-in amplifier activates. AMP : OFF'/"AMP OFF" The built-in amplifier deactivates. Function of the DPX701 In Standby mode G-Counter Level set Calibrating G-Point. Setting the level according to the kinds of vehicles. Display Setting G-Counter: Level" Counter easy to go up G-Counter G-Caunter Counter hard t go up. se of driving situations calling for few G-Point up to "G-Counter the case of frequent accelerations, set it up to "G-Counter: Level3" English | 39

B64-3396-00_English_rtindd 40 Menu system Function of the DPX701 5 Start Calibration of straight direction In Standby mode Start moving the vehicle aheadi G-Analyzer Reset Resets the value of G-Meter, G-Counter and G- Analyzer Horsepower Analysis. 1 Select G-Analyzer Reset mode Push the Control knob towards [FM] or [AMI]. Select the "G-Reset' display. 2 Enter G-Analyzer Reset mode Press the Control knob for at least 1 second. 3 Select the Reset item Push the Control knob towards [FM] or [AMI]. "G-Meter Reset”: Reset the value of G-Meter. G-Counter Reset”: Reset the value of G-Counter. "G-Power Reset”: Reset the value of G-Analyzer lorsepower Analysis. 4 Reset the value Press the Control knob for at least 2 seconds. "Reset OK" is displayed 5 Exit G-Analyzer Reset mode Press the [MENU] button. Function of the DPX701 In Standby mode G-Analyzer Calibration setup G-Analyzer requires calibration for horizontal acceleration and braking. € calibration, go through the teps at a level place where you can move the vehicle straight ahead. 1 Park the vehicle in a horizontal location 2 Select G-Analyzer Calibration setup mode Push the Control knob towards [FM] or [AMI]. Select the "G-Calibration” display. 3 Enter G-Analyzer Calibration setup mode Press the Control knob for at least 1 second. "Stop" is displayed 4 Start Calibration of horizontal direction Press the Control knob. Once "Move Forward" appears on the display, the vehicle must be advanced. 40 | English Calibration of straight direction automatically starts. When the Calibration is finished, “Calibration OK" 5 displayed + Ifyou fall to complete the calibraton, "No Calibration" is displayed. In such a case, repeat steps 1 through 6. 6 Exit G-Analyzer Calibration setup mode Press the [MENU] button. Function of the DPX701 In Standby mode G-Analyzer Horsepower Gauge setup Enter vehicle class and weight to calculate horsepower. 1 Select the G-Analyzer Horsepower Gauge setup mode Push the Control knob towards [FM] or [AM]. Select the "Hp Gauge Setup" display. 2 Enter G-Analyzer Horsepower Gauge setup mode Press the Control knob for at least 1 second. "Class Select” is displayed 3 Select vehicle class Push the Control knob towards [+4] or Dep]. Each time you push the knob, the vehicle class alternates between the modes shown in the table below. Display “Mid Sas”

FVan/ Mini-Van' FPidup rude” "Spor" “Compact

4 Enter Weight Input mode Press the Control knob. “Weight Input" is displayed 5 Select the weight numbers Push the Control knob towards [FM] or [AM]. + The weight input range is between 1000-2999 lbs. 6 Select the digits to enter Push the Control knob towards [+44] or Dep]. 7 Repeat steps 5 and 6, and complete the weight input. 8 Exit G-Analyzer Horsepower Gauge setup mode Press the [MENU] button. Function of the DPX701 Fan G-Analyzer Horsepower Analysis This measures the horsepower and displays graph and max power. It automatically saves the highest record.

+ Do not use G-Analyzer Horsepower Analysis on the Public roads. Do not use this product in any way that prevents you from driving safely. Follow al diving laws and use common sense when using this product + Before alterating G-Analyzer Horsepower Analysis, you are required to setup <G-Analyzer Horsepower Gauge setup> (page 40)

1 Select the G-Analyzer Horsepower Analysis mode Push the Control knob towards [FM] or [AM]. Select the "Horsepower" display. 2 Enter G-Analyzer Horsepower Analysis mode Press the Control knob for at least 1 second. "Stop" is displayed Previous max power and record are displayed B64-3396-00_English_rt.indd 41 3 Begin measurement Press the Control knob. “Ready” is displayed. 4 Start the car “Measure" is displayed After 15 seconds of measurement, the result is displayed Display the result The graph shows the variation in horsepower between 0.1 to 15.0 seconds, The maximum power is displayed in red and the markings provided at intervals of 5 seconds are displayed in blue. + Pressing the Control knob also begins the measurement. To prevent danger, push the control knob before starting the car. 5 To display the maximum power in the section: Push the Control knob towards [#4] or Dep]. Each time you push the Control knob, the maximum power in the section is displayed. 6 Exit G-Analyzer Horsepower Analysis mode Press the [MENU] button. - Like your vehicles speedometer, G-Analzer is no more than à measuring function. The HP or G value measured by this unit may not be completely accurate due ta its simplified method of measurement. The G-Anabyzer is only for reference and should not be used to confirm the horsepawer specifications of your vehicle. Measuring after starting the car lowers the accuracy. The record will not be renewed ifthe measurement is discontinued. The graph scale adjusts automatically to the horsepower value. The value of max power and record can be reset by <G-Analyzer Reset> (page 40). English | 41

Menu system Function of the DPX701 Other than Standby mode/ G-Analyzer Stop Watch When the Dual Zone System is ON The control of stop watch can be started by G- Analyzer function. + Do not use G-Analyzer stop watch on the Public roads. 1 Select G-Analyzer Stop Watch mode Push the Control knob towards [FM] or [AMI]. Select the "Stop Watch" display. 2 Enter G-Analyzer Stop Watch mode Press the Control knob for at least 1 second. "Stop" is displayed 3 Enter Counter Ready mode Press the Control knob. "Ready"is displayed. 4 Start Count When G in the vertical direction is detected during the travel, the count automatically starts, "Running" is displayed ra) + You can also start the counter by pressing the Control knob.

5 Stop Count Press the Control knob. "Stop" is displayed + The control wil start again when you accelerate or press the Control knob, Do the operation after step3. When you Reset the Count {While "Stop" is displayed) Press the Control knob for at least 2 seconds. + You can reset of count when the count is stopped 6 Exit G-Analyzer Stop Watch mode Press the [MENU] button. + When "Running" is displayed (counted), the count is continued even though G-Analyzer Stop Watch mode is finished. If you want to stop the count, enter the menu mode then press the control knob. + When Power off (ex; ACC OFF) while counting, the value of 1 second or less will be "00" 42 | English B64-3396-00_English_rtindd 42 Dual Zone System Setting Setting the Front channel and Rear channel sound in the Dual Zone System. Display Setting “Zone? : Rear"/ Sub source (Auxiliary input source) is to be rear IONE2 R' channel. “Zone: Front'/ “IONE2F' Sub source (Away input source) to be front channel, Function of the DPX701 Other than Standby mode B.M.S. (Bass Management System) Adjust the bass boost level of the external amplifier using the main unit. Display AMP Bass : Hat AMP Bass : +6” AMP Bass: +17 AMP Bass: +18 Setting Bass boost level is fat Bass boost level is low (+608). Bass boost level is mid (+12dB) Bass boost level is high (+18dB). + Refer to the catalog or instruction manual for power amplifirs that can be controlled from this ur + For ampliiers, there are the models you can set from Flat to +18 d8, and the models you can set from Flat to +12 dB, When an amplifier that can only be set to +12 is connected to the unit, "AMP Bass : +18" will not work correctly even ifit is selected.

Function of the DPX701 Other than Standby mode B.M.S. Frequency Offset Setting the central frequency, boosted by B.M.S. Display. Setting MP FREQ: Normal" Boost with te normal central frequency AP FREQ : Low Drop the normal central Frequency 20%. Function of the DPX701 When LX AMP unit connecting AMP Control You can control the LX AMP connected to the unit. 1 Select AMP Control mode Push the Control knob towards [FM] or [AM]. Select the "AMS Control" display. 2 Enter AMP Control mode Press the Control knob for at least 1 second. 3 Select the AMP Control item for adjustment Push the Control knob towards [FM] or [AM]. + For the details on the AMP Control item, see the instruction manual attached to the LX AMP. 4 Adjust the AMP Control item Push the Control knob towards [-#-4] or Dei. 5 Exit AMP Control mode Press the [MENU] button. + You cannot use the LX AMP operation during standby mode B64-3396-00_English_rtindd 43 Other than Standby mode Traffic Information Switching to traffic information automatically when a traffic bulletin starts even when you aren't listening to the radio. Display Setting TI: OFF"/"TI OFF" The Traffic Information function is OFF. TI: ON"/ "TION" The Traffic Information function is ON. When it is ON, the "Tl" indicator is ON. (DPX501 only) When a traffic information station isn't being received the "TI" indicator blinks. When a traffic bulletin starts, "Traffic INFO"/ TRAFFIC" is displayed it and it switches to traffic information. + During reception of an AM station when the Trafic formation function is turned ON, it switches to an FM station. During reception of traffic information the adjusted volume is automatically remembered, and the next time it switches to traffic information its automatically the remembered volume. Receiving other traffic information stations {In tuner source) Push the Control knob towards [+44] or Dep. + You can change the traffic information station when stening to the radio. English | 43

Menu system In FM reception CRSC (Clean Reception System Circuit) Temporarily have reception alternate from stereo to mono to reduce multi-path noise when listening to the FM station. Display Setting ET RSCON" Te CRSCiS ON. CRSC-OF/"CRSCOF" TheCRSCISOFE + Strong electrical fields (such as from power lines) may cause unstable sound quality when CRSC is turmed ON. In such a situation, tu it OFF. In HD Radio mode Receive mode Setting Sets the receive mode. 1 Select the Receive mode Push the Control knob towards [FM] or [AM]. Select the "Receive Mode"/ "HDR MODE" display 2 Enter Receive mode Press the Control knob for at least 1 second. 3 Set the Receive mode Push the Control knob towards [FM] or [AMI]. Each time you push the knob, the Receive mode alternates between the modes shown in the table below. Receivemode Display Operation Auto mode ua Analog broadcasts and digital AUD broadcast wil be switched automatic When bath are being transmited, the digital broadcast il have priori. Digital Digital broadcasts on). Analog Analog broadcast on). 4 Exit Receive mode Press the [MENU] button. 44 | English B64-3396-00_English_rtindd 44 < D) + Even ifthe Receive mode is set to “Auto"/ "AUTO", when the Ball game mode program {non-delayed broadcast program) is received, the Receive mode will tomatically switch to Analog broadcast only. In SIRIUS tuner source SIRIUS ID (ESN) display Displaying the SIRIUS ID (Electronic Serial Number). + Serial & SIRIUS ID (ESN) Iis important to retain the unit serial number and the electronic SIRIUS Identification number for service activation and potential service changes. Function of the DPX701 Station/Disc Naming (SNPS/DNPS) Attaching a title to a Station or CD. 1 Receive/play the station/disc you want to attach a title to + A title cannot be attached to MD or Audio file media. 2 Enter Menu mode Press the [MENU] button for at least 1 second. "MENU" is displayed 3 Select Name set mode Push the Control knob towards [FM] or [AM]. Select the "Name Set” display. 4 Enter Name set mode Press the Control knob for at least 1 second.

5 Move the cursor to the enter character position Push the Control knob towards [+44] or Dei. 6 Select the character type Press the Control knob. Each time you press the knob, the character type alternates between the types shown in the table below. Character type Aphabet upper case Hphabet loner case Numbers and symbol Special characters (Accent character] 7 Select the characters Push the Control knob towards [FM] or [AM]. + Enter characters by using a remote control with numbers buttons. Example: you are entering "DAN Character Button Times pressed ra) Bl 1 ° pl 1 G] 2 C [A] 3 €" BI 2 8 Repeat steps 5 through 7 and enter the name. 9 Exit Menu mode Press the [MENU] button. hen operation stops for 10 seconds the name at that time is registered, and Name Set mode closes, + Memory numbers FM AM 30 stations Internal CD player: 10 discs External CD changer/ player Varies according to the CD changer/ player Refer ta the CD changer/ player manual + Change the title of station/CD by the same operation used to name it B64-3396-00_English_rtindd 45 Auxiliary Input Display Setting Selecting the display when changing to Auxiliary input source. 1 Select Auxiliary input source Press the [SRC] button. Select the "AUX"/ "AUX EXT" display. 2 Enter Menu mode Press the [MENU] button for at least 1 second. MENU" is displayed. 3 Select Auxiliary input display setting mode Push the Control knob towards [FM] or [AM]. Select the “Name Set'/ "NAME SET" display. 4 Enter Auxiliary input display setting mode Press the Control knob for at least 1 second. The presently selected Auxiliary input display is displayed 5 Select the Auxiliary input display Push the Control knob towards [+44] or Dei. Each time you push the knob, the display alternates as listed below

VD" = "PORTABLE" 6 Exit Menu mode Press the [MENU] button. + When operation stops for 10 seconds, the name at that time is registered, and the Auxiliary input display setting mode closes. + The Auxliary Input Display can be set only when the buil-in auxliary input or the auxliary input of optional KCA-S2104 is used. English | 45

D — Menu system Text Scroll In Standby mode Setting the displayed text scroll. CD Read Setting _ _ When there is a problem with playing a CD with Display Setting special format, this setting plays the CD by force. Scroll: Auto' Repeats scroll SCL AUTO Setting Scroll: Manual"? Scrolls when the display changes SCL MANU" Pay CD and Audio le Pay CD by force. + The text scrolled is listed below CDtext Folder name/ File name/ Song title/ Artist name/ Album name MD title Radio text Text for the SIRIUS tuner source, HD Radio source, including Channel name, In Standby mode Built-in Auxiliary input Setting CD READ 2° cannot play Audio Some music CDs may not play even in the "CD Read 2'/"CD READ 2° mode Function of ACDrive media Voice Index Setting the announcement during the play of ACDrive media. Fan Set the Built-in Auxiliary Input function. Display Setting Setting "Buiin AUX: OFF} Vhen selecting the source there no Auliary Guide is announced Not be annaunced Input. Vihen seecting the source there Auiary Input 46 | English B64-3396-00_English_rtindd 46

In CD/ USB mode ACDrive firmware version display Other than Standby mode Audio Preset Memory Displaying the firmware version with the ACDrive function. 1 Select the firmware version display mode Push the Control knob towards [FM] or [AMI]. Select the "ACD F/W Version"/ "ACD VER" display. 2 Display the ACDrive firmware version Push the Control knob towards [+44] or Dei]. In CD/ USB mode Unique ID display Displaying the serial number for each product. 1 Select the unique ID display mode Push the Control knob towards [FM] or [AM]. Select the "ACD Unique ID°/"ACD ID" display. 2 Display the unique ID Push the Control knob towards [+44] or Dei]. B64-3396-00_English_rtindd 47 Registering the value setup by Sound Control. The memory cannot be erased by the Reset button. Setup Sound Control Refer to the following operations to setup the Sound Control. <Audio Contral> (page 12) <Audio Setup> (page 13) 2 Enter Menu mode Press the [MENU] button for at least 1 second. MENU" is displayed 3 Select Audio Preset mode Push the Control knob towards [FM] or [AM]. Select the ‘Audio Preset"/ "A-PRESET" display. 4 Enter Audio Preset mode Press the Control knob for at least 1 second. 5 Select the Audio Preset Memory Push the Control knob towards [FM] or [AM]. Select the "Memory”/"MEMORY" display. 6 Put the Audio Preset in the memory Press the Control knob for at least 2 seconds. The "Memory"/ "MEMORY" display blinks 1 time. 7 Exit Audio Preset mode Press the [MENU] button. + Register 1 pair of Audio Preset Memory. You cannot ter by the source Mhen you press the Reset, all the sources will be the setting value which is registered. + The following items cannot be registered Volume, Balance, Fader, Loudness, Volume offset, Dual Zone System, Rear Volume English | 47

B64-3396-00_English_rtindd 48 Menu system Other than Standby mode Audio Preset Recall In Standby mode Demonstration mode Setting Recalling the sound setup registered by <Audio Preset Memory> (page 47). 1 Select the source Press the [SRC] button. 2 Enter Menu mode Press the [MENU] button for at least 1 second. "MENU" is displayed 3 Select Audio Preset mode Push the Control knob towards [FM] or [AM]. Select the "Audio Preset”/"A-PRESET" display. 4 Enter Audio Preset mode Press the Control knob for at least 1 second. 5 Select the Audio Preset Recall Push the Control knob towards [FM] or [AMI]. Select the "Recall'/"RECALL" display. 6 Recall the Audio Preset Press the Control knob for at least 2 seconds. The "Recall'/"RECALL' display blinks 1 time. 7 Exit Audio Preset mode Press the [MENU] button. + The User memory of <System Q> (page 12) is changed to the value which was recalled. + The source tone memory item of <Audio Control> (page 12) is changed to the value which was recalled by the selected source. 48 | English Sets the demonstration mode. 1 Select the Demonstration mode Push the Control knob towards [FM] or [AM]. Select the "DEMO Mode”/ "DEMO" display. 2 Set the Demonstration mode Press the Control knob for at least 2 seconds. Each time you press the knob at least 2 seconds, the Demonstration mode alternates between the settings shown in the table below. Display Setting "DEMO Mode : ON"/ The Demonstration mode function is ON. DEMO ON" *DEMO Mode : OFF Hit Demonstration mode (Normal mode). DEMO OFF

0 \ mo —"1" ee | … 2-10NE [0] — 19] Loading and Replacing the battery DIRECT Basic operations Use two "AA'/"R6"-size batteries. Slide the cover while pressing downwards to remove it as illustrated. Insert the batteries with the + and - poles aligned properly, following the illustration inside the case. + Store unused batteries out of the reach of children. Contact a doctor immediately ifthe battery is accidentally swallowed.

+ Do not set the remote control in hot places such as on the dashboard 50 | English [VOL] buttons Adjusts the volume. [SRC] button Each time you press the button, the source alternates. r the source alternating order refer to <Selecting the Source> (page 11) [ATT] button Turns the volume down quickly. When the button is pressed again, the volume returns to the previous level.

B64-3396-00_English_rt.indd 51 Audio Control In Disc/USB source [AUD] button Selects the Audio item to be adjusted. [VOL] buttons Adjusts the Audio item + Refer to <Audio Control> (page 12) for the operation method, such as the procedures for Audio control and others operations. + The remote control can only select and adjust the Basic Audio item. Selecting and adjusting ofthe Detail Audio item cannot be done. Dual Zone System [2-ZONE] button Each time you press the button, "2 ZONE*/ "2ZON" of <Audio Setup> (page 13) is turned ON or OFF. [AJ/ [w] buttons Adjusts the volume of the rear channel. The rear channel activates while the Dual Zone System is ON In Tuner source [FMY/ [AMI] buttons Selects the band Each time you press the [FM] button, the band alternates between the FM1, FM2, and FM3 bands. [@-<]/ D>-»1] buttons Tune up or down band [0] — [9] buttons Press buttons [1] — [6] to recall preset stations. [DIRECT] button Enters and cancels the <Direct Access Tuning> (page 25) mode. D-11] button Enters and cancels the <PTY (Program Type)> (page 26) mode. [@-<]/ D>-»i] buttons Going forwards and backwards between track/ files. [H/[-] buttons Going forwards and backwards between disc/ folders. D-11] button Each time you press the button, the song pauses or plays. [0] — [9] buttons When in <Direct Track/File Search> (page 30) and <Direct Disc Search> (page 30), enters the track/ file/disc number. In SIRIUS tuner source [FM] button Selects the preset band [@-<]/ D>»1] buttons Searches up or down channels. [0] — [9] buttons Press buttons [1] — [6] to recall preset channels. [DIRECT] button Enters and cancels the <Direct Access Tuning> mode. English | 51

I B64-3396-00_English_rtindd 52 Basic Operations of remote control In HD Radio source [FM] button Selects the HD FM band Each time you press the [FM] button, the band alternates between the HF, HF2, and HF3 bands. [AM] button Selects the HD AM band [H@-<]/ D>-»-1] buttons Tunes up or down bands. [0] — [9] buttons Press buttons [1] — [6] to recall preset stations. 52 | English

Accessories/Installation Procedure Make the proper input and output wire connections for each unit. Accessories Connect the speaker wires ofthe wiring harness. Connect the wiring harness wires in the following order: ground, battery, ignition Connect the wiring harness connector to the unit.

6. Install the unit in your car.

7. Reconnect the © battery.

8. Press the reset button

A WARNING I you connect the ignition wire (rec) and the battery wire ellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

+ IFthe power is not tumed ON (or it is ON, but will be OFF immediately), the speaker wire may have a short circuit ortouched the chasis of the vehicle and the protection function may have been activated Therefore, the speaker wire should be checked. I your cars ignition does not have an ACC position, connect the ignition wires to à power source that can be turned on and off with the ignition key. you connect the ignition wire to a power source with a constant voltage supply as with battery wires, the battery may die. Ifthe console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening, Ifthe fuse blows, first make sure the wires arentt touching to cause a short circuit, then replace the old fuse with one with the same rating Insulate unconnected wires with vinyl tape or other Similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminal.

Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or ail to work if you share the © wires or ground them to any metal part in the car. When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or ta both the rear output terminals do not mix front and rear). For example, if you connect the @ connectar of the left speaker to a front output terminal, do not connect the © connector ta a rear output terminal After the unit is installed, check whether the brake lamps, Installation Procedure blinkers, wipers, etc. on the car are working property. Mount the unit so that the mounting angle is 30° or less

1. To prevent a short circuit, remove the key from

the ignition and disconnect the © battery. English | 53 B64-3396-00_English_rtindd 53 06.130 1:42:02 PM

—6— Connecting Wires to Terminals Q@) 1e connect these leads rer to the relevant instruction manual. Steering remote control To Kenwood disc {Light Blue/Yellow) (OPX701 only)

To use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matches your car is required AUX left input (White) changer/ External AUX right input (Red) optional accessor Pi d Sub Woofer left output (White) External amplifier control wire {Pink/Black) (DPX701 only) \ (DPX701 on) Sub Woofer right output (Red) FM/AM (DPX701 oniy) antenna input Fuse (104) + ges] _Frontleft output (White) (OO — n ré 6Q | ‘ont ouput Rec) Rear left output (White) (DPX701/DPX501)/ Wiring harness Sub Woofer left output (White) (DPXS0T only) tAccessory®) Rear right output (Red) (DPX701/DPXSO1)/

Sub Woofer right output (Red) (DPX501 only) Ifno connections are made, do not let the wire come aut from the tab. Power control wire (Blue/White} MS Wen using the optional power amplifier connect to its power control terminal, epending on what antenna you are using, onnect either to the control terminal ofthe motor antenna, ar to the power terminal for the booster amplifier of the film-type antenna Motor antenna control wire (Blue) TEL mute wire (Brown) onnect ta the terminal that is grounded when ither the telephone rings or during conversation. y 7° connect the Kenood naigation system, consult your navigation manual. Dimmer control wire (Orange / White) fo "EXTAMPCONT: terminal of the amplifier aving the external amp control function. cr. cour fo car light control switch lgnition wire (Red) CPR ALLUME White/Black @ To front left FRONT L hite @ speaker Gray/Black » @ To front right FRONT R Se @ speaker Green/Black — © Torearleft Purple/Black pre Bloc © Torearright Purple @ speaker Ignition key QD |scn Battery wire (Yellow)

= Pat Car fuse box LT] (Main fuse) Ground wire (Black) © (To car chassis) Car fuse box 54 | English I B64-3396-00_English_rtindd 54 Battery a 06.130 1:42:03 PM

Installing the Escutcheon For General Motors À Refer to the section <Removing the Hard Rubber Frames (page 58) and then remove the hard rubber frame. 2 Cut out accessory @ to meet the shape of the opening of the center console. 3 Attach accessory © to the unit. Cut out to meet the shape of the opening in the vehicle Accesory® For TOYOTA/ SCION T Refer to the section <Removing Cutting line the Hard Rubber Frame> (page 58) \ L and then remove the hard rubber frame. 2 Cut out accessory ® as ilustrated + When cutting out accessory ®, make sure it fit the opening of the center console Accessary® 3 Fold double-sided adhesive accessory @) along the slit and attach it to accessory @ cut-out against the center rib as illustrated. Use 2 pieces of accessory ® for 1 accessory @ cut-out. 4 Attach accessory © cut-out to the unit. Accessory® English | 55 B64-3396-00_English_rtindd 55 S 7 06.130 1:42:05 PM

Installation Installing the Unit Firewall or metal support Screwv (M4XE) {commercially available) Self-tapping screw {commercial available) Accessory® Metal mounting {commercially available) ral

Installing in Japanese-Made Cars and General Motors Cars Install onto the car bracket using the supplied screws (M5 x 6 mm, M5 x 7 mm) The holes of the car bracket to use will differ depending on the car model vo R un: Car Bracket Accessory® (MS x 7 mm) or Accessary®UMS x 6 mm) 56 | English B64-3396-00_English_rtindd 56 Bend the tabs of the mounting sleeve with a screwdhriver or similar utensil and attach it in place

USB Device Connection À Remove the cap and connect the USB cable (Accessory®) 2 Connect the USB device to the unit using the supplied cable:

I B64-3396-00_English_rtindd 58 Removing the Unit Removing the Hard Rubber Frame (escutcheon) À Engage the catch pins on the removal tool @) and remove the two locks on the lower level Lower the frame and pull it forward as shown in the figure. 2 When the lower level is removed, remove the upper two locations. + The frame can be removed from the top side in the same manner. Removing the Unit À Refer to the section <Removing the Hard Rubber Frame> and then remove the hard rubber frame. 2 Remove the Hex-head screw with integral washer (M4X8) on the back panel 3 insert the two removal tools @ deeply into the slots on each side, as shown: 4 Lower the removal tool towards the bottom, and pull out the unit halfway while pressing towards the inside. + Be careful to avoid injury from the catch pins on the removal tool 5 Pull the unit all the way out with your hands, carefully not to drop it. 58 | English

I B64-3396-00_English_rtindd 59 Troubleshooting Guide What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. General ? The power does not turn ON. The fuse has bloun # After checking for short circuits in the wires, replace the fuse with one with the same rating, ? No sound can be heard, or the volume is low. #_ The fader or balance settings are set all the way to one side. «x Center the fader and balance settings. #7 The mput/output wires or wiring harness are connected incorrect #_ Reconnect the input/output wires or the wiring harness correctiy. See the section on <Connecting Wires to Terminals> #7 The values of Volume offset are low. &æ Turn up the Volume offset, referring to the section on <Audio Setup> (page 13)

There's a source you can't switch. #7 Theres no media inserted #_ Set the media you want to listen to. Iftheres no media in this unit, you can't switch to each source #7 The Disc changer isnt connected #_ Connect the Disc changer. If the Disc changer isn't connected to its input terminal, You can't switch to an external disc source. ? The memory is erased when the ignition is turned OFF. #7 The ignition and battery wire are incorrectly connected. #æ Connect the wire correctly, referring to the section on <Connecting Wires to Terminals>

There's no loudness effect. #_Yourre using Subwoofer preout #æ_Loudness has no effect in Subwoofer preout.

The TEL mute function does not work. The TEL mute wire is not connected properly. #_ Connect the wire correct}, referring to the section on <Connecting Wires to Terminals>.

The TEL mute function turns ON even though the TEL mute wire is not connected. The TEL mute wire is touching a metal part of the car. # Pull the TEL mute wire away from the metal part of the car

Even if Loudness is turned ON, high-pitched tone isn't compensated for. #7 Tuner source is selected. # High-pitched tone isnit compensated for when in Tuner source. #7 The <Buït-in Amp Settng> (page 39) is OFF. # TumitON

The sound quality is poor or distorted. #_ One ofthe speaker wires is being pinched by a screwr in the car. «= _Check the speaker wiring. #7 The speakers are not wired correctiy. #_ Reconnect the speaker wires 50 that each output terminal is connected to a different speaker.

The Touch Sensor Tone doesn't sound. #_ The preout jack is being used! #_ The Touch Sensor Tone can't be output from the preout jack. #7 The <Touch Sensor Tone> (page 38) is OF. \ #_ Tumit ON {

Even though Synchror can't be adjusted. W_ The received RDS station isnit sending time data «= _ Receive another RDS station ize Clock is ON, the clock

The Dimmer function does not work. #_The Dimmer wire is not connected correctly. #_Check the Dimmer wire connection V7 The <Dimmer> (page 39) is OFF. # TumitON

I B64-3396-00_English_rtindd 60 Troubleshooting Guide Tuner source ? Radio reception is poor. #7 The car antenna is not extended #_Pullthe antenna out all the way. Disc source ? "AUX EXT" is displayed without achieving External disc control mode. #_Unsupported disc changer is connected #7 The antenna control wire is not connected #7 Connect the wire correct}, referring ta the section an <Connecting Wires to Terminals> #_ Use the disc changer mentioned in the <About CD players/disc changers connected to this unit> (page 4) of the section on <Safety ? The desired frequency can't be entered with the Direct Access Tunini W_ A station that can't be received is being entered. ex_Enter a station that can be received. precautions>. ? The specified disc does not play, but another one plays instead. W_ The specified CD is quite dirty.

unit. #æ What can be designated in the FM band is to 01 MHz Your trying to enter a frequency with a D.O1 MF «ær_ Clean the CD. #7 The disc is loaded in a different slot from that specified #æ Eject the disc magazine and check the n't the set Traffic information sound volume. The set sound volume is less than the tuner sount volume. «æ_Ifthe tuner sound volume is louder than the set sound volume, the tuner sound volume is used number for the specified disc. 7 The disc is severely scratched d “x _Tiy another disc instead. ? A CD ejects as soon as it is loaded. W The CD is quite dirty. #7 Clean the CD, referring to the CD cleaning of 60 | English the section on <About CDs> (page 7) ? Can't remove disc. W_ The cause is that more than 10 minutes has elapsed since the vehicle ACC switch was tumed OFF. &x The disc can only be removed within 10 minutes of the ACC switch being turned OFF. If more than 10 minutes has elapsed, turn the ACC switch ON again and press the Eject button ? The disc won't insert. W_Theres already another disc inserted «Press the [A] button and remove the disc. ? Direct Search can't be done. #_ Another function is ON «x _ Turn Random Play or other functions OFF. ? Track Search can't be done. W_ For the discs/folders first or last song, #x_ For each disc/folder, Track Search can't be done in the backward direction for the first song or in the forward direction for the last song,

Audio file source ? Cannot play an Audio file. # The media is scratched or dirty. sx Clean the media, referring to the CD cleaning of the section an <About CDs> (page 7]. ? The sound skips when an Audio fi played. # The media is scratched or dirty. sx Clean the media, referring to the CD cleaning of the section on <About CDs> (page 7). # The recording condition is bad. sx Record the media again or use another media. js being ? The Audio file track time isn't displayed correctly.

#= "There are times when it isn't displayed correctiÿ according to the Audio file recording conditions. HD Radio source ? No sound can be heard, or the volume is low. #_The preset broadcast station is not transmitting in the mode that was set with <Receive mode Setting> (page 44). 1 Please set <Receive mode Setting> to ‘Auto®/ “AUTO”. 7 In digital AM Broadcasting, receive mode switches between stereo and monaural too often. sx Receiving condition is bad or unstable. Stereo is chosen when receiving condition is good, and it switches to monaural when the condition becomes bad. # HD Radio tuner is connected to KCA-S210A or other units. sx Connect the HD Radio tuner directly to this unit USB device source ? The USB device is not detected. # The USB connector is disconnected. “Connect the connector of the USB device properly. ? The USB device does not play its audio files. # The USB connector is disconnected. “Connect the connector of the USB device properly. I 864-3396-00_English_rt.indd 61 The messages shown below systems condition. play your Eject/ EJECT: No disc magazine has been loaded in the changer The disc magazine is not completely loaded + Load the disc magazine properly. No CD in the unit

• Insert the CD. No Disc/ NO DISC: No disc has been loaded in the disc magazine. + Load a disc into the disc magazine. TOC Error/ TOC ERR No disc has been loaded in the disc magazine. + Load a disc into the disc magazine. The CD is quite dirty. The CD is upside down. The CD is scratched a lot + Clean the CD and load it correctiy. Read Error/ READ ERR + The number of files or folders which are stored in the connected USB device is above the limitation. The file system of the connected USB device is broken. + Copy the files and folders for the USB device again refering to www kenwoodmediamanagerjp. Ithe error message is still displayed, initialize the USB device or use other USB devices. Error 05/ E-05: The CD is upside-down.

• Load the CD correctiy. Blank Disc/ BLANK: Nothing has been recorded on the MD. No Track/ NO TRACK No tracks are recorded on the MD, although it has a title. Error 15/ E-15: Media was played that doesnt have data recorded that the unit can play. + Use media that has data recorded that the unit can play. No Panel/ NO PANEL: The faceplate ofthe slave unit being connected to this unit has been removed. “D Replace it. Error 77/ E-77: The unit is malfunctioning for some reason. + Press the reset button on the unit. If the "Error 77/ E-77° code does not disappear, consult your nearest service center. English | 61

Troubleshooting Guide Mecha Error/ E-99: Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason. < Checkthe disc magazine. And then press the reset button on the unit. the "Mecha Error/ E-99" code does not disappear, consult your nearest service center. Hold Error/ HOLD: The protective circuit in the unit activates when the temperature inside the automatic disc changer exceeds 60°C (140°F) stopping all operation: “Cool down the unit by opening the windows or turing on the air conditioner. As the temperature falls below 60°C (140°F) the disc will start playing again No Name: Attempted to display DNPS during the CD play having no disc names preset Waiting/ WAITING + Radio text data is being received Text for the SIRIUS tuner source is being received. Load/ LOAD: … Dises are being exchanged in the Disc changer. Reading/ READING: The unit is reading the data on the disc. IN (link The CD player section is not operating proper. “ Reinsert the CD. Ifthe CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center. Protect/ PROTECT (link): The speaker wire has a short-circuit or touches the chassis of the vehicle, and then the protection function is activated < Wire or insulate the speaker cable properly and press the reset button. Unsupported File/ NA FILE: An Audia file is played with a format that this unit can't support. Copy Protection/ COPY PRO: À copy-protected file is played 62 | English I B64-3396-00_English_rtindd 62 DEMO MODE (Blink): The Demonstration mode has been selected “The <Demonstration mode Setting> page 48) is ON. Turn it OFF. No Device/ NO DVICE: The USB device is selected as a source although no USB device is connected < Change the source to any source other than USB. Connect an USB device, and change the source to USB again. N/A Device/ NA DVICE An unsupported USB device is connected. «2 Forthe supported USB devices, refer to <About USB device> (page 10) No Music Data/ NO MUSIC: «The connected USB device contains no playable audio file. + Media was played that doesn't have data recorded that the unit can play. “2 Use media that has data recorded that the unit can play. USB Error/ USB ERR: The connected USB device is rated a current capacity higher than the allowable limit. < Check the USB device with reference to <Abaut USB device> (page 10) Some trouble may have occurred to the connected USB device < Remove the USB device and then reconnect it. When the same message displays again, use another USB device.

Specifications Specifications subject to change without notice. FM tuner section USB Interface Frequency range (200 kHz space) USB Standard

87.9 MHz — 107.9 MHz USB 1.1/20

Usable sensitivity (S/N = 30d8) Maximum Supply current 9.3d8f (0.8 uV /75 Q) 500 mA Quieting Sensitivity (S/N = 50dB) File System 15.2dBf (1.6 uV /75 Q) FATI6/ 32 Frequency response (43.0 dB) MP3 decode 30 Hz- 15 kHz Compliant with MPEG-1/2 Audio Layer-3 Signal to Noise ratio (MONO) WMA decode 70 dB Compliant with Windows Media Audio Selectivity (+400 kHz) AAC decode > 80 dB Stereo separation (1 kHz) AM tuner section Frequency range (10 kHz space) 530 kHz — 1700 kHz Usable sensitivity (S/N = 20d8) 28 dB (25 pV) CD player section Laser diode GaAlAs Digital filter (D/A) 8 Times Over Sampling D/A Converter 1 Bit Spindle speed (Audio file) 500 — 200 rpm (CLV) Wow & Flutter Below Measurable Limit Frequency response (+1 dB) 10 Hz 20 kHz Total harmonic distortion (1 kHz)
