FDMB 200172-E - Multifunction tool Fieldmann - Free user manual and instructions
Find the device manual for free FDMB 200172-E Fieldmann in PDF.
| Brand | Fieldmann |
| Model | FDMB 200172-E |
| Product Type | Multifunction Rotary Tool (Mini Grinder) |
| Power Supply | 230V / 50Hz AC |
| Nominal Power | 170W |
| No-Load Speed | 10,000 - 35,000 rpm (variable) |
| Sound Pressure Level | 80 dB(A) |
| Sound Power Level | 91 dB(A) |
| Hand/Arm Vibration | 3.971 m/s² |
| Insulation Class | II (Double insulated) |
| Collet Chuck Size | 1.6 - 3.2 mm |
| Maximum Accessory Diameter | 35 mm |
| Main Functions | Drilling, grinding, sanding, polishing, engraving, cutting, rust removal |
| Included Accessories | 440-piece accessory set, collet nut, wrench (not explicitly listed but implied), instruction manual |
| Maintenance | Periodically oil spindle; check collet tightness; clean air vents; keep tool clean and dry |
| Safety Features | Lock button to prevent accidental start; double insulation; safety instructions in manual |
| Repairability | Only authorized service centers; use original replacement parts |
| Disposal | Do not dispose with household waste; recycle at designated collection points |
Frequently Asked Questions - FDMB 200172-E Fieldmann
User questions about FDMB 200172-E Fieldmann
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Multifunction tool in PDF format for free! Find your manual FDMB 200172-E - Fieldmann and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FDMB 200172-E by Fieldmann.
USER MANUAL FDMB 200172-E Fieldmann
Home & Garden Performance


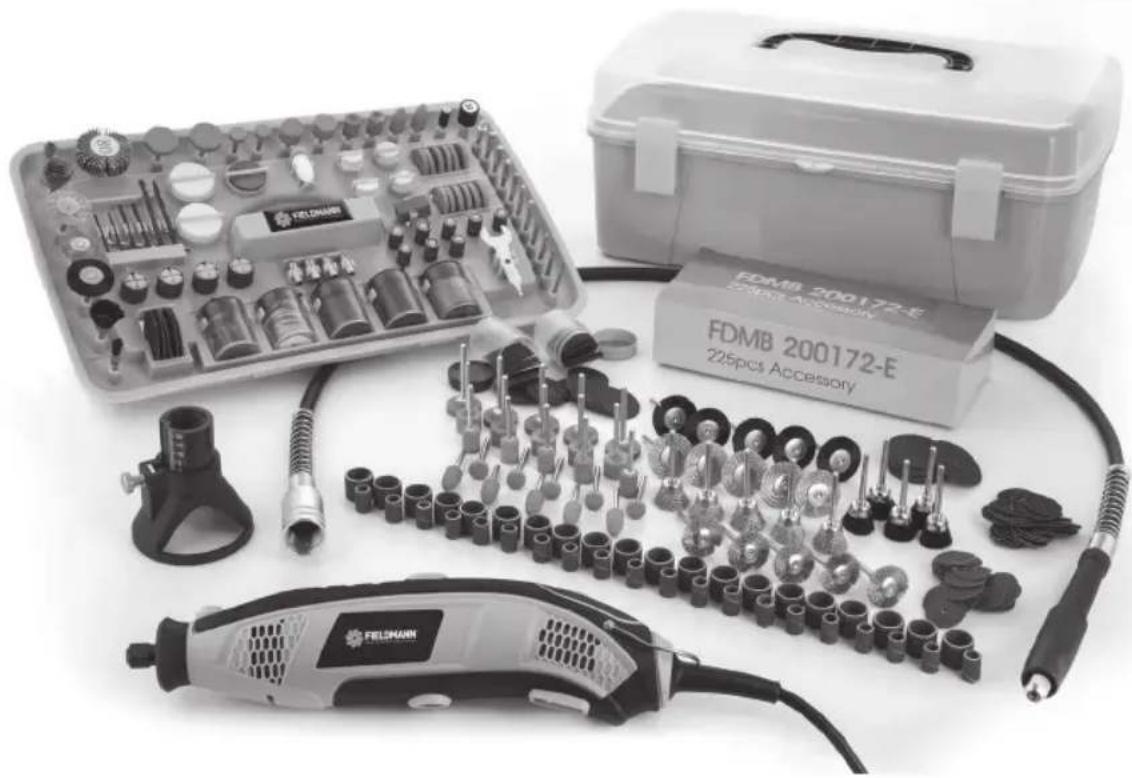

Assorted mechanical tools and components including a DDXF 200172-E 225pcs accessory, no visible text or symbols on main objects.FDMB 200172-E
1
Mini Grinder
INSTRUCTION MANUAL
Thank you for your purchase of the mini grinder. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.
CONTENTS
- GENERAL SAFETY INSTRUCTIONS 5
- SYMBOLS 10
- GENERALDESCRIPTION 11
- OPERATING INSTRUCTIONS 12
- TECHNICAL SPECIFICATIONS .....14
- DISPOSAL 16
1. GENERAL SAFETY INSTRUCTIONS
⚠ WARNING! Carefully read the instruction manual before use.
Important safety warnings
Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.
Packaging
The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.
Instructions for use
Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station)..
Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.
The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.
Carefully read, remember and keep these safety instructions
⚠ WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. The term "power tool" in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool. Save all warnings and instructions for future reference.
Workplace
* Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite accidents. Store power tools that you don't currently use.
Do not operate power tools in environments with danger of occurrence of a fire or explosion, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
* Keep unauthorised persons, especially children, away from the work area while operating a power tool! Distractions can cause you to lose control over the performed activity. In no event leave your power tool unattended. Keep the equipment away from animals.
Electrical Safety
Power tool plugs must match the mains socket outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Undamaged plugs and matching outlets will reduce risk of electric shock. Damaged or fouled supply cables increase the risk of electric shock. If the power cord is damaged, it must be replaced by a new power cord which is available at the authorised service centre or the importer.
* Avoid body contact with earthed or grounded surfaces such as pipes, radiators, cooking ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Never touch the power tool with wet hands. Never wash the power tool under running water or immerse it in water.
* Never use the supply cable for other than intended purposes. Never use the cord for carrying or pulling the power tool. Never unplug the plug from the outlet by pulling the cable. Keep electric cables away from sharp or hot objects to prevent mechanical damage.
The power tool was designed to be powered solely by alternating electric current. Always check if the electric voltage matches the information specified in the type label of the power tool.
* Never use power tool with damaged electric cable or plug or which has been dropped or is in any way damaged.
If an extension cord is used, always check whether its technical parameters match the information specified in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these must be rolled out to prevent overheating of the cord.
If a power tool is operated in a damp location or outdoors, its operation is only permitted if connected to an electric circuit protected by a residual current device <30 mA. Use of residual current device (RCD) reduces the risk of electric shock.
Hold the power tool by insulated gripping surfaces only as the cutting or drilling tool may contact hidden wiring or its own power cord during operation.
Personal Safety
Be careful, stay alert and watch what you are doing when operating a power tool. Concentrate on your work. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Do not eat, drink and smoke while operating a power tool.
Use personal protective equipment. Always wear eye protection. Use protective equipment corresponding to the type of work you are doing. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used in accordance with the working conditions will reduce the risk of personal injury.
* Prevent unintentional starting. Do not carry the power tool while it is energised or with your finger on the switch or trigger. Ensure the switch or trigger is in the "off" position before connecting to power source. Carrying power tools with your finger on the switch or energising power tools that have the switch on may result in serious injuries.
Remove any adjusting key or wrench before turning the power tool on. An adjusting wrench or a key left attached to a rotating part of the power tool may result in personal injury.
* Keep proper footing and balance at all times. Do not overreach. Never overestimate your own capabilities. Never use power tools while you are fired.
Dress properly. Wear work clothes. Do not wear loose clothing or jewellery. Keep your hair, clothing, gloves and other part of your body away from moving or hot parts of the power tool.
Connect the equipment to dust exhaustion. If the tools are provided for the connection of dust collection or exhaustion devices, ensure these are properly connected and used. Use of such devices can reduce dust-related hazards.
* Fix the work-piece tightly. Use a cabinet clamp or a cramp to fix the work-piece you are about to machine.
* Never use power tools if you are under the influence of alcohol, drugs, medication or other narcotic or addictive substances.
This equipment is not intended for use by persons (including children) with limited physical, sensual or mental capacities or lack of experience or knowledge unless they are supervised or instructed about the use of the equipment by a person responsible for their safety. Children must be supervised to make sure they are not playing with the equipment.
Power Tool Use and Maintenance
Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way.
Immediately stop working if the power tool generates abnormal noise or smell.
Do not overload the power tool. The power tool will operate better and safer if it is used at the rate for which it was designed. Use correct power tool which is intended for the given activity. The correct power tool will do the job it was designed for better and safer.
Do not use the power tool if it cannot be safely turned on and off using the control switch. Use of such power tool is dangerous. Defective switches must be repaired by a certified service provider.
* Disconnect the tool from the power source before making any adjustments, changing accessories or maintenance. Such preventive safety measure prevents the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and unauthorised persons. Power tools can be dangerous in the hands of untrained users. Store the power tools in a dry and safe place.
Keep the power tool in good condition. Check the adjustment of moving parts and their mobility. Check for any damage to the protective guards or other parts which could affect safe operation of the power tool. If damaged, have the power tool properly repaired before further use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges facilitate work, reduce the risk of injury and are easier to control. Use of accessories other than those specified in the instructions for use could result in damage to the power tool and cause injuries.
Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tool taking into account the working conditions and the work to be performed. Use of the power tool for purposes other than those the power tool was intended for could result in hazardous situations.
Use of Cordless Power Tools
Before inserting the battery, make sure the switch is in the "O-OFF" position. Inserting a battery into a switched-on power tool could result in hazardous situations.
Charge batteries only using the chargers prescribed by the manufacturer. Using a charger intended for other battery type could result in its damage and occurrence of fire.
Use only batteries intended for particular power tool. Use of different batteries could cause injury or occurrence of fire.
If the battery is not used, keep it separately from metal objects such as clamps, keys, bolts and other small metal items which could cause connection of one battery contact with the other. Short-circuiting the battery could result in injury, burns or occurrence of fire.
* Handle the batteries with care. Rough handling could result in leak of chemical substance from the battery. Avoid contact with such substance and if, nonetheless, any contact occurs wash the affected area under running water. If eyes get into contact with the chemical substance seek immediately medical aid. Chemical substance from the battery can cause serious injuries.
Service
Do not replace parts of the power tool, do not make any repairs or interfere in any way with the construction of the power tool. Have your power tool repaired by qualified repair persons.
Any repair or modification of the product without our company's authorisation is impermissible (it could cause injury or damage to the user).
* Always have your power tool repaired in a certified service centre. Use only original or recommended replacement parts. This will ensure that your safety and the safety of your power tool is maintained.
2. SYMBOLS
The product complies with the applicable standards and regulations.
ReadtheInstructionManual attentivelypriortouse.
Double-insulated.
Useeyesprotectiveequipment Useearsprotectioveequipment Wear a breathing mask.
Subjected to recycling
3. GENERAL DESCRIPTION

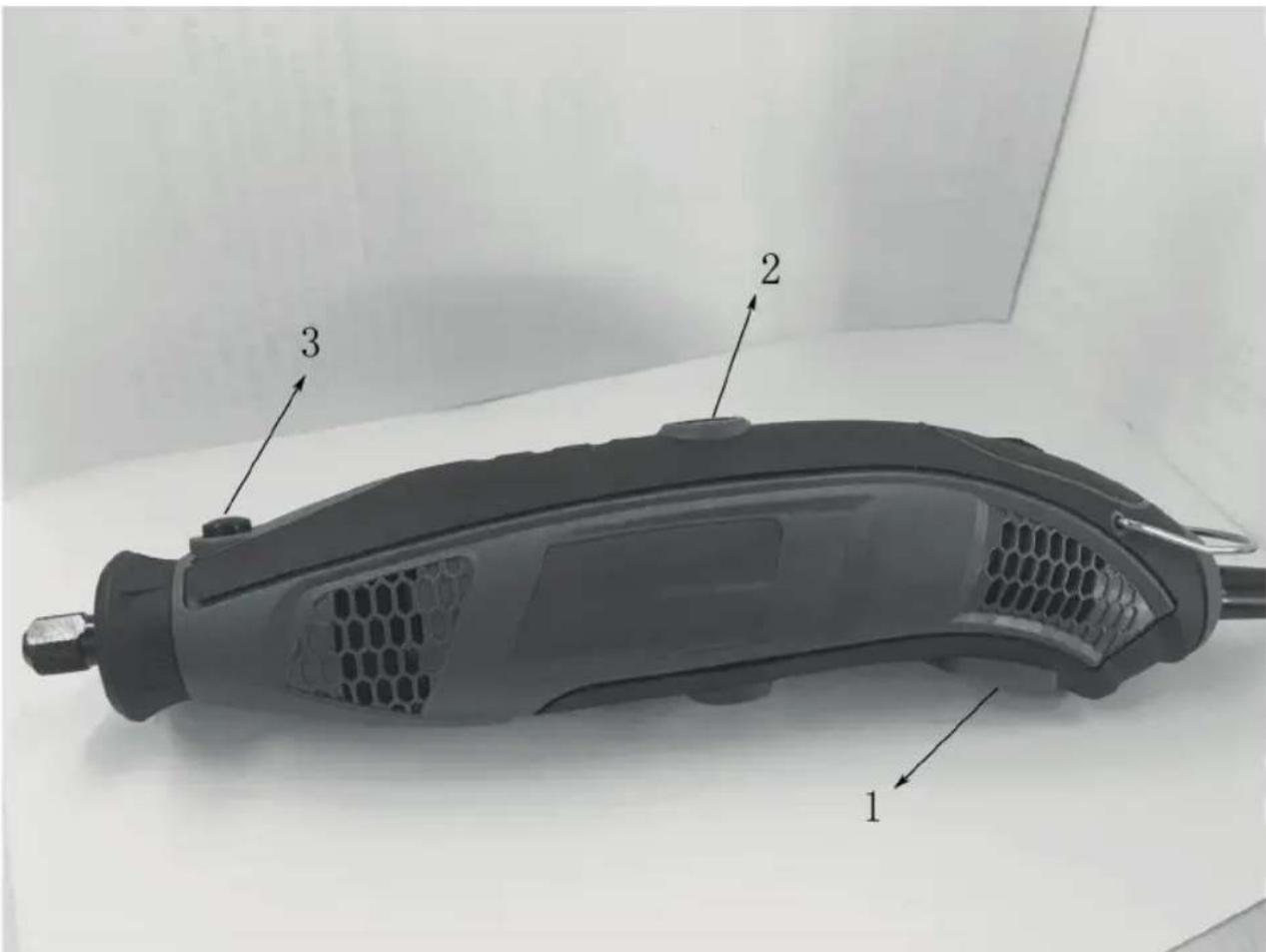

DESCRIPTION AND LOCATION OF MACHINE PARTS
- Switch
- Washer
- Lock button
Items Delivered
Remove all contents from the box and inspect to ensure no damage was incurred during shipping, and that the items listed below are included.:
Mini grinder
440pcs accessories
* Warranty card
* Instruction Manual
Should the components be missing or damaged, contact the dealer of the machine.
4. OPERATING INSTRUCTIONS
\* MULTIFUNCTION POWER TOOL USE
This rotary tool can be used for drilling, grinding, sanding, and polishing, as well as engraving, cutting, and removing rust in tight spaces or inaccessible places. The tool can be used on most metals, glass, wood, and ceramics. For best performance and results keep the speed as even as possible without exercising too much pressure. As a guideline, use the tool at low speed for all large accessories, such as polishing fro example, and at high speed for smaller accessories such as those used for engraving. For grinding and engraving, hold the tools as if it were a pen.
\* MULTIFUNCTION POWER TOOL START-UP
Never start up or stop the tool is the accessory is in contact with the piece to be worked on. Hold it firmly and press the ON/OFF switch. The tool will run continuously until the switch is turned to OFF position. The speed can be adjusted while the tool is running.
SPEED ADJUSTMENT
The multifunction power tool is equipped with the speed control. Do not change the speed while the tool is working. The speed switch is located on the rear of the too. Turn it to increase or reduce speed. Use the tool at low speed for polishing and similar operations, but use higher speed for drilling or cutting action.
\* IMPORTANT GENERAL SAFETY TIPS!
- The tool should be unplugged when changing accessories.
- If you stall the tool, switch it off immediately.
- Periodically check the tightness of your collet chuck, especially during prolonged use of the same accessory.
- After use, always disconnect your power tool.
- Do not undertake repair of the power tool yourself.
- Do not leave your tool unattended while switched on.
- Do not use or store your tool in damp or wet conditions.
USEFUL HINTS AND TIPS
- Your multifunctional power tool will become warm after prolonged use and so must be switched off and allowed to cool down.
- To ensure smooth running, the spindle should be oiled periodically.
- Do not apply too much radial pressure to the accessory bits while polishing, cleaning, sanding, or grinding. By doing this you will put a strain on the spindle and adversely affect the precision of the tool.
- Always work with a sensitive touch so as not to impede the efficiency of your multitool.
- When drilling metal, always mark the drilling point with a center punch first so that your rotary tool does not slip.
- Always ensure that your have maximum contact between the accessory shaft and the collet chuck.
- Vary the speed on the tool for the work in hand, eg. low speed for polishing, cleaning, and high speed for engraving.
PLACINT ACCESSORIES INTO THE TOOL
Always switch the tool off first. Hold the locking button at the front of the tool down and undo the collet chuck (anti-clockwise). Insert the collet that matches the shaft size of the accessory to be used. Place the collet nut over the collet and then insert the accessory shaft into the collet chuck ensuring maximum shaft contact. Then tighten up the collet nut. (DO NOT USE PLIERS).
5. TECHNICAL SPECIFICATIONS
| FDMB 200172-E MINI GRINDER + 440pcs Accessories | |
| Nominal frequency and power 230V/50Hz | |
| Nominal power : | 170W |
| No-load speed: | 10000-35000rpm |
| Acoustic pressure level: | 80dB(A) |
| Hand/arm vibration level | 3,971 m/s ^2 |
| Acoustic power level | 91dB(A) |
| Insulation class II | |
| Chuck size: | 1.6-3.2mm |
| Maximum diameter | Φ35 mm |
Instructions Manual - language version only.
Amendments to text and technical parameters are reserved.
Changes in the text, design and technical specifications may change without prior notice and we reserve the right to make these changes. keep it from turning as the drill bit rotates.
Troubleshooting
Suspected malfunctions are often due to causes the user can fix themselves. Therefore check the product using this section .In most cases the problem can be solved quickly .
WARNING!
Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service centre or a similarly qualified specialist if you cannot solve the Aproblem yourself!
| ProblemAPossible Cause ASolution | ||
| 1.EProduct does not startE1.1ENot | connected Eto power supply1.2EPower cord or plug is defective1.3EOther Eelectrical Edefect to Ethe product | 1.1 Connect to power supply1.2 Check by a specialist electrician1.3 Check by a specialist electrician |
| 2. Product does not reach full power | 2.1EExtension Ecord Eis not suitable for operaEtion with this product .2.2 Power source (e.g. generator ) has too low voltage2.3EAir vents are blocked | 2.1 Use a proper extension cord2.2 Connect to another power source2.3 Clean the air vents |
| 3.EUnsatisfactory result | 3.1EDisk bit is dull/damaged3.2EDisk bit is Enot Esuitable for work piece mEaterial | 3.1 Replace with new one3.2 Use proper drill bit |
| 4. Excessive vibration or noise | 4.1EDisk bit is dull/damaged4.2EBolts /nuts are loose | 4.1 Replace with a new one4.2 Tighten bolts/nuts |
6. DISPOSAL
INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING
Put any used package material to the place determined by the municipality for waste disposal.
DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT
This symbol on products or accompanying documents means that use electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.
FOR COMPANIES IN THE EUROPEAN UNION COUNTRIES
Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information.
DISPOSAL IN OTHER COUNTRIES OUTSIDE THE EUROPEAN UNION
Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method
This product fulfils all basic requirements of the EU directives that apply to it.
Text, design and technical specifications can change without prior notice and we reserve the right for their change.
