Product Type	10-Port USB 3.0 Hub with Charge and Sync Ports
Model	ST103008U2C
Brand	StarTech.com
Number of Ports	10 (8 USB 3.0 Type-A data ports + 2 USB 3.0 Type-A fast-charge ports)
Data Transfer Rate	Up to 5 Gbps (USB 3.0 / 3.1 Gen 1)
Fast-Charge Output	1.5A per port on charge-and-sync ports
Supported Charging Standard	USB Battery Charging Specification Rev. 1.2
Chipset	VIA/VLI - VL812
Indicators	10 blue LED (one per port)
Power Supply	External 48W AC adapter (input: 100-240V AC, output: 12V DC, 4A)
Power Button	Built-in on/off power button
Dimensions (L x W x H)	7.9 x 2.4 x 0.9 in (20.1 x 6.0 x 2.4 cm)
Weight	5.1 oz (144 g)
Color	Black
Material	Plastic
OS Compatibility	OS independent (no additional drivers required)
Warranty	2 years
Certifications	RoHS, REACH
Included in Box	Hub, USB 3.0 host cable (80 cm), universal power adapter with 4 region plugs
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Humidity	10% ~ 90% RH (non-condensing)
Maintenance	Clean with a dry, soft cloth. Do not use liquids or solvents. Unplug before cleaning.
Safety	Use only the provided power adapter. Do not expose to moisture or liquids. Keep away from heat sources.
Repairability	No user-serviceable parts. Contact StarTech.com support for warranty service.

Frequently Asked Questions - ST103008U2C StarTech.com

How do I fast-charge my device using this hub?

Connect your device to one of the two ports marked with a fast-charge icon. These ports provide up to 1.5A of charging current and support USB Battery Charging 1.2 for compatible devices like Apple and Samsung Galaxy.

Is this hub compatible with my computer?

Yes, the hub is OS-independent and works with Windows, Mac, Linux, and other operating systems without installing any drivers. Simply connect it to an available USB 3.0 port on your host computer.

Can I use the hub with a USB 2.0 port?

Yes, the hub is backward compatible with USB 2.0 and USB 1.x. However, data transfer speeds will be limited to USB 2.0 rates (480 Mbps) when connected to a USB 2.0 host.

What do the blue LED indicators mean?

Each of the 10 ports has a blue LED that lights up when a device is connected and powered. It indicates the port is active and ready for data or charging.

Does the hub support charging when the computer is off?

Yes, if your host computer is turned off, in sleep mode, or disconnected, the charge-and-sync ports automatically switch to fast-charge mode, allowing you to charge devices even without the computer running.

Can I sync data and charge simultaneously?

Yes, when the host computer is on, the charge-and-sync ports provide both data sync and standard charging simultaneously. If the computer is off, they switch to dedicated fast-charging.

What power adapter is included?

The hub includes a 48W universal AC adapter with four interchangeable plugs (NA/JP, UK, EU, ANZ). The adapter outputs 12V DC at 4A and has a center-positive tip.

What are the dimensions and weight of the hub?

The hub measures 7.9 x 2.4 x 0.9 inches (20.1 x 6.0 x 2.4 cm) and weighs 5.1 oz (144 g). The package weight is 22.6 oz (639 g).

Does the hub come with a warranty?

Yes, the ST103008U2C is backed by a 2-year warranty from StarTech.com and includes free lifetime technical support.

Is this hub compatible with USB-C devices?

The hub has a USB 3.0 Type-A host connection and USB Type-A ports. It does not have USB-C ports. To use with USB-C devices, you may need an adapter or cable.

USER MANUAL ST103008U2C StarTech.com

10-Port USB 3.0 Hub with Charge and Sync Ports - 2 x 1.5A Ports

Product ID: ST103008U2C

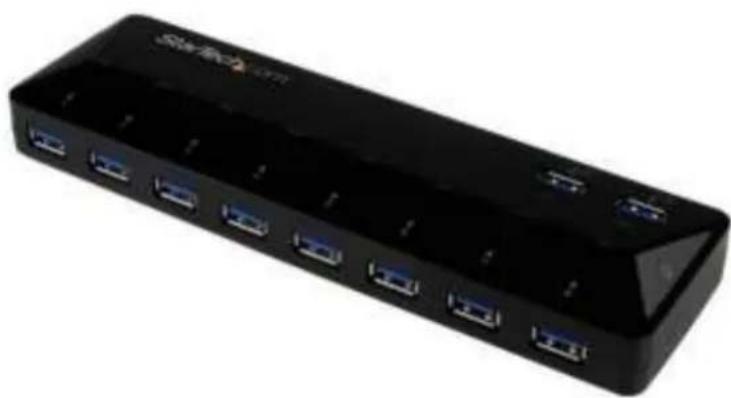

Black rectangular device with multiple ports and connectors, no visible text or symbols on the body

This 10-port USB 3.0 hub enhances your system's capabilities by providing fast-charging for mobile devices, plus quick access to your USB devices, making it perfect for business or home-office settings.

Fast-charge your mobile devices

As a charging station, the hub features two easy-access 1.5 amp charge-and-sync ports, so you can easily fast-charge your smartphones, tablets and other mobile devices. Plus, you can still connect all of your vital peripherals to the remaining data ports. Because the hub supports USB Battery Charging Specification 1.2, you can charge most mobile devices, including Apple devices and Android™ devices such as the Samsung Galaxy™.

Increase your productivity with ten USB 3.0 ports

Designed for maximum scalability, this 10-port hub boosts your productivity by putting all of your USB devices within easy reach. With USB 3.0 transfer rates up to 5Gbps, it supports high-bandwidth devices such as external hard drive enclosures, flash drives, high-resolution webcams, video cameras, and more.

Designed for easy use

With its sleek and compact design, you can easily position the USB 3.0 (also known as USB 3.1 Gen 1) hub on your desk or workspace to make your USB devices more accessible. There's also ample space between the USB 3.0 ports, so it's easy to plug and unplug the devices you use the most.

The USB 3.0 hub is multi-platform compatible and is natively supported in virtually all operating systems including Windows® and Mac, which makes for an easy setup with no driver installation required.

The ST103008U2C is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Certifications, Reports and Compatibility

RoHS & REACH

DOWNLOAD DECLARATION

Applications

• Conveniently fast-charge your mobile devices or sync with your computer
• Deploy as a charging station or data hub in hot-desk environments
• Upgrade the capabilities of your desktop or laptop with 10 additional USB 3.0 ports
• Make hard-to-reach USB ports more accessible

Features

• Boost your system's capabilities and turn one USB 3.0 port into ten
• Fast-charge your smartphone or tablet, using two charge-and-sync ports with 1.5A output
• Charge a variety of mobile devices, including Apple and Samsung Galaxy devices, with support for USB Battery Charging Specification 1.2
• Includes a 48W universal power adapter
• Multi-platform compatibility, with no drivers required
• Slim and sleek black enclosure
  • Built-in on/off power button
  • SuperSpeed USB 3.0 throughput up to 5Gbps
  • LED indicators for port status
  • Supports plug-and-play, hot-swap, and hot-plugging
• Backward compatible with USB 2.0 and 1.x devices

Warranty 2 Years

Hardware Bus Type USB 3.0

Chipset ID VIA/VLI - VL812

Fast-Charge Port(s) Yes

Industry Standards USB Battery Charging Specification Rev. 1.2

USB 3.0 - Backward compatible with USB 2.0/1.1

Interface USB 3.0

Ports 10

USB-C Device Port(s) No

USB-C Host Connection No

Performance Maximum Data Transfer Rate 5 Gbps

Type and Rate USB 3.0 - 5 Gbit/s

Connector(s) Connector Type(s) 8 - USB Type-A (9 pin) USB 3.0 Female

2 - USB 3.0 A (Fast-Charge, 9 pin) Female

Software	OS Compatibility	OS Independent; No additional drivers or software required
Special Notes / Requirements	Note	If connected to a USB 2.0 host port, performance may be limitedCharge and sync port(s) with a fast-charge icon:If your host computer is turned off, in sleep mode, or disconnected, the hub will disable data sync mode and enable fast-charge mode automaticallyIf your host computer is turned on, a charge and sync port will provide a standard charge to a connected device plus simultaneous data sync capabilities
	System and Cable Requirements	Host computer with an available USB 3.0 port
Indicators	LED Indicators	10 - Port status (Blue)
Power	Center Tip Polarity Positive
	Input Current	1.0 A
	Input Voltage	100 - 240 AC
	Output Current	4 A
	Output Voltage	12V DC
	Plug Type	N
	Power Consumption (In Watts)	48
	Power Source	AC Adapter Included
Environmental Humidity 10% ~ 90% RH (Non-condensing)
	Operating Temperature 0°C to 40°C (32°F to 104°F)
	Storage Temperature -10°C to 70°C (14°F to 158°F)
Physical Characteristics	Color Black
	Form Factor Desktop
	Material Plastic
	Product Height 0.9 in [2.4 cm]
	Product Length 7.9 in [20.1 cm]
	Product Width 2.4 in [60 mm]
	Weight of Product 5.1 oz [144 g]
Packaging Information	Package Height 2.9 in [73 mm]
	Package Length 7.6 in [19.4 cm]
	Package Width 11.5 in [29.3 cm]
	Shipping (Package) Weight 22.6 oz [639 g]
What's in the Box	Included in Package	1 - 10-port USB 3.0 hub with charge & sync ports
		1 - USB 3.0 host cable [80 cm/31.5 in.]
		1 - universal power adapter
		4 - universal power adapter (NA/JP, UK, EU, ANZ)

Product appearance and specifications are subject to change without notice.
