Product Type	Handheld Megaphone
Model	PMP45RE
Brand	Pyle
Power Output	45 Watts RMS
Power Source	6 x D batteries (not included)
Battery Life	Up to 15 hours (depending on usage)
Range	Up to 800 yards
Weight	2.2 lbs (1 kg)
Dimensions	10.5 x 8.5 x 8.5 inches
Material	ABS plastic construction
Color	Red and black
Features	Volume control, built-in microphone, siren, speak function
Included Accessories	Wrist strap, user manual
Recommended Use	Outdoor events, sports coaching, emergency announcements
Care Instructions	Wipe with a damp cloth; avoid exposure to moisture
Safety Warnings	Do not disassemble; keep away from water sources
Spare Parts	Batteries (user-replaceable); no other spare parts specified
Repairability	Not user-serviceable; contact Pyle support for repairs

Frequently Asked Questions - PMP45RE Pyle

How do I install batteries in the Pyle PMP45RE megaphone?

Remove the battery compartment cover on the handle, insert 6 D batteries in the correct polarity orientation, then replace the cover securely.

How do I activate the siren function?

Press the 'Siren' button on the handle while the megaphone is powered on. To stop, press the button again.

What is the maximum range of the PMP45RE?

The megaphone can transmit voice up to 800 yards (about 730 meters) in optimal conditions.

Can I use the megaphone indoors?

Yes, but the sound may be too loud for indoor spaces. Use the volume control to adjust accordingly.

Is the Pyle PMP45RE waterproof?

No, it is not waterproof. Avoid using in rain or near water. If exposed to moisture, dry it immediately.

How do I clean the megaphone?

Use a soft, damp cloth to wipe the exterior. Do not use harsh chemicals or immerse in water.

Can I connect an external microphone?

This model does not have an external microphone input. It uses a built-in microphone only.

What is the warranty for this product?

Pyle offers a standard 1-year warranty against manufacturing defects. Check the user manual for details.

How do I adjust the volume?

Turn the volume dial on the side of the handle clockwise to increase volume, counterclockwise to decrease.

How should I store the megaphone when not in use?

Remove the batteries to prevent corrosion, and store in a cool, dry place away from direct sunlight.

USER MANUAL PMP45RE Pyle

White Pyle USA megaphone with attached black-and-white cable, no visible text or symbols on the device body.

☆□□▼○○○★☆☆○○□□□■◆◆○▽△■+▽▽□

10 Second Memory Record, Detachable Handheld Microphone, Siren Alarm Mode

PMP45R

Megaphone Speaker with Built-in Rechargeable Battery, 10 Second Memory Record, Detachable Handheld Microphone, Siren Alarm Mode

This user manual contains important information for safe operation and optimal megaphone performance. Please carefully read and follow safety notes and instructions. Save this manual for future reference. Make sure that it is available to all persons using this device.

OPERATION

• Open the back cover by pressing down on the 'Open' Button

• Insert 6 x 'D' Batteries then close back cover until locks into position. Now, your megaphone is ready for operation.
  • To activate the megaphone, press the 'ON/OFF' button on the back cover.

• When using the megaphone, place your lips as close as possible to the megaphone when speaking. Adjust the 'Volume Control' to the desired level without causing any howling or feedback.

• Press the 'Play' button to play recorded voice or press the 'Siren' button to activate emergency siren/alarm. To switch off the siren, press the same button again, or press the 'ON/OFF' button.
• Adjust the volume control to the min. before recording. To record, press the RECORD button. Now your megaphone s ready for recording.

The longest record time is about 10 seconds. Press the RECORD button again after recording is done.

- Press the PLAY Button to activate the recorded materials circularly.

PRECAUTIONS

• Ensure correct polarity of batteries used. Insert the batteries in the correct direction by aligning the (-) marks on the batteries with the spring in the back cover.
• Use new batteries/cells whenever possible.
• When the megaphone is not in use for a long period of time, remove the dry Batteries and replace.
• Drained Batteries or rechargeable battery will not give sufficient sound volume.

BATTERY CHARGING

1. The megaphone features a removable rechargeable battery, that plugs-in directly into the wall power outlet for charging. Once connected to the wall power outlet, the battery will begin charging automatically (average time for full-charge: 8.5 hours). A Red light will be lit while charging and turns Green when fully charged.

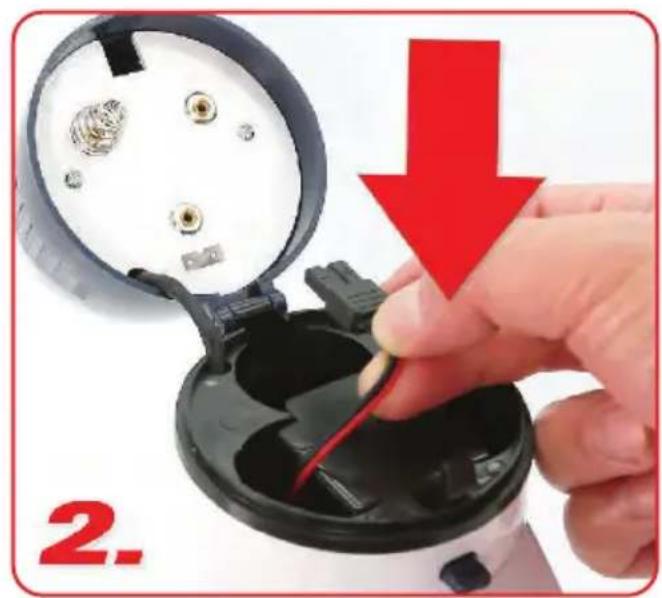

2. Once fully charged, insert the battery into the megaphone using the release button in the rear of the megaphone. Be sure to slide the battery into the compartment properly, ensuring the power connection cable is exposed.

3. Once the battery is inserted, connect the battery power cable connector into the megaphone power input (You may need to partially close the open megaphone compartment to make the connection).

Black plastic electrical connector with red cable, no visible text or symbols

Hand inserting a black plastic component into a device with a magnifying glass, showing red downward arrow (no text or symbols)

Close-up of an open electrical socket with exposed wiring and a red arrow pointing to the socket (no text or symbols visible)

PMP45R

Megaphone Speaker with Built-in Rechargeable Battery, 10 Second Memory Record, Detachable Handheld Microphone, Siren Alarm Mode

Features:

• Compact, Portable & Powerful Megaphone Speaker
  • Built-in Rechargeable Battery, Charges via Directly Wall Outlet
  • *or Battery Operated by (6) x 'D' Batteries, Not Included
• Integrated Wired Handheld Microphone
• Convenient Talking & Voice Projection via Handheld Mic
• Siren Mode: Button-Activated Automatic Siren Function
  • Record Mode: 10 Second Integrated Audio Memory
• Instantly Save & Replay Your Recorded Message
• Ergonomic Pistol Grip, Light-Weight Chassis
• Adjustable Audio Volume Control
  • Used by U.S. Armed Forces
• For Indoor/Outdoor Use

What's in the Box:

• Megaphone Speaker
• Removable Rechargeable Battery
• Wired Plug-in Handheld Microphone

Technical Specs:

• Maximum Power Output: 40 Watt
• Audio Projection Range: 1,000 Yards
- Rechargeable Battery: 7.4V Lithium-iOn, 1500mAh (11.1Wh, 124g)
- Dimensions (Diameter x Length): 8.0" x 13.1"-inches
- Sold as: Unit
