Product Type	Computer Cable
Brand	Icy Box
Model	IB-CB033
Connector Type A	USB-A Male
Connector Type B	USB-C Male
Cable Length	1 meter (3.3 ft)
Data Transfer Speed	USB 3.0 up to 5 Gbps
Power Delivery	Up to 20V/3A (60W)
Shielding	Aluminum foil & braided
Jacket Material	TPE (Thermoplastic Elastomer)
Compliance	USB-IF certified
Weight	Approx. 30 g
Operating Temperature	0°C to 60°C
Color	Black
Main Functions	Data transfer, charging, syncing
Maintenance	Wipe with a dry, soft cloth
Safety Precautions	Avoid sharp bends, keep away from heat sources
Spare Parts	Not applicable, cable is single unit
Warranty	2 years manufacturer warranty

Frequently Asked Questions - IB-CB033 Icy Box

Is the IB-CB033 cable compatible with my laptop?

The IB-CB033 features a USB-A to USB-C connection, making it compatible with most modern laptops and devices that have a USB-C port. It also works with USB-A devices.

What is the maximum data transfer speed?

This cable supports USB 3.0 standards, allowing data transfer speeds up to 5 Gbps, which is suitable for transferring large files like videos and photos quickly.

Can I use this cable for fast charging?

Yes, the IB-CB033 supports Power Delivery up to 60W (20V/3A), enabling rapid charging for compatible devices such as smartphones, tablets, and laptops.

What is the length of the cable?

The cable is 1 meter (3.3 feet) long, providing a convenient length for desktop use and connecting devices without excess clutter.

Is the cable durable?

The IB-CB033 features a TPE jacket and aluminum foil shielding, offering flexibility and protection against interference. However, avoid sharp bends or excessive pulling.

Does this cable support video output?

The IB-CB033 is primarily for data transfer and charging. For video output via USB-C, a specific DisplayPort Alt Mode cable is recommended.

Is it compatible with my iPhone?

iPhones starting from iPhone 15 use USB-C, so yes, this cable can connect your iPhone to a USB-A charger or computer. For older iPhones, a Lightning adapter is needed.

Can I use it to connect a printer?

Yes, if your printer has a USB-C port, the IB-CB033 can connect it to a computer via USB-A. Ensure the printer supports USB 3.0 for optimal speed.

What should I do if the cable stops working?

First, check the connection and try a different device. If the cable is physically damaged, it should be replaced. It is covered by a 2-year warranty; contact Icy Box support.

How do I clean this cable?

Unplug the cable before cleaning. Use a dry, soft cloth to wipe the connectors and jacket. Do not use water or chemical cleaners.

USER MANUAL IB-CB033 Icy Box

Quick Installation Guide IB-CB033

USB 3.1 (Gen 2) Type-C ^® to USB Type-A & Type-C ^® cable

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly

(if intended)

• Read the operating instructions prior to assembly
  • Do not force components together
  • Use suitable tools
• Use potentially enclosed accessories and tools only

- Avoid coming into contact with sharp edges or pointed components

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

Safety information IB-CB033

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

- Always comply with the information in the operating instructions/quick installation guide

• Exclusively use the product once the specifications have been met

• Back up data prior to commissioning

• Back up data prior to connecting new hardware

• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by

components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your

local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at

[e-mail] or visit our website at www.raidsonic.de.

Quick Installation Guide IB-CB033

Package content

1x IB-CB033, 1x quick installation guide

Important product information

Dear customer, please note the following information about compatibility of USB cables and adapters, including this cable!

In order to use the full data transfer rate of the IB-CB033, the host computer and the USB device must support USB 3.1 (Gen 2) with up to 10 Gbit/s. The IB-CB033 is backward compatible with USB 3.0, 2.0 and USB 1.1.

ATTENTION: The transmission of video signals is not possible. The IB-CB033 only transmits data signals.

System requirements

One USB 3.1 (Gen 2) device with an USB 3.1 (Gen 2) Type-C® host interface and one free USB 3.1 (Gen 2) Type-A or Type-C® port on your host computer. The IB-CB033 is backward compatible with USB 3.0, 2.0 and USB 1.1.

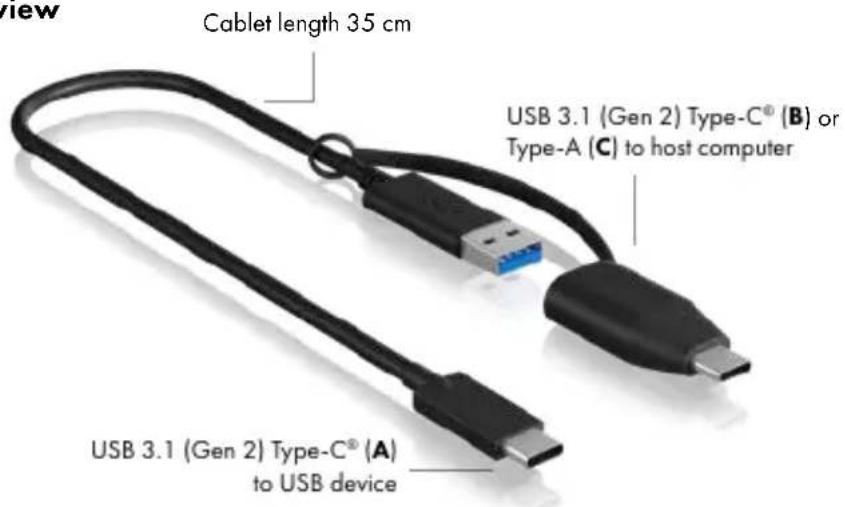

Overview

Key features

• USB 3.1 (Gen 2) Type-C ^ to Type-A cable
• Including Type-A to Type-C ^® adapter
• Data transfer rates of up to 10 Gbit/s
- Cable length 35 cm
• Operating system independent

Installation

1. Connect the IB-CB033 with the USB Type-C ^ connector (A) to a USB device.
2. Connect the IB-CB033 with the USB Type-C ^ connector (B) or the USB Type-A connector (C) to your host computer.
