Product Type	Flame Aroma Diffuser
Brand	Tellur
Model	TLL441121 / TLL441131
Dimensions	210 x 135 x 81 mm
Weight	479 g
Power Supply	AC 100-240V / DC 24V 500mA
Max Power Consumption	14 W
Water Tank Capacity	240 ml (Max level)
Ultrasonic Frequency	2.4 MHz
Mist Output	16-20 ml/h
Operation Time	Up to 15 hours (low mist), 12 hours (high mist)
Timer Settings	Continuous, 2H, 4H
Light Modes	Strong (default), Weak, Breathing
Coverage Area	Up to 30 m²
Power Cord Length	150 cm
Package Contents	Aroma Diffuser, AC/DC Adapter, Remote Control, Water Cup, User Manual
Maintenance	Clean every 3-5 days with mild detergent; avoid water entering air outlet; dry tank if not used for long
Safety Features	Auto shut-off when water runs out; low water protection; do not operate without water; keep away from heat sources; wait 60 min before restart
Water Type	Tap water or distilled water only
Essential Oils	Not included; add to water in tank

Frequently Asked Questions - TLL441121 Tellur

How do I use the Tellur TLL441121 aroma diffuser?

Remove the top cover, fill the tank with up to 240 ml of water (use the measuring cup), add a few drops of essential oil, replace the cover, plug in the adapter, and press the MIST button to select mist mode or timer. Press LIGHT to adjust the light.

Why is no mist coming out?

Check if there is enough water in the tank (do not exceed MAX line). Ensure the power cord is properly connected. Clean the ultrasonic plate if dirty. Also verify the top cover is correctly installed and the air intake is not blocked.

How do I clean the diffuser?

Unplug the device, remove the top cover, empty any remaining water. Add warm water and a small amount of mild detergent, use a swab to gently wipe the tank and ultrasonic plate, then dry with a clean cloth. Avoid getting water into the air outlet.

Can I use the diffuser without water?

No. Always ensure there is water in the tank before switching on. The device has auto shut-off when water runs out, but running it dry can damage the ultrasonic plate.

How long does the mist last?

On high mist output, it lasts about 12 hours; on low mist, about 15 hours. The actual time may vary depending on room humidity and water type.

How do I set the timer?

Press the MIST button repeatedly to cycle through mist modes: high mist, low mist, then timer settings 2H and 4H. Long press the MIST button to turn off.

What do the light modes do?

Press the LIGHT button to switch between strong (default), weak, and breathing light modes. The light enhances the ambiance and can be used independently of the mist.

Can I use essential oils?

Yes, add a few drops of essential oil to the water in the tank. Do not add oils directly to the ultrasonic plate. Essential oils are not included with the device.

What should I do if the diffuser leaks water?

Ensure the top cover and inner parts are properly installed. Check if the water level exceeds the MAX line. In high humidity or low temperature, mist may condense into droplets; this is normal. Wipe any spills with a soft cloth.

How do I use the remote control?

The remote control has three buttons: ON/OFF to power on/off, MIST to select mist output or timer, and LIGHT to adjust light modes. Point it at the diffuser from a reasonable distance.

USER MANUAL TLL441121 Tellur

FLAME AROMA DIFFUSER

TLL441121/TLL441131

User guide

INTO YOUR FUTURE

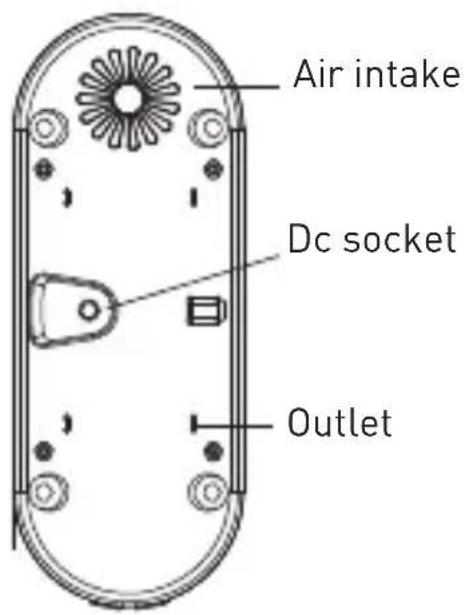

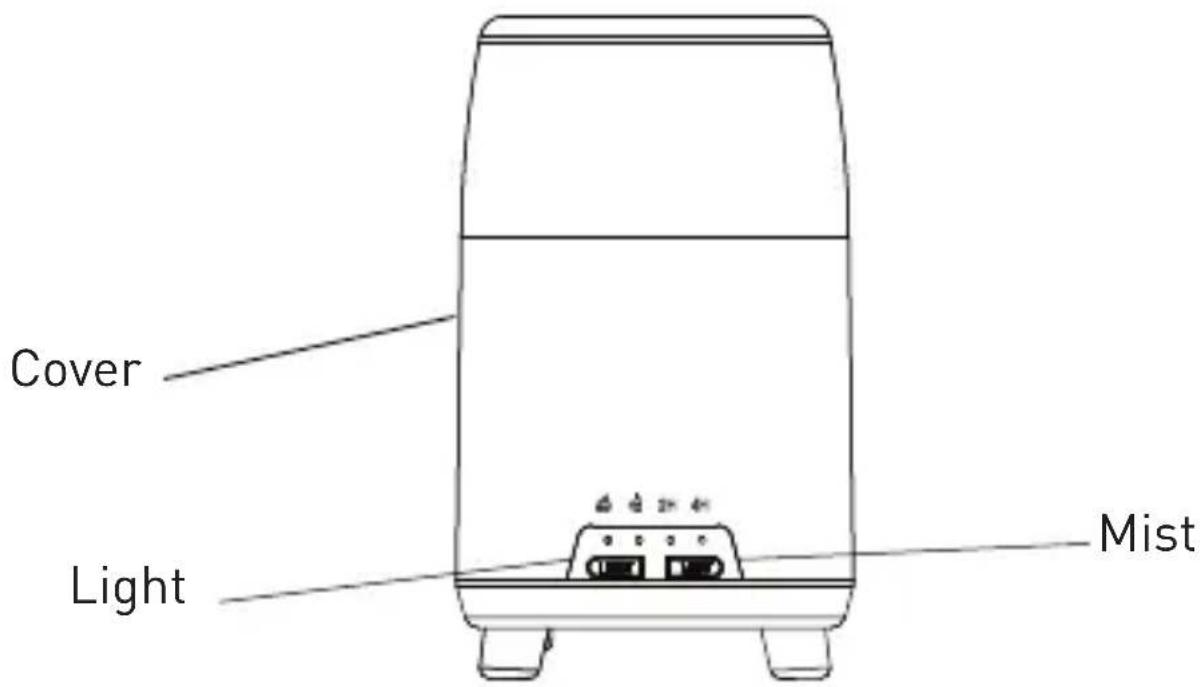

Product Diagram

This Aroma Diffuser uses Ultrasonic Technology to instantly vaporize the water from tank, producing a cool, dry, fragrant mist.

Operation steps

1. Keep the product straight and remove the top cover, on vertical direction.

1. Please, connect the AC adaptor to the DC jack, from the base of the main body.

Fig.2

1. Please, use the measure cup to supply with water (Do not add, high temperature water), and also, pay attention, to the water level; do not exceed the max. line (240 ml). Please, do not add water when the product is working.

Fig.3

1. Install the top cover of the main body, exactly like the initial position. Note: The top cover must be in position when the product is in use.

Fig.4

1. Press the “MIST” button, and choose the time needed, (high mist output, low mist output, 2H, 4H). Long press the “MIST” button to turn off the device.

Fig.5

1. Press the "LIGHT" button, to adjust the light mode and intensity - Strong light(default)/weak light/breathing light.

Fig.6

1. If you do not use the diffuser, for long time, please, drain out the water and dry the tank. If you want to use it again, please, use a neutral detergent to clean the water tank, and after that, you can use it.
2. When the power supply is switched on, the initial state of the aromatherapy diffuser, is off.
3. If is lack of water, in the tank, even though the MIST button is switch on, the diffuser will automatically turn off.
4. The mist and the light, automatically turns off, when the water from tank, is finished.

Precautions

• Product use time: about 12 hours for high mist. 15 hours for low mist
• The amount and intensity of the mist produced, will vary, but this is not unusual and should not be considered the device's fault.
• Factors that affect this include the water type, humidity, air currents.
  • The power supply automatic off when the water run out.

Accidental leakage

In the event of the device being knocked over or tipped during use, please, follow the steps as below to avoid malfunction:

1. Unplug the unit and remove cover.
2. Take out, any remaining water in the tank.
3. Shake the device gently, to drain the water, and leave it to dry, for at least 24 hours.

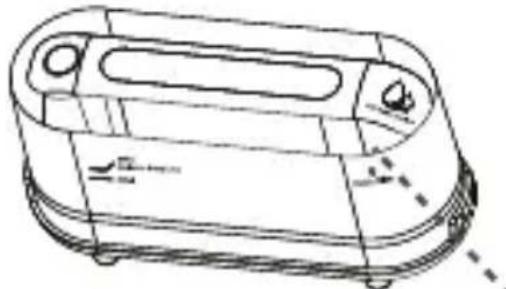

Pour water operation indication

Maintenance

After using 3-5 days, please, clean the product as follow:

1. Unplug the unit from main supply and remove the top cover.
2. Take out any remaining water in the tank.
3. Add a small amount of warm water and kitchen detergent remover, use a swab to wipe it gently and then use a cleaning cloth to dry lightly.

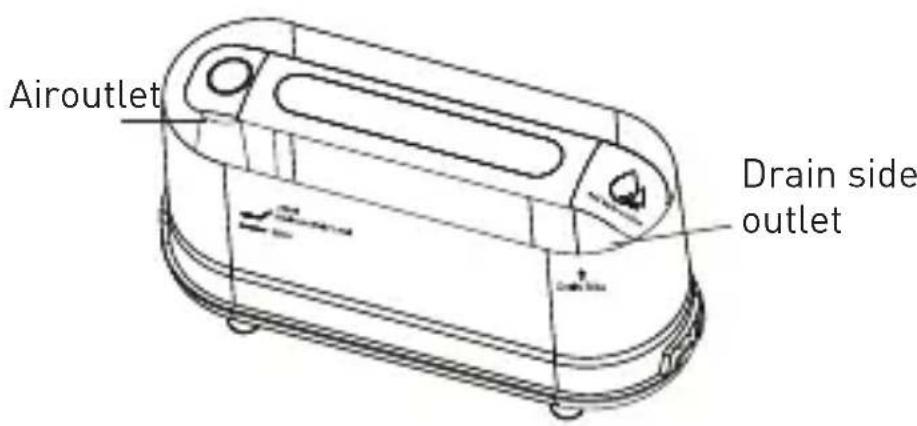

4. Refer to the following pictures to avoid that water flows into the air outlet, take out the water as shown in the left image, not the one in the right.

5. Do not use acids, or enzymes detergents, as this may produce poisonous gases or cause malfunctions.

Note: Be sure to use a mild detergent.

Safety instructions

Please, follow the indications below to avoid malfunction of the aroma diffuser:

- Do not fill over 240 ml “Maximum water level”. Suggestion: use \~ 200ml of water.

- Do not switch on the power when the tank is empty.

- Do not touch the Ultrasonic vibration plate.

- Clean regularly to avoid malfunction.

• Always unplug the device from the power supply before maintenance.

- For hygiene reasons, after use, pour away the remaining water from the tank (remember the DRAIN SIDE), and wipe it, with a clean cloth.

- The essential oils, can stain, in the event of spillage, please, wipe away with a soft cloth.

- Only use the measuring water cup, to add the water in the tank, do not fill it directly from the water pipe.

- Do not let the mist to migrate onto furniture, clothing, walls etc.

- Keep it away, from direct sunshine heat sources, air conditioned, or fans.

- Always keep on stable plat surfaces, do not place it on the carpet, duvet, or unstable areas.

- Keep it away from electronic equipment such as TV, or Auto equipment.

- Do not tip the product this may cause water to enter the mechanism and cause malfunction. Product use time: about 12 hours for high mist, 15 hours for low mist.

- Wait 60 minutes before restart to avoid damage to Ultrasonic plate.

- Use tap water only, or distilled water.

- Never move the product when it is working.

- Do not touch any part of the product with wet hands.

- Keep out of reach of children and pets. Children not being supervised should not play with the product. Appliance is not suitable for children or persons with reduced physical sensory or mental capabilities, or lack of experience and knowledge to use it, unless they are supervised.

- Keep the cord clear of obstacles and do not pull it, forcefully. If smoke or burning smell detected, unplug the device, immediately.

TROUBLESHOOTING

Please, refer to the table below in the event of the product operating abnormally:

If the product does not work well, please, refer to the following points before requesting repairs.

Will not switch on or switch off	Is there enough water in the tank?- Please, add water to the tankIs the power cord connected properly?- Please, disconnect, check, and reconnect it, carefully.
No mist or abnormal mist	Not enough water? Too much water?- Please, add suitable amount of water in the tank, water level must never be over the line of 240 ml (MAX).Dirt on the Ultrasonic plate?- Please, refer to maintenance instruction, remove and reinstall correctly, so the vapors can be released freely.The top cover and inner cover are not installed properly? Dirt on the air suction port on the underside of the base?- If it is too much dust in the air suction port, the mist will be restricted to come out. Just clean it.
Water leakage from the product	The top cover and inner parts are not installed properly?- Remove and reinstall correctly, so the vapors can be released freely.Low temperature or high humidity?- Under these conditions the mist may condense quickly into water droplets.

TECHINCAL SPECIFICATIONS

Voltage: AC100-240V / DC/24V 500MA

Capacity: 240ml

Max power: 14W

Ultrasonic frequency: 2.4MHz

Operation time: Up to 15 hours

Vapor power: 16-20ml/h

Vapor level: Light or powerful

Light mode intensity: Strong (default), weak, breathing light

Timer: 0N/2H/4H

Lighting: LED

Low water protection: Auto shutdown

Coverage area: Up to 30m2

Power cord length: 150cm

Color: White/Grey

Package includes:

-Aroma Diffuser

-AC/DC Adapter

-Remote control

-Water cup

-User Manual

Essential oils: Not included

Product dimensions: 210*135*81mm

Product weight: 479g

REMOTE CONTROL

No.	Button Function
1	ON/OFF	ON/OFF
2	MIST To	select high mist output, low mist output, 2H, 4H.
3	LIGHT Press “LIGHT” to adjust the light mode:Strong light(default)/weak light/breathing light.
