Product Type	Floor stand for loudspeakers
Brand	B-Tech
Model	BT604
Maximum Load Capacity	50 kg (110 lbs)
Height	40 cm (15.8 inches)
Base Plate Dimensions	240 x 175 mm (9.4 x 6.9 inches)
Speaker Platform Dimensions	190 x 190 mm (7.5 x 7.5 inches)
Column Diameter	Not specified, estimated 38 mm typical
Material	Steel (columns), plastic (foam pads), rubber (floor protection discs)
Fillable Columns	Yes, for sand damping (optional)
Included Spikes	Yes, 8 spikes (4 bottom, 4 top)
Included Foam Pads	Yes, 8 foam pads (alternative to spikes)
Contents	2 speaker platforms, 4 support columns, 2 base plates, screws, nuts, spikes, foam pads, floor protection discs, hex key, logo stickers
Tools Required	4mm hex key (supplied), optional adjustable spanner and level
Installation	Easy assembly, no wall mounting required
Safety Features	Spikes for stability, fillable columns for dampening, floor protection discs
Maintenance	Wipe with damp cloth; check tightness periodically
Warranty	Not specified; likely limited warranty per B-Tech policy

Frequently Asked Questions - BT604 B-Tech

What is the maximum speaker weight the BT604 can support?

The BT604 is designed for speakers up to 50 kg (110 lbs) per stand. Exceeding this may cause instability and injury.

Can the columns be filled with sand?

Yes, the columns can be filled with dry sand using a funnel for enhanced dampening and stability. This is optional but recommended.

Does the stand come with spikes or foam pads?

It includes both spikes (for carpet) and foam pads (for hard floors). You can choose which to attach to the base and speaker platform.

What tools are required for assembly?

The only necessary tool is the 4mm hex key provided. An adjustable spanner and level can be useful but are optional.

Are floor protection discs included?

Yes, floor protection discs are included to prevent scratches when using spikes on hard floors.

How tall is the BT604 stand?

The stand height is 40 cm (15.8 inches).

Is the stand suitable for outdoor use?

The manual does not specify outdoor use. The stands appear to be designed for indoor use, but with care they may be used outdoors if protected from moisture.

Does the package contain two stands?

Yes, the pack contains 2 speaker stands.

How do I clean the stands?

Wipe with a damp cloth. Avoid abrasive cleaners. Check and tighten screws periodically.

What is the warranty on B-Tech BT604?

Warranty details are not provided in the manual. Contact B-Tech support or your retailer for warranty information.

USER MANUAL BT604 B-Tech

This Pack Contains 2 Speaker Stands

PLEASE KEEP THIS FOR FUTURE REFERENCE

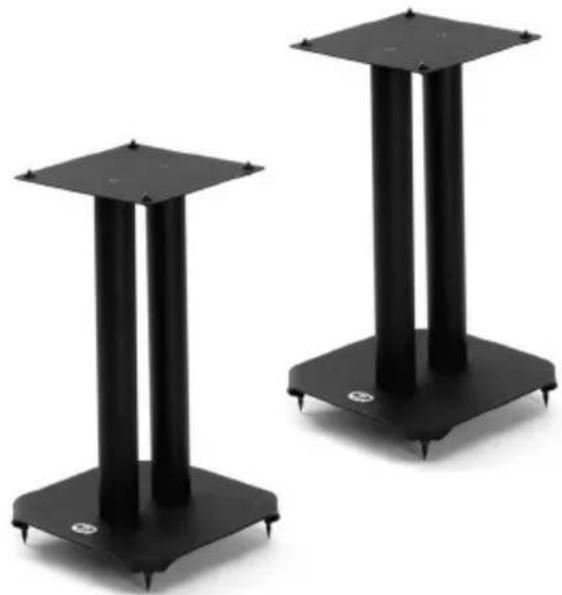

Two black cylindrical outdoor stands with mounting feet, no text or symbols visible

FEATURES

• Designed for loudspeakers up to 50kg (110lbs)
  • Sound isolating loudspeaker floor stands
• Fillable columns for superior dampening
• Top and bottom isolating spikes provided
• Stand height: 40cm (15.8")

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Product Dimensions....11

B-Tech Contact Details....12

TOOLS REQUIRED

4mm Hex Key (supplied)

Adjustable spanner (optional)

Level (optional)

Dry sand and funnel (optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This stand is intended for

use only with the maximum weights indicated. Use with speakers heavier than the maximum indicated

may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some locations are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

This pack contains 2 loudspeaker floor stands

Simple line drawing of a two-tiered support structure with no text or symbols

Technical line drawing of a mechanical support base with two vertical cylindrical components and mounting feet (no text or symbols)

Suitable for loads up to 50kg (110lbs)

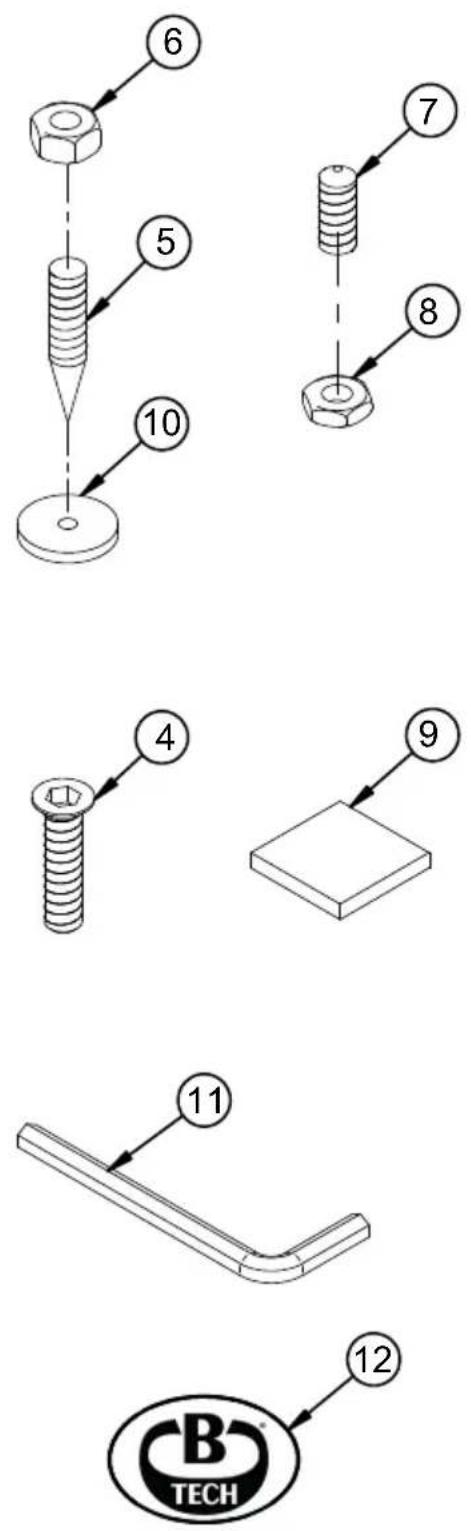

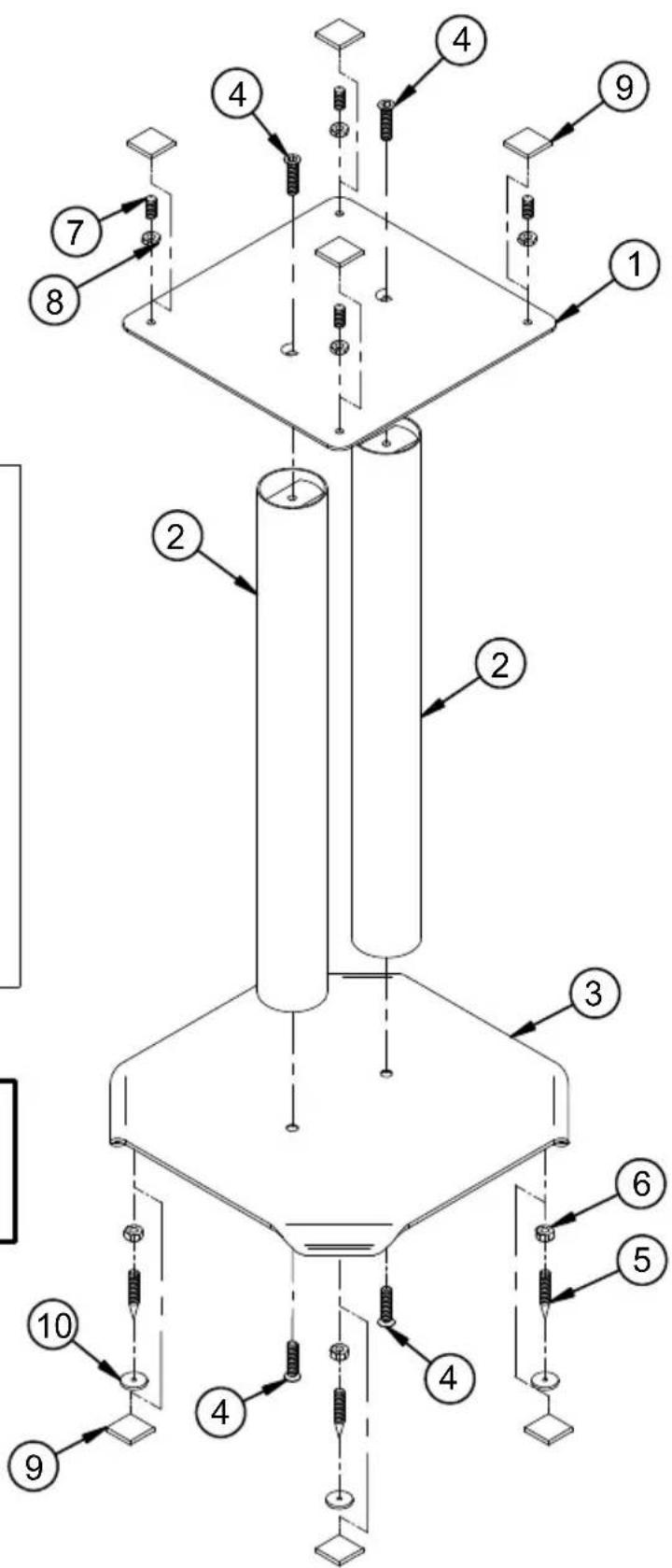

REF	PART NAME QTY
1	SPEAKER PLATFORM 2
2	SUPPORT COLUMN 4
3	BASE PLATE 2
4 M6 x 25mm HEX SCREW 8
5 M6 x 30mm BOTTOM SPIKE 8
6 M6 NUT (5mm THICK) 8
7 M6 x 15mm TOP SPIKE 8
8 M6 NUT (3mm THICK) 8
9	FOAM PAD 8
10 FLOOR PROTECTION DISC 8
11	4mm HEX KEY (FOR PART 4)	1
12 B-TECH LOGO STICKER 2

INSTALLATION INSTRUCTIONS

1

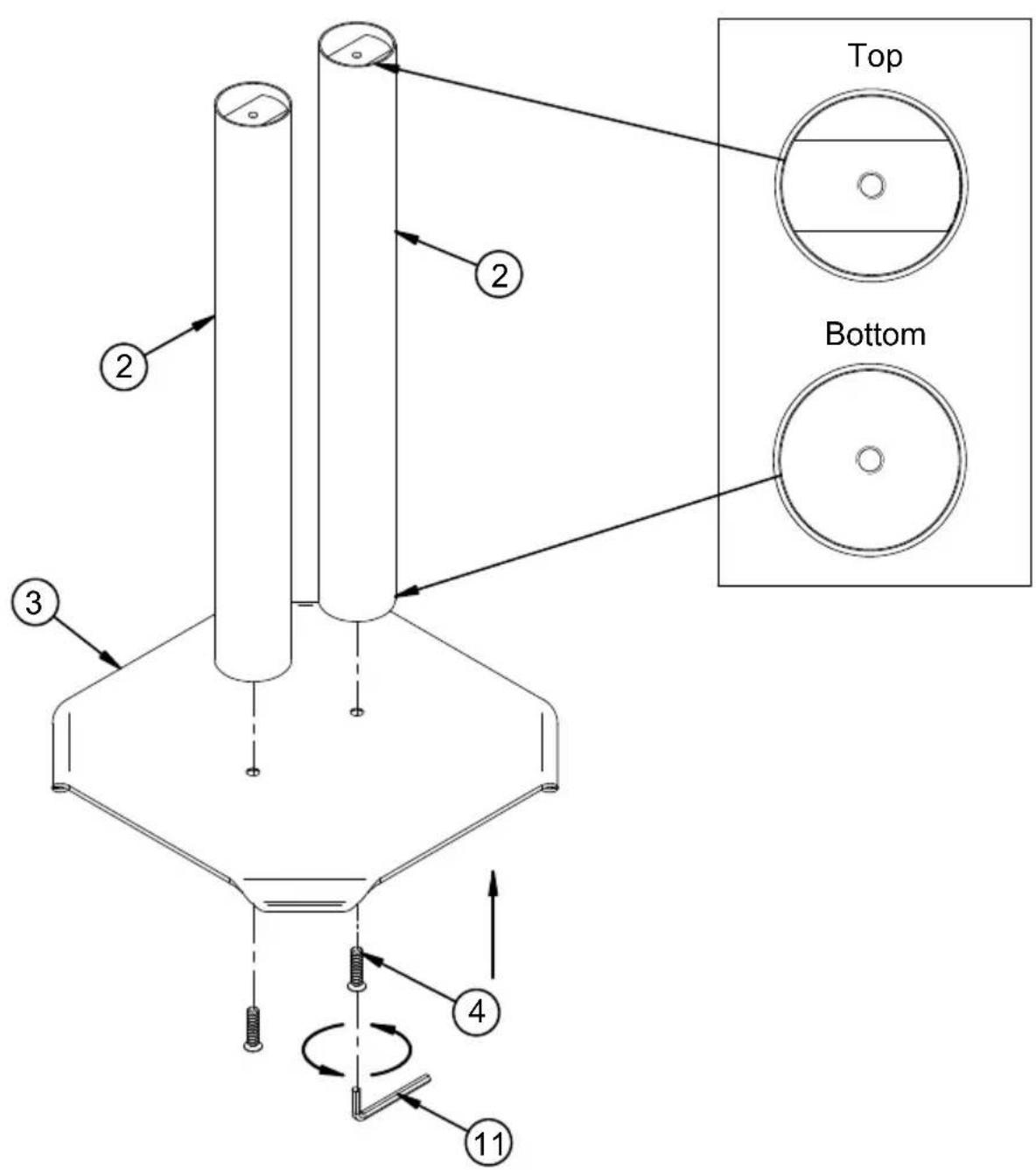

i. Attach poles to bottom plate.

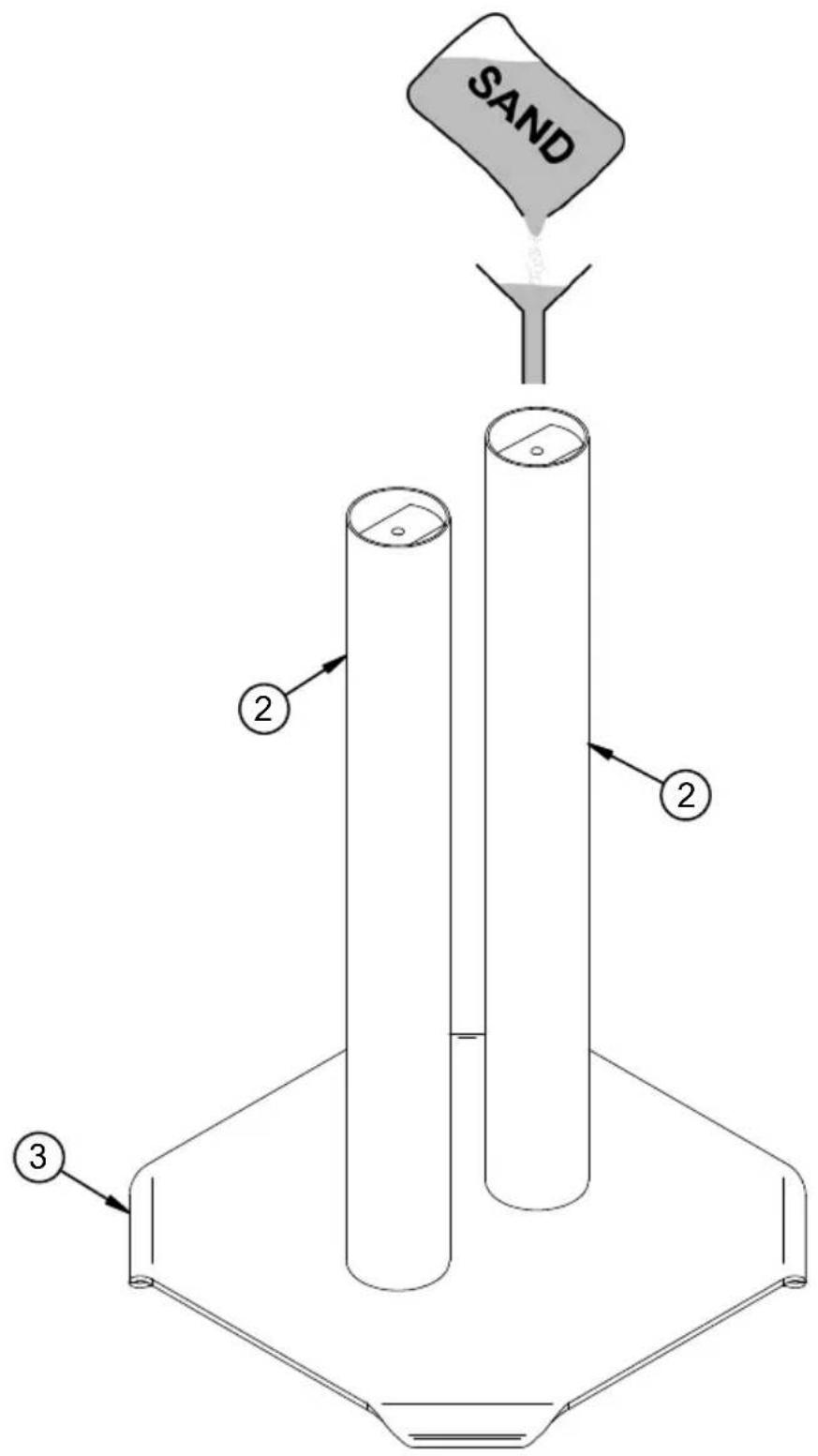

ii. OPTIONAL - For enhanced performance the poles can be filled with sand.

z

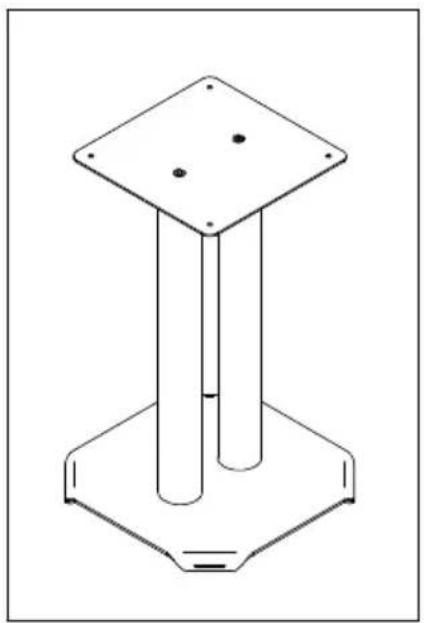

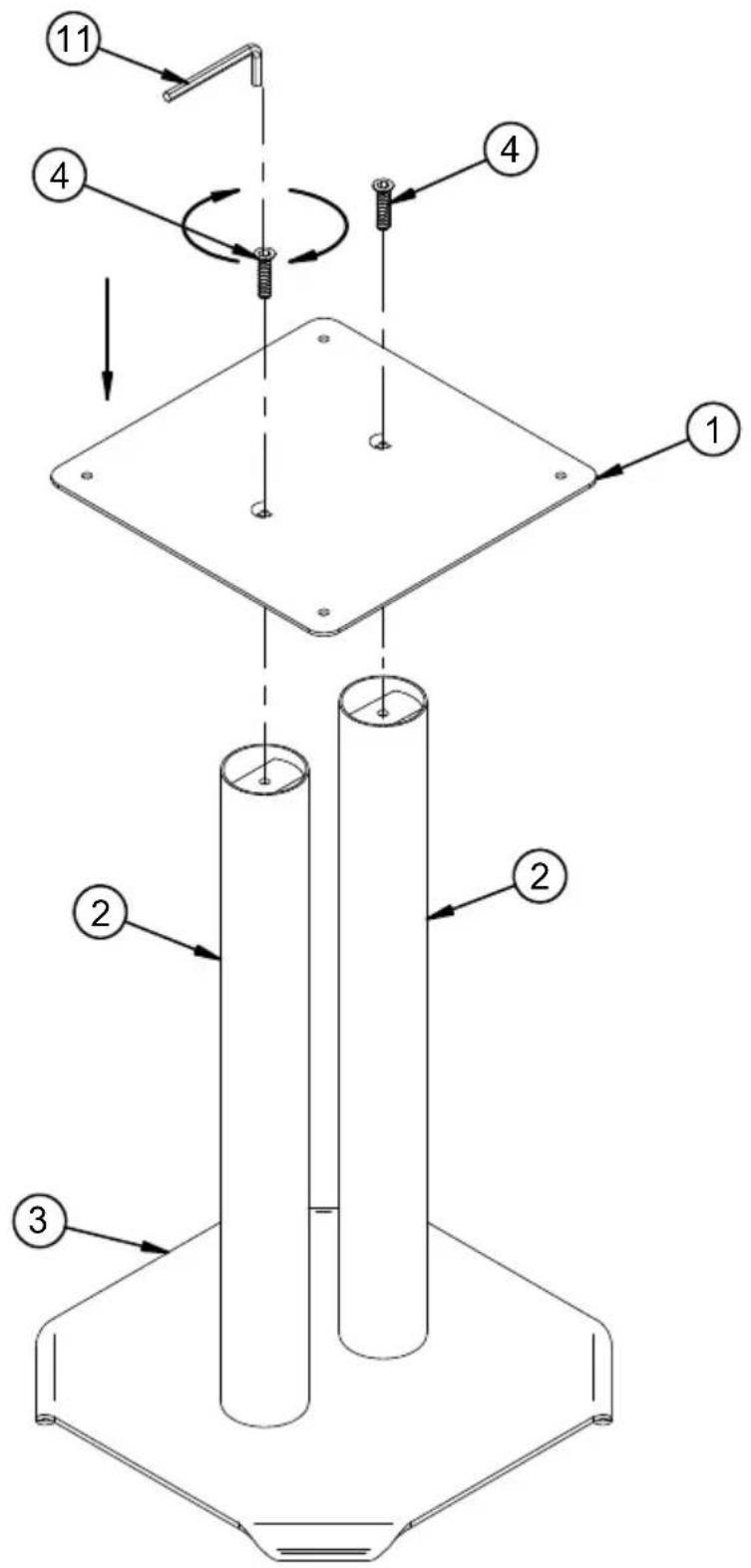

Attach speaker platform to the poles.

Technical line drawing of a mechanical support base with two cylindrical components and a diamond-shaped top (no text or symbols)

3

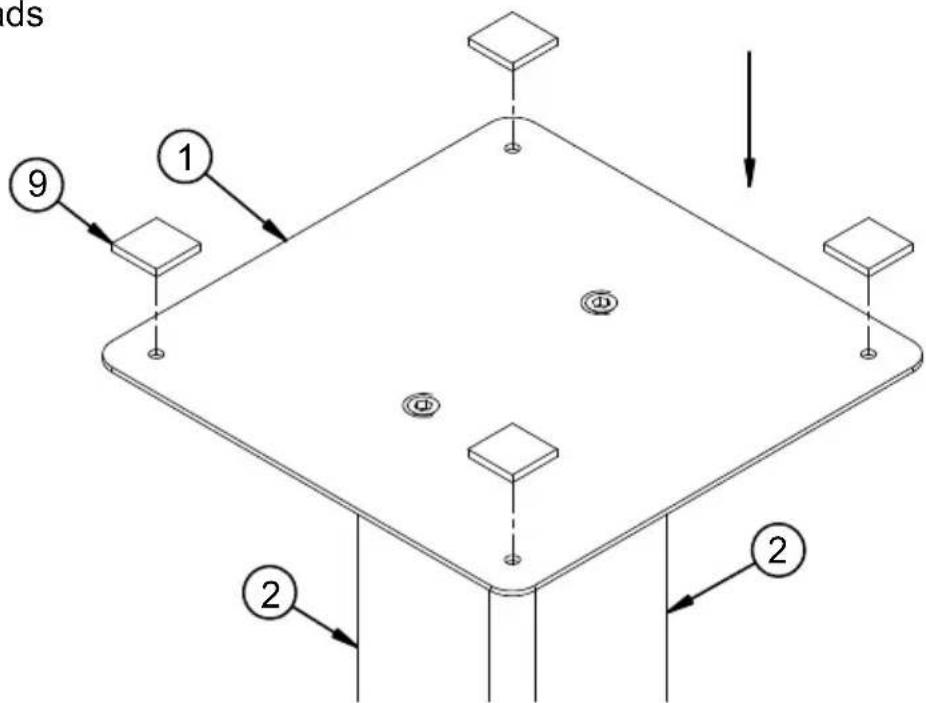

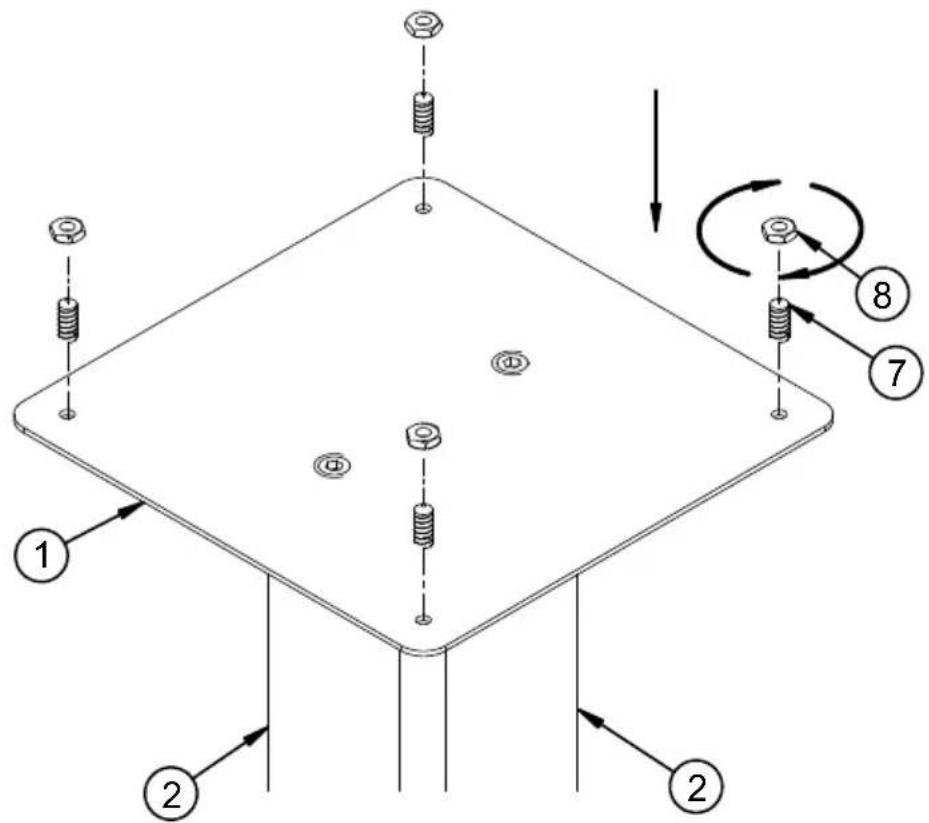

Attach the spikes or alternative foam pads to the speaker platform.

i. Spikes

ii. Foam pads

4

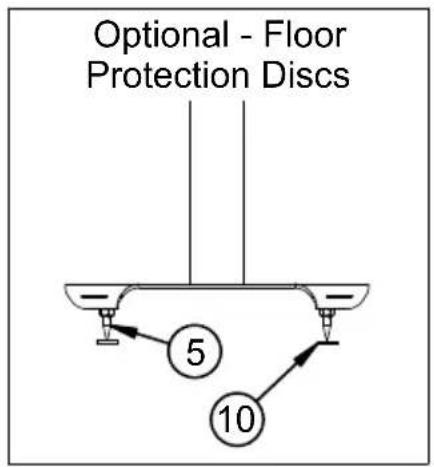

Attach spikes or foam pads to base plate.

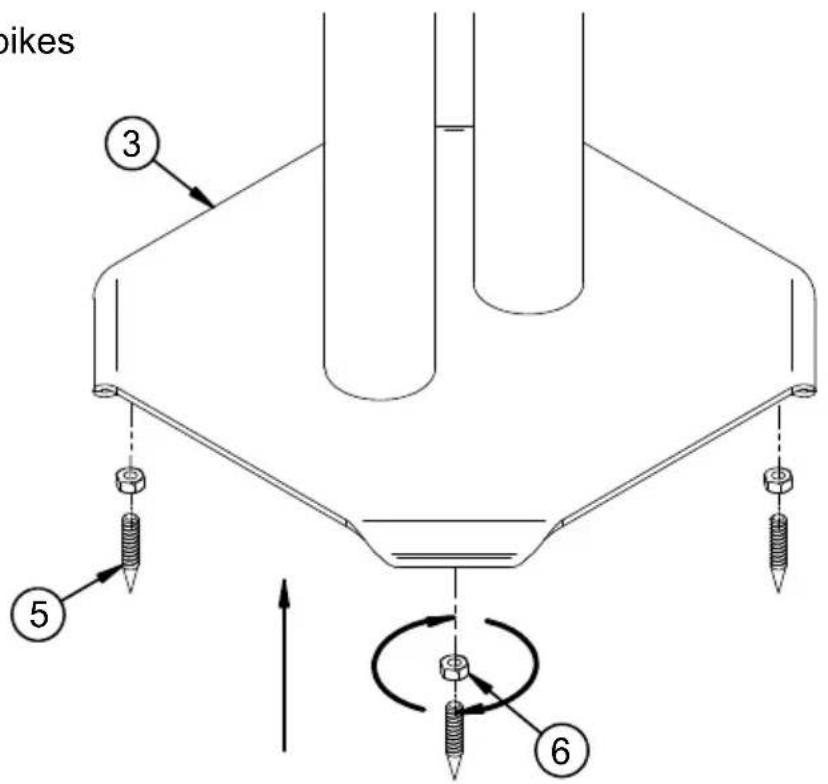

i. Spikes

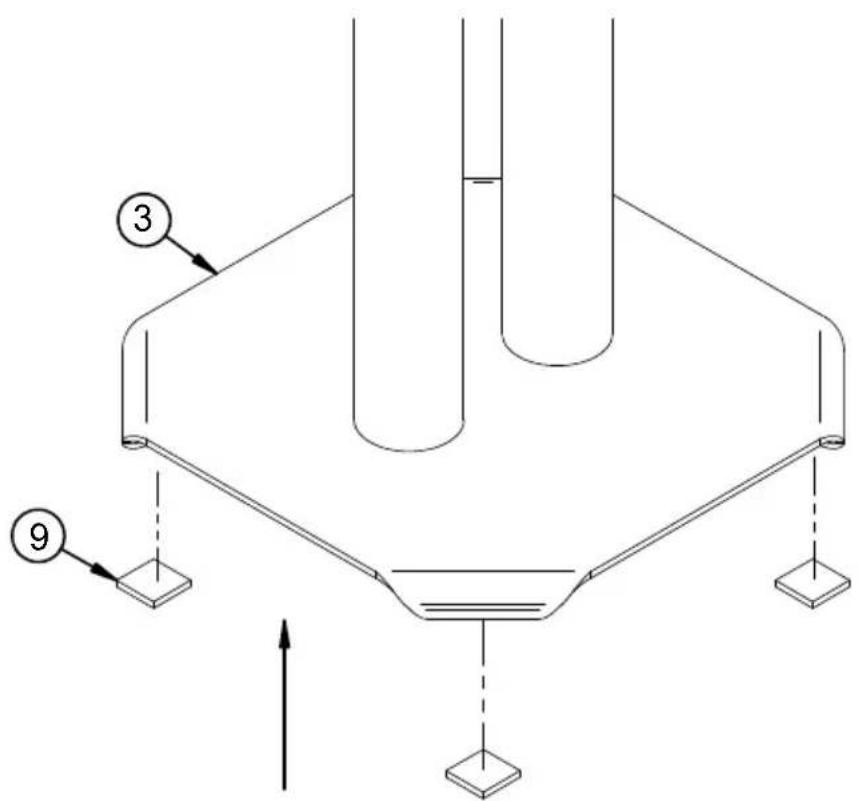

ii. Foam Pads

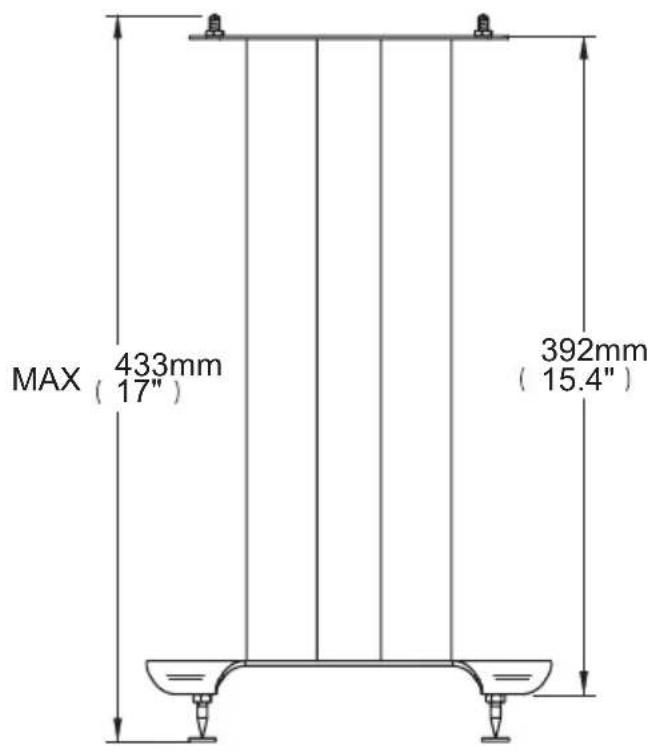

BT604 PRODUCT DIMENSIONS

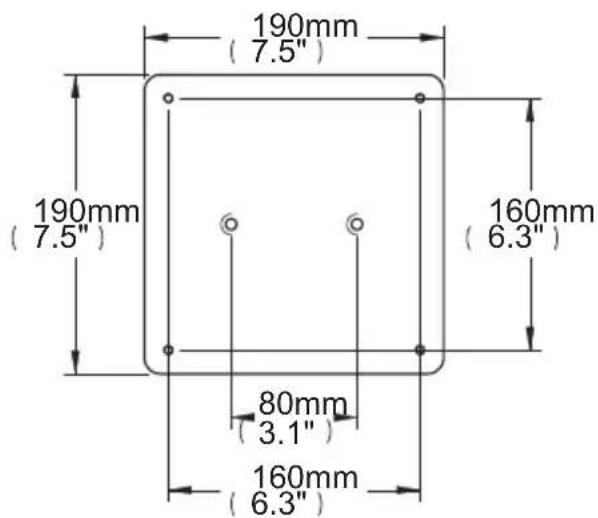

SPEAKER PLATFORM

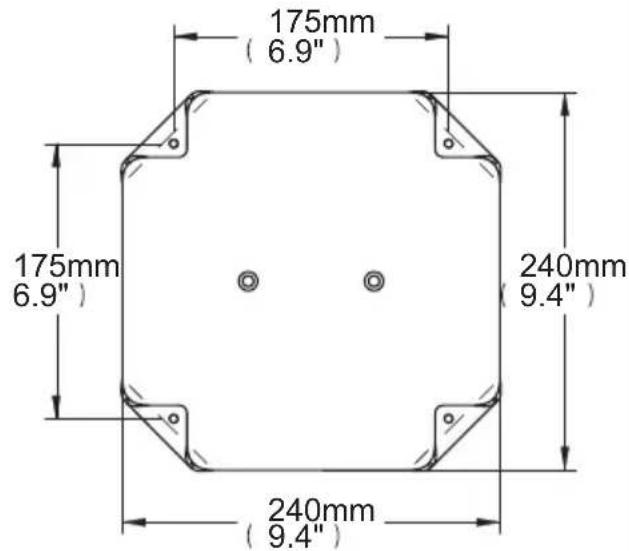

BASE PLATE

BETTER BY DESIGN

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

B-Tech International Limited

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

Email: [e-mail]

BELGIUM

B-Tech Pro-AV BVBA

Brixtonlaan 32, Zaventem 1930,

Brussels, Belgium

Email: [e-mail]

GERMANY

14612 Falkensee, Germany

B-Tech International (Hong Kong) Ltd

1109 Prosperity Millennia Plaza,

Quarry Bay, Hong Kong

Email: [e-mail]

SINGAPORE

B-Tech AV Mounts Pte Ltd

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

©2013 B-Tech International Ltd. All rights reserved.

B-Tech Audio Video Mounts is a division of B-Tech International Ltd.

B-Tech, Better By Design and Mountlogic are registered trademarks of B-Tech International Ltd.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

IP-BT604-V2-OR2BX-280613-03 MADE IN CHINA
