Product Type	30X UHD60 PTZ Camera with NDI®|HX
Dimensions	232 x 188 x 189 mm (L x W x H)
Weight	3.0 kg (excluding metal plate)
Power Supply	DC 12V via included adapter or PoE++ (IEEE 802.3bt)
Image Sensor	1/2.5-inch 8.5MP CMOS
Optical Zoom	30x
Maximum Resolution	3840 x 2160 at 59.94/50/29.97/25 fps
Video Outputs	HDMI 2.0, 12G-SDI, NDI®|HX (Ethernet)
Control Interfaces	RS-232 (in/out), RS-422, Ethernet (NDI), IR remote
Audio Input	Line In / Mic In
Pan Range	±170°
Tilt Range	-30° to +90°
Preset Positions	Up to 10 (via remote or web)
NDI Protocol	NDI®|HX (plug-and-play IP video)
Mounting Options	Desk or ceiling mount (UL approved hanger required for ceiling)
Included Accessories	Power adapter, remote control, RS-422 connector, M3 screws, metal plates A & B
Cleaning Instructions	Unplug all cables; use a damp cloth; do not use liquid or aerosol cleaners
Safety Compliances	FCC Class A, ICES-003, UL/CE for mounting hardware
Warranty	3 years from purchase date (first consumer)
Repairability	No user-serviceable parts; refer all servicing to licensed personnel

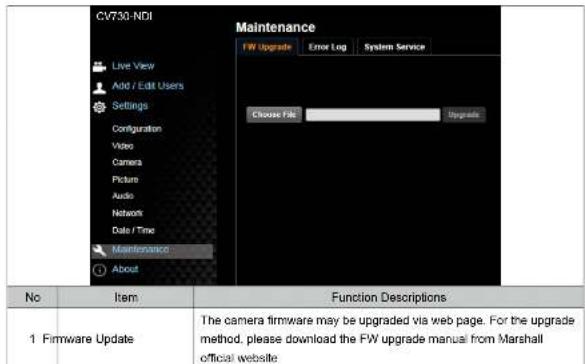

Firmware Upgrade	Via web interface; download upgrades from Marshall website

Frequently Asked Questions - CV730-NDI Marshall Electronics

How do I set up the NDI connection for the CV730-NDI?

Install the NDI®|HX drivers on your computer (for TriCaster or Microsoft HEVC decode). Connect the camera's Ethernet port to the same network as your computer or NewTek equipment. Power on and the camera will appear as an NDI source. For details, refer to the Quick Setup section of the manual.

What is the maximum resolution and frame rate of the CV730-NDI?

The camera supports up to 3840x2160 at 59.94 fps via HDMI and SDI. Lower resolutions like 1080p and 720p are also available at various frame rates.

Can I control the camera remotely via IP?

Yes, the CV730-NDI can be controlled over IP through its web interface (default IP: 192.168.100.100, user admin, password 9999). You can also control it via RS-232, RS-422, or the included IR remote.

How do I mount the camera on the ceiling?

Use the supplied metal plates (A and B). First, remove the four foot pads from the bottom. Attach metal plate A with 4 M3 silver screws. Secure metal plate B to a UL/CE approved ceiling hanger, then slide plate A into plate B and fasten with 2 M3 silver and 1 M3 black screw. Ensure the camera is at least 2 meters from the subject.

What type of power does the camera require?

The camera can be powered via a DC 12V adapter (included) or through PoE++ (IEEE 802.3bt) using a compatible switch or injector.

How do I change the camera's IP address?

Access the OSD menu by pressing Menu on the remote, navigate to Ethernet settings, and disable DHCP. Then manually enter the IP address, subnet mask, and gateway. Alternatively, use the web interface under Settings > Network.

The camera has no image output. What should I check?

Ensure the power source is working (adapter or PoE++). Verify the video output cable and monitor compatibility (HDMI, SDI, or NDI). Confirm the output resolution matches your monitor's capabilities. Try a different cable or port.

How do I clean the camera lens and body?

Unplug all cables before cleaning. Use a soft, damp cloth to wipe the exterior. Do not use liquid or aerosol cleaners. For the lens, use a lens cleaning cloth to avoid scratches.

Is the camera compatible with third-party PTZ controllers?

Yes, the camera supports VISCA and Pelco-D protocols over RS-232 or RS-422. Set the protocol and baud rate in the System menu or web interface.

What is the warranty period and how do I get support?

The CV730-NDI comes with a 3-year warranty for the first consumer. For hardware issues, contact Marshall Customer Support at 800-800-6608 or [e-mail]. For NDI software issues, contact NewTek.

USER MANUAL CV730-NDI Marshall Electronics

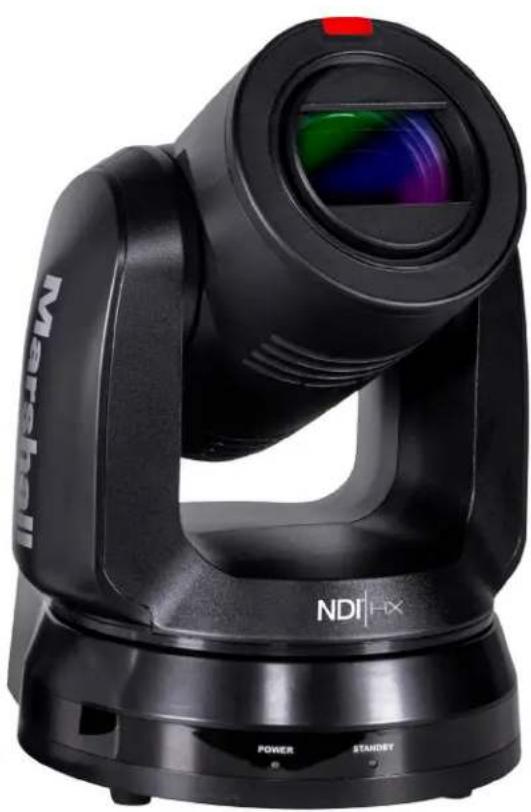

30X UHD60 PTZ Camera with NDI®IHX

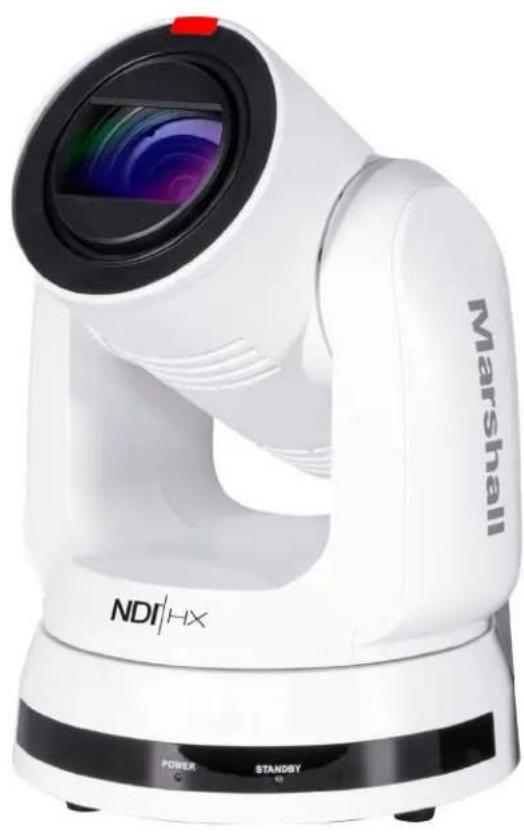

White Marshall NDR HX radar device with visible lens and control buttons (no text-heavy elements)

Black NDI H-X radar optical device with visible lens and control buttons (no text-heavy elements)

User Manual

Marshall

CV730-NDI Manual

Table of Contents

1. Safety Instructions 04

2. Package Contents 06

3. Function Introduction 07

3.1 I/O Functions Introduction 07

3.2 Description of LED Indicator 09

3.3 Tally Lamp Function Description 09

1. Instruction for Installation 10

4.1 Preparation before Installation 10

4.2 Instruction for Installation 11

4.3 Ceiling Mounting 11

4.3 Connecting Devices 17

1. Remote Control and Setting Menu 20

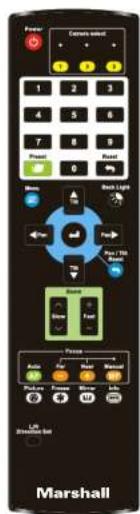

5.1 Functions of Remote Control 20

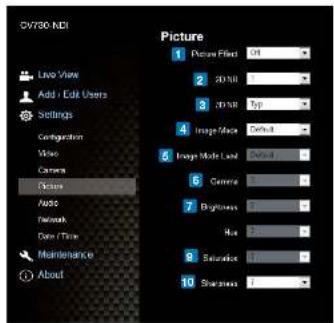

5.2 Setting Menu 21

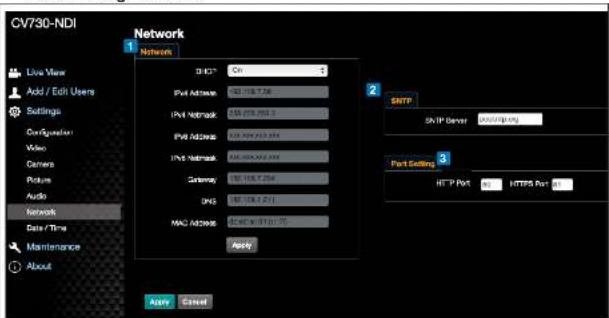

1. Network Function Settings Description 30

6.1 Connecting Camera to Network 30

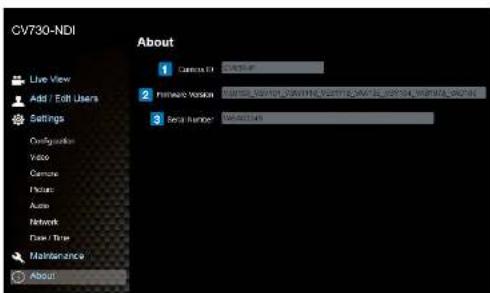

6.2 Web Page Function Description 33

1. DIP Switch Setting 46

7.1 Dip Switch 46

1. Troubleshooting 47

FCC Declaration of Conformity 47 CFR § 2.1077 Compliance Information 48

Warranty 49

Marshall

Copyright Information

Copyrights © Marshall Electronics Incorporated. All rights reserved.

Marshall Electronics is a trademark of Marshall Electronics Incorporated

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Marshall Electronics Inc. unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, Marshall Electronics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Marshall Electronics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.

Marshall 2

www.marshall-usa.com12

NDI® HX

Understanding Quick setup of CV730-NDI with NDI®|HX

This section explains how to quickly configure the Marshall CV730-NDI camera with NDI®|HX.

It also explains how to update the device, and where you can find additional NDI software to extend your workflow. Complete NDI® Tools can be found here: https://www.ndi.tv/tools/

Here you will choose whether you will require NDI® Tools for Windows or Mac and download.

After completing this short section, you will be all set to begin using your new NDI®HX camera.

OVERVIEW: Unlike typical cameras, CV730-NDI leverages the easy plug-n-play benefits of the NDI-based IP workflow supported by leading video software and hardware developers around the globe.

GETTING READY: Your new CV730-NDI uses the NDI®HX protocol for audio/video transmission, and more. Your first step will be to install NDIHX drivers if using a TriCaster, or Microsoft HEVC decode on non-TriCaster systems, as appropriate for your computer platform or device.

1. Navigate to ndi.tv/formats in your web browser and follow the relevant directions to download and install the drivers for your computer platform. NOTE: The NDIHX driver also installs NewTek's NDI Studio Monitor application, which will not only display the output of your camera but also provide easy access to its settings. Also contains built-in PTZ controls.
2. NDI Studio Monitor and other useful NDI tools can be found here: https://www.ndi.tv/tools/
3. Then simply plug the Ethernet (NDI) port to same Network your computer or Newtek equipment are plugged into and off you go.

NOTE: The End User License Agreement under which you use the NDIHX driver specifies that "you may use up to five (5), and no more than five, copies on separate machines at one time."

OPTIONAL – for Microsoft Windows® users, downloading and installing the NewTek NDI® Tools pack, available at no cost from ndi.tv/tools/, the download pack will provide learning tools and utilities to maximize your NDI®HX experience.

FINAL NOTE – if you are experience any problems with the NDI® platform, NDI® software, NDI® drivers please contact Newtek for technical assistance or join the NDI community to review HOW-TO videos, social media, forums, blogs: www.ndi.tv/community

If you are having a hardware problem, and need assistance please contact Marshall Electronics.

Marshall Customer Support

Toll Free: 800-800-6608 or 310-333-0606

Email: [e-mail]

Marshall

Chapter 1 Safety Instructions

Always follow these safety instructions when setting up and using this product:

Operation

1.1 Please use the product in the recommended operating environment.
1.2 Do not place this product in tilted position.
1.3 Do not place the product on an unstable lrolley, stand or table.
1.4 Do not use this product near water or source of heat.
1.5 Use attachments only as recommended.
1.6 Use the type of power source indicated on this product. If you are not sure of the type of power available, consult your distributor or local electricity company for advice.
1.7 Always take the following precautions when handling the plug. Failure to do so may result in sparks or fire:

■ Ensure the plug is free of dust before inserting it into a socket.

■ Ensure that the plug is inserted into the socket securely.

1.8 Do not overload wall sockets, extension cords or multi-way plug boards as this may cause fire or electric shock.
1.9 Do not block the slots and openings in the case of this product. They provide ventilation and prevent this product from overheating.
1.10 Except as specifically instructed in this User Manual, do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.
1.11 Unplug this product from the wall outlet and refer servicing to licensed service personnel when the following situations happen:
■ If the power cords are damaged or frayed.

■ If liquid is spilled into the product or the product has been exposed to rain or water.

2 Installation

2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.

3 Storage

3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.
3.2 Never push objects of any kind through cabinet slots. Never allow liquid of any kind to spill into the product.
3.3 Unplug this product during thunderstorms or if it is not going to be used for an extended period.
3.4 Do not place this product or accessories on top of vibrating equipment or heated objects.

4 Cleaning

4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

5 Remote control (if the accessories are equipped with remote control)

5.1 Using an incorrect battery type in the remote control may result in breakdown. Follow local instructions on how to dispose of used batteries.

www.marshall-usa.com3 4

Marshall

CV730-NDI Manual

■ Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

If the UHD camera will not be used for an extended time, unplug it from the power socket.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel.

This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock.

This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

■ FCC Warning

This UHD Camera has been tested and found to comply with the limits for a Class A computer device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus." ICES-003 of Industry Canada.

Operation of this equipment in a residential environment could cause radio interference.

Marshall

Chapter 2 Package Contents

CV730-NDI

Power Cord

Remote Control

Power Adapter

RS-422 Connector

M3 Screws

Appearance may vary depending on country/region

Metal Plate B

Silver x8 / Black x2

Metal Plate A

www.marshall-usa.com5 6

Chapter 3 Function Introduction

3.1 I/O functions Introduction

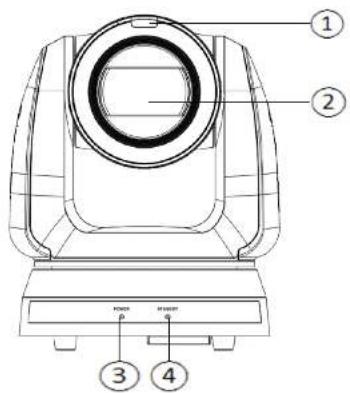

3.1.1 Front View

NO.	Item	Function Descriptions
1.	Tally Lamp	Display the Tally Lamp status of the camera
2.	Camera lens	30x UHD camera lens
3.	Power LED indicator	Display the status of the camera, please refer to 3.2 Description of LED indicator
4.	Standby LED indicator	Display the status of the camera, please refer to 3.2 Description of LED indicator

3.1.2 Back View

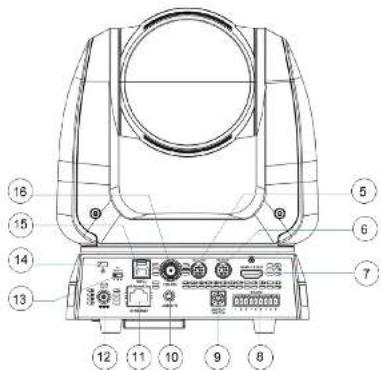

NO.	Item	Function Descriptions

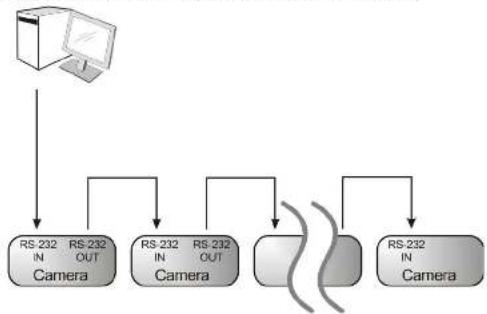

5.	RS-232 output	RS-232 output port, at most 7 cameras can be connected in a serial connection
6.	RS-232 input	RS-232 input port, at most 7 cameras can be connected in a serial connection
7.	HDMI 2.0 output	HDMI 2.0 output (Audio output supported)

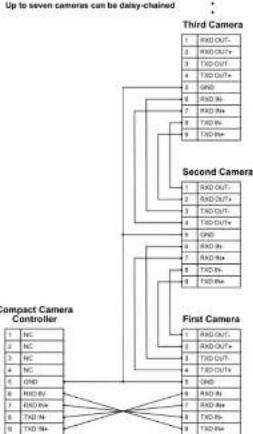

8.	RS-422 port	RS-422 connecting port, at most 7 cameras can be connected in a serial connection
9.	OUTPUT SWITCH	Adjust the resolution setting. The default is 3840 x 2160/59.94p
10.	Audio input	Support Line In/Mic In
11.	Network port	Network port, supporting routers or hubs of PoE++ (IEEE802.3BT)
12.	DC 12 V power connector	AC power supply connecting port
13.	IR SELECT	The remote control ID setting is only controlled after corresponding to the Camera Select on the remote control
14.	Kensington lock hole	Safety lock slot
15.	USB 3.0 port	A reserved hole. The current firmware does not support this function. Please refer to the firmware update information on the webpage for the official release schedule.
16.	12G-SDI output	12G-SDI output (Audio output supported)

Marshall

CV730-NDI Manual

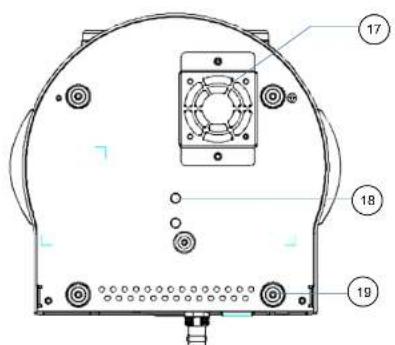

3.1.3 Bottom

NO.	Item	Function Descriptions
17.	Mute cooling fan	The cooling fan automatically controls its rotation speed and performs cooling in cope with the operation temperature of the machine
16.	Tripod deck lock hole	The camera is mounted on a (specification) 14" - 20 UNC tripod deck
19.	Rotatable foot pad	When using the metal plates of accessories, remove 4 pieces of rotatable food pads on the bottom by rotating counterclockwise, and then install the mental plates

3.2 Description of LED indicator

Status	Power	Standby
Startup in progress (initialization)	Green light Orange light
In use	Green light	No indicator
In standby mode	No indicator	Orange light

3.3 Tally Lamp Function Description

3.3.1 Tally Lamp function may be enabled through the control of RS-232 command. The setting method is as follows:

Tally Mode: 8x 01 7E 01 0A 01 0p FF
p = 0: OFF
p = 4: Red light (half-brightness)
p = 5: Red light (full-brightness)
p = 6: Green light (full-brightness)
p = 7: Orange light (full-brightness)

Marshall

Chapter 4 Instruction for installation

4.1 Camera dimension:

4.1.1.1 Camera front view and side view

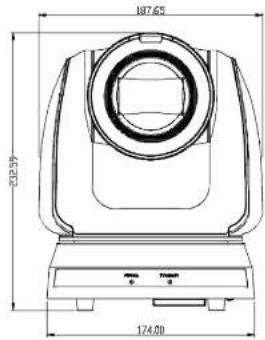

■ Length x width x height: 232 x 188 x 189 mm
■ Weight: 3.0Kg (excluding the metal plate)

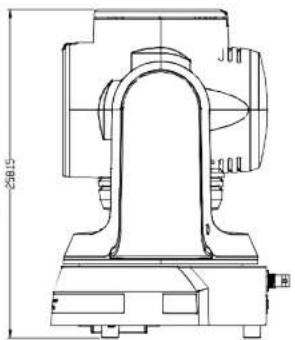

Technical line drawing of a mechanical component with dimension lines (no text or symbols)

4.1.1.2 Camera base

The camera base has tripod mount lock holes and can be installed on the tripod deck of a standard specification 1/4"-20 UNC.

www.marshall-usa.com9 10

Marshall

CV730-NDI Manual

4.2 Preparation before installation

Installation and connection of CV730-NDI UHD camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident.

4.2.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling or in a place where the device is in danger of falling to avoid any accident.

4.2.2 Please check whether accessories in the box are complete or not. Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.

4.2.3 Please choose a proper place for installation of camera in advance. Please determine an installation place according to the following requirements

4.1.1.1 Confirm the position for the object to be captured.

4.1.1.2 Confirm whether the camera is set at a proper distance from other light sources.

4.3 Instruction for installation

4.3.1 I would like to install camera on the desk

4.3.1.1 Precautions for installation

◆ Please install the machine on a flat desk
◆ Do not grab the camera head by hand when handling the device
Do not rotate the camera head by hand. Improper rotation may result in breakdown of the camera

Four-step illustration of a hand holding a device, showing step-by-step states of press or testing (no text or symbols)

4.3.1.2 Installation steps

1. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of the machine

4.3.2 I would like to install the camera on the ceiling

4.3.2.1 Prepare for the parts and equipment required during the installation

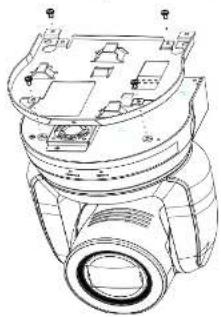

1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)
2. Screw for locking on ceiling mounted hanger x 4
3. Drilling machine, screwdriver, ladder

Marshall

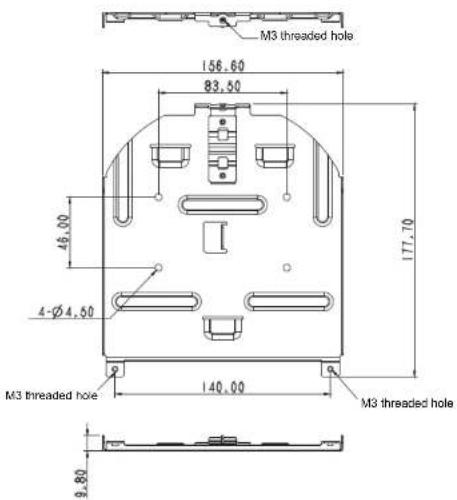

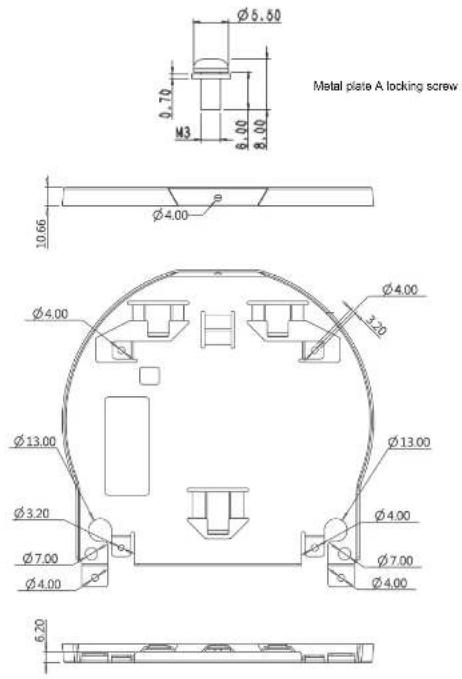

4.3.2.2 Metal Plate size diagram

■ Metal plate B - ceiling side

Metal plate B locking screw

Metal plate B locking bolt

www.marshall-usa.com11 12

Marshall

CV730-NDI Manual

■ Metal plate A - machine side

Marshall

4.3.2.3 Precautions for installation

1. Before installation, please confirm the orientation of the machine relative to the object to be captured
2. It is recommended that the machine should be set at a distance more than 2 meters away from the object to be captured. Please adjust for a best distance according to the magnification of the lens

1. The machine (including metal plates) is weighed at about 3 kg. If it is to be installed on the ceiling, please use the hanger that has obtained UL security approval to prevent the machine from falling.
2. Please check whether the camera is installed securely on a regular basis.
3. Please clean the cooling fan located at the bottom to ensure the good heat dissipation effect of the machine on a regular basis.

4.3.2.4 Installation steps

1. Remove 4 pieces of foot pads on the bottom of the camera by rotating the foot pads counterclockwise.

Please keep the foot pads properly after removal and store them for future use.

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

1. Fix the metal plate A on the machine base with 4 M3 silver screws

Technical line drawing of a camera lens assembly (no text or symbols)

1. Lock the metal plate B on ceiling mounted hanger

   (1) Please use the hanger that has obtained UL security approval
   (2) Please reserve the hole for the connecting wires of the camera

2. Combine the metal plate A and the metal plate B

(1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B

(2) And then secure with 2 M3 silver screws and 1 M3 black screw

Marshall

4.3.2.5 How to remove
1. Remove the connecting wires from the camera
2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push to the left to remove the machine
3. Then remove the screws on the hanger and the machine

4.4 Connecting devices

4.4.1 Connecting RS-232

With RS-232 in/out, at most 7 Marshall cameras can be connected.

■ RS-232 pins definition instructions

▼ RS-232 IN Pins Instructions

NO	Pins	Signals
1	DTR	Data Transmission Reade
2	DSR	Data Set Reade
3	TXD	Transmit Data
4	GND	Ground
5	RXD	Receive Data
6	GND	Ground
7	IR OUT	IR Commander Signal
8	N.C.	No Connection

▼ RS-232 OUT Pins Instructions

	NO	Pins	Signals
1	DTR	Data Transmission Roade
2	DSR	Data Set Roade
3	TXD	Transmit Data
4	GND	Ground
5	RXD	Receive Data
6	GND	Ground
7	OPEN	Reserved
8	OPEN	Reserved

▼ RS-232 Connection Instructions

RS-232 IN of Camera		RS-232 of PC
1. DTR	1. CD
2. DSR	2. RXD
3. TXD	3. TXD
4. GND	4. DTR
5. RXD	5. GND
6. GND	6. DSR
7. IR OUT	7. RTS
8. N.C	8. CTS
	9. Rd

▼ RS-232 Connection Instructions

RS-232 INof Next Camera	RS-232 OUTof Last Camera
1. DTR	1. DTR
2. DSR	2. DSR
3. TXD	3. TXD
4. GND	4. GND
5. RXD	5. RXD
6. GND	6. GND
7. IR OUT	7. OPEN
8. N.C.	8. OPEN

Marshall

4.4.2 Connecting RS-422

With RS-422, at most 7 Marshall cameras can be connected. When RS-422 connection is being used, do not use RS-232 connection.

■ RS-422 pins definition instructions

▼ RS-422 Pins Instructions

▼ RS-422 Connection Instructions

Applicable to Marshall Compact Camera Controller

▼ RS-422 Connection Instructions

Applicable to SONY Covered Common Controller

▼ RS-422 Serial Connection

www.marshall-usa.com17 18

Marshall 17

Marshall 18

Marshall

CV730-NDI Manual

■ RS-422 connection instructions

1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow in the figure below

1. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use flat screw driver to fix it

1. Insert the wired RS-422 connector back to the Camera. Now the connection is completed

Marshall

Chapter 5 Remote Control and Setting Menu

5.1 Functions of remote control

The below functions are listed alphabetically.

Item	Description
<,>,▲,▼	Move the lens
Back Light	Turn on/off back light compensation
Camera select	Choose Camera ID 1 ~ 3
Focus-Manual / Far/Near	Turn on manual focus to adjust the focal length
Focus-Auto	Auto Focus
Freeze	Freeze the screen
Home-Enter	Go back to the main page / Execute
Info	Status information
L/R Direction Set	L/R Direction / Normal
Menu	Display OSD menu
Mirror	Rotate the image (OFF / Mirror / Flip / Rotate)
Pan/Tilt Reset	Clear the Pan / Tilt setting
Picture	Switch image effect (OFF / Neg / B&W)
Power	Power Switch
Preset	Appoint an ID (0 ~ 9) to save the current position data
Reset	Appoint an ID (0 ~ 9) to delete the current position data
Zoom-Fast	Adjust image size
Zoom-Slow	Fine-tune image size

www.marshall-usa.com19 20

Marshall

CV730-NDI Manual

5.2 Setting Menu
Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults.

1st LevelMajor Items	2nd LevelMinor Items	3rd LevelAdjustment Values		Function Descriptions
Exposure	Mode	1.Full Auto2.Shutter Pri3.Iris Pri4.Manual		Exposure mode setting
	Exposure Comp.	On /Off		AE Level
	Exposure Comp.Level	-5 ~ C ~ 5		The value can be adjusted after Exposure Comp.is activated
	Spot Light	On /Off
	Spot Light Position	X (0 ~ 6) Y (0 ~ 4)		The value can be adjusted after Spot Light is activated
	Shutter Pri	60/30mode	50/25mode	Adjustable when the Exposure mode is set to Shutter Pri
		1/10000	1/10000
		1/5000	1/5000
		1/3000	1/3000
		1/2500	1/2500
		1/2000	1/1750
		1/1500	1/1250
		1/1000	1/1000
		1/725	1/600
		1/500	1/425
		1/350	1/300
		1/250	1/215
		1/180	1/150
		1/120	1/120
		1/100	1/100
		1/90	1/75
		1/60	1/50
		1/30	1/25
		1/15	1/12

Marshall

		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Iris Pri	1. F1.62. F23. F2.24. F2.75. F3.26. F3.87. F4.58. F5.49. F6.310. F7.811. F912. F1113. F1314. F1615. F1816. Off		Adjustable when the Exposure mode is set to Iris Pri
	Manual Gain	1. 0 dB2. 3 dB3. 6 dB4. 9 dB5. 12 dB6. 15 dB7. 18 dB8. 21 dB9. 24 dB10. 27 dB11. 30 dB12. 33 dB13. 36 dB14. 39 dB15. 42 dB16. 45 dB		Adjustable when the Exposure mode is set to Manual
	Manual Speed	60/30 mode	50/25 mode	Manually set the shutter
		1/10000	1/10000
		1/5000	1/5000

www.marshall-usa.com21 22

Marshall
CV730-NDI Manual

		1/3000	1/3000
		1/2500	1/2500
		1/2000	1/1750
		1/1500	1/1250
		1/1000	1/1000
		1/725	1/600
		1/500	1/425
		1/350	1/300
		1/250	1/215
		1/180	1/150
		1/120	1/120
		1/100	1/100
		1/90	1/75
		1/60	1/50
		1/30	1/25
		1/15	1/12
		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Manual Iris	1. F1.62. F23. F2.24. F2.75. F3.26. F3.87. F4.58. F5.49. F6.310. F7.811. F912. F1113. F1314. F1615. F1816. Off		Manually set the iris

Marshall

	Gain Limit	1. 9 dB2. 12 dB3. 15 dB4. 18 dB5. 21 dB6. 24 dB7. 27 dB8. 30 dB9. 33 dB10. 36 dB11. 39 dB12. 42 dB13. 45 dB	Max. limit value of electron gain
	Iris Limit	1. F3.22. F3.83. F4.54. F5.45. F6.36. F7.87. F98. F11	Max. limit value of iris
	WDR	1. Off2. 13. 24. 3
White Balance	Mode	1. Auto2. Indoor3. Outdoor4. One Push WB5. ATW6. Manual7. Sodium Lamp	Select the color temperature mode1. 4000k ~ 7000k2. 3200k3. 5800k4. 1700k ~ 10000k5. 1700k ~ 10000k6. Custom7. 2800k
	One Push Trigger	ENTER One push trigger
	Manual Rod	0 ~ C ~ 128	Adjustable when the white balance mode is set toManual

Marshall

www.marshall-usa.com23 24

Marshall
CV730-NDI Manual

	Manual Blue	0 ~ C ~ 128	Adjustable when the white balance mode is set to Manual
Picture	Picture effect	1. Off2. Neg3. B & W
	Sharpness	0 ~ A ~ 14
	2D NR	1. Off2. 13. 24. 3
	3D NR	1. Off2. LOW3. Typ4. Max
	Image Mode	1. Default2. Custom	The user may customize his/her desired Image mode.
	Image Mode Load	ENTER	Adjustable when the Image mode is set to Custom. After selected, the corresponding Image mode parameters will be read and applied to Custom
	Brightness	0 ~ A ~ 15	Adjustable when the Image mode is set to Custom
	Hue	0 ~ A ~ 15	Adjustable when the Image mode is set to Custom
	Saturation	0 ~ A ~ 15	Adjustable when the Image mode is set to Custom
	Gamma	0 ~ A ~ 3	Adjustable when the Image mode is set to Custom
Pan Tilt Zoom	Pan/Tilt Limit	On / Off	Turn on/off the angle limit setting

	Pan Right Limit	0 ~ 170	Limit the right angle
	Pan Left Limit	-170 ~ 0	Limit the left angle
	Tilt UP Limit	0 ~ 90	Limit the upward angle
	Tilt Down Limit	-30 ~ 0	Limit the downward angle
	Pan Flip	On / Off	Activate the reverse Pan direction
	Tilt Flip	On / Off	Activate the reverse Tilt direction
	Preset Speed	1. 5 deg/sec2. 25 deg/sec3. 50 deg/sec4. 80 deg/sec5. 120 deg/sec6. 160 deg/sec7. 200 deg/sec8. 300 deg/sec	Set the rotation speed of the cradle head when Preset is executed
	PTZ Speed Comp	On / Off	Set the Pan/Tilt moving speed to vary from the zoom position
D-Effect	Mirror	1. Off2. MIRROR3. Flip4. Mirror + Flip	Set the mode at which the image is mirror or flipped
Auto Focus	AF Sensitivity	1. LOW2. Middle3. High	For AF triggering speed, the higher the speed is, the faster AF is triggered
	AF Frame	1. Center Area2. Full Area3. Auto	AF frame setting, when central area was set as AF frame, focusing will be on the center of the screen. When Full Frame was set as AF frame, focusing will be calculated based on the full screen

Marshall
CV730-NDI Manual

	PTZ Assist	On / Off	This function can only be enabled in the Manual Focus (MF) modeWhen PTZ Assist is enabled and PTZ control is in operation, the focus performs only once upon immediate execution.The focus will not be triggered afterward when the scene changes
Ethernet	DHCP	On / Off	Enable/Disable DHCP setting using left and right arrow keys and press [ENTER] to apply setting.
	IP Address 192.	168.100.100	Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.
	Subnet Mask 25	5.255.255.0	Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.
	Gateway 192.168.	100.254	Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.

Marshall

Audio	Audio In	Line In/Mic In	Set Audio In
	Audio Enable	On / Off	Turn on/off audio output
	Audio Volume	0 ~ A ~ 10	Volume Setting
System	Prompt	On / Off	Turn on/off the prompt information on the display
	IR Receive	On / Off	When it is Off, the remote control will not be able to control the camera. At this moment, turn off and then turn on the power to restore control of the remote control.
	Tally Lamp	On / Off	Select to enable or disable Tally Lamp function.
	Language	English / Chinese
	Initial Position	Last operation/First default position	Select the camera lens to return to the last operated position or the first preset position after POWER ON.
	Control Device	Encoder / Controller	Control Device setting, Controller: for joystick Encoder; for tracking system
	Motionless Preset	On / Off	When the function is enabled, the screen will Freeze when Preset is executed. Freeze will be released after Preset is completed.
	Control Port	RS-232/RS-422	Choose whether the control interface used is RS-232 or RS-422
	Protocol	VISCA / Pelco D

www.marshall-usa.com

	Baud Rate	9600/38400	Choose the transmission speed of the control signal
	VISCA Address	0-7	The Protocol set to VISCA allows the camera ID address to be assigned. Select 0 for automation.
	PELCO D Address	1-255	The Protocol set to Pelco D allows the camera ID address to be assigned.
	Output Mode	1. 3840 x 2160/59.94p2. 3840 x 2160/50p3. 3840 x 2160/29.97p4. 3840 x 2160/25p5. 1080p/59.946. 1080p/507. 1080p/29.978. 1080p/259. 720p/59.9410. 720p/25	Choose the output resolution
	Factory Reset	On / Off	Resume the factory default setting
Status			Display the current setting status

Marshall

Chapter 6 Network Function Settings Description

6.1 Connecting Camera to Network

6.1.1 Connecting to Internet

Two common connection methods are shown below

1. Connecting via switch or router


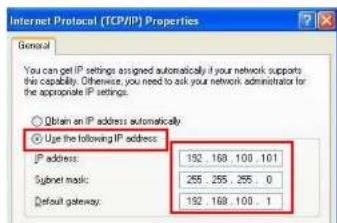

1. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera e.g.: The factory-preset default IP address of camera is 192.168.100.100. The computer IP address must be set with the same network segment, such as 192.168.100.101, so that the computer can be connected correctly with the camera

- Change network settings

www.marshall-usa.com29 30

Marshall

CV730-NDI Manual

6.1.2 Using the Browser

■ Open the browser, and enter the URL of camera in the IP address bar e.g.: http://192.168.100.100 (default IP address)

■ Enter administrator's account and password

Marshall Network Camera

• Account: admin
• Password: 9999

6.2 Web Page Function Description

6.2.1 Login Screen

No	Item	Function Descriptions
1	Username	Enter user account (default: admin)
2	Password	Enter user password (default: 9999)*For the first login, please refer to 6.2.3 User Management Modify the default password
3	Language selection	Currently, the system supports English, Traditional Chinese, and Simplified Chinese
4	Remember password	Save user account name and password to the browser. When you log in next time, there is no need to re-enter them
5	Login	Log into the administrator screen on the website

6.2.2 Viewing In Real Time

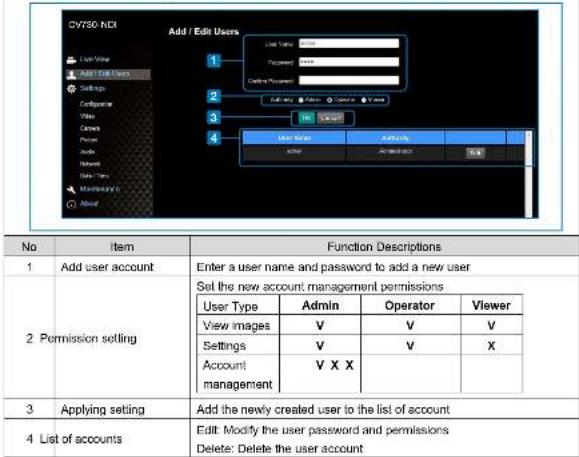

6.2.3 Account Management

Marshall

CV730-NDI Manual

6.2.4 Setting - System Setting

No	Item	Function Descriptions

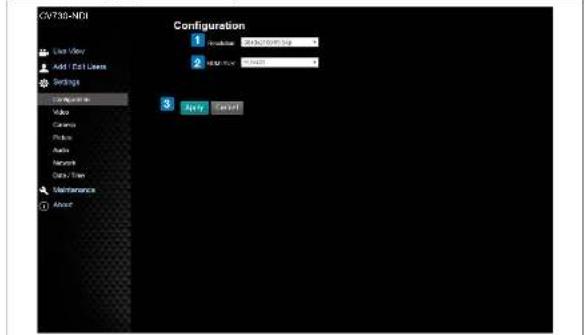

1 Resolution		Set the resolution of the camera, resolutions supported by the camera are as follows:3840 x 2160 59.94 / 50 / 29.97 / 25 fps1080P 59.94 / 50 / 29.97 / 25 fps720P 59.94 / 50After switching to the resolution, the camera will restart. Please refresh the browser
2 HDMI YUV		Select YUV422 or YUV420 (This function is only available for these two resolutions. 3840 x 2160/59.94p and 3840 x 2160/50p and remains in display mode for all other resolutions)
3	Apply	After the setting has been modified, select this button to apply the setting

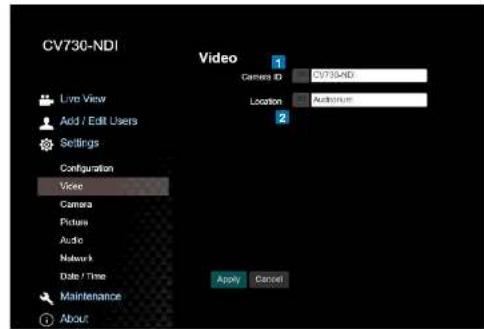

6.2.5 Setting - Video

No	Item	Function Descriptions
1	Camera name	Modify the camera name■ Camera names are limited to 1 - 12 characters■ Please use a camera name by mixing uppercase and lowercase letters or numbers. Do not use "7" and "space" or special symbols
2	Camera Location	Modify the location of the camera, such as Meeting Room 1■ Camera location is limited to 1 - 12 characters■ Please use a camera name by mixing uppercase and lowercase letters or numbers. Do not use "7" and "space" or special symbols

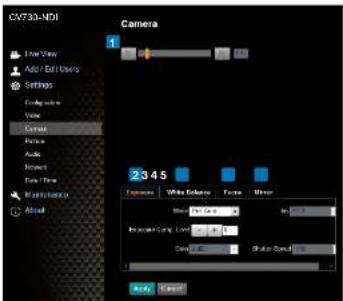

6.2.6 Setting - Camera

No	Item	Function Descriptions
1	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
2 Exposure		■ Mode: Select exposure mode (Automatic/Shutter Priority/Aperture Priority/Manual)■ Exposure Comp. Level: Select exposure compensation level■ Gain: The gain limit is adjustable when the exposure mode is set to "Manual"■ Iris: The size of aperture is adjustable when the exposure mode is set to "Manual" or "Aperture Priority"■ WDR: Set the level of wide dynamic range (WDR) in order to obtain better images■ Shutter Speed: The shutter speed is adjustable when the exposure mode is set to "Manual" or "Shutter Priority"

3 White Balance	■ Mode: Select the color temperature mode➤ Auto➤ Indoor➤ Outdoor➤ One Push WB➤ ATW➤ Manual➤ Sodium Lamp■ Open Push WB: One push color temperature is adjustable when the while balance mode is set to "One Push WB"■ Manual Red/Blue: Manually adjust blue/red color temperature
4 Focus	■ Mode: Select manual/automatic focus■ Focus Range: The focusing range is adjustable when the focus mode is set to "Manual"■ AF Sensitivity: Set automatic focus sensitivity■ AF Frame: Set automatic focus range
5 MIRROR	■ Mirror: Set automatic flip mode

6.2.7 Setting - Picture

No	Item	Function Descriptions
1	Picture Effect	Set picture effect, OffNeg/Black and White
2	2D noise reduction settings	2D noise reduction settings
3	3D noise reduction settings	3D noise reduction settings
4	Image mode	The user may customize his/her desired image mode.
5	Image Mode Load	When no custom setting is needed, reset the picture parameters back to the factory default by selecting this item
6	Gamma	Gamma Level adjustment; Adjustable when the image mode is set to Custom
7	Brightness	Brightness adjustment; Adjustable when the image mode is set to Custom
8	Contrast	Contrast adjustment; Adjustable when the image mode is set to Custom
9	Saturation	Saturation adjustment of the image; Adjustable when the image mode is set to Custom
10	Sharpness	Adjust the sharpness of the image

6.2.8 Setting - Audio

No	Item	Function Descriptions
1	Open audio Turn on/off sound
2	Soundtrack effect setting	Set MIC In/Line In
3	Audio Volume Adjust Volume

6.2.9 Setting - Network

No.	Item	Function Descriptions
1 Network		Network setting of camera. Change of setting is available when DHCP function is closed.
2 SNTP Setting		Set SNTP Server IP
3 Port Setting		Set HTTP port. The default Port value is 50Change of setting is available only when DHCP function of camera is closed

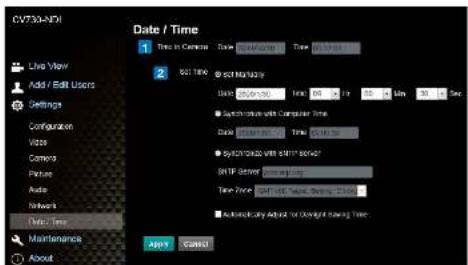

6.2.10 Setting - Time

No	Item	Function Descriptions
1	Camera Time	Display the date and time of the camera
2 Set the Time		■ Manual Configuration Set time manually■ Synchronize with computer time: Set the camera time according to the computer time■ Synchronize with SNTP server: Set the camera time synchronously with the SNTP serverSNTP server address: Please change in network setting

Marshall

CV730-NDI Manual

6.2.11 Setting - Maintenance - Upgrading Firmware

6.2.12 Setting - Maintenance - Incident Log

Marshall

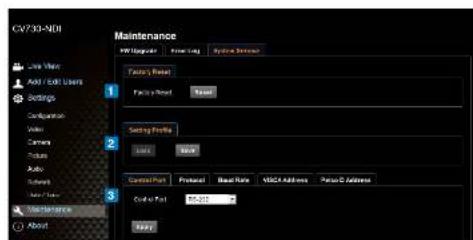

6.2.13 Setting - Maintenance - System Service

No	Item	Function Descriptions
1	Reset to the default value	Select the reset button to resume the factory default setting as the web page setting
2 Setting File		The web page setting parameters can be exported from the computer and imported/applied to another camera
3	Protocol Setting	Communication protocol related settings for connection with RS-232/RS-422 communication

6.2.14 About

No	Item	Function Descriptions
1	Camera name	Display the camera name
2	Firmware Version	Display the firmware version of the camera
3	Serial No.	Display the camera serial No.

www.marshall-usa.com

arshall

Chapter 7 DIP Switch Setting

7.1 DIP SWITCH

7.1.1 OUTPUT Switch (Switch to different output resolutions)

To switch via the OSD/ RS-232 Command is also available based on the last executed action

ID	Resolution	Frame Rate
0	3840 x 2160	59.94P
1		50P
2		29.97P
3		25P
4	1920 x 1080	59.94P
5		50P
6		29.97P
7		25P
8	1280 x 720	59.94P
9		50P
C	1920x1080	59.94i	Not support yet
D		50i	Not support yet
E	Reserved Reserved
F

7.1.2 IR SELECT (Selected by Remote control)

When using the remote control, please make sure the settings of IR SELECT and the Camera Select of the remote control are consistent

ID	Setting
1
2
3

Marshall

Chapter 8 Troubleshooting

This chapter describes problems you may encounter while using CV730-NDI. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.

No.	Problems	Solutions
1.	Boot without power signal	1.Make sure you have plugged in the power cord.2.When using a PoE connection, ensure that the power supply PoE++(IEEE802.3bt) hubs.
2.	There is no image output from CV730-NDI	1.Check the power supply or PoE supply functions.2.Confirm the output signals are in streaming output.3.Confirm whether the camera resolution can be used together with the monitor equipment■ If 4k output, confirm the monitor equipment supports 4K output4.Replace the cables and make sure they are not faulty.
3.	RS-232 cannot be controlled	1.Confirm the connection is correct (RS-232 In/ Out)2.Please make sure the Baud rate setting is the same as the control equipment
4.	Whether the Internet can be used for operation	Please refer toChapter 6 Network Function Descriptionfor the Internet usage

www.marshall-usa.com45 46

Marshall

FCC Declaration of Conformity 47 CFR § 2.1077 Compliance Information

U.S. Contact Information

Company : Marshall Electronics, Inc.

Address : 20608 Madrona Ave., Torrance, CA 90503

e-mail : [e-mail]

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warranty

Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of three years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty. No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.

Due to constant effort to improve products and product features, specifications may change without notice.

Marshall

20608 Madrona Avenue, Torrance, CA 90503

Tel: [phone] • Fax: [phone]

www.marshall-usa.com

[e-mail]

N30120220
