Product Type	Children's Tricycle (Push/Pedal)
Brand	Chipolino
Model	Matrix
Suitable Age	18 months and older
Maximum Weight Capacity	25 kg
Product Dimensions (approx.)	80 x 50 x 60 cm
Product Weight (approx.)	5 kg
Materials	Plastic, metal, textile (100% polyester)
Assembly Required	Yes (by an adult)
Drive Mode	Pedal-driven by child or pushed by adult using push handle
Seat Positions	2 positions: forward-facing and rearward (face-to-face)
Push Handle	Height adjustable in 3 positions
Canopy	Adjustable and removable
Safety Bumper	Yes, with button release
Footrest	Foldable (unfold for push mode, fold for child pedaling)
Storage	Front and rear storage baskets
Cup/Bottle Holder	Yes
Parking Device	Yes (to keep tricycle stationary)
Brakes	No brakes (caution included)
Safety Standards	Complies with Toy Safety Directive 2009/48/EC
Maintenance	Clean with damp cloth and mild detergent; oil moving parts regularly; store dry away from heat/sun
Wheel Material	Plastic (presumed)
Number of Wheels	3
Mudguard	Yes (front)

Frequently Asked Questions - Matrix Chipolino

What is the appropriate age for the Chipolino Matrix tricycle?

The tricycle is suitable for children aged 18 months and older with a maximum weight of 25 kg.

Does the Matrix tricycle have brakes?

No, this tricycle does not have brakes. It is designed for low-speed use under adult supervision on flat surfaces.

How do I adjust the push handle height?

Press the pin on the push handle and slide it up or down to one of the 3 available positions until it clicks.

Can the seat be adjusted to face backwards?

Yes, the seat can be mounted in 2 positions: forward-facing or rearward (face-to-face with the parent). Unscrew the washer underneath, remove the seat, and reverse its direction.

How do I fold or unfold the canopy?

Simply pull or push the canopy with your hand to unfold or fold it. To remove it, press the button on the back of the backrest and pull out the canopy tubes.

What is the weight limit for the storage basket?

Do not load more than 0.5 kg in the front or rear storage baskets.

How do I clean the tricycle?

Wipe with a soft damp cloth and water or neutral liquid detergent. Do not use abrasive cleaners, bleach, or spirits. Do not soak or wash with water.

Are there any replacement parts available?

Only use spare parts approved by the producer. Contact the retailer or authorized service center for replacements.

Is adult supervision required?

Yes, direct adult supervision is required at all times. The toy has no brakes and is intended for use on even playgrounds away from roads.

How do I store the tricycle?

Store indoors in a clean, dry place away from direct sunlight, moisture, and heat sources. Let it dry fully before storing to prevent mold and rust.

USER MANUAL Matrix Chipolino

PLEASE READ CAREFULLY THIS INSTRUCTION MANUAL AND KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE!

KIDS' TOY TRICYCLE „MATRIX”

MATRIX

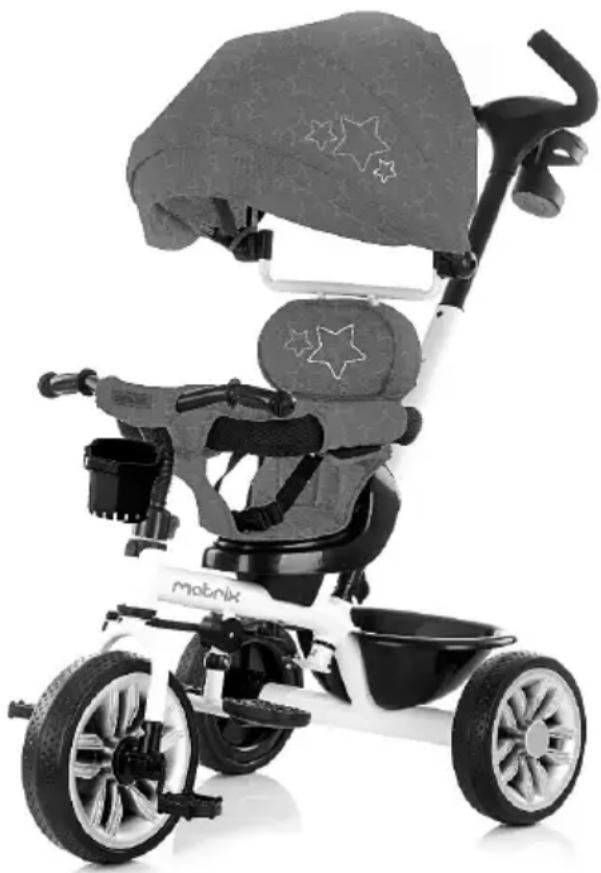

Model of a children's tricycle with star patterns and a back cover, no visible text or symbols

This product is produced in accordance with Toy safety Directive 2009/48/EC of the European Parliament and the Council, the standards applicable for this toy and the regulations of national legislation.

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECCOMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT:

CAUTION! WARNINGS!

CAUTION! USE ONLY UNDER DIRECT ADULT SUPERVISION!
CAUTION! THIS TOY HAS NO BRAKES!
CAUTION! THE TOY IS NOT SUITBALE FOR CHILDREN UNDER 18 MONTHS!
✿ CAUTION! USE FOR CHILDREN OLDER THAN 18 MONTHS AND WEIGHT UP TO 25kg.
✿ CAUTION! DO NOT USE FOR CHILDREN OVER 25KG – DANGER OF OVERLOADING THE TOY!
✿ CAUTION! BEFORE USING THE TRICYCLE, TEACH THE CHILD THE CORRECT WAY TO USE IT AND THE SAFETY RULES.
CAUTION! USE THE TOY ONLY FOR ITS PURPOSE.
CAUTION! USE THE TOY ONLY DURING THE DAY ON EVEN PLAYGROUNDS AND AT A SAFE DISTANCE FROM STREETS OR ROAD LANES FOR VEHICLES.
CAUTION! KEEP AWAY FROM FIRE OR OTHER HEAT SOURCES!
✿ CAUTION! TO AVOID THE DANGER OF INJURY ALWAYS REMOVE THE PUSH HANDLE WHENEVER THE CHILD IS RIDING THE TOY ON HIS OWN!
◆ Adult assembly required!
DO NOT allow presence of children under 3 years before assembly of the TOY is complete. In this way, you will avoid their access to small or loose parts!
The TOY is intended for one child at a time ONLY!
The TOY is NOT suitable for running or skating!
Cease using the TOY if you find missing or damaged parts.
DO NOT let the child stand on the footrest or the seat to avoid injury.
❖ The child must wear shoes when using the TOY!
DO NOT tie strings or accessories to the TOY in order to avoid the risk of suffocation!
DO NOT place more than 0,5 kg load in the storage basket.
DO NOT put items or luggage in the handle bar or the parent handle in order to avoid risk of injury resulting from the toy's instability and tipping over!
DO NOT place items or heavy objects in the TOY or on it during storage or transportation to avoid damage to the frame.
DO NOT use another transport means to move the TOY by pulling it.
DO NOT allow the child using the TOY or other children around it to touch the wheels or put items in them.
◆ Use away from rivers, pools, stairs or hurdles!
Do not make changes or modifications to the TOY frame! If necessary, contact the retailer or an authorized service center for advice and repair.
Use only spare parts, which are approved by the producer and recommended by the distributor or company service! The producer revokes all responsibility in case parts different from the original ones have been used.
- Keep nylon packages away from children to avoid risk of suffocation!

PRODUCT FEATURES

This is a functional TOY whose purpose is to create in the child initial skills to coordinate its arms and feet when riding a tricycle or bicycle.

IMPORTANT! Remove the parent handle when you are sure that the child can ride the tricycle on his own and unaided.

• Suitable for children older than 18 months with weight up to 25 kg
  ❖ Can be driven by the child using the pedals;
  ❖ Can be pushed by an adult and the child lays his feet on the foot rest
• Two positions of the seat – forward facing and face-to-face mode;
  ◆ Height adjustable push handle – in 3 positions;
  ◆ Safety bumper;
  ◆ Footrest can be folded;
  ◆ Adjustable canopy;
  ◆ Front and rear storage basket;
  ◆ Cup/bottle holder.

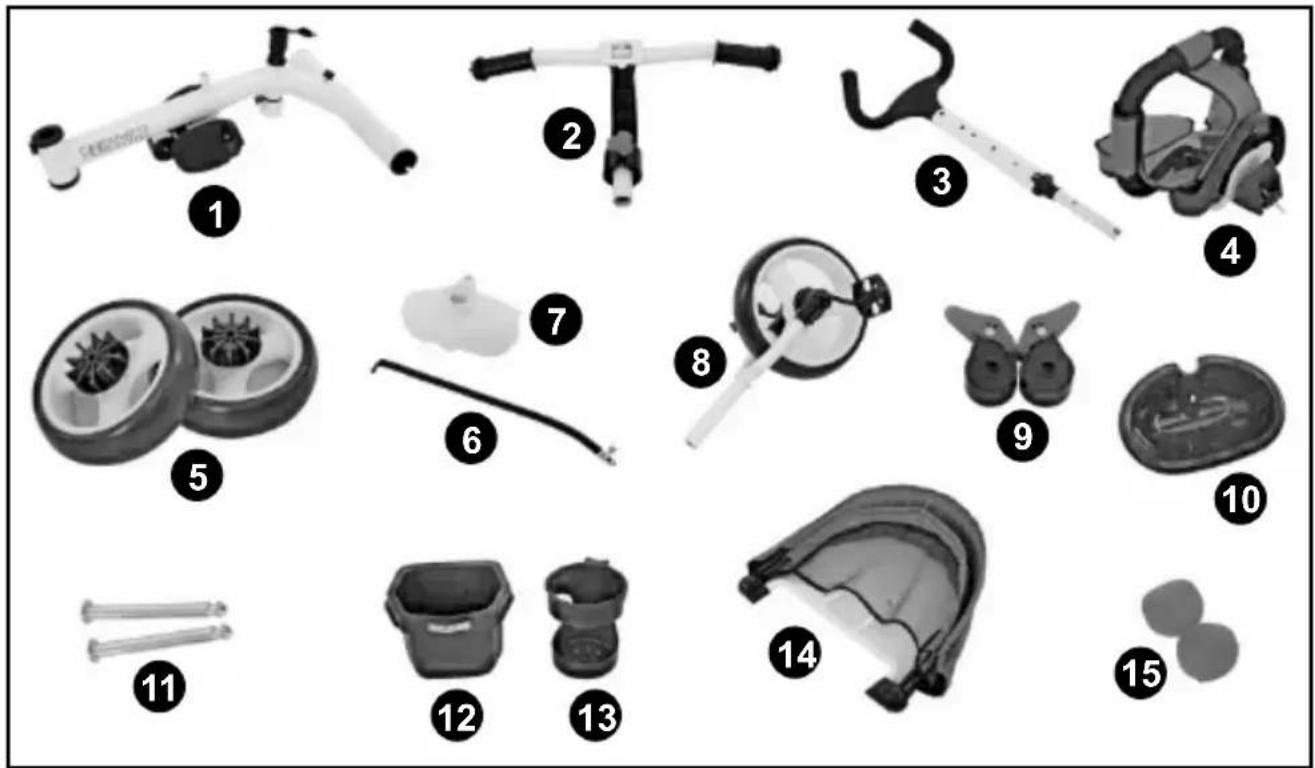

MAIN PARTS

Please, make sure if these parts are in the package.

Some of the parts may be pre-installed by the manufacturer.

No	PART DESCRIPTION No	PART DESCRIPTION	TION
1.	Frame 9. Parking device
2.	Handlebar 10. Rear storage basket
3.	Push handle 11. Rear wheels axles
4.	Seat 12. Front storage basket
5.	Rear wheels 13. Cup/bottle holder
6.	Guiding rod		4. Canopy
7.	Mud guard		5. Cover caps
8.	Front wheel with fork

ASSEMBLY INSTRUCTIONS

IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from entrapment!

IMPORTANT! AFTER EACH OPERATION, MAKE SURE THAT YOU HAVE FOLLOWED THE INSTRUCTIONS CORRECTLY AND THE FIXING IS STABLE!

IMPORTANT! Tighten the screws well, without overtightening them. If screws are loose, this could lead to disassembly of some part and injure to the child!

Necessary tools: wrench (not included).

ASSEMBLY

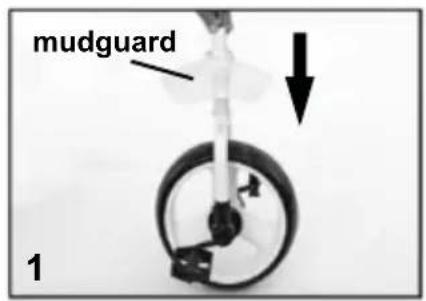

1. INSTALLING THE MUD GUARD TO THE FORK TUBE

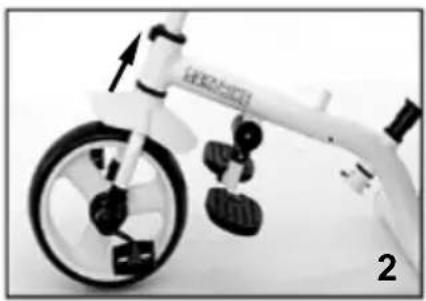

2. INSTALLING THE FORK (WITH FRONT WHEEL AND MUD GUARD) TO THE FRAME TUBE

3. INSTALLING THE GUIDING ROD

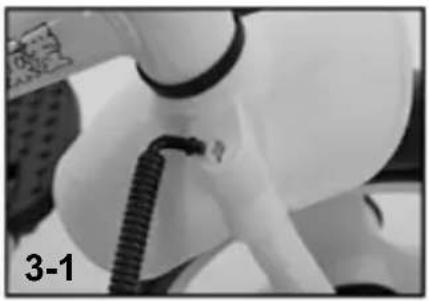

3-1 - Insert the hook at the end in the corresponding hole in the mud guard.

3-2 – Attach the other end of the guiding rod to the plate in the lower end of the push handle and fix it with screws and washers.

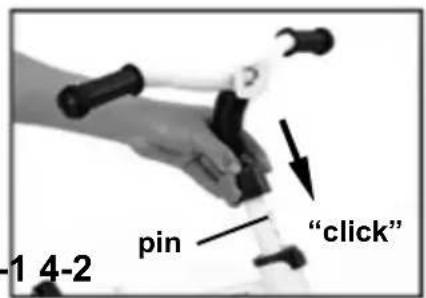

1. INSTALLING THE handlebar

4-1 – Put the handlebar to the fork tube.

4-2 – Press the pin and insert, until you hear and click and handlebar is fixed. Cover the cap and tighten the screw.

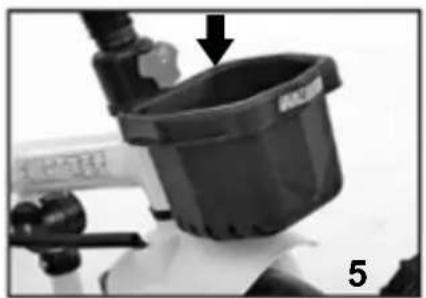

1. INSTALLING THE FRONT STORAGE BASKET

2. INSTALLING THE PARKING DEVICE

Align the protruding part of the parking device with the groove in the frame and fix it.

1. INSTALLING THE REAR WHEELS

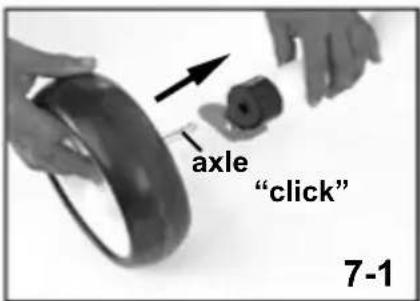

7-1 – Put the rear wheels on the rear axles. Install the rear axles to the frame until you hear a click and they are fixed.

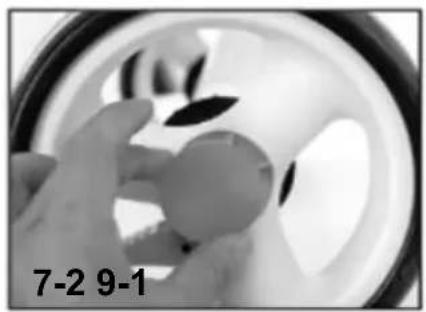

7-2 – Put the cover caps on the two rear wheels.

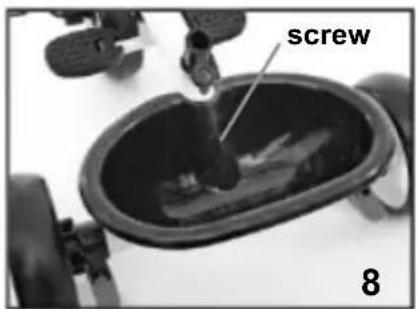

1. INSTALLING THE REAR STORAGE BASKET

Put the rear storage basket on the frame and fix it with the screw with plastic head.

1. INSTALLING THE SEAT

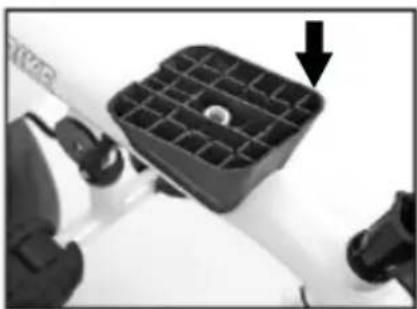

9-1 – Place the seat base on the frame.

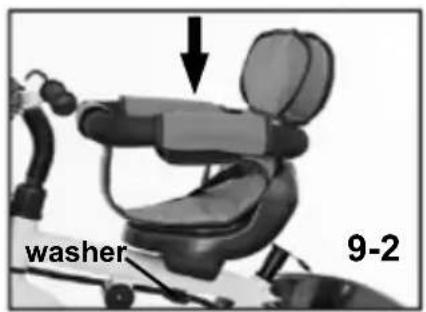

9-2 – Place the seat on the seat base and fix it with washer on bottom part of the frame.

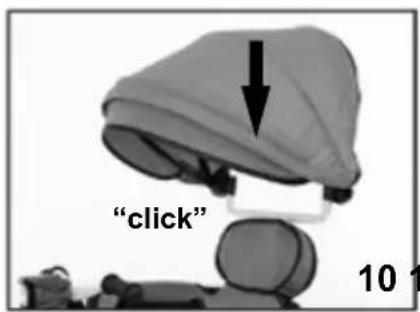

1. INSTALLING THE CANOPY

Press the pin on one of the tubes and insert it in the seat.

To remove the canopy, press the left button on back of the backrest (under the upholstery) and pull out the canopy.

1. INSTALLING THE PUSH HANDLE

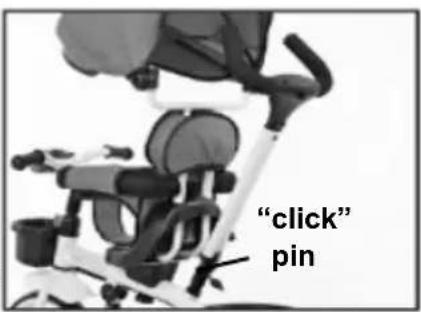

Press the pin and insert the handle in the corresponding opening on back of the frame until you hear a click and the pin goes through the opening.

Close-up of a white bicycle with black wheels and a curved handle, no visible text or symbols

Close-up of a robotic arm with a coiled cable, labeled '3-1' (no visible text or symbols on the object itself)

Close-up of a robotic arm holding a black cable, with no visible text or symbols

Close-up of a black plastic bucket being inserted into a piping bag, with an arrow pointing to the bucket (no text or symbols visible)

Close-up of hands holding a cylindrical device with a black component and an arrow pointing to it, labeled '6' (no text or symbols on the device itself)

Close-up of a hand adjusting a car wheel rim with a small circular component (no text or symbols visible)

Close-up of a black plastic tray with grid pattern and a downward arrow, no visible text or symbols

FUNCTIONS

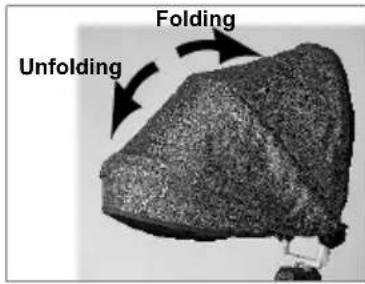

UNFOLDING (1) AND FOLDING (2) OF CANOPY

Pull or push the canopy with your hand in order to unfold or fold it.

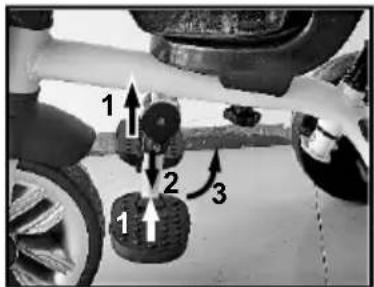

FOLDING THE FOOTREST TO THE FRAME

IMPORTANT! When you guide the tricycle, use the footrest unfolded, when the child rides the tricycle on his own, the footrest must be folded.

ADJUSTING THE PUSH HANDLE HEIGHT – in 3 positions

Press the pin and move the handle up or down to the desired position.

Close-up of a black sculpted object resembling a stylized tool or tool handle (no text or symbols visible)

CUP/BOTTLE HOLDER

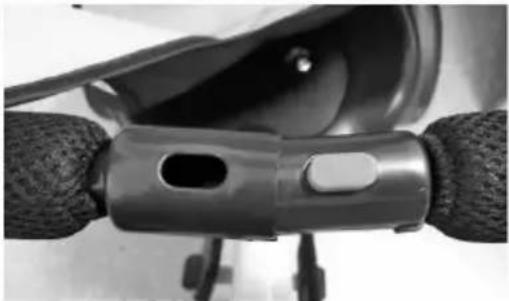

OPENING AND CLOSING THE SAFETY BUMPER

Close-up of a black and white photo of a bicycle steering wheel with visible wheels and a control panel (no text or symbols)

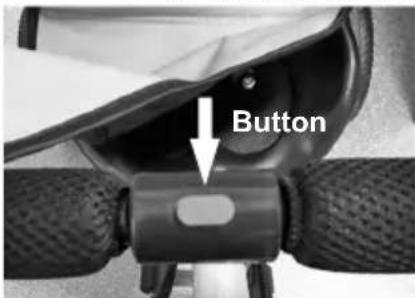

Press the button to open the bumper

SEAT CAN BE ADJUSTED IN 2 POSITIONS:

FORWARD (facing to the front) and REARWARD (facing to the back)

Unscrew the washer on bottom part of the frame (See 9), remove the seat from the base and place in the reverse direction.

GUIDING THE TRICYCLE BY THE PUSH HANDLE

RIDING THE TRICYCLE BY THE CHILD (AFTER REMOVING OF CANOPY AND PUSH HANDLE)

MAINTENANCE GUIDELINES

Periodically check the good working order of the tricycle parts.
Do not wash it and do not soak it in water. Use a soft damp cloth and water or neutral liquid detergent.
Do not use aggressive detergents, containing abrasive particles, ammonia, bleach or spirits.
◆ Regularly oil the moving parts.
Do not use on sand.
Do not store the tricycle in hot environment, in order to avoid the plastic parts from deforming.
Store the product in clean and dry place indoors. Do not expose to direct sunlight, moisture or harsh weather!
❖ Always let the tricycle to dry out fully before storing or using it, in order to avoid mold and rust. Contact your authorized dealer if consultation or repair is needed.

Materials used: plastic, metal, textile part and filling – 100% polyester.

TRKMT021xxx / T600
