USER MANUAL 95955 TORNADO

For Commercial Use Only

Two Tornado dust removal machines with white protective bags, displayed side by side (no text or symbols on the machines themselves)

SINGLE AND DUAL AIR EXTERNAL FILTER

JUMBO VACUUMS

MODEL NO: 95955/95962

Form No. L5955AA 05/17 ©Tornado Industries, LLC. All rights reserved

Long Term Buyer Protection Limited Warranty

Tornado Industries, LLC. (Tornado) warrants to the end/user customer that the Tornado product(s) will be free from defects in material and workmanship for the duration(s) described below. This limited warranty DOES NOT cover machines and/or components subject to normal wear and tear, damage that occurs in shipping, failures resulting from modification, accident, unsuitable operating environment, misuse, abuse, neglect, or improper maintenance by you. For full details, contact your Authorized Tornado Distributor, Service Center, or the Tornado Technical Service Department. Tornado sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations of Tornado under the warranty.

10 Years\*

Plastic water tanks and Rotationally-molded bodies

2 Years\*

Parts on all Tornado cleaning equipment

1 Year\*

Labor on all Tornado cleaning equipment

1 Year\*

Warranty on batteries, one year prorated

All battery warranties are handled directly by the battery manufacturer, on a one year prorated basis

Terms subject to change without notice

1. Except all Windshears™ Blowers, Storm, TV2SS, Side and Downdraft, Insulation Blowers, CV 30, CV 38, CK14/1 PRO, CK 14/2 PRO, SWM 31/9, CK LW13/1, CK LW 13/1 ROAM, CV 38/48 Dual, PV6, PV10, PV6 ROAM, Wall Mount Vacuum and all chargers are warranted for 1 (one) year for both parts and labor.
2. All non-wear item parts purchased after warranty expiration are warranted for 90 days.
3. Warranty starts from the date of sale to the consumer or, at Tornado's discretion, 6 months after the dealer purchased the unit from Tornado, whichever comes first.
4. The EB 30 is warranted for a period of 90 days for both parts and labor.
5. The warranty on engines used on propane powered equipment is limited to motor manufacturer's warranty.
6. Ride-on Scrubbers are warranted for 24 months, parts, 6 months labor or 1,000 hours, whichever occurs first.

Note: Tornado, The Latest Dirt, Floorkeeper,

Carpetkeeper, Carpetrinser, Carpetrinser/Dryer,

Headmaster, Taskforce, PAC-VAC, T-Lite, Glazer,

Windshear, Max-Vac and Trot-Mop are trademarks of Tornado Industries

Website: www.tornadovac.com

Phone 1-800-VACUUMS

Fax [phone]

Address 3101 Wichita Court

Fort Worth, TX 76140

1-800-VACUUMS

90 Years of Cleaning Innovation A Tacony Company

Form F2662.©2017. All rights reserved

NOTES

Your new Tornado unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries.

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT

Read and understand this owner's manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert and knowing how your unit works. Use this unit only as described in this manual. Use only manufacturer's recommended attachments. To reduce the risk of personal injury or damage to your unit use only Tornado recommended accessories.

WARNING: Failure to read and understand these instructions could result in serious bodily injury or property damage

SAFETY INSTRUCTIONS

When using this unit, basic precautions should always be followed. Read all instructions before using this unit.

WARNING: To reduce the risk of fire, electric shock or injury:

Do not leave machine unattended when running. Turn off when not in use.

Before attempting any maintenance or adjustment, disconnect air lines.

Do not expose to rain.

Do not allow to be used as a toy.

Close attention is necessary when used near children.

Use only as described in this manual.

Use only manufacture's recommended attachments.

If machine is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Turn off all controls before disconnecting air lines.

Do not put any object into openings. Do not use with any opening blocked. Keep openings free of dust, lint, hair, and anything that may reduce air flow.

Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

Do not pick up flammable or combustible liquids, such as gasoline, or use machine where they may be present.

Do not use without filters in place.

Use extra care when cleaning on stairs.

Always replace worn or torn external filters immediately. This will prevent possible injury due to flying objects.

Never operate with intake unguarded. Strong suction will pull fingers and/or clothing into hose and other parts.

Always point exhaust port in a safe direction. Air exits venturi at very high velocity.

Always wear safety glasses when in vicinity of this unit.

Never operate above 100 p.s.i. (8 BAR) pressure.

Always turn off your air line supply at the drop before disconnecting the air line.

Features:

• Capable of simultaneous wet/dry pickup when using external filter(s)
• This unit is constructed for recovering water or other solutions without any adjustments.
  • Liquid shutoffs are available.
• Ideal for materials from powder to oily metal chips grindings and shavings.
  • Recovers fluids from water to heavy weight oils.
• External filter(s) collect lighter particles and resist clogging.
• 55-gallon drum collects heavier waste (approximately 95% of all pickup); light particles collect in large external filters.
• 3/16" (5 mm) jet(s) installed. 7/32" (5.5 mm) jet(s) and 1/4" (6 mm) jet(s) are included for heavier debris

General Specifications

The Single and Dual Air External Filter Jumbo Vacuum(s) are heavy duty wet/dry industrial vacuums. They pick up wet and dry waste simultaneously without the need to change any filters. These compressed air vacuums have no moving parts and have tremendous suction for portable units. Both come with a 55-gallon rolled top steel drum (Tornado part number 95944) for volume pick-up with maximum efficiency. Virtually all dry and liquid recovered products go into the drum, therefore maintaining peak performance. Both units handle a wide variety of waste, ranging from fine powders to heavy-grade viscosity products. Designed to perform at maximum efficiency with 1.5" to 2" hoses and attachments.

Unit Specifications

95955 SINGLE INCLUDES
95993 V	Venturi Powerhead (External Filter) (1)
90378 Large Poly External Filter (1)
98049 S	Support Rod for Large Filter (1)
95944 55-Gallon Drum
98088 4-Wheel Dolly
90331 1-1/2" Adaptor
95991 S	Single Head Line Connector

95962 DUAL INCLUDES

95993 Venturi Powerhead (External Filter) (2)

90378 Large Poly External Filter (2)

98049 Support Rod for Large Filter (2)

95944 55-Gallon Drum

98088 4-Wheel Dolly

90332 2” Adaptor

95992 Dual Head Line Connector

	SINGLE DUAL
EXTERNAL FILTER AREA 1874	sq. in. 1874 sq. in. (each head)
HORIZONTAL REACH 30 ft. 100	ft.
VERTICAL LIFT 15 ft. 25 ft.
REQUIRED COMPRESSOR 15	h.p. 25 h.p.
AIR LINE COUPLINGS 1/2" (Minimum)	3/4" (Minimum)
HOSE ADAPTOR	1.5" included	2" included
SHIPPING WEIGHT	143 lbs.	157 lbs.
3/16" Jet (Installed) w/ 1.5" Hose 79	CFM/185" Static Waterlift 152 CFM/179" Static Waterlift
3/16" Jet w/2" Hose 82 CFM/185"	Static Waterlift 158 CFM/179" Static Waterlift
Compressor CFM 47@90 p.s.i. 94	@90 p.s.i.
7/32" Jet (Included) w/1.5" Hose 73	CFM/223" Static Waterlift 144 CFM/217" Static Waterlift
7/32" Jet w/2" Hose 74 CFM/223"	Static Waterlift 152 CFM/217" Static Waterlift
Compressor CFM 61@90 p.s.i. 122	@90 p.s.i.
1/4" Jet (Included) w/1.5" Hose 67	CFM/242" Static Waterlift 134 CFM/239" Static Waterlift
1/4" Jet w/2" Hose 70 CFM/242"	Static Waterlift 151 CFM/239" Static Waterlift
Compressor CFM 76@90 p.s.i. 152	@90 p.s.i.

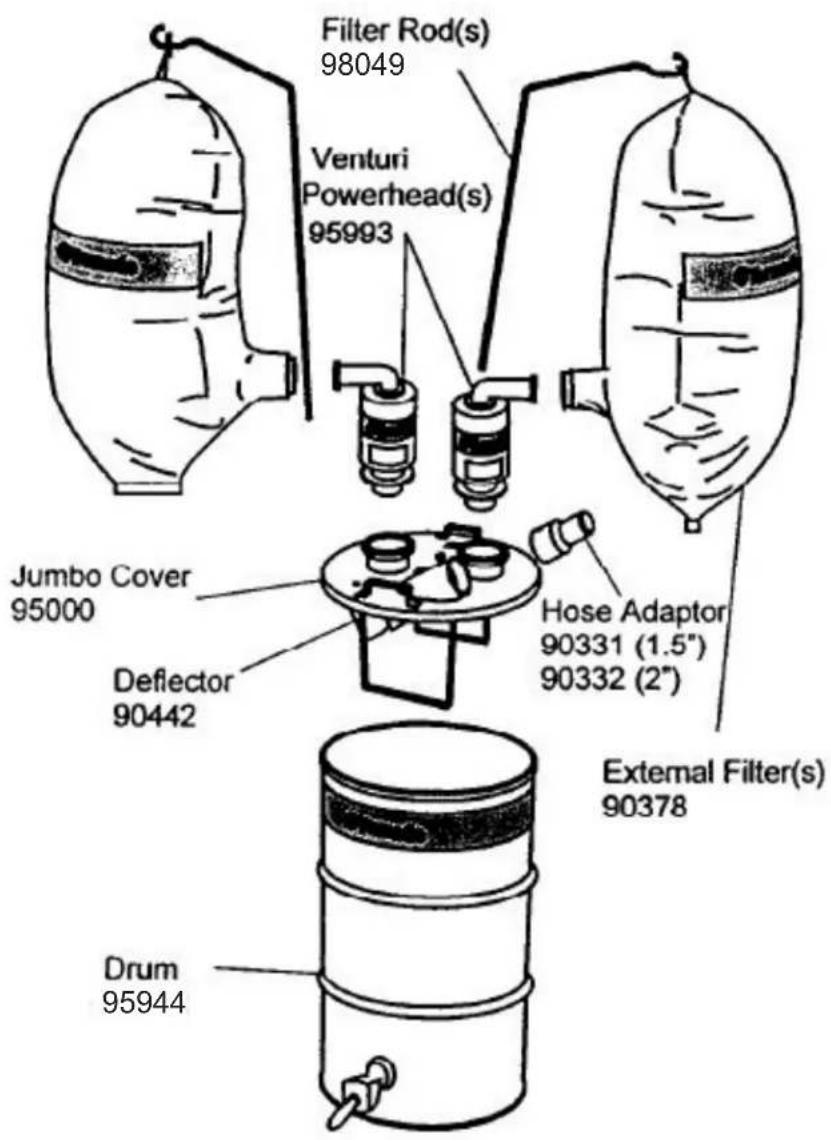

ASSEMBLY OF THE UNIT

1. Remove all components from packaging
2. The venturi powerhead(s) come already attached to the Jumbo cover adaptor(s). To detach, remove the external filters from the venturi powerhead(s), then turn powerhead(s) counterclockwise and they will unlock from the Jumbo cover adaptor. When attached, Make sure exhaust nozzles(s) face outward.
3. Install external filter support rod(s) by placing them in access hole(s) located in the Jumbo cover.
4. Attach external filter(s) by attaching to filter support rod(s) and installing inlet collars onto exhaust nozzle(s). Turn collar(s) clockwise to lock. Do not twist filter.
5. Install hose adaptor into Jumbo housing. Lock in place by lining up adaptor indent with lock screw and tightening lock screw.
6. Place Jumbo cover assembly onto drum. The weight and suction power of the Jumbo cover assembly will form a seal onto the drum

STARTING/STOPPING OF MACHINE

1. Connect air supply line to head line connector.
2. Start Vacuum by turning air valve located on line connector to the ON position.
3. Stop vacuum by turning air valve located on line connector to the OFF position.

OPERATING RULES

Use 1.5" or 2" I.D. hoses and attachments Use 1/2" (Single) and 3/4" (Dual) air line hose and flow through connectors (do not use ball style fittings).

Use 90 p.s.i. (7 BAR) at gauge (valve open) for maximum pickup power, 60 p.s.i. (5 BAR) at gauge (valve open) for lighter debris Never operate over 100 p.s.i. (8 BAR).

Use to recover water, heavy oils, powder, grindings, and metal shavings.

Hearing protection must be worn when operating these units.

Grounding and static discharge are requited when recovering powders. Use Tornado static conductive hoses (Urethane or Neoprene), and aluminum tools. Ground vacuum head and tank assembly to an earth ground.

MAINTENANCE

EXTERNAL FILTER

For maximum operating efficiency and to ensure longer wear, remove filter(s) and empty by detaching the bottom clamp after every use

ALL OTHER MAINTENANCE

Empty and clean vacuum filter(s) and attachments after each days use for maximum performance

Problem Remedy
Machine does operate	Make sure air line valve is in ON position.Inspect air regulators for interference of air flow.Inspect air compressor for adequate size and that proper air pressure is available (60 to 90 p.s.i.).Inspect air line for proper size and/or damage.Always use flow through connectors.
Machine stops running	Inspect drum level.Inspect air line for damage.Inspect air pressure.
Machine has no suction	Inspect for clogged or collapsed hoseDefective drum seal.Material too heavy for unit.
Air pressure drops at gauge	Inspect air compressor for proper free air consumption and resistance in air line size or connections.
Machine has poor recovery	Inspect for correct size hose and attachments.Defective drum seal.Material too heavy for unit.Inspect external filter(s). Empty and clean if necessary.Ensure external filter(s) are properly locked onto venturi powerheads.Inspect drum cover gasket.Ensure venturi powerheads are properly locked into Jumbo cover.Inspect connection of external filters.Inspect all seals for wear and/or damage.
