Product Type	Video Projector
Model	VT45
Brand	NEC
Display Technology	0.7" p-Si TFT active-matrix LCD
Native Resolution	800 x 600 (SVGA)
Brightness	130W NSH lamp (Normal mode)
Lamp Life	Up to 2000 hours in Eco 2 mode
Lens	Manual zoom and focus, F2.0-2.2, f=26.7-29.3 mm
Image Size	25" to 300" diagonal
Projection Distance	3.3 ft to 39.4 ft (1.0 m to 12.0 m)
Keystone Correction	Manual, ±15° vertical
Lens Shift	Manual, horizontal (max 1/3 width) and vertical (max 1/2 height)
Inputs	RGB (D-Sub 15), Video (RCA), S-Video, Audio (mini jack and RCA)
Outputs	RGB monitor out (D-Sub 15), Audio out (mini jack)
Built-in Speaker	2W monaural
Remote Control	Wireless infrared, with battery (AA x2)
Power Requirement	100-120 / 200-240 VAC, 50/60 Hz
Power Consumption	200 W (Normal), 185 W (Eco 1), 175 W (Eco 2)
Dimensions (W x H x D)	11.8 x 3.3 x 8.1 inches (299 x 85 x 207 mm)
Weight	5.6 lbs (2.5 kg)
Operating Temperature	32°F to 95°F (0°C to 35°C)
Noise Level	Less than 70 dB (A)
Safety & Regulations	UL, FCC Class B, CE, DOC Canada
Lamp Replacement	NEC VT45LP (user-replaceable)
Filter Maintenance	Clean every 100 hours; replaceable filter cover
Repair Policy	Refer servicing to qualified NEC personnel

Frequently Asked Questions - VT45 NEC

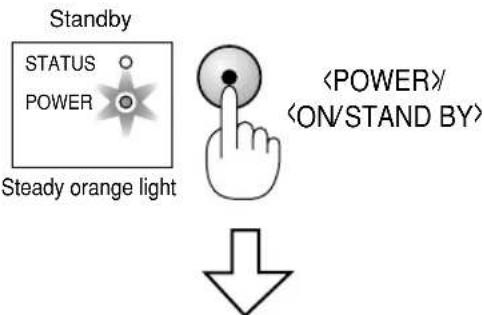

How do I turn on the NEC VT45 projector?

Plug in the power cable, press the main power switch, then press the Power button on the projector or remote control. The power indicator will turn green.

What is the maximum image size I can project?

The projector can display images from 25 to 300 inches diagonally, depending on distance and zoom.

How do I connect my laptop to the projector?

Use the supplied VGA cable to connect your laptop's RGB output to the projector's RGB Input connector. Then select the RGB source using the Source button.

How can I extend the lamp life?

Select Eco 2 mode in the Lamp Mode menu to reduce brightness and extend lamp life up to 2000 hours.

What should I do if the projector displays 'Please clean the filters'?

Turn off the projector, unplug it, and vacuum the filter covers. After cleaning, reset the filter usage timer via Clear Filter Usage in the menu.

How do I replace the lamp?

Turn off the projector, wait 60 seconds, unplug, and let cool for 60 minutes. Remove the lamp cover, unscrew the lamp housing, replace with a new VT45LP lamp, and reset the lamp hour meter.

Why is there no picture?

Check if the lens cap is removed, the correct source is selected, cables are securely connected, and the brightness/contrast settings are adjusted.

How do I correct a trapezoid (keystone) image?

Go to Image Options > Keystone and use the arrow buttons on the remote to adjust the distortion.

Can I mount the projector on the ceiling?

Yes, but installation must be done by a qualified technician. Use the Orientation setting in the menu to flip the image correctly.

What does the STATUS indicator mean when it is red?

A steady red STATUS light indicates the lamp has reached its end of life (over 1000 hours). Replace the lamp as soon as possible.

USER MANUAL VT45 NEC

Please read this manual carefully before using your NEC VT45 Projector and keep the manual handy for future reference.

Your serial number is located under the name plate label on the right side of your VT45. Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT'S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED NEC SERVICE PERSONNEL.

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

RF Interference

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Technologies in this manual. Failure to comply with this government regulation could void your right to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

• IBM is a registered trademark of International Business Machines Corporation.
  • Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.
• Other product and company names mentioned in this user's manual may be the trademarks of their respective holders.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1. For best results, use your projector in a darkened room.
2. Place the projector on a flat, level surface in a dry area away from dust and moisture.
3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.
4. Exposure to direct sunlight, smoke or steam can harm internal components.
5. Handle your projector carefully. Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling:

a. Do not attempt to install the projector yourself.
b. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.
c. In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.
d. Please consult your dealer for more information.

Power Supply

1. The projector is designed to operate on a power supply of 100-120 or 200-240 V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector.
2. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.
3. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

Cleaning

1. Unplug the projector before cleaning.
2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.
3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

CAUTION

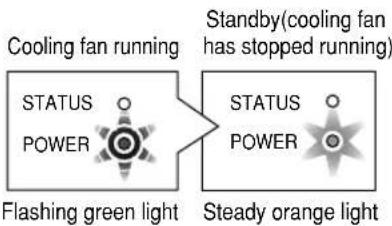

Do not turn off the main power or unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

• Immediately after the power cable is plugged into the wall outlet (when the POWER indicator has not changed to a steady orange glow).
• Immediately after the cooling fan stops working (The cooling fan continues to work for 60 seconds after the projector is turned off with the POWER button).

CAUTION

Avoid displaying stationary images for a prolonged period of time.

Doing so can result in these images being temporarily sustained on the surface of the LCD panel.

If this should happen, continue to use your projector. The static background from previous images will disappear.

Lamp Replacement

• To replace the lamp, follow all instructions provided on page E-36.
• Be sure to replace the lamp when the message "The lamp has reached the end of its usable life. Please replace the lamp." appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.
• Allow a minimum of 60 seconds to elapse after turning off the projector. Then disconnect the power cable and allow 60 minutes to cool the projector before replacing the lamp.

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 3 inches (10 cm) of space between your projector and a wall.
2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screw-driver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified NEC service personnel.

3. Do not place any liquids on top of your projector.

4. Do not look into the lens while the projector is on. Serious damage to your eyes could result.

5. Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.
6. Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

TABLE OF CONTENTS

1. INTRODUCTION

Introduction to the VT45 Projector ...... E-6

Getting Started E-6

What's in the Box E-7

Getting to Know Your VT45 Projector ...... E-8

Front / Side Features E-8

Rear / Side Features ...... E-8

Bottom / Side Features E-9

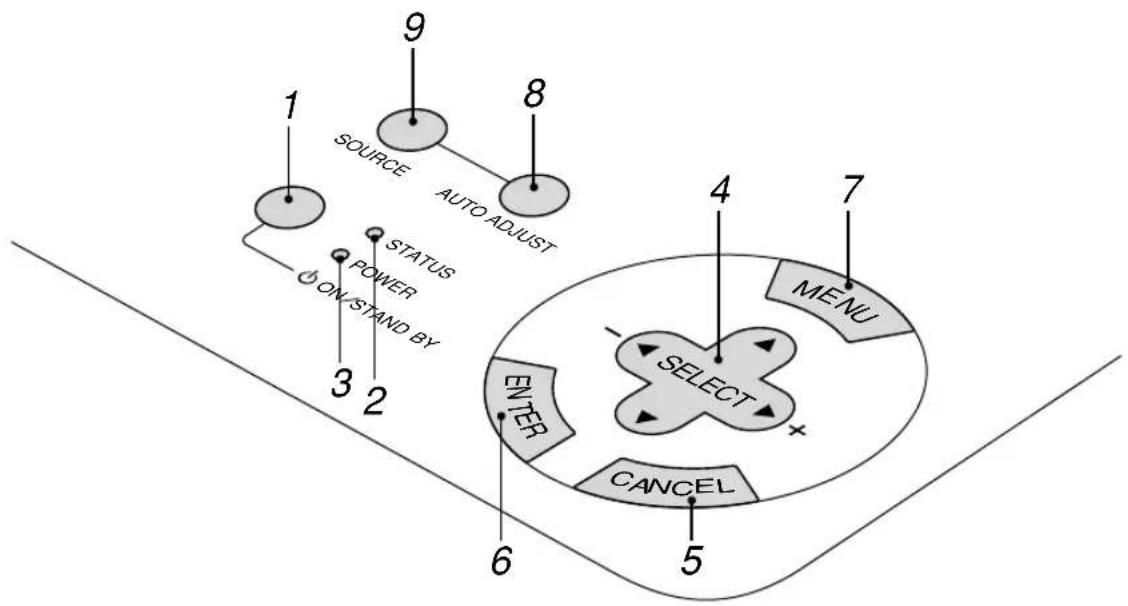

Top Features E-10

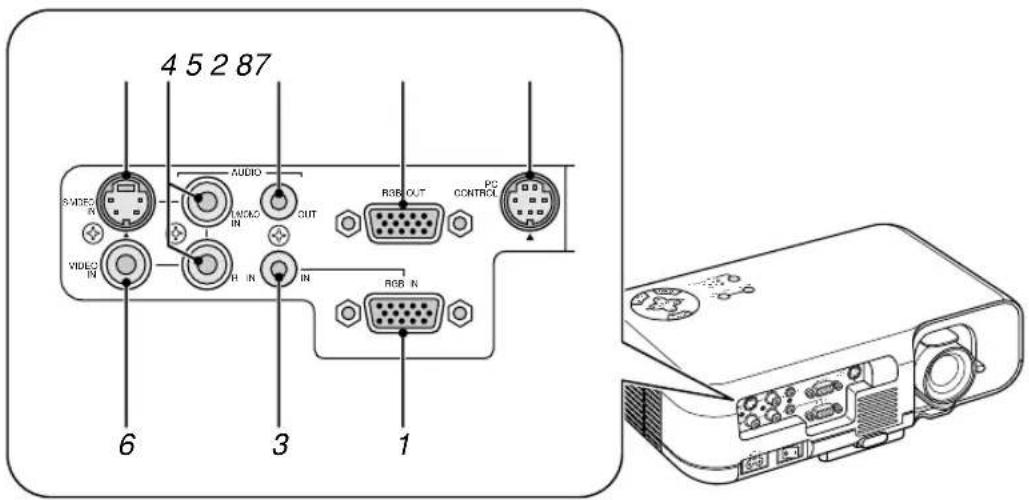

Terminal Panel Features E-11

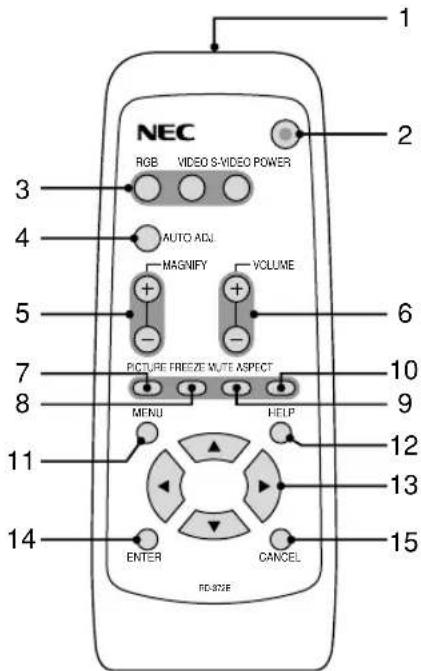

Remote Control Features E-12

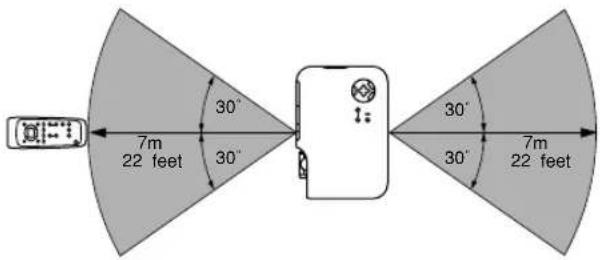

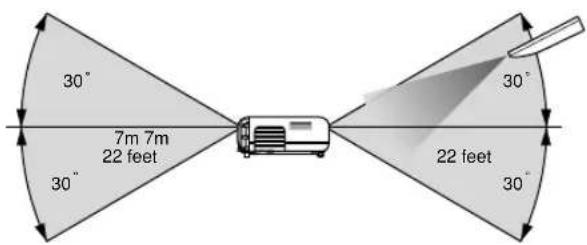

Opeating Range E-13

Remote Control Battery Installation ...... E-13

2. INSTALLATION

Setting Up Your Projector ...... E-14

Selecting a Location E-14

Using a Tabletop or Cart.... E-14

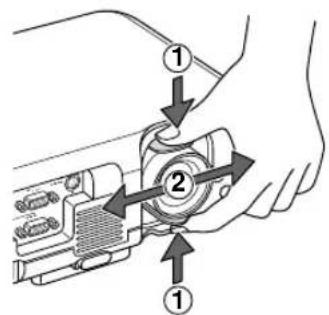

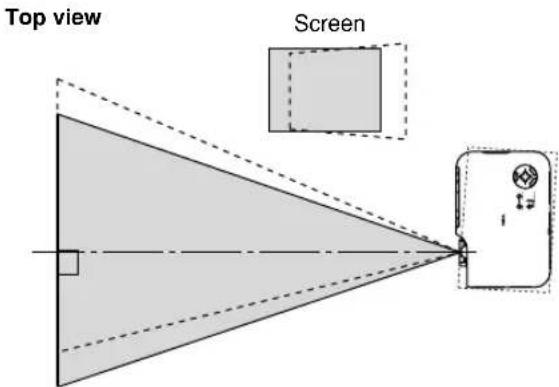

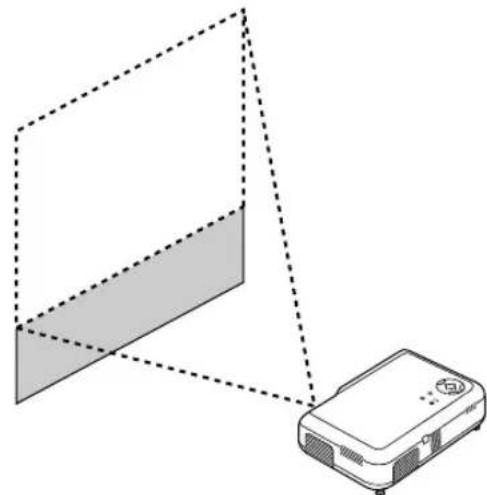

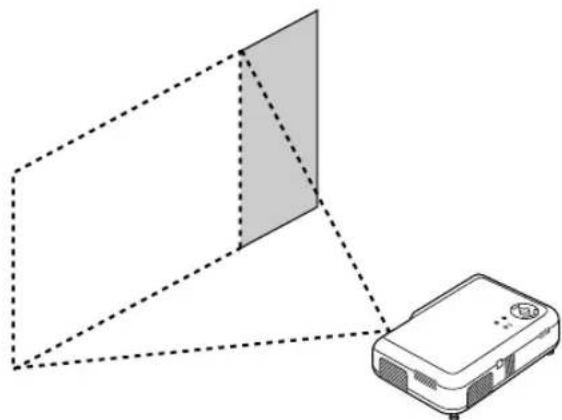

Using the Lens Shift E-14

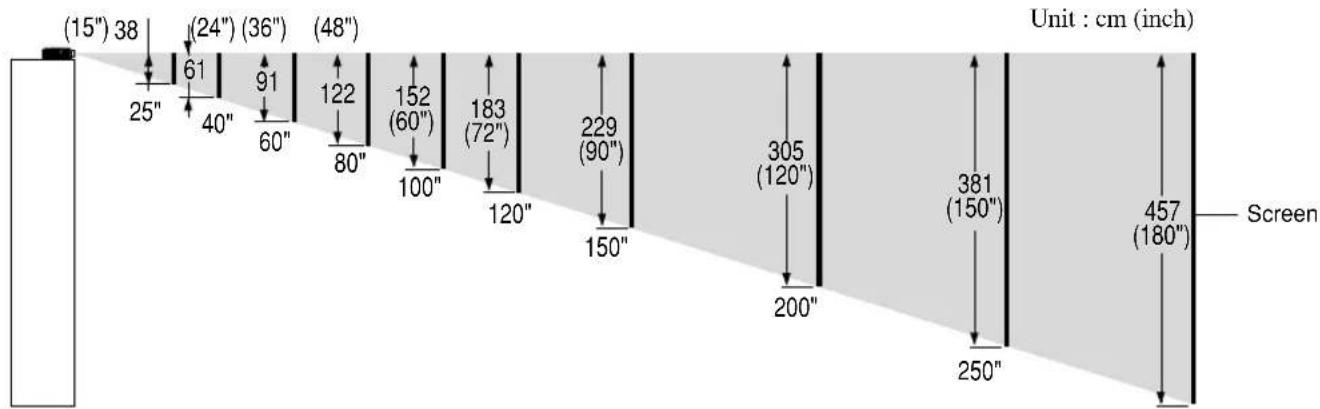

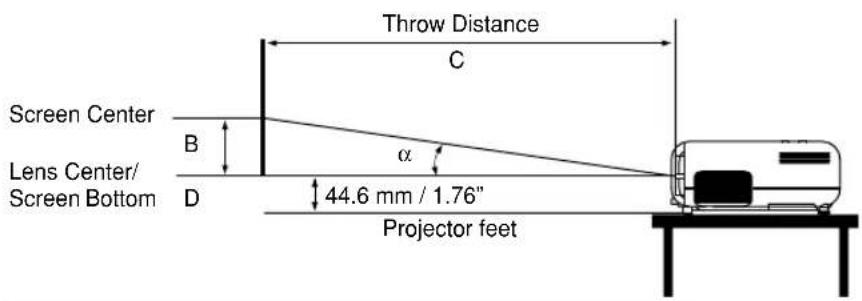

Distance Chart E-15

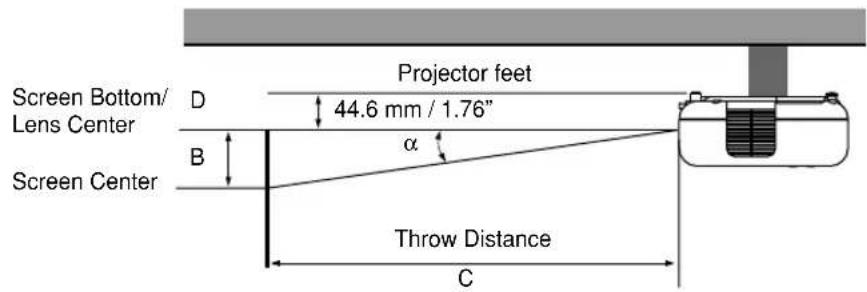

Ceiling Installation E-16

Reflecting the Image ...... E-16

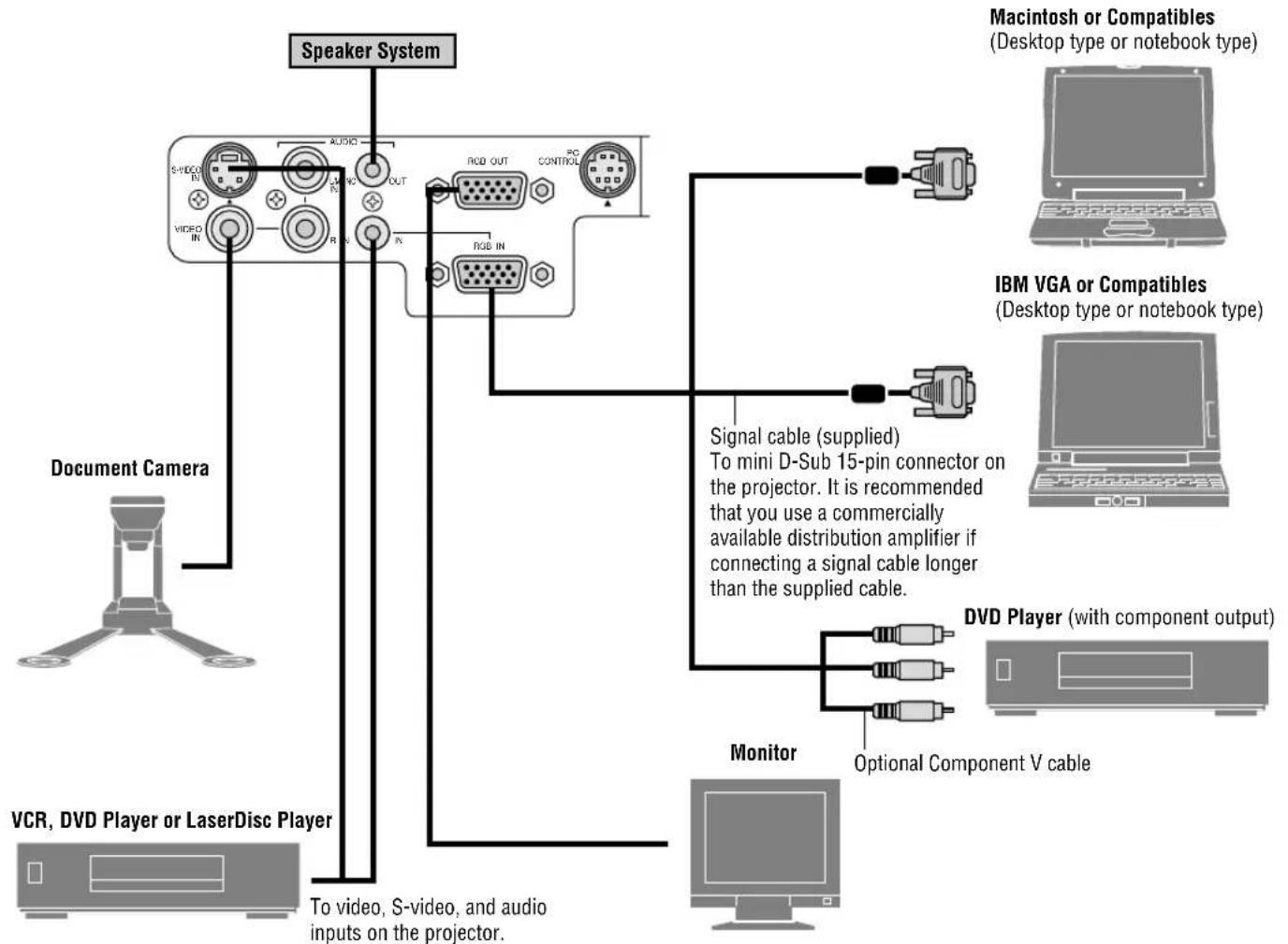

Wiring Diagram E-17

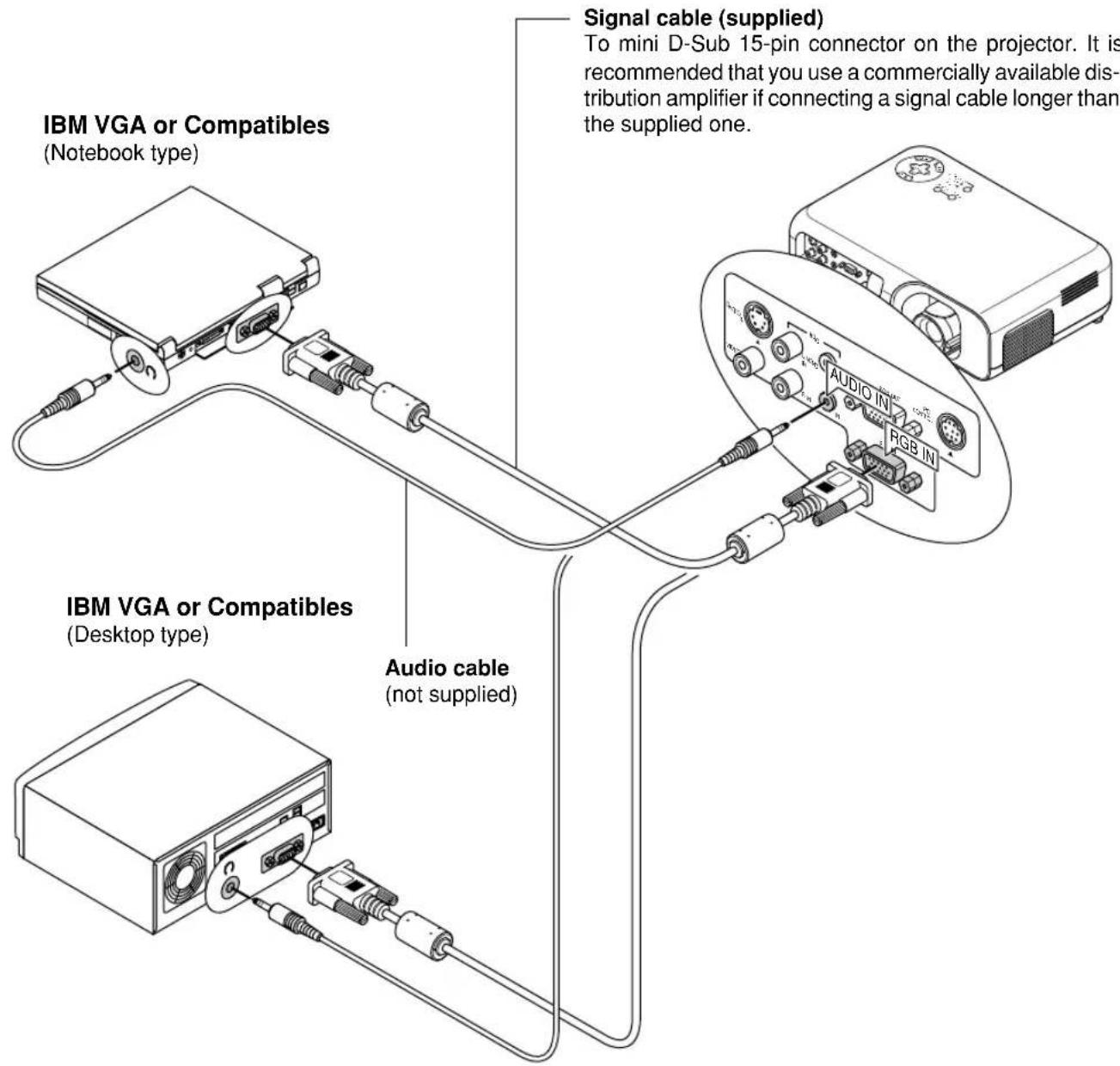

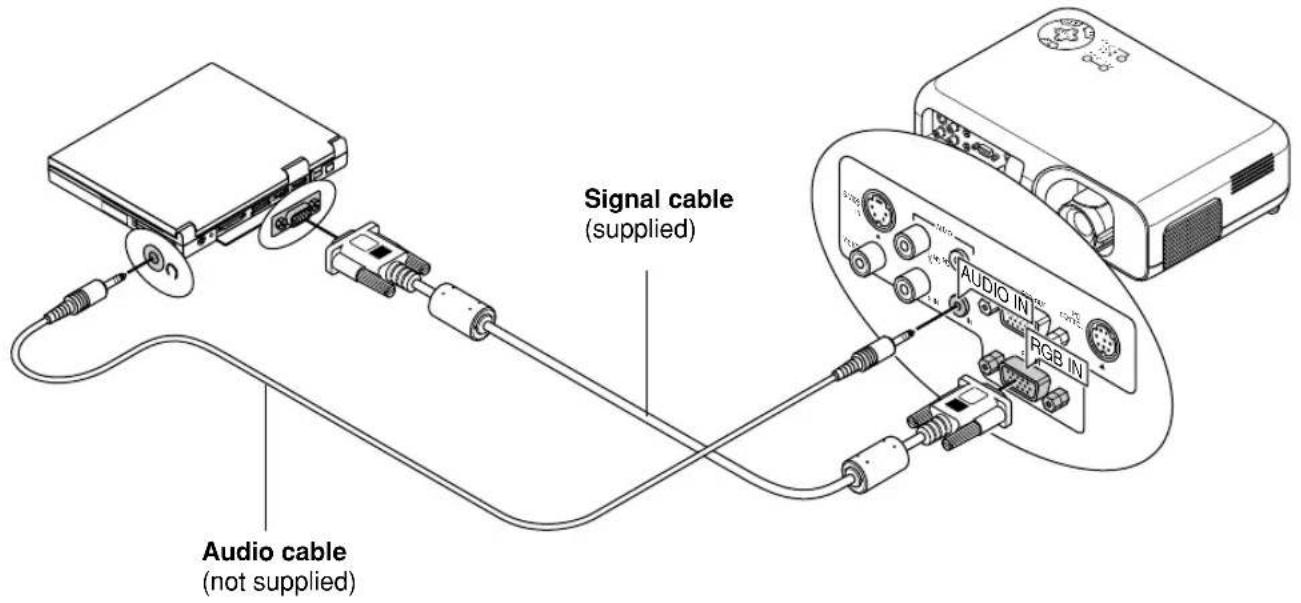

Connecting Your PC E-18

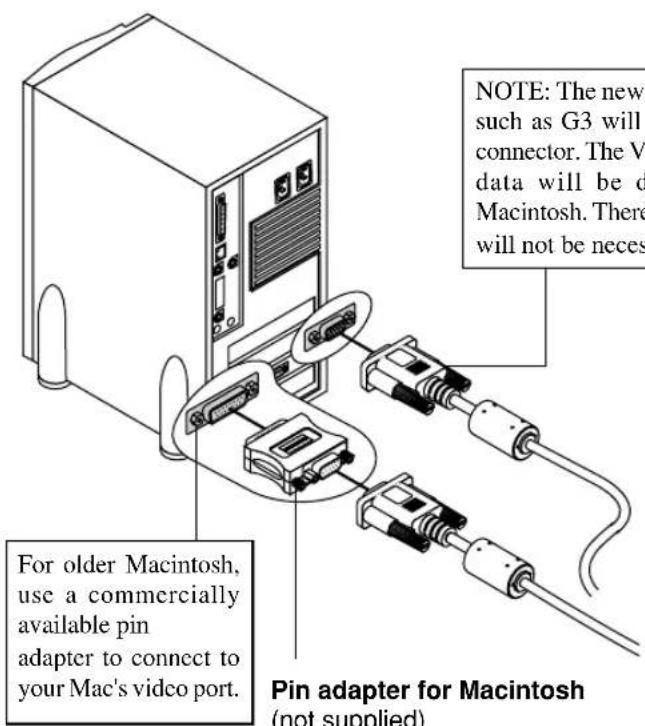

Connecting Your Macintosh Computer ...... E-19

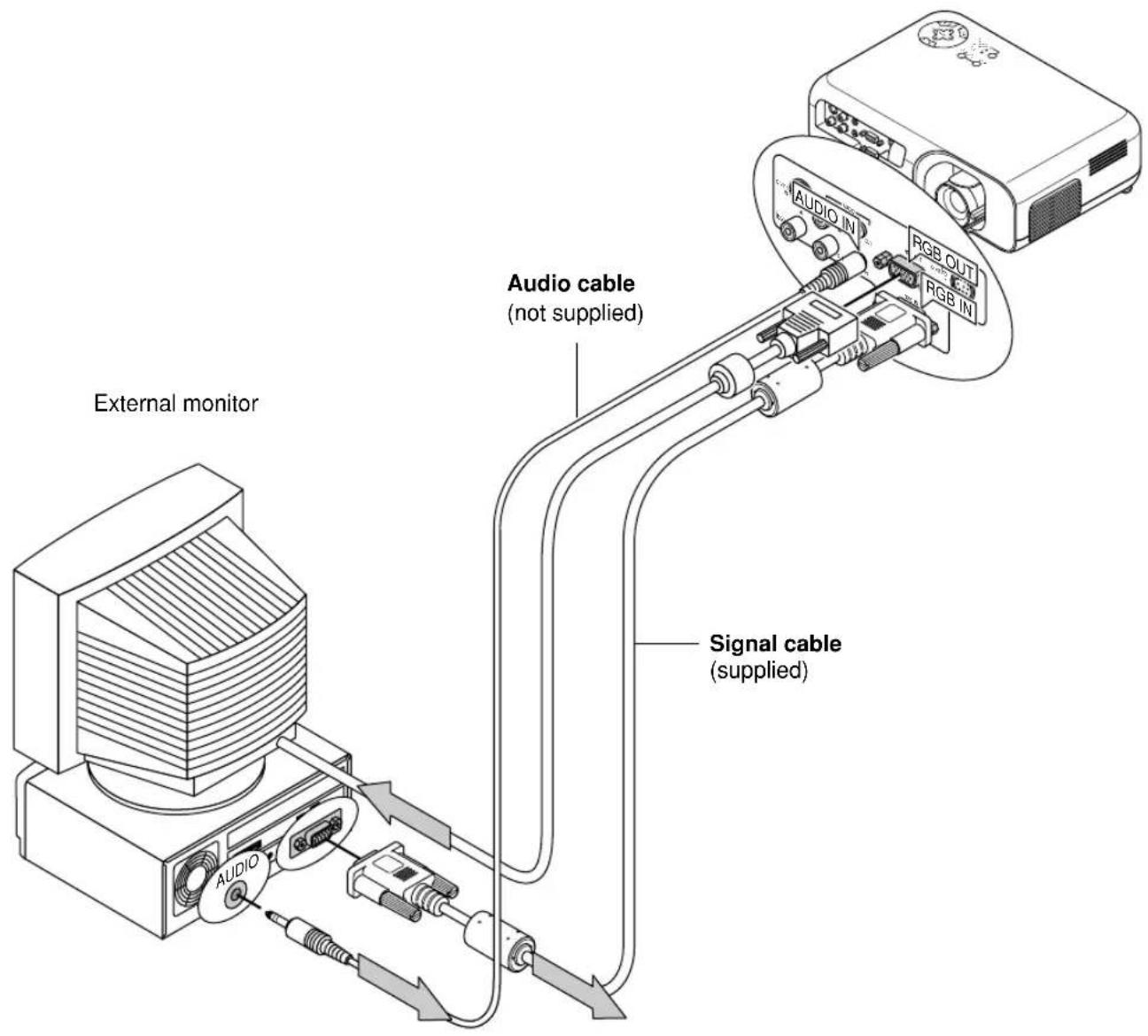

Connecting an External Monitor .... E-20

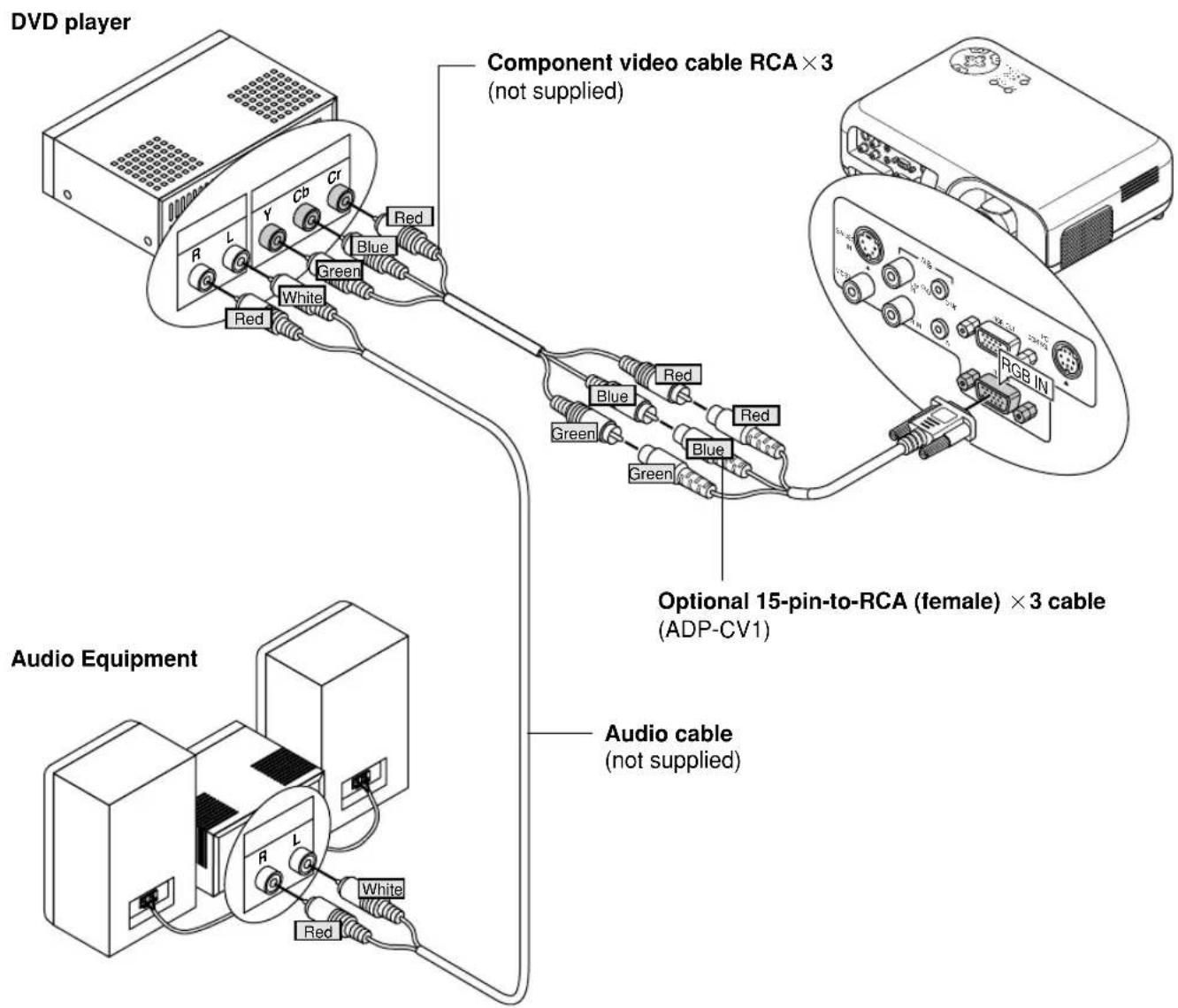

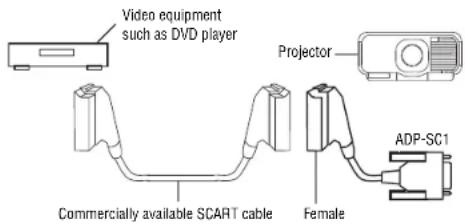

Connecting Your DVD Player ...... E-21

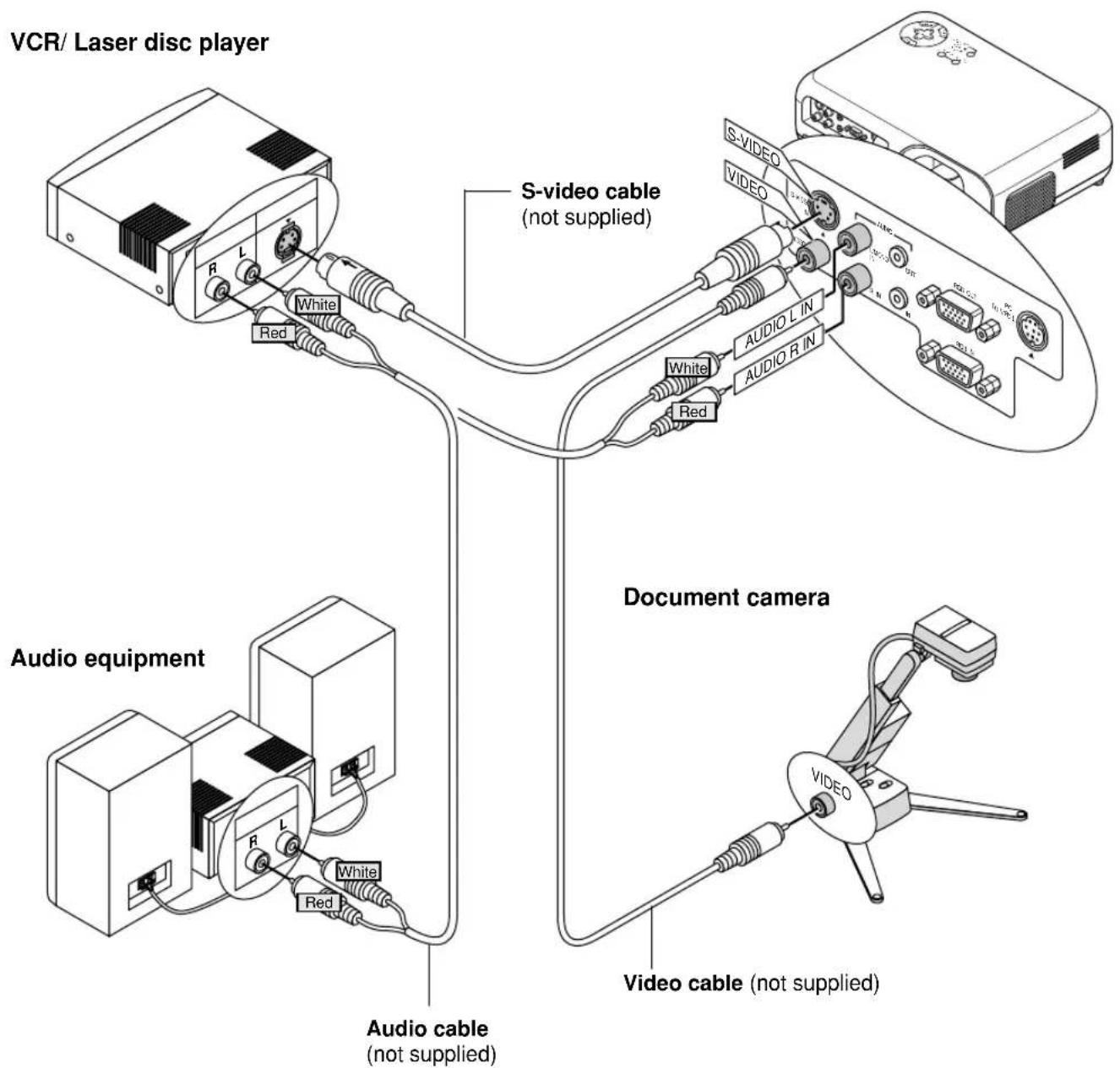

Connecting Your VCR or Laser Disc Player .... E-22

3. OPERATION

General Controls ...... E-23

About Startup Screen E-24

Enlarging and Moving a Picture ...... E-25

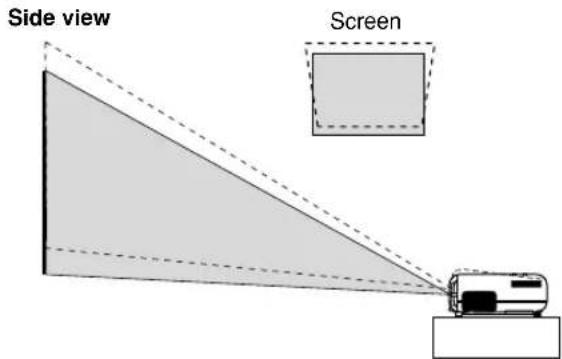

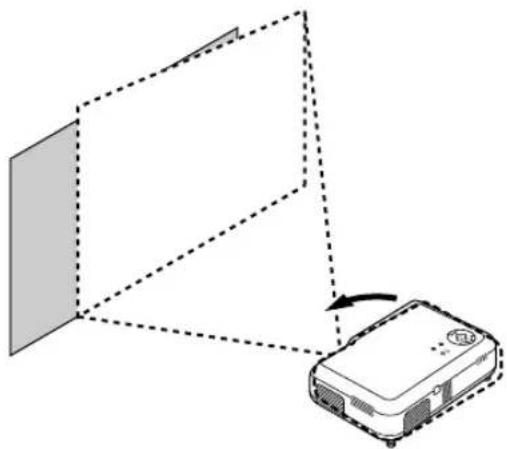

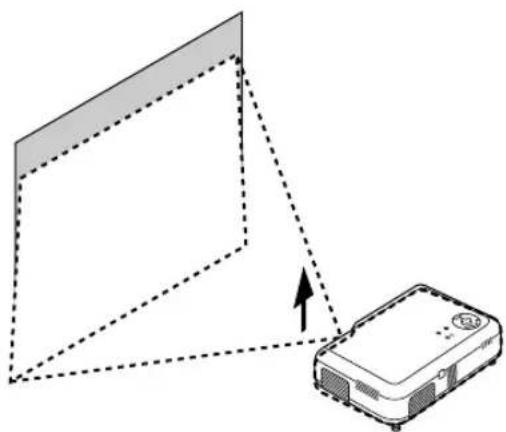

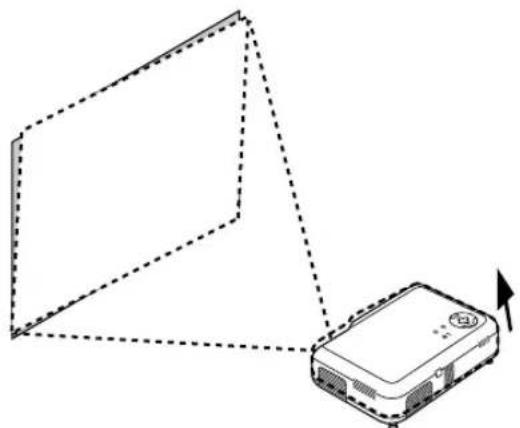

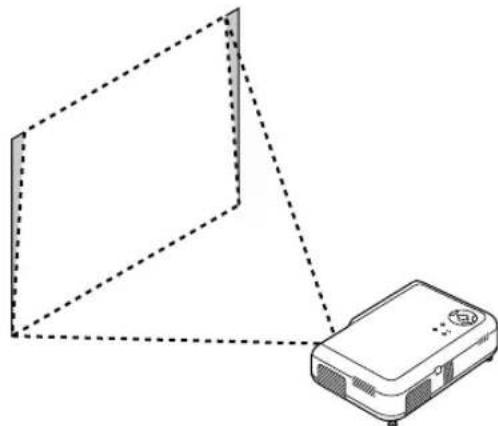

Geometrical correction E-25

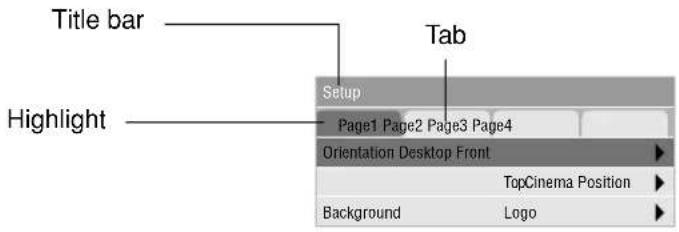

Using the Menus ...... E-26

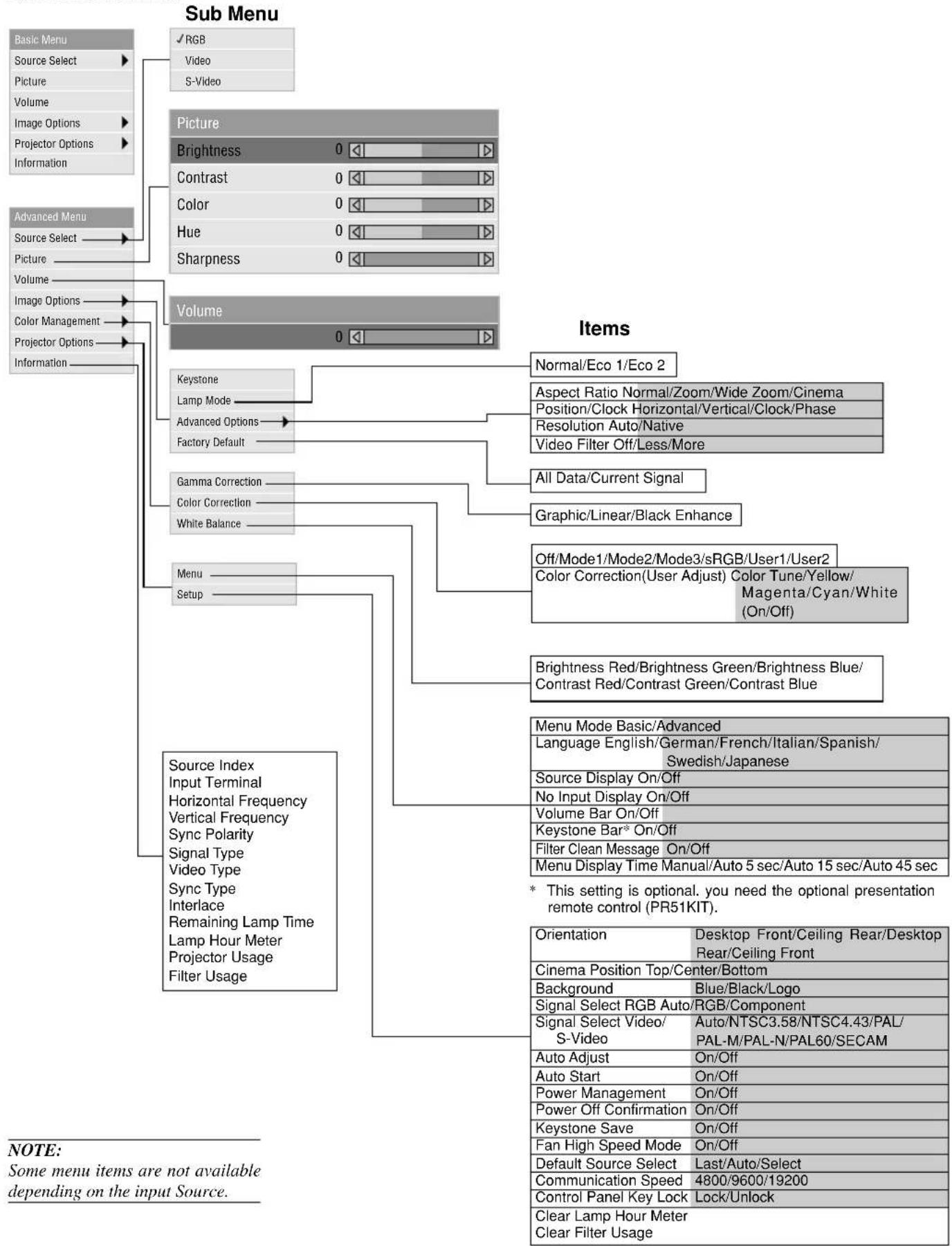

Menu Tree E-27

Menu Elements ...... E-28

Menu Descriptions & Functions ...... E-29

Source Select E-29

RGB/Video/S-Video

Picture ...... E-29

Brightness/Contrast/Color/Hue/Sharpness

Volume E-29

Image Options E-29

Keystone E-29

Lamp Mode E-30

Advanced Options E-30

Aspect Ratio E-30

Position/Clock E-31

Resolution E-31

Video Filter E-31

Factory Default E-31

Color Management E-32

Gamma Correction E-32

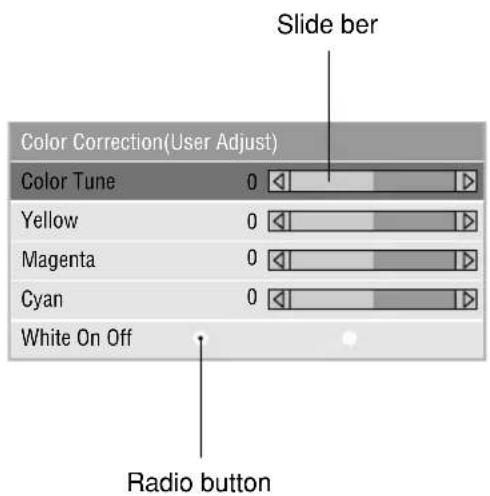

Color Correction E-32

User Adjust E-32

White Balance E-32

Projector Options E-32

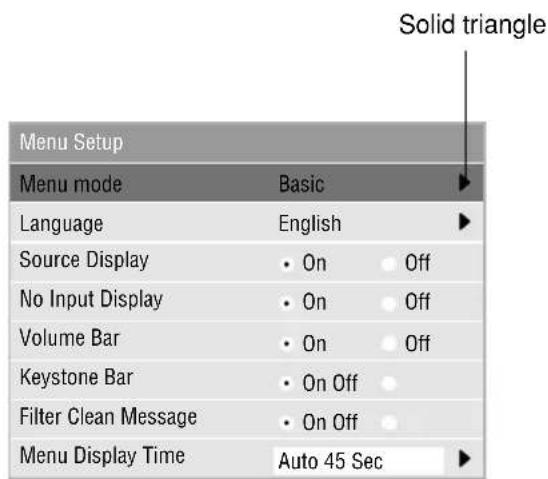

Menu E-32

Menu Mode E-32

Basic/Advanced E-32

Language E-32

Source Display E-32

No Input Display E-33

Volume Bar (Direct Button) E-33

Keystone Bar (Option) E-33

Filter Clean Message E-33

Menu Display Time E-33

Setup E-33

Orientation E-33

Cinema Position ...... E-33

Background E-33

Signal Select E-33

Auto Adjust E-34

Auto Start E-34

Power Management E-34

Power Off Confirmation E-34

Keystone Save E-34

Fan High Speed Mode E-34

Default Source Select E-34

Communication Speed E-34

Control Panel Key Lock E-34

Clear Lamp Hour Meter E-35

Clear Filter Usage E-35

Information E-35

4. MAINTENANCE

Replacing the Lamp E-36

Cleaning or Replacing the Filters E-37

5. TROUBLESHOOTING

Power / Status Light Messages ...... E-38

Common Problems & Solutions ...... E-38

6. SPECIFICATIONS

Optical/Electrical/Mechanical E-39

Cabinet Dimensions E-40

D-Sub Pin Assignments ...... E-41

Timing Chart E-42

PC Control Codes E-43

Cable Connection E-43

Introduction to the VT45 Projector

This section introduces you to your new VT45 (SVGA) Projector and describes the features and controls.

Congratulations on Your Purchase of The VT45 Projector

The VT45 is one of the very best projectors available today. The VT45 enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player, document camera, or even a laser disc player.

You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling ^*1 . The remote control can be used wirelessly.

Features you'll enjoy:

• Simple set up and operation.
• Eco Mode, two selectable options (120 watt for Eco 1 and 110 watt for Eco 2) that allow users to reduce the projector's light output, resulting in a doubling (Eco 2) of usable lamp life and decreased lamp replacement costs throughout the projector's life.
• A high-performance 130 watt NSH lamp.

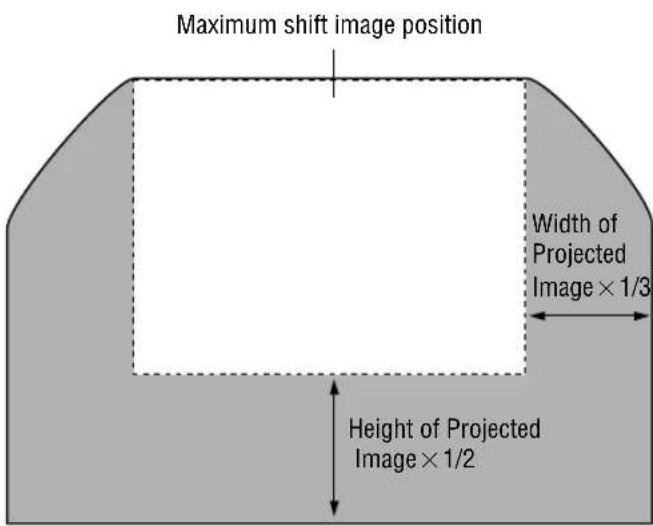

• Manual horizontal (max 1/3 of width) and vertical (max 1/2 of height) lens shift provides simple imaging positioning.
• The lamp life can be extended up to 2000 hours by using the Eco 2 mode.
• The supplied wireless remote control that operates the projector from the front side or rear.
• Manual zoom control enables you to adjust the image between 25 (0.63 m) and 300 inches (7.6 m) (measured diagonally).
• Keystone correction allows you to correct trapezoidal distortion so that the image is square.
• Color Management feature includes Gamma Correction, White Balance, and Color Correction that provides natural and true color reproduction.
• You can choose between video modes depending on your source: “normal” for a typical picture, “natural” for true color reproduction.
• An image can be projected from in front or behind a screen, and the projector can even be installed on the ceiling.
• NEC Technologies' exclusive Advanced AccuBlend intelligent pixel blending technology - an extremely accurate image compression technology - offers a crisp image with SXGA (1280 × 1024) resolution ^*2 .

• Supports most IBM VGA, SVGA, XGA* ^2 , SXGA* ^2 , Macintosh, component signal (YCbCr / YPbPr) or any other RGB signals within a horizontal frequency range of 15 to 80 kHz and a vertical frequency range of 50 to 100 Hz. This includes NTSC, PAL, PAL60, SECAM and NTSC4.43 standard video signals.

• The supplied remote control can be used without a cable.

• You can control the projector with a PC using the PC Control port.
• The contemporary cabinet design is light, compact, easy to carry, and complements any office, boardroom or auditorium.

*1 Do not attempt to mount the projector on a ceiling yourself. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury. In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.

*2 An XGA image (1024×768) and SXGA image (1280×1024) are converted into an 800×600 crisp image with NEC technology's Advanced AccuBlend.

Getting Started

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an overview. If the section doesn't apply, you can skip it.

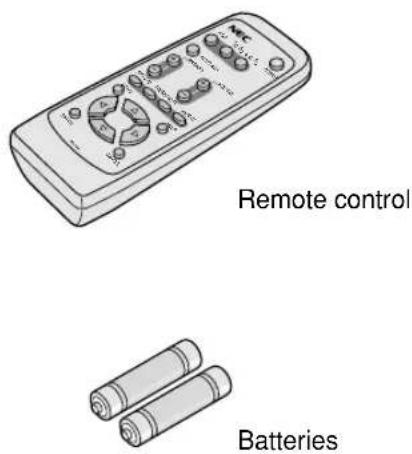

What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your VT45 Projector.

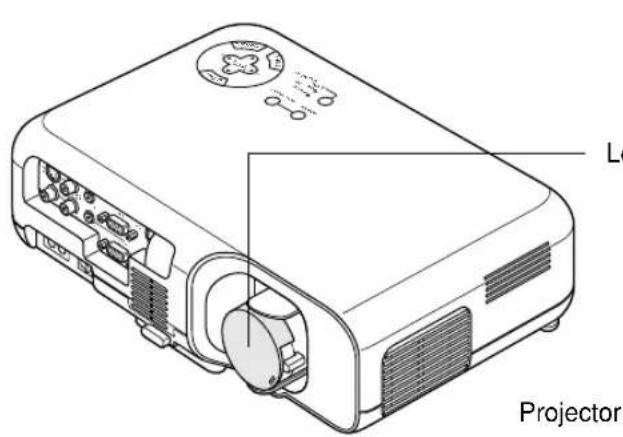

Lens cap

Protective lens pad

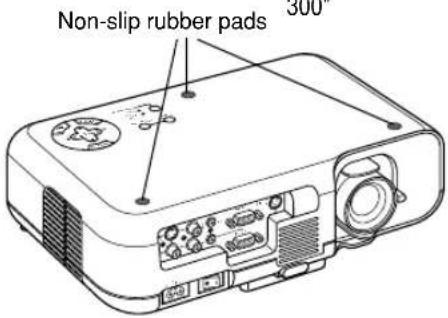

Non-slip rubber pad

They can be applied to the projector cabinet when the projector is positioned upside down in a place such as a tall cabinet.

Stick the three small non-slip rubber pads on the projector top cabinet to avoid accidental button operation when the projector is turned upside down.

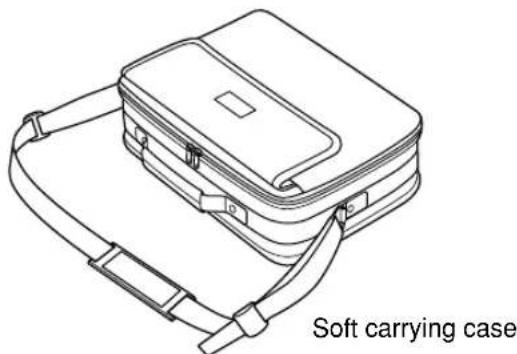

Line drawing of a soft carrying case with straps and handle (no text or symbols)

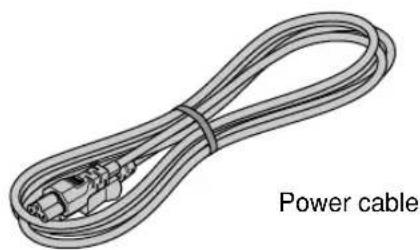

Illustration of a power cable with multiple connectors (no text or symbols on the cable itself)

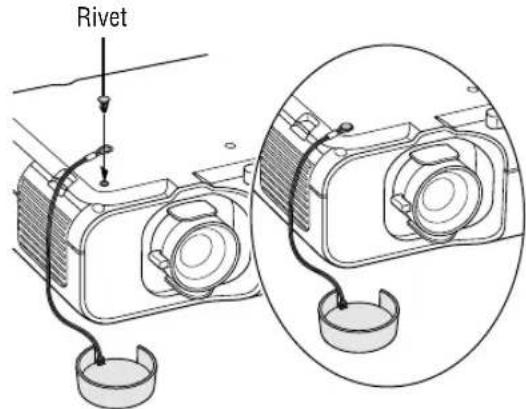

Illustration of a string and rivet with a curved tube and handle (no text or symbols on the diagram itself)

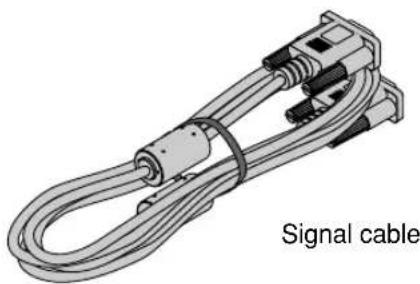

Diagram of a signal cable connector with coiled cable and connectors (no text or symbols on the diagram itself)

Getting to Know Your VT45 Projector

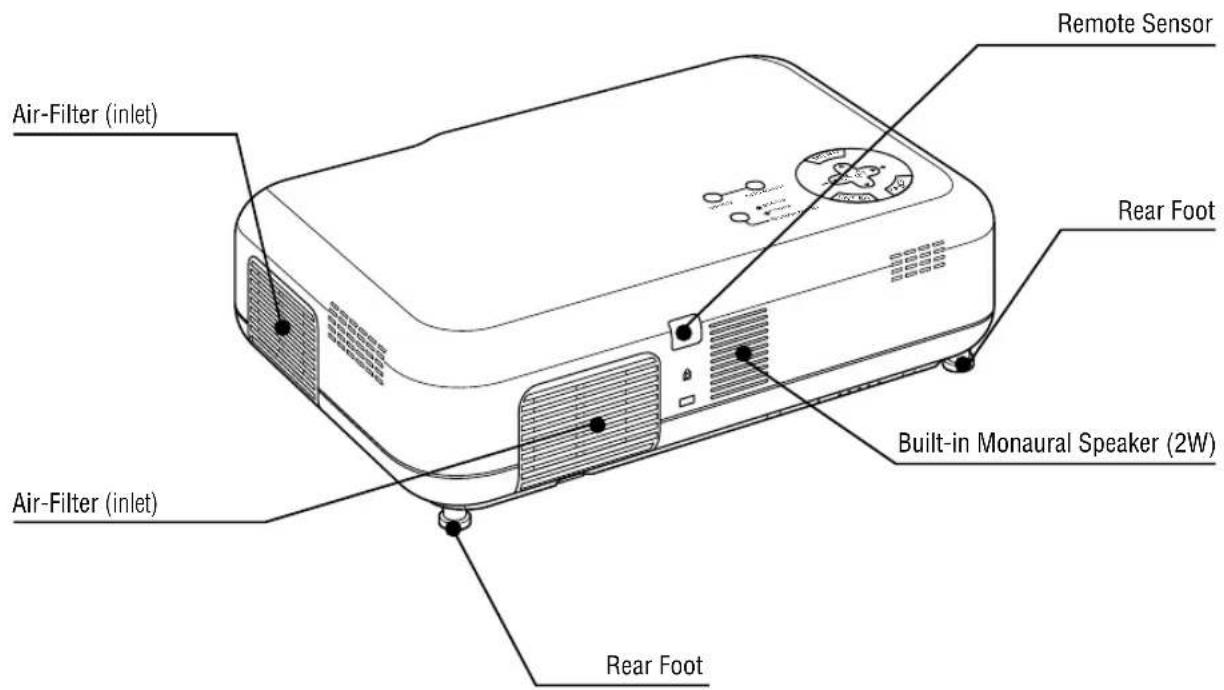

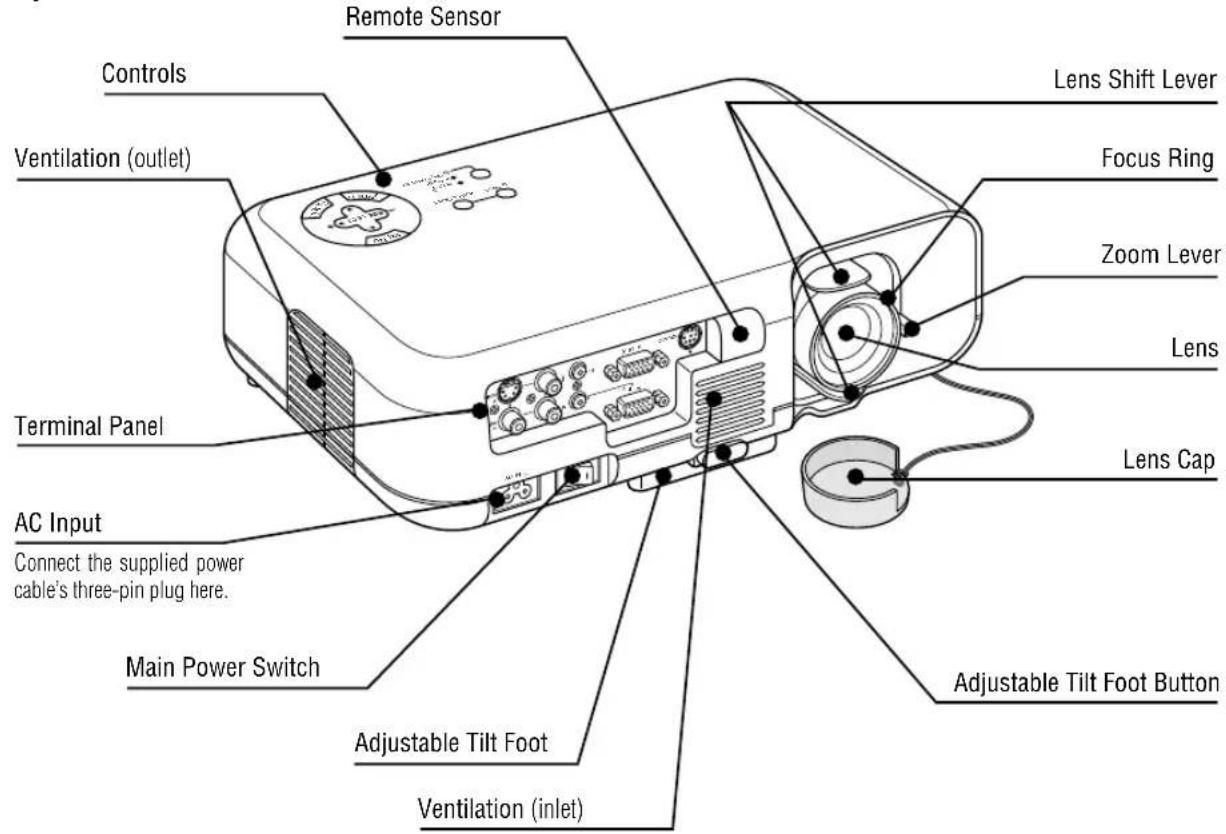

Front / Side Features

Rear / Side Features

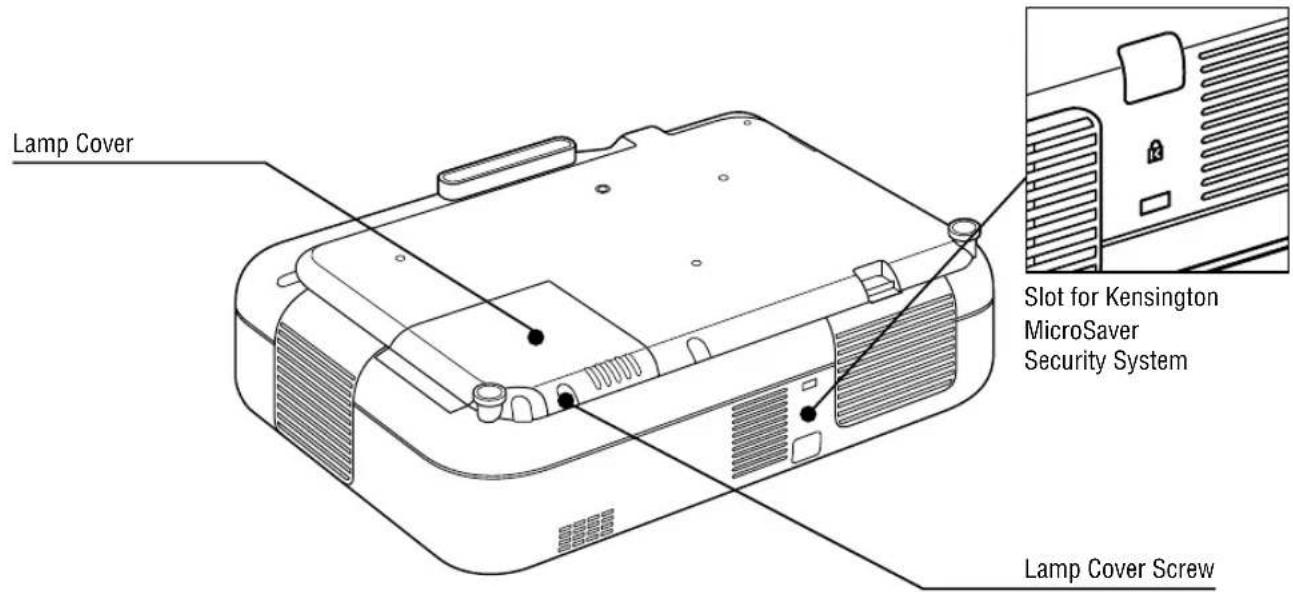

Bottom / Side Features

NOTE: Built-in Security Slot (

This security slot supports the MicroSaver ^® Security System. MicroSaver ^® is a registered trademark of Kensington Microwave Inc. The logo is trademarked and owned by Kensington Microwave Inc.

NOTE: When moving the projector or when it is not in use, cover the lens with the lens cap.

Using the protective lens pad

To protect the Lens Shift mechanism, a hard polyurethane protective lens pad is attached to the lens.

Before using the projector, remove the protective lens pad. After use, reattach the protective lens pad.

NOTE: Before reattaching the protective lens pad, be sure to use the shift lever to move the lens to the center position.

Side view Front view

Simple line drawing of a symmetrical object with a central hole and a vertical line, no text or symbols present.

Notch for zoom lever

Attaching the lens cap to the bottom with the supplied string and rivet

1. Thread the string through the hole on the lens cap and then tie a knot in the string.

1. Use the rivet to attach the string to the bottom.

Top Features

1. Power Button (ON / STAND BY) (①)

Use this button to turn the power on and off when the power is supplied and the projector is in standby mode.

NOTE: To turn off the projector, press and hold this button for minimum of two seconds.

2. Status Indicator

When this is lit red continually, it's warning you that the projection lamp has exceeded 1000 hours (up to 2000 hours in Eco 2 mode and 1500 hours in Eco 1 mode) of service. After this light appears, it is advisable to replace the projection lamp as soon as possible. (See page E-36). In addition the message "The lamp has reached the end of its usable life. Please replace the lamp." appears each time the projector is turned on until the lamp is replaced.

If this light blinks red rapidly, it indicates that the lamp cover or filter cover is not attached properly or the projector is overheated. See the Power / Status Light Messages on page E-38 for more details.

3. Power Indicator

When this indicator is green, the projector is on; when the indicator is orange, it is in standby mode.

4. Select (▲▼◀▶ / (+) (-) Buttons

▲▼: Use these buttons to select the menu of the item you wish to adjust.

◀▶ Use these buttons to change the level of a selected menu item.

When an image is magnified, these buttons can be used to move the image on screen.

5. Cancel Button

Press this button to exit the menu. While you are in the adjustment or setting menu, pressing this button will return to the previous menu.

6. Enter Button

Executes your menu selection and activates items selected from the menu.

7. Menu Button

Displays the menu.

8. Auto Adjust Button

Use this button to adjust Position-H/V and Pixel Clock/Phase for an optimal picture. Some signals may not be displayed correctly or take time to switch between sources.

9. Source Button

Use this button to select a video source such as a PC, VCR or DVD player.

Each time this button is pressed, the input source will change as follows:

→ RGB → Video → S-Video → RGB ...

If no input signal is present, the input will be skipped.

Terminal Panel Features

1. RGB Input Connector(Mini D-Sub 15 pin)

Connect your PC or other RGB equipment. Use the supplied signal cable to connect to a PC.

2. RGB Monitor Output Connector (Mini D-Sub 15 pin)

You can use this connector to loop your computer image to an external monitor from the RGB input source.

3. Audio Input (Mini Jack)

This is where you connect audio output from your computer.

4. Audio Input (RCA)

This is where you connect audio output from a VCR, DVD player, or laser disc player.

5. Audio Output (Mini Jack)

Connect audio equipment to this jack. Note that this cannot be used as a headphone jack.

(When audio equipment is connected, the projector speaker is disabled.)

When a cable mini-plug is inserted into this jack, both the right and left audio signals are not mixed, but separate.

For example, when a cable mini-plug is inserted into the left AUDIO IN jack only, only left sound is output.

NOTE1: ON AUDIO IN/OUT

The audio input (mini jack) 3 is available for RGB source only. The audio input (RCA) 4 is available for Video or S-Video source only.

The audio output (mini jack) 5 operates when audio source 3 or 4 is selected.

NOTE2: During Stand by Condition

RGB signal will be sent to the connected external monitor. Audio signal will not be sent to the audio output.

6. Video Input (RCA)

Connect a VCR, DVD player, laser disc player, or document camera here to project video.

7. S-Video Input Port (Mini DIN 4 Pin)

Connect the S-Video input from an external source like a VCR.

8. PC Control Port (Mini DIN 8 Pin)

Use this port to connect your PC to control your projector. This enables you to use your PC and serial communication protocol to control the projector. If you are writing your own program, typical PC control codes are on page E-43.

Remote Control Features

1. Infrared Transmitter

Direct the remote control toward the remote sensor on the projector cabinet.

2. Power Button

If power is applied, you can use this button to turn your projector on and off.

NOTE: To turn off the projector, press and hold the POWER button for a minimum of two seconds.

3. Source Buttons

Press to select a video source.

4. Auto Adjust Button

Use this button to adjust Position-H/V and Pixel Clock/Phase for an optimal picture. Some signals may not be displayed correctly, or in some cases it may take some time for a source to switch between sources.

5. Magnify Buttons

Use the (+) or (−) button to adjust the image size up to 400%.

6. Volume Buttons

Press (+) to increase the volume and (−) to decrease it.

7. Picture Button

Press this button to display the Picture adjustment window. Each time this button is pressed, the current picture adjustment item will change as follows:

Brightness → Contrast → Color → Hue → Sharpness Unavailable items will be skipped.

8. Freeze Button

This button will freeze a picture. Press again to resume motion.

9. Mute Button

This button turns off the image and sound for a short period of time. Press again to restore the image and sound.

10. Aspect Button

Press this button to display the Aspect Ratio select window. Each time this button is pressed, the current aspect ratio will change as follows:

Normal → Zoom → Wide Zoom → Cinema → Normal → ... You can also select the aspect ratio by using the Select◀ or ▶ button. If no adjustments are performed within 3 seconds, the Aspect Ratio select window will disappear. (See also page E-30.)

11. Menu Button

Displays the menu.

12. Help Button

Provides information about the current signal and the status of the projector.

13. Select (▲▼◀▶ Buttons

▲▼: Use these buttons to select the menu of the item you wish to adjust.

◀▶ Use these buttons to change the level of a selected menu item.

Remote Control

14. Enter Button

Executes your menu selection and activates items selected from the menu.

15. Cancel Button

Press this button to exit the menu. While you are in the adjustment or setting menu, pressing this button will return to the previous menu.

Remote Control Precautions

• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• If you will not be using the remote control for a long time, remove the batteries.

Operating Range

Remote Control Battery Installation

1. Push to open the battery cover.

Line drawing of a remote control device with a scroll wheel and indicator lights (no text or symbols)

1. Remove both old batteries and install new ones (AA). Ensure that you have the batteries' polarity (+/-) aligned correctly.

Diagram of a remote control box with two batteries and an open lid, showing internal components (no text or symbols)

1. Put the battery cover back on.

Line drawing of a handheld electronic device with an open lid and internal components (no text or symbols)

Do not mix different types of batteries or new and old batteries.

2. INSTALLATION

This section describes how to set up your VT45 projector and how to connect video and audio sources.

Setting up Your Projector

Your VT45 Projector is simple to set up and use. But before you get started, you must first:

1. Determine the image size.
2. Set up a screen or select a non-glossy white wall onto which you can project your image.

Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the projector.

When moving the projector or when it is not in use, cover the lens with the lens cap.

Selecting a Location

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 25" (0.64 m) measured diagonally when the projector is roughly 3 feet (1.0 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 39.3 feet (12.0 m) from the wall or screen.

Using a Tabletop or Cart

1. Place your projector on a flat level surface at the optimal distance from the screen or wall so you realize the size image you want. (Avoid having bright room lighting or sun light directly on the screen or wall where you'll be projecting the image.)
2. Connect the power cable, remove the lens cap and turn the projector on. (If no input signal is available, the projector will display a background image.)
3. Ensure that the projector is square to the screen.

1. Move the projector left or right to center the image horizontally on the screen.

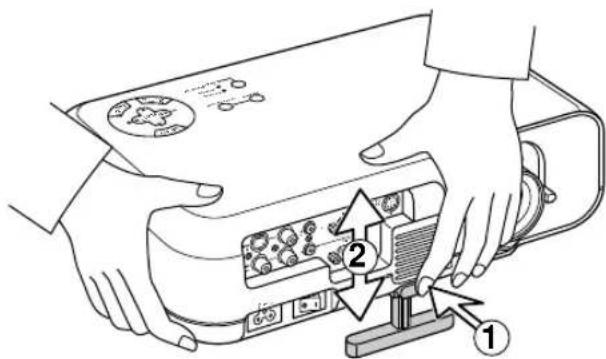

2. To center the image vertically, lift the front edge of the projector and press the One-Touch Tilt button on the front side of the projector to release the Front Adjustable foot.

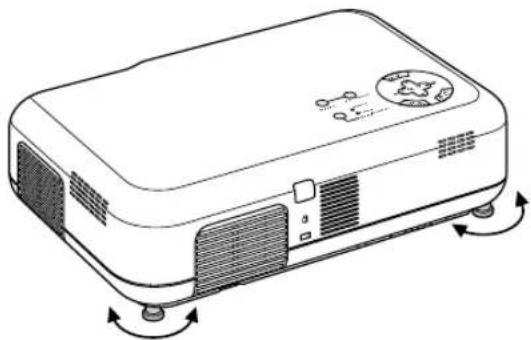

(There is approximately 10 degrees of up and down adjustment for the front of the projector.)

Using the Lens Shift

1. Grip the lens shift lever on the top and bottom.
2. Hold the lever to move the lens vertically or horizontally.

NOTE: It may not be possible to obtain maximum shift range due to the rounded off area near the edge of the lens. The amount of lens shift adjustable range depends on the direction that the lens is shifted. See diagram below.

Lens Shift Adjustable Range

Adjustable Range

Distance Chart

B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and bottom of screen for desktop
α = Throw angle

Lens Offset 5.4mm

Screen Size				B	C					D	α
Diagonal	Width	Height			wide			tele			wide		tele
inch mm inch mm inch mm inch mm inch mm degree - degree
25 635 20 508 15 381 8 191 36 910 - 39 1000 0 0 11.8 - 10.8
30 762 24 610 18 457 9 229 43 1100 - 48 1210 0 0 11.7 - 10.7
40 1016 32 813 24 610 12 305 58 1470 - 64 1620 0 0 11.7 - 10.7
60 1524 48 1219 36 914 18 457 87 2220 - 96 2450 0 0 11.6 - 10.6
67 1702 54 1361 40 1021 20 511 98 2490 - 108 2740 0 0 11.6 - 10.6
72 1829 58 1463 43 1097 22 549 105 2670 - 116 2940 0 0 11.6 - 10.6
80 2032 64 1626 48 1219 24 610 117 2970 - 129 3270 0 0 11.6 - 10.6
84 2134 67 1707 50 1280 25 640 123 3120 - 135 3440 0 0 11.6 - 10.5
90 2286 72 1829 54 1372 27 686 132 3350 - 145 3690 0 0 11.6 - 10.5
100 2540 80 2032 60 1524 30 762 147 3730 - 161 4100 0 0 11.5 - 10.5
120 3048 96 2438 72 1829 36 914 176 4480 - 194 4930 0 0 11.5 - 10.5
150 3810 120 3048 90 2286 45 1143 220 5600 - 243 6170 0 0 11.5 - 10.5
180 4572 144 3658 108 2743 54 1372 265 6730 - 292 7410 0 0 11.5 - 10.5
200 5080 160 4064 120 3048 60 1524 294 7480 - 324 8240 0 0 11.5 - 10.5
210 5334 168 4267 126 3200 63 1600 309 7860 - 341 8650 0 0 11.5 - 10.5
240 6096 192 4877 144 3658 72 1829 354 8980 - 389 9890 0 0 11.5 - 10.5
261 6629 209 5304 157 3978 78 1989 365 9770 - 424 10760 0 0 11.5 - 10.5
270 6858 216 5486 162 4115 81 2057 398 10110 - 438 11130 0 0 11.5 - 10.5
300 7620 240 6096 180 4572 90 2286 443 11240 - 487 12370 0 0 11.5 - 10.5

B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and bottom of screen for desktop
α = Throw angle

NOTE: Distances may vary +/-5%.

In this example the projector is upside down with the lens shift maximum position.

When the projector is positioned upside down in a place such as a tall cabinet or shelf, follow the below.

• Place the projector on a flat and level surface.
• To avoid accidental button operation, stick the supplied three non-slip rubber pads on three locations on the projector top cabinet as shown in the drawing. They are a peel-and-sticker pad. Before use, peel the paper off the back of the rubber pad.

Ceiling Installation

B = Vertical distance between lens center and screen center C = Throw distance D = Vertical distance between lens center and top of screen = Throw angle

Lens Offset 5.4mm

Screen Size						B		C					D		α
Diagonal		Width		Height				wide			tele				wide		tele
inch mm inch mm inch mm inch mm - inch mm inch mm degree - degree
25 635 20 508 15 381 8 191 36 910 - 39 1000 0 0				11.8 -		10.8
30 762 24 610 18 457 9 229 43 1100 - 48 1210 0 0				11.7 -		10.7
40	1016	32	813	24	610	12	305	58	1470	-	64	1620	0	0	11.7	-	10.7
60	1524	48	1219	36	914	18	457	87	2220	-	96	2450	0	0	11.6	-	10.6
67	1702	54	1361	40	1021	20	511	98	2490	-	108	2740	0	0	11.6	-	10.6
72	1829	58	1463	43	1097	22	549	105	2670	-	116	2940	0	0	11.6	-	10.6
80	2032	64	1626	48	1219	24	610	117	2970	-	129	3270	0	0	11.6	-	10.6
84	2134	67	1707	50	1280	25	640	123	3120	-	135	3440	0	0	11.6	-	10.5
90	2286	72	1829	54	1372	27	686	132	3350	-	145	3690	0	0	11.6	-	10.5
100	2540	80	2032	60	1524	30	762	147	3730	-	161	4100	0	0	11.5	-	10.5
120	3048	96	2438	72	1829	36	914	176	4480	-	194	4930	0	0	11.5	-	10.5
150	3810	120	3048	90	2286	45	1143	220	5600	-	243	6170	0	0	11.5	-	10.5
180	4572	144	3658	108	2743	54	1372	265	6730	-	292	7410	0	0	11.5	-	10.5
200	5080	160	4064	120	3048	60	1524	294	7480	-	324	8240	0	0	11.5	-	10.5
210	5334	168	4267	126	3200	63	1600	309	7860	-	341	8650	0	0	11.5	-	10.5
240	6096	192	4877	144	3658	72	1829	354	8980	-	389	9890	0	0	11.5	-	10.5
261	6629	209	5304	157	3978	78	1989	385	9770	-	424	10760	0	0	11.5	-	10.5
270	6858	216	5486	162	4115	81	2057	398	10110	-	438	11130	0	0	11.5	-	10.5
300	7620	240	6096	180	4572	90	2286	443	11240	-	487	12370	0	0	11.5	-	10.5

B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and top of screen
α = Throw angle

WARNING

• Installing your projector on the ceiling must be done by a qualified technician. Contact your NEC dealer for more information.
* Do not attempt to install the projector yourself.
- Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.
- Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 32^ (0^) and 95^ (35^) .
- Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.
- Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the side or the front of the projector.

If your projector is mounted on the ceiling and your image is upside down, use the "Menu" and "Select" buttons on your projector cabinet or ▲▼ buttons on your remote control to correct the orientation. (See page E-33.)

Reflecting the Image

Using a mirror to reflect your projector's image enables you to enjoy a much larger image. Contact your NEC dealer if you need a mirror. If you're using a mirror and your image is inverted, use the "Menu" and "Select" buttons on your projector cabinet or ▲▼ buttons on your remote control to correct the orientation. (See page E-33.)

Wiring Diagram

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector.

NOTE:

* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software.
* If you accidentally hit the POWER button on the remote control, wait 60 seconds and then press the POWER button again to resume.

NOTE: If using video, S-video, or audio cables, the cables should be 3 m (9.8 feet) or shorter.

Connecting Your PC

Connecting your PC to your VT45 projector will enable you to project your computer's screen image for an impressive presentation. To connect to a PC, simply:

1. Turn off the power to your projector and computer.
2. Use the supplied signal cable to connect your PC to the projector.

3. Turn on the projector and the computer.

4. If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the projector.

Connecting Your Macintosh Computer

Macintosh (Notebook type)

Macintosh (Desktop type)

NOTE: The new Macintosh computer such as G3 will have the 15 pin HD connector. The VT45's "Plug and Play" data will be downloaded to the Macintosh. Therefore, the Mac adapter will not be necessary.

To connect to a Macintosh, simply:

1. Turn off the power to your projector and your Macintosh computer.
2. Use the supplied signal cable to connect your Macintosh computer to the projector.
3. Turn on the projector and the Macintosh computer.

Connecting an External Monitor

You can connect a separate, external monitor to your VT45 to simultaneously view on a monitor the image you're projecting. To do so:

1. Turn off the power to your projector, monitor and computer.
2. Use a 15-pin cable to connect your monitor to the RGB Monitor Output (Mini D-Sub 15 pin) connector on your projector.
3. Turn on the projector, monitor and the computer.

NOTE: When the main power is turned off, RGB signal will not be sent to the external monitor.

Connecting Your DVD Player

You can connect your projector to a DVD player with component outputs or Video output. To do so, simply:

1. Turn off the power to your projector and DVD player.

2. If your DVD player has the component video (Y,Cb,Cr) output, use a commercially available component video cable (RCA×3) and the optional 15-pin-to-RCA (female) ×3 cable to connect your DVD player to the RGB INPUT connector on the projector. For a DVD player without component video (Y,Cb,Cr) outputs, use common RCA cables (not provided) to connect a composite VIDEO output of the DVD player to the Video Input of the projector.

3. Turn on the projector and DVD player.

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements,

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR, laser disc player or document camera to your projector. To make these connections, simply:

1. Turn off the power to the projector and VCR, laser disc player or document camera.

2. Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your projector. Use an audio cable (not supplied) to connect the audio from your VCR or laser disc player to your audio equipment (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the projector and the VCR or laser disc player.

NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.

NOTE: The VT45 is not compatible with video decoded outputs of ISS-6020 and ISS-6010.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter.

To connect SCART output (RGB)

Before connections: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are required for this connection.

NOTE: Audio signal is not available for this connection.

1. Turn off the power to the projector and your video equipment.
2. Use the NEC ADP-SC1 SCART adapter and a commercially available SCART cable to connect the RGB input of your projector and a SCART output (RGB) of your video equipment.
3. Turn on the power to the projector and your video equipment.
4. Use the RGB button on the remote control to select the RGB input.
5. Press the MENU button on the remote control to display the menu.
6. From the Advanced menu, select [Projector Options] → [Setup] → [Signal Select RGB] → [Scart].
   SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro-connector.

NOTE: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe.

Contact your NEC dealer in Europe for more information.

This section describes how to select a computer or video source, how to adjust the picture, and how to customize the menu or projector settings.

General Controls

Before you turn on your projector, ensure that the computer or video source is turned on and that your lens cap is removed.

1. Turn on the Projector

Plug the supplied power cable in the wall outlet and then press the main power switch. The projector will go into its standby mode and the power indicator will glow orange.

Only after you press the "POWER" button on the projector cabinet or the remote control will the power indicator turn to green and the projector become ready to use.

Indicator status when the projector is turned on:

Flashing green light for one minute Steady green light

The STATUS indiator' light depends on the lamp mode.

NOTE: To turn the projector on by pressing the main power switch, use the menu and enable the "Auto Start" feature. (See page E-34.)

NOTE: Immediately after turning on the projector, screen flicker may occur. This is not a fault. Wait for 3 to 5 minutes until the lamp lighting is stabilized.

2. Select the Computer or Video Source

Press the Source button on the remote control or the projector cabinet to select "Video" (VCR, document camera, or laser disc player), "S-Video" or "RGB" (computer or DVD with component output) to display the image.

Or press the "Menu" button on the remote control or the cabinet and use the menu to select your video source: "Video", "S-Video" or "RGB".

3. Adjust the Lens Shift, the Image Size and the Focus

Use the Lens Shift lever to adjust the image position. Use the Zoom lever to adjust the image size, then use the Focus ring to obtain the best focus.

Use the "Magnify" button (+) or (-) on the remote control to make the image larger up to 400%.

4. Turning off the Projector

First press the "POWER" button on the projector cabinet or the remote control for a minimum of two seconds. The power indicator will glow orange. After the projector turns off, the cooling fans keep operating for 60 seconds.

Do not disconnect the power cable during this time. Then, press the main power switch and unplug the power cable. The power indicator will go out.

Indicator status when the projector is turned off:

IMPORTANT:

• The projector should be unplugged if it will not to be used for an extended period.
• To turn off the image and sound briefly (five minutes or less), use the "Mute" button instead of turning the projector off and on.
• The projector will display a black, blue image or logo if no input signal is present.
• Do not turn the projector off and then immediately back on. The projector needs to cool for 60 seconds before it can be restarted.

CAUTION

Avoid displaying stationary images for a prolonged period of time.

Doing so can result in these images being temporarily sustained on the surface of the LCD panel.

If this should happen, continue to use your projector. The static background from previous images will disappear.

CAUTION

Do not turn off the main power or unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

• Immediately after the power cable is plugged into the wall outlet (when the POWER indicator has not changed to a steady orange glow).
• Immediately after the cooling fan stops working (The cooling fan continues to work for 60 seconds after the projector is turned off with the POWER button).

About Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup screen. This screen gives you the opportunity to select one of the seven menu languages: English, German, French, Itilan, Spanish, Swedish and Japanese.

To select a menu language, follow these steps:

1. Use the ▲ or ▼ buttons to select one of the seven languages for the menu.

Menu Language Select

Please select a menu language. English

Wählen Sie bitte die Menü Sprache aus. Deutsch

S'il vous plaît choisir la langue de menu. Français

Per favore di scegliere la lingua di menu. Italiano

Escoja por favor el idioma de menú. Español

Välj menyn språken. Svenska

メニュー言語を選択してください。日本語

Select "UP", "DOWN" & "ENTER"

1. Press the Enter button to execute the selection.

2. The Basic menu will be displayed in the language you have selected.

Basic Menu
Source Select
Volume
Image Options
Projector Options
Information

To close the menu, press the Cancel button.

After this has been done, you can proceed to the advanced menu operation.

If you want, you can select the menu language later. See “Language” on page E-32.

Enlarging and Moving a Picture

You can enlarge the area you want up to 400 percent.

To do so:

Adjust the image size up to 400 percent.

Pure mechanical assembly diagram showing rods and brackets without any text or symbols

Technical line drawing of a mechanical assembly with mounting brackets and support components (no text or symbols)

While the picture is enlarged, you can move it using the "Select"

◀, ▶, ▲ or button.

Geometrical correction

If the image is distorted or not displayed correctly on the screen, do the following.

Diagram showing a projector connected to a 3D plane with an arrow indicating direction (no text or symbols)

Raise the projector height using the adjustable tilt-foot.

Diagram showing a 3D object with a dashed rectangular plane and an arrow indicating rotation or transformation (no text or symbols)

Rotate the projector to make the image square to the screen.

Diagram showing a device connected to a 3D cube with dashed lines indicating spatial orientation (no text or symbols)

Each of the feet height can be changed up to 1 mm or at angles up to 1 degree.

Diagram showing a projector connected to a 3D cube, with no text or symbols present.

Use keystone correction for proper adjustment. See page E-29.

Shifting Image Position

Use the lens shift lever to shift the lens so that the image position can be adjusted on the screen.

Diagram showing a projector connected to a 3D geometric plane, with no text or symbols present.

In this example, the lens is shifted horizontally to move the image to the right or left.

Diagram showing a projector connected to a screen with a shaded screen area, no text or symbols present.

In this example, the lens is shifted vertically to move the image to the top or bottom.

Adjusting the Tilt Foot

1) Press and hold the Tilt button on the front of the projector.
2) Lift the front edge of the projector to the height you want, and release the button to lock the Adjustable Tilt Foot.

To fine-tune the image's position vertically on the screen, rotate the foot. Each of the rear feet height can be changed up to 1 mm / 0.04 inch

Line drawing of a portable projector with scroll wheel and ventilation slots (no text or symbols)

- If the projected image does not appear square to the screen then use keystone correction for proper adjustment. Adjust the size of the image using the Zoom lever on the lens and obtain the best focus using the Focus ring.

Using the Menus

1. Press the "Menu" button on the remote control or the projector cabinet to display the Menu.
2. Press the ▲▼ buttons on the remote control or the projector cabinet to highlight the menu for the item you want to adjust or set.
3. Press the ▶ button or the "Enter" button on the remote control or the projector cabinet to select a submenu or item.
4. Adjust the level or turn the selected item on or off by using "Select" ▶ or ▶ buttons on the remote control or the projector cabinet. The on-screen slide bar will show you the amount of increase or decrease.
5. The change is stored until you adjust it again.

CANCEL: Return to the previous screen.

1. Repeat steps 2-5 to adjust an additional item, or press "Cancel" on the remote control or the projector cabinet to quit the menu display.

MENU Tree

Basic/ Advanced Menu

Menu Elements

Menu windows or dialog boxes typically have the following elements:

Title bar: Indicates the menu title.

Highlight: Indicates the selected menu or item.

Solid triangle: Indicates further choices are available. A highlighted triangle indicates the item is active.

Tab: Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.

Radio button: Use this round button to select an option in a dialog box.

Slide bar: Indicates settings or the direction of adjustment.

Menu Descriptions & Functions

Source Select

√RGB

Video

S-Video

Enables you to select a video source such as a VCR, DVD player, laser disc player, computer or document camera depending on what is connected to your inputs. Press the "Select" button on the projector cabinet or ▲▼ buttons on your remote control to highlight the menu for the item you want to adjust.

Selects the computer connected to your RGB or component signal.

NOTE: An optional component cable (Component V or ADP-CV1 cable) is needed for a component signal.
