Product Type	Electric Heater
Model	OH13
Brand	N'oveen
Dimensions (H x W x D)	Approximately 60 cm x 40 cm x 25 cm
Weight	Approximately 5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2000 W
Heating Technology	Convection / Fan
Heating Capacity	Up to 20 m²
Thermostat	Adjustable thermostat
Modes	Heat, Fan, Eco
Safety Features	Overheat protection, tip-over switch
Control Type	Electronic panel with remote control
Display	LED display
Timer	24-hour timer
Noise Level	< 45 dB
Maintenance	Wipe with dry cloth; clean air filter monthly
Accessories Included	Remote control, user manual
Certification	CE, RoHS
Warranty	2 years

Frequently Asked Questions - OH13 N'oveen

How do I set the thermostat on my N'oveen OH13 heater?

Press the Thermostat button repeatedly to cycle through temperature settings. The desired temperature is shown on the display. The heater will automatically maintain the set temperature.

Can I use the OH13 in a bathroom?

No, the OH13 is not rated for bathroom use due to moisture. It should only be used in dry indoor areas.

How do I clean the air filter?

Turn off and unplug the heater. Open the rear grille, remove the filter, and vacuum it gently. Wash with mild soap if needed, dry completely, then reinstall.

What does the 'Eco' mode do?

Eco mode reduces power consumption by automatically adjusting the heating output. It maintains a lower temperature to save energy while preventing freezing.

Why does the heater turn off by itself?

The heater may have reached the set temperature, the timer may have expired, or the overheat protection activated. Check the display for error codes and reset the unit.

Can I program the timer for daily use?

Yes, you can set the timer for up to 24 hours. Press the Timer button, use +/- to set hours, and confirm. The heater will turn on/off at the programmed time.

Does the remote control require batteries?

Yes, the remote uses two AAA batteries (not included). Replace them when the range reduces.

Is the heater safe to leave unattended?

The heater has safety features like overheat protection and tip-over switch, but we recommend not leaving it unattended for long periods. Always place on a stable, flat surface.

What is the maximum room size for effective heating?

The OH13 is suitable for rooms up to 20 m². Larger rooms may require additional heating sources.

What should I do if the heater makes a strange noise?

Unplug the heater immediately. Check for loose parts or debris in the fan. If the noise persists, contact customer support for assistance.

USER MANUAL OH13 N'oveen

OIL FILLED RADIATOR - USER MANUAL

White N°OVEEN solar oil heater with cooling fan and control panel (no visible text or symbols)

OH9 / OH11 / OH13

OH9/11/13

Illustration of hands holding a rack with arrows indicating rotation (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Diagram of a washing machine with circular components and directional arrows indicating motion (no text or symbols)

1

POLSKI....s. 4

ENGLISH....p. 8

ΕΛΛΗΝΙΚΑ....Σ. 12

ROMÂNĂ......p. 16

DEUTSCH....s. 20

SLOVENSKÝ....S. 24

ČEŠTINA....s. 28

ESPAÑOL....p. 32

PORTUGUÊS......p. 36

УКРАЇНСЬКА....C. 40

1. Read all instructions carefully before use.
2. Make sure the voltage is the same as that indicated on the rating plate of the appliance.
3. Do not operate this appliance if the cable or plug becomes damaged.
4. Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
5. If the cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Ensure the appliance is switched off before connecting to the mains power supply.
7. Switch off the power supply and disconnect from mains supply when not in use, before cleaning or other maintenance.
8. To disconnect the appliance, switch it "OFF", and then remove the plug from outlet. Do not pull the cord to disconnect the plug.
9. The heater must not be located immediately below a socket-outlet.
10. Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
11. Indoor use only.
12. In order to avoid overheating, do not cover the heater.
13. To prevent a possible fire, do not block air intakes or exhaust in any manner.
14. Don't touch the hot surfaces.
15. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
16. Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and socket-outlet.
17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
18. Children should be supervised to ensure that they do not play with the appliance.
19. Do not leave this appliance unattended when it's in use.
20. The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by disconnect the appliance and vacuum

cleaning air vents and grilles.

1. Do not place the heater on carpet, don't place the cable under carpets. Arrange cord away from traffic areas so that it will not be tripped over.
2. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
3. Do not store away until the heater cools down, store the heater in cool dry location when not in use.
4. This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak
5. When scrapping the heater, follow the regulations concerning the disposal of oil.

Technical Specifications

Model OH13 OH11 OH9
Rated Voltage	230 V~ 230	V~ 230 V~
Rated Frequency	50/60Hz 50/60Hz 50/60Hz
Rated Power	3000W 2500W 2000W
Protective Class	III

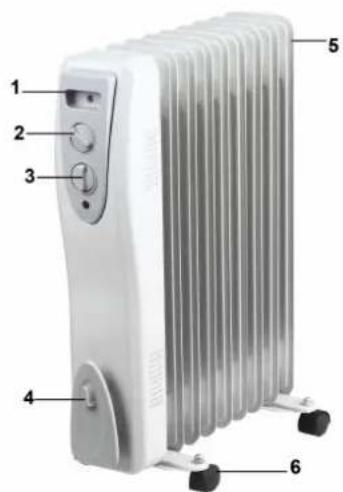

Unit description

1 Handle
2 Thermostat
3 Switch
4 Power cable holder
5 Radiator housing
6 Wheels

Assembly See picture 1

1. To prevent damage, place the radiator upside down on a soft surface (for example a carpet).
2. Fix wheels on two plates with cap nuts.
3. Insert the U-shaped hook into the wheels plate and fix it on the radiator by wing nuts.
4. Turn the heater upright. Wait one minute before to connect the heater to power outlet.

Operation

• Connect the appliance to a safety socket.
• Set the switch to heating position (I, II or III).

	OH13 OH11 OH9
0 Off Off Off
I 1200 W 850 W 700 W
II 1800 W 1650 W 1300 W
I II 3000 W 2500 W 2000 W

- Turn the thermostat knob clockwise until reaching the maximum temperature.

- Once the room temperature is reached, slowly turn the thermostat knob anticlockwise until you hear a click and then the heater will stop working.

- The heater will turn on and off automatically to maintain the room temperature you have set.

- Turn the switch to "0" position to switch off the heater. Unplug the appliance then after.

Tip-Off safety Device

This appliance is provided with a safety device which will switch off the heater in case of accidental tipping off. To reset, disconnect the plug from the power for a few minutes, remove the cause of tipping off, then plug the appliance in again. If it still cannot be reset, ask a qualified technician to check and repair.

Overheat safety device

Your heater is equipped with a safety device that switches off the heater in the event of overheating. If the safety device operated, please turn the heater off, unplug the appliance and let it completely cool down, inspect for blockage of air inlet or outlet, attempt to restart the heater then after.

If the heater fails to operate or the safety device switches the heater off again, return heater to your nearest service center for examination or repair.

Maintenance

1. Always disconnect the appliance and let it completely cool down before any maintenance.
2. Use a vacuum cleaner to remove dust on fins.
3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth. Never immerse the unit in water, nor let water drip into the unit.

Storing

1. Always disconnect the appliance, let it completely cool down and clean it before storing.
2. If you do not use the device for a long period, put back the unit and the instruction manual to the original carton and store in a dry and ventilated place.
3. Do not place any heavy items on top of carton during storing as this may damage the appliance.

ΑΡΧΕΣ ΑΣΦΑΛΕΙΑΣ

	OH13 OH11 OH9
0 Aus Aus Aus
I 1200 W 850 W 700 W
II	1800 W	1650 W	1300 W
I II	3000 W	2500 W	2000 W

	OH13 OH11 OH9
0 Vypnuto Vypnuto Vypnuto
I 1200 W 850 W 700 W
II 1800 W 1650 W 1300 W
I II 3000 W 2500 W 2000 W
