KSI09 - Air conditioner Kaden - Free user manual and instructions

Product Type	Split system air conditioner
Model	KSI09
Brand	Kaden
Cooling Capacity	9000 BTU/h (2.6 kW)
Heating Capacity	9500 BTU/h (2.8 kW) (heat pump model)
Power Supply	220-240 V ~ 50 Hz
Power Consumption (Cooling)	850 W
Power Consumption (Heating)	900 W
Refrigerant	R32
Indoor Unit Dimensions (W x H x D)	700 x 250 x 180 mm
Outdoor Unit Dimensions (W x H x D)	700 x 500 x 250 mm
Indoor Unit Weight	8 kg
Outdoor Unit Weight	25 kg
Noise Level (Indoor)	24-35 dB(A)
Noise Level (Outdoor)	50-56 dB(A)
Energy Efficiency (SEER)	6.0 (A++ class)
Energy Efficiency (EER)	3.5 (A+ class)
Functions	Cooling, heating, fan, dehumidify, timer, sleep mode, turbo, auto swing, I Feel mode
Filter Type	Washable anti-bacterial filter
Maintenance	Clean air filter every 2 weeks; professional service recommended annually
Safety Features	Auto restart, overheat protection, child lock (remote)
Spare Parts	Remote control, air filter, fan motor, main PCB
Installation	Professional installation required; includes mounting plate, copper pipes, drainage hose

Frequently Asked Questions - KSI09 Kaden

How do I clean the air filter?

Open the front panel, remove the filter, vacuum or wash with mild detergent, let dry completely, and reinstall. Clean every 2 weeks for optimal performance.

What does error code E1 mean?

E1 indicates a communication error between indoor and outdoor units. Check connections and cables. If persists, contact a professional.

Why is the air conditioner not cooling?

Possible causes: dirty filter, low refrigerant, blocked outdoor unit, wrong mode. Check filter, ensure unit is in 'Cool' mode, and clear any obstructions outside.

How do I set the timer?

Press the 'Timer' button on the remote. Use +/- to set desired on/off time. Press again to confirm. The timer icon will appear on the display.

Can I use the air conditioner in winter?

Yes, if your model has a heat pump function. Switch to 'Heat' mode. The unit can operate down to -15°C outdoor temperature.

How do I reset the remote control?

Remove the batteries, press and hold any button for 10 seconds, reinsert batteries. If still not working, replace batteries.

Why is water leaking from the indoor unit?

Check if the air filter is dirty (causes ice), or the drainage pipe is clogged or improperly installed. Clean filter and ensure drain line is clear.

What is the recommended temperature setting?

For energy savings, set to 24-26°C in cooling mode and 20-22°C in heating mode. Use timer and sleep mode for efficiency.

How often should the unit be serviced?

Professional maintenance is recommended once a year. This includes cleaning coils, checking refrigerant, and inspecting electrical components.

Does the unit have a warranty?

Kaden typically offers a 2-year warranty on parts and labor. Check your purchase invoice or contact Kaden customer support for details.

USER MANUAL KSI09 Kaden

USER MANUAL OF NETHOME PLUS SMART KIT

IMPORTANT NOTE:

Read the manual carefully before installing or connecting your Smart kit (Wireless module). Make sure to save this manual for future reference.

NOTE\*

Company will not be liable for any issues and problems caused by Internet, Wi-Fi Router and Smart Devices. Please contact the original provider to get further help.

CONTENTS

1. SPECIFICATION......1
2. PRECAUTIONS ....1
3. DOWNLOAD AND INSTALLAPP......2
4. INSTALL THE SMART KIT......3
5. USER REGISTRATION 4
6. NETWORK CONFIGURATION......5
7. HOW TO USE APP....16
8. SPECIAL FUNCTIONS....18

DECLARATION OF CONFORMITY

Hereby, we declare that this Smart kit is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

1. SPECIFICATION

Model: OSK102

Standard: IEEE 802. 11b/g/n

Antenna Type: Printed PCB Antenna Frequency

: WLAN 2400\~2483.5 MHz Operation

Temperature:0 C\~45 C/32 F\~113 F Operation

Humidity: 10%\~85%

Power Input: DC 5V/300mA

Maximum Transmitted Power: 19.8dBm Max

2. PRECAUTIONS

Applicable system: iOS, Android.

(Suggest: iOS 8.0 or later, Android 4.0 or later)

Please keep the APP up to date with the latest version.

Due to special situations may be occurred, we explicitly claims below: Not all of the Android and iOS system are compatible with APP.

Wireless safety strategy

Smart kit only support WPA-PSK/WPA2-PSK encryption and none encryption.

WPA-PSK/WPA2-PSK encryption is recommended.

Cautions

If system time-out occurs, restart the configuration process. Smart Phone camera needs to be 5 million pixels or above to make sure scan QR code well

- Due to different network situation, sometimes, request time-out could happen, thus, it is necessary to do network configuration again.

- The APP system is subject to update without prior notice for product function improvement. The actual network configurat processmay be slightly different from the manual, the actual processshallprevail.

3. DOWNLOAD AND INSTALL APP

CAUTION: The following QR Code is only available for downloading APP. It is totally different with the QR code packed with SMART KIT.

Android

iOS

• Android Phone users: scan Android QR code or go to google play, search ‘NetHome Plus” app and download it.
• iOS users: scan iOS QR code or go to APP Store, search ‘NetHome Plus” app and download it.

4. INSTALL THE SMART KIT (wireless module)

1. Remove the protective cap of the smart kit (wireless module)

Diagram of a device being inserted into a housing, showing a downward arrow indicating compression or disassembly (no text or symbols present)

1. Open the front panel and insert the smart kit (wireless module) into the reserved interface.

2. Apply the Smart Kit QR sticker from inside the box to the side of the AC unit, or in a location that can be scanned by a smart device.

NOTE: Ensure the number on the QR code sticker matches the number on the Smart Kit installed in the unit.

WARNING: This Wi-Fi interface is compatible only with the Smart Kit provided by the manufacturer.

5. USER REGISTRATION

• Please ensure your mobile device is connected to Wireless router. Also, the Wireless router has already connected to Internet before doing user registration and network configuration.
• It is better to log in your email box and activate your registration account by clicking link. This will save login details in case you forget the password.

1. Click "Create Account"

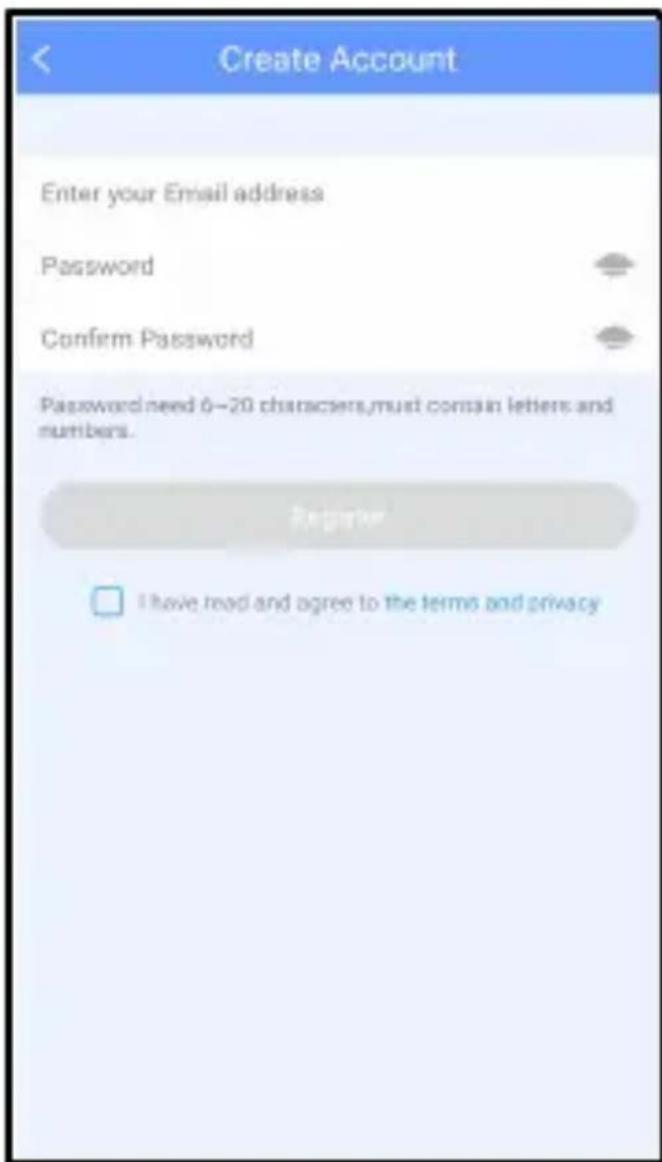

1. Enter your email address and password, confirm password and then click "Register"

6. NETWORK CONFIGURATION

Cautions

• It is necessary to forget any other around network and make sure the Android or iOS device just connects to the Wireless network you want to configure.
• Make sure the Android or iOS device Wireless function works well and can be connected back to your original Wireless network automatically.

Kindly reminder:

When AC enters into 'AP' mode, the air-conditioning remote controller can't control it. It is necessary to finish network configuration or power the AC again in order to control it. Alternatively, you need to wait 8 minutes to let the AC quit 'AP' mode automatically.

Using Android device to do network configuration

1. Make sure your mobile device has already been connected to the Wireless network which you want to use. Also, you need to forget other irrelevant Wireless network in case it influences your configuration process.
2. Power on the AC, then continuously press the “LED DISPLAY” button button on the remote seven times in 10 seconds.
3. When the AC displays “AP”, it means that the AC Wireless has already entered into “AP” Mode.

1. Press " + Add Device "

1. Select the appliance you are setting up

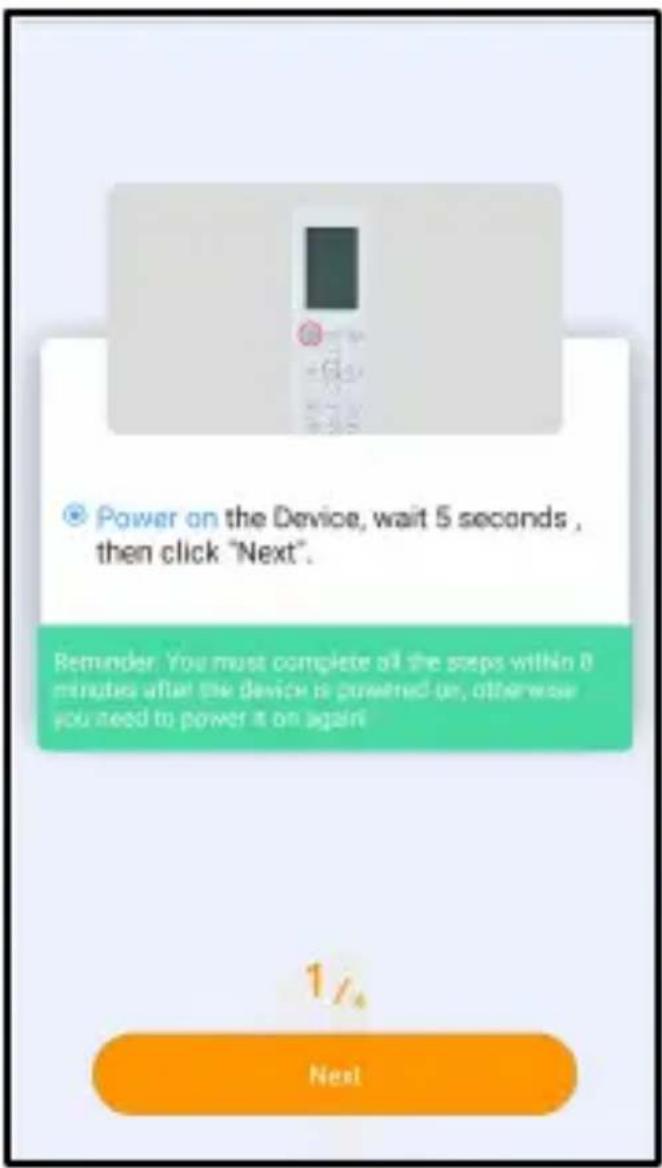

1. Follow the above steps to enter "AP" mode "

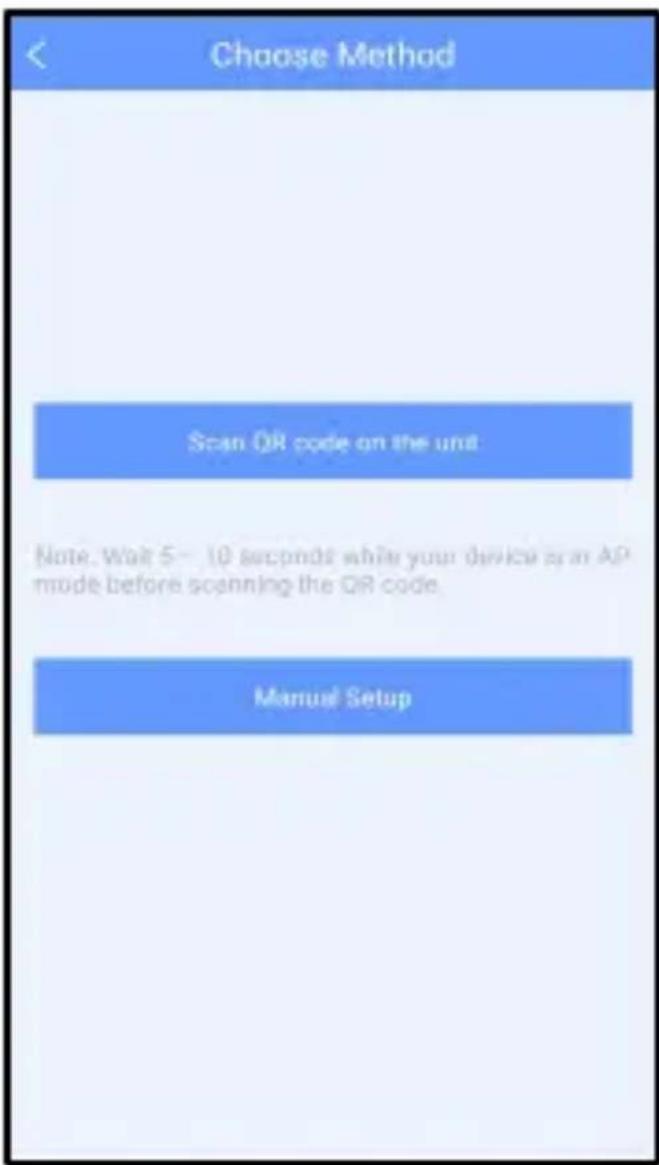

1. Choose the network configurationmethod

1. Choose the “Scan the QR code” method.

1. Or choose the "Manual Setup" method.

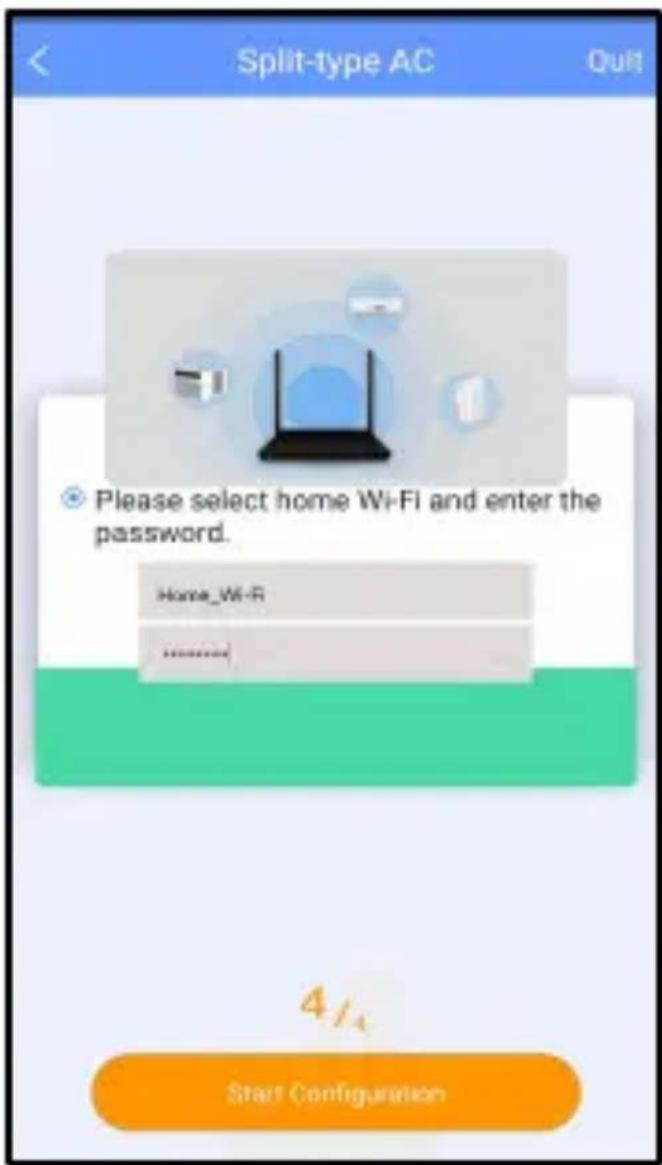

1. Please enter password

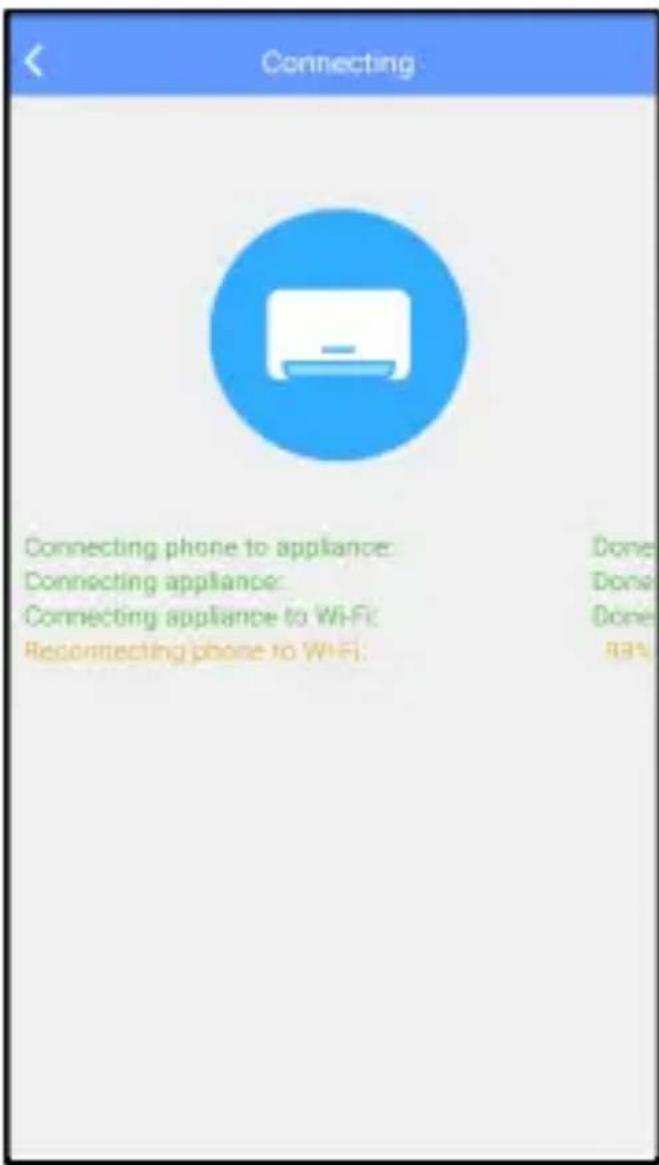

1. Network configuration is successful

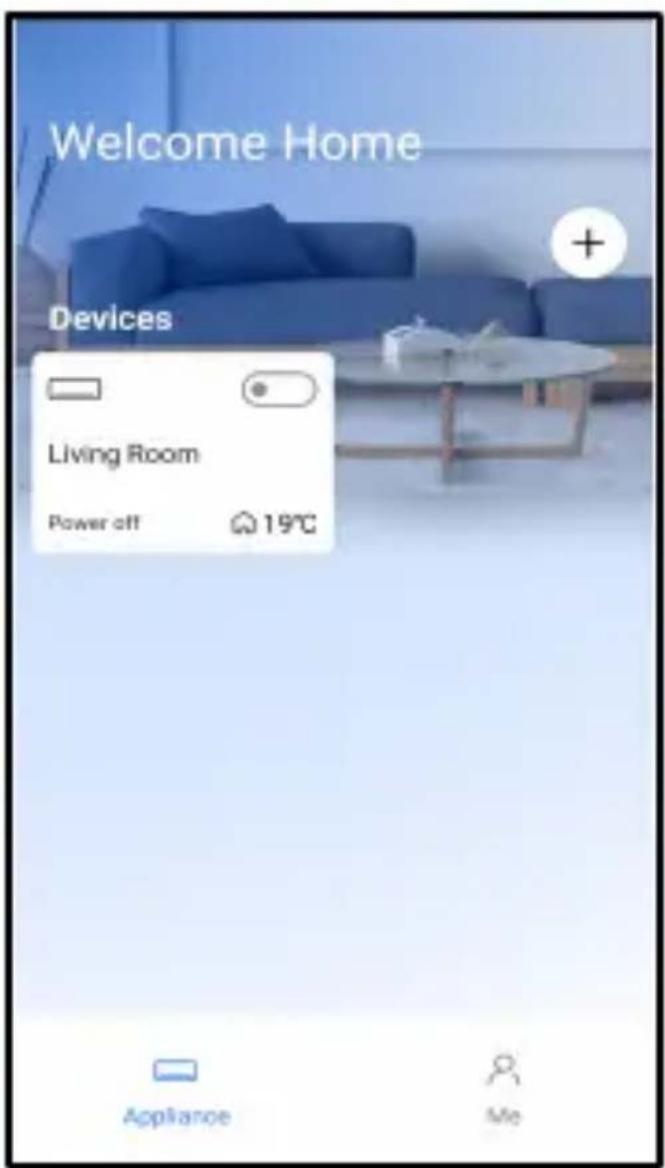

1. Configuration Success, you can see the device on the list.

Using iOS device to do network configuration

1. Make sure your mobile device has already been connected to the Wireless network which you want to use. Also, you need to forget other irrelevant Wireless network in case it influences your configuration process.
2. Power on the AC, then continuously press the “LED DISPLAY” button button on the remote seven times in 10 seconds.
3. When the AC displays “AP”, it means that the AC Wireless has already entered into “AP” Mode.

1. Press " + Add Device "

1. Select the appliance you are setting up

1. Follow the above steps to enter "AP" mode "

1. Connect to the wireless network

1. Please enter password

1. Network configuration is successful.

1. Configuration Success, you can see the device on the list.

NOTE:

• When finishing network configuration, APP will display success cue words on the screen.
• Due to different internet environment, it is possible that the device status still display “offline”. If this situation occurs, it is necessary to pull and refresh the device list on the APP and make sure the device status become “online”. Alternatively, user can turn off the AC power and turn on it again, the device status will become “online” after few minutes.

7. HOW TO USE APP

Please ensure both your mobile device and air conditioner are connected to the Internet before using app to control the air conditioner via internet, please follow the next steps:

1. Click "Sign up"

1. Choose the air conditioner

1. Thus, user can control air conditioners on/off status, operation mode, temperature, fan speed and other common functions.

NOTE: Not all the functions of the APP is available on air conditioner. For example: ECO, Turbo, Swing function, please check the user manual to find more information.

8. SPECIAL FUNCTIONS

Including: Timer on, Timer off, 8°C Heat, Sleep, Check.

NOTE: If the air conditioner do not support the above function, the function will be hided from the function list.

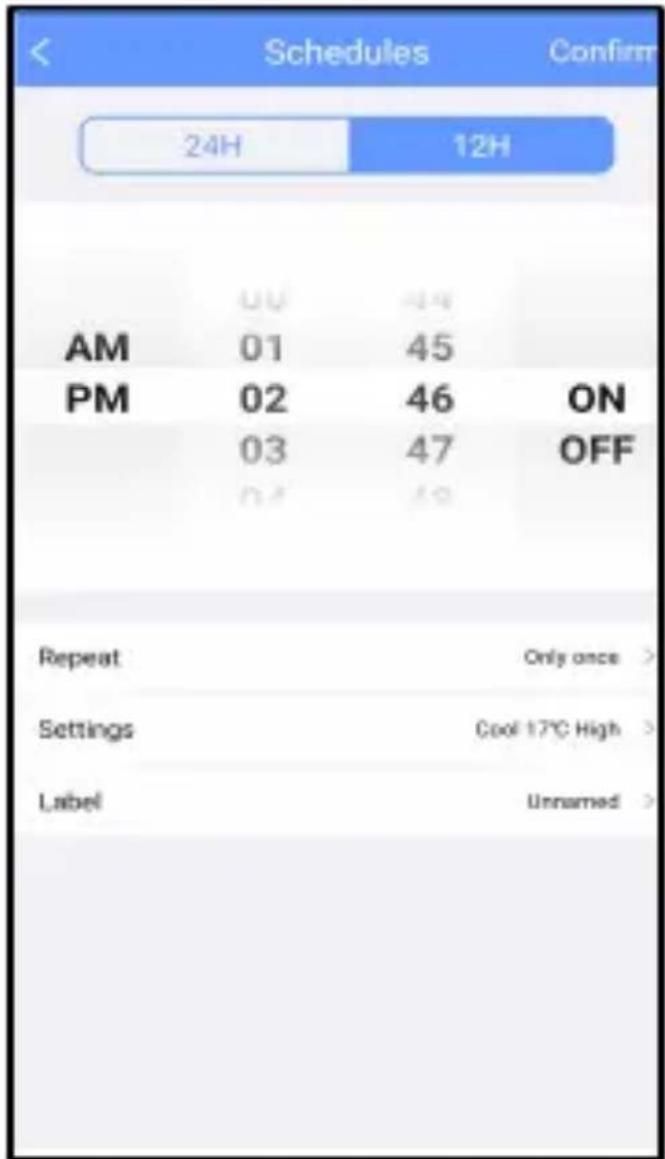

Timer on/Timer off

Weekly user can make an appointment to turn on or off AC on specific time. User also can choose circulation to keep the AC under schedule control every week.

Sleep

User can customize their own comfortable sleep by setting target temperature.

Check

User can simply check the AC running status with this function. When finishing this procedure, it can display the normal items, abnormal items, and detail information.

Share Device

The air conditioner can be controlled by multi-users at the same time by Share Device function.

1. Click "Share QR code"

1. QR code display

1. The other user must log in "Nethome Plus" app first, then click "Add Share Device" on their own mobile.

2. Scan the QR code. Now the others can add the shared device.

CAUTIONS:

• This device complies with Part 15 of the FCC Rules and RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
• Only operate the device in accordance with the instructions supplied. This device complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC and IC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
