V5D1 - Camera Speco Technologies - Free user manual and instructions

Brand	Speco Technologies
Model	V5D1
Product Type	Security Camera
Image Sensor	1/2.7" CMOS
Resolution	5MP (2560 x 1936)
Video Output	AHD / TVI / CVI / CVBS (default HD-TVI)
Lens	2.8mm fixed lens (M12 mount)
IR Distance	65.6 - 98.4 ft (20 - 30 m)
Min Illumination	Color: 0.01 lux @ F1.2 (AGC ON); B/W: 0 lux with IR
Day/Night	ICR auto switch
Wide Dynamic Range	Yes
Digital Noise Reduction	Yes
Backlight Compensation	Yes
Smart IR	Yes
OSD Control	Via UTC (coaxial)
Power Supply	DC 12V ±10%
Power Consumption	<1W (IR off), <4W (IR on)
Ingress Protection	IP67
Working Temperature	-22°F to 122°F (-30°C to 50°C)
Dimensions	Φ4.7 x 3.5 in (Φ119 x 89 mm)
Mount Type	Ceiling/Wall mount with trim ring
Pan / Tilt / Rotation	Pan 0°~355°, Tilt 0°~67°, Rotation 0°~355°

Frequently Asked Questions - V5D1 Speco Technologies

How to switch the video output mode?

Remove the cover of the video switch cable. Press and hold the button for 5 seconds to cycle through modes: AHD, TVI, CVI, and CVBS. The camera defaults to HD-TVI.

What is the IR distance of the V5D1?

The IR distance is 65.6 to 98.4 feet (approximately 20-30 meters), ensuring clear night vision.

How to adjust the viewing angle?

Preview the image on a monitor. Loosen the fixed ring, adjust the camera by panning 0°~355°, tilting 0°~67°, and rotating 0°~355°, then tighten the ring.

What is the default video output?

The camera comes defaulted to HD-TVI output. You can change it using the video switch cable.

How to clean the camera?

Use a soft, dry cloth to gently wipe the dome and housing. Avoid using liquid cleaners. Ensure the camera is powered off before cleaning.

What is WDR and how does it work?

Wide Dynamic Range (WDR) balances brightness in scenes with both very bright and very dark areas, providing clear images. It works automatically when enabled via OSD.

Does the camera support OSD?

Yes, the camera supports On-Screen Display (OSD) control via UTC (coaxial), allowing you to adjust settings like exposure, white balance, and more.

What power supply is required?

The camera requires a DC 12V ±10% power supply. Use a compatible power adapter (sold separately) with at least 4W capacity.

Is the V5D1 suitable for outdoor use?

Yes, the camera has an IP67 ingress protection rating, making it dust-tight and protected against temporary immersion in water, suitable for outdoor mounting.

How to install the dome camera?

Attach the drill template, drill holes, route cables, and secure the camera to the wall. Rotate the trim ring, open the lower dome, connect cables, and adjust the three-axis angle. Then close the dome and lock the trim ring.

USER MANUAL V5D1 Speco Technologies

Collection of white speco technologies security cameras with lens images (no visible text or symbols on the cameras themselves)

V /V5T1// 5B1 V5D1 V5B1M/V5D1M/V5T1M

USER MANUAL

Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Warnings

If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair.
- Keep away from liquid while in use.
■ All installation and operation here should conform to local electrical safety codes.
■ Make sure the power supply voltage is correct before using the camera.
■ Do not drop the camera or subject it to physical shock.
■ Do not use the device beyond specified voltage range.
- Do not place the camera in extremely hot, cold (the operating temperature shall be (-4^ 122^) , dusty or damp locations, and do not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating environment.

Introduction

This camera series is the latest technology and advanced circuit design, which features high definition and sensitivity, low noise and distortion and supports HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.

● High Resolution

Adopt high performance sensor, providing high definition and clear image.

● High Transmission Performance

Real-time transmission with high speed and long distance.

● DNR

Reduce noise from brightness and color signal.

● OSD

Access the camera settings which can be clearly displayed through the main menu.

● White Balance

Adjust the color temperature according to the environment automatically.

- ICR Auto Switch

The filter will filter infrared light during the daytime and change to normal at night to ensure a high sensitivity and clear image.

● AGC

Adjust the gain of amplifier, enabling the camera to output the standard video signal in different lighting condition.

● Wide Dynamic Range (WDR)

When there are both very bright and very dark areas simultaneously in the field of view, this function will balance the brightness level and provide clear images.

● Backlight Compensation (BLC)

When the back of the captured object is too much bright, you can set BLC for the captured object to make it clearer.

Cables

Video Switch: Four video output modes can be optional--AHD, TVI, CVI and CVBS (a) remove the cover of the video switch cable; (b) hold and press the button in the video switch cable for 5 seconds to switch the current video output.

Installation

Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. Please install and use the camera in the dry environment.

You'd better install back the lens cover or lower dome less than 4 hours after removing it.

The mounting types of cameras are only for reference.

▶Mounting for V5B1/V5T1

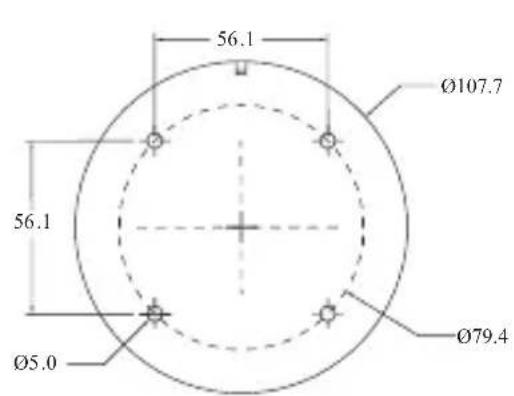

1. Drill the screw holes and the cable hole on the wall according to the drill template.

V5B1

V5B1M

1. Route and connect the cables.

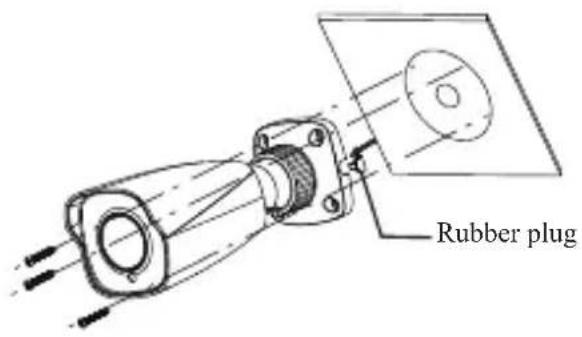

2. Secure the mounting base with camera to the wall with screws as shown below.

Technical line drawing of a mechanical component with no visible text or symbols

V5B1

V5B1M

1. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. Tighten the fixed ring after the adjustment.

V5B1

V5B1M

▶Mounting for Dome Camera

● Mounting for V5D1/V5D1M

1. Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template.

V5D1

V5D1M

1. Rotate the trim ring anticlockwise to remove it from the camera.
2. Loosen the screws to open the lower dome. Then route and connect the cables.
3. Secure the camera to the wall with screws provided as shown below.

1. Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.

1. Install the lower dome back to the camera and fix it with screws. Then put the trim ring onto the lower dome and then rotate it clockwise until it is locked. Finally, remove the protection film softly.

● Mounting for V5T1/V5T1M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

V5T1

V5T1M

1. Loosen the fixed screw to disassemble the camera.
2. Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided.

Fixed Screw

Pure electrical circuit lines without any symbols

1. Install the dome and enclosure to the mounting base and then adjust the dome to obtain an optimum view angle. Finally, secure the camera with the fixed screw.

Technical line drawing of a mechanical component with no visible text or symbols

Specifications\Models	V5B1	V5B1M	V5D1
Camera
Image Sensor	1/2.7" CM Ⓔ
Resolution	5MP
Image size	2560×1936
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	65.6~98.4	98.4~164.0	65.6~98.4
Frame Rate	20fps
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8mm	2.8~12mm (motorized)	2.8mm
Lens Mount	M12	D14	M12
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67	IP67	IP67&IK10
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
Defog	No
BLC	Yes
LSC	Yes
Mirror	Yes
Sharpness	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W; IR ON : < 4W	IR OFF: < 1W; IR ON : < 6W	IR OFF: < 1W; IR ON : < 4W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	6.6 2.9 2.9× ×	8.6 3.2 3.2× ×	Φ4.7 3.5×
Specifications\Models	V5D1M	V5T1	V5T1M
Camera
Image Sensor	1/2.7" CM Θ
Resolution	5MP
Image size	2560×1936
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	98.4~164.0	65.6~98.4	98.4~164.0
Frame Rate	20fps
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8~12mm (motorized)	2.8mm	2.8~12mm (motorized)
Lens Mount	D14	MD124
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67&IK10	IP67	IP67
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
Defog	No
BLC	Yes
LSC	Yes
Mirror	Yes
Sharpness	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W; IR ON : < 6W	IR OFF: < 1W; IR ON : < 4W	IR OFF: < 1W; IR ON : < 6W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	Φ5.6 3.9×	Φ3.7 3.3×	Φ4.4 3.5×

Model: V5B1/V5B1M/V5D1/V5D1M/V5T1/V5T1M

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com
