| Product Type | 24-inch Widescreen LED Monitor |
| Model | 2435W HA |
| Screen Size | 24 inches (61 cm diagonal) |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Panel Type | IPS (In-Plane Switching) |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (GTG) |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 (static) |
| Viewing Angles | 178° / 178° (horizontal/vertical) |
| Connectivity | 1 x HDMI 1.4, 1 x VGA (D-Sub), 1 x 3.5 mm audio out |
| Power Consumption | 25 W (typical), <0.5 W (standby) |
| Power Supply | External power adapter (100-240 V AC, 50/60 Hz) |
| Dimensions (with stand) | 540 x 410 x 180 mm (W x H x D) |
| Weight (with stand) | 4.2 kg |
| VESA Mount | 100 x 100 mm |

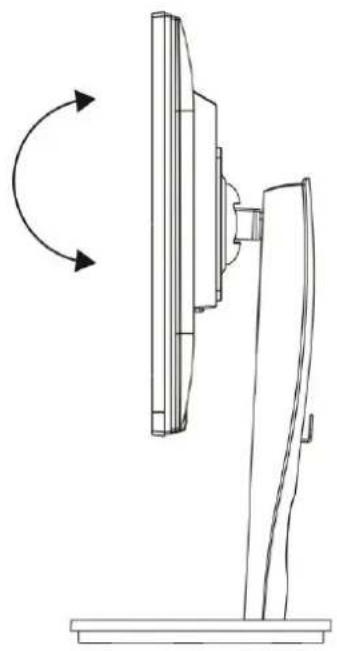

| Tilt Adjustment | -5° to +20° |
| Speakers | Built-in 2 x 2W speakers |
| Maintenance | Clean with soft, dry cloth; avoid harsh chemicals |
| Safety | CE, RoHS compliant; use only supplied adapter |
| Spare Parts & Repairability | Contact Wortmann support for service; not user-serviceable |
Frequently Asked Questions - 2435W HA Wortmann AG

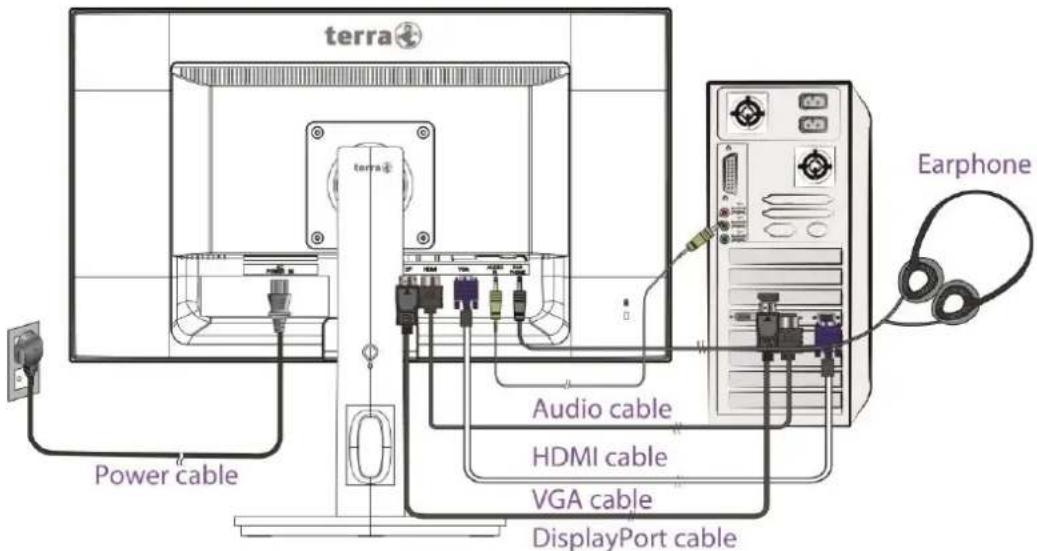

How do I connect my computer to the monitor?
Use the provided HDMI or VGA cable. Connect one end to the monitor and the other to your computer. Ensure both devices are turned off before connecting.
Can I mount this monitor on a wall?
Yes, the monitor supports VESA standard 100x100mm mounts. Use a compatible wall mount bracket and follow the installation instructions.
How do I clean the screen?
Power off and unplug the monitor. Use a soft, lint-free cloth slightly dampened with water. Do not spray any liquid directly on the screen. Avoid using alcohol or abrasive cleaners.
What should I do if the screen has no display?
Check that the power cable is securely connected and the monitor is turned on. Verify the video cable connection. Try a different input source. Ensure the correct input is selected using the monitor's menu buttons.

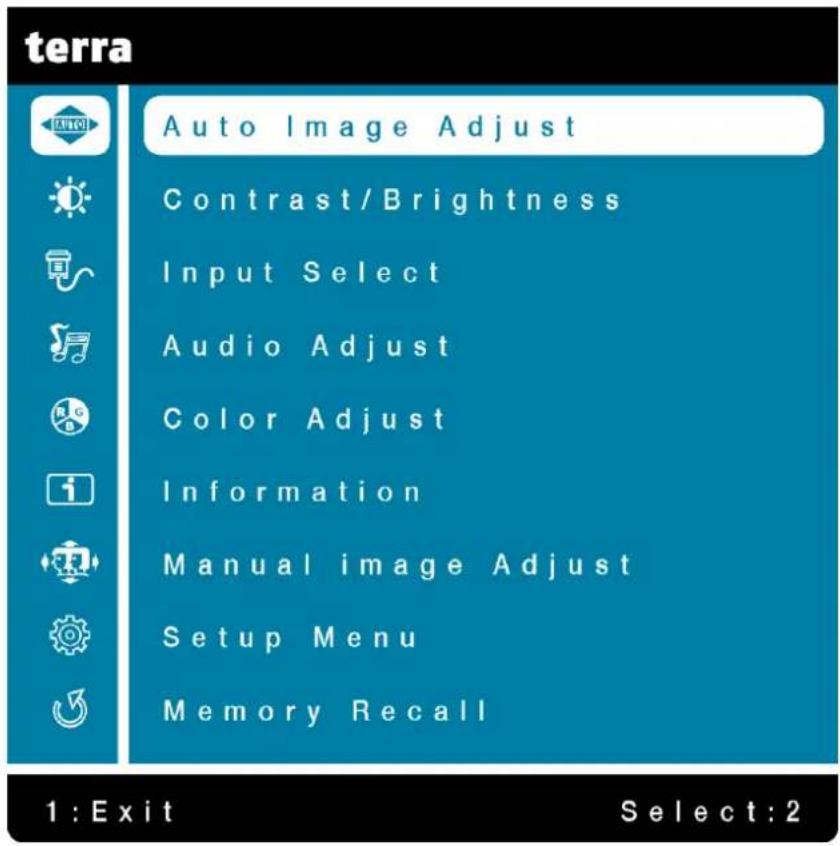

How do I adjust picture settings?
Use the buttons on the monitor to access the On-Screen Display (OSD) menu. Navigate to settings like brightness, contrast, color, etc. Refer to the user manual for detailed OSD options.
Is there a built-in speakers?
Yes, the monitor has two built-in 2W speakers. You can route audio from your computer via HDMI or the audio out port. To use speakers, go to your computer's sound settings and select the monitor as output device.
What does the 'HA' in the model number mean?
The 'HA' likely indicates a specific series or feature variant from Wortmann AG, such as an IPS panel with high adjustability. For exact details, refer to the product documentation.
How do I enable or disable the blue light filter?
Access the OSD menu and look for 'Eye Care' or 'Low Blue Light' mode. Toggle it on or off. This feature reduces blue light emission to help reduce eye strain.
Can I use this monitor with a Mac?
Yes, if your Mac has an HDMI port, you can connect directly. For older Macs with Mini DisplayPort or Thunderbolt, you may need an adapter (e.g., Mini DisplayPort to HDMI).
What is the warranty for this monitor?
Wortmann AG typically offers a 2-year warranty. For specific warranty terms, contact Wortmann support or refer to the warranty card included in the box.
