| Brand | BodyCraft |
| Model | Smith Machine Jones Freedom |
| Product Type | Smith Machine |
| Category | Multi Gym / Strength Training Equipment |
| Dimensions (L x W x H) | 127 cm x 218 cm x 211 cm |
| Net Weight | 105.9 kg |
| Gross Weight Box 1 | 55.9 kg |
| Gross Weight Box 2 | 56 kg |
| Maximum Load on Barbell | 230 kg |
| Barbell Length | 218 cm |
| Barbell Diameter for Plates | 50 mm |
| Intended Use | Home use only |
| Frame Material | Heavy-duty steel |
| Safety Features | Safety spotter bars, guide rod bearings |
| Assembly Required | Yes, by at least two adults |
| Guide Rods | Yes, vertical and horizontal |
| Warranty | As specified on product page (home use) |
| Maintenance | Clean with damp towel after each use; lubricate guide rods; inspect screw connections |
| Power Requirement | None (manual operation) |
| Color | Steel/black (not specified) |
| Resistance Type | Plate loaded (weights not included) |
| Number of Safety Spotters | 2 |
| Included Accessories | None (optional accessories available) |
| Serial Number Location | White sticker on frame |
Frequently Asked Questions - Smith Machine Jones Freedom BodyCraft
User questions about Smith Machine Jones Freedom BodyCraft
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fitness Equipment in PDF format for free! Find your manual Smith Machine Jones Freedom - BodyCraft and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Smith Machine Jones Freedom by BodyCraft.
USER MANUAL Smith Machine Jones Freedom BodyCraft
Assembly Instructions
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 10
2.3 Assembly 12
3 STORAGE AND TRANSPORT 17
3.1 General Instructions 17
4 TROUBLESHOOTING, CARE AND MAINTENANCE 18
4.1 General Instructions 18
4.2 Faults and Fault Diagnosis 18
4.3 Maintenance and Inspection Calendar 19
5 DISPOSAL 19
6 RECOMMENDED ACCESSORIES 20
7 ORDERING SPARE PARTS 21
7.1 Serial Number and Model Name 21
7.2 Parts List 22
7.3 Exploded Drawing 24
8 WARRANTY 25
9 CONTACT 27
Dear customer,
Thank you for choosing BodyCraft ® training equipment. BodyCraft ® inspires with its multifunctionality and excellent workmanship and is one of the highest quality fitness equipment for home use in terms of innovation and technology. BodyCraft ® weight stations, for example, offer a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses to rehabilitation exercises and workouts for complex sports such as golf, tennis or badminton.
Further information can be found at www.sport-tiedje.com.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional (e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. fitness studios).
Legal Notice
Sport-Tiedje GmbH
Europe's No. 1 for home fitness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
BODYCRAFT
BodyCraft ® is a registered brand of the company Fitness Authority Industrial Co., LTD. All rights reserved. Any use of this trademark without the explicit written permission of Fitness Authority Industrial Co., LTD is prohibited.
Product and manual are subject to change. Technical data can be changed without advance notice.
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance. In case of doubt, responsible persons must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If you notice any discrepancies during assembly or use, please refer to the manual uploaded to the webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible, potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight or minor injuries!
WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death or serious injuries!
DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries!
i NOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts.
1.1 Technical Data
Weight and Dimensions
Packaging dimensions (L x W x H) and article weight (gross, incl. packaging):
Box 1: 222 cm x 32 cm x 17 cm 55.9 kg
Box 2: 139 cm x 32 cm x 23 cm 56 kg
Set-up dimensions (L x W x H) approx.: 127 cm x 218 cm x 211 cm
Article weight (net, without packaging) approx.: 105.9 kg
Barbell Bar
| Maximum load: | 230 | kg | |
| Length: | 218 | cm | |
| Diameter for optional weight plates: 50 mm |
1.2 Personal Safety
DANGER
+ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. If you are under medical treatment that affects your heart rate, medical advice is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that heart rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately and seek advice from your doctor if necessary.
WARNING
- This equipment may not be used by children under the age of 14.
- Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation when using the equipment.
+ The equipment is strictly for use by one person at a time.
- If your equipment provides a safety key, the clip of the safety key must be attached to your clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the equipment can be initiated.
- Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well clear of moving parts.
- During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing sports shoes, make sure they have suitable soles, preferably made of rubber or other non-slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise barefoot.
CAUTION
- If your equipment needs to be connected to the power supply with a mains cable, make sure that the cable is not a potential tripping hazard.
- Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.
1.3 Set-Up Place
WARNING
+ Do not place the equipment in main corridors or escape routes.
CAUTION
- Choose a location in which to place the equipment such that there is enough free space/clearance to the front, the rear and to the sides of the equipment.
- The training room should be well ventilated during training and not be exposed to any draughts.
- Choose the place in which to set up the equipment such that there is enough free space/clearance to the front, the rear and to the sides of the equipment.
- The set-up and mounting surface of the equipment should be flat, loadable and solid.
+ If your device is to be mounted on the wall/ceiling, make sure that you use the appropriate assembly material to avoid possible damages or personal injuries. The contractual partner accepts no liability for this.
ATTENTION
+ The device may only be used in one building, in sufficiently tempered and dry rooms (ambient temperatures between 10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness.
2.1 General Instructions
DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly.
WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
CAUTION
+ Ensure to have sufficient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the help of a third technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board.
i NOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.
2.2 Scope of Delivery

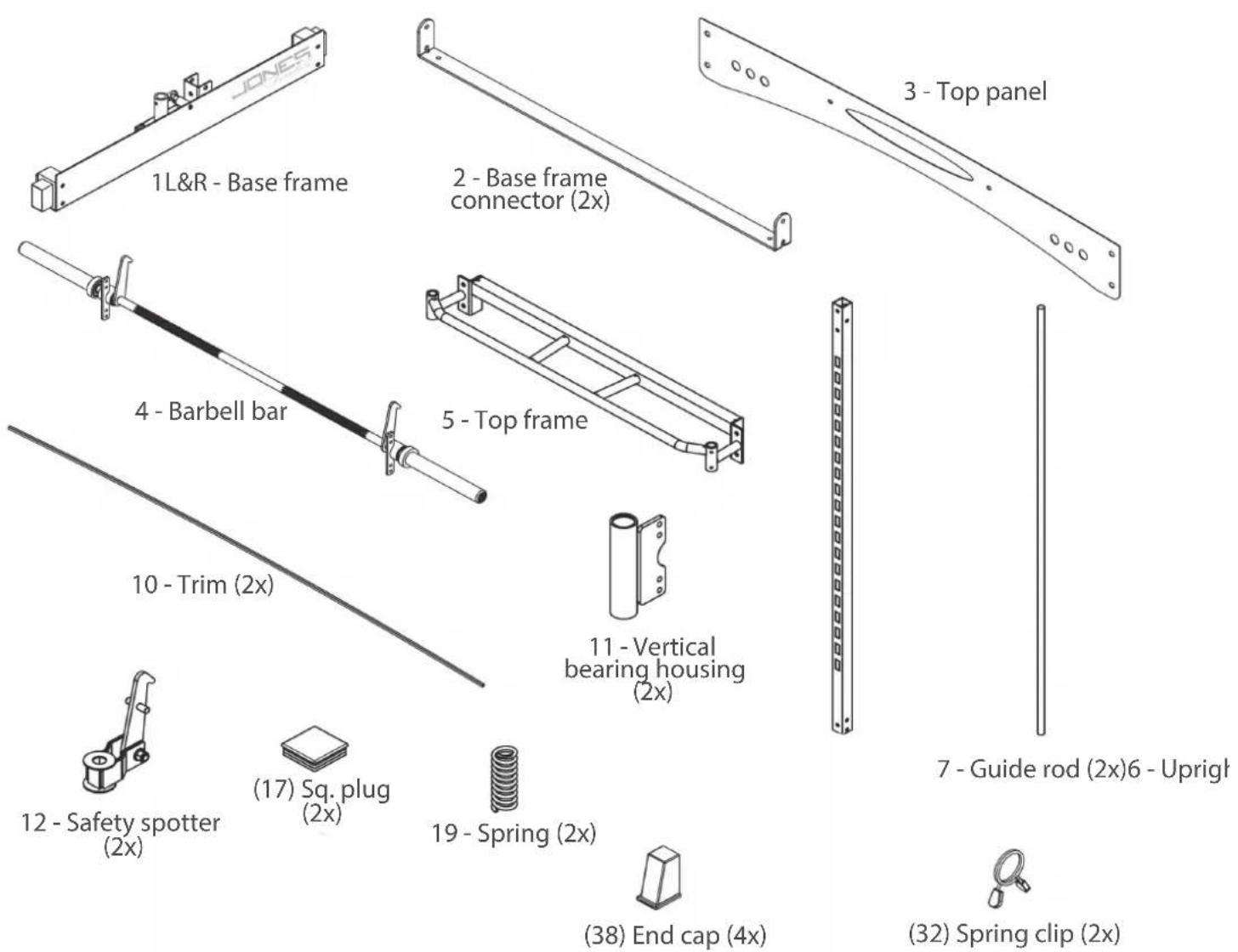

The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly.
CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.
No.
| 21 | 1" ID big washer | 2 | |
| 23 | 1/2"x3" | Hex | bolt |
| 25 | 3/8"x4" | Hex | bolt |
| 26 | 3/8x1-1/4" Hex bolt | 8 | |
| 33 | 1/2" | Washer | |
| 34 | 3/8" | Washer | |
| 36 | 1/2" | Nylon | nut |
| 37 | 3/8" | Nylon | nut |
Description
Qty.
33
36
34
37
2.3 Assembly

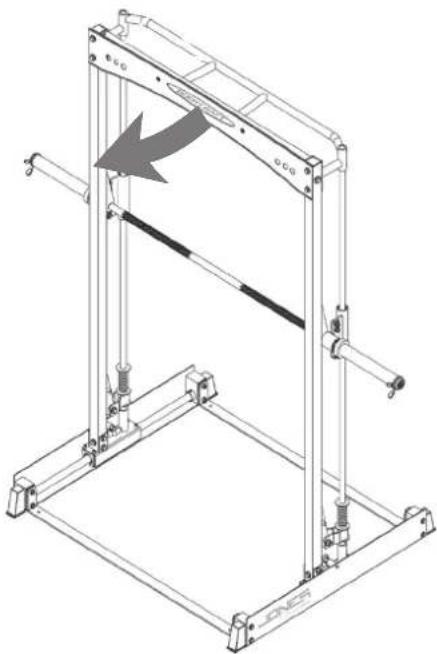

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given.
i NOTICE
+ First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so.
+ If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. smartphone, tablet or PC). There you have the option of zooming in closer. Please note that the Adobe Acrobat Reader programme must be installed on your end device in order to open the file.
Step 1: Assembly of the Base Frames and Base Frame Connectors
i NOTICE
Make sure the left and right base frames (1L & 1R) are facing the right way.
- Attach the base frame connectors (2) to the left and right base frames (1L & 1R) with a total of eight 3/8"x4" hex bolts (25), 16 3/8" washers and eight 3/8" nylon nuts (37).
- Attach a total of four end caps (38) to the base frames (1L & 1R).
- Make sure the base frames (1L & 1R) are parallel and tighten all bolts.
Step 2: Assembly of the Upright Frames and Guide Rods
- Insert one vertical guide rod (7) into the round receptor on the left base bearing housing (9L).
- Attach one upright frame (6) to the square receptor on left base bearing housing (9L) with three 1/2"x3" hex bolts (23), six 1/2" washers (33) and three 1/2" nylon nuts (36).
- Attach a 2" square plug (17) to the upright frame (6).
- Repeat the steps 1-3 on the right side.
Step 3: Assembly of the Safety Spotter
- Slide one safety spotter (12) over each of the vertical guide rods (7). Make sure the hooks are facing towards the holes of the upright frames (6) and properly hooked into the lowest holes.
- Then slide one spring (19), one 1" ID big washer (21) and one vertical bearing housing (11) over each of the vertical guide rods (7). Make sure the bolt plate on the respective vertical bearing housing (11) is facing the outside of the machine (Fig. 1 & 2).
Fig. 1
Fig. 2
Step 4: Assembly of the Top Frame and Top Panel
- Attach the top frame (5) to the upright frames (6) with two 1/2"x3" hex bolts (23), four 1/2" washers (33) and two 1/2" nylon nuts (36).
- Attach the top panel (3) to the upright frames (6) and top frame (5) with a total of four 1/2"x3" hex bolts (23), eight 1/2" washers (33) and four 1/2" nylon nuts (36).
- Attach the top panel (3) to the top frame (5) with two 5/16"x1/2" dome head allen bolts (27).
- Attach the trim (10) to the top and bottom of the top panel (3).
Step 5: Assembly of the Barbell Bar
ATTENTION
Tighten all bolts before attaching the barbell bar (4). Start by tightening the bolts at the base and work your way up. Make sure to also tighten the 5/16"x1/4" set screws (31) at the top and bottom of the vertical guide rods (7).
- Hook the barbell bar (4) into the fifth holes on the upright frames (6) as shown in figure 3.
- Attach the barbell bar (4) to the bolt plates of vertical bearing housings (11) with a total of eight 3/8"x1-1/4" hex bolts (26), 16 3/8" washers (34) and eight 3/8" nylon nuts (37).
- Tighten the bolts.
3.1 General Instructions
WARNING
+ The storage location should be chosen so that improper use by third parties or children can be prevented.
+ If your equipment does not have transportation wheels, the equipment must be disassembled before transportation.
ATTENTION
+ Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 10°C and 35°C.
4.1 General Instructions
WARNING
+ Do not make any improper changes to the equipment.
CAUTION
+ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. The equipment must not be used until it has been repaired. If necessary, use only original spare parts.
ATTENTION
+ In addition to the instructions and recommendations for maintenance and care given here, additional service and/or repair work may be necessary; this must only be carried out by authorised service technicians.
4.2 Faults and Fault Diagnosis
The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually sufficient. Please refer to the following overview for the most common errors and how to correct them. If the equipment still does not function properly, contact your contract partner.
| Fault Cause Solution | ||
| Squeaking & cracking noises | Screw connections loosened or too tight | Check or lubricate screw connections |
| Unit wobbles | + Uneven ground+ Loose screw connections | + Align unit+ Tighten screw connections |
| Heavy draught | Weight holders/guide rods too dry | Lubricate guide rods |
4.3 Maintenance and Inspection Calendar
To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session.
The following routine tasks must be performed at the specified intervals:
| Part Weekly Monthly Quarterly | |||
| Screw connections I | |||
| Slide rails/Guide rods I | |||
| Legend: C = clean; I = inspect | |||
5 DISPOSAL
At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an recycling centre. Further information can be obtained from your local authority's recycling service.
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment.
6 RECOMMENDED ACCESSORIES
To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. For some smith machines, there are also optional add-ons such as leg presses that make your workout even more intense and comprehensive.
Our range of accessories offers the highest quality and makes training even better. If you would like to find out more about compatible accessories, please go to the detail page of the product in our webshop (the easiest way is to enter the article number in the search field above) and go to the recommended accessories on this page. Alternatively, you can use the QR code provided. Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you!
7.1 Serial Number and Model Name
In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 9 of this operating manual.
i NOTICE
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration.
Serial number:
Brand / Category:
BodyCraft / multi gym
Model Name:
Smith Machine Jones Freedom
Article Number:
SW-JONES-FREEDOM
7.2 Parts List
| No. | Name | Qty. |
| 1 | Base frame 2 | |
| 2 | Base frame connector 2 | |
| 3 | Top panel 1 | |
| 4 | Barbell bar 1 | |
| 5 | Top frame 1 | |
| 6 | Upright frame 2 | |
| 7 | Vertical guide rod 2 | |
| 8 | Horizontal guide rod 2 | |
| 9L | Left base bearing housing 1 | |
| 9R | Right base bearing housing 1 | |
| 10 | Trim | 2 |
| 11 | Vertical bearing housing | 2 |
| 12 | Safety spotter | 2 |
| 13 | Hook plate 2 | |
| 14 | 30mm bearing | 4 |
| 15 | Rubber stopper | 4 |
| 16 | 25mm bearing | 4 |
| 17 | 2" square plug | 2 |
| 18 | Pop pin | 2 |
| 19 | Spring | 2 |
| 20 | Retaining ring 4 | |
| 21 | 1" id big washer | 2 |
| 22 | M8 x 15L allen bolt | 2 |
| 23 | 1/2" X 3" hex bolt | 12 |
| 24 | 1/2" X 2-1/2" hex bolt | 2 |
| 25 | 3/8" X 4" hex bolt | 8 |
| 26 | 3/8" X 1-1/4" hex bolt | 8 |
| 27 | 5/16" X 1/2" dome head allen bolt | 2 |
| 28 | M8 X 16L counter allen bolt | 2 |
| 29 | M8 X 20L allen bolt | 8 |
| 30 | 5/16" X 5/8" set screw | 2 |
| 31 5/16" X 1/4" set screw 10 | |
| 32 2" lifting spring clip 2 | |
| 33 1/2' washer 28 | |
| 34 3/8' washer 32 | |
| 35 M8 spring washer 10 | |
| 36 1/2' nylon nut 14 | |
| 37 3/8' nylon nut 16 | |
| 38 50 x 75mm end cap 4 |
Training equipment from BodyCraft ® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
Error Descriptions
Your fitness equipment is developed for long-term, high-quality training. However, should a problem arise, please first read the operating instructions. For further assistance, please contact your contract partner or call our service hotline. To ensure your problem is solved as quickly as possible, please describe the defect as exactly as possible.
In addition to the statutory warranty, we provide a warranty for every fitness equipment purchased from us according to the following provisions.
Your statutory rights are not affected.
Warrantee
The warrantee is the first/original buyer and/or any person who received a newly purchased product as a gift from the original buyer.
Warranty period
The warranty periods, shown on our web shop, begin on delivery of the fitness equipment. The respective warranty periods for your equipment can be found on its product website.
Repair Costs
According to our choice, there will either be a repair, a replacement of individual damaged parts or a complete replacement. Spare parts, that have to be mounted while assembling the equipment, have to be replaced by the warrantee personally and are not a part of repair. After the expiration of the warranty period for repair costs, a pure parts warranty applies, which does not include the repair, installation and delivery costs.
The terms of use are defined as follows:
- Home use: solely for private use in private households up to 3 hours per day
- Semi-professional use: up to 6 hours per day (e. g. rehabilitation centres, hotels, clubs, company gyms)
- Professional use: more than 6 hours per day (e.g. commercial gyms)
Warranty Service
Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
Warranty Conditions
For the warranty to be valid, the following steps must be taken:
Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance. If the fault is covered by our warranty, you will receive a new or repaired equipment in return.
Warranty claims are invalid in case of damage resulting from:
- misuse or improper handling
- environmental influences (moisture, heat, electrical surge, dust, etc.)
- failure to follow the current safety measures for the equipment
- failure to follow the operating instructions
- use of force (e. g. hitting, kicking, falling)
- interventions which were not carried out by one of our authorized service centres
- unauthorised repair attempts
Proof of Purchase and Serial Number
Please make sure that you are able to provide the appropriate receipt when claiming on your warranty. So that we can clearly identify the model of your equipment, and for the purposes of our quality control, you will need to give the serial number of your equipment, when contacting the service team. Where possible please have your serial number and your customer number ready when you call our service hotline. It will help us to deal with your request swiftly.
If you cannot find the serial number on your fitness equipment, our service team is at your disposal to offer further information.
Service outside of the Warranty Period
We are also happy to issue an individual cost estimate if there is a problem with your fitness equipment after the warranty has expired, or in cases which do not fall under the terms of the warranty, e. g. normal wear and tear. Please contact our customer service team to find a quick and cost-effective solution to your problem. In such a case you will be responsible for the delivery costs.
Communication
Many problems can be solved just by speaking to us as your specialist supplier. We know how important it is to you as a user of the fitness equipment to have problems solved quickly and simply, so you can enjoy working out with minimal interruption. For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy.
DE DK FR
| TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE | ||
| 80 90 16 50+49 4621 4210-945info@fitshop.dkÅbningstider kan findes pähjemmesiden. | +33 (0) 172 770033+49 4621 4210-933service-france@fitshop.frVous trouverez les heure d'ouverture sur notre site Internet. | |
| SERVICE0800 20 20277(kostenlos)info@sport-tiedje.deÖffnungszeiten entnehmen Sie unserer Homepage. | PL BE | |
| TECHNIKA I SERWIS TECHNIQUE & SERVICE22 307 43 21+49 4621 42 10-948info@fitshop.plGodziny otwarcia możnaznałeźć na stronie glównej. | 02 732 46 77+49 4621 42 10-932info@fitshop.beVous trouverez les heures d'ouverture sur notre site Internet. | |
| UK | NL | INT |
| TECHNICAL SUPPORT+44 141 876 3986support@powerhousefitness.co.ukSERVICE+44 141 876 3972You can find the opening hours on our homepage. | TECHNISCHE DIENST & SERVICE+31 172 619961info@fitshop.nlDe openingstijden vindt u op onze homepage. | TECHNICAL SUPPORT & SERVICE+49 4621 4210-944service-int@sport-tiedje.deYou can find the opening hours on our homepage. |
| AT | CH | |
| TECHNIK & SERVICE TECHNIK & SERVICE0800 20 20277(Freecall)+49 4621 42 10-0info@sport-tiedje.atÖffnungszeiten entnehmenSie unserer Homepage. | 0800 202 027+49 4621 42 10-0info@sport-tiedje.chÖffnungszeiten entnehmenSie unserer Homepage. |
Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website:
www.sport-tiedje.com/en/stores
WE LIVE FITNESS
WEBSHOP AND SOCIAL MEDIA
Sport-Tiedje is Europe's largest specialist store for home fitness equipment with currently over 70 stores and one of the world's most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops in the respective national language or have their desired equipment assembled on site. In addition, the company supplies fitness studios, hotels, sports clubs, companies and physio practices with professional equipment for endurance and strength training.
Sport-Tiedje offers a wide range of fitness equipment from renowned manufacturers, high-quality in-house developments and comprehensive services, such as a build-up service and sports scientific advice before and after the purchase. The company employs numerous sports scientists, fitness trainers and competitive athletes.
Visit us also on our social media platforms or our blog!
www.sport-tiedje.co.uk www.sport-tiedje.de/blog
www.facebook.com/SportTiedje
www.instagram.com/sporttiedje
www.youtube.com/user/sporttiedje
TAURUS
cardiostrong
BODYCRAFT
cardiojump
DUKEFITNESS
DARWIN
Notes
Notes
BODYCRAFT
- ASSEMBLY 10
- STORAGE AND TRANSPORT 17
- TROUBLESHOOTING, CARE AND MAINTENANCE 18
- DISPOSAL 19
- RECOMMENDED ACCESSORIES 20
- ORDERING SPARE PARTS 21
- WARRANTY 25
- CONTACT 27
- Dear customer,
- Intended Use
- Legal Notice
- Disclaimer
- BODYCRAFT
- ABOUT THIS MANUAL
- ATTENTION
- CAUTION
- WARNING
- DANGER
- i NOTICE
- Technical Data
- Weight and Dimensions
- Personal Safety
- Set-Up Place
- General Instructions
- Scope of Delivery
- No.
- Description
- Qty.
- Assembly
- Step 1: Assembly of the Base Frames and Base Frame Connectors
- Step 2: Assembly of the Upright Frames and Guide Rods
- Step 3: Assembly of the Safety Spotter
- Step 4: Assembly of the Top Frame and Top Panel
- Step 5: Assembly of the Barbell Bar
- General Instructions
- General Instructions
- Faults and Fault Diagnosis
- Maintenance and Inspection Calendar
- DISPOSAL
- RECOMMENDED ACCESSORIES
- Serial Number and Model Name
- Serial number:
- Brand / Category:
- Model Name:
- Article Number:
- Parts List
- Error Descriptions
- Your statutory rights are not affected.
- Warrantee
- Warranty period
- Repair Costs
- The terms of use are defined as follows:
- Warranty Service
- Warranty Conditions
- Warranty claims are invalid in case of damage resulting from:
- Proof of Purchase and Serial Number
- Service outside of the Warranty Period
- Communication
- WE LIVE FITNESS
- WEBSHOP AND SOCIAL MEDIA
Brand : BodyCraft
Model : Smith Machine Jones Freedom
Category : Fitness Equipment
