GLHM5BER015 - Blender Galanz - Free user manual and instructions

Product Type	Countertop Blender
Brand	Galanz
Model	GLHM5BER015
Jar Material	Plastic (BPA-free)
Jar Capacity	1.5 liters
Motor Power	700 watts
Number of Speeds	2 speeds + Pulse
Blade Material	Stainless steel
Power Source	120 V, 60 Hz
Cord Length	0.8 m
Dimensions (W x D x H)	20.3 x 20.3 x 40.6 cm
Weight	2.5 kg
Main Functions	Blending, mixing, pureeing, crushing ice
Safety Features	Non-slip feet, safety lock lid
Cleaning	Hand wash jar and lid; wipe base with damp cloth
Spare Parts Availability	Replacement jars and blades available from Galanz

Frequently Asked Questions - GLHM5BER015 Galanz

How do I assemble the blender?

Place the jar on the base, align the tabs, and turn clockwise until it locks. Then add ingredients, place the lid, and ensure it clicks securely.

Can I blend hot liquids?

No, do not blend hot liquids as pressure may build up and cause lid to pop off. Allow liquids to cool to room temperature first.

How do I clean the blender jar?

Fill jar halfway with warm water and a drop of dish soap. Run on pulse for 30 seconds, then rinse thoroughly. Do not immerse the base in water.

What is the maximum capacity?

Do not fill beyond the 1.5 liter mark. For hot or foaming liquids, fill only half.

Can I crush ice with this blender?

Yes, use the Pulse function to crush ice. Add ice cubes and press Pulse repeatedly until desired consistency.

Why is the blender not starting?

Ensure the jar is properly locked on the base and the lid is secured. Check power cord connection and outlet.

Are replacement parts available?

Yes, you can order replacement jars, blades, and lids from Galanz customer service or authorized retailers.

Can I blend nuts or seeds?

Yes, but avoid overloading. Use the Pulse function for better control and to prevent motor strain.

How do I store the blender?

Clean and dry all parts. Store jar upside down on base with lid off to allow air circulation. Keep in a dry place.

What is the warranty period?

Galanz typically offers a 1-year limited warranty. Check your purchase documentation for details or contact support.

USER MANUAL GLHM5BER015 Galanz

Red Galoishe blender with coiled whiskers and a handle, displayed against black background (no text or symbols visible)

Thank you for purchasing a Galanz product. Please read this manual carefully for correct usage and safety, and keep for future reference. For service, support and warranty information, call 800-562-0738.

©2021 Galanz Americas Limited Company

©2021 Galanz Americas Limited Company

CONTENTS

Important Safeguards 1

What's in the Box 3

Before First Use 4

Preparing & Using Your Hand Mixer 5

Attaching the Accessories

Removing the Accessories Operating the Speed Control

Operating the Speed Control Speed Control Guide

e.g. a one of similar

Care & Maintenance 8

Cleaning

Storage

Product Warranty 9

Warranty Registration 10

IMPORTANT SAFEGUARDS IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING YOUR GALANZ PROFESSIONAL HAND MIXER

■ This appliance is sorry for domestic use (i.e. not professional), for mixing, according to the method described herein. Any other use should be considered inappropriate and dangerous. The manufacturer cannot be held responsible for any damages caused by improper, incorrect or irresponsible use and/or by repairs come by an unqualified person.
■ Examples of appliances for domestic use are those used for typical domestic reasons, in domestic environments and that can be used by non-experts: - In shoes, offices and other similar places of work; - In taming businesses or similar businesses; - By guests in hotels, motels and other residential type environments; - In bed and breakfast accommodation.
■ Only use the device with the accessories supplied in order to ensure the safety of use. Periodically check the good condition of the appliance and its components: in case of doubt, contact an authorized service center and make sure that the spare parts supplied are original.
■ The device is designed for the preparation of small quantities of local and not for large quantities.

■ Warning: do not use the appliance if the whisks are damaged.
■ Do not use the device to blend hot liquids.
■ Do not operate this appliance; empty, as this could cause damage.
If the whisks get blocked, switch off the appliance and remove the plug from the mains, then remove the ingredients that are blocking the whisks.
■ Never put your hands or any object inside the container in which you are using this appliance. Keep fingers and other body parts (such as hand, clothing or utensils (crives, forks, etc.) or anything else away from moving parts (whisks).
■ Warning: never touch the whisks when the appliance is assembled and after having plugged it into the mains.
■ Do not remove or attempt to stop the whisks while the appliance is running or before the engine stops. Only removes accessories when the machine is completely stopped and after having removed the plug from the socket.
■ Always unplug the appliance from the socket before assembly, disassembly or clearing the appliance.
■ This appliance should not be used by children. Keep the appliance and its cord out of the reach of children.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided they receive the necessary supervision or instructions concerning the safe use of the appliance and they are aware of the potential dangers.

■ Children should not use the appliance as a toy.
■ Warning: when using electrical appliances, always should to basic safety precautions to prevent the risk of fire, electric shocks and physical injury.
■ If the appliance is not being used, unplug it from the plug point.
■ Do not pull on the power cable or use the appliance itself to unplug the appliance from the plug point.
■ Do not pull on the power cable to move the appliance.
If the power cable is damaged, it must be replaced by the manufacturer or its technical assistance center or by someone who is similarly qualified, in order to prevent any risks.
■ Do not touch the appliance with wet hands or feet. Make sure that your hands are completely dry before touching the appliance.
■ Do not let the cord hang over edge of table or counter.
■ Do not leave the appliances exposed to atmospheric conditions (sun, rain, etc.)
■ The appliance must not be used outdoors.
In order to protect yourself from electric shocks, do not immerse the plug, the power cable or the appliance in water or any other liquid.
This appliance is not intended to be operated by means of an external timer or a separate remote control system in order to avoid the risk of fire where the appliance is covered or is not positioned correctly.

NOTICE

This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Model No.	GLHMSRDR015
Power Consumption	120V, 60Hz
Walls	150 W

HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

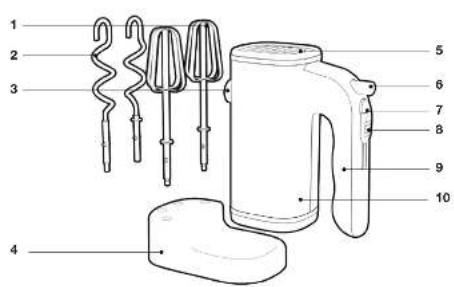

WHAT'S IN THE BOX BEFORE FIRST USE

1. Turbo Beilers Auxiliary
2. Dough Hooks Accuracy
3. Attachments Sockets
4. Storage Base
5. Air Vents
6. Fxcl Bullen
7. Turbo Button
8. Speed Control Switch
9. Soft Grip Handle

10. Motor Body

11. IMPORTANT: Review all warnings in IMPORTANT SAFLEGUARDS before

12. Carefully unpack your Hand Mixer and remove all packaging materials. Check the contents to ensure all attachments have been received in good condition.
13. Wipe the motor body and wash the beavers, dough hooks and storage base in the warm scapy water. Dry thoroughy. CAUTION: Do not increase the motor body in water.
14. The carton should contain -

1 x Hard Mixer
1 x Equiore
1 x Dough Hooks
1 x Storage Base
1 x Quick Start Guide
1 x User Manual

PREPARING & USING YOUR HAND MIXER PREPARING & USING YOUR HAND MIXER

The mixer has two sets of attachments.

■ Beaters for mixing egg whites, cream, and cake batters.

■ Dough hooks for heavier mixes such as dough and mashed octalose.

Before using your hand mixer, prepare a clear, uncluttered work area near to a main power outlet where the cable will not be a risk of being pulled.

ATTACHING THE ACCESSORIES

■ Unplug the Hand Mixer from the electrical outlet.

FITTING THE BEATERS

■ Insert the boxers into the attachment sockets located at the bottom of the mixer.
■ Twist the beaters slightly while pushing until they click. The beaters will be locked into place.

FITTING THE DOUGH HOOKS

The dough hooks are fitted in the same way as the beaters, but the hook shapes are different and each must be fitted into the correct attachment spaces.

■ One of the dough hooks has a color (D) on the shaft. Insert the accessory shaft with the collar (D) and the larger opening (B) on the underside of the mixer. A circle icon is located near the large opening as the indicator. Align the larger on the shaft with the scale in the opening. Push to look into place.

- Insert the accessory without a circular (C) into the smaller opening (A). Align and push to lock into pace.

NOTE: Beaters included one accessory with a collar (C) and one without (C). Dough Hooks come with two collars (D).

REMOVING THE ACCESSORIES

1. If the Hand Mixer is running, stop the Hand Mixer by siding the Speed Switch back to the "C" (elf) position.

1. Unplug the Hard Mixer from the electrical outlet.

1. Press the Ejecor Button to release the accessories from the Hand Mixer and then remove them.

NOTE: The eject button can only be operated when the Off/Speed switch is set to the '0' off position.

To help determine the dear mixing time, observe the better or dough and has only until it has the desired appearance described in your recipe, such as "smooth and creamy". To select the best cooking specs, use the SPEED CONTROL GUIDE section.

1. Ping the Hand Mover into an electrical outlet.

1. Hold the Motor Handle and slide the Speed Control Switch to the "1" (ON) position. The motor will automatically start at Speed 1.

PREPARING & USING YOUR HAND MIXER CARE & MAINTENANCE

1. Slice the Speed Control Switch in the range of 1-5 position to increase the mixing speed to the desired setting. If necessary, slide back to decrease the mixing speed. See the SPEED CONTROL GUIDE for more information.

1. When mixing pool is finished, side the Power switch to the "U" (CH) position. Unplug the Hand Mixer before removing accessories.

TURBO BUTTON

The button enables you to boost mixing power if you need it briefly. Press and hold the Turbo button. The mixing power will increase while the button is present. Release the Turbo button once the desired result is achieved.

NOTE: The Turbo button should only be pressed for a few seconds at a time. Running the mixer with the Turbo button pressed continuously may damage the mixer.

Speed Attachment Description
		For slow mixing, combining, and starting all mixing procedures. Use this speed to mix in nuts, chocolate chips, shredded cheese, burbs, cloans, and other chunky ingredients. Mix flour and other dry ingredients with liquids or other mold mixtures. Help prevent ingredients from splashing out of bow.
1
2		Mix pancake batter.
3		Combining heavy mixtures, such as cookie dough. Mixing light cream cheese spreads. S Michigan ballers and gelatin mixtures.
4		Combining heavy cream cheese mixtures. Meshing potatoes or sugars.
5		Mixing muffins, quick bases, butter breads, cake batters, and trostings. Bending butter and sugar.

NOTE: Beater accessories are not designed for mixing and kneading bread dough.

This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Contact the customer service department for any unusual issues you may experience.

CLEANING

HAND MIXER BODY

CAUTION:

Never immerse the motor body, plug or cord in water or any other liquid. Doing so can result in death or electrical shock.

1. Always unplug Hand Miser before cleaning. Wipe power cord and cord strap with damp cloth. Dry with a soft cloth.

1. Wipe Hard Mixer with a clamp cloth: Dry with a soft cloth.

CLEANING THE ACCESSORIES AND ATTACHMENT

1. Always remove accessories from Hand Mixer before cleaning. Wash in dishwasher, or by hand in warm, scapy water. Firse and wine dry.

STORAGE

1. Unplug and clean unit

2. Never store the Hand Mixer while it is hot or plugged in

3. Store the motor body and accessories on the storage base.

PRODUCT WARRANTY WARRANTY REGISTRATION

This warranty applies to products sold by Galaxy Americas in the U.S. This warranty is in lieu of any other warranty and expressly applies to the individual product only.

Galen/ product is warranted for one year following purchase for defects in material and workmanship. Please save your receipt as proof of purchase is required to make a warranty claim. During this warranty period, we will provide the replacement cost of this product, a replacement or the equivalent, or repair par our discretion.

The warranty cannot be transferred through ressle, including the ressle through a 3rd party unauthorized retailer and is only bestowed upon the original consumer purchaser upon purchase from an authorized retailer.

■This warranty does not cover and excludes damage or defects caused by:

—Consumer misuse
—A1850
—Neglect including the failure to clean and/or provide adequate
regular maintenance as outlined in the user manual
—Commercial use
— Subjecting the product to any voltage outside the specified
_range
Loss of parts
— The affixing of any attachments not provided with the product
—Accident, or
—Use in a manner not intended and outlined in the user manual.
—Any subsequent damages caused by the above listed exclusions will not be covered and any claims determined to meet the

also exclusions will be denied. All liability is limited to the

purchase price and does not include any:

- Retail offered extended warranties

Tax

Other charges(including postage to send required materials) Incidental and/or consequential damages associated with the product in question.

Every implied warranty, including any statutory warranty of merchantability or fitness for a particular purpose is declared except to the extent promoted by law, in which case such warranty is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or course
quential damagec. so the above limitations may not apply to you. If you have a claim under this warranty, please call our Customer Service number: 1-800-562-0738.
For faster service, please have the model number, serial number, and receipt ready for the operator to assist you.

Please mail this warranty card to address below within 30 days of purchase. Or you can register your product on line by going to www.galanz.com\us.

Galanz Americas, 55 Challenger Road, Suite 503, Ridgefield Park, NJ 07660.

PLEASE PRINT CLEARLY.

Name

Address

City_

Phone

Model Number

Purchase Location

You must attach a copy of your purchase receipt to validate your registration.
