Product Type	Inverter Generator
Model	GV3000
Brand	Baumr-AG
Max Output	1000W
Continuous Rated Output	800W
AC Voltage	240V, 50Hz
Output Type	10A or 15A socket
Fuel Type	Regular Unleaded 95+ RON
Fuel Tank Capacity	1.4 Litres
Engine Type	OHV Air Cooled Single Cylinder 4-stroke
Engine Displacement	98cc
Engine Oil Type	10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic
Starting System	Pulling Recoil Starter
Continuous Work Time	3 hours at 50% load; 1.5 hours at 100% load
Noise Level	72 dB
Dimensions (Approx.)	480 × 380 × 430 mm
Weight (Approx.)	25 kg
Safety Features	Low oil shut-off, overload protection, spark arrestor
Maintenance Schedule	Oil change every 50 hours; air filter cleaning every 50 hours; spark plug check every 100 hours
Warranty	Refer to manual for details

Frequently Asked Questions - GV3000 Baumr-AG

What type of oil should I use for the GV3000 generator?

Use 10W-30, 10W-40, 15W-30, or 15W-40 non-synthetic engine oil. The product does not come with oil, so you must add it before first use.

How much oil does the generator need?

The exact capacity is not specified in the manual, but typically for a 98cc engine, around 0.4 to 0.6 litres. Check the oil dipstick and fill to the proper level.

Can I use the generator indoors?

No. Using a generator indoors can kill you in minutes due to carbon monoxide poisoning. Always use outdoors, far from windows, doors, and vents.

What fuel should I use?

Use regular unleaded petrol with a minimum octane rating of 95 RON. Do not use ethanol blends above E10.

How do I start the GV3000 generator?

Turn the fuel switch to ON, turn the choke to ON, gently pull the recoil starter until resistance, then pull sharply. Once warm, turn choke to OFF.

What is the continuous rated output of the GV3000?

The continuous rated output is 800W. The maximum output is 1000W, but for reliable operation, stay within 800W.

How often should I change the engine oil?

Change the oil after the first 20 hours, then every 50 hours or quarterly, whichever comes first.

What should I do if the generator won't start?

Check that the start switch is ON, the fuel switch is ON, there is enough oil and fuel, and the spark plug is connected. Refer to the troubleshooting section.

Can I connect the generator to my home electrical system?

Only a licensed electrician should connect it to a fixed installation. Improper connection can cause electric shock or damage.

How long can the generator run on a full tank?

At 50% load (400W), it runs about 3 hours. At full load (800W), about 1.5 hours.

USER MANUAL GV3000 Baumr-AG

User Manual

[Revision 5.0 July 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
• Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
• If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
- Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
- Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
- Do NOT use electrical equipment in wet conditions or in damp locations.
- Do NOT use electrical cords to lift, move or carry equipment.
- Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Inverter Generator Safety

• The generator must be operated in a well-ventilated environment (since gasoline engine exhaust/pollutants contain harmful human CO, HC and other harmful substances).
• It is necessary to stop the generator when adding fuel and oil.
• There must be no dangers of fires starting, including welding and smoking, during the operation process of the generator.
• Please check if the oil pipe is in good condition before use. If there are any safety hazards such as cracks, please use it after replacement.
• Keep away from sources of fire when re-filling with fuel. When re-filling with fuel, the generator should be turned off for 30 minutes and then re-filled with fuel. If it overflows, please wipe it clean to avoid danger.

! DANGER !

Using an engine or wood/charcoal/gas fuelled appliance indoors CAN KILL YOU IN MINUTES. Engine exhaust and wood/charcoal/gas fumes contain carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a building, home, garage, boat, caravan or tent EVEN IF doors and windows are open.

Simple line drawing of a house with a window and chimney, alongside a wireframe box with an arrow (no text or symbols)

Only use OUTSIDE and far away from windows, doors, and vents.

Avoid other hazards - READ MANUAL BEFORE USE.

GENERAL:

• Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dusts.
• Do not operate in a confined area where exhaust gases or wood/charcoal/gas fumes could reach dangerous concentrations.
• Follow all warnings in the section titled "GENERAL".
• Explosion hazard - never smoke while refuelling.
  • Take care not to spill fuel. When refuelling the engine, ensure that the engine has been allowed to cool. Prevent spilling of fuel as this may also ignite with a hot engine.
• Never refuel while engine is running.

PRODUCTS FEATURING AN ENGINE

GENERATORS

• Follow all warnings in the sections titled "GENERAL" and "PRODUCTS FEATURING AN ENGINE".
• The output of this generator is potentially lethal. The generator should not be connected to a fixed electrical installation except by an appropriately licensed person.
• Not weatherproof – protect your machine. This machine is not weatherproof and should not be exposed to direct sunlight, high ambient temperature, damp conditions, wet conditions or high humidity conditions.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety....2

Safety Symbols 4

Parts Identification....7

Routine Checks Before Starting Up 8

Engine Oil....8

Air Filter 8

Fuel 8

Operation 8

Maintenance 9

Troubleshooting.... 10

Specifications.... 10

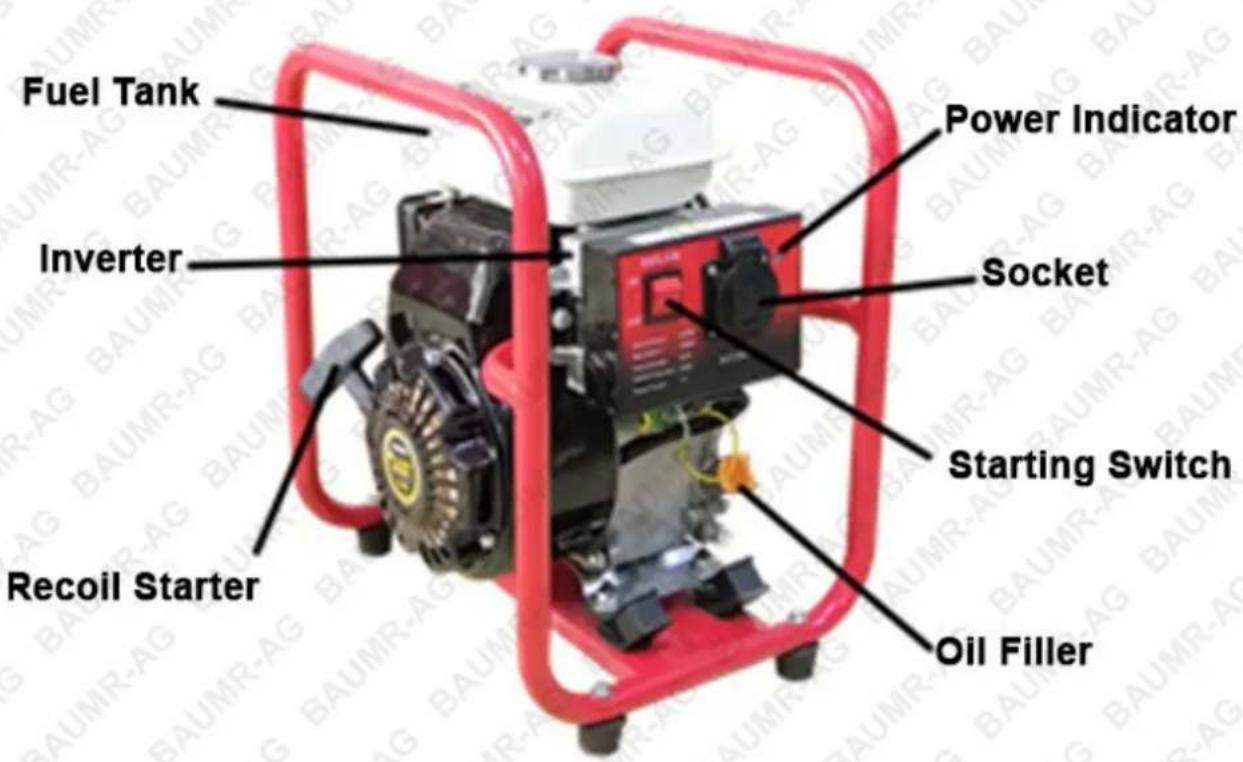

Parts Identification

Spare parts available for purchase, scan QR code below:

Routine Checks Before Starting Up

Engine Oil

CAUTION!

• It is necessary to check whether there is enough oil before each start-up, otherwise it will cause serious damage to the generator.
• Whenever you check on the gasoline generator, make sure that the engine has completely stopped, and the generator is placed on a horizontal plane.

Air Filter

Check the air filter carefully to make sure it is clean and in good working condition. If needed, clean the air filter or have it replaced with a new one.

Fuel

• Re-filling fuel should be conducted in a well-ventilated place once the engine has completely stop. Do NOT re-fill fuel while smoking or when open fire/strong heat sources are nearby. Do NOT store fuel where there is open fire or sparks.
• Do not over-fill with fuel (top fuel level should not appear above the fuel inlet filter screen). Ensure that the fuel tank lid is tightly secured after re-filling.
• Make sure not to spill any fuel when re-filling. Spilled fuel or fuel vapours can create dangerous fires! Clean-up any spilled fuel and ensure that the spilled area is completely dry before starting up the generator.

Operation

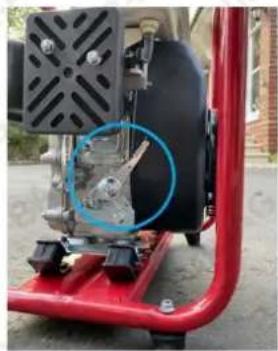

PLEASE NOTE: The throttle lever is pre-configured at the factory, do not adjust under any circumstances.

Close-up of a red industrial machine with a blue circular annotation highlighting a mechanical component (no visible text or symbols)

1. Turn the fuel switch to the "ON" position.
2. Turn the choke switch to the "ON" position.
3. Gently pull the recoil starter until you feel some resistance, then swiftly pull the recoil starter to start the engine.

CAUTION! Always avoid releasing the recoil starter from your hand suddenly to prevent the recoil starter from bouncing back and hit the engine. Slowly put the recoil starter back to its original position.

1. When the engine is sufficiently warmed-up, gradually turn the choke switch to the "OFF" position.

Maintenance

1. Stop the generator before performing any maintenance operations.
2. To prevent the generator from accidentally starting, please turn the ignition switch to the "OFF" position and disconnect the spark plug.

CAUTION! Please use authentic and/or authorised spare parts. Poor quality spare parts can damage the generator. Performing regular inspections and adjustments will keep the generator in good working condition. Regular maintenance will ensure long-term use of the generator.

Maintenance Schedule

		Each use	First month or first 20 hours	Quarterly or every 50 hours	Every six months or every 100 hours	Every year or every 300 hours
Oil	Check	√
	Change		√		√
Air Filter	Check	√
	Clean			√1
Sediment Bowl	Clean				√
Spark Plug	Check-Clean				√
Valve Clearance	Check-Clean					√2
Combustor	Clean					√2
Oil Tank and Oil Filter	Clean					√2
Fuel System	Check	Every two years (change when necessary) ^2

NOTE:

1. More frequent maintenance is required if the generator will be used in dirty/dusty environments.
2. Visually check the spark plug and scrap it if it is obviously worn-out or if the insulator has any cracks or defects. Clean the spark plug with a wire brush.
3. Use a feeler gauge to measure the spark plug gap. Pull the electrode for adjustments. The correct clearance should be 0.7 - 0.8mm.

Troubleshooting

When the generator does not start with the recoil starter, check:

• If the starting switch is on the "ON" position.
  • If there is enough lubricant.
• If the fuel switch is on the "ON" position.
  • If there enough fuel in the fuel tank.

- If the fuel reaches the carburettor, loosen the carburettor drain bolt and turn the fuel switch to "ON" to check.

WARNING! If there is any fuel spillage, it must be thoroughly cleaned-up and wait for the spill spot to completely dry before detaching the spark plug or starting the generator, otherwise it can cause a fire.

Specifications

Max Output	1000W
Continuous Rated Output	800W
AC Voltage	240V 50Hz
Output Type	10A or 15A
Fuel Type	Regular Unleaded 95+RON
Fuel Tank Capacity	1.4 Litres
Engine Type	OHV Air Cooled Single Cylinder 4 stroke
Engine Oil Type	10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil (not included with purchase)
Engine Displacement	98cc
Continuous Work Time	3hr (50% load) 1.5hr (100% load)
Starting System	Pulling Recoil Starting
Noise Level	72db

PLEASE NOTE: 'Continuous Rated Output' is what power this generator will consistently and reliably provide. We strongly recommend that you consider this figure when determining whether this model suits your requirements.

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

Bäumr-AG®.com.au

©2022 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
