Product Type	Moving Head Spot
Brand	Elation
Model	Fuze Spot
Light Source	200W LED
Beam Angle	6°-42° motorized zoom
Movement	Pan 540°, Tilt 270°
DMX Channels	16
Dimensions (LxWxH)	380 x 280 x 480 mm
Weight	12 kg
Power Supply	100-240V AC, 50/60Hz
Power Consumption	220W
Protocols	DMX512, Art-Net (optional)
Key Features	Motorized zoom, rotating gobos, prism, dimmer, strobe
Maintenance	Clean lens with a soft cloth
Safety	Automatic overheat shutdown, fuse protection
Spare Parts & Repairability	LED module, fuse, gobo wheel (not included)
General Information	Indoor use, IP20

Frequently Asked Questions - Fuze Spot Elation

How do I reset the fixture to factory defaults?

To reset the Elation Fuze Spot, press and hold the Menu button for 5 seconds until the display shows 'Reset'. Select 'Factory Defaults' and confirm with Enter. The fixture will reboot.

Which DMX protocol does the Fuze Spot use?

The Fuze Spot supports standard DMX512 protocol via 5-pin XLR connectors. It also has the option for Art-Net over Ethernet (requires optional module).

How do I replace the LED light source?

Replacing the LED requires disassembly. Disconnect power, remove the head cover, unscrew the LED module, and disconnect the cables. Install the new module and reverse steps. For safety, consult a qualified technician.

Can I use a standard 3-pin DMX cable?

Yes, you can use a 3-pin DMX cable with a 5-pin to 3-pin adapter (not included). The fixture has 5-pin XLR connectors, but the pinout matches DMX standard (pin 1 ground, pin 2 data -, pin 3 data +).

How do I clear all custom settings?

Go to the menu, select Fixture Settings, then Clear All. Confirm with Enter. This resets pan/tilt offsets, DMX address, and custom programs to default.

What is the LED lifespan?

The 200W LED has an average lifespan of 50,000 hours under normal operating conditions. Actual lifespan may vary based on temperature and usage.

How do I update the firmware?

Download the latest firmware from the Elation website. Connect the fixture to a PC via USB (use optional USB-DMX interface) and run the update software. Follow on-screen instructions.

Can the Fuze Spot operate in standalone mode?

Yes, it has a standalone mode. Set the DMX address to 1 and select Auto program in the menu. It will run built-in shows with music or sound activation if enabled.

What should I do if the fan is noisy?

Noisy fan may indicate dust buildup or bearing wear. Clean the fan with compressed air. If noise persists, contact support for replacement parts.

How do I adjust the zoom motor?

Use the Zoom control channel (channel 6 on 16-channel mode) via DMX. Or in menu, select Manual Control then Zoom and use the arrow keys to set the desired angle.

USER MANUAL Fuze Spot Elation

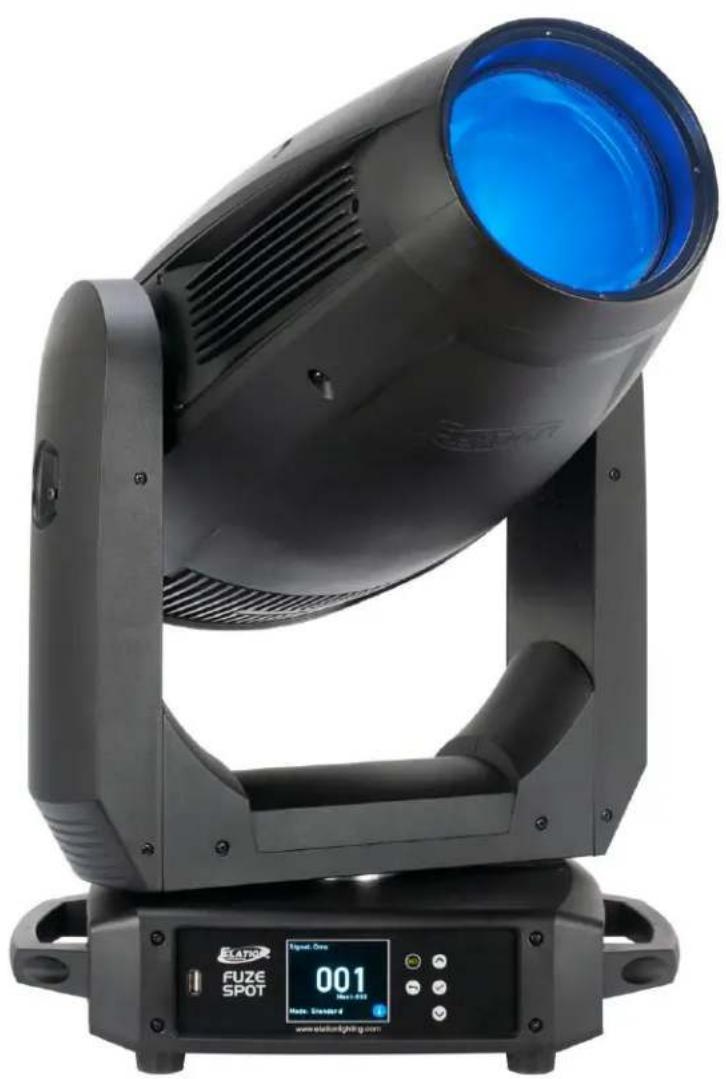

Exterior view of a black EFATR FUZE SPOT radar light with blue lens and digital display (no text or symbols on the device itself)

FUZE SPOT™

user manual

©2023 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ELATION brands and product names are trademarks or registered trademarks of their respective companies.

ELATION PROFESSIONAL and all affiliated companies hereby disclaim all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or because of the improper, unsafe, insufficient, and negligent assembly, installation, rigging, and operation of this product.

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | [e-mail]

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

[phone] | [phone] fax | www.elationlighting.eu | [e-mail]

Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000

[phone]

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online. Please scan the QR Code with your mobile device or visit www.elationlighting.com for the latest revision/update of this manual before installation and/or programming.

Date	Document Version	Software Version ≥	DMX Channel Modes	Notes
08/15/19	1.0	1.0.3	(RGBMA 31 / 41) (CMY 29 / 37)	Initial release.
08/27/19	1.1	N/C	NO CHANGE	Updated default DMX values for RGBMA.
05/12/20	1.2	N/C	NO CHANGE	Updated Installation Instructions.
07/20/20	1.3	N/C	NO CHANGE	Updated thermal
08/10/20	1.4	N/C	NO CHANGE	Updated color temp
10/09/20	1.5	1.09	NO CHANGE	Updated specifications, and primary/secondary modes
03/10/21	1.6	1.0.10	NO CHANGE	Updated System Menu, DMX Traits
05/12/23	1.7	N/C	NO CHANGE	Added software updating information

CONTENTS

General Information 4

Limited Warranty (USA Only) 5

Safety Guidelines 6

Maintenance Guidelines 8

Overview 9

Colors 10

Gobos and Animation Wheels 11

Custom Gobos 12

Gobo Replacement 13

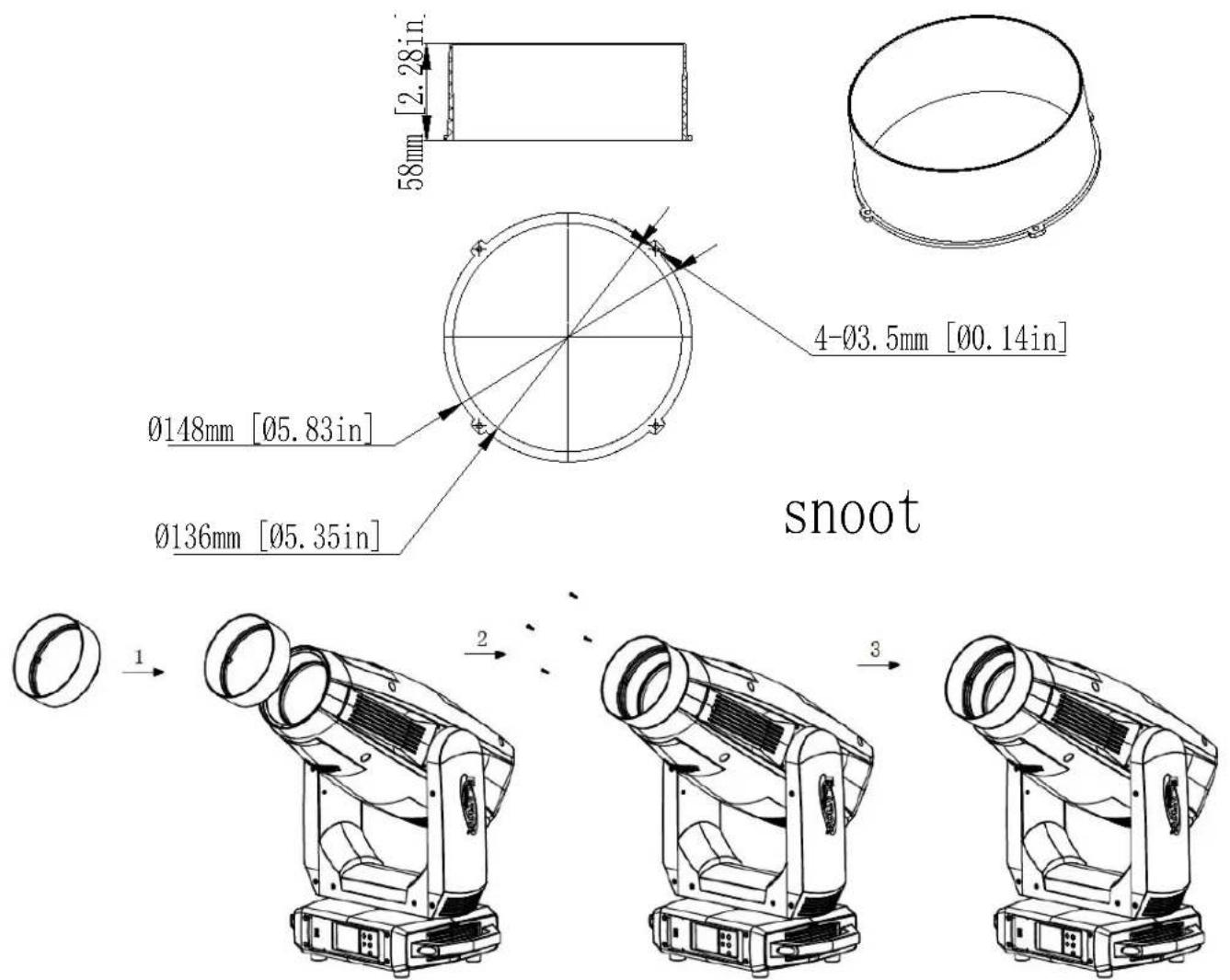

Snoot Installation 17

Installation 18

System Menu 22

Color LED Programming Guidelines 26

DMX Traits 27

Remote Device Management (RDM) 35

Color Temperature Table 36

Virtual Gel Swatch Book Table 37

Error Codes 38

Specifications 39

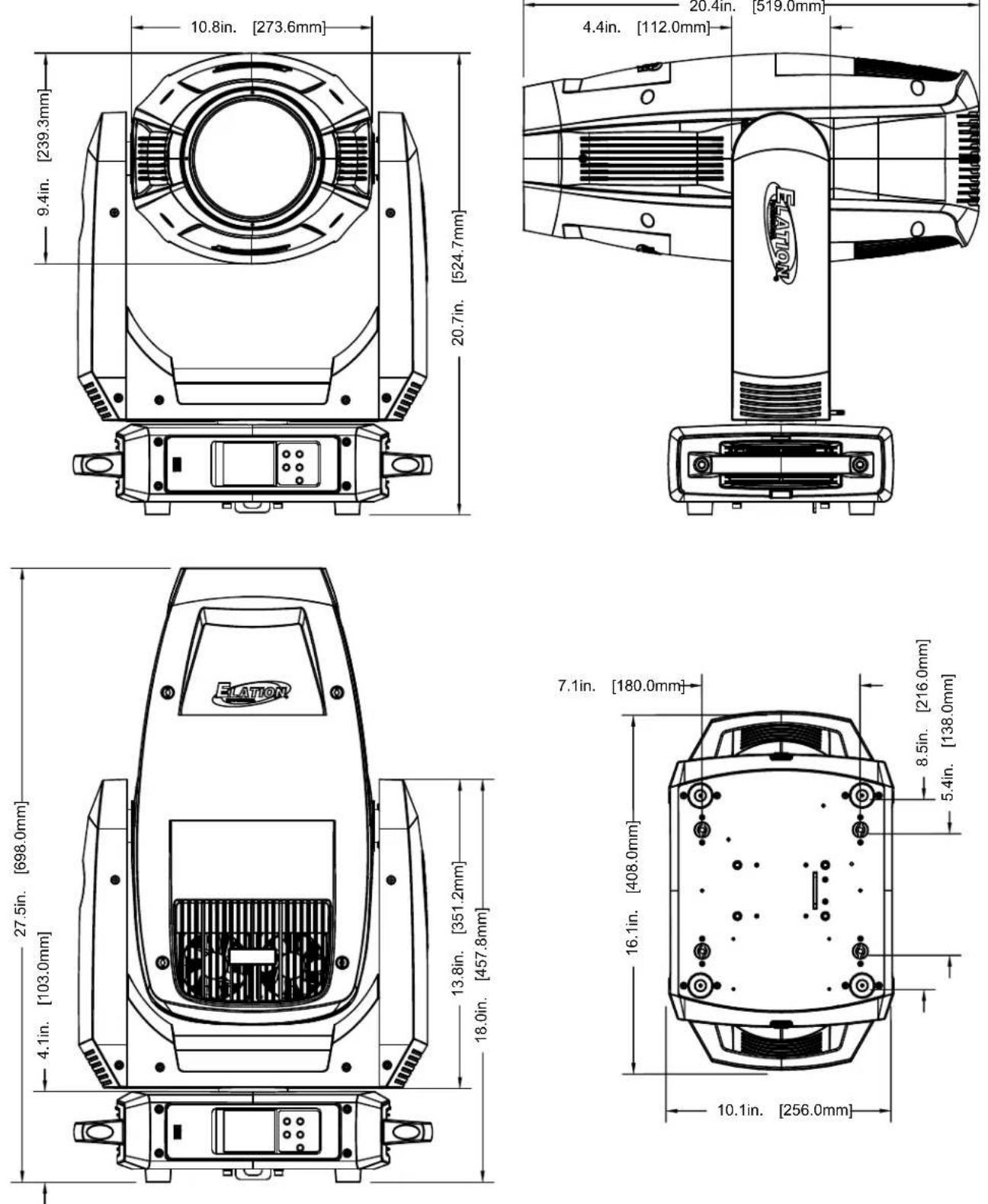

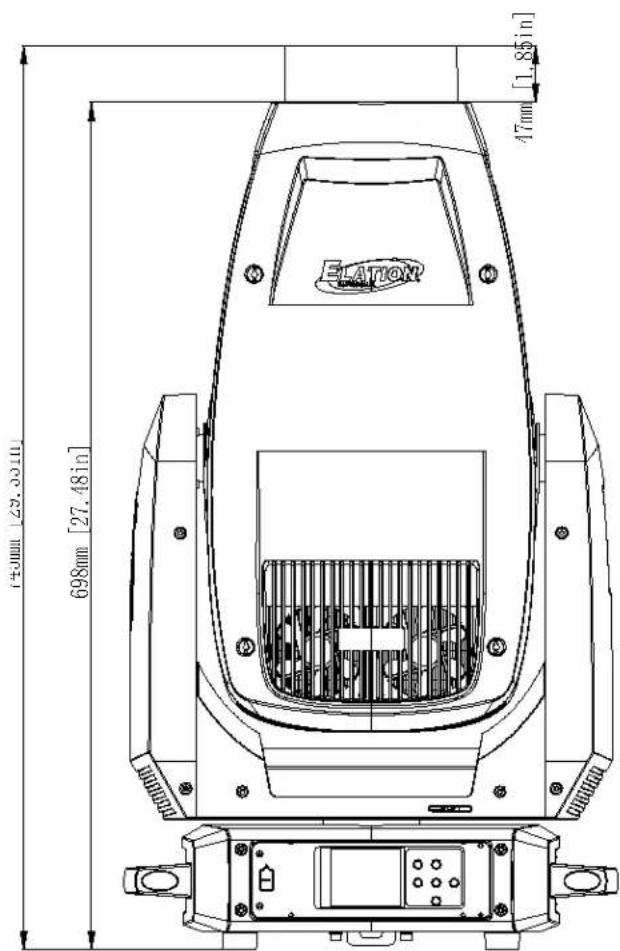

Dimensional Drawings 40

Optional Accessories | FCC Statement 42

GENERAL INFORMATION

FOR PROFESSIONAL USE ONLY

INTRODUCTION

Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information.

UNACKING

Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary to install and operate the device have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions.

Please do not return this device to your dealer without first contacting customer support.

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

BOX CONTENTS

Snoot

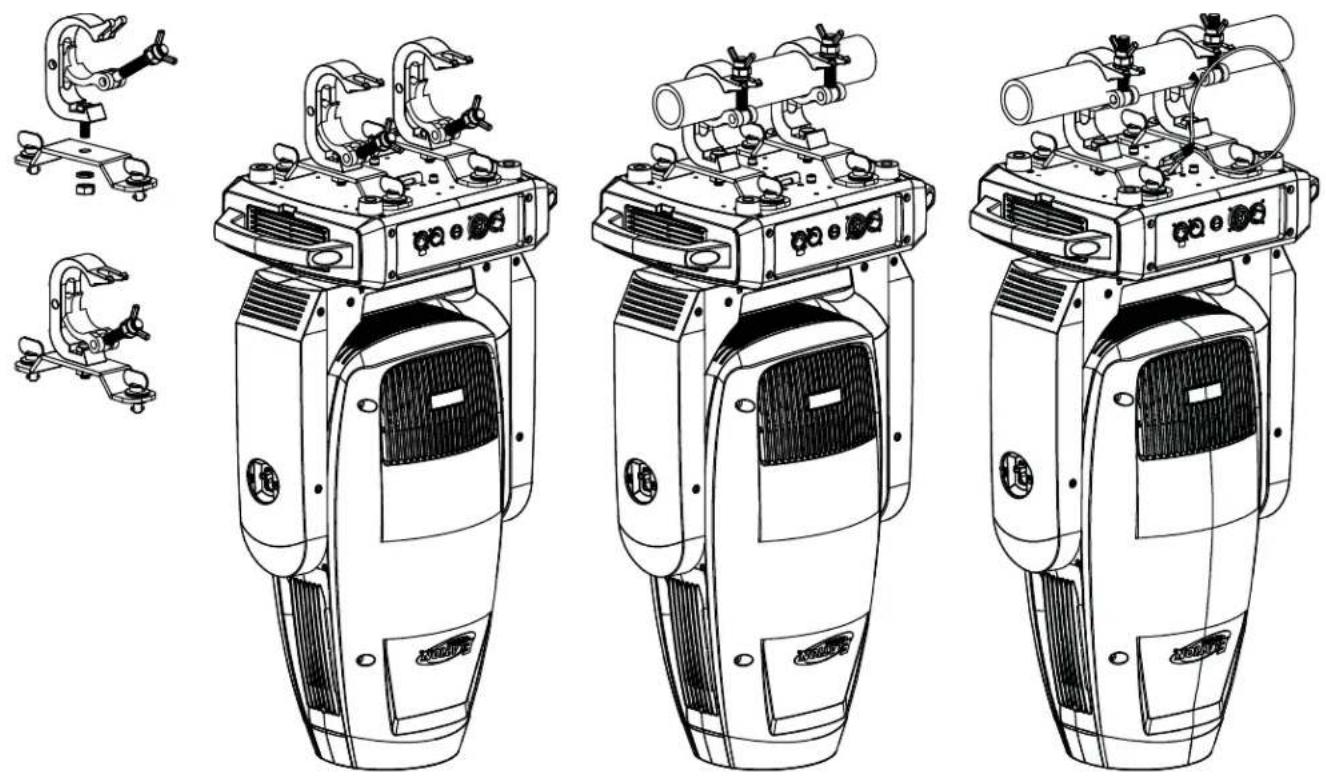

Omega Brackets (x2)

Twist Locking Power Connector (x1)

CUSTOMER SUPPORT

Contact ELATION Service for any product related service and support needs.

Also visit forums.elationlighting.com with questions, comments, or suggestions.

ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

323-582-3322 | Fax [phone] | [e-mail]

ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

[phone] | Fax [phone] | [e-mail]

REPLACEMENT PARTSplease visit parts.elationlighting.com

It is strongly recommended to power the fixture down completely when not in use. Doing so will reduce wear on the fixture due to sustained or extended operational periods, thereby maximizing its operational lifespan.

LIMITED WARRANTY (USA ONLY)

A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to be free of manufacturing defects in material and workmanship for a period of two years (730 days), and Elation Professional product rechargeable batteries to be free of manufacturing defects in material and workmanship for a period of six months (180 days), from the original date of purchase. This warranty excludes discharge lamps and all product accessories. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability whatsoever for loss and/or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner which Elation Professional concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Elation Professional factory unless prior written authorization was issued to purchaser by Elation Professional; if the product is damaged because not properly maintained as set forth in the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning, or periodic check-up. During the periods as specified above, Elation Professional will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Elation Professional. All products covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect.
E. Elation Professional reserves the right to make changes in design and/or performance improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with the products described above. Except to the extent prohibited by applicable law, all implied warranties made by Elation Professional in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said periods have expired. The consumer's and/or dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional be liable for any loss and/or damage, direct and/or consequential, arising out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

WARRANTY RETURNS

All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper and included in the shipping container. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. Items returned without a R.A. number clearly marked on the outside of the package will be refused and returned at customer's expense. You may obtain a R.A. number by contacting customer support.

SAFETY GUIDELINES

This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts (omega brackets) included with this fixture should be used for installation. Any modifications to the fixture and/or the included mounting hardware will void the original manufactures warranty and increase the risk of damage and/or personal injury.

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACUTER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER'S WARRANTY, AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

DO NOT PLUG FIXTURE INTO A DIMMER PACK!

NEVER OPEN THIS FIXTURE WHILE IN USE!

UNPLUG POWER BEFORE SERVICING FIXTURE!

NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!

KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

RETINA INJURY RISK - MAY INDUCE BLINDNESS!

SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

INDOOR / DRY LOCATIONS USE ONLY!

DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!

MINIMUM DISTANCE TO OBJECTS/SURFACES

MUST BE 1.6 FOOT (0.5 METER)

MINIMUM DISTANCE OF INFLAMMABLE MATERIALS

FROM THE SURFACE 1.6 FEET (0.5 METER)

MAXIMUM AMBIENT OPERATING TEMPERATURE 113°F (45°C)

SAFETY GUIDELINES

DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving.

DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the power cord connectors are damaged and do not insert into the fixture securely with ease. NEVER force a power cord connector into the fixture. If the power cord or any of its connectors are damaged, replace it immediately with a new one of similar power rating.

DO NOT block any air ventilation slots.

All fan and air inlets must remain clean and never blocked.

Allow approx. 6" (15cm) between fixture and other devices or a wall for proper cooling.

Always disconnect fixture from main power source before performing any type of service and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by tugging the wire portion of the cord.

During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. This is a normal process and is caused by excess paint in the interior of the casing burning off from the heat associated with the lamp and will decrease gradually over time.

Consistent operational breaks will ensure fixture will function properly for many years.

ONLY use the original packaging and materials to transport the fixture in for service.

It is strongly recommended to power the fixture down completely when not in use. Doing so will reduce wear on the fixture due to sustained or extended operational periods, thereby maximizing its operational lifespan.

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture's optics. Clean the external lens surface at least every 20 days with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to insure proper function and extended life.

There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

Please refer to the following points during routine inspections:

A detailed electric check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating.

Be sure all screws and fasteners are always tightened securely. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall.

Check for any deformations on the housing, color lenses, rigging hardware and rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously injure a person(s).

Electric power supply cables must not show any damage, material fatigue or sediments NEVER remove the ground prong from the power cable.

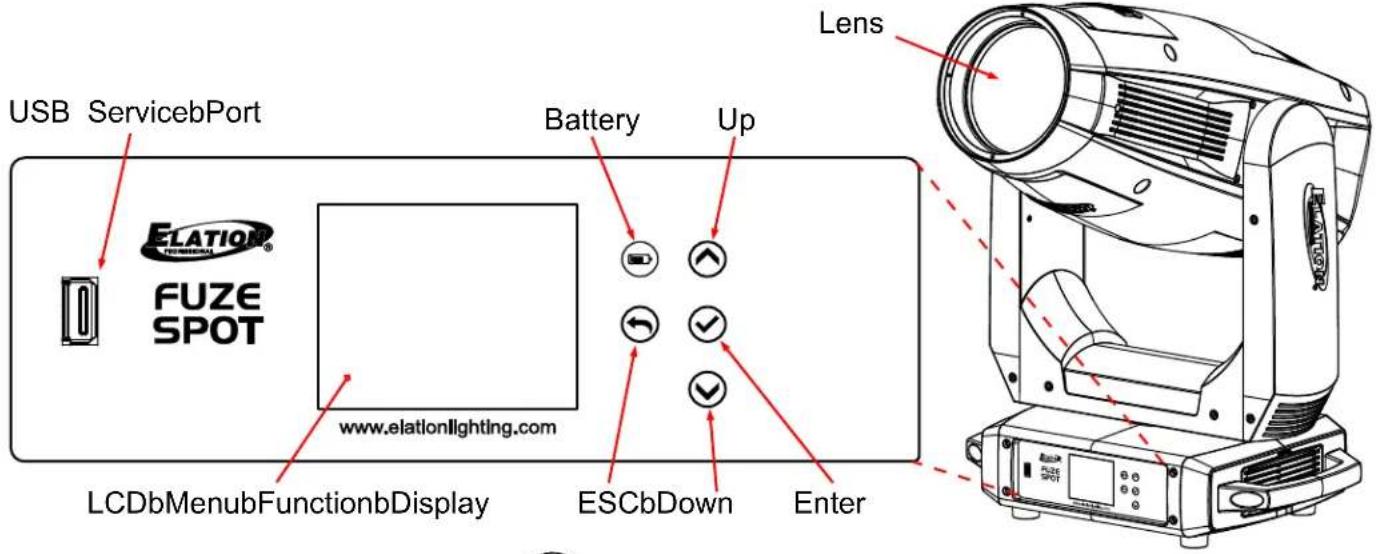

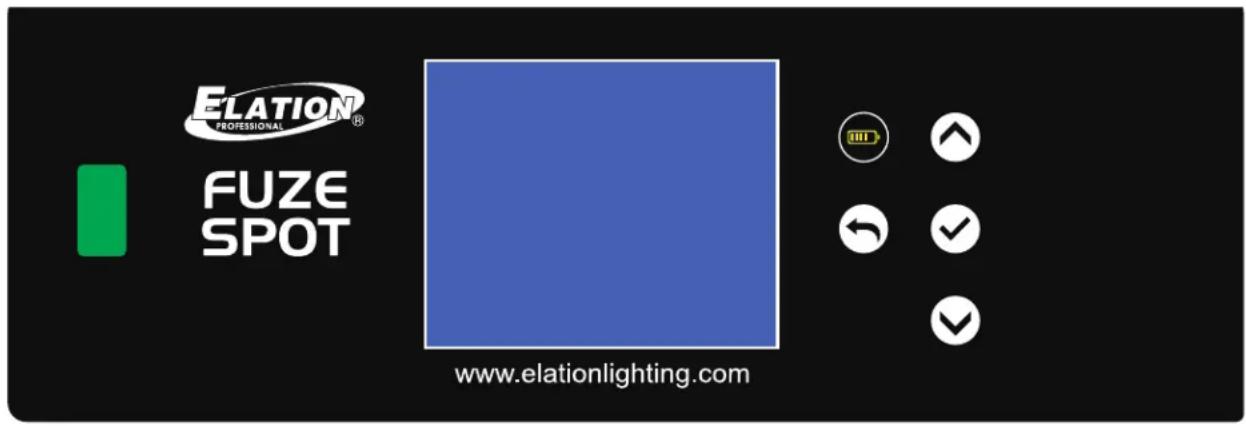

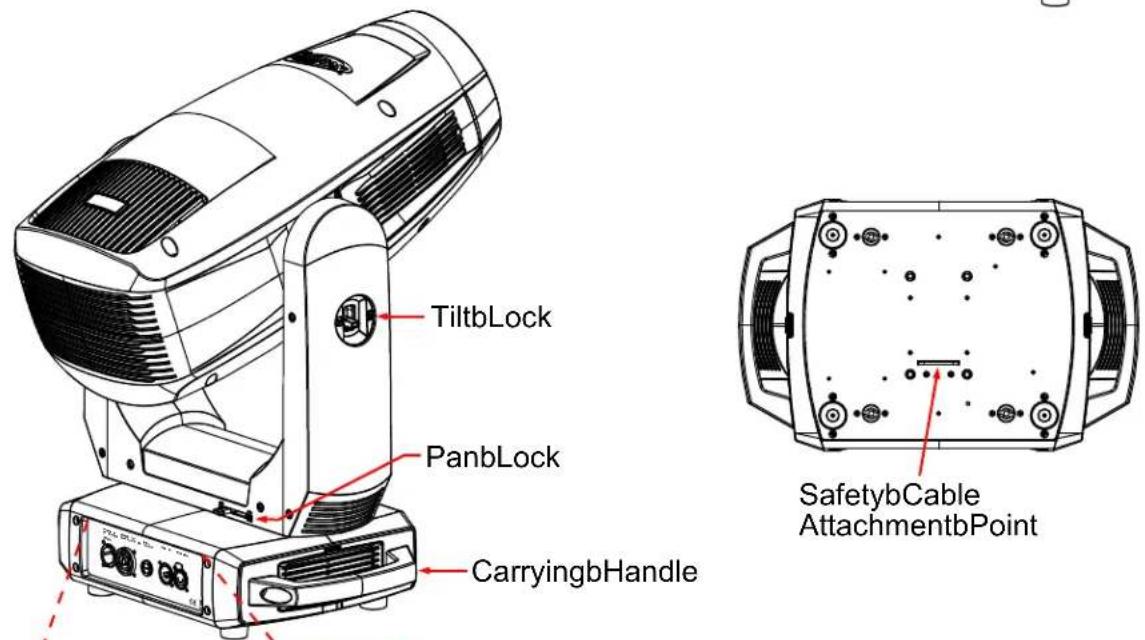

OVERVIEW

POWER IN AC 100-240V 50/60Hz

POWER OUT MAX:100-240V 8A

FUSE: T5A/250V

DMX IN

DMX OUT

CE

COLORS

Colors	Color Temperature	Green Shift
Cyan	2400K – 8500K	Full Minus Green to Neutral
Magenta
Yellow
Red		Neutral White
Green
Blue		Neutral to Full Plus Green
Mint
Amber

Virtual Gel Swatch Book Colors

7	Pale Yellow	157	Pink	68	Sky Blue
103	Straw	36	Medium Pink	143	Pale Navy Blue
151	Gold Tint	111	Dark Pink	131	Marine Blue
100	Spring Yellow	128	Bright Pink	115	Peacock Blue
10	Medium Yellow	148	Bright Rose	172	Lagoon Blue
101	Yellow	332	Special Rose Pink	116	Medium Blue Green
104	Deep Amber	793	Vanity Fair	90	Dark Yellow Green
15	Deep Straw	113	Magenta	139	Primary Green
179	Loving Amber	46	Dark Magenta	122	Fern Green
21	Gold Amber	48	Rose Purple	89	Moss Green
105	Orange	126	Mauve	124	Dark Green
158	Deep Orange	49	Medium Purple	88	Lime Green
22	Dark Amber	58	Lavender	138	Pale Green
778	Millennium Gold	199	Palace Blue	203	Quarter CT Blue
135	Deep Golden Amber	119	Dark Blue	202	Half CT Blue
24	Scarlet	132	Medium Blue	201	FULL CT Blue
106	Primary Red	120	Deep Blue	200	Double CT Blue
26	Bright Red	165	Daylight Blue	206	Quarter CT Orange
27	Medium Red	161	Slate Blue	205	Half CT Orange
19	Fire	118	Light Blue	204	FULL CT Orange

GOBOS AND ANIMATION WHEELS

INTERCHANGEABLE-ROTATING GLASS GOBO WHEEL 1

1

2

3

4

5

6

INTERCHANGEABLE-ROTATING GLASS GOBO WHEEL 2

1

2

3

4

5

6

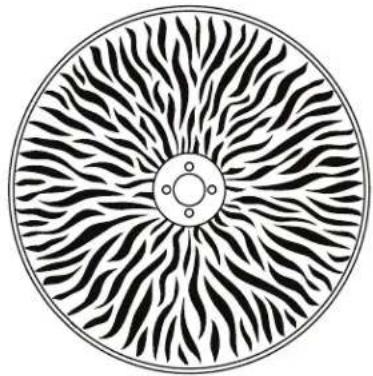

ANIMATION WHEEL

Circular decorative pattern with black and white wavy lines radiating from a central hole (no text or symbols)

CUSTOM GOBOS

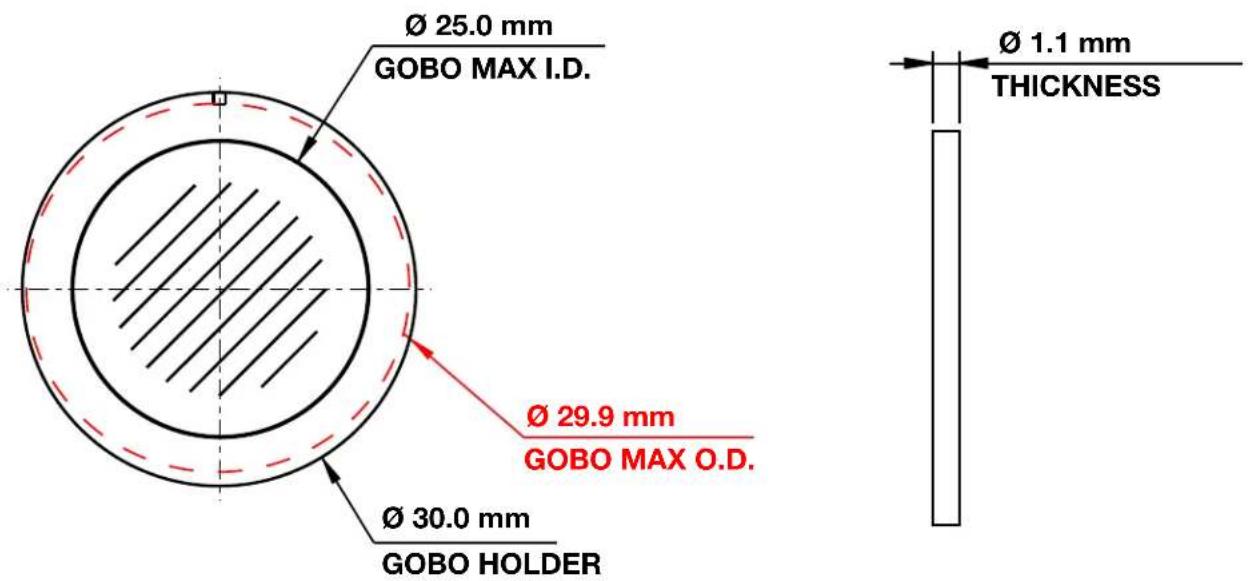

FUZE SPOT ROTATING GLASS GOBOS - WHEELS 1 & 2
Gobo O.D. (Max. Outer Diameter)	29.9mm
Gobo I.D. (Max. Image Diameter)	25.0mm
Gobo Holder Diameter	30.0mm
Gobo Thickness	1.1mm
Gobo Material	High Temp Glass(Max 600C°)

\*\*\* IMPORTANT NOTICE REGARDING CUSTOM GOBOS \*\*\*

Due to the high temperature optical system, special material as listed above is required for custom gobos. Due to varying manufacturing processes and tolerances, it is highly recommended to provide a gobo sample and holder from the fixture to the custom gobo vendor for accurate sizing. Extended testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for further information.

ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax [phone] | [e-mail] ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET [phone] | Fax [phone] | [e-mail]

GOBGOBO REPLACEMENT

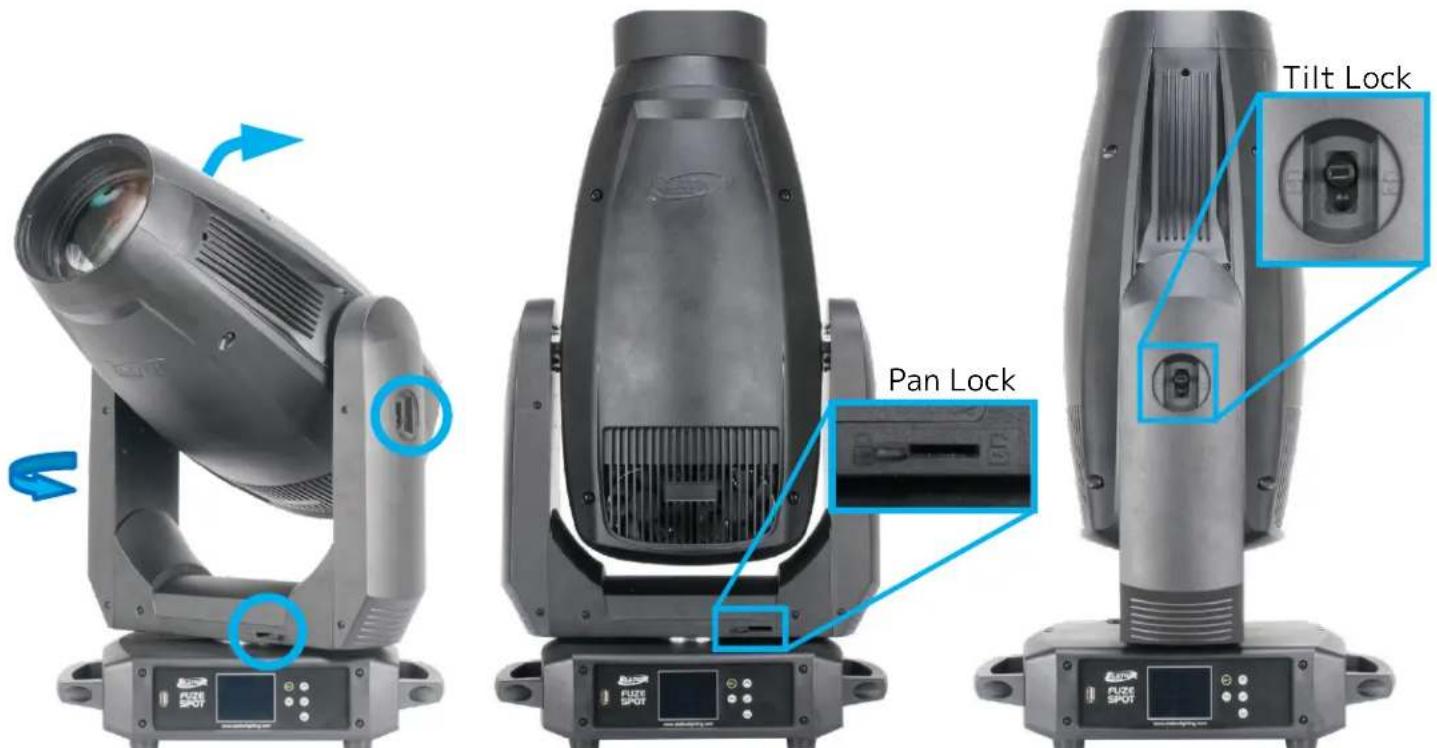

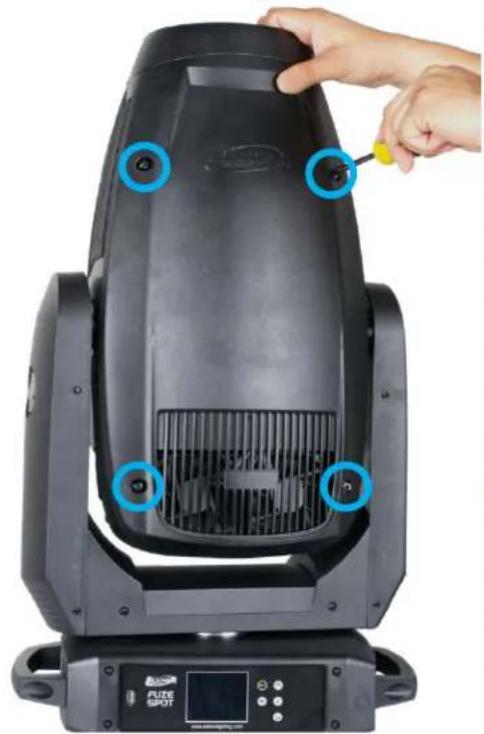

1. Before removing covers, place fixture on a stable flat surface in an INDOOR DUST FREE location. Ensure moving head is locked into a neutral upright position with both PAN and TILT locks engaged.

Close-up of a black outdoor spotlights with blue circular annotations pointing to specific points on the blade (no text or symbols visible)

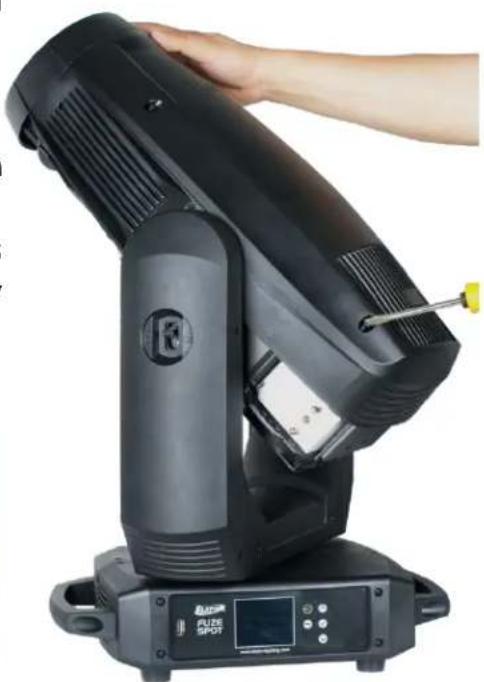

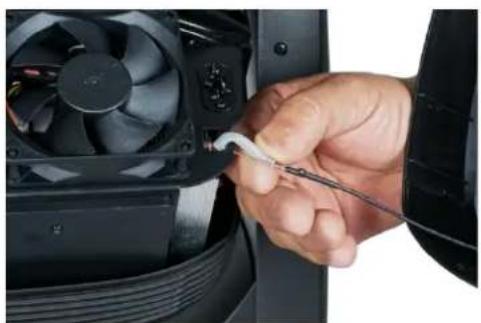

1. Unfasten and remove the front and back panels; each are secured with (4x) ¼-turn Phillips-head screws. (These screws are integrally installed in both panels and cannot be removed.) With the panel screws unfastened, unclip their safety cables to remove them completely from the fixture.

Close-up of a hand inserting a cable into a computer fan (no visible text or symbols)

Hand holding a black industrial radar or lighting fixture with a digital display and screwdriver (no visible text or symbols)

GOBO REPLACEMENT

1. The Control Module impedes the removal of the GOBO Wheel Module and will need to be remove to access the GOBO Wheel Module. The Control Module is secured to the fixture frame rail with (2x) slotted thumb screws.

Interior view of a robotic vehicle showing mechanical components and wiring (no visible text or symbols)

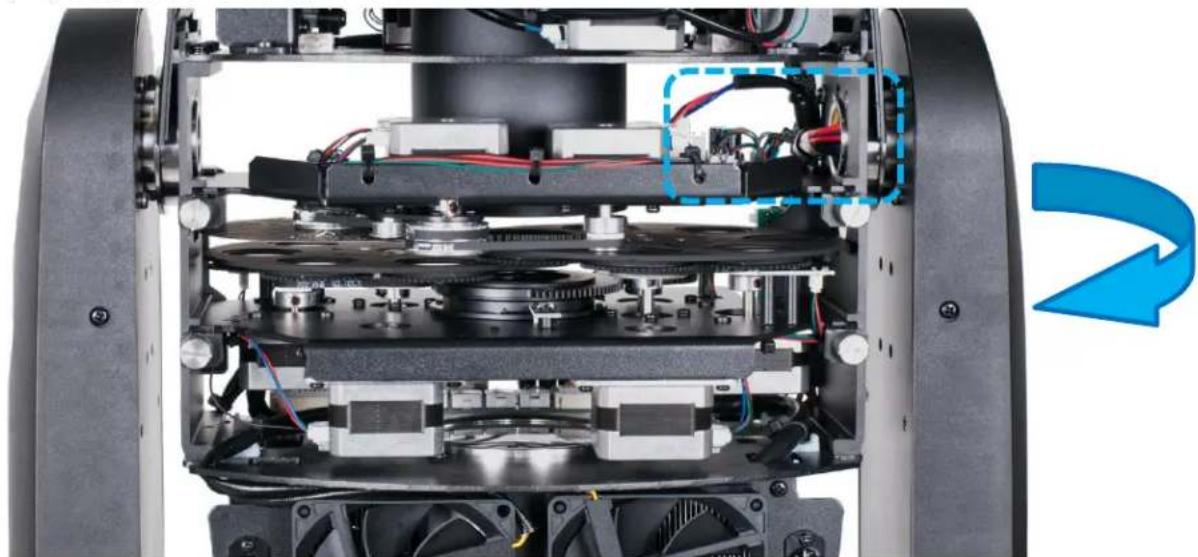

1. To disconnect the Control Module, rotate the gimble to access the two connectors on opposite side.

Three-panel photo showing a hand using a tool to adjust battery components in a circuit board (no visible text or symbols)

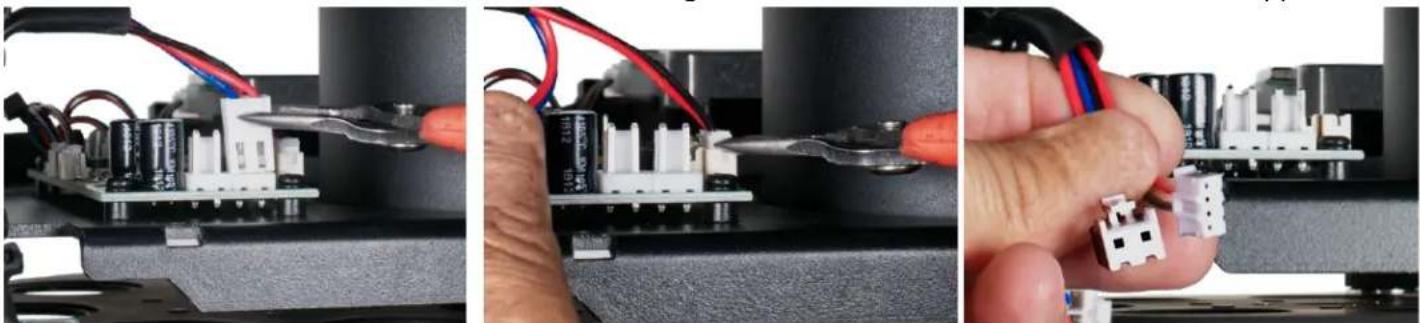

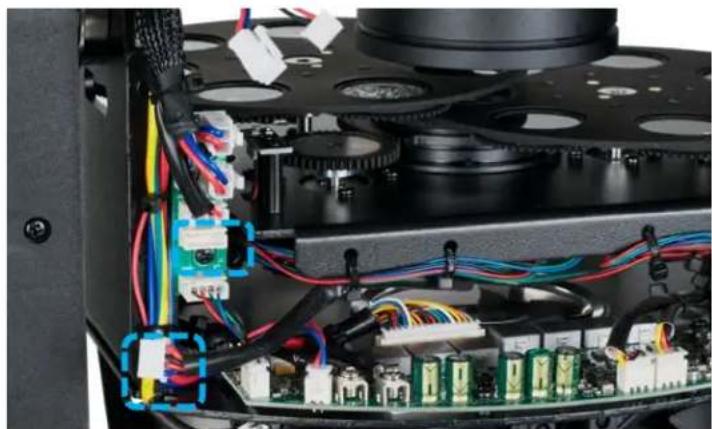

1. Locate the 2-pin and 4-pin Control Module connectors and carefully unplug them from the connector bases. DO NOT USE FORCE TO REMOVE CONNECTORS!

GOBO REPLACEMENT

Close-up of a robotic device's internal components with a hand adjusting parts, showing no visible text or symbols.

Close-up of hands assembling electronic components on a robotic device (no visible text or symbols)

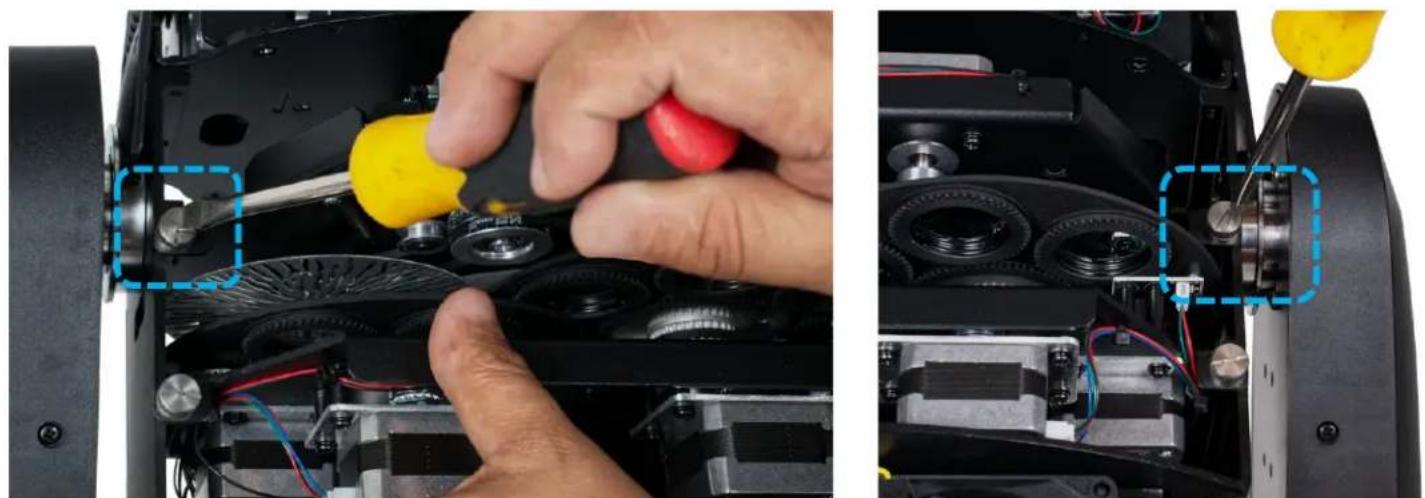

1. Impeding the removal of the Control Module is the lens housing of the Lens Module, which is set within the lens aperture. Lift the Lens Module to clear the lens housing from the lens aperture in the Control Module. With the Lens Module lifted, carefully grip the Control Module and slide it out and away to clear the mounting rails.

Close-up of a hand inserting colored wires into a device (no visible text or symbols)

Interior view of a mechanical device showing internal components like gears, wires, and electronic modules (no visible text or symbols)

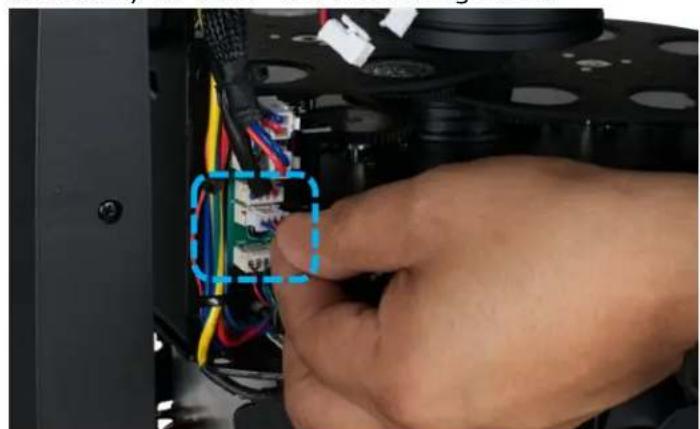

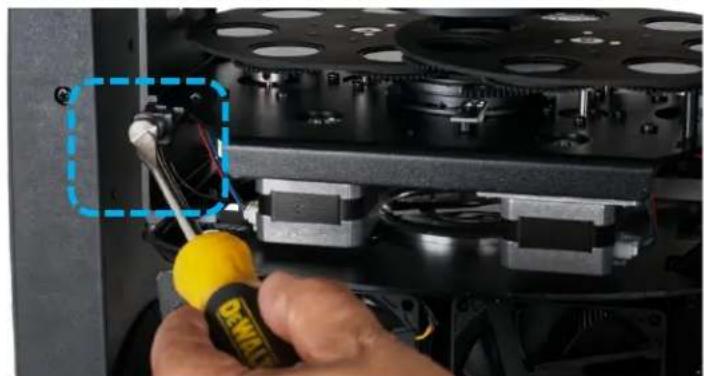

1. Locate the 4-pin GOBO Wheel Module connector and carefully unplug it from the connector bas DO NOT USE FORCE TO REMOVE CONNECTOR!

Close-up of a hand using a screwdriver to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand using a screwdriver to adjust or install electronic components on a mechanical device (no visible text or symbols)

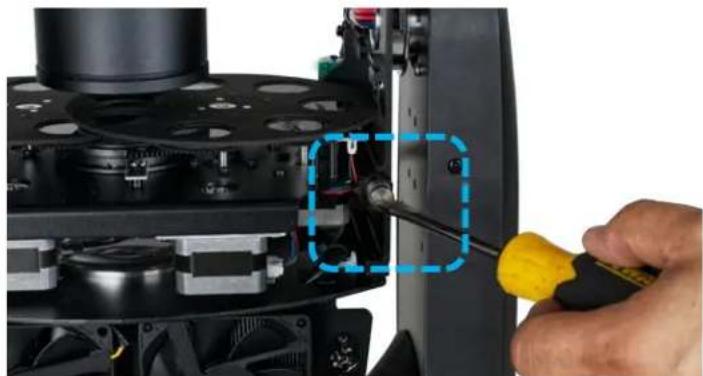

1. Loosen the (2x) slotted thumb screws that secure the GOBO Wheel Module.

GOBO REPLACEMENT

Close-up of hands holding a black film reel with circular indentations and a hole (no text or symbols visible)

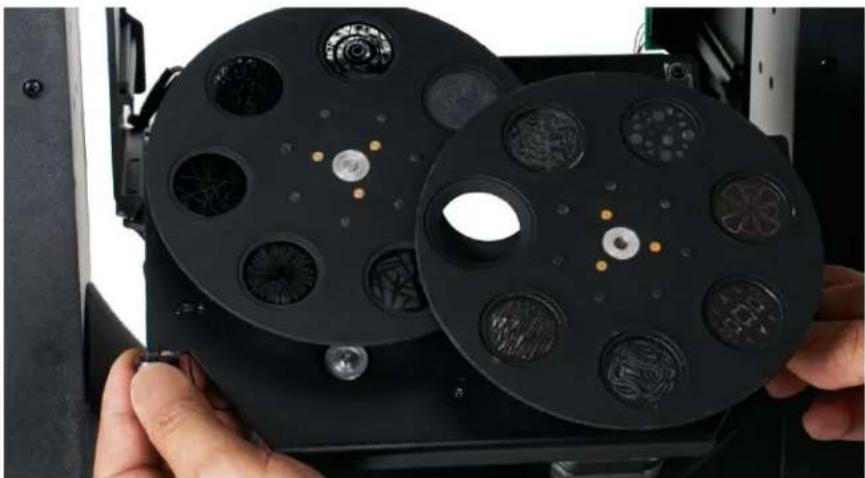

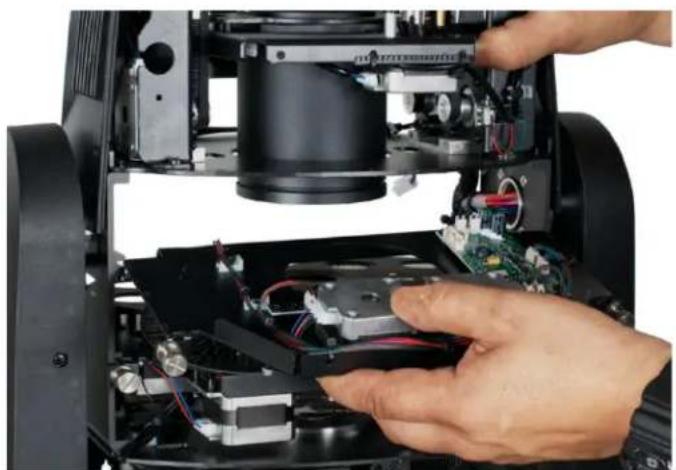

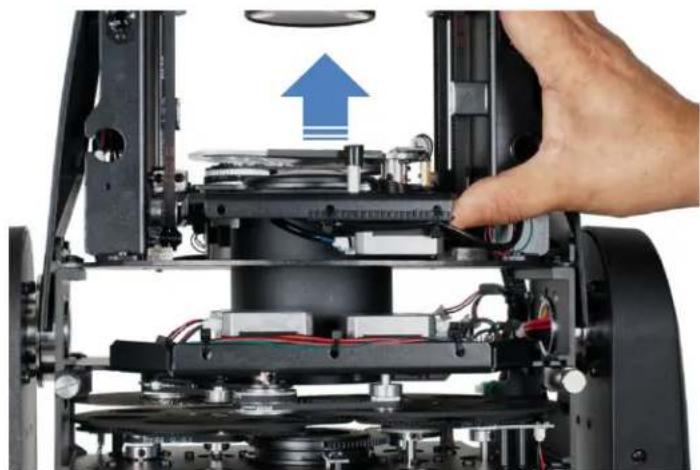

1. Carefully grip the GOBO Wheel module and slide it out and away to clear the mounting rails, and then carefully place the module on a stable flat surface in an INDOOR DUST FREE location.

Close-up of hands assembling a mechanical component with gear and meshing, showing tool path and magnified view (no text or symbols)

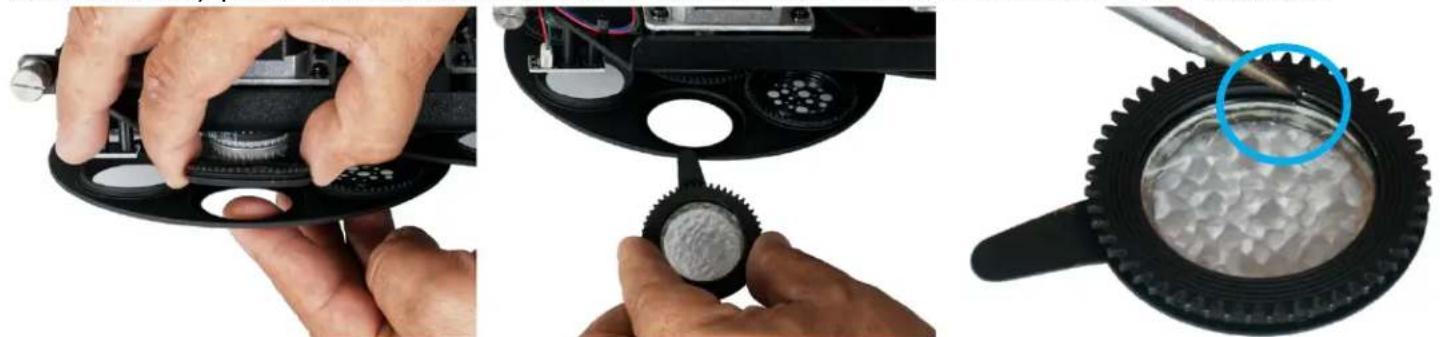

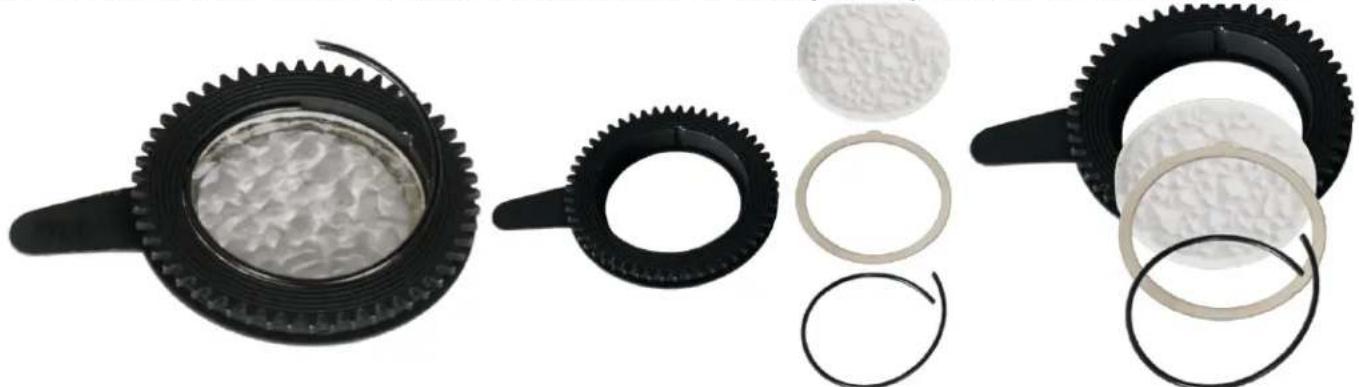

1. REPLACING A ROTATING GOBO Locate the specific Rotating GOBO to replace. Carefully grip the GOBO Holder using your index finger and gently lift it slightly, and then with your fingers pull it out and away until it fully clears the GOBO Wheel. Now locate the tab of the spring, and with a precision pick (or similar tool), carefully press retaining spring inward to relieve tension.

Three types of mechanical components: a black gear with mesh texture, a black ring with circular features, and a white spherical object (no text or symbols visible)

1. Remove the retaining spring and carefully separate the GOBO from the GOBO Holder. Install the replacement Rotating GOBO following the steps above in reverse order.

CAUTION: TAKE CARE NOT TO SCRATCH GOBO OR GOBO HOLDER

SNOOT INSTALLATION

1. PLACE FIXTURE ON THE STABLE FLAT SURFACE AND LET COOL FOR 15MINS.

1. Align Snoot onto front lens so 4 screw holes on snoot match 4 screw holes on lens.
2. Carefully using a hand screwdriver, insert/secure included 4 screws.
3. Check Snoot to confirm it is seated properly and all 4 screws are secure.

DO NOT OVER TIGHTEN SCREWS! DO NOT USE A POWER SCREWDRIVER!

INSTALLATION

FLAMMABLE MATERIAL WARNING

Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all electrical connections and/or installations.

USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.

MINIMUM DISTANCE TO OBJECTS/SURFACES MUST BE 1 FOOT (0.3 METERS)

MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE 1.6 FEET (0.5 METER)

MAXIMUM AMBIENT TEMPERATURE 113°F (45°C)

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.

Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or placing the fixture(s) on any surface, a professional equipment installerMUST be consulted to determine if the metal truss/structure or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and accessories.

Overhead rigging requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas where unauthorized personnel might reach the fixture by hand.

NEVER stand directly below the fixture(s) when rigging, removing, or servicing.

Overhead fixture installation must always be secured with a secondary safety attachment, such as an appropriately rated safety cable.

Allow approximately 15 minutes for the fixture to cool down before serving.

INSTALLATION

OMEGA BRACKETS INSTALLATION

Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener 14 turn clockwise; making sure the fastener is completely locked. Omega Brackets can be installed into the fixture base as illustrated below.

Technical line drawings of four industrial robotic devices with mounting brackets and control panels (no text or symbols)

CLAMP INSTALLATION

When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the included Omega Brackets using an M10 screw fitted through the center hole of the Omega Brackets. The fixture provides a built-in rigging point for a SAFETY CABLE. Be sure to only use one of the designated rigging points for the safety cable and never secure a safety cable to a carrying handle.

INSTALLATION

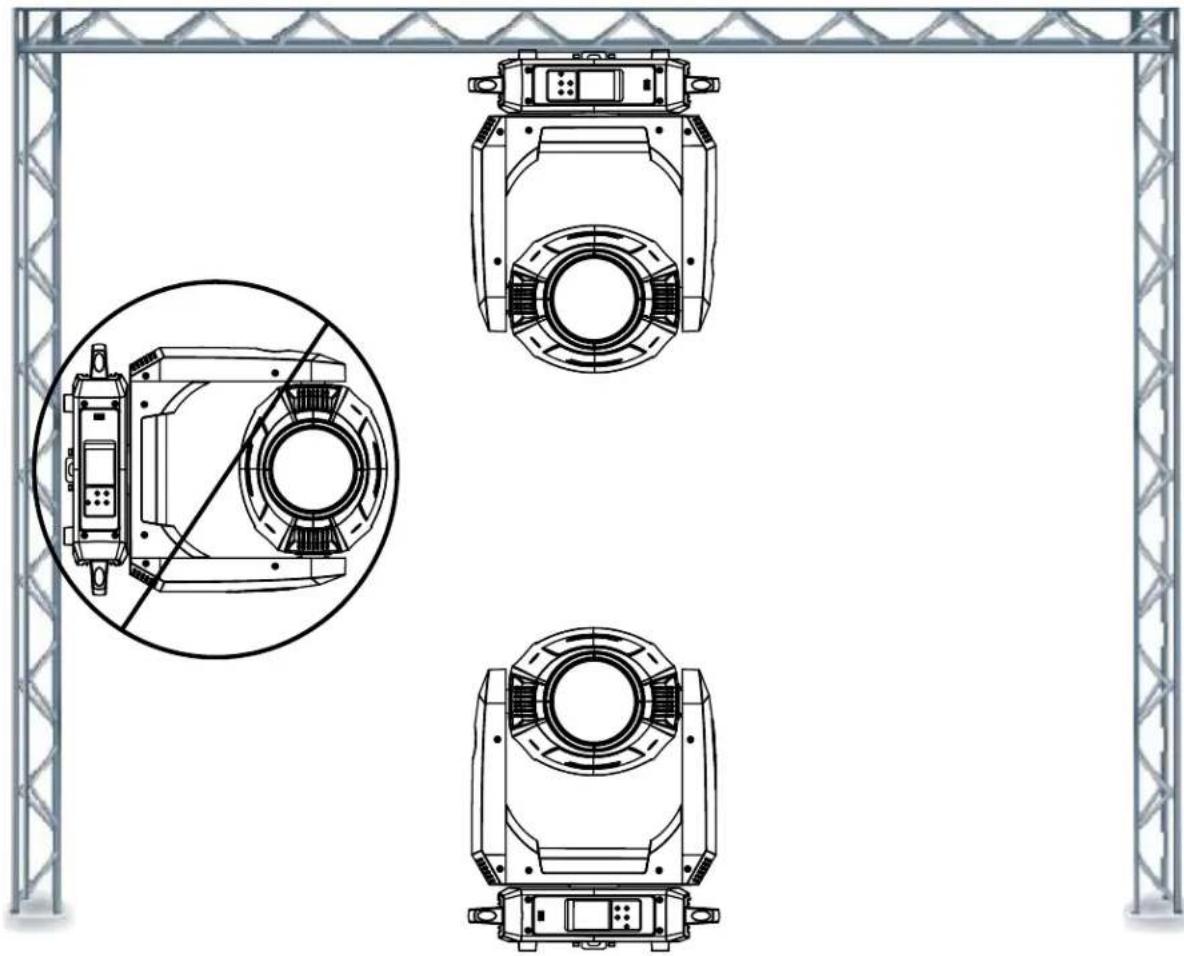

RIGGING

Overhead rigging requires extensive experience, including among others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

Technical line drawing of three mechanical components mounted on a metal frame structure (no text or symbols)

FALLING FIXTURES CAN CAUSE SEVERE INJURY OR SERIOUS EQUIPMENT DAMAGE! FOR THIS REASON, FIXTURES SHOULD BE INSTALLED AND INSPECTED ONLY BY QUALIFIED PERSONNEL. DO NOT INSTALL THE UNIT IF YOU LACK THE QUALIFICATIONS TO DO SO, OR IF YOU HAVE DOUBTS ABOUT THE SAFETY AND SECURITY OF THE INSTALLATION SETUP OR LOCATION!

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS.

INSTALLATION

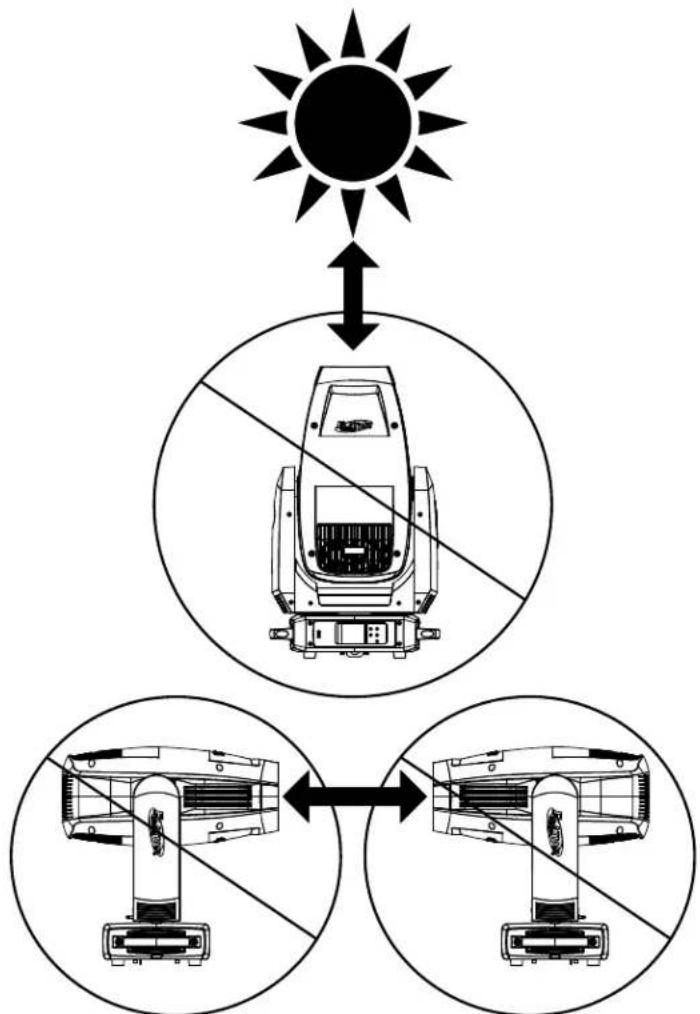

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS

External sources of light beams from direct sunlight, lighting moving head fixtures, and lasers, which are focused directly towards the exterior housing and/or penetrate the front lens opening of ELATION lighting fixtures, can cause severe internal damage including burning to optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wiring, discharge lamps, and LEDs.

This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed. Contact ELATION Service for more details.

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS WHILE UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

SYSTEM MENU

The fixture includes an easy to navigate system menu. The LCD touch panel display located on the front of the fixture (see image below), provides access to the main system menu and is where all necessary system adjustments are made to the fixture. During normal operation, pressing the ENTER (Check Mark) button once 5 will access the fixture's main menu. Once in the main menu you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons. Once you reach a field that requires adjusting, press the ENTER button to activate that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the ESC (Back Arrow) button.

To access the LCD Menu Control Display via the internal battery, press and hold the BATTERY ICON button for 3 seconds. The LCD Menu Control Display will shut OFF automatically about 1 minute from the last button press.

A USB FLASH DRIVE CAN BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. Using a USB Flash Drive loaded with the latest software, insert it into the USB Service Port, then navigate to PERSONALITY/SERVICE, enter the passcode (050), and select UPDATE SOFTWARE. A copy of the latest software can be obtained by contacting Elation Support.

AN ELATION C-LOADER II CAN ALSO BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. To order this device, please contact Elation Support for further details.

ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax [phone] | [e-mail]

ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET [phone] | Fax [phone] | [e-mail]

SYSTEM MENU

Supports Software Versions: ≥ 1.0.10
DMX Settings	DMX Address	A001 ~ AXXX
	DMX Channel Mode	Standard, Extend
	No DMX Status	Hold Last, Blackout, Internal Programs
Personality	Primary	ON / OFF
	Secondary	ON / OFF
	Status Settings	Pan InvertTilt InvertPan/Tilt FeedbackPan DegreePan/TiltSpeedHibernation	ON / OFFON / OFFON / OFF630/540Speed 1~4OFF/ 01M~99M,15M
	Fan Settings	Mute, Studio, Auto, High, Silent
	Dim Modes	Standard, Stage, TV,Architectural,Theatre, Stage 2,Dim Speed	0s, 0.1s, 0.2s, 0.3s,0.4s, 0.5s, 0.6s,0.7s, 0.8s, 0.9s,1.0s, 1.5s, 2.0s,3.0s, 4.0s, 5.0s,6.0s, 7.0s, 8.0s,9.0s, 10s
	Dim Curves	Linear, Square, Square Inverse, S-Curve
	LED Refresh Rate	1200Hz, 900-1500Hz, 2500Hz, 4000Hz,5000Hz, 6000Hz, 10KHz, 15KHz, 20KHz,25KHz
	Reset Motors	Pan/Tilt Reset	YES / NO
		Color Reset	YES / NO
		Gobo Reset	YES / NO
		Focus and Zoom reset	YES / NO
		Other motor reset	YES / NO
	Display	Screen Saver Delay	001-10M/ OFF
		Touch Screen Lock	OFF/ON
		Rotate Display 180°	YES / NO
	Temp Unit	C / F

SYSTEM MENU

Personality (continued)	Service	Passcode = 050	Calibratiln	PanTiltRedGreen BlueMintAmberCTO RedCTO GreenCTO BlueCTO MintCTO AmberGobo1GoboRot1-1GoboRot1-2GoboRot1-3GoboRot1-4GoboRot1-5GoboRot1-6Focus GoboRot1-1Focus GoboRot1-2Focus GoboRot1-3Focus GoboRot1-4Focus GoboRot1-5Focus GoboRot1-6Gobo2GoboRot2-1GoboRot2-2GoboRot2-3GoboRot2-4GoboRot2-5GoboRot2-6Focus GoboRot2-1Focus GoboRot2-2Focus GoboRot2-3Focus GoboRot2-4Focus GoboRot2-5Focus GoboRot2-6AnimationRotAnimationIrisPrism1Prism1RotFrostFocusZoom	1. CTO Red...CTO Amber are CTO color calibration.2. GoboRot1-1 to 1-6 & GoboRot2-1 to 2-6 are for individual gobo direction calibration.3. FocusGobo Rot1-1 to 1-6 and FocusGobo Rot2-1 to 2-6 are for calibration of individual gobo sharpness.
			klkl	Yes/ No
			Factory Restore	Yes/Nok

SYSTEM MENU

Manual Control	PanPan FineTiltTilt FineRed...ColorControl	000-255000-255000-255000-255000-255000-255
	Internal Programs	Program 0	Speed	000-255
			Fade	000-255
		Program 1	Speed	000-255
			Fade	000-255
		Program 2	Speed	000-255
			Fade	000-255
		Program 3	Speed	000-255
			Fade	000-255
		...	...	...
		Program 16	Speed	000-255
			Fade	000-255
	Information	Fixture Life Time	Power On Time	xxxxxx Hours
		Fixture Last Run Time	Power On ResetableTime	xxxxxx Hours
			Power On Time Reset
		FixtureTemperatures	LED's	Current	xxx F / xxx C
				Max Resettable	xxx F / xxx C
				Max Not Resettable	xxx F / xxx C
			Reset LED Temp
			Base Temp	Current	xxx F / xxx C
		Fan Info.	LED_fan RPM	1_Fan Standby
				2_Fan Standby
				3_Fan Standby
				4_Fan Standby
			Base_fan RPM	Base_Fan Standby
		DMX Values	Pan, Tilt, ..., Zoom	000-255
		Product ID's	RDM UID	00000
		Error Logs	Fixture Errors	Error1, Error2, ...
			Reset Error Log	Passcode	YES/NO
		Software Version	1U:V1.0.32U:V1.0.33U:V1.0.34U:V1.0.35U:V1.0.36U:V1.0.3

COLOR LED PROGRAMMING GUIDELINES

The fixture utilizes an advanced additive LED light engine that contains Red, Green, Blue, Mint and Amber LED which when combined, provides a brilliant high CRI White. Using a 5-color LED engine allows the fixture to have a wide color gamut which offers robust saturated colors as well as a wide range of pastel and theatrical colors.

Programming a 5-color LED engine is a bit more time consuming than the more common 3-color CMY (Cyan, Yellow, Magenta) or RGB (Red, Blue Green) systems. To help ensure optimal performance of the fixture, it is highly suggested to try out the multiple DMX control modes to understand specifically how they work with color before programming a full show. A couple suggested modes are listed below.

The CMY Extended DMX control mode provides a "natural" color mix which is compatible with color pickers of most lighting consoles and includes 16-bit color control.

The Extended RGBMA (Red, Green, Blue, Mint, Amber) DMX control mode provides slightly higher precision color mixes but may be required additional time to find the right values for all 5-color LEDs to achieve a specific desired color.

DMX TRAITS

Supports Software Versions: ≥ 1.0.10
Features subject to change without any prior written notice.
MODE / CHANNEL				VALUE	FUNCTION	DEFAULT	SNAP
Standard	Extended	CMY	CMY Extended
1	1	1	1		PAN Movement 8bit	127
				0-255	Pan Movement
2	2	2	2		Pan Fine 16bit	127
				0-255	Fine Control of Pan Movement
3	3	3	3		TILT Movement 8bit	127
				0-255	Tilt Movement
4	4	4	4		Tilt Fine 16bit	127
				0-255	Fine Control of Tilt Movement
		5	5		Cyan	0
				0-255	0 → 100%
			6		Cyan Fine	0
				0-255	Fine Cyan Control
		6	7		Magenta	0
				0-255	0 → 100%
			8		Magenta Fine	0
				0-255	Fine Magenta Control
		7	9		Yellow	0
				0-255	0 → 100%
			10		Yellow Fine	0
				0-255	Fine Yellow Control
5	5				Red	255
				0-255	0 → 100%
	6				Red Fine	255
				0-255	Fine Red Control
6	7				Green	255
				0-255	0 → 100%
	8				Green Fine	255
				0-255	Fine Green Control
7	9				Blue	255
				0-255	0 → 100%
	10				Blue Fine	255
				0-255	Fine Blue Control
8	11				Mint	255
				0-255	0 → 100%
	12				Mint Fine	255
				0-255	Fine Mint Control
9	13				Amber	255
				0-255	0 → 100%
	14				Amber Fine	255
				0-255	Fine Amber Control
MODE / CHANNEL				VALUE	FUNCTION Standard	DEFAULT Extended	SNAP CMY
Standard	Extended	CMY	CMY Extended
10	15	8	11		Color Temperature Control	0
				0-23	Disabled
				24-85	2400K to 8500K (100K Steps)
				86-255	8500K
11	16	9	12		Color Wheel	0
				0	Open
				1-60	Virtual Gel Swatch Book (See Table Page 35)
				61-179	No Function
					Color Scroll
				180-201	CW Rotation Fast to Slow
				202-207	Stop
				208-229	CCW Rotation Slow to Fast
				230-234	Open
					Random Slots
				235-239	Fast
				240-244	Medium
				245-249	Slow
				250-255	Open
	17		13		Green Shift	0
				0	Idle
				1-127	Full Minus Green to Neutral
				128	Neutral White
				129-255	Neutral to Full Plus Green
12	18	10	14		Gobo Wheel 1	0	X
				0-9	Open
				10-19	Gobo 1
				20-29	Gobo 2
				30-39	Gobo 3
				40-49	Gobo 4
				50-59	Gobo 5
				60-69	Gobo 6
				70-89	Gobo 1 Shake Slow to Fast
				90-109	Gobo 2 Shake Slow to Fast
				110-129	Gobo 3 Shake Slow to Fast
				130-149	Gobo 4 Shake Slow to Fast
				150-169	Gobo 5 Shake Slow to Fast
				170-189	Gobo 6 Shake Slow to Fast
				190-221	Gobo Wheel Scroll CW Fast to Slow
				222-223	Stop
				224-255	Gobo Wheel Scroll CCW Slow to Fast
MODE / CHANNEL				VALUE	FUNCTION	DEFAULT	SNAP
Standard	Extended	CMY	CMY Extended
13	19	11	15		Gobo Wheel 1Gobo Index/Rotation	63
				0-127	Gobo Indexing
				128-189	Gobo Scroll CW Fast to Slow
				190-193	No Rotation
				194-255	Gobo Scroll CCW Slow to Fast
14	20	12	16		Gobo Wheel 1Gobo Fine Index	0
				0-255	Fine Indexing
15	21	13	17		Gobo Wheel 2	0	X
				0-9	Open
				10-19	Gobo 1
				20-29	Gobo 2
				30-39	Gobo 3
				40-49	Gobo 4
				50-59	Gobo 5
				60-69	Gobo 6
				70-89	Gobo 1 Shake Slow to Fast
				90-109	Gobo 2 Shake Slow to Fast
				110-129	Gobo 3 Shake Slow to Fast
				130-149	Gobo 4 Shake Slow to Fast
				150-169	Gobo 5 Shake Slow to Fast
				170-189	Gobo 6 Shake Slow to Fast
				190-221	Gobo Wheel Scroll CW Fast to Slow
				222-223	Stop
				224-255	Gobo Wheel Scroll CCW Slow to Fast
16	22	14	18		Gobo Wheel 2Gobo Index/Rotation	63
				0-127	Gobo Indexing
				128-189	Gobo Scroll CW Fast to Slow
				190-193	No Rotation
				194-255	Gobo Scroll CCW Slow to Fast
I7	23	15	19		Gobo Wheel 2Gobo Fine Index	0
				0-255	Fine Indexing
18	24	16	20		Prism, Prism/Gobo Macros
				0-63	Open
				64-95	Prism
				96-127	Idle
				128-135	Prism/Gobo Macro1
				136-143	Prism/Gobo Macro2
				144-151	Prism/Gobo Macro3
				152-159	Prism/Gobo Macro4
				160-167	Prism/Gobo Macro5
				168-175	Prism/Gobo Macro6
				176-183	Prism/Gobo Macro7
				184-191	Prism/Gobo Macro8
				192-199	Prism/Gobo Macro9
				200-207	Prism/Gobo Macro10
				208-215	Prism/Gobo Macro11
				216-223	Prism/Gobo Macro12
				224-231	Prism/Gobo Macro13
				232-239	Prism/Gobo Macro14
				240-247	Prism/Gobo Macro15
				248-255	Prism/Gobo Macro16
19	25	17	21		Prism Index/Prism Rotation
				0-127	Prism Indexing
				128-189	Prism Rotation CW Fast to Slow
				190-193	No Rotation
				194-255	Prism Rotation CCW Slow to Fast
	26		22		Prism Fine Index Rotation
				0-255	Fine Indexing
20	27	18	23		Focus	1270
				0-255	Continuous Adjustment Near to Far
21	28	19	24		Focus Fine	0
				0-255	Continuous Adjustment Fine
22	29	20	25		Zoom	127
				0-255	Zoom Adjustment Small to Big
23	30	21	26		Zoom Fine	0
				0-255	Zoom Adjustment Fine
24	31	22	27		Shutter, Strobe	50	X
				0-31	Shutter Closed
				32-63	No Function (Shutter Open)
				64-95	Strobe Effect Slow to Fast
				96-127	No Function (Shutter Open)
				128-159	Pulse-Effect in Sequences
				160-191	No Function (Shutter Open)
				192-223	Random Strobe Effect Slow to Fast
				224-255	No Function (Shutter Open)
25	32	23	28		Dimmer	0
				0-255	Intensity 0 → 100%
26	33	24	29		Dimmer Fine	0
				0-255	Dimmer Fine Adjustment
	34		30		Dim Modes	0	X
				0-20	Standard
				21-40	Stage
				41-60	TV
				61-80	Architectural
				81-100	Theatre
				101-120	Stage 2
					Dimmer Delay Time
				121	0.0s
				122	0.1s
				123	0.2s
				124	0.3s
				125	0.4s
				126	0.5s
				127	0.6s
				128	0.7s
				129	0.8s
				130	0.9s
				131	1.0s
				132	1.5s
				133	2.0s
				134	3.0s
				135	4.0s
				136	5.0s
				137	6.0s
				138	7.0s
				139	8.0s
				140	9.0s
				141	10s
				142-255	Idle
27	35	25	31		Iris	0
				0-191	Max to Min Diameter
				192-223	Pulse Opening Fast to Slow
				224-255	Pulse Closing Slow to Fast
	36		32		Iris Fine	0
				0-255	Iris Fine Adjustment
28	37	26	33		Frost	0
				0-255	Open to Full Frost
29	38	27	34		Animation Wheel
				0-7	Open
				8-255	Animation Min to Max
30	39	28	35		Animation Index Rotation
				0-127	Animation Indexing
				128-189	Animation Rotation CW Fast to Slow
				190-193	No Rotation
				194-255	Animation Rotation CCW Slow to Fast
	40		36		Pan / Tilt and Color Speed	0
				0-225	Max to Min Speed
				226-235	Blackout by Movement
				236-245	Blackout by All Wheel Changing
				246-255	No Function
31	41	29	37		Control	0	X
				0-19	Color Change Normal
				20-29	Color Change to Any position
				30-39	Color/Gobo Change to Any Position
				40-44	Fan Mode Studio
				45-49	Fan Mode Mute
				50-59	Fan Mode Low
				60-69	Fan Mode High
				70-79	Fan Mode Auto
				80-84	All Motor Reset
				85-87	Pan / Tilt Reset
				88-90	Color Reset
				91-93	Gobo Reset
				94-96	Focus and Zoom Reset
				97-99	Other Motor Reset
					Refresh Rate (Hz)
				100	900
				101	910
				102	920
				103	930
				104	940
				105	950
				106	960
				107	970
				108	980
				109	990
				110	1000
				111	1010
				112	1020
				113	1030
				114	1040
				115	1050
				116	1060
				117	1070
31	41	29	37		Refresh Rate (Hz)	0	X
				118	1080
				119	1090
				120	1100
				121	1110
				122	1120
				123	1130
				124	1140
				125	1150
				126	1160
				127	1170
				128	1180
				129	1190
				130	1200
				131	1210
				132	1220
				133	1230
				134	1240
				135	1250
				136	1260
				137	1270
				138	1280
				139	1290
				140	1300
				141	1310
				142	1320
				143	1330
				144	1340
				145	1350
				146	1360
				147	1370
				148	1380
				149	1390
				150	1400
				151	1410
				152	1420
				153	1430
				154	1440
				155	1450
				156	1460
				157	1470
				158	1480
				159	1490
				160	1500
31	41	29	37		Refresh Rate (Hz)	0	X
				161	2500
				162	4000
				163	5000
				164	6000
				165	10,000
				166	15,000
				167	20,000
				168	25,000
				169-200	Idle
				201-210	Dimmer Curve Linear (default)
				211-220	Dimmer Curve Square
				221-230	Dimmer Curve Inverse Square
				231-240	Dimmer Curve S-Curve
				241	Internal Program 1 (Scene 1-8)
				242	Internal Program 2 (Scene 9-16)
				243	Internal Program 3 (Scene17-24)
				244	Internal Program 4 (Scene25-32)
				245	Internal Program 5 (Scene33-40)
				246	Internal Program 6 (Scene41-48)
				247	Internal Program 7 (Scene49-56)
				248-255	Idle

REMOTE DEVICE MANAGEMENT (RDM)

NOTE: For RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the device to be managed, modified, and monitored remotely (hence, remote device management). This protocol is ideal for fixtures installed in locations that are not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled controller to send out a signal to devices on the wire, as well as allowing the fixture to respond (known as a GET command). The controller can then use it's SET command to modify settings that would typically have to be changed or viewed directly via the unit's display screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.

Model	RDM Code	Device Model ID Decimal/Hexdecimal	Personality ID
FUZE SPOT	0×22A6	0002	Standard(1) Extend(2)CMY Standard (3) CMY Extend (4)

FIXTURE RDM INFORMATION:

Please be aware that not all RDM devices support all RDM features, and therefore it is important to check beforehand to ensure that the equipment that you are considering includes all the features that you require.

The following parameters are accessible in RDM on this device:

[0x0011] Proxied Device Count	[0x0600] Pan Invert
[0x0200] Sensor Definition	[0x0601] Tilt Invert
[0x0201] Sensor Value	[0x0602] Pan Tilt Swap
[0x0080] Device Model Description	[0x0500] Display Invert
[0x0081] Manufacturer Label	[0x0501] Display Level
[0x0082] Device Label	[0x0603] Realtime Clock
[0x00E0] DMX Personality	[0x1010] Power State
[0x00E1] DMX Personality Description	[0x1031] Preset Playback
[0x0400] Device Hours	[0x0122] Default Slot Value
[0x0015] Comms Status	[0x00B0] Language
[0x0031] Status ID Description	[0x00A0] Language Capabilities
[0x0032] Clear Status ID	[0x00C2] Boot Software Version Label
[0x0401] Lamp Hours	[0x00C1] Boot Software Version ID
[0x0402] Lamp Strikes	[0x0070] Product Detail ID List
[0x0403] Lamp State	[0x0030] Status Messages
[0x0404] Lamp Mode	[0x1001] Reset Device
[0x0405] Device Power Cycles	[0x0016] Undefined PID [0x0016,(22)]

COLOR TEMPERATURE TABLE

VALUE	COLOR TEMP (K)	VALUE	COLOR TEMP (K)
24	2400	55	5500
25	2500	56	5600
26	2600	57	5700
27	2700	58	5800
28	2800	59	5900
29	2900	60	6000
30	3000	61	6100
31	3100	62	6200
32	3200	63	6300
33	3300	64	6400
34	3400	65	6500
35	3500	66	6600
36	3600	67	6700
37	3700	68	6800
38	3800	69	6900
39	3900	70	7000
40	4000	71	7100
41	4100	72	7200
42	4200	73	7300
43	4300	74	7400
44	4400	75	7500
45	4500	76	7600
46	4600	77	7700
47	4700	78	7800
48	4800	79	7900
49	4900	80	8000
50	5000	81	8100
51	5100	82	8200
52	5200	83	8300
53	5300	84	8400
54	5400	85	8500

VIRTUAL GEL SWATCH BOOK

VALUE	FILTER#	COLOR	VALUE	FILTER#	COLOR
1	7	Pale Yellow	31	126	Mauve
2	103	Straw	32	49	Medium Purple
3	151	Gold Tint	33	58	Lavender
4	100	Spring Yellow	34	199	Palace Blue
5	10	Medium Yellow	35	119	Dark Blue
6	101	Yellow	36	132	Medium Blue
7	104	Deep Amber	37	120	Deep Blue
8	15	Deep Straw	38	165	Daylight Blue
9	179	Loving Amber	39	161	Slate Blue
10	21	Gold Amber	40	118	Light Blue
11	105	Orange	41	68	Sky Blue
12	158	Deep Orange	42	143	Pale Navy Blue
13	22	Dark Amber	43	131	Marine Blue
14	778	Millennium Gold	44	115	Peacock Blue
15	135	Deep Golden Amber	45	172	Lagoon Blue
16	24	Scarlet	46	116	Medium Blue Green
17	106	Primary Red	47	90	Dark Yellow Green
18	26	Bright Red	48	139	Primary Green
19	27	Medium Red	49	122	Fern Green
20	19	Fire	50	89	Moss Green
21	157	Pink	51	124	Dark Green
22	36	Medium Pink	52	88	Lime Green
23	111	Dark Pink	53	138	Pale Green
24	128	Bright Pink	54	203	Quarter CT Blue
25	148	Bright Rose	55	202	Half CT Blue
26	332	Special Rose Pink	56	201	FULL CT Blue
27	793	Vanity Fair	57	200	Double CT Blue
28	113	Magenta	58	206	Quarter CT Orange
29	46	Dark Magenta	59	205	Half CT Orange
30	48	Rose Purple	60	204	FULL CT Orange

ERROR CODES

Error Codes subject to change without notice.
ERROR CODES	DESCRIPTION
PAN Er	Movement is not located in the default position after the resetThese messages will appear after a fixture reset if the magnetic-indexing circuit malfunctions (sensor failed, or magnet is missing) or there is a motor failure (defective motor or a defective motor IC drive on the main PCB). This error may also be displayed if the head/yoke was blocked during a reset function.
TILT Er
RotGobo	Movement is not located in the default position after the resetThese messages will appear after a fixture reset if the magnetic-indexing circuit malfunctions (sensor failed, or magnet is missing) or there is a motor failure (defective motor or a defective motor IC drive on the main PCB).
RotGobo2
Iris
RotGoboIndex
RotGobo2Index
Animation
Anima.Index
Zoom
Focus
Frost
Prism
PrismIndex
HeadTemp	These messages will appear if there is a temperature and/or fa malfunction.
CoolFan1
CoolFan2
CoolFan3
CoolFan4
BaseTemp
BaseFan

SPECIFICATIONS

SOURCE

305W 6,500K RGBMA LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

10,100 Total Lumen Output

CRI 92

Zoom Range 7° - 42°

Beam Angle7.5° - 39.9°

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

Pan Angle: 540° (630°)

Tilt Angle 270°

COLOR

RGBMA Color Array

CMY Emulation

Variable CCT 2400K - 8500K

Green/Magenta Shift

Virtual Gel Swatch Book

GOBOS

2x 6 Rotating / Indexing Interchangeable Glass Gobos

Animation Wheel

CONTROL / CONNECTIONS

4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)

16-bit Pan, Tilt, and Dimming Control

DMX Adjustable LED Frequency

DMX, RDM Protocol Support

4 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Locking 5pin XLR Connector In/Out

IP65 Locking Power Connector In/Out

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 16.1" (408.0mm)

Width: 10.1" (256.0mm)

Vertical Height: 27.5" (698.0mm)

Weight: 46.3 lbs. (21kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

466W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 1589.06

APPROVALS / RATINGS

CE | cETLus | IP20

Specifications and improvements in the design of this unit and this manual are subject to change without notice.

DIMENSIONAL DRAWINGS

Drawings not to scale.

Specifications and improvements in the design of this unit and this manual are subject to change without notice.

DIMENSIONAL DRAWINGS - SNOOT ATTACHED

Drawing not to scale.

Specifications and improvements in the design of this unit and this manual are subject to change without notice.

OPTIONAL ACCESSORIES

ORDER CODE	ITEM
TRIGGER CLAMP	Heavy Duty Wrap Around Hook Style Clamp
SIP126	5 ft. (1.5m) IP65 Twist Lock Power Link Cable
AC5PDMX5PRO	5 ft. (1.5m) 5pin PRO DMX Cable
	Additional Cable Lengths Available

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS

This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device uses and can radiate radio frequency energy and, if not installed and used in accordance with the included instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following methods:

• Reorient or relocate the device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a circuit different from which the radio receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
