| Product Type | Irrigation Controller / Regulator |
| Brand | Irritrol |
| Model | EGP-TW |
| Power Supply | 24V AC, 50/60 Hz |
| Number of Zones | 4 |
| Programming | 3 independent programs, 4 start times each, 365-day calendar |
| Rain Delay / Rain Sensor | Yes, user-adjustable up to 72 hours |
| Dimensions (H x W x D) | 7.5 x 4.5 x 1.2 inches (190 x 114 x 30 mm) |
| Weight | 0.8 lbs (360 g) |
| Housing Material | UV-resistant ABS plastic |
| Power Consumption | 1.5 VA (max) |
| Backup Battery | 9V lithium (user-replaceable) |
| Output Ratings | 24V AC, 0.5 A per zone |
| Certifications | UL, CSA, FCC |
| Warranty | 2 years |
| Maintenance | Clean with a soft damp cloth; do not use solvents |
| Repairability | Replaceable fuse, battery, and valve solenoids |
| Safety Features | Automatic shut-off on power loss surge protection |
Frequently Asked Questions - EGP-TW Irritrol

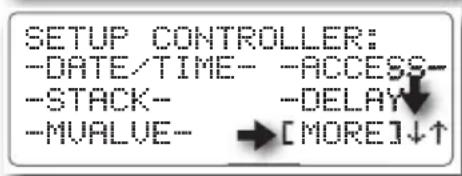

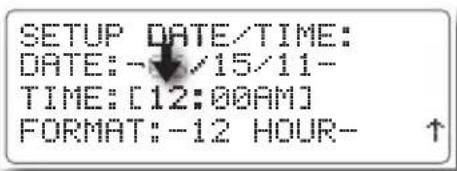

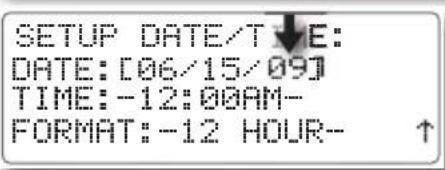

How do I set the current time and date on the EGP-TW?
Press the Time button, then use the + and - keys to set hours, minutes, month, and day. Confirm each with Enter.
How many zones does the Irritrol EGP-TW support?
The EGP-TW supports up to 4 zones with independent watering schedules.
What type of backup battery does it use?
It uses a standard 9V lithium battery (not included) to retain programming during power outages.

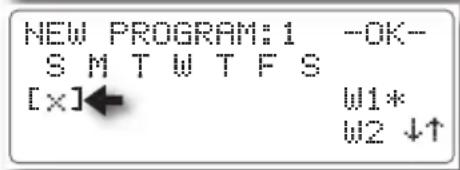

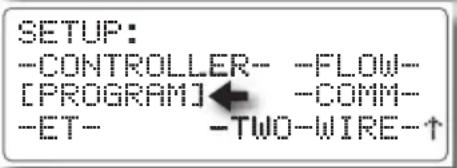

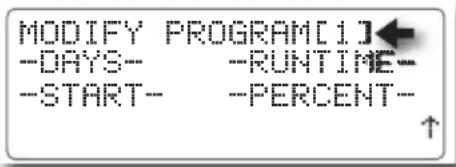

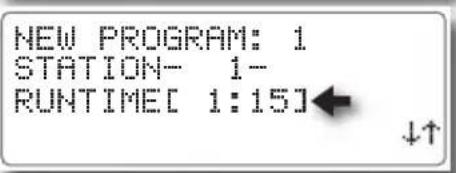

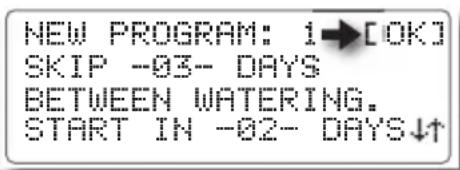

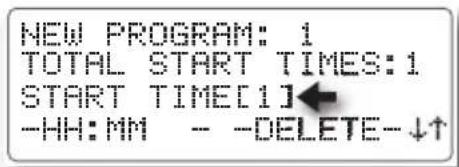

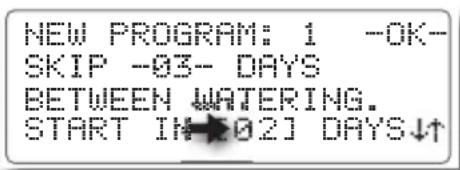

How do I program a watering schedule?
Navigate to Program mode, select a program (A, B, or C), set start times, duration, and days. Use the Manual button to test.
Can the EGP-TW be used with drip irrigation systems?
Yes, it is compatible with drip irrigation. Ensure your valves match the 24V AC output; use a pressure regulator if needed.
What does the rain delay function do?
The rain delay temporarily stops all watering for a period you set (1 to 72 hours). Activate it by pressing and holding the Rain Delay key.
How do I perform a factory reset?
Press and hold the Reset button (or the combination Program + Enter) until the display clears. This erases all programs and restores defaults.
Why is my controller not turning on?
Check the transformer connection to a live outlet. Verify the fuse is intact and replace if blown. If on battery only, ensure a fresh 9V battery.
How do I replace the backup battery?
Open the compartment on the back (or bottom) of the controller. Remove the old 9V battery, snap in a new one, and close the compartment. Programming is retained momentarily.
Is the EGP-TW compatible with smart home systems?
No, the EGP-TW is a standalone controller without Wi-Fi or smart integration. For smart features, consider Irritrol’s Total Control series.
