Product Type	Vibration Racing Wheel with Pedals
Compatible Platforms	PS4, PS3, Nintendo Switch, PC (USB X-INPUT/D-INPUT)
Wheel Rotation Angle	270 degrees
Wheel Diameter	220 mm (9 inches)
Steering Wheel Cable Length	1.8 m
Foot Pedal Cable Length	1.8 m
Dimensions (Wheel Unit)	41 x 34 x 25 cm
Dimensions (Pedal Unit)	35.5 x 20.5 x 11.5 cm
Net Weight	1.8 kg
Power Consumption	5 V DC, up to 120 mA
Interface	USB
Vibration Feedback	Yes, built-in vibration motor for realistic force feedback
Auto-Centering	Yes, automatically sets center position when powered on
Sensitivity Adjustment	Yes, via rotary dial
Menu Buttons	PS4 menu access and mode switch (D-INPUT/X-INPUT) on PC
D-Pad	4-way directional pad
Mini Analog Stick	Yes, mounted on wheel
Action Buttons	8 action buttons
Pedal Functions	Accelerator (R-pedal) and Brake (L-pedal) with spring-loaded mechanism
Pedal Mode (PS3)	Default: L-pedal = Square, R-pedal = Cross; can be changed to L-pedal = L2, R-pedal = R2
Function Relocation (PS4/PS3/X-INPUT)	L1, R1, L2, R2, pedals can be reassigned to other buttons
Mounting Options	Desk/table or lap (no attachments needed for lap use)
Cleaning	Wipe with dry cloth; do not use liquids or allow moisture inside
Safety Precautions	Avoid high temperatures, humidity, direct sunlight; do not disassemble; do not drop or apply strong shock
Warranty	Standard manufacturer warranty; see receipt for details

Frequently Asked Questions - STR-M-01 Gembird

Is the Gembird STR-M-01 racing wheel compatible with PS5?

The manual specifies compatibility with PS4, PS3, Nintendo Switch, and PC. PS5 compatibility is not listed, but it may work via backward compatibility on PS4 games. However, functionality is not guaranteed.

How do I switch between X-INPUT and D-INPUT mode on PC?

Press and hold the Menu button for 5 seconds to toggle between X-INPUT (default, LED on) and D-INPUT (LED off). The wheel automatically starts in X-INPUT mode.

Why is the vibration feedback not working?

Ensure that your game platform and specific game software support vibration. Also check that the wheel is properly connected and powered. The vibration function works only with compatible games.

Can I adjust the steering sensitivity?

Yes, turn the Sensitivity dial on the wheel. Higher sensitivity means a smaller steering input produces a larger response. You will feel a click at the center position.

How do I assign the foot pedals to different buttons on PS3?

Press and hold Select + Start simultaneously for 3 seconds to toggle between two modes: Default (L-pedal = Square, R-pedal = Cross) or alternate (L-pedal = L2, R-pedal = R2).

What is the auto-centering function?

When you power on the wheel, it automatically sets the current position as the center. Ensure the wheel is in the neutral position before turning on the console to avoid offset.

Can I remap buttons on PS4?

Yes, enter setup mode by pressing Menu + X for 3 seconds (LED flashes). Then press the button you want to reassign (e.g., L1), then the target action button (e.g., Triangle). To restore defaults, press the same button twice in setup mode.

How do I clean the steering wheel?

Use a dry, soft cloth to wipe the exterior. Do not use liquids, cleaners, or allow moisture to enter the wheel. Avoid abrasive materials.

What should I do if the wheel is not detected by my PC?

Check the USB connection. Try a different USB port. Ensure the wheel is in the correct mode (X-INPUT or D-INPUT) for your game. If using D-INPUT, press and hold Menu for 5 seconds to switch modes.

Does the wheel work on Android devices?

Yes, the manual lists Android support. When connected, the button layout may vary depending on the Android device. The wheel should be recognized as a controller.

USER MANUAL STR-M-01 Gembird

Abstract geometric logo with a stylized letter 'G' inside a hexagonal frame (no text or symbols)

GMB GAMING

STR-M-01

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

VIBRATION RACING WHEEL WITH PEDALS (PC/PS3/PS4/SWITCH)

LENKRAD MIT VIBRATION (PC/PS3/PS4/SWITCH)

VIBRATIE RACING STUUR MET PEDALEN (PC/PS3/PS4/SWITCH)

VOLANT DE COURSE À VIBRATIONS AVEC PÉDALIER (PC/PS3/PS4/SWITCH)

• Steering wheel with built-in vibration and gear stick
• Several interfaces in one wheel: PS3, PS4, SWITCH, PC (USB)
- Spring-loaded pedals with accelerator and brakes functions
- 270-degree steering angle, 2-axis, joystick, 4-way D-pad and 8 action buttons
• Sturdy heavy construction

Specifications

• Interface: USB
  • Wheel rotation: 270 degrees
  • Wheel diameter 220 mm (9")
  • Power consumption: 5 V DC up to 120 mA
  • Steering wheel cable length: 1.8 m
• Foot pedal unit cable length: 1.8 m
  • Product size: 41 x 34 x 25 cm (wheel), 35.5 x 20.5 x 11.5 cm (pedals)
  • Net weight: 1.8 kg

PRODUCT DESCRIPTION

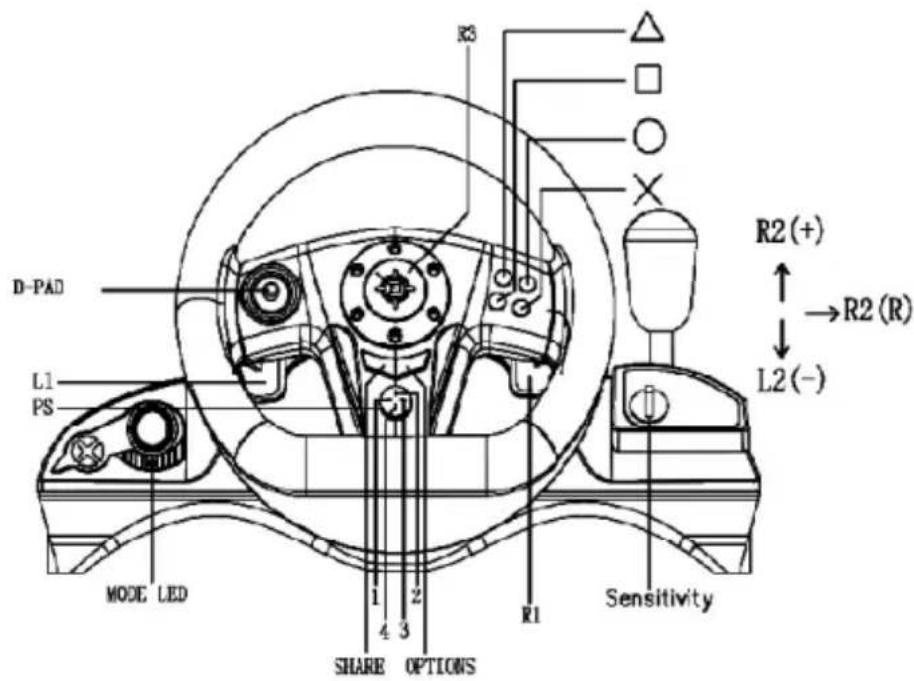

STEERING WHEEL

The rotation Angle (270 degree).

The wheel have analogue output, such that the actually output is proportional to the movement of the wheel. Please do not try and turn the wheel past its limitations (270 degree turn limiter). Doing so may damage or effectively ruin the steering wheel. Excessive force is NOT necessary to get the most out of your wheel.

MENU BUTTONS

For direct access to the Playstation4 menu in Playstation4. And for D-INPUT mode and X-INPUT mode switch in PC.

D-Pad

This emulates the D-pad found on most control pads. This is used for navigating through the menus and making menu changes

Mini analog stick.

Analog control stick mounted on the wheel for use with games such as GTA. For avoid the wrong action during playing the games, the analog stick X-axis will disable when the steering wheel is turning more than ±15^

Action buttons

These buttons are correspond to specific game functions detailed, in your software documentation and options menu.

Auto centering function

The Wheel center position is automatically set when switching on your game system

Sensitivity settings:

The sensitivity can be adjusted by turning the Sensitivity dial. The higher the sensitivity, the faster the steering wheel reacts to being turned, i.e. even a small movement of the steering wheel produces a distinct reaction in the screen vehicle and vice versa. You will feel the center sensitivity position when turning.

Vibration feedback

The wheel support realistic vibration feedback for effect-feeling on every crash, bump and turn.

Note: please make sure your game platform and game software are supporting the vibration function.

Mode LED

In PS4/PS3/SWITCH/ANDROID/PC-XINPUT mode the LED is on.

In PC: LED off

Playing on the desk or table

Ensure that the wheel is plugged into the game system. Place the wheel in a comfortable driving position near enough to your TV to ensure visual comfort while playing

Playing from your lap

The wheel construction is designed to be placed directly on your lap with no attachments. Now, just take a seat in your favorite gaming chair after plugging in the game system and switch the power on, and you are off to the races!

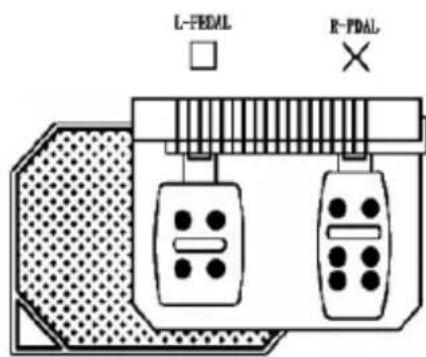

Foot Pedal

In PS3 playing mode, the foot pedal can be correspond to L-Pedal=☐ / R-Pedal =× or L-Pedal=L2 / R-Pedal =R2 to support all the games.

The default setting is L-Pedal=☐ / R-Pedal =× you can change the setting to L-Pedal=L2 / R-Pedal =R2 by press the “select” and “start” button simultaneously for 3 seconds

Function relocation and return to default value Function relocation in PS4/PS3/X-INPUT

L1, R1, L2, R2, L-pedal, R-pedal can be set to △、○、×、□、L1、L2、R1 and R2 with the following procedures:

Press “MENU” and “×” at the same time and hold 3 seconds, the LED will be flashing., indicating the wheel is in setup environment.

Press one of the relocation buttons L1, R1, L2, R2, L-pedal, R-pedal), for example L1.

Press a action button, for example ‘△’ button which is desired to be relocation onto the “L1”, The LED stop flashing and the setup routine is terminated.

The L1, in this example, will now become the ‘△’ action.

Return to Default Value:

In setup environment, press twice the button which you want to restore, then it done.

BUTTONS LAYOUT

Wheel	PS4	PC	PS3	SWITCH	Android	X-INPUT
		1		X	Y	Y
		2		A	B	B
×	×	3	×	B	A	A
		4		Y	X	X
L1	L1	5	L1	L	L1	LT
R1	R1	6	R1	R	R1	RT
L2	L2	7	L2	ZL	L2	LB
R2	R2	8	R2	ZR	R2	RB
SELECT	SHARE	9	SELECT	-	SELECT	BACK
START	OPTION	10	START	+	START	START
L3	L3	11	L3	L	L3	LS (LTH)
R3	R3	12	R3	R	R3	RS(RTH)
D-PAD	D-PAD	View-hat	D-PAD	D-PAD	D-PAD	D-PAD
Wheel axis	L-STICK X	X AXIS	L-STICK X	L-STICK X	L-STICK X	L-STICK X
L-Pedal(break)	L2	Y Axis↓		B	L2	LT
R-Pedal (accelerate)	R2	Y Axis ↑	×	A	R2	RT
shift (+, —, R)	(R2,L2,R2)	(8,7,8)	(R2,L2,R2)	(ZR,ZL,ZR)	(R2,L2,R2)	(RB,LB,RB)
PS	PS		PS	home	home	MENU

Note: for the Android this button layout is defined by certain Android device. There may be difference caused because of different Android devices.

INSTALLATION

The Racing wheel includes the steering wheel unit and foot pedal unit, it is quite easy to connect them together. However, first you must switch your game console “OFF” before connecting the Racing Wheel.

Connecting the foot pedal unit to the steering wheel unit.

To simulate the real driving experience, you can use the foot pedal unit to control the acceleration and braking action. To connect this two unit, simply plug the male type plug found on the foot pedal unit into the base of the steering wheel unit.

Connecting the Racing wheel to the Game console.

Plug the cable from the steering wheel unit into the console.

Note: Please ensure that the steering wheel unit is in initial position when switching on your game system. If the steering wheel unit is not in the neutral position, that position will be deemed the neutral position when switching on your game system.

TO PS4:

Before connecting the steering wheel to your game console, you need to turn off the console. Plug the USB connector of the wheel to the PS4 console for PS4 Playing. In this mode, the LED is off

Mark: when connect to PS4, press SELECT+START in same time, can substitute "share" function.

TO PS3:

Before connecting the steering wheel to your game console, you need to turn off the console. Plug USB connector of the wheel to the PS3 console for PS3 playing. In this mode, LED is on.

PC-USB (X-INPUT and D-INPUT):

Plug USB connector of the wheel to your PC for X-INPUT and D-INPUT playing.

X-INPUT mode (default mode)

Mode Led = on . you can play the X-INPUT PC games directly .

Note: if the wheel has switched into D-INPUT mode, just press Menu Button and hold for 5 seconds, the wheel will switch back to X-INPUT mode.

D-INPUT mode

Press Menu Button and hold for 5 Seconds to access into D-INPUT mode, Mode LED = off

you can play the D-INPUT games now!

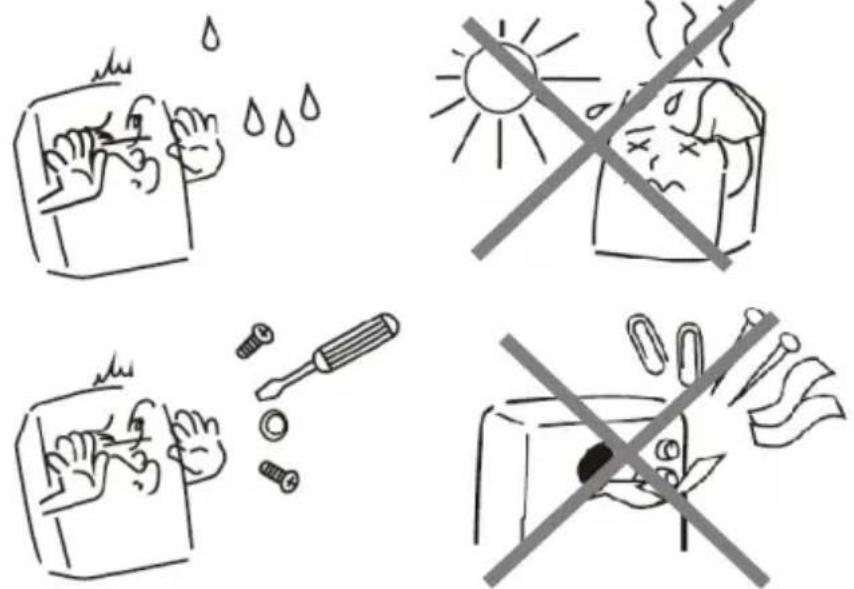

CAUTION:

1. Do not expose the steering wheel to high temperatures, high humidity or direct sunlight.

(Use in an environment between 5\~35°C/41\~95°F)

1. Do not allow liquid or small particles to enter the steering wheel.
2. Do not put any heavy objects on the steering wheel.
3. Never disassemble the steering wheel.
4. Do not twist or pull the cable too strongly.
5. Do not throw, drop, or apply strong shock to the steering wheel.
