Product Type	Car Multimedia Receiver with DVD Player
Dimensions (approx.)	1-DIN standard (178 x 50 x 160 mm)
Weight (approx.)	~1 kg
Power Supply	12V DC (10.8-15.6V allowable)
Output Power	35W x 4 channels
Speaker Impedance	4 or 8 Ohm
Display	TFT-LCD
Disc Playback	DVD, VCD, CD, CD-R/RW, MP3, MP4
Media Input	SD/MMC card slot
Radio Tuner	FM 87.5-108 MHz, RDS (AF, TA, PTY)
Video System	PAL/NTSC/AUTO compatible
Audio/Video Inputs	Audio Line In, Video In (Yellow), Rear Camera In (Blue)
Audio/Video Outputs	Audio Out Front/Rear (White/Red), Video Out (Yellow)
Detachable Front Panel	Yes, with theft protection
Remote Control	Included with full function
Maintenance	Replace fuse with specified amperage; reset with sharp object
Safety	Keep volume low; install securely; avoid moisture and high heat
Special Features	Multi-audio, Multi-subtitle, Multi-angle, Dual Zone, Parking brake wire for video disable
Accessories Included	Mounting hardware, front panel case, remote control, battery
Compliance	CE, E13

Frequently Asked Questions - CAT-130 DENVER

How do I detach the front panel?

Press the POWER OFF button first, then press the release button (arrow up) and pull the panel towards you. Store it in the supplied case.

Why is there no video while driving?

By default, the parking brake wire must be connected to the hand brake system to enable video. If you want video always on, follow the alternate wiring instructions. Check local laws.

How do I reset the unit?

Use a sharp pointed object to press and hold the RESET button on the front of the unit for 2 seconds. This is needed after initial installation or if buttons malfunction.

How do I set the clock?

Press and hold CLK on the remote control. The hour will blink. Rotate the VOL knob to adjust hour, press CLK again to set minutes, rotate to adjust, then press VOL to save.

What is the DUAL function?

The DUAL feature allows the driver to listen to one source (e.g., radio) while rear passengers watch another (e.g., DVD) via external monitors connected to the audio/video outputs.

How do I play a DVD?

Insert the disc into the slot after pressing EJ to open the panel. If the disc has a menu, use the navigation keys and ENTER to start playback. Ensure the TV system is set correctly (PAL/NTSC/AUTO).

Can I connect a rear camera?

Yes, connect the rear camera's video output to the Rear Camera In (blue plug) on the back of the unit. Connect the parking gear wire to a +12V signal when reversing. The unit will automatically switch to the camera view.

How do I change the subtitle or audio language?

During DVD playback, press Sub-T on the remote to cycle through subtitle languages, and Audio to cycle through audio languages. Not all discs support multiple languages.

What should I do if the unit doesn't power on?

Check the car's ignition key connection (connector A pin 7 must be connected to ignition), the fuse (replace if blown with same amperage), and ensure the power and ground wires are properly connected.

How do I store radio stations?

Select the desired band (FM1/2/3), tune to a station, then press and hold a number button (1-6) until the preset number appears. Up to 18 FM stations can be stored.

USER MANUAL CAT-130 DENVER

USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

• Keep this manual handy as a reference for operating procedures and precautions.
  • Always keep the volume low enough so you can hear sounds outside of the car.
• Protect this product from moisture.
• If the battery is disconnected or discharged, the preset memory will be erased and must be reprogrammed.

FEATURES:

DVD video playback

It is possible to play back DVD video, DVD+-R, DVD+-RW and DVD+-DL.

Video CDs featuring PBC compatibility

It is possible to play back Video CDs featuring PBC (playback control).

CD playback

Music CD/CD-R/CD-RW playback is possible.

MP3 file playback

It is possible to play back MP3 files recorded on CD-ROM/CD-R/CD-RW.

MP4 file playback

It is possible to play back MP4 files.

PAL/NTSC compatibility

This unit is PAL/NTSC system compatible. When connecting other components to this unit, be sure components are compatible with the same video system or else images will not be correctly reproduced.

Multi-audio

You can switch between multiple audio systems recorded on a DVD as desired.

Multi-subtitle

You can switch between multiple subtitle languages recorded on a DVD as desired.

Multi-angle

You can switch between multiple viewing angles of a scene recorded on a DVD as desired.

When an operation is prohibited

When you are watching a DVD and attempt to perform an operation, it may not be performed by the programming on the disc. When this happens, this unit indicates on the screen.

INSTALLATION

PRECAUTIONS

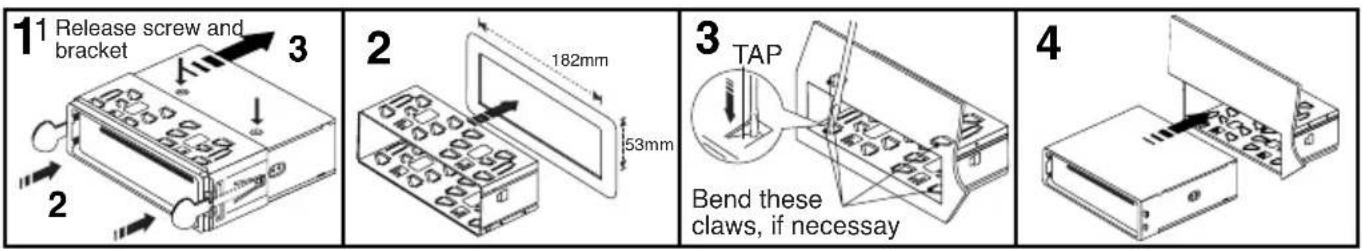

• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to remove the front panel before installing the unit.

NOTE : Inclination angle for car radio installation must not exceed 30^ otherwise the front panel will not open.

NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car.

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

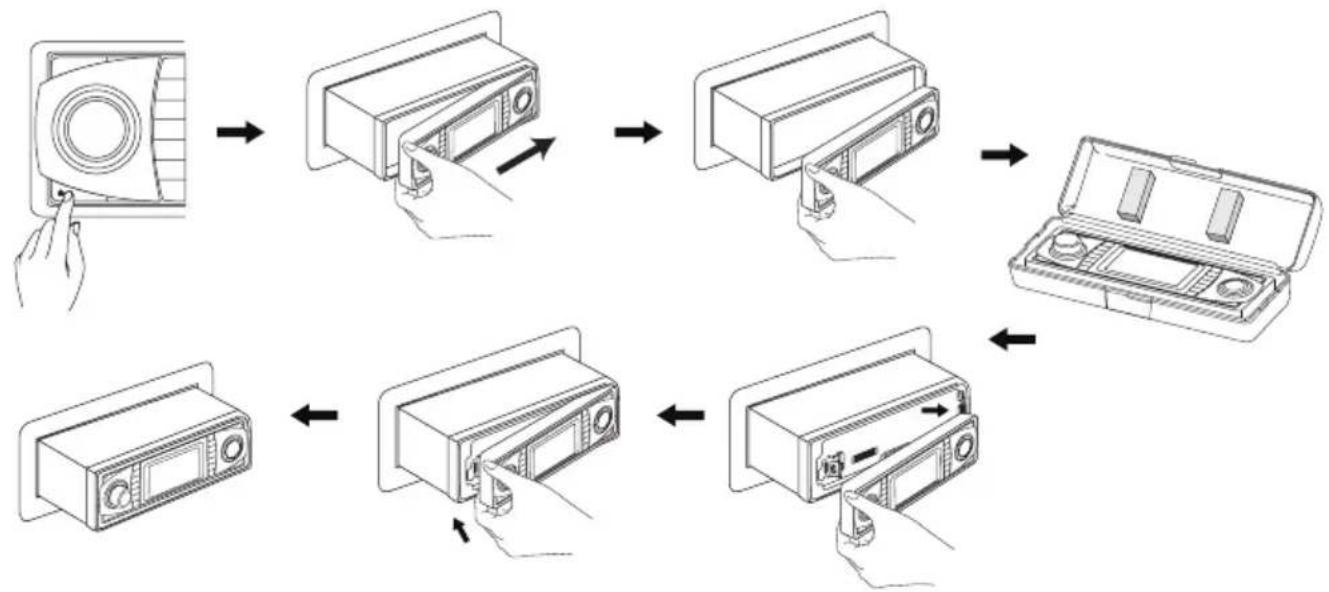

FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the ⏻ button (1) OFF first. Then press the ⏻ button and detach the panel by pulling it towards you as illustrated.

Notes:

• Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.
• When you carry the front panel with you, put it in the supplied front panel case.
• Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

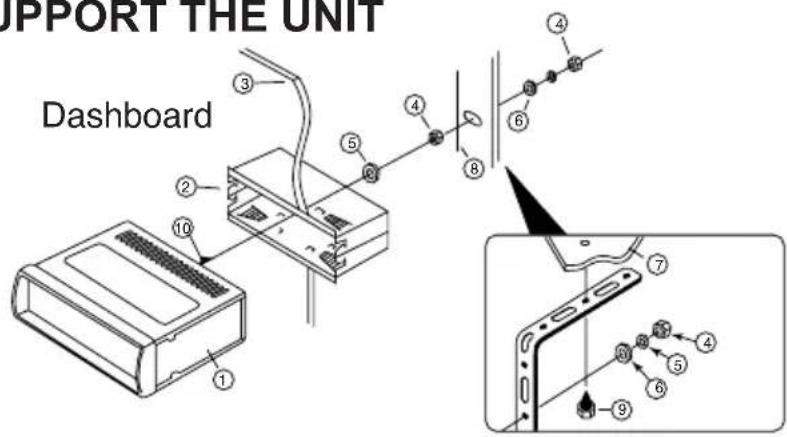

TO SUPPORT THE UNIT

1. UNIT
2. RELEASE CASE
3. DASH BOARD
4. HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. CAR BODY
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT

WIRE CONNECTION

IN / OUT CONNECTOR

DVD Audio Out (GRAY) Rear : White (L) Red (R)

Connect this wire to rear seat A/V monitor system to enjoy DVD movie

Audio Out (Front): White (L) Red (R)

Audio Out (Rear): White (L) Red (R)

Audio Line In : White (L) Red (R)

Video Out (Yellow) : Yellow (Plug)

Connect to external A/V system to display

Video In (Black) : Yellow (Plug)

Connect to external Video equipment

Rear camera In (Black) : Blue (Plug)

Connect to rear camera output

CONTROL WIRE

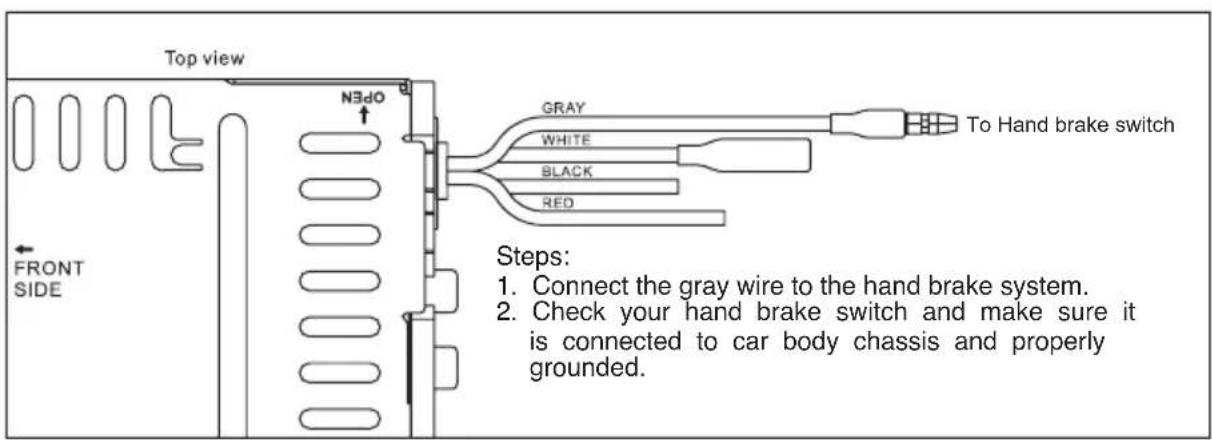

Parking (Gray) : Connect this wire to car hand brake system

Tel mute (Black) : Connect to mobile phone unit

When receiving calls, audio sound will be muted.

Rear camera (Red) : Connect to back rear camera

During back gear condition, this wire should be connected to high voltage.

DRIVING WITHOUT VIDEO DISPLAY

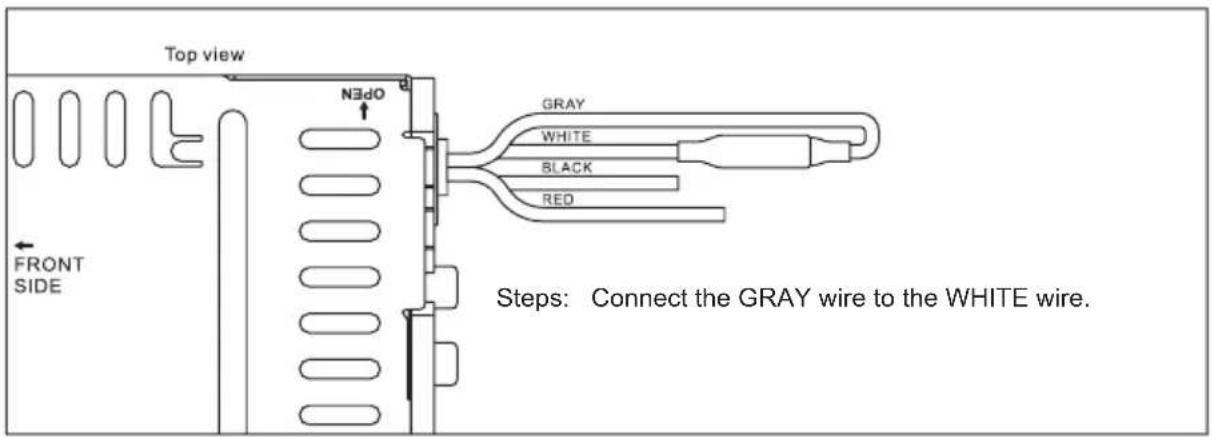

Follow the installation below so when the car is in motion, no video will come out from the LCD screen. Only sound can be heard from speaker.

Note:

- Only sound can be heard when car is in motion.

- Refer and follow your country's law regarding driving with video.

Caution:

- Do not attempt to install it by yourself if the instruction is not clear to you. Consult you dealer concerning the installation procedures.

DRIVING WITH VIDEO DISPLAY

By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not.

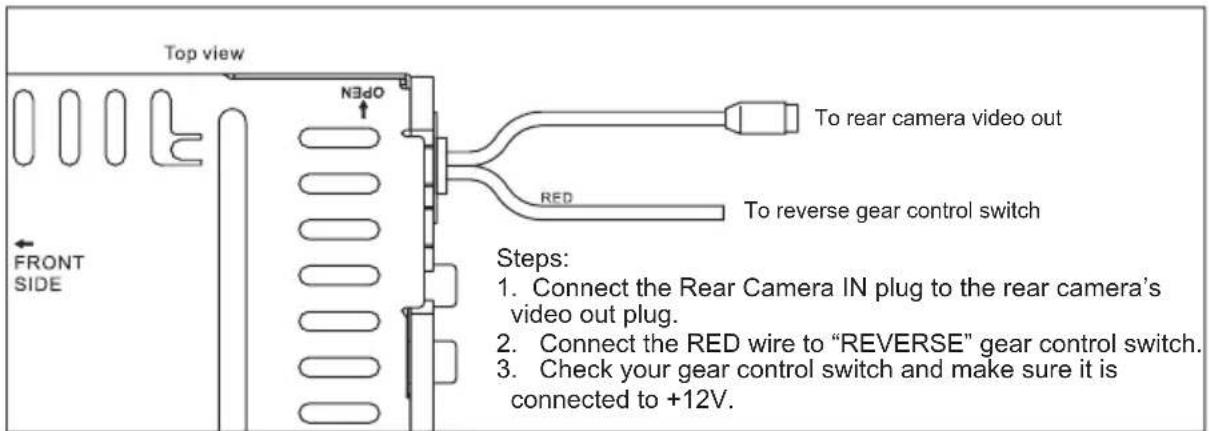

INSTALLING REAR CAMERA FOR PARKING/REVERSE MOTION

You can install an separate camera at the car rear end so when doing parking or reverse motion, the unit will automatically switch the video to the rear camera to guide the driver.

CONNECTOR A

1. MEMORY +12V
2. AUTO ANTENNA OUTPUT
3. +12V (TO IGNITION KEY)
4. GROUND

NOTE: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

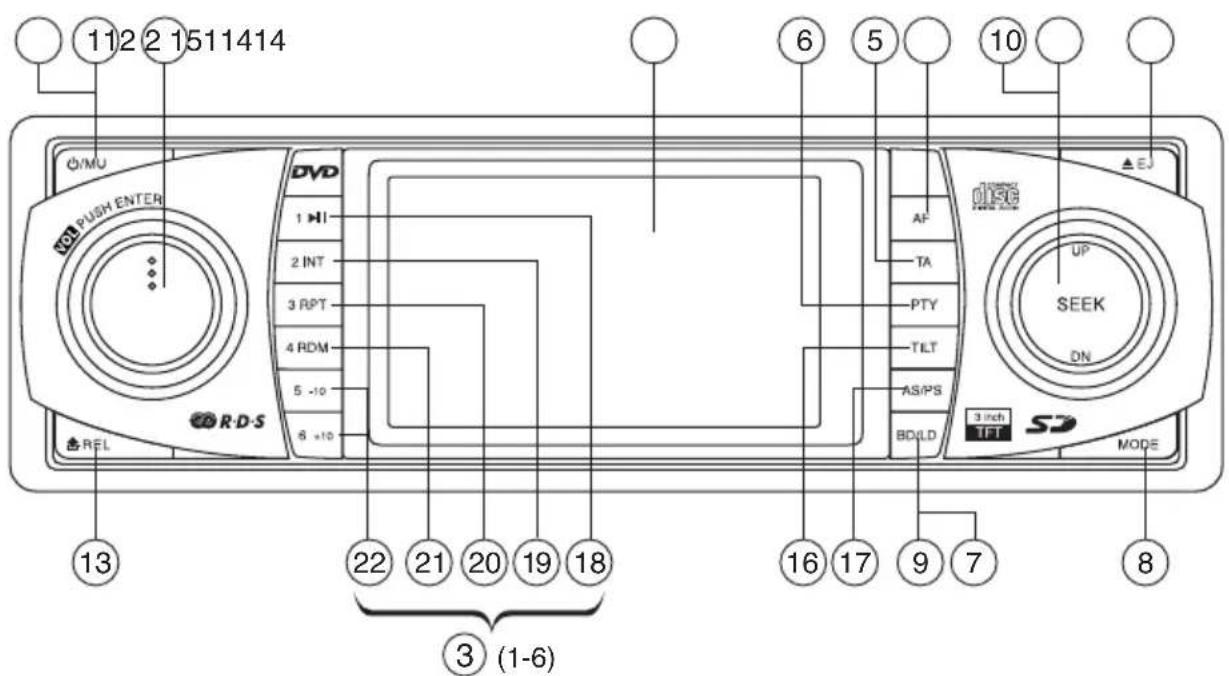

LOCATIONS OF PARTS (MAIN UNIT)

1. POWER ON/OFF ( ) MUTE
2. SELECT FUNCTION BUTTON
3. PRESET STATIONS (1,2,3,4,5,6)
4. 'AF' FUNCTION BUTTON (ALTERNATIVE FREQUENCIES)
5. 'TA' FUNCTION BUTTON (TRAFFIC ANNOUNCEMENT)
6. 'PTY' FUNCTION (PROGRAM TYPE)
7. LOUDNESS BUTTON (LD)
8. MODE BUTTON (MODE)
9. BAND BUTTON (BD)
10. CD TRACK / SEARCH BUTTON
11. AUTO SEEK TUNING
12. MUTE BUTTON (MU)
13. PANEL RELEASE BUTTON (↑)
14. TFT-LCD DISPLAY
15. CD EJECT BUTTON (▲)
16. TILT BUTTON
17. AUTO SEEK SEARCH TUNING (AS/PS)
18. PLAY/PAUSE BUTTON (▶)
19. INTRO BUTTON
20. REPEAT BUTTON
21. RANDOM BUTTON
22. +10 TRACK SEARCH DOWN/UP

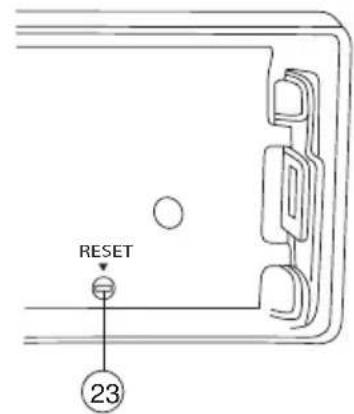

23. RESET BUTTON

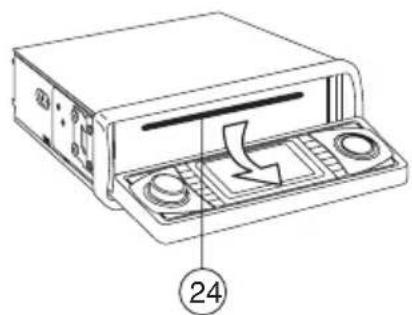

24. CD SLOT

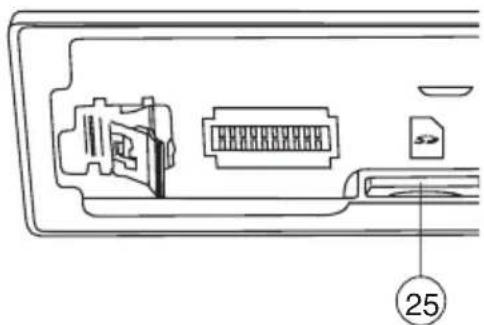

25. SD/MMC CARD SLOT

Technical line drawing of a device casing with internal components and a numbered label (24), no readable text or symbols present.

Diagram of a device rear panel showing internal components and a numbered label (25), no readable text or symbols present.

LOCATIONS OF PARTS (REMOTE CONTROL)

1. POWER ON/OFF
2. MODE
3. PLAY/PAUSE
4. TITLE
5. SELECT
6. SEEK+/SEEK- / CD TRACK/SEARCH
7. VOL+/VOL-
8. GOTO
9. EJECT
10. AUDIO
11. ENTER
12. NAVIGATION
13. AUTO SEEK / PRESET SCAN / REPEAT
14. RANDOM / BAND / LOUDNESS
15. DUAL
16. INTRO / PROGRAM
17. TILT
18. SUBTITLE
19. SETUP
20. EQUALIZER / ANGLE
21. LOCAL / SLOW MOTION
22. ZOOM / A-B REPEAT
23. STEREO/MONO / STOP
24. CLOCK / ON SCREEN DISPLAY
25. MUTE
26. MAIN MENU / PLAYBACK CONTROL
27. STEP (FRAME BY FRAME PLAYBACK)
28. PAL / NTSC SYSTEM
29. PROGRAM TYPE
30. ALTERNATIVE FREQUENCIES
31. TRAFFIC ANNOUNCEMENT
32. +10 TRACK SEARCH DOWN/UP
33. TWO DIGIT TRACKS SEARCHS
34. KEYPAD

Use and care of the remote control

Installing the battery

Slide the tray out on the back of the remote control and insert the battery with the (+) and minus (-) poles pointing in the proper direction.

- When use for the first time, pull out the film protruding the tray.

CAUTIONS

• Remove the battery if the remote control is not used for a month or longer.
• Do not recharge, disassemble, heat or dispose the battery on fire.
• Do not store the battery with metallic materials.
• In the event of battery leakage, wipe the remote control completely clean and install a new battery
• When disposing of used batteries, please comply with government regulations or environmental public institution's rule that apply in your country/area.
• Always check carefully that you are loading the battery with plus (+) and minus (-) poles facing the proper directions.

Using the remote control

Point the remote control in the direction of the front panel to operate.

IMPORTANT

• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal.

GENERAL OPERATIONS

Turning the unit ON/OFF (∅)

Press "button to turn on unit. To turn off, press and hold the button again.

Selecting a source (MODE)

Press MODE repeatedly to switch between TUNER, AUX, SD/MMC and CD/DVD mode.

Loading a Disc

1. Press EJ to open the front panel

2. Insert a disc into the disc loading slot

Ejecting a Disc

Press EJ button to eject disc

Adjusting Volume

• Head Unit: Rotate VOL knob right or left to increase or decrease volume.
- Remote Control: Press VOL+ or VOL- to increase or decrease volume.

Mute Button

• Head Unit: Press MU button to mute the sound at once. Press again to return to previous volume level.
• Remote Control: Press button.

Loud Button (LD)

Press and hold LD button to turn on/off LOUD feature.

Equalizer (EQ)

Press EQ to select between Flat - Classic - Rock - Pop - Custom equalizer modes.

Tilt

Tilt feature allows you to control the viewing angles of the screen.

- Press TILT button repeatedly to choose the desired tilt angle. You can also press and hold TILT to tilt to maximum viewing angle.

CLOCK

1. Press and hold CLK button on remote control. Hour starts blinking.
2. Rotate VOL knob to set hour. Press CLK knob, minutes starts blinking.
3. Rotate VOL knob to set minutes. Press VOL knob to save.

DUAL SETTINGS

DUAL is a feature that lets user control the external AV device and the head unit. For example, driver can listen to radio while the passenger at the back can watch DVD. This unit supports connection of external AV device such as portable TV through the AUDIO OUT and VIDEO OUT port.

Controlling TUNER

Controlling DISC

1. Connect the AUDIO OUT and VIDEO OUT port at the back of head unit to the LINE IN of external AV device.
2. Press and hold MODE. DISC will display on top of screen.

3. Press DUAL key on remote control to select which mode you want to control. T = TUNER, D = DISC

4. Refer to Radio and DVD sections on how to operate other features applicable to each mode. Note: You will need to connect an external portable TV or monitor when using this feature.

RESET

Reset button is placed on the housing. To reset, use a sharp point object and press and hold the RESET button for 2 seconds.

The reset button is to be activated for the following reason:

• Initial installation of the unit when all wiring is completed.
• All the function buttons does not operate.
• Error symbol on the display.

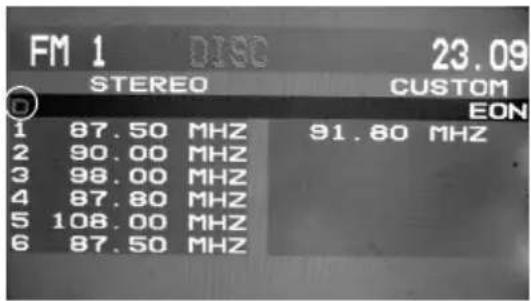

LISTENING TO RADIO

Band (BD)

Pressing this key repeatedly will toggle cyclically between each band. FM1---FM2---FM3.

LOCAL (Loc)

Press Loc button on remote control and tuning search will stop only at strong stations.

Stereo / Mono (ST)

Press ST button on remote control to switch between stereo and mono sound for FM radio reception. When reception of an FM station is weak, listening quality can be improved by switching to mono sound.

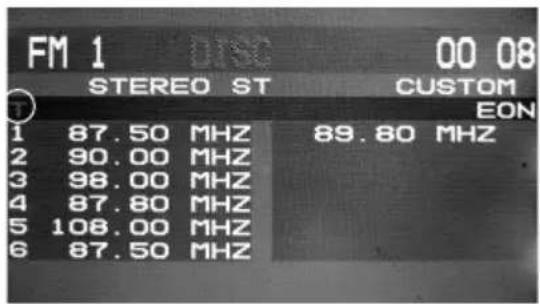

Automatic or Manual tuning (SEEK UP / SEEK DN)

When pressed short, these keys are operated as MANUAL tuning mode.

When pressed longer than 1 sec., they are operated as AUTOMATIC tuning mode.

Auto Seek/Preset scan (AS/PS)

Preset Scan (PS) - By pressing shortly, the radio plays each preset station for 5 seconds. Auto Seek (AS) - By pressing longer than 1 sec, auto seek is activated. The 6 strongest stations are preset and stored in the corresponding preset number. When Auto Seek operation is finished, the radio executes the preset scan.

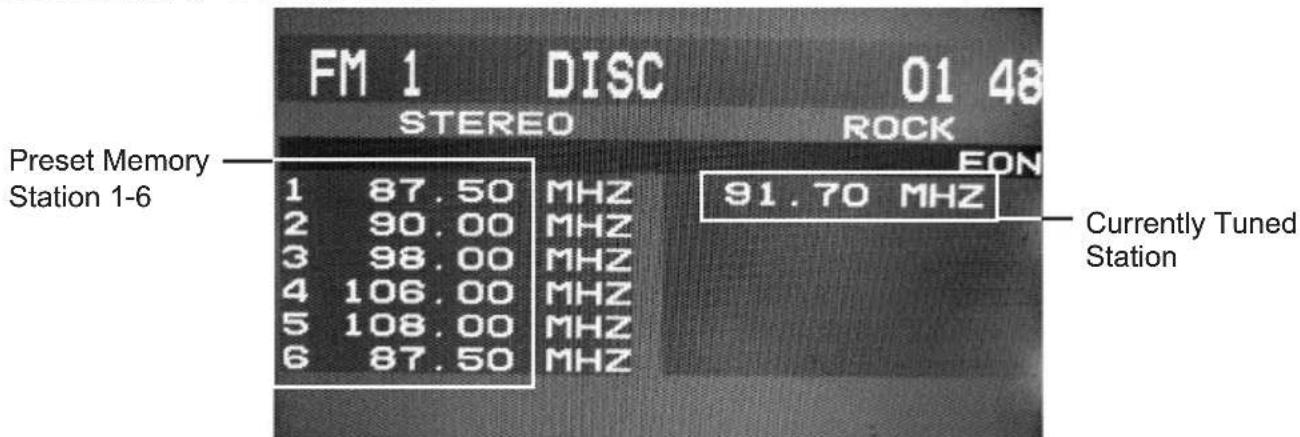

Storing and Recalling Frequencies

If you press any of the NUMBER (1-6) you can easily store up to six broadcast frequencies for later recall with the touch of a button.

1. Choose a desired BAND.
2. When you find a frequency that you want to store in memory, press a NUMBER(1-6) and hold until the preset number shows and lit in the display.
3. The selected radio station frequency has been stored in memory. The next time you press the same NUMBER (1-6) the radio station frequency is recalled from memory.

Note: Up to 18 FM stations can be stored in the memory.

USING THE RDS FUNCTION

What is RDS?

The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos. In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden.

'AF' Function (Alternative Frequencies)

• When pressed short, AF switching mode is selected.
• The radio checks the signal strength of the AF all the time, when it becomes too weak, the unit detects f from the AF signal on which frequencies it must search for a better transmitter.

'TA' Function (Traffic Announcement)

When pressed short, it is activated as TA mode on or off. When TA mode is on and traffic announcement is transmitted.

• When the unit is it CD/MP3 mode, it will switch to radio mode temporarily.
• If the volume level was under the threshold point, it will be raised to the threshold point.

'PTY' Function (Program Type)

1. Press and hold PTY button to turn ON Program type.
2. Rotate VOL knob to select program type.
3. Once desired program shows, simply press PTY button once more and unit start searching for available stations.

Note: Program type will flash when searching for stations.

OPERATIONS COMMON FOR CD/MP3/VCD/DVD/MP4

-10 Tracks Down / +10 tracks Up

1. Press -10 button to jump 10 tracks backward starting from currently played track.
2. Press +10 button to jump 10 tracks forward starting from currently played track.

Specifying particular track

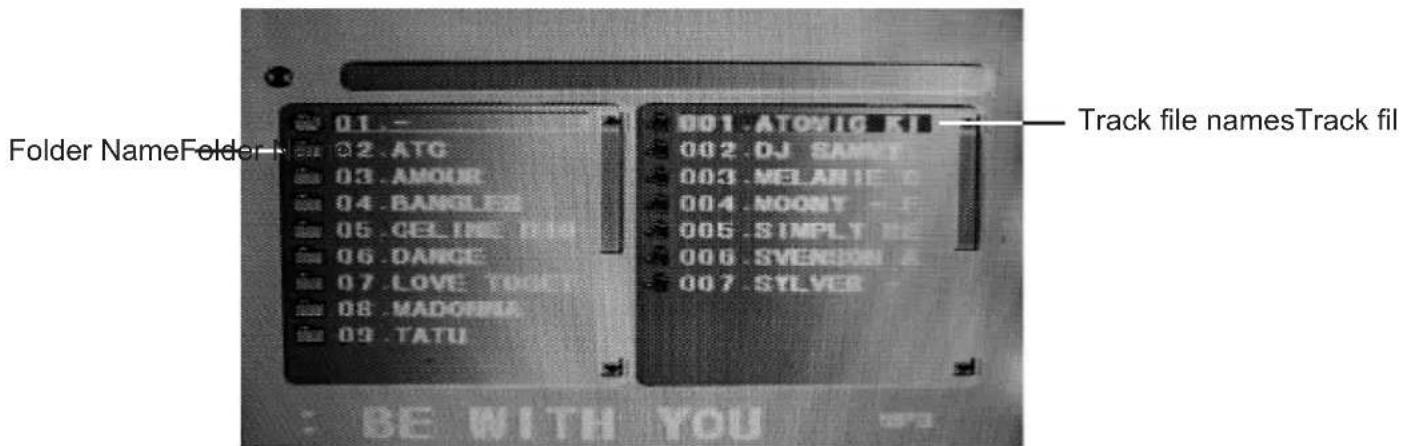

During playback, all track file names under a folder will be displayed on the screen with their corresponding track number. You can use the navigation keypad on the remote control to access the file.

Tips:

To select track 3, press 3.

To select 13, press and hold 10+ follow by 3.

To select 23, press and hold 10+ (2 times) follow by 3.

Random Playback

Press RDM during playback to play the tracks in random/shuffle order. Press it again to cancel.

Stopping Playback

1. Press Stop on remote control during playback to stop playback. That position is stored in memory.
2. Press to continue. Playback starts from the position at which it was stopped.
3. To permanently stop playback, press Stop button twice.

Fast Forward / Fast Reverse

Note: ◀◀ or ▶▶ on remote control is the same function as UP / DN on head unit.

1. During playback, press and hold of Unit scans at the speed of x2 - x4 - x8 - x20

2. To resume normal playback at a desired point, press ▶II

Note: No sound is played during fast forward / fast reverse.

Finding the Beginning of Tracks

During playback, press ◀◀ or ▶▶

◀◀: Press to start playback from the beginning of the previous chapter or track.
▶▶: Press to start playback from the beginning of the following chapter or track.

Pause Playback

During playback, press ▶Press again to resume playback.

A-B Repeat Playback

This feature allows you to loop playback a section of the movie starting from Point A to B.

1. Press the button to play the movie.
2. Once you have located the section you wish to playback on loop repeat, press and hold A-B button. You will see "Rep-A" on the screen.
3. Let the movie play on until you have reached the end of the section you wish to watch on continuous loop. Once you have reached this point, press and hold A-B button again. "Rep-A-B" will appear on your screen. Playback will now start from Point A -B.
4. To stop A-B repeat playback, press and hold A-B button once more until "Rep-A-B" disappears and normal playback resumes.

Displaying information (OSD)

During playback, you can see all DVD disc information and current play settings. Display will show related playback time, elapse time, title number, chapter number and other information.

1. Press OSD on the remote control once. Unit will display the play time and the disc elapse time.

2. Press it once more and all other settings information will be displayed.

3. Press OSD on the remote control once. Unit will display the play time and the disc elapse time.

4. Press it once more and all other settings information will be displayed.

LISTENING TO CD/MP3

Searching for particular track using GOTO

You can use the GOTO function to search for a desired track number or particular point of a track to play.

1. Press and hold GOTO on the remote control during playback. Time and track number search appears.

2. Enter the minutes and seconds for the currently played track if you want to search by time.

3. Press and hold GOTO on the remote control during playback. Time and track number search appears.

4. Enter the minutes and seconds for the currently played track if you want to search by time.

Press Enter.

1. Enter track number if you want to search by tracks. Press Enter.

Intro Playback

Press INT during playback to play the first 10 seconds of each track.

Repeat tracks

You can choose between repeat playback of a single track or all tracks.

1. Press RPT on the remote control during playback.
2. Every time you press this button, the unit switches to the following settings:

Repeat 1 – Repeat the current playback track.

Repeat DIR – Repeat all the tracks under the currently played folder.

Repeat All – Repeat all folders and tracks.

Program Playback

You can set which tracks to play according to your desired sequence using the PROG function.

1. Press and hold PROG button on the remote control.

2. Enter the track number besides the memory location.

3. When all tracks have been programmed, select PLAY and press Enter.
   Program playback will start.

4. To clear all program entries, press Prog and select CLEAR.
5. To stop program playback, press Stop button twice.

SD/MMC Card Input

1. Power off head unit.
2. Press button to open the front panel.
3. Insert the SD/MMC card into the card slot (25).
4. Attach front panel back to the head unit. Turn on unit. Playback starts automatically.

PLAYING DVD/VIDEO CD/MP4

Playback

1. Insert a disc. When the disc offers a menu, the menu is displayed. When a disc already inserted, press MODE to switch to disc mode.
2. On DVDs and video CDs with playback control (PBC), menu screens may appear automatically. If this happens, perform the operation described below to start playback.

CAUTION: Make sure that the Video TV system settings is set correctly according to your disc your playing. If you are not sure, leave it set to "Auto". Improper setup of TV system might cause the video to stop/skip/pause playing although audio might continue to play. You can setup video TV settings using the SETUP feature of the remote control. Refer to "SETTING UP THE DVD PLAYER" section.

DVD menu

Press ↑, ↓ to select the desired item, then press Enter.

Video CD menu

Use the number keys ("0" to "9") to select the desired number, then press Enter. The menu screen does not appear when the PBC function is turned off. In this case, press and hold button to turn on PBC feature.

Turning PBC ON/OFF (VCD only)

PBC (Playback Control) is a feature found on VCD 2.0 and SVCD 1.0. PBC allows control of the playback of play items and the possibility of interaction with the user through the remote control or some other input device available. If it's on, the player won't auto start after inserting the disc because it will take time to select program on disc; if it's off, the player will auto playback the program on disc one by one.

1. To turn ON PBC function, press PBC on the remote control. To turn OFF, press the button again.

Note: Not all VCD/SVCD disc have PBC functions.

Repeat Playback

FOR VCD

1. Press RPT on the remote control during playback.

2. Every time you press this button, the unit switches to the following settings:

Repeat 1 – Repeat the current playback track.

Repeat All – Repeat all folders and tracks.

Off – Turn repeat function OFF.

Note: PBC feature in VCD disc needs to be STOP in order to use Repeat playback.

FOR DVD

You can choose between repeat playback of a title or chapter.

1. Press RPT on the remote control during playback.

2. Every time you press this button, the unit switches to the following settings:

Repeat Title – Repeat the current playback title. (Press and hold RPT button)

Repeat Chapter – Repeat the current playback chapter.

Repeat Off – Turn repeat off.

Searching for particular track using GOTO

You can use the GOTO function to search for a desired track number or particular point of a track to play.

1 Press GOTO on the remote control during playback. Time and track number search appears.
2 Enter the minutes and seconds for the currently played track if you want to search by time. Press Enter.
3 Enter track number if you want to search by tracks. Press Enter.

Changing audio language during playback (Multi-audio)

DVDs can provide audio playback with different languages and different systems (Dolby Digital, DTS etc.). With DVDs featuring multi-audio recordings, you can switch between languages/audio systems during playback.

VCD can provide different audio languages usually divided into left and right channels.

1. To choose different audio, simply press Audio on the remote control repeatedly during playback. Note:

2. With some DVDs, switching between languages/audio systems may only be possible using a menu display.

3. You can also switch between languages/audio systems using SET-UP MENU.

Changing the subtitle language during playback (Multi-subtitle) – (DVD only)

With DVDs featuring multi-subtitle recordings, you can switch between subtitle languages during playback.

1. Press Sub-T on the remote control during playback. Press repeatedly until the supported desired subtitle appears.

Note:

• With some DVDs, switching between subtitles may only be possible using a menu display.
• You can also switch between subtitles using SET-UP MENU.

Changing the viewing angle during playback (Multi-angle) – (DVD only)

With DVDs featuring multi-angle (scenes shot from multiple angles) recordings, you can switch among viewing angles during play-back.

1. Press and hold Angle on the remote control during playback of a scene.

Title (DVD only)

During DVD playback, press Title on remote control to return to FIRST title.

Return to Root Menu (DVD only)

During DVD playback, press and hold MENU on head unit or remote control to return to root menu.

Note: Some DVD may not contain root menu.

Slow motion playback

This feature lets you slow down playback.

1. Press Slow on the remote control during playback.

2. Pressing it repeatedly will switch you to the following steps: 1/2 - 1/3 - 1/4 - 1/5 - 1/6 - 1/7.

Note:

• To resume normal playback, press PLAY/PAUSE ( ).
  • There is no sound during slow motion playback.
• With some disc, slow motion may be unclear during slow motion playback.

Zooming in During Playback

You can zoom in into the picture during playback.

1. Press ZOOM on the remote control during playback.

2. Every time you press and hold this button, the unit will zoom 2 - 3 - 4 - 1/2 - 1/3 - 1/4 times and OFF.

Program Playback

You can set which tracks to play according to your desired sequence using the PROG function.

1. Press and hold Prog button on the remote control.

2. Enter the track number (for VCD) or title number followed by chapter number (for DVD) besides the memory location.

3. When all tracks have been programmed, select PLAY and press Enter. Program playback will start.

4. To clear all program entries, press Prog and select CLEAR.
5. To stop program playback, press Stop button twice.

Frame-by-frame playback

This lets you move ahead one frame at a time during playback.

1 Each time you press and hold Step button on remote control, you move ahead one frame.

To return to normal playback, press ▶

PAL / NTSC (P/N)

Press and hold P/N button to switch between PAL, NTSC, AUTO system.

CUSTOMIZING AUDIO / VIDEO SETTINGS

AUDIO SETUP

1. Press VOL knob to enter AUDIO setup. Selected item will be highlighted. You can set BASS, TREBLE, BALANCE, FADER, SUBWOOFER, TA VOLUME.
2. Press UP / DN button to select item. Rotate VOL knob to make adjustments.
3. Press VOL knob to exit settings.

VIDEO SETUP

1. Press and hold VOL knob to enter VIDEO setup. Selected item will be highlighted. You can set BRIGHTNESS, CONTRAST, SATURATION, HUE, SHARPNESS.
2. Press UP / DN button to select item. Rotate VOL knob to make adjustments.
3. Press and hold VOL knob to exit settings.

Note:

■ N means Negative; P means Positive
- Depending on model's feature, some items may not show on screen.

SETTING UP THE DVD PLAYER

You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings.

Important:

1. Load any disc into the unit before you can access the setup.
2. Press Setup on the remote control.

Settings	Category	Options
System Setup	TV System	NTSC, PAL, AUTO
	Auto Play	ON, OFF
	TV Type	4:3PS, 4:3LB, 16:9
	Password	Setup password
	Rating	Setup rating level
	Default	Restore to factory settings
Language Setup	OSD Language	Select preferred options appear on screen
	Audio Language
	Subtitle Language
	Menu Language
	MPEG4 Language
Audio Setup	Audio Out	Analog
	Key	Setup key level
Video Setup	Brightness	Use navigation keys on remote control to setup desired level.
	Contrast
	Hue
	Saturation
	Sharpness
Speaker Setup	Downmix	LT/RT, Stereo, VSS
Digital Setup	OP Mode	Line Out, RF Remod
	Dynamic Range	Off-2/8-4/8-6/8-FULL
	Dual Mono	Stereo, Mono L, Mono R, Mix Mono

Setting Rating Password

1 Press Setup on the remote control.
2 Using Navigation keys select System Setup > Password and press Enter.
3 Enter new 4 digit password and press Enter. The unlock logo will switch to lock indicating password has been set.

Note: The default password is '8888'

TECHNICAL SPECIFICATIONS

CD/MP3 PLAYER SECTION

Signal to Noise Ratio > 60 dB

Channel Separation > 50 dB (1kHz)

Frequency Response 20 Hz - 20 kHz

TUNER (FM)

Frequency Range 87.5-108 MHz

Channel Step 50 kHz

Intermediate Frequency 10.7 MHz

Sensitivity 2.8 μV

Stereo Separation 30 dB

Signal to Noise Ratio 50 dB

LINE-OUT

Output 5V max

Impedance 10k Ohm

GENERAL

Power Supply 12V DC (10.8-15.6V allowable)

Speaker Impedance 4 or 8 Ohm

Output power 35W x 4CH

Note: Specification and the design are subject to possible modification without notice due to improvements.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.

The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

ALL RIGHTS RESERVED

COPY RIGHT DENVER ELECTRONICS A/S

E13

024174

www.denver-electronics.com
