Product Type	GPS Tracker
Brand	Teltonika
Model	FMB910
Dimensions	65 x 56 x 21 mm
Weight	75 g
Power Supply	10-30 V DC
Battery	3.7 V Li-Ion, 100 mAh
GNSS	GPS, GLONASS, Galileo, BeiDou
Communication	2G / 3G / 4G (LTE Cat M1 / NB-IoT)
Main Functions	Real-time tracking, geofencing, accelerometer, tamper detection, remote configuration
Inputs/Outputs	1 digital input, 1 digital output, 1 analog input
Operating Temperature	-40°C to +85°C
Ingress Protection	IP67 (waterproof and dustproof)
Maintenance	Keep firmware updated; clean with dry cloth; avoid liquids
Safety	Do not expose to extreme heat or mechanical shock; use certified charger
Spare Parts / Repairability	Battery and SIM card slot accessible; user-serviceable SIM; contact Teltonika for spare parts
General Information	For fleet management, asset tracking, and personal security; works with Teltonika RMS platform

Frequently Asked Questions - FMB910 Teltonika

How do I install the FMB910 in my vehicle?

Connect the power cable to a 10-30V DC source, ensuring correct polarity. Secure the device with mounting tape or screws. Insert a nano-SIM card with data plan. Use the Teltonika Configurator software to configure APN and server settings.

What LED indications does the FMB910 have?

The device has two LEDs: one for GNSS (green blinking = fix, solid = no fix) and one for status (blue blinking = power, green blinking = data transmission). Refer to the manual for full meaning.

How can I reset the FMB910 to factory settings?

You can reset via the Teltonika Configurator software: go to Device > Factory Reset. Alternatively, press the reset button inside the device using a pin for 5 seconds while the device is powered.

What is the battery life of the FMB910?

The internal backup battery (100 mAh) lasts for about 30 minutes in active mode and up to 2 hours in sleep mode. For extended battery life, use external power.

Does the FMB910 support geofencing?

Yes, you can create up to 100 geofence zones via the RMS platform or Configurator. Alerts can be sent when the device enters or exits a zone.

Can I use the FMB910 with third-party software?

Yes, the device supports standard GPS tracking protocols such as TCP, UDP, and SMS commands. You can integrate with compatible fleet management software using its API.

How do I update the firmware?

Download the latest firmware from Teltonika's website. Use the Teltonika Configurator via USB or FOTA (over the air) via RMS. Ensure stable power during update.

Why is my FMB910 not connecting to the network?

Check that the SIM card is active, properly inserted, and has sufficient balance/data. Verify APN settings in Configurator. Ensure the device is in an area with cellular coverage. Try rebooting the device.

What is the maximum number of devices I can manage on one account?

There is no hard limit; it depends on your RMS subscription plan. Teltonika RMS can handle thousands of devices per account. Check your plan for details.

How do I clean and maintain the FMB910?

Use a soft, dry cloth to wipe the exterior. Avoid water, solvents, or abrasive cleaners. Check cable connections periodically for corrosion. Update firmware as recommended.

USER MANUAL FMB910 Teltonika

Track & trace device

Quick Manual v1.1

TELTONIKA

Table of Contents

Know your device....3

Pinout....4

Wiring scheme....5

Set up your device 6

How to insert SIM card and connect the battery....6

PC Connection (Windows)....7

How to install USB drivers (Windows)....7

Configuration (Windows) 7

Quick SMS configuration....9

Mounting recommendations .... 10

LED indications....11

Characteristics.... 11

Basic characteristics 11

Electrical characteristics....12

Safety information 14

Certification and Approvals.... 15

Warranty....16

Warranty Disclaimer....16

TELTONIKA

Know your device

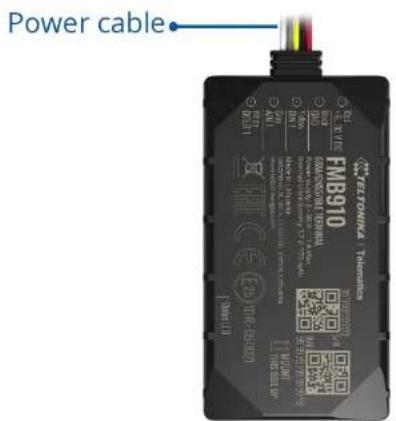

Top view

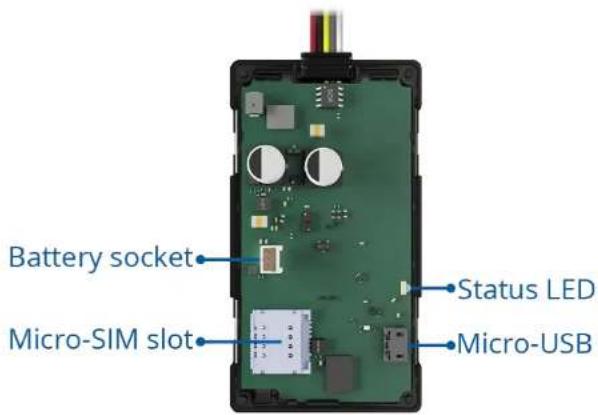

Bottom view
(without cover)

Figure 1 FMB910 device view

TELTONIKA

Pinout

Table 1 FMB910 pinout

PIN NUMBER	PIN NAME	DESCRIPTION
1	VCC (6-30) V DC (+)	Power supply (6-30) V DC (+)
2	GND (-)	Ground pin
3	DIN 1	Digital input, channel 1. DEDICATED FOR IGNITION INPUT
4	AIN 1	Analog input, channel 1. Input range: 0-30 V DC
5	DOUT 1	Digital output, channel 1. Open collector output. Max. 0,5 A DC

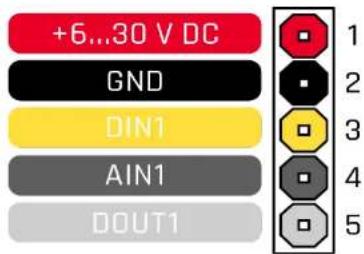

Figure 2 FMB910 pinout

TELTONIKA

Wiring scheme


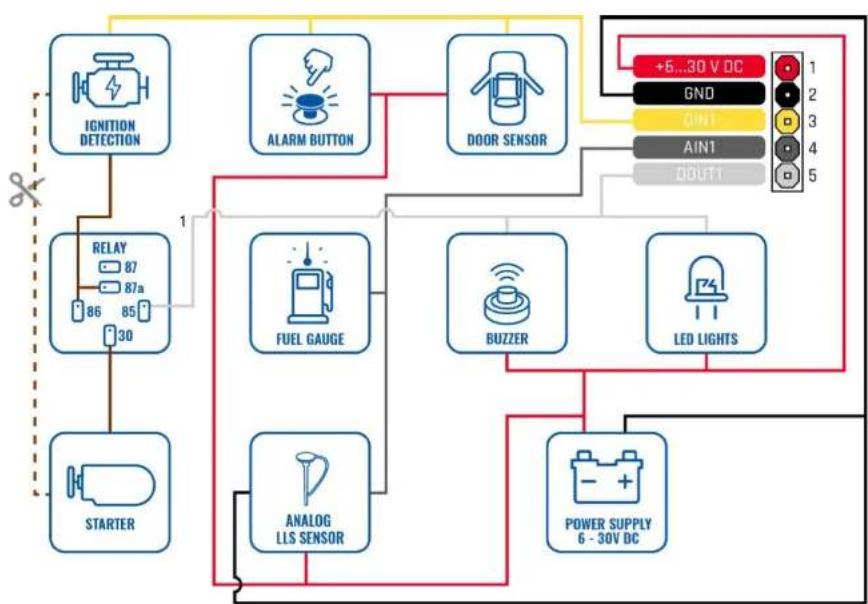

Figure 3 FMB910 Wiring scheme

TELTONIKA

Set up your device

How to insert Micro SIM card and connect the battery

1. Gently remove FMB910 cover using plastic pry tool from both sides.
2. Separate PCB from plastic cover and connect power supply cable.
3. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.
4. Connect internal back-up battery.
5. Attach device cover back. (Do not forget to configure the device before reassembling the device!)
6. Device ready to use!

Line drawing of a rectangular electronic component with a blue cable attached (no text or symbols)

1
Figure 4 Cover removal

Isometric technical diagram of an electronic circuit board with a blue component and wiring (no text or symbols)

3

Figure 6 Micro SIM card insert

Isometric diagram of an electronic device with internal components and a blue arrow indicating a specific part (no text or symbols present)

5
Figure 8 Attaching cover back

Isometric diagram of a device with internal components and blue directional arrows indicating movement (no text or symbols)

2

Figure 5 Wiring harness connection

Isometric technical diagram of a circuit board with components and wiring (no text or labels)

4

Figure 7 Battery connection

Line drawing of a rectangular electronic component with a curved top and side slots (no text or symbols)

6
Figure 9 Device ready to use

TELTONIKA

PC Connection (Windows)

1. Power-up FMB910 with DC voltage 6-30 V power supply using power cable. LED's should start blinking, see "LED indications".
2. Connect device to computer using Micro-USB cable or Bluetooth connection:

• Using Micro-USB cable

- You will need to install USB drivers, see "How to install USB drivers (Windows)"

• Using Bluetooth

- FMB910 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device > Bluetooth. Choose your device named - "FMB910_last_7_imei_digits", without LE in the end. Enter default password 5555, press Connect and then select Done.

1. You are now ready to use the device on your computer.

How to install USB drivers (Windows)

1. Please download COM port drivers from here.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup.

Configuration (Windows)

At first FMB910 device will have default factory settings set. These settings should be changed according to the user's needs. Main configuration can be performed via Teltonika Configurator software. Get the latest FMB910 Configurator version from here. Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.

Table 2 MS .NET requirements

MS .NET REQUIREMENTS
Windows Vista Windows 7 Windows 8.1 Windows 10	MS .NET Framework 4.6.2	32 and 64 bit	www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it and launch Configurator.exe. After launch software language can be changed by clicking 📄 in the right bottom corner (Figure 10 Language selection).

Figure 10 Language selection

Configuration process begins by pressing on connected device (Figure 11 Device connected via USB).

Figure 11 Device connected via USB

After connection to Configurator Status window will be displayed (Figure 12 Configurator Status window).

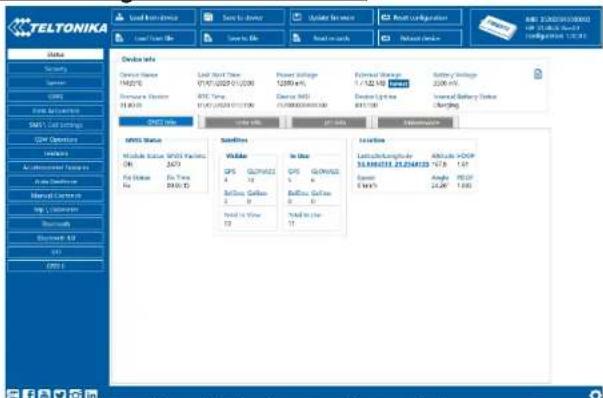

Figure 12 Configurator Status window

Various Status window tabs display information about GNSS, GSM, I/O, Maintenance and etc. FMB910 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality:

1. Load from device – loads configuration from device.
2. Save to device – saves configuration to device.
3. Load from file - loads configuration from file.
4. Save to file - saves configuration to file.
5. Update firmware – updates firmware on device.
6. Read records – reads records from the device.
7. Reboot device - restarts device.
8. Reset configuration – sets device configuration to default.

Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured.

More details about FMB910 configuration using Configurator can be found in our Wiki.

TELTONIKA

Quick SMS configuration

Default configuration has optimal parameters present to ensure best performance of track quality and data usage.

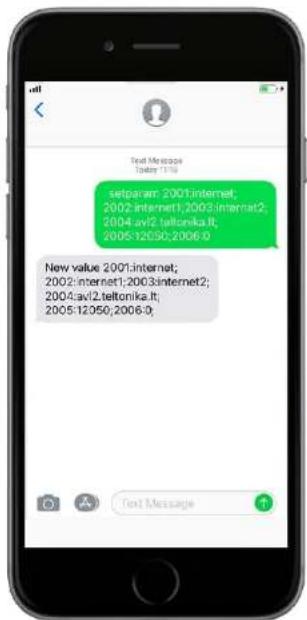

Quickly set up your device by sending this SMS command to it:

" setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0;"

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

• 2001 - APN
• 2002 – APN username (if there are no APN username, empty field should be left)
- 2003 – APN password (if there are no APN password, empty field should be left)

Server settings:

• 2004 - Domain
• 2005 - Port
• 2006 – Data sending protocol (0 – TCP, 1 – UDP)

Default configuration settings

Movement and ignition detection:

Vehicle movement will be detected by accelerometer

Ignition will be detected by vehicle power voltage between 13,2 - 30 V

Device makes a record On Moving if one of these events happen:

300 seconds passes

Vehicle turns 10 degrees

Vehicle drives 100 meters

Speed difference between last coordinate and current position is greater than 10 km/h

Device makes a record On Stop if:

1 hour passes while vehicle is stationary and ignition is off

Records sending to server:

If device has made a record it is sent to the server every 120 seconds

After successful SMS configuration, FMB910 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator or SMS parameters

TELTONIKA

Mounting recommendations

- Connecting wires

• Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires.
• The connections should not be seen very clearly. If factory isolation was removed while connecting wires, it should be applied again.
• If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied.
• Wires cannot be connected to the board computers or control units.

- Connecting power source

• Be sure that after the car computer falls asleep, power is still available on chosen wire. Depending on car, this may happen in 5 to 30 minutes period.
• When the module is connected, measure the voltage again to make sure it did not decrease.
• It is recommended to connect to the main power cable in the fuse box.
• 3 A, 125 V external fuse shall be used.

- Connecting ignition wire

• Be sure to check if it is a real ignition wire i.e. power does not disappear after starting the engine.
• Check if this is not an ACC wire (when key is in the first position, most of the vehicle electronics are available).
• Check if power is still available when you turn off any of vehicles devices.
• Ignition is connected to the ignition relay output. As alternative, any other relay, which has power output when ignition is on, may be chosen.

- Connecting ground wire

• Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
• If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
• For better contact scrub paint from the spot where loop is going to be connected.

TELTONIKA

LED indications

Table 3 Status LED indications

BEHAVIOR	MEANING
Blinking every second	Normal mode
Blinking every two seconds	Sleep mode
Blinking fast for a short time	Modem activity
Off	Device is not working or Device is in boot mode

Characteristics Basic characteristics

Table 4 Basic characteristics

MODULE
Name	Teltonika TM2500
Technology	GSM, GPRS, GNSS, BLUETOOTH
GNSS
GNSS	GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver	Tracking: 33
Tracking sensitivity	-165 dBM
Accuracy	< 3 m
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s^2
CELLULAR
Technology	GSM
2G bands	Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer	GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support	SMS (text/data)
POWER

TELTONIKA

Input voltage range	6-30 V DC with overvoltage protection
Back-up battery	170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption	At 12V < 2 mA (Ultra Deep Sleep)At 12V < 4 mA (Deep Sleep)At 12V < 5 mA (Online Deep Sleep)At 12V < 6 mA (GNSS Sleep)At 12V < 25 mA (nominal with no load)
BLUETOOTH
Specification	4.0 + LE
Supported peripherals	Temperature and Humidity sensor,Headset, OBDII dongle, InateckBarcode Scanner, Universal BLE sensors support
INTERFACE
Digital Inputs	1
Digital Outputs	1
Analog Inputs	1
GNSS antenna	Internal High Gain
GSM antenna	Internal High Gain
USB	2.0 Micro-USB
LED indication	1 status LED light
SIM	Micro-SIM
Memory	128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions	78.4 x 42.6 x 21 mm (L x W x H)
Weight	69 g
OPERATING ENVIRONMENT
Operating temperature (without battery)	-40 °C to +85 °C

Storage temperature (without battery)	-40 °C to +85 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP54
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	-20 °C to +60 °C
Battery storage temperature	-20 °C to +45 °C for 1 month-20 °C to +35 °C for 6 months
FEATURES
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update	FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS	Configuration, Events, DOUT control, Debug
GPRS commands	Configuration, DOUT control, Debug
Time Synchronization	GPS, NITZ, NTP
Fuel monitoring	LLS (Analog), OBDII dongle
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Electrical characteristics

TELTONIKA

Table 5 Electrical characteristics

CHARACTERISTIC DESCRIPTION	VALUE
	MIN.	TYP.	MAX.	UNIT
SUPPLY VOLTAGE
Supply Voltage (Recommended Operating Conditions)	+6		+30	V
DIGITAL OUTPUT (OPEN DRAIN GRADE)
Drain current (Digital Output OFF)			120	μA
Drain current (Digital Output ON, Recommended Operating Conditions)			0.6	A
DIGITAL INPUT
Input resistance (DIN1)	47			kΩ
Input voltage (Recommended Operating Conditions)	0		Supply voltage	V
Input Voltage threshold (DIN1)		3.9		V

Input voltage (Recommended Operating Conditions)	0		+30	V
Input resistance		150		kΩ
Measurement error on 12V		3		%
Additional error on 12 V		360		mV
Measurement error on 30 V		3		%
Additional error on 30 V		900		mV
ABSOLUTE MAXIMUM RATINGS
Supply Voltage	-32		+32	V
Drain-Source clamp threshold voltage, ( I_drain = 2 mA )			+36	V
Digital Input Voltage	-32		+32	V
Analog Input Voltage	-32		+32	V

Analog Input error margin can increase if temperature varies.

ANALOG INPUT

TELTONIKA

Safety information

This message contains information on how to operate FMB910 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!

• The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +6 ...+30 V DC.
• To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible. They show the status of device operation.
• When connecting the (1x5) cables to the vehicle, the appropriate jumpers of the vehicle power supply should be disconnected.
• Before dismounting the device from the vehicle, the 1x5 connection must be disconnected.
• The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 60950-1 standard.
• The device FMB910 is not designed as a navigational device for boats.

Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.

All wireless data transferring devices produce interference that may affect other devices which are placed nearby.

The device must be connected only by qualified personnel.

The device must be firmly fastened in a predefined location.

The programming must be performed using a PC with autonomic power supply.

Installation and/or handling during a lightning storm is prohibited.

The device is susceptible to water and humidity.

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose them to battery recycle bin found in stores.

TELTONIKA

Certification and Approvals

This sign on the package means that it is necessary to read the User's Manual before your start using the device. Full User's Manual version can be found in our Wiki.

This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.

Hereby, Teltonika declare under our sole responsibility that the above described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED).

TELTONIKA

Warranty

TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager.

Contact us teltonika.lt/company/contacts

All batteries carry a reduced 6 month warranty period.

If a product should fail within this specific warranty time, the product can be:

• Repaired
• Replaced with a new product
• Replaced with an equivalent repaired product fulfilling the same functionality
• TELTONIKA can also repair products that are out of warranty at an agreed cost.

Warranty Disclaimer

TELTONIKA PRODUCTS ARE INTENDED TO BE USED BY PERSONS WITH TRAINING AND EXPERIENCE. ANY OTHER USE RENDERS THE LIMITED WARRANTIES EXPRESSED HEREIN AND ALL IMPLIED WARRANTIES NULL AND VOID AND SAME ARE HEREBY EXCLUDED. ALSO EXCLUDED FROM THIS LIMITED WARRANTY ARE ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO, LOSS OF USE OR REVENUE, LOSS OF TIME, INCONVENIENCE OR ANY OTHER ECONOMIC LOSS.

More information can be found at teltonika.lt/warranty-repair
