Brand	Silver Cross
Model	Surf Aston Martin
Category	Stroller / Travel System
Product Type	3-in-1 Pushchair
Dimensions (Unfolded)	110 × 60 × 105 cm
Dimensions (Folded)	85 × 60 × 40 cm
Weight	12.5 kg
Age Range	From birth to 4 years
Max Child Weight	22 kg
Foldable	Yes – one-hand compact fold
Harness Type	5-point harness with adjustable height
Seat Recline	Multi-position, lie-flat suitable for newborn
Canopy	Large extendable sun canopy with UPF 50+
Wheels	4 wheels – front swivel with lock, rear 26 cm
Suspension	All-wheel suspension
Brakes	Link pedal brake on rear wheels
Car Seat Compatible	Yes – adapters for Silver Cross car seats
Included Accessories	Carrycot, rain cover, shopping basket, footmuff
Material	Aluminium frame, polyester fabric
Cleaning	Wipe with damp cloth; removable seat pad machine washable
Safety Standard	EN 1888
Warranty	2 years

Frequently Asked Questions - Surf Aston Martin Silver Cross

How do I fold the Silver Cross Surf Aston Martin stroller?

To fold, pull the folding lever located on the handlebar, push the handle forward, and the stroller will collapse into a compact self-standing fold. Ensure the seat is upright and the brake is engaged before folding.

What is the maximum weight capacity of the stroller?

The Silver Cross Surf Aston Martin can hold a child up to 22 kg (approximately 4 years old). The carrycot has a separate limit of 9 kg.

Is the stroller suitable for newborns?

Yes, the stroller comes with a lie-flat carrycot suitable for newborns from birth. The seat unit also reclines to a flat position for use with a newborn when combined with the included newborn insert.

How do I adjust the 5-point harness?

To adjust, press the central release button to loosen the straps. Slide the shoulder height adjusters up or down through the slots in the seat back. Ensure the harness fits snugly against your child.

Can I use a car seat with this stroller?

Yes, using the Silver Cross car seat adapters (sold separately or included depending on version), you can attach compatible Silver Cross car seats to create a travel system.

How do I clean the fabric parts?

The seat pad, carrycot liner, and footmuff are removable and machine washable at 30°C. The frame can be wiped clean with a damp cloth. Do not use harsh chemicals.

How do I recline the seat?

Press the recline trigger located on the back of the seat or on the side of the handles and gently push the seat back to the desired position. Release the trigger to lock.

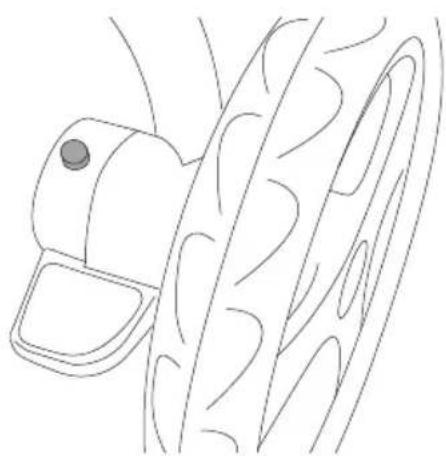

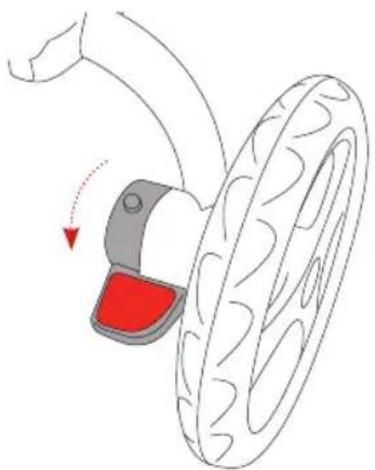

How do I engage the brake?

Press the link pedal brake on the rear axle downwards to lock both rear wheels. To release, press the top of the pedal. Always engage the brake when stationary.

Where can I buy replacement parts?

Replacement parts such as wheels, canopy, and seat pad can be ordered through the Silver Cross website or authorized retailers. Contact Silver Cross customer service for specific part numbers.

What is the warranty on this stroller?

The Silver Cross Surf Aston Martin comes with a 2-year warranty against manufacturing defects. Registration may be required for full coverage. The warranty does not cover wear and tear or misuse.

USER MANUAL Surf Aston Martin Silver Cross

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Read these instructions before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

Your Silver Cross Surf – Aston Martin Edition is a high quality Silver Cross product. It meets current British and European safety standards. Care and regular light maintenance will ensure long service.

This pushchair is suitable from birth up to 9kg with the Carrycot and from 6 months up to 15 kgs using the Seat Unit.

If somebody unfamiliar is using your Silver Cross Surf – Aston Martin Edition always ensure that they read these instructions carefully so that they understand how the product works best.

The Silver Cross Surf – Aston Martin Edition is designed and tested to be used with the Silver Cross Ventura Plus S Car Seat, and Silver Cross Simplicity Infant Carrier all sold separately.

Always read all the instructions provided carefully and remember, the safety of your child is your responsibility.

WARNING: It may be dangerous to leave your child unattended.

Contents

First check all your parts have been supplied. Your Silver Cross Surf – Aston Martin Edition includes:

1.1 Seat unit with harness
1.2 Chest pads
1.3 Bumper bar
14 Chassis
1.5 Front wheels
1.6 Rear wheels

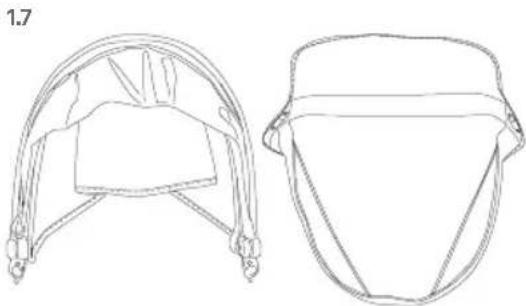

1.7 Seat Unit Hood and Apron
1.8 Cup holder
1.9 Shopping basket
1.10 Sunshade
1.11 Carrycot, Mattress, Liner & Bumper bar
1.12 Carrycot Hood and Apron
1.13 Seat Unit Raincover
1.14 Carrycot Raincover

1.5 1.6

Three abstract diagrams showing circular and petal-like shapes with central spikes, no text or symbols present.

Line drawings of two types of helmet designs, one with a curved frame and the other with a wide-brimmed bucket (no text or symbols)

Line drawing of a baby bathtub with a small object on top (no text or symbols)

1.10

Line drawing of a smartphone with a handle and logo (no text or symbols on the device itself)

Simple line drawing of an oval shape with internal horizontal dashed lines (no text or symbols)

1.11 1.12

Pure geometric diagram of an oval shape with internal lines and two small circular elements at the ends (no text or symbols)

Simple line drawing of an oval-shaped object with two side handles (no text or symbols)

Simple line drawing of an oval shape with a horizontal base and a vertical cylindrical object beside it (no text or symbols)

Line drawing of a curved mechanical or architectural component with no visible text or symbols

Simple line drawing of a bucket with a curved handle and rounded top (no text or symbols)

1.13

1.14

Diagram showing a car wheel being adjusted to a steering wheel (no text or symbols present)

2.1

Diagram of a hand operating a wheel with a handle, showing motion direction (no text or symbols)

2.2

Technical line drawing of a mechanical component with no visible text or symbols

4

Preparation for use

Remove all packaging material from your Silver Cross Surf – Aston Martin Edition. To use your Silver Cross Surf – Aston Martin Edition from birth you must use the Silver Cross Surf – Aston Martin Edition Carrycot (included).

WARNING: Check that the carrycot or seat unit is correctly engaged before use.

Silver Cross Surf - Aston Martin Edition chassis

21 Attach the front and back wheels by inserting the axles into the frame until they 'click' into position.

2.2 Release the folding lock and lift the handle to waist height.

Silver Cross Surf - Aston Martin Edition chassis (continued)

2.3 Lift the handle upwards and flick forwards, while holding the handle tightly, the frame 'clicks' and locks into position. Always check that the frame is secure.
2.4 Apply the brake (see point 25.1) and adjust the handle height by pushing the adjustment button in. Slide the handle up or down and release the adjustment button. The handle will lock and 'click' into position. Your chassis is now ready for use.

3.1

Pure mechanical linkage diagram without any text, numbers, or symbols

3.2

Diagram showing a mechanical component with motion lines and arrows, no readable text or symbols present

3.4

Illustration of a hand holding a curved object with a red arrow indicating motion (no text or symbols)

3.3

3.6

Simple line drawing of a mechanical device with no text or symbols

3.7

3.8

Line drawing of a mechanical joint or connector (no text or symbols)

3.9

Line drawing of a mechanical component with curved surfaces and mounting points (no text or symbols)

4.1

Line drawing of a baby stroller with wheels and handle (no text or symbols)

Using your Silver Cross Surf - Aston Martin Edition from birth

Preparation for use

Remove all packaging material from your carrycot.

31 First erect the carrycot outer. Lay the carrycot outer down with frame upper most. Press the 2x metal bars into the locators on internal base of carrycot. A small groove in the locator holds the frame in position.
3.2 Attach the carrycot liner to the carrycot outer. Fasten each inner zip. There is one at each end of the liner.
3.3 Pass the two D-shaped parts of the liner between the liner and the outer and fasten the velcro patches to secure the liner in place.
3.4 Place the mattress into the base of the liner.
3.5 Zip your hood to the zip on the carrycot outer.
3.6 Attach the hood to the frame by pressing down on the hood attachment clips on each side of frame.
3.7 Fit the apron by zipping it to the Carrycot outer.
3.8 Slide the apron flap clips over the attachment points on the inside of the carrycot frame.
3.9 Attach the bumper bar by pressing the ends of the bumper bar into the attachment points of the carrycot frame. Wait to hear them 'click' into place. Lift gently to ensure the bumper bar is locked in place. Fold the apron flap over the bumper bar to hold it in place.

WARNING: Please ensure the bumper bar is fully locked in place whenever lifting your child in the carrycot. Your child's safety is your responsibility.

WARNING: Ensure all locking devices are engaged before use.

Your carrycot is ready to use.

Attaching the carrycot to your chassis

41 To attach your carrycot to the chassis hold the carrycot above the chassis. Locate the carrycot chassis connector onto the attachment post of the chassis. Ensure the carrycot 'clicks' into place. The carrycot should be fitted rearward facing. Lift the carrycot gently by the bumper bar to check it has locked into place.
WARNING: Do not add a mattress other than the one provided.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing showing two mechanical assembly steps with no visible text or symbols

Three technical line drawings of a mechanical device with no visible text or symbols

Detaching the carrycot from your chassis

5.1 With the carrycot facing you press the red release button first located on the side of the carrycot until it clicks into place.

WARNING: This button is now unlocked. It will re-lock automatically when the carrycot is re-attached to the chassis.

Then while pressing and holding the other black release button on the opposite side of the carrycot, lift the carrycot from the chassis using the bumper bar.

WARNING: Always ensure your bumper bar is attached when your child is in the carrycot.

The seat unit will now lift clear of the chassis.

Using your carrycot bumper bar

61 To attach, simply press both ends of the bumper bar into the connector points on the seat unit. Wait for it to 'click' in place.

6.2 To detach, press the bumper bar release button on the carrycot frame with one hand and pull the bumper bar away from the connector point with the other hand. The bumper bar will rotate.

To detach both sides repeat point (6.2) above. With one side of the bumper bar removed the carrycot is easily accessible.

WARNING: The bumper bar must be securely connected at all times when in use. The safety of your child is your responsibility.

Using your carrycot hood

7.1 Zip the back of the hood to the top of the carrycot frame taking care to engage the zip properly.

7.2 Your hood fits to the carrycot frame by pressing the hood clips down onto the frame below the round black plastic locator.

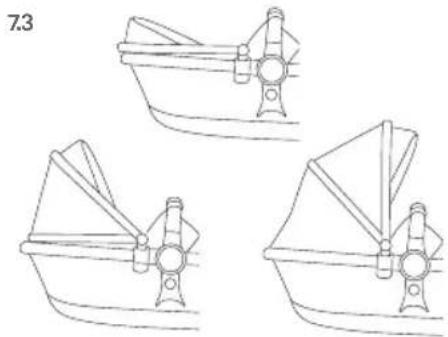

7.3 Your hood can be used in 3 positions. Fully covered, partly covered and fully open.

818.2

Two technical diagrams showing mechanical components with no visible text or symbols

9.1
10.1

Two technical illustrations: a simple dome-shaped structure and a multi-wheeled vehicle with a curved roof (no text or symbols)

11.1

Line drawing of a baby stroller with wheels and handle (no text or symbols)

11.2

Line drawing of a car seatbelt mechanism with no text or symbols

Using your carrycot apron

81 To attach the apron, zip the apron to the carrycot outer.
8.2 Slide the apron flap clips over the attachment points on the inside of the carrycot frame.

Using your carrycot liner and mattress

91 Your carrycot mattress is removable. Simply lift it out of the liner. To clean your mattress cover refer to the Care Guide. Remove the foam mattress insert prior to cleaning by opening the flap on the back of the mattress cover and removing the foam mattress. The carrycot has a removable liner. Simply unzip each end and release the Velcro fastenings to remove it. To fit the liner and mattress see preparation for use points (3.1-3.4).

Using your raincover

10.1 Your carrycot raincover should be used when the hood is attached to the carrycot. First slide over the hood and down towards the foot of the carrycot. Velcro fastenings secure the carrycot sides around the chassis. A zip gives easy access to your child.
WARNING: Never leave your child in the pram with the raincover fully fitted other than in normal outside use.

Using your sun shade

Your summer shade/insect net can be used with your carrycot and Seat Unit.

11.1 Attach your sun shade by pulling over your fully open hood and ensuring the elastic edge is secured around the seat.
11.2 Your sun shade has a fabric panel on the front which can be fully rolled up for maximum ventilation or rolled down to create more shade if required. The fabric panel can be secured in place using the velcro squares.
WARNING: Do not leave your child for long periods with the sun shade attached.

12.1

Line drawing of a two-wheeled baby stroller with wheels and handle (no text or symbols)

13.1

Technical diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

13.2

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Using your Silver Cross Surf - Aston Martin Edition as a pushchair

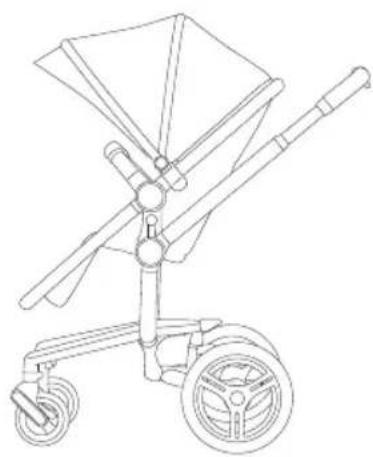

12.1 Your seat unit can be fitted to the chassis in rearward facing position (infant facing you) or forward facing position (infant facing away from you). Follow point (14.1) to attach the seat unit to the chassis.

Adjust the seat unit to the desired position. See point (22.1). Secure the apron see point (13.4). Your Silver Cross Surf – Aston Martin Edition is ready to use.

Preparing the seat unit

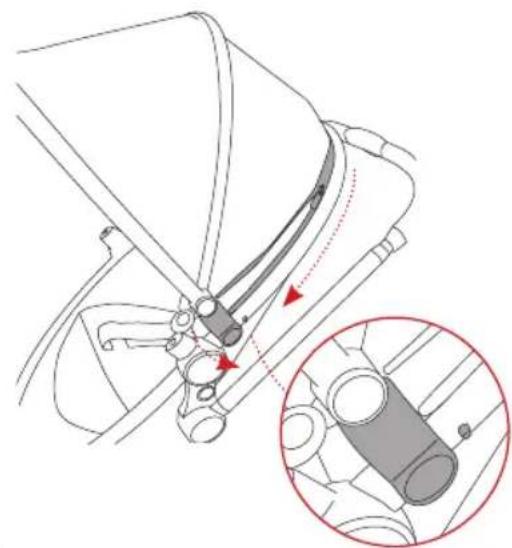

13.1 First, zip the hood to the back of the seat frame taking care to engage the zip properly. Attach the hood by pressing down on the hood clips on either side of the seat frame below the round black plastic locator.

13.2 Thread the harness through the buttonholes, slide the chest and buckle pads over the harness and secure the harness buckle. (see point 17.4).

13.3

Line drawing of a mechanical component with a red arrow indicating a turning point (no text or symbols)

Anatomical illustration of a joint with a hand holding a device, showing no text or symbols.

13.4

Line drawing of a hand holding a curved mechanical component with a red arrow indicating motion (no text or symbols)

Preparing the seat unit (continued)

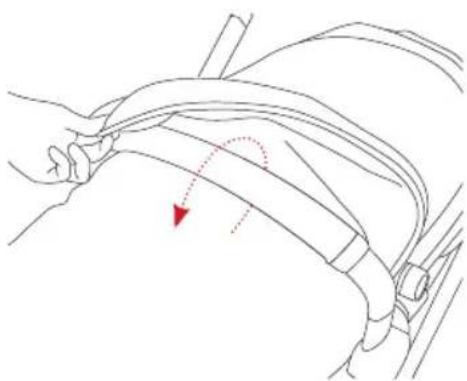

13.3 Fit the bumper bar to the seat unit by placing the metal ends of the bumper bar into the fixing points on the seat unit. Wait to hear the bumper bar 'click' into place.

WARNING: Always ensure your bumper bar is attached when your child is in the seat unit.

13.4 Slide the apron flap clips onto the attachment points on the inside of the seat frame. Fold the apron flap over the bumper bar using the hidden magnets to secure it in place and to enclose and secure your child. To secure, release and adjust the harness see points (16.1-16.5)

14.1

Mechanical linkage diagram showing a lever mechanism with no text or symbols

15.1

Attaching the seat unit to your chassis

WARNING: Ensure all locking devices are engaged before use.

14.1 To attach your seat unit to the chassis hold the seat unit above the chassis. Locate the seat unit chassis connector onto the seat attachment post of the chassis. Ensure the seat unit 'clicks' into place. The seat unit can be fitted forward or rearward facing. Lift the seat unit gently by the bumper bar to check the seat has locked into place.

To adjust the seat position (see point 22.1).

Detaching the seat unit from your chassis

15.1 With the seat unit facing you press the red release button first located on the side of the seat unit until it clicks into place.

WARNING: This button is now unlocked. It will re-lock automatically when the seat is re-attached to the chassis.

Then while pressing and holding the other black release button on the opposite side of the seat unit, lift the seat unit from the chassis using the bumper bar.

WARNING: Always ensure your bumper bar is attached when your child is in the seat unit.

The seat unit will now lift clear of the chassis.

Note: Remove the child from the seat unit before detaching from your chassis.

Using the harness

WARNING: Always use the crotch strap in combination with the waist and shoulder straps.
16.1 To fasten the harness insert both buckle clips into each side of the buckle. Listen for the 'click'.
WARNING: Always use the harness provided.
16.2 To release the harness press the button at the centre of the buckle and pull apart. The shoulder straps can be unhooked from the buckle if required.

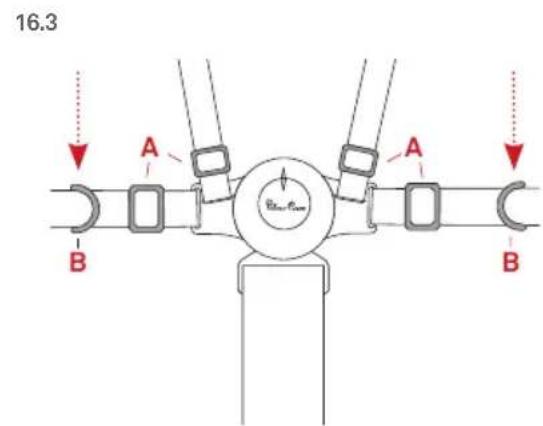

16.3 Your harness is fully adjustable by moving the slides (A), to make fitting easy. 'D'rings are provided for fitting a separate harness if required (B). Any additional harness must comply with BS 6684. Your child should always be harnessed in and should never be left unattended, even for short periods of time.

Your harness can be adjusted for the size of your child.

17.4

Line drawing of a hand inserting a plug into a device panel, with no text or symbols present.

17.5

Line drawing of a person's torso and shoulders with a belt, no text or symbols present

Using the harness (continued)

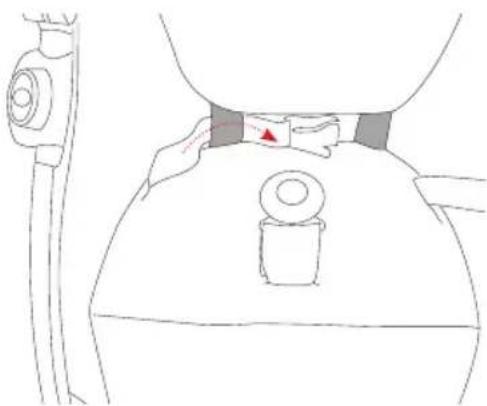

17.4 The shoulder straps have 2 height positions.

To adjust, first lift the flap on the back of the seat unit. Thread the harness buckle from the back of the seat unit through to the front of the seat unit and allow the buckle to lay flat behind the seat securing the shoulder strap in place.

17.5 The waist straps can be reduced to fit a smaller child by threading them through the loops on the seat.

18.1

Technical line drawing of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Four technical line drawings of mechanical clamping or bracketing mechanisms, shown in different angles (no text or symbols)

Using your hood

18.1 Zip the hood to the back of the seat frame taking care to engage the zip properly. Attach the hood by pressing down on the hood clips on either side of the seat frame below the round black plastic locator.

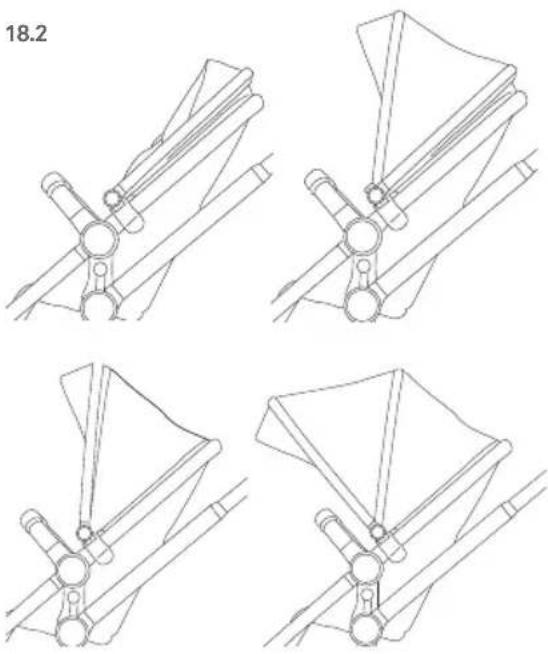

18.2 Your hood can be used in 4 positions. Fully open, semi-open, semi-open, and fully covered.

Using your seat unit apron

19.1 Slide the apron flap clips on your apron to the attachment points on the inside of the seat frame and fold the apron flap over the bumper bar using the hidden magnets to secure it in place and to enclose and secure your child.

Using your seat unit raincover

20.1 Your raincover should be used when the hood is attached to the seat unit. First slide over the hood and down towards the toe of the seat unit. Velcro fastening secures the raincover under the foot of the seat unit.

20.2 A zip gives easy access to your child.

21.1

Technical line drawing of a car interior showing hoses and control knobs (no text or symbols)

21.2

Mechanical assembly diagram showing a curved pipe joint with directional arrow (no text or symbols)

22.1

Technical line drawing of a mechanical device with wheels and a fan blade, showing motion direction (no text or symbols)

Using your seat unit bumper bar

Your seat unit has a bumper bar that can be fully or partly removed

WARNING: Always ensure your bumper bar is attached when your child is in the seat unit.

21.1 Fit the bumper bar to the seat unit by placing the metal ends of the bumper bar into the fixing points on the seat unit. Wait to hear the bumper bar 'click' into place.
21.2 To detach, press the bumper bar release button on the seat unit with one hand and pull the bumper bar away from the fixing point with the other hand. The bumper bar will rotate allowing easy access to your child, if the bumper needs to be fully removed then repeat on the opposite side.
WARNING: Always remove your child from the seat before attempting to lift and remove the seat unit.

Adjusting the seat position

Your Silver Cross Surf – Aston Martin Edition has 3 forward facing and 3 rearward facing seat positions

22.1 To adjust the seat position in either forward or rearward facing mode, grip the outside of the seat unit with both hands. Place your fingers against the large, circular seat adjustment buttons. Press firmly inwards moving the seat unit forwards or backwards to upright, semi-recline or full recline. Release the button and wait to hear the 'click' for each position to lock into place.

18

Folding your chassis

NOTE: To ensure your chassis folds correctly remove all items from the shopping basket before attempting to fold.
NOTE: If using as a travel system (with a car seat), pushchair (with seat unit) or pram (with Carrycot) please ensure each part has been removed before folding.

23.1 Ensure the swivel wheels are locked. (See point 26.1)

23.2 Engage the red coloured brake pedal. (See point (25.1))

23.3 Press and hold the handle height adjustment /folding button and slide the handle down to its lowest point.

23.4 Applying pressure to the centre of the handle, push down to release the locking mechanism.

24.1

Line drawing of a wheeled cart with wheels and a vertical rod, showing motion direction (no text or symbols)

24.2

Diagram of a mechanical component with a red highlighted section and arrow indicating rotation (no text or symbols)

Line drawing of a wheeled cart with wheels and a handle, showing rotational motion arrows (no text or symbols)

24.3

Line drawing of a mechanical device with no visible text or symbols

Folding your chassis

24.1 Rotate the handle forwards to its vertical position, listen for the click
24.2 Still holding the handle press down gently on the central red foot pedal. Rotate the handle forwards as the chassis begins to fold.
24.3 Ensure the folding lock is applied by pressing down on the folded frame.

25.1

Diagram of a bicycle steering wheel with red grip and blue handle, showing motion direction (no text or symbols)

25.2

Line drawing of a car wheel and steering wheel (no text or symbols)

26.1

Diagram of a car wheel with a hand pointing to the side (no text or symbols)

20

Using the brake

WARNING: Always apply the parking brake when you are standing still.

25.1 To engage the brake, press down on the red brake pedal. Listen for the 'click'.

NOTE: Always check that your brake is fully engaged by gently rocking the pushchair.

25.2 To disengage the brake, gently press down on the green brake release button. Rock the pushchair backwards before moving forward.

Operating your swivel wheels

Your chassis has lockable front, swivel wheels. We advise locking the front wheels if pushing the pushchair straight ahead for a long period.

26.1 Rotate the swivel release lever sideways to lock the wheels into the fixed position.

27.1

Diagram of a curved pipe joint with a shaded central area and a red arrow indicating direction (no text or symbols)

Operating your height adjustable handle

Your Silver Cross Surf – Aston Martin Edition has a 5 position handle height.

27.1 Press and hold the handle height adjustment/folding button and slide the handle down to its lowest point.

27.2 Slide the handle up or down to required height and release the adjustment button. The handle will lock and 'click' into place.

28.1

28.2

29.1

Using your Silver Cross Surf – Aston Martin Edition with the Silver Cross Simplicity Infant Carrier

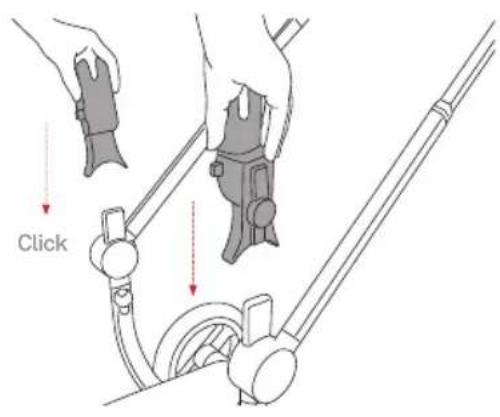

28.1 To attach your Simplicity Adaptors, locate the adaptors onto the chassis attachment posts on both sides. Ensure the adaptors 'click' into place.
WARNING: Standing behind the handle, ensure the adaptor with the red button is located on the right of the chassis. Attaching to the left hand side may damage your adaptor.
28.2 Place the Silver Cross Simplicity Infant Carrier onto the adaptors. Ensure the Silver Cross Simplicity 'clicks' into place. Lift the Silver Cross Simplicity gently by the carry handle to check the Silver Cross Simplicity has locked into place.
WARNING: Check that the Silver Cross Simplicity attachment devices are correctly engaged before use.

Detaching the Silver Cross Simplicity Infant Carrier from the chassis

29.1 With the Silver Cross Simplicity Infant Carrier facing you, first press the silver button on the front of the right hand side adaptor until it clicks into place.

29.2

Line drawing of a baby car seat with hand and wrist, labeled 'Press' (no other text or symbols)

29.3

29.2 Then while pressing and holding the other silver button on the front of the left hand Side adaptor, lift the Silver Cross Simplicity from the chassis using the carry handle.

Removing the Adaptors from the chassis

29.3 For both adaptors, press the circular button on the side of the adaptor and pull adaptor upwards to release from chassis.

WARNING: Do not remove the Simplicity Infant Carrier with the adaptors still attached to the Simplicity.
WARNING: Your Silver Cross Simplicity Infant Carrier should always be rearward facing.
NOTE: Always remove the adaptors before folding the chassis or attaching your seat unit or carrycot. Failure to do so may result in your adaptors or chassis being damaged.

Alcantara® Care Guide Instructions

These are very high quality, specialist fabrics that have been carefully selected to create a luxury product. They need to be maintained as per the following care guidelines to ensure maximum performance. Mis-use or failure to follow these care guidelines may compromise the performance and appearance of the fabrics.

1 Remove surface dirt with a soft bristle brush, a dry cotton cloth or a vacuum cleaner.
2 Further clean by gently wiping the surface with a moistened soft cloth. DO NOT wet excessively.
3 Once dried, to restore the material to its original condition, brush it delicately with a clean, soft bristle brush or dry cotton cloth.
4 To remove stains a specialist cleaning pack is available from Silver Cross.
5 Unsuitable for domestic washing and dry cleaning.

Safety Notes

Your Silver Cross Surf – Aston Martin Edition is a high quality Silver Cross product. It complies with BS EN: 1888:2012 and with correct use and maintenance will give good service. If, however you should have any problems with your pushchair, please contact your Silver Cross retailer who will take appropriate action. The carrycot complies with BS EN: 1466:2004.

WARNING:

Never leave your child unattended.

Ensure that all the locking devices are engaged before use

To avoid injury ensure that your child is kept away when unfolding and folding this product.

Do not let your child play with this product Use a harness as soon as your child can sit unaided.

Carrycot mode:

This product is not suitable for a child who cannot sit up itself, rollover and cannot push itself up on its hands and knees.

Maximum weight of the Child: 9kg

Do not let other children play unattended near the carrycot.

Seat unit mode:

This seat unit is not suitable for children under 6 months.

Maximum weight of the Child: Up to 15kg

Always use the restraint system

Check the pram body or seat unit or car seat attachment devices are correctly engaged before use.

This product is not suitable for running or skating.

Do not carry more than one child in this pushchair / carrycot.

Ensure the parking devices are engaged when placing and removing your child.

Do not let other children play unattended

near the carrycot. The carrycot is only suitable for a child who cannot sit up unaided.

Never use the carrycot on a stand

Do not use if any part is broken, torn or missing.

Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc in the near vicinity of the carrycot.

The handles and the bottom of the carrycot should be checked regularly for signs of damage and wear.

Do not add a mattress to the carrycot other than the one provided.

Car seats do not replace a cot or bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

Any load attached to the handle and/or backrest and/or side of the vehicle will affect stability of the vehicle.

Do not stand a second child on rear lock and use as a buggy board.

Do not attach a third party buggy board.

Accessories which are not approved by Silver Cross shall not be used.

Only replacements parts supplied/recommended by Silver Cross shall be used.

The child should be clear of moving parts whilst making adjustments.

Do not allow your child to climb in or out of the pushchair of their own accord, as this could result in injury to your child or damage to your pushchair.

Never leave your child in the pushchair with the raincover fully fitted other than in normal outside use.

The safety of your child is your responsibility.

Only place the carrycot on a firm, horizontal and dry surface.

The child should always wear a safety harness complying with BS6684. 'D' rings are provided for the attachment of an additional harness. These are located on the existing harness close to where it is attached to the seat frame. Do not hang shopping bags or other objects from the handle. This may cause the pushchair to tip up. Extra shopping or luggage should only be carried in the basket and should not exceed 5kg in weight, evenly distributed. Always hold the seat when making adjustments. Ensure that the brake is on.

Never try to fold your Surf Aston Martin Edition when the child is seated as this may trap the child. If you have difficulty in folding or unfolding the pushchair, do not force. This will cause damage. Read the “To fold or unfold” instructions carefully in the Silver Cross Surf – Aston Martin Edition Instructions. It may be unsafe to fit accessories or spare parts other than those supplied or recommended by Silver Cross. If anyone other than the owner is going to use the Pushchair (e.g. grandparent, child minder), please show them how to use it correctly.

The seat unit and carrycot are only compatible with: Silver Cross Surf – Aston Martin Edition. Basket Capacity: 5kg

Cup holder: Maximum load = 0.5kg

Surf Board: Maximum load = 20kg (sold separately)

Care and Maintenance

Chassis

Always check your pushchair for signs of wear. Regularly lubricate all moving parts. Check for freedom of movement of all locking devices. Polish metal work with a clean, dry cloth.

Fabric items and seat unit

For fabric wash care instructions please refer to the wash care labels attached to your product. For Alcantara, please refer to the care guide included in this manual. Keep away from direct heat and strong sunlight. A certain degree of fading may occur over time through everyday use. Never machine wash, tumble dry, iron or bleach.

Never leave accessories such as the sunshade or raincover where heat and light may discolour the fabrics or distort the plastics, e.g. on the car parcel shelf in hot weather.

Guarantee

All Silver Cross products are guaranteed for a period of 12 months against faulty workmanship, when the product is used correctly according to the instruction manual.

Please read these instructions carefully before using your new Silver Cross Surf – Aston Martin Edition and keep for future reference.
