Product Type	Small Form Factor Desktop PC (3L)
Dimensions (H x D x W)	270 mm x 200 mm x 60 mm
Weight	Approximately 1.5 kg (estimated)
Power Supply	65W DC power adapter (external)
Processor	Intel Atom single core 1.60 GHz (512KB L2 cache, FSB 533 MHz)
Chipset	Intel 945GC Northbridge + ICH7 Southbridge
Memory Support	Up to 2 GB DDR2 400/533 MHz (2 x 200-pin SODIMM slots)
Storage	1 x SATA II 3.5" HDD (SATA_HDD1) + 1 x SATA ODD (SATA_ODD1)
Graphics	Integrated Intel GMA950 (via 945GC)
Audio	5.1 Channel High Definition Audio (Realtek ALC662 or similar)
LAN	1 x 10/100 Mbps Ethernet (Realtek RTL8100C or similar)
Front I/O Ports	2 x USB 2.0, 1 x headphone (line-out), 1 x microphone
Rear I/O Ports	1 x VGA, 1 x COM (serial), 4 x USB 2.0, 1 x LAN, 2 x PS/2 (mouse/keyboard), 3 x audio jacks (line-in, line-out, mic), DC-in (J1)
Expansion Slots	1 x Mini PCI Express (SCN1)
Operating Temperature	0°C to 50°C (recommended)
Noise Level	Approximately 28 dB
Power Saving	Up to 87% power saving compared to desktop PC
BIOS	AMI BIOS with power management, wake-up alarms, CPU/ memory timing
Operating System Support	Windows Vista, Windows XP (32/64-bit), Linux
Certifications	FCC Class B, CE, RoHS (IECQ HSPM)

Frequently Asked Questions - MD100 ECS

What type of processor does the ECS MD100 use?

The ECS MD100 uses an Intel Atom single-core processor running at 1.60 GHz with 512KB L2 cache and a 533 MHz front-side bus.

How much memory can I install in the MD100?

The MD100 supports up to 2 GB of DDR2 400/533 MHz memory using two 200-pin SO-DIMM slots.

What hard drive interface does the MD100 support?

It supports one SATA II 3.5-inch hard disk drive via the SATA_HDD1 connector.

Can I use a discrete graphics card with the MD100?

No, the MD100 relies on the integrated Intel GMA950 graphics. It has one Mini PCI Express slot for wireless cards, not for graphics.

What ports are available on the front panel?

The front panel has 2 USB 2.0 ports, one headphone jack, and one microphone jack.

How do I connect the MD100 to a monitor?

Use the VGA port on the rear panel. It supports standard VGA monitors.

What is the power requirement for the MD100?

It uses an external 65W DC power adapter (DC-in via J1 connector).

Does the MD100 support wake-on-LAN?

Yes, the BIOS has a 'Resume By LAN PME' option that can wake the system from power saving modes via network activity.

How do I clear the CMOS settings?

Locate the CLR_CMOS jumper on the motherboard. Move the cap from pins 1-2 to pins 2-3 for a few seconds, then return to pins 1-2. Ensure the system is off before doing this.

What is the maximum operating temperature?

The recommended ambient operating temperature is between 0°C and 50°C (32°F to 122°F).

USER MANUAL MD100 ECS

3L Small Form Factor

945GCD-3L

Supports Intel ^® Atom ^TM CPU

Certificate HK07/01191.00

The management system of

ELITEGROUP COMPUTER SYSTEMS CO., LTD. ECS MANUFACTURING (SHENZHEN) CO., LTD.

2F, No.240, Sec.1, Nel Hu Road, Taipei, Taiwan 114, R.O.C. No.20 & No.26 (Except 1F, 2F&3F) Free Trade Zone, Shatoujiao, Shenzhen City, Guangdong Province, China has been assessed and certified as meeting the requirements of

ISO 9001:2000

for the following activities

Design and Sales of Mainboards, Personal Computers,

Notebooks, and Peripheral Cards, Design and Manufacturing of Mainboards and Peripheral Cards. Further clarifications regarding the scope of this certificate and the applicability of ISO 5001 2000 requirements may be obtained by consulting the organization. This certificate is valid from 16 March 2007 until 15 March 2010 Issue 1. Certified with SGS since March 2007

Multiple certificates have been issued for this scope The main certificate is numbered HK07/01191.00

Authorised by

SGD United Kingdom Ltd - Systems & Services Certification Rössmore Business Park Ellesmee Port Cheshire CHSS 3EN UK 1-44 (0)151 350-6666 1-44 (0)151 350-6600 www.sgs.com

Page 1 of 1

Certificate No.

PRC-HSPM-1172

issued:

Revision:

Expiration:

July 10, 2007

NA

July 09, 2010

IECQ Certificate of Hazardous Substance Process Management (HSPM) applicable to the European Directive 2002/95/EC ("RoHS") requirements.

The Supervising Inspectorate (SGS-CSTC Standards Technical Services Co., Ltd.), sponsored by the United States National Authorized Institution, ECCB certify that

ECS Manufacturing (Shenzhen) Co., Ltd.

No. 20 & 26 (except 1F, 2F & 3F),

Free Trade Zone, Shatoujiao,

Shenzhen, Guangdong Province, P.R. China

Has developed and implemented Hazardous Substances Process Management, procedures, and related processes in compliance with the applicable requirements for HSPM organization approval, which is in accordance with the Basic Rules IECQ-01 and Rules of Procedure QC 001002-5 "IECQ Hazardous Substance Process Management" of the IEC Quality Assessment System for Electronic Components (IECQ), and with respect to the Specification QC 080000 IECQ HSPM.

This certification is applicable to all electronic components and related materials and processes for the

Design and manufacture of Mainboards and Peripheral Cards.

Issued by Certification Authorities:

Electronic Component Certification Board

S###

1. 2017年

Stanley H. Salot Jr. - President, ECCC

ECCB PO Box 9061

Midwest, Texas 79708

Tel:[phone] Fax:[phone]

Web Site: www.acrb.org

3GS-CSTC Standards Technical Services Co., Ltd

16F Century YuHui Mansion

73 Fucheng Road

Beijing, China

wedding, www.kg.com

The validity of this certificate is maintained through on-going surveillance inspections.

Note: This certificate is valid only in conjunction with the approval document(s). This approval and this certificate may

be suspended or withdrawn in accordance with the Rules of Procedure of the IECQ. This certificate remains the

property of the body which granted it.

Preface

\*□□1\*\*

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

\*▲\*○□

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

\*□\*\*○□\*\*□\*■□□

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

◆※※□※◆□○○◆■※※▼□■▲◆□○○※▲▲□■◆◆+

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

The manual consists of the following:

Chapter 1 Describes features of the 3L Small Form Factor. Introducing the 2L Small Form Factor

Go to → page 1

Chapter 2 Describes installation of motherboard components.

Go to → page 7

Chapter 3 Using BIOS Provides information on using the BIOS Setup Utility.

Go to → page 19

Chapter 4 Describes the motherboard software Using the Motherboard Software

Go to → page 33

Preface i

※

Introducing the 3L Small Form Factor 1

Introducing the 3L Small Form Factor....1

Feature of the motherboard....2

Motherboard Components....4

÷÷÷×

Installing the Motherboard 7

Safety Precautions....7

Choosing a Computer Case....7

Installing the Motherboard in a Case....7

Checking Jumper Settings....8

Setting Jumpers....8

Checking Jumper Settings....9

Jumper Settings....9

Installing Hardware....10

Installing Memory Modules....10

Expansion Slots....13

Connecting Optional Devices....14

Installing SATA_HDD....15

Connecting I/O Devices....16

Connecting Case Components....17

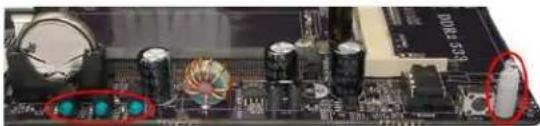

LED1\~4....18

÷ +

Using BIOS 19

About the Setup Utility....19

The Standard Configuration....19

Entering the Setup Utility....19

Updating the BIOS....21

Using BIOS....21

Standard CMOS Setup....22

Advanced Setup....24

Advanced Chipset Setup....25

Integrated Peripherals....26

Power Management Setup....27

PC Health Status....28

Frequency/Voltage Control....30

Load Default Settings....31

Supervisor Password....31

User Password....32

Save & Exit Setup....32

Exit Without Saving....32

◆◆◆□▼◆□√

√√ √√

Using the Motherboard Software 33

About the Software CD-ROM....33

Auto-installing under Windows Vista....33

Running Setup....34

Manual Installation....38

Utility Software Reference....38

Introducing the 3L Small Form Factor

Thank you for choosing 3L Small Form Factor of great performance and with stylish and flexible design.

With Intel® Atom™ processors inside and a dimension of 270mm (H)* 200mm (D)* 60mm (W) (3 Liter), 3L Small Form Factor provides the features of low power consumption (working with a 65Watt power adaptor), low noise (28dB) and space saving (Up to 87% Power Saving than desktop PC). It incorporates the 945GC Northbridge (NB) and ICH7 Southbridge (SB) chipsets, supporting up to 1 GB or 2 GB of system memory with DDR2 memory SODIMM frequencies of 400/533 MHz, 3.5" SATA II HDD, Slim DVD Supermulti Tray type/12.7mm Tray-load Slim type ODD, and Build in GMA950/945GC Graphics.

3L Small Form Factor is equipped with two USB 2.0 ports, two audio ports in the front panel and advanced full set of I/O ports in the rear panel, including J1, PS/2 mouse and keyboard connectors, COM1, one VGA port, four USB ports, one LAN port and audio jacks for microphone, line-in and line-out.

Black Intel Atom processor device with visible branding and mounting base (no readable text beyond logo)

Feature of the motherboard

Processor

This motherboard uses onboard Intel ^ Atom ^TM CPU that carries the following features:

• Onboard Intel cache ^ Atom ^TM single core, 1.60GHz CPU speed with 512KB
  • Supports a system bus (FSB) of 533 MHz
  • Supports "Hyper-Threading" technology CPU

“Hyper-Threading” technology enables the operating system into thinking it’s hooked up to two processors, allowing two threads to be run in parallel, both on separate “logical” processors within the same physical processor.

Chipset

The 945GC Northbridge (NB) and ICH7 Southbridge (SB) chipsets are based on an innovative and scalable architecture with proven reliability and performance.

945GC (NB)

• Supports 32-bit host bus addressing
- 2 GB/s point-to-point Direct Media Interface (DMI) to ICH7 (1 Gb/s each direction)
• Supports 256-Mb, 512-Mb and 1-Gb DDR2 technologies for x8 and x16 devices
• Supports high quality 3D setup, Render Engine and high-quality texture engine

ICH7 (SB)

• Enhanced DMA Controller, interrupt controller, and timer functions
• Compliant with PCI Express Base Specification, Revision 1.0a
• Compliant with PCI v2.3 specification
• Integrated SATA 3.0 Gb/s Host Controller
• Integrated USB 2.0 Host Controller supporting up to eight USB 2.0 ports
• Integrated IDE controller supports Ultra ATA 100/66/33

Memory

• Supports DDR2 400/533 DDR2 SDRAM
• A c commodates one or two unbuffered SO-DIMM(s)
- Up to 1 GB per DIMM with maximum memory size up to 1 GB or 2 GB

Audio

The onboard Audio provides the following features:

• 5.1 Channel High Definition Audio Codec
- Exceeds Microsoft Windows Logo Program (WLP) Requirements
• ADCs support 44.1k/48k/96k/192kHz sample rate
• Power Support: Digital: 3.3V; Analog: 5.0V

Onboard LAN

The onboard LAN controller provides either of the following features:

• Integrated 10BASE-T/100BASE-TX Transceiver
  • Integrated IEEE802.3z cpmpliant
  • IEEE802.3u Auto-Negotiation

Expansion Options

The motherboard comes with the following expansion options:

• One SCN1 slot (MINI PCI Express slot)
- One SATA_HDD1 and one SATA_ODD1 connectors

The motherboard supports UDMA bus mastering with transfer rates of 100/66/33 Mb/s.

Integrated I/O

The motherboard has a full set of I/O ports and connectors:

• One serial port
• One VGA port
• Two PS/2 ports for mouse and keyboard
• Four USB ports
• One LAN port
  • One J1 port (DC Jack)
  • Audio jacks for microphone, line-in and line-out

BIOS Firmware

This motherboard uses AMI BIOS that enables users to configure many system features including the following:

• Power management
- Wake-up alarms
- CPU parameters
• CPU and memory timing

The firmware can also be used to set parameters for different processor clock speeds.

1. Some hardware specifications and software items are subject to change without prior notice.

2. Due to chipset limitation, we recommend that motherboard be operated in the ambiance between 0 and 50 °C.

3. To achieve better performance and air flow, we suggest that you use a system fan on this motherboard.

Motherboard Components

■□◆*■*√*○○◆□

Table of Motherboard Components

LABEL COMPONENTS
1. SODIMM2* One 200-pin DDR2 SDRAM SODIMM
2. CN3 Power switch
3. SODIMM1 One 200-pin DDR2 SDRAM SODIMM
4. CLR_CMOS Clear CMOS jumper
5. CN2* Reader Card
6. JUSB1~2 Front panel USB ports
7. JMIC1 Front audio line-out
8. JPHONE1 Front audio microphone
9. SATA_HDD1 Serial ATA HDD connector
10. USBPWR_R Rear panel USB PS/2 power select jumper
11. CPU_FAN1	CPU cooling fan connector
12. SATA_ODD1	Serial ATA ODD connector
13. SCN1	MINI PCI Express slot

* stands for optional components.

This concludes Chapter 1. The next chapter explains how to install the motherboard.

*

★★○□

Safety Precautions

• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid damage from static electricity
• Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards

Choosing a Computer Case

There are many types of computer cases on the market. The motherboard complies with the specifications for the Mini system case. First, some features on the motherboard are implemented by cabling connectors on the motherboard to indicators and switches on the system case. Make sure that your case supports all the features required. Secondly, this motherboard supports two enhanced IDE drives. Make sure that your case has sufficient power and space for all drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O template in the case matches the I/O ports installed on the rear edge of the motherboard.

This motherboard carries a Mini form factor of 236 x 195 mm. Choose a case that accommodates this form factor.

Installing the Motherboard in a Case

Refer to the following illustration and instructions for installing the motherboard in a case.

Most system cases have mounting brackets installed in the case, which correspond the holes in the motherboard. Place the motherboard over the mounting brackets and secure the motherboard onto the mounting brackets with screws.

Ensure that your case has an I/O template that supports the I/O ports and expansion slots on your motherboard.

Top-down view of a computer motherboard with visible CPU socket, RAM slots, and connectors (no text or labels)

Do not over-tighten the screws as this can stress the motherboard.

Checking Jumper Settings

This section explains how to set jumpers for correct configuration of the motherboard.

Setting Jumpers

Use the motherboard jumpers to set system configuration options. Jumpers with more than one pin are numbered. When setting the jumpers, ensure that the jumper caps are placed on the correct pins.

The illustrations show a 2-pin jumper. When the jumper cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is OPEN.

This illustration shows a 3-pin jumper. Pins 1 and 2 are SHORT.

SHORT

OPEN

Checking Jumper Settings

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.

Jumper Settings

Jumper	Type	Description	Setting (default)
CLR_CMOS	3-pin	CLEAR CMOS	1-2: NORMAL2-3: CLEAR CMOSBefore clearing the CMOS, make sure to turn the system off.	CLR_CMOS
USBPWR_R	3-pin	Rear PanelUSB/PS2Power SelectJumper	1-2: VCC52-3: 5VSB	(=on)1USBPWR_R

1. To avoid the system instability after clearing CMOS, we recommend users to enter the main BIOS setting page to "Load Default Settings" and then "Save & Exit Setup".
2. Make sure the power supply provides enough 5VSB voltage before selecting the 5VSB function.
3. It is required that users place the USBPWR_R cap onto 2-3 pin rather than 1-2 pin as default if you want to wake up the computer by USB/PS2 KB/Mouse.

Installing Hardware

Installing Memory Modules

This motherboard accommodates one or two memory modules. It can support one or two 200-pin DDR2 400/533. The total memory capacity is 1 GB or 2 GB.

DDR2 SDRAM memory module table

Memory module	Memory Bus
DDR2 533	266 MHz

Do not remove any memory module from its antistatic packaging until you are ready to install it on the motherboard. Handle the modules only by their edges. Do not touch the components or metal parts. Always wear a grounding strap when you handle the modules.

Installation Procedure

These modules can be installed with up to 2 GB system memory. Refer to the following to install the memory module.

1. Align the memory module with the DIMM slot. There is a notch on the DIMM slot that you can install the DIMM module in the correct direction. Match the cutout on the DIMM module with the notch on the DIMM socket.

2. Insert the memory module to the slot and press it down until it seats correctly.

3. Make sure the slot latches cling to the edge of the DIMM module.

Table A: DDR2 (memory module) QVL (Qualified Vendor List)

The following DDR2 800/667/533 memory modules have been tested and qualified for use with this motherboard.

Type	Size Vendor Module Name
DDR2 533 256 MB	Nanya NT5TU32M16AG-37B
DDR2 667	512 MB	Micron MT4HTF6464HY-667E1
		Ramaxel 7HD22 D9GMH
	1 GB	Apacer Apacer AM4BS808CQJS7E 0815F
		Kingston KVR667D2S5/1G
		Qimonda HYS64T128021EDL-3S-B2
		Winchip NEJA2450.A8ECW
DDRII 800	512 MB	Winchip NEK51250.A8N8W
	1 GB	Elixir M2N1G64TUH8D4F-AC
		Infinity 14701G16CZ5D2A
		Kingston Nanya NT5TU64M9BE-25D
		PNY PNY A EEB48WM2D
		PSC AS7B8F63J-BE
		Qimonda HYS64T128021EDL-2.5B2
		Samsung K4T1G164QQ-HCF7
	2 GB	PQI MECER521PA0101-08A12

Due to the motherboard limitation, the memory controller only supports DDR2 memory DIMM frequency of 533 MHz.

Expansion Slots

Installing Add-on Cards

The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard's features and capabilities. With these efficient facilities, you can increase the motherboard's capabilities by adding hardware that performs tasks that are not part of the basic system.

SCN1 Slot

The SCN1 slot is used to install an external PCI Express graphics card.

Before installing an add-on card, check the documentation for the card carefully. If the card is not Plug and Play, you may have to manually configure the card before installation.

Table B: Supported Wireless LAN Card List for SCN1 Slot

	Model NameVender
Billionton	GMEWLGRL-2
VIA	VNT6656GEV00-U(802.11 b/G MINI PCIE)
	VNT6656GEV00
Foxconn	Albatron 256MB7600GT 256M
	ASUS EN7600GS 512MB

Connecting Optional Devices

Refer to the following for information on connecting the motherboard's optional devices:

JUSB1\~2: Front Panel USB Ports

The motherboard has four USB ports installed on the rear edge I/O port array. Additionally, some computer cases have USB ports at the front of the case. If you have this kind of case, use auxiliary USB connector to connect the front-mounted ports to the motherboard.

Pin Signal Name Pin Signal Name
1	USBVCC	2	USBP4-(DATA-)
3	USBP4+(DATA+)	4	GND
5	GND	6	GND

JPHONE1: Front Audio Line-out Jack

Pin Signal Name Pin Signal Name
1	GND	2	LINE2_L
3	LINE2_R	4	LINE2_JD
5	GND	6	N/C

JMIC1: Front Audio Microphone Jack

Pin Signal Name Pin Signal Name
1	GND	2	MIC2_L
3	MIC2_R	4	MIC2_JD
5		6	N/CGND

X

Installing SATA\_HDD

This motherboard features one SATA HDD1 connector supporting one drive, and you can connect a hard disk drive to the SATA_HDD1 port.

Close-up of a computer motherboard with visible CPU socket, RAM slots, and memory chips (no readable text or symbols)

Connecting I/O Devices

The backplane of the motherboard has the following I/O ports:

VGA1 Port Connect your monitor to the VGA1 port.

Serial Port (COM1)

Use the COM1 port to connect serial devices such as mouse or fax/modems.

USB Ports Use the USB ports to connect USB devices.

PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.

PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.

LAN Port

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

J1 Connect a DC-in jack to J1.

Audio Ports

Use the three audio ports to connect audio devices. The first jack is for stereo line-in signal. The second jack is for stereo line-out signal. The third jack is for microphone.

Connecting Case Components

After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following:

1 Connect the CPU cooling fan connector to CPU_FAN1.

CPU_FAN1: FAN Power Connertor

Pin Signal Name Function
1 GND System Ground
2 +12V Power +12V
3	Sense	Sensor
4	PWM	CPU FAN control

Users please note that the fan connector supports the CPU cooling fan of 1.1A\~2.2A (26.4W max.) at +12V.

LEDI\~4

Close-up of a computer motherboard with visible components and a highlighted circular region (no readable text or symbols)

LED1 (System Power LED)

The system power LED can be used to indicate system power status. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

System Status	LED
S0 On
S1/S3	Blinking
S4/S5	Off

LED2 (HDD LED)

The LED2 can be used to indicate HDD status. The LED keeps blinking when the system is in Active state.

System Status	LED
Active Blinking

LED3 (LAN LED)

The LED3 can be used to indicate LAN status. The LED keeps blinking when the system is in Active state.

System Status	LED
Active Blinking

LED4 (Reader Card LED)

The LED4 can be used to indicate Reader Card status. The LED keeps blinking when the system is in Active state.

System Status	LED
Active Blinking

This concludes Chapter 2. The next chapter covers the BIOS.

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Press the DEL key to access the BIOS Setup Utility.

CMOS Setup Utility -- Copyright (C) 1985-2005, American Megatrends, Inc.

►Standard CMOS Setup►Advanced Setup►Advanced Chipset Setup►Integrated Peripherals►Power Management Setup►PC Health Status	►Frequency/Voltage ControlLoad Default Settings►Supervisor Password►User PasswordSave & Exit SetupExit Without Saving
↑↓→←MoveF1@SaveSoleC: Exit ValueF1:General Help F9:Optimized Defaults
v02.61 (C)Copyright 1985-2007, American Mega trends, Inc.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC	Exits the current menu
1	Scrolls through the items on a menu
+/-/PU/PD	Modifies the selected field's values
Enter	Select
F9	Loads an optimized setting for better performance
F10	Saves the current configuration and exits setup
F1	Displays a screen that describes all key functions

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer's Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 Create a bootable system disk. (Refer to Windows online help for information on creating a bootable system disk.)
2 Download the Flash Utility and new BIOS file from the manufacturer's Web site. Copy these files to the system diskette you created in Step 1.
3 Turn off your computer and insert the system diskette in your computer's diskette drive.
4 At the X:\ (working disk) prompt, type the Flash Utility program name and the file name of the new bios and then press . Example: AMINF340.EXE 040706.ROM
5 The computer will restart automatically. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle ▶) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle ▶.

Standard CMOS Setup

This option displays basic information about your system.

CMOS Setup Utility -- Copyright (C) 1985-2005, American Megatrends, Inc.
Standard CMOS Setup

Date Mon 01/01/2007Time 00:01:05▶ SATA 1 Not Detected▶ SATA 2 Not DetectedIDE BusMaster Enabled	Help Item
	Use [ENTER], [TAB] or [SHIFT-TAB] to select a field.Use [+] or [-] to configure system Date.

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

▶ SATA 1\~2

This motherboard supports two SATA channels and each channel allows one SATA device to be installed. Use these items to configure each device on the SATA channel.

CMOS SETUP UTILITY -- Copyright (C) 1985-2005, American Megatrends, Inc. SATA1

SATA1		Help Item
Device : Hard DiskVendor : Hitachi HDS721680PLA380Size : 82.3GBLBA Mode : SupportedBlock Mode : 16SectorsPIO Mode : 4Async DMA : MultiWord DMA-2Ultra DMA : Ultra DMA-6S.M.A.R.T : Supported		Select the type of device connected to the system.
Type AutoLBA/Large Mode AutoBlock (Multi-Sector Transfer AutoPIO Mode AutoDMA Mode AutoS.M.A.R.T Auto32Bit Data Transfer Enabled

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

Type

Use this item to configure the type of the IDE device that you specify. If the feature is enabled, it will enhance hard disk performance by reading or writing more data during each transfer

LBA/Large Mode

Use this item to set the LAB/Large mode to enhance hard disk performance by optimizing the area the hard disk is visited each time.

Block (Multi-Sector Transfer)

If the feature is enabled, it will enhance hard disk performance by reading or writing more data during each transfer.

PIO Mode

Use this item to set the PIO mode to enhance hard disk performance by optimizing the hard disk timing.

DMA Mode

DMA capability allows user to improve the transfer-speed and data-integrity for compatible IDE devices.

S.M.A.R.T.

The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) system is a diagnostics technology that monitors and predicts device performance. S.M.A.R.T. software resides on both the disk drive and the host computer.

32Bit Data Transfer

Use this item to enable or disable 32Bit Data Transer.

Press to return to the Standard CMOS Setup page.

IDE BusMaster

This item enables or disables the DMA under DOS mode. We recommend you to leave this item at the default value.

Press to return to the main menu setting page.

Advanced Setup

This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Advanced Setup

Thermal Management EnabledTM Status TM1Limit CPUID MaxVal DisabledIntel XD Bit DisabledHyper-Threading Technology EnabledQuick Power on Self Test EnabledBoot Up Numlock Status OnAPIC Mode Enabled1st Boot Device Hard Drive2nd Boot Device CD/DVD3rd Boot Device Removable Dev.Boot Other Device Yes	Help Item
	For the processor its CPUID belows 0F41h

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

Thermal Management

This item displays CPU' temperature and enables you to set a safe temperature to Prescott CPU.

TM Status

This item displays CPU Monitor status.

Limit CPUID MaxVal

Use this item to enable or disable the Max CPU ID value limit.

Intel XD Bit

This item enables or disables the Intel XD Bit technology.

Hyper-Threading Technology

This item is only available when the chipset supports Hyper-Threading and you are using a Hyper-Threading CPU.

Quick Power on Self Test

Enable this item to shorten the power on testing (POST) and have your system start up faster. You might like to enable this item after you are confident that your system hardware is operating smoothly.

Boot Up Numlock Status

This item defines if the keyboard Num Lock key is active when your system is started.

APIC Mode

This item allows you to enable or disable the APCI (Advanced Programmable Interrupt Controller) mode. APIC provides symmetric multi-processing (SMP) for systems, allowing support for up to 60 processors.

1st/2nd/3rd Boot Device

Use this item to determine the device order the computer used to look for an operating system to load at start-up time. The devices showed here will be different depending on the exact devices installed on your motherboard.

Boot Other Device

When enabled, the system searches all other possible locations for an operating system if it fails to find one in the devices specified under the First, Second and Third boot devices.

Press to return to the main menu setting page.

Advanced Chipset Setup

This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Advanced Chipset Setup

DRAM Frequency Auto Configure DRAM Timing by SPD Enabled DVMT Mode Select DVMT Mode DVMT/FIXED Memory 128MB HPET Enabled	Help Item
	Options Auto 400 MHz 533 MHz

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

DRAM Frequency

This item enables users to adjust the DRAM frequency. The default setting is auto and we recommend users leave the setting unchange. Modify it at will may cause the system to be unstable.

Configure DRAM Timing by SPD

When this item is set to enable, the DDR timing is configured using SPD. SPD (Serial Presence Detect) is located on the memory modules, BIOS reads information coded in SPD during system boot up.

DVMT Mode Select

DVMT is Dynamic Video Memory Technology. This item helps you select video mode.

DVMT/FIXED Memory

When set to Fixed Mode, the graphics driver will reserve a fixed portion of the system memory as graphics memory. When set to DVMT Mode, the graphics chip will dynamically allocate system memory as graphics memory, according to system and graphics requirements.

HPET

This item enables or disables HPET (High Precision Event Timer) support

Press to return to the main menu setting page.

Integrated Peripherals

This page sets up some parameters for peripheral devices connected to the system.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.

Integrated Peripherals

Onboard SATA Mode Enhanced Onboard AUDIO Function Enabled Onboard LAN Function Enabled Onboard LAN BOOT ROM Disabled Serial Port1 Address 3F8/IRQ4 USB Functions Enabled Legacy USB Support Enabled	Help Item
	Options Disabled Compatible Enhanced

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit

F1: General Help

F9: Optimized Defaults

Onboard SATA Mode

Use this item to select the mode of the Serial ATA.

Onbord AUDIO Function

Use this item to enable or disable the onboard audio controller.

Onboard LAN Function

Use this item to enable or disable the onboard LAN function.

Onboard LAN BOOT ROM

Use this item to enable or disable the booting from the onboard LAN or a network add-in card with a remote boot ROM installed.

Serial Port1 Address

Use this item to enable or disable the onboard COM1 serial port, and to assign a port address.

USB Functions

Use this item to enable or disable the USB function.

Legacy USB Support

Use this item to enable or disable support for legacy USB devices.

Press to return to the main menu setting page.

Power Management Setup

This page sets up some parameters for system power management operation.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Power Management Setup

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

ACPI Suspend Type

Use this item to define how your system suspends. In the default, S3, the suspend mode is a suspend to RAM, i.e., the system shuts down with the exception of a refresh current to the system memory.

Soft-Off By PWR-BTTN

Under ACPI (Advanced Configuration and Power management Interface) you can create a software power down. In a software power down, the system can be resumed by Wake Up Alarms. This item lets you install a software power down that is controlled by the power button on your system. If the item is set to Instant-Off, then the power button causes a software power down. If the item is set to Delay 4 Sec, then you have to hold the power button down for four seconds to cause a software power down.

PWRON After PWR-Fail

This item enables your computer to automatically restart or return to its operating status.

Power On by Ring

This system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the Modem. You must use an ATX power supply in order to use this feature.

Resume By Lan PME

This item specifies whether the system will be awakened from power saving modes when activity or input signal of the specified hardware peripheral or component is detected.

Resume By USB (S3)

This item allows users to enable or disable the USB device wakeup function from S3/S4 mode.

This item enable or disable you to allow mouse activity to awaken the system from power saying mode.

Resume on RTC Alarm

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system RTC (realtime clock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

Press to return to the main menu setting page.

PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. PC Health Status

--- System Hardware Monitor --- ►Smart Fan Function Press Enter Shutdown Temperature Disabled FAN Speed : 6308 RPM CPU Temperature : 31°C/87°F CPU Core : 1.136V VDIMM : 1.920 V	Help Item

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

▶ Smart Fan Function

Scroll to this item and press to view the following screen:

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Smart Fan Function

1↓→:Move Enter:Select +/-;Value F10:Save ESC:Exit F1:General Help F9:Load Default settings

SMART FAN Control

This item allows you to enable or disable the control of the system fan speed by changing the fan voltage.

SMART FAN start PWM value

This item is use to set the start PWM value of the smart fan.

SMART FAN start TEMP. (°C)

This item is use to set the start temperature of the smart fan.

CPU DeltaT

This item specifies the range that controls CPU temperature and keeps it from going so high or so low when smart fan works.

SMART Fan Slope PWM value

This item is used to set the Slope Select PWM of the smart fan.

CPU FAN Full Limit Temp

This item is use to set the limit temperature of the smart fan.

Press to return to the PC Health Status page.

Shutdown Temperature

Enable you to set the maximum temperature the system can reach before powering down.

System Component Characteristics

These items display the monitoring of the overall inboard hardware health events, such as System & CPU temperature, CPU & DIMM voltage, CPU & system fan speed,...etc.

• Fan Speed
• CPU Temperature
• CPU Core
• VDIMM

Press to return to the main menu setting page.

Frequency/Voltage Control

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Frequency/Voltage Control

Manufacturer : Intel Ratio Actual Value : 12 CPU Over clocking Func. : Disabled Auto Detect DIMM/PCI Clk Enabled Spread Spectrum Enabled	Help item
	Options Disabled Enabled

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

Manufacturer: Intel

This item displays the information of current manufacturer of the CPU installed in your computer.

Ratio Actual Value: 12

This item shows the actual ratio of the CPU installed in your system.

CPU Over-clocking Func.

This item decides the CPU over-clocking function installed in your system. If the over-clocking fails, please turn off the system power. And then, hold the PageUp key (similar to the Clear CMOS function) and turn on the power, the BIOS will recover the safe default.

Auto Detect DIMM/PCI Clk

When this item is enabled, BIOS will disable the clock signal of free DIMM/PCI slots.

Spread Spectrum

If you enable spread spectrum, it can significantly reduce the EMI (Electro-Magnetic Interference) generated by the system.

Press to return to the main menu setting page.

√

Load Default Settings

This option opens a dialog box that lets you install stability-oriented defaults for all appropriate items in the Setup Utility. Select [OK] and then press to install the defaults. Select [Cancel] and then press to not install the defaults.

Supervisor Password

This page helps you install or change a password.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Supervisor Password

↑↓→← :Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

Supervisor Password

This item indicates whether a supervisor password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Change Supervisor Password

You can select this option and press to access the sub menu. You can use the sub menu to change the supervisor password.

Press to return to the main menu setting page.

User Password

This page helps you install or change a password.

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. User Password

User Password : Disabled		Help Item
Change User Password	Press Enter	Install or Change the password.

↑↓→←:Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

User Password

This item indicates whether a user password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Change User Password

You can select this option and press to access the sub menu. You can use the sub menu to change the user password. This item will show if the Supervisor Password is set.

Press to return to the main menu setting page.

Save & Exit Setup

Highlight this item and press to save the changes that you have made in the Setup Utility and exit the Setup Utility. When the Save and Exit dialog box appears, select [OK] to save and exit, or select [Cancel] to return to the main menu.

Exit Without Saving

Highlight this item and press to discard any changes that you have made in the Setup Utility and exit the Setup Utility. When the Exit Without Saving dialog box appears, select [OK] to discard changes and exit, or select [Cancel] to return to the main menu.

If you have made settings that you do not want to save, use the “Exit Without Saving” item and select [OK] to discard any changes you have made.

This concludes Chapter 3. Refer to the next chapter for information on the software supplied with the motherboard.

About the Software CD-ROM

The support software CD-ROM that is included in the motherboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your motherboard version. More information on some programs is available in a README file, located in the same directory as the software. Before installing any software, always inspect the folder for files named README.TXT, INSTALL.TXT, or something similar. These files may contain important information that is not included in this manual.

1. Never try to install all software from folder that is not specified for use with your motherboard.

2. The notice of Intel HD audio installation (optional): The Intel High Definition audio functionality unexpectedly quits working in Windows Server 2003 Service Pack I or Windows XP Professional x64 Edition. Users need to download and install the update packages from the Microsoft Download Center "before" installing HD audio driver bundled in the Driver CD. Please log on to http://support.microsoft.com/default.aspx?scid=kb;enus:901105#appliesto for more information.

Auto-installing under Windows Vista

The Auto-install CD-ROM makes it easy for you to install the drivers and software for your motherboard.

If the Auto-install CD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Refer to the Utility Folder Installation Notes later in this chapter.

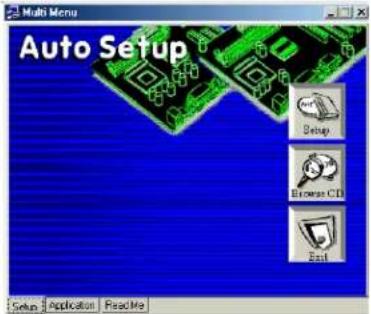

The support software CD-ROM disc loads automatically under Windows Vista. When you insert the CD-ROM disc in the CD-ROM drive, the autorun feature will automatically bring up the install screen. The screen has three buttons on it, Setup, Browse CD and Exit.

If the opening screen does not appear; double-click the file "setup.exe" in the root directory.

Setup Tab

Setup	Click the Setup button to run the software installation program.Select from the menu which software you want to install.
Browse CD	The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support CD.Before installing the software from Windows Explorer, look for a file named README.TXT, INSTALL.TXT or something similar. This file may contain important information to help you install the software correctly.Some software is installed in separate folders for different operating systems, such as Windows Vista. Always go to the correct folder for the kind of OS you are using.In install the software, execute a file named SETUP.EXE or INSTALL.EXE by double-clicking the file and then following the instructions on the screen.
Exit	The EXIT button closes the Auto Setup window.

Application Tab

Lists the software utilities that are available on the CD.

Read Me Tab

Displays the path for all software and drivers available on the CD.

Running Setup

Follow these instructions to install device drivers and software for the motherboard:

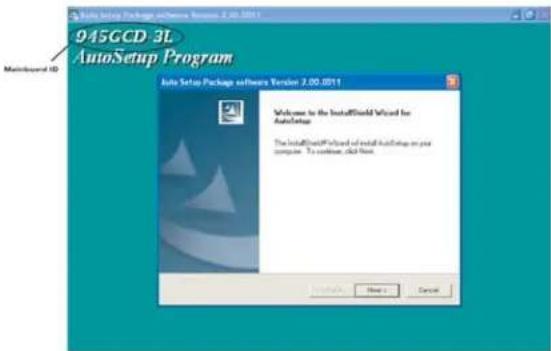

1. Click Setup. The installation program begins:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

The motherboard identification is located in the upper left-hand corner.

√X

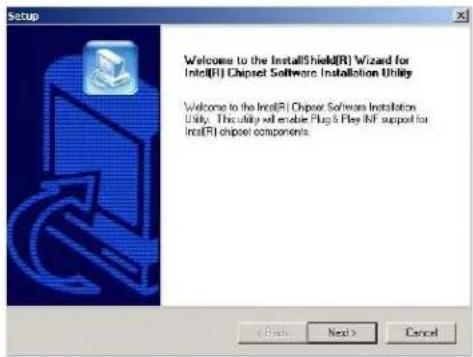

1. Click Next. The following screen appears:

1. Check the box next to the items you want to install. The default options are recommended.

2. Click Next run the Installation Wizard. An item installation screen appears:

1. Follow the instructions on the screen to install the items.

1. Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

2. During the Windows Vista Driver Auto Setup Procedure, users should use one of the following two methods to install the driver after the system restart.

Method 1. Run Reboot Setup

Windows Vista will block startup programs by default when installing drivers after the system restart. You must select taskbar icon Run Blocked Program and run Reboot Setup to install the next driver, until you finish all drivers installation.

Method 2. Disable UAC (User Account Control)

* For administrator account only. Standard user account can only use Method 1.

Disable Vista UAC function before installing drivers, then use CD driver to install drivers, it will continue to install drivers after system restart without running blocked programs.

Follow these instructions to Disable Vista UAC function:

1. Go to Control Panel.

2. Select Classic View.

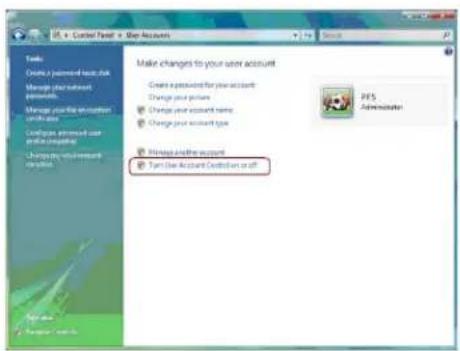

4. Select Turn User Account Control on or off and press Continue.

*▲■■■★□■□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□○

1. Disable User Account Control (UAC) to help protect your computer item and press OK, then press Restart Now. Then you can restart your computer and continue to install drivers without running blocked programs.

Manual Installation

Insert the CD in the CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your motherboard.

Look for the chipset and motherboard model; then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Utility Software Reference

All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.

These software(s) are subject to change at anytime without prior notice. Please refer to the support CD for available software.

This concludes Chapter 4.
