USER MANUAL SF110 Q470 ECS

SFIIO Q470 USER GUIDE

Version:1.0

HDMI ISO-9001 ISO-14001 CE FC

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Windows ^® 10 are registered trademarks of Microsoft Corp.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

CE

CE Statements

This device complies with the essential requirements of the Radio Equipment Directive (RED)-2014/53/EU.

This device is restricted for indoor use only when operating under 5150 MHz to 5350 MHz of frequency range. All operation modes:

2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), Bluetooth

5GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80)

The frequency, mode and the maximum transmitted power in EU are listed below:

	Intel Wireless-AC 3165NGW	Intel Wireless-AC 9462NGW	Intel Wireless-AC 9560NGW
2412-2472MHz	15.0 dBM	15.0 dBM	15.0 dBM
5150-5250MHz	18.5 dBM	18.5 dBM	18.5 dBM
5250-5350MHz	18.8 dBM	18.8 dBM	18.8 dBM
5470-5725MHz	20.0 dBM	20.0 dBM	20.0 dBM
5725-5850MHz	X	9.0 dBM	10.0 dBM

	AT BE BG	CH CY CZ	DE DK	EE
	EL ES FI	FR HR	HU IE IS IT
	LI LT LU	LV MT NL	NO PL PT
	ROSE SISK	TR UK

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference, and

- This device must accept any interference received, including interference that may cause undesired operation

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

- Read and follow all instructions in the documentation before you operate your system.

- Do not use this product near water or a heated source such as a radiator.

- Set up the system on a stable surface.

- Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.

- Use this product in environments with ambient temperatures between 0^ and 40^ .

- If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

- Only technicians are allowed to open the chassis, please contact with your vendor/supplier for any technical support.

Attention during use

- Do not step on the power cord or let anything rest on top of it.

- Do not spill water or any other liquid on your system.

- When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.

- If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

• The power cord or plug is damaged.

• Liquid has been spilled into the system.

- The system does not function properly even if you follow the operating instructions.

- The system was dropped or the cabinet is damaged.

• The system performance changes

The warranty does not apply to products that have been disassembled by users

Safety cautions and warnings

Product disposal notice

IMPORTANT:

This symbol if the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION:

Danger of explosoin if battery is incorrectly replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Product disposal notice

1. Do not place this product underneath heavy loads or in an unstable position.
2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.
3. Do not expose this product to high levels of direct sunlight, high-humidity or wet conditions.
4. Do not block the air vents to this product or impede the airflow in any way.

Preface i

Chapter 11

Introducing the PC 1

Introduction....1

Specification....2

Front and Rear I/O....3

Packing Contents....5

Chapter 2 7

Installing the PC 7

System Quick Installation....7

Chapter 3 9

Using BIOS 9

About the Setup Utility....9

The Standard Configuration....9

Entering the Setup Utility....9

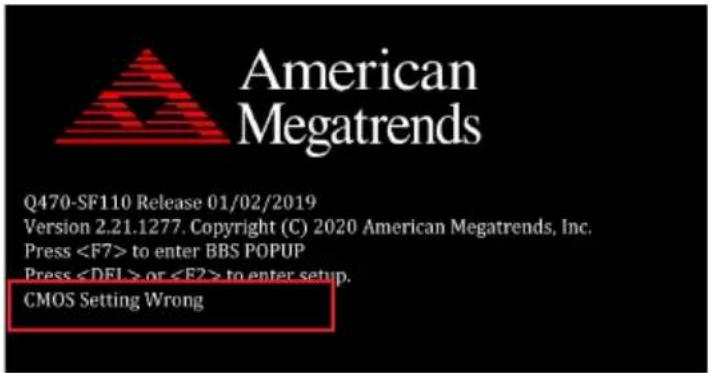

Resetting the Default CMOS Values....10

Using BIOS....10

BIOS Navigation Keys....11

Main Menu 12

Advanced Menu....13

Chipset Menu....24

Tweak Menu....27

Security Menu....28

Boot Menu....29

Exit Menu....30

Updating the BIOS....31

Chapter 4 33 33

Using the Software 33

About the Software DVD-ROM/CD-ROM....33

Auto-installing under Windows 10....33

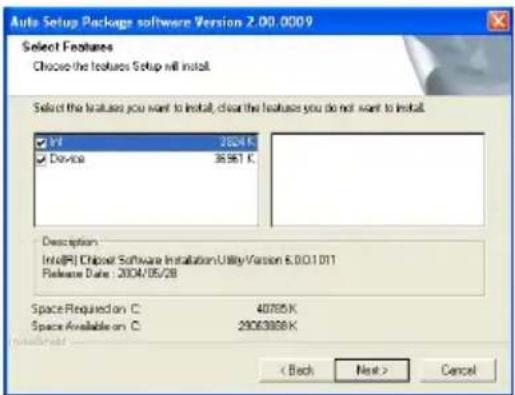

Running Setup....34

Manual Installation....36

ECS Utility Software (Intelligent EZ Utility) 36

Chapter 5

37

Trouble Shooting 37

Start up problems during assembly....37

Start up problems after prolong use....38

Maintenance and care tips....38

Basic Troubleshooting Flowchart....39

Chapter 1 Introducing the PC

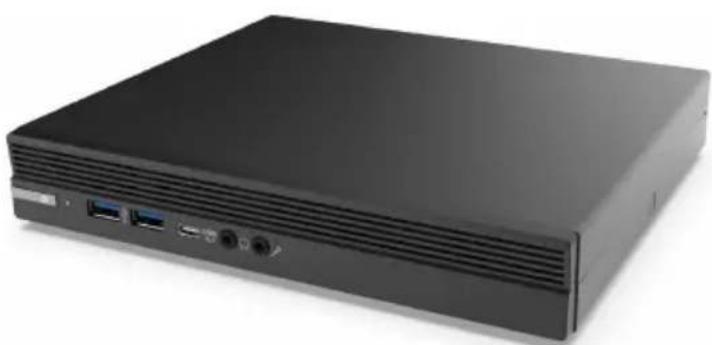

Introduction

Thank you for choosing this 1.1L case of great performance and with stylish and flexible design.

Supports LGA1200 Socket for Intel ^® 10 ^th processor and a dimension of 205mm (H)*176mm (D)*33mm (W), 1.1L SFF provides the features of low power consumption (working with a 90/120Watt power adaptor), and space saving. The chipset is Intel ^® Q470, supporting up to 32 GB of system memory with DDR4 2666 (i3/i5 CPU) / 2933 (i7/i9 CPU) memory SO-DIMM, 2.5" SATA III HDD, 4 independent displays, Intel TXT and vPro technology.

Black desktop computer with ventilation slots and ports (no visible text or labels)

CPU TDP 35W

Black rectangular electronic device with ventilation slots and ports (no visible text or labels)

CPU TDP 65W

Note: ID design may vary.

Specification

Chipset	Intel®Q470-Supports Intel®vPro technology
CPU Support	Supports Intel®10thGen processors with TDP 35W or 65W max
Memory	2 x SO-DIMM DDR4 2666 (i3/i5 CPU) / 2933 (i7/i9 CPU) MHz, up to 32 GB, Dual-channel
Graphics	Intel®HD graphics from CPUSupports 4K resolution and DX12 for Intel®10thprocessor
Storage	Supports 1 x 2.5” SATA III HDD
Expansion	1 x M.2 slot-Supports 2280 SATA, PCIe and Optane SSD
	Intel Gigabit LANLAN
Wifi	Supports Intel®AC9462, 802.11ac, 1x1, BT 5Supports Intel®AX200, 802.11ac, 2x2, BT 5.1
Video Output	1 x HDMI port1 x D-Sub port2 x DP ports(MAX.3 Video Outputs)
Front Panel	2 x USB 3.2 Gen 2x1 ports1 x USB 3.2 Gen 2x1 Type-C port1 x MIC-in1 x Line-out1 x Power button
Rear Panel	4 x USB 3.2 Gen 1x1 ports1 x 10/100/1000 LAN RJ451 x COM port (optional)1 x HDMI port1 x D-Sub port2 x DP ports1 x DC-IN
Adapter	CPU TDP 35W: 19V/4.74A, 90W power adaptorCPU TDP 65W: 19V/6.32A, 120W power adaptor
OS Support	Hardware Compatible with Windows 10 / Linux
Kensington lock	Supported

Dimensions (mm) • 205mm * 176mm * 33mm

Front and Rear I/O

1. Power Button with LED Press the prower button to turn the system on and off.
2. HDD LED This is the HDD LED light.
3. USB 3.2 Gen 2x1 ports The USB 3.2 Gen 2x1 ports are used for devices with USB, such as mouse, keyboard, printer, scanner.
4. USB 3.2 Gen 2x1 Type-C The USB 3.2 Gen 2x1 Type-C port is used for devices port with USB Type-C.
5. Headphone Jack Connecting Headphone.
6. Mic In Jack Connecting Microphone.

CPU TDP 35W CPU TDP 65W

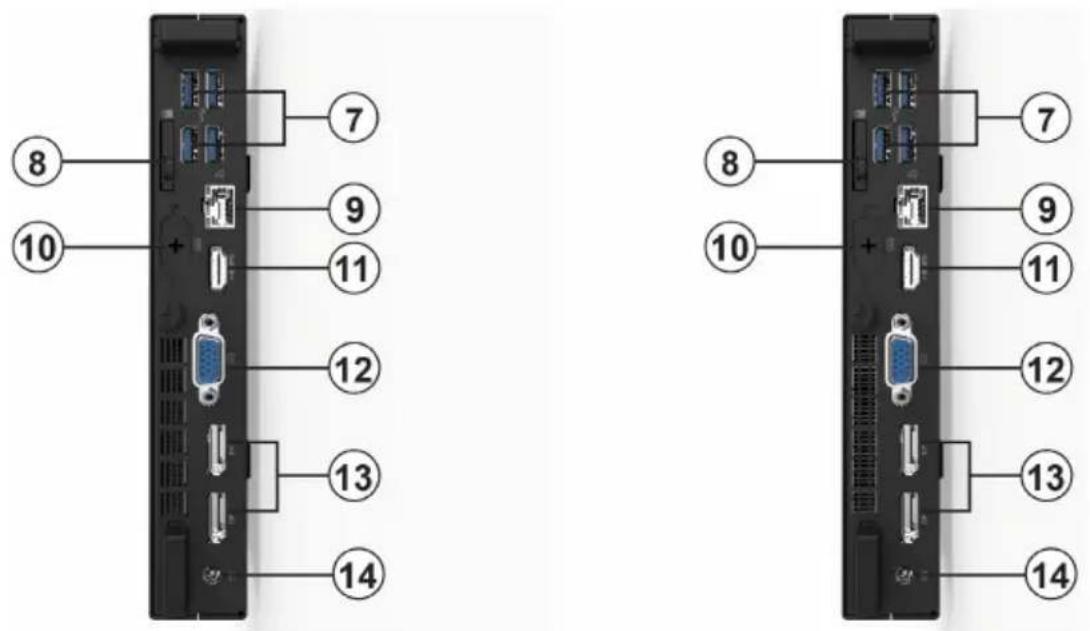

1. USB 3.2 Gen 1x1 ports Connecting USB 3.2 Gen 1x1 ports compatible devices.
2. Kensington Lock This is the security lock.
3. LAN Connecting the Network.
4. COM Port (optional) Connecting a device with COM port.
5. HDMI Port Connecting a display device to the HDMI port.
6. D-SUB Connector Connecting VGA Monitor.
7. DP Ports Connecting display devices to the DP ports.
8. DC Jack It is used for power adapter.

Packing Contents

Driver DVD

USER GUIDE
Quick Installation Guide

3D-rendered black plastic tray with cutouts and a small hole (no text or symbols)

Stand

Close-up of a black metal plate with a stylized 'H' and small symbols, no readable text or numbers present.

VESA Mount

Electric charger with attached black cable and connector, no visible text or symbols

Power 90W

Black rectangular electronic device with attached cables and a separate black cable (no visible text or symbols)

Power 120W

CPU TDP 35W CPU TDP 65W

Close-up of a white hard disk fan with a black plastic cover and a metallic heat sink, mounted on a flat surface (no visible text or symbols)

35W cooler 65W cooler

Close-up of a CPU fan with cooling fan and heatsink, next to a black rectangular device (no visible text or symbols)

NOTE: Please contact us immediately if any of the items is damaged or missing. (Memory, SSD, CPU and HDD are required to be purchased additionally.)

Introducing the PC

Memo

Chapter 2 Installing the PC

System Quick Installation

1. Connecting HDMI device.

Large CRT television displaying a landscape scene with a red character on a cliff and blue sky (no visible text or symbols)

1. Connecting VGA Monitor. (D-SUB Connector)

Front view of a black CRT monitor with a red rim and black base (no visible text or symbols)

1. The USB connectors are used for attaching USB devices, such as mouse, keyboard, printer, scanner and other USB-compatible devices.

Blue computer keyboard, mouse, and USB drive (no text or symbols visible)

1. Attaching Ethernet cable here. (LAN Connector)

Coiled blue network cable with connectors (no text or symbols visible)

1. Connecting the Microphone. (Microphone Jack)

1. Connecting Speaker or Headphone. (Headphone Jack)

Product photo of two audio/video speakers and a pair of headphones (no visible text or labels)

1. Connecting Power. (DC jack)

Electric power adapter with attached cable and ear (no visible text or symbols)

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Press the delete key to access BIOS Setup Utility.

Main Advanced Chipset Tweak Security Boot Exit
BIOS Information System Language [English] System Date [Thu 01/02/2019] System Time [14:19:34] BIOS Version 20.01.02	Choose the system default language
	→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Resetting the Default CMOS Values

When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer. You simply need to Load Default Settings to reset the default CMOS values.

Note: Changes to system hardware such as different CPU, memories, etc. may also trigger this message.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle ▶) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle ▶.

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC	Exit the current menu
↑↓→←	Scrolls through the items on a menu
+/- Change Opt.
Enter	Select
F1	General Help
F2	Previous Value
F3	Optimized Defaults
F4	Save & Exit

For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture's website for updated manual.

Main Menu

When you enter the BIOS Setup program, the main menu appears, giving you an overview of the basic system information. Select an item and press to display the submenu.

Main Advanced Chipset Tweak Security Boot Exit
BIOS InformationSystem Language [English]System Date [Thu 01/02/2019]System Time [14:19:34]BIOS Version 20.01.02	Choose the system default language
	→←: Select Screen↑↓: Select ItemEnter : Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

System Language (English)

This item is used to set system language.

System Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

Advanced Menu

This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer.

Main Advanced Chipset Tweak Security Boot Exit
LAN ConfigurationPC Health StatusPower Management SetupACPI SettingsCPU ConfigurationSATA ConfigurationUSB ConfigurationSuper IO ConfigurationTrusted ComputingIntel (R) Rapid Storage Technology	LAN Configuration Parameters→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

▶ LAN Configuration

The item in the menu shows the LAN-related information that the BIOS automatically detects.

Main Advanced Chipset Tweak Security Boot Exit
LAN ConfigurationOnboard LAN Controller [Enabled]	Enabled/Disabled Onboard LAN Controller
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Onboard LAN Controller (Enabled)

Use these items to enable or disable Onboard LAN controller.

Press to return to the Advanced Menu page.

▶ PC Health Status

This motherboard supports hardware monitoring, this item lets you monitor the parameters for critical voltage, temperatures and fan speeds.

Aptio Setup - American Megatrends International, LLC. Advanced
PC Health StatusCPU Temperature (DTS) 40System Temperature 32 °CCPU Fan Speed 1424 RPMCore Voltage 0.915VDIMM Voltage 1.177V+12V 11.870V+5V 5.155V+3.3V 3.226VTCC Activation Temperature (DTS) 100
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

System Component Characteristics

These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU & DIMM voltage, CPU & System fan speed... etc.

• CPU Temperature (DTS)
- System Temperature
- CPU Fan Speed
- Core Voltage
- DIMM Voltage
• +12V
• +5V
• +3.3V

Press to return to the Advanced Menu page.

▶ Power Management Setup

This page sets up some parameters for system power management operation.

Aptio Setup - American Megatrends International, LLC. Advanced
Power Management SetupResume By RING [Disabled]Resume By PME [Disabled]Wake on LAN [Disabled]Resume By USB [Disabled]Resume By RTC Alarm [Disabled]EUP Function [Enabled]	About Resume by Ring
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Resume on RING (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the Modem. You must use an ATX power supply in order to use this feature.

Resume By PME (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the PCI Modem or PCI/PCIE LAN card. You must use an ATX power supply in order to use this feature. Use this item to do wake-up action if inserting the PCI/PCIE card.

Wake on LAN (Disabled)

Use this item to enable or disable integrated LAN to wake the system. (The wake on LAN cannot be disabled if ME is not at Sx state.) If disabled, resume by USB (S3) will not be available.

Resume By USB (Disabled)

This item allows you to enable/disable the USB device wakeup function from S3 mode.

Resume By RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system's RTC (realtimeclock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

EUP Function (Enabled)

This item allows user to enable or disable EUP support.

Press to return to the Advanced Menu page.

▶ ACPI Settings

The item in the menu shows the highest ACPI sleep state when the system enters suspend.

Aptio Setup - American Megatrends International, LLC. Advanced
ACPI SettingsACPI Sleep State [S3 (Suspend to RAM)]	Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

ACPI Sleep State (S3(Suspend to RAM))

This item allows user to enter the ACPI S3 (Suspend toRAM) Sleep State (default).

Press to return to the Advanced Menu page.

▶ CPU Configuration

This item in the menu shows the information of the CPU.

Aptio Setup - American Megatrends International, LLC. Advanced
CPU ConfigurationIntel(R) Core(TM) i5-10600 CPU @ 3.30GHz Processor Speed 3300 MHzID 0xA0650Microcode Revision BENumber of Processors 6Cores (s) / 12Thread (s)VMX SupportedSMX/TXT SupportedHyper-threading [Enabled]Active Processor Cores [All]Limit CPUID Maximum [Disabled]Intel (VMX) Virtualization Technology [Enabled]Package C State limit [AUTO]Enhanced Halt (C1E) [Enabled]Intel (R) Speed Shift Technology [Enabled]Intel (R) Trusted Execution Technology [Disabled]Software Guard Extension (SGX) [Software Controlled]	Enabled for windows XP and Linx(OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When disabled only one thread per enabled core is enabled.
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Intel(R) Core(TM) i5-10600 CPU @ 3.30GHz

This is display-only field and displays the information of the CPU installed in your computer.

ID (0xA0650)

This item shows the processor ID.

Microcode Revision (BE)

This item shows the Microcode version.

Numbers of Processors (6Core(s) / 12Thread(s))

This item shows the core number of the processor.

VMX (Supported)

This item shows the computer supports VMX.

SMX/TXT (Supported)

This item shows the computer supports SMX/TXT or not.

Hyper-threading (Enabled)

This item only available when the chipset supports Hyper-threading and you are using a Hyper-threading CPU.

Active Processor Cores (All)

Use this item to control the number of active processor cores.

Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from "rebooting" when trying to install Windows NT4.0.

Intel (VMX) Virtualization Technology (Enabled)

When disabled, a VMM cannot utilize the additional hardware capabilities provided by Vandor Pool Technology.

Package C State limit (AUTO)

Use this item to set package C state limit.

Enhanced Halt (C1E) (Enabled)

Use this item to enable or disable the Enhanced C1 state.

Intel (R) Speed Shift Technology (Enabled)

Use this item to enable or disable the Intel(R) Speed Shift Technology.

Intel Trusted Execution Technology (Disabled)

Use this item to enable or disable the Intel trusted execution Technology.

Software Guard Extensions (SGX) (Software Controlled)

Use this item to enable or disable Intel software guard extensions platform.

Press to return to the Advanced Menu page.

▶ SATA Configuration

This item in the menu shows the mode of serial ATA configuration options.

Aptio Setup - American Megatrends International, LLC. Advanced
SATA ConfigurationSATA Mode [Intel RST With Int ...]PCIE Storage Dev On Port 9 [RST Controlled]SATA Port1Not PresentM.2Not Present	Determines how SATA controller(s) operate.→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

SATA Mode (Intel RST With Int...)

Use this item to select SATA mode (Disabled, AHCI Mode or RAID Mode).

PCIe Storage Dev On Port 9 (RST Controlled)

This item enables or disables RST Pcie storage Remapping.

SATA Port 1/M.2 (Not Present)

This motherboard supports one SATA channels and one M.2 channel, each channel allows one SATA/M.2 device to be installed. Use these items to configure each device on the SATA/M.2 channel.

Spin Up Device (Disabled)

Use this item to enable or disable the spin up device.

External SATA (Disabled)

Use this item to enable or disable the external SATA.

Press to return to the Advanced Menu page.

▶ USB Configuration

Use this item to show the information of USB configuration.

Aptio Setup - American Megatrends International, LLC. Advanced
USB ConfigurationAll USB Devices [Enabled]Legacy USB Support [Enabled]	Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

All USB Devices (Enabled)

Use this item to enable or disable all USB devices.

Legacy USB Support (Enabled)

Use this item to enable or disable support for legacy USB devices.

Press to return to the Advanced Menu page.

▶ Super IO Configuration

Use this item to show the information of the Super IO Configuration.

Aptio Setup - American Megatrends International, LLC. Advanced
Super IO ConfigurationSuper IO Chip IT8733EC Firmware Version 0.02EC Firmware Build Date 08/21/2019Serial Port 1 .Configuration	Set Parameters of Serial Port 1 (COMA)
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Super IO Chip (IT8733)

This item shows the information of the super IO chip.

EC Firmware Build Date (08/21/2019)

This item shows the information of the EC Firmware build date.

▶ Serial Port 1 Configuration

Scroll to this item and press to view the following screen:

Aptio Setup - American Megatrends International, LLC. Advanced
Serial Port 1 Configuration Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4; Change Settings [Auto]	Enable or Disable Serial Port (COM)
	→ ← :Select Screen ↑↓ :Select Item Enter : Select +/- : Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=3F8h; IRQ=4)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press to return to the Super IO Configuration page.

Press to return to the Advanced Menu page.

▶ Trusted Computing

Use this item to show the information of trusted computing configuration.

Aptio Setup - American Megatrends International, LLC. Advanced
TPM20 Device FoundFirmware Version: 1.257Vendor: STMTPM Support [Enabled]Active PCR banks SHA256Available PCR banks SHA256SHA256 PCR Bank [Enabled]Pending operation [None]Platform Hierarchy [Enabled]Storage Hierarchy [Enabled]Endorsement Hierarchy [Enabled]TPM2.0 UEFI Spec Version [TCG_2]Physical Presence Spec Version [1.3]TPM 2.0 Interface Type [TIS]PH Randomization [Enabled]Disable Block Sid [Disabled]	Enables or Disables BIOS support for security device.O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Firmware Version (1.257)

This item shows the information of firmware version.

TPM20 Device Found Vendor (STM)

This item shows the information of TPM20 device found vendor.

TPM Support (Enabled)

Use this item to enable or disable the TPM support. O.S. will not show TPM. Reset of platform is required.

Active PCR banks (SHA256)

Use this item to show the Active PCR banks.

Available PCR banks (SHA256)

Use this item to show the Available PCR banks.

SHA256 PCR Bank (Enabled)

Use this item to enable or disable the SHA256 PCR bank.

Pending operation (None)

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

Platform Hierarchy (Enabled)

Use this item to enable or disable the platform hierarchy.

Storage Hierarchy (Enabled)

Use this item to enable or disable the storage hierarchy.

Endorsement Hierarchy (Enabled)

Use this item to enable or disable the Endorsement Hierarchy.

TPM 2.0 UEFI Spec Version (TCG_2)

Use this item to show the TPM2.0 UEFI Spec Version.

Physical Presence Spec Version (1.3)

Use this item to show Physical Presence Spec Version.

TPM 20 InterfaceType (TIS)

Use this item to show the TPM 20 InterfaceType.

PH Randomization (Enabled)

This item enables or disables platform hierarchy randomization.

This item enables or disables override to allow SID authentication in TCG storage device.

▶ Intel (R) Rapid Storage Technology

Use this item to show the information of Intel (R) Rapid Storage Technology.

Aptio Setup - American Megatrends International, LLC. Advanced
Intel (R) RST 17.8.0.4507 RAID Driver Non-RAID Physical disks: ► PCIe 1.0, SSD
	→ ←:Select Screen ↑↓ :Select Item Enter : Select +/- : Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Intel (R) RST 17.8.0.4507 RAID Driver

This item shows the information of intel RST RAID Driver.

Press to return to the Advanced Menu page.

Chipset Menu

The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system.

Aptio Setup - American Megatrends International, LLC.
Main Advanced Chipset Tweak Security Boot Exit
System Agent ConfigurationPCH ConfigurationME Configuration	System Agent (SA) Parameters
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

▶System Agent Configuration

Scroll to this item and press and view the following screen:

Aptio Setup - American Megatrends International, LLC. Chipset
System Agent ConfigurationIGD Memory [64M]DVMT/FIXED Memory [256M]	Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

IGD Memory (64M)

This item shows the information of the IGD (Internal Graphics Device) memory (32M, 64M, 128M, 256M, or 512M).

DVMT/FIXED Memory (256M)

When set to Fixed Mode, the graphics driver will reserve a fixed position of the system memory as graphics memory, according to system and graphics requirements. This item shows the information of the DVMT memory (128M, 256M, or MAX).

Press to return to the Chipset Menu page.

▶PCH Configuration

Scroll to this item and press and view the following screen:

Aptio Setup - American Megatrends International, LLC. Chipset
PCH ConfigurationRestore AC Power Loss [Power Off]Audio ConfigurationHD Audio [Enabled]Case Open Warning [Disabled]Chassis Opened [No]	Select AC power state when power is re-applied after a power failure.
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Restore AC Power Loss (Power Off)

This item enables your computer to automatically restart or return to its operating status (Power Off, Power On or Last State).

HD Audio (Enabled)

Use this item to enable or disable Azalia HD Audio.

Case Open Warning (Disabled)

This item enables or disables the warning if the case is opened up, and the item below indicates the current status of the case.

Chassis Opened (No)

This item indicates whether the case has been opened.

Press to return to the Chipset Menu page.

▶ME Configuration

Scroll to this item and press and view the following screen:

Aptio Setup - American Megatrends International, LLC. Chipset
Management Engine Technology ConfigurationME Control [Enabled]ME FW Version 14.0.30.1100	Enable/Disable ME Firmware
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

ME Control (Enabled)

Use this item to enable or disable the ME Firmware.

ME FW Version (14.0.30.1100)

This item shows the ME FW version.

Press to return to the Chipset Menu page.

Tweak Menu

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

Aptio Setup - American Megatrends International, LLC.
Main Advanced Chipset Tweak Security Boot Exit
TweakIntel(R) Core(TM) i5-10600 CPU @ 3.30GHz Processor Speed 3300 MHzMemory Frequency 2133 MHzTotal Memory 4096 MBEIST [Enabled]Turbo Boost [Enabled]	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Intel(R) Core(TM) i5-10600 CPU @ 3.30GHz

This is display-only field and displays the information of the CPU installed in your computer.

Processor Speed (3300 MHz)

This item shows the CPU speed.

Memory Frequency (2133 MHz)

This item shows the memory frequency.

This item shows the total memory of DDR4.

EIST (Enabled)

This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Technology).

Turbo Boost (Enabled)

This item allows users to enable or disable turbo boost.

Security Menu

This page enables you to set setup administrator and password.

Aptio Setup - American Megatrends International, LLC.
Main Advanced Chipset Tweak Security Boot Exit
Administrator PasswordSystem Mode state SetupSecure Boot state Not ActiveSecure Boot [Disabled]Secure Boot Mode [Standard]	Set Administrator Password
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Administrator Password Status (Not Install)

This item shows administrator password installed or not.

User Password Status (Not Install)

This item shows user password installed or not.

System Mode state (Setup)

This item shows system mode setup or not.

Secure Boot state (Not Active)

This item allows you to enable or disable the secure boot state.

Secure Boot (Disabled)

This item is used to control the secure boot flow, it is possible only if system runs in User mode.

Secure Boot Mode (Standard)

This item is used to select the secure boot mode.

Boot Menu

This page enables you to set the keyboard NumLock state and devices boot sequence.

Launch PXE OpROM (Disabled)

Use this item to enable or disable the PXE OpROM.

Launch Storage OpROM (Enabled)

Use this item to enable or disable the Storage OpROM.

This item enables or disables boot with initialization of a minimal set of device required to launch active boot option. Has no effect for BBS boot options.

Bootup NumLock State (On)

This item determines if the NumLock key is active or inactive at system start-up time.

Quiet Boot (Enabled)

This item enables or disables quiet boot option.

Update System BIOS (Disabled)

This item enables or disables to update system BIOS.

Boot mode Select (UEFI)

Use this item to select boot mode.

These items show the boot priorities.

Exit Menu

This page enables you to exit system setup after saving or without saving the changes.

Aptio Setup - American Megatrends International, LLC.
Main Advanced Chipset Tweak Security Boot Exit
Save Changes and ExitDiscard Changes and ExitSave Changes and ResetDiscard Changes and ResetSave OptionsSave ChangesDiscard ChangesRestore DefaultsSave as User DefaultsRestore User DefaultsBoot Override	Exit system setup after saving the changes.→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.21.1277. Copyright (C) 2020 American Megatrends International, LLC.

Save Changes and Exit

This item enables you to save the changes that you have made and exit.

Discard Changes and Exit

This item enables you to discard any changes that you have made and exit.

Save Changes and Reset

This item enables you to save the changes that you have made and reset.

Discard Changes and Reset

This item enables you to discard any changes that you have made and reset.

Save Options

This item enables you to save the options that you have made.

Save Changes

This item enables you to save the changes that you have made.

Discard Changes

This item enables you to discard any changes that you have made.

Restore Defaults

This item enables you to restore the system defaults.

Save as User Defaults

This item enables you to save the changes that you have made as user defaults.

This item enables you to restore user defaults.

Boot Override

Use this item to select the boot device.

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer's Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer's Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer. (You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)
6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file name of the new BIOS and then press . Example: AFUDOS.EXE 040706.ROM
7 When the installation is complete, remove the bootable device from the computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.

Memo

Chapter 4 Using the Software

Auto-installing under Windows 10

The auto-install DVD-ROM makes it easy for you to install the drivers and software. The support software DVD-ROM disc loads automatically under Windows 10. When you insert the DVD-ROM disc in the DVD-ROM drive, the auto-run feature will automatically bring up the installation screen. The screen has four buttons on it: Setup, Utilities, Browse CD and Exit.

Running Setup

Follow these instructions to install device drivers and software for the motherboard:

1. Click Setup. The installation program begins:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

The motherboard identification is located in the upper left-hand corner.

1. Click Next. The following screen appears:

1. Check the box next to the items you want to install. The default options are recommended.

1. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

Windows 10 will appear below UAC (User Account Control) message after the system restart. You must select "Yes" to install the next driver. Continue this process to complete the drivers installation.

Manual Installation

If the auto-install DVD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Look for the chipset and motherboard model, and then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

ECS Utility Software (Intelligent EZ Utility)

ECS Intelligent EZ Utility provides friendly interfaces under Windows O.S, which makes your computing more easily and conveniently.

These software(s) are subject to change at anytime without prior notice. Please refer to the support disk for available software.

Chapter 5

Trouble Shooting

Start up problems during assembly

After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips.

a) System does not power up and the fans are not running.

1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and other peripherals including keyboard and mouse. Leave only the motherboard, CPU with CPU cooler and power supply connected. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent pin may cause failure to boot and sometimes permanent damage from short circuit.
5. Check the 19V power connector is connected to the motherboard.
6. Check that the 19V power is fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

b) Power is on, fans are running but there is no display

1. Make sure the monitor is turned on and the monitor cable is properly connected to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected.

a. continuous 3 short beeps : memory not detected

b. 1 long beep and 8 short beeps : VGA not detected

c) The PC suddenly shuts down while booting up.

1. The CPU may experience overheating so it will shutdown to protect itself. Ensure the CPU fan is working properly.
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan.

Start up problems after prolong use

After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause of failure.

1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper in Chapter 2 for Checking Jumper Settings in this user manual. When completed, follow up with a Load Optimised Default in the BIOS setup.

2. Check the system fan for dust. Long term accumulation of dust will reduce its effectiveness to cool the processor. Clean the cooler or replace a new one if necessary.

3. Remove the hard drive, or DDR memory to determine which of these component may be at fault.

Maintenance and care tips

Your computer, like any electrical appliance, requires proper care and maintenance. Here are some basic PC care tips to help prolong the life of the motherboard and keep it running as best as it can.

1. Keep your computer in a well ventilated area. Leave some space between the PC and the wall for sufficient airflow.
2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and areas of high moisture content.
3. Routinely clean the CPU cooler fan to remove dust and hair.
4. In places of hot and humid weather you should turn on your computer once every other week to circulate the air and prevent damage from humidity.
5. Add more memory to your computer if possible. This not only speeds up the system but also reduces the loading of your hard drive to prolong its life span.
6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.

Basic Troubleshooting Flowchart

Memo
