Product Type	1-Liter Small Form Factor PC / Desktop
Brand	ECS (Elitegroup Computer Systems)
Model	SF100
Dimensions (W x D x H)	33 mm x 176 mm x 173 mm
Weight	Approx. 1.5 kg (3.3 lbs)
Power Supply	90W external power adapter (DC-IN)
CPU Support	LGA1151 socket for Intel Skylake processors (up to 35W TDP)
Chipset	Intel Q170
Memory	2 x SO-DIMM slots, Dual-channel DDR4, up to 32 GB
Storage	1 x 2.5" SATA III HDD/SSD; Optional DVD docking
Graphics	Intel HD Graphics (from CPU); supports 4K resolution and DX12
Display Outputs	1 x HDMI, 1 x D-Sub (VGA), 1 x DisplayPort (triple independent displays)
Front I/O	2 x USB 3.0 (one with EZ Charger), 2 x USB 2.0, Headphone out, Mic-in
Rear I/O	4 x USB 3.0 (one 2.6A for DVD docking), 1 x RJ45 Gigabit LAN, Audio jacks, COM port (optional), DC-IN
Expansion Slots	2 x M.2 slots (one for SSD, one for WLAN maybe)
Operating System Support	Windows 7/8.1/10 (64-bit)
Security	Kensington lock slot, TPM support, Intel TXT and vPro
Cooling	Active CPU fan with heatsink; chassis ventilation
Operating Temperature	0°C to 40°C (32°F to 104°F)
Certifications	FCC Class B, CE, RoHS

Frequently Asked Questions - SF100 ECS

How do I access the BIOS setup on the ECS SF100?

Press the Delete key repeatedly during system startup (when prompted "Press DEL to enter SETUP") to enter the BIOS Setup Utility.

What processors are compatible with the SF100?

The SF100 supports LGA1151 Intel Skylake processors with a maximum TDP of 35W. Examples include Core i5-6600T.

How much memory can I install?

You can install up to 32 GB of DDR4 memory using two SO-DIMM slots in dual-channel configuration.

Can I connect multiple monitors?

Yes, the SF100 supports three independent displays via HDMI, D-Sub (VGA), and DisplayPort.

How do I clear the CMOS?

Use the CLR_CMOS jumper on the motherboard. Power off, unplug, short the jumper for a few seconds, then restore to default position. Alternatively, load optimized defaults in BIOS.

What should I do if the system powers on but no display?

Check monitor connection, ensure the monitor is on, and listen for beep codes. 3 short beeps indicate memory issues; 1 long + 8 short indicate VGA issues. Try reseating RAM or graphics card.

Does the SF100 support Windows 10?

Yes, it is hardware compatible with Windows 7, 8.1, and 10 (64-bit). Drivers are provided on the included DVD.

How can I update the BIOS?

Download the latest BIOS from ECS website, create a bootable USB, run the flash utility (e.g., AFUDOS.EXE) from DOS. Refer to the manual for detailed steps.

What is the power consumption of the SF100?

It uses a 90W external power adapter. Actual consumption depends on CPU and peripherals, typically around 30-65W under load.

Can I install a 2.5-inch SSD?

Yes, the SF100 has one 2.5-inch SATA III drive bay for HDD or SSD. An optional DVD drive can be added via docking.

USER MANUAL SF100 ECS

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

♣▲\*◇○□

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

\*□\*\*○□\*\*□\*■□

Windows ^® 7/8/10 are registered trademarks of Microsoft Corp.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

◆★★★□●○◆□○○◆■★★▼□▲◆□○○★▲□■

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

✿✿✿✿☐✿✿☐■□✿✿☐■☐○✿

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

- Read and follow all instructions in the documentation before you operate your system.

- Do not use this product near water or a heated source such as a radiator.

- Set up the system on a stable surface.

- Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.

- Use this product in environments with ambient temperatures between 0^ and 40^ .

- If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Attention during use

- Do not step on the power cord or let anything rest on top of it.

- Do not spill water or any other liquid on your system.

- When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.

- If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

- The power cord or plug is damaged.

- Liquid has been spilled into the system.

- The system does not function properly even if you follow the operating instructions.

- The system was dropped or the cabinet is damaged.

• The system performance changes

The warranty does not apply to products that have been disassembled by users

Safety cautions and warnings

Optical Drive Safety Information

Optical drive sold with this system contains a CLASS 1 LASER PRODUCT.

CAUTION:

Invisible laser radiation when open. Do not stare into beam or view directly with optical instructions.

WARNING:

Making adjustments or performing procedures other than those specified in the user's manual may result in hazardous laser exposuer. Do not attempt to disassemble the optical drive. For your safety, have the optical drive serviced only by an authorized service provider.

Product disposal notice

IMPORTANT:

This symbol if the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION:

Danger of explosoin if battery is incorrectly replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Product disposal notice

1. Do not place this product underneath heavy loads or in an unstable position.

2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.

3. Do not expose this product to high levels of direct sunlight, high-humidity or wet conditions.

4. Do not block the air vents to this product or impede the airflow in any way.

Preface i

Introducing the PC 1

Introduction....1

Specification....2

Front and Rear I/O....3

Packing Contents....5

Pure decorative symbols without any text or labels

Installing the PC 7

System Quick Installation....7

Using BIOS 9

About the Setup Utility....9

The Standard Configuration....9

Entering the Setup Utility....9

Resetting the Default CMOS Values....10

Using BIOS....10

BIOS Navigation Keys....11

Main Menu 12

Advanced Menu....13

Chipset Menu....24

Tweak Menu....27

Security Menu....28

Boot Menu....29

Exit Menu....30

Updating the BIOS....31

Using the Software 33

About the Software DVD-ROM/CD-ROM....33

Auto-installing under Windows 7/8/10....33

Running Setup....34

Manual Installation....36

Utility Software Reference....36

◆◆◆□▼◆□×

√X

Trouble Shooting 37

Start up problems during assembly....37

Start up problems after prolong use....38

Maintenance and care tips....38

Basic Troubleshooting Flowchart....39

Introduction

Thank you for choosing 1L SF100 of great performance and with stylish and flexible design.

Supports LGA1151 Socket for Intel ^® Skylake processor and a dimension of 173mm (H)* 176mm (D)* 33mm (W), 1L SFF provides the features of low power consumption (working with a 90Watt power adaptor), and space saving. The chipset is Intel ^® Q170, supporting up to 32 GB of system memory with DDR4 memory SO-DIMM, 2.5" SATA III HDD, 3 independent displays, Intel TXT and vPro technology.

Black desktop computer tower with indicator lights and ports (no visible text or labels)

Specification

Chipset	• Intel ®Q170
CPU Support	• Supports LGA1151 Socket for Intel ® Skylake processor (up to 35W)
Memory	• 2 x SO-DIMM up to 32 GB, Dual-channel
Graphics	• Intel ® HD graphics from CPU• Support 4K resolution and DX12 for Intel Skylake-S
Storage	• Support 1 x 2.5” SATA III HDD
ODD	• Additional DVD docking support (optional)
Front Panel	• 2x USB 3.0 (one supports EZ Charger), 2x USB 2.0• 1 x Headphone output• 1 x MIC-IN
Rear Panel	• 4 x USB 3.0 (one supports 2.6A for DVD docking)• 1 x 10/100/1000 LAN RJ45• 1 x Microphone/headphone connector• 1 x COM port (optional)• 1 x HDMI (support dual dispaly)• 1 x D-Sub(VGA)• 1 x DP port• 1 x DC-IN
Power	• 90W power adaptor
OS Support	• Hardware Compatible with Windows 7/8.1/10
Expansion	• 2 x M.2 slots
Dimensions (mm)	• 173mm * 176mm * 33mm

Front and Rear I/O

1. Power Button Press the prower button to turn the system on and off.
2. Power LED This is the power LED light.
3. HDD LED This is the HDD LED light.
4. USB 2.0 Connectors The USB 2.0 connector is used for USB 2.0 devices, such as mouse, keyboard, printer, scanner and other USB 2.0-compatible devices.

5. USB 3.0 Connectors The USB 3.0 connector is used for USB 3.0 devices, such as mouse, keyboard, printer, scanner and other USB 3.0-compatible devices.

6. Headphone Jack Connecting Headphone.

7. Mic In Jack Connecting Microphone.

1. USB 3.0 Connectors Connecting USB 3.0 Devices.

2. Kensington This is the security lock.

3. LAN Connecting the Network.

4. HD Audio Microphone Jack/ Headphone Jack.

5. COM Port (optional) Connecting a serial port extension bracket.

6. HDMI Port Connect display device to the HDMI port.

7. D-SUB Connector Connecting VGA Monitor.

8. DP Port You can connect display device to the DP port.

9. DC Jack It is used for power adapter.

Packing Contents

Driver DVD

Illustration of a computer monitor with a base, labeled 'User Manual' below (no other text or symbols)

Manual

Black plastic rectangular object with two vertical slots, no visible text or symbols

Stand

Two black cables with attached plastic components, no visible text or symbols

Power

NOTE:

Please contact us immediately if any of the items is damaged or missing.

×

★*O□

System Quick Installation

1. Connecting HDMI device.

Large CRT television displaying a landscape scene with a red figure on a cliff and blue sky (no text or symbols visible)

Back panel of a computer tower showing ports, connectors, and a highlighted connector (no readable text or symbols)

1. Connecting VGA Monitor. (D-SUB Connector)

Front view of a black CRT monitor with a curved top and base (no visible text or symbols)

Close-up of a computer interface panel with a blue plastic component and control buttons (no visible text or symbols)

1. The USB connector is for attaching USB devices, such as mouse, keyboard, printer, scanner and other USB-compatible device.

Blue computer keyboard, mouse, and USB flash unit (no text or symbols visible)

Back view of a computer tower with multiple Ethernet ports and connectors (no visible text or labels)

1. Connecting the Network. (LAN Connector)

Coiled blue network cable with connectors (no text or symbols visible)

Back panel of a computer tower showing multiple Ethernet ports and a highlighted connector (no text or symbols visible)

1. Connecting the Microphone. (Microphone Jack)

Close-up of a server rack with four ports and a highlighted circular component (no text or symbols visible)

1. Connecting Speakers or Headphones. (Headphone Jack)

Product photo of two audio/video speakers and a pair of headphones (no visible text or labels)

Close-up of a server rack with four ports and a highlighted circular component (no text or symbols visible)

1. Connecting Power. (DC jack)

Electricity charger with attached cable and connector (no visible text or symbols)

Close-up of a black electronic device rear panel with buttons and ports (no readable text or symbols)

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Press the delete key to access BIOS Setup Utility.

Main Advanced Chipset Tweak Security Boot Exit
BIOS Information System Language [English] System Date [Fri 08/21/2015] System Time [00:00:44]	Choose the system default language
	→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Resetting the Default CMOS Values

When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer. You simply need to Load Default Settings to reset the default CMOS values.

Note: Changes to system hardware such as different CPU, memories, etc. may also trigger this message.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle ▶) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle ▶.

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC	Exit the current menu
	Scrolls through the items on a menu
+/- Change Opt.
Enter	Select
F1	General Help
F2	Previous Value
F3	Optimized Defaults
F4	Save & Exit

For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture's website for updated manual.

Main Menu

When you enter the BIOS Setup program, the main menu appears, giving you an overview of the basic system information. Select an item and press to display the submenu.

Main	Advanced	Chipset	Tweak	Security	Boot	Exit
BIOS InformationSystem Language [English]System Date [Fri 08/21/2015]System Time [00:00:44]						Choose the system default language
						→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

System Language (English)

This item is used to set system language.

System Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

Advanced Menu

This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer.

Main Advanced Chipset Tweak Security Boot Exit
LAN ConfigurationPC Health StatusPower Management SetupACPI SettingsCPU ConfigurationSATA ConfigurationUSB ConfigurationSuper IO ConfigurationAMT ConfigurationTrusted Computing	LAN Configuration Parameters→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

▶ LAN Configuration

The item in the menu shows the LAN-related information that the BIOS automatically detects.

Main Advanced Chipset Tweak Security Boot Exit
LAN ConfigurationOnboard LAN Controller [Enabled]	Enabled/Disabled Onboard LAN Controller
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Onboard LAN Controller (Enabled)

Use these items to enable or disable Onboard LAN controller.

Press to return to the Advanced Menu page.

▶ PC Health Status

This motherboard supports hardware monitoring, this item lets you monitor the parameters for critical voltage, temperatures and fan speeds.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main	Advanced	Chipset	Tweak	Security	Boot	Exit
PC Health StatusCPU Temperature (DTS) 53System Temperature 29CPU Fan Speed 4891 RPMCore Voltage 1.188VDIMM Voltage 1.199V+12V 11.902V+5V 4.896V+3.3V 3.256VTCC Activation Temperature (DTS) 100°C→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

System Component Characteristics

These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU & DIMM voltage, CPU & System fan speed... etc.

• CPU Temperature (DTS)
- System Temperature
- CPU Fan Speed
- System Fan Speed
- Core Voltage
- DIMM Voltage
• +12V
• +5V
• +3.3V

Press to return to the Advanced Menu page.

▶ Power Management Setup

This page sets up some parameters for system power management operation.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit
Power Management SetupResume By RING [Disabled]Resume By PME [Disabled]Wake on LAN [Disabled]Resume By USB [Disabled]Resume By RTC Alarm [Disabled]EUP Function [Enabled]Power LED Type [Dual Color LED]	About Resume by Ring
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Resume on RING (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the Modem. You must use an ATX power supply in order to use this feature.

Resume By PME (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the PCI Modem or PCI/PCIE LAN card. You must use an ATX power supply in order to use this feature. Use this item to do wake-up action if inserting the PCI/PCIE card.

Wake on LAN (Disabled)

Use this item to enable or disable integrated LAN to wake the system. (The wake on LAN cannot be disabled if ME is not at Sx state.) If disabled, resume by USB (S3) will not be available.

Resume By USB (Disabled)

This item allows you to enable/disable the USB device wakeup function from S3 mode.

Resume By RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system's RTC (realtimeclock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

EUP Function (Enabled)

This item allows user to enable or disable EUP support.

Power LED Type (Dual Color LED)

This item shows the type of the Power LED.

Press to return to the Advanced Menu page.

▶ ACPI Settings

The item in the menu shows the highest ACPI sleep state when the system enters suspend.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main	Advanced	Chipset	Tweak	Security	Boot	Exit
ACPI SettingsACPI Sleep State [S3 (Suspend to RAM)]						Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
						→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

ACPI Sleep State (S3(Suspend to RAM))

This item allows user to enter the ACPI S3 (Suspend toRAM) Sleep State (default).

Press to return to the Advanced Menu page.

▶ CPU Configuration

This item in the menu shows the information of the CPU.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main	Advanced	Chipset	Tweak	Security	Boot	Exit
CPU ConfigurationIntel(R) Core(TM) i5-6600T CPU @ 2.70GHzEM64T SupportedProcessor Speed 3300 MHzProcessor Stepping 506E3Microcode Revision 33Processor Cores 4Intel HT Technology Not SupportedIntel VT-x Technology SupportedActive Processor Cores [All]Limit CPUID Maximum [Disabled]Execute Disable Bit [Enabled]Intel Virtualization Technology [Enabled]Package C State limit [AUTO]Enhanced Halt (C1E) [Enabled]Intel TXT(LT) Support [Disabled]						Number of cores to enable in each processor package.→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Intel(R) Core(TM) i5-6600T CPU @ 2.70GHz

This is display-only field and displays the information of the CPU installed in your computer.

EM64T (Supported)

This item shows the computer supports EMT64.

Processor Speed (3300 MHz)

This item shows the current processor speed.

Processor Stepping (506E3)

This item shows the processor stepping version.

Microcode Revision (33)

This item shows the microcode revision.

Processor Cores (4)

This item shows the core number of the processor.

Intel HT Technology (Not Supported)

This item shows that your computer supports Intel HT technology or not.

Intel VT-x Technology (Supported)

This item shows that your computer supports Intel VT-x technology or not.

Active Processor Cores (All)

Use this item to control the number of active processor cores.

Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from “rebooting” when trying to install Windows NT 4.0.

Excute Disable Bit (Enabled)

This item allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation. Replacing older computers with Execute Disable Bit enabled systems can halt worm attacks, reducing the need for virus related repair.

Intel Virtualization Technology (Enabled)

When disabled, a VMM cannot utilize the additional hardware capabilities provided by Vandor pool Technology.

Package C State limit (AUTO)

Use this item to set the package C state limit.

Enhanced Halt (C1E) (Enabled)

Use this item to enable the CPU energy-saving function when the system is not running.

Intel TXT(LT) Support (Disabled)

Use this item to enable or disable the Intel TXT(LT) support.

Press to return to the Advanced Menu page.

▶ SATA Configuration

This item in the menu shows the mode of serial ATA configuration options.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main	Advanced	Chipset	Tweak	Security	Boot	Exit
SATA Configuration						Determines how SATA controller(s) operate.
SATA Mode [AHCI]
SATA Port1						→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Not Present
Spin Up Device [Disabled]
External SATA [Disabled]
M.2
Not Present
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

SATA Mode (AHCI)

Use this item to select SATA mode (Disabled, AHCI Mode or RAID Mode).

SATA Port 1/M.2 (Not Present)

This motherboard supports one SATA channels and one M.2 channel, each channel allows one SATA/M.2 device to be installed. Use these items to configure each device on the SATA/M.2 channel.

Spin Up Device (Disabled)

Use this item to enable or disable the spin up device.

External SATA (Disabled)

Use this item to enable or disable the external SATA.

Press to return to the Advanced Menu page.

▶ USB Configuration

Use this item to show the information of USB configuration.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset Tweak Security Boot Exit
USB ConfigurationAll USB Devices [Enabled]Legacy USB Support [Enabled]	Enables Legacy USB support.AUTO option disables legacysupport if no USB devices areconnected. DISABLE option willkeep USB devices available onlyfor EFI applications.
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

All USB Devices (Enabled)

Use this item to enable or disable all USB devices.

Legacy USB Support (Enabled)

Use this item to enable or disable support for legacy USB devices.

Press to return to the Advanced Menu page.

▶ Super IO Configuration

Use this item to show the information of the Super IO Configuration.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit
Super IO ConfigurationSuper IO Chip IT8733EC Firmware Build Date 08/20/2015Serial Port 1 Configuration	Set Parameters of Serial Port 1 (COMA)
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Super IO Chip (IT8733)

This item shows the information of the super IO chip.

EC Firmware Build Date (08/20/2015)

This item shows the information of the EC Firmware build date.

▶ Serial Port 1 Configuration

Scroll to this item and press to view the following screen:

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main	Advanced	Chipset	Tweak	Security	Boot	Exit
Serial Port 1 ConfigurationSerial Port [Enabled]Device Settings IO=3F8h; IRQ=4;Change Settings [Auto]						Enable or Disable Serial Port (COM)
						→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=3F8h; IRQ=4)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press to return to the Super IO Configuration page.

Press to return to the Advanced Menu page.

▶ AMT Configuration

Use this item to show the information of AMT configuration.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit
Intel AMT [Enabled]MEBx Hotkey Pressed [Disabled]	Enable/Disable Intel (R) Active Management Technology BIOS Extension.Note: iAMT H/W is always enabled.This option just controls the BIOS extension execution.If enabled, this requires additional firmware in the SPI device.
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Intel AMT (Enabled)

Use this item to enable or disable Intel(R) Active Management Technology (AMT) BIOS extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device.

MEBx Hotkey Pressed (Disabled)

Use this item to enable or disable MEBx Hotkey pressed.

Press to return to the Advanced Menu page.

▶ Trusted Computing

Use this item to show the information of trusted computing configuration.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main	Advanced	Chipset	Tweak	Security	Boot	Exit
ConfigurationTPM Support [Enabled]TPM State [Enabled]Pending operation [None]Device Select [Auto]Current Status InformationTPM Enabled Status: [Enabled]TPM Active Status: [Activated]TPM Owner Status: [Owned]						Enables or Disables BIOS support for security device.O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
						→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

TPM Support (Enabled)

Use this item to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

TPM State (Enabled)

Select Enabled to display the status of TPM support for this system. Please note that a system reboot is needed before a change on the TPM state to take effect.

Pending operation (None)

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

Device Select (Atuo)

TPM 1.2 will restrict support to TPM 1.2 device, TPM 2.0 will restrict support to TPM 2.0 devices, Auto will support both with default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated.

TPM Enabled Status (Enabled)

This item displays the TPM status to be enabled or not.

TPM Active Status (Activated)

This item displays the TPM status to be activated or not.

TPM Owner Status (Owned)

This item displays the TPM status to be owned or not.

Chipset Menu

The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit
System Agent ConfigurationPCH ConfigurationME Configuration	System Agent (SA) Parameters
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

▶System Agent Configuration

Scroll to this item and press and view the following screen:

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset Tweak Security Boot Exit
System Agent ConfigurationIGD Memory [64M]DVMT Memory [256M]	Select DVMT 5.0 Pre-Allocated(Fixed) Graphics Memory sizeused by the Internal Graphics Device.
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

IGD Memory (64M)

This item shows the information of the IGD (Internal Graphics Device) memory (32M, 64M, 128M, 256M, or 512M).

DVMT Memory (256M)

When set to Fixed Mode, the graphics driver will reserve a fixed position of the system memory as graphics memory, according to system and graphics requirements. This item shows the information of the DVMT memory (128M, 256M, or MAX).

Press to return to the Chipset Menu page.

▶PCH Configuration

Scroll to this item and press and view the following screen:

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset Tweak Security Boot Exit
PCH ConfigurationRestore AC Power Loss [Power Off]Audio ConfigurationAzalia HD Audio [Enabled]Case Open Warning [Enabled]Chassis Opened [No]	Select AC power state when power is re-applied after a power failure.→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Restore AC Power Loss (Power Off)

This item enables your computer to automatically restart or return to its operating status (Power Off, Power On or Last State).

Azalia HD Audio (Enabled)

Use this item to enable or disable Azalia HD Audio.

Case Open Warning (Enabled)

This item enables or disables the warning if the case is opened up, and the item below indicates the current status of the case.

Chassis Opened (No)

This item indicates whether the case has been opened.

Press to return to the Chipset Menu page.

▶ME Configuration

Scroll to this item and press and view the following screen:

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit
Management Engine Technology ConfigurationME Control [Enabled]ME FW Version 11.0.0.1168	Enable/Disable ME Firmware
	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

ME Control (Enabled)

Use this item to enable or disable the ME Firmware.

ME FW Version (11.0.0.1168)

This item shows the ME FW version.

Press to return to the Chipset Menu page.

Tweak Menu

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit
TweakIntel(R) Core(TM) i5-6600T CPU @ 2.70GHzProcessor Speed 3300 MHzMemory Frequency 2133 MHzTotal Memory 8192 MB
	→ ←:Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Intel(R) Core(TM) i5-6600T CPU @ 2.70GHz

This is display-only field and displays the information of the CPU installed in your computer.

Processor Speed (3300 MHz)

This item shows the CPU speed.

Memory Frequency (2133 MHz)

This item shows the memory frequency.

This item shows the total memory of DDR3.

Security Menu

This page enables you to set setup administrator and password.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset Tweak Security Boot Exit
Administrator Password	Set Administrator Password
Administrator Password Status Not InstallUser Password Status Not Install
System Mode state SetupSecure Boot state Not Active	→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Secure Boot [Enabled]Secure Boot Mode [Standard]
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Administrator Password Status (Not Install)

This item shows administrator password installed or not.

User Password Status (Not Install)

This item shows user password installed or not.

System Mode state (Setup)

This item shows system mode setup or not.

Secure Boot state (Not Active)

This item allows you to enable or disable the secure boot state.

Secure Boot (Enabled)

This item is used to control the secure boot flow, it is possible only if system runs in User mode.

Secure Boot Mode (Standard)

This item is used to select the secure boot mode.

Boot Menu

This page enables you to set the keyboard NumLock state and devices boot sequence.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit

Boot ConfigurationOperating system select [Windows 8.x / 10]Launch PXE OpROM [Disabled]Launch Storage OpROM [Enabled]Fast Boot [Disabled]Bootup NumLock State [On]Quiet Boot [Enabled]Update System BIOS [Disabled]Boot mode select [UEFI]FIXED BOOT ORDER PrioritiesBoot Option #1 [Hard Disk]Boot Option #2 [CD/DVD]Boot Option #3 [USB Hard Disk]Boot Option #4 [USB CD/DVD]Boot Option #5 [USB Key]Boot Option #6 [USB Floppy]Boot Option #7 [USB Lan]Boot Option #8 [Network]

Windows 7 or other OS: Boot policy for Legacy OS.Windows 8.x / 10: Boot policy for UEFI OS without Compatibility SupportModule(CSM).Manual: User customized CSM parameters & boot policy.→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit

Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Operation System Select (Windows 8.x / 10)

This item is used to select the operation system (Windows 7 or other OS, Windows 8.x or Manual).

Launch PXE OpROM (Disabled)

Use this item to enable or disable the PXE OpROM.

Launch Storage OpROM (Enabled)

Use this item to enable or disable the Storage OpROM.

This item enables or disables boot with initialization of a minimal set of device required to launch active boot option. Has no effect for BBS boot options.

Bootup NumLock State (On)

This item determines if the NumLock key is active or inactive at system start-up time.

Quiet Boot (Enabled)

This item enables or disables quiet boot option.

Update System BIOS (Disabled)

This item enables or disables to update system BIOS.

Boot mode Select (UEFI)

Use this item to select boot mode.

These items show the boot priorities.

Exit Menu

This page enables you to exit system setup after saving or without saving the changes.

Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.Main Advanced Chipset Tweak Security Boot Exit
Save Changes and ExitDiscard Changes and ExitSave Changes and ResetDiscard Changes and ResetSave OptionsSave ChangesDiscard ChangesRestore DefaultsSave as User DefaultsRestore User DefaultsBoot Override	Exit system setup after saving the changes.→ ← :Select Screen↑↓ :Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Version 2.17.1254. Copyright (C) 2015 American Megatrends, Inc.

Save Changes and Exit

This item enables you to save the changes that you have made and exit.

Discard Changes and Exit

This item enables you to discard any changes that you have made and exit.

Save Changes and Reset

This item enables you to save the changes that you have made and reset.

Discard Changes and Reset

This item enables you to discard any changes that you have made and reset.

Save Options

This item enables you to save the options that you have made.

Save Changes

This item enables you to save the changes that you have made.

Discard Changes

This item enables you to discard any changes that you have made.

Restore Defaults

This item enables you to restore the system defaults.

Save as User Defaults

This item enables you to save the changes that you have made as user defaults.

This item enables you to restore user defaults.

Boot Override

Use this item to select the boot device.

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer's Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer's Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer. (You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)
6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file name of the new BIOS and then press . Example: AFUDOS.EXE 040706.ROM
7 When the installation is complete, remove the bootable device from the computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.

★*O□

About the Software DVD-ROM/CD-ROM

The support software DVD-ROM/CD-ROM that is included in the motherboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your motherboard version. More information on some programs is available in a README file, located in the same directory as the software. Before installing any software, always inspect the folder for files named README.TXT or something similar. These files may contain important information that is not included in this manual.

1. Never try to install all software from folder that is not specified for use with your motherboard.

2. The notice of Intel HD audio installation (optional): The Intel High Definition audio functionality unexpectedly quits working in Windows Server 2003 Service Pack 1 or Windows XP Professional x64 Edition. Users need to download and install the update packages from the Microsoft Download Center "before" installing HD audio driver bundled in the Driver disk. Please log on to http://support.microsoft.com/default.aspx?scid=kb;enus:901105#appliesto for more information.

Auto-installing under Windows 7/8/10

The Auto-install DVD-ROM/CD-ROM makes it easy for you to install the drivers and software for your motherboard.

If the Auto-install DVD-ROM/CD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Refer to the Utility Folder Installation Notes later in this chapter.

The support software DVD-ROM/CD-ROM disk loads automatically under Windows 7/8/10. When you insert the DVD-ROM/CD-ROM disk in the DVD-ROM/CD-ROM drive, the autorun feature will automatically bring up the install screen. The screen has three buttons on it, Setup, Browse CD and Exit.

If the opening screen does not appear; double-click the file "setup.exe" in the root directory.

Drivers Tab

Setup	Click the Setup button to run the software installation program.Select from the menu which software you want to install.
Browse CD	The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support disk.Before installing the software from Windows Explorer, look for a file named README.TXT or something similar. This file may contain important information to help you install the software correctly.Some software is installed in separate folders for different operating systems, such as Windows 7/8/10. Always go to the correct folder for the kind of OS you are using.In install the software, execute a file named SETUP.EXE by double-clicking the file and then following the instructions on the screen.
Exit	The Exit button closes the Auto Setup window.

Utilities Tab

Lists the software utilities that are available on the disk.

Information Tab

Displays the path for all software and drivers available on the disk.

Running Setup

Follow these instructions to install device drivers and software for the motherboard:

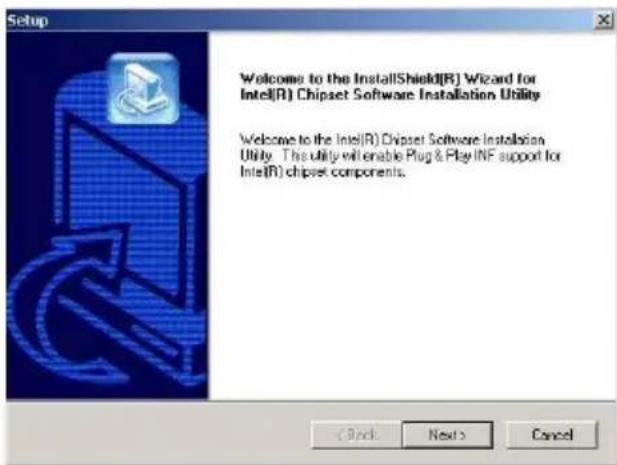

1. Click Setup. The installation program begins:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

The motherboard identification is located in the upper left-hand corner.

1. Click Next. The following screen appears:

1. Check the box next to the items you want to install. The default options are recommended.

2. Click Next run the Installation Wizard. An item installation screen appears:

1. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

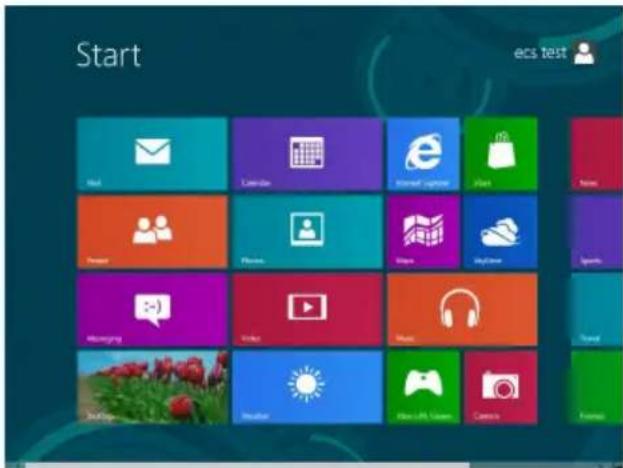

Windows 8/10 will show the following screen after system restart, you must select "Desktop" in the bottom left to install the next driver.

Windows 7/8/10 will appear below UAC (User Account Control) message after the system restart. You must select "Allow" to install the next driver. Continue this process to complete the drivers installation.

Manual Installation

Insert the disk in the DVD-ROM/CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your motherboard.

Look for the chipset and motherboard model; then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Utility Software Reference

All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.

These software(s) are subject to change at anytime without prior notice. Please refer to the support disk for available software.

Start up problems during assembly

After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips.

a) System does not power up and the fans are not running.

1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and other peripherals including keyboard and mouse. Leave only the motherboard, CPU with CPU cooler and power supply connected. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent pin may cause failure to boot and sometimes permanent damage from short circuit.
5. Check the 19V power connector is connected to the motherboard.
6. Check that the 19V power is fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

b) Power is on, fans are running but there is no display

1. Make sure the monitor is turned on and the monitor cable is properly connected to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected.

a. continuous 3 short beeps : memory not detected

b. 1 long beep and 8 short beeps : VGA not detected

c) The PC suddenly shuts down while booting up.

1. The CPU may experience overheating so it will shutdown to protect itself. Ensure the CPU fan is working properly.

2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan.

Start up problems after prolong use

After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause of failure.

1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper in Chapter 2 for Checking Jumper Settings in this user manual. When completed, follow up with a Load Optimised Default in the BIOS setup.

2. Check the system fan for dust. Long term accumulation of dust will reduce its effectiveness to cool the processor. Clean the cooler or replace a new one if necessary.

3. Remove the hard drive, optical drive or DDR memory to determine which of these component may be at fault.

Maintenance and care tips

Your computer, like any electrical appliance, requires proper care and maintenance. Here are some basic PC care tips to help prolong the life of the motherboard and keep it running as best as it can.

1. Keep your computer in a well ventilated area. Leave some space between the PC and the wall for sufficient airflow.

2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and areas of high moisture content.

3. Routinely clean the CPU cooler fan to remove dust and hair.

4. In places of hot and humid weather you should turn on your computer once every other week to circulate the air and prevent damage from humidity.

5. Add more memory to your computer if possible. This not only speeds up the system but also reduces the loading of your hard drive to prolong its life span.

6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.

Basic Troubleshooting Flowchart

★*O□
