Product Type Mini PC / Barebone
Model Number GB-BSi5HT-6200
Processor Intel Core i5-6200U (Skylake, 2.3-2.8 GHz, dual-core)
Graphics Intel HD Graphics 520
Memory 2x SO-DIMM DDR4 (max 32GB, 2133 MHz)
Storage 1x M.2 SATA/PCIe SSD slot, 1x 2.5" SATA III
Dimensions 130.2 x 115.2 x 42.6 mm
Weight Approx. 1.0 kg (with default components)
Power Supply 19V DC, 65W adapter (included)
Display Outputs 2x HDMI 2.0 (up to 4K@60Hz)
USB Ports 3x USB 3.0 (Type-A), 1x USB 3.1 Type-C
Network Gigabit Ethernet (Realtek), Intel Dual Band Wi-Fi 802.11 ac, Bluetooth 4.2
Audio Realtek ALC255, 3.5mm combo jack
Card Reader SD/SDHC/SDXC
Operating System None (Barebone, OS not included)
Cooling Passive cooling (fanless) with heat spreader
Mounting VESA mount compatible (75x75mm)
Warranty 2 years (depending on region)
Maintenance Clean with dry cloth; do not use liquids or sprays
Safety Do not block ventilation openings; use on stable surface
Spare Parts Not user-serviceable; contact Gigabyte support for replacements

Frequently Asked Questions - GB-BSi5HT-6200 GIGABYTE

What type of RAM does the GB-BSi5HT-6200 support?
It supports DDR4 SO-DIMM modules up to 32GB (2 slots) at 2133 MHz. Unbuffered memory with 1.2V is recommended.
Can I install a 2.5-inch SATA SSD?
Yes, there is one internal 2.5-inch SATA III bay. The drive must be 7mm thick.
Does it support 4K displays?
Yes, both HDMI ports support 4K resolution at 60 Hz (HDMI 2.0). You can run dual 4K monitors.
How do I connect to Wi-Fi?
The built-in Intel Dual Band Wireless-AC 3165 supports 802.11ac Wi-Fi. Ensure antennas are attached; drivers are available on the Gigabyte support site.
What power adapter is included?
A 19V DC, 65W adapter with a round plug (4.5x3.0mm) is included. An optional 90W adapter can be used for higher loads.
Is the GB-BSi5HT-6200 fanless?
Yes, it uses a passive heatsink design. No internal fan, making it silent. Ensure good airflow around the case.
How do I enter the BIOS?
Press the Del key repeatedly during power-on. The BIOS allows configuration of boot order, power settings, and overclocking options.
Can I use it as a home media center?
Absolutely. With dual HDMI 4K output, passive cooling, and support for Kodi, Plex, or Windows 10, it makes an excellent HTPC.
What is the warranty period?
Typically 2 years from date of purchase. Check your region's policy; registration on Gigabyte's website may extend coverage.
Why is my device not turning on?
First, check the power adapter connection and ensure the LED on the adapter is lit. If not, try a different power outlet. If still no power, contact Gigabyte support.

User questions about GB-BSi5HT-6200 GIGABYTE

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Desktop computer in PDF format for free! Find your manual GB-BSi5HT-6200 - GIGABYTE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GB-BSi5HT-6200 by GIGABYTE.

USER MANUAL GB-BSi5HT-6200 GIGABYTE

BIOS (Basic Input and Output System) is a UEFI interface that allows you to setup and configure your system for optimum use. Using your mouse and keyboard, users can change BIOS settings, monitor CPU temperature, select the boot device priority and view system information such as the CPU name, DRAM capacity, and the BIOS version.

To access the BIOS setup program, press the key during the POST (Power-On Self-Test) when the power is turned on.

BIOS Setup Program Function Keys

<↑><↓>Move the selection bar to select an item
<←→<→>Move the selection bar to select the screen
(orExecute command or enter the submenu
(orMain Menu: Exit the BIOS Setup programSubmenus: Exit current submenu
<+> Increase the numeric value or make changes
<-> Decrease the numeric value or make changes
<F1> General Help
< F2>Restore the previous BIOS settings for the current submenus
< F3>Load the Optimized BIOS default settings for the current submenu

Save all the changes and exit the BIOS Setup program

Main

This setup page includes all the items in standard compatible BIOS

Advanced

This setup page includes all the items of BRIX enhanced features.

Chipset

Platform Controller Hub additional features configuration.

Security

Change, set or disable supervisor and user password. Configuration supervisor password allows you to restrict access to the system and BIOS Setup.

A supervisor password allows you to make changes in BIOS Setup.

A user password only allows you to view the BIOS settings but not to make changes.

Boot

This setup page provides items for configuration of boot sequence.

Save & Exit

Save all the changes made in the BIOS Setup program to and exit. (Pressing can also carry out this task.)

Abandon all changes and the previous settings remain in effect. Pressing to the confirmation message will exit BIOS Setup.

(Pressing can also carry out this task.)

GIGABYTE GB-BSi5HT-6200 - Save &amp; Exit - 1

  • BIOS flashing is potentially risky, if you do not encounter problems of using the current BIOS version, it is recommended that you don't flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
  • It is recommended that you not alter the default settings (unless you need to) to prevent system instability or other unexpected results. Inadequately altering the settings may result in system's failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values.

b

The Main Menu

Once you enter the #IOS Setup program< the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press to accept or enter other sub>menu.

The on>screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.

While in a submenu<press to display a help screen (General Help) of function keys available for the menu. Press to exit the help screen. Help for each item is in the Item Help block on the right side of the submenu.

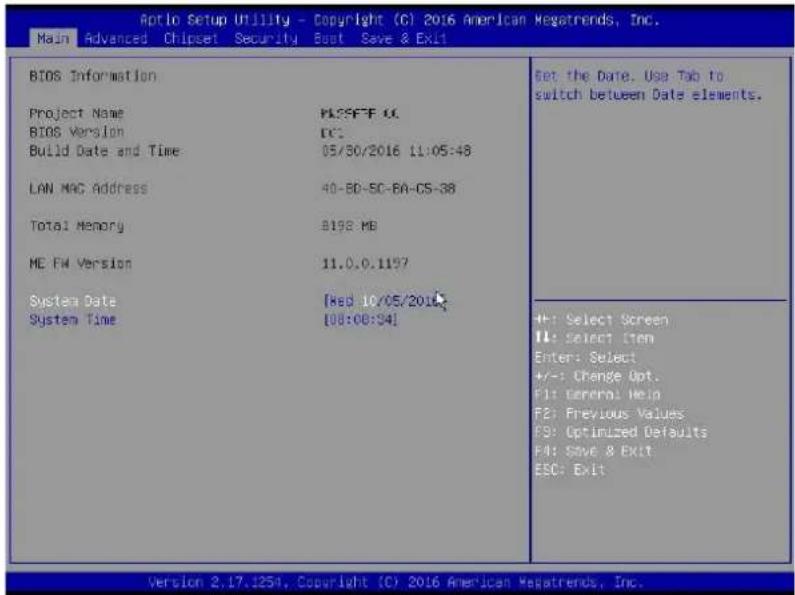

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Best Save & Exit BIOS Information Project Name HLSFF C BIOS Version DCS Build Date and Time 05/30/2016 11:05:48 LAN MAC Address 40-8D-SC-BA-CS-38 Total Memory B192 MB ME FW Version 11.0.0.1197 System Date [Red 10/05/2016] System Time [08:08:34] Set the Date. Use Tab to switch between Date elements. +/- Select Screen I: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values ES: Optimized Defaults F4: Save & EXIT ESC: Exit Version 2.17.1254, Copyright (C) 2016 American Megatrends, Inc.

BIOS Information

Project Name

Displays Project name.

BIOS Version

Displays version of the #IOS.

Build Data and Time

Displays the date and time when the #IOS setup utility was created.

LAN MAC Address

Displays the MA& address information.

Total Memory

Determines how much total memory is present during the POST.

ME FW Version

Displays the ME firmware version.

System Date

Set the date following the weekly>month>day>year format.

System Time

Set the system time following the hour>minute> second format.

GIGABYTE GB-BSi5HT-6200 - BIOS Information - 1

  • If you do not find the settings you want in the Main Menu or a submenu, press + to access more advanced options.
  • When the system is not stable as usual, select the Restore Defaults item to set your system to its defaults.
  • The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.

Advanced Menu

The Advanced menu display submenu options for configuring the function of various hardware components.

Select a submenu item<then press to access the related submenu screen.

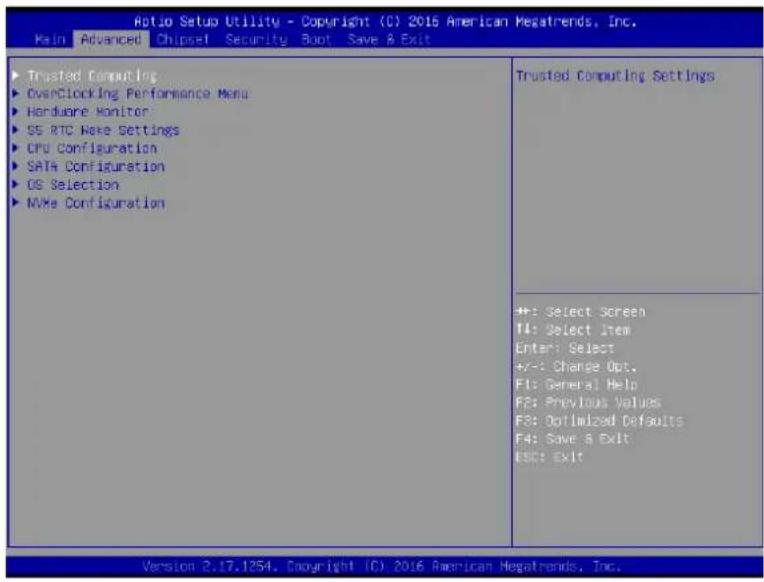

Aio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Trusted Computing Settings OverClocking Performance Menu Hardware Monitor SS RTC Wave Settings CPU Configuration SATA Configuration OS Selection NVMe Configuration +: Select screen TI: Select Item Enter: Select +/-: Change Opt. FI: General Help F2: Previous Values FS: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

Trusted Computing

Configures trusted computing setting.

OverClocking Performance Menu

Configures OverClocking setting

*This item depends on purchasing product.

H/W Monitor

Displays a real>time record of the CPU / system temperature and fan speed.

S5 RTC Wake Setting

Enable system to wake up from S5 mode using RTC alarm

CPU Configuration

Configures the CPU features in this entry.

SATA Configuration

Configures the SATA settings in this entry.

OS selection

Selecting allow you to select the OS system in this entry.

NVMe Configuration

Optional item by models.

H/W1Monitor1

Enter to view the Hardware Monitor screen which displays a real>time record of the &PU / system temperature and fan speed.

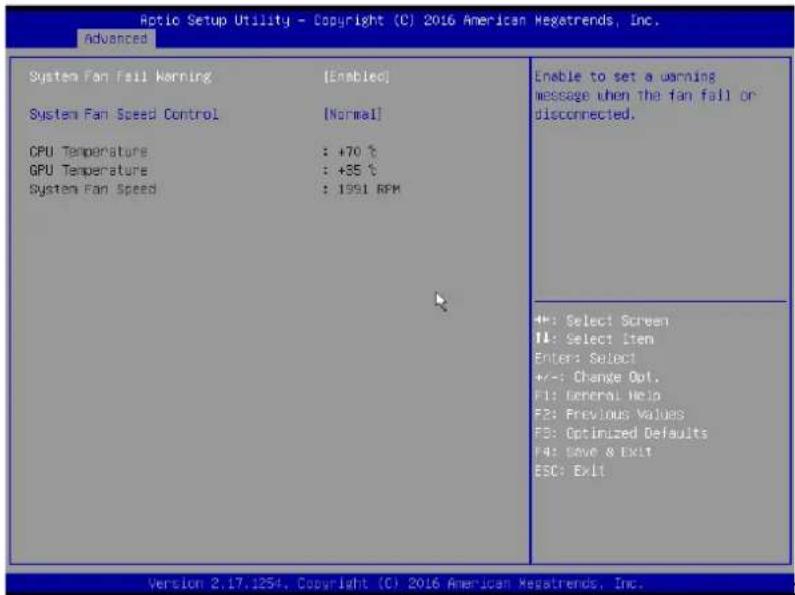

Rotio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Advanced System Fan Fail Warning [Enabled] System Fan Speed Control [Normal] CPU Temperature : +70 ° GPU Temperature : +35 ° System Fan Speed : 1991 RPM Enable to set a warning message when the fan fail or disconnected. +: Select Screen #: Select Item Enter: Select +:- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254, Copyright (C) 2016 American Megatrends, Inc.

System1Fan1Fail1Warning1(Default:1Enabled)1

Enable system fan stop warming function.

Set waring message when system fan failed.

System1Fan1Speed1Control (Default:1Normal)

Set Normal by default.

Option available: Full Speed / Normal.

CPU1Temperature1

Displays current system temperature.

GPU1Temperature1

Displays current GPU temperature.

System1Fan1Speed1

Displays current &PU fan speed.

CPU Configuration

Your CPU features / instructions are displayed and can be individually enabled / disabled in the CPU features list showed below.

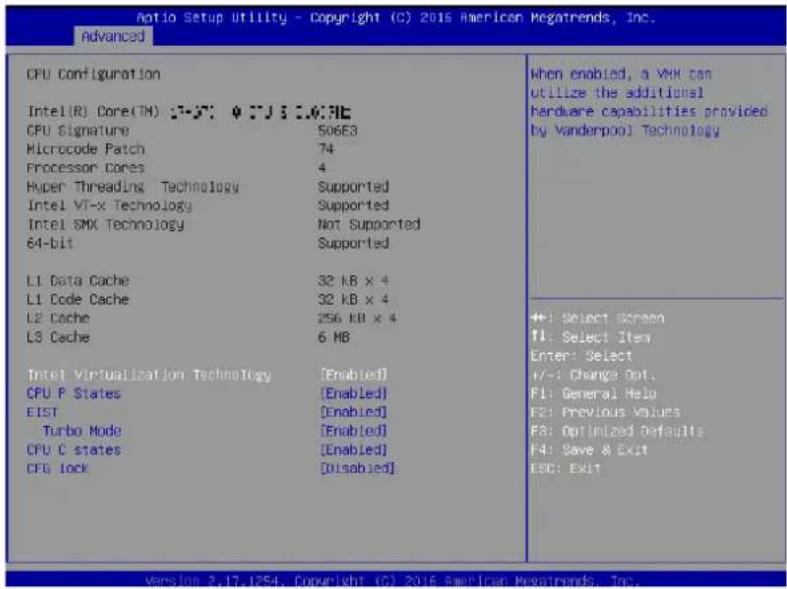

CPU Configuration Intel(R) Core(TM): 2016.0.0.0.0.0.0.0.0 CPU Signature: 506E3 Microcode Patch: 74 Processor Cores: 4 Hyper Threading Technology: Supported Intel VT-x Technology: Supported Intel SMX Technology: Not Supported 64-bit: Supported L1 Data Cache: 32 KB x 4 L1 Code Cache: 32 KB x 4 L2 Cache: 256 KB x 4 L3 Cache: 6 MB Intel Virtualization Technology [Enabled] CPU P States [Enabled] EIST [Enabled] Turbo Mode [Enabled] CPU C states [Enabled] CFG lock [Disabled] When enabled, a VM can utilize the additional hardware capabilities provided by Vanderpool Technology +: Select Screen T1: Select Item Enter: Select +/-: Change Out. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254. Copyright (C) 2016. SuperIcon, MegaTrends, Inc.

CPU Model Name

Displays the processor type information.

CPU processor type depends on actual model.

CPU Signature

Displays the processor ID information.

Microcode Patch

Displays the information of the processor microcode patch.

Processor Cores

Displays the information of the processor core.

64-bit

Displays the supported information of installed CPU.

L1 Data Cache

Displays the information of L1 Data Cache.

L1 Code Cache

Displays the information of L1 Code Cache.

L2 Cache

Displays the information of L2 Cache per Core.

L3 Cache

Displays the information of total L3 Cache per socket.

SATA Configuration

Let you select the on chip SATA type.

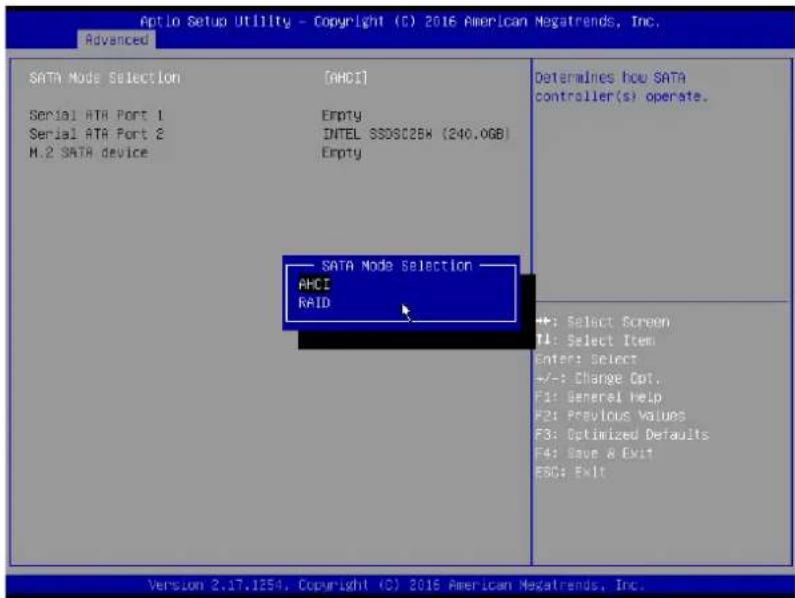

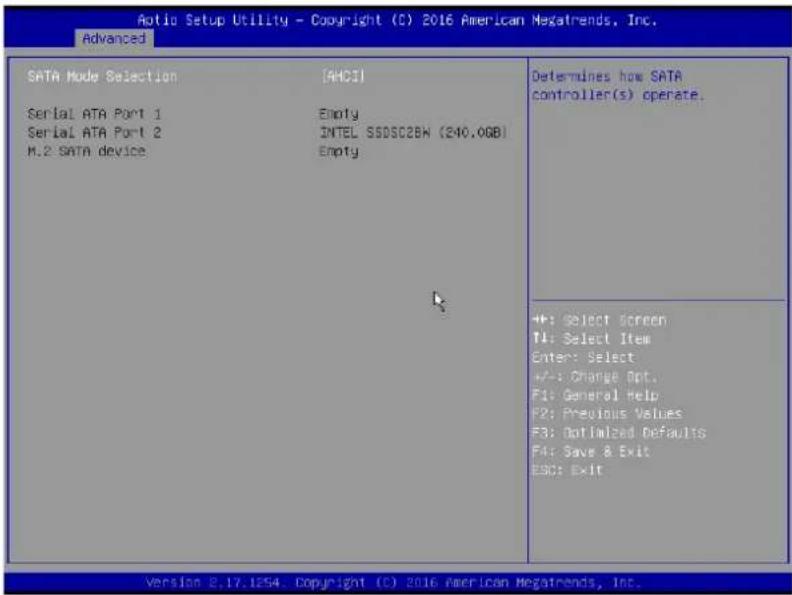

Aotio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Advanced SATA Mode Selection [AMCI] Serial ATA Port 1 Empty Serial ATA Port 2 INTEL SSDSC2BN (240.0GB) M.2 SATA device Empty Determines how SATA controller(s) operate. +#: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimize Defaults F4: Save & Exit ESC: Exit Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

SATA Mode Selection (Default: AHCI)

SATA controller enable its AHCI functionality.

The RAID function is disabled and cannot be access the RAID setup utility at boot

time.

Aptlo Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Advanced SATA Mode Selection [ACCI] Serial ATA Port 1 Empty Serial ATA Port 2 INTEL SSDSC2BX (240.0GB) M.2 SATA device Empty Determines how SATA controller(s) operate. SATA Mode Selection AHCI RAID +: Select Screen F1: Select Item Enter: Select +/-: Charge Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254, Copyright (C) 2016 American Megatrends, Inc.

SATA Port

Displays the hard drive information connected to your SATA port.

M.2 SATA device

Displays the hard drive information connected to your M.2 SATA device.

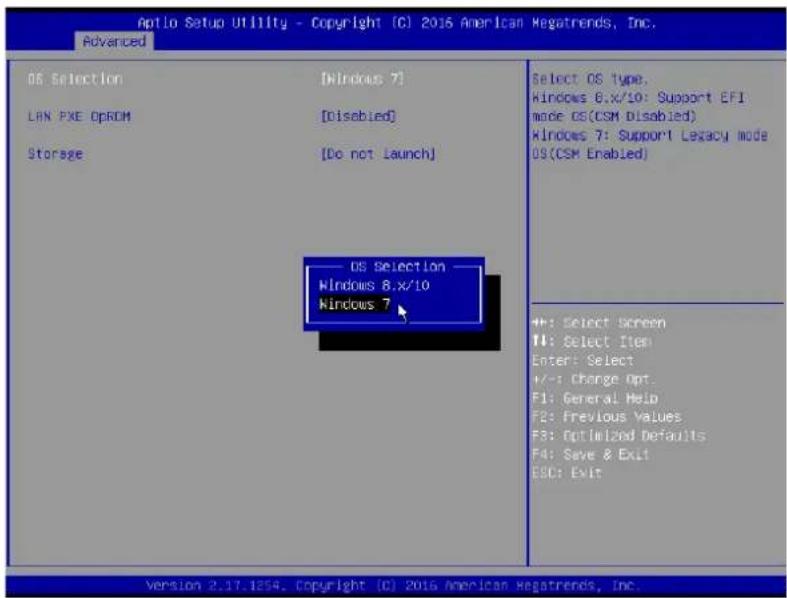

OS1Selection1

Selecting allow you to select the OS system in this entry

Optio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Advanced OS Selection [Windows 7] LAN PXE OpROM [Disabled] Storage [Do not launch] OS Selection Windows 8.x/10 Windows 7 Select OS type. Windows 6.x/10: Support EFI mode OS(CSM Disabled) Windows 7: Support Lexacy mode OS(CSM Enabled) #+: Select Screen F4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

OS1Selection1 1

Selecting OS before installation..

L#N1PXE1OpROM (Default:1Disabled)

Allows you to select whether to enable the legacy option ROM for the LAN controller t.

Default: Disabled.

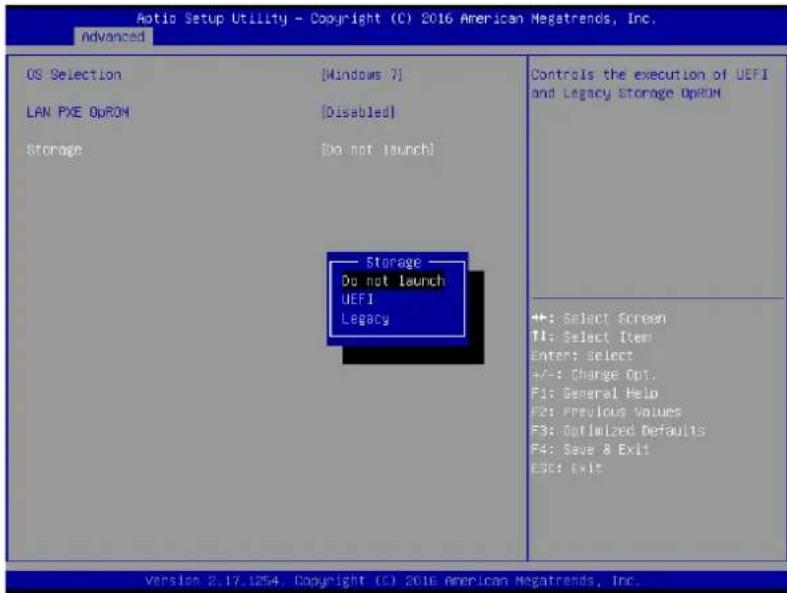

Storage1(Default:1Do1not1launch)1

&ontrols the execution of UEFI and Legacy storage OpROM.

When setting RAID function and select UEFI or Legacy mode to control.

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. advanced OS Selection [Windows 7] LAN PXE OpROM [Disabled] Storage [Do not launch] Storage Do not launch DEFI Legacy Controls the execution of UEFI and Legacy Storage OpROM +: Select Screen TI: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

Chipset1

Allows users to view and configure the system chipset features.

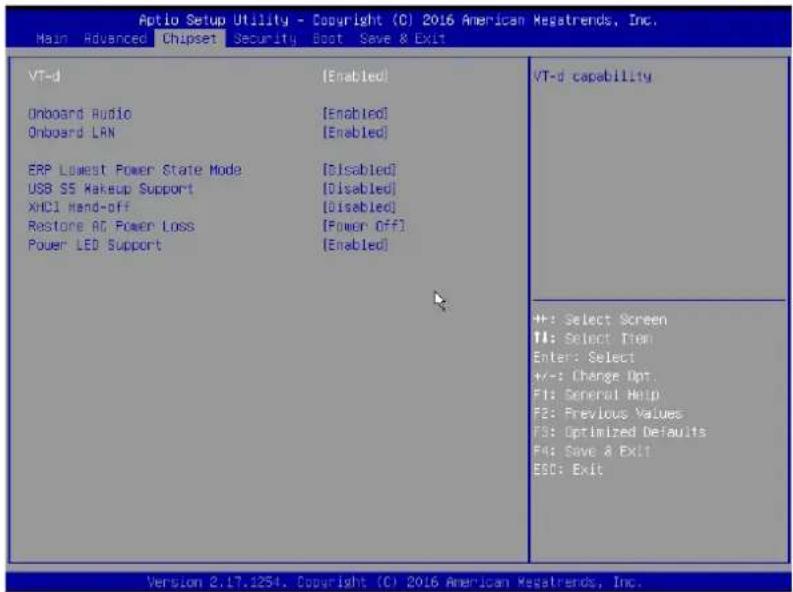

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit VT-d [Enabled] Onboard Audio [Enabled] Onboard LAN [Enabled] ERP Lowest Power State Mode [Disabled] USB SS Makeup Support [Disabled] XHCI Hand-off [Disabled] Restore AG Power Loss [Power Off] Power LED Support [Enabled] VT-d capability +/-: Select Screen T1: Select Tion Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESG: Exit Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

VT-d1(Default:1Enabled)1

Enables guest virtual machines to directly use peripheral devices through DMA and interrupt remapping.

Option available: Enabled / Disabled.

Onboard1#udio1(Default:1Enabled)1

Enabled / Disabled onboard audio controller.

Option available: Enabled / Disabled.

Onboard1L#N1(Default:1Enabled)1

Enabled / Disabled onboard LAN controller.

Option available: Enabled / Disabled.

ERP1Lowest1Power1State1Mode1(Default:1Disabled)1

Enabled / Disabled ERP support function.

Option available: Enabled / Disabled.

XHCI1Hand-off1(Default:1Disabled)1

Set US# port behavior.

Option available: Enabled / Disabled.1

Restore1#C1Power1Loss1(Default:1Power1off)1

This option provides user to set the mode if an A& power loss occurs.

Power1LED1Support1(Default:1Enabled)1

11This option provides user to set the mode for Power LED behavior.

Security

Allows you to safeguard a protect the system from unauthorized use by setting up access passwords.

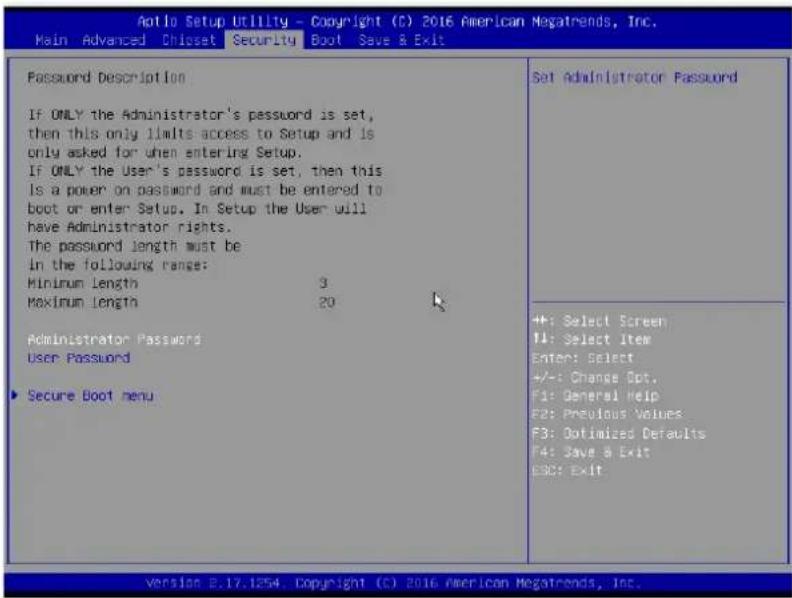

Aotio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chisset Security Boot Save & Exit Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this Is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum Length 3 Maximum Length 20 Administrator Password User Password ▶ Secure Boot menu Set Administrator Password +: Select Screen F1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit GSD: Exit version 8.17.1254. Copyright (C) 2016 American Megatrends, Inc.

Administrator Password

Press to configure the administrator password.

User Password

Press to configure the user password.

Secure Boot menu

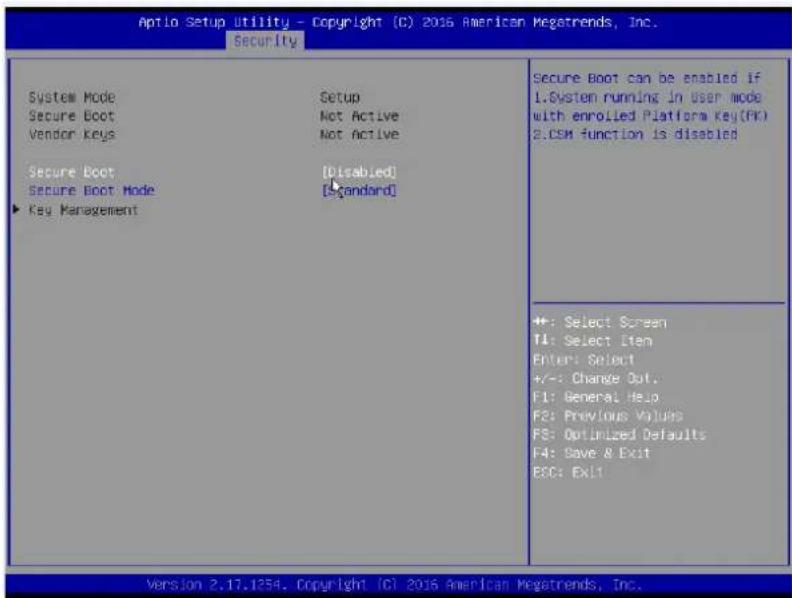

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Security System Mode Secure Boot Vendor Keys Secure Boot Secure Boot Mode Key Management Setup Not Active Not Active [Disabled] [Standard] Secure Boot can be enabled if 1.System running in User mode with enrolled Platform Key(FK) 2.CSM function is disabled +: Select Screen T4: Select Item Enter: Select +/-: Change Out. F1: General Help F2: Previous Values FS: Optimized Defaults F4: Save & Exit ESC: Exit1 Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

Secure Boot Support (Default: Disabled)

Secure #oot requires all the applications that are running during the booting process to be pre>signed with valid digital certificates. This way< the system knows all the files being loaded before UEFI OS loads and gets to the login screen have not been tampered with.

Option available: Enabled / Disabled.

Allows you to safeguard an protect the system from unauthorized use by setting up access passwords.

Secure Boot Mode (Default: Standard)

Define the Secure #oot Mode.

Option available: Standard / &ustom.

The Key Management below can be selected if Secure #oot Mode is &ustom.

Key1Management1

11 For an experienced user to modify Secure #oot variables.

1

1

Boot

Allows you to set the logo post on screen and the device priority during system boot>up.

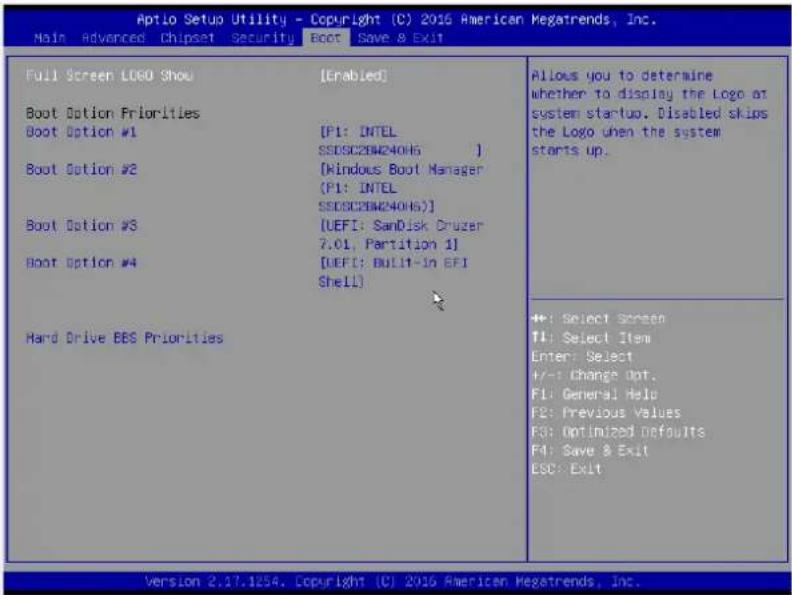

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Full Screen LOGO Show [Enabled] Boot Option Priorities Boot Option #1 [P1: INTEL SSDSC28W240HS ] Boot Option #2 [Kindous Boot Manager (P1: INTEL SSDSC28W240HS)] Boot Option #3 [UEFI: SanDisk Druzer 7.01, Partition 1] Boot Option #4 [UEFI: Built-in EFI Shell] Hard Drive BES Priorities Allow you to determine whether to display the Logo at system startup. Disabled skips the Logo when the system starts up. +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

Boot Option Priorities

Full Screen LOGO Show (Default: Enabled)

Allow user to determine whether to display the logo at system startup.

Boot Option (Default: #1)

Press to configure the boot priority.

Option may vary depends on your connected HDD numbers: #1 / (#2) / (#3) / (#4).

Save & Exit

The Save & Exit menu displays the various options to quit from the #IOS setup. Highlight any of the exit options then press

.

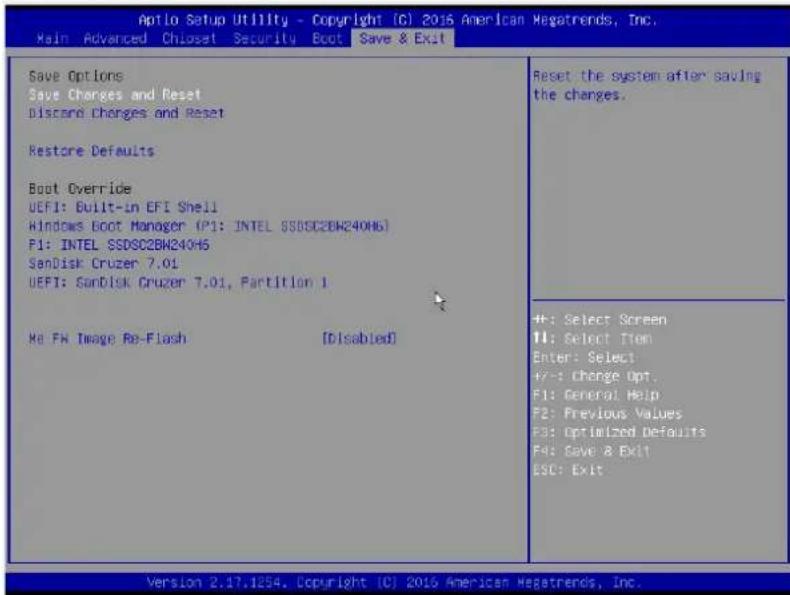

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Save Options Save Changes and Reset Discord Changes and Reset Restore Defaults Boot Override UEFI: Built-in EFI Shell Windows Boot Manager (P1: INTEL SSDSC2BW240H6) P1: INTEL SSDSC2BW240H5 SanDisk Cruzer 7.01 UEFI: SanDisk Cruzer 7.01, Partition 1 Me FX Image Re-Flash [Disabled] Reset the system after saving the charges. #: Select Screen II: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1254. Copyright (C) 2016 American Megatrends, Inc.

Save Changes and Reset

Active this option to reset system after saving the changes.

Option available: Yes / No.

Discard Changes and Reset

Discards changes made and close the #IOS setup and exit.

Option available: Yes / No.

Restore Defaults

Press on this item and then press key to load the default #IOS settings.

Option available: Yes / No.

ME FW Image Re-Flash

Press to configure ME FW Image Re>Flash function.

Option available: Disabled / Enabled

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : GIGABYTE

Model : GB-BSi5HT-6200

Category : Desktop computer
