Product Type	Smart Plug with Energy Monitoring
Brand	TP-Link
Model	Kasa ES20M
Dimensions	2.8 x 1.7 x 2.0 inches (7.1 x 4.3 x 5.1 cm)
Weight	3.5 oz (100 g)
Power Input	120V AC, 60 Hz
Max Load	15A / 1800W (Resistive)
Wireless Standard	Wi-Fi 802.11 b/g/n, 2.4 GHz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Key Functions	Remote On/Off, Scheduling, Timer, Energy Monitoring, Away Mode
Voice Control	Compatible with Amazon Alexa, Google Assistant, Microsoft Cortana
App Compatibility	Kasa for iOS and Android
Security	Overheat protection, secure 128-bit AES encryption
Maintenance	Wipe with a dry cloth; do not use liquid cleaners
Spare Parts & Repairability	No user-serviceable parts; contact TP-Link support
Certifications	FCC, UL
Included in Box	Kasa Smart Plug, Quick Installation Guide
Warranty	2-year limited warranty

Frequently Asked Questions - Kasa ES20M TP-LINK

How do I set up the TP-Link Kasa ES20M?

Download the Kasa app from the App Store or Google Play, create an account, plug in the device, and follow the in-app instructions to connect to your Wi-Fi.

Can I control the ES20M when I'm away from home?

Yes, the ES20M works over Wi-Fi, so you can control it remotely via the Kasa app from anywhere with an internet connection.

Does the ES20M support energy monitoring?

Yes, the ES20M tracks energy usage in real-time and provides historical reports through the Kasa app.

How do I reset the Kasa ES20M to factory defaults?

Press and hold the power button on the side for about 5 seconds until the LED blinks amber and blue, then release. The device will reset.

Is the ES20M compatible with Amazon Alexa or Google Assistant?

Yes, it works with Amazon Alexa and Google Assistant. Enable the 'Kasa' skill in the respective app and link your account.

Can I schedule the ES20M to turn on/off automatically?

Yes, you can create schedules and timers in the Kasa app to automate your devices based on time or sunrise/sunset.

What happens if the Wi-Fi goes down?

The device will keep its last state (on/off). When Wi-Fi is restored, it will reconnect automatically. Manual control via the button still works.

What is the maximum load for the ES20M?

The ES20M supports up to 15A and 1800W (resistive load). Do not exceed this to avoid overheating.

Does the ES20M work with a 3-prong outlet?

Yes, the ES20M has a 3-prong grounded plug and fits standard NEMA 5-15 outlets.

How do I clean the Kasa Smart Plug?

Unplug the device and wipe it with a dry, soft cloth. Do not use water, liquids, or abrasive cleaners.

USER MANUAL Kasa ES20M TP-LINK

White rectangular electronic device with two top buttons and a circular button, shown against a plain background (no text or symbols)

User Guide

Kasa Smart Wi-Fi Dimmer Switch, Motion-Activated

Contents

About This Guide 1

Introduction 2

Appearance 3

Set Up Your Smart Dimmer Switch……4

Main Device Controls 10

Adjust Brightness 11

Set Preset Brightness 12

Configure Smart Control 13

Set Schedules 20

Set Timer 23

Set Away Mode 24

Manage Device Settings 25

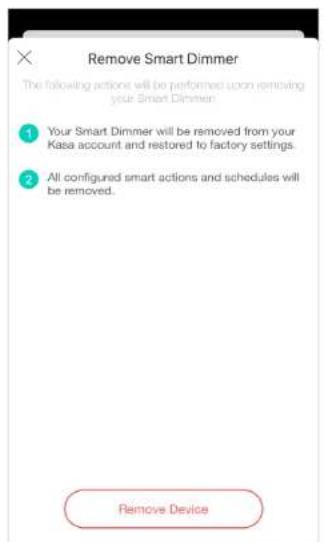

Reset Your Smart Dimmer Switch 34

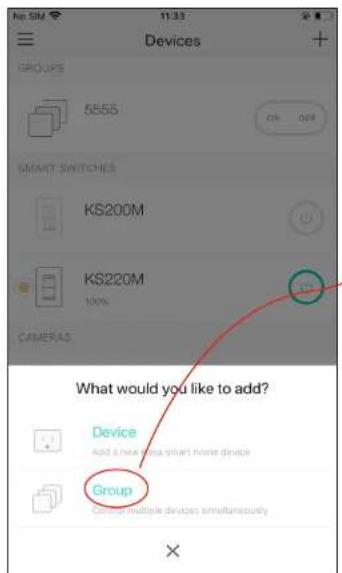

Create Groups 37

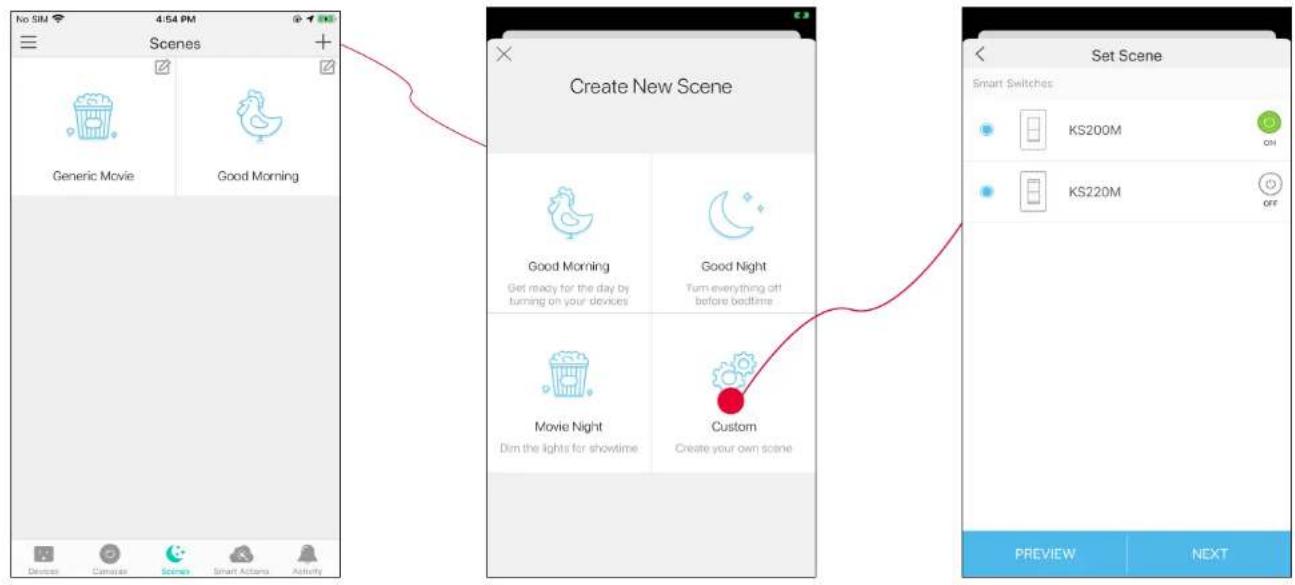

Create Scenes 41

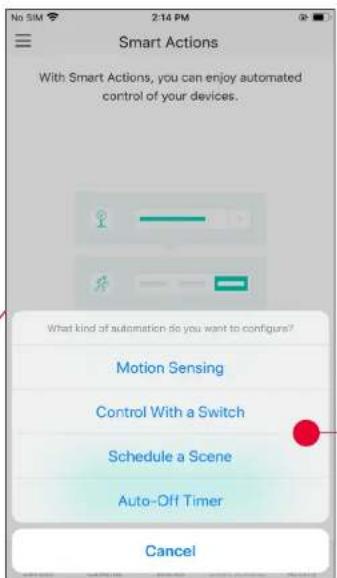

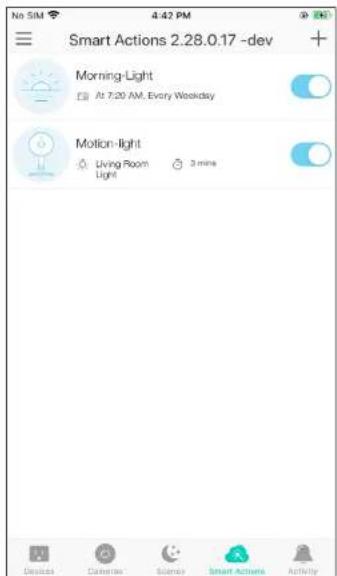

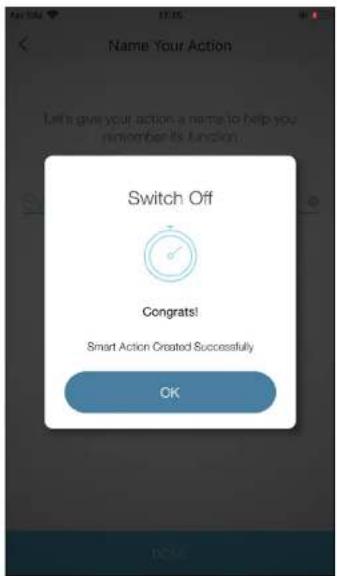

Smart Actions 43

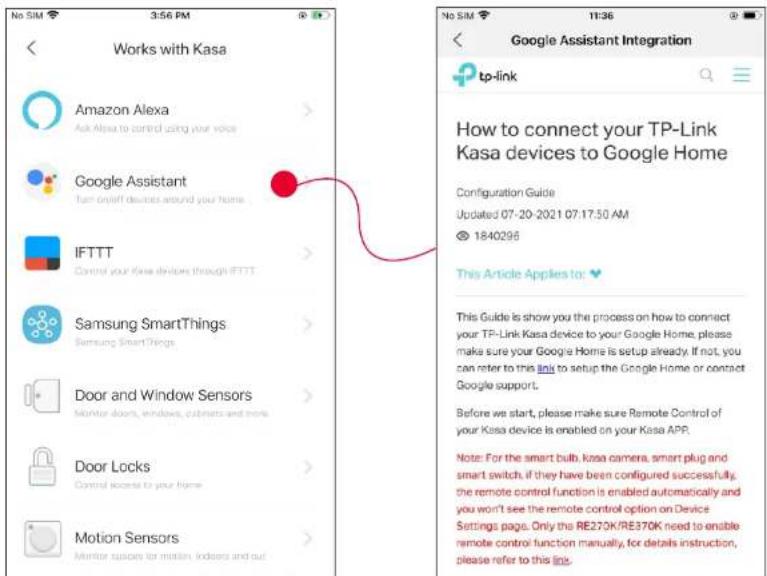

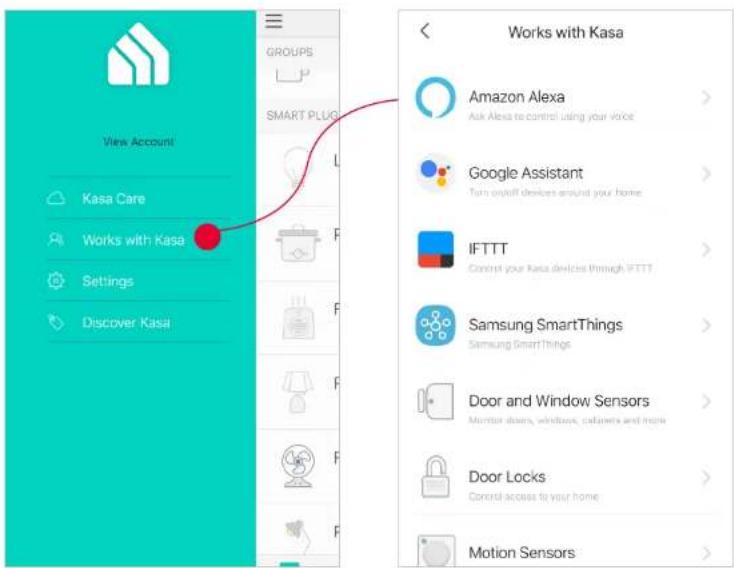

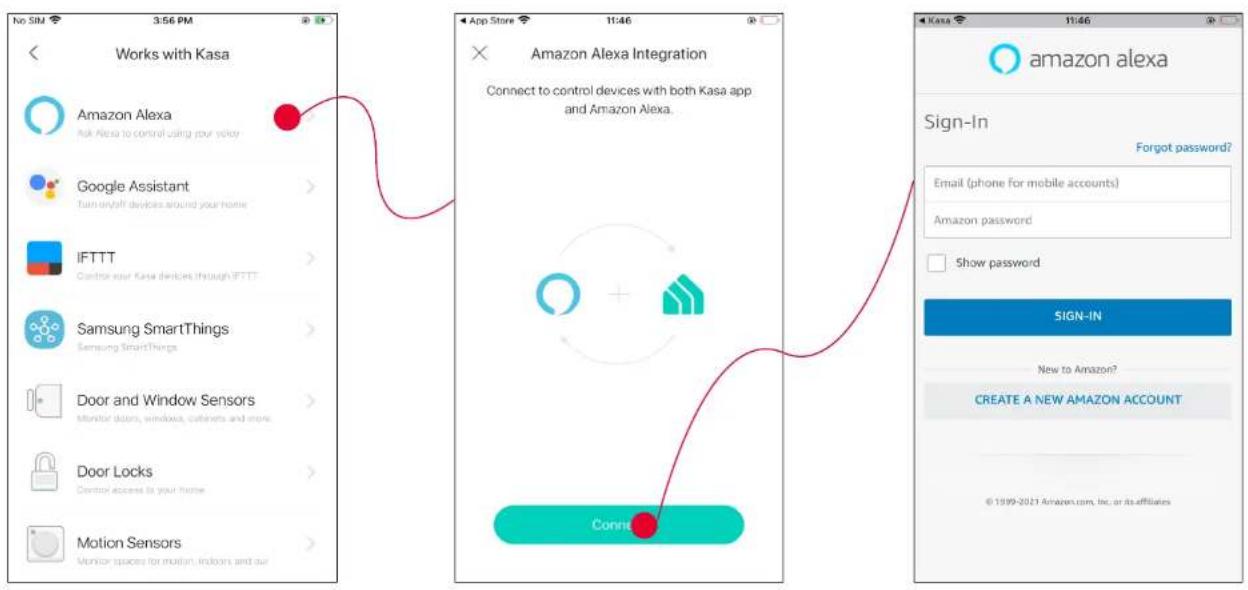

Voice & 3rd Party Support....54

Authentication....58

About This Guide

This guide provides a brief introduction to Kasa Smart Wi-Fi Dimmer Switch and the Kasa Smart app, as well as regulatory information.

Features available in Kasa Smart Wi-Fi Dimmer Switch may vary by model and software version. Kasa Smart Wi-Fi Dimmer Switch availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience.

Conventions

In this guide, the following convention is used:

Convention	Description
Teal	Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline	Hyperlinks are in teal and underlined. You can click to redirect to a website.

More Info

• Specifications can be found on the product page at https://www.tp-link.com.
  • Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support.
  • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com.
  • Frequently Asked Questions (FAQs) can be found at https://www.tp-link.com/support/faq/.

Introduction

Built-in motion and ambient light sensors work together for true hands-free control. Our smart dimmer conveniently auto-adjusts your room's brightness. With Smart Control, further customize your light settings to follow your routine with the easy-to-use app. Just set it then forget it. The Kasa Smart app also provides easy step-by-step installation instructions and enables convenient remote control from anywhere, anytime.

Advanced Sensing

Smart Control

Easy Installation

Customized Dimming

Energy Saving

Control from Anywhere

No Hub Required

Set Schedules

• Advanced Sensing - The equipped sensors detect motion and ambient lighting so your lights only trigger on at night.
• Smart Control - Set different light triggers based on your routine for effortless control.
• Easy Installation - The detailed in-app guide and unique circuit design make installation simple.
• Customized Dimming - Experience a full range of brightness before fading them off for bedtime.
  • Energy Saving - Turn off the light automatically after you leave the room for a set time.
• Control from Anywhere - Control anything connected to your smart light switch, like lights, ceiling fans or other fixtures, from anywhere using the Kasa Smart app.
• No Hub Required - Connect to your existing Wi-Fi router.
• Set Schedules - Set lights to automatically turn on and off throughout the day or night whether you're home or away.

Appearance

The Smart Dimmer Switch is compatible with incandescent, LED, Halogen, and compact fluorescent light bulbs. The dimmer switch also includes two brightness adjustment buttons, and an LED indicator to easily locate the dimmer switch at night. See the explanation below:

Decrease or increase the brightness of the light.

Built-In Motion Sensor & Ambient Light Sensor

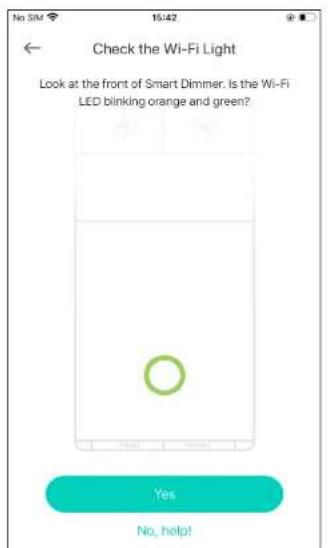

Blinking Amber and Green: Ready for setup.

Blinking Green: Connecting to Wi-Fi.

Stay Green for 30s: Connected to Wi-Fi.

Blinking Amber: Resetting.

Red: No Wi-Fi connection.

White: Lit up when the light is off to show the switch location in the dark.

Press to reboot the dimmer switch.

Press and hold for about 5 seconds until the LED blinks amber and green to reset Wi-Fi connection while keeping previous settings.

Press and hold for about 10 seconds until the LED blinks amber rapidly to factory reset the dimmer switch.

Set Up Your Smart Dimmer Switch

Follow the steps below to set up your Smart Dimmer Switch via Kasa Smart app.

1. Download and install Kasa app

Go to App Store or Google Play or scan the QR code below to download the Kasa Smart app on your Android or iOS device.

OR

↓

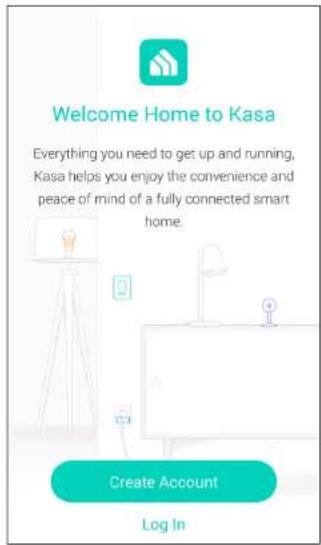

2. Log in or sign up

Open the app. Use your TP-Link ID to log in. If you don't have a TP-Link ID, tap Create Account and the Kasa app will guide you through the rest.

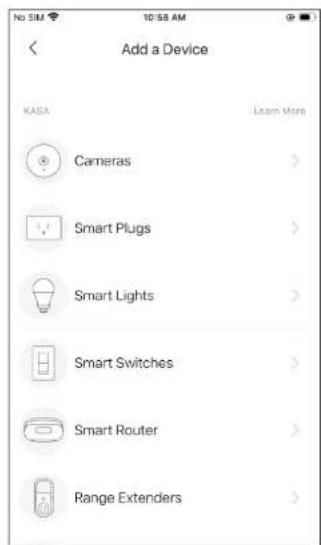

3. Add Device

Tap the + button in the Kasa app, select Smart Switches.

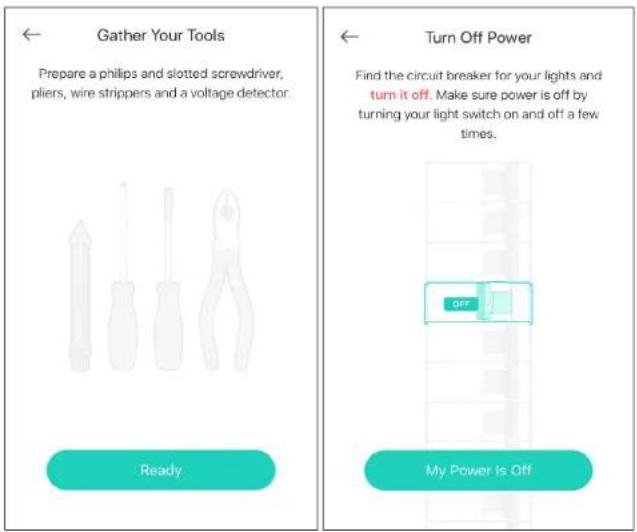

4. Install the Dimmer Switch

1. Turn off the circuit breaker first.

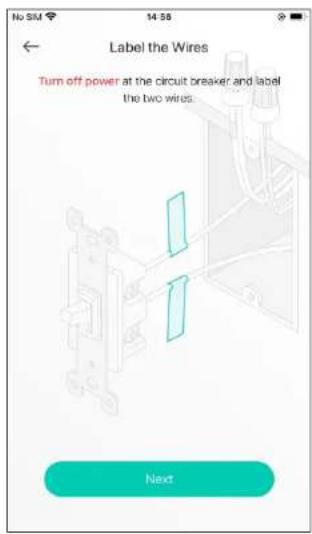

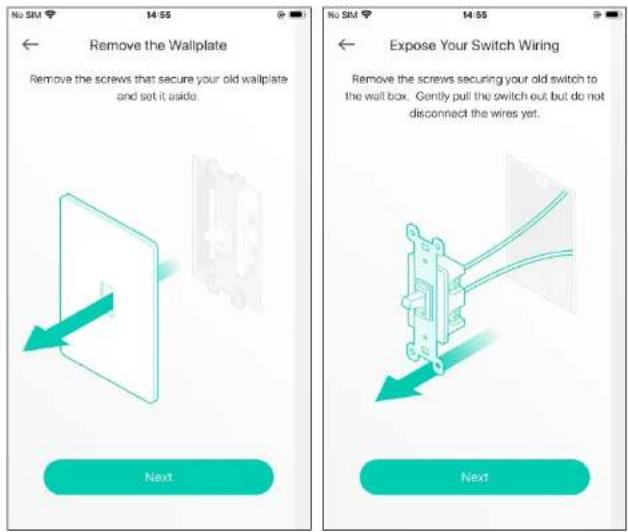

2. Remove the old wallplate and expose the wiring.

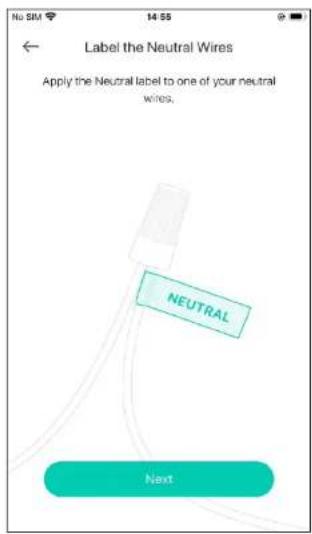

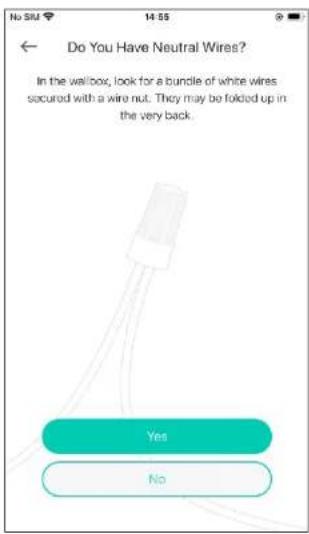

1. Look for a bundle of white wires, and label one of it as Neutral.

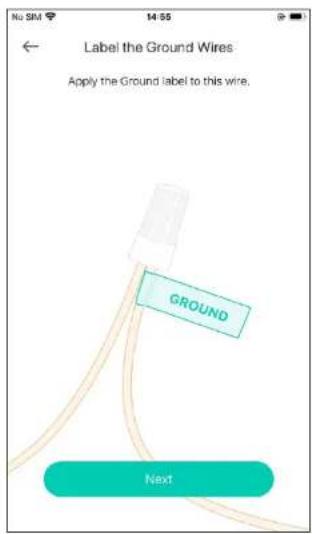

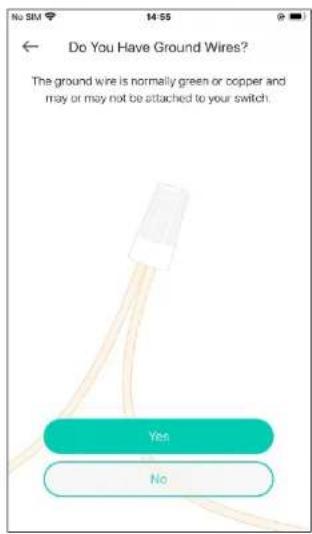

2. Look for a green or copper wire, and label it as Ground.

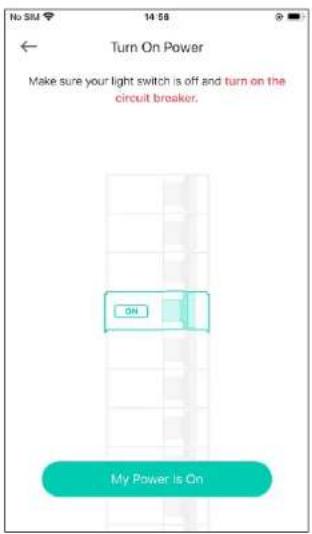

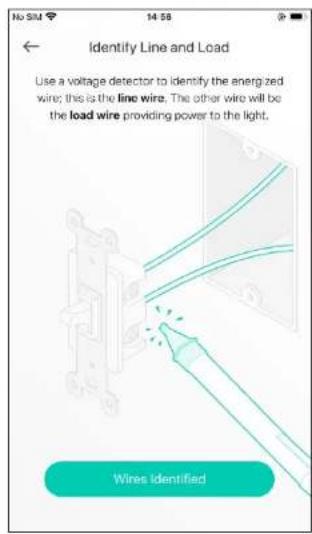

1. Turn on power.

2. Use a voltage detector to find the energized wire, this is the Line wire. The other wire is the Load wire. Then label the Line and Load wire.

1. Turn off power again.

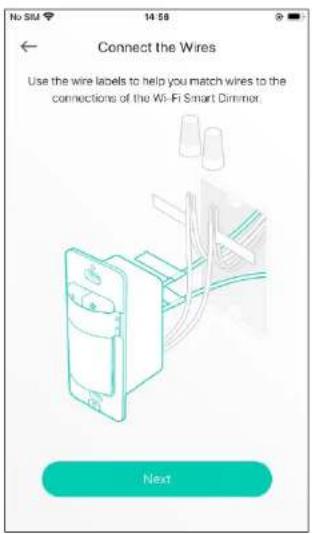

Then connect the wires.

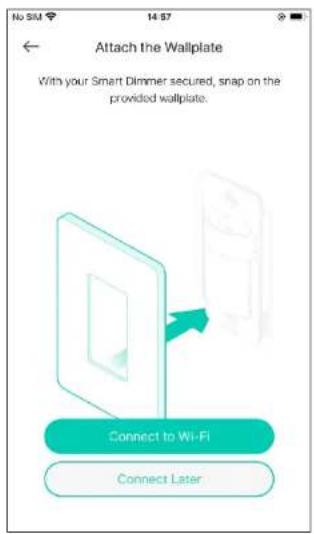

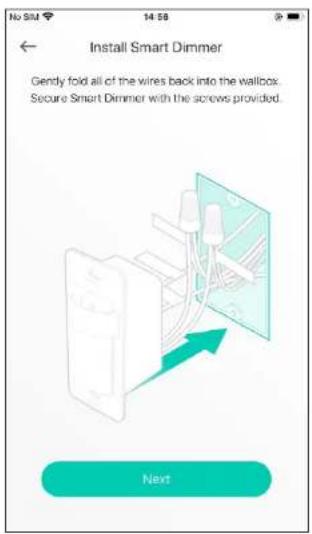

1. Install the dimmer switch and then attach the wallplate.

Turn on power again.

5. Set Up the Dimmer Switch

After installation, follow step-by-step app instructions to complete the setup.

Main Device Controls

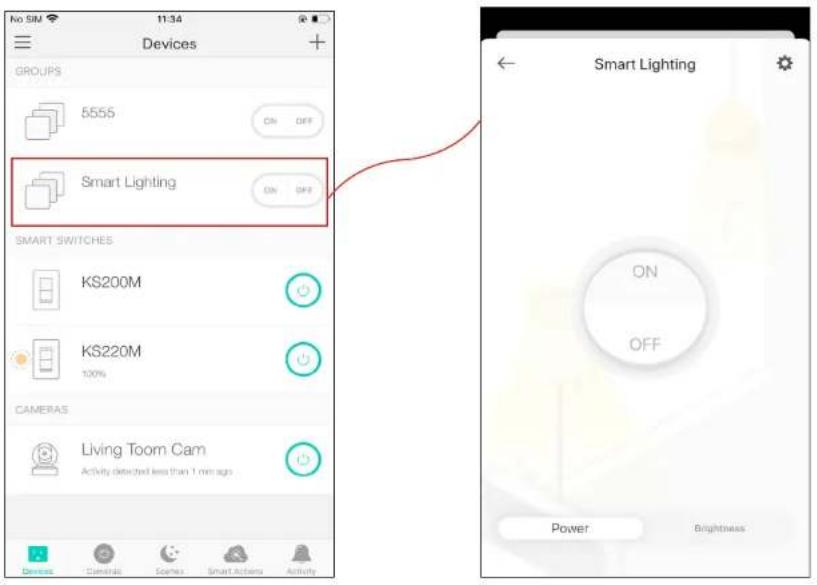

After you successfully set up your Smart Dimmer Switch, you will see the home page of the Kasa Smart app. Here you can view and manage all devices that you've added to Kasa. Tap your dimmer switch to control and manage it.

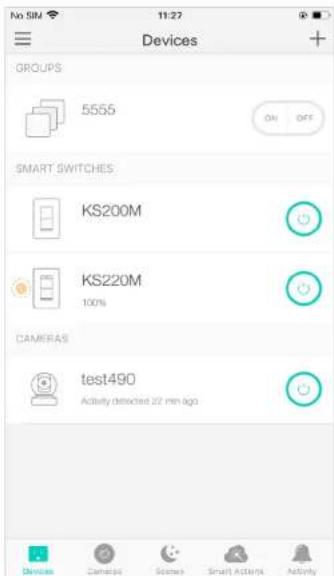

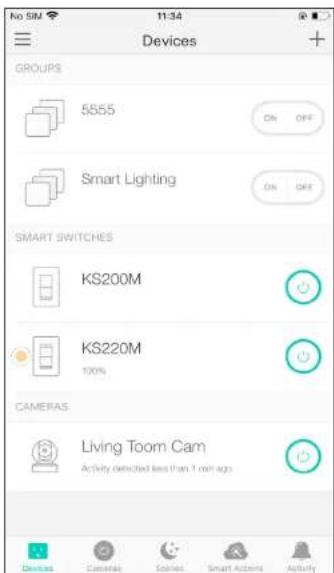

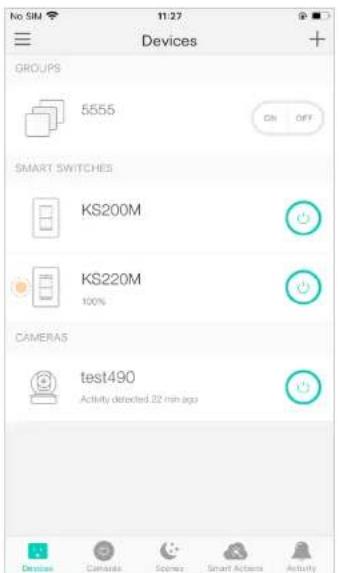

Home Page

You can see all your Kasa devices listed in the Home page.

Turn on/off the dimmer switch

Turn on/off your Smart Dimmer Switch quickly by tapping the on/off switch in the home page. Tapping the device to enter its Status page, you can also check or change its status.

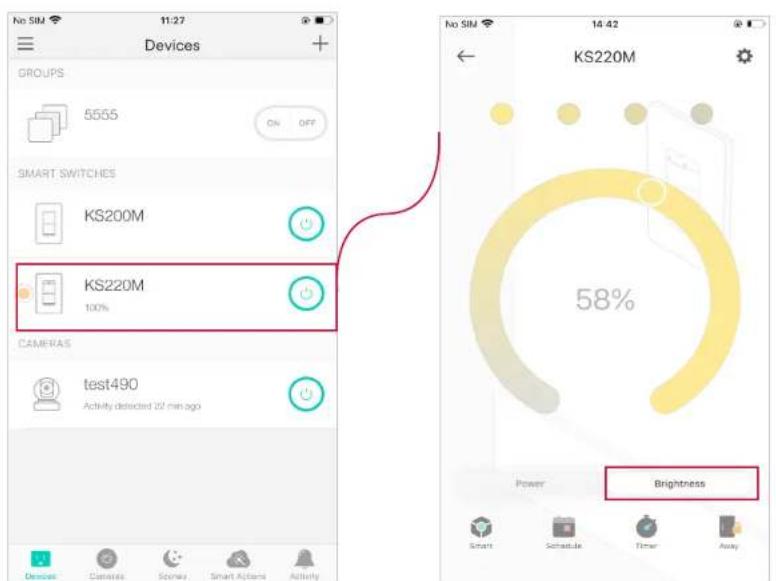

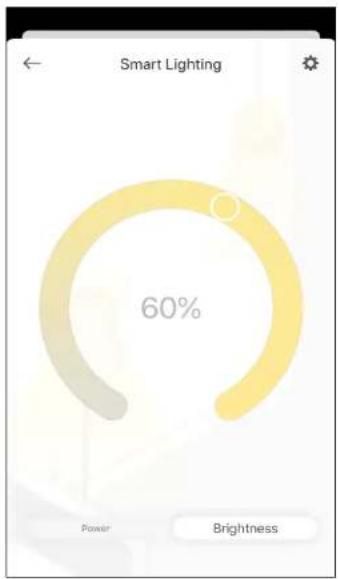

Adjust Brightness

Adjust the brightness of your light from 1% to 100% to have the perfect atmosphere for any activities.

Go to the status page and tap the Brightness tab. Your light will change brightness to the value you set.

Set Preset Brightness

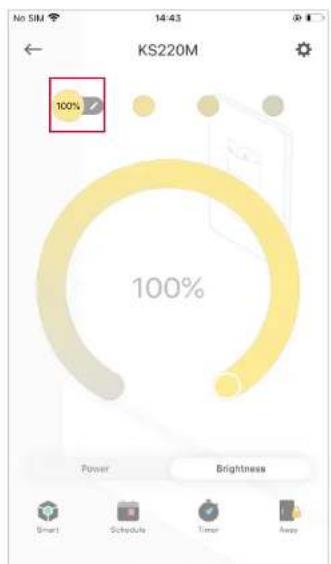

Set preset brightness levels so you can switch to the desired brightness with just one tap. You can set up to 4 preset brightness levels.

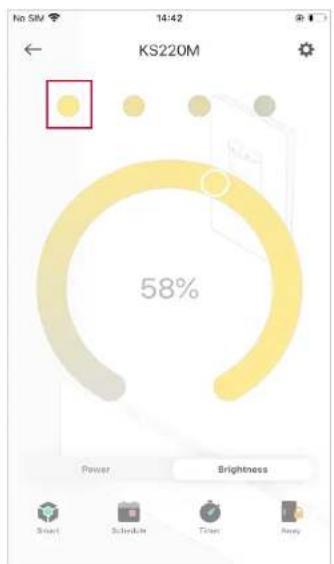

1. Go to the status page and tap the Brightness tab. Tap the circle on the top and choose a brightness. A preset brightness is set successfully.

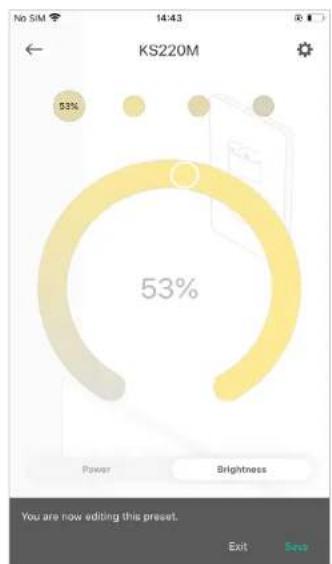

1. Change the preset brightness.

Tap a preset, then tap beside it. A pop up message will appear in the bottom. Choose another brightness level and tap Save.

Configure Smart Control

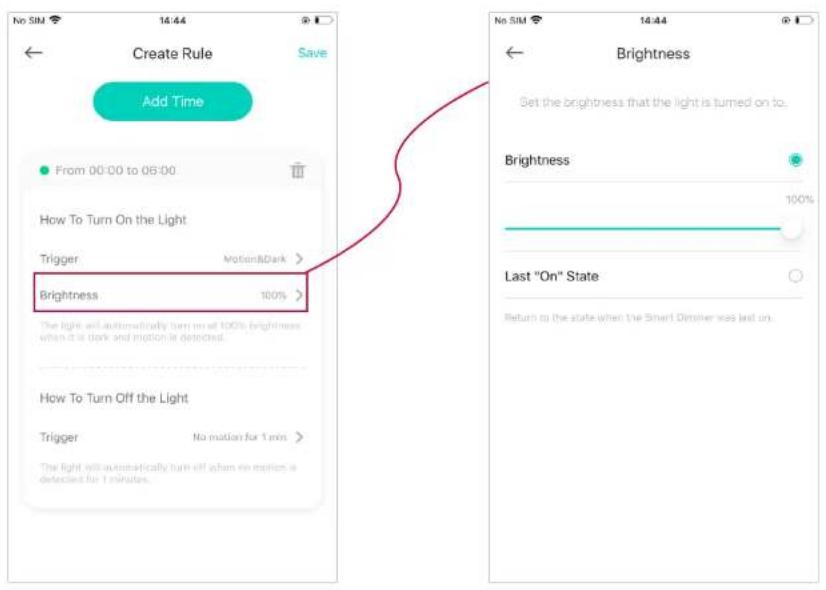

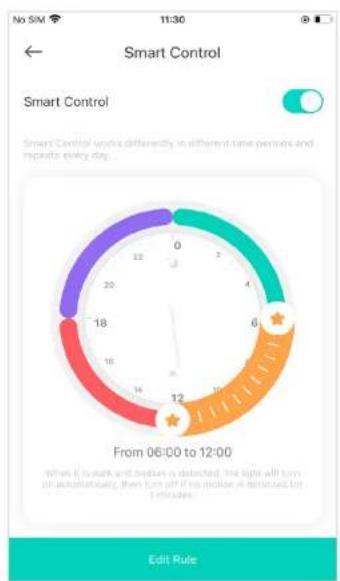

Smart Control: Set different light triggers to enjoy effortless control of your dimmer switch with the built-in ambient light sensor and motion sensor. For example, you want your light to turn on automatically when you go to the bathroom at night.

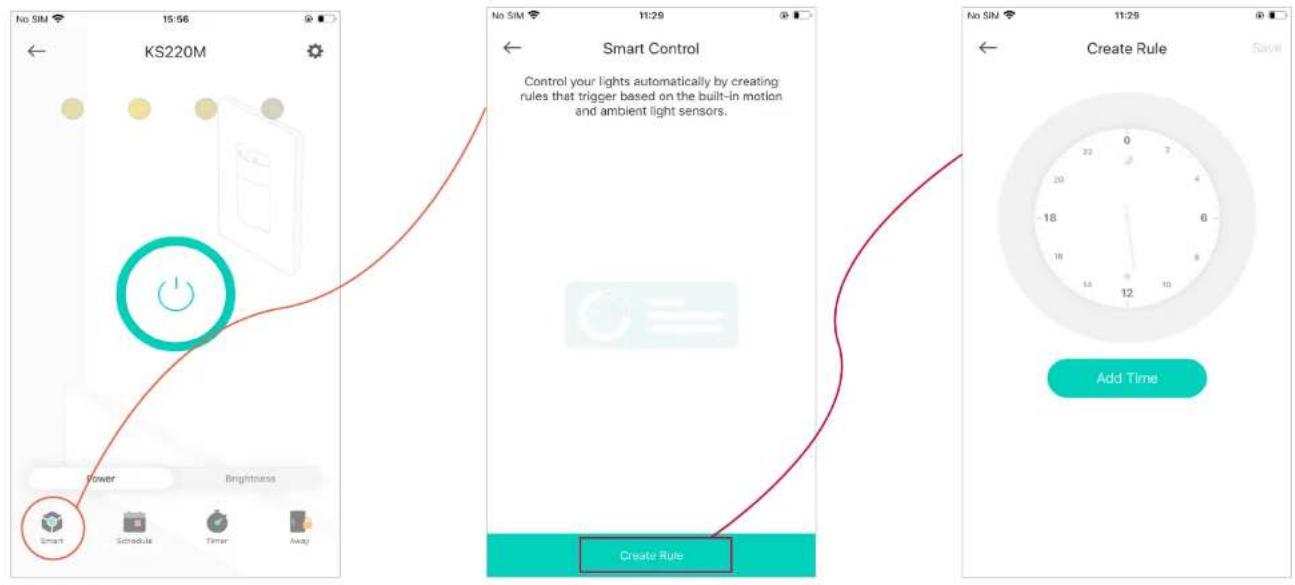

1. Tap in the status page.

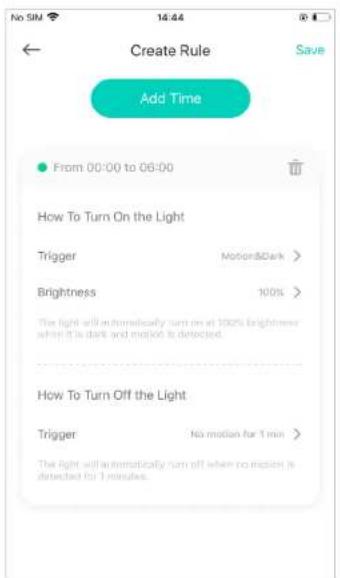

2. Tap Create Rule.

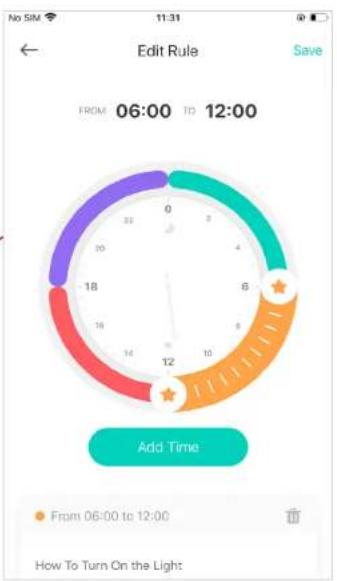

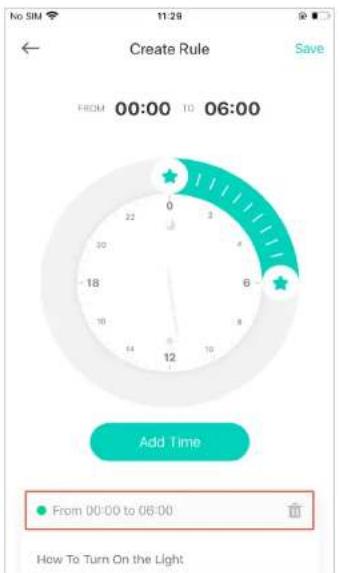

3. Tap Add Time to add an effective period of time for your Smart Control to take effect.

1. A time period appears automatically. Drag the end points or the whole segment to adjust time, or enter the start and end time. The specific rule settings are listed down below.

1. Slide up to see the rule settings. Tap to change the settings.

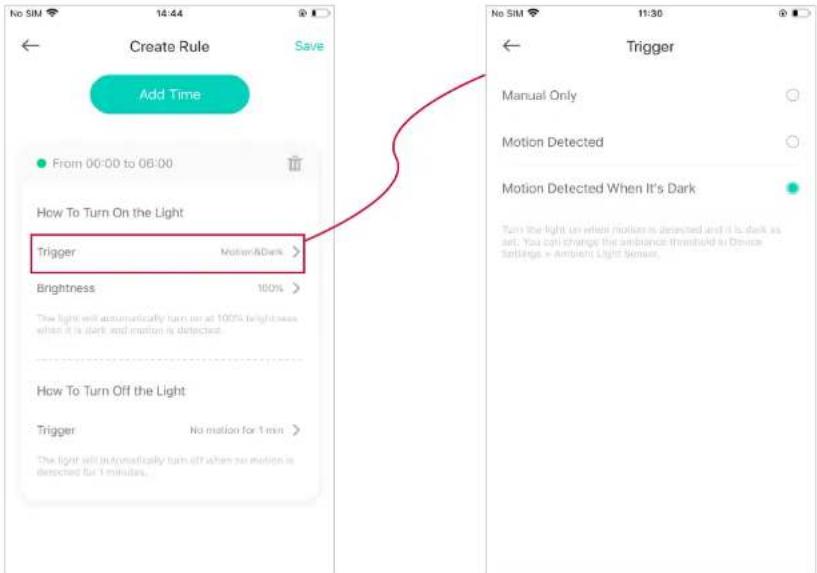

1. Set the trigger that turns on your light during the set time period.

Manual Only: Only turn light on manually.

Motion Detected: Turn on light automatically when motion is detected. See "Customize Motion Sensor Settings" to change motion sensor settings.

Motion Detected When It's Dark: Turn on light automatically when motion is detected and it is dark. See "Customize Ambient Light Sensor Settings" to change ambiance settings.

1. Set the brightness that you want your light to turn on to.

Brightness: Select an exact brightness value.

Last "On" State: Return to the brightness when the light was last on.

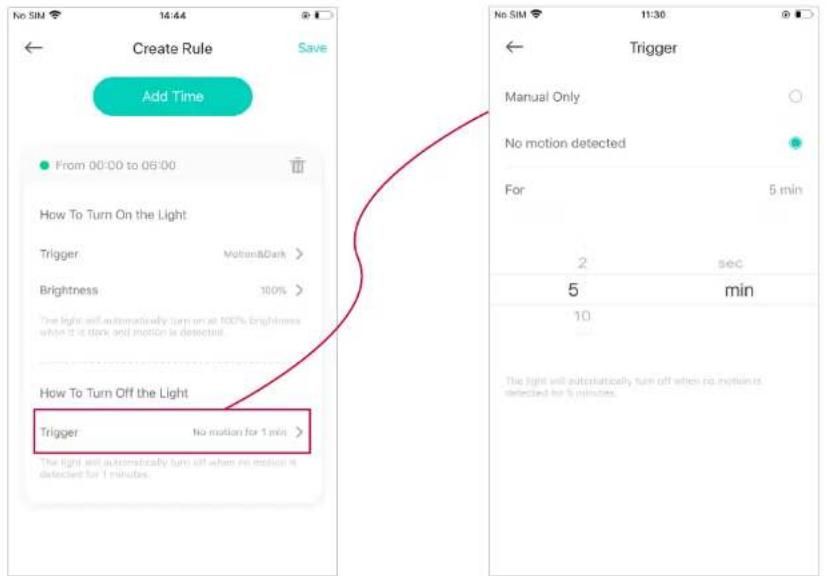

1. Set the trigger that turns off your light during the set time period.

Manual Only: Only turn the light off manually.

No motion detected: Choose a time period, and the light will be off automatically if no motion is detected during the selected time period.

No need to worry that your light will stay on.

1. Tap Add Time to add more effective time periods and customize its settings if you want. Then tap Save on the top right corner to save your Smart Control rules. Note: Smart Control can work differently in different time periods and repeats every day.

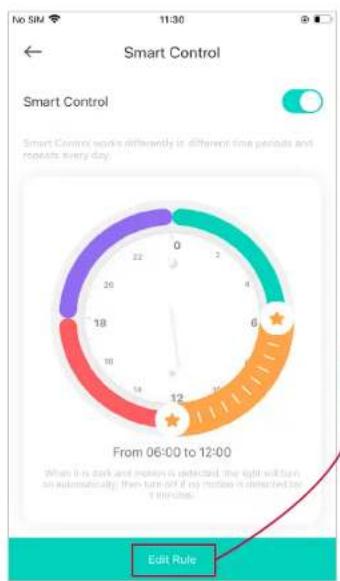

2. Change rule settings.

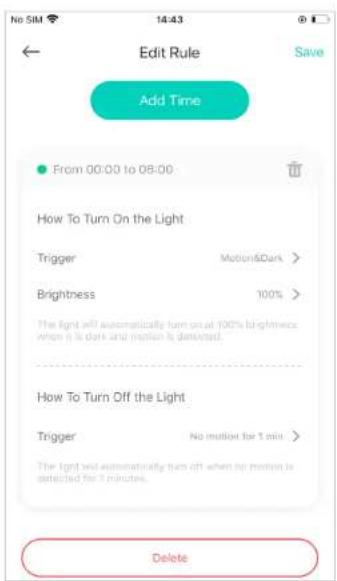

Tap Edit Rule to change the settings of each time period.

1. Turn the Smart Control off in one tap. 12. Delete the Smart Control.

Tap Edit Rule, then slide up, and tap Delete at the bottom.

Set Schedules

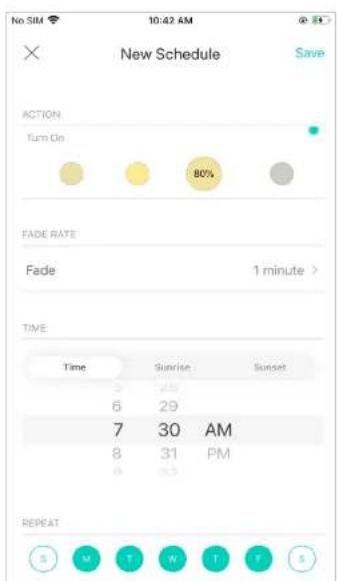

Schedule: Set schedules to automatically turn on/off the light at set times according to your daily routine.

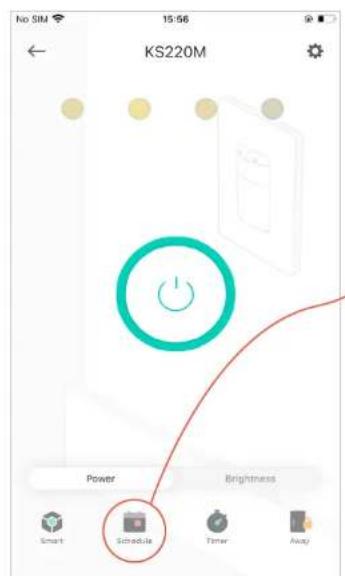

1. Tap your Smart Dimmer Switch in the

Home page, and then tap

Schedule

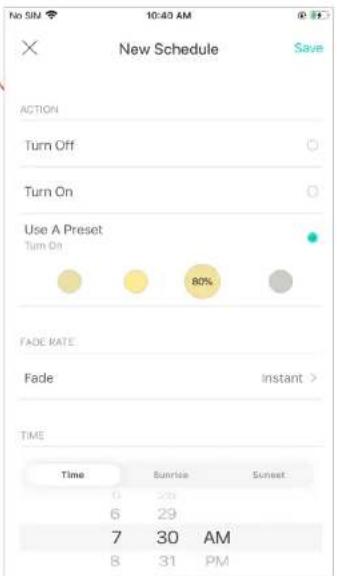

1. Tap + on the top right corner. 3. Choose an action that you want your

light to do, for example, simply turn on/off at certain time, or turn on at a preset brightness.

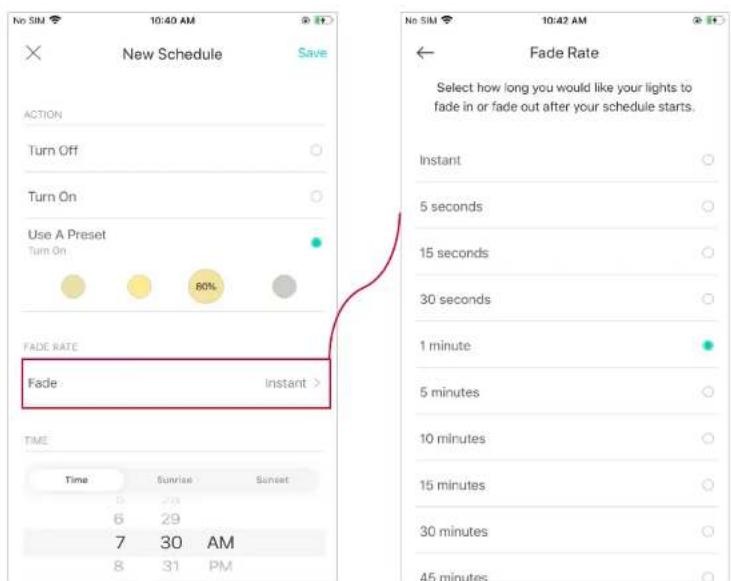

1. Set fade rate, i.e., how long you would like your light to fade in or fade out after your schedule starts.

1. Select the time and repeating frequency at which you want your schedule to run.

1. Tap Save and you'll see your schedule listed in the Schedule Page. Now your light will be turned on to 80% brightness at 7:30 AM every weekday.

You can add more schedules following the same steps.

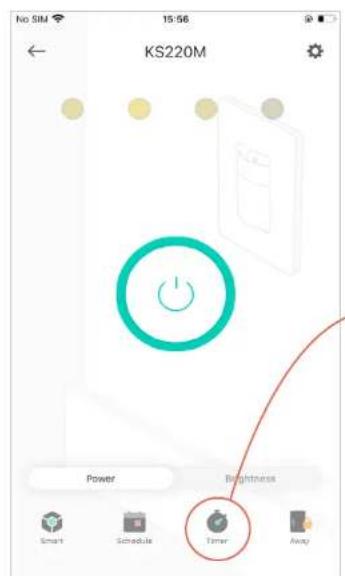

Set Timer

Timer: Set the timer for your light to automatically turn on/off after the time ends.

1. Tap your Smart Dimmer Switch in the Home page, and then tap

1. Set the time after which the light will be automatically turned on/off.

E.g. when I turn on the light, I want it to be off after 30 minutes.

1. Tap START and you'll see the timer is counting down. Tap Stop to stop the Timer at any time.

Set Away Mode

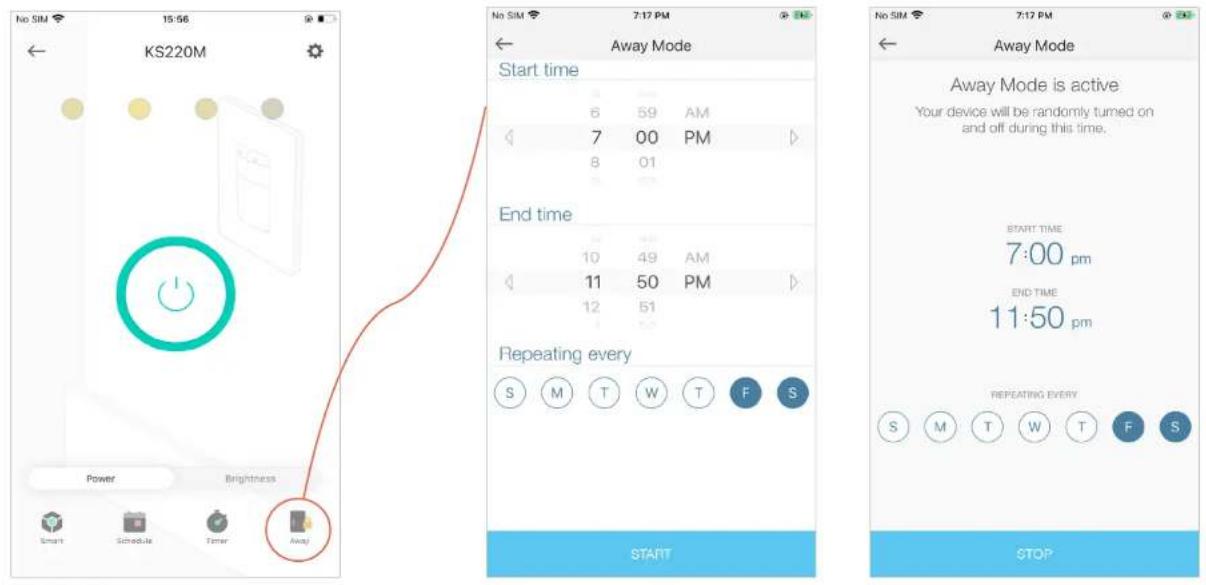

Away Mode: Set Away Mode for your light to turn on/off the light automatically at random intervals while you are away to make the appearance that someone is at home.

1. Tap your Smart Dimmer Switch in the Home page, and then tap 📄

2. Set the start and end time during which the light will be automatically turned on and off at random intervals, and the repeating frequency.

E.g. I want the light to turn on and off between 7:00 PM to 11:50 PM every Friday and Saturday.

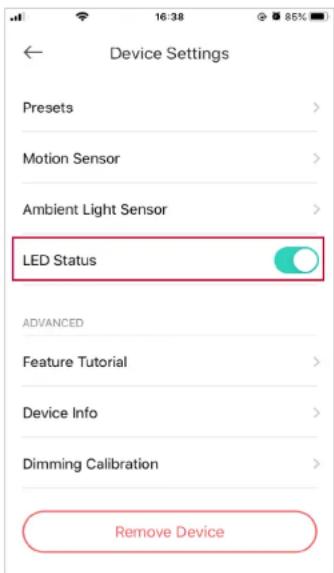

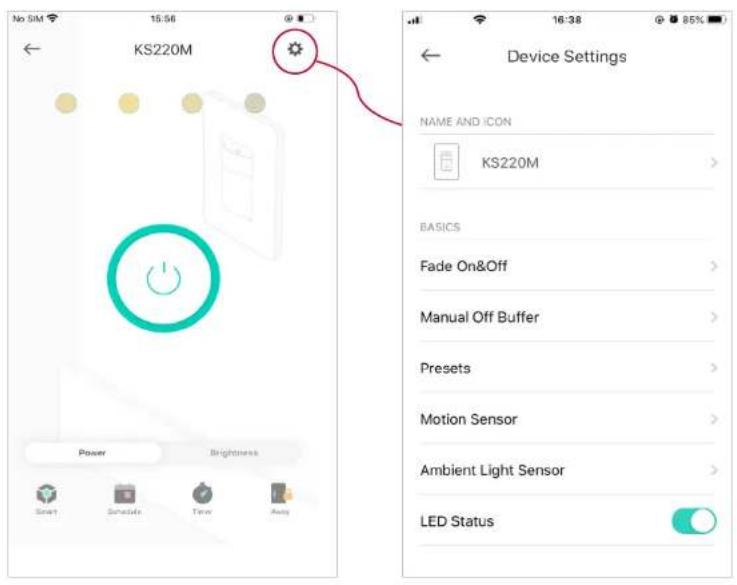

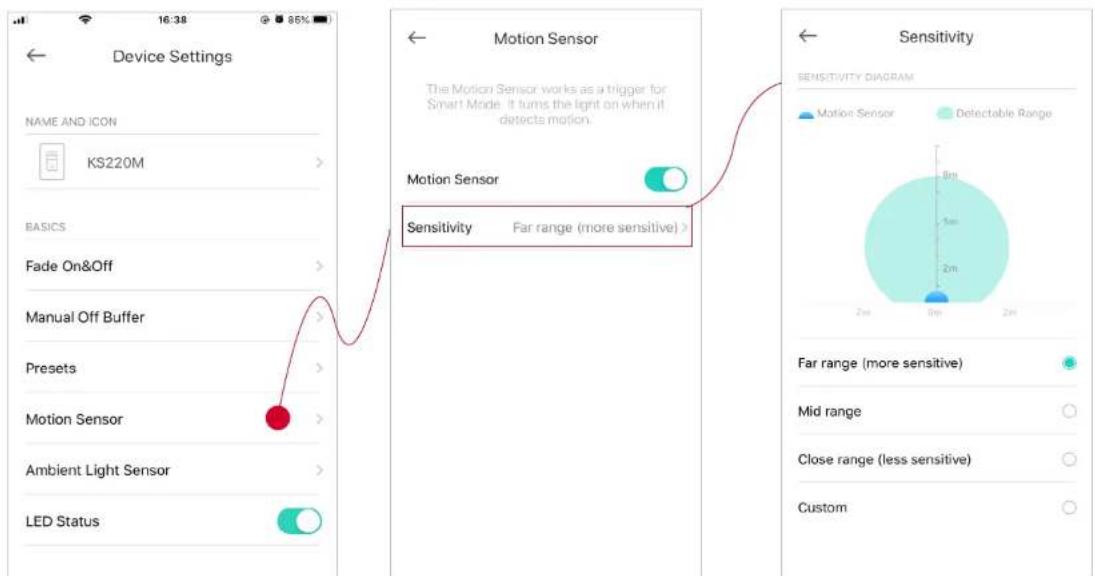

Manage Device Settings

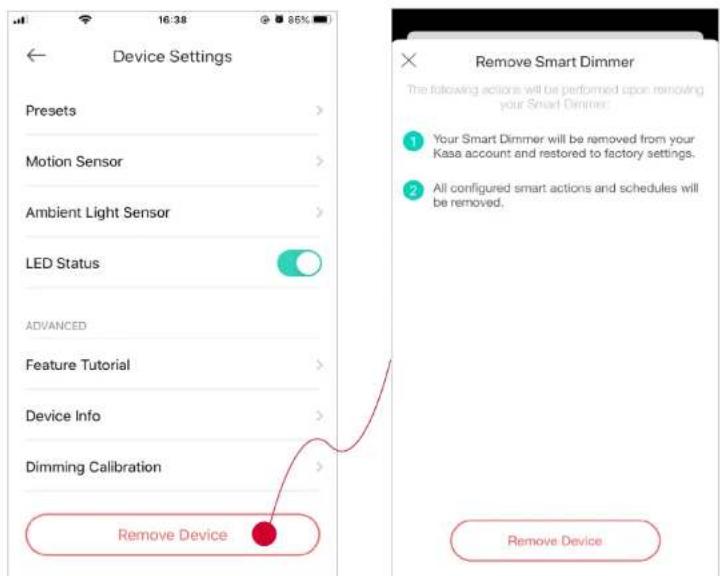

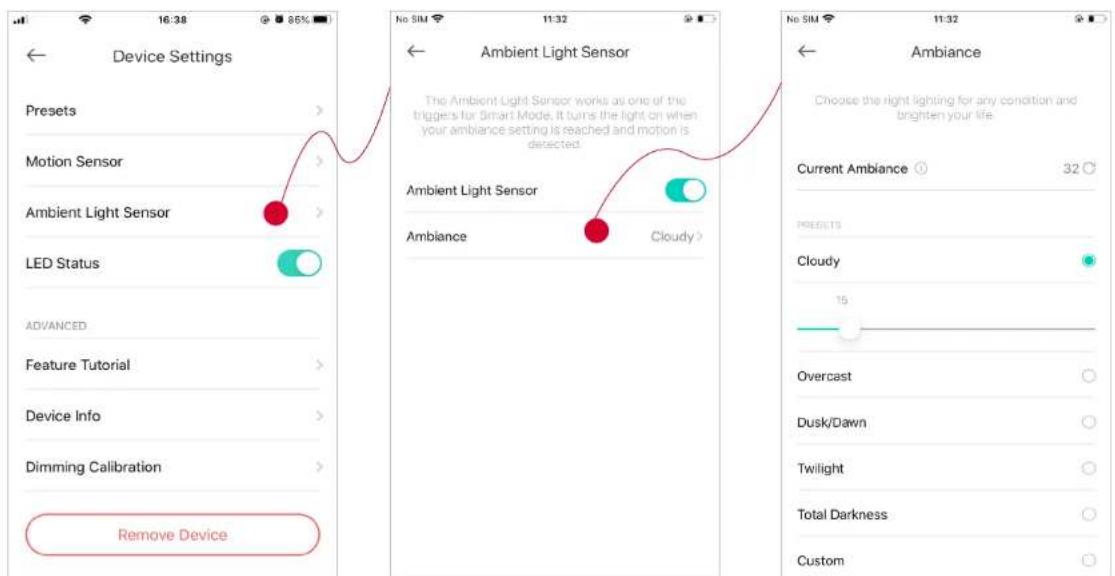

You can change the settings in the Device Settings page.

Tap your Smart Dimmer Switch in the Home page and then tap 📋 enter the Device Settings page.

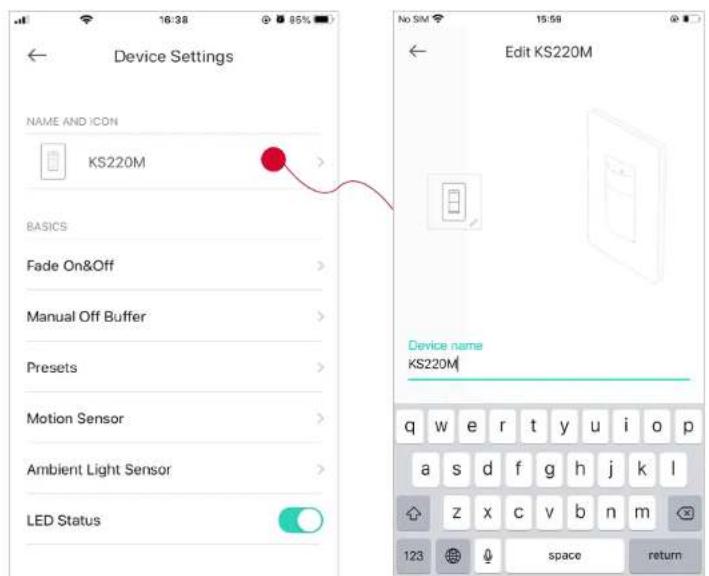

Change Device Name & Icon

Change the name and icon of the dimmer switch.

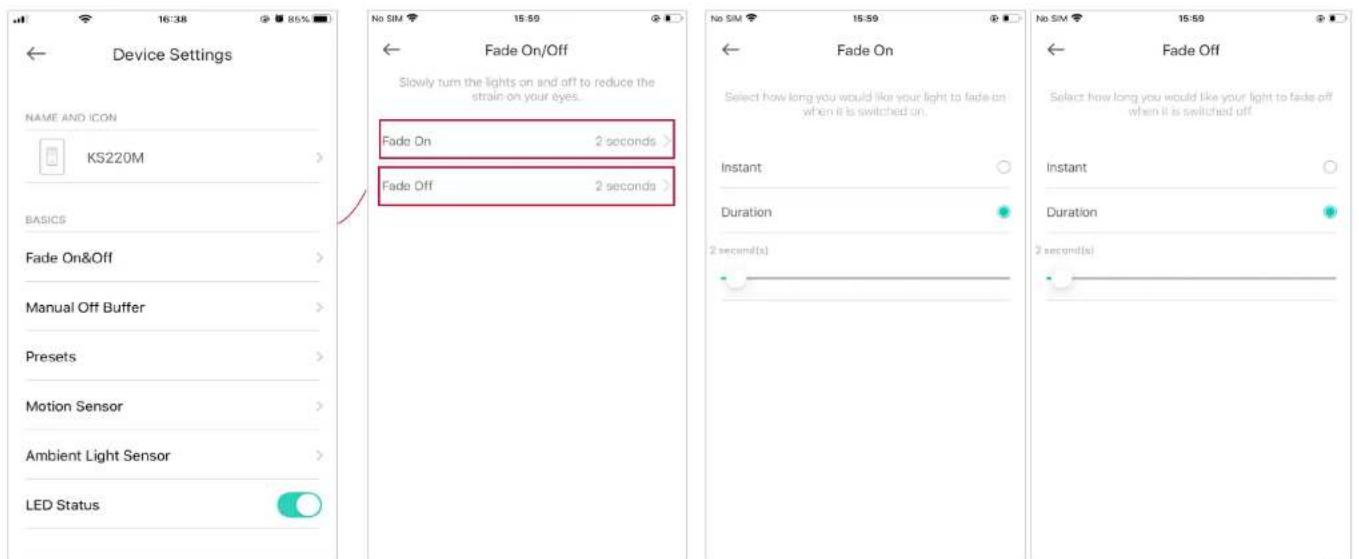

Fade On/Off

Set Fade On/Off to slowly turn the light on and off. You can set the duration for the light to turn on or off.

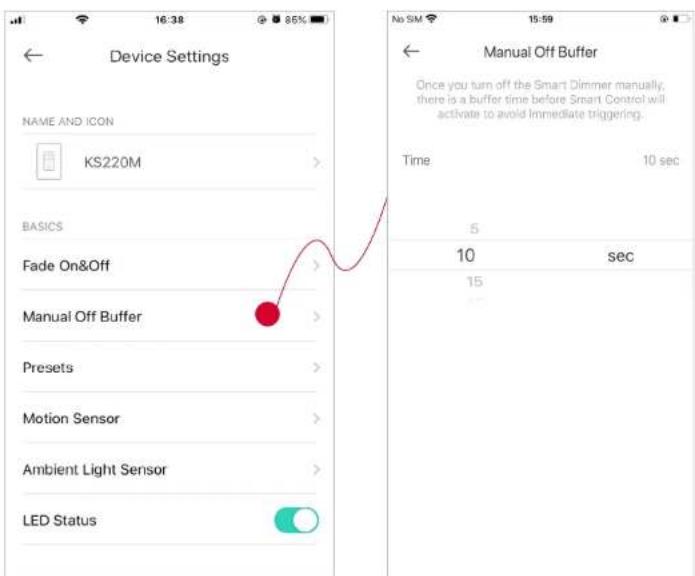

Manual Off Buffer

If you have set Smart Control for your light to be automatically turned on when motion is detected (or when motion is detected and it's dark), you don't want your steps to trigger the light on immediately after you manually turn off the light. Then you can set a buffer time before the Smart Control will activate to give you time to leave the room.

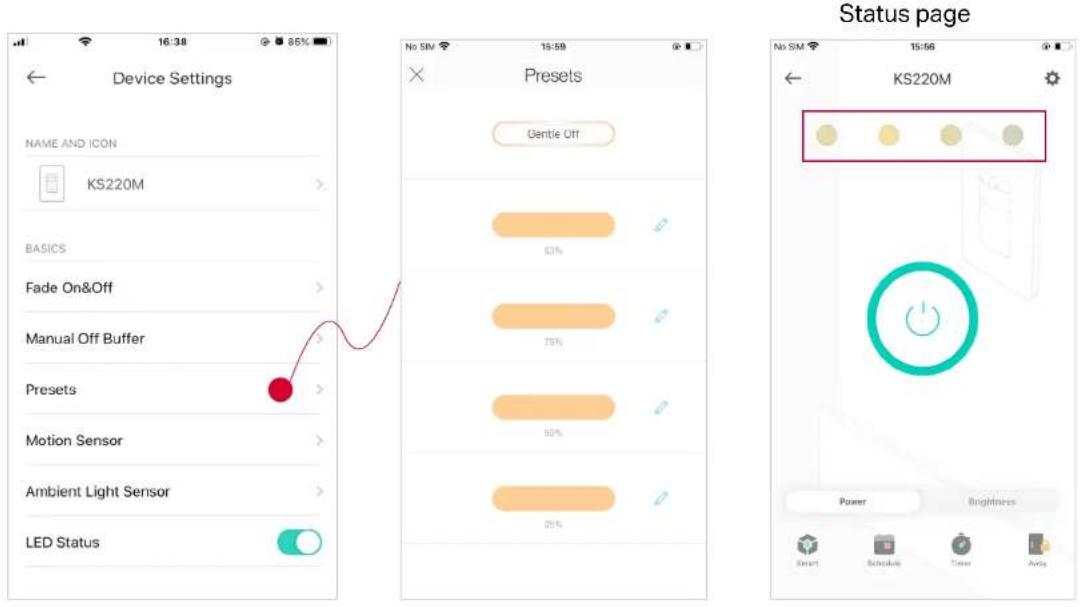

Presets

Set presets to quickly switch to the desired light effect.

Set gentle off, which turns your light slowly, or set a preset brightness. Note that the preset brightness levels are the same as what shown in status page.

Customize Motion Sensor Settings

Motion Sensor is enabled by default. If you have set Smart Control and chosen the motion trigger, your light will be triggered on when motion is detected during the time period you set. You can change the sensitivity of the motion sensor.

If Motion Sensor is turned off, then the motion trigger for your Smart Control cannot work.

Customize Ambient Light Sensor Settings

It is enabled by default. If you have set Smart Control and chosen the trigger Motion Detected When It's Dark, your light will be triggered on when ambiance setting is reached and motion is detected. Preset ambient brightness in different environment is provided and can be changed. Current Ambiance is detected by your dimmer switch, which is a reference for you to adjust the preset ambiance values.

If Ambient Light Sensor is turned off, then the darkness trigger for your Smart Control cannot work, but the motion trigger still works.

Turn On/Off LED

When turned off, you cannot tell the status of your dimmer swich from the LED.

If you have set the dimmer switch to be off if no motion is detected for a specific time period, the LED of the dimmer switch will flash as a sign when it's about to be off. Turning off LED Status will disable that feature.

Dimming Calibration

Calibrate your light to avoid flickering.

Test the dimming range of your dimmer switch by slowly reducing the brightness of your light until you find the minimum level of brightness.

Reset Your Smart Dimmer Switch

There are three methods to reset your Smart Dimmer Switch.

Method 1

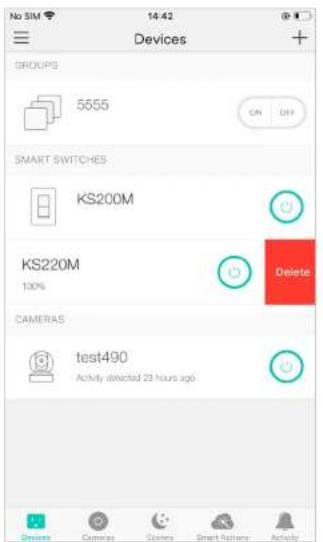

Swipe left any of your Smart Dimmer Switch and tap Delete. Then tap Remove Device. Your Smart Dimmer Switch will be removed from your Kasa account and restored to factory settings.

Method 2

Tap your Smart Dimmer Switch and go to the Devices Settings page. Then tap Remove Device in the bottom. Your Smart Dimmer Switch will be removed from your Kasa account and restored to factory settings.

Method 3

Press and hold the Reset button on the panel of the dimmer switch for 10s to restore it to factory default settings.

Press and hold the Reset button on the panel of the dimmer switch for 5s to reset Wi-Fi while keeping previous settings.

Create Groups

With groups, you can control multiple devices simultaneously. This page allows you to add your Smart Dimmer Switch and your other Kasa smart devices to a group for unified management.

1. Create groups for your Smart Light Switch

1. Tap the button in the Home page of the Kasa Smart app, and select Group.

2. Select your Smart Dimmer Switch and other Kasa smart devices and tap Save.

E.g. I want to group my Smart Dimmer Switch and Kasa smart switch to turn on/off simultaneously.

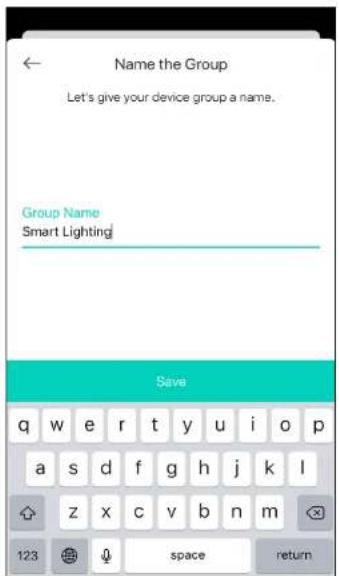

1. Name the group.

1. The created group is listed in the Home page. You can tap ON or OFF to turn on or off the devices together in the group.

2. Manage the group

1. Tap the group you want to manage. 2. Turn on or off the group in the status page.

2. Tap Brightness to adjust the brightness of your dimmer switch.

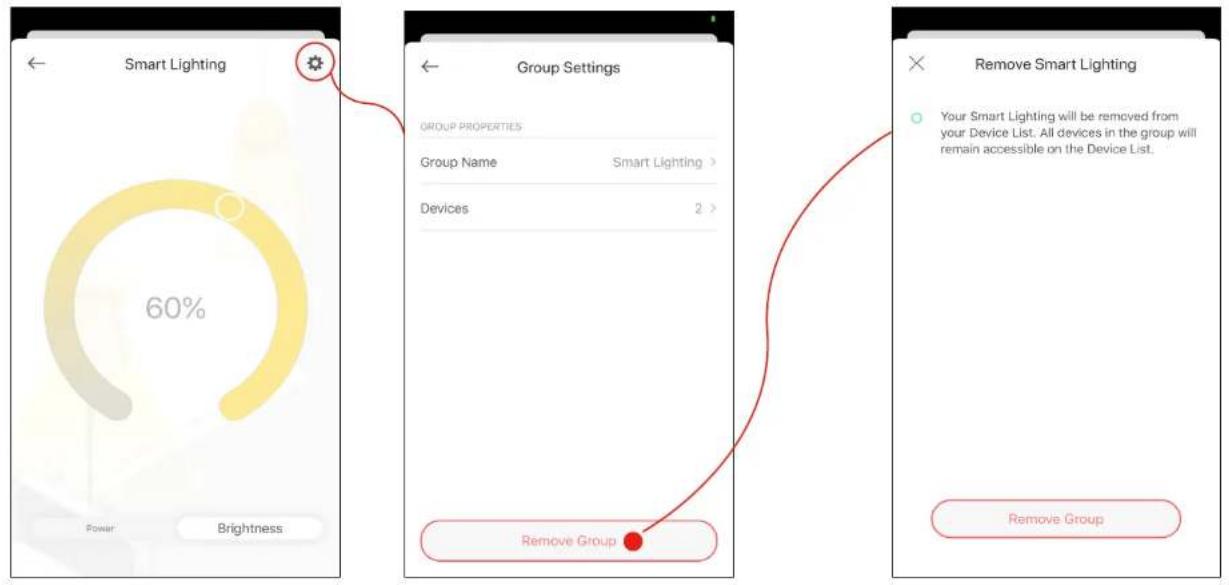

1. Tap the top right corner to enter the settings page. You can change the group name or devices in the group as you like.

2. Tap Remove Group if you want to remove the group from your device list. Then double confirm it. All devices in the group will remain accessible on the device list.

Create Scenes

A scene is a preset group of smart devices that can be programmed, customized and activated simultaneously at the touch of a button from your smartphone or tablet, allowing you to easily set your mood, activity or fit any special occasion. To create a scene with your Smart Dimmer Switch, you need other Kasa smart devices, a smart plug for example.

1. Tap at the bottom, then tap + at the top right corner.

2. Select a scene or create your own scene.

E.g. I want to turn the bedroom light on and the living room light off simultaneously with just one tap in the Kasa Smart app.

1. Select devices for the scene to work on and set their status respectively.

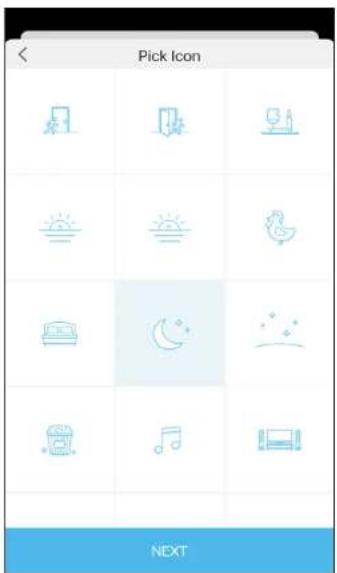

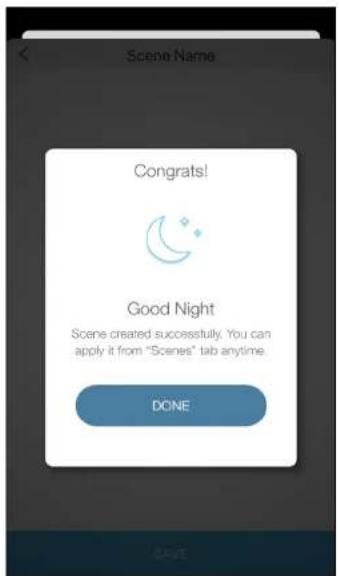

1. Pick an icon for your scene. 5. Name your scene. 6. Your scene is created successfully. Just

tap the scene to activate it.

Smart Actions

Smart Actions is a function provided that enables device interconnections and home automations. With Smart Actions, your Kasa devices can work together to create a smarter smart home. From the moment you wake up to the moment you drift asleep, Smart Actions make your home safer and more comfortable.

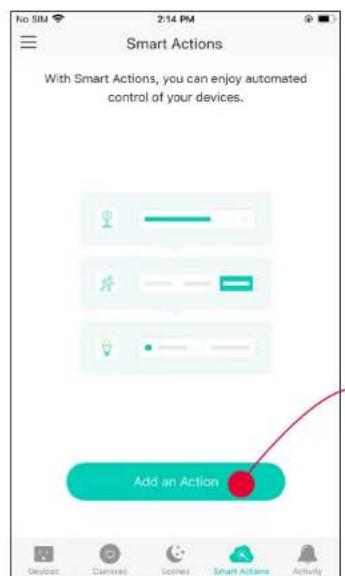

1. Tap at the bottom, then tap Add an Action.

2. Select an automation type for your Smart Actions.

Motion Sensing: Take actions when a Kasa camera senses a motion.

Control With a Switch: Extend the Smart Switch control to other Kasa Smart devices. Turn on/off a group of devices with the Smart Switch all together.

Schedule a Scene: Schedule a "Scene" to be turned on automatically at the time specified.

Auto-off Timer: Whenever a smart device is turned on, turn it off after the designated amount of time.

1. Configure Motion Sensing If you already have a Kasa Camera

E.g. I want to turn the light on when my Kasa camera senses a motion.

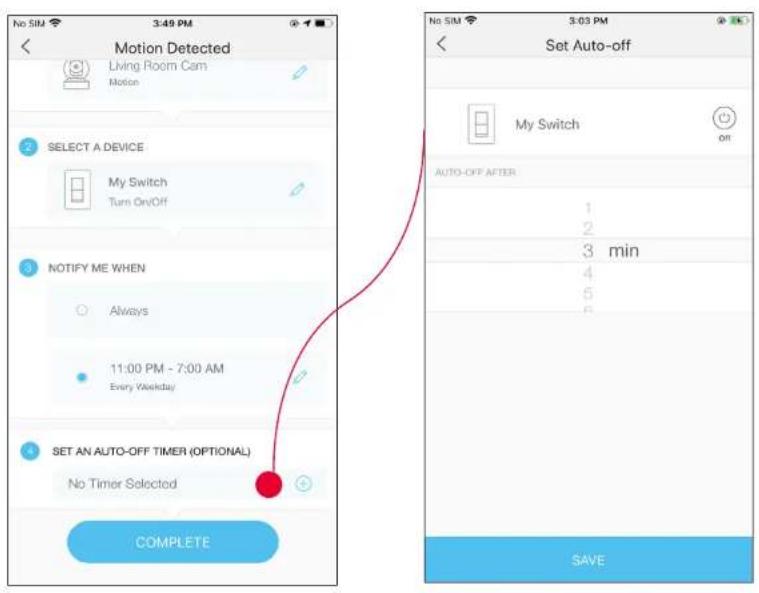

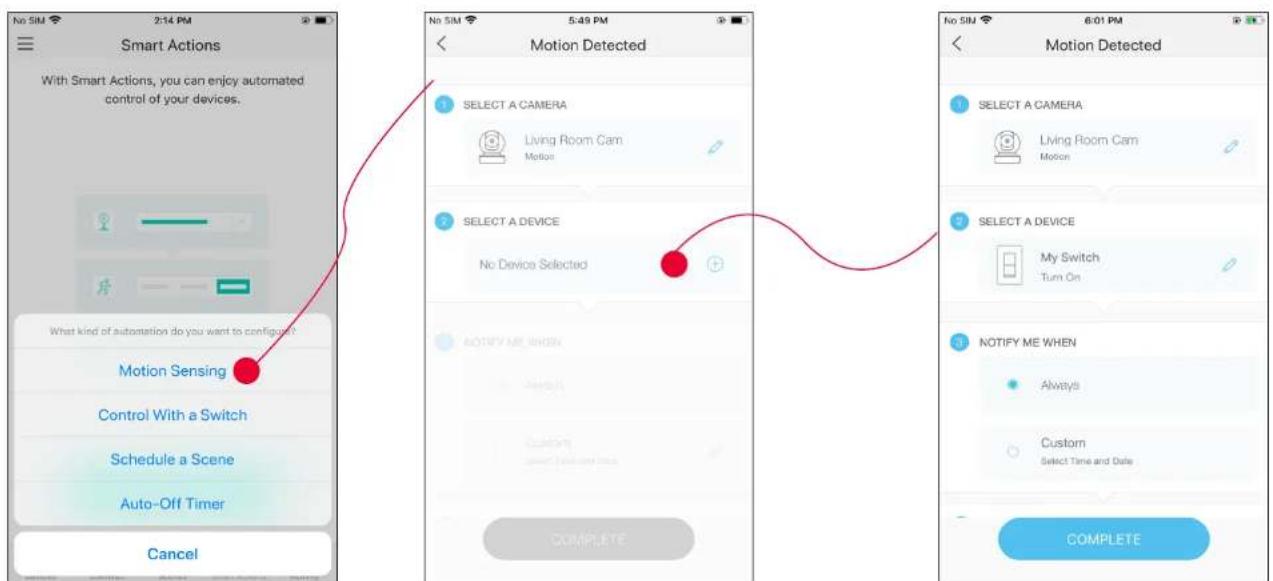

1. Tap Motion Sensing then select a camera.

2. Select your Smart Dimmer Switch.

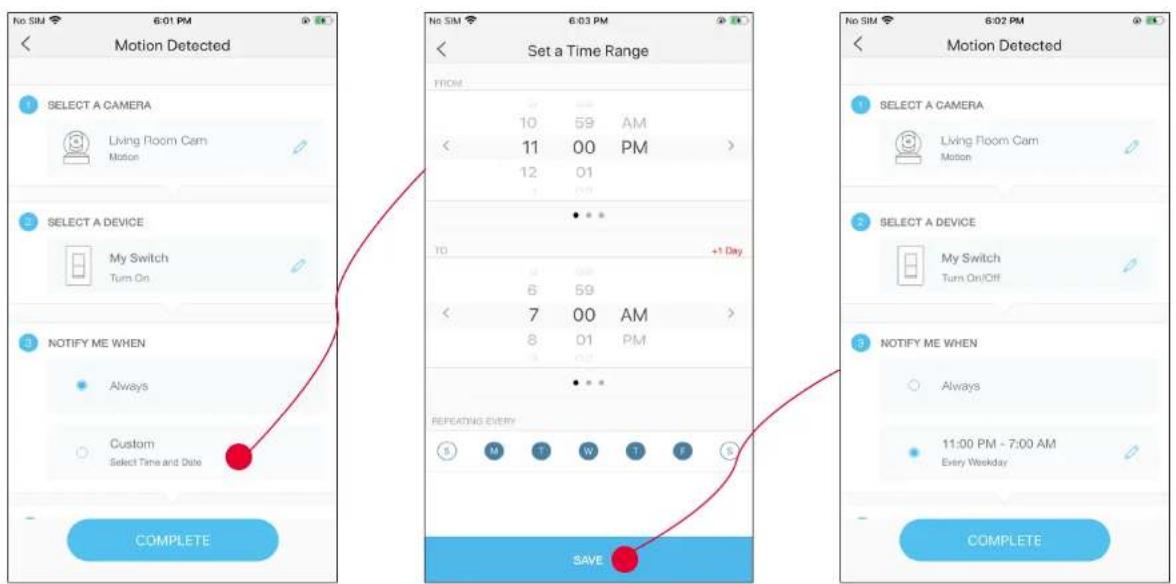

1. Set the time when you want the action to run. You can choose Always or tap Custom to choose time according to your needs.

For example: I want the motion to trigger the light on from 11:00 PM to 7:00 AM every day.

1. (Optional) Set an auto-off timer then tap Complete. Then your living room light will be turned off after the time you set.

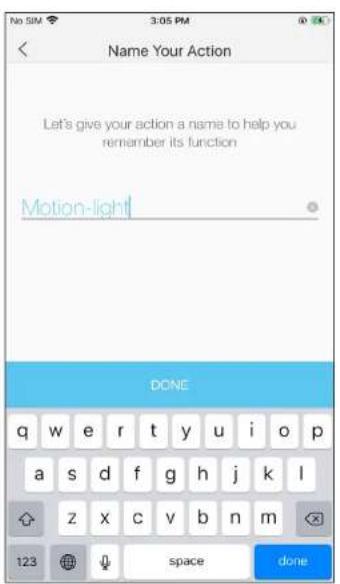

2. Name your action for easy identification.

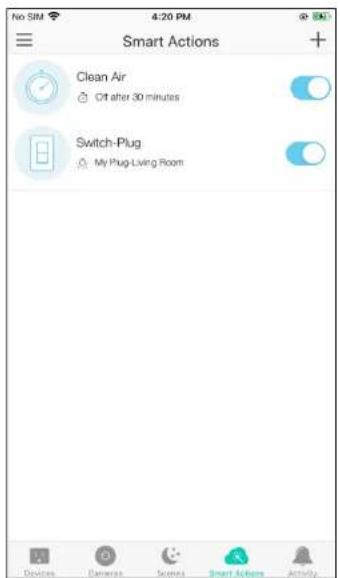

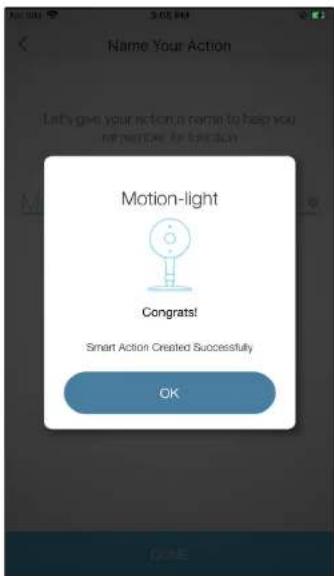

1. The Smart Action is created successfully and displayed in the Smart Actions list.

2. Configure Control With a Switch If you already have other Kasa smart devices

E.g. I want my dimmer switch to also control the on/off of the living room light, which is plugged in my Kasa smart plug.

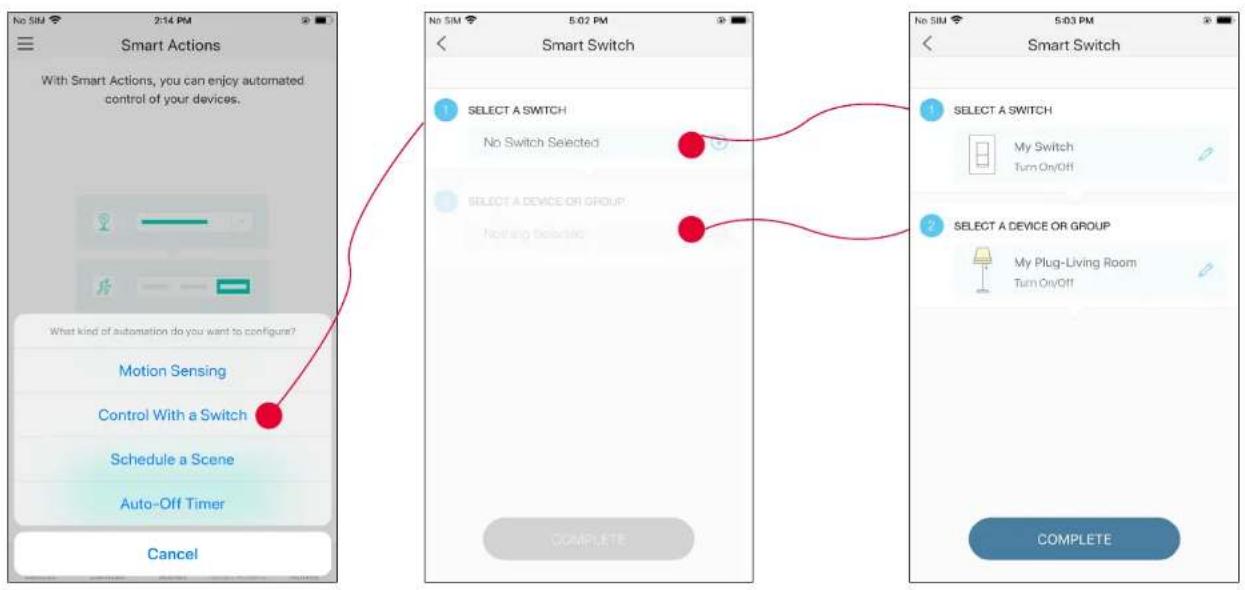

1. Tap Control With a Switch.

2. Add your dimmer switch. Then select your Kasa smart plug which your living room light is plugged in.

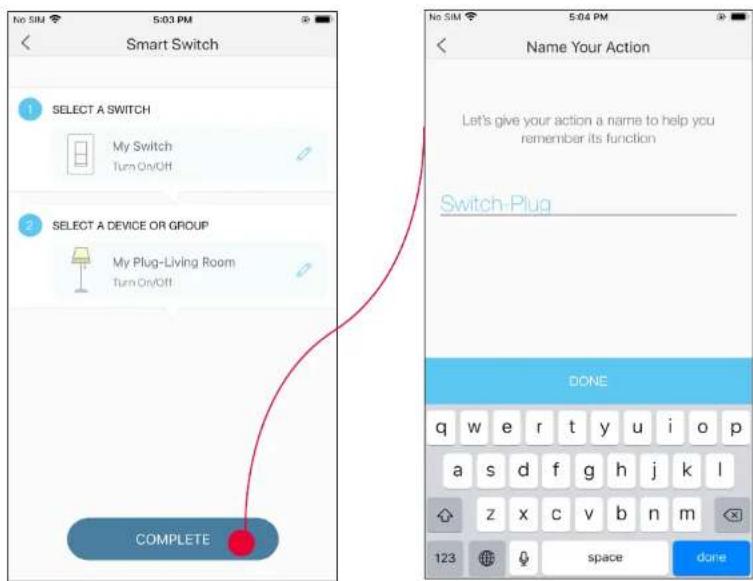

1. Name your action for easy identification.

2. Now Your Smart Action is created successfully and is displayed in the smart actions list.

3. Configure Schedule a Scene

E.g. I want to turn on the scene I have created automatically at scheduled time.

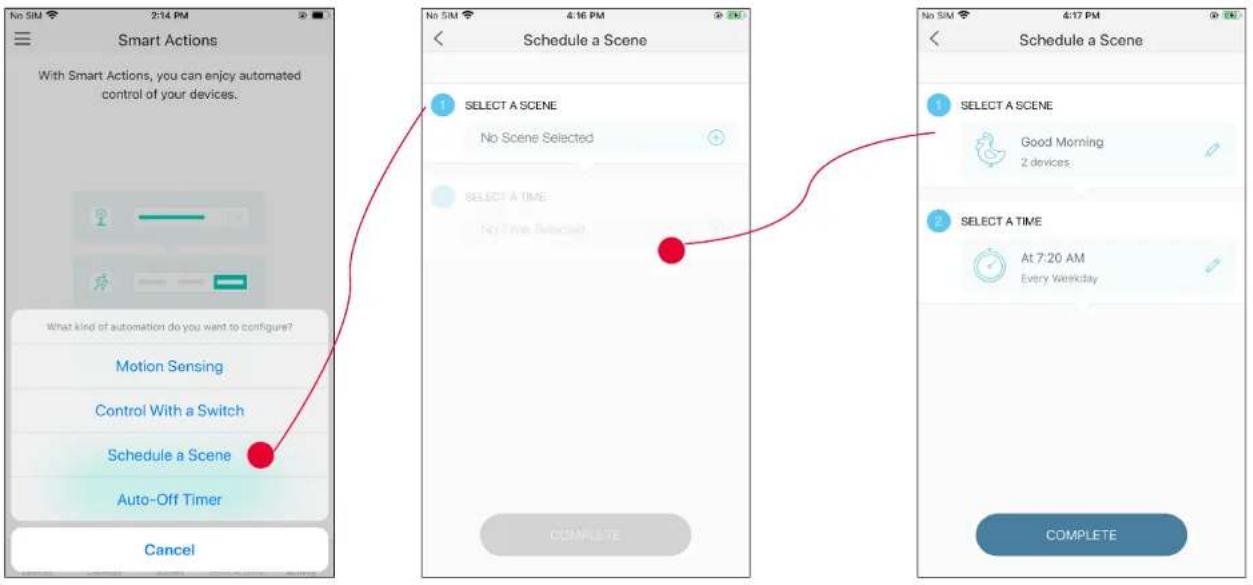

1. Tap Schedule a Scene then select a scene you have created.

E.g. I want to turn on my Good Morning scene, which turns on my switch and my music speaker (plugged in to a Kasa smart plug) with just a tap, at 7: 20 AM every weekday.

1. Set the time and frequency at which you want your scene to be activated.

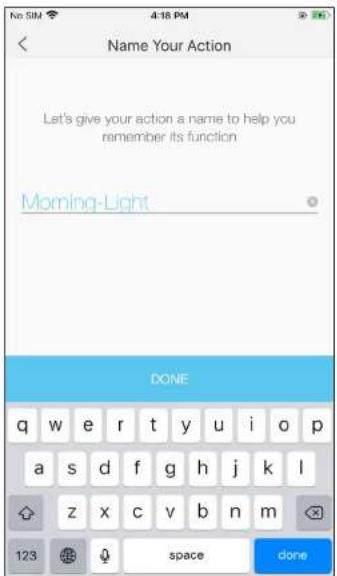

1. Name your action for easy identification.

2. The Smart Action is created successfully and displayed in the Smart Actions list.

4. Configure Auto-Off Timer

E.g. I want to turn off my Kasa Smart Dimmer Switch after 30 minutes whenever it turns on.

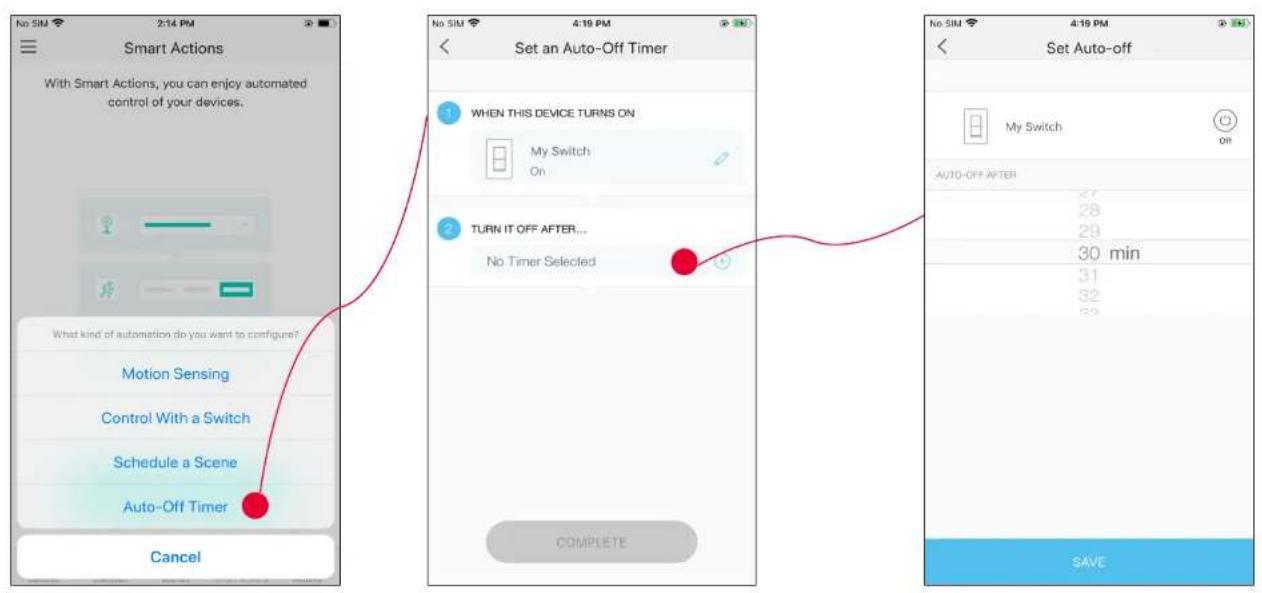

1. Tap Auto-Off Timer then select your dimmer switch.

2. Set the time after which your dimmer switch will be off.

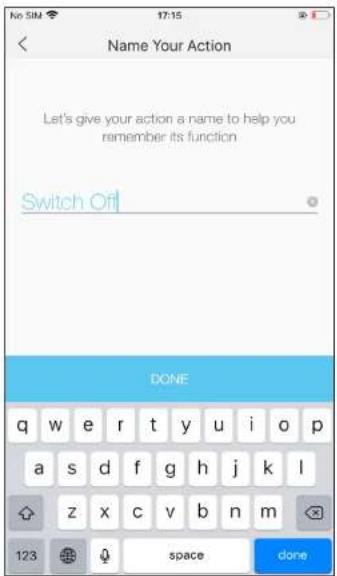

1. Name your action for easy identification. 4. The Smart Action is created successfully.

Voice & 3rd Party Support

Use the Kasa Smart app to pair your Smart Dimmer Switch with Amazon Alexa or Google Home Assistant, and enjoy a full hands-free experience. Kasa helps manage the rest of your smart home too, working with Samsung SmartThings to trigger changes when you arrive home or leave for the day.

Launch the Kasa Smart app. Go to the sidebar and tap Works with Kasa. You can choose Amazon Alexa / Google Assistant / IFTTT / Samsung SmartThings for detailed instructions.

1. Set up Amazon Alexa

1. Tap Amazon Alexa.

2. Tap Connect.

3. Sign in with your amazon account.

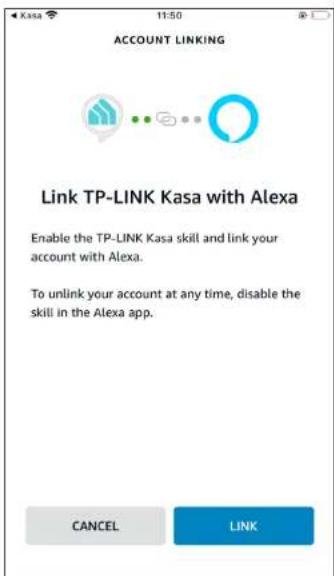

1. After sign-in, tap LINK.

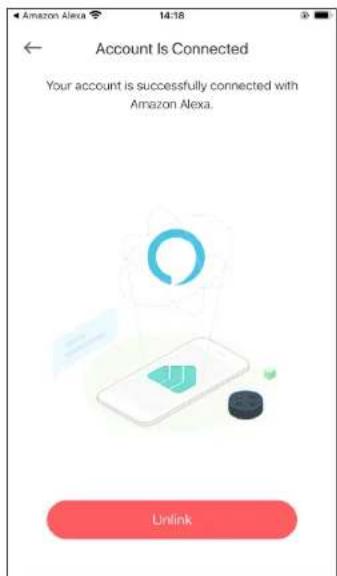

2. Your TP-Link ID has been successfully linked with your amazon account. You can use Alexa voice commands to control your Smart Dimmer Switch.

2. Set up Google Assistant

1. Tap Google Assistant.

2. Follow instructions to connect your device to your Google Home.

Or find the FAQ at https://www.tp-link.com/en/support/faq/1534/.

Authentication

FCC compliance information statement

Product Name: Kasa Smart Wi-Fi Dimmer Switch, Motion Activated

Model Number: KS220M / ES20M

Responsible party:

TP-Link USA Corporation

Address: 10 Mauchly, Irvine, CA 92618

Website: http://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2021.11.05

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

NCC & BSMI Notice

注意!

設備名稱: 型號(型式):Equipment name Type designation (Type)Kasa Smart Wi-Fi Dimmer Switch, Motion Activated KS220M / ES20M
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價鉻Hexavalent chromium(Cr+6)	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenyl ethers(PBDE)
PCB ○○○○○○
外殼 ○○○○○○
電源供應板-○○○○○○
其他及其配件-○○○○○○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• Operating temperature: 0^ 40^ (32 °F \~104 °F)
• Storage Temperature: -40^ 60^ (-40 °F \~140 °F)

Follow all national and local safety regulations and practices. If you are uncertain or uncomfortable when performing the installation, consult a qualified electrician.

• Install only in a suitable UL or equivalent Listed outlet box.(suitable dimensions: W > 2.83in./72mm, H > 1.81in./46mm, D > 3.15in./80mm).
• CAUTION – Risk of electric Shock – More than one disconnect switch may be required to de-energize the equipment before servicing. A circuit breaker which disconnects the Live and Neutral conductor simultaneously is suitable. Ensure power is off at the circuit breaker before removing or installing any wall switch.
• Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces.
• The Smart Switch must be installed and used in accordance with the National Electric Code (NEC) or your local electrical code. If you are unfamiliar with these codes and requirements, or are uncomfortable performing the installation, consult a qualified electrician.

CAUTION

Electronic switch integrated in this product is only intended for functional purposes.

De-energized the product at the circuit breaker before servicing.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label

SymbolExplanation
	Indoor use only
	AC voltage
	DC voltage
	RECYCLINGThis product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
