USER MANUAL Maestro Edge (2017) HERO

Thank you for selecting a Hero MotoCorp MAESTRO EDGE vehicle. We wish you many miles of continued riding pleasure in the years ahead.

We, at Hero MotoCorp, are committed to demonstrate excellence in our environment performance on a continual basis, as an intrinsic element of our corporate philosophy. To achieve this we commit ourselves to continue product innovations to improve environment compatibility, comply with all applicable legislation including environment legislation and strengthen the green supply chain.

Your vehicle is conforming to latest (Bharat stage-IV norms) regulation for emission, safety & noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are environment friendly in nature.

This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when the engine gets ON.

This booklet is your guide to the basic operation and maintenance of your new Hero MotoCorp MAESTRO EDGE vehicle. Please take time to read it carefully. As with any fine machine, proper care and maintenance is essential for trouble-free operation and optimum performance.

Your Authorised Hero MotoCorp dealer will be glad to provide further information or assistance and is equipped to handle your future service needs.

Let us make this world a safer, healthier and more environment friendly place.

NOTE

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS, SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED. Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero MotoCorp Ltd ‘MAESTRO EDGE’ COMPLIES WITH THE LATEST EMISSION NORMS.

CONTENTS

VEHICLE IDENTIFICATION

VEHICLE SPECIFICATION

VEHICLE SAFETY 4

• Important safety information 4
- Protective apparel
- Load limits and guidelines 7
• Accessories and modifications

TIPS FOR HEALTHY ENVIRONMENT 9

VEHICLE VIEWS 10

PART FUNCTIONS 13

• Instruments and indicators
- LCD panel

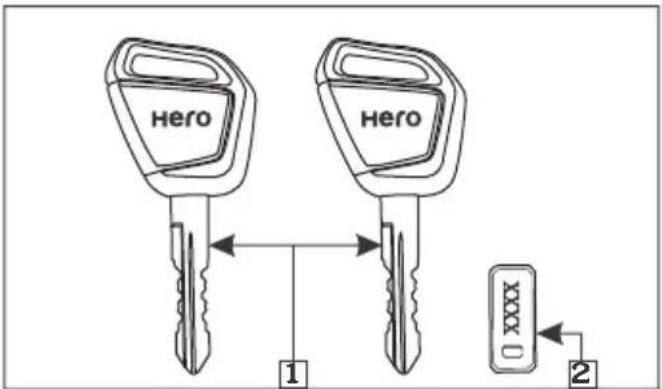

- Keys 15
• MAJOR COMPONENTS 15
• Brakes (integrated braking)
- Rear brake 17
- Fuel
• Tyres (Tubeless) 19

ESSENTIAL INDIVIDUAL COMPONENTS

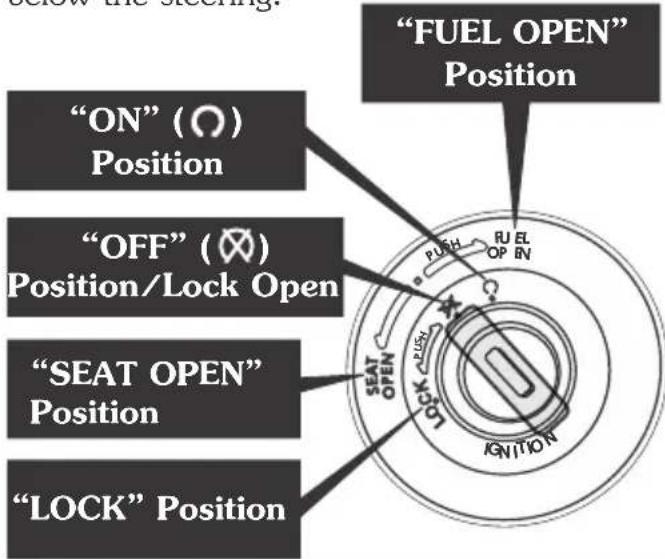

- Ignition switch

HANDLEBAR SWITCHES CONTROL 24

FEATURES

• Steering lock
  • Fuel tank lid lock 25
• Seat lock/Helmet holder
  • Center compartment 26
  • Center compartment/First aid kit/Tool kit holder
• Boot lamp/switch/USB charger
• Luggage hooks
  • Front inner box (Optional)
  • Side stand/indicator/switch (Optional)
• Pillion footrest

BODY PARTS REMOVAL

• Center compartment 30

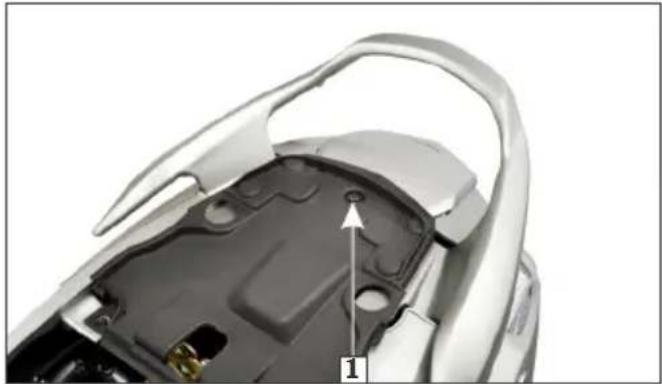

- Body cover
- Front center cover

1 • Front cover 34

2 · Rear view mirror 35

• Headlamp case/Headlamp focus adjustment 36 PRE-RIDE INSPECTION/ANTI-THEFT TIPS 37

5 STARTING THE ENGINE 38

RUNNING IN/RIDING 40

8 PARKING/STEERING LOCK 45

TOOL KIT/FIRST AID KIT 46

CLEANING OF VEHICLE 46

WASHING OF VEHICLE 46

13 MAINTENANCE 48

14 SAFETY PRECAUTIONS 49

MAINTENANCE SCHEDULE 50

AIR CLEANER ELEMENT 53

23 FINAL DRIVE OIL REPLACEMENT 58

23 SPARK PLUG 58

24 FUSE REPLACEMENT 62

SIDE STAND/SUSPENSION 63

25 BULB REPLACEMENT 64

CATALYTIC CONVERTER 66

26 AIR SUCTION VALVE (ASV) 66

27 POLISHING OF VEHICLE 66

28 REMOVING ROAD SALT 67

28 STORAGE GUIDE 67

29 BASIC TROUBLESHOOTING 69

30 ROAD SIGNS 71

30 WARRANTY

HERO GENUINE PARTS

31 ZONAL/REGIONAL/AREA OFFICES

33

Pg. No.Pg. No.

VEHICLE IDENTIFICATION

Vehicle Identification Number (VIN)

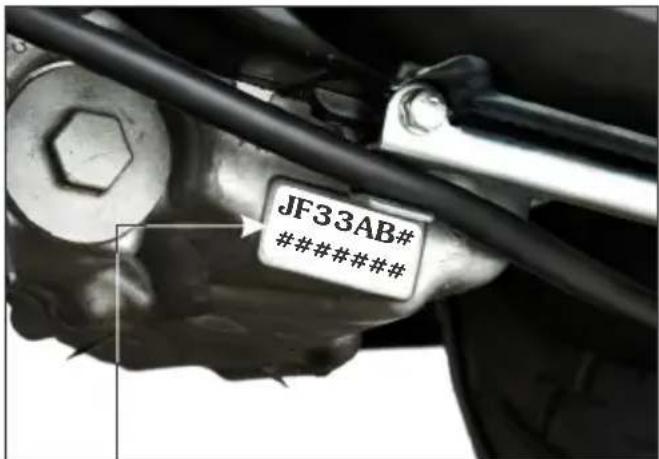

Engine No.

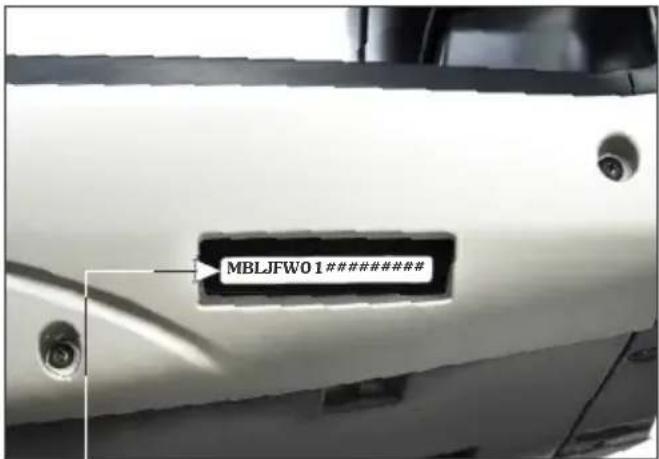

Location: Stamped on the lower right side of Location: Stamped on the lower side of the frame, visible from the window provided the left crankcase. on right floor side cover.

VIN: MBLJFW01######

MBL JFW01 # #		#			# ######
Manufacturer code	Vehicle Description	Check Digit	Model Year	Plant Code	Month of Manufacturing	Production Serial Number

Engine No.: JF33AB######

JF33AB #	# # ######
Engine Description	Year of Manufacturing	Assembly Plant	Month of Manufacturing	Serial Number

Model: Maestro EDGE

Variant	VIN	Engine
Cast wheel/Integrated brakes	JFW01 JF33AB

VIN and Engine number may be required:

1. During registration of the vehicle.
2. For dealing with legal & insurance departments.

VEHICLE SPECIFICATION

		SPECIFICATIONSITEM
Dimensions
Overall length		1841 mm
Overall width		695 mm
Overall height		1190 mm
Wheelbase		1261 mm
Saddle height		775 mm
Ground clearance (Under cover)		155 mm
Weight
Kerb weight		110 Kg
Capacities
Engine oil		0.80 litre at disassembly and 0.70 litre at draining
Transmission oil		0.12 litre at disassembly
		0.10 litre at draining
Fuel tank		5.5 litres
Front fork oil disassembly		97 ml
Engine
Maximum power		6 kW (8 BHP) @ 7500 r/min
Maximum torque		8.70 N-m @ 5500 r/min
Bore and stroke		50.0x56.5 mm
Compression ratio		9.5:1
Displacement		110.9 cc
Spark plug		Champion-PRZ 9 HC (Federal Mogul)

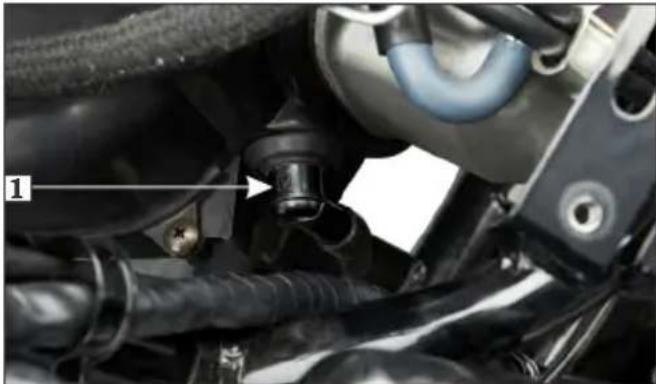

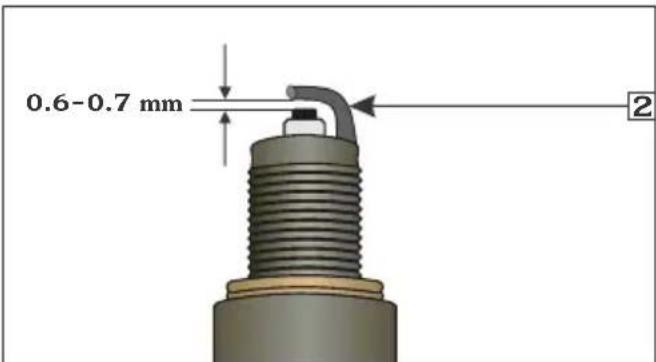

Spark plug gap		0.6-0.7 mm
Valve clearance	Intake (cold)	0.14±0.02 mm
	Exhaust (cold)	0.14±0.02 mm
Idle speed		1700±200 r/min
Chassis and suspension
Chassis type		High rigidity under bone
Front suspension		Telescopic, hydraulic shock absorber
Rear suspension		Unit swing with spring loaded hydraulic damper
Caster angle		28°
Tyre size	Front	90/90x12-54 J (Tubeless tyre)
	Rear	90/100x10-53 J (Tubeless tyre)

VEHICLE SPECIFICATION

	SPECIFICATIONSITEM
Front/Rear brake drum type	Internal expanding shoe type (Dia. 130 mm) (Integrated braking)
Transmission
Primary reduction	Variomatic drive, (2.53-0.8)
Final reduction	9.423 (50/20X49/13)
Clutch system	Dry, automatic centrifugal clutch
Electricals
Battery	12V-4Ah ETZ-5 *MF battery
Alternator	123 W
Starting system	Kick/Electric start
Headlamp (High/Low)	12V-35/35W Halogen bulb-** MFR
Tail/Stop lamp	12V-0.4W/1.6W
Turn signal lamp	12V-10Wx4 nos.(**MFR-Clear lens-Amber bulb)
Position lamp	12V-5Wx2 nos. **MFR
Meter illumination	LED
Turn signal indicator	LED (2 nos.)
Hi beam indicator	LED
Licence plate	12V-5W
Side stand indicator	LED
Fuse	15A,10A x2 nos.

* MF stands for Maintenance Free
** MFR stands for Multi-Focal Reflector

VEHICLE SAFETY IMPORTANT SAFETY INFORMATION

Your vehicle can provide many years of service and pleasure if you take responsibility for your own safety and understand the challenges you can meet on the road.

There is much that you can do to prote yourself when you ride. You will find many helpful recommendations through out this manual. Following are a few that we consider most important.

Always wear a helmet

It is a proven fact, helmet significantly reduces the number and severity of head injuries. So always wear a helmet and make sure you pillion rider does the same. We also recommend that you wear eye protection, sturdy boots, gloves and other protective gear (page 6).

Before riding your vehicle

Make sure that you are physically fit, mentally focused and free of alcohol and drugs. Check that you and your pillion are both wearing an approved vehicle helmet and protective apparel. Instruct your pillion on holding onto the grab rail or your waist, leaning with you in turns, and keeping their feet on the foot pegs, even when the vehicle is stopped.

Take time to learn & practice your vehicle

Even if you have ridden other vehicles, practice riding in a safe area to become familiar with how this vehicle works and handles, and to become accustomed to the vehicle's size and weight.

Ride defensively

Always pay due attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or perform an evasive maneuver.

Make yourself easily visible

Some drivers do not see vehicles because they are not looking for them. To make yourself more visible, wear bright reflective clothing, position yourself so that others can see you, signal before turning or changing lanes, and use horn which will help others to notice you.

Ride within your limits

Pushing the limits is another major cause of vehicle accidents. Never ride beyond your personal abilities or faster than conditions demand. Remember that fatigue and negligence can significantly reduce your ability to make good judgements and ride safely.

Do not drink and ride

Riding under the influence of alcohol or drugs is dangerous. Alcohol can reduce your ability to respond to changing conditions and reduce 'the reaction time. Do not drink and ride.

Keep your vehicle in safe condition

For safe riding, its important to inspect your vehicle before every ride and perform all recommended maintenance. Never exceed load limits, and use accessories that have been recommended by Hero MotoCorp for this vehicle. See (page 7) for more details.

If you are involved in a crash

Personal safety is your first priority. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. Call for emergency assistance if needed. Also follow applicable laws and regulations if another person or vehicle is involved in the crash.

If you decide to continue riding, first evaluate the condition of your vehicle. If the engine is still running, turn it off. Inspect for fluid leaks, check the tightness of critical nuts and bolts, and check the handlebar, brake levers, brakes, and wheels. Ride slowly and cautiously. Your vehicle may have suffered damage that is not immediately apparent. Have your vehicle thoroughly checked at a qualified service facility as soon as possible.

PROTECTIVE APPAREL

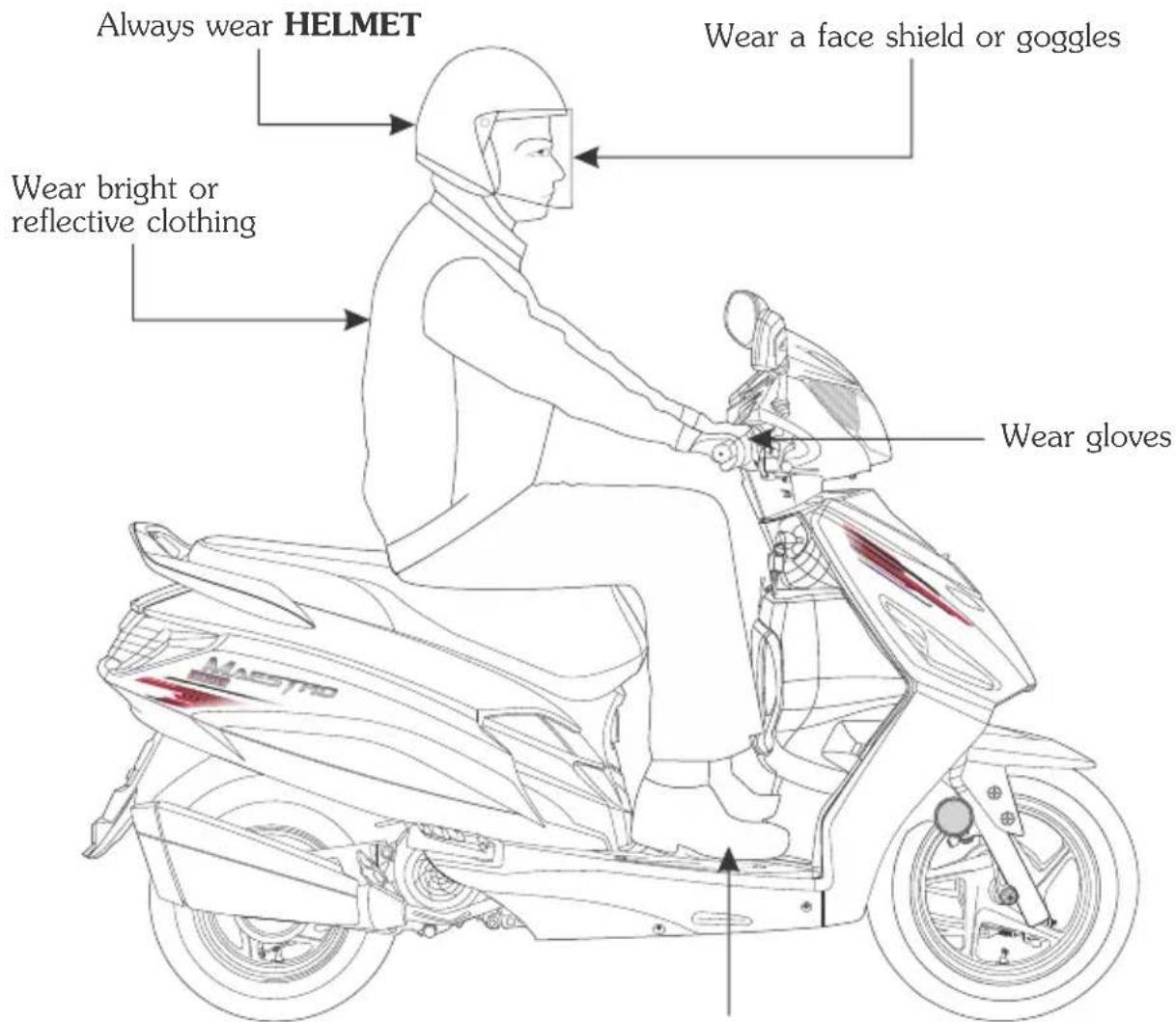

For your safety, we strongly recommend that I you always wear an approved helmet (ISla marked), eye protection, boots, gloves, long pants and a long sleeve shirt or jacket whenever you ride. Take care of loose/ hanging clothes while solo/pillion riding. Although complete protection is not possible, wearing proper gear can reduce the chance of injury when you ride.

Following are suggestions to help you choose proper riding gear.

WARNING

• Not wearing a helmet increases the chance of serious injury or death in a crash.
• Be sure you and your pillion always wear a helmet, eye protection and other protective apparel when you ride.

Helmets and eye protection

Your helmet is your most important piece of riding gear because it offers the best protection against head injuries. A helmet should fit your head comfortably and securely. A bright coloured helmet can make you more noticeable in traffic, as can reflective strips.

An open-face helmet offers some protection, but a full-face helmet offers more. Always wear face shield or goggles to protect your eyes and help your vision.

Additional riding gear

In addition to a helmet and eye protection, we I also recommend:

• Sturdy boots with non-slip soles to help protect your feet and ankles.
  • Leather gloves to keep your hands warm and help prevent blisters, cuts, burns, and bruises.

A two wheeler riding suit or jacket for comfort as well as protection. Bright coloured reflective clothing can help make you more noticeable in traffic. Be sure to avoid loose clothes that could get caught on any part of your vehicle.

PROTECTIVE APPAREL

Shoes should be close fitting, low heels and offer ankle protection

LOAD LIMITS AND GUIDELINES

Your vehicle has been designed to carry you, one pillion and limited amount of cargo. Whe you add cargo or carry a passenger, you may feel some difference during acceleration and braking. But so long as you keep your vehicle well maintained, with good tyres and brakes, you can safely carry loads within the limits and guidelines.

However exceeding the weight limit or carrying an unbalanced load can seriously affect your vehicle's handling, braking and stability. Non Hero MotoCorp accessories, modifications, and poor maintenance can reduce your safety margin.

The following pages give more specific information on loading, accessories and modifications.

Loading

How much weight you put on your vehicle, and how you load it, are important to your safety. Anytime you ride with a pillion or carg you should be aware of the following information.

! WARNING

• Overloading or improper loading can cause crash and you can be seriously injured.
- Follow all load limits and other loading guidelines in this manual.

Load limits

Following are the load limits for your vehicle:

Maximum weight capacity: 130 Kg

Includes the weight of the rider, pillion, cargo and all accessories.

Putting too much weight in individual storage compartments can also affect stability and handling. So be sure to stay within the limits given below:

Maximum weight:

Center compartment : 10.0 Kg

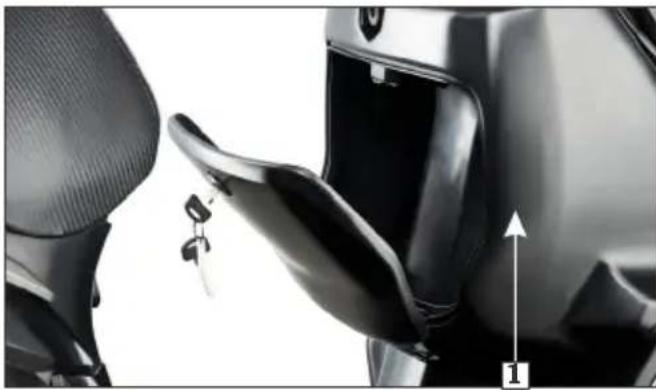

Front inner box : 1.5 Kg

Rear luggage hook : 1.5 Kg

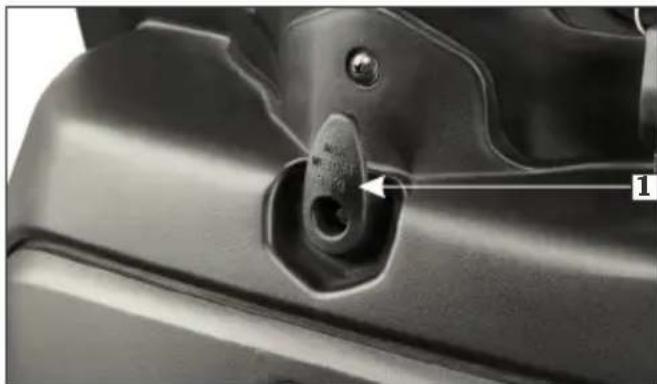

Front luggage hook : 3.0 Kg

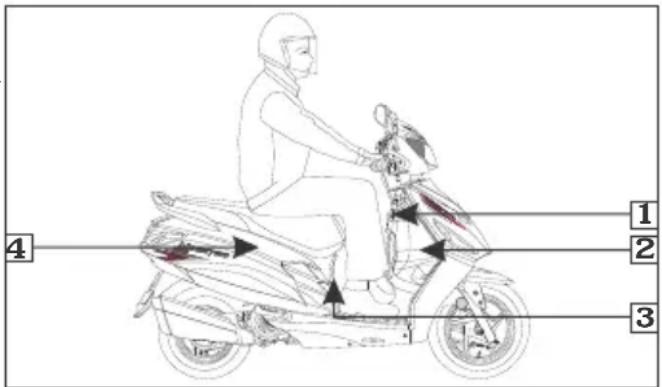

(1) Front luggage hook (2) Front inner box (3) Rear luggage hook (4) Center compartment

Loading guidelines

Your vehicle is primarily intended for transporting you and a pillion. If you wish to carry more cargo, check with your Authorised Hero MotoCorp workshop for advice and be sure to read the information regarding accessories on (page 8).

Improperly loading your vehicle can affect its stability and handling. Even if your vehicle is properly loaded, you should ride at reduced speeds whenever carrying cargo.

Follow these guidelines whenever you carry a pillion or cargo:

• Check that both tyres are properly inflated.
• To prevent loose items from creating a hazard, make sure the center compartment is closed and that any other cargo is securely tied down before you ride away.
• Place cargo weight as close to the center of the vehicle as possible.
  • Balance cargo weight evenly on both sides.

ACCESSORIES AND MODIFICATIONS

Modifying your vehicle or using non Hero MotoCorp accessories can make your vehicle unsafe. Before you consider making any modifications or adding any accessory, be sure to read the following information.

WARNING

• Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.
• Follow all instructions in this owner's manual regarding accessories and modifications.

Accessories

We strongly recommend that you use only mission standards.

genuine Hero MotoCorp accessories that have been specifically designed and tested for your vehicle. Hero MotoCorp cannot test all other accessories, you must be personally responsible for proper selection, installation and use of non Hero MotoCorp accessories.

Check with your dealer for assistance and always follow these guidelines:

Make sure the accessories does not obstruct any lamps, reduce ground clearance and banking angle, limit suspension travel or steering travel, alter your riding position or interfere with operating any controls.

Be sure electrical equipment does not exceed the vehicle's electrical system capacity (page 3). A blown fuse can cause loss of lights.

Do not pull a trailer or sidecar with your vehicle. This vehicle is not designed for these attachments, and their use can seriously impair your vehicle handling.

Modifications

We strongly advise you not to remove any original equipment or modify your vehicle in any way that would change its design or operation. Such changes could seriously impair your vehicle's handling, stability and braking, making it unsafe to ride.

Removing or modifying your lamps, muffler, emission control system or other equipment can also make your vehicle not meeting the

TIPS FOR HEALTHY ENVIRONMENT

The following tips shall ensure a healthy vehicle, healthy environment, and a healthy you.

• Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be tuned regularly, which will also help reduce pollution and improve vehicle performance.
• Regular servicing: Get your vehicle serviced at an Authorised service station, as per the service schedule, for an optimum performance and keep the emission level under check.
• Genuine spares: Always insist on Hero MotoCorp genuine parts as spurious or incompatible spares and accessories can upset or deteriorate your vehicle's running condition.
• Genuine engine oil: Hero 4T Plus SAE 10W 30 SL Grade (JASO MB) engine oil recommended by Hero MotoCorp and make sure you change it every 6000 km (with top up every 3000 kilometres) to keep the engine fit and environment healthy.
• Noise pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or defective mufflers, excessive noise will cause headaches and discomfort.
• Emission pollution: Get emission of your vehicle checked by Authorised agencies at least once every 3 months or as notified by the government from time to time.
• Fuel saving & reduce pollution: Switch "OFF" the engine while waiting at traffic signal points to save fuel and reduce pollution, if the waiting period is long.

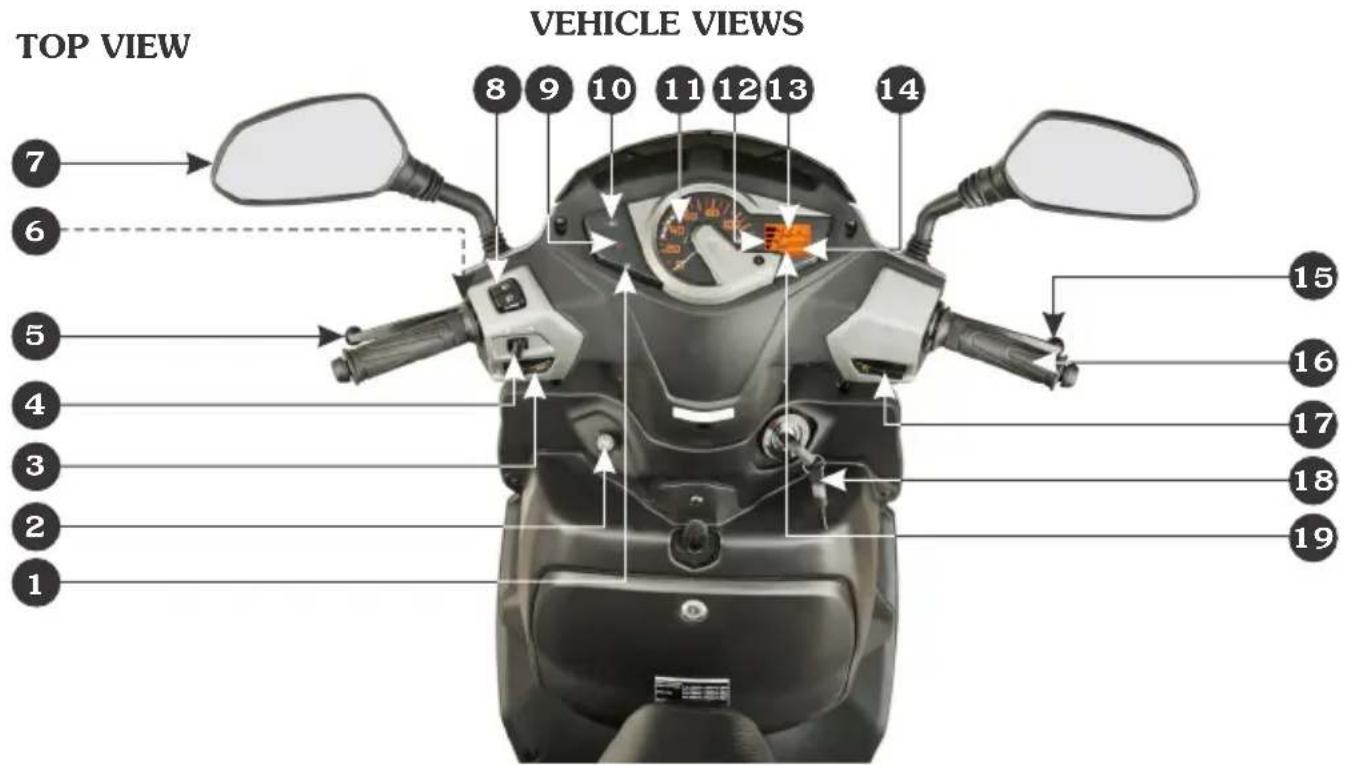

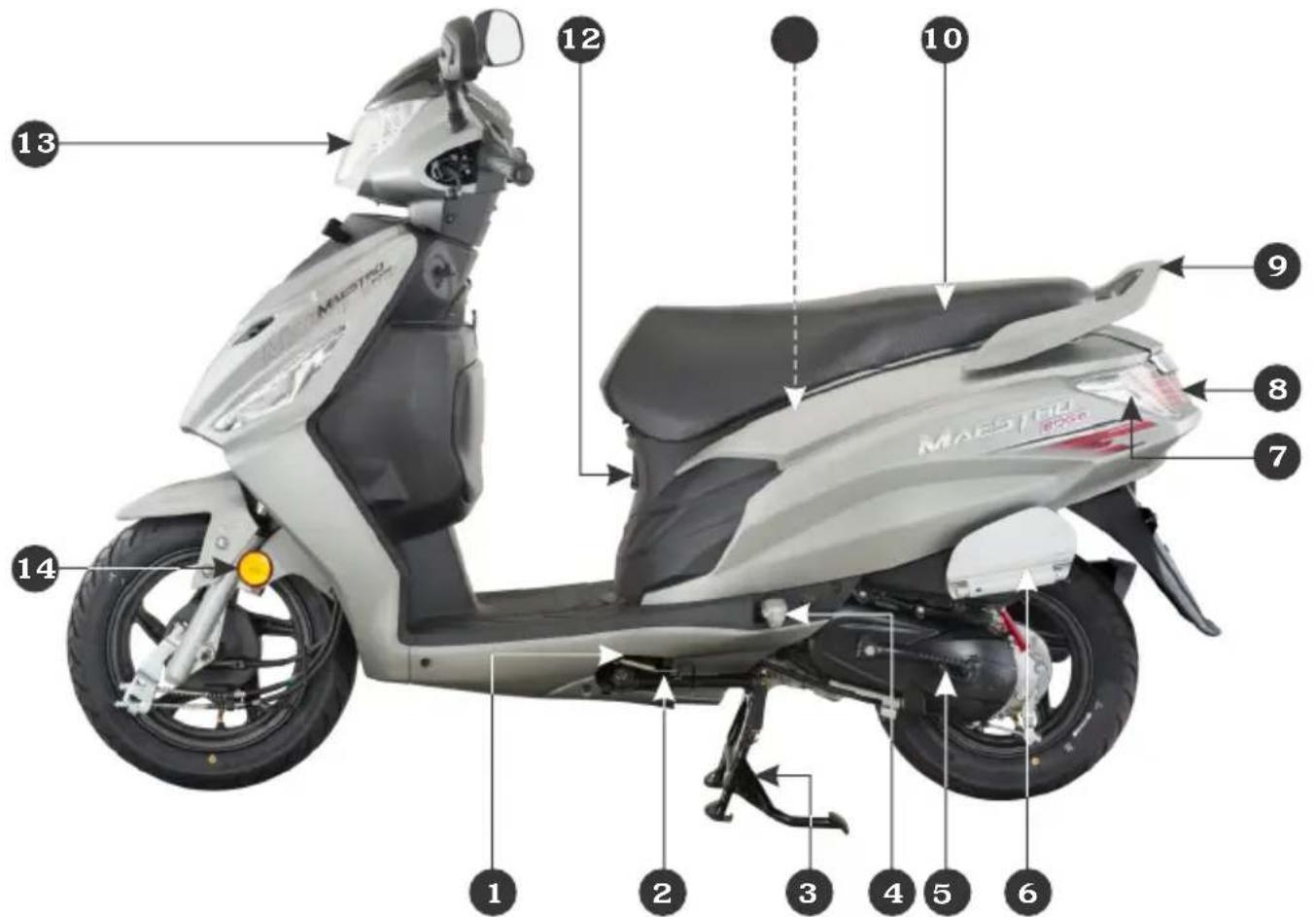

(1) Turn signal indicator
(2) Choke knob
(3) Horn switch
(4) Turn signal switch
(5) Integrated brake lever
(6) Parking lever
(7) Rear view mirror
(8) Dimmer switch/Passing switch
(9) Side stand indicator
(10) Hi beam indicator

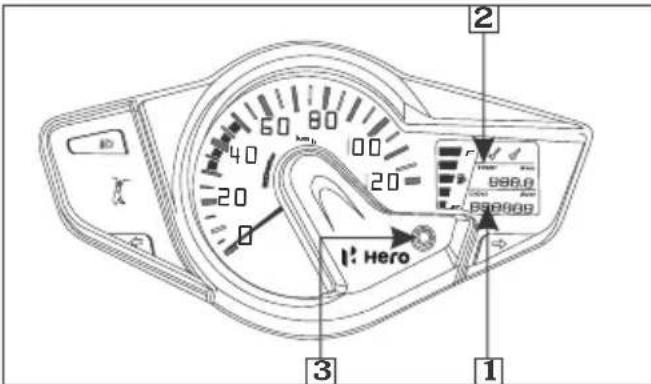

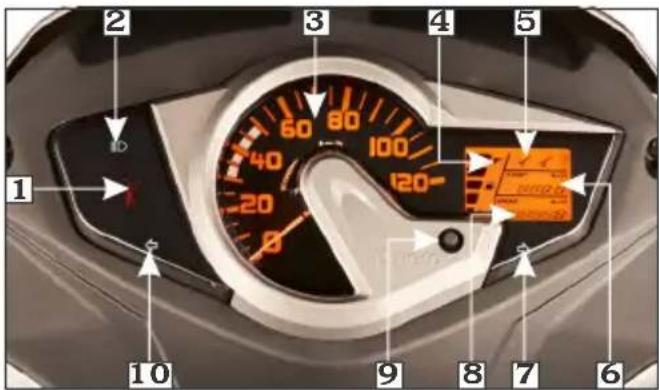

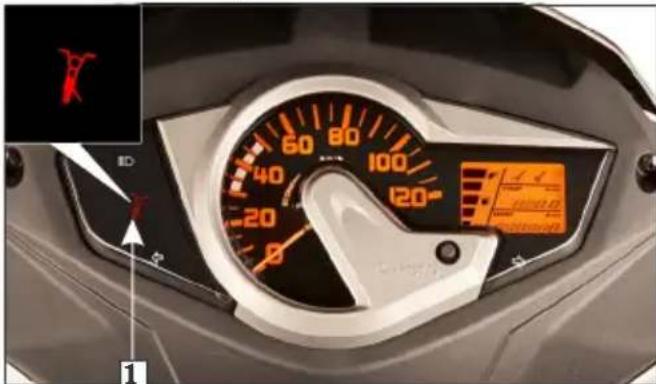

(11) Speedometer
(12) Fuel gauge
(13) Service reminder
(14) Tripmeter
(15) Front brake lever
(16) Throttle grip
(17) Starter switch
(18) Ignition switch with steering lock
(19) Odometer

*Accessories and features shown may not be part of standard fitment.

LEFT SIDE VIEW

(1) Side stand switch (optional) Women pillion step (optional) Seat
(2) Side stand (optional) (7) Rear turn signal lamp (11) Boot lamp (inside)
(3) Main stand (8) Tail/stop lamp (12) Rear luggage hook
(4) Pillion step (9) Rear grip (13) Headlamp
(5) Kick starter pedal (10) Seat (14) Front reflex reflector

*Accessories and features shown may not be part of standard fitment.

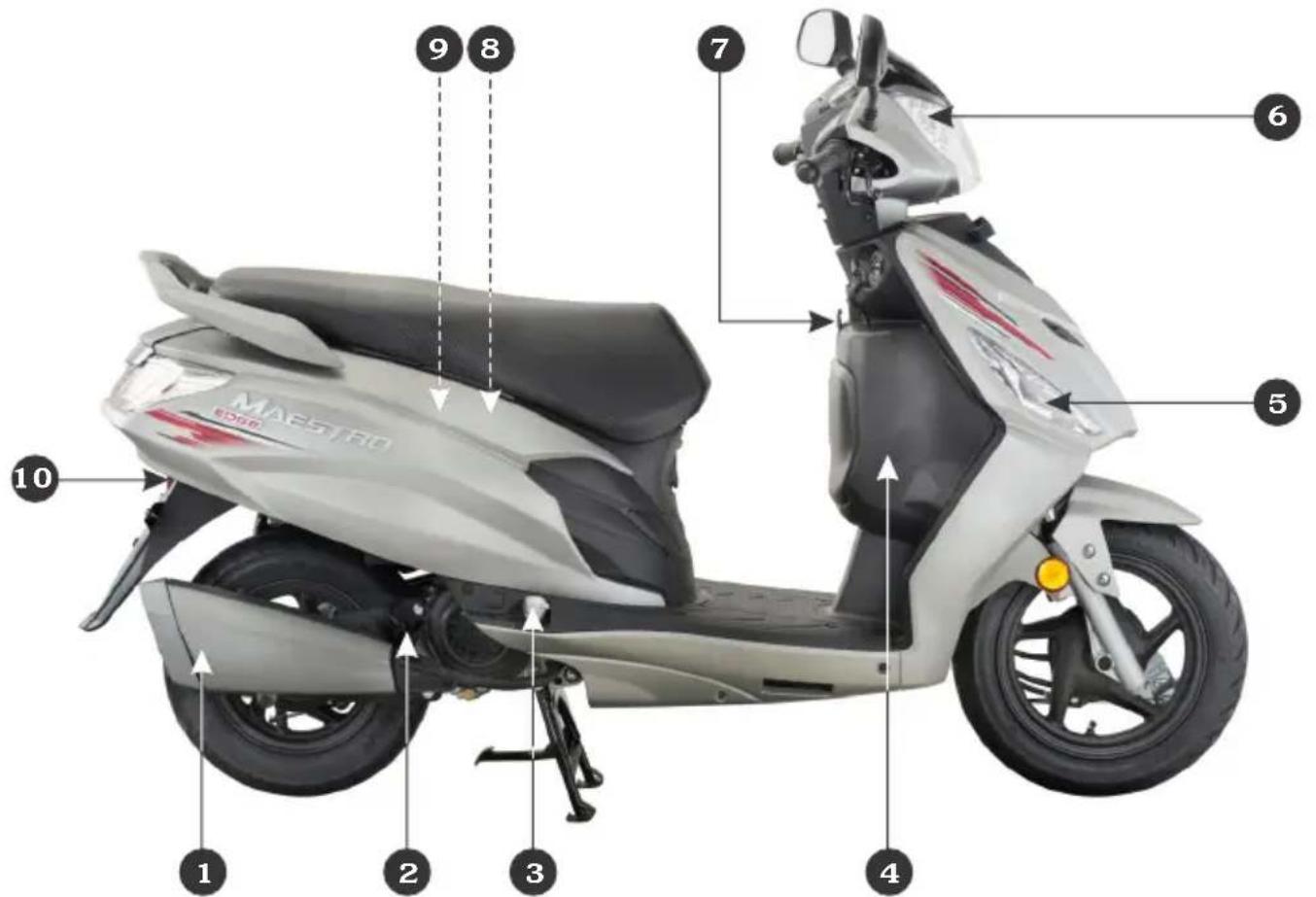

RIGHT SIDE VIEW

(1) Exhaust muffler

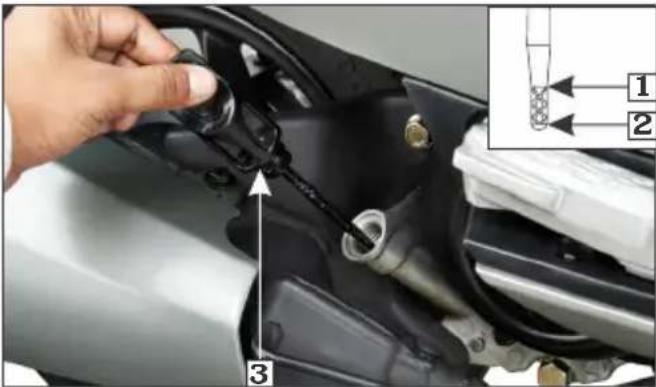

(2) Oil level dipstick

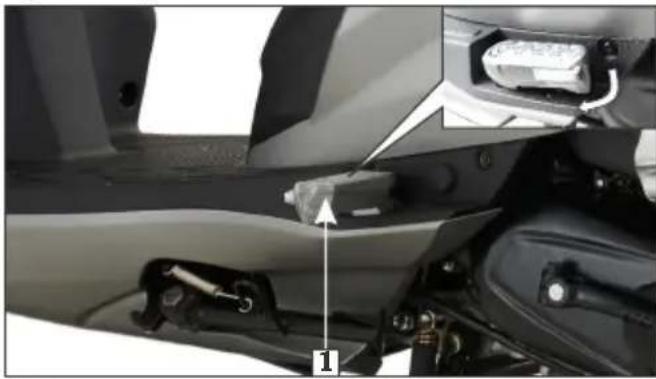

(3) Pillion step
(4) Front inner box (optional)

(5) Front turn signal lamp

(6) Position lamp

(7) Front luggage hook

(8) USB charger (inside)

(9) Center compartment (inside)

(10) Rear reflex reflector

*Accessories and features shown may not be part of standard fitment.

PART FUNCTIONS

INSTRUMENTS AND INDICATORS

The indicators are in the speedometer panel above the headlamp. The functions are as below.

Sl. No.	Description	Function

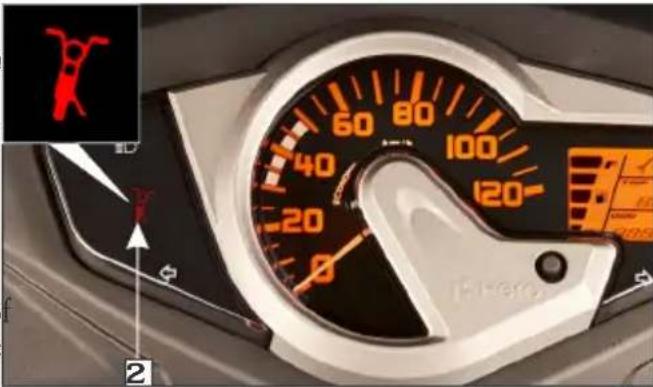

1 Side	stand indicator Light glows when the vehicle is parked on the side stand.
2 High	beam indicator Light glows when headlamp is in Hi beam.
3 Speedometer	Indicates riding speed.
4 Fuel	gauge Indicates approximate fuel quantity (page 14).
5 Service reminder	Displays when a service is due (page 14).
6 Tripmeter	Shows the distance travelled since the last reset (page 14).
7 Turn signal indicator (R)	Flashes when right turn signal switch is operated.
8 Odometer	Shows accumulated mileage (page 14).
9 Reset button	Button when long pressed resets tripmeter to zero.
10	Turn signal indicator (L)	Flashes when left turn signal switch is operated.

LCD PANEL

(a) Odometer/Tripmeter

The odometer (1) shows accumulated distance traveled.

The tripmeter (2) shows distance traveled since trip meter was reset last time.

Tripmeter displays upto 999.9 km If the tripmeter exceeds "999.9" km it will return to "0.0" km automatically.

When tripmeter is selected long press the reset button (3) will reset tripmeter to zero.

The odometer displays from "0 to 999999"

(1) Odometer
(3) Reset button

(2) Tripmeter

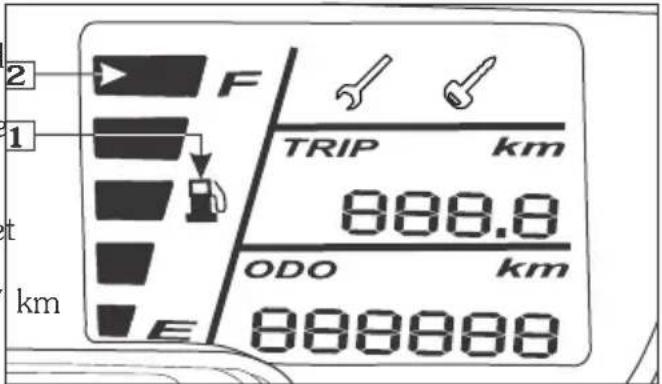

(b) Fuel gauge

The fuel gauge (1) is of a liquid crystal display (LCD) type.

The approximate amount of fuel quantity available in the fuel tank is indicated by the number of vertical bars in the display. Each segment display approx. 1.0 litre of fuel.

If all the vertical bars (2) are displayed it means fuel quantity in the fuel tank is 5.5 litres.

(1) Fuel gauge
(2) Vertical bars

If only one vertical bar is displayed and blinks, this indicates that the fuel quantity is low and the fuel tank should be refilled as soon as possible.

(c) Service reminder

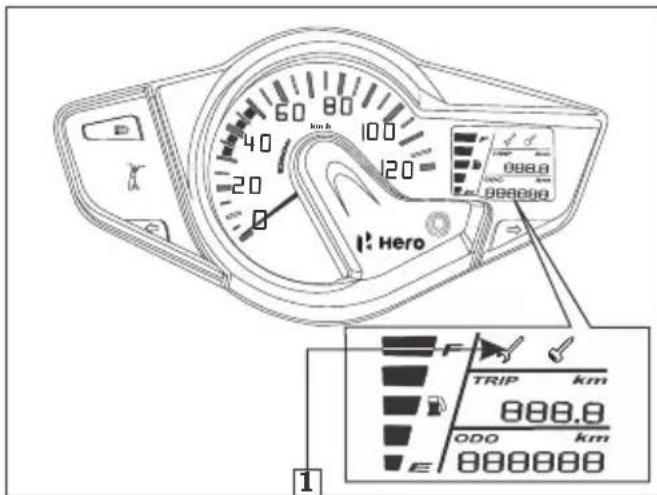

The service reminder (1) is to indicate to an user to bring the vehicle to an Authorised Hero MotoCorp workshop for service.

The service reminder shall start blinking when the vehicle covers kilometers as specified in the maintenance schedule. The service reminder will keep on blinking throughout the kilometer interval for a particular service and will stay “ON” thereafter.

The service reminder can be reset at an Authorised Hero MotoCorp workshop.

(1) Service reminder

TOTAL DISTANCE (Odometer Reading)	Indicator Behaviour
0 km	OFF
500 - 750 km	Blinking
After 750 km	ON
3000 - 3500 km	Blinking
After 3500 km	ON
6000 - 6500 km	Blinking
After 6500 km	ON
•	•
•	•
•	•

NOTE

After getting the vehicle serviced, make sure that the service reminder has been reset.

KEYS

This vehicle has two keys and a key number plate.

(1) Keys
(2) Key number plate

You will need the key number if you ever have to replace a key. Store the plate in a safe place.

MAJOR COMPONENTS

(Information you need to operate this vehicle)

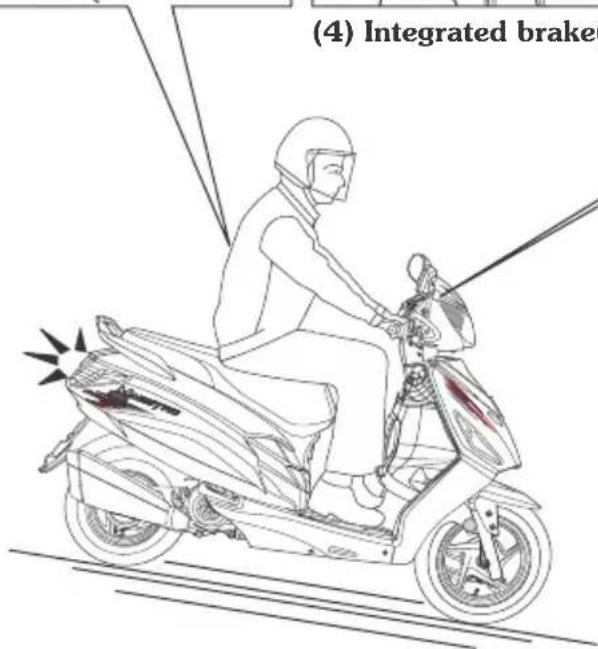

BRAKES (INTEGRATED BRAKING)

Brakes are items of personal safety and should always be maintained with proper adjustments. When one applies the left lever, front & rear brakes activate jointly.

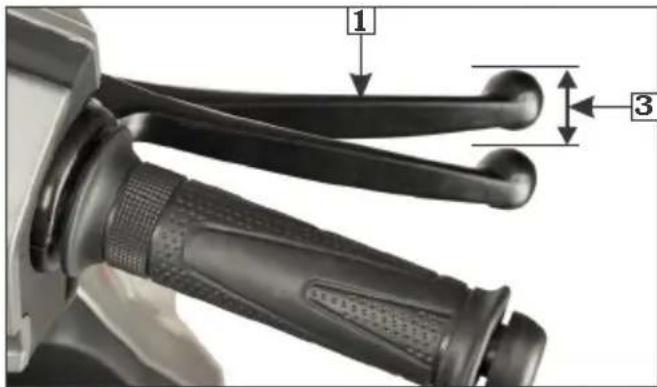

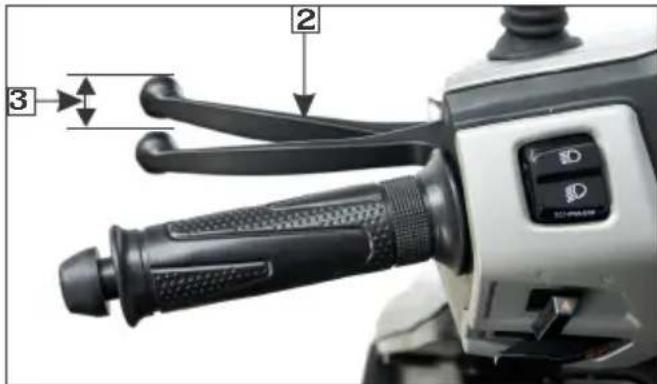

(1) Front brake lever

(2) Integrated brake lever
(3) Free play:10-20 mm

The distance, the front brake lever (1) and integrated brake lever (2) moves before each brake starts to engage is called free play (3). Measured at the tip of brake levers, free play should be maintained at 10-20 mm.

Adjustment

Right hand front brake cable (A) on "1"

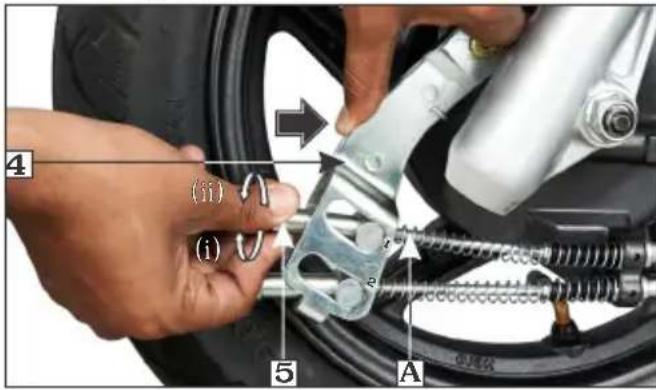

- Push the integrated brake arm (4) by hand in the direction as shown.

- Turn the first adjuster nut (5) till you cannot turn it by hand.

(4) Integrated brake arm (5) First adjuster nut (i) Decrease free play (ii) Increase free play

- Check the free play of right lever.

FREE PLAY: 10-20 mm

- If the free play is more than 20 mm further turn the adjuster nut to obtain desired free play.

Left hand front brake cable (B) on "2" side.

• Push the integrated brake arm (4) by hand in the direction as shown.
• Turn the second adjuster nut (6) until a gap is created between joint (7) and the slot on the first side in integrated brake arm.
  • After ensuring the gap, turn the second adjuster nut counterclockwise by half rotation.

NOTE

side "1" & "2" is marked on integrated brake arm.

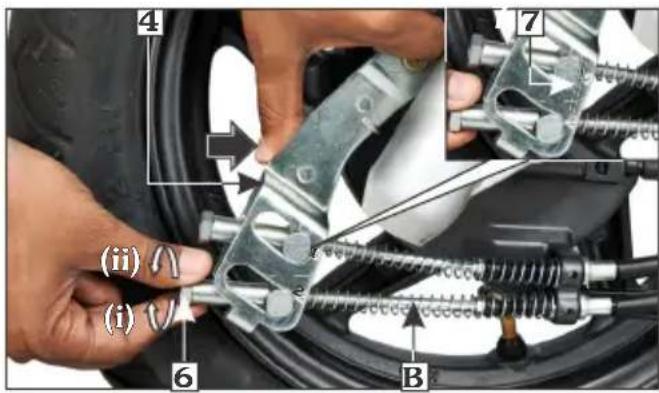

(6) S econd adjuster nut (7) Joint

(i) Decrease free play (ii) Increase free play

REAR BRAKE

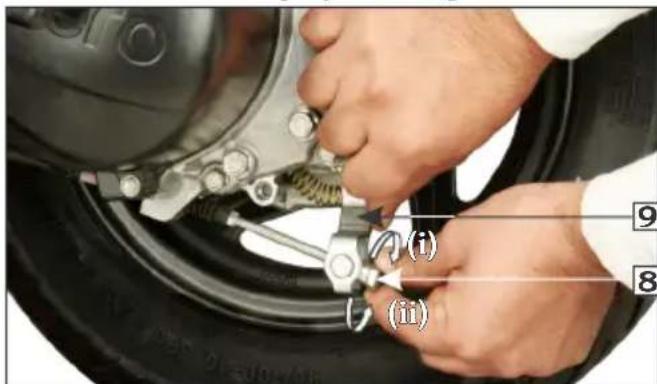

• Make free play adjustment by turning the adjuster nut (8) in the brake arm (9).
• Check the free play of integrated brake lev

(8) Adjuster nut (9) Brake arm (i) Decrease free play (ii) Increase free play

FREE PLAY: 10-20 mm

- If the free play is more than 20 mm furtheThe fuel tank capacity is 5.5 litres. turn the adjuster nut to obtain desired free play.

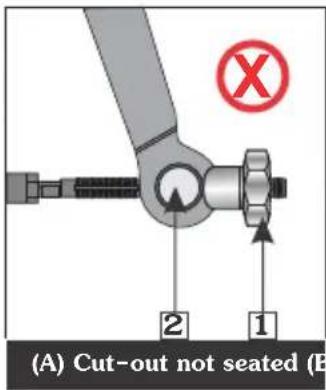

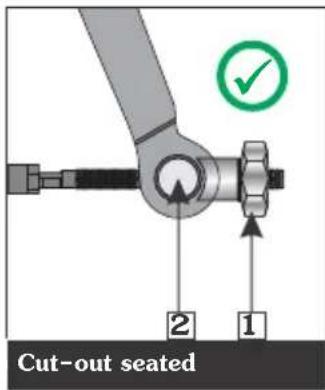

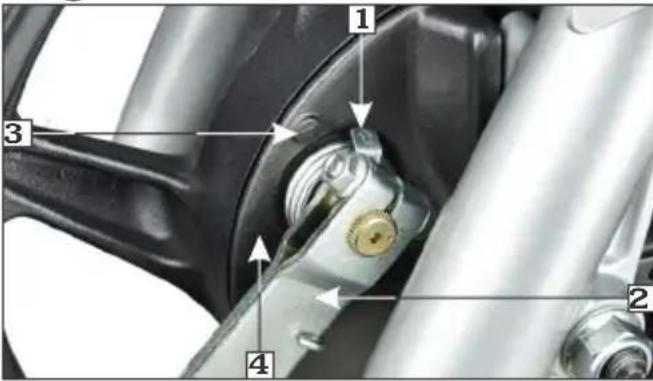

Make sure the cut-out on the adjusting nut (1) is seated on the brake joint pin (2) after making final free play adjustment.

(1) Adjusting nut (2) Brake joint pin

If proper adjustment cannot be obtained by this method, visit your Authorised Hero MotoCorp workshop.

Other checks:

Check brake cable for kinks or signs of wear that could cause sticking or failure.

Make sure the brake arm spring and fasteners are in good condition.

NOTE

Apply the brake several times and check for free wheel rotation after the brake lever released.

is

FUEL

(a) Fuel tank

The fuel tank is located under the seat.

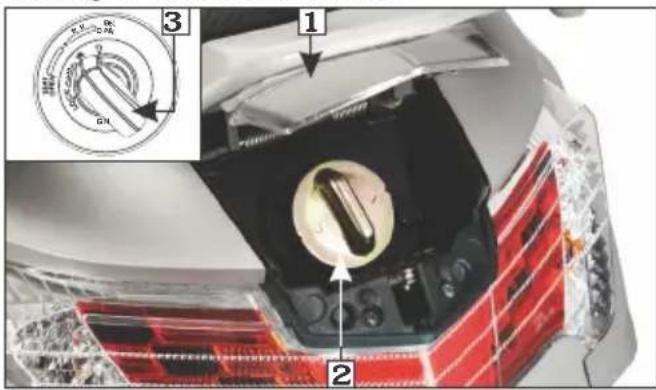

To open the fuel filler cap (2), insert the ignition key (3), push it in and turn the ignition key to "FUEL OPEN" position (page 25). The fuel tank lid (1) will open as shown in the picture. Remove the fuel filler cap by turning it counterclockwise.

(1) Fuel tank lid
(2) Fuel filler cap
(3) Ignition key

Do not overfill the tank. There should be no fuel (4) in the filler neck (5).

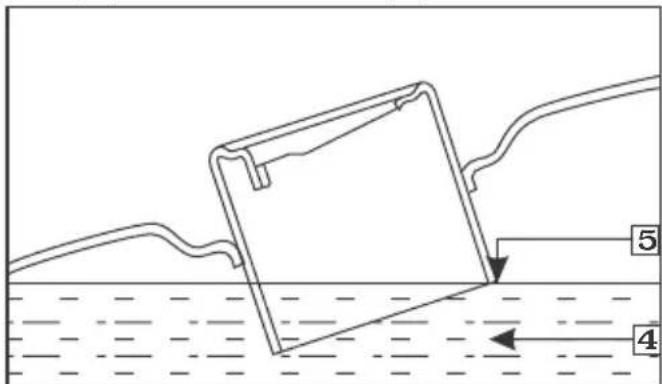

(4) Fuel
(5) Filler neck

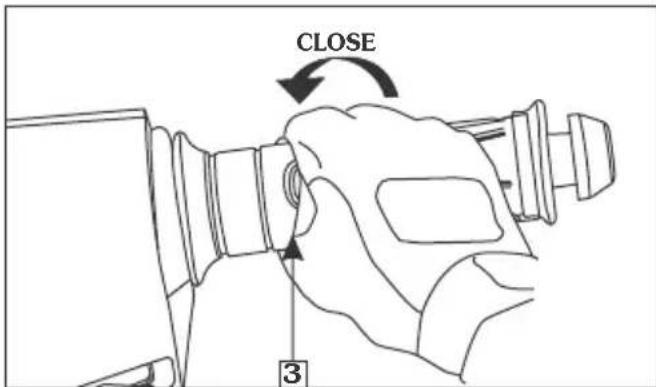

After refueling, be sure to tighten the fuel filler cap firmly by turning it clockwise.

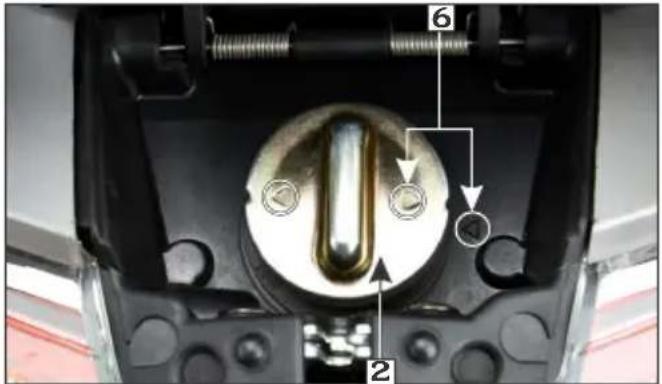

Make sure the arrow marks (6) on the fuel filler cap and the fuel tank are aligned.

(2) Fuel filler cap
(6) Arrow marks

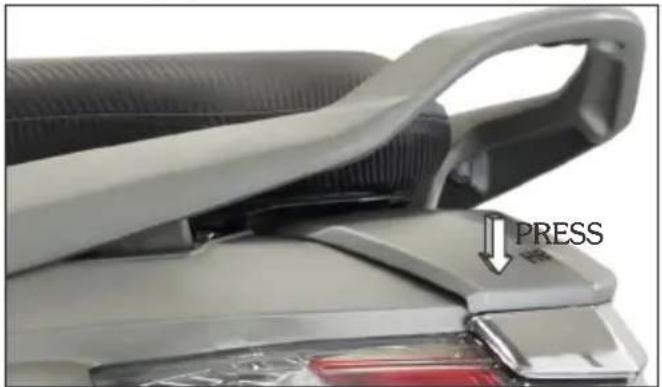

For locking, press the fuel tank lid gently.

NOTE

If "Spark knock" or "pinking" occurs at steady engine speed under normal load, change petrol brand. If the same still persists, consult your Authorised Hero MotoCorp workshop. Failure to do so is considered misuse, and damage caused by misuse is not covered under Hero MotoCorp warranty policy

(b) Petrol containing alcohol

If you decide to use a petrol containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended by Hero MotoCorp.

There are two types of "gasohol", one containing ethanol, and the other containing methanol.

Do not use petrol that contains more than 10% of ethanol.

Do not use petrol containing methanol (methyl or wood alcohol) that does not contain cosolvents and corrosion inhibitors for methanol.

Never use petrol containing more than 5% methanol, even if it has cosolvents and corrosion inhibitors.

• When certain type of petrol containing alcohols are used, problems such as hard starting, poor performance, etc. may occur.
• If you notice any undesirable operating symptoms while using the petrol that contains alcohol, try another station or switch to another brand of petrol.
• When a problem resulting from the use of petrol containing alcohol occurs, contact your Authorised Hero MotoCorp workshop.

CAUTION

When the fuel level indicator displays the last segment in the fuel gauge, the fuel quantity in the fuel tank is low. Please fill petrol once the fuel level indicator reaches the last segment.

WARNING

• Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
• Stop the engine and keep heat, sparks and flame away.
  • Refuel only outdoors.
  • Wipe off spills immediately.

TYRES (TUBELESS)

The tyres fitted on your vehicle are of TUBELESS type.

To safely operate your vehicle, the tyres must be of the proper type and size in good condition with adequate tread and correctly inflated for the load you are carrying. The following pages give more detailed information on how and when to check the air pressure, how to inspect the tyres for damage and what to do when tyres need to be repaired or replaced.

WARNING

• Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
• Follow all instructions in this owner's manual regarding tyres inflation and maintenance.

Air pressure

Keeping tyres properly inflated provides the best combination of handling, tread life and riding comfort. Generally, under-inflated tyres wear unevenly, adversely affect handling and are more likely to fail from being overheated. Over-inflated tyres make your vehicle ride harshly are more prone to damage from road hazards and wear unevenly.

We recommend that you visually check tyres before every ride and use a gauge to measure air pressure at least once a month or any time you think the tyre pressure is low.

Tubeless tyres have some self-sealing ability if they are punctured. However, because leakage is often very slow, you should look closely for punctures whenever a tyre is not fully inflated.

Always check air pressure when your tyres are "cold"-when the vehicle has been parked for at least three hours. If you check air pressure when your tyres are "warm"-when the vehicle

has been ridden for even a few kilometers, the readings will be higher than if the tyres were "cold". This is normal, so do not let air out of the tyres to match the recommended cold air pressures given below. If you do, the tyres will be under-inflated.

The recommended "cold" tyre pressures are:

	Rider only Rider and Pillion
Front	1.50 kgf/cm ^2 (22 psi)	1.50 kgf/cm ^2 (22 psi)
Rear	2.00 kgf/cm ^2 (29 psi)	2.50 kgf/cm ^2 (36 psi)

!! CAUTION

Over inflation/Under inflation will affect the performance.

Close-up of a hand adjusting a pressure gauge attached to a tire, no visible text or symbols

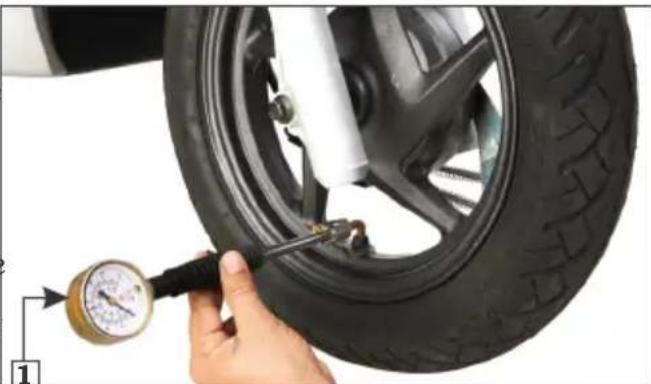

(1) Air pressure gauge

Inspection

Whenever you check the tyre pressure, you should also examine tyre treads & side walls for wear, damage & foreign objects.

Look for:

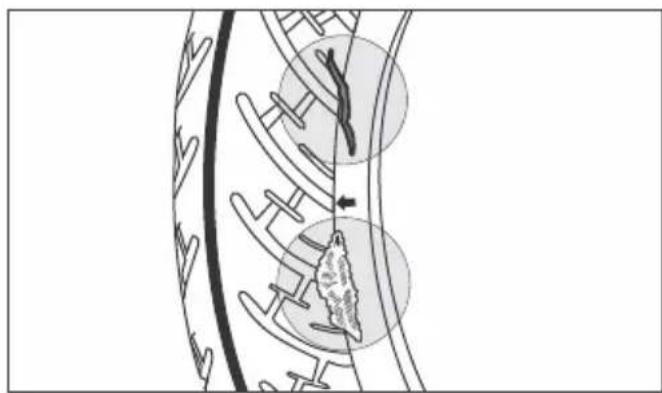

Bumps or bulges in the side of the tyre or the tread. Replace the tyre if you find any bumps or bulges.

Cuts, splits or cracks in the tyre. Replace the tyre if you can see fabric or cord.

Diagram of a biological or mechanical structure with curved elements and a central arrow, no visible text or symbols.

• Excessive tread wear.

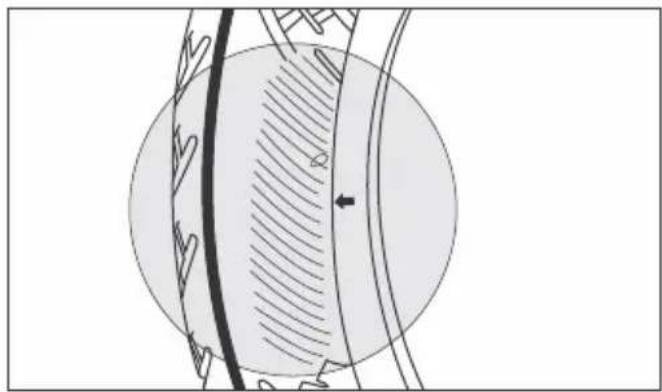

(1) Tyre wear indicator (2) Arrow mark

Diagram of a mechanical or fluidic component with concentric circles and internal hatched patterns, no visible text or symbols.

• Carefully inspect the tyres for any damage, if the vehicle hits a pothole or hard object.

Unidirectional tyres

Whenever the tyre is removed and put back in case of puncture, ensure the arrow mark (2) on the tyre is in the same direction as that of forward rotation of wheel.

Tyre repair

Repairing a puncture or removing a wheel requires special tools and technical expertise.

If a tyre is punctured or damaged, it is advised to visit nearest tyre manufacture, Hero MotoCorp authorised dealer/workshop or the tyre repair shop who has expertise in repairing methods of tubeless tyre.

Tread wear

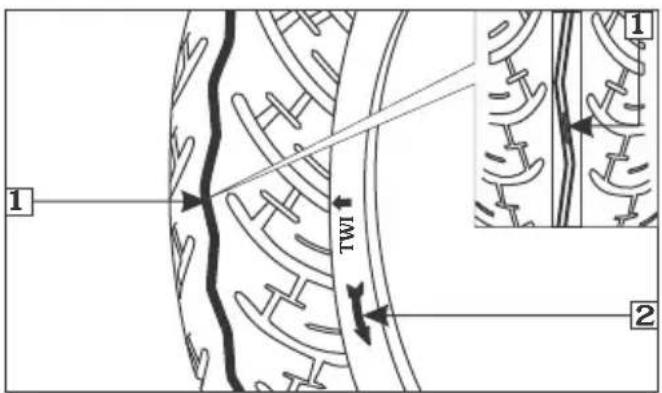

Replace tyres immediately when the wear indicator (1) appears on the tyre. The tread limits are :

Minimum tread depth:

Front: 1.5 mm Rear: 1.5 mm

Check the tread wear indicator for tyre wear.

A tyre that is repaired either temporarily or permanently, will have lower speed and performance limits than a new tyre. After an emergency repair, always have the tyre inspected/replaced at our authorised dealer and replace the tyre if suggested.

You should not exceed 70 km/hour for the 1st 24 hours or 105 km/hour at any time thereafter. In addition, you may not be able to safely carry as much load as with a new tyre. If you decide to have a tyre replace be sure the wheel is balanced before you ride.

Tyre replacement

The tyres that were installed on your vehicle were designed to match the performance capabilities of your vehicle and provide the best combination of handling, braking, durability and comfort.

WARNING

• Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt and killed.
• Operation with excessively worn tyres is hazardous and will adversely affect traction and handling.
• Follow all instruction in this owner's manual regarding tyre inflation and maintenance.
• Under-inflation may result in the tyre slipping on or tyre coming off the rim.
  • Always use the size and type of tyres recommended in this owner's manual.

NOTE

The imported tyre(s) if fitted without ISI mark; are in compliance of BIS standard and Central Motor Vehicle Rules 1989, as declared by the Tyre manufacturer.

The recommended tyre for your vehicle are: Front : 90/90x12-54J (Tubeless tyre) Rear : 90/100x10-53J (Tubeless tyre)

NOTE

For repair and replacement of tyre it is advised to visit your Authorised Hero MotoCorp workshop.

Important safety reminders

• Do not install a tube inside a tubeless tyre on this vehicle. Excessive heat buildup can cause the tube to burst.
• Use only tubeless tyres on this vehicle. The rims are designed for tubeless tyres and during hard acceleration or braking, a tube-type tyre could slip on the rim and cause the tyre to rapidly deflate.

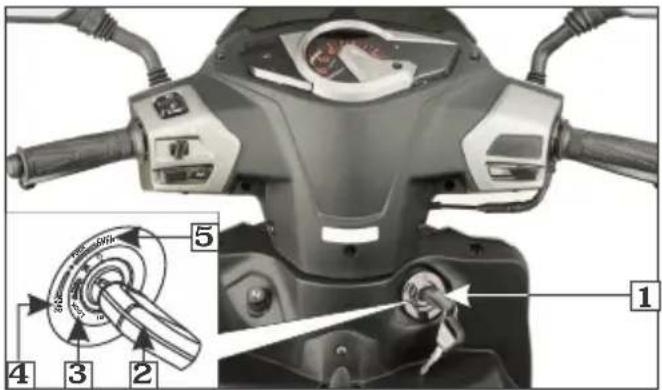

ESSENTIAL INDIVIDUAL COMPONENTS IGNITION SWITCH

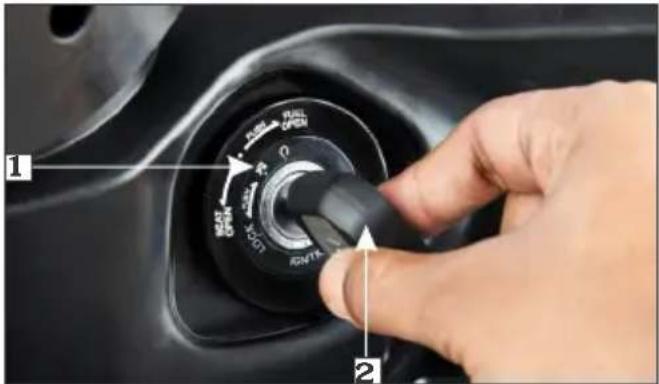

The ignition switch (1) is on the right side below the steering.

(1) Ignition switch
(2) Ignition key

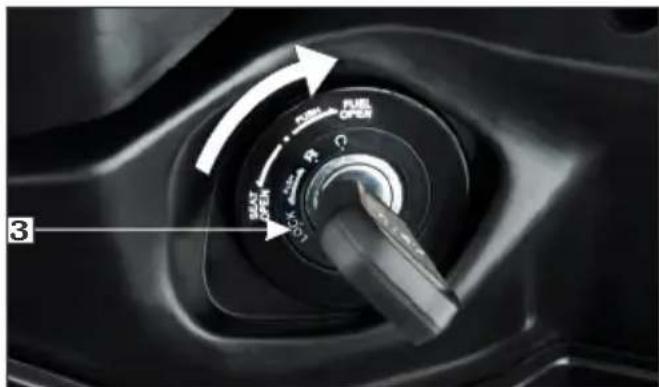

(3) Steering lock position
(4) Seat open
(5) Fuel open

Key Position	Function	Key removal
“ON” (○)	The engine can be started, turn signal lamps, horn, stop lamp, fuel gauge and passing lamp can be operated	Key cannot be removed
“OFF” (✕)	Engine cannot be started and cannot be operated	Key can be removed
“LOCK”	Steering can be locked by pushing the key in and rotating it counterclockwise.	Key can be removed
“SEAT OPEN”	Seat can be opened by rotating the key counterclockwise.	Key can be removed
“FUEL OPEN”	Fuel tank lid can be opened by pushing the key in and rotating it clockwise.	Key can be removed

HANDLEBAR SWITCHES CONTROLS

Right handlebar controls

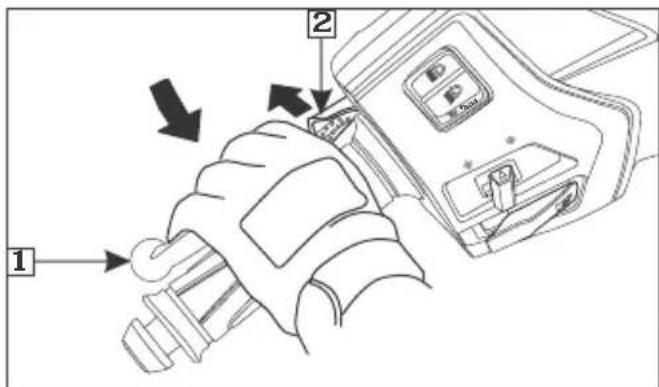

1. Starter switch ( )

The starter switch (1) is next to the throttle grip.

When the starter switch is pressed, the starter motor cranks the engine. See (page 38) for the starting procedure.

Close-up of a mechanical device's cable and connector with a labeled component (no visible text or symbols)

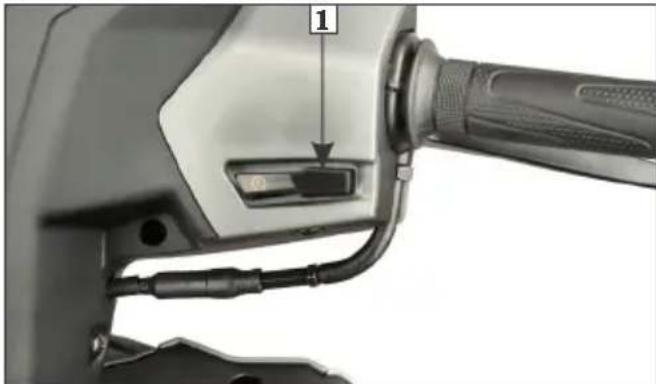

(1) Starter switch

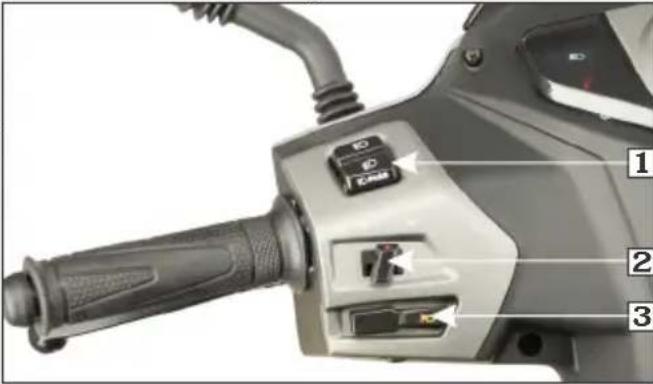

Left handlebar controls

1. Dimmer switch/Passing switch

Press the switch upwards for high beam

“ID” downwards for low beam “ID”.

Press the switch to "PASS" position to operate the passing lamp.

2. Turn signal switch

Shift the turn signal switch sideways for right/left indications and leave it to come back to its normal position on its own.

IMPORTANT: To switch "OFF" the turn signal after completing the turn, gently push inside as directed on the switch.

3. Horn switch ( )

Press the switch to operate the horn.

(1) Dimmer switch/Passing switch
(2) Turn signal switch
(3) Horn switch

FEATURES

(a) Steering lock

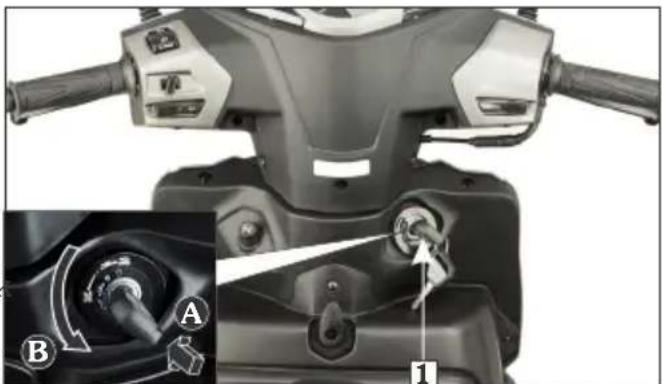

To lock the steering, turn the handlebar all the way to the left, turn the key (1) to "LOCK" position while pushing in and remove the key.

Close-up of a motorcycle's head and torso components, showing adjustment parts with no visible text or symbols

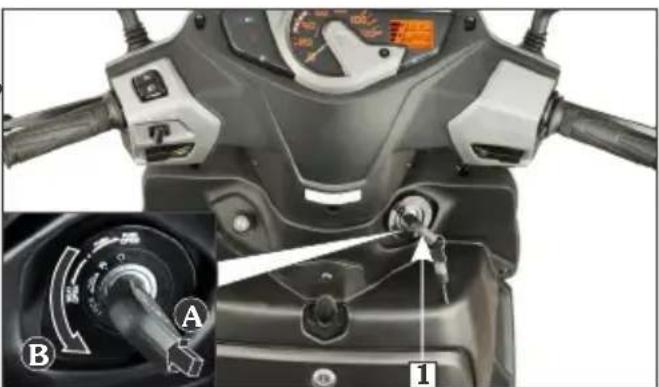

(1) Ignition switch (A) Push in (B) Turn to lock

CAUTION

Do not try to turn the key to "LOCK" position while riding the vehicle, which may lead to loss of vehicle control.

(b) Fuel tank lid lock

The fuel tank lid lock is provided along with ignition switch (1).

To open the lid, insert the key (2) while pushing in and turn it clockwise to "FUE OPEN" position. The lid will release from its latch.

To lock the lid push down gently until it locks and hear a click sound to ensure the fuel tank lid is secure before riding.

CAUTION

Gently close the lid by hand. Sudden dropping of the lid may result in breaking the lid lock and malfunction of the lock.

(c) Seat lock

The seat lock is provided along with the ignition switch (1).

(1) Ignition switch
(2) Ignition key

To open the seat, insert the key (2) and turn it counterclockwise to "SEAT OPEN" position. The seat will release from its catch. To lock the seat, close and push down on the rear of the seat until locks.

Make sure the seat is secure before riding.

CAUTION

2Gently close the seat by hand. Sudden ldropping of the seat may result in breaking the seat lock and malfunction of the lock.

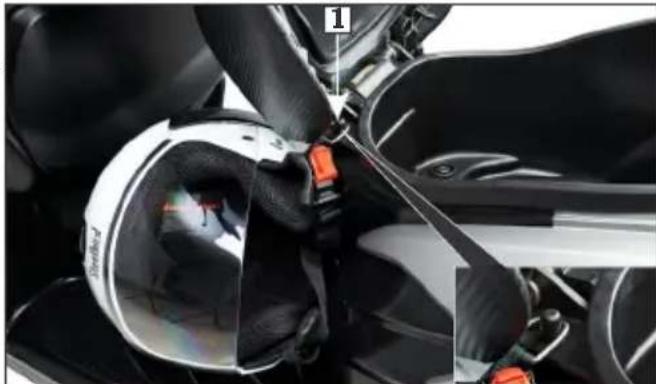

(d) Helmet holder

Two helmet holders are located under the seat.

To access the holder or to secure a helmet to the holder.

- Open the seat.

Attach/Hook the helmet strap or ring to the helmet holder and close the seat.

Close-up of a car's helmet being adjusted for a joint, showing front and side views (no text or symbols visible)

(1) Helmet holder

To release the helmet from the holder.

- Open the seat.

- Remove the helmet from the holder and close the seat.

WARNING

• Riding with a helmet attached to the holder can interfere with the objects and could cause a loss of control/crash in which you can be seriously hurt.
  • Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.

NOTE

Place the helmet inside the center compartment if you wish to carry along with the vehicle.

(e) Center compartment

The center compartment (1) is below the seat. For opening and closing the seat lock, see (page 25).

MAXIMUM WEIGHT LIMIT: 10 Kg

Never exceed the maximum weight limit, handling and stability may be severely affected. The center compartment may become heated by the engine. Do not store food and other articles which are flammable or susceptible to heat damage.

Do not direct pressurised water spray against the center compartment as water may enter into the compartment.

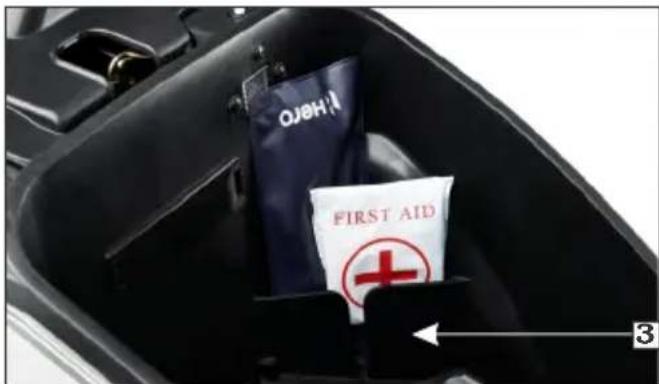

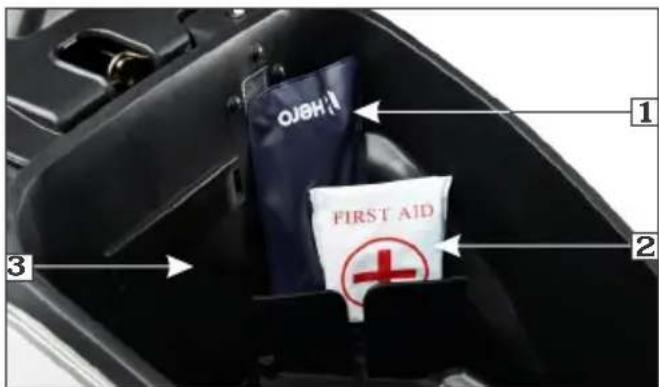

(f) Center compartment/First aid kit/Tool kit holder

The document compartment (2) and first aid kit/tool kit holder (3) is located in the center compartment below the seat.

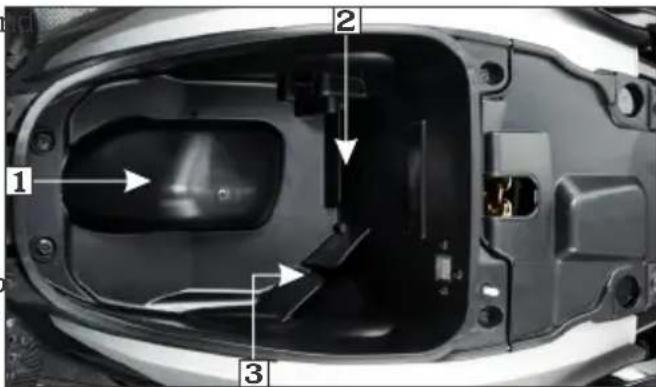

(1) Center compartment (2) Document compartment (3) First aid kit/tool kit holder

The owner's manual, other documents and first aid kit/tool kit can be stored in it.

NOTE

When washing your vehicle, be careful not to flood this area with water.

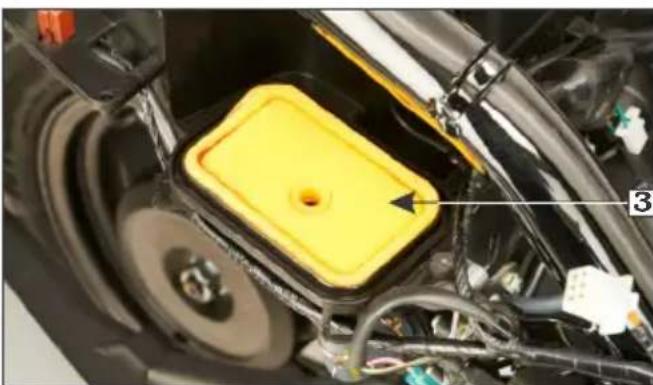

(3) First aid kit/Tool kit holder

!! CAUTION

Before the vehicle is pressure washed the item kept inside the center compartment should be removed to prevent consequential damage.

(g) Boot lamp/switch

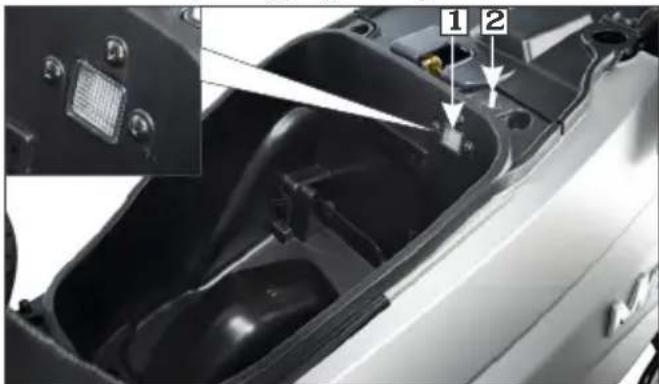

A boot lamp (1) is provided in the center compartment. This boot lamp will be functional only when the seat is open. Opening and closing the seat lock, see (page 25).

Interior view of a car showing the hood and engine compartment with an inset close-up of a component (no visible text or symbols)

(1) Boot lamp (2) Switch

An automated switch (2) is provided on the center compartment, which enables the boot lamp to glow when the seat is in open condition and goes off automatically when the seat is closed.

(h) USB charger

A USB charger (1) with a cap (2) located inside the center compartment (3) is provided in your vehicle to charge your mobile phone safely while riding.

To connect a mobile phone charger cable, first

remove the cap from the USB charger and then plug in the charging cable to it. Use of non-standard USB cable may cause damage to the mobile phones. Hero MotoCorp will not be responsible for damages caused due to use of non-standard USB cable.

(1) USB charger
(2) Cap
(3) Center compartment

!! CAUTION

• Always place the device in a soft clean cloth/towel to avoid any damage due to road shocks while riding.

• This port is for charging compatible USB devices.

- Multiple charging of USB devices have to be avoided, simultaneous charging may lead to slow or no charging.

- Do not leave the USB device and USB cable in the center compartment when the vehicle is parked.

- Charge your device only when the engine is operational/while riding. Charging the USB device when the engine is "OFF" would lead to early discharge of battery.

NOTE

• Do not apply any soap solution, oil or greas inside the USB charger.
  • Any personal belongings have to be removed before water washing to avoid damage.
  • Always keep the USB port cap closed after use to prevent dust or water entry during rains/water wash.
• Do not direct water jet towards the port even with cap closed to avoid any short circuit. Always dry the area using a dry cloth or moisture free compressed air before use,

(i) Luggage hooks

Two luggage hooks are provided in your vehicle to carry a light luggage like shopping bags or carry bags.

Front luggage hook

Front luggage hook (1) is provided below the handlebar.

MAXIMUM WEIGHT LIMIT: 3.0 Kg

Close-up of a mechanical component with a hole and arrow annotation (no readable text or symbols)

(1) Front luggage hook

Rear luggage hook

Rear luggage hook (2) is located below the front end of the seat. To use the hook, turn the hook from its position and open the hook by turning the upper lever as shown. The upper lever will close automatically. After using the hook, push it back to its position.

MAXIMUM WEIGHT LIMIT: 1.5 Kg

Close-up of a mechanical component with a highlighted handle and an inset showing a bracket detail (no text or symbols visible)

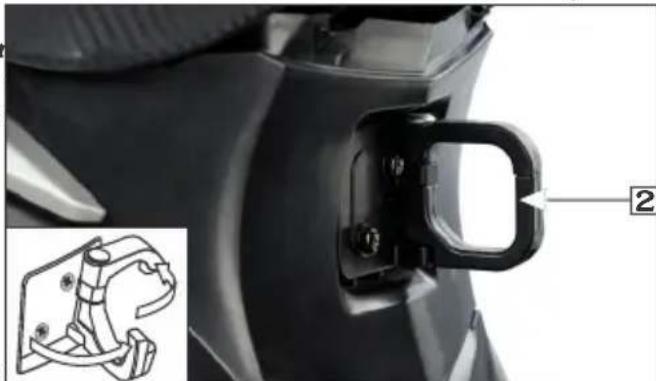

(2) Rear luggage hook

WARNING

• Do not exceed the maximum weight limits for the luggage hooks.
• Do not hang large luggage to the hook that would hang out from the vehicle and or interfere with the movement of your feet.

(j) Front inner box (Optional)

The front inner box (1) is provided on the inner cover to carry some valuable items, documents, etc.

Close-up of a car seatbelt buckle and side panel, showing key adjustment and directional arrow (no text or symbols)

(1) Front inner box

MAXIMUM WEIGHT LIMIT: 1.5 Kg

Never exceed the maximum weight limit of the front inner box otherwise handling and stability may be severely affected.

(k) Side stand/indicator/switch (Optional)

For the safety of the customer a side stand indicator (1) is provided.

(1) Side stand indicator

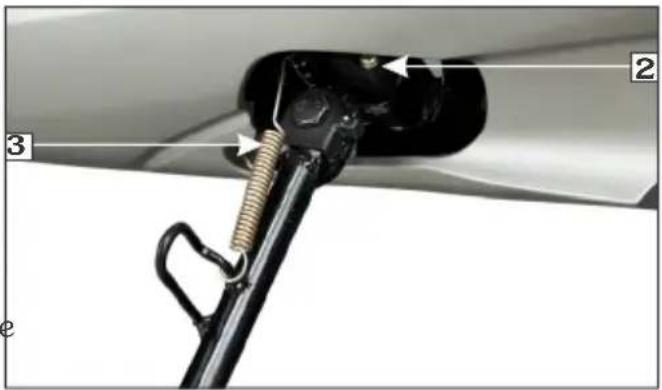

A side stand switch (2) is provided in the side stand, when the side stand is down (Ignition switch "ON"), the switch enables the side stand indicator lamp to glow on the speedometer panel.

(2) Side stand switch (3) Side stand spring

• Check the side stand for proper function and the spring (3) for damage or loss of tension and the side stand assembly for free movement.
• Check whether the side stand indicator (1) glows when the side stand is down.
• When the side stand is up, the side stand indicator (1) should not glow.
• If the side stand indicator (1) does not operate as described in above steps, please visit your Authorised Hero MotoCorp workshop.

!! CAUTION

Ensure that adequate care should be taken while cleaning the side stand switch.

(1) Pillion footrest

Move the right and left footrest in the direction shown by arrows to open. Folding can be done by moving footrest in the reverse direction.

Close-up of a car's front panel showing internal components and a close-up of a connector (no visible text or symbols)

(1) Left footrest

Close-up of a white motorcycle's side panel showing engine, battery, and cable attachment (no text or symbols visible)

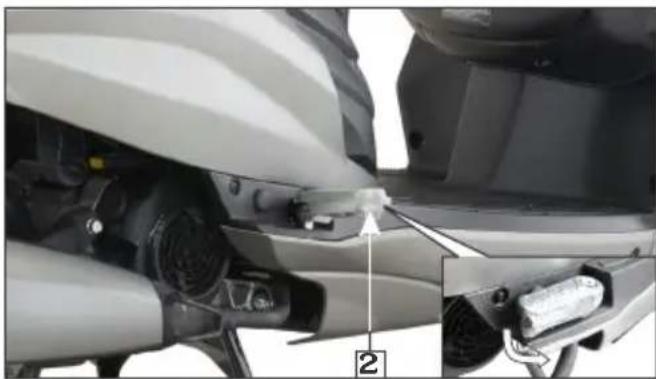

(2) Right footrest

BODY PARTS REMOVAL

(a) Center compartment Removal

• Open the seat (page 25).

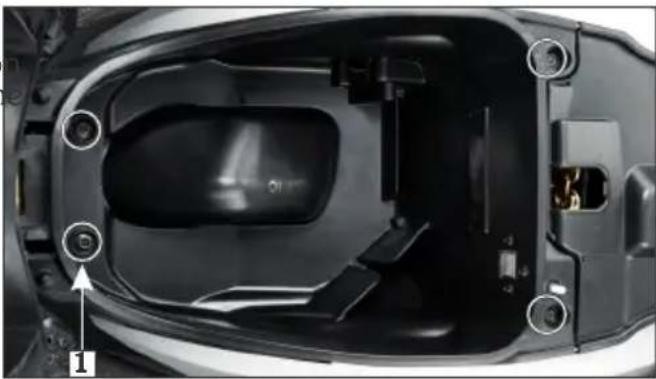

• Remove the bolts (1) from the center compartment.

Interior view of a car's dashboard and engine compartment showing internal components and mounting points (no text or symbols visible)

(1) Bolts

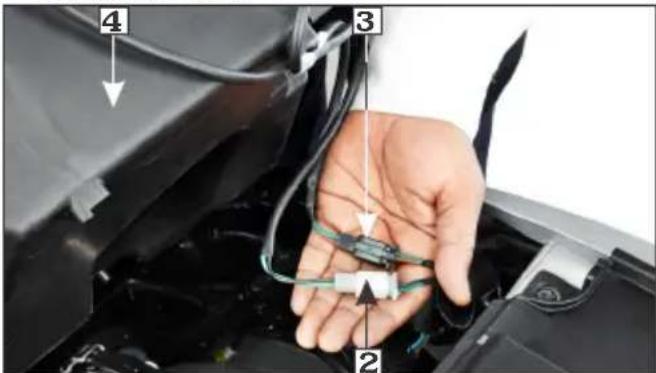

- Slightly lift up the center compartment from the rear and disconnect the boot lamp connector (2) and USB charger connector (3).

(2) Boot lamp connector
(3) USB charger connector
(4) Center compartment

- Remove the center compartment (4). Installation

Installation can be done in the reverse order of removal.

NOTE

Park the vehicle on its main stand when servicing the vehicle with the center compartment removed.

(b) Body cover Removal

• Remove the center compartment (page 30).
• Remove the tray fuel sub assembly bolt (1).

Close-up of a car's front bumper with visible mechanical components and a numbered arrow indicating a specific part (no text or symbols present)

(1) Bolt

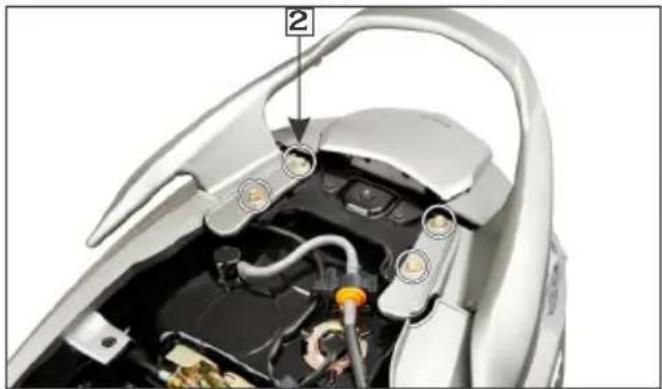

- Remove the rear grip bolts(2).

Interior view of a car's head and engine compartment showing internal components like hoses and motors (no text or symbols visible)

(2) Bolts

• Remove the screws (3) from the center cover.
• Remove the center cover.

(3) Screws
(4) Center cover

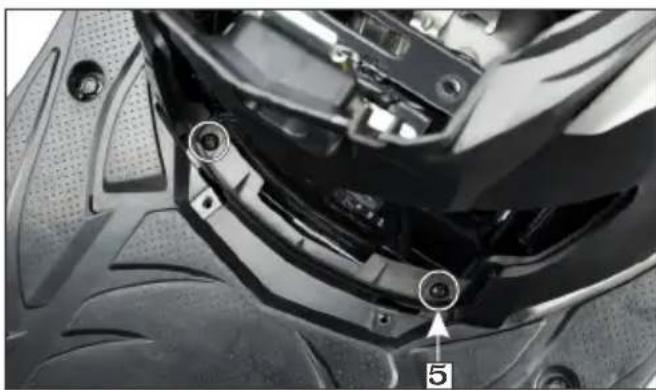

- Remove the screws (5).

Close-up of a motorcycle's front wheel and side panel, showing mechanical components and a numbered component (no text or symbols visible)

(5) Screws

- Remove the screws (6).

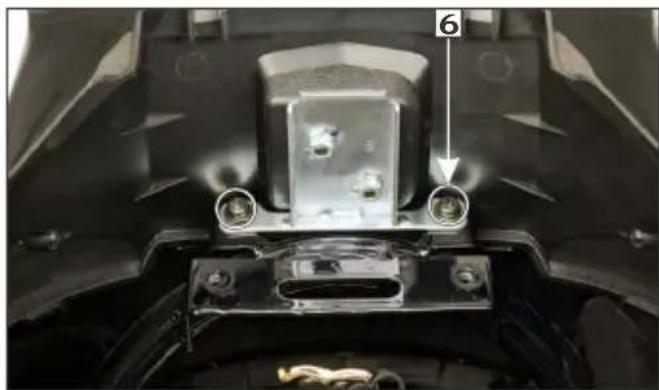

Close-up of a mechanical component with a labeled part (6) and mounting holes, no readable text or symbols present.

(6) Screws

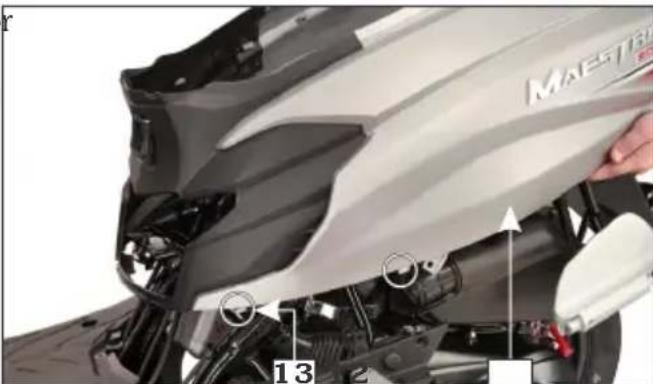

- Remove the body cover bolts (8).

Close-up of a car's hood with visible engine components and a numbered annotation (8), no readable text or symbols present.

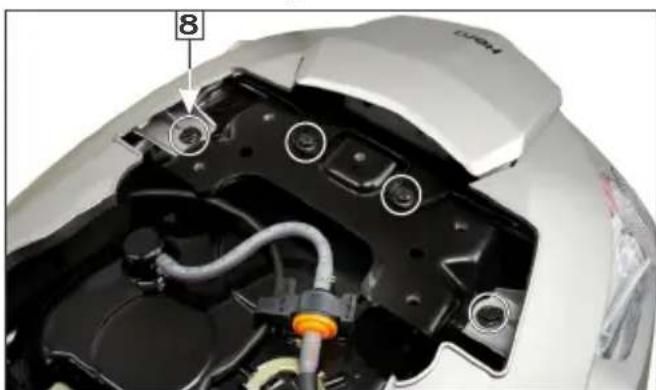

(8) Body cover bolts

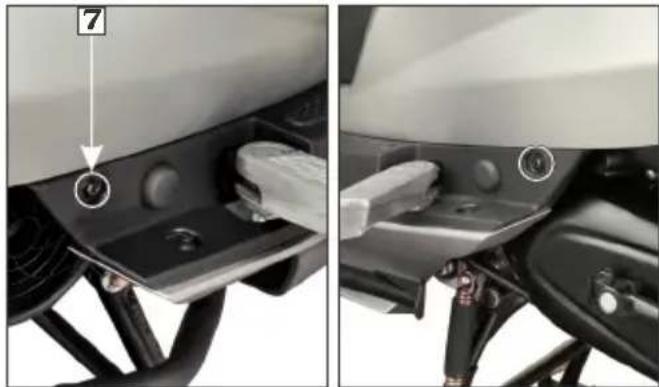

- Remove the screws (7) from left and right • Disconnect the fuel tank lid lock cable (9). side of the body cover.

Close-up of a motorcycle's side panel showing the mounting bracket and keyway (no text or symbols visible)

(7) Screws

Close-up of a car's hood with visible internal components and a numbered arrow pointing to a specific area (no text or symbols)

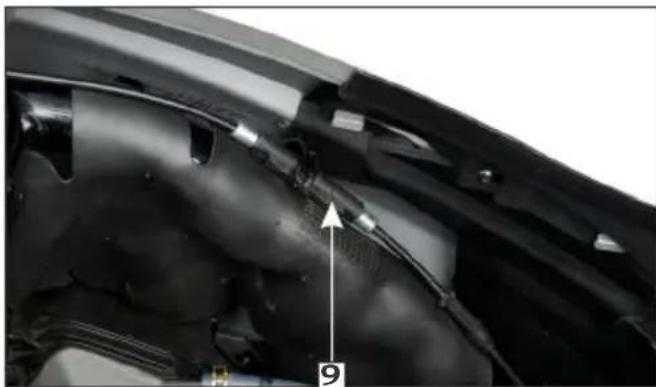

(9) Fuel tank lid lock cable

- Remove the fuel filler cap (page 18).

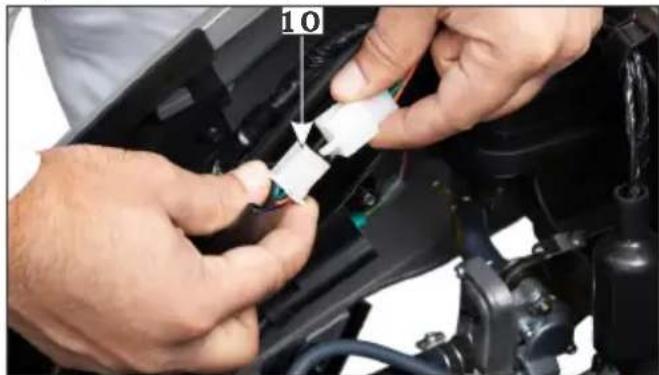

- Disconnect the tail/stop lamp connector (10).

Close-up of hands installing a white connector into a black automotive engine compartment (no visible text or symbols)

(10) Tail/stop lamp connector

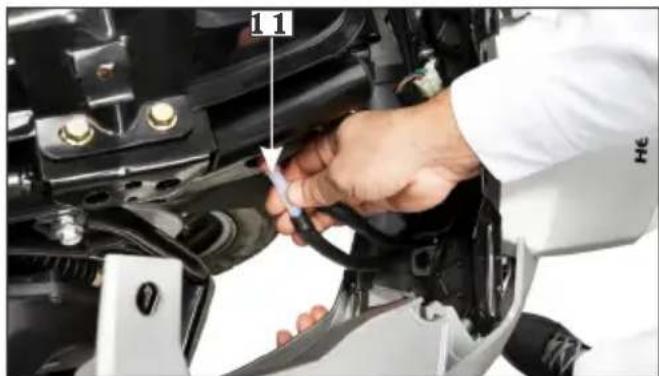

- Disconnect the drain tube from the j (11).

(1 1) Drain tube

- Pull the body cover (12) slightly backwards and carefully remove the tabs (13) from the slots.

(12) Body cover
(13) Tabs

- Remove the complete body cover.

Installation

Installation can be done in the reverse order of removal.

(c) Front center cover

Removal

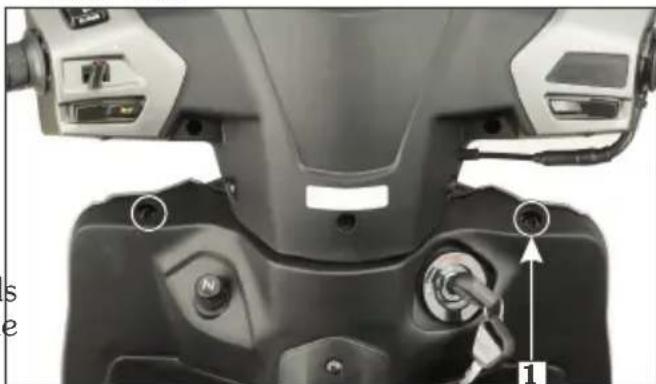

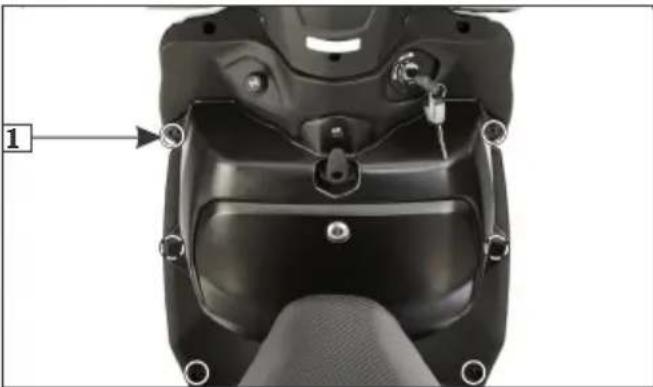

- Remove the two screws (1) on the inner cover side.

Close-up of a mechanical device with labeled parts and a numbered arrow pointing to a component (no readable text or symbols)

(1) Screws

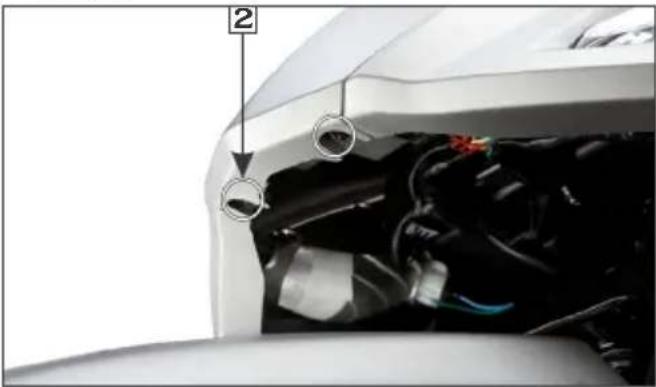

- Remove the two screws (2) near the front(d) Front cover fender. Removal

Close-up of a car's front engine compartment showing internal components and wiring (no text or symbols visible)

(2) Screws

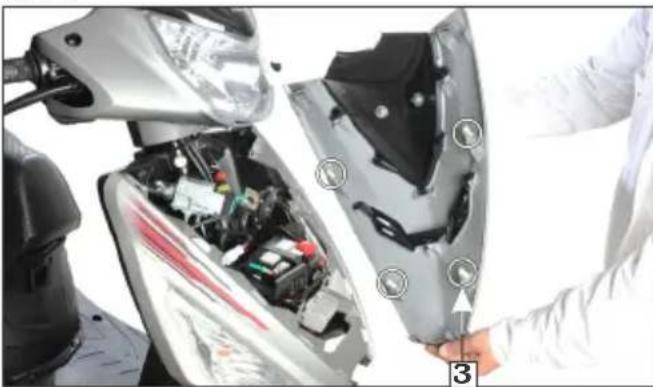

Release the front center cover lugs (3) from the mounting clips. Remove the front center cover by pulling it axially downwards towards front.

Close-up of a person in protective suit inspecting internal components of an electric scooter head (no visible text or symbols)

(3) Lugs

Installation

Installation can be done in the reverse order of removal.

Removal

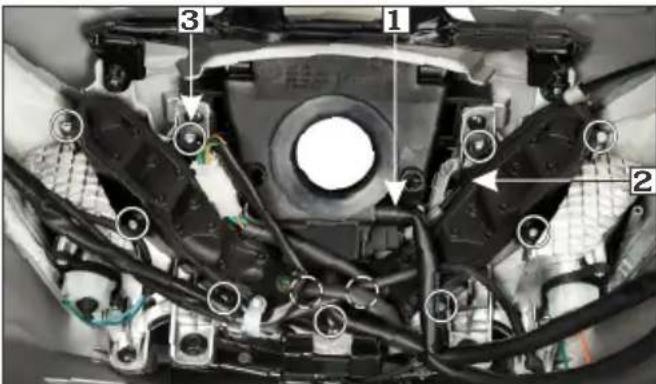

- Remove the front center cover (page 33). - Remove the four screws (1) on the inner cover side and remove two screws from front inner box. Remove front inner box.

Top-down view of a black scooter's front bumper and seat assembly (no text or symbols visible)

(1) Screws

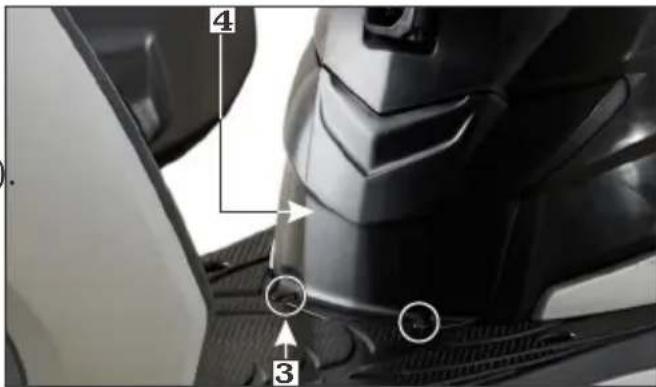

- Remove the four bolts (2) from the front cover. - Remove the top and bottom screws (3).

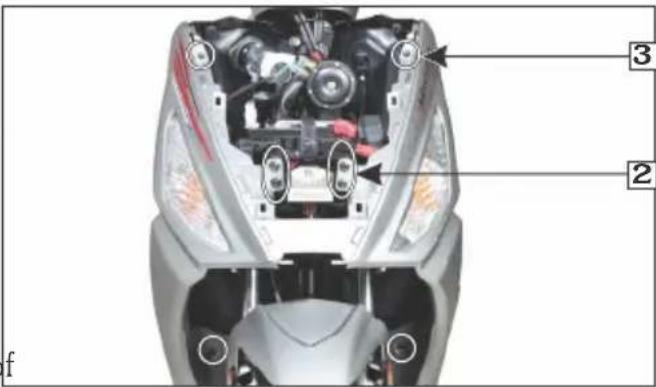

(3) Screws(2)

Bo

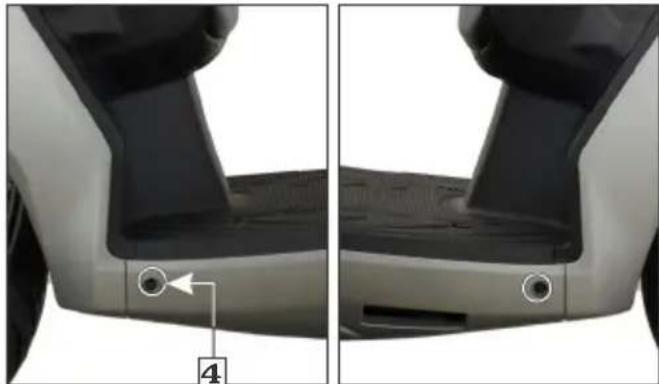

- Remove the screws (4) from the floor side(e) Rear view mirror covers. Removal

Side-by-side comparison of a car's front and side views showing a keyway and dashboard (no text or symbols visible)

(4) Screws

- Remove the front cover and disconnect the front turn signal lamp connectors (5).

Close-up of hands installing or adjusting a car battery panel, showing internal components and wiring (no text or symbols visible)

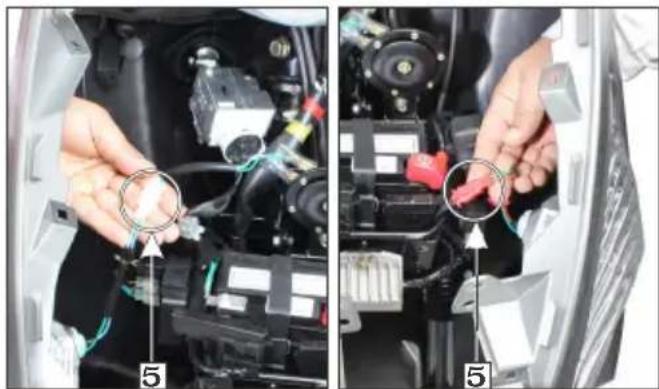

(5) Front turn signal lamp connectors

Installation

Installation is in the reverse order of removal.

Removal

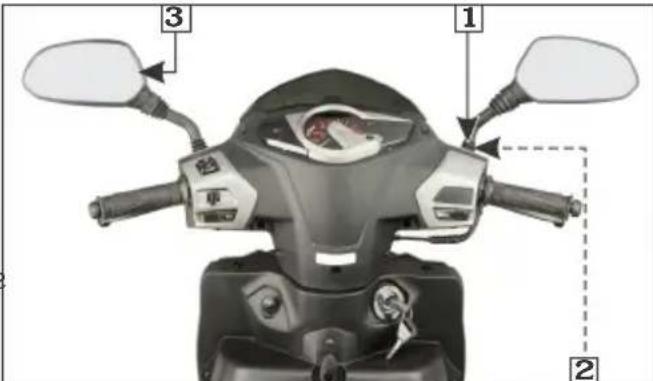

• Slide the dust cover up (1).
• Loosen the lock nut (2) until it will no longer turn.
• Loosen the rear view mirror (3) and remove it.

(1) Dust cover
(2) Lock nut
(3) Rear view mirror

Installation

• Install the rear view mirror until it will no longer turn.
- Loosen the rear view mirror approximately 2 turns.
- Adjust the rear view mirror.
• Tighten the lock nut.

NOTE

To open the right side rear view mirror the threads are to be loosened in clockwise direction and tightened in counter clockwise direction.

(f) Headlamp case Removal

• Remove the rear view mirror (page 35).

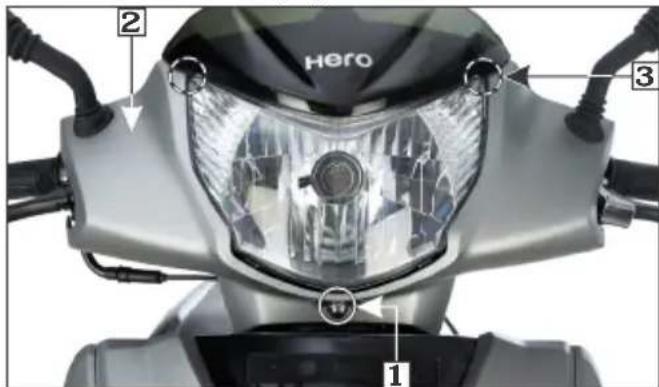

• Remove screw (1).

(1) Screw
(2) Headlamp case
(3) Tabs

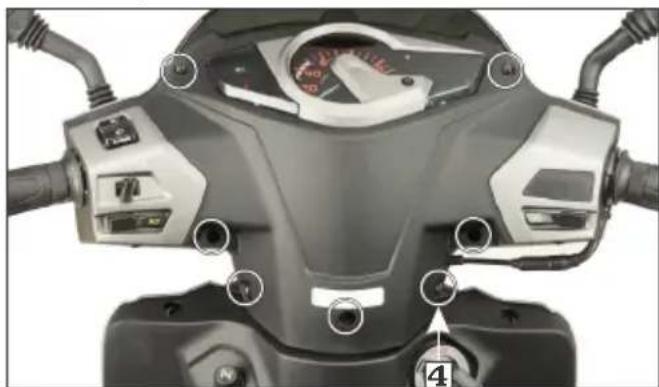

- Remove the screws (4).

• Pull the headlamp case (2) slightly up carefully release the tabs (3) from the slots

Top-down view of a scooter's head and front bumper with visible sensor, buttons, and adjustment knobs (no text or symbols)

(4) Screws

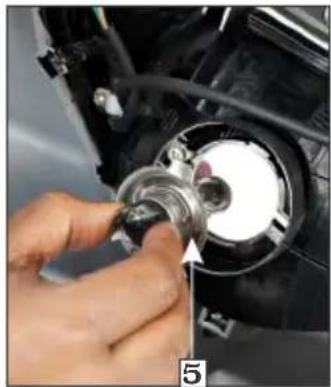

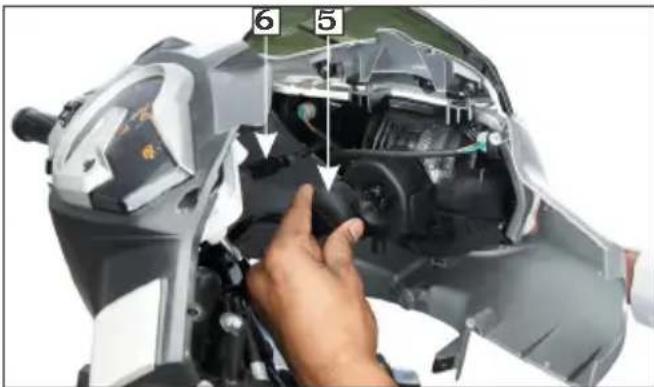

- Disconnect the headlamp connector (5 position lamp connector (6) and remove the headlamp case.

(5) Headlamp connector
(6) Position lamp connector

Installation

Installation can be done in the reverse order of removal.
(g) Headlamp focus adjustment

Vertical adjustment

Headlamp focus is factory preset. However in case of adjustment required please follow the steps as given below.

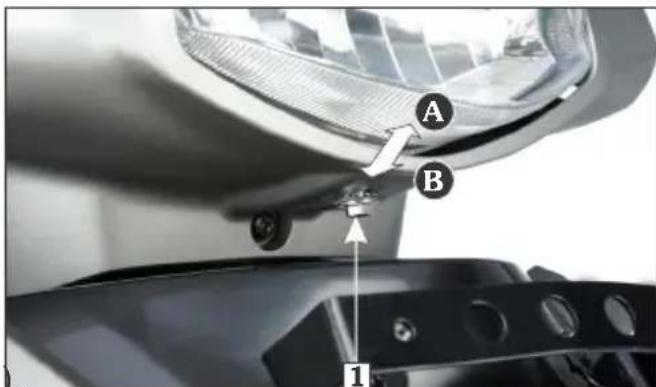

(1) Bolt
(A) Up
(B) Down

• Park the vehicle on main stand on a level surface in front of a wall.
• Loosen the bolt (1) and move the headlamp up or down for correct focus.

WARNING

An improperly adjusted headlamp may blind oncoming driver or it may fail to light the road for safe distance.

PRE-RIDE INSPECTION

For your safety, it is very important to take a few moments before each ride to walk around your vehicle and check its condition. If you detect any problem, be sure you take care of it or have it corrected by your Authorised Hero MotoCorp workshop.

WARNING

• Improper maintenance or failing to correct problem before riding can cause a crash in which you can be seriously injured.
  • Always perform a pre-ride inspection before every ride and correct if any problem.

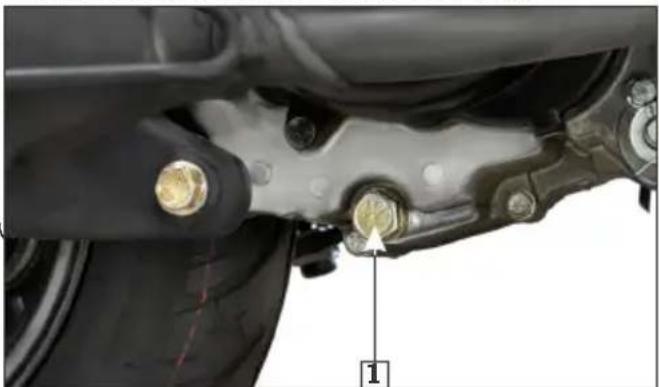

• Engine oil level-Add engine oil if required (page 55). Check for leaks.

• Fuel level-Fill the fuel tank when necessary (page 17). Check for leaks.

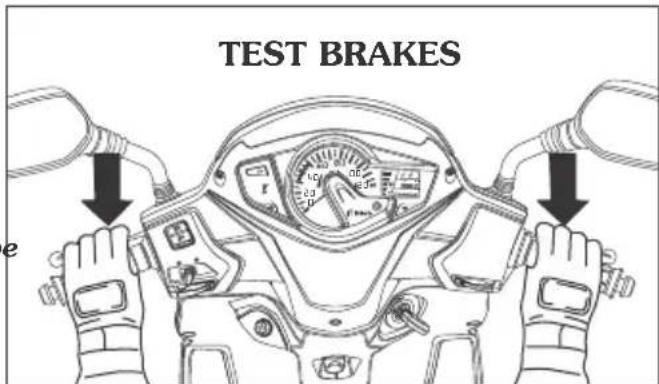

- Front and Integrated brakes-Check operation and if necessary, adjust free play (page 15).

- Tyres-Check condition and pressure (page 19).

• Throttle-Check for smooth opening and full closing in all steering positions.
• Lamps and horn-Check that headlamp, tail/stop lamp, turn signal lamps, indicators and horn function properly.
• Rear view mirror-Ensure that the rear view mirror gives a good rear view when you are sitting on the vehicle.
• Fitting & fasteners-Check & tighten if necessary.

- Steering-Check for smooth action for easy maneuverability.

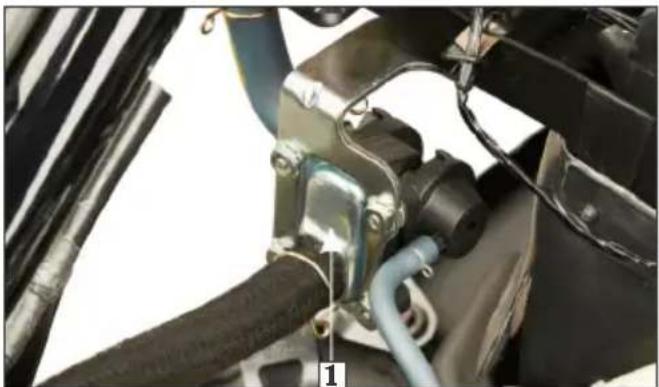

it Air suction valve-Make sure all tubes connections are secured properly (page 66).

- Side stand indicator-Make sure that the side stand is up. If it is in down position the side stand indicator (page 29) will glow on the speedometer panel.

ANTI-THEFT TIPS

• Always lock the steering and never leave the key in the ignition switch.
d This sounds simple but people do forget.
- Be sure the registration information for your ry vehicle is accurate and current.
- Park your vehicle in a locked garage whenever possible.
- Use an additional anti-theft device of good quality.
- Never park your vehicle in an isolated area. Park as far as possible in a designated parking area.

- Enter your name, address, and phone number in this Owner's Manual and keep it in your vehicle at all times. Many time stolen vehicles are identified by information in the Owner's Manuals that are still with them.

NAME: ____

ADDRESS : ____

PHONE NO : ____

STARTING THE ENGINE

Always follow the proper starting procedure described below. This vehicle has an automatic fuel valve and option to fit a side stand and side stand switch.

Operate the kick starter or electric starter switch for slightly longer than usual without opening the throttle if the vehicle has been left standing for a long time or when the fuel tank has just been refilled.

NOTE

Do not use the electric starter for more than 5 seconds at a time. Release the starter switch for approximately 10 seconds before pressing it again.

Your vehicle's exhaust contains poisonous carbon monoxide gas. High levels of carbon monoxide can collect rapidly in enclosed areas such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move your vehicle out of the garage.

CAUTION

Do not attempt to start the engine and run the vehicle without a battery. This may lead to electrical and electronic components failure.

• Park the vehicle on its main stand.

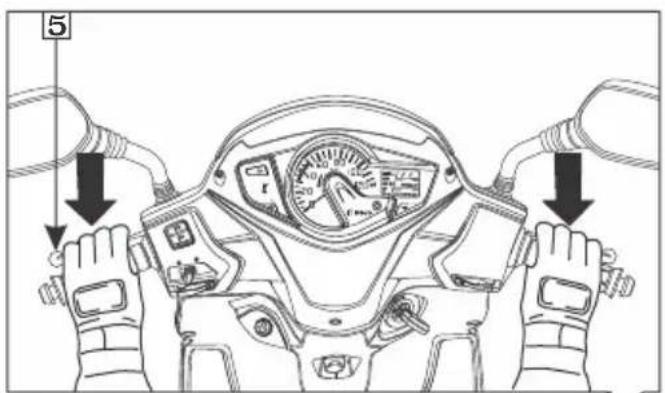

- Lock the rear wheel by pressing the integrated brake lever (1) and locking the parking lever (2).

Close-up of hands using a handheld device to switch a black plug, labeled with parts 1 and 2 (no text or symbols on the device itself)

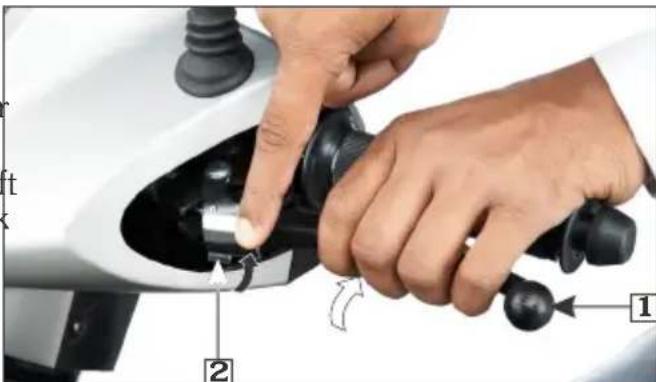

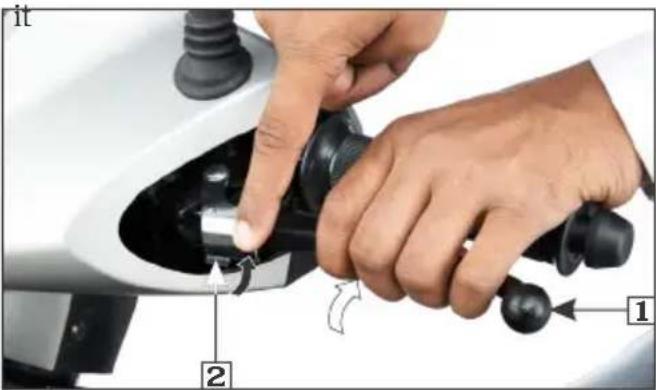

(1) Integrated brake lever (2) Parking lever

The electric starter will only work when the integrated or front brake lever is operated.

! WARNING

• Contact with the rotating rear wheel can injure you.
• Set the parking lever when the vehicle is on its main stand.

- Turn the ignition switch (3) to "ON".

(3) Ignition switch

Cold engine

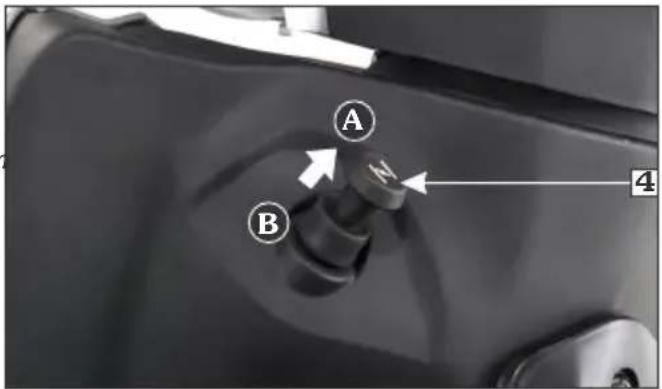

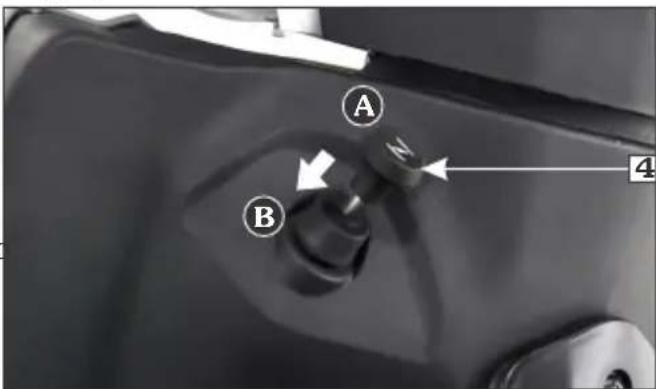

- Pull the choke knob (4) out all the way to fully "ON" position (A).

(4) Choke knob
(A) Fully "ON"
(B) Fully "OFF"

• While using starter switch:
- With the throttle closed, press the starter switch.

(4) Choke knob
(A) Fully "ON"
(B) Fully "OFF"

• While using kick starter:
- With the throttle closed, operate the kick starter with a rapid and continuous motion.

- Continue warming up the engine until runs smoothly and responds to the throttle, when the choke knob is at "OFF" position (B).

Warm engine

• Do not use the choke.

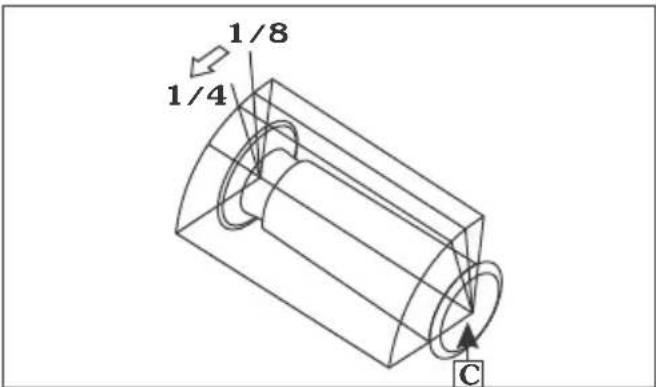

- Rotate the throttle 1/8-1/4 turn (C).
- Start the engine.

RUNNING-IN

Ensure your vehicle's future reliability and performance by paying extra attention to how you ride during the first 500 km.

During this period, avoid full-throttle starts and rapid acceleration.

RIDING

Review vehicle safety (page 4) before you ride.

(1) Integrated brake lever (2) Parking lever

• Make sure the throttle is closed and the integrated brake is locked before moving the vehicle off the main stand.

The rear wheel must be locked when moving the vehicle off the main stand or it may result in loss of control.

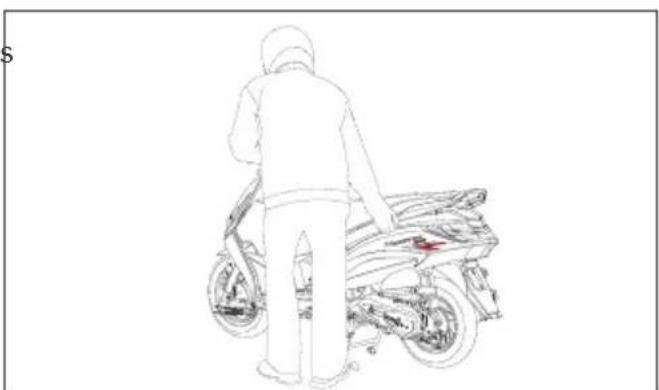

• Stand on the left side of the vehicle

and push it forward off the main stand gripping below the seat using the right hand as shown.

Line drawing of a person standing beside a motorcycle, viewed from the side (no text or symbols)

- Mount the vehicle from the left side keeping at least one foot on the ground to steady the vehicle.

Line drawing of a person riding a scooter with visible seat number 44 (no text or symbols)

- Unlock the integrated brake by further pressing the integrated brake lever (1) so as to release the parking lever (2) from the lock. Then release the brake lever.

(1) Integrated brake lever (2) Parking lever

Line drawing of a hand fastening a car seatbelt with an arrow indicating motion (no text or symbols)

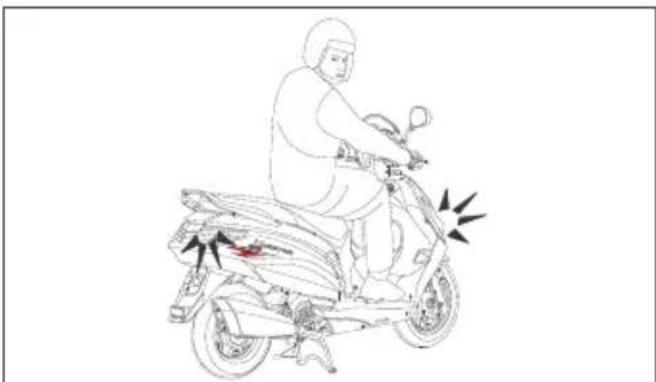

- Before starting, indicate your direction with the turn signals, and check for safe traffic conditions. Grab the handle bars firmly with both hands. Never attempt one-handed operation, this could lead to loss of vehicle control.

Line drawing of a person riding a scooter with motion arrows indicating speed or force (no text or symbols)

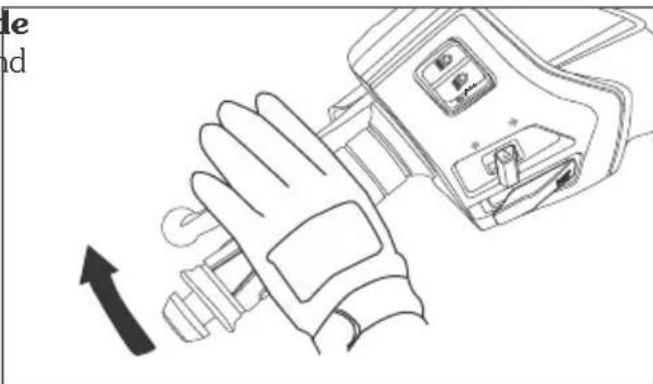

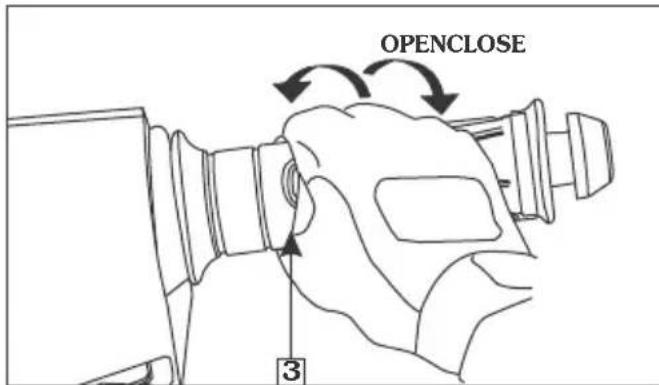

- To accelerate, open the throttle (3) gradually, the vehicle will move forward. Do not "BLIP" the throttle (open and close rapidly) as the vehicle will move forward suddenly, causing possible loss of control and loss of fuel economy.

Do not accelerate with the brakes applied, this may lead to premature wear of brakes and transmission parts.

• To decelerate, close the throttle.

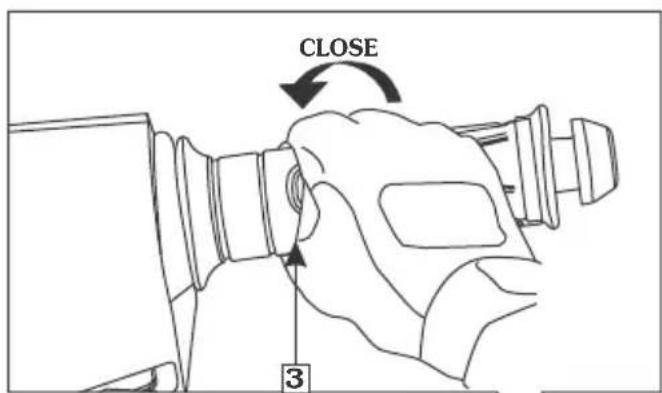

(3) Throttle

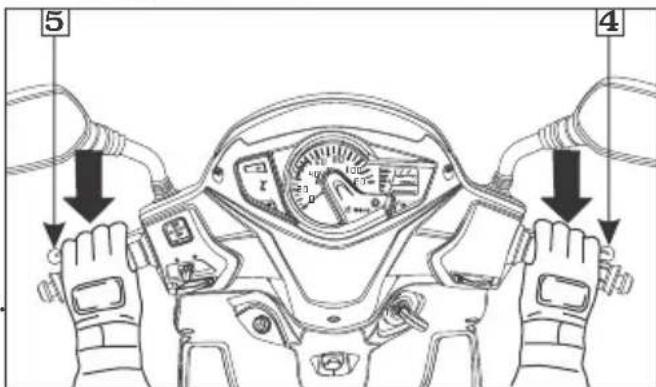

- When slowing down the vehicle, coordination of the throttle (3), front (4) and integrated brake (5) is most important. Since the vehicle is equipped with an integrated braking, by pressing the brake lever provided on the left side of the handlebar would ensure both front and rear brakes applied simultaneously.

Excessive brake application may cause the wheels to lock, reducing control over the vehicle.

(4) Front brake
(5) Integrated brake

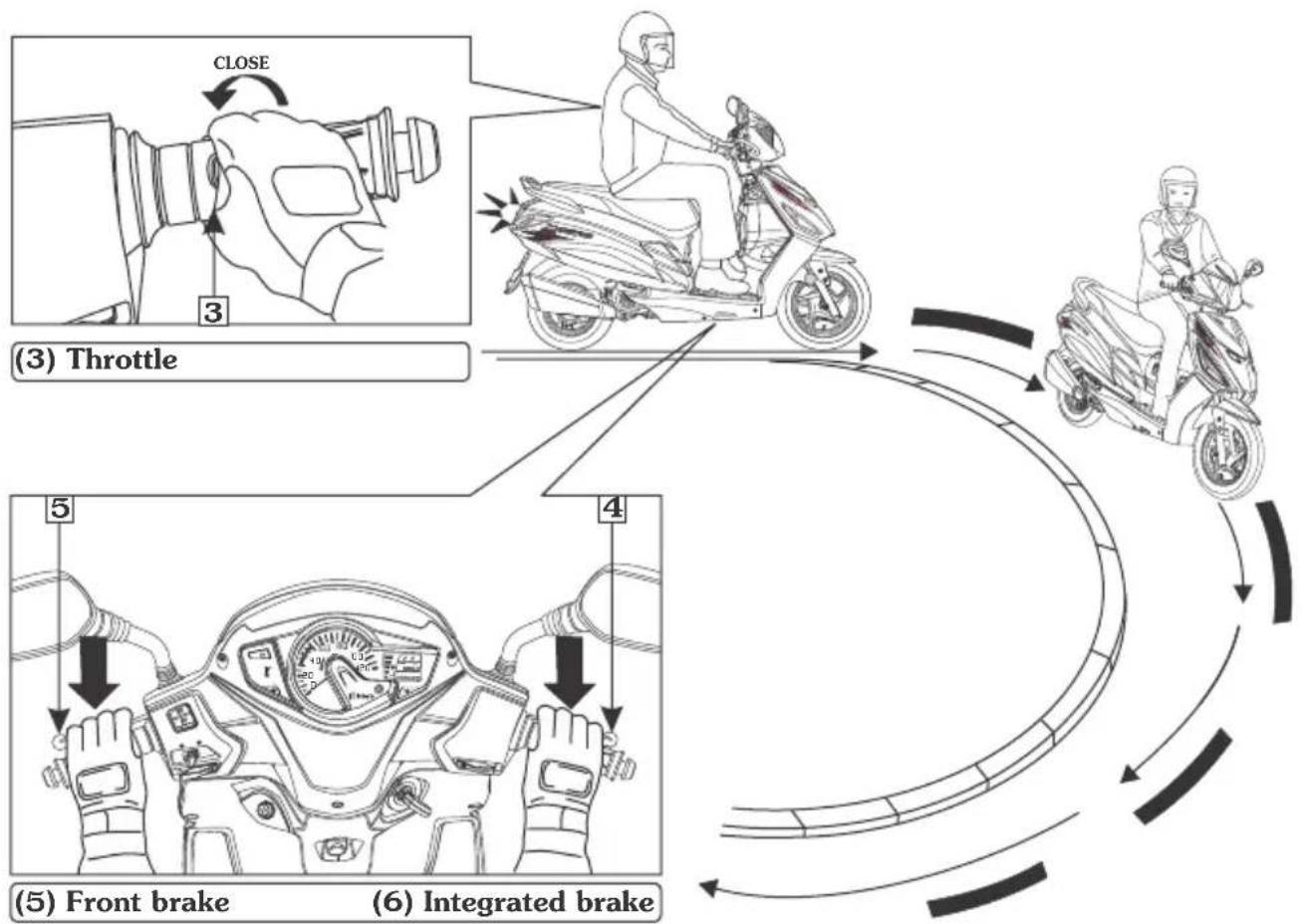

- When approaching a corner or turn, • After completing the turn, open the close the throttle (3) fully, and slow down the vehicle by applying integrated brake vehicle. (6).

    subgraph Section 1
        F["CLOSE"] --> G["Shuttle"]
        G --> H["Throttle"]
        H --> I["Front brake"]
        I --> J["Integrated brake"]
    end

    subgraph Section 2
        K["3"] --> L["Shuttle"]
        L --> M["Front brake"]
        M --> N["Integrated brake"]
    end

    subgraph Section 3
        O["4"] --> P["Shuttle"]
        P --> Q["Integrated brake"]
    end

    subgraph Section 4
        R["5"] --> S["Shuttle"]
        S --> T["Integrated brake"]
    end

    subgraph Section 5
        U["6"] --> V["Shuttle"]
        V --> W["Integrated brake"]
    end

- When descending a steep gradient, Avoid continuous use of the brakes, which close throttle (3) fully and apply integrated brake (4) to slow down the vehicle. may result in overheating and reduction of braking efficiency.

(4) Integrated brake(3) Throttle

- When riding on wet or loose surfaces, be cautious.

When riding in wet or rainy conditions or on loose surfaces, the ability to manoeuvre and stop will be reduced.

For your safety:

• Exercise extreme caution when braking, accelerating or turning.
- Ride at slower speeds and allow for extra stopping distance.
- Keep the vehicle as upright as possible.
- Be cautious when riding over slippery surfaces such as railway tracks, iron plates, manhole covers, painted lines, etc.

PARKING

• After stopping the vehicle turn the ignition switch to "OFF" position.
- Use the main stand to support the vehicle while parked, lock and remove the key.

NOTE

• Park the vehicle on firm, level surface to prevent it from falling over.
• If you must park on a slight incline, aim the front of the vehicle uphill to reduce the possibility of rolling off the main stand or overturing.
• Lock the steering to prevent theft.

CAUTION

The exhaust pipe and muffler become very hot during operation and remain sufficiently hot to inflict burns if touched even after turning off the engine.

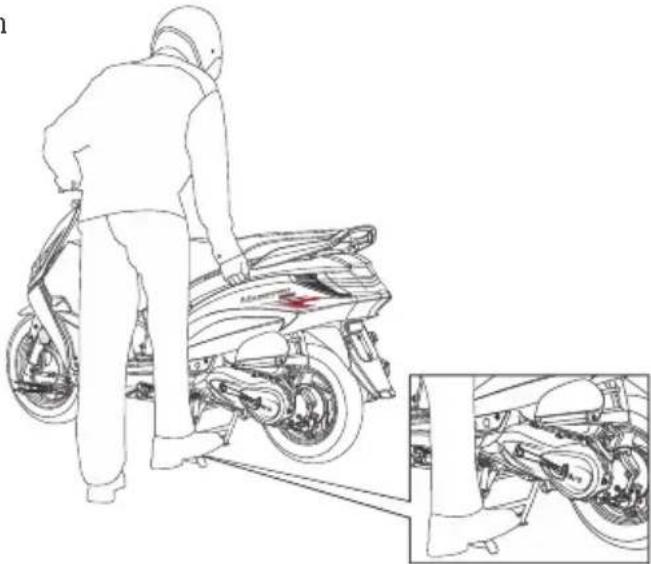

HOW TO USE MAIN STAND

Line drawing of a person using a motorcycle to adjust or install a component, with an inset showing the close-up of the mechanical parts (no text or symbols present)

STEERING LOCK

Close-up of a motorcycle's front wheel and dashboard, showing steering wheel, caliper, and rotary dial (no text or symbols visible)

(1) Ignition key (A) Push in (B) Turn to lock

TOOL KIT/FIRST AID KIT

The tool kit (1) is located in the center compartment (3).

Some roadside repairs, minor adjustments and

parts replacement can be performed with the tools available in the kit.

• Tool bag-1 No.
  • +,-No. 2 driver-1 No.
• Grip-1 No.
  • Wrench plug 16 mm-1 No.
• Spanner 14 mm-1 No.

(1) Tool kit

(2) First aid kit

(3) Center compartment

The first aid kit (2) is located in the center compartment (3) along with the tool kit. For some emergency first aid can be performed by medicine available in the kit.

• Antiseptic cream-1 No.
  • Sterilised dressing-1 No.
  • Water proof plaster-1 No.
• Elastic bandage-1 No.

• Gauge (rolled bandage)-1 No.
• Sterilised elastic plaster-1 No.
- First aid bag-1 No.

CLEANING OF VEHICLE

Clean your vehicle regularly to protect the surface finishes and inspect for damage, wear and oil leakage.

Avoid cleaning products that are not specifically designed for vehicle or automobile surfaces. They may contain harsh detergents or chemical solvents that could damage the metal, paint and plastic parts on your vehicle. If your vehicle is still warm from recent operation, give time for the engine and exhaust system to cool down.

We recommend avoiding the use of high pressure water spray.

!! CAUTION

• Our authorised dealership take all above mentioned precautions like recommended detergents and usage of muffler caps/plugs during wash to ensure quality wash.
• High pressure water (or air) can damage certain parts of the vehicle.

WASHING OF VEHICLE

• Rinse the vehicle thoroughly with water to remove loose dirt.
• Clean the vehicle with a sponge or soft cloth using water.
• Avoid directing water to muffler outlets and on electrical parts.
• Clean the plastic parts using a cloth or sponge dampened with a solution of mild

detergent and water. Rub the soiled area gently rinsing it frequently with fresh water.

NOTE

• Take care to keep brake fluid or chemical solvents off the vehicle. They will damage the plastic and painted surfaces.
- The inside of the headlamp lens may be clouded immediately after washing the vehicle. Moisture condensation inside the headlamp lens will disappear gradually by lighting the headlamp in high beam.

• After cleaning, rinse the vehicle thoroughly with plenty of clean water. Strong detergent residue can corrode alloy parts.

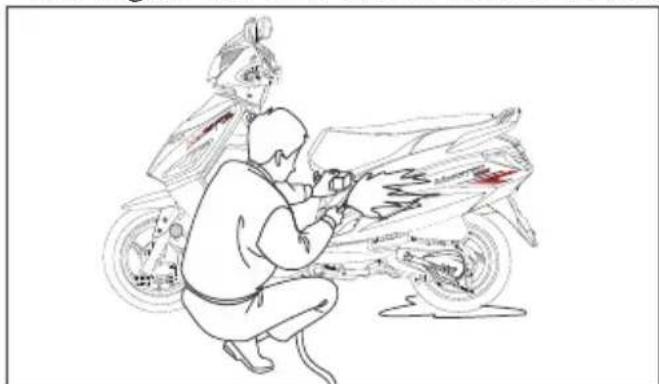

- Dry the vehicle with pressurized air, start the engine and let it run for several minutes.

Line drawing of a person crouching beside a scooter with visible exhaust plume (no text or symbols)

- Test the brakes before riding the vehicle. Several applications may be necessary to restore normal braking performance.

• Braking efficiency may be temporarily impaired immediately after washing the vehicle.
• Anticipate longer stopping distance to avoid a possible accident.

Line drawing of a person riding an electric scooter with motion lines indicating speed (no text or symbols)

MAINTENANCE

Importance of maintenance

A well-maintained vehicle is essential for safe, economical and trouble-free riding. It will also help reduce air pollution.

To help you to take proper care for your vehicle, the following pages include a maintenance schedule and a maintenance record for regular scheduled maintenance.

These instructions are based on the assumption that the vehicle will be used exclusively for its designed purpose.

Sustained high speed operation or operation in unusually wet or dusty conditions will require more frequent service than specified in the maintenance schedule. Consult your Authorised Hero MotoCorp workshop for recommendations applicable to your individual needs and use.

If your vehicle overturns or is involved in a crash, be sure that you visit your Authorised Hero MotoCorp workshop for detailed inspections.

WARNING

• Improperly maintaining this vehicle or failing to correct a problem before you ride can cause an accident in which you can be seriously injured.
  • Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

Maintenance safety

This section includes instructions on some important maintenance tasks. You can perform some of these tasks with the tools provided (if you have basic mechanical skills).

Other tasks that are more difficult and require special tools are best performed by professionals. It is recommended that wheel removal should normally be handled by a Hero MotoCorp authorised workshop.

You will come across some of the most important safety precautions in the following pages of this manual.

However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

WARNING

• Failure to follow maintenance instructions and precautions properly can seriously injure you.
  • Always follow the procedures and precautions in this owner's manual.

SAFETY PRECAUTIONS

- Make sure the engine is "OFF" before you begin any maintenance or repair. This will help to eliminate several potential hazards:

• Carbon monoxide poisoning from engine exhaust.

Be sure there is adequate ventilation whenever you operate the engine.

• Burns from hot parts.

Let the engine and exhaust system cool before touching.

• Injury from moving parts.

Do not run the engine unless instructed to do so.

• Read the instruction before you begin and make sure you have the tools and skills required.
• To help prevent the vehicle from falling over, park it on a firm, level surface on the main stand.
• To reduce the possibility of a fire or explosion, be careful when working around petrol or batteries. Use only nonflammable solvent, not petrol, to clean parts. Keep cigarettes, sparks and flames away from the battery and all fuel-related parts.

Remember that your Authorised Hero MotoCorp workshop knows your vehicle best and is fully equipped to maintain and repair it. To ensure best quality and reliability, it is recommended to use Hero MotoCorp genuine parts for repair and replacement.

MAINTENANCE SCHEDULE

Perform the pre-ride inspection (page 37) at each scheduled maintenance period.

I: INSPECT C: CLEAN R: REPLACE A: ADJUST L: LUBRICATE T: TOP UP

E: EMISSION CHECK

The following maintenance schedule specifies all maintenance required to keep your vehicle in peak operating condition. Maintenance work should be performed in accordance with standards and specifications of Hero MotoCorp by properly trained and equipped technicians. Your Authorised Hero MotoCorp workshop meets all of these requirements.

Ensure that each paid service is availed within 90 days or 3000 km from the date of previous service, whichever is earlier.

To be serviced by your Authorised Hero MotoCorp workshop unless the owner has the relevant tools, technical information and is technically qualified. In the interest of safety, we recommend that these jobs are carried out only by your Authorised Hero MotoCorp workshop.

Note-1: At higher odometer readings, repeat the frequency interval established here.

Note-2: Should be serviced by a "Skilled Technician" of your Authorised Hero MotoCorp workshop.

Note-3: Replace air cleaner element once in every 15000 km or early replacement may be required when riding in dusty areas. *At 12000 km inspect if air cleaner element is choked. If found choked, replace the air cleaner element to keep the engine healthy.

Note-4: Service more frequently when riding in rain or at full throttle.

Note-5: Replace once in every 12000 km.

Note-6: Replace engine oil once in every 6000 km. Top up if the oil level is at or near the lower level mark.

Note-7: Replace once in every 10000 km or once in a year, whichever is earlier. Replacement requires mechanical skill.

Note-8: Clean carburetor if required after inspection during service.

Note-9: Service more frequently if the vehicle is ridden in unusually wet or dusty areas.

Note-10: Check battery voltage.

Note-11: Replace drive belt once in every 24000 km.

Note-12: In the interest of safety, we recommend these items to be serviced only by your Authorised Hero MotoCorp workshop.

Note-13: Replace front fork oil once in a every 2 years or 20000 km, whichever is earlier.

Note-14: Inspect for any play in the mounting bushes, replace if necessary.

Note-15: Inspect the bearings free play, replace if necessary.

Note-16: Inspect if side stand switch is installed.

Note-17: Check idle CO emission along with idle r/min/idle CO adjustment (if required).

MAINTENANCE SCHEDULE

Dear Customer,

We would strongly recommend the following schedule, to keep your vehicle in perfect running condition and healthy environment. vehicle subjected to severe use or ridden in dusty area will require more frequent servicing.

ITEMS

WHICHEVER COMES FIRST

DURING FREE SERVICE PERIOD

AFTER FREE SERVICE ONCE IN EVERY

SERVICE

1^st

2^nd

3^rd

4^th

5^th

DAYS

1st 60

Next 100

Next 100

Next 100

Next 100

KM Note-1

500-750

3000-3500

6000-6500

9000-9500

12000-12500

3000

6000

9000

12000

15000

Fuel Lines

I

I

II

II

Throttle Operation

Note-2

I, A

I, A

I, A

I, A

I, A

I, A

Fuel Lid Cover Operation

Note-2

I, A

I, A

I, A

I, A

I, A

I, A

Choke Operation I, A

Note-2

I, A I, A

I, A I, A

I, A

Air Cleaner Element

Note-3

I

II

I, R*

I

I, R*

R

Drain/Crankcase Breather Tube

Note-4

I, C I, C

I, C

I, C

I, C

I, C

Spark Plug

Note-5

R

I, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C,AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, A, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, Al, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, Air, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AL, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AI, C, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, AC, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA, CA,CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CACA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CACACA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA Canada CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA Canada A CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CCA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CACCA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA ACA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA

Note-2

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, B

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, C

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, P

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, T

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, E

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, F

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, AA

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, I

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, N

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, S

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, D

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, O

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, M

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, G

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I, A

I,

ITEMS

WHICHEVER COMES FIRST

DURING FREE SERVICE PERIOD

AFTER FREE SERVICE ONCE IN EVERY

SERVICE

1^st

2^nd

3^rd

4^th

5^th

DAYS

1st 60

Next 100

Next 100

Next 100

Next 100

KM 1Note-

500-750

3000-3500

6000-6500

9000-9500

12000-12500

60003

90000

12000

15000

Brake Shoe Wear

I

I

I

I

I

I

Parking Lock Operation

I

I

I

I

I

I

Battery Voltage

Note-10

I

I

I

I

I

I

\

Stop Lamp Switch

I

I

II

\

Headlamp Focus

I

I

I

I

I

I

Belt Case/Kick Starter Driven Gear

C, L C,

LC, LC, LC,

LC, L

×

Drive Belt

Note-2&11

I

I

I

R

Clutch Shoe Wear

Note-12

I

I

I

\

Nuts, Bolts & Fasteners

Note-2

I

I

I

I

I

I

×

Front Suspension/Oil

Note-13

I

I

I

I

I

I

\

Rear Suspension

Note-14

I

I

I

I

I

I

×

Wheel/Tyres

Note-12

I

I

I

I

I

I

×

Wheel Bearings

Note-15

I

I

I

I

I

I

×

Steering Head Bearings

Note-12

I, A I, A

I, A I, A

I, AI, L, A

I, L, A

Main Stand

L

L

L

L

L

L

Side Stand (Optional)

L

L

L

L

L

L

Side Stand Switch (Optional)

Note-16

I, C

I, C

I, C

I, C

I, C

I, C

×

Muffler (Catalytic Converter)

Note-17

I, E I, E

I, E

AIR CLEANER ELEMENT

Refer to the safety precautions (page 49). The air cleaner element is of viscous type, it should be replaced at regular intervals (pages 50). Early replacement may be required when riding in unusually wet or dusty areas.

• Remove the body cover (page 32).
• Remove the air cleaner cover (1) by removing the screws (2)

Close-up of a motorcycle's internal engine compartment with numbered parts and directional arrows (no text or symbols)

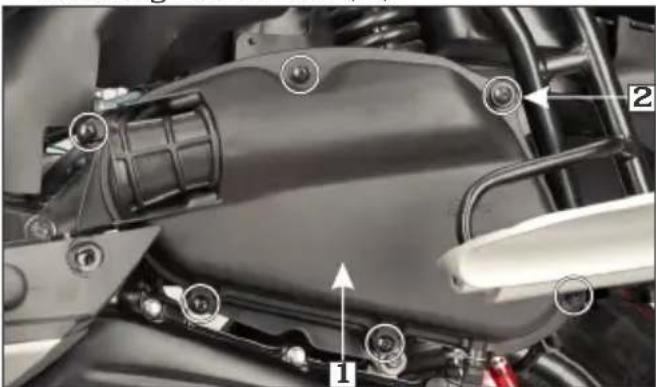

(2) Screws

(1) Air cleaner cover

Close-up of a green mechanical component with labeled parts (3, 4), no readable text or symbols present.

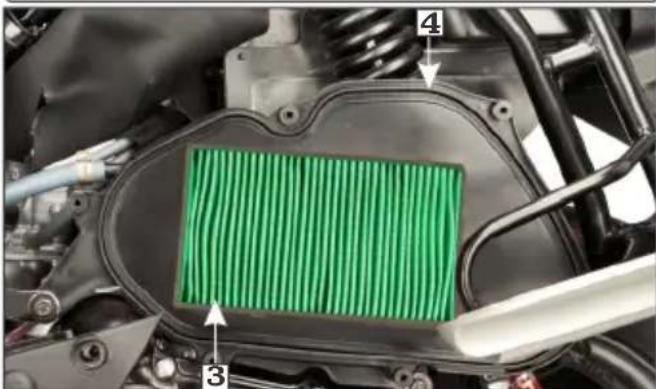

(3) Air cleaner assembly
(4) Air cleaner housing

• Remove the air cleaner assembly (3) from housing (4).
• Inspect the air cleaner element for any dust or dirt accumulation.
• Replace the air cleaner element, if found choked.

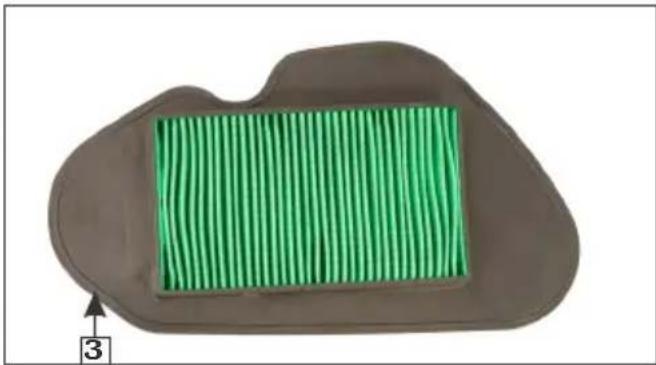

Green striped material inside a gray plastic housing, with a numbered arrow pointing to the bottom-left corner (no text or symbols on the material itself)

(3) Air cleaner assembly

!! CAUTION

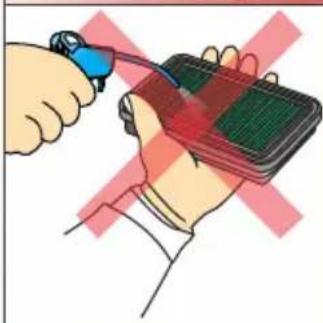

Illustration of a hand holding a device with a blue probe, crossed out by red cross symbols (no text or symbols present)

Illustration of a hand pouring liquid into a container with a handle, no text or symbols present

• Do not blow compressed air.
• Do not wash using any solvent.

- Clean the air cleaner housing (4) using a shop towel.

• Install the air cleaner assembly (new, in case of replacement).

• Install the air cleaner cover.
• Install the body cover (page 33).

NOTE

• Replace air cleaner element once in every 15000 km or early replacement may be required when riding in dusty areas.
• At 12000 km inspect if air cleaner element is choked. If found choked, replace the air cleaner element to keep the engine healthy.

THROTTLE OPERATION

Cable inspection

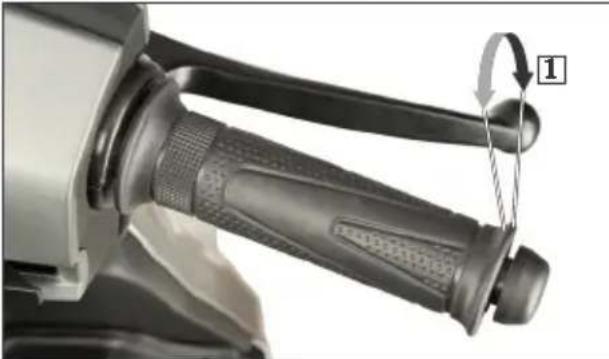

Check for smooth rotation of the throttle grip from the fully open to the fully closed position. Check at full left and full right steering positions. Inspect the condition of the throttle cable from the throttle grip down to the carburetor. If the cable is kinked, chafed or improperly routed, it should be replaced or rerouted. Standard throttle grip free play (1) is approximately 2-6 mm of grip rotation.

Close-up of a mechanical lever handle with a hand fastening a circular motion indicator (no text or symbols visible)

(1) Free play: 2-6 mm

Free play adjustment

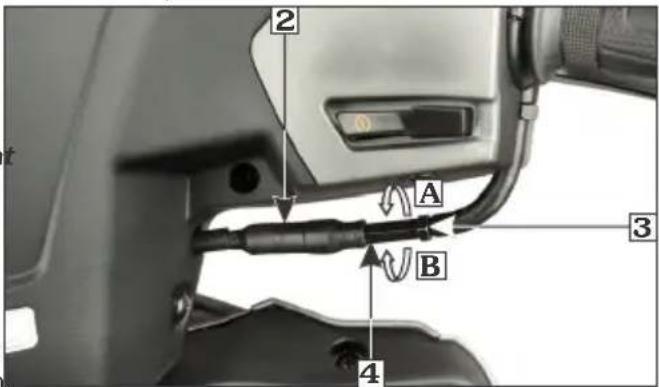

Slide the boot (2), loosen the lock nut (3) and turn the adjuster (4).

(2) Boot

(3) Lock nut

(4) Adjuster

(A) Decrease free play

(B) Increase free play

SECONDARY AIR SUPPLY SYSTEM

Refer to the safety precautions (page 49).

Secondary air cleaner element cleaning

The air cleaner element should be serviced at regular intervals. Service more (page 50) frequently when riding in unusually wet or dusty areas.

• Remove the body cover (page 31).
• Remove the air cleaner element housing cover (1) by removing the screw (2).
• Remove the air cleaner element (3).
• Wash the air cleaner element in clean, nonflammable or high flash point solvent and let it dry thoroughly.
• Soak the air cleaner element in gear oil (SAE-90) until saturated, then squeeze out the excess oil.

• Install the removed parts in the reverse DRAIN TUBE order of removal. • Refer to the s

!! CAUTION

Never use gasoline or low flash point solvents for cleaning the air cleaner element. A fire or explosion could result.

Close-up of a mechanical assembly with labeled parts, showing a hand adjusting a component (no readable text or symbols)

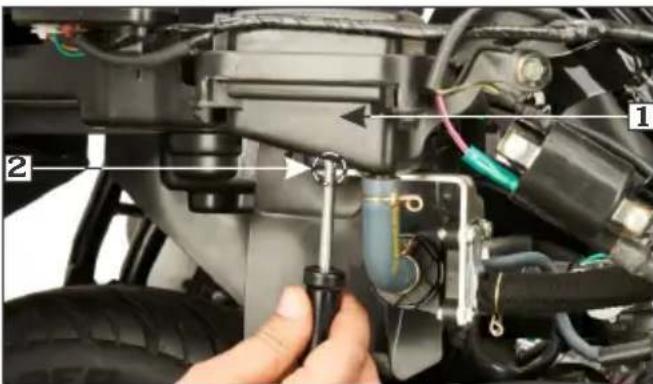

(1) Air cleaner element housing cover

(2) Screw

Close-up of a yellow plastic component mounted on a vehicle wheel, with no visible text or symbols.

(3) Air cleaner element

• Refer to the safety precautions (page 49).
- Remove the drain tube (1) from the air cleaner assembly (2) and drain deposits in to a suitable container.
- Reinstall the drain tube.
- Service more frequently when riding in rain, at full throttle or after the vehicle is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.

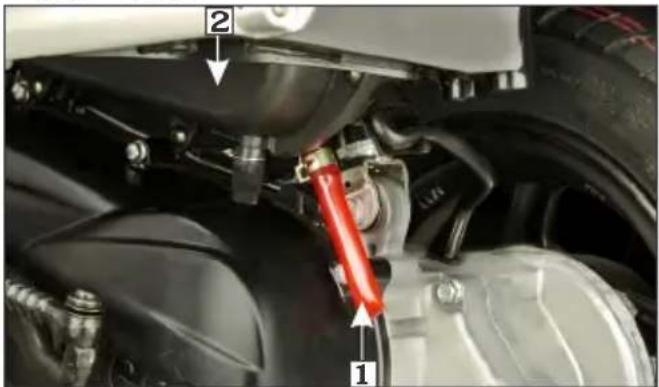

(1) Drain tube
(2) Air cleaner assembly

ENGINE OIL

Use hero genuine engine oil or recommended grade oil.

• Tide Water Oil Co. (India) Ltd.
• Savita Oil Technologies Limited.
• Bharat Petroleum Corporation Limited.

Oil Capacity: 0.8 Litre

Engine oil level check

Check the engine oil level each day before riding the vehicle.

The level must be maintained between the UPPER (1) and LOWER (2) level marks on the oil level dipstick (3).

Close-up of a car's engine component being adjusted, showing a hand holding a plug and a connector inserted into the engine (no text or symbols visible)

(1) UPPER level mark (3) Oil level dipstick
(2) LOWER level mark

- Start the engine and let it idle for few minutes.

- Stop the engine and park the vehicle on the main stand on a level surface.

• After a few minutes, remove the oil level dipstick, wipe it clean and reinsert the oil level dipstick without screwing it in. Remove the oil level dipstick and check if the oil level is between the upper and lower marks.

- If required, add recommended oil up to the upper level mark. Do not overfill.

- Reinstall the oil level dipstick. Check for oil leaks.

NOTE

- Running the engine with insufficient oil may cause engine damage. 2 Top up if required after every 3000 km.

Engine oil replacement/Oil strainer cleaning

Change the engine oil with the engine at normal operating temperature and the vehicle on its main stand to assure complete and rapid draining.

- Remove the oil level dipstick. - Place an oil drain pan under the crankcase and remove the oil drain bolt (1).

Close-up of a mechanical assembly with bolts and a numbered component (no visible text or symbols)

(1) Drain bolt

Remove the oil strainer screen cap (2).

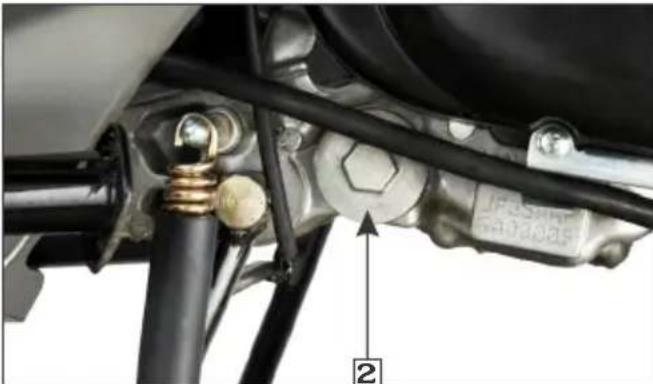

Close-up of a mechanical assembly with bolts and a numbered component (no readable text or symbols)

(2) Oil strainer screen cap

• The spring (3) and oil strainer screen (4) will come out when the oil strainer screen cap is removed.
• Clean the oil strainer screen.
• Check that the oil strainer screen, sealing rubber and cap O-ring (5) are in good condition.

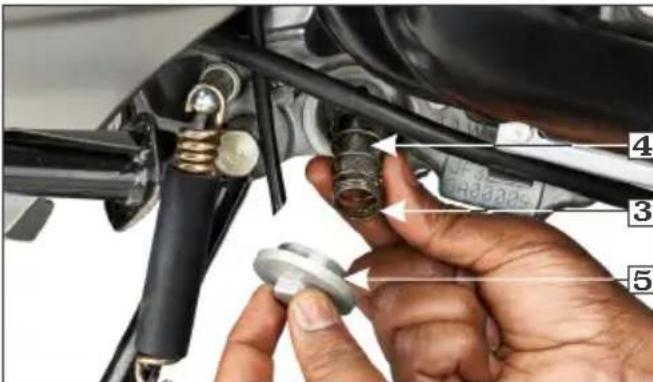

(3) Spring (4) Oil strainer screen (5) O-ring

• Install the oil strainer screen, spring and oil strainer screen cap with new O-ring. Install the drain plug.

- Fill crankcase with the recommended grade of oil:

At draining: 0.70 litre At engine disassembly: 0.80 litre

• Install the oil level dipstick.
- Start the engine and let it idle for 2-3 minutes. Stop the engine and ensure that the oil level is at the upper level mark on the oil level dipstick with the vehicle upright on flat level surface. Ensure there are no oil leaks.

!! CAUTION

• Engine oil quality is the chief factor affecting engine service life. Replace and top-up the engine oil as specified in the maintenance schedule (page 50).
- When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule.

!! WARNING

• Please dispose used engine oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local recycling center or service station for reclamation. Do not throw it in the trash or pour it on the ground or down a drain.
  • Used engine oil may cause skin disease if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.

FINAL DRIVE OIL REPLACEMENT

The final drive oil should be replaced as per the maintenance schedule. Replacement requires mechanical skill. It is suggested to get it replaced by Authorised Hero MotoCorp workshop.

GRADE : SAE 10W 30 SL Grade

• Park the vehicle on its main stand.
- Start the engine and let it idle for 3-minutes.
- Stop the engine and wait for 2-3 minutes.
- Remove the oil level check bolt (1).
- Remove the drain bolt (2), slowly turn the rear wheel and drain the oil.
• After the oil is completely drained, install the oil drain bolt with a new sealing washer.

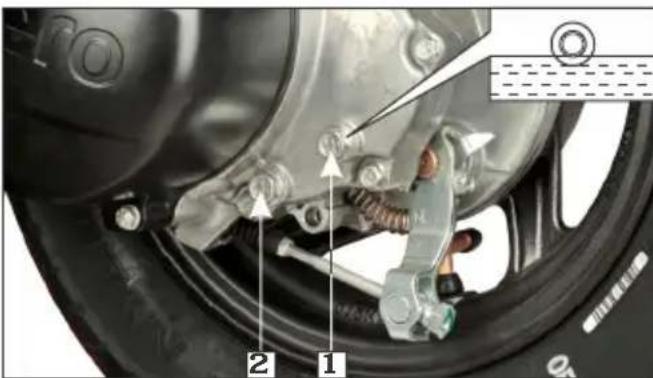

(1) Check bolt
(2) Drain bolt

- Fill the transmission case with recommended oil through the check bolt hole up to the bottom edge of the bolt hole.

At draining: 0.10 Litre

At transmission disassembly: 0.12 Litre

• Install the oil level check bolt with a new sealing washer and tighten it.

!! WARNING

• While refilling the oil make sure that no foreign material enters the final drive transmission.
  • Make sure that no oil gets on the tyre or wheel.

SPARK PLUG

Refer to the safety precautions (page 49). Recommended spark plug.

Champion-PRZ 9 HC (Federal Mogul)

• Remove the center cover (page 31).
• Disconnect the noise suppressor cap (1) from the spark plug.

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

(1) Noise suppressor cap

Clean any dirt around the spark plug base.

!! WARNING

Never use a spark plug with an improper heat range. Severe engine damage could result.

• Remove the spark plug using the wrench plug provided in the tool kit.
• Inspect the electrodes and center porcelain for deposits, erosion or carbon fouling. If the erosion or deposit is heavy, replace the plug. Clean carbon or wet fouled plug with a plug cleaner.
• Check the spark plug gap using a wire-type feeler gauge. If adjustment is necessary, bend the side electrode (2) carefully.

(2) Side electrode

• With the plug washer attached, thread the spark plug in by hand to prevent cross threading.
• Tighten a new spark plug 1/2 turn with a wrench plug to compress the washer. If you are reusing a plug, it should only take 1/8-1/4 turn after the plug seats.
  • Reinstall the noise suppressor cap.

WARNING

The spark plug must be securely tightened. An improperly tightened plug can become very hot and possibly damage the engine.

IDLE SPEED

Refer to the safety precautions (page 49). The engine must be at normal operating temperature for accurate idle speed adjustment. Ten minutes of stop-and-go hiding is sufficient.

• Warm up the engine and park the e vehicle on its main stand.
• Remove the centre compartment (page 30).
• Adjust idle speed by adjusting the throttle stop screw (1) by inserting a suitable screw driver.

Idle speed: 1700±200 R/MIN

Close-up of a mechanical component with metallic parts and a labeled arrow pointing to a component (no readable text or symbols)

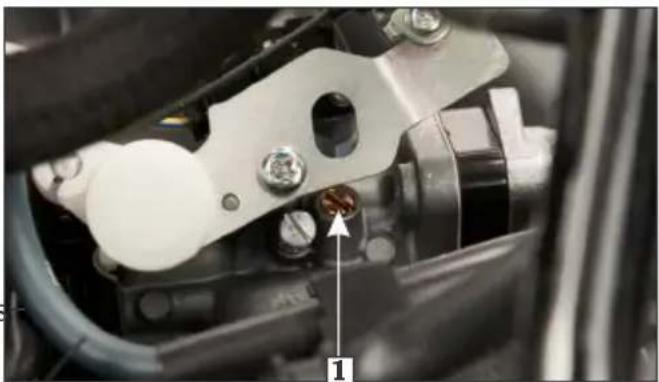

(1) Throttle stop screw

BRAKE SHOE WEAR

Refer to the safety precautions (page 49). The front and integrated brakes are equipped with brake wear indicators. When the brake is applied, an arrow mark (1) on the brake arm (2) moves towards a reference mark (3) on the brake panel (4).

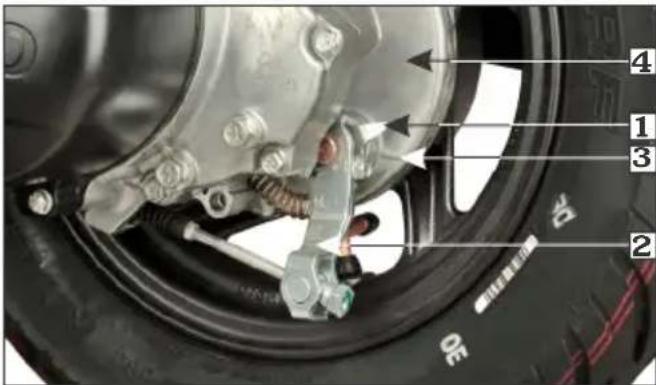

Integrated brake

(1) Arrow
(2) Integrated brake arm
(3) Reference mark
(4) Brake panel

Rear brake

(1) Arrow
(2) Brake arm
(3) Reference mark
(4) Brake panel

If the arrow aligns with the reference mark on full application of the brake, the brake shoes must be replaced. Visit your Authorised Hero MotoCorp workshop for this service.

BATTERY

Refer to the safety precautions (page 49). Battery is located behind the front center cover.

Specification:

\*MF Battery 12V-4Ah ETZ-5

It is not necessary to check the battery electrolyte level or add distilled water as the battery is a Maintenance-Free (sealed) type. If your battery seems weak and/or electrolyte is leaking (causing hard starting or other electrical troubles), contact your Authorised Hero MotoCorp workshop.

NOTE

This symbol on the battery means that this product must not be treated as household waste.

This symbol on the battery means the old battery must be returned to your Authorised Hero MotoCorp workshop as it must be treated as recyclable material.

• Battery is a Maintenance-Free (sealed) type and can be permanently damaged if the sealing strip is removed.
  • An improperly disposed battery can be harmful to the environment and human health. Always confirm local regulations for battery disposal.

*MF stands for Maintenance Free

!! WARNING

• The battery gives off explosive hydrogen gas during normal operation.
- A spark or flame can cause the battery to explode with enough force to seriously hurt you.
- Wear protective clothing and a face shield, or have skilled technician do the battery maintenance.

Battery charging

Always visit your Authorised Hero MotoCorp workshop if you see any symptom of battery discharge as earliest as possible to get battery charged. The battery has a tendency to discharge rapidly if any additional electrical accessories are fitted on your vehicle.

Battery storage

• If in case your vehicle is not used for more than a month remove the battery, fully charge and store in a cool and dry place.
• If the battery is expected to be stored for more than two months, ensure to fully charge the battery once in a month.
  • Always ensure the battery is fully charged before installation.
• Ensure the battery leads are properly connected to the battery terminals during installation.

Battery removal

• Remove the front center cover (page 33).
• Remove the battery band (1) from the boot band clip (2).

Close-up of a car's internal battery compartment with labeled components (no readable text or symbols)

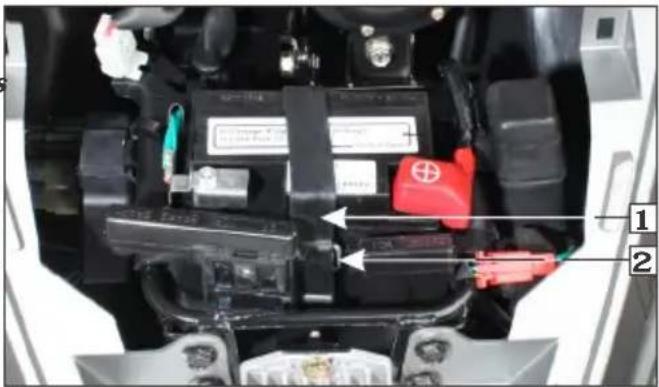

(1) Battery band (2) Boot band clip

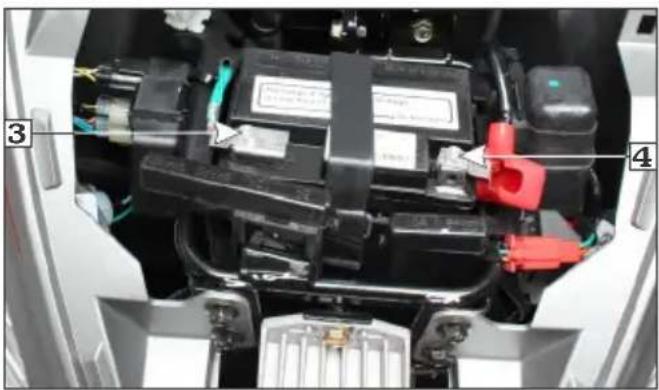

Disconnect the (-) ve terminal lead (3) from the battery first, then disconnect the (+) ve terminal lead (4).

(3) (-)ve terminal (4) (+)ve terminal

- Remove the battery (5).

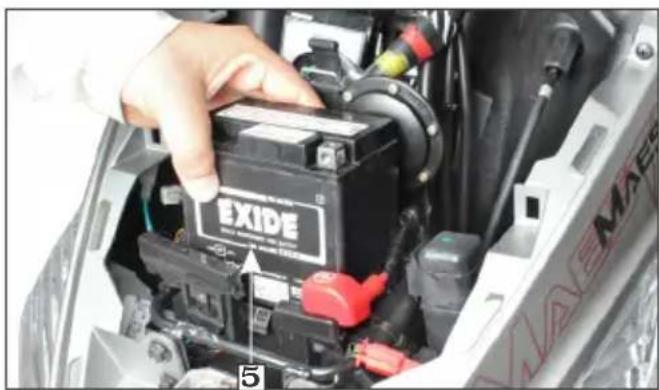

Close-up of a hand installing an EXIDE battery component on a car engine (no visible text or symbols)

(5) Battery

Battery installation

• Reinstall in the reverse order of removal. Be sure to connect the positive (+)ve terminal first, then the negative (-)ve terminal.
• Check the bolts and other fasteners are secured.

FUSE REPLACEMENT

The fuse boxes (A) and (B) are placed adjacent to the battery which consist of main and spare fuses.

(A): Main fuse (1) : 15A and 10A

Spare fuse (2): 15A and 10A

(B): Main fuse (3) : 10A

Spare fuse (4): 10A

WARNING

• Never use a fuse with a different rating from that specified. It may lead to serious damage to the electrical system or a fire due to short circuit.
• Battery gives off explosive gases. Keep sparks, flames & cigarettes away.

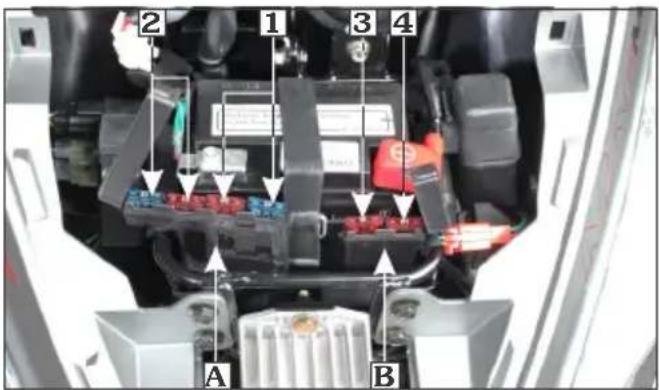

(A) & (B): Fuse boxes

(1) Main fuse : 15A & 10A
(2) Spare fuse: 15A & 10A
(3) Main fuse : 10A (4) Spare fuse: 10A

GOOD FUSE BLOWN FUSE

Pure electrical connector diagram without any text, numbers, or symbols

Pure electrical connector diagram without any text, numbers, or symbols

CAUTION

• Do not attempt to start or ride the vehicle without a charged battery, it can cause fusing of the bulbs and permanent damage to certain electrical components.
• Turn the ignition switch "OFF" before checking or replacing the fuse to prevent accidental short-circuiting.

- If the replacement fuse of the same rating burns out in a short time, there is probably a serious electrical problem on your vehicle. Leave the blown fuse in that circuit and have your vehicle checked by your Authorised Hero MotoCorp workshop.

SIDE STAND

• Check the side stand for proper function.
• Check the spring (1) for damage or loss of tension and the side stand assembly for free movement.
• If the side stand is up, the side stand indicator (2) should not glow.
• Check whether the side stand indicator (2) glows when the side stand is down.

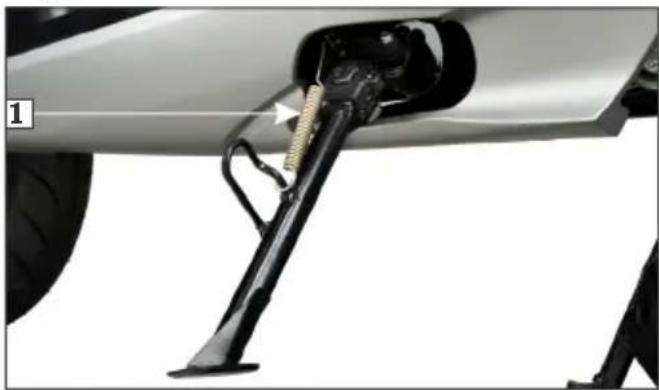

Close-up of a car's rear suspension system with visible mechanical components and mounting bracket (no text or symbols)

(1) Side stand spring

- If the side stand indicator (2) does not operate as described in steps 2 or 3, please visit your Authorised Hero MotoCorp workshop.

(2) Side stand indicator

!! CAUTION

Ensure that adequate care should be taken while cleaning the side stand switch.

SUSPENSION

Inspection

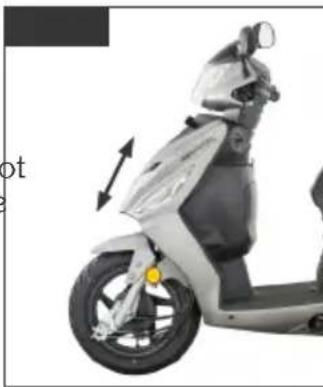

- Check the front forks by locking the front brake and pumping the front fork up and down vigorously. The suspension action should be smooth and there should be no oil leakage.

Side view of a white electric scooter with visible wheel and side-mounted sensor (no text or symbols)

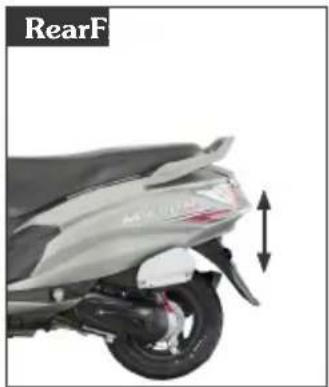

Side view of a scooter with visible exhaust pipe and side-mounted sensor (no text or symbols)

- Check the rear shock absorber by pushing hard downwards on rear grip while the vehicle is not parked on stand. The vehicle action should be smooth and there should be no oil leakage.

BULB REPLACEMENT

Refer to the safety precautions (page 49). The bulb becomes very hot while the lamp is "ON", and remains hot for a while after it is turned "OFF". Be sure to let it cool down before servicing.

Do not put finger prints on the headlamp bulb as they may create hot spots on the bulb and cause it to break.

Wear clean gloves while replacing the bulb. If you touch the bulb with your bare hands, clear it with a cloth moistened with alcohol to prevent its early failure.

Be sure to turn the ignition switch "OFF when replacing the bulb.

Do not use bulbs other than that specified. After installing a new bulb, check that the lamp operates properly.

(a) Headlamp/Position lamp bulb

• Remove the headlamp case (page 36).

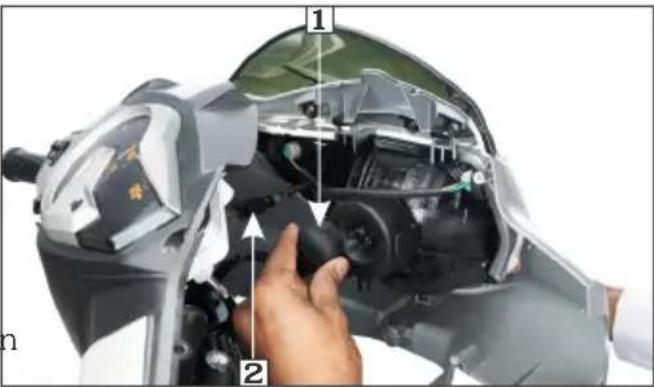

• Disconnect the headlamp connector (1) and position lamp connector (2).

Close-up of a motorcycle's internal components, showing parts being handled by hand (no visible text or symbols)

(1) Headlamp connector (2) Position lamp connector

• Remove the dust cover (3).
• Loosen the screw and release the clip (4) from its position.

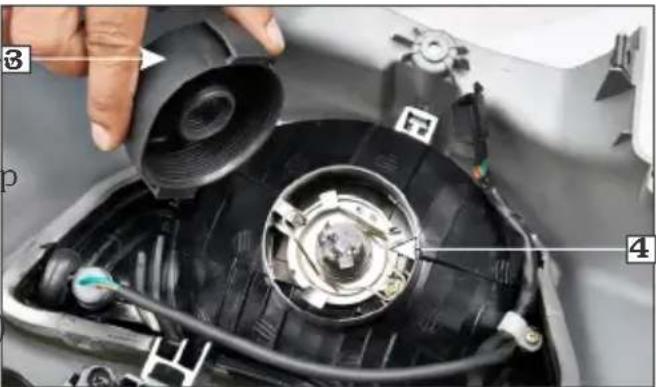

Close-up of a car engine bay with a hand inserting a component into the air gap (no visible text or symbols)

(3) Dust cover (4) Clip

• Remove the headlamp bulb (5) without turning.
• Remove the position lamp bulb (6) from both sides of the headlamp case.

Close-up of hands adjusting a mechanical component with a circular dial (no visible text or symbols)

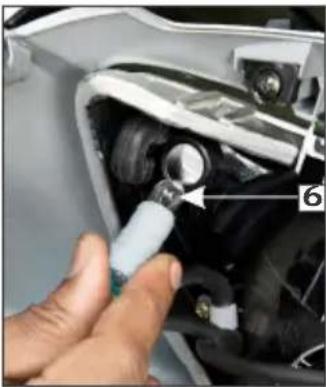

Close-up of a hand holding a white plastic tool inside a car engine compartment, with no visible text or symbols.

(5) Headlamp bulb
(6) Position lamp bulb

Install a new bulb in the reverse order of removal.

(b) Tail/Stop lamp LED unit

• Remove the centre compartment (page 30).
• Remove the body cover (page 31).
• Remove the fuel drain tube (1).
• Remove the fuel tank lid lock cable from the guide (2).

(1) Fuel drain tube
(2) Guide
(3) Screws

• Disconnect the tail/stop lamp connectors.
• Remove the tail/stop lamp unit from the body cover by removing the screws (3).
  • Install a new tail/stop lamp unit in the reverse order of removal.

(c) Rear turn signal bulb

• Insert hand from body cover rear side, above rear fender area and remove turn signal bulb holder (1) by turning counter clockwise.

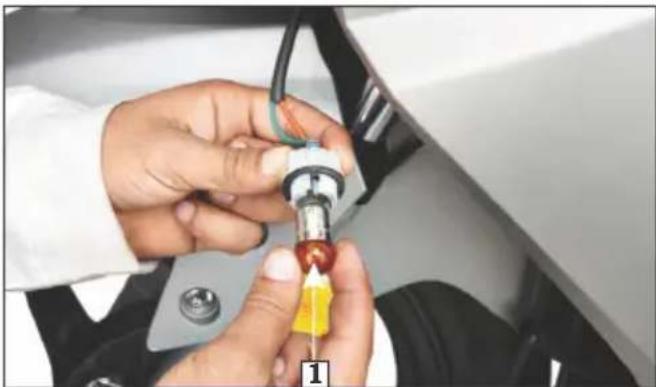

• Remove the rear turn signal bulb (2) by turning it to counterclockwise direction.

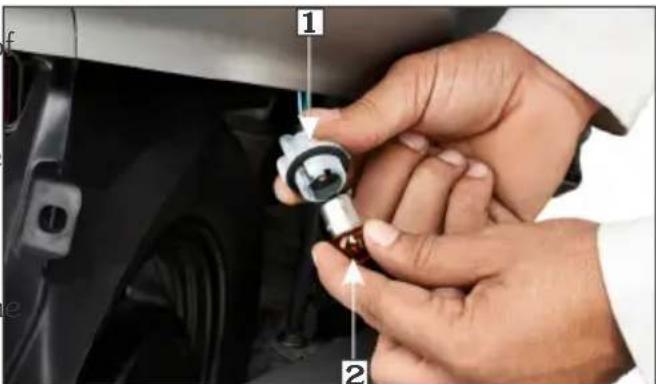

(1) Bulb holder
(2) Rear turn signal bulb

Install a new bulb in the reverse order of removal.

• Insert hand from body cover front side, above front fender area and remove turn signal bulb holder (1) by turning counter clockwise.
• Remove the bulb (1) by turning it to counterclockwise direction.

Close-up of hands installing a yellow cable to a car's electrical plug (no text or symbols visible)

(1) Front turn signal lamp bulb

• Install a new bulb in the reverse order of removal.

CATALYTIC CONVERTER

This vehicle is equipped with a catalytic converter in the muffler.

The catalytic converter contains noble metals that serve as catalyst, promoting chemical reactions to convert CO and HC in the exhaust to CO_2 and H_2O (water vapour)

A defective catalytic converter contributes to air pollution and can impair your engine performance.

Follow these guidelines to protect your vehicle's catalytic converter.

• Always use unleaded petrol. Even a small amount of leaded petrol can contaminate the catalyst metals, making the catalytic converter ineffective.

- Keep the engine tuned up.

AIR SUCTION VALVE (ASV) (SECONDARY AIR INJECTION SYSTEM)

Further to meet emission standards this vehicle is provided with the air suction valve.

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

(1) Air suction valve

Air suction valve (1) supplies fresh air from the air filter to the exhaust manifold to convert carbon monoxide to carbon dioxide. This reduces the CO% in the vehicle's exhaust.

POLISHING OF VEHICLE

After washing your vehicle, wax all painted surfaces (except matte painted surfaces) using a commercially available polish/quality liquid or paste wax to finish the job. Use only a non abrasive polish or wax made specifically for automobiles. Apply the polish or wax according to the instructions on the container.

NOTE

Polishing or waxing is not applicable for models having matte paint.

REMOVING ROAD SALT

The road may contain salt which was sprayed as an anti-freezing agent during winter, and the seawater are the causes of rust.

Wash your vehicle when run on such conditions by the following the point mentioned below, Clean the vehicle using cold water (page 46). Do not use warm water.

This worsens the effect of the salt.

STORAGE GUIDE

Extended storage, such as for winter, requires that you take certain steps to reduce the effects of deterioration from non use of the vehicle. In addition, necessary repairs should be made before storing the vehicle, otherwise these repairs may be forgotten by the time the vehicle is removed from storage.

(a) Storage

• Change the engine oil.
• Empty the fuel tank into an approved petrol container using a commercially available hand siphon or an equivalent method.
• Spray the inside of the tank with an aerosol rust-inhibiting oil.
• Reinstall the fuel filler cap on the tank.

WARNING

• Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine and keep heat, sparks, and flame away.
  • Refuel only outdoors.
  • Wipe up spills immediately.

• If storage lasts more than a month, carburetor draining is very important, to assure proper performance after storage.

• To prevent rusting in the cylinder, perform the following:

• Remove the noise suppressor cap from the spark plug. Using tape or string, secure the cap to any convenient plastic body part so that it is positioned away from the spark plug.

• Remove the spark plug from the engine and store it in a safe place. Do not connect the spark plug to the noise suppressor cap.
• Pour a tablespoon (15-20 ml) of clean engine oil into the cylinder and cover the spark plug hole with a piece of cloth.
• Crank the engine several times to distribute the oil.
• Reinstall the spark plug and noise suppressor cap.

Remove the battery. Store in an area protected from freezing temperatures and direct sunlight. Charge the battery once a month.

• Wash and dry the vehicle. Wax all painted surfaces. Coat chrome plated parts with rust inhibiting oil.
• Inflate the tyres to their recommended pressures. Park the vehicle on blocks to raise both tyres off the ground.
• Cover the vehicle (don't use plastic or other coated materials) and store in an unheated area, free of dampness with a minimum of daily temperature variation. Do not store the vehicle in direct sunlight.

(b) Removal from storage

• Uncover and clean the vehicle. Change the engine oil if the vehicle has been stored for more than 4 months.
• Check the battery voltage and charge the battery as required. Install the battery.
• Drain any excess aerosol rust-inhibiting oil from the fuel tank. Fill the fuel tank with fresh petrol.
• Perform all pre-ride inspection checks (page 37). Test ride the vehicle at low speeds in a safe riding area away from traffic.

BASIC TROUBLESHOOTING

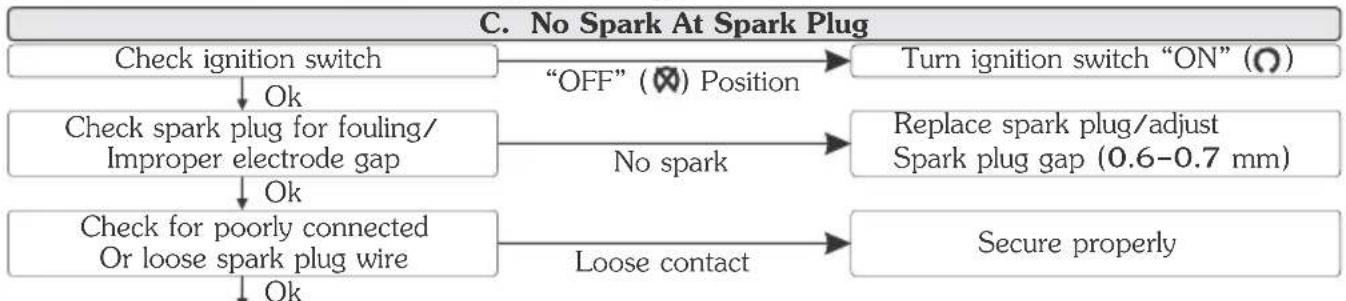

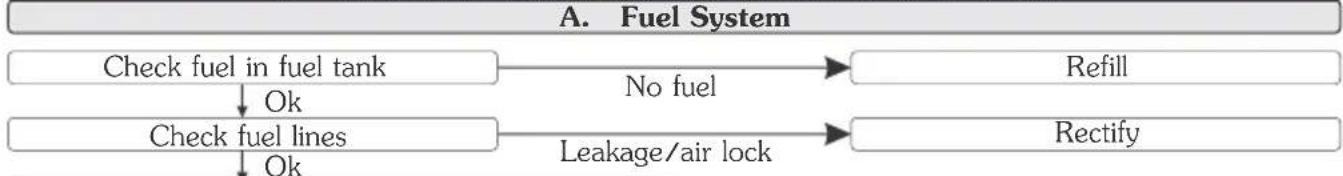

1. STARTING TROUBLE - ENGINE DOES NOT START

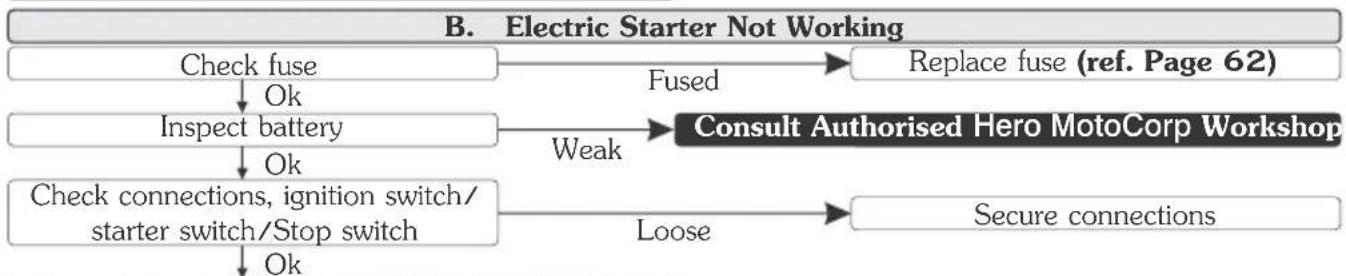

Consult Authorised Hero MotoCorp Workshop

Consult Authorised Hero MotoCorp Workshop

Consult Authorised Hero MotoCorp Workshop

Consult Authorised Hero MotoCorp Workshop

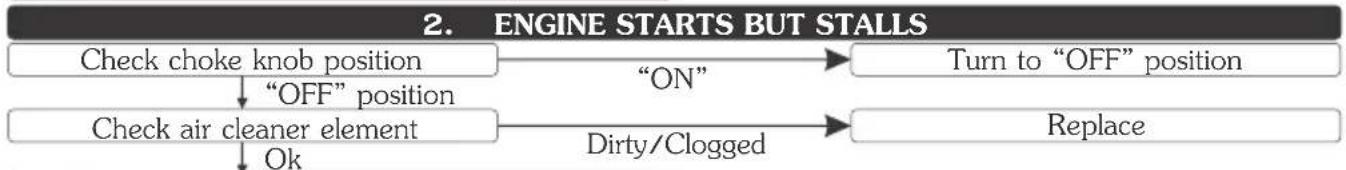

BASIC TROUBLESHOOTING

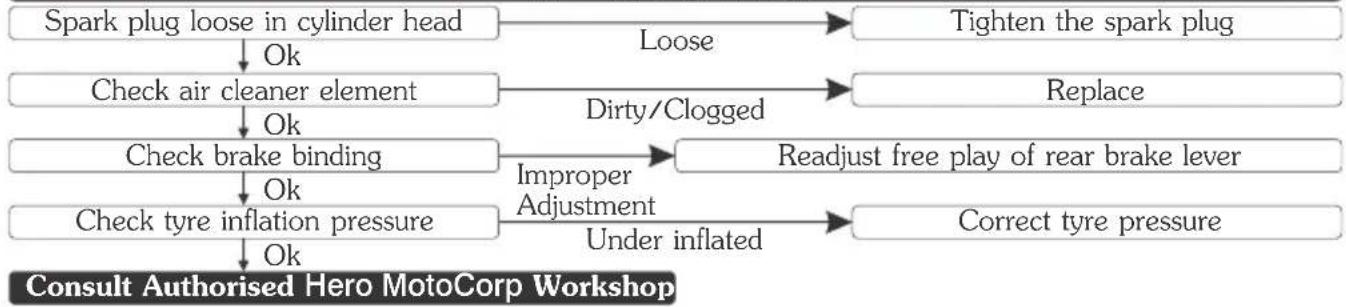

1. POOR PICK UP

    F["Tighten the spark plug"] -->|Loose| G["Replace"]
    H["Dirty/Clogged"] --> I["Improper Adjustment"]
    I --> J["Under inflated"]
    J --> K["Correct tyre pressure"]

    L["Readjust free play of rear brake lever"] --> M["Adjustment"]
    M --> N["Overload"]

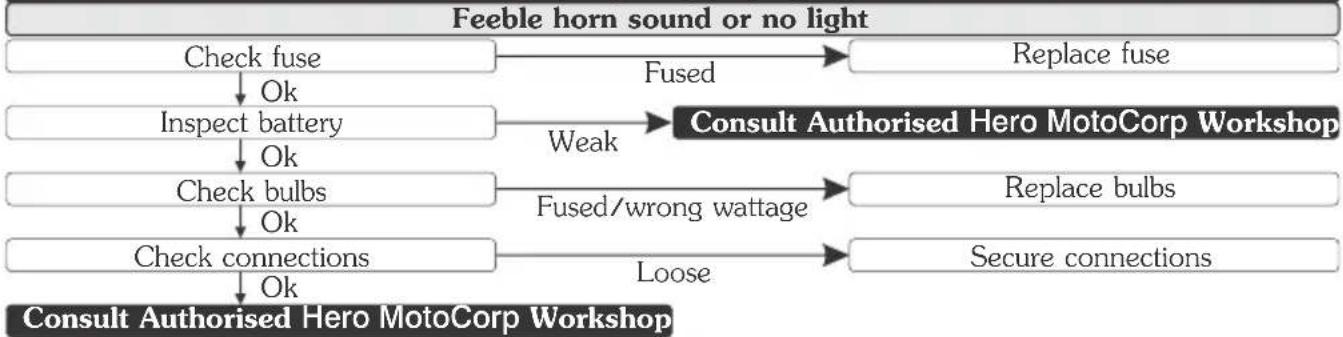

1. ELECTRICAL SYSTEM

ROAD SIGNS

Mandatory signs: These road signs inform drivers/riders of the traffic rules that apply on a certain stretch of road, thereby instructing them on how to drive/ride. Mandatory signs are distinguished by the bright red circle with black and blue markings. It is imperative that all riders follow these signs as they help avoid accidents. Their violation can be penalised under the Motor Vehicle Act.

Mandatory

Stop

Give Way One Way

No Right Turn

No Horn

No Bicycles

No Automobiles

No Hand Craft

No Pedestrians

No Right Turn

No 'U' Turn

Overtaking Prohibited

Speed Limit

No Stopping or Standing

No Parking Length Limit High Limit

imit High Limit

m = 311

Restriction Ends

Compulsory- Ahead Only

Compulsory-Turn Left

Compulsory-Right Ahead

Compulsory-Ahead or Turn Right

Compulsory-Keep Left

Compulsory-Bicycle Track

Compulsory-Sound Horn

ROAD SIGNS

Cautionary signs: These signs inform the driver/rider of the road conditions ahead. Cautionary signs therefore serve as a warning. They are usually in a red triangle with black pictures on a white background. Illustrations, diagrams and symbols are used to forewarn about dangers ahead. Cautionary road signs are as important as mandatory signs. However, the violation of cautionary signs does not attract penalty.

Cautionary

School Ahead
Gap in Medium
Cross Road
Men at Work
Roundabout
Hump Road

ROAD SIGNS

Informatory signs: These are facility signs that provide important information about road directions are maps of specific destinations. On highways, they provide information about the location of public telephones, restaurants, hospitals, parking, petrol pumps, resting-places and more. These signs are usually rectangular, with black or white pictures on a blue background.

Informatory

Hospital

First Aid Post

Petrol Pump

Eating Place

Resting Place

Public Telephone

Delhi

Place Identification Place

Destination Sign

Light Refreshment

Taxi Stand

Parking Both Sides

Parking This Side

No Through Road

No Through Side Road
Bahadurgarh 10 Rohtak 48
Re-assure Sign

Signs and Signals are language of the road. Learn them, respect them.

Hero MotoCorp Ltd.

WARRANTY

Scope of warranty

Hero MotoCorp Ltd. (hereinafter called ‘Hero MotoCorp’) warrants its MAESTRO EDGE vehicles, assembled/manufactured in its Plants and sold through its channel partners, to be free from any defect—both in material and workmanship, under normal use and conditions, subject to the following terms & conditions.

TERMS & CONDITIONS

a) MAESTRO EDGE vehicle is warranted for a period of 5 years or 50000 Km, whichever is earlier, from the date of purchase.

b) It is advised that the purchaser avails all free and paid services from the Hero MotoCorp's authorized workshop as per the recommended schedule, to be eligible for warranty benefits. Each paid service should be availed within 90 days from the date of previous service or as per the recommended schedule, whichever is earlier.

c) If any problem is observed in MAESTRO EDGE vehicle, Hero MotoCorp's only obligation liability is to repair or replace that part/those parts which is/are considered to be / the cause of such problem, provided however that such problem, has not resulted due to misuse/improper handling etc. of the vehicle. Any MAESTRO EDGE vehicle needing repair should be brought along with Owner's Manual to Hero MotoCorp's authorised workshop for necessary inspection and carrying rectification job.

Hero MotoCorp Ltd.

LIMITATIONS OF WARRANTY

The warranty shall not apply—

(1) If all free services/paid services/oil top-ups are not availed as per the recommended schedule at Hero MotoCorp's authorized workshop.

(2) If any other engine oil which is non compatible with product is used other than SAE 10W30 SL Grade (JASO MB).

(3) To normal wear & tear components including (but not limited to) brake shoes/pads, clutch plates, drive chain & sprockets, bulbs, electrical wiring, filter, spark plug, fasteners, shims, washers, oil seals, gaskets, rubber parts, bush, rubber bellows, plastic parts breakage and wheel rim for misalignment/bend.

(4) If additional wheel(s) is/are fitted and/or any other modification carried out/unauthorized accessories fitted which shall be responsible for malfunction/detoriation of the vehicle.

(5) If MAESTRO EDGE vehicle has been used in any competitive events like races or rallies or for any commercial purposes as taxi etc.

(6) To any damage on vehicle's painted surface cropping due to industrial pollution or other external factors.

(7) For normal phenomena like noise vibration, oil seepage etc., which do not affect the performance of the .vehicle

(8) To any damage caused due to usage of improper oil/grease, non-genuine parts.

(9) If any defect crops or repairs needed as a result of using adulterated fuel.

(10) If any maintenance/repairs required due to bad road conditions or misuse of MAESTRO EDGE vehicle.

(11) If any defect crops or repairs needed as a result of MAESTRO EDGE vehicle meeting to some accident.

(12) For consumables like oil, grease, gasket etc to be used during free services and/or warranty repairs.

(13) To any part of the MAESTRO EDGE vehicle which has been tampered or repaired in such a manner which has resulted in malfunction of the vehicle.

(14) For MAESTRO EDGE vehicle not used in accordance with the guidelines given in this Owner's Manual.

(15) To proprietary items like Tyres, Tubes, Batteries etc, as they are subjected to the warranty terms & conditions of respective manufacturers and directly handled by them only.

(16) Any defect(s) developing on account of external factors such as environmental factors; including but not limited to fading/peeling/rusting of paint and/or stripes and/or plated parts, seat leather tearing & cracking, aluminium parts oxidation and cracking & discoloring of control switches etc.

Decision regarding warranty settlement shall be taken by Hero MotoCorp and the same shall be final and binding on all concern.

Subject to DELHI JURISDICTION only.

Hero MotoCorp Ltd.

BATTERY WARRANTY PERIOD

1. 18 months from date of sale of vehicle or 20000 km. or
2. 21 months from the date of charging (whichever is earlier).
3. 3 months idle period is allowed from the date of charging to date of sale on vehicle.

Terms and condition of warranty

1. Batteries are warranted against all defects in material and workmanship. Liability under this warranty is limited to making good of defects rising solely from the use of faulty material or workmanship during manufacturing and developing under proper use. The warranty commences from the date of delivery to the original purchase of the vehicle.
2. In the event of any complaint the battery is to be returned complete with electrolyte to nearest battery service station or any OEM dealer. On inspection, battery would be returned or replaced.
3. This warranty card accompanies a battery sold as OEM fitment only. Claims should be supported with vehicle purchase invoice to enable processing.
4. The right to determine whether a battery needs repair or totally replacement lies with the company. In case where the battery is replaced, the defective battery becomes the property of the company and no scrap rebate will be given for it. The warranty period on the battery being repaired/replaced shall commence from the date of sale of the original battery as stated in the original warranty card.
5. All liabilities under this warranty will cease if the battery is used on the vehicle other than that on which the battery was originally fitted and on the expiry of the warranty period as mentioned above.
6. Recharging is not covered under the purview of this warranty and shall be billed as extra. However, FOC battery replacement/repair includes cost of charging.
7. This warranty does not cover damage to the battery caused by faulty electrical systems, incorrect charging and filling, improper handling of the battery by unauthorized dealers/auto electricians, maintenance, willfull abuse, destruction by fire, collusion, theft or recharging.
8. Breakage of container and cover do not come under the purview of this warranty.
9. Adjudication and settlement of claim will take a couple of days as a battery has to be tested for the reported failure.
10. In case of tempering of the original wiring circuit in any manner whatsoever.
11. If a battery which is not recommended is fitted on the vehicle then such battery will not carry any warranty.
12. The applicable taxes which is leviable on the battery under repair or replacement will be borne by the customer.
13. Customers are deemed to have read, understood and agreed to these conditions at the time of purchase of the vehicle.

Hero MotoCorp Ltd.

EMISSION WARRANTY

Scope of warranty

Hero MotoCorp Ltd. Warrants all its vehicles, assembled/manufactured at its various Plants and sold through its Authorised dealers, to comply with emission standards as specified in S.No. 5 of table in item(i) of sub rule (2) of Rule 115 of Central Motor Vehicles Rules, 1989, which stipulates that "Idle CO (Carbon monoxide) emission limit for all two wheeled petrol driven vehicles shall not exceed 3.0 percent by volume and HC (Hydro Carbon) 3000 ppm, subject to following terms & conditions.

Terms & conditions

a) The emission warranty shall be applicable in India and shall remain valid for a period of 3 years or 30000 kms, whichever occurs earlier, from the date of vehicle purchase.
b) In case any defect is observed in any emission-related component, Hero MotoCorp only obligation/liability shall be to repair and/or replace those part (s) which is/are considered to be the cause of non-compliance with the emission standards.
c) The emission warranty shall be applicable only to those vehicles, which are being regularly maintained at Hero MotoCorp Authorised Dealers/Service Points in accordance with the maintenance schedule provided in the owner's manual.
d) The customer should follow the recommended parts replacement as per the maintenance schedule in order to avail the emission warranty.
e) If any part (s) related to emission characteristics of the vehicles is/are tampered and/or repaired by unauthorised person/workshops etc, then the emission warranty shall stand cancelled.
f) Any part (s) suffering wear and tear under the normal course of running shall not be covered under the emission warranty. Therefore, all such parts should be replaced by the customer from time to time, on payment basis, as per the maintenance schedule provided in owner's manual and dealer's advice.
g) It is recommended to avail the services as per the recommended schedule to be eligible for the emission warranty benefits. Please ensure that each paid service is availed within 90 days from the date of previous services or as per the recommended schedule, whichever is earlier. All service details should be completely filled by the dealer, in the Service Record Sheet given in the owner's manual.
h) It is mandatory to obtain a PUC certificate from the Authorised PUC center. In case of non-compliance with the emission standards please contact the channel partner/authorised workshop immediately alongwith the previous OK certificate, for the necessary rectification. The manufacturer or the dealer is not responsible for any penalty levied on you on account of non-compliance with the emission standards.
i) All decisions regarding emission warranty settlement shall be taken by Hero MotoCorp Ltd. and shall be final binding on all concerned.

Subjected to Delhi jurisdiction only.

GENUINE PARTS

WHAT ARE THE BENEFITS OF Hero MotoCorp GENUINE SPARE PARTS ?

• Assures long life
• Ensures economy for a long time
• Safety of vehicle and rider
- Peace of mind
- Value for money
• Assured quality

CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS

Cam Chain Kit	·Poor performance·Reduced life·Material used is inferior·Damages other parts of clutch like, clutch center and outer clutch
Gasket Cylinder Head	·Improper sealing·Engine knocking·Leads to leakage and smoky exhaust·Higher emission level
Element Air Cleaner	·Improper air filtration resulting in premature engine failure·Affects fuel efficiency·Poor engine performance
Spark Plug	·Frequent stalling of engine·Higher emission level·Poor engine performance·Affects fuel efficiency

ZONAL/REGIONAL/AREA OFFICES

For any of your service related query/requirements you may contact the respective Zonal/Regional/Area Offices

CENTRAL ZONE

Hero MotoCorp Ltd., No. 209-210, Ganpati Plaza, M.I. Road, Jaipur-302001, (Rajasthan). Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Office No. 705-706, 7th Floor, Fun Square, Durga Nursery Road, Udaipur -313001 (Rajasthan). Tel: [phone], 79, E-mail: [e-mail]

Hero MotoCorp Ltd., Office. No.401, 4th Floor, Offizo, Magneto Mall, Labhandi, G.E. Road, Raipur -492001, (Chhattisgarh) Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Third Floor, Alankar Palace, Plot No. 11, Zone II, M.P. Nagar Bhopal-462011, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Maloo-01, 601-602, 6th Floor, Plot No. 26C, Scheme No. 94, Ring Road, Indore, M.P.-452010, Tel: [phone], 70, E-mail: [e-mail]

EAST ZONE

Hero MotoCorp Ltd., Flat No: 1002. 10th Floor, Martin Burn Business Park, BP3, Salt Lake, Sector-V, Kolkata-700091 West Bengal, India. Tel : [phone], E-mail : [e-mail]

Hero MotoCorp Ltd, Odysa Business Centre, Plot no. 30, 30/982, 172/1030, 4th Floor Cuttack, Bhubaneshwar highway road, Rasulgarh, Bhubaneswar-751010, Odisha, India. Tel: [phone], 62, 63, 64, E-mail: [e-mail]

Hero MotoCorp Ltd., Yash Heights, 1st Floor Bariatu Road, Above Basudeb Tata Showroom Ranchi-834009, Jharkhand, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Sai Corporate Park, A Block, 6th Floor, Rukanpura, Bailey Road Patna, Bihar – 800014 Tel: [phone] E-mail: [e-mail]

NORTH ZONE

Hero MotoCorp Ltd., 3rd Floor, Tower-A, DLF Centre Court, Sector-42, Golf Course Road, DLF Phase 5, Gurgaon -122002, Haryana, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 602, 6th Floor, Office Tower-1, Plot No BW58, Logix City Center, Sector-32, Noida - 201301. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., S.C.O-367-368, First Floor, Sector-34A, Chandigarh-160022, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Kapoor Towers, Plot No-284, 15-B, Rajpur Road, Dehradun-248001, India. Tel:[phone], E-mail: [e-mail]

ZONAL/REGIONAL/AREA OFFICES

NORTH ZONE

Hero MotoCorp Ltd., Summit Building (10th Floor) Plot No TCG 3/3 Vibhuti Khand, Gomti Nagar Lucknow - 226010, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., C-19/134-B, Third Floor I.P Grand, Lallapura, Sigra, Varanasi, Uttar Pradesh - 221010, India. Tel: +91-, E-mail: [e-mail]0542-2390949,2390241

SOUTH ZONE

Hero MotoCorp Ltd., SKAV 909, 3rd Floor, 9/1, Lavelle Road, Bangalore-560001, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 3-6-289, 3rd Floor, Kareem Manzil, Hyderguda, Hyderabad-500029, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 9th Floor Seshachalam Centre No.636/1. Anna Salai, Nandanam, Chennai-600035, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 6-A, DD Trade Tower, (6th Floor), Kaloor-Kadavanthra Road, Kaloor-682 017, Kochi-682017, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., No 1547, 2nd Floor Classic Towers, Trichy Road, Coimbatore - 641018 Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., First Floor VA Kalburgi Mahalakshmi Mansion, Mandakini Hospital Road, New Cotton Market, Hubli-580029, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., D.NO. 54-11-18 E, 2nd Floor, Sai Oddessey Building, Opp Executive Club, Near NH-5, Vijayawada-520008, Andhra Pradesh, India. Tel: [phone], E-mail: [e-mail]

WEST ZONE

Hero MotoCorp Ltd., Chrome Building, Sr. No. 33, Hissa-A-1/1/2, Plot - 2, Viman Nagar Avenue 2, Nagar Road, Pune-411014, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 603-604, Gunjan Tower, Off Alembic Gorwa Road, Baroda-390023, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Ground Floor, Block No.2, Vishnu Vaibhav Complex, 222, Palm Road, Civil Lines, Nagpur-440001 India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Astarc House-Third Floor, 76/79, Makwana Lane, Off. Andheri-Kurla Road, Andheri (East), Mumbai-400059, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 604, Kings Plaza, Astron Chowk, Rajkot, Gujarat - 360001 Tel: [phone], E-mail: [e-mail]
