| Product Type | NVMe PCIe Gen3 x4 M.2 2280 Internal SSD |
| Brand | Western Digital (WD BLACK) |
| Model | Black SN750 |
| Available Capacities | 250GB, 500GB, 1TB, 2TB |
| Interface | M.2 2280, PCIe Gen3 8 Gb/s, up to 4 Lanes (backward compatible) |
| Sequential Read Speed | Up to 3,470 MB/s (1TB heatsink model) |
| Sequential Write Speed | Up to 3,000 MB/s (1TB) |
| Random Read (4KB Q32T8) | Up to 515,000 IOPS (1TB) |
| Random Write (4KB Q32T8) | Up to 560,000 IOPS (1TB) |
| Endurance (TBW) | Up to 1,200 TBW (2TB model) |
| Power Consumption (Peak) | 2.8A (10μs) |
| Power Consumption (PS3 Low Power) | 70-100 mW (depending on capacity) |
| Power Consumption (Sleep PS4) | 2.5 mW |
| Mean Time To Failure (MTTF) | 1,750,000 hours (Telcordia SR-332, GB, 40°C) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Non-operating Temperature | -55°C to 85°C (-67°F to 185°F) |
| Certifications | UL, TUV, CE, BSMI, FCC, KCC, RCM, Morocco, VCCI |
| Warranty | 5 years limited (or until max TBW, whichever first) |
| Dimensions (Without Heatsink) | 80 ± 0.15mm x 22 ± 0.15mm x 2.38mm |
| Weight (Without Heatsink) | 7.5g ± 1g |
| Dimensions (With Heatsink) | 80 ± 0.15mm x 24.2 ± 0.30mm x 8.10mm |
| Weight (With Heatsink) | 33.2g ± 1g |
| Key Features | NVMe performance, sleek heatsink design (on select models), WD BLACK SSD Dashboard with Gaming Mode, 3D NAND technology |
| Software | WD BLACK SSD Dashboard (free download) with Gaming Mode and drive health monitoring |
| Repair / Spare Parts | Not user-serviceable; covered under warranty. Contact Western Digital support for SSD replacement. |
Frequently Asked Questions - Black SN750 WESTERN DIGITAL
User questions about Black SN750 WESTERN DIGITAL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hard Drive in PDF format for free! Find your manual Black SN750 - WESTERN DIGITAL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Black SN750 by WESTERN DIGITAL.
USER MANUAL Black SN750 WESTERN DIGITAL


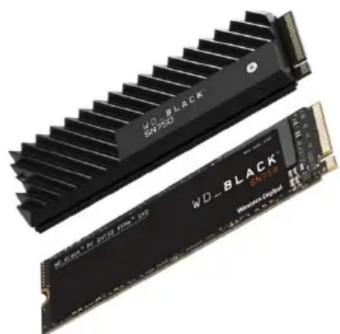

Two black hard drive chips with visible internal structure and branding (no text or symbols on the modules themselves)Product Highlights
