Product Type	Marine VHF Antenna Whip
Brand	Uniden
Model	AWM300
Frequency Band	VHF Marine Band (156-162 MHz)
Length	1.2 m (4 ft)
Cable Length	5 m (16.4 ft) included
Connector Type	FME plug with PL259 adaptor
Mounting	Requires Uniden MBMxx mount series (sold separately)
Material	Fiberglass or stainless steel whip (typical)
Weight	Approx. 200 g (0.44 lbs)
Max Power Handling	25-50 W (typical for marine VHF)
Weather Resistance	UV-resistant, designed for harsh marine conditions
Color	White (typical)
Includes	Antenna whip, 5m cable with FME plug and PL259 adaptor
Compatible Radios	Uniden VHF marine radios (e.g., UM255, UM355, UM455)
Installation	Professional installation recommended for optimum performance
Warranty	1 year limited warranty (typical)

Frequently Asked Questions - AWM300 UNIDEN

What is the AWM300 antenna used for?

The AWM300 is a marine VHF antenna whip designed for ship-to-ship and ship-to-shore communications on the VHF marine band (156-162 MHz).

What is the length of the AWM300 antenna?

The AWM300 has a length of 1.2 meters (approximately 4 feet).

Does the AWM300 come with a cable?

Yes, the AWM300 includes a 5-meter cable with an FME plug and PL259 adaptor for easy connection to your radio.

Do I need a separate mount for the AWM300?

Yes, the AWM300 requires a compatible mount from the Uniden MBMxx series (sold separately) for installation.

Is the AWM300 suitable for all Uniden VHF radios?

The AWM300 is designed for use with Uniden VHF marine radios and is compatible with most models, including the UM255, UM355, and UM455.

What is the maximum power handling of the AWM300?

The AWM300 can handle up to 25-50 watts of transmit power, typical for marine VHF radios.

Is the AWM300 weatherproof?

Yes, the AWM300 is built to withstand harsh marine conditions, with UV-resistant materials and waterproof construction.

Can I install the AWM300 myself?

While installation is straightforward, professional installation is recommended to ensure optimal performance and waterproof sealing.

What is the warranty on the AWM300?

The AWM300 typically comes with a 1-year limited warranty covering defects in materials and workmanship.

Where can I buy replacement parts for the AWM300?

Replacement parts such as the antenna whip or cable can be purchased from Uniden authorized dealers or online retailers.

USER MANUAL AWM300 UNIDEN

handhelds

Man smiling while holding a mobile phone with a black antenna, viewed from inside a boat (no visible text or symbols)

VHF MARINE

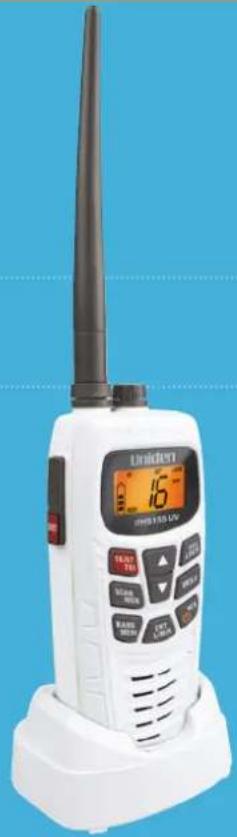

MHS050 MHS127 MHS155UV

marine & land in one

VHF & UHF 2-Way Radio

White walkie-talkie with a digital display and control buttons, set against a solid blue background (no visible text or symbols on the device body)

2.5W Power

Submersible Waterproof*

Floating Lightweight ^++

12 hrs ^+

5W Power

Submersible Waterproof*

Floating Lightweight ^++

12 hrs†

IN THE BOX

1 x MHS050
1 x Rechargeable NiMH Battery Pack
1 x Charger
1 x AC adaptor
1 x Belt Clip
1 x Carabiner Clip
1 x Owner's Manual

IN THE BOX

1 x MHS127
1 x Antenna
1 x Rechargeable Lithium-Ion Poly Battery Pack
1 x Alkaline Battery Tray (batteries not included)
1 x Charging Cradle with Screws
1 x Cigarette Lead Adaptor
1 x AC Adaptor
1 x Belt Clip
1 x Wrist Strap
1 x Owner's Manual

Floating Lightweight

Built-in Speaker Mic Jack

Large LCD Screen

12 hrs†

IN THE BOX

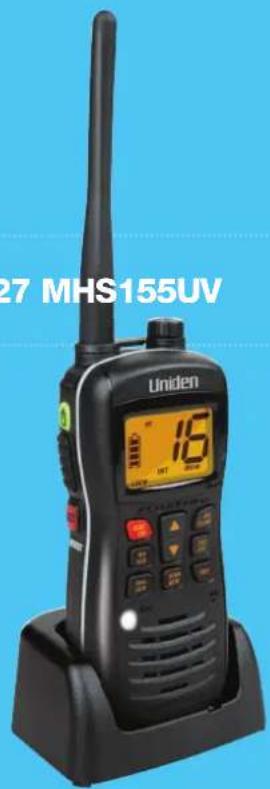

1 x MHS155UV Radio
1 x Desktop Charger Cradle
1 x Lithium-Ion Rechargeable Battery
1 x Belt Clip
1 x AC Adaptor
1 x Cigarette Lead Cable
1 x Battery Tray
1 x Mounting Hardware
1 x Owner's Manual

in boat radios

dual band

27MHz Marine/AM-CB

VHF MARINE

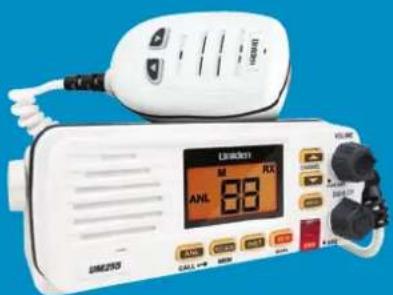

UM255

White medical device with digital display showing ANL 8:30, no visible text or symbols on main body

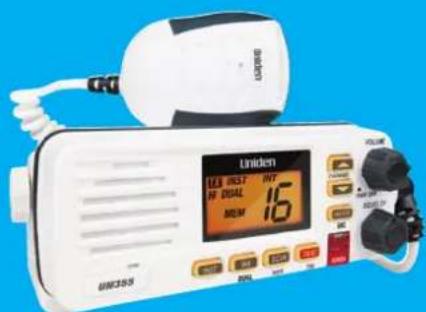

UM355

UM455

4W Power

Dual Band 27MHz Marine/AM-CB ^1

Large LCD Screen

Splashproof*

Dual Speakers

Buit-in PA Output

Compact

IN THE BOX

1 x UM255
1 x DC Power Cable
1 x Mounting Bracket & Knobs
1 x Microphone Hanger & Screws
1 x Owner's Manual

1-25W Power

Triple Watch Mode

Large LCD Screen

Splashproof^

IN THE BOX

1 x UM355VHF
1 x DC Power Cable
1 x Accessory Cable
1 x Mounting Bracket & Knobs
1 x Microphone Hanger & Screws
1 x Flush Mount Kit
1 x Owner's Manual

1-25W Power

GPS Connectivity

Digital Selective Calling ^##

Submersible Speaker Mic**

Waterproof*

Dual Speakers

Built-in PA Output

IN THE BOX

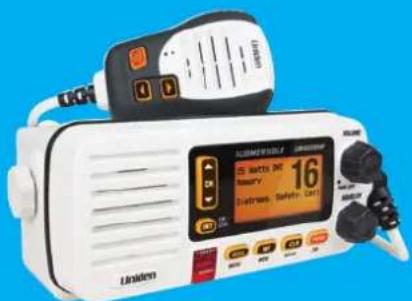

1 X UM455VHF
1 x DC Power Cable
1 x Accessory Cable
1 x Mounting Bracket & Knobs
1 x Microphone Hanger & Screws
1 x Flush Mount Kit
1 x Owner's Manual

Uniden®

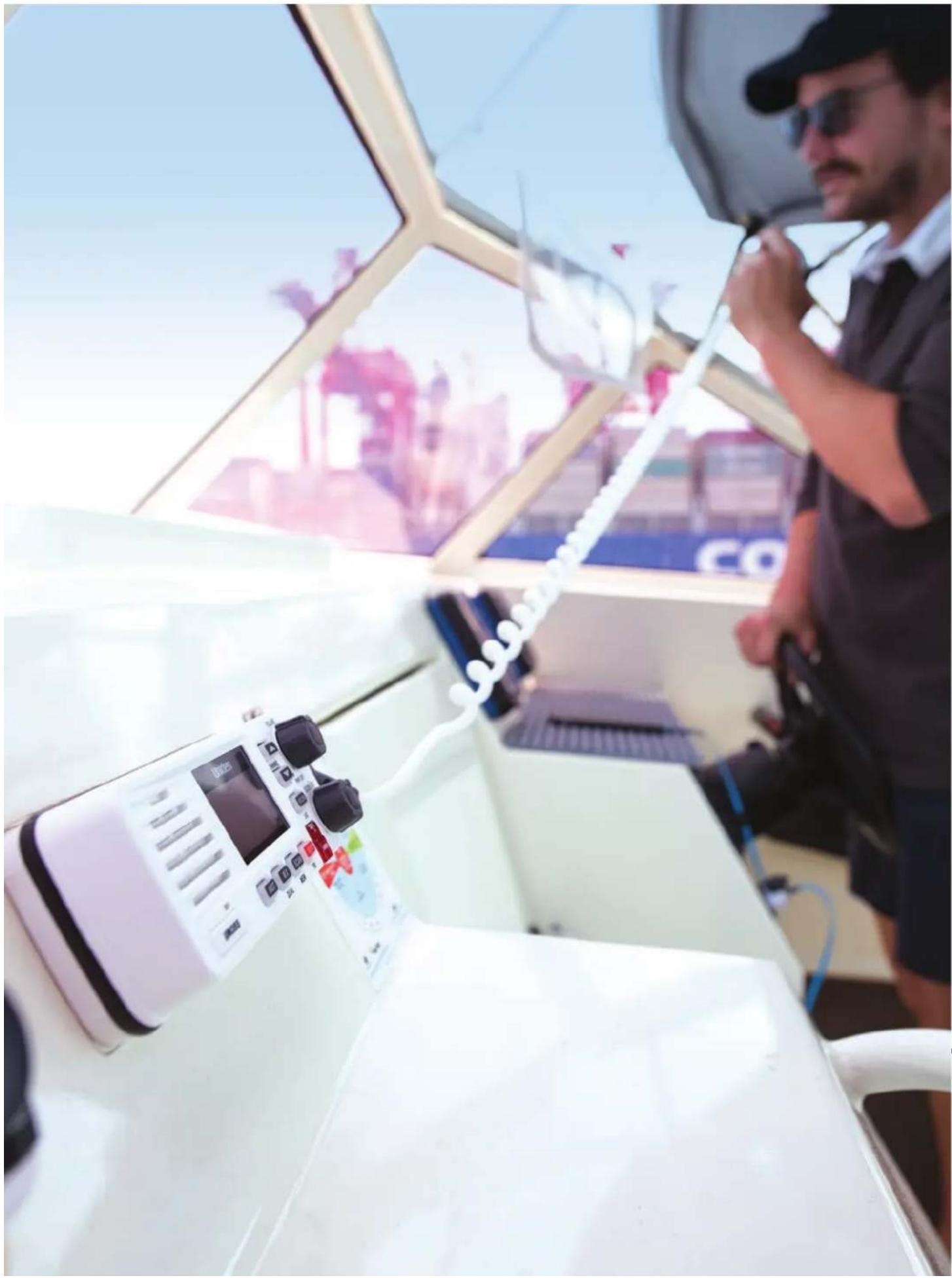

Interior view of a ship's control cabin with a person using a walkie-talkie (no visible text or symbols)

MARINE Range & Accessories

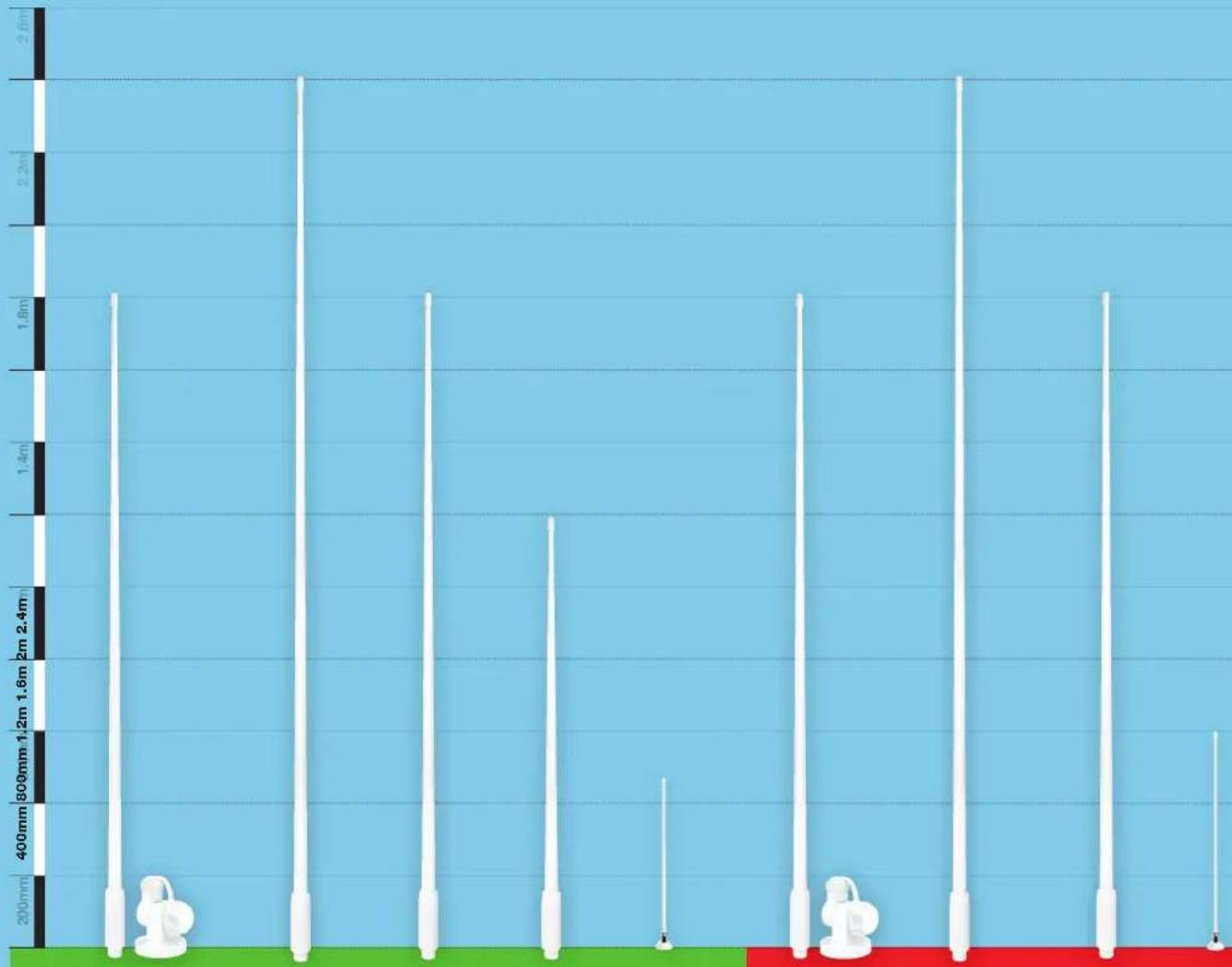

antenna range

Uniden Range of antennas suit Marine Radios. They are engineered and tested to withstand Australia and New Zealand's most harsh conditions.

VHF Antennas 27MHz Antennas

ATM301	AWM302	AWM301	AWM300	ATM300	ATM201	AWM201	AWM200	ATM200
VHF	VHF	VHF	VHF	VHF	27MHz	27MHz	27MHz	27MHz
1.8m	2.4m	1.8m	1.2m	450mm	1.8m	2.4m	1.8m	600mm
Antenna & Fold-down Base	Antenna Whip	Antenna Whip	Antenna Whip	Antenna & Base	Antenna & Fold-down Base	Antenna Whip	Antenna Whip	Antenna & Base
Includes: 5m cable and FME plug & PL259 adaptor	To be mounted on the Uniden MBMxxMount Series	To be mounted on the Uniden MBMxxMount Series	To be mounted on the Uniden MBMxxMount Series	Includes 5m cable and FME plug & PL259 adaptor	Includes: 5m cable and FME plug & PL259 adaptor	To be mounted on the Uniden MBMxxMount Series	To be mounted on the Uniden MBMxx Mount Series	Includes: 5m cable and FME plug & PL259 adaptor

White medical device with green label on blue background (no text or symbols)

MBM10

Ratchet Fold-down

Single Hinge Round Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 Series Antennas

White medical or laboratory device with a green circular badge on its side, against a blue background (no text or symbols visible)

MBM20

Ratchet Fold-down

Single Hinge Square Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 Series Antennas

White robotic arm device with green circular button on top, against a solid blue background (no text or symbols)

MBM15

Ratchet Fold-down

Double Hinge Round Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 Series Antennas

White robotic arm with green circular button on blue background (no text or symbols)

MBM25

Ratchet Fold-down

Double Hinge Square Base Antenna Mount with 5m cable, FME plug & PL259 adaptor

Suitable for:

UNIDEN AWM200/300/400 SeriesAntennas

White rectangular frame with a blue interior and four corner dots (no text or symbols)

MKM200

Flush Mount Bracket

Suitable for:

UNIDEN UM455, UM365 and UM265 In-Boat Marine Radios

Coiled white medical or electronic device with connectors and ports against a blue background (no text or symbols visible)

SPM200

AM/FM Band Splitter for VHF or 27MHZ Antennas

Suitable for:

All UNIDEN Marine In-Boat Marine Radios & Antennas

VHF OR 27MHZ

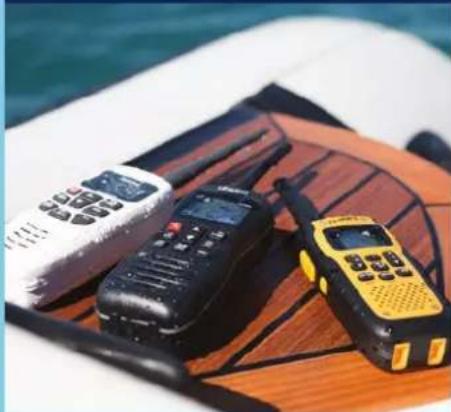

Three walkiehels on a wooden deck with ocean background (no visible text or symbols)

VHF MARINE\*

Ideal for the safety of recreational boaters for ship-to-ship or ship-to-shore communications. Uniden VHF Marine Radios operate in the VHF Maritime Mobile Band on the frequency range between 156MHz and 162MHz. All Uniden VHF Marine Radios can communicate on the VHF distress & emergency channel 16, and receive local weather and navigation warnings on VHF channel 67 – the latter dependant on the local broadcast schedule. Modern VHF radios have the additional feature of Digital Selective Calling (DSC) that allows distress alerting at the push of a button.

27MHz MARINE

Suitable for recreational boaters for use in enclosed waters, the 27MHz Inshore boating radio service band is unique to Australia. Used for ship-to-ship and ship-to-shore communication, and capable of distress alerts on 27MHz channel 88 and receiving weather forecasts and marine safety information – provided that the vessel is operating within the coverage area and times of the volunteer services.

*An operating certificate (SROCP) is required to use a VHF radio. A fee is normally required for certification. More information about licensing of radios and operators can be found at the ACMA website.
