MD921SS - Oven MATRIX - Free user manual and instructions

Product Type	Electric Oven
Brand	Matrix
Model	MD921SS
Dimensions (W x D x H)	595 x 570 x 595 mm
Weight	29 kg
Power Supply	220-240 V, 50/60 Hz, 16 A
Total Power	2.5 kW
Energy Class	A+
Net Capacity	65 L
Functions	Convection, Grill, Defrost, Light, Rotisserie (optional)
Temperature Range	50°C - 250°C
Cleaning	Easy-clean enamel interior
Safety Features	Child lock, automatic shut-off, overheat protection
Door Type	Cool-touch triple glass door
Display	Digital timer with LED display
Spare Parts Available	Heating elements, thermostat, door seal, control board
Reparability Index	8.2/10
Included Accessories	1 baking tray, 1 wire rack, 1 rotisserie spit (if applicable)

Frequently Asked Questions - MD921SS MATRIX

How to set the clock on the Matrix MD921SS oven?

Press the 'Clock' button, then use the '+' and '-' keys to set hours and minutes. Confirm with the 'Start' button.

What should I do if the oven does not heat up?

Check the power supply and circuit breaker. Ensure the oven is properly plugged in. If the problem persists, the heating element may need replacement.

How to clean the oven interior?

Use a damp cloth with mild detergent. Avoid abrasive cleaners. For stubborn stains, use a oven cleaner suitable for enamel surfaces.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire rack. Do not let foil touch the heating elements to prevent fire hazard.

How to activate the child lock?

Press and hold the 'Lock' button for 3 seconds. The symbol '' will appear on the display. Repeat to unlock.

What is the maximum baking time?

The timer can be set up to 12 hours. For longer cooking, use the continuous operation mode (if available).

Why is the oven fan noisy?

Normal operation includes fan noise. If excessively loud, check if the fan blade is obstructed or the motor bearing needs lubrication.

How to replace the oven light bulb?

Disconnect power. Remove the glass cover by turning it counterclockwise. Replace with a T300°C bulb (25W, 300°C heat resistant). Reassemble.

Can I bake two trays at once?

Yes, use the convection function for even heat distribution. Rotate trays halfway through baking.

How to interpret error codes on the display?

Refer to the user manual. Common codes: E1 (sensor failure), E2 (overheating). Contact service center for assistance.

USER MANUAL MD921SS MATRIX

Manual for installation, use and maintenance

MD721 & MD921

Built-Under and Built-In Double Ovens

Contents:

3 Important information
4 Important safety notes
5 Before first use
7 Oven controls and use
9 Programming the oven
9 Setting the clock
10 Minute minder
11 Automatic and semi-automatic cooking
13 Care and maintenance
14 Changing the oven lamp
15 Removing the oven door
16 Installation
18 Mains electrical connection
20 Troubleshooting
22 Electrical information
23 Energy efficiency information

Important

The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.

This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance by someone who is responsible for their safety.

Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel.

Appliance information:

Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes.

Appliance Model
Serial Number

EU Declarations of Conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) 2014/35/EU and Electromagnetic interference (EMC) 2014/30/EU.

Parts intended to come into contact with food conform to 1935/2004/EC.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.

At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health. It also enables the constituent materials to be recovered, saving both energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Important

• Read the user instructions carefully before using the oven for the first time.
• Follow the instructions for first use of the oven.
• Clean the oven regularly.
• Remove spills as soon as they occur.
  • Always use oven gloves when removing shelves and trays from the oven.
• Do not allow children near the oven when in use.
• Do not allow fat or oils to build up on the oven shelves, grill pan or oven base.

• Do not place any cooking utensils or plates directly on the oven base.
  • Always grill with the oven door closed.

• Do not grill food containing fat without using the grill pan grid.

• Do not cover the grill pan grid or the oven walls with aluminium foil.
• Do not use the oven tray for roasting.
• Do not perform maintenance or cleaning of the oven without first switching off the electricity supply. If the oven has recently been used, allow to cool.
• Do not place hot enamel parts in water. Leave them to cool first.
• Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to remain in contact with enamel parts.
• Do not use abrasive cleaners or powders that will scratch the surface of the enamel or stainless steel.
• Do not attempt to repair the internal workings of your oven.
• Do not cover the oven floor with aluminium foil.

Before First Use

- The decorative metal finish of this appliance has been coated with a preservative to protect it during transport and storage. This should be removed during installation by using a non-abrasive stainless steel cleaner, and dried thoroughly afterwards. Always follow the instructions given with the cleaner being used.

- Before using the oven for the first time we recommend that you clean the oven with soapy water, rinse carefully and then heat on each of the programmes on page 5 at maximum temperature for the specified time. An unpleasant smell may be produced, caused by grease remaining on the oven elements from the production process.

For the upper oven:

utes of full grill

mutes of conventional oven

For the lower oven:

• This oven has been fitted with a cooling fan to achieve maximum efficiency and to maintain low surface temperatures. The cooling fan will switch on automatically when the oven switches on. It is normal for the cooling fan to run for an hour or more after use, depending on the duration, temperature and type of cooking programme used.
• The oven light remains on for every cooking function.
• Do not switch off the oven if you have set a programme for semi-automatic or automatic cooking as this will cancel the programme.
• The current time must be set on the programmer/timer for the cooking functions to work properly (see page 8).

Oven Controls and Use

Cooking function knob

To set the function, turn the cooking function knob for the required oven clockwise to the required function. Each of the oven functions uses different elements within the oven to offer you the best choice of cooking every time. These are explained below:

Conventional oven

This function uses the top and bottom heating elements only with a temperature between 50° C and 250° C.

Natural convection creates a perfect cooking zone in the centre of the oven, ideal for dark fruit cakes and pastries.

Warming oven

This function uses the bottom heating element only with a temperature set between 50° C and 250° C. This natural heat is perfect for dough proving and blind-baking.

Grill

This function radiates the heat from the grill element and the top element.

This fully temperature variable grill is ideal for grilling a full family meal. It can be set between 50° C and 250° C.

When grilling, please note:

• Always grill with the oven door closed.
- Put the grill pan as close to the grill as possible.
- Do not grill for more than 30 minutes at a time.
- Preheat the grill for approximately five minutes with the oven door closed.

Oven Lamp

function switches on the oven light in the cavity.

Please note: the oven light will operate on all cooking functions.

Defrost

ng the fan only this oven function circulates the air around the oven cavity, speeding up the natural defrost process (1kg takes approximately one hour, depending on the type of food).

FanOven

Using the circular element and the fan with a temperature between 50°C and 250°C , this cooking function blows the air and around the oven cavity. Temperatures are achieved ker, reducing or even removing the need for preheating.

Both cooking temperatures and cooking times can be reduced for a more energy efficient cooking programme.

This function is perfect for cooking various food types simultaneously as foods are sealed quickly to prevent flavour transfer.

Temperature knob

- To set the temperature, turn the temperature knob for the required oven clockwise to the required temperature.

- Once the oven has reached the required temperature, the temperature indicator lamp on the control panel will switch off.

- The temperature indicator lamp will light up when the oven elements are working.

Programming the Oven

Please note:

• The semi-automatic and automatic cooking programmes will only work with the main oven.
• The alert beep will cut off after two minutes if it is not switched off manually.
• The current time must be set in order for the functions to work. If you are unsure whether the current time is set, switch off the appliance at the mains power supply for approximately 10 seconds and then turn it back on. Set the time as per the below instructions.

1. Cooking time indicator
2. End of cooking time indicator
3. Minute minder indicator
4. Current time indicator
5. Decrease key
6. Mode key
7. Increase key

fig. 1

Setting the clock

The clock is preset to 12:00, and will revert to this after a power failure. When the current time indicator is flashing, touch⊕ or⊖. When the correct time is shown on the display, the clock will set after approximately five seconds' delay.

To change the clock once it has been set, touch ^M repeatedly until the current time indicator flashes, then touch ⁺ or ^- . When the correct time is shown on the display, the clock will set after approximately five seconds' delay.

The minute minder

The minute minder can be used when the oven is switched on or off. It can be set for up to 23 hours and 59 minutes.

To set the minute minder:

• Touch ^M repeatedly until the minute minder indicator flashes.
• Then touch + or to select the required duration for the minute minder. When the correct duration shows on the display, either touch or wait for approximately five seconds. The minute minder indicator will remain lit to confirm the minute minder is on.
• When the countdown is complete, there will be an alert beep which will continue for two minutes and the minute minder indicator will flash. To switch off the alert beep, touch any key.

Please note:

At the end of the countdown, the minute minder will not switch off the oven. Remember to turn off the oven manually.

Automatic and semi-automatic cooking

The oven can be set for semi-automatic cooking where the oven is programmed to switch off at a specific time, and for automatic cooking, where the oven is set to switch on and off at specific times.

To set a semi-automatic programme

• Touch until the cooking time indicator (flashes.
• Then touch+or to select the required duration for the semi-automatic cooking programme. When the correct duration shows on the display, wait for approximately five seconds. The cooking time indicator will remain lit to confirm the semi-automatic programme is on.
• Select the oven function and temperature (the oven will switch on).
• When the cooking time is complete, there will be an alert beep which will continue for two minutes and the cooking time indicator will flash. To switch off the alert beep, touch any key.
• Turn the control knobs to the off position.

Please note:

At the end of the cooking programme, remember to turn off the oven manually.

Automatic cooking

The main oven can be set to switch on and off automatically at preset times up to a maximum of 10 hours.

- Touch ^M until the cooking time indicator (flashes). Set the desired cooking duration using +or -

- Touch until the end of cooking time indicator ( ) lashes.

• Then touch + or - to select the required end of cooking time.
  When the correct time shows on the display, wait for approximately five seconds. The cooking time and end of cooking time indicators will remain lit to confirm the automatic programme is on.
• Select the oven function and temperature.
• The oven will not switch on until the automatic programme starts.
• When the cooking time is complete, there will be an alert beep which will continue for two minutes and the end of cooking time indicator will flash. To switch off the alert beep, touch any key.
• Turn the control knobs to the off position.

Please note :

At the end of a programme, once the acoustic signal has finished, the oven will remain off. However if you press a key the oven will revert to the function and temperature that the control knobs were set to.

Remember to turn off the oven manually.

It is also possible to set just an end of cooking time. This will act like a semi-automatic cooking programme.

Care and Maintenance

IMPORTANT

Before any maintenance is started, the appliance must be disconnected from the power supply.

If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance.

The oven exterior

As the oven has a stainless steel or enamel surface, you should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings.

Stainless steel can be effectively cleaned by simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth.

Proprietary stainless steel cleaners are available. We recommend the a clean, dry microfibre cloth for cleaning stainless steel surfaces as this has been designed to prolong the finish of your appliance.

The oven interior

The oven should always be cleaned after use when it has cooled down.

The cavity should be cleaned using a mild detergent solution and warm water.

Suitable proprietary chemical cleaners may be used after first consulting with the manufacturers' recommendations and testing a sample on a small area of the oven cavity. Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity surface.

IMPORTANT:

• Steam cleaners must not be used when cleaning this appliance.
• Once care and maintenance is complete, ensure that all parts are correctly replaced before using the oven.

Changing the Oven Lamp

Before any maintenance is started, the appliance must be disconnected from the power supply.

If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance.

Always wear gloves when handling bulbs, particularly new ones, to preserve the maximum lifetime of them.

Changing the bulb (fig. 2)

Unscrew the protective cover. We recommend that you wash and dry the glass cover at this point.

Carefully remove the old bulb and insert the new bulb suitable for high temperatures (300°C) having the following specifications: 230-240V, 50Hz, 25W, G9 fitting.

Refit the protective cover.

IMPORTANT

Never use screwdrivers or other utensils to remove the light cover. This could damage the enamel of the oven or the lamp holder. Remove only by hand.

IMPORTANT

Never replace the bulb with bare hands as contamination from your fingers can cause premature failure. Always use a clean cloth or gloves.

Please note:

The bulb replacement is not covered by your guarantee.

Oven Door

Removing the Oven Door

The oven door can easily be removed as follows:

• Open the door to the full extent (fig. 4).
• Open the lever A completely on the left and right hinges (fig. 5).
• Hold the door as shown in fig. 3.

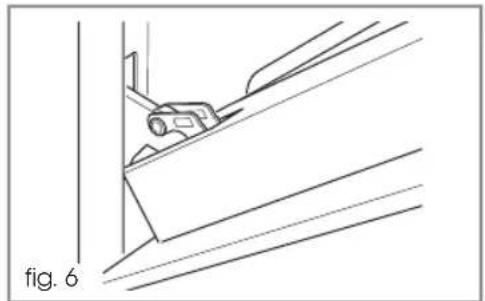

• Gently close the door (fig. 6) until left and right hinge levers A are hooked to part B of the door (fig. 5).
• Withdraw the hinge hooks from their location following arrow C (fig. 7).
  • Rest the door on a soft surface.
  • To replace the door, repeat the above steps in reverse order.

Installation

Important

Failure to allow adequate ventilation to the appliance may result in overheating or damage to adjacent units and could invalidate the warranty. The diagram below shows the minimum required.

This appliance is type X installation. The walls of the kitchen units must be able to withstand temperatures of 75° C above ambient (typically this is between 90° C and 100° C).

When correctly installed ensure that there is a gap of 4mm minimum between the sides of the oven and adjacent furniture doors.

Lift the oven carefully into position on the shelf, taking care NOT to lift it by the door handles. If you lower the oven door, you will see 4 screw holes, 2 on each side of the oven. The oven should then be secured to the housing by fitting screws into these holes. Remember the housing should not be free standing but be secured to the wall and/or adjacent fittings.

How to install your oven

You will need the housing area shown on page 16 in order to fit your oven correctly.

MD721 only: We recommend that you fit end support panels onto the adjacent units to allow the oven to be secured in place (as shown in fig. 8).

MD721

Dimen-sions	Oven Housing
Height (mm)	718 720
Width (mm)	595 564
Depth (mm)	540 560 (min

MD921

Dimen-sions	Oven Housing
Height (mm)	890 877
Width (mm)	595 564
Depth (mm)	540 560 (min)

Mains electrical connection

Warning! This appliance must be earthed

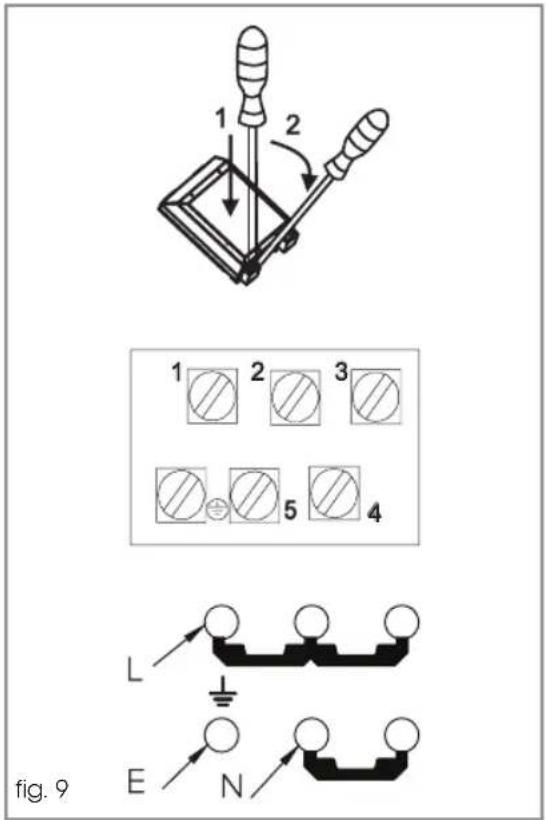

To connect this appliance to a UK standard mains supply, connect the bridging links between 1-2-3 for the live feed and 4-5 for the neutral feed. Ensure all terminals are tightened.

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations.

This appliance is intended to be connected to fixed wiring and is not suitable for connection to a 13A plug or 13A supply.

This appliance is intended to be connected to fixed wiring by a double pole switch, having a contact separation of at least 3mm in all poles. The switch must be positioned no further than 2m from the appliance.

Release the two locks located at either side of the connector cover at the rear of the appliance.

Feed the mains lead through the cable clamp to prevent accidental disconnection.

Tighten the cable clamp securely and close the connector cover.

Green and Yellow = Earth (PE)

Blue = Neutral

Brown = Live

Please note:

- The mains cable must only be replaced by a qualified electrician or service engineer and must be of equivalent or better rating (i.e. 2.5mm² , HO5RR-F).

- This appliance is intended to be connected to the mains supply with a cable of cross section area 2.5 mm ² . A larger cable will not fit the terminal connections.

- The marking of the current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet.

- Assembly and electrical connection should be carried out by specialised personnel.

- When installing this product we recommend you seek the help of another individual.

Troubleshooting

If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care, to prevent unnecessary service calls and potential cost. Contact details for CDA Customer Care are on page 20 and the rear cover of this manual.

There is no power to the oven.

Check that the mains power supply is switched on. If it is and the oven is still not working then switch the mains power supply off and check the fuse at the spur. Replace the fuse and try switching the power on.

There is power to the oven (the programmer is on/lit) but the oven is not heating.

- It is possible that the current time/clock has not been set. Switch the appliance off at the mains power supply and then switch it back on. The clock should show '12:00' and a flashing rectangular indicator by the clock symbol on the control panel. Use the + and - keys to set the current time. After approximately 5 seconds the time will set and the oven should function as normal.

- It is possible that the automatic cooking function and a cooking duration have been engaged. This is signified by a rectangular indicator next to the end of cooking time indicator ( ) as well as next to the cooking time indicator ( ). To cancel this function, press Ⓜ until the cooking time indicator ( ) ashes. Use to return the cooking duration to '0.00'. After approximately 5 seconds you should be able to use your oven as normal.

A function is on and the internal light is not working

It's most likely that the bulb has blown. Switch the appliance off at the mains power supply and fit a replacement bulb that matches the bulb specification laid out on page 13.

If any of the previous steps do not resolve your issue, please contact CDA Customer Care to arrange a repair. Contact details are below. Please have to hand all the details from your appliance's rating plate which can be found on the appliance's door frame.

Important: All repairs must be carried out by qualified service technicians.

Contact CDA Customer Care

A: Customer Care Department, The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY

T: 01949 862 012 F: 01949 862 003

E: [e-mail] W: www.cda.eu

Electrical information:

Mains electrical voltage: 230-240 V ac

Total rated power consumption: 3.9kW

Energy Efficiency Information
		Value		stinUI
Model 129DM127DMnoitacifiedl
Mass of the appliance	M	43.0	45.0	kg
Number of cavities		2	2
Heat source per cavity (electricity or gas)		Electricity	Electricity
Volume per cavity	V	Upper: 35Lower: 50	Upper: 35Lower: 59	L
Energy consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electric final energy)	ECElectric\ cavity	Upper: 0.60Lower: NA	Upper: 0.66Lower: NA	kWh/cycle
Energy consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy)	ECElectric\ cavity	Upper: NALower: 0.66	Upper: NALower: 0.75	kWh/cycle
Energy consumption required to heat a standardised load in a gas-fired cavity of an oven during a cycle in conventional mode per cavity (gas final energy)	ECGas\ cavity	NA	NA	MJ/cycle : kWh/cycle
Energy consumption required to heat a standardised load in a gas-fired cavity of an oven during a cycle in fan-forced mode per cavity (gas final energy)	ECGas\ cavity	NA	NA	MJ/cycle : kWh/cycle

obmySetubi:

MATRIX

Serviced by

C|D|A

Built for your life

For our Customer Care Department, or for Service,

please contact us on:

The CDA Group Ltd. Harby Road, Langar, Nottinghamshire, NG13 9HY

Tel: [phone] Fax: [phone] Email: [e-mail]
