Product Type	Desktop Computer (Intel NUC Kit)
Model	NUC5I3RYHSN
Processor	Intel Core i3 (5th Gen)
System Memory	Two 204-pin DDR4 SO-DIMM slots, 1600 MHz, 1.35V, non-ECC (pre-installed 4 GB)
Storage Options	M.2 SSD (80/60/42 mm) and 2.5" SATA SSD/HDD
Chassis Dimensions (Approx.)	117 x 112 x 51 mm (4.6 x 4.4 x 2 in)
Weight (Approx.)	0.7 kg (1.5 lb)
Power Supply	External AC-DC adapter, 19V, 65W (typical)
Graphics	Intel HD Graphics (integrated)
Ports (Typical)	2x USB 3.0 front, 2x USB 3.0 rear, HDMI, mini DisplayPort, Gigabit Ethernet, headphone/mic, Infrared
Wireless	Intel Wireless and Bluetooth (integrated)
Mounting	VESA mount bracket (optional, for behind monitor/TV)
Operating System Support	Windows* and Linux* (check Intel Product Compatibility Tool)
Cleaning Instructions	Disconnect power; use a soft dry cloth; avoid liquids
Safety Precautions	Disconnect power before servicing; avoid ESD; caution with sharp edges and hot components
Spare Parts & Repairability	User upgradeable: memory, M.2 SSD, 2.5" drive; other repairs by qualified technician
General Information	Compact fanless design; low power consumption; suitable for home theater, office, or industrial use

Frequently Asked Questions - NUC5I3RYHSN INTEL

How do I open the Intel NUC NUC5I3RYHSN chassis?

Unscrew the four corner screws on the bottom of the chassis and lift the cover.
Always disconnect power before opening.

What type of memory does the NUC5I3RYHSN use?

It uses DDR4 SO-DIMM modules at 1600 MHz, 1.35V low voltage, non-ECC. It has two slots, with one 4 GB module pre-installed.

How can I upgrade the memory?

Remove the bottom cover, gently spread the retaining clips on the socket to release the old module, then insert the new module at a 45° angle and push down until clips snap.
Install only one module in the lower socket.

What M.2 SSDs are supported?

The NUC supports 80 mm, 60 mm, and 42 mm M.2 SSDs. Use the included standoff to match the length. Check the Intel Product Compatibility Tool for validated models.

How do I install a 2.5” SSD or hard drive?

Unscrew the four screws holding the drive bay, slide the new 2.5” drive in ensuring SATA connectors fully seat, then secure with the same screws. The drive bay bracket fits inside the chassis.

How do I attach the VESA bracket?

Use the four small black screws to attach the bracket to the back of a monitor or TV. Then attach two larger black screws to the bottom of the NUC and slide it onto the bracket.

How do I connect power to the NUC?

Choose the correct power plug attachment for your region (US, UK, EU, etc.). Slide it onto the power plug until it locks, then connect the AC adapter to the NUC and plug into a wall outlet.

Which operating systems are supported?

Intel validates Windows* operating systems. For Linux*, check the Intel Product Compatibility Tool or distribution's website. Refer to the Operating System Installation section for details.

How do I update device drivers?

Use the Intel® Driver & Support Assistant (Intel DSA) to automatically detect outdated drivers, or manually download from the Intel Download Center. Drivers include Chipset, Graphics, Ethernet, Wireless, Bluetooth, Audio, and more.

What safety precautions should I take before servicing?

Always disconnect power and any network cables. Use an ESD workstation with an antistatic wrist strap. Be careful of sharp pins, hot components, and rough edges. Refer servicing to qualified personnel if unsure.

USER MANUAL NUC5I3RYHSN INTEL

Intel® NUC Kit NUC5i3RYHSN

User Guide

October 2018

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product specifications and roadmaps.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by visiting: http://www.intel.com/design/literature.htm.

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation. Performance varies depending on system configuration. No computer system can be absolutely secure.

Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2018, Intel Corporation. All rights reserved.

Contents

1.0 Introduction ....5
1.1 Before You Begin 5
1.2 Installation Precautions....5
1.3 Observe Safety and Regulatory Requirements....6
2.0 Open the Chassis....7
3.0 Upgrade System Memory....8
3.1 Upgrade to Different Memory 8
3.2 Install Additional Memory....9
4.0 Change the M.2 SSD....10
5.0 Install a 2.5" SSD or Hard Drive....11
6.0 Close the Chassis....13
7.0 Use the VESA Bracket (Optional)....14
8.0 Connect Power....16
9.0 Install an Operating System....18
10.0 Install the Latest Device Drivers and Software ....19

Revision History

Date	Revision	Description
October 2018	1.0	Initial release.

1.0 Introduction

This User Guide provides step-by-step installation instructions for these products:

- Intel® NUC Kit NUC5i3RYHSN

1.1 Before You Begin

CAUTIONS

The steps in this guide assume you're familiar with computer terminology and with the safety practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
- Create a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
- Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station isn't available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

1.2 Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors

• Sharp pins on circuit boards

• Rough edges and sharp corners on the chassis
  • Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

• Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.

1.3 Observe Safety and Regulatory Requirements

If you don't follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations.

2.0 Open the Chassis

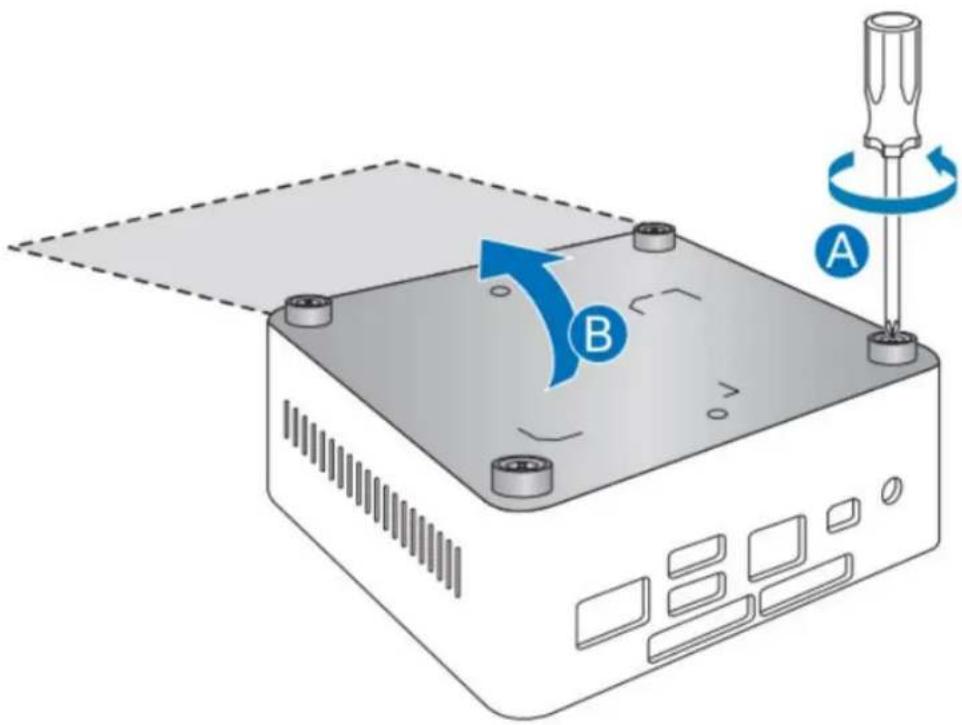

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

3.0 Upgrade System Memory

Intel NUC Kits NUC5i3RYHSN have two 204-pin DDR4 SO-DIMM memory slots

Pre-installed with 4 GB 1600 MHz SDRAM SO-DIMM (1.35V)

To upgrade memory, be sure to select memory modules that meet these requirements:

• 1.35V low voltage memory
• 1600 MHz SO-DIMMs
- Non-ECC

Find compatible system memory modules at the Intel® Product Compatibility Tool:

- NUC5i3RYHSN

NOTE If you plan to install only one memory module, install it in the lower memory socket.

3.1 Upgrade to Different Memory

1. Observe the precautions in "Before You Begin" in Section 1.1.
2. Turn off all peripheral devices connected to the computer.
3. Turn off the computer and disconnect the power cord.
4. Remove the computer's bottom chassis cover.
5. Remove the pre-installed memory module

a. Gently spread the retaining clips at each end of the memory socket, which causes the module to pop out of the socket (C).
b. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.

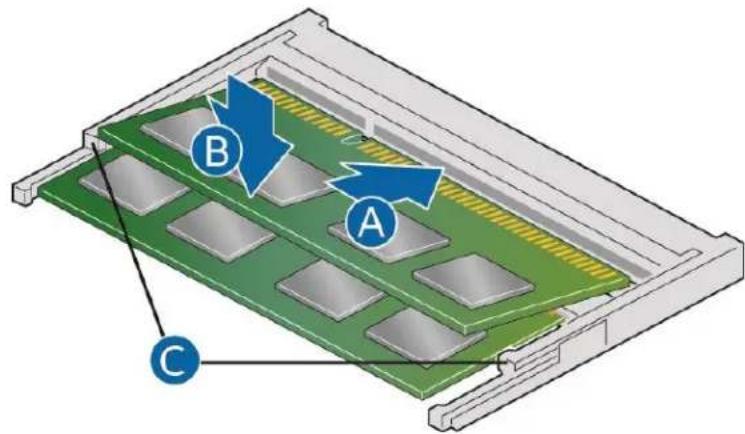

1. Install the new memory module

a. Align the small space at the bottom edge of the memory module with the key in the socket.
b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).
c. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

3.2 Install Additional Memory

1. Observe the precautions in "Before You Begin" in Section 1.1.
2. Turn off all peripheral devices connected to the computer.
3. Turn off the computer and disconnect the power cord.
4. Remove the computer's bottom chassis cover.
5. Install the additional module:

a. Align the small space at the bottom edge of the memory module with the key on the socket.
b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).
c. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

1. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.

2. Replace the computer's cover and reconnect the power cord.

4.0 Change the M.2 SSD

Intel NUC Kits NUC5i3RYHSN support 80mm, 60mm and 42mm SSDs.

Find compatible M.2 SSDs in the Intel Product Compatibility Tool:

- NUC5i3RYHSN

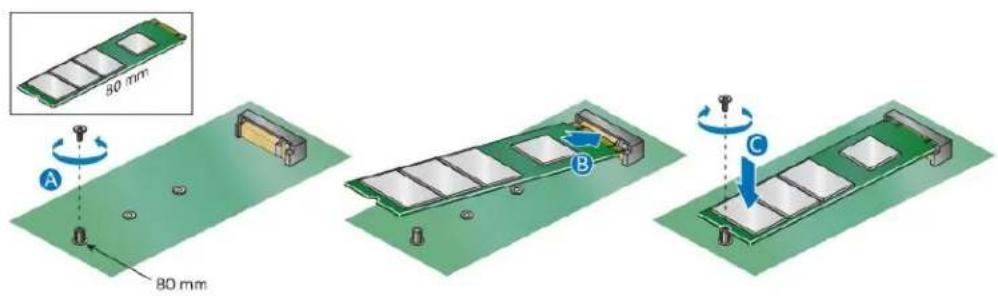

To install a 80mm M.2 SSD:

1. Remove the small silver screw from the 80mm metal standoff on the motherboard (A).
2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
3. Insert the bottom edge of the M.2 card into the connector (B).
4. Secure the card to the standoff with the small silver screw (C).

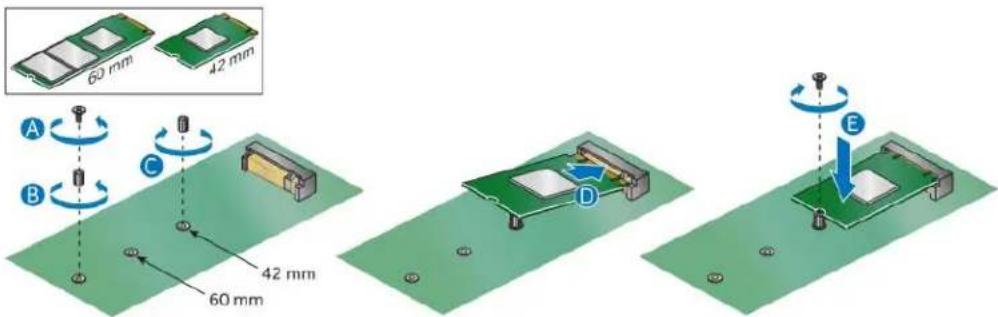

To install a 60mm or 42mm M.2 SSD:

1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Move the standoff (B) from the 80mm position to either the 60mm or 42mm position (C).
3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
4. Insert the bottom edge of the M.2 card into the connector (D).
5. Secure the card to the standoff with the small silver screw (E).

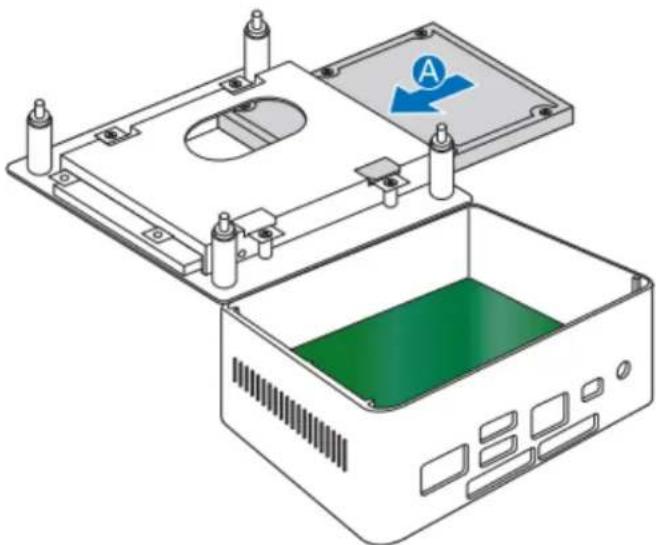

Install a 2.5" SSD or Hard Drive

Intel NUC Kits NUC5i3RYHSN support an additional 2.5" Solid State Drive (SSD) or Hard Disk Drive (HDD).

Find compatible 2.5" drives in the Intel Product Compatibility Tool:

- NUC5i3RYHSN

1. Unscrew the four screws holding the current drive in the bay.
2. Remove the pre-installed drive from the drive bay.
3. Slide the new 2.5" drive into the drive bay, ensuring the SATA connectors are fully seated into the connectors of the SATA daughter card (A).

Technical illustration of an open electronic device casing with a green internal component and a blue directional arrow labeled 'A' (no text or symbols beyond the label)

1. Secure the drive into the drive bay with the four screws that were used in step 1. Set the drive bay bracket down inside the chassis (B).

Diagram of a computer chassis with a blue arrow indicating a process or operation, showing internal components and a green interior (no text or symbols)

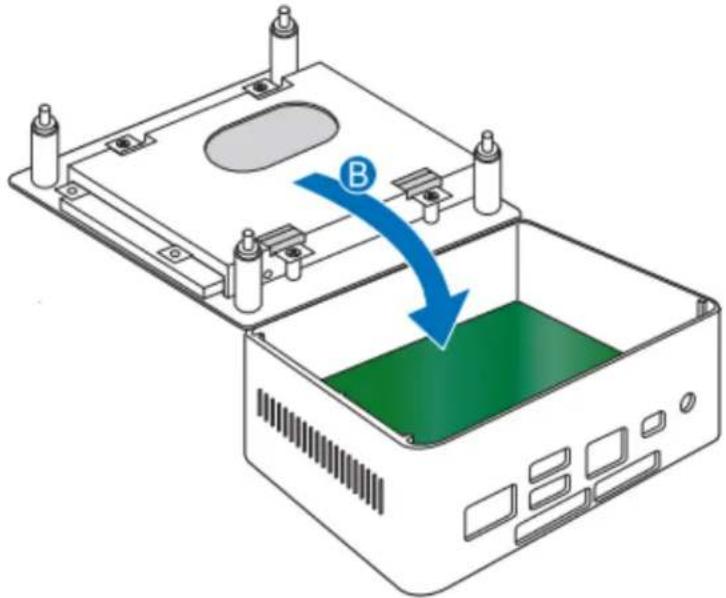

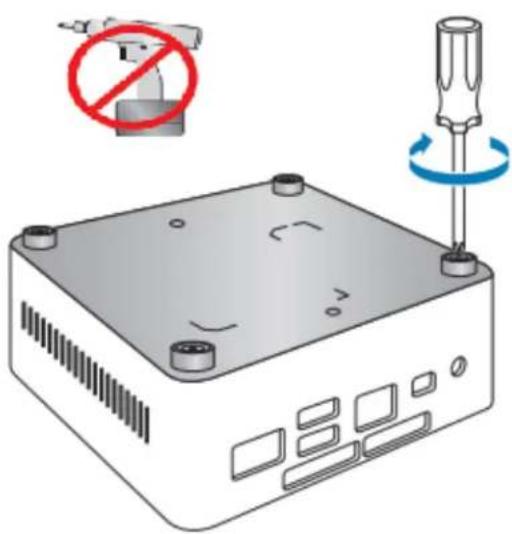

5.0 Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Illustration of a computer monitor with screwdriver and no-smoking symbol (no text or labels)

6.0 Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

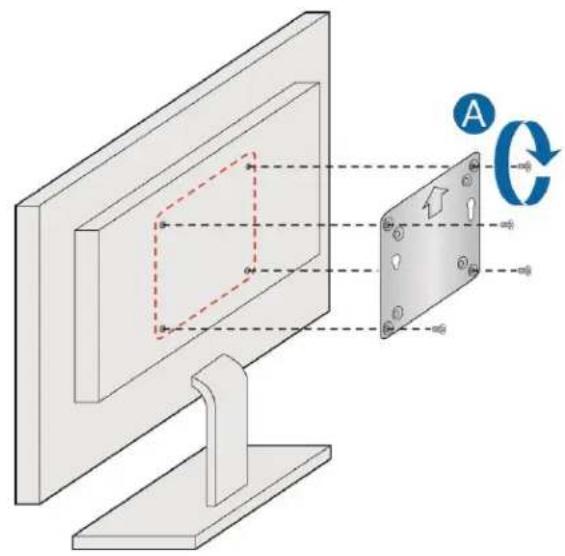

1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV.

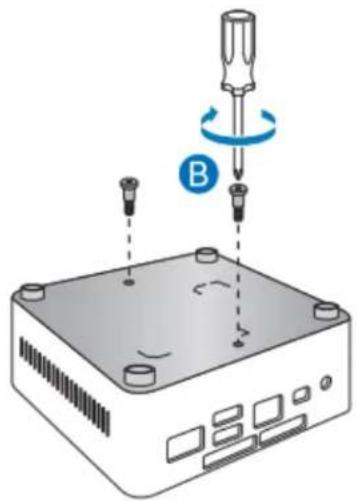

1. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

Illustration of a screwdriver pressing down on a device with a blue circular indicator (no text or symbols)

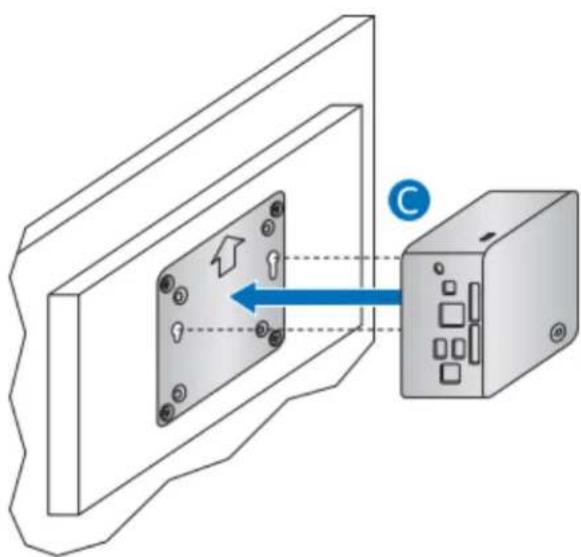

1. Slide the Intel NUC onto the VESA mount bracket.

Diagram showing a device connected to a wall-mounted panel with an arrow indicating direction (no text or symbols present)

7.0 Connect Power

Country-specific power plug attachments are included in the box. 1. Choose the attachment for your region.

Plug
Code	US	UK	ARG	AUS
Country	United States	United Kingdom	Argentina	Australia

Plug
Code	CHN	EU	IND	KOR
Country	China	European Union	India	South Korea

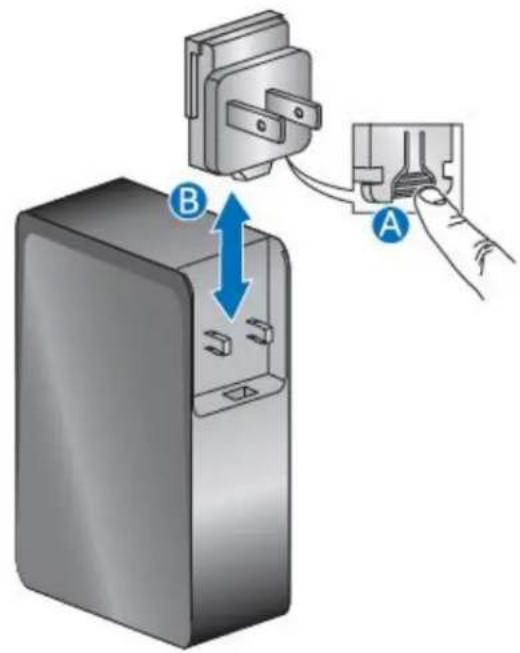

1. Slide the attachment (B) onto the power plug, locking it into place (A).

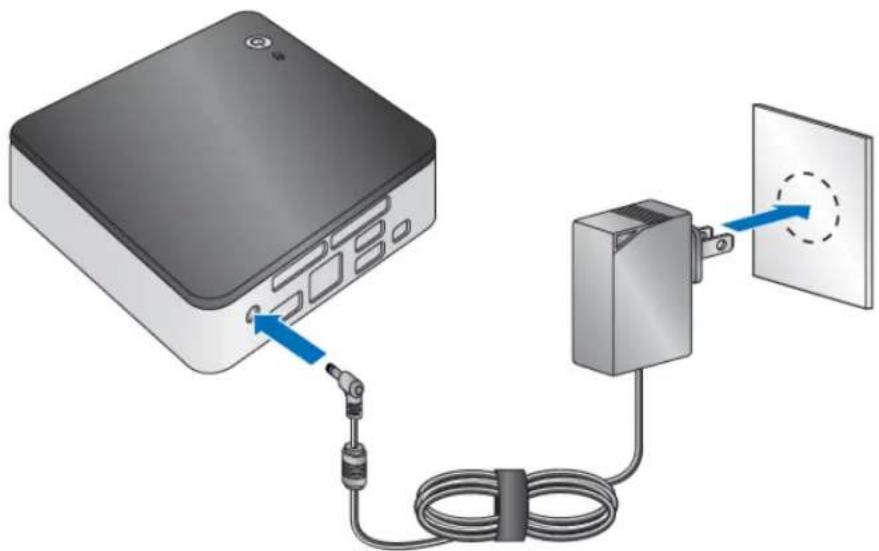

1. Connect AC power.


Diagram showing connection between a device and a power adapter connected to a wall-mounted panel (no text or symbols present)

8.0 Install an Operating System

See Supported Operating Systems for a list of Intel-validated Windows* operating systems.

The Intel Product Compatibility Tool lists versions of Linux* that have been reported as compatible by Intel NUC owners. If you need assistance with Linux on your Intel NUC, check the distribution's website and forums for peer assistance.

Refer to Operating System Installation for system requirements and installation steps.

9.0 Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

• Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers
• Manually download drivers, BIOS, and software from Download Center:
  • NUC6i5SYH

The following device drivers and software are available.

• Intel® Chipset Device Software
• Intel® HD Graphics
• Intel® Management Engine
• Intel® Gigabit Ethernet
• Intel® Wireless
• Intel® Bluetooth
  • Realtek* High Definition Audio
• ITE Tech* Consumer Infrared
• Intel® Rapid Storage Technology
  • Near Field Communication (NFC) GPIO
