NUC5I7RYHR - Desktop computer INTEL - Free user manual and instructions

Product Type	Desktop Computer (Intel NUC Kit)
Model	NUC5I7RYHR
Brand	Intel
Dimensions (typical)	115 x 111 x 48 mm
Weight (typical)	0.6 kg
Power Supply	19 V DC adapter (external)
Processor Support	Intel Core i7 (5th Gen)
Memory Type	DDR3L SO-DIMM (1.35V, 1333/1600 MHz)
Storage Options	M.2 SSD (42/60/80mm) + 2.5" SATA drive
Operating System Support	Windows* and Linux (validated versions)
VESA Mount Compatible	Yes (bracket included)
Connectivity	USB 3.0, HDMI, DisplayPort, Ethernet, Wireless LAN, Bluetooth, NFC
Audio	Integrated audio (driver required)
Cooling	Active fan (internal)
Safety Precautions	ESD protection, avoid sharp pins, watch for hot components
Spare Parts Available	Screws, VESA bracket, memory, SSD, drive
Repairability	User-serviceable: memory, storage, fan; refer to guide
Manual Languages	English (PDF download available)

Frequently Asked Questions - NUC5I7RYHR INTEL

How do I open the Intel NUC5I7RYHR chassis?

Unscrew the four corner screws on the bottom cover and lift the cover off. Refer to the manual for detailed instructions.

What type of memory is supported?

The NUC5I7RYHR supports DDR3L SO-DIMMs at 1.35V, 1333 or 1600 MHz, non-ECC. It has two slots.

How do I install an M.2 SSD?

Remove the screw from the standoff, align the notch, insert the card, and secure with the screw. For 60mm/42mm, move the standoff to the appropriate position.

Can I install a 2.5-inch hard drive?

Yes. Slide the drive into the bay, ensure SATA connectors are seated, then secure with screws and place the bracket back into the chassis.

How do I attach the VESA bracket?

Attach the VESA bracket to the monitor using the small black screws. Then attach two larger screws to the NUC bottom cover and slide it onto the bracket.

Which operating systems are supported?

Intel-validated Windows* versions and Linux distributions reported as compatible by users. See the support site for a list.

How do I install the latest drivers?

Download drivers from Intel's Download Center. Drivers are available for audio, Bluetooth, chipset, graphics, LAN, wireless, NFC, USB 3.0, and more.

What safety precautions should I take?

Always disconnect power, use ESD protection (wrist strap), avoid touching sharp pins or hot components, and refer servicing to qualified personnel if needed.

Can I replace the fan myself?

Yes, the fan is user-serviceable. Follow the manual's instructions to open the chassis and replace the fan.

Where can I find the user manual?

The manual is available for free download in PDF format from the support website. An English version is included with the product.

USER MANUAL NUC5I7RYHR INTEL

The procedures in this user guide assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications link or network before performing any of the procedures described in this guide. Failure to disconnect power, telecommunications links, or networks before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
- Set up a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
- Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors
• Sharp pins on circuit boards
• Rough edges and sharp corners on the chassis
  • Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
  • Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.

Observe Safety and Regulatory Requirements

If you do not follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations.

Intel NUC Kit NUC5i7RYH User Guide

This guide tells you how to:

• Install and remove memory
• Install an M.2 SSD
• Install a 2.5" drive
• Install a VESA mount bracket
• Install an operating system
• Install the latest drivers

Open the Intel NUC Chassis

To open the Intel NUC chassis, follow these steps:

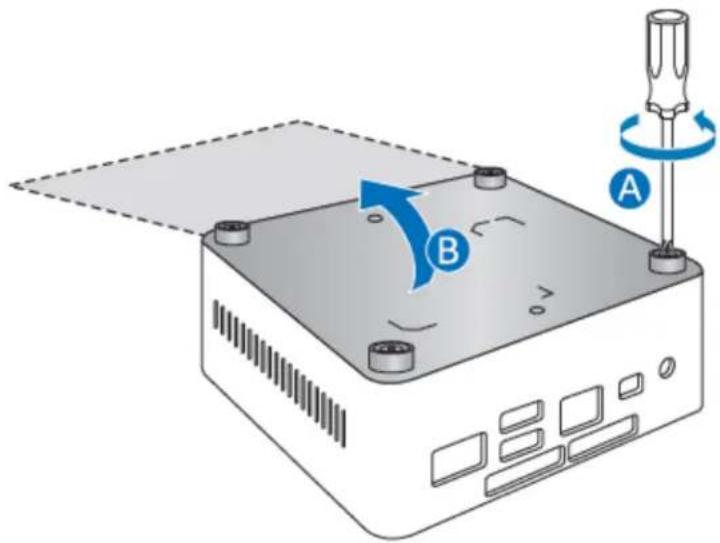

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

Illustration of a computer monitor with labeled components and directional arrows indicating rotation (no text or symbols present)

Installing and Removing Memory

The Intel NUC Kit NUC5i7RYH has two 204-pin DDR3L SO-DIMM sockets. Memory requirements:

• 1.35V low voltage memory
• 1333 MHz or 1600 MHz SO-DIMMs
- Non-ECC

For a list of tested memory, go to the System Memory page on the Support site:

Install SO-DIMMs

If you plan to install just one SO-DIMM, install it in the lower memory socket.

To install the SO-DIMMs, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

Intel NUC Kit NUC5i7RYH User Guide

1. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the AC power cord.

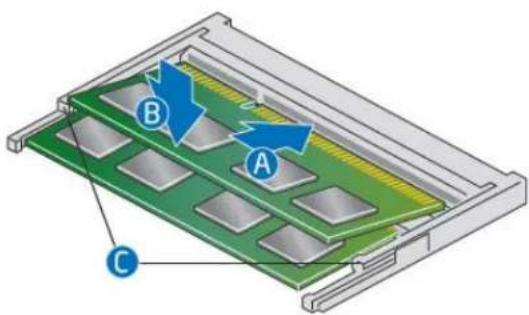

1. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket.

2. Insert the bottom edge of the SO-DIMM into the socket.

3. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM until the retaining clips snap into place. Make sure the clips are firmly in place.

Removing SO-DIMMs

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

3. Remove the AC power cord from the computer.

4. Remove the computer's cover.

5. Gently spread the retaining clips at each end of the SO-DIMM socket. The SO-DIMM pops out of the socket.

6. Hold the SO-DIMM by the edges, lift it away from the socket, and store it in an anti-static package.

7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets.

8. Replace the computer's cover and reconnect the AC power cord.

Install an M.2 SSD

The Intel NUC Kit NUC5i7RYH supports 80mm, 60mm, and 42mm M.2 SSDs. For a list of tested M.2 SSDs, go to the Tested Peripherals page on the Support site.

Observe the precautions in "Before You Begin" on page 2.

If you are installing an 80mm M.2 SSD:

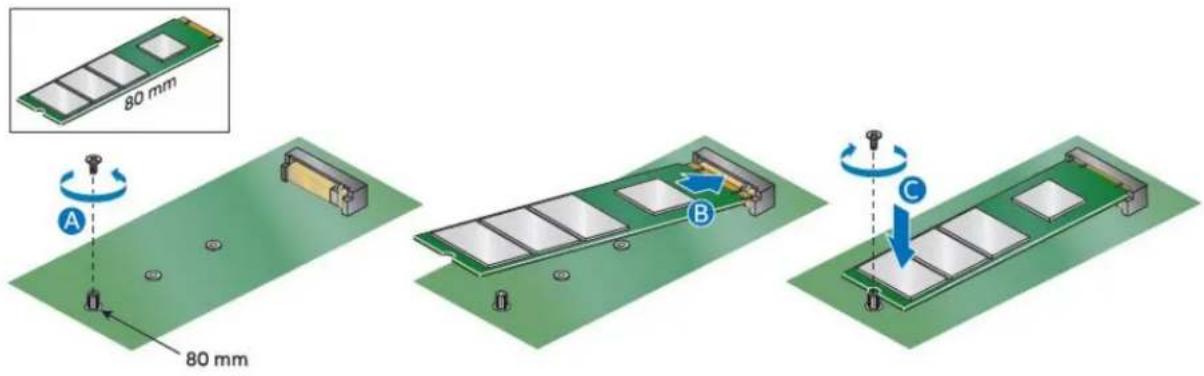

1. Remove the small silver screw from the 80mm metal standoff on the motherboard (A).

2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

Intel NUC Kit NUC5i7RYH User Guide

1. Insert the bottom edge of the M.2 card into the connector (B).

2. Secure the card to the standoff with the small silver screw (C).

If you are installing a 60mm or 42mm M.2 SSD:

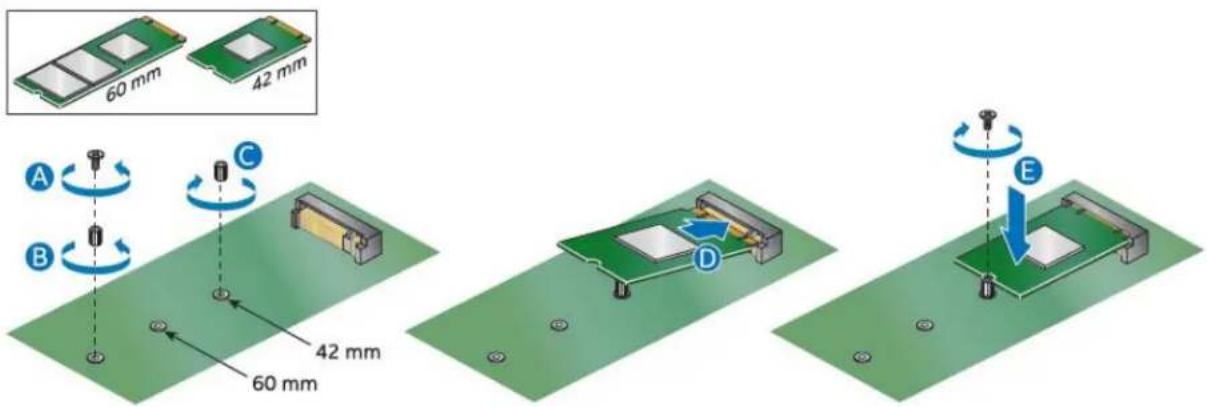

1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Move the standoff (B) from the 80mm position to either the 60mm or 42mm position (C).
3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

4. Insert the bottom edge of the M.2 card into the connector (D).

5. Secure the card to the standoff with the small silver screw (E).

Install a 2.5" SSD or Hard Drive

For a list of tested 2.5" hard drives, go to the Tested Peripherals page on the Support site.

Follow these instructions to install a 2.5" Solid State Drive (SSD) or Hard Disk Drive (HDD):

1. Observe the precautions in "Before You Begin" on page 2.

Intel NUC Kit NUC5i7RYH User Guide

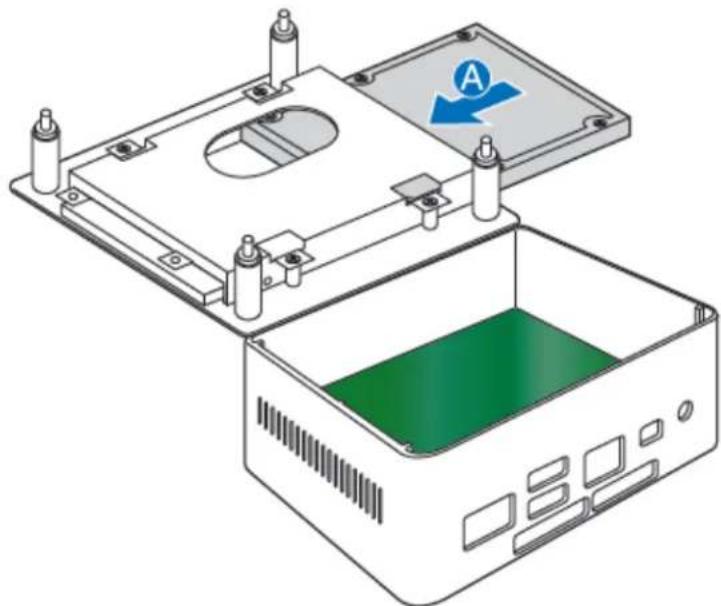

1. Slide the 2.5" drive into the drive bay, ensuring the SATA connectors are fully seated into the connectors of the SATA daughter card (A).

Technical illustration of an open electronic device casing with internal components and a blue arrow indicating direction (no text or symbols present)

1. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).

Diagram of a computer chassis with a green internal component and a blue arrow indicating rotation (no text or symbols)

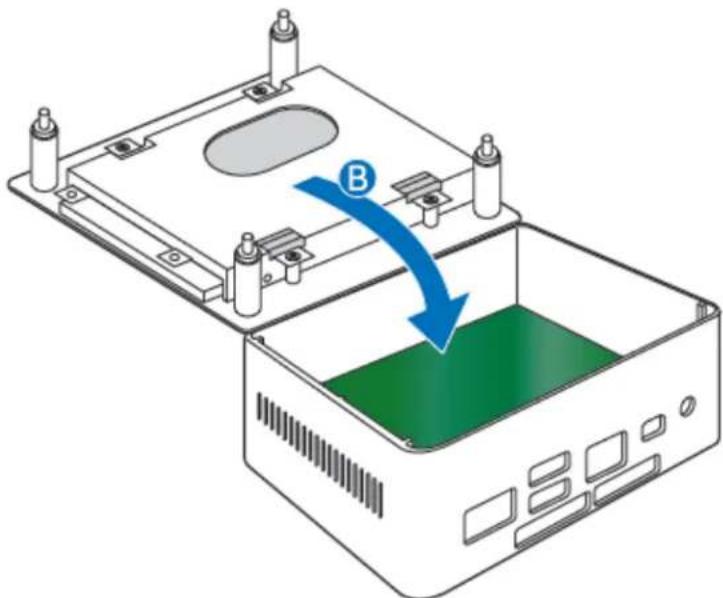

1. Set the drive bay bracket down inside the chassis (C), taking care not to pinch the SATA cables along the edge (D).

Intel NUC Kit NUC5i7RYH User Guide

Close the Chassis

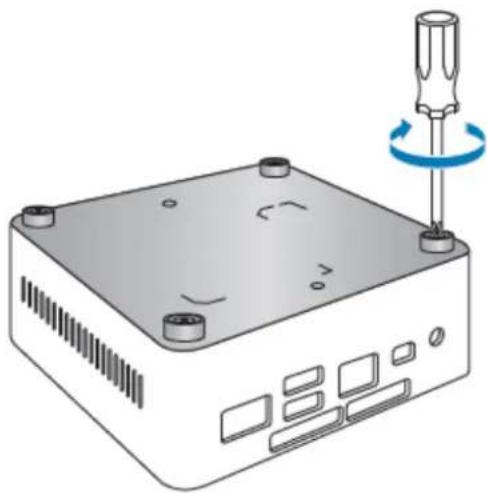

After all components have been installed, close the Intel NUC chassis.

Illustration of a computer monitor with screwdriver and ventilation slots (no text or symbols)

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

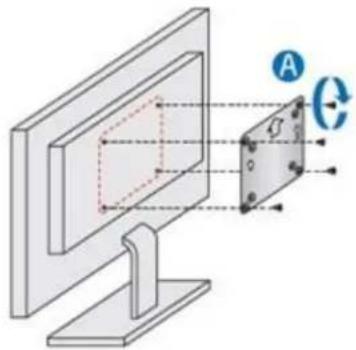

1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV.

Diagram of a device with screwdriver and labeled component B, showing mechanical assembly (no text or symbols beyond labels)

Intel NUC Kit NUC5i7RYH User Guide

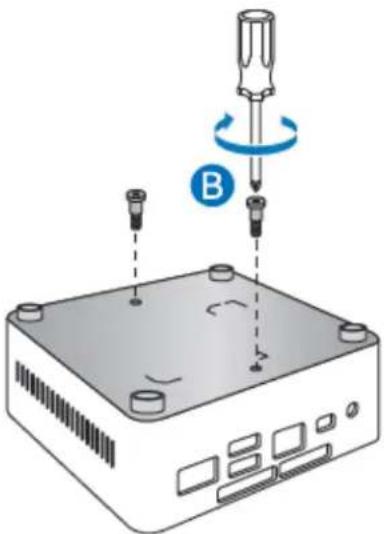

1. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

Diagram of a computer monitor with an inset showing a rectangular panel and a circular button labeled A (no text or symbols present)

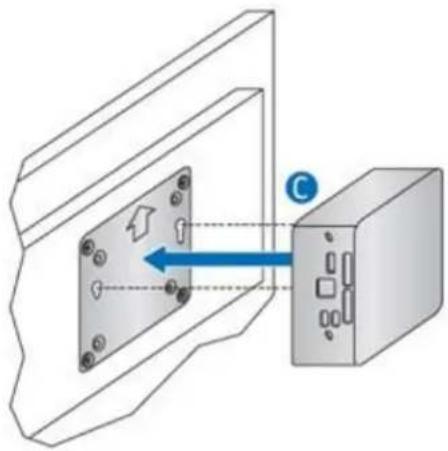

1. Slide the Intel NUC onto the VESA mount bracket.

Diagram showing a device with an open panel and a connected box, no text or symbols present

Install an Operating System

Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well as versions of Linux that have been reported as compatible by Intel NUC owners.

Refer to Operating System Installation for system requirements and installation steps.

Install Intel NUC Drivers

To download the latest Microsoft* Windows* drivers and BIOS updates, go to Download Center:

Drivers are available for the following features:

• Audio
• Bluetooth
• Chipset
• Consumer Infrared
• Graphics
• Intel® ME
• Intel® Rapid Storage Technology
• Intel® Ready Mode Technology
  • LAN (wired and wireless)
• NFC
• USB 3.0
