Product Type	Guitar Distortion Pedal
Brand	Harley Benton
Model	Crunch Distortion
Dimensions	Approx. 70 x 120 x 55 mm
Weight	Approx. 300 g
Power Supply	9V DC (center negative) or 9V battery
Current Draw	Approx. 10 mA
Input Impedance	1 MΩ
Output Impedance	100 Ω
Controls	Level, Tone, Distortion (each with rotary knob)
LED Indicator	Power/Effect status LED
Input/Output Jacks	1/4" mono instrument jacks
True Bypass	Yes, mechanical relay switching
Housing Material	Aluminum die-cast
Maintenance	Clean with dry cloth; avoid moisture
Safety	Use only recommended power supply; avoid extreme temperatures
Spare Parts / Repairability	Contact Harley Benton support; authorized service centers
Includes	Pedal, user manual, sticker
Warranty	Standard 2-year warranty

Frequently Asked Questions - Crunch Distortion Harley Benton

How do I power the Harley Benton Crunch Distortion pedal?

You can power it using a 9V battery or a standard 9V DC adapter with center negative polarity. The current draw is approximately 10 mA.

What do the controls on the Crunch Distortion do?

The pedal has three knobs: Level controls output volume, Tone adjusts treble/bass balance, and Distortion sets the amount of gain.

Is the Crunch Distortion true bypass?

Yes, it features true bypass switching using a mechanical relay, ensuring no signal degradation when the effect is off.

Can I use the Crunch Distortion with bass guitar?

While designed for electric guitar, it can work with bass. However, it may cut some low frequencies; for best results use a bass-specific pedal.

Why is my pedal not turning on?

Check the battery or power supply connection. Ensure the power adapter is 9V DC center negative. If using a battery, make sure it is fresh and correctly inserted.

How do I clean and maintain the pedal?

Wipe the housing with a dry, soft cloth. Avoid moisture and solvents. Keep the jacks clean and free of dust.

What is the input/output impedance of the Crunch Distortion?

Input impedance is 1 MΩ, output impedance is 100 Ω, making it suitable for standard guitar setups.

The pedal sounds noisy. What can I do?

Check your cables and power supply. Use a dedicated isolated power supply. Ensure the tone control is not set too high, as high frequencies can emphasize noise.

Can I daisy-chain this pedal with others?

Yes, but ensure the power supply can handle the total current draw. For best performance, use an isolated power supply to avoid ground loop noise.

Where can I find replacement parts or repair service?

Contact Harley Benton customer support or an authorized service center. Spare parts like knobs or jacks may be available through their website.

USER MANUAL Crunch Distortion Harley Benton

1 General notes.... 4
2 Safety instructions.... 6
3 Instructions for use.... 9
4 Components and functions.... 10
5 Technical specifications.... 13
6 Protecting the environment.... 14

Crunch Distortion

th·mann MUSIC IS OUR PASSION

1 General notes

This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner.

Our products are subject to a process of continuous development. We therefore reserve the right to make changes without notice.

Symbols and signal words

This section provides an overview of the symbols and signal words used in this user manual.

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided.

Warning signs Type of danger

Warning - danger zone.

Crunch Distortion

th·mann MUSIC IS OUR PASSION

2 Safety instructions

Intended use

This device is intended to be used for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety.

Safety

DANGER!

Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

NOTICE!

Operating conditions

This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations.

Crunch Distortion

th·mann MUSIC IS OUR PASSION

NOTICE!

Risk of fire due to incorrect polarity

Incorrectly inserted batteries may destroy the device or the batteries.

Ensure that proper polarity is observed when inserting batteries.

NOTICE!

Possible damage by leaking batteries

Leaking batteries can cause permanent damage to the device.

Take batteries out of the device if it is not going to be used for a longer period.

3 Instructions for use

Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

Handle the device with care.

Do not try to disassemble or repair the device yourself in the unlikely event that it does not work.

Do not use solvents such as alcohol to clean the device.

Crunch Distortion

th·mann MUSIC IS OUR PASSION

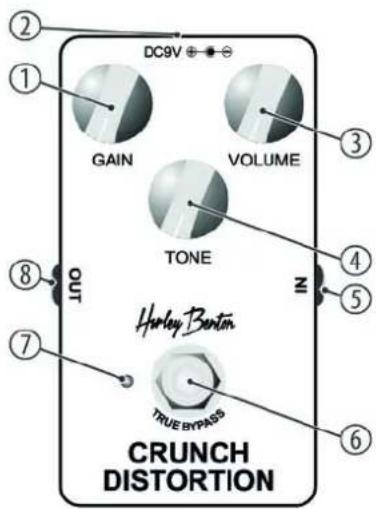

4 Components and functions

1 GAIN

Turn the input gain control clockwise to increase the degree of distortion.

2 DC 9V

Connection for the external power supply with 9 V DC. When an external power supply is used, the battery supply is cut off automatically.

3 VOLUME

Turn this control clockwise to increase the volume.

4 TONE

Tone control.

5 IN

1/4" standard instrument cable input.

6 TRUE BYPASS

Foot switch for enabling or disabling the pedal function.

7 This LED lights when the effect pedal is used. When the LED is off or dim while the effect pedal is used, the battery is exhausted and must be replaced.

8 OUT

Output jack. Using a standard 14 -inch instrument cable you can plug in another pedal from this jack or plug into your amplifier.

Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards.

Power supply

You can either use a 9 V battery or the DC 9 V connection for an external power supply. Before connecting, check for correct polarity.

When you do not use the pedal unplug the instrument cable from the input jack. Otherwise, the battery will be discharged.

Crunch Distortion

th·mann MUSIC IS OUR PASSION

Changing the battery

To insert or change the battery, disconnect a possibly used power adapter from the mains socket. Turn the pedal over, press lightly on the battery compartment cover and slide it downwards in the direction of the arrow. Remove the back cover. Insert/replace the 9 V DC battery paying attention to the polarity markings and place the cover again into its original position until it locks.

5 Technical specifications

Input impedance	500 kΩ
Output impedance	10 kΩ
Current draw 8 mA
Operating voltage supply 9 V battery (6F22)	9 V power adaptor, inner contact = negative pole48 V phantom power
Dimensions (L × W × H) 120 mm × 72 mm × 55 mm
Weight 290 g

Crunch Distortion

6 Protecting the environment

Disposal of the packaging material

For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.

Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. Please follow the notes and markings on the packaging.

Disposal of batteries

Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the batteries according to national or local regulations regarding hazardous waste. To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites.

Disposal of your old device

This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste.

Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.

Crunch Distortion

th·mann MUSIC IS OUR PASSION

Notes

th·mann MUSIC IS OUR PASSION

effects pedal

Notes

Crunch Distortion

th·mann MUSIC IS OUR PASSION

Notes

th·mann MUSIC IS OUR PASSION

effects pedal
